Understanding Compiler Effects on Clone Detection Process

Lerina Aversano

1 a

, Mario Luca Bernardi

1 b

, Marta Cimitile

2 c

Martina Iammarino

1 d

and Debora Montano

3 e

University of Sannio, Department of Engineering, Benevento, Italy

Unitelma Sapienza University, Rome, Italy

Universitas Mercatorum, Rome, Italy

Keywords:

Software Maintainability, Software Quality Metrics, Clones Detection, Decompiled Source-Code.

Abstract:

Copying and pasting code snippets, with or without intent, is a very common activity in software develop-

ment. These have both positive and negative aspects because they save time, but cause an increase in costs for

software maintenance. However, often the copied code changes due to bug ﬁxes or refactorings, which could

affect clone detection. In this regard, this study aims to investigate whether the transformations performed

by the compiler on the code can determine the appearance of a set of previously undetectable clones. The

proposed approach involves the extraction of software quality metrics on both decompiled and source code

to bring to light any differences due to the presence of undetectable clones on the source code. Experiments

were conducted on ﬁve open-source Java software systems. The results show that indeed compiler optimiza-

tions lead to the appearance of a set of previously undetected clones, which can be called logical clones. This

phenomenon in Java appears to be marginal as it amounts to 5% more clones than normal, therefore a statis-

tically negligible result in small projects, but in the future, it would be interesting to extend the study to other

programming languages to evaluate any different cases.

1 INTRODUCTION

Software systems are constantly evolving over time,

so these changes lead to the vulnerability of their ar-

chitecture, which can be subject to numerous design

problems that need to be managed. Among these

are clones, i.e. sequences of instructions duplicated

in several points of the same source code ﬁle, or in

different ﬁles (Rattan et al., 2013). Several studies

show that about 5-20% of a software system may con-

tain duplicate code, so in recent years, the detection

of clones in software systems has become a popular

topic of study among researchers, because their pres-

ence in the source code can be considered detrimental

to the quality of the system. In this regard, the idea

that it is of fundamental importance to be aware of the

presence of clones is increasingly widespread, in or-

https://orcid.org/0000-0003-2436-6835

https://orcid.org/0000-0002-3223-7032

https://orcid.org/0000-0003-2403-8313

https://orcid.org/0000-0001-8025-733X

https://orcid.org/0000-0002-5598-0822

der to improve the refactoring and maintenance of the

source code. Over time, several techniques and tools

for detecting clones have been developed, which can

be classiﬁed according to the input they receive, the

representation, and the algorithms they use (Nadim

et al., 2022). Broadly speaking these techniques are

classiﬁed as text-based, token-based, metric-based,

Abstract Syntax Tree (AST), Program Dependency

Graph (PDG)-based, and hybrid as shown (Saini

et al., 2018). Among the most widely used tools are

NICAD

, a scalable, ﬂexible, and easy-to-use clone

detection tool that can be easily incorporated into

IDEs and other environments (Cordy and Roy, 2011).

The objective of this study is to understand if the

transformations performed by the compiler could de-

termine the appearance of a set of clones not previ-

ously detectable with the tools available. Some exam-

ples of typical optimizations performed by compilers

can control ﬂow reordering, inlining of constants and

routines, precalculation of ﬁxed expressions, and loop

unrolling. Traditionally, as far as the Java language

https://www.txl.ca

Aversano, L., Bernardi, M., Cimitile, M., Iammarino, M. and Montano, D.

Understanding Compiler Effects on Clone Detection Process.

DOI: 10.5220/0012080100003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 345-352

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

345

is concerned, most optimizations are done by the JIT

compiler, at runtime, but unlike some suggest javac

also has a role in optimizing the code. However, there

are no tools for ﬁnding clones that work at the byte-

code level nor would they have particular relevance,

since the results would have to be compared with the

source code. Therefore, we have used an open-source

decompiler tool to convert the object ﬁles into text

code in order to be able to detect clones in a manner

comparable to the source code. The rest of the doc-

ument is structured as follows: Section 2 reports the

studies related to our study, and in Section 3 we de-

tail the approach used. Section 4 describes the results

obtained and ﬁnally, Section 5 reports the conclusions

and future work.

2 RELATED WORKS

Given the prevalence of clones in the source code

of software systems, their detection and management

have become hotly debated topics in software engi-

neering, as well as smells (Aversano et al., 2020a;

Aversano et al., 2020b). The search for duplicate code

allows a lot of information about the software system.

Applications include software licensing issues (Ger-

man et al., 2009), source code provenance (Davies

et al., 2013; Aversano et al., 2008), and software pla-

giarism detection (Prechelt et al., 2002). There are

several tools for source code and binary code clone

detection. The Longest Common Subsequence (LCS)

found in NiCad (Cordy and Roy, 2011) is one of many

used techniques based on string comparison meth-

ods. Several technologies convert source code into

an intermediate form, such as tokens, and perform

similarity analysis on the, e.g. SourcererCC (Saj-

nani et al., 2016), or CCFinder (Kamiya et al., 2002).

Using tokens can be thought of as a code normal-

ization that improves the similarity measurement of

two code snippets by changing their representation.

Another form of normalization can be decompilation,

which converts a program from a low-level language

to a high-level language. To date, numerous studies

have focused on detection before and after decompi-

lation. By converting Java and C/C++ code to assem-

bler code and using the longest common subsequence

string match along with an upward search for ﬂexi-

ble matching, (Davis and Godfrey, 2010) can identify

clones. Simian and CCFinderX are improved by (Se-

lim et al., 2010) by converting Java code into Jimple

code and ﬁnding clones at that level. Their approach

makes it easier for tools to ﬁnd type 3 clones and deal

with gap clones. (Ragkhitwetsagul and Krinke, 2017)

discovered that the decompiled clones are shorter and

clearer than the original code. Their method offers the

chance to examine and compare clones before and af-

ter decompilation, which offers several insightful ob-

servations.

3 APPROACH

Figure 1 shows the general architecture of the pro-

posed approach, which consists of three main phases.

The ﬁrst phase involves the extraction from the Maven

repository of the open-source software systems con-

sidered for analysis. For each of these, both the JARs

of the releases and the source code have been down-

loaded. These are used as input for the second phase,

in which respectively the release jars, are decompiled

using the QUILTFLOWER tool which outputs the de-

compiled Java code, and the source code is manipu-

lated for the extraction of clones and quality metrics

through the NICAD and CK tools. After processing,

the source and decompiled codebase clones are output

in XML and CSV format and parsed to extract the re-

sults. By nature, the approach used can be generalized

to any codebase in a relatively simple way, as the en-

tire process has been automated through scripts writ-

ten in C#. In the following paragraphs the selected

open-source systems, the detection and matching of

the clones, and ﬁnally the extraction of the quality

metrics will be better detailed.

3.1 Open Source Software Systems

To conduct the experiments, ﬁve Java open-source

software systems available on the Maven Central

Repository were selected, having at least ﬁve stable

versions. Table 1 shows the system name in the ﬁrst

column, the number of releases in the second, and

the speciﬁc releases considered in the third. For each

system, instead of considering the entire codebase of

each project, it was decided to use only the common

parts between the source and the binaries. It would

not make sense to include artifacts related to, for ex-

ample, test cases in the comparison as these are not

present in the release JAR ﬁles.

3.2 Decompilation

Once obtained, the executables are decompiled us-

ing Quiltﬂower, a modern Java decompiler focused

on improving the quality, speed, and usability of the

code. QuiltFlower

is an open-source project avail-

able on GitHub. It is a fork of Fernﬂower and Forge-

https://github.com/QuiltMC/quiltﬂower

ICSOFT 2023 - 18th International Conference on Software Technologies

346

Figure 1: Architecture of the Proposed Approach.

Table 1: Open-source Software systems considered.

Name #Release #Considered Release

atlanmod/commons 7 1.0.2, 1.0.3, 1.0.4, 1.0.5, 1.0.6, 1.1.0, 1.1.1

commons-dbutils 7 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7

Java-WebSocket 13 1.3.0, 1.3.4, 1.3.5, 1.3.6, 1.3.7, 1.3.8, 1.3.9, 1.4.0, 1.4.1, 1.5.0, 1.5.1, 1.5.2, 1.5.3

log4j-core 20

2.11.1, 2.11.2, 2.12.0, 2.12.1, 2.12.2, 2.12.3, 2.12.4, 2.13.0, 2.13.1, 2.13.2, 2.13.3, 2.14.0,

2.14.1, 2.15.0, 2.16.0, 2.17.0, 2.17.1, 2.17.2, 2.18.0, 2.19.0

org.jfree.fxgraphics2d 5 2.0, 2.1, 2.1.1, 2.1.2, 2.1.3

ﬂower and changes include new language features,

better control ﬂow generation, more conﬁgurability,

multithreading, and optimization.

3.3 Clones Detection

The purpose of this study is to ﬁnd out if there are

logical clones, a term used to refer to clones that

are not immediately visible in the source, but appear

when the compiler optimizes the code by simplify-

ing its structure and potentially rearranging the state-

ments. This type of comparison must be done on

blind-type clones, as the decompiled code no longer

has the names of the variables and constants, mak-

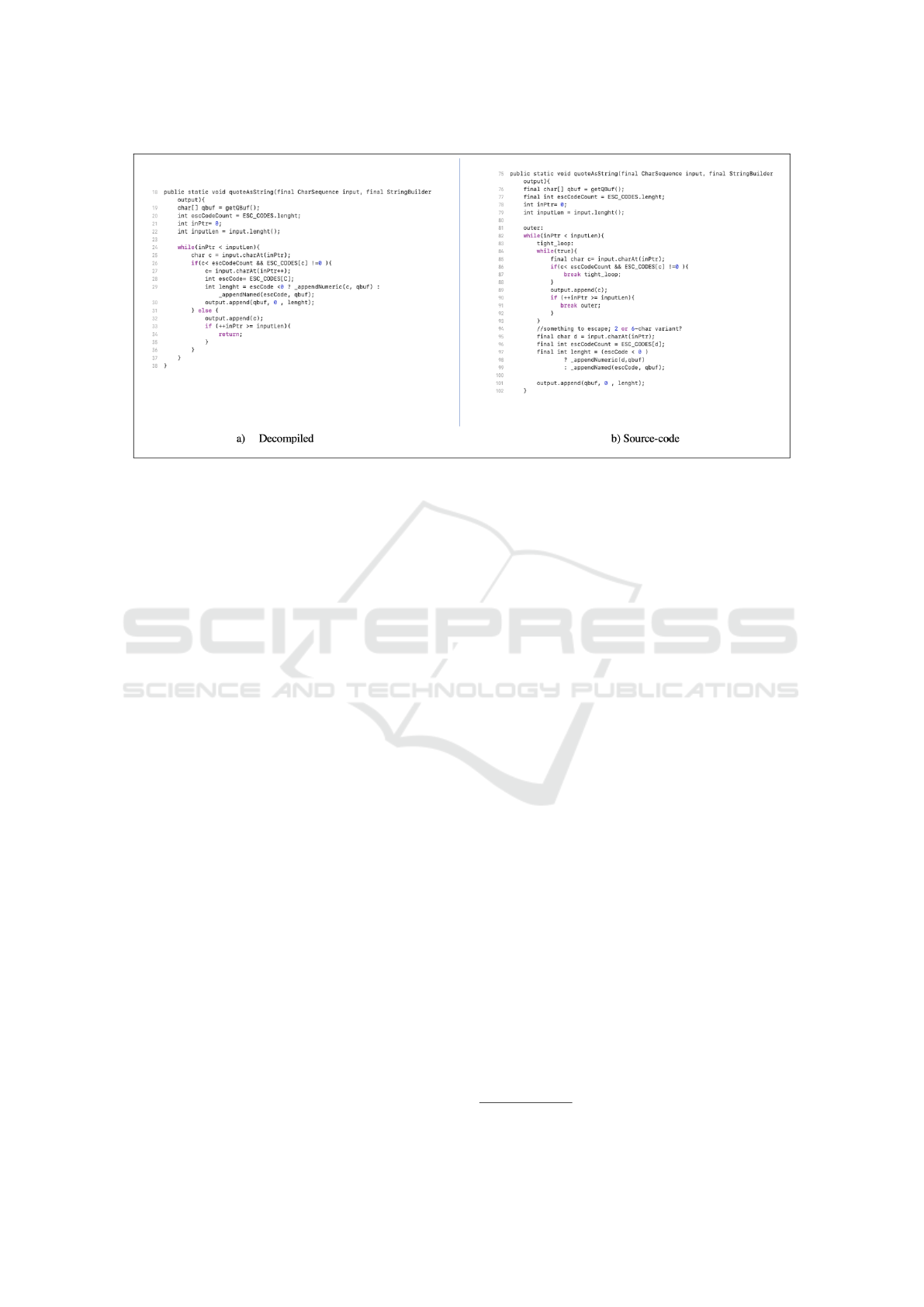

ing a simple text comparison useless. As can be seen

from the example shown in Figure 2, the optimized

code can be signiﬁcantly different. In this example

from Log4j-core, the compiler has removed an inter-

nal loop simplifying the control ﬂow.

Therefore, the NICAD tool, a TXL-based hybrid

language-aware text-comparison software clone de-

tection system, was ﬁrst used to perform the clone

detection. In input, it requires one or more source

directories to check for clones and a conﬁguration ﬁle

that speciﬁes the normalization and ﬁltering to be per-

formed and provides the output results in both XML

format for easy parsing and HTML format for conve-

nient navigation. It allows parsing of a variety of lan-

guages, including C, Java, Python, and C#, and pro-

vides a range of normalizations, ﬁlters, and abstrac-

tions. It is designed to be easily extensible using a

component-based plug-in architecture. Speciﬁcally,

version 6.2 was used, with the type3-2 conﬁguration,

which compares functions in blind format, i.e. with-

out identiﬁers (types, functions, and variables). The

output of NICAD has foreseen: an XML ﬁle contain-

ing the single functions extracted from the codebase,

identiﬁed by ﬁle and starting and ending line (i); an

XML ﬁle containing the single functions in blind for-

mat, in the same way as the previous one, identiﬁed by

initial and ﬁnal ﬁles and lines (ii); a summary XML

ﬁle containing the list of functions that have clones.

These features are grouped into clone classes: all fea-

tures within the same group are clones or have a high

similarity coefﬁcient. Once the analysis results are

obtained, the classes of homologous clones between

the source and the decompiled are compared to verify

if clones have appeared that were not present in the

analysis of the source.

3.4 Clones Matching

Given a class of similarity in the source, it is difﬁcult

to ﬁnd the decompile equivalent reliably. The process

of identifying the functions is not straightforward as

in the blind results neither the name nor the line num-

bers can be relied on as they are different between the

source and the decompiled. To solve this problem it

is necessary to cross-reference the ﬁles generated by

NICAD taking into account both the blind versions

and the versions with identiﬁers. One must then com-

pute a data structure that maps the ﬁlename and tuple

Understanding Compiler Effects on Clone Detection Process

347

Figure 2: Comparison example of the same function extracted from Log4j-core.

(start line, end line) of a function in the source to the

ﬁle and tuple (start line, end line) of the decompiled

and vice versa. In this regard, the steps of the ap-

proach can be summarized as follows:

• The XML ﬁles containing the non-blind functions

of the source and the decompiled are parsed, us-

ing XPath3 and RegEx4. Each function is iden-

tiﬁed by the ﬁle path and its complete signature

(to discriminate against any overloads), creating a

data structure that takes the name of NicadFunc-

tionsKey and represents the key of a HashMap

whose value is the tuple (initial row, ﬁnal row)

called NicadFunctionsValue.

• The NicadFunctionsKey in common between the

two data structures loaded into memory are then

found. The result is a list of MatchedFunctions

containing the NicadFunctionsKey and the Nicad-

FunctionsValue of the source and the decompiled.

• The blind-clones-classes XML ﬁles are parsed in-

side two NicadCloneClass lists, one for the source

and one for the decompiled (cloning classes).

• The homologous IDs of the clone classes are cal-

culated by ﬁnding which ones contain the same

functions from both sides. More speciﬁcally,

when new clone classes appear in the decompile

that didn’t exist in the source, they are discarded.

• For each pair of NicadCloneClass (Source, De-

compiled) identiﬁed, its content is compared

3.5 Software Quality Metrics

Extraction

To verify the internal quality of the software systems

considered, the source code extracted for each of them

was subjected to analysis for the extraction of qual-

ity metrics (Iammarino et al., 2019; Ardimento et al.,

2021). They provide an evaluation of the long-term

maintainability of the various characteristics of the

system (Li et al., 2015; Alves et al., 2016). Specif-

ically, code cohesion, complexity, size, and coupling

are evaluated using the metrics previously speciﬁed

by Chidaber and Kemerer (Chidamber and Kemerer,

1994). Speciﬁcally, the quality indicators were ex-

tracted with the CK tool, a static code analysis tool,

available on GitHub, which allows you to calculate

class and method level metrics in Java projects with-

out the need for compiled code. Precisely, the quality

indicators were extracted with the CK

tool, a static

code analysis tool, available on GitHub, which al-

lows you to calculate class and method-level metrics

in Java projects without the need for compiled code.

Therefore, Table 2 shows the extracted metrics, re-

porting the name in the ﬁrst column and a brief de-

scription in the second.

4 RESULTS

Following a quantitative analysis, analyzing the evo-

lution of the source code metrics between the different

releases, it emerged that the metrics that tend to grow

https://github.com/mauricioaniche/ck

ICSOFT 2023 - 18th International Conference on Software Technologies

348

Table 2: Software Quality Metrics.

Name Description

Response For a Class (RFC)

Indicator of the ’volume’ of interaction between classes.

Depth of Inheritance Tree (DIT)

Maximum distance of a node (a class) from the root of the tree representing the hereditary structure.

Weight Method Count per Class(WMC)

Weighted sum of the methods of a class.

Lack of Cohesion of Methods(LCOM)

The cohesion of a method expresses the property of a method to exclusively access attributes of the class.

Coupling Between Objects (CBO)

Number of collaborations of a class, that is,the number of other classes to which it is coupled

Number of unique words Count of unique words.

Non-Commented, non-empty Lines of Code Number of lines of code, except of blank lines.

Number of static invocation Total number of invocations throught static methods

Number of methods

Total amount of of methods: static, public, abstract, private, protected, predeﬁned, ﬁnal, and synchronized.

Number of ﬁelds

Number of set of ﬁelds: static, public, private, protected, default, ﬁnal, and synchronized.

Usage of each ﬁeld Calculate the usage of each ﬁeld in each method.

Usage of each variable Calculate the usage of each variable in each method.

Comparisons Total of comparisons (e.g. == or !=).

Returns Count of return statements.

Try/catches Total of try and catches.

Loops Amount of loops (for, while, do while, generalized for).

Variables Numerical index of variables declared.

Number Quantity of numbers (i.e. int, long, double, ﬂoat).

Math Operations

Count of mathematical operations.

Parenthesized expressions Count of expressions in parentheses.

Anonymous classes,

subclasses and lambda expressions

Number of anonymous declarations of classes or subclasses.

String literals

Amount of string literals (e.g. ”John Doe”). Strings that are repeated are counted as many times as they appear.

Modiﬁers

Number of public / abstract / private / protected / native modiﬁers of classes / methods.

Max nested blocks The highest number of blocks nested together.

the most in value between the releases are LCOM,

LOC, and Unique Words Quantity, except when in-

terventions are made maintenance or refactoring. To

a lesser extent in projects, as far as methods are con-

cerned, modiﬁers also tend to grow, as one would ex-

pect as the size of the codebases increases. The ex-

ception is Java-WebSocket, where modiﬁers decrease

over time, especially between releases 1.3.4 and 1.3.5.

As for CBO, DIT, RFC, TCC, LCC, and NOSI, they

generally tend not to change much between releases

on average. However, it is possible to notice a mini-

mal increase for Log4j, a fact that can indicate how

Log4j is a fairly well-managed project, as it has a

high number of of releases, but these metrics have in-

creased slightly between them.

Furthermore, comparing the results obtained on

the source code and those obtained on the decompiled

it emerged that some metrics are always different

between the various projects. Speciﬁcally, the max

Nested Blocks Quantity metric indicates that there are

no nested blocks in the decompiled source code be-

cause the control ﬂow was changed by the compiler.

The Numbers Quantity metric indicates that the sym-

bolic constants are absent in the decompiled data be-

cause they are replaced by the literals by the compiler.

Again, the Return Quantity and LOC metrics indicate

a decrease in return statements and lines of code as

a result of the compiler sorting and optimizing the

statements. Finally, other syntax-dependent factors

such as Parenthesized Expression Quantity are not

taken into consideration because the compiler may

remove parentheses inserted by programmers to aid

readability. Optimizations of a compiler are limited

to changes not visible from the outside. These can

be the elision of local variables, restructuring of con-

trol ﬂow, or in extreme cases elimination of private

methods. The compiler cannot rearrange the class hi-

erarchy or the order and number of method calls, so,

as would be expected, these metrics are equal within

a margin of error.

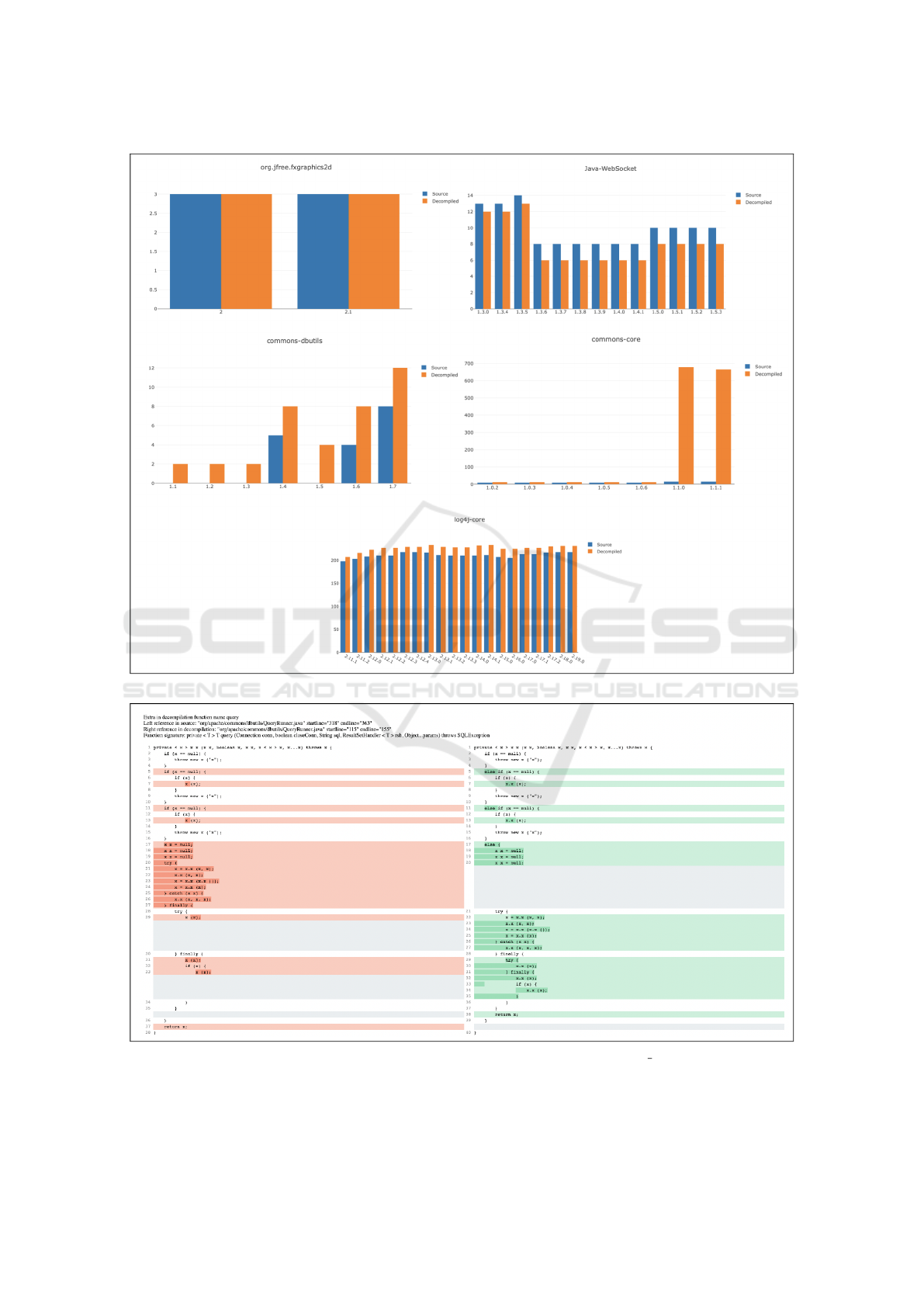

Figure 3 shows the comparison of the presence of

the clones in the source code, shown with the blue

bars, and the decompiled one represented by the or-

ange bars. For each system considered in the analy-

sis, the respective graph is shown, which shows the

number of clones on the ordinate axis and the various

releases considered on the abscissa axis. The results

show that in general there was an increase in the ab-

solute number of clones between the source and the

decompiled. This effect is particularly noticeable in

larger projects. Furthermore, by analyzing the results

produced on a sample basis, it is observed that most

of the new clones mainly consist of changes to the

control ﬂow or the member access syntax, for exam-

ple through the use of the keyword this. It is there-

fore observed that NICAD does not correctly handle

the aliasing of names, not detecting potential clones

where the only difference is how a given variable,

method, or class name.

A speciﬁc example is shown in Figure 4, where

the source code is shown on the left, and the same

code is subjected to decompilation on the right. Re-

garding the variations of the control ﬂow instead, we

observe the reordering of some blocks and the in-

troduction of keywords not previously present, this

does not change the meaning of the code but raises

a possible discussion: the Java compiler is not par-

ticularly aggressive and these differences could even

just depend on the interpretation of the bytecode and

therefore be an artifact of the source reconstruction

process. Thus, the process of compiling and subse-

quently decompiling could be viewed conceptually as

a preprocessing step to normalize the code by remov-

ing this variability, as a result, most of these clones

could be detectable using a better preprocessing algo-

rithm in NICAD.

Understanding Compiler Effects on Clone Detection Process

349

Figure 3: The presence of the clones compared on the source code and the decompiled.

Figure 4: Difference between source (left) and decompiled (right) related to commons dbutils release 1.4.

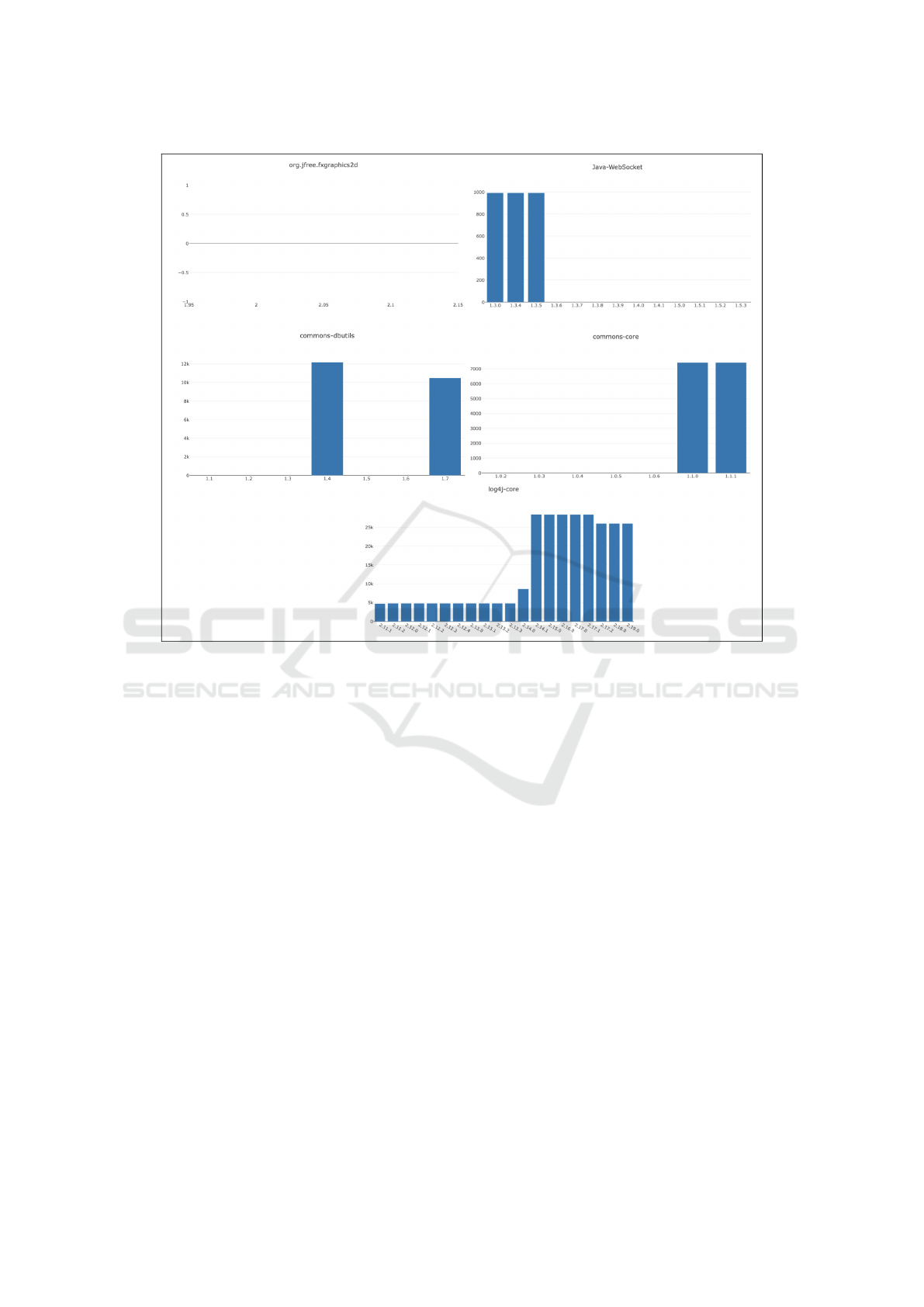

Finally, the graphs of the measure of the differ-

ences found between the clones in the source code

and the decompiled are shown in Figure 5. Specif-

ically, the relative graph is shown for each system,

ICSOFT 2023 - 18th International Conference on Software Technologies

350

Figure 5: Trend of the differences in the presence of clones in the considered systems.

reporting the number of clones on the y-axis and the

releases considered on the x-axis. The graphs show

certain points in time where the value of the differ-

ence changes signiﬁcantly. The clones present on

both sides have been ignored, consequently, a change

to this extent implies that, with the same clones, there

are more variations compared to the previous version.

Since the number of clones remains more or less un-

changed at some point in the history of the project,

something was changed causing this effect. The case

of org.jfree.fxgraphics2d is special because it shows

that the difference is always 0. In JavaWebSocket in

the ﬁrst three releases the same difference is detected

and then cancels out in the following ones, on the con-

trary for Commons-core the difference at ﬁrst zero,

grows in the penultimate release to remain stable. In

log4j this difference is mostly stable, then increases.

The particular case is that of commons-dbutils

which shows that at one point there is a high vari-

ation in the 1.4 release, then disappearing in subse-

quent releases and ﬁnally returning in the current re-

lease, 1.7. This behavior is believed to be due to

the version and/or options of the JDK. To validate

this hypothesis, the GIT history of the projects where

the phenomenon occurs was analyzed. There was a

correlation between changes to the POM ﬁle and the

observed results. In different commits between dif-

ferent versions, the properties relating to the target

and source javac version, JDK version, Maven ver-

sion, and Maven Java compiler plugin parameters are

changed, so it was not possible to identify a single

determining factor. To give a satisfactory explanation

to these observations, further data or experiments are

needed by modifying only the properties in question.

5 CONCLUSIONS

Finding clones, exact or identical pieces of code,

within or between software systems is the goal of

clone detection. This study proposes an approach to

compare the presence of clones in source code and

decompiled code. Decompilation can be considered

a code normalization technique because it includes

some syntactic changes made to the Java source code.

In ﬁve open-source software systems, we in-

vestigate decompilation as a preprocessing step for

clone identiﬁcation. The results show that indeed

compiler optimizations lead to the appearance of

Understanding Compiler Effects on Clone Detection Process

351

many previously undetected clones, which have been

termed ”logical clones”. This phenomenon in Java

is marginal as it amounts to 5% more clones than in

regular Java, statistically negligible in small projects.

Furthermore, the trend of software quality metrics in

the presence of clones was also studied and it emerged

that some metrics differ between the various projects.

Among the problems encountered, it should be

considered that for the detection of clones, the textual

output of the decompiler is compared, and this poses

a problem as the results will be different based on the

chosen decompiler and the conﬁguration and version

of the decompiler itself. An example of this effect

is the presence of the dot operator for name resolu-

tion: the decompiler always imports the class using

the keyword import while some projects prefer to use

the dot operator. This created ambiguity and made it

impossible to match some methods, but at the same

time, it allowed to detection of clones that NICAD

does not consider as such because it does not differen-

tiate between the method/property access point opera-

tor and the access point operator a class in a package.

A deeper analysis should consider different decompil-

ers or work directly at the bytecode level of the JVM

to detect repeating instruction patterns. It should be

noted that at the moment there are no mature tools ca-

pable of working on Java bytecode at this level. A

possible development could be the extension of the

project to other languages. At present, NICAD sup-

ports C, C#, and Python in addition to Java. However,

the CK tool only supports Java.

REFERENCES

Alves, N. S., Mendes, T. S., de Mendonc¸a, M. G., Sp

ınola,

R. O., Shull, F., and Seaman, C. (2016). Identiﬁca-

tion and management of technical debt: A systematic

mapping study. Information and Software Technology,

70:100–121.

Ardimento, P., Aversano, L., Bernardi, M. L., Cimitile, M.,

and Iammarino, M. (2021). Temporal convolutional

networks for just-in-time design smells prediction us-

ing ﬁne-grained software metrics. Neurocomputing,

463:454–471.

Aversano, L., Bernardi, M. L., Cimitile, M., Iammarino, M.,

and Romanyuk, K. (2020a). Investigating on the rela-

tionships between design smells removals and refac-

torings. In International Conference on Software and

Data Technologies.

Aversano, L., Carpenito, U., and Iammarino, M. (2020b).

An empirical study on the evolution of design smells.

Inf., 11:348.

Aversano, L., Cerulo, L., and Palumbo, C. (2008). Mining

candidate web services from legacy code. page 37 –

40.

Chidamber, S. R. and Kemerer, C. F. (1994). A metrics

suite for object oriented design. IEEE Transactions

on Software Engineering, 20(6):476–493.

Cordy, J. R. and Roy, C. K. (2011). The nicad clone detec-

tor. In 2011 IEEE 19th International Conference on

Program Comprehension, pages 219–220. IEEE.

Davies, J., German, D. M., Godfrey, M. W., and Hindle,

A. (2013). Software bertillonage: Determining the

provenance of software development artifacts. Em-

pirical Software Engineering, 18:1195–1237.

Davis, I. J. and Godfrey, M. W. (2010). From whence it

came: Detecting source code clones by analyzing as-

sembler. In 2010 17th Working Conference on Reverse

Engineering, pages 242–246. IEEE.

German, D. M., Di Penta, M., Gueheneuc, Y.-G., and An-

toniol, G. (2009). Code siblings: Technical and legal

implications of copying code between applications. In

2009 6th IEEE International Working Conference on

Mining Software Repositories, pages 81–90. IEEE.

Iammarino, M., Zampetti, F., Aversano, L., and Di Penta,

M. (2019). Self-admitted technical debt removal and

refactoring actions: Co-occurrence or more? page 186

– 190.

Kamiya, T., Kusumoto, S., and Inoue, K. (2002). Ccﬁnder:

A multilinguistic token-based code clone detection

system for large scale source code. IEEE transactions

on software engineering, 28(7):654–670.

Li, Z., Avgeriou, P., and Liang, P. (2015). A systematic

mapping study on technical debt and its management.

Journal of Systems and Software, 101:193–220.

Nadim, M., Mondal, M., Roy, C. K., and Schneider, K. A.

(2022). Evaluating the performance of clone detection

tools in detecting cloned co-change candidates. Jour-

nal of Systems and Software, 187:111229.

Prechelt, L., Malpohl, G., Philippsen, M., et al. (2002).

Finding plagiarisms among a set of programs with

jplag. J. Univers. Comput. Sci., 8(11):1016.

Ragkhitwetsagul, C. and Krinke, J. (2017). Using compi-

lation/decompilation to enhance clone detection. In

2017 IEEE 11th International Workshop on Software

Clones (IWSC), pages 1–7. IEEE.

Rattan, D., Bhatia, R., and Singh, M. (2013). Software

clone detection: A systematic review. Information and

Software Technology, 55(7):1165–1199.

Saini, N., Singh, S., and Suman (2018). Code clones: De-

tection and management. Procedia Computer Science,

132:718–727. International Conference on Computa-

tional Intelligence and Data Science.

Sajnani, H., Saini, V., Svajlenko, J., Roy, C. K., and Lopes,

C. V. (2016). Sourcerercc: Scaling code clone detec-

tion to big-code. In Proceedings of the 38th Inter-

national Conference on Software Engineering, pages

1157–1168.

Selim, G. M., Foo, K. C., and Zou, Y. (2010). Enhancing

source-based clone detection using intermediate rep-

resentation. In 2010 17th working conference on re-

verse engineering, pages 227–236. IEEE.

ICSOFT 2023 - 18th International Conference on Software Technologies

352
