Goal-Modeling Privacy-by-Design Patterns for Supporting GDPR

Compliance

Mohammed Ghazi Al-Obeidallah

, Luca Piras

, Onyinye Iloanugo

, Haralambos Mouratidis

Duaa Alkubaisy

and Daniele Dellagiacoma

Department of Software Engineering, Al Ain University, Abu Dhabi, U.A.E.

School of Computing, Middlesex University, London, U. K.

School of Computing, Robert Gordon University, Aberdeen, U. K.

Institute for Analytics and Data Science, University of Essex, Colchester, U. K.

College of Applied Studies and Community Service, Imam Abdulrahman Bin Faisal University, Dammam, Saudi Arabia

Centre for Secure, Intelligent and Usable Systems, University of Brighton, Brighton, U. K.

daalkubaisy@iau.edu.sa, D.Dellagiacoma@brighton.ac.uk

Keywords: Requirements Modeling, Requirements Engineering, Privacy-by-Design, Goal Modeling, GDPR, Design

Patterns.

Abstract: The introduction of the European General Data Protection Regulation (GDPR) has imposed obligations on

organisations collecting data in the EU. This has been beneficial to citizens due to rights reinforcement

achieved as data subjects. However, obligations heavily affected organisations, and their privacy requirements

analysts, having issues with interpreting and implementing GDPR principles. This paper proposes visual

GDPR Patterns supporting analysts through Privacy-by- Design (PbD) and GDPR compliance analysis. In

order to achieve that, we extended a requirements modeling tool, SecTro, which is used to assist analysts in

creating visual requirements models. Specifically, we extended SecTro with novel visual GDPR patterns

representing GDPR principles. We evaluated the patterns in a healthcare case study. The evaluation results

suggest that the GDPR patterns can help analysts in PbD modeling analysis, by representing GDPR principles

and considering relevant ready-to-use alternatives, towards achieving GDPR compliance.

1 INTRODUCTION

Data protection regulations are rising, and businesses

are facing problems to determine whether their data

processing operations are legal, especially in an

international setting. Data has become a significant

asset in recent years, and it has even been dubbed the

“Currency of the future” (Voigt & Von dem Bussche,

2017).

Non-GDPR-compliant organisations can be

affected with a fine of a maximum amount of 20

million euros, or 4 percent of the total annual

worldwide turnover (Voigt & Von dem Bussche,

2017). Organisations need to exercise extreme

caution while implementing their data protection

procedures to meet the new GDPR principles.

https://orcid.org/0000-0003-4976-1380

https://orcid.org/0000-0002-7530-4119

https://orcid.org/0000-0002-2599-0712

This paper tries to answer the research question:

RQ1. How to support privacy requirements analyst to

perform Privacy-by-Design (PbD) analysis through

representation and fulfilment of GDPR Principles,

towards GDPR compliance? During workshops and

the final evaluation of DEFeND in the premises of

four pilots (Piras et al., 2019), participants have

considered several useful methods to support them in

PbD activities through modeling. However, even

though finding such methods supportive, the most

challenging aspect has been the identification of

privacy and security mechanisms for fulfilling GDPR

principles.

This paper focuses on designing privacy patterns

on the top of a goal-modeling tool called SecTro

Al-Obeidallah, M., Piras, L., Iloanugo, O., Mouratidis, H., Alkubaisy, D. and Dellagiacoma, D.

Goal-Modeling Privacy-by-Design Patterns for Supporting GDPR Compliance.

DOI: 10.5220/0012080700003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 361-368

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

361

(Mouratidis & Giorgini, 2007), (Pavlidis et al., 2012),

(Pavlidis et al., 2017).

The proposed extended SecTro can be used to

assist an organisation in being GDPR compliant. The

extended version of SecTro provides the analyst with

a set of patterns as models, for GDPR principles,

which can be used by the analyst for performing PbD

modelling, and checking current compliance of the

modeled system with GDPR principles.

Each pattern we designed represents concepts and

alternatives for fulfilling one of the GDPR principles.

SecTro enables security analysts in creating diagrams

that are needed to discover, model, and analyse

security and privacy aspects. Thanks to the GDPR

Privacy patterns we designed on top of SecTro, the

extended SecTro assists analysts in the early and late

requirements and architectural design stages of

modeling activities by supporting them in the

production of relevant concepts and models required

during the new (GDPR compliance) modeling

activities.

The rest of this paper is organized as follows:

Section 2 presents the paper baseline and our

designed patterns. Section 3 illustrates our case study

and evaluation. Section 4 presents the related work,

and Section 5 concludes the paper.

2 BASELINE AND PATTERNS

DESIGN

This section illustrates the paper baseline, the

DEFeND project, and SecTro tool. We also indicate

the design of our GDPR patterns, developed on top of

SecTro.

2.1 DEFeND Project

GDPR introduced regulations to address the problem

of citizen data protection, due to lack of control over

management and privacy issue of citizen data. These

regulations have posed challenges and difficulties for

organisations, which have led to pay heavy fines for

not being GDPR compliant. DEFeND provided tools

and methods that can be reused to support and guide

organisations in achieving GDPR compliance (Piras

et al., 2019).

DEFeND platform reviewed tools and prototypes

from the industry and the literature and discovered

that while there are many tools and prototypes that

can help organisations comply with specific/isolated

GDPR requirements, there was no comprehensive

platform that could help organisations comply with

all of the GDPR requirements.

2.2 SecTro Tool

It is already agreed, by the industry and relevant

research communities, that security should be

considered from the early phases of the development

process. SecTro is an automated tool offering well-

established security requirements method (Pavlidis et

al., 2012). SecTro tool guides and supports analysts

in the building of appropriate models (Piras et al.,

2020). Moreover, SecTro supports the designers

during the security modelling activities and assists

them in producing the output based on these activities

(Pavlidis et al., 2011).

Secure Tropos is an extension of Tropos

methodology that takes security into account

(Mouratidis & Giorgini, 2007). Secure Tropos

considers the basic Tropos concepts such as

dependency, goal, task, resource, and capability and

adds security concepts, such as security constraint,

secure goal, secure plan, secure resource, and secure

capability. The SecTro tool was developed to support

the Secure Tropos modeling activities for the creation

of the visual models and to assist the designers with

the automation of some aspects of the methodology.

The main functionalities of the SecTro tool are to

support the security modelling activities of Secure

Tropos. Therefore, the tool enables the designer to

perform security reference modelling, security

constraint modelling, secure entities modelling, and

secure capability-modelling activities (Pavlidis et al.,

2011).

2.3 Principles and Design of GDPR

Patterns

EDPB (European Data Protection Board) guidelines

provide general guidance on the GDPR Data

Protection by Design and by Default mandate,

requiring the implementation of data protection

principles and data subjects’ rights and freedoms by

design and by default (Bincoletto, 2020).

However, the EDPB guidelines are still high-level

and abstract. According to our research on DEFeND

EU Project (Piras et al., 2019), pilots (from different

important sectors such as banking, healthcare, energy

and public administration) found such guidelines are

not enough to be used in systematic and

comprehensive model supported PbD analysis (Piras

et al., 2020). Consequently, this paper started from

that structure and, realised on the literature and on the

ICSOFT 2023 - 18th International Conference on Software Technologies

362

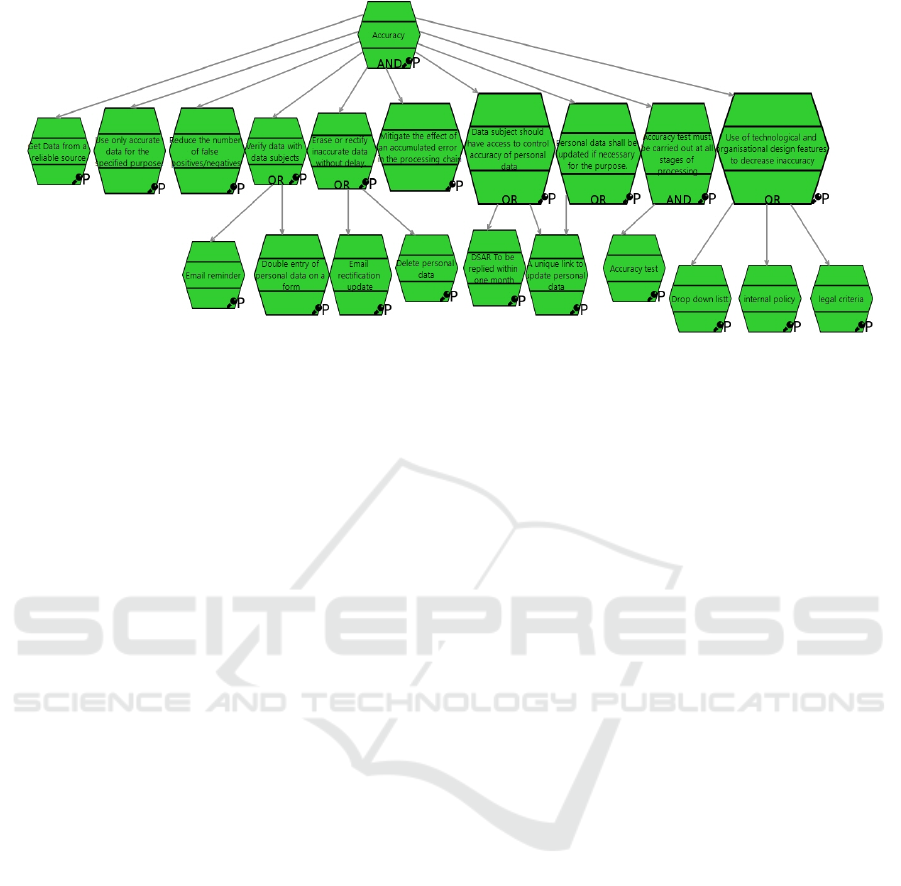

Figure 1: The Pattern of the Accuracy GDPR Principle modeled using SecTro.

best practices from the industry. The new proposed

GDPR patterns have been adopted based on our

collaboration with the DEFeND pilots (including

companies and university privacy/security experts).

The baseline elements of our proposed patterns are

abstract representing the EDPB guidelines, and

further levels can be achieved by extending the

abstract layers to more concrete elements.

In the following sub sections, we present our

proposed GDPR patterns. These patterns represented

as models are provided by SecTro tool. The models

aim at supporting the requirements analyst, during

PbD modelling analysis, to represent the GDPR

principles, and offering ready-to-use concepts, such

as privacy and security mechanisms for fulfilling

GDPR principles. Due to lack of space, we present

the first two patterns, and then, we just summarise the

other GDPR principles in one Section.

2.3.1 Accuracy

According to the EDPB guidelines, “Personal data

shall be accurate and kept up-to-date, and every

reasonable step must be taken to ensure that personal

data that is inaccurate, having regard to the purposes

for which they are processed, are erased or rectified

without delay” (Bincoletto, 2020). Other elements of

the GDPR, such as data subjects’ rights to

rectification and erasure of their personal data,

support this notion. This gives the data subject the

right to have inaccurate personal data corrected and

incomplete personal data completed (Finck & Pallas,

2020). The “right to be forgotten” gives Data Subjects

the right to ask that their information be destroyed

(Finck & Pallas, 2020).

The key aspects included in our new proposed

design pattern implementing the GDPR Accuracy

principle are presented in in Figure 1. These aspects

can be summarized as follows:

 The data controller must ensure that data is

gotten from a reliable source.

 The controller should verify the accuracy of

personal data at various stages of the

processing, depending on the nature of data and

how frequently it may change.

 Inaccurate data must be erased or corrected as

soon as possible by the controller.

 The impact of an accumulated error in the

processing chain must be mitigated by

controllers.

 Data subjects should have an overview of their

personal data and simple access to it so that

they can check for accuracy and correct it as

needed. Individuals must also be allowed to

make a DSAR (Data subject access request)

and “to exercise that right easily and at

acceptable intervals”, according to the

controller. This may demand a review of

customer-facing processes and procedures, as

well as additional staff training, to ensure

compliance with the Regulation’s data access

and portability requirements.

 Accuracy testing should be performed at key

points to ensure all personal data are correct.

2.3.2 Data Minimization

According to the EDPB guidelines, “Only personal

data that is adequate, relevant and limited to what is

necessary for the purpose shall be processed”

(Bincoletto, 2020).

Data minimization as the name implies requires

that data collection is minimized to only the purpose

it is intended for. This involves the controller

Goal-Modeling Privacy-by-Design Patterns for Supporting GDPR Compliance

363

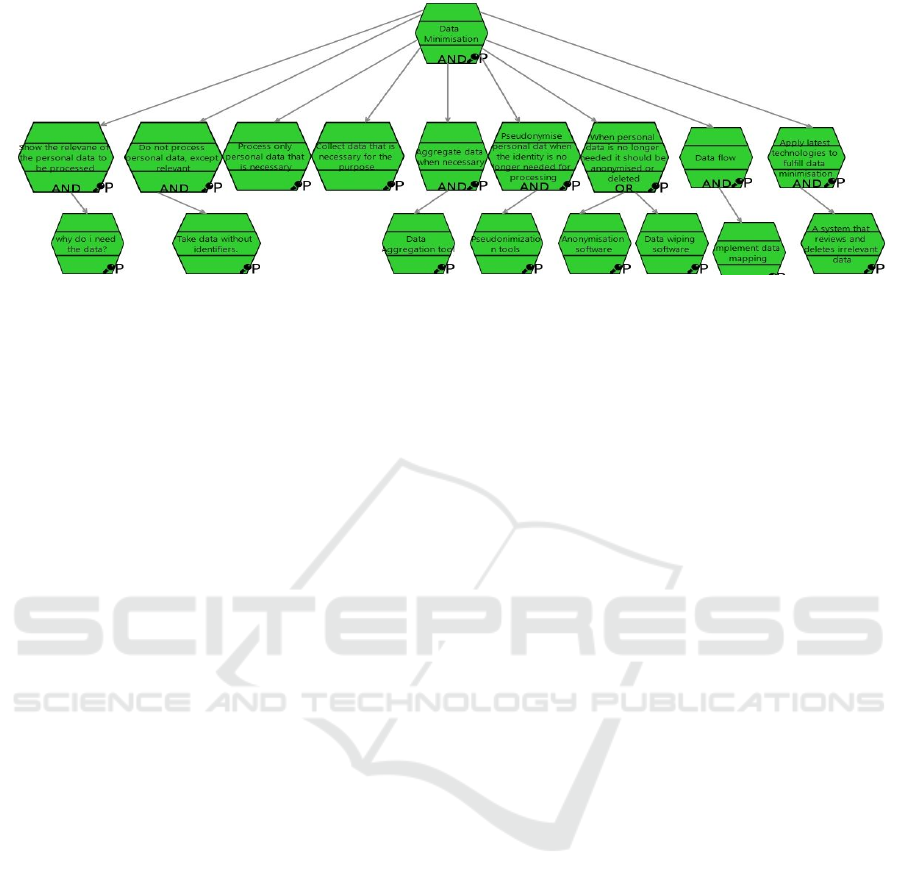

Figure 2: The pattern of the Data Minimisation GDPR Principle modeled using SecTro.

avoiding personal data processing where possible

except when necessary, demonstrating the relevance

of the personal data processed. Avoid creating more

copies of personal data by having an efficient data

flow. Figure 2 shows our proposed pattern for the data

minimisation principle implemented on the top of

SecTro tool as mechanisms entities.

Some of the key aspects included in our new

proposed design pattern implementing the data

minimisation principle are:

 Aggregate personal data when possible. Data

aggregation technologies integrate data from

numerous sources into a single location to gain

new insights and uncover new linkages and

patterns. Ideally, without losing track of the

source data and its history.

 Pseudonymize personal data when the

identifier is no longer needed, and store the

identification key separately.

 When personal data is no longer needed, it

should be anonymised or deleted.

 The data flow must be efficient enough that no

additional copies or entry points for data

collecting are required. This can be facilitated

by data mapping.

 Finally, the controller should implement the

criteria of “State of the art” which requires

controllers to keep up with technological

advancements to ensure that data minimisation

principles are implemented effectively in the

future (Bincoletto, 2020).

2.3.3 Other GDPR Principles

Other GDPR principles must be considered during the

modelling process, such as integrity and

confidentiality, transparency, lawfulness, fairness,

and storage limitation. The security attributes of

confidentiality, integrity, and availability are

included in the security principle, which increase data

processing resilience. To reinforce principles and

allow individuals to exercise their rights in a seamless

manner, personal data security must both prevent data

breach occurrences and promote the appropriate

execution of data processing duties, independent of

individuals (Bincoletto, 2020). The controller must be

transparent and upfront with the data subject about

how they will collect, use, and share personal data.

Transparency makes easier for data subjects to

understand and, if necessary, exercise their rights

(Bincoletto, 2020).

The controller must identify a valid legal basis for

the processing of personal data. Measures and

safeguards put in place to support the concept of

lawfulness should also support the requirement that

the entire processing life cycle is compliant with the

appropriate legal grounds for processing (Bincoletto,

2020).

Fairness is a broad principle that states that

personal data should not be processed in a way that is

harmful, discriminating, surprising, or misleading to

the data subject. Measures and safeguards that

implement the idea of fairness protect data rights and

freedoms (Bincoletto, 2020).

Personal data must be maintained in a form that

allows data subjects to be identified for no longer than

is required for the purposes for which they are

processed, according to the controller. The controller

must understand exactly what personal data the

organisation processes and why (Bincoletto, 2020).

2.4 SecTro Extension

Our proposed GDPR patterns were integrated as

models on the top of SecTro tool. More specifically,

we enriched the currently supported library of SecTro

with our privacy and security patterns as models.

Hence, the analyst can use our patterns via the library

and integrate them with the PbD analysis, and other

views of SecTro. For example, the patterns of Figures

ICSOFT 2023 - 18th International Conference on Software Technologies

364

1 and 2 can be added into the privacy by design view

of SecTro to model the GDPR principles. The analyst

can drag and drop the required model (green bold in

the Figure). Each addressed GDPR principle has its

own model in the library. The privacy by design view

of SecTro presented in Section 3 shows an example

about how the model will appear after using our

proposed patterns.

3 CASE STUDY AND

EVALUATION

The functionality of the extended SecTro tool,

alongside with the models created by using our

GDPR patterns, will be demonstrated using a real

case scenario from the DEFeND Project (Piras et al.,

2020). The preliminary case study was originally

conducted by (Maguire, 2001) and (Wohlin et al.,

2012). We considered the complete case study

performed within the EU DEFeND Project (Piras et

al., 2019) related to healthcare, and we repeated it by

using the extended SecTro tool, this time by using our

new proposed GDPR patterns. We compared the

resulting mechanisms offered by the GDPR patterns,

we designed, compared to the mechanisms identified

within the DEFeND case study for fulfilling GDPR

principles (e.g., accuracy, integrity and

confidentiality, etc.). Accordingly, we performed

quantitative and qualitative analysis: quantitative by

identifying per principle how many mechanisms have

been identified in the DEFeND case study before and

after the use of our proposed GDPR patterns, and

qualitative on the basis of the overall solution and

concepts provided by each model fulfilling a

principle.

In the next paragraph, we briefly introduce the

scenario and the case study adopted from DEFeND

project (Piras et al., 2019). The scenario can be

summarized as follows: a healthcare facility, with an

electronic record, aims to improve its GDPR

compliance. The healthcare facility collects and

manages the patient medical record, and obtains

supervisory approval for any modifications made to

it. These modifications can be adding new medical

results or records as well as defining data retention

periods (Piras et al., 2019). Ensuring that only

accurate medical data is collected, while limiting

personal data collection to the purpose it was intended

for. Data from the hospital should not be stolen or

compromised, for example, in the case of possible

threats and data breaches. As a result, the hospital

must analyse, create, and implement a monitoring

system for those possible issues (Piras et al., 2019).

Some of the relevant aspects to consider: the Hospital

collects data about the patients; the Hospital staff

access data to add and update medical records (unless

authorised by default). Only staff assigned to a patient

can view and edit medical record at the time of

appointment.

The application of the previous scenario using the

extended version of SecTro which supports our new

proposed GDPR patterns can be summarized in two

phases. In the first phase, the organisational analysis

is performed. During this phase, the structure of the

organization will be defined by identifying the key

scenario concepts, such as actors, departments,

divisions, third parties, involved during data

processing activities. Fig 3 presents the organisational

view of our case study modeled using SecTro tool.

The scenario has been represented using numerous

goals, and each goal has been assigned to a related

requirement. For example, we have modeled some

aspects, such as the Doctor must obtain patient

medical results from an employee, and such

information must be kept discreetly and handled with

integrity. This task must remain anonymous while

the doctor performs a patient examination or updates

the patient’s medical records. On the other hand, a

Supervisor who should create an account must

validate the data. Any changes made by the doctor to

the patient’s medical records must be performed

under GDPR principles (Alkubaisy et al., 2021). In

the first phase, we identify the organisational

elements for representing the dynamics between

actors. Most of GDPR principles will be modeled in

the second phase, where the analyst is supported by

our GDPR patterns.

In the second phase, the Privacy-by-Design

Analysis supported with GDPR Patterns is

performed. Based on the organisational concepts and

dynamics modeled during the organisational view, it

is possible to perform the PbD design analysis by

using our GDPR patterns as shown in Fig. 4. We

identified for each activity of an actor, the GDPR

principles that should be satisfied. These principles

are modeled, in SecTro, as privacy requirements and

are supported by using our ready-to-use GDPR

patterns. For example, the doctor updates patients’

medical records in the hospital system which requires

various GDPR principles, including the Accuracy,

Integrity and Confidentiality principles, as shown in

Figure 4. In fact, personal data that is inaccurate may

jeopardise data subjects’ rights and freedoms.

Table 1 below shows a comparison between the

number of mechanisms identified in the DEFeND

Case Study before and after the application of our

Goal-Modeling Privacy-by-Design Patterns for Supporting GDPR Compliance

365

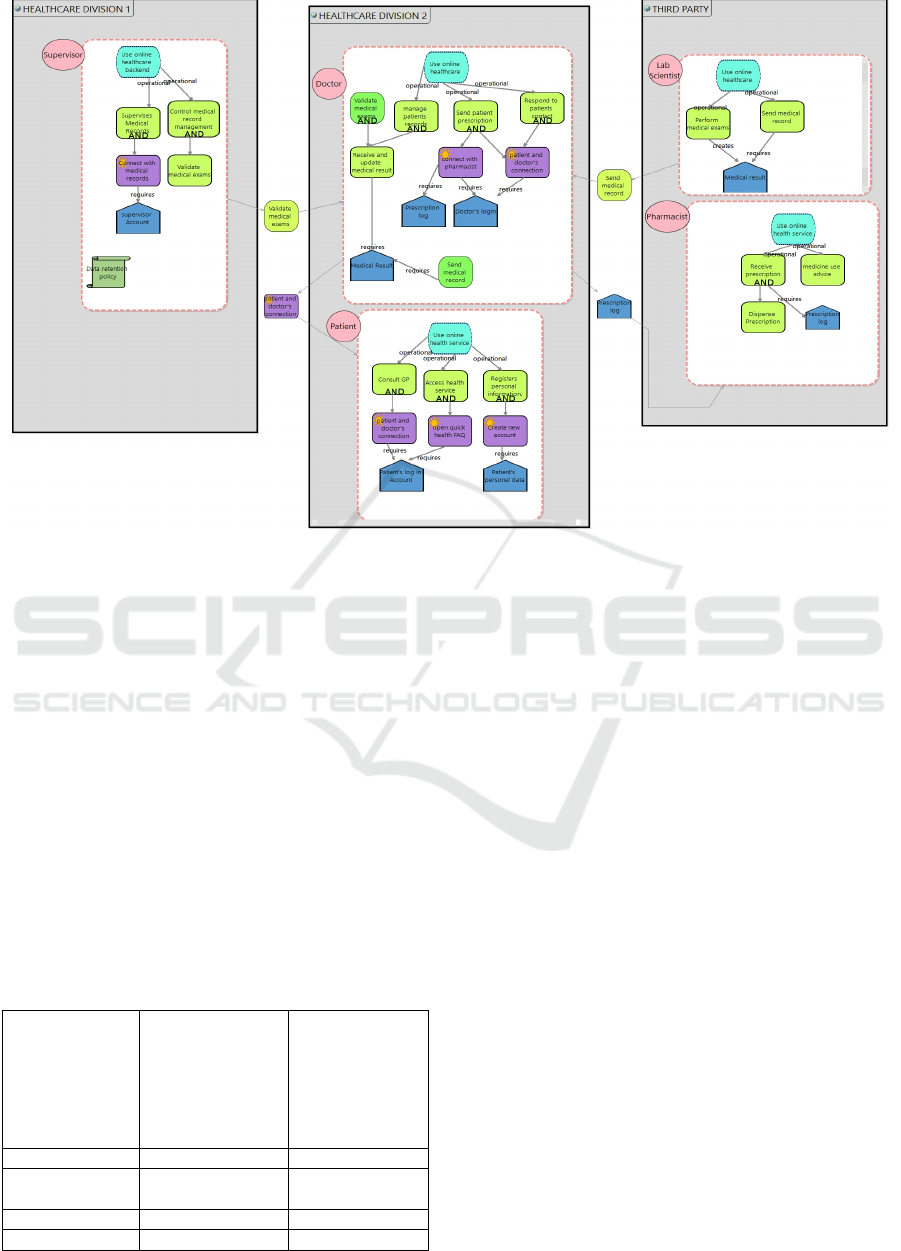

Figure 3: The Case Study Modeled using the Organisational View of SecTro.

proposed GDPR patterns. As Table 1 illustrates, more

mechanism were identified after the application of

our GDPR patterns. The new proposed GDPR

patterns presented in this paper helped in identifying

more mechanisms and potential alternatives, per

GDPR principle, than the ones of the original

DEFeND case study. This is particularly evident in

relation to Integrity and Confidentiality, and

Transparency principles. Concerning Accuracy

principle (Table 1), the advantage is slightly less

important, but still valuable. Regarding the

Accountability principle, the original DEFeND case

study identified three mechanisms. After the

application of our GDPR patterns, Zero mechanism

identified.

Table 1: GDPR Mechanisms Comparison between

DEFeND Case Study and this one.

GDPR Principle Number of

mechanisms in the

DEFeND case

study before the

application of our

GDPR patterns

Number of

mechanisms in

the DEFeND

case study after

the application

of our GDPR

atterns

Accurac

0 4

Integrity and

Confidentiality

2 33

Transparenc

0 12

Accountability 3 0

This is because we have not developed an

Accountability GDPR pattern. Moreover, based on

Table 1, and on our qualitative observations on the

overall models produced by SecTro, in particular the

one of Fig. 4 with the GDPR patterns, we noticed that

the subject case study helped the analyst in PbD

modeling analysis, by representing GDPR principles

and considering relevant ready-to-use alternatives,

towards achieving GDPR compliance. The extended

version of SecTro provides the analyst with a set of

patterns as models, for GDPR principles, which can

be used by the analyst for performing PbD modelling,

and checking current compliance of the modelled

system with GDPR principles.

Our study has different limitations, which will be

handled in our future work. For example, we only

considered the principles indicated in Table 1, and in

our future work we will take into account more

principles. We will also involve more participants and

actors in the case study. Moreover, we will consider

other different scenarios from other fields.

4 RELATED WORK

VICINITY is an IoT platform that addresses IoT

security and privacy challenges to provide a

comprehensive and reliable solution. VICINITY

ICSOFT 2023 - 18th International Conference on Software Technologies

366

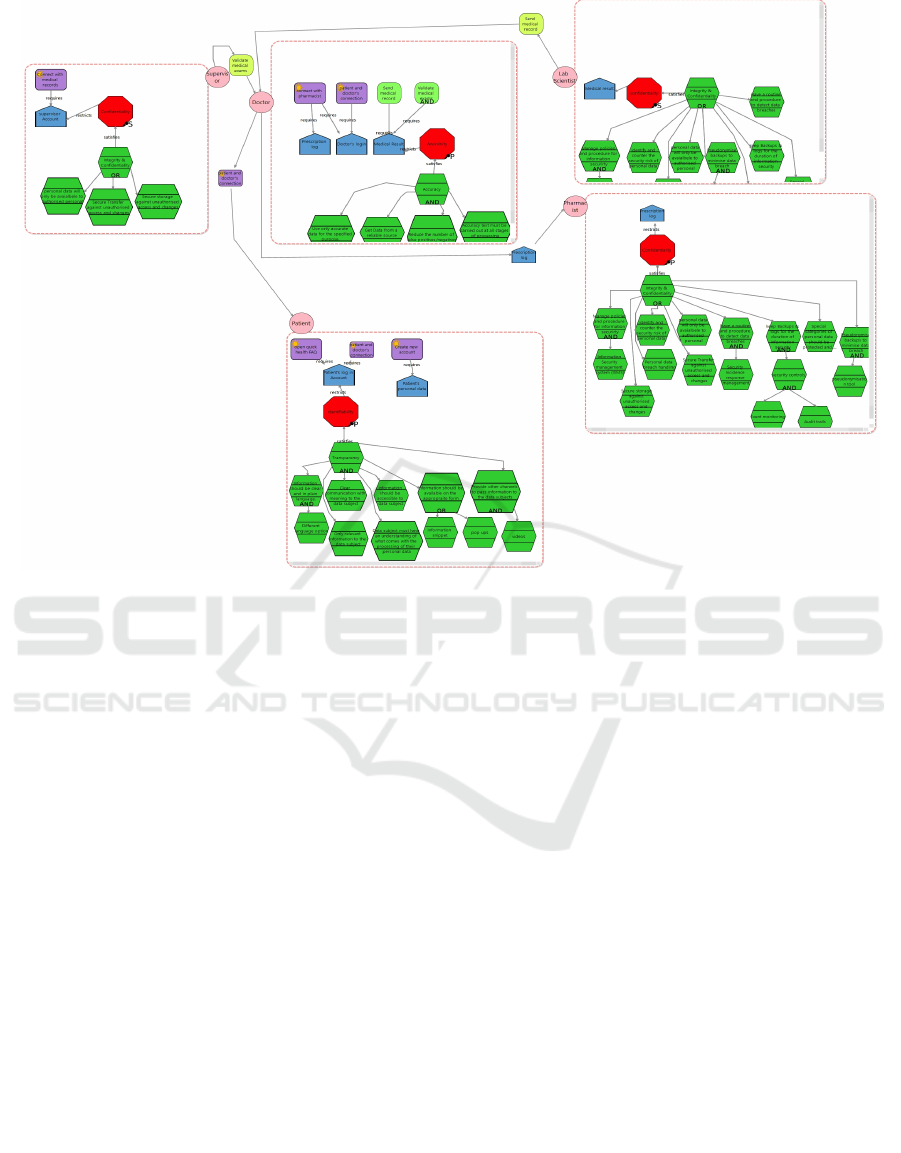

Figure 4: The Case Study Modeled using the Privacy-by-Design View of SecTro where GDPR Patterns implemented (bold

green concepts).

allows users with the appropriate role to register their

IoT devices and services, discover other registered

Things, and enable their Things to be discovered, all

while adhering to the privacy limits they set (Koutli

et al., 2019). Compared to our work, VICINITY is

specifically related to IoT and has been designed ad-

hoc towards implementation of GDPR principles for

the healthcare. Our GDPR patterns are oriented

towards requirements engineering and analysis, and

offer generic patterns that can be used to analyse

heterogeneous scenarios. We applied our GDPR

patterns to a healthcare scenario, and due to the

patterns flexibility, it will be possible to use them for

modeling analysis within other areas. The work of

Amato et al. provides a valuable solution that is

specific for the important area of e-health systems

(Amato et al., 2021). Specifically, a security and

privacy validation approach has been developed. To

build a comprehensive model for the system that can

be analysed using automated model checking and

ontology-based reasoning techniques, a methodology

for the validation of security and privacy policies in a

complex e-Health system was used.

Diamantopoulou et al. state that delivering

innovative information will aim to contribute to the

ecology of e-Participation approaches, notably

crowdsourcing environments. Participants on such

platforms may expose sensitive categories of their

personal data, compromising their privacy. The key

conclusions were of interest to e-Participation

organizations. In order to ensure that all of the

minimal requirements for the implementation of a

compliance framework were met, the public

administrations facing GDPR inspections should

adopt a methodology. Diamantopoulou et al. focused

on e-participation and collaboration approaches. In

particular, these approaches are oriented towards

crowdsourcing environments. Our work is oriented

towards providing reference GDPR patterns that can

be applied in a wide range of heterogeneous

scenarios. Tomashchuk et al. conducted a comparison

analysis of the privacy and security requirements for

e-Health IoT applications (Tomashchuk et al., 2020).

They compared between the legal criteria set by the

EU’s General Data Protection Regulation (GDPR)

and China’s Cybersecurity Law (CSL) into

technological requirements for a generic eHealth IoT

system. Caruccio et al. presented a methodology that

exploits relaxed functional dependencies (RFDs) to

automatically identify data that could imply the

values of sensitive ones, which permits to increase the

Goal-Modeling Privacy-by-Design Patterns for Supporting GDPR Compliance

367

confidentiality of a dataset while reducing the number

of values to be obscured (Caruccio et al., 2020).

5 CONCLUSION

This paper extended SecTro, a requirements

modelling tool, to include privacy patterns that

incorporate GDPR principles. The extended version

of SecTro provides the analyst with a set of patterns

as models, for GDPR principles, which can be used

by the analyst for performing PbD modelling, and

checking current compliance of the modeled system

with GDPR principles. The most recent guidelines

and relevant documentation on GDPR have been used

to identify and design the required privacy patterns,

together with relevant literature and collaboration

with privacy/security experts (from companies and

universities) involved within the DEFeND EU

Project. The privacy patterns have been implemented

on the top of SecTro, and evaluated using a healthcare

scenario where the analyst can model the privacy

aspects at early requirements analysis stages. The

evaluation results suggest that our proposed GDPR

patterns can help analysts in PbD modeling analysis,

by representing GDPR principles and considering

relevant ready-to-use alternatives, towards achieving

GDPR compliance.

REFERENCES

Alkubaisy, D., Piras, L., Al-Obeidallah, M., Cox, K., &

Mouratidis, H. (2021). ConfIs: A tool for privacy and

Security Analysis and Conflict Resolution for

supporting GDPR compliance through privacy-by-

design. Proceedings of the 16th International

Conference on Evaluation of Novel Approaches to

Software Engineering.

Amato, F., Casola, V., Cozzolino, G., De Benedictis, A.,

Mazzocca, N., & Moscato, F. (2021). A security and

privacy validation methodology for e-health

systems. ACM Transactions on Multimedia

Computing, Communications, and Applications

(TOMM), 17(2s), 1-22.

Bincoletto, G. (2020). EDPB Guidelines 4/2019 on Data

Protection by Design and by Default. Eur. Data Prot.

L. Rev., 6, 574.

Caruccio, L., Desiato, D., Polese, G., & Tortora, G. (2020).

GDPR compliant information confidentiality

preservation in big data processing. IEEE Access, 8,

205034-205050.

Diamantopoulou, V., Androutsopoulou, A., Gritzalis, S., &

Charalabidis, Y. (2020). Preserving digital privacy in e-

participation environments: Towards GDPR

compliance. Information, 11(2), 117.

Finck, M., & Pallas, F. (2020). They who must not be

identified—distinguishing personal from non-personal

data under the GDPR. International Data Privacy

Law, 10(1), 11-36.

Koutli, M., Theologou, N., Tryferidis, A., Tzovaras, D.,

Kagkini, A., Zandes, D., ... & Vanya, S. (2019, May).

Secure IoT e-Health applications using VICINITY

framework and GDPR guidelines. In 2019 15th

International Conference on Distributed Computing in

Sensor Systems (DCOSS) (pp. 263-270). IEEE.

Maguire, M. (2001). Methods to support human-centred

design. International journal of human-computer

studies, 55(4), 587-634.

Mouratidis, H., & Giorgini, P. (2007). Secure tropos: a

security-oriented extension of the tropos

methodology. International Journal of Software

Engineering and Knowledge Engineering, 17(02), 285-

309.

Pavlidis, M., Islam, S., & Mouratidis, H. (2011, June). A

CASE tool to support automated modelling and

analysis of security requirements, based on secure

tropos. In International Conference on Advanced

Information Systems Engineering (pp. 95-109).

Springer, Berlin, Heidelberg.

Pavlidis, M., Mouratidis, H., & Islam, S. (2012). Modelling

security using trust based concepts. International

Journal of Secure Software Engineering (IJSSE), 3(2),

36-53.

Pavlidis, M., Mouratidis, H., Panaousis, E., &

Argyropoulos, N. (2017, August). Selecting security

mechanisms in secure tropos. In International

Conference on Trust and Privacy in Digital

Business (pp. 99-114). Springer, Cham.

Piras, L., Al-Obeidallah, M. G., Pavlidis, M., Mouratidis,

H., Tsohou, A., Magkos, E., ... & Crespo, B. G. N.

(2020, September). DEFeND DSM: a data scope

management service for model-based privacy by design

GDPR compliance. In International Conference on

Trust and Privacy in Digital Business (pp. 186-201).

Springer, Cham.

Piras, L., Al-Obeidallah, M. G., Praitano, A., Tsohou, A.,

Mouratidis, H., Gallego-Nicasio Crespo, B., ... &

Zorzino, G. G. (2019, August). DEFeND architecture:

a privacy by design platform for GDPR compliance.

In International Conference on Trust and Privacy in

Digital Business (pp. 78-93). Springer, Cham.

Tomashchuk, O., Li, Y., Landuyt, D. V., & Joosen, W.

(2020, June). Operationalization of privacy and security

requirements for eHealth IoT applications in the context

of GDPR and CSL. In Annual Privacy Forum (pp. 143-

160). Springer, Cham.

Voigt, P., & Von dem Bussche, A. (2017). The eu general

data protection regulation (gdpr). A Practical Guide,

1st Ed., Cham: Springer International

Publishing, 10(3152676), 10-5555.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M. C.,

Regnell, B., & Wesslén, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

ICSOFT 2023 - 18th International Conference on Software Technologies

368
