A Tool-Supported Approach for Modeling and Verifying Hybrid

Systems Using EVENT-B and the Differential Equation Solver

SAGEMATH

Meryem Afendi

, Amel Mammar

and Régine Laleau

Univ. Paris Est Creteil LACL, F-94010 Creteil, France

SAMOVAR, Institut Polytechnique de Paris Télécom SudParis, Evry, France

Keywords: Cyber-Physical System, E

VENT-B, Refinement, Correctness Proof, Ordinary Differential Equation,

Differential Equation Solver.

Abstract: The common mathematical model for cyber-physical systems is that of hybrid systems that enable combining

both discrete and continuous behaviors represented by differential equations. In this paper, we introduce a

formal approach, using E

VENT-B and its refinement strategy, for specifying and verifying cyber-physical

systems whose behavior is described by ordinary differential equations. To deal with the resolution of ordinary

differential equations in Event-B, the approach is based on interfacing the differential equation solver

AGEMATH (System for Algebra and Geometry Experimentation) with the RODIN tool, a platform for

VENT-B projects development. For this purpose, we modeled and implemented the interface to the solver in

EVENT-B using a RODIN plugin. This enables to reason on the EVENT-B specification and prove safety

properties. The proposed approach was successfully applied on a frequently used cyber-physical system case

studies.

1 INTRODUCTION

Hybrid systems involve explicitly and simultaneously

continuous and discrete behaviors. In general, the

state of a hybrid system is defined by the values of the

continuous variables and the discrete mode of the

controller. The formal modeling, verification and

overall design of hybrid systems give rise to serious

challenges. The development of techniques and tools

to effectively design and verify hybrid systems has

drawn the attention of many researchers. These

approaches can be grouped into two categories:

model-checking-based approaches and proof-based

approaches.

The work presented in this paper is achieved in the

context of the DISCONT project (DISCONT ANR

Project, 2017) that aims at developing formal

approaches for building correct cyber-physical

systems (CPSs). The physical parts behavior of such

systems is often described by ordinary differential

equations (ODEs) (Perko, 2013) that involve an

unknown function depending on a single variable.

Following this objective, this paper introduces a

proof-based approach to model CPSs using E

VENT-B

(Abrial, 2010). Our development is inspired by the

approach introduced in (Kopetz, 1991) that consists

in specifying an abstract model, EventTriggered

model, where the controller interrupts the physical

part when a particular event occurs, and then

introducing a more concrete model, TimeTriggered

model, where the controller interrupts periodically the

physical part.

The EventTriggered model describes an ideal

behavior where the time is continuous and the sensors

have continuous access to continuous measurements.

TimeTriggered model represents a more realistic

behavior where the sensors take periodic

measurements. In our approach, the E

VENT-B

refinement mechanism allows to formalize and prove

the refinement link between EventTriggered and

TimeTriggered models. The E

VENT-B method is

designed for modeling discrete systems, it does not

support the resolution of ODEs. To deal with this

limitation, we interface the R

ODIN tool, a platform for

the E

VENT-B modeling language, with a differential

equation solver, S

AGEMATH (System for Algebra and

Geometry Experimentation) (Zimmermann et al.,

Afendi, M., Mammar, A. and Laleau, R.

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver SAGEMATH.

DOI: 10.5220/0012080900003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 71-83

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2018) in our case. This is achieved by implementing

a plugin to R

ODIN that enables to call SAGEMATH.

The paper is organized as follows. The next

section briefly describes the formal E

VENT-B method

and the ODE solvers. Section 3 is dedicated to a state

of the art on proof-based approaches to deal with

continuous aspects of CPSs and the approaches that

inter- face theorem provers with computer algebra

systems. Sections 4 and 6 introduce our approach for

combining a differential equation solver with E

VENT-

B and illustrate it on a frequently used CPS case

study. Section 5 describes the tool developed to

support the approach. Finally, Section 7 concludes

and presents some future work.

2 BACKGROUND

2.1 EVENT-B

EVENT-B is a formal method introduced by J.

Raymond Abrial to describe discrete systems using

events (Abrial, 2010). It is based on set theory and

predicate logic. An E

VENT-B model is composed of

machines and contexts. EVENT-B context represents

the static part and includes constants C, abstract and

enumerated sets S, and their properties specified as

axioms A. A context may be extended by adding new

elements. E

VENT-B machine defines variables V

which describe the machine state, invariants Inv

which define the properties that must be satisfied

whatever the state of the system. The behavior of the

system is described by a set of events of the form

(ANY X WHERE G THEN S END), which update

the state variables using the substitution S when its

guard or condition G are satisfied. A machine may see

contexts to have access to their contents.

An E

VENT-B model gives rise to a set of Proof

Obligations (POs) that aim at verifying its

correctness. Basically, we have to verify that:

• the initialisation establishes the invariant, that

means that the invariant is correct after the

initialisation: [INITIALISATION] Inv, where

the expression [S]Inv denotes the substitution

S applied to the formula Inv; it denotes the

weakest constraint on the before state such that

the execution of S leads to an after-state

satisfying Inv.

• for each event of the form (ANY X WHERE

G THEN S END), we have to prove that the

invariant Inv is preserved by the execution of

the event: ∀(S,C,V,X).(A∧G∧Inv ⇒ [S]Inv)

VENT-B is supported by the open-source and free

ODIN platform which is an Eclipse-based IDE. New

features can be added to RODIN as plug-ins. For

example, the theory plug-in (Butler and Maamria,

2010) is a R

ODIN extension that allows one to define

new data types like REAL, new operators, etc.

The key feature of E

VENT-B to master system

complexity consists in using abstract modeling to

represent the abstract behavior of a given system and

the refinement to introduce details by establishing the

compliance between the abstract and the concrete

models. The E

VENT-B refinement technique

preserves all the properties introduced and proved in

the abstract model. To demonstrate that a concrete

model Conc refines an abstract one Abs, it must be

proved that all behaviors of Conc are included in

those of Abs. For each event (ANY X WHERE G

THEN S END) refined by the event (ANY X

WHERE G

THEN S

END), we have to establish

the following two proof obligations:

• Guard refinement: the guard of the refined

event should be stronger than the guard of the

abstract one:

∀(S,C,S

,V,V

,X,X

(A∧A

∧Inv∧Inv

⇒ (G

⇒ G))

• Simulation: the effect of the refined

substitution should be stronger than the effect

of the abstract one:

∀(S,C,S

,V,V

,X,X

(A∧A

∧Inv∧Inv

∧[S

]Inv

⇒ [S]Inv)

2.2 Differential Equation Solvers

In this paper, we focus on ordinary differential

equations (ODEs). An ODE involves an unknown

function that depends on a single variable. The most

common form of the ODEs that describes the

evolution of hybrid systems is: a

(t)y

(t) + .... +

(t)y′′(t) + a

(t)y′ (t) + a

(t)y(t) = b(t), where the

dependent variable is y and the independent variable

is t. There are many computer algebra systems for

solving ODEs, such as S

AGEMATH (Zimmermann et

al., 2018) and Mathematica (Wolfram, 2003).

To find symbolic solutions for a given ODE,

AGEMATH mainly offers two functions: desolve()

and desolve rk4. desolve() that takes as parameters:

(de,dvar,ivar,ics), where: de represents the

differential equation, dvar represents the unknown

function, ivar represents the independent variable and

ics is an optional argument denoting the initial

conditions. desolve rk4(de,dvar,ivar,ics) is very

similar to desolve, it returns an approximate solution

of the ODE in the form of tuple (t, y).

ICSOFT 2023 - 18th International Conference on Software Technologies

3 STATE OF THE ART

Today, rigorous development methodologies based

on mathematical and logical foundations are mature

enough to support the development of hybrid

systems. Formal approaches for modeling and

verifying hybrid systems can be divided into two

categories: model checking-based approaches and

proof-based approaches. Model-checking-based

approaches use hybrid automata to model hybrid

systems and algorithmic analysis methods to prove

their safety properties (Henzinger et al., 1997; Frehse

et al., 2011). On the other hand, proof-based

approaches use deductive verification to model and

prove the properties of hybrid systems. In this paper,

we are interested in proof-based approaches that can

handle differential equations in hybrid systems

modeling.

3.1 EVENT-B Modeling of Hybrid

Systems

Hybrid EVENT-B, introduced in (Banach et al., 2015),

extends EVENT-B to model both discrete and physical

parts of CPSs. It defines two kinds of events: mode

events that represent the traditional discrete E

VENT-B

events and the pliant events that describe the

continuous behavior of the physical part by

specifying the corresponding differential equation

using piecewise absolutely continuous functions. On

the domain of reals (IR), such functions are

continuous over intervals, with possibly different

values on the edges. The correctness of Hybrid

VENT-B models is ensured using a set of customised

proof obligations patterns, defined in a way similar to

classical E

VENT-B. The method was successfully

applied on many concrete examples and has been a

source of inspiration for several approaches (Su et al.,

2014; Butler et al., 2016; Dupont et al., 2018)

including ours. Nevertheless, its major limitation is

that it is not supported by any automatic tool.

Therefore, the proof obligations must be generated

and discharged manually, which makes it difficult to

apply on critical systems since the proof phase is

error-prone. Moreover, Hybrid E

VENT-B does not

provide any mechanism for solving differential

equations in E

VENT-B, which is a strength of our

approach.

The approach, introduced by G. Dupont et al. in

(Dupont et al., 2018), proposes the use of the plug-in

Theory of E

VENT-B to handle continuous aspects of

CPSs. The main idea of this approach is to describe

Defined on IR

the continuous evolution of time t and the generic

continuous measurements, represented by the

variable plantV. plantV is indexed by TIME (plantV

∈ TIME

→ S) where S is a constant defined in the

associated context to be equal to: IR

with n is the

number of the system continuous variables. The

progression of time t is modeled by an event named

Progress. It states that the new value of time t

will

become greater than its previous value, (t < t

This approach introduces a theory named DiffEq

that provides several abstract operators to model

ODEs in E

VENT-B. To prove the safety properties of

hybrid systems, it defines properties on these ODEs

using operators like the operator Solvable which

ensures that the ODEs are solvable. Nevertheless, no

mechanism is provided to solve the concrete ODEs.

Therefore, this approach remains quite abstract

regarding the resolution of differential equations. In

this paper, we extend this abstract model and use

some operators of the theory DiffEq to solve ordinary

differential equations using E

VENT-B and

AGEMATH. Solving ODEs allows proving the safety

properties of hybrid systems in a Time-Triggered

system which is the most concrete model of CPSs that

we could achieve. Moreover, these solutions will

serve in developing an automation tool to simulate the

continuous behaviors of hybrid systems in E

VENT-B.

3.2 Differential Logic (dL)

In (Platzer, 2008), Platzer introduces a proof-based

approach to model and verify hybrid systems. It is

based on a first-order differential logic in the domain

of reals (IR), named dynamic differential logic dL,

and its associated proof calculus. Both are supported

by the theorem prover KeYmaera (Platzer and

Quesel, 2008) and its successor KeYmaera X (Fulton

et al., 2015). The advantage of this approach is its

ability to model and verify the evolution of

continuous measurements, represented by differential

equations, using dL formulas. Hybrid systems are

described in dL using hybrid programs, whose hybrid

dynamics arise from combining a specific set of

ordered discrete programming constructs with

continuous ODEs. Most hybrid programs are

modeled by the formula, (ctrl; plant)

, where ctrl

denotes the execution of the controller (discrete

evolution), followed by the physical part plant

(continuous evolution), with a non-deterministic

repetition. dRL (differential Refinement Logic) (Loos

and Platzer, 2016) extends dL by introducing the

notion of refinement on hybrid systems. Interestingly,

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH

Event- and Time- Triggered systems are specified

with dRL and proof obligations are defined to check

that TimeTriggered is a refinement of

EventTriggered. dRL is not supported by any prover,

it cannot be used for critical systems since the proof

obligations are manually generated and discharged.

To overcome this limit, we proposes a new correct-by

construction approach to prove this refinement, based

on E

VENT

-B to take advantage of its well-defined

refinement process and its support tools. Unlike dRL,

developing hybrid systems with E

VENT

-B enables to

deal with the complexity of the system by

incrementally introducing the properties. Moreover,

VENT

-B enables to have a good view on the proof

activity and its different steps that helps us to have a

better understanding of the system.

4 A GENERIC FORMAL

APPROACH FOR SOLVING

ORDINARY DIFFERENTIAL

EQUATIONS IN E

VENT-B

Besides the proposed formal approaches, Kopetz

(Kopetz, 1991) introduces an approach that we have

found interesting because it considers a CPS at

different levels of abstraction that allows to deal with

the complexity of such systems. The proposed

approach consists in specifying an abstract model,

Event-Triggered model, in which the controller

interrupts the physical part when certain events occur.

Then defining a more concrete model, Time-

Triggered model, in which the controller interrupts

periodically the physical part.

This section describes our contribution in using

the E

VENT

-B method and S

AGE

ATH

for modeling

and verifying hybrid systems. Our proposal consists

in modeling the (ctrl; plant)

idiom of Event and

Time-triggered models with the event-based

paradigm of E

VENT

-B. The link between these

models are expressed as a refinement relationship.

Our approach reuses the abstract model and the

theories introduced in (Dupont et al., 2018), such as

DiffEq, to handle continuous aspects of hybrid

systems. This allows us to model and verify the

compliance between Time and Event-Triggered

systems. The approach follows the development

schema depicted in Figure 1. Using the E

VENT

-B

refinement technique, we start by an abstract model

that specifies the continuous aspects of CPSs. Then

we enrich the model step by step to introduce a

Defined on IR

concrete model that includes the solutions of ODEs.

Therefore, the approach consists of four generic

models: model System_M denotes the continuous part

of CPSs, model EventTriggered_M describes the

interaction between the continuous and the discrete

parts of CPSs, model TimeTriggered_M represents

the discrete time and TimeTriggeredDesolve_M

introduces the resolution of ODEs in E

VENT

-B by

calling the S

AGE

ATH

functions. The whole models

can be downloaded from https://github.com/

CPSsWithEventB/Main/blob/main/README.md.

4.1 Generic System Model

Generic System model consists of the context

System_Ctx that defines a set of constants and axioms

required to model the continuous part of CPSs, and

the machine System_M that introduces two variables:

the independent variable t ∈ IR

and the continuous

variable plantV, defined as a partial function, plantV

∈ [0,t] ↛ IR. Variable t represents the current time

and evolves according to the event Progress (see

Section 3.1) that we have slightly modified to avoid

the Zeno problem, where the time interval continually

gets smaller and smaller which prevents the controller

from reacting exactly at the right moment. For this

purpose, we have defined in the context System_Ctx

a constant parameter sigma whose value depends on

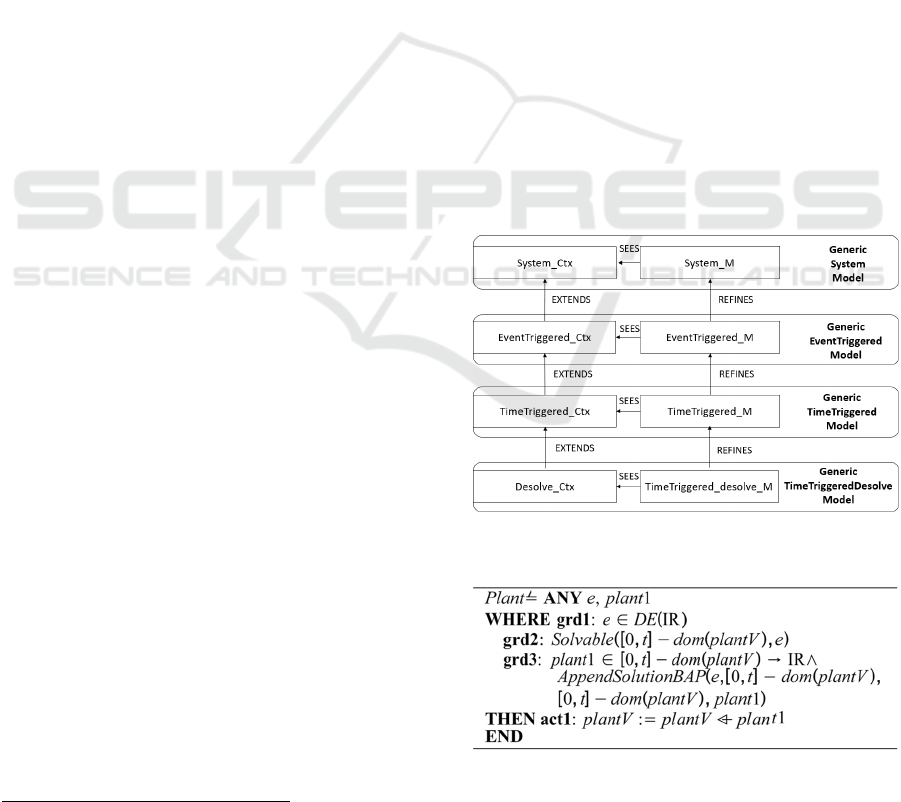

Figure 1: Generic E

VENT

-B specification with the

B_desolve function.

Figure 2:

VENT

-B

modeling of the plant event.

ICSOFT 2023 - 18th International Conference on Software Technologies

the properties of the specific system, sigma ∈ IR+.

We added in the event Progress the constraint: t

−t ≥

sigma to guarantee that the time progression is always

greater than sigma, where t

is a parameter of the

event Progress that specifies the new value of time t.

is determined according to the properties of the

modeled system.

The behavior of the physical part is modeled by

the event Plant (see Figure 2). Event Plant uses the

operator AppendSolutionBAP defined in DiffEq,

where e represents the abstract ODE and belongs to

DE(S) which is a set of differential equations built on

S. AppendSolutionBAP enables to update the value of

plantV (plantV◁− plant1) between the last time and

the current value of t ([0,t]−dom(plantV)).

Figure 3: E

VENT

-B modeling of the controller behaviour.

4.2 Generic EventTriggered Model

At this level, we express the properties desired for the

system. To do this, EventTriggereed_Ctx extends

System_Ctx by adding a set of properties PROP.

Moreover, we define the constant prop_safe (resp.

prop_evt_trig) that maps each property to its safety

envelope (resp. the boundary of the safety envelope).

Note that the safety envelope is calculated from the

safety requirements that the system must satisfy to

guarantee that the controller will react exactly at the

right moment.

EventTriggered_M model refines System_M

model to specify the idiom (ctrl;plant)

whose

semantics is as follows: the physical part (Plant)

evolves in parallel with the time (Progress) and both

are interrupted just before crossing the boundary of

the safety envelope, represented by the formula

prop_evt_trig. Nevertheless in E

VENT

-B, it is not

possible to state that two events should be executed

simultaneously. A first solution to this limitation is to

merge the events Progress and Plant in order to make

both evolve at the same time. This option has proved

to be unsatisfactory for systems with several physical

parts that are modelled then by several Plant events.

Moreover, making the time progress before the

control may lead to a deadlock if the time progresses

too fast and the controller cannot take any action to

Defined on IR

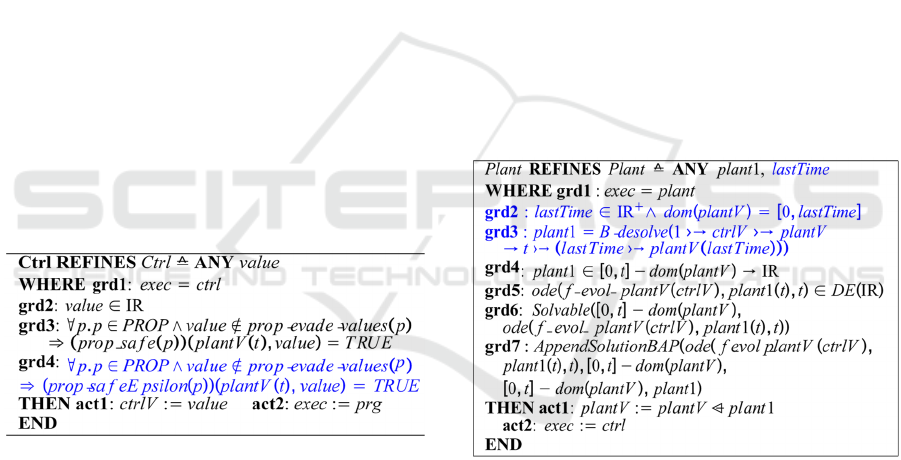

Figure 4: Refinement of the Progess event in the

EventTriggered level.

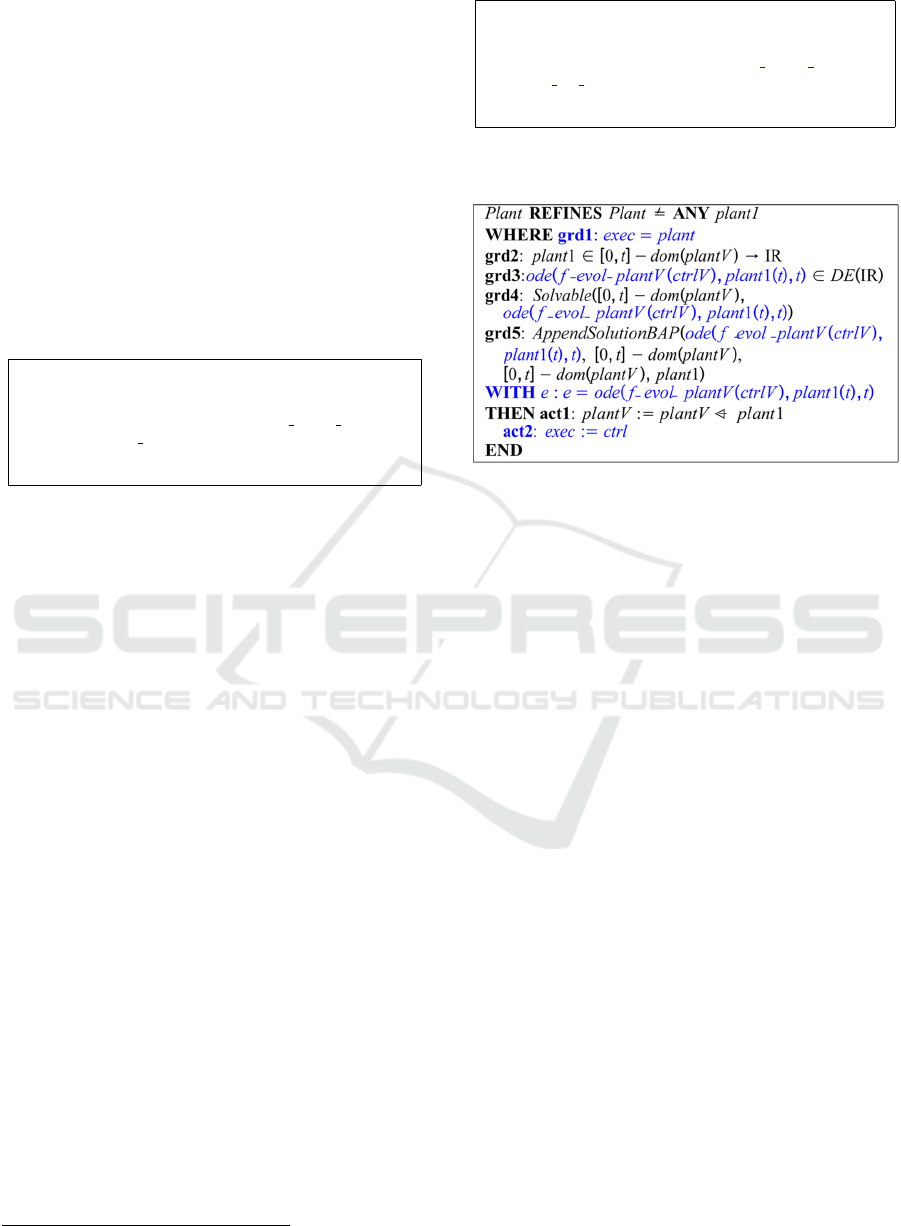

Figure 5: Refinement of the Plant event in the

EventTriggered level.

guarantee the safety of the system. So, we have

chosen to keep the time progression as a separate

event that is enabled between the controller and the

Plant. For this purpose, we have introduced two new

variables ctrlV and exec. Variable ctrlV represents the

control variable and belongs to IR, exec takes its

value in {prg,ctrl,plant}; it is a flag used to model the

alternation between the progression of time, the

control and physical parts as follows: (ctrl; prg;

plant)

. Moreover, we associate with each property a

set of values for variable ctrlV, called

prop_evade_values that ensure that the boundary of

the safety envelope is never crossed. Thus, the

controller is modeled by the event Ctrl (see Figure 3)

that checks, for each property p, that the safety

envelope is true if the chosen value value for the

control variable ctrlV does not belong to the evade

values of p (Guard grd3).

Similarly, the event Progress is refined to specify

that: (1) the event is enabled when it is the turn of time

to progress (Guard grd2) and (2) time must not evolve

beyond a value that makes the physical part cross the

boundary of a safety property (Guard grd3) to

guarantee that the time will not progress too much and

make the safety properties false if the controller fails

to react in time. In other words, the new value of time

should be chosen such that the physical part reacts

safely during the period from the last progression of

time t and t

−t). The parts added by refinement are

Ctrl = ANY value

WHERE grd1

exec

ctrl

grd2

value

∈

grd3

∀

∈

PROP

∧

value

∈

prop

evade

values

(

)

⇒ (prop sa f e(p

))(

plantV

(

t), value ) = TRUE

THEN act1: ctrlV := value act2: exec := prg

END

rogress REFINES Progress = ANY t

WHERE grd1

∈

TIME

∧

−

≥

sigma

∧

grd2: exec = prg

1 1

⇒ (prop evt trig(p))(plantV (t), t

− t, ctrlV ) = TRUE

grd3

∀

∈

PROP

∧

ctrlV

∈

prop

evade

values

(

)

THEN act1: t := t

act2: exec := plant

END

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH

written in blue (see Figure 4). The physical part,

represented by the event Plant, is refined by replacing

the abstract differential equation e with that defined

for a function denoted f_evol_plantV to describe the

evolution of the state variable plantV according to the

system discrete state (clause WITH of Figure 5).

4.3 Generic TimeTriggered Model

The sensors of the TimeTriggered model take

periodic measurements of physical parts and its

controller executes for each sensors update. The main

difference between the Event- and the Time- Triggered

models is in the modeling of the progression of time.

The longest time between TimeTriggered sensors

updates is bounded by a symbolic duration named

epsilon and which must be defined by the designer of

the specific hybrid system. Thus, the controller is

executed at least every epsilon units of time. So, we

refine event Progress by adding the formula t

− t ≤

epsilon to state that the time cannot progress by more

than epsilon units of time. Moreover, since the

controller of a TimeTriggered model must make a

choice that will be safe for up to epsilon units of time,

we define a new safety envelope named

prop_safeEpsilon. Event Ctrl is refined by adding a

guard to ensure that prop_safeEpsilon is true for the

new value of ctrlV when this later does not belong to

the evade values of a property (grd4 of Figure 6).

Figure 6: Refinement of the Ctrl event at TimeTriggered

level.

Let us remark that the guard related to the formula

safe is kept because we are in a generic model and do

not have yet the concrete expression of safe. This

guard will be removed when modelling a specific

application giving rise to a proof obligation to

establish that the other guards imply it.

4.4 Generic TimeTriggeredDesolve

Model

Generic TimeTriggeredDesolve model refines the

generic TimeTriggered model to introduce the

resolution of ODEs. Depending on the linearity of

ODE, a specific S

AGE

ATH

Desolve function is used.

Thus, we have to distinguish two cases:

• case of linear ODE: in that case, we use the

function B_desolve that is defined to model

analytical solutions of ODEs in E

VENT

-B. It

returns a function of type IR → IR that

represents the values of the continuous variables

of a given hybrid system. Introducing this

function in our generic approach allows us to

prove the safety properties of hybrid systems in

a TimeTriggeredDesolve system, which was not

possible with the approach introduced in

(Afendi et al., 2020). Moreover, this function

serves to establish the link between our E

VENT

B models and the differential equation solver

SAGEMATH.

B_desolve ∈ (IN×IR×(IR

→ IR)×IR

(IR

×IR)) → (IR → IR)

– the first and the second parameters denote

the order and the right term of the considered

ODE.

– the third parameter denotes the unknown

function, represented by a continuous

variable.

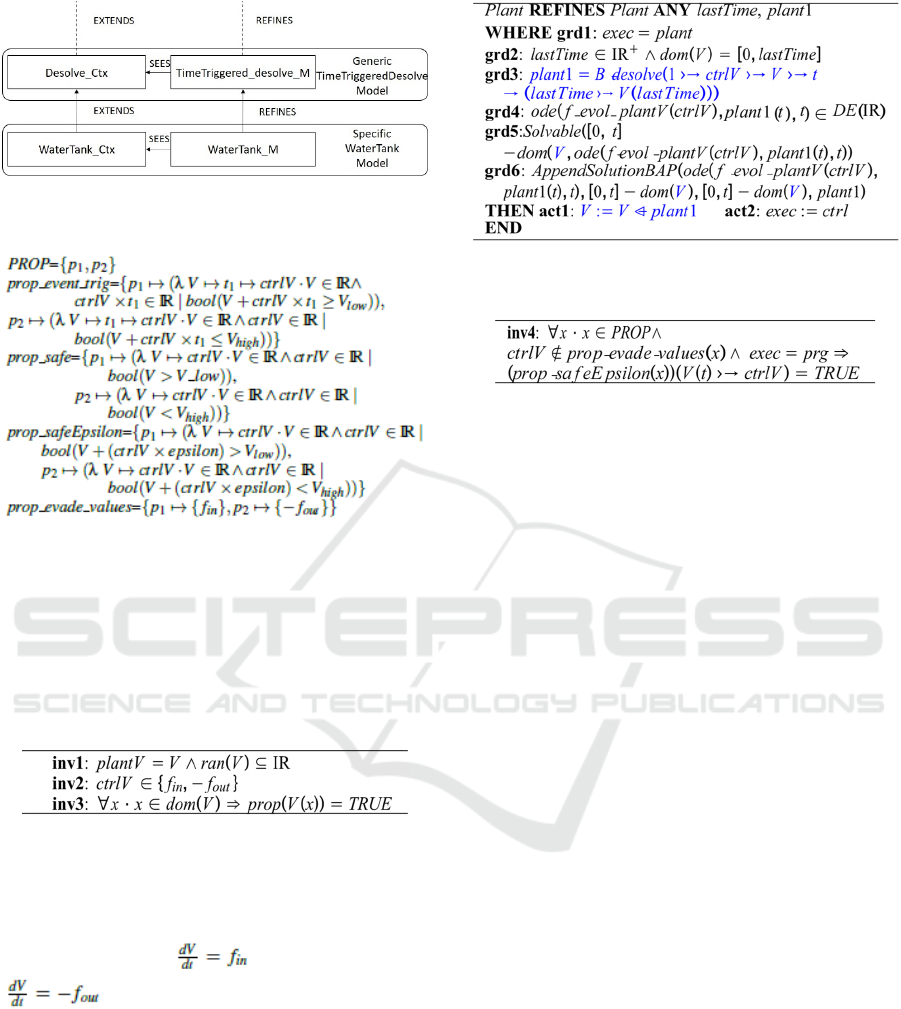

Figure 7: Refinement of the Plant event by calling the DE

solver.

– the fourth parameter denotes the

independent variable, represented by a

discrete variable and typed by IR

– the last parameter denotes the initial values

of both the independent variable and the

unknown function.

Event Plant is refined to calculate the value of

plant1 during the period from lastTime to t using

the function B_desolve, which is specified by

the guard grd3 (see Figure 7). This guard is used

to link the abstract event to its refinement. It

enhances the guards grd6 and grd7 that aim at

modeling the differential equation solution

ICSOFT 2023 - 18th International Conference on Software Technologies

using the operators of the theory DiffEq. It

serves to verify the properties assumed by the

operators Solvable and AppendSolutionBAP

about the solutions of the given ODEs in order

to establish a link between our approach and the

theory DiffEq. The parameters dvar, ivar and ics

(see Section 2.2) are represented respectively by

the dependent variable plantV and the

independent variable t as well as the initial

values of these variables. The parameter

lastTime is introduced to represent the last

progression of time at which plantV has been

calculated. The solution of a given differential

equation is calculated from lastTime to t in order

not to overwrite the old values of the continuous

variable plantV.

• case of non linear ODE: if the ODE is

linearisable, we apply the same refinement

using the Desolve function on the linear form

while proving such a linearisation using the

approach defined in (Dupont et al., 2021).

Otherwise, we use the S

AGEMATH

desolve_rk4() function that returns an

approximate solution for ODEs. This function is

defined by:

B_desolve rk4 ∈ IR×(IR+ 7→IR)×IR+×

(IR+ ×IR)×(IR+ ×IR+) → (IR+ 7→IR)

B_desolve_rk4 returns a function of type

7→IR that represents the values of the

continuous variables. The first four parameters

are the same parameters as those of B_desolve.

The last parameter is used to specify the interval

denoted [lastTime,t] for which the values of

plantV are calculated. The refinement of the

event Plant in case of non linear ODE is similar

to that for linear ODE with the guard grd3

replaced with:

plant1 = B_desolve_rk4(f_evol(ctrlV)→

plantV → t → (lastTime → plantV(lastTime))

→ (lastTime → t))

4.5 Modeling the Safety Properties

The main goal of the discrete part represented by the

controller is to ensure the safety properties of a

specific hybrid system. To model these safety

properties in E

VENT-B, a constant function prop ∈

→ BOOL is defined in the context Desolve where

n denotes the number of variables occurring in the

property. Then an invariant is added in the machine

2 x and xx enable to cover all the moments from the

beginning until the current time

TimeTriggered_desolve_M, inv

: ∀x · x ∈

dom(plantV) ⇒ prop(plantV(x)) = T RUE, where

plantV will be replaced by the specific continuous

variables. To discharge the PO generated for this

invariant, we added to the event Plant the following

guard grd8: ∀xx · xx ∈ dom(plant1) ⇒

prop(plant1(xx)) = T RUE. This guard will be

removed on a specific case to generate a proof

obligation that aims at proving that this guard is

actually satisfied.

4.6 Correctness of the Specification

Table 1: RODIN Proof statistics for the generic models.

Specific_Models Tot. Aut. Man.

System

8 1 7

EventTriggered

19 11 8

TimeTriggered

2 1 1

TimeTriggeredDesolve

5 3 2

Table 1 gives the statistics of the POs generated for

the correctness of our generic models where. It is

noticeable that 47% of them were automatically

discharged. These POs include the correctness of the

events that model the behavior of the physical parts

and the controller, as well as the correctness of their

refinement. The POs related to the well-definedness

have been interactively discharged under R

ODIN

using the properties of Reals and DiffEq theories. To

prove the compliance between TimeTriggered_M and

EventTriggered_M machines, Rodin has generated a

set of proof obligations that we have discharged in the

TimeTriggered_M machine. In these generic models,

as we have kept the guard related to the formula safe

and prop_evt_trig in the event Progress (see Figure

4), the refinement proofs are rather simple and related

mainly to the type checking of the different variables

and the feasibility of the abstract and the concrete

models.

To prove the correctness of the

TimeTriggeredDesolve model, R

ODIN has generated

five proof obligations, three of them were

automatically discharged. The remaining proof

obligations are as follows:

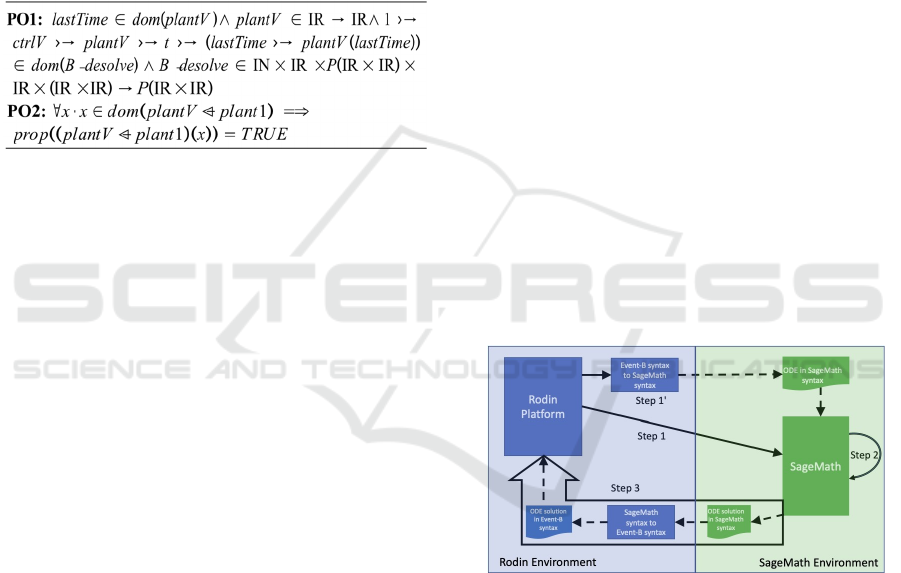

• PO1 is a well-definedness proof obligation

which aims at proving that the guard grd3 of the

event Plant (see Figure 7), added to model the

solution of the generic ODEs using the function

B_desolve, is well defined. This guard assigns to

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH

the parameter plant1 the solution of the generic

ordinary differential equation obtained using the

function B_desolve. To discharge this proof

obligation, we must prove that the set of the

results returned by B_desolve is equal to the set

of definition of plant1. This proof obligation

was discharged using some rewriting rules, the

properties of the Reals theory and some

invariants defined in refined machines.

• PO2 is generated to prove that the event Plant

preserves the system safety property, specified

using the constant prop. This proof obligation

was discharged by replacing the value of plant1

by the result returned by B_desolve.

4.7 Instantiating the Generic Approach

To design a specific case study following our generic

approach, we instantiate the generic TimeTriggered-

Desolve model by replacing the generic continuous

variable plantV by that or those associated with the

case study. If the case study includes several

continuous variables, it is necessary to define a set of

parameters with the same cardinality as the set of

continuous variables. The function B_desolve is then

instantiated by the specific parameters of the modeled

case study. We make the assumption that the safety

property is in a conjunctive normal form (Ʌ

i=1..n

)

and that, for each formula p

, the following elements

are specified: event_trig

, sa f e

, sa f eE psilon

and

a set of evade values evade_values

for ctrlV. In that

case, the instantiation consists in valuing the set

PROP and the different constants as follows where

X ∈ {event_trig,sa f e,sa f eE psilon, evade_values}:

PROP= U

i=1..n

}, prop_X= U

i=1..n

→ val

}

The safety property represented by the formula prop

also needs to be instantiated in the specific model (see

Section 6).

5 A TOOL FOR SUPPORTING

THE APPROACH

To make our approach workable, we built a new

ODIN

plug-in, called S

AGE

ATH

plug-in, that

interfaces the R

ODIN

platform with S

AGE

ATH

solver to calculate the solutions of ODEs. Solving

ODEs is needed for proving the safety property and

the satisfiability of a guard removed in a refinement.

In other words, during the proof of a PO, S

AGE

ATH

needs to be called on each term B_desolve(...) or B

desolve_rk4(...) in order to replace it by the solution

of the corresponding ODE. The use the S

AGE

ATH

plug-in follows the 3- steps general process: (1)

calling S

AGE

ATH

from R

ODIN

, (2) solving

differential equations and (3) using the result returned

in R

ODIN

(see Figure 8). In the first step, an input field

that allows calling S

AGE

ATH

from R

ODIN

appears

automatically when the current PO contains the terms

B_desolve (resp. B_desolve rk4(...)). The second step

consists in calling manually a predefined script

generated systematically from the function

B_desolve(...) (resp. B_desolve_rk4(...)). The user

must generate a specific S

AGE

ATH

script according

to the structure and the nature of the differential

equation to be solved. The last step consists in

manually translating the result of S

AGE

ATH

according to EVENT-B syntax. The user must use the

theory of reals to translate the result and add it as an

hypothesis to prove the current PO. The description

of the different stages that constitute the main

scenario use of the S

AGE

ATH

plug-in can be

downloaded from https://github.com/CPSsWith

EventB/Main/blob/main/README.md. Hereafter,

we describe each step.

Figure 8: The general process.

5.1 Calling S

AGE

ATH

from R

ODIN

(Step1)

To call S

AGE

ATH

from R

ODIN

, a button called sage

has been added in the proof window using an Eclipse

plug-in. The button is made available on a

hypothesis/goal that contains the term B_desolve

(resp. B_desolve_rk4(...)). To develop a R

ODIN

plug-

in, Eclipse provides a set of Java interfaces. These

interfaces are intended to be implemented according

to the goal of the plugin. To implement the

AGE

ATH

plug-in using Eclipse IDE, we define the

ICSOFT 2023 - 18th International Conference on Software Technologies

following Java classes: SageTacticProvider,

SageApplication and SageTactic.

5.1.1 SageTacticProvider Class

This Java class implements the method getPossible-

Applications to check the presence of the term

B_desolve (resp. B_desolve:rk4(...)) in each proof

obligation and returns an instance of the Sage-

Application class. Function getPossibleApplications

uses two main predicates, pred, a local variable, and

hyp, a parameter of the function. pred takes as value

hyp if this latter is not null or the current proof

obligation otherwise. If the tags, the left and right parts

of the formula pred, are equal to those of the predicate

that contains B_desolve (resp. B_desolve_rk4(...)), we

return the list of tactics that can be applied as a list of

instances of SageApplication or null otherwise. This is

repeated for each node of the proof tree.

5.1.2 SageTactic

Class This Java class implements the apply() method

that creates a process for calling S

AGEMATH.

Function apply() contains all the instructions that will

be applied when calling S

AGEMATH. The process for

calling SAGEMATH is created using the predefined

Java class Process and provides the path of the

executable file of S

AGEMATH to the predefined Java

class ProcessBuilder. The Java class ProcessBuilder

can be used to call external applications thanks to the

start() method and the Java class Process can be used

to create new system processes.

5.1.3 SageApplication Class

This Java class establishes the link between the

checking of the presence of the function B_desolve

(resp. B_desolve_rk4(...)) in the current proof

obligation and the call to S

AGEMATH. It implements

in particular two methods:

• getHyperlinkLabel(): allows to display the

button sage in the proof window.

• getTactic(): allows to create an instance of the

class SageTactic to execute the apply() method.

5.2 Solving Odes in SAGEMATH (Step1’

and Step2)

In Steps 1′ and 2, the ODE is resolved. Step 1′ is

viewed as a preliminary step of 1. It consists in

systematically generating a S

AGEMATH script from

the EVENT-B functions B_desolve and

B_desolve_rk4(...), with all the parameters necessary

Figure 9: B_desolve script.

to execute the SAGEMATH predefined functions

desolve and desolve_rk4. In such a script, the

differential equation must be expressed depending on

the controlled variable ctrlV that links the continuous

and the discrete parts of an hybrid system. A script is

executed in S

AGEMATH using the following

command: load(′scriptName.sage′). The script below

is generated from the formula B_desolve(1→ ctrlV →

plantV → t → (lastTime → plantV(lastTime)))(x).

It solves a differential equation plantV′ = ctrlV, where

(see Figure 9):

• Statement 1 is generated using the second

parameter of B desolve and it specifies the right

part of the ODE plantV′ = ctrlV.

• Statement 2 is generated using the forth

parameter of B_desolve and it specifies the

definition of the independent variable t.

• Statement 3 is generated using the third

parameter of B_desolve and it specifies the

definition of the continuous variable represented

by plantV. The definition of this variable must

always be after the definition of the independent

variable.

• Statement 4 is generated using the first part of

the parameter that specifies the initial conditions

and it represents the last progression of time

from which we calculate the values of the

continuous variable.

• Statement 5 represents the call to the

AGEMATH predefined function desolve. The

first parameter 1: ctrlV = var( ′ ctrlV′ ) 2: t = var(

′ t ′ ) 3: plantV = f unction( ′plantV′ )(t) 4:

lastTime = var( ′ lastTime′ ) 5: eq = desolve(di f

f(plantV,t,1) == ctrlV, dvar = plantV,ivar = t, ics

= [lastTime, plantV(lastTime)]) 6: o = open( ′

sageresult.txt′ , ′w ′ ) 7: o.write(str(eq)) 8:

o.close() Figure 9: B desolve script. of this

function is generated using the first, second and

third parameters of B desolve. The second, third

and forth parameters are generated respectively

using the third, forth and last parameters of

B_desolve.

ctrlV

var

(

′

ctrlV

′

)

2: t = var(

′

)

3: plantV = f unction(

′

plantV

′

)(t)

4: lastTime = var(

′

lastTime

′

)

5: eq = desolve(di f f (plantV, t, 1) == ctrlV,

dvar

plantV

ivar

ics = [lastTime, plantV (lastTime)])

6: o = open(

′

sageresult.txt

′

)

7: o.write(str(eq)) 8: o.close()

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH

• Statements 6-8 generate a text file, named

”sageresult.txt”, which stores the result of the

differential equation specified by eq in

Statement 5.

5.3 Using S

AGEMATH

Results in R

ODIN

(Step3)

In Step 3, the term B desolve() is replaced by the result

returned by S

AGE

ATH

and stored in a text file. For

that purpose, the predicate (B_desolve() = sol′) is

added as an additional hypothesis in the current PO,

where sol′ is a rewritten of sol according to the syntax

of the theory of reals. Basically, this theory adopts a

prefix style by defining a keyword for each operator

on the reals like plus for addition, times for

multiplication, etc. So for instance, the formula

ctrlV × lastTime + plantV(lastTime) is rewritten into

plus(times(ctrlV→ lastTime)→ plantV(lastTime)).

6 APPLICATION

To demonstrate the feasabilty of our approach we

have applied it on several frequently CPS case studies

like the following ones:

• The Stop Sign System whose objective is to stop

a car before a stop signal SP. The control

strategy is to adjust the velocity of the car by

accelerating or braking. The continuous

behavior of this system is modeled by the

position p and the velocity v of the car, as well

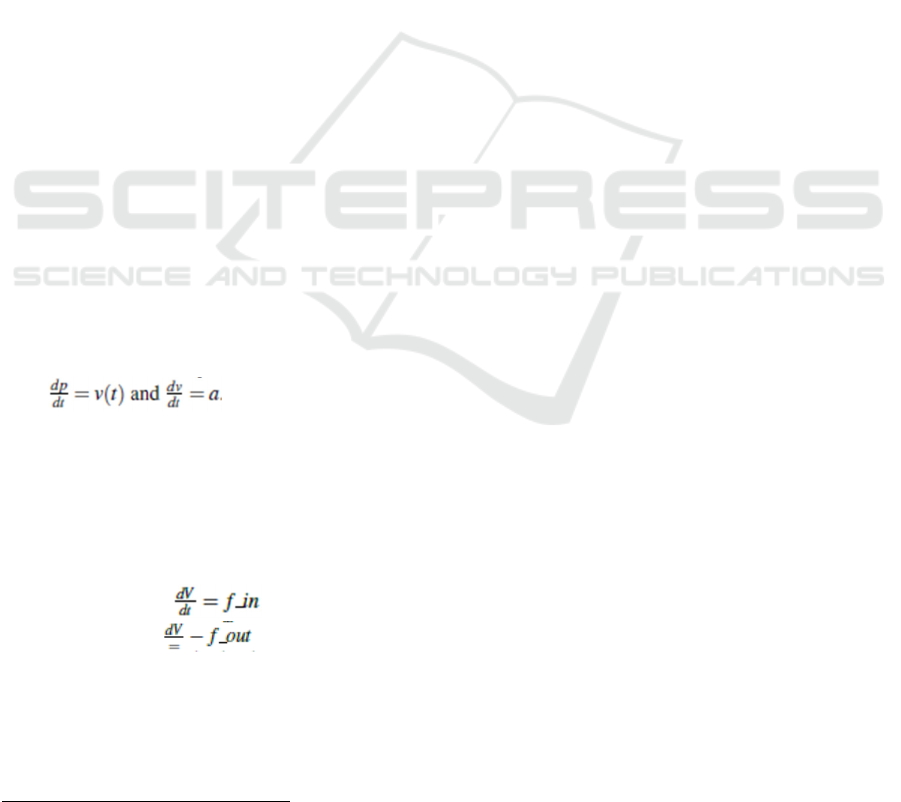

as its acceleration a. This continuous behavior

evolves according to two linear ODEs,

• The Hybrid Water Tank System whose objective

is to maintain the water level between a high

level V_high and a low level V_low with 0 < V

low < V high. The system includes a tank, a

pump to fill the tank and a sensor to get the level

of the water. The water level is specified by the

variable V that evolves according to the flowing

linear ODEs, when the pump is

activated and otherwise. The pump

is activated (resp. disabled) to fill (resp. empty)

the water tank by f in (resp. –f_out) as long as

the property V < V_high (resp. V > V_low) is

true.

bool(P) gives the boolean value of the predicate P.

These case studies are didactic and quite

representative of linear hybrid systems that admit

exact solutions (polynomial ODE solutions). The

continuous behavior of the Stop Sign case study is

represented by two state variables p and v while that

of the Water Tank is represented by a single state

variable V. Moreover, the Stop Sign case study is

represented by three different modes of control,

Accelerating, Braking and Stopped, that require a

single safety envelope. The system can enter state

Accelerating when the car is very far from the stop

signal SP. State Braking is entered when the car is

very close to the stop signal SP. The state Stopped is

entered when the car is stopped i.e v = 0

(consequently a = 0 ) presumably right before signal

SP. In the other hand, the Water Tank case study is

composed of two modes and when its controller enter

one of these two modes the other one is considered as

an evade mode which requires the use of two safety

envelops. This diversity will allow us to properly

illustrate the use of our generic approach. For the

Water Tank case study, we chose to directly

instantiate the generic model TimeTriggeredDesolve

in order to use the interface between R

ODIN

and

AGE

ATH

to solve the associated ODEs. For the

Stop Sign case study, we chose to start by modeling

the controlled system by refining the generic

EventTriggered model. The associated Stop Sign

EventTriggered model will then be refined by a Stop

Sign TimeTriggered model in which we directly

model the solutions of the associated ODEs without

using the function B desolve. The whole E

VENT

-B

specification can be downloaded from https://github.

com/ CPSsWithEventB/Main/blob/main/README.

md. In this paper, we present in details the modeling

of the Water Tank.

6.1 The Modeling of the Water Tank

System

To model the Water Tank case study using our

approach, we follow the schema depicted by Figure

10. The instantiation starts by directly refining the

generic model TimeTriggeredDesolve_M to obtain

the model WaterTank_M that sees (Abrial, 2010) the

context WaterTank_Ctx. The safety property is

expressed in a conjunctive normal form (V

low

≤ V

∧

≤ V

high

). So the context WaterTank_Ctx contains the

following elements

ICSOFT 2023 - 18th International Conference on Software Technologies

Figure 10: Architecture of the E

VENT

-B model of the water

tank system.

Machine WaterTank_M defines the invariants of

Figure 11. Invariant inv1 is defined to replace the

generic continuous variable plantV by the specific

one represented by the water level V. Invariant inv2

specifies the possible values of the variable ctrlV.

Invariant inv3 models the safety property using the

function prop ∈ IR → BOOL where the formula

prop(V(x)) is defined in the context WaterTank_Ctx

by V(x) ≤ V_high

∧

V(x) ≥ V_low.

Figure 11: Invariant of the water tank system.

The event Plant, of the generic machine

TimeTriggered_desolve_M is refined by replacing the

generic parameters of the function B_desolve by those

related to the ODEs: if the pump is On and

otherwise (see Figure 12). These ODEs

are expressed in the function B_desolve as follows:

B_desolve(1→ ctrlV→V→ t → (lastTime →

V(lastTime))), where the integer 1 denotes the degree

of both ODEs, ctrlV is the controlled variable, V rep

resents the dependent variable for which we calculate

the values over the time t that denotes the independent

variable, and lastTime and V(lastTime) represent

respectively the initial values of the time t and the

value of continuous variable V at the instant lastTime.

Figure 12: The Plant event associated to the water tank

system.

Figure 13: Implicit property on the system.

6.2 Correctness of the Specification of

the Water Tank

Machine WaterTank_M generates 102 POs, 39% of

them are automatically discharged. Like for the

generic models, the POs related to the guard

feasibility and well-definedness have been

interactively discharged under R

ODIN

thanks to

several provers like SMT and AtelierB provers but

also inference rules described in the R

ODIN

theory

that implements reals. The use of these inference rules

made the proof activity longer since they are not

automatically applied even on simple examples like

the transitivity rule.

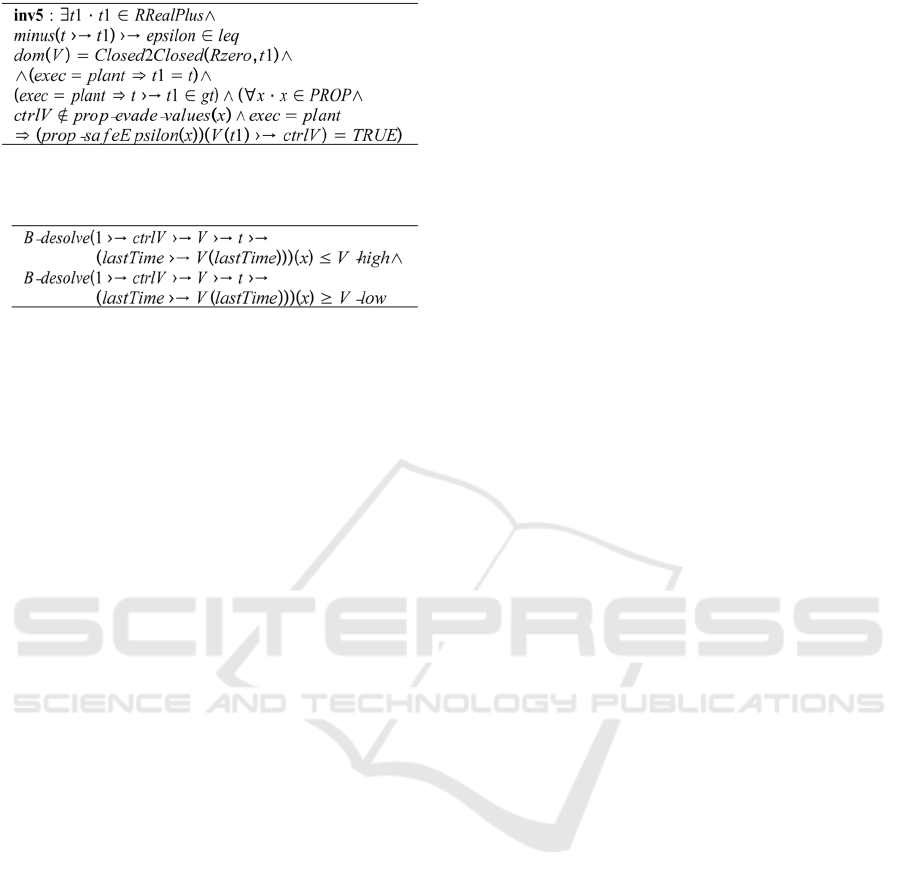

To discharge the POs related to the guards

feasibility and well-definedness, we needed to add

invariants that translate implicit properties on the

system (see Figure 13). This invariant specifies that

the system is safe if the controller has chosen a value

for ctrlV that does not belong to the sets

prop_evade_values(x). Moreover, we added an

invariant which ensures that before executing the

physical part, the safety property is satisfied during

the period epsilon (see Figure 14).

The most important part in the proof phase is the

one concerning the safety property specified using the

invariant inv3. R

ODIN

generated for this invariant the

PO of Figure 15 for removing the grd8 defined in

Section 4.5. This PO is obtained by replacing plant1

in V := V ◁− plant1 by B_desolve(1→ ctrlV→ V→ t

→ (lastTime→ V(lastTime))) (see grd3 of event

Plant). To discharge this PO, we call S

AGE

ATH

obtain the exact solution of the related ODE.

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH

Figure 14: Preservation of the property during a cycle of ε

units of time.

Figure 15: The PO related to the safety property.

We must then replace the function B_desolve(...) with

the solution returned by the call to S

AGE

ATH

from

ODIN

. This solution is obtained by replacing the

generic variable plantV by V in the script of Figure 9.

Let us remark that for the non-linear ODE, the

proof of the safety property is achieved by assuming

the monotonicity of the function returned by

desolve_rk4 on the interval [lastTime,t]. For that

purpose, we have to prove the following property on

the returned function to state that it is increasing or

decreasing:

∀

tt ·tt

∈

[lastTime,t]

⇒

(plant1(tt) ≥ plant1(lastTime)

∧

plant1(tt) ≤ plant1(t))

∨

(plant1(tt) ≤ plant1(lastTime)

∧

plant1(tt) ≥

plant1(t))

Having this property as verified, the proof of a

safety property comes down to prove it for the lower

and/or the upper bounds.

6.3 Discussion on the Proof Activity

From both case studies that we have modeled and

verified to prove the feasibility of our approach, the

following conclusion can be drawn. The complexity

of the application-dependent proofs is proportionate

to the number of the terms of the ordinary differential

equation solution. In other words, the higher the

degree of the ordinary differential equation, the

higher the complexity of the proofs: the proofs of the

Stop Sign case study took more than one week while

2 days were enough for the Water Tank case study.

We think that the development of an inference engine

for the theory that implements the reals would help

speed up the proof activity. Such an inference rule

would automate the application of some inference

rules like reflexivity, transitivity, etc.

7 CONCLUSION AND FUTURE

WORKS

This paper has presented a proof-based approach that

uses the E

VENT

-B refinement technique to model and

verify the correctness of CPSs whose behavior is

described using ODEs. This approach combines the

VENT

-B formal method with the differential

equation solver S

AGE

ATH

by modeling and

implementing the call to the solver. The approach is

supported by a tool, built as a R

ODIN

plug-in, that

establishes the bridge between E

VENT

-B and

SAGEMATH.

To cope with the complexity of the system, the

built E

VENT

-B specification consists of four generic

models: System model that represents the continuous

aspects of CPSs EventTriggered model that specifies

the interactions between the discrete and the

continuous parts of CPSs, TimeTriggered model that

specifies the discrete time of the discrete part of CPSs

and TimeTriggeredDesolve that introduces a function

to model the call to a DE solver, called either B

desolve when treating linear ODEs and

B_desolve_rk4 when treating nonlinear ODEs.

The proposed approach was successfully applied

on several case studies like the water tank system

presented in this paper but also those with multiple

continuous variables such as the Stop Sign case study

https://github.com/CPSsWithEventB/Main/blob/mai

n/README.md. We admit that the chosen case study

is a simple hybrid system with a linear ODE but it

served us to describe the different steps for applying

our generic approach. Using S

AGE

ATH

, we can deal

with more complex ODEs as we showed by modeling

the function desolve_rk4 which solves nonlinear

ODEs. Without solving ODEs, our models were

abstract and did not allow proving the safety

properties of hybrid systems. As future work, we plan

to apply our approach on more complex case studies.

REFERENCES

Abrial, J.-R. (2010). Modeling in Event-B: System and

Software Engineering. Cambridge University Press.

Afendi, M., Laleau, R., and Mammar, A. (2020). Modelling

hybrid programs with event-b. In Rigorous StateBased

Methods: 7th International Conference, ABZ 2020,

Ulm, Germany, May 27–29, 2020, Proceedings, pages

139–154. Springer.

Banach, R., Butler, M., Qin, S., Verma, N., and Zhu, H.

(2015). Core Hybrid Event-B I: Single Hybrid EventB

Machines. Science of Computer Programming, 105:92–

123.

ICSOFT 2023 - 18th International Conference on Software Technologies

Butler, M., Abrial, J.-R., and Banach, R. (2016). Modelling

and Refining Hybrid Systems in Event-B and Rodin.

Butler, M. and Maamria, I. (2010). Mathematical Extension

in Event-B through the Rodin Theory Component.

Dupont, G., A¨ıt-Ameur, Y., Pantel, M., and Singh, N. K.

(2018). Proof-Based Approach to Hybrid Systems

Development: Dynamic Logic and Event-B. In Butler,

M., Raschke, A., Hoang, T. S., and Reichl, K., editors,

Abstract State Machines, Alloy, B, TLA, VDM, and Z,

pages 155–170, Cham. Springer International

Publishing.

Dupont, G., Ameur, Y. A., Pantel, M., and Singh, N. K.

(2021). Event-B Refinement for Continuous

Behaviours Approximation. In Hou, Z. and Ganesh,

V., editors, Automated Technology for Verification and

Analysis 19th International Symposium, ATVA 2021,

Gold Coast, QLD, Australia, October 18-22, 2021,

Proceedings, volume 12971 of Lecture Notes in

Computer Science, pages 320–336. Springer.

Frehse, G., Guernic, C. L., Donze´, A., Cotton, S., Ray, R.,

Lebeltel, O., Ripado, R., Girard, A., Dang, T., and

Maler, O. (2011). Spaceex: Scalable verification of

hybrid systems. In Gopalakrishnan, G. and Qadeer, S.,

editors, Computer Aided Verification 23rd

International Conference, CAV 2011, Snowbird, UT,

USA, July 14-20, 2011. Proceedings, volume 6806 of

Lecture Notes in Computer Science, pages 379–395.

Springer.

Fulton, N., Mitsch, S., Quesel, J.-D., Vo¨lp, M., and Platzer,

A. (2015). KeYmaera X: An Axiomatic Tactical

Theorem Prover for Hybrid Systems. In International

Conference on Automated Deduction, pages 527–538.

Springer.

Henzinger, T. A., Ho, P., and Wong-Toi, H. (1997).

HYTECH: A model checker for hybrid systems. Int. J.

Softw. Tools Technol. Transf., 1(1-2):110–122. Kopetz,

H. (1991). Event-Triggered Versus Time-Triggered

Real-Time Systems. In Operating Systems of the 90s

and Beyond, pages 86–101. Springer.

Loos, S. M. and Platzer, A. (2016). Differential Refinement

Logic. In 2016 31st Annual ACM/IEEE Symposium on

Logic in Computer Science, pages 1–10. IEEE.

DISCONT ANR Project (2017). https://discont.loria.fr.

Perko, L. (2013). Differential Equations and Dynamical

Systems, volume 7. Springer Science & Business

Media.

Platzer, A. (2008). Differential Dynamic Logic for Hybrid

Systems. Journal of Automated Reasoning, 41(2):143–

189.

Platzer, A. and Quesel, J.-D. (2008). KeYmaera: A Hybrid

Theorem Prover for Hybrid Systems (System

Description). In International Joint Conference on

Automated Reasoning, pages 171–178. Springer.

Su, W., Abrial, J.-R., and Zhu, H. (2014). Formalizing

Hybrid Systems with Event-B and the Rodin Platform.

Science of Computer Programming, 94:164–202.

Wolfram, S. (2003). The Mathematica Book, 5th edn.

Wolfram Media, Champaign (2003).

Zimmermann, P., Casamayou, A., Cohen, N., Connan, G.,

Dumont, T., Fousse, L., Maltey, F., Meulien, M.,

Mezzarobba, M., Pernet, C., et al. (2018).

Computational Mathematics with SageMath. SIAM.

A Tool-Supported Approach for Modeling and Verifying Hybrid Systems using EVENT-B and the Differential Equation Solver

SAGEMATH
