Integrating Autoencoder-Based Hybrid Models into Cervical

Carcinoma Prediction from Liquid-Based Cytology

Ferdaous Idlahcen

, Ali Idri

1,2 b

and Hasnae Zerouaoui

Al Khwarizmi College of Computing, Mohammed VI Polytechnic University, 43150 Ben Guerir, Morocco

Software Project Management Research Team, ENSIAS, Mohammed V University, 10000 Rabat, Morocco

Keywords: Uterine Cervical Neoplasms, Liquid-Based Cervical Cytology (LBCC), Squamous Cell Carcinoma (SCC),

Negative for Intraepithelial Lesion or Malignancy (NILM), AI-Assisted Screening, Digital and Computational

Pathology (DCP).

Abstract: Artificial intelligence (AI)-assisted cervical cytology is poised to enhance sensitivity whilst lessening bias,

labor, and time expenses. It typically involves image processing and deep learning to automatically recognize

pre-cancerous lesions on a given whole-slide image (WSI) prior to lethal invasive cancer development. Here,

we introduce autoencoder (AE)-based hybrid models for cervical carcinoma prediction on the Mendeley-

liquid-based cytology dataset. This is built on fourteen combinations of AE, DenseNet-201, and six state-of-

the-art classifiers: adaptive boosting (AdaBoost), support vector machine (SVM), multilayer perceptron

(MLP), decision tree (DT), k-nearest neighbors (k-NN), and random forest (RF). As empirical evaluations,

four performance metrics, Scott-Knott (SK), and Borda count voting scheme, were performed. The AE-based

hybrid models integrating AdaBoost, MLP, and RF as classifiers are among the top-ranked architectures, with

respective accuracy values of 99.30, 99.20, and 98.48%. Yet, DenseNet-201 remains a solid option when

adopting an end-to-end training strategy.

1 INTRODUCTION

Cervical cancer (CxCa) is a prominently occurring

gynecologic neoplasm (Dasari et al., 2015). It implies

an unregulated cell cycle and invasiveness of the

cervix uteri (Dasari et al., 2015) – the lower, narrow

end of the uterus. Precancerous cervical lesions are

strongly associated with human papillomavirus

(HPV), a viral infection spread at an 80% rate via

skin-to-skin or skin-to-mucosa contact (Hu et al.,

2018; Petca et al., 2020). While 80%–90% of HPV

infections are transient/latent and regress by host

immunity within two years spontaneously, persistent

or repeated infections with strains of high-risk HPV

(HR-HPV) evolve into high-grade lesions or

invasiveness (Huber et al., 2021). With such a well-

known causal agent and a slower disease progression,

cervical cancer is regarded as preventable and the best

candidate for screening principles; its morbimortality

appears thereof to be declining with the licensure of

HPV- vaccines and mass-screening programs (Dasari

https://orcid.org/0000-0001-5888-6404

https://orcid.org/0000-0002-4586-4158

et al., 2015; Hu et al., 2018). Howbeit, CxCa persists

to be a heavy global burden, largely encountered by

women in low- and middle-income countries

(LMICs) – accounting for 9 out of 10 deaths and an

estimated 27% rise by 2030, while increasing by only

1% in high-income countries (HICs) according to the

World Health Organization (WHO) (Ginsburg et al.,

2017; Woo et al., 2021). Still, cervical cancer remains

the second most prevalent malignancy in women

under the age of 45 in HICs despite its disparity trend

(Koliopoulos et al., 2017). Reckon with the status

quo, by 2030, vaccine alone would have little effect

on CxCa mortality with just a 0.1% decline, yet

accelerated twice-lifetime screening in conjunction

with treatment would lower mortality by 34.2%,

sparing 300,000–400,000 lives lost (Canfell et al.,

2020; Gangopadhyay, 2022).

Liquid-based cervical cytology (LBCC) has

evolved as the gold standard of CxCa screening,

owing to its superior sensitivity and specificity over

traditional smear cytology (SC) (Sanyal et al., 2019).

Idlahcen, F., Idri, A. and Zerouaoui, H.

Integrating Autoencoder-Based Hybrid Models into Cervical Carcinoma Prediction from Liquid-Based Cytology.

DOI: 10.5220/0012084600003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 343-350

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

343

LBCC procedure not only offers the advantage of

lessening artifacts caused by low cellularity and blood

contamination, yet it permits pathologists to conduct

ancillary tissue assays previously restricted to

histological material (Sanyal et al., 2019; Zhang et al.,

2021). Nonetheless, cervical screening is generally

labor-intensive. It highly demands skilled cytologists,

with conflicting findings attributed to (i) population

diversity, (ii) inter-examiner discrepancy in both

sampling and preparation processes, and (iii) inter-

observer variability in interpreting specimens (Bao et

al., 2020; Sanyal et al., 2019; Thakur et al., 2022).

Modern pathology practice is shifting toward a

digital scheme. Herein, computer displays are used to

evaluate scanned cytology glass slides, enabling

automated AI image-analysis on tissue sections (Bao

et al., 2020). In contrast to shallow machine learning

(ML), the strength of neural networks resides in their

ability to extract highly representative features over

several layered architectures, letting them suit high-

dimensional data. A performance overview achieved

by various deep convolutional neural networks

(dCNNs) in both branches of cervical cancer

pathology, i.e. histo-and cyto- pathology, can be

found in (Idlahcen et al., 2022). As ML algorithms

rely heavily on optimal feature extraction and

selection schemes, a hybrid learning model (HLM)

built on dCNN and ML remains more appealing than

single learners (SLs) due to more robust features and

classification lifting both performance and

interpretability (Qaid et al., 2021). Still, the amount

of training data continues to have a strong impact on

models’ performances (Fan et al., 2022).

In tumor pathology, gathering a large amount of

noiseless data with correct labeling is quite tricky due

to plenty of issues that impede automated WSI

analysis, such as (Khened et al., 2021): stain

variability, tissue artifacts, limited representative

training samples, lack of labeling during acquisition,

and extraction of clinically relevant patterns. The

scarcity of expert-labeled and artifacts-free data poses

barriers to the broadly adopted supervised learning

approaches in computational pathology (Försch et al.,

2021). Another less apparent challenge is the large

dimensionality of WSIs compared to existing medical

imaging modalities. Typically, a glass slide of 20 mm

× 15 mm yields at least a 4.8 gigapixel image at an

extremely high resolution equivalent to 40×

magnification on a microscope, limiting end-to-end

training (Khened et al., 2021).

To handle the above drawbacks, the present paper

explores (i) the use of an unsupervised learning

strategy, the autoencoder (AE), to overcome

supervised feature learning limitations in digital

cytology, and (ii) whether HLMs surpass SLs (end-

to-end) in cervical LBCC smears classification.

Herein, we built and assessed fourteen architectures

for differentiating healthy controls from cervical

carcinoma patients on the Mendeley- LBCC WSIs.

Recall that all the empirical evaluations were

performed under Scott-Knott (SK) and Borda count

voting schemes. Various domains, including software

engineering (Idri et al., 2016; Ottoni et al., 2019),

adopted the SK algorithm to compare clusters when

scoring ML techniques for parameter tuning. Ergo,

we applied the SK test since (i) it selects the top non-

overlapping sets and (ii) surpasses past statistical

methods. Likewise, the Borda count is used to score

optimally the SK-selected techniques.

The present study addresses three key research

questions (RQs):

- RQ1: Do dCNN-based HLMs outperform

end-to-end dCNN architecture for classifying

cervical cytology WSIs?

- RQ2: Do AE-based HLMs outperform end-

to-end AE architecture for classifying

cervical cytology WSIs?

- RQ3: Do dCNN-based HLMs outperform

AE-based HLMs?

The major contributions of this study are three-

fold:

- As far as we know, this work adopts for the

first time autoencoders to (i) automatically

extract robust features from cervical liquid-

based cytology whole-slides and (ii) address

supervised feature learning limitations.

- Analyze the effect on cervical cytology

classification performance by modeling

fourteen various combinations of AE, dCNN,

and ML/DL classifiers on the same dataset.

- Assess the performances of the proposed

architectures through four measures, SK

clustering, and Borda count schemes.

This document is organized as follows. Data

acquisition and pre-processing are described in

Section 2. Section 3 reports the implemented

empirical scheme. The experimental findings and

discussion are provided in Section 4. Section 5 sums

up this study.

2 DATASET

Data preparation is a key asset in an ML pipeline,

consisting of (i) data acquisition, (ii) data pre-

processing, and (iii) data augmentation, as depicted in

Fig 1.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

344

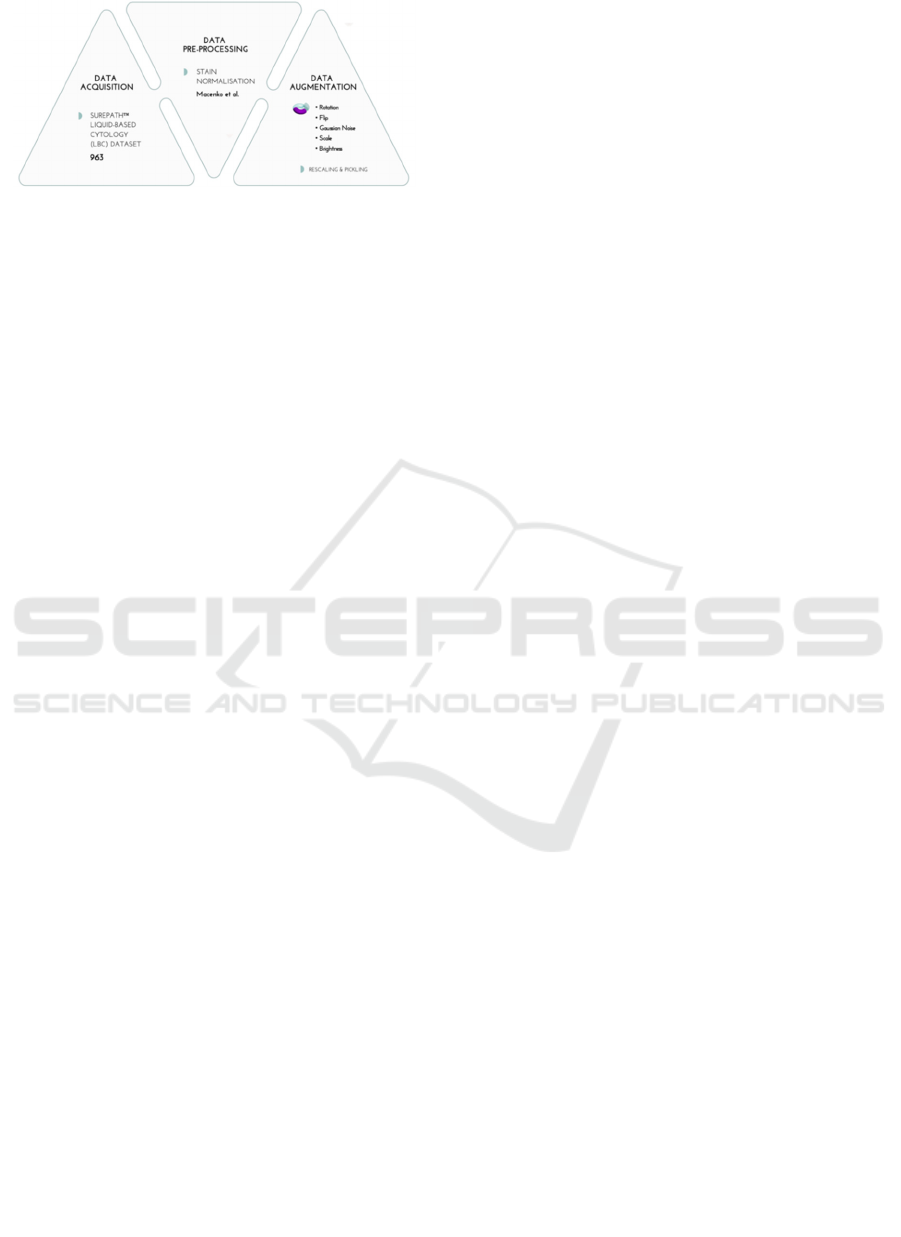

Figure 1: Data preparation scheme.

2.1 Data Acquisition

A total of 963 hematoxylin and eosin (H&E) -stained

SurePath™ liquid-based cytology WSIs were

retrieved from the Mendeley data repository (Hussain

et al., 2020). The specimens were collected from 460

patients in the Gynaecology and Obstetrics

Department of Gauhati Medical College and

Hospital. All slides were captured at 400x

magnification using a Leica ICC50 HD microscope

and sampled into four sets as per The Bethesda

System (TBS) standards: negative for intraepithelial

lesion or malignancy (NILM, 613 slides), low-grade

squamous intraepithelial lesion (LSIL, 163 slides),

high-grade SIL (HSIL, 113 slides), and squamous cell

carcinoma (SCC, 74 slides). A board-certified

pathologist reviewed patient reports as ground truth.

As our purpose is to identify which patients are

healthy and which are diagnosed with cervical

carcinoma, we regard SCC as the “case or carcinoma”

class, whereas NILM is labeled “control or healthy”.

2.2 Stain Normalization

H&E-stained tissue sections are the main pillar of

anatomic pathology (Idlahcen et al., 2020). It

highlights the cellular structures, allowing for

convenient differentiation of the nuclear,

cytoplasmic, and extracellular matrix components

(Chan, 2014). While hematoxylin binds to nucleic

acid and stains it blue-purple, eosin grants the

cytoplasm a bright pink hue that contrasts the nuclear

color (Idlahcen et al., 2020). But uneven stains are

ubiquitous in samples, posing one of the biggest

hurdles to whole-slide image analysis (Khened et al.,

2021). To avert such color variations, tissue stain

normalization techniques are required. In this study,

we implemented the (Macenko et al., 2009) stain

normalization approach from the StainTools (Otálora

et al., 2022) Python package on all the Mendeley-

LBCC slides as a preprocessing step to avert color

variation-driven biases.

2.3 Data Augmentation

In this study, we applied six augmentation techniques

as follows: 90-degree rotation, horizontal flip,

vertical flip, random scale, gaussian noise, and

brightness.

A class imbalance in the Mendeley- LBCC

dataset is perceived since 63% of WSIs pertain to a

“control” class. As it stands, all the samples

underwent data augmentation using the six aforesaid

techniques for resampling to avert such limitations as

well as a misleading classification. Accordingly, we

generated new data from every single slide making an

overall total of 2000 images for each class.

3 EMPIRICAL DESIGN

This section depicts the empirical design of the

present study. The designed architectures were

shortened using acronyms.

3.1 Performance Measures

We used four metrics: accuracy (Acc), precision (Pr),

recall (Re), and F1-measure (F1). Accuracy is defined

as the ability to correctly detect cases from controls.

While precision denotes the proportion of the cases

out of the total noted cases instances, recall indicates

the number of cases successfully identified out of the

instances of the total case; it reduces the total controls

declared under cases. F-measure ranges from 0 as its

worst value to 1 as its best one and refers to the

harmonic mean of precision and recall.

As for evaluation, we adopted (k=5)-fold cross-

validation (fCV). Recall that cross-validation

schemes give better insights into complex and unseen

data at every level, averting bias issues.

3.2 Scott-Knott & Borda Count Voting

Schemes

Scott-Knott is proposed by Scott and Knott in 1974 as

a hierarchical clustering algorithm (Ottoni et al.,

2019). Its core use is variance analysis (ANOVA)

although it is extensively used to achieve multiple

comparisons of treatment means for distinct

homogenous overlapping groups due to its simplicity

yet robustness. Further, Borda count is adopted to

pick the ideal architecture given four metrics with

equal weight. Although other candidates or options

could be picked instead of the bulk-favored option -

the consensus-based voting process is the inverse of

Integrating Autoencoder-Based Hybrid Models into Cervical Carcinoma Prediction from Liquid-Based Cytology

345

the majority system. Recall that the Borda count

voting system was performed to guarantee that no

biases existed in the selection of any metric.

3.3 Experimental Scheme

The empirical scheme followed throughout this study

is inspired by prior research in (Idri et al., 2016;

Lahmar et al., 2022), involving three steps as follows:

- Assess the accuracy of each variant of the 14

architectures through Mendeley- LBCC

dataset: one dCNN end-to-end architecture,

six dCNN-based hybrid architectures, one AE

end-to-end architecture, and six AE-based

hybrid architectures.

- Cluster the designed architectures using the

Scott-Knott algorithm, then select the SK top-

cluster as per accuracy.

- Rank the designed architectures of the SK top-

cluster using the Borda count voting system as

per four performance measures, i.e. accuracy,

precision, recall, and F1-measure. At last,

select the top architecture.

3.4 Configuration

We built 14 architectures consisting of (i) end-to-end

DenseNet-201. (Idlahcen et al., 2022) reports on

preliminary work over the same dataset that led to the

selection of DenseNet-201 as dCNN for this study.;

(ii) six dCNN-based hybrid architectures involving

DenseNet-201 as FE with respective six classifiers

(AdaBoost, SVM, MLP, DT, k-NN, and RF); (iii) an

end-to-end AE; and (iv) six AE-based hybrid

architectures involving AE as FE with the same

classifiers. All are designed to achieve a binary

classification on the Mendeley- LBCC dataset.

Herein, the following configurations were adopted:

- Since the default input size differs amongst

dCNNs, we downsized all the images from

an original size of 2048×536 px. into

224x224 px. to match the processed size

when implementing a DenseNet-201

network.

- To avoid repetitions throughout the process,

NumPy files (.npz) were used to store the

resized images.

- We used Keras and TensorFlow frameworks

as deep learning backends - particularly for

end-to-end architectures. As per hybrid

ones, we used the Scikit-learn library to

implement the default configuration of the

six classifiers.

All empirical schemes were performed using Google

Colab's TPU.

3.5 Acronyms

For the convenience of the reader, we shorten the

name of each variant as follows: DesNet for

DenseNet-201; DERF for DenseNet-201 + RF;

DEAda for DenseNet-201 + AdaBoost; DEMLP for

DenseNet-201 + MLP; DETREE for DenseNet-201 +

DT; DEKNN for DenseNet-201 + k-NN; DESVM for

DenseNet-201 + SVM; AuEn for AutoEncoders;

AuEnRF for AutoEncoders + RF; AuEnAda for

AutoEncoders + AdaBoost; AuEnMLP for

AutoEncoders + MLP; AuEnTREE for

AutoEncoders + DT; AuEnKNN for AutoEncoders +

k-NN; and AuEnSVM for AutoEncoders + SVM.

4 RESULTS & DISCUSSION

This section presents the empirical findings of the

proposed designs. As stated, four performance

metrics were used for assessment. Initially, the

accuracy of DenseNet-201is compared against the

hybrid architectures by a set of classifiers, each of

which is conducted individually in conjunction with

DenseNet-201 as a feature extractor. Likewise, end-

to-end AE with hybrid architectures and dCNN-based

hybrid architectures with those based on AE

respective per each classifier. Then, the SK statistical

test is performed to cluster the elected techniques. At

last, the architectures of the SK top-cluster are ranked

using the Borda count voting system.

4.1 Do dCNN-Based HLMs

Outperform End-to-end dCNN

Architecture for Classifying

Cervical Cytology WSIs?

Table 1 displays the accuracy values of (i) end-to-end

DenseNet-201 and (ii) dCNN-based HLMs, on

augmented Mendeley- LBCC dataset. Through the

results obtained:

- The end-to-end outperformed the others

with an accuracy value of 99.66%.

- The HLM integrating SVM scored the

worst, with an accuracy value of 83.04%.

- The remaining architectures, i.e. DenseNet-

201 + AdaBoost, DenseNet-201 + MLP,

DenseNet-201 + DT, DenseNet-201 + k-

NN, and DenseNet-201 + RF, had an

accuracy rating greater than 95%.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

346

Table 1: Accuracy values of dCNN-based and AE-based

end-to-end and hybrid architectures.

dCNN

Archi.

Acc [%] AE Archi. Acc [%]

DesNe

99.66

AuEn

78.50

DEAda

97.88

AuEnMLP

99.20

DESVM

83.04

AuEnAda

98.48

DEMLP

97.80

AuEnSVM

51.06

DETREE

95.12

AuEnTREE

95.40

DEKNN

96.38

AuEnKNN

94.14

DERF

98.00

AuEnRF

99.30

Based on accuracy values, the seven architectures

were clustered using the SK test as displayed in Fig

2. Through this figure, we notice that:

- Cluster 1 got just one architecture, i.e. end-

to-end DenseNet-201, which performs the

best out of all our models.

- The elements of the second cluster comprise

three dCNN-based HLMs, (i) DenseNet-201

+ RF, (ii) DenseNet-201 +AdaBoost, and

(iii) DenseNet-201 + MLP, all of which have

an accuracy greater than 96%.

- The third and fourth clusters each feature

one architecture only, namely (i) DenseNet-

201 + DT and (ii) DenseNet-201 + k-NN

respectively. The two models' accuracy

range from 95.12 to 96.38%.

- The last cluster is made up of the dCNN-

based HLM integrating SVM, which

performs the worst out of all our models.

Recall that Borda Count is not required to rank the

models since the first cluster contains just one

architecture.

4.2 Do AE-Based HLMs Outperform

End-to-end AE Architecture for

Classifying Cervical Cytology

WSIs?

Table 1 displays the accuracy values of (i) end-to-end

AE and (ii) AE-based HLMs, on augmented

Mendeley- LBCC dataset. Through the results

obtained:

- The HLM integrating RF scored the best,

with an accuracy value of 99.30%.

- The HLM integrating SVM scored the

worst, with an accuracy value of 51.06%.

- Except for the “AE + SVM”, a significant

variance in performance between end-to-end

and hybrid architectures is perceived.

- The hybrid performance has improved in

comparison to some of the prior dCNN-

based HLMs, notably for AdaBoost, MLP,

and RF.

Figure 2: SK test results for the dCNN-based architectures.

In this sub-section, the SK test serves the same

purpose as in RQ1. Through Fig 3, we notice four

clusters including:

- The best cluster comprises three AE-based

HLMs, (i) AE + RF, (ii) AE + MLP, and (iii)

AE + AdaBoost, all of which have an

accuracy greater than 98%.

- Both ‘AE + DT’ and ‘AE + k-NN’ come

second given an accuracy range from 94.14

to 95.4%.

- The third cluster features the end-to-end AE

given an accuracy value under the 80%.

- The last cluster features also one

architecture only, i.e. the AE-based HLM

integrating SVM, which performs the worst

out of all our models.

- Except for the “AE + SVM”, HLMs

outperform the end-to-end architecture.

Figure 3: SK Test results for the AE-based end-to-end and

hybrid architectures.

Table 2: Performance criteria values and Borda count

ranking of the AE-based architectures belonging to the SK

top-cluster.

Archi. AE + RF AE + MLP AE +

AdaBoost

Rank 12 3

Scores 11 9 4

Acc [%] 99.30 99.20 98.48

Pr [%] 99.65 99.10 98.35

Re [%] 98.96 99.30 98.60

F1 [%] 99.30 99.20 98.47

Next, the Borda count voting system was used to

rank the proposed architectures belonging to the SK

top-cluster. Herein, HLMs integrating AdaBoost,

MLP, and RF as classifiers are statistically similar as

Integrating Autoencoder-Based Hybrid Models into Cervical Carcinoma Prediction from Liquid-Based Cytology

347

per cluster 1, indicating that all were used for the

ranking according to the four performance measures.

The related performance scores and Borda count

ranking are depicted in Table 2. The findings are as

follows:

- HLM with RF is ranked top.

- HLM with MLP comes second with a close

score.

- HLM with AdaBoost is ranked last.

4.3 Do dCNN-Based HLMs

Outperform AE-Based HLMs?

Table 1 summarizes the obtained accuracy values on

the augmented Mendeley- LBCC dataset. Through

the results, we notice that:

- Except for (i) end-to-end AE, (ii) AE +

SVM, and (iii) dCNN + SVM, all the

proposed architectures have an accuracy

value superior to 95%.

- Among the 14 designs, DenseNet-201

performs the best with an accuracy value of

99.66%.

- AE-based HLMs integrating RF, AdaBoost,

and MLP, perform as well favorably, with

accuracy values ranging from 98.48 to

99.30%.

- All the HLMs incorporating SVM perform

poorly, with the paring 'AE + SVM' yielding

the worst accuracy value of 51.06%.

- Except for ‘AE + k-NN’, the remaining

HLMs yielded accuracy values ranging from

95.12 to 98%.

- End-to-end AE performs poorly in contrast

to DenseNet-201, with an accuracy rating of

78.5%.

The SK test fulfills the same purpose as in

RQ1/RQ2. Through Fig 4, we notice five clusters

including:

- The best cluster is made up of seven designs.

All, apart from end-to-end DenseNet-201,

are HLMs – particularly built with

AdaBoost, MLP, and RF classifiers.

- The second cluster comprises four HLMs of

k-NN and DT as classifiers only.

- The last clusters are made up of poorly

performing architectures, namely end-to-

end AE and HLMs built on SVM.

Next, the Borda count voting scheme was

performed. Table 3 summarizes the performance

scores and ranking of the SK top-cluster-related

models. The findings are as follows:

- AE-based HLMs are highly ranked, with the

RF classifier performing the best.

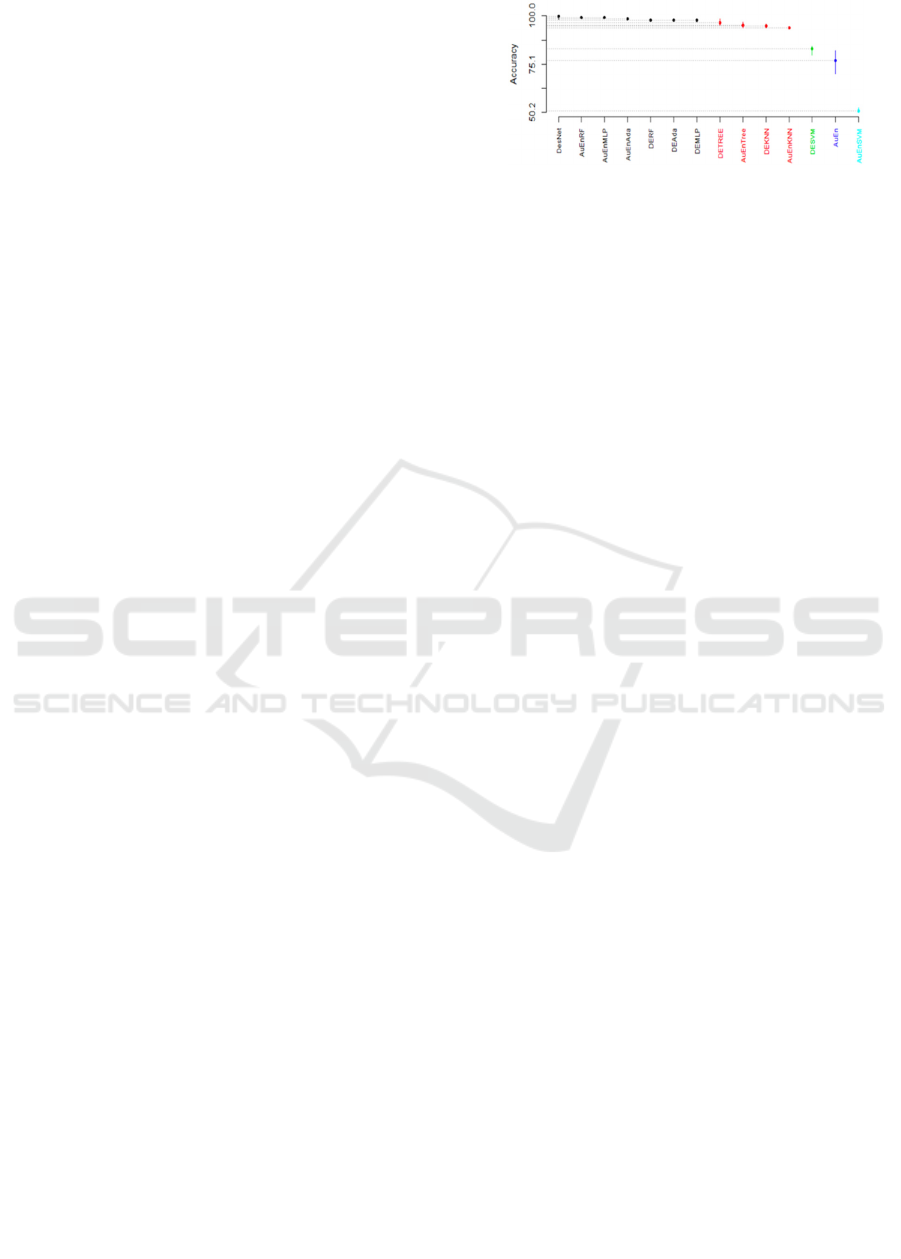

Figure 4: SK test results for all the proposed architectures.

- The ‘AE + MLP’ receives a similar score as

DenseNet-201, ranking both seconds.

- AE-based HLM with AdaBoost is ranked

third.

- The remaining are built on DenseNet-201

with RF, AdaBoost, and MLP.

Here, incorporating AE demonstrated its efficacy

in classification tasks within cervical computational

pathology. It is consistent with the fact that extracted

features supplied as input to the classifiers are more

informative and, ergo, cervical lesions are better

distinguished. When paired with RF, the

classification accuracy improves. One of the

appealing benefits of RF is it searches for the relevant

features among a random subset of pathological ones,

in which complex nuclear elements (intended to

identify abnormalities) could be wasted. Instead,

DenseNet-201 remains a viable choice as an end-to-

end strategy over whole-slide imaging for its structure

adapted to prevent feature redundancy while

employing fewer parameters.

5 CONCLUSION

The present paper proposed AE-based hybrid

learning models for cervical cancer screening and

investigated the impact of fourteen combinations on

classification performance. All the architectures were

evaluated under four key metrics, Scott-Knott, and

Borda count schemes over Mendeley- LBCC WSIs.

The main findings are as follows:

- RQ1: Do dCNN-based HLMs outperform

end-to-end dCNN architecture for

classifying cervical cytology WSIs? As per

accuracy, the end-to-end dCNN outperforms

the hybrid architectures. The SK test

revealed the optimum cluster as having just

such one architecture.

- RQ2: Do AE-based HLMs outperform end-

to-end AE architecture for classifying

cervical cytology WSIs? Except for the AE-

based hybrid architecture integrating SVM

as a classifier, the AE-based HLMs surpass

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

348

the end-to-end AE by a wide margin. Recall

that AE with RF, MLP, and Adaboost

classifiers come first, second, and third in

the Borda count ranking, respectively.

- RQ3: Do dCNN-based HLMs outperform

AE-based HLMs? As per Borda count, the

AE-based HLMs are among the top 3 ranked

architectures, whereas dCNN-based HLMs

are all rated after the AE-based designs.

Ergo, the feature extractions are more

successful when the AE is implemented.

Table 3: Performance criteria values and Borda count

ranking of the architectures belonging to the SK top-cluster.

Archi. R.;

Sc.

Acc

[%]

AuEn

99.30 99.65 98.96 99.30

Des

99.66 99.89 98.53 99.10

AuEn

MLP

99.20 99.10 99.30 99.20

AuEn

Ada

98.48 98.35 98.60 98.47

98.00 98.35 97.67 98.01

Ada

6; 8 97.88 97.85 97.91 97.87

MLP

7; 6 97.80 97.90 97.74 97.80

The present study is limited by the cost of training

DL models and the difficulty of interpreting their

predictions. Further validation is required to ensure

their reliability. Another weakness is the total number

of images remains relatively small. Although the

slides used were collected from three distinguished

medical diagnostic centers, most of the study

population was Indian, locally trained, so

generalizability to other populations and settings is

not known. To be objective, the usefulness of the

proposed architectures will be concretely evaluated in

future work on the Herlev dataset to confirm or refute

this study’s findings regarding conventional

cytology. Extending it toward a multi-class problem

mimicking pathologists for screening cervical

intraepithelial neoplasia is also necessary.

ACKNOWLEDGEMENTS

This work was conducted under the research project

“Machine Learning based Breast Cancer Diagnosis

and Treatment”, 2020-2023. The authors would like

to thank the Moroccan Ministry of Higher Education

and Scientific Research, Digital Development

Agency (ADD), CNRST, and UM6P for their

support.

REFERENCES

Bao, H., Bi, H., Zhang, X., Zhao, Y., Dong, Y., Luo, X.,

Zhou, D., You, Z., Wu, Y., Liu, Z., Zhang, Y., Liu, J.,

Fang, L., & Wang, L. (2020). Artificial intelligence-

assisted cytology for detection of cervical

intraepithelial neoplasia or invasive cancer: A

multicenter, clinical-based, observational study.

Gynecologic Oncology, 159(1), 171–178. doi:

10.1016/J.YGYNO.2020.07.099

Canfell, K., Kim, J. J., Brisson, M., Keane, A., Simms, K.

T., Caruana, M., Burger, E. A., Martin, D., Nguyen, D.

T. N., Bénard, É., Sy, S., Regan, C., Drolet, M.,

Gingras, G., Laprise, J. F., Torode, J., Smith, M. A.,

Fidarova, E., Trapani, D., … Hutubessy, R. (2020).

Mortality impact of achieving WHO cervical cancer

elimination targets: a comparative modelling analysis

in 78 low-income and lower-middle-income countries.

Lancet (London, England), 395(10224), 591. doi:

10.1016/S0140-6736(20)30157-4

Chan, J. K. C. (2014). The Wonderful Colors of the

Hematoxylin–Eosin Stain in Diagnostic Surgical

Pathology. Http://Dx.Doi.Org/10.1177/10668969135

17939, 22(1), 12–32. doi: 10.1177/1066896913517939

Dasari, S., Wudayagiri, R., & Valluru, L. (2015). Cervical

cancer: Biomarkers for diagnosis and treatment. Clinica

Chimica Acta, 445, 7–11. doi: 10.1016/J.CCA.

2015.03.005

Fan, F. J., & Shi, Y. (2022). Effects of data quality and

quantity on deep learning for protein-ligand binding

affinity prediction. Bioorganic & Medicinal Chemistry,

72, 117003. doi: 10.1016/J.BMC.2022.117003

Försch, S., Klauschen, F., Hufnagl, P., & Roth, W. (2021).

Artificial Intelligence in Pathology. Deutsches

Ärzteblatt International, 118(12), 199. doi:

10.3238/ARZTEBL.M2021.0011

Gangopadhyay, A. (2022). Elimination of cervical cancer

as a public health problem—how shorter brachytherapy

could make a difference during COVID-19.

Ecancermedicalscience, 16. doi: 10.3332/ECANCER.

2022.1352

Ginsburg, O., Bray, F., Coleman, M. P., Vanderpuye, V.,

Eniu, A., Kotha, S. R., Sarker, M., Huong, T. T.,

Allemani, C., Dvaladze, A., Gralow, J., Yeates, K.,

Taylor, C., Oomman, N., Krishnan, S., Sullivan, R.,

Kombe, D., Blas, M. M., Parham, G., … Conteh, L.

(2017). The global burden of women’s cancers: an

unmet grand challenge in global health. Lancet

(London, England), 389(10071), 847. doi:

10.1016/S0140-6736(16)31392-7

Hu, Z., & Ma, D. (2018). The precision prevention and

therapy of HPV‐related cervical cancer: new concepts

Integrating Autoencoder-Based Hybrid Models into Cervical Carcinoma Prediction from Liquid-Based Cytology

349

and clinical implications. Cancer Medicine, 7(10),

5217. doi: 10.1002/CAM4.1501

Huber, J., Mueller, A., Sailer, M., & Regidor, P. A. (2021).

Human papillomavirus persistence or clearance after

infection in reproductive age. What is the status?

Review of the literature and new data of a vaginal gel

containing silicate dioxide, citric acid, and selenite.

Women’s Health, 17. doi: 10.1177/1745506521

1020702

Hussain, E., Mahanta, L. B., Borah, H., & Das, C. R.

(2020). Liquid based-cytology Pap smear dataset for

automated multi-class diagnosis of pre-cancerous and

cervical cancer lesions. Data in Brief, 30, 105589. doi:

10.1016/J.DIB.2020.105589

Idlahcen, F., Himmi, M. M., & Mahmoudi, A. (2020).

CNN-based Approach for Cervical Cancer

Classification in Whole-Slide Histopathology Images.

Idlahcen, F., Mboukou, P., Zerouaoui, H., & Idri, A. (2022).

Whole-slide Classification of H&E-stained Cervix

Uteri Tissue using Deep Neural Networks. Proceedings

of the 14th International Joint Conference on

Knowledge Discovery, Knowledge Engineering and

Knowledge Management, 322–329. doi: 10.5220/

0011578700003335

Idri, A., Hosni, M., & Abran, A. (2016). Improved

estimation of software development effort using

Classical and Fuzzy Analogy ensembles. Applied Soft

Computing, 49, 990–1019. doi: 10.1016/J.

ASOC.2016.08.012

Khened, M., Kori, A., Rajkumar, H., Krishnamurthi, G., &

Srinivasan, B. (2021). A generalized deep learning

framework for whole-slide image segmentation and

analysis. Scientific Reports 2021 11:1, 11(1), 1–14. doi:

10.1038/s41598-021-90444-8

Koliopoulos, G., Nyaga, V. N., Santesso, N., Bryant, A.,

Martin-Hirsch, P. P. L., Mustafa, R. A., Schünemann,

H., Paraskevaidis, E., & Arbyn, M. (2017). Cytology

versus HPV testing for cervical cancer screening in the

general population. The Cochrane Database of

Systematic Reviews, 2017(8). doi: 10.1002/14651858.

CD008587.PUB2

Lahmar, C., & Idri, A. (2022). Deep hybrid architectures for

diabetic retinopathy classification. Https://Doi.Org/10.

1080/21681163.2022.2060864. doi: 10.1080/21681163

.2022.2060864

Macenko, M., Niethammer, M., Marron, J. S., Borland, D.,

Woosley, J. T., Guan, X., Schmitt, C., & Thomas, N. E.

(2009). A method for normalizing histology slides for

quantitative analysis. Proceedings - 2009 IEEE

International Symposium on Biomedical Imaging:

From Nano to Macro, ISBI 2009, 1107–1110. doi:

10.1109/ISBI.2009.5193250

Otálora, S., Marini, N., Podareanu, D., Hekster, R., Tellez,

D., Laak, J. Van Der, Müller, H., & Atzori, M. (2022).

stainlib: a python library for augmentation and

normalization of histopathology H&E images.

BioRxiv, 2022.05.17.492245. doi: 10.1101/2022.05.

17.492245

Ottoni, A. L. C., Nepomuceno, E. G., de Oliveira, M. S., &

de Oliveira, D. C. R. (2019). Tuning of reinforcement

learning parameters applied to SOP using the Scott–

Knott method. Soft Computing, 24(6), 4441–4453. doi:

10.1007/S00500-019-04206-W

Petca, A., Borislavschi, A., Zvanca, M., Petca, R.-C.,

Sandru, F., & Dumitrascu, M. (2020). Non-sexual HPV

transmission and role of vaccination for a better future

(Review). Experimental and Therapeutic Medicine,

20(6), 1–1. doi: 10.3892/ETM.2020.9316

Qaid, T. S., Mazaar, H., Al-Shamri, M. Y. H., Alqahtani,

M. S., Raweh, A. A., & Alakwaa, W. (2021). Hybrid

Deep-Learning and Machine-Learning Models for

Predicting COVID-19. Computational Intelligence and

Neuroscience, 2021. doi: 10.1155/2021/9996737

Sanyal, P., Barui, S., Deb, P., & Sharma, H. C. (2019).

Performance of A Convolutional Neural Network in

Screening Liquid Based Cervical Cytology Smears.

Journal of Cytology, 36(3), 146. doi:

10.4103/JOC.JOC_201_18

Thakur, N., Alam, M. R., Abdul-Ghafar, J., & Chong, Y.

(2022). Recent Application of Artificial Intelligence in

Non-Gynecological Cancer Cytopathology: A

Systematic Review. Cancers, 14(14), 3529. doi:

10.3390/CANCERS14143529

Woo, Y. L., Gravitt, P., Khor, S. K., Ng, C. W., & Saville,

M. (2021). Accelerating action on cervical screening in

lower- and middle-income countries (LMICs) post

COVID-19 era. Preventive Medicine, 144, 106294. doi:

10.1016/J.YPMED.2020.106294

Zhang, X. H., Ma, S. Y., Liu, N., Wei, Z. C., Gao, X., Hao,

Y. J., Liu, Y. X., Cai, Y. Q., & Wang, J. H. (2021).

Comparison of smear cytology with liquid-based

cytology in pancreatic lesions: A systematic review and

meta-analysis. World Journal of Clinical Cases, 9(14),

3308. doi: 10.12998/WJCC.V9.I14.3308.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

350
