Enriching Relation Extraction with OpenIE

Alessandro Temperoni

, Maria Biryukov

and Martin Theobald

University of Luxembourg, 2 Avenue de l’Universite, Esch-sur-Alzette, Luxembourg

Keywords:

Open Information Extraction, Relation Extraction, Word Embeddings, Transformers Models.

Abstract:

Relation extraction (RE) is a sub-discipline of information extraction (IE) which focuses on the prediction

of a relational predicate from a natural-language input unit. Together with named-entity recognition (NER)

and disambiguation (NED), RE forms the basis for many advanced IE tasks such as knowledge-base (KB)

population and veriﬁcation. In this work, we explore how recent approaches for open information extraction

(OpenIE) may help to improve the task of RE by encoding structured information about the sentences’ princi-

pal units, such as subjects, objects, verbal phrases, and adverbials, into various forms of vectorized (and hence

unstructured) representations of the sentences. Our main conjecture is that the decomposition of long and pos-

sibly convoluted sentences into multiple smaller clauses via OpenIE even helps to ﬁne-tune context-sensitive

language models such as BERT (and its plethora of variants) for RE. Our experiments over two annotated

corpora, KnowledgeNet and FewRel, demonstrate the improved accuracy of our enriched models compared

to existing RE approaches. Our best results reach 92% and 71% of F1 score for KnowledgeNet and FewRel,

respectively, proving the effectiveness of our approach on competitive benchmarks.

1 INTRODUCTION

Relation extraction (RE) is a way of structuring

natural-language text by means of detecting poten-

tial semantic connections between two or more real-

world concepts, usually coined “entities”. Relations

are assumed to fall into predeﬁned categories and to

hold between entities of speciﬁc types. Being itself

a sub-discipline of information extraction (IE), ex-

tracting labeled relations may also help to boost the

performance of various IE downstream tasks, such

as knowledge-base population (KBP) (Trisedya et al.,

2019) and question answering (QA) (Xu et al., 2016).

Distant Supervision vs. Few-Shot Learning. Ex-

tracting labeled relations from previously unseen do-

mains usually requires large amounts of training data.

Manually annotated corpora are relatively small due

to the amount of work involved in their construction.

To this end, distant supervision (Mintz et al., 2009)

may help to alleviate the manual labeling effort but

training data, which may serve as the basis for distant

supervision, is only available for relations covered

by an already-existing KB such as Yago (Suchanek

et al., 2007), DBpedia (Lehmann et al., 2015) or

https://orcid.org/0000-0003-0272-6596

https://orcid.org/0000-0002-2509-5814

https://orcid.org/0000-0003-4067-7609

Wikidata (Vrande

c and Kr

otzsch, 2014). For this

work, we use distant supervision to transfer the labels

from the annotated corpora to the OpenIE extractions,

thereby creating an annotated set of clauses which can

then be used for training. Moreover, for cold-start

KBP settings (KBP, 2017), few-shot learning (Wang

et al., 2021b) has recently evolved as an interesting al-

ternative to distant supervision. In few-shot-training

for KBP, an underlying language model such as BERT

(Devlin et al., 2019) is augmented by an additional

prediction layer for the given labeling task which is

then retrained by very few samples. Here, often 20–

50 examples for each label are sufﬁcient to achieve

decent results. However, all of these approaches for

KBP focus on labeling and training trade-offs for the

given input text, while other–perhaps more obvious—

options, namely to exploit syntactic and other struc-

tural clues based on OpenIE, NER and NED, are at

least as promising as these training aspects in order to

further improve prediction accuracy.

Domain-Oriented vs. Open Information Extrac-

tion. OpenIE (Etzioni et al., 2004; Banko et al.,

2007; Fader et al., 2011) expresses an alternative text-

structuring paradigm compared to the more classical,

domain-oriented IE techniques (Trisedya et al., 2019):

it transforms sentences into a set of 〈arguments – re-

lational phrase〉 tuples without labeling the relational

Temperoni, A., Biryukov, M. and Theobald, M.

Enriching Relation Extraction with OpenIE.

DOI: 10.5220/0012086100003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 359-366

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

359

phrases explicitly or requiring its arguments to be of

particular entity types. Consider, for instance, the

sentence: “In 2008 Bridget Harrison married Dim-

itri Doganis”. From an RE perspective, it would be

represented as: 〈Bridget Harrison; SPOUSE; Dimitri

Doganis〉. Its OpenIE

counterpart would decompose

the input sentence into two tuples: 〈Bridget Harri-

son; married; Dimitri Doganis〉 and 〈Bridget Harri-

son; married Dimitri Doganis In; 2008〉. Intuitively,

the two representations capture the same semantic

message of a marriage relationship between Bridget

Harrison and Dimitri Doganis. Furthermore, Ope-

nIE produces additional informative tuples describ-

ing, e.g., temporal or collocational aspects of the re-

lation via adverbial phrases, which however may not

necessarily have a corresponding canonicalized form.

Importantly, OpenIE extracts relational phrases along

with the original sentences’ arguments, thus structur-

ing the input text without loss of information. All

these characteristics make OpenIE a useful interme-

diate representation for a number of downstream IE

tasks that impose further structuring or normalization

(Mausam, 2016; Lockard et al., 2019).

Word Embeddings vs. Language Models. In the

past few years, word embeddings (Bojanowski et al.,

2017; Mikolov et al., 2013) found their applications

and proved to be efﬁcient in a wide range of IE tasks.

Word embeddings represent text as dense vectors in

a continuous vector space. Traditional word embed-

dings, such as Word2Vec (Mikolov et al., 2013) and

FastText (Bojanowski et al., 2017), are lightweight

and conveniently fast at training and inference time.

However, being static, these embeddings have limited

ability to capture a word’s changing meaning with re-

spect to different contexts. On the contrary, recently

trained, large-scale language models (LMs), such as

BERT (Devlin et al., 2019), ELMO (Peters et al.,

2018) or GPT-3 (Radford et al., 2019), extend the

approach by generating dynamic embeddings, where

each word’s representation depends on its surround-

ing context, thus pinning down particular meanings

of polysemic words and entire phrases. Despite the

differences, both types of embeddings allow to quan-

titatively express semantic similarities between words

and phrases based on the closeness of their respec-

tive vectors in the vector space. Furthermore, other

linguistic components such as syntactic dependency

trees or OpenIE-style tuples can be used to train or

ﬁne-tune various embedding models with positive im-

pact on more advanced IE tasks such as text com-

prehension, similarity and analogy (Stanovsky et al.,

2015), RE and QA (Sachan et al., 2021).

Based on OpenIE 5.1: https://github.com/dair-iitd/Op

enIE-standalone

Contributions. In this work, we systematically in-

vestigate various combinations of the above outlined

design choices for the task of RE. Speciﬁcally, we

combine OpenIE with both types of embeddings (i.e.,

context-free and context-sensitive ones) and exam-

ine the strengths and limitations of each combination.

Our main conjecture is that OpenIE is able to improve

even context-sensitive LMs such as BERT because

it decomposes large sentences into multiple clauses,

each representing the target relation in a sharper man-

ner than the original sentence. We summarize our

motivation for investigating a combination of OpenIE

and LMs for the task of RE as follows.

• Our goal is to advance Web-scale relation extrac-

tion. To this end, we adopt the OpenIE approach

to model and classify relational phrases by lever-

aging shorter clauses which more accurately cap-

ture the target relation than potentially long and

convoluted input sentences.

• We transfer the labels from the annotated corpora

to the OpenIE extractions in a distant-supervision

fashion, thereby limiting the manual labeling ef-

fort that is otherwise needed for training and ﬁne-

tuning the underlying models. We also systemati-

cally investigate few-shot training which is able to

further reduce the amount of labeled training ex-

amples to less than 20 per relation (and yet yield

satisfactory results in many cases).

• We perform detailed experiments on two an-

notated RE corpora, namely KnowledgeNet

(Mesquita et al., 2019) and FewRel (Han et al.,

2018), using Wikidata as a backend KB in combi-

nation with various state-of-the-art (both context-

free and context-sensitive) LMs. Various of our

combined approaches are able to improve over the

best known results for both KnowledgeNet and

FewRel by partly very signiﬁcant margins.

The rest of the paper is organized as follows: we

present our general methodology in Section 2, de-

scribe the experimental setup and show the results in

Section 3.

2 METHODOLOGY

In this section, we present our three principal strate-

gies for classifying text obtained from OpenIE into

canonical relations over a predeﬁned KB schema. We

next provide a brief overview of the three approaches,

before we describe them in more detail in the follow-

ing subsections.

Fine-Tuning Language Models. Our ﬁrst approach

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

360

(see Subsection 2.1 for details) is to ﬁne-tune a dedi-

cated RE model and then to use it to predict the rela-

tions for previously unseen text. Speciﬁcally, we start

with a large-scale, pretrained LM, such as BERT, and

add a classiﬁcation layer on top in order to ﬁne-tune

the model on the RE classiﬁcation task. As BERT

is a general-purpose, context-sensitive LM trained on

many billions of input sentences, we expect this ap-

proach to work best for RE, with just a small amount

of annotated sentences being required for ﬁne-tuning

the classiﬁcation layers.

Context-Free Relation Signatures. As a simpler,

context-free baseline to the above approach (see Sub-

section 2.2), we also investigate the usage of a clause-

based Word2Vec model for RE, which requires no an-

notated sentences (at least for training) at all. Here,

we directly train the Word2Vec model over a domain-

speciﬁc corpus (such as Wikipedia articles) in an un-

supervised manner. By aggregating individual word

vectors into relation signatures for a given set of tar-

get relations, we quantitatively assess the vector sim-

ilarities between these relation signatures and the re-

lational paraphrases obtained by OpenIE.

Contextualized Relation Signatures. Our third

and ﬁnal approach (see Subsection 2.3) combines the

above two ideas by investigating the usage of BERT-

like models in a feature-based manner. Here, the con-

textualized embeddings extracted from a large-scale

pre-trained model constitute an input for a contextu-

alized form of relation signatures by manually pro-

viding a few training sentences as input for each such

relation signature.

2.1 Fine-Tuning Language Models for

Relation Extraction

In the context-aware approach, we add a single fully

connected layer for the classiﬁcation task on top of

the last layer of an otherwise task-agnostic pre-trained

LM such as BERT or one of its variants. Fine-tuning

the model then consists of training the new layer’s

weights over a task-speciﬁc annotated dataset. For

our RE task, a typical annotated example would con-

sist of (1) an input sentence, (2) the entity pair cor-

responding to the sentence’s subject and object, and

(3) the target relation as label. For example, the

sentence ”After ﬁve successful albums and extensive

touring, they disbanded after lead vocalist Sandman

died of a heart attack onstage in Palestrina, Italy,

on July 3, 1999.” would then be encoded into the

clause (amongst others) 〈 {Sandman; July 3, 1999},

DATE

OF DEATH 〉. Note, however, that our ap-

proach to relation classiﬁcation differs from the estab-

lished setup in one important way: while many works

on the topic capitalize on the importance of relational

argument (entity) representation (Soares et al., 2019;

Zhou and Muhao, 2022; Zhang et al., 2019a), we

completely exclude entity-related information (ob-

tained from common NER/NED toolkits) during the

training, thereby delegating the task of extracting the

relational argument to the OpenIE step. Therefore, an

adjusted input for tuning the model is reduced to pairs

made of (1) input clause and (2) target relation.

The BERT family of LMs we used for ﬁne-tuning

is listed below. We brieﬂy introduce each model and

motivate our choices.

• bert-base-uncased is a Bidirectional Encoder

Representations from Transformers (BERT)

model (Devlin et al., 2019). BERT became a

default “baseline” for many NLP tasks involving

general-purpose pre-trained models.

• distilbert-base-uncased (Sanh et al., 2020) is a

variant of BERT, pre-trained on the knowledge

distillation principle which consists of transfer-

ring knowledge from (a set of) large model(s) to a

single smaller one.

• xlnet-base-cased (Yang et al., 2019) is an autore-

gressive model that improves on BERT’s capa-

bility of learning semantic dependencies between

sentence components.

• roberta-base (Liu et al., 2019) has been trained on

a much larger corpus than BERT (and is yet opti-

mised). It showed the highest accuracy (compared

to BERT and XLNet) on the task of Recognizing

Textual Entailment (RTE) (Liu et al., 2019; Wang

et al., 2019) which is closely related to the task

of RE. This motivates our interest in using this

model.

• albert-base-v1 (Lan et al., 2020) introduces a

sentence-order prediction (SOP) training objec-

tive which focuses primarily on inter-sentence

coherence—a property we expect to leverage

from when transferring knowledge learned from

entire sentences to OpenIE clauses.

• setﬁt (Tunstall et al., 2022) stands for Sentence

Transformer Fine-tuning and is a recent work de-

signed for few-shot text classiﬁcation. It is trained

on a small number of text pairs in a contrastive

Siamese manner. The resulting model is then used

to generate rich text embeddings which are used

to train a classiﬁcation task.

Enriching Relation Extraction with OpenIE

361

2.2 Using Context-Free Relation

Signatures for Relation Extraction

For the context-free approach, we start from a large

dump of English Wikipedia articles which we pro-

cess with a pipeline consisting of ClausIE (Corro

and Gemulla, 2013) for clause decomposition, Stan-

ford CoreNLP (Manning et al., 2014) and AIDA-light

(Nguyen et al., 2014) for NER and NED, respectively.

This pipeline yields an initial amount of 190 million

clauses, from which we distill 13.5M binary relations

of the form 〈subject; relational phrase; object〉.

Following (Fader et al., 2011), we apply regular

expressions on the verbal phrases to identify patterns

of the form verb | verb + particle which should cover

≈ 85% of the verb-based relations in English. After

the above steps, our overall representation of a clause

is of the form: 〈entity

, verb + particle, entity

〉 with

the additional condition that entity

and entity

should

not be equal. We next embed the clauses into their

word vector representations, we consider two encod-

ing schemes:

(i) by exploiting the compositionality of word vec-

tors:

⃗

verb

⃗

particle

(ii) by creating bigrams of verbs and particles for the

most frequent relational paraphrases in the corpus

(e.g., work at, graduate from, born in):

⃗

verb particle

For the latter bigram-based encoding, we treat bi-

grams for the prepositional verbs as additional dictio-

nary entries before a Word2Vec model is trained on

the clauses. As we will see in Section 3, we leverage

both aforementioned techniques in comparison. To

train the models under (i) and (ii), we use Word2Vec

“skip-gram model” implementation provided by the

Gensim

(Rehurek and Sojka, 2011), with the win-

dow size 2, and negative sampling as loss function.

In this context-free approach, we further aggregate

the vector representation of each target relation by in-

cluding also synonyms for these relations provided by

an additional backend KB. As an example, let

P571

= {“founded”,“created”,.. ., “established”}

denote the Wikidata

synonyms provided for the re-

lation P571. Then, the vector for its corresponding

relation signature is computed as follows

⃗

P571

∑

synonym∈S

P571

⃗

synonym

https://radimrehurek.com/gensim/

www.wikidata.org

where we use the arithmetic mean in order to aggre-

gate a set of such synonyms into a single vector.

Since the target relations considered in our ex-

periments correspond to Wikidata (Vrande

c and

otzsch, 2014) properties, we use Wikidata as back-

end KB and consider the English parts of the “Also

known as” sections of the respective properties as

source for the synonymous relational phrases. To

leverage our Word2Vec model, we again normalise

the property name and its synonyms by following the

steps described above (before vectorization). By de-

fault, we then use bigrams of verb lemmas and their

particles for the aggregation of the vectors into rela-

tion signatures. However, if a bigram is not found in

the model’s vocabulary, we fall back to our composi-

tional encoding also for the respective synonyms.

2.3 Using Contextualized Relation

Signatures for Relation Extraction

For our third approach, we further build on the idea

of using relation signatures to represent relations but

this time generate contextualized relation signatures

in a slightly different way. A relation is now mod-

elled using a small set of structured natural language

units that carry self-contained meaning, such as sen-

tences or clauses. We therefore modify the procedure

of signature generation as follows: for each relation,

(i) 5 units (clauses or sentences) are manually sam-

pled from an underlying labeled corpus; (ii) units are

embedded into a LM model

; (iii) a normalized aver-

age of the embeddings represents the signature for the

respective relation label. Similarly to the context-free

approach, at test time, units to be labelled are embed-

ded into the same model and the resulting vectors are

compared to the vectors of relation signatures using

cosine similarity. Unlike the context-free approach,

here clauses are not reduced to their relational phrase

component but instead, considered as whole units.

This heuristic is purposely implemented to resemble

few-shot learning techniques in a feature-based man-

ner. It has two major advantages for our goal of scal-

ing RE: it involves a very low amount of additional

labeling effort, and it allows to add new target rela-

tions on-the-ﬂy.

3 EXPERIMENTS

In this section, we describe the experiments and

datasets we used to evaluate our proposed methods,

https://github.com/cyk1337/embedding4bert

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

362

which are based on two commonly used RE bench-

marks: KnowledgeNet and FewRel.

KnowledgeNet (KN) (Mesquita et al., 2019) is a

dataset for populating a KB with facts expressed in

natural language on the Web. We selected KN as our

primary benchmark because it provides facts in the

form of 〈subject, property, object〉 triplets as sentence

labels. 9,073 sentences from 4,991 documents were

chosen to be annotated with facts corresponding to 15

properties ((Mesquita et al., 2019) for more details).

FewRel (Han et al., 2018) is a popular benchmark

for few-shot RE, consisting of 70,000 sentences over

100 relations. This dataset is meant to be competitive

even for the most advanced models for RE. However,

we did not use FewRel as it was originally conceived

in its typical few-shot setting, but we randomly split

the sentences per relation into separate training (75%)

and testing (25%) sets.

3.1 Baseline Approaches

We now evaluate the three different approaches of

Section 2. Particularly, for the ﬁne-tuned BERT mod-

els, we created different combinations of training and

testing sets as follows.

• Baseline 1: Clauses + LM. We use OpenIE to

extract clauses from sentences. Fine-tuning and

prediction of the LM were then performed on

clauses.

• Baseline 2: Mixed + LM. Fine-tuning of the LM

was performed on sentences, while prediction was

then performed on clauses.

• Baseline 3: Sentences + LM. Fine-tuning of the

LM and inference were performed on sentences.

• Baseline 4: Clauses + W2V. We use OpenIE to

extract clauses from sentences. Context-free rela-

tion signatures (as described in Section 2.2) based

on the simple Word2Vec model were then used to

infer the target relation.

• Baseline 5: Clauses + feature-based BERT.

For the feature-based approaches, we applied the

same three combinations as for Baselines 1, 2, and

3. Thus swapping the ﬁne-tuning phase with the

relation signature construction which was gener-

ated by manually drawing 5 samples per relation.

For this baseline, relation signature construction

and inference were performed on clauses.

• Baseline 6: Mixed + feature-based BERT. The

relation signature construction was generated us-

ing 5 sentences per relation, while prediction was

performed on clauses.

• Baseline 7: Sentences + feature-based BERT.

Both the relation signature construction and pre-

diction were performed on sentences.

3.2 Evaluation

RE inherently resembles a multi-class prediction task.

For KN, a particularity of the benchmark is that sen-

tences may also have multiple labels, i.e., we need to

consider and evaluate a multi-label prediction setting.

Moreover, since OpenIE may turn each input sentence

into multiple clauses, we deﬁne the following vari-

ants of the three classes of true positives (TPs), false

positives (FPs) and false negatives (FNs) needed to

compute precision, recall and F1, and with respect to

whether the unit of prediction is either a sentence or a

clause.

Prediction Unit: Sentence. Under a single-label

prediction setting, TPs, FPs and FNs can be computed

in the standard way by considering also a single (i.e.,

the “best”) predicted label per sentence. However,

under a multi-label prediction setting, we predict as

many labels as were given for the KN sentence, and

then consider how many of the predicted labels also

match the given labels as the TPs (and vice versa for

the FPs and FNs).

Prediction Unit: Clause. Under a single-label pre-

diction setting, this means that we also predict one

label per clause, but since OpenIE may extract mul-

tiple clauses from the given KN sentence, we then

still need to compare multiple labels obtained from

the clauses with the single, given label of the KN sen-

tence. We therefore deﬁne the following two variants

for TPs and FPs (FNs again follow similarly): ANY

and ALL.

ANY

TP: any of the clauses’ labels match the single

given label of the KN sentence.

FP: none of the clauses’ labels match the single

given label of the KN sentence.

ALL

TP: all of the clauses’ labels match the single

given label of the KN sentence.

FP: not all of the clauses’ labels match the

single given label of the KN sentence.

However, under a multi-label prediction setting,

when using clauses as prediction unit, ANY and ALL

would be too extreme to give a fair estimate of the

prediction quality. We therefore introduce a third

variant, UNION, as follows.

Enriching Relation Extraction with OpenIE

363

Table 1: Performances of our approaches using KN.

Method P R F1

Human 0.88 0.88 0.88

Diffbot Joint Model 0.81 0.81 0.81

KnowledgeNet Baseline 5 (BERT) 0.67 0.69 0.68

Clauses + BERT (ALL) 0.86 0.86 0.86

Clauses + BERT (ANY) 0.90 0.92 0.91

Clauses + BERT (UNION) 0.89 0.89 0.89

Clauses + distillBERT (ALL) 0.86 0.86 0.86

Clauses + distillBERT (ANY) 0.92 0.92 0.92

Clauses + distillBERT (UNION) 0.91 0.91 0.91

Clauses + feature-based-BERT (ALL) 0.86 0.74 0.79

Clauses + feature-based-BERT (ANY) 0.91 0.91 0.91

Clauses + feature-based-BERT (UNION) 0.91 0.87 0.89

Clauses + SETFIT(ANY) 0.85 0.83 0.84

Mixed + BERT (ALL) 0.87 0.75 0.80

Mixed + BERT (ANY) 0.93 0.84 0.89

Mixed + BERT (UNION) 0.91 0.93 0.92

Mixed + distillBERT (ALL) 0.85 0.70 0.77

Mixed + distillBERT (ANY) 0.91 0.80 0.85

Mixed + distillBERT (UNION) 0.90 0.92 0.91

Mixed + feature-based-BERT (ALL) 0.85 0.69 0.76

Mixed + feature-based-BERT (ANY) 0.85 0.83 0.84

Mixed + feature-based-BERT (UNION) 0.88 0.83 0.85

Mixed + SETFIT (ANY) 0.82 0.77 0.79

Sentences + BERT 0.86 0.78 0.82

Sentences + distillBERT 0.87 0.79 0.83

Clauses + Word2Vec (ALL) 0.71 0.62 0.66

Clauses + Word2Vec (ANY) 0.77 0.58 0.67

Clauses + Word2Vec (UNION) 0.83 0.66 0.66

UNION

TPs: the union of the clauses’ labels

that match the given set of labels

of the KN sentence.

FPs: the union of the clauses’ labels

that do not match the given set of labels

of the KN sentence.

That is, under a multi-label prediction setting, multi-

ple TPs, FPs and FNs may be produced per KN sen-

tence. FewRel, on the other hand, is a single-labeled

dataset and provides property annotations at the fact

level. There, ALL and ANY collapse into the same

case, while UNION is not present at all. Based on

the afore-deﬁned variants of TPs, FPs and FNs, we

then compute precision (P), recall (R) and F1 in the

standard way for both KN and FewRel.

3.3 Results

We now present the results

of the seven baseline ap-

proaches outlined in Section 3.1. We performed de-

tailed experiments to demonstrate the effectiveness of

our method and show how OpenIE improves RE. We

tested multiple pre-trained LMs and report the best

our source code for the experiments is available at http

s://github.com/sandrons/enrichingRE

Table 2: Performances of our approaches using FewRel.

Method P R F1

ERNIE 0.88 0.88 0.88

DeepEx — — 0.48

Clauses + BERT 0.71 0.71 0.71

Clauses + distillBERT 0.68 0.68 0.68

Clauses + SETFIT 0.68 0.68 0.68

Clauses + roBERTa 0.68 0.68 0.68

Clauses + distillroBERTa 0.66 0.67 0.66

Clauses + feature-based-BERT 0.75 0.59 0.66

Clauses + alBERT 0.65 0.66 0.65

Mixed + BERT 0.66 0.67 0.66

Mixed + distillBERT 0.65 0.66 0.65

Mixed + roBERTa 0.65 0.67 0.65

Mixed + distillroBERTa 0.65 0.67 0.65

Mixed + SETFIT 0.66 0.64 0.65

Mixed + alBERT 0.62 0.63 0.62

Mixed + feature-based-BERT 0.64 0.59 0.61

Sentences + BERT 0.65 0.66 0.65

Sentences + roBERTa 0.65 0.66 0.65

Sentences + distillroBERTa 0.65 0.66 0.65

Sentences + alBERT 0.63 0.65 0.64

Sentences + distillBERT 0.64 0.65 0.64

Sentences + SETFIT 0.64 0.63 0.63

Clauses + Word2Vec 0.61 0.52 0.56

results in Tables 1 and 2. For KN

, the results are

averaged after performing a 4-fold cross-validation

on the 4 folders into which it is divided by default.

For FewRel

, we averaged over 10 runs with random

splits (by dividing the dataset in 75% for training and

25% for testing purposes) to shufﬂe as much as pos-

sible the data and have signiﬁcant changes in the dis-

tribution of the text during training and testing time.

KN. We motivated our choice for the LMs in Sec-

tion 2.1, however, the experimental results do not

suggest a clear suitability of a speciﬁc model for all

RE settings. We notice that BERT and distillBERT

performed best on KN, while RoBERTa and SETFIT

were also useful in some settings applied to FewRel.

For KN, our best baseline (Baseline 1, Clauses +

distillBERT) signiﬁcantly outperforms the previous

work (Diffbot Joint Model and KN Baseline 5, re-

ported on top of Table 1). The most important im-

provements are due to (1) using clauses as a unit

of prediction, (2) incorporating clauses during ﬁne-

tuning, and (3) allowing any of the OpenIE clauses to

match the single KN label.

FewRel. We compare our results against Match-

ing the Blanks (MTB) (Soares et al., 2019), ERNIE

(Zhang et al., 2019b) and DeepEx (Wang et al.,

2021a). Being the board leader on FewRel, Matching

https://github.com/diffbot/knowledge-net

http://zhuhao.me/fewrel

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

364

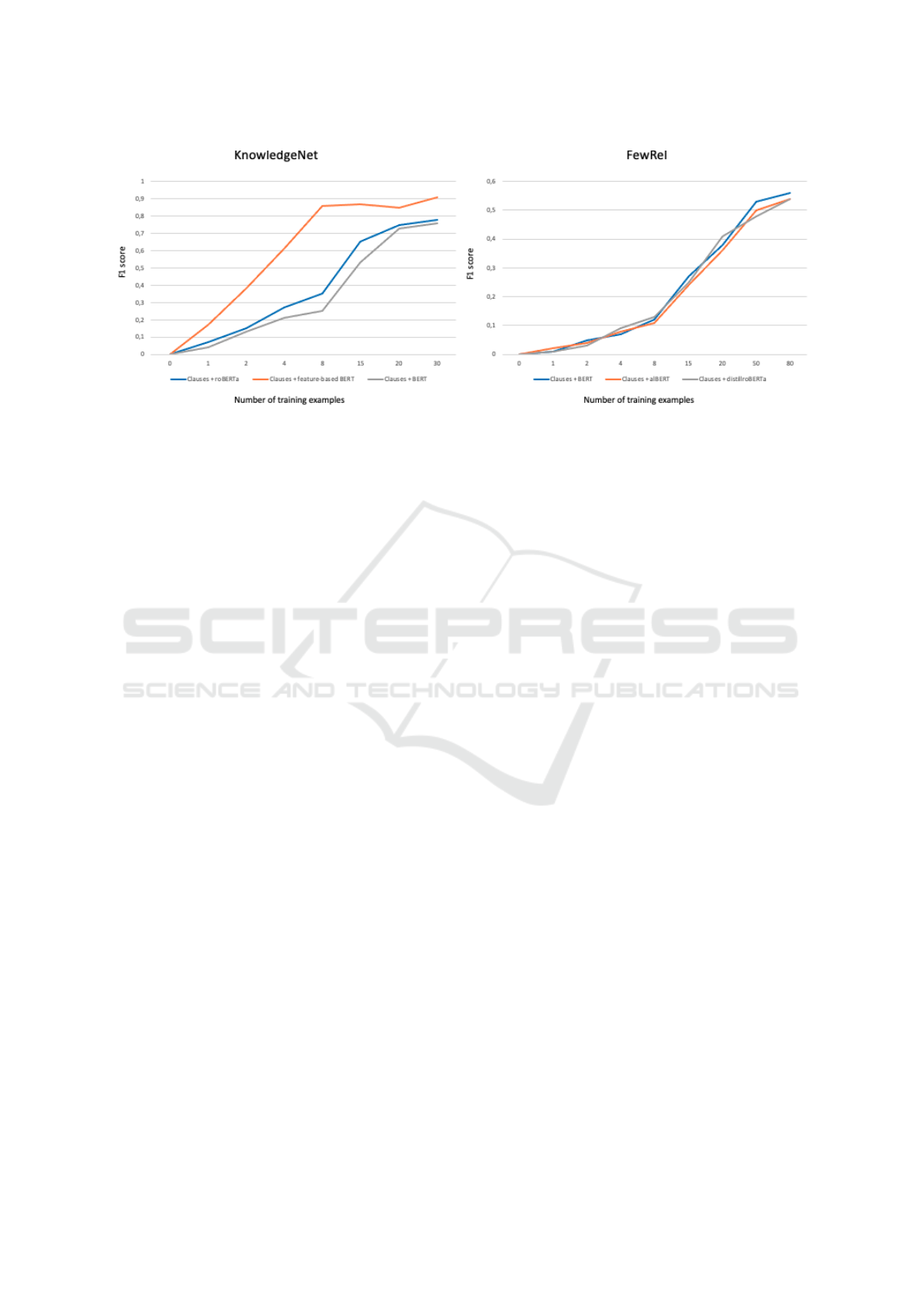

Figure 1: Change in the F1 score in a FewShot setting.

the Blanks classiﬁes the relations relying solely on the

text input. It however employs additional entity mark-

ers, which we deliberately omit in favor of taking ad-

vantage of the OpenIE-based sentence decomposition

and the LMs ability to interpret the arguments. While

our strategy proves effective for KN, explicit entity

markers may still be lacking for FewRel which repre-

sents a much more ﬁne-grained set of 100 relations.

ERNIE is different from MTB and our system as it

uses knowledge graphs to enrich pre-trained LM. It

shows good performance on FewRel, but the robust-

ness of the system may be questioned due to inherent

incompleteness of the knowledge graphs which typ-

ically limits the system’s ability to generalize. We,

on the other hand, want to demonstrate how a fast

and simple approach can be successful even on such

a competitive dataset while not suffering from un-

seen relational components. DeepEx offers an inter-

esting comparative scenario because it formulates the

RE task as an extension to OpenIE. While DeepEx

outscores many state of the art OpenIE systems, we

outperform it on the task of RE by large margin, in-

cluding the few-shot setting. We attribute this re-

sult to the way OpenIE clauses are translated into re-

lations: DeepEx essentially maps relational phrases

from clauses to a knowledge graph property label or

its aliases but does not take the signal from the entire

clause into account.

Few-Shot. Figure 1 shows the best perfomance for

FewShot setting. For KN, 8 samples are sufﬁcient

for feature-based BERT to achieve about 85% F1-

score. The other two models require more samples

yet do not reach the same result. On the contrary,

all the three models demonstrate similar behaviour on

FewRel data. BERT has a slight advantage, however,

it needs 30 samples to achieve above 50% F1-score.

4 CONCLUSIONS

We proposed a variety of strategies to combine Ope-

nIE with Language Models for the task of Relation

Extraction. We explored how OpenIE may serve as

an intermediate way of extracting concise factual in-

formation from natural-language input sentences, and

we combined the obtained clauses with both context-

free and contextual LMs. For our experiments, we

utilized the KnowledgeNet dataset with 15 properties

as well as the well-known FewRel dataset containing

100 relations. We presented detailed experiments on

Word2Vec, BERT, RoBERTa, AlBERT, SETFIT and

their further distilled versions with a range of base-

lines that achieve up to 92% and 71% of F1 score for

KnowledgeNet and FewRel, respectively.

ACKNOWLEDGEMENTS

We thank Matteo Cannaviccio, co-author of Knowl-

edgeNet and engineer at Diffbot, for the fruitful dis-

cussion and the precious insights.

REFERENCES

Banko, M., Cafarella, M., Soderland, S., Broadhead, M.,

and Etzioni, O. (2007). Open information extraction

from the web. In 20th IJCAI.

Bojanowski, P., Grave, E., Joulin, A., and Mikolov, T.

(2017). Enriching word vectors with subword infor-

mation. In Trans. Assoc. Comput. Linguistics.

Corro, L. D. and Gemulla, R. (2013). Clausie: clause-based

open information extraction. In 22nd WWW.

Devlin, J., Chang, M., K.Lee, and Toutanova, K. (2019).

Bert: Pre-training of deep bidirectional transformers

Enriching Relation Extraction with OpenIE

365

for language understanding. In 2019 North American

Chapter of the ACL: Human Language Technologies,.

Etzioni, O., Cafarella, M., Downey, D., Kok, S., Popescu,

A. M., Shaked, T., Weld, S. S. S. D., and Yates, A.

(2004). Web-scale information extraction in know-

itall. In WWW. ACM.

Fader, A., Soderland, S., and Etzioni, O. (2011). Identify-

ing relations for open information extraction. In 2011

EMNLP. ACL.

Han, X., Zhu, H., Yu, P., Wang, Z., Yao, Y., and Sun, Z.

L. M. (2018). Fewrel: A large-scale supervised few-

shot relation classiﬁcation dataset with state-of-the-art

evaluation. In 2018 EMNLP. ACL.

KBP (2017).

Lan, Z., Chen, M., Goodman, S., Gimpel, K., Sharma, P.,

and Soricut, R. (2020). Albert: A lite bert for self-

supervised learning of language representations. In

8th ICLR.

Lehmann, J., Isele, R., Jakob, M., Jentzsch, A., Kon-

tokostas, D., Mendes, P., Hellmann, S., Morsey, M.,

van Kleef, P., Auer, S., and Bizer, C. (2015). Db-

pedia - a large-scale, multilingual kb extracted from

wikipedia. Semantic Web Journal, 6(2):167–195.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). Roberta: A robustly optimized bert pre-

training approach. In CoRR.

Lockard, C., Shiralkar, P., and Dong, X. L. (2019). When

open information extraction meets the semi-structured

web. In 2019 North American Chapter of the ACL:

Human Language Technologies.

Manning, C. D., Surdeanu, M., Bauer, J., Finkel, J. R.,

Bethard, S., and McClosky, D. (2014). The stanford

corenlp natural language processing toolkit. In 52nd

Annual Meeting of the ACL: System Demonstrations.

Mausam (2016). Open information extraction systems and

downstream applications. In 25th IJCAI.

Mesquita, F., Cannaviccio, M., Schmide, J., Mirza, P.,

and Barbosa, D. (2019). Knowledgenet: A bench-

mark dataset for knowledge base population. In 2019

EMNLP and the 9th IJCNLP. ACL.

Mikolov, T., Sutskever, I., Chen, K., and Dean, G. S.

C. J. (2013). Distributed representations of words and

phrases and their compositionality. In 27th NIPS.

Mintz, M., Bills, S., Snow, R., and Jurafsky, D. (2009). Dis-

tant supervision for relation extraction without labeled

data. In Proceedings of the 47th Annual Meeting of

the ACL and the 4th International Joint Conference

on NLP of the AFNL. ACL.

Nguyen, D. B., Hoffart, J., Theobald, M., and Weikum,

G. (2014). Aida-light: High-throughput named-entity

disambiguation. In Workshop on Linked Data on the

Web co-located with the 23rd WWW.

Peters, M. E., Neumann, M., Iyyer, M., Gardner, M., Clark,

C., Lee, K., and Zettlemoye, L. (2018). Deep contex-

tualized word representations. In 2018 North Ameri-

can Chapter of the ACL: Human Language Technolo-

gies. ACL.

Radford, A., Wu, J., Child, R. R., Luan, D., Amodei, D.,

and Sutskever, I. (2019). Language models are unsu-

pervised multitask learners.

Rehurek, R. and Sojka, P. (2011). Gensim–python frame-

work for vector space modelling. In NLP Centre, Fac-

ulty of Informatics.

Sachan, D. S., Zhang, Y., Qi, P., and Hamilton, W. L.

(2021). Do syntax trees help pre-trained transformers

extract information? In 16th EACL. ACL.

Sanh, V., Debut, L., Chaumond, J., and Wolf, T. (2020).

Distilbert, a distilled version of BERT: smaller, faster,

cheaper and lighter. In CoRR.

Soares, L. B., FitzGerald, N., Ling, J., and Kwiatkowski, T.

(2019). Matching the blanks: Distributional similarity

for relation learning. In 57th ACL. ACL.

Stanovsky, G., Dagan, I., and Mausam (2015). Open IE as

an intermediate structure for semantic tasks. In 53rd

Annual Meeting of the ACL and the 7th IJCNLP of the

Asian Federation of NLP. ACL.

Suchanek, F. M., Kasneci, G., and Weikum, G. (2007).

Yago: a core of semantic knowledge. In Proceedings

of the 16th international conference on WWW.

Trisedya, B. D., Weikum, G., Qi, J., and Zhang, R. (2019).

Neural relation extraction for knowledge base enrich-

ment. In Proceedings of the 57th Conference of the

ACL. ACL.

Tunstall, L., Jo, N. R. U. E. S., Bates, L., Korat, D.,

Wasserblat, M., and O.Pereg, O. (2022). Efﬁcient few-

shot learning without prompts. In CoRR.

Vrande

c, D. and Kr

otzsch, M. (2014). Wikidata: a free

collaborative knowledgebase. In Comm. of the ACM.

Wang, A., Singh, A., Micheal, J., Hill, F., Levy, O., and

Bowman, S. R. (2019). GLUE: A multi-task bench-

mark and analysis platform for natural language un-

derstanding. In 7th ICLR.

Wang, C., Liu, X., Chen, Z., Hong, H., Tang, J., and Song,

D. (2021a). Zero-shot information extraction as a uni-

ﬁed text-to-triple translation. In 2021 EMNLP. ACL.

Wang, Y., Yao, Q., Kwok, T., and Ni, M. L. (2021b). Gen-

eralizing from a few examples: A survey on few-shot

learning. ACM Computing Surveys, 53(3):1–34.

Xu, K., Feng, Y., Reddy, S., Huang, S., and Zhao, D. (2016).

Enhancing freebase question answering using textual

evidence. In CoRR.

Yang, Z., Dai, Z., Yang, Y., Carbonell, J., Salakhutdinov, R.,

and Le, Q. V. (2019). Xlnet: Generalized autoregres-

sive pretraining for language understanding. In 2019

NIPS.

Zhang, D., Mukherjee, S., Lockard, C., Dong, X. L., and

McCallum (2019a). Openki: Integrating open infor-

mation extraction and knowledge bases with relation

inference. In 2019 North American Chapter of the

ACL: Human Language Technologies.

Zhang, Z., Han, H., Liu, Z., Jiang, X., Sun, M., and Liu,

Q. (2019b). Ernie: Enhanced language representation

with informative entities. In 57th Annual Meeting of

the ACL. ACL.

Zhou, W. and Muhao, C. (2022). An improved baseline for

sentence-level relation extraction. In 2nd Asia-Paciﬁc

Chapter of the ACL and the 12th IJCNLP.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

366
