Mitigation of LLDP Topological Poisoning Attack in SDN Environments

Using Mininet Emulator

Mattia Giovanni Spina

, Mauro Tropea

and Floriano De Rango

Department of Computer Engineering, Modeling, Electronics and Systems (DIMES), University of Calabria,

via P. Bucci 39c, 87036 Rende, Italy

Keywords:

LLDP Attack, SDN, Mininet, Elliptic Curve Cryptography, RSA, HMAC, ECDSA, POX.

Abstract:

Software-Deﬁned Networking (SDN) paradigm permits to have scalability and ﬂexibility in the network man-

agement throughout a centralized control that has the global view of the network topology, but it introduces

new security issues. In this paper, the Link Layer Discovery Protocol (LLDP) topological poisoning attack

has been studied and analysed in order to provide possible mitigation solutions through the use of Mininet

emulator and the POX controller. In particular, it is added to the LLDP protocol the integrity check using three

different types of cryptographic algorithms such as Hash-based message authentication code (HMAC), Digital

Signature Algorithm (DSA) using RSA and Elliptic Curve DSA (ECDSA). The performance evaluation of the

proposal is provided considering a network topology where an attacker hijacks/impersonates an host already

connected to the network.

1 INTRODUCTION

Software-Deﬁned Networking (SDN) was introduced

to provide greater ﬂexibility and agility to computer

networks thanks to the decoupling between control

plane and data plane. Before the introduction of

SDN, networks were managed by specialized network

devices (switches, routers, ﬁrewalls) that were pre-

conﬁgured using speciﬁc and proprietary vendor soft-

ware (protocols, ﬁrmware, operative systems) (Liu

et al., 2019). With SDN, network management is

centralized by means of a central entity, called con-

troller, which represents the brain of the whole net-

work and which leads all network devices dynami-

cally programming their behavior in order to adapt it

to speciﬁc needs of the network (Rahouti et al., 2022).

This new networking paradigm deﬁnes a three layers

architecture:

• Application Plane (AP): it comprises services and

applications that rule over the controller and de-

ﬁne the behavior to apply to the network;

• Control Plane (CP): it represents the layer in

which resides the controller and in which all the

https://orcid.org/0009-0000-8407-2551

https://orcid.org/0000-0003-0593-5254

https://orcid.org/0000-0003-4901-6233

managing, monitoring and conﬁguration opera-

tions related to data plane devices take place;

• Data Plane (DP): it is the layer that comprises for-

warding devices.

Two interfaces are deﬁned to establish the com-

munication between AP-CP and CP-DP that are

Northbound and Southbound interface, respectively.

For the ﬁrst interface there is no standard communica-

tion protocol to be used and usually RESTful API are

employed. For the latter, one of the standard protocols

widely adopted is OpenFlow (Li et al., 2016). Despite

all the beneﬁts that SDN paradigm can provide, each

of these layers are affected by security vulnerabilities

due to its software based nature.

All applications at the AP layer, since they need

to communicate with the controller, introduce possi-

ble ﬂaws that require authentication mechanisms that

most of the time are neglected. Due to this prob-

lem, attackers can introduce malicious applications

in the network or exploit their vulnerabilities in or-

der to hijack the legacy forwarding rules installed by

the controller on the network devices. Security is-

sues concerning CP are inherently related to the cen-

tralized nature of the controller. If it is hijacked by

malicious users the whole network will be compro-

mised (Melkov and Paulikas, 2021; Fioravanti et al.,

2023). For what concern DP more complex attacks

can be considered such as malicious ﬂow rules injec-

318

Spina, M., Tropea, M. and De Rango, F.

Mitigation of LLDP Topological Poisoning Attack in SDN Environments Using Mininet Emulator.

DOI: 10.5220/0012086200003546

In Proceedings of the 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2023), pages 318-325

ISBN: 978-989-758-668-2; ISSN: 2184-2841

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

tion and/or tampering aiming at disrupting the actual

topology and the legacy behavior of the overall net-

work devices.

The OpenFlow is the commonly used and stan-

dardized protocol adopted for the southbound inter-

face. It can use a security layer, namely Transport

Layer Security (TLS), but its use it is not manda-

tory. Therefore, OpenFlow has a lot of vulnerabili-

ties. Among all of them crucial are the ones related

to the OpenFlow discovery procedure mainly due to

the absence of mechanisms of authentication between

controller and DP devices. So, this makes it easy to

perform different typologies of security attacks (Iqbal

et al., 2019). The main idea of this work consists

in the study of one of the typical attacks against an

SDN network related to the topology discovery mech-

anism, the Link Layer Discovery Protocol (LLDP)

fake link fabrication attack. We propose to add in-

tegrity checks to LLDP protocol in order to mitigate

the aforementioned attack against the LDS evaluat-

ing three possible types of security algorithms: Hash-

based message authentication code (HMAC), Digital

Signature Algorithm (DSA) using RSA and, lastly,

Elliptic Curve DSA (ECDSA) (De Rango et al., 2020;

Tropea et al., 2022).

The rest of the paper is organized as follows: Sec-

tion 2 presents a brief overview of the research state-

of-the-art about threats on topology discovery attacks;

Section 3 introduces the LLDP protocol and Section

4 shows the attack due to the crafted LLDP injection.

The proposed mitigations are described in Section

5, based on HMAC, DSA and ECDSA approaches.

Lastly, performance evaluation and conclusions are

presented in Section 6 and Section 7, respectively.

2 RELATED WORKS

The topic of security is very important for the scien-

tiﬁc community as proven by the huge literature in

different ﬁeld of research starting from VPN (Gentile

et al., 2021) and involving various mitigation tech-

niques such as packet marking (Fazio et al., 2020).

Recently, many works have been proposed on security

mechanisms and adequate countermeasures for net-

work architectures based on the new paradigm known

as SDN. In this section, some of these papers are re-

viewed in order to show how the literature has dealt

with the security topic concerning the link discovery

service and in particular the LLDP protocol.

Authors in (Marin et al., 2019) found some vul-

nerabilities in LDS provided by Floodlight controller.

They proposed some guidelines to mitigate vulnera-

bilities in LDS. One of these vulnerabilities is, indeed,

Link Fabrication attack. To mitigate it they imple-

mented a MAC tag based mitigation. We followed

this principle and we considered modern and more re-

sistant techniques such as ECDSA to implement at the

same time a stronger and lightweight integrity check.

In (Chou et al., 2020) a topology anomaly detec-

tion module is proposed which is integrated in the

SDN controller which constantly searches for abnor-

mal LLDP packets that are ﬂowing through the net-

work. The anomaly detection is based on a correlation

analysis on network trafﬁc trying to avoid and miti-

gate topology discovery injection and ﬂood attacks.

(Gao and Xu, 2022) proposed methods to detect

host migration that are caused by host hijacking at-

tacks and to thwart Link Fabrication attacks. Authors

implemented integrity check on LLDP by means of

a tag. However, they did not provide details on the

cryptographic primitive used to compute this tag and,

therefore, it is not possible to determine whether the

integrity check is strong enough in terms of security.

Authors in (Baidya and Hewett, 2020) proposed a

simple defence mechanism based on active port in or-

der to detect host-based and switch-based discovery

attacks. They based the defence mechanism on the

principle that no active port can be used to simultane-

ously connect more than one link otherwise they are

considered fake links. However, this does not prevent

an attacker to forge malicious LLDP packets poison-

ing the topology seen by the controller.

(Al Salti and Zhang, 2022) proposed LINK-

GUARD which is a framework used to make more se-

cure the link discovery process in SDN environments.

It is designed with the aim of detecting Link Fabri-

cation Attack in order to reduce the damage that are

caused by the poisoning of controller’s topology view.

The framework is not based on speciﬁc cryptographic

primitives and the only mitigation action is blocking

switch ports on which a LLDP attack is detected.

Authors in (Popic et al., 2020), in order to mitigate

LLDP vulnerabilities proposed a new mechanism for

LDS based on NETCONF (Network Conﬁguration

Protocol) protocol used as a Southbound Interface to-

gether with a modelling language called YANG (Yet

Another New Generation). However, NETCONF is

not secured, so it represents a possible point for per-

forming attack to the network.

The work in (Alimohammadifar et al., 2018) pro-

posed a link fabrication attack detection based on a

probing techniques, in which probing packets are sent

across the network in order to ﬁnd fake links. How-

ever, this defense mechanism comes at the cost of a

very high bandwidth consumption caused by the ad-

ditional probing packets.

Considering the reviewed literature, to the best

Mitigation of LLDP Topological Poisoning Attack in SDN Environments Using Mininet Emulator

319

of our knowledge, this is the ﬁrst attempt to em-

ploy modern cryptographic techniques, such as el-

liptic curve, to enhance LLDP with integrity checks

without the need of deeply modify the protocol and

its behavior, keeping also low the computational and

protocol overhead imposed on it.

3 LINK LAYER DISCOVERY

PROTOCOL (LLDP)

One of the crucial procedures that allows an SDN

controller to retrieve information about the network

topology and keep it constantly updated is the Link

Discovery Service (LDS) (Hong et al., 2015). Ex-

ploiting the LDS, the controller can dynamically dis-

cover the data plane devices distribution, the exist-

ing links between them and other information that

are useful to achieve a consistent management of the

network (Jimenez et al., 2021). LDS implementa-

tions, which referring to OpenFlow is also denoted

as OpenFlow Discovery Protocol (OFDP), rely on the

Link Layer Discovery Protocol (LLDP) in order to re-

trieve information about switches and their links mak-

ing able the switches themselves to embed this infor-

mation inside speciﬁc control packets which encapsu-

late the LLDP frame. The LLDP protocol is formally

deﬁned in the IEEE 802.1AB standard (Committee

et al., 2009) and it works at level 2 of the ISO/OSI

stack, and its frame format is described in Figure 1.

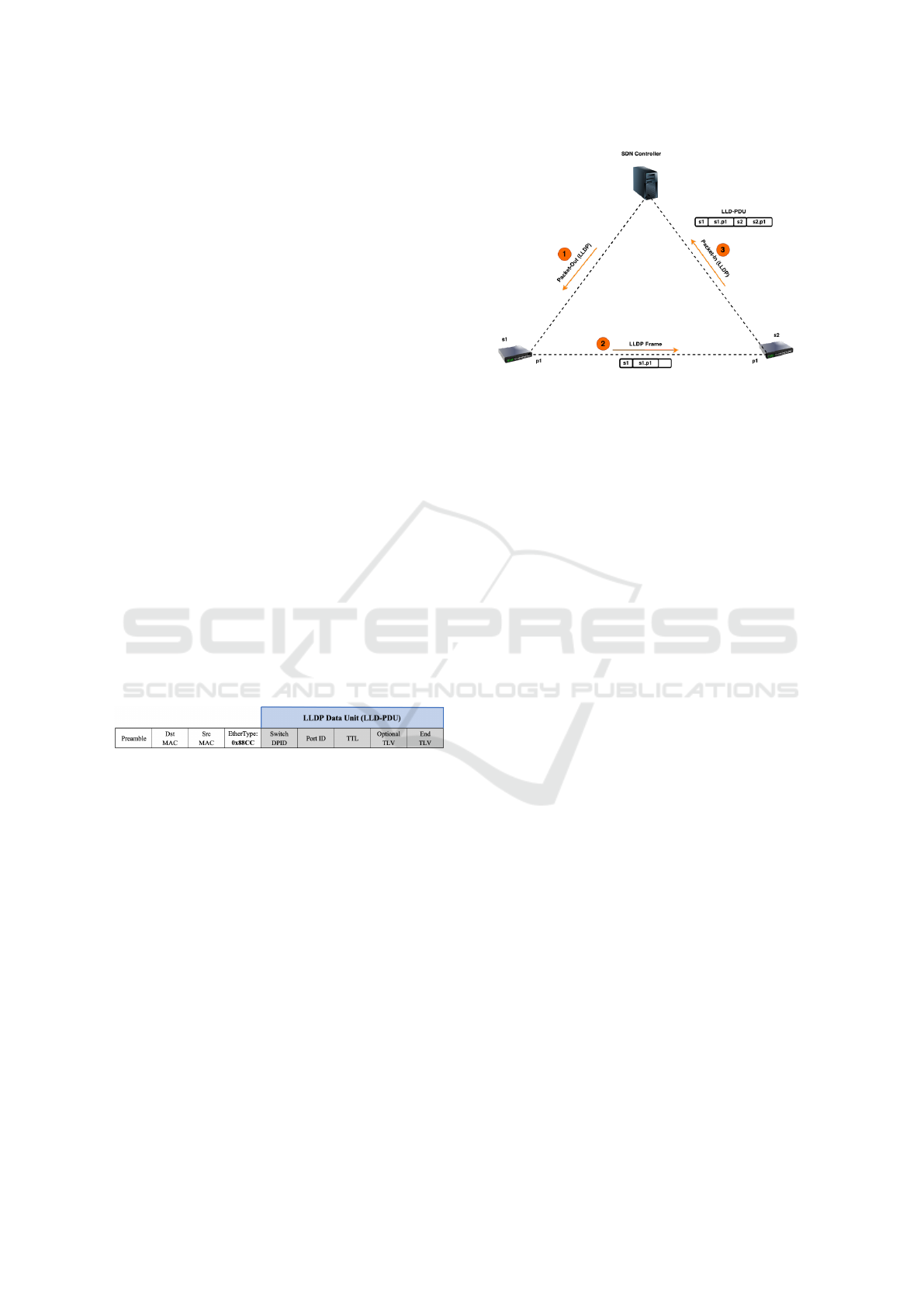

Figure 1: LLDP frame format.

In the SDN environment the link discovery proce-

dure is carried out using Open Flow control packets,

namely Packet-In and Packet-Out. Indeed, the LLDP

frame depicted in Figure 1 is encapsulated inside

those speciﬁc packets that are exchanged between

controller and switches (Nguyen and Yoo, 2017).

Topology information are exchanged by ﬁlling up the

LLDP Data Unit (LLD-PDU) when an LLDP packet

reaches a switch. LLD-PDU is composed of the TLV

- Type, Length, Value - which is used to denote the

needed information to retrieve the topology structure,

such as the Datapath ID (DPID), a 64-bit switch iden-

tiﬁer, the Port ID used to specify the outgoing port of

the switch that will be used to forward the packet to

the next switch, and other useful information. To bet-

ter understand how the link discovery is carried out

we make an example depicted in Figure 2.

Let the considered topology be composed of a sin-

gle SDN controller and two switches s1 and s2. For

Figure 2: LLDP execution ﬂow.

the sake of making easier to understand the example,

we only consider the discovery of the unidirectional

link from switch s1 to switch s2 since the reverse pro-

cedure is carried out in the same way. Initially, the

SDN controller sends a LLDP packet encapsulated in

a Packet-out message to switch s1 specifying in the

LLDP payload the DPID of the switch s1 and its out-

going Port ID. The controller will send this message

for each outgoing port of the switch s1. When s1 re-

ceives the packet-Out it decapsulates the LLDP frame

and sends it to switch s2. Switch s2, upon the receipt

of the LLDP message from s1, adds to the frame its

DPID and the Port ID that identiﬁes the port on which

s2 has received the LLDP packet from s1. Then,

switch s2 encapsulates the frame inside a Packet-In

sending it to the controller that will get the informa-

tion about the link between switch s1 and switch s2,

i.e. the (s1,s1. p1),(s2,s2. p1) link. It is worth noting

that switches must be set with a pre-installed ﬂow rule

imposing that any LLDP packet received on a switch

on a port which is not the port used to connect it with

the controller must be forwarded, as a Packet-in, to

the controller. This procedure will be repeated for

each switch that is managed by the controller and it

will be also performed periodically during time in or-

der to get always fresh topology information making

it able to get a holistic view of the whole network.

4 LINK FABRICATION ATTACKS:

FORGERY AND RELAY

Due to the lack of adequate security measures in the

LDS, an attacker can exploit this procedure to carry

out several types of attack that could bring serious

damage to the network: Fake Link Fabrication, De-

nial of Service, Man-In-The-Middle. We evaluate a

scenario in which an attacker, which is inside of the

SDN network or is able to hijack and control a host in-

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

320

side of it, injects fake topology information, exploit-

ing the lack of integrity checks, leading the controller

lose the right view of the network. The considered

attack is the Fake Link Fabrication. It can be catego-

rized in two types: Relay and Forgery (Gao and Xu,

2022). In the ﬁrst case, a malicious user has to obtain

a genuine LLDP packet that is ﬂowing inside the net-

work. This can be achieved by monitoring the Open-

Flow trafﬁc and snifﬁng one of the exchanged LLDP

packet. Once the attacker obtains the genuine/legacy

LLDP packet, he modiﬁes its information by replac-

ing the DPID of the legacy destination switch (L

)

with a DPID of a switch A

that is not actually con-

nected to L

. So, this tampered packet is forwarded

through the network waiting until the discovery pro-

cedure is executed and the controller save the fake link

between L

and A

in its links database. The latter type

of Link Fabrication is easier to achieve because an

attacker can simply forge from scratch a new LLDP

packet which will determine a fake link between two

arbitrary switches in the network.

5 PROPOSED MITIGATION

In order to mitigate the LLDP fake link fabrication

attack, the openﬂow.discovery module was modiﬁed

enhancing it with a set of algorithms to provide the

integrity feature to the LLDP protocol: HMAC, DSA-

RSA, ECDSA. In each of these methods the integrity

check is guaranteed used as data the DPID, Port ID

and TTL of the LLDP packet generated by the con-

troller. Before sending the LLDP packets to the

switches in the network the controller computes a tag

based on this data and attach it to the packet. When

the LLDP packet comes back from the network to the

controller ﬁlled with the data gathered by switches,

the controller will compute again the tag using the

same data and will check if the computed tag and the

tag into the packet are the same. If it is true the con-

troller will be sure that the packet is not been modiﬁed

during the transmission otherwise it drops the packet.

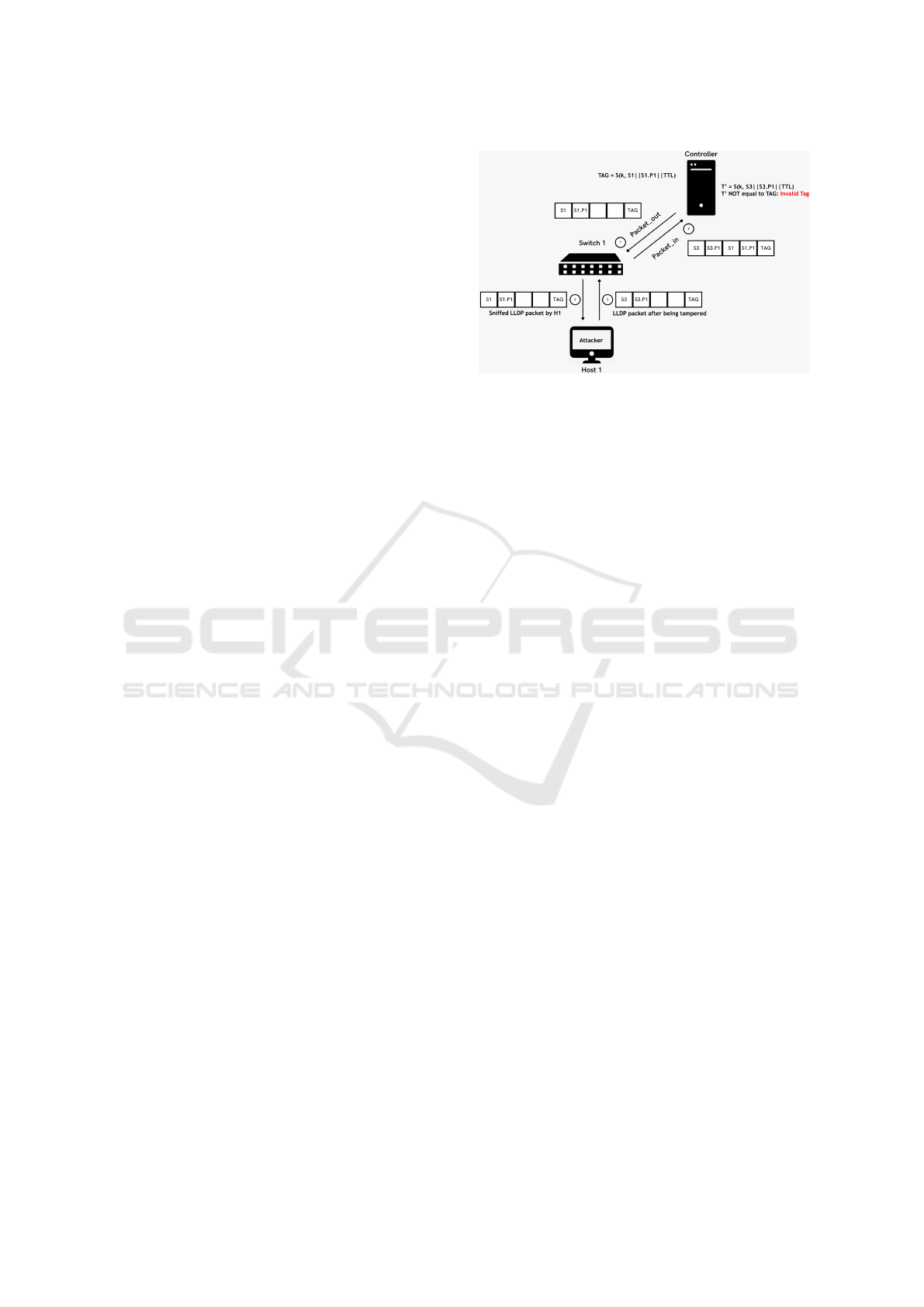

This procedure is depicted in Figure 3 in which there

is an attempt of LLDP packet tampering in order to

create a fake link.

5.1 Hash-Based Message

Authentication Code (HMAC)

LLDP injection attack mitigation can be achieved

through the use of HMAC, a hash-based authentica-

tion technique that allows to verify the integrity and

authenticity of the exchanged messages. In this work,

a HMAC with a SHA-256 hash function has been

Figure 3: LLDP attack example.

used. The following formula describes how HMAC

generates a tag S(k, m) starting from a message m and

a key k:

S(k, m) = H(k ⊕ opad || H(k ⊕ ipad || m)) (1)

The 128-bit key k, generated in a pseudo-random

way, is updated every time the controller starts a new

discovery cycle on the network. Message m is formed

by the concatenation of DPID, PortID and T T L.

The use of HMAC helps mitigate the threat of

LLDP injection, as forged LLDP messages will not

be able to pass HMAC-based authentication and will

be rejected by the network if the attacker tries to per-

form the attack shown ﬁrst would have no effect, as

the integrity of the LLDP frame would not be veri-

ﬁed. The complexity derived by the use of HMAC is

not very high as there is no key management between

the different hosts, but only the controller takes care

of it.

5.2 Digital Signature Algorithm (DSA)

A second way to mitigate LLDP injection can be

achieved through the use of a digital signature, an au-

thentication technique based on public-key cryptog-

raphy. The sender of an LLDP message uses their

private key to create a digital signature of the mes-

sage, which is then sent along with the message. The

receiver gets the message and veriﬁes the digital sig-

nature using the sender’s public key. If the digital

signature veriﬁcation is successful, the receiver can

be conﬁdent that the message comes from the legiti-

mate sender and has not been modiﬁed during trans-

mission. Using a digital signature therefore helps

mitigate the threat of LLDP packets tampering, as

forged or replayed LLDP messages will not be able

to generate a valid digital signature using the legiti-

mate sender’s private key, and will be rejected by the

network. Digital signature generation and veriﬁcation

Mitigation of LLDP Topological Poisoning Attack in SDN Environments Using Mininet Emulator

321

require cryptographic computation which can lead to

increased processing load on network devices.

In our case, the digital signature based on the RSA

algorithm with a 2048-bit key was used.

5.3 Elliptic Curve Digital Signature

Algorithm (ECDSA)

LLDP injection mitigation can also be achieved

through the use of a digital signature based on Ellip-

tic Curves Cryptography (ECC), a public key cryp-

tography method that uses elliptic curves (Saho and

Ezin, 2020). In practice, the ECC allows the use

of shorter keys than other encryption techniques, but

with the same cryptographic strength. The use of a

digital signature based on ECC therefore helps mit-

igate the threat of LLDP injection, as forged LLDP

messages will not be able to generate a valid digi-

tal signature using the legitimate sender’s private key,

and will be rejected by the network. Furthermore, us-

ing ECC to generate digital signatures is also more se-

cure than other public key cryptography techniques,

as it is more resistant to some cryptographic attack

techniques such as brute force attack and key lookup

attack. Two types of curves have been used: ran-

dom curves (r) and Koblitz curves (k) (Brown, 2010).

Koblitz curves are characterized by their particular

structure, while random curves are generated ran-

domly. Koblitz curves type is characterized by some

inherently mathematical properties that allow to make

an efﬁcient implementation of the group of opera-

tions that are used during the keys generation over the

curve. However, it is common to believe that more

randomly selected parameters (i.e. random curves)

can provide a more entropic force and, thus more se-

curity strength. But there is the suspect that random

coefﬁcients can be chosen in order to provide a back-

door (Su

arez-Albela et al., 2018). The choice among

one curves type or the other is strictly related to the

speciﬁc needs of the application in which they are

used. If we need a computational effective imple-

mentation we can use Koblitz, otherwise if we want

to give a more entropic feature to the key generation

procedure we can choice random curves.

6 PERFORMANCE EVALUATION

In this section we provide the performance evaluation

of the proposed mitigation varying the integrity algo-

rithm. Our experimental setup is composed of a com-

puter running a virtual machine with Ubuntu 18.04

operative system running the latest version of Mininet

(Tropea and Palmieri, 2022) and the POX SDN con-

Figure 4: Considered network scenario.

troller. Different simulation scenarios have been con-

sidered during performance evaluation phase and they

are described in Table 1.

Table 1: Considered scenarios for performance evaluation.

Scenario Description

S1 Normal behavior

S2 HMAC mitigation

S3 REC-256 mitigation

S4 REC-384 mitigation

S5 KEC-283 mitigation

S6 KEC-409 mitigation

S7 DSA-RSA 2048 mitigation

S8 System under LLDP attack

6.1 Attack Scenario

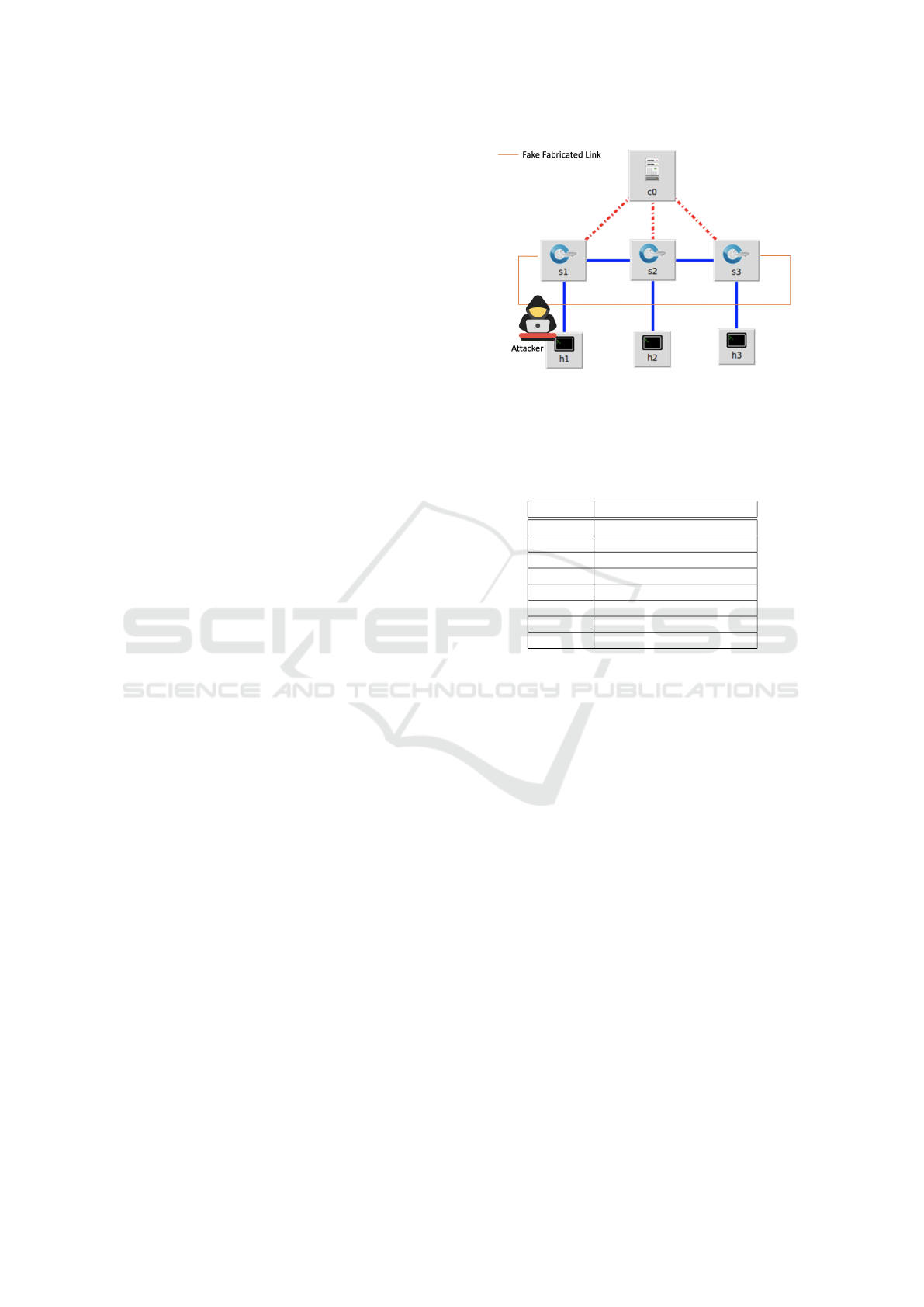

To replicate the crafted fake link injection attack, we

considered the topology depicted in Figure 4.

In our scenario, the host h1 represents the ma-

licious user which is snifﬁng on S1 to get a legacy

LLDP packet with the DPID of S1. Once it gets this

packet, it will replace the DPID of S1 with the DPID

of S3. Then, forwarding this tampered packet it will

make the controller to believe that there exists a direct

link between S1 and S3, which actually does not ex-

ist in the legacy topology. This kind of attack can be

the starting point to launch more harmful attacks such

as Man-In-The-Middle or Denial of Service (DoS)

(Potrino et al., 2019). In the ﬁrst one, the attacker by

letting the controller see a fake link between two arbi-

trary switches can sniff all the data exchanged on this

fake link that is accurately installed and controlled by

the attacker itself. In the case of the DoS, instead, the

attacker can create fake links among switches lead-

ing to complex-loop topology that can cause a huge

amount of extra data exchanged on the network lead-

ing to a high utilization of the bandwidth and, as a

consequence, to an extra-overhead that can saturate

the network itself. It has also to be mentioned, in the

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

322

context of DoS attack, the Spanning Tree Service that

is implemented by Open Flow controllers. It is a ser-

vice that is triggered each time that a topology update

occurs in order to block switch ports that are redun-

dant and that can lead to useless loop in the network.

If the attacker can leverage the LDS, it can create and

add a fake link between two legacy switches creating

a loop that will be detected by the Spanning Tree Ser-

vice that, as a consequence, will block the ports that

connect those two switches making them not able to

communicate anymore (Hong et al., 2015).

6.2 Network Performance Analysis

Using Wireshark, we have collected data relating to

the bandwidth used for each type of mitigation, con-

sidering a ﬁxed simulation time. As can be seen in

Figure 5, the mitigation that uses the greatest band-

width is the digital signature, since the key used by the

algorithm is 2048 bits. For digital signatures based

on elliptic curves, bandwidth consumption is lower

because the keys used have a smaller length. In par-

ticular, on the digital signature based on ECC, it can

be noted that an increase in the length of the key leads

to an increase in bandwidth consumption. The miti-

gation with the use of HMAC turns out to be the least

expensive compared to all the others. However, ellip-

tic curve methods provide a higher degree of security,

so there is a trade-off between security and network

bandwidth consumption to be considered.

Regarding the generation and signing time of an

LLDP frame, a series of timing data was collected and

averaged. It can be seen from the Figure 6 that, due

to the generation of a message for verifying the in-

tegrity of the data, the time increases with respect to

the normal behavior where there is no veriﬁcation of

data integrity. In particular, as we can imagine, it can

be observed that, using HMAC we got the less gen-

eration and veriﬁcation time due to the use of high

efﬁcient hash function SHA-256 and the effective im-

plementation of the HMAC algorithm. So we regis-

ter a slight increase in time while providing integrity

checks. When we deal with more complex methods

the increasing in time is strongly related to the length

of the key which is involved. Indeed, when elliptic

curve is used we registered an increasing of time in

generation and signature which is proportional to the

size of the key. The signature veriﬁcation procedure

algorithm for elliptic curve is more computational ex-

pensive with respect to the one used in RSA and this

turns out to be veriﬁed by our experiments as can be

seen in Figure 6. The same consideration can be done

for the LLDP frame processing phase which can be

appreciated in Figure 7. Also in this case we have to

face a trade-off between security degree (higher when

using ECC and lower when using RSA) and process-

ing time (lower when using RSA).

6.3 CPU and RAM Performance

Analysis

CPU and RAM data usage was collected using a

Python script which is able to interact with the un-

derlying operative system. Following the aforemen-

tioned results about LLDP frame processing it can be

noticed in Figure 8 that this trend is conﬁrmed for

the CPU usage. Indeed, when using the HMAC the

amount of consumed CPU is negligible with respect

to the normal behavior with the advantage of provid-

ing the needed integrity check. Instead, when using

the ECC the consumed CPU increases following the

trend of the LLDP frame processing time.

Since the signature generation and veriﬁcation al-

gorithm does not change when changing the curve

type but it is related to the size of the employed key,

the amount of CPU does not show an evident trend

variation, see Figure 8. The high value registered for

the CPU usage when using RSA is due to the most

expensive computational overhead caused by the keys

generation procedure. These results highlight the ben-

eﬁt of using elliptic curves since they provide a very

efﬁcient and lightweight keys generation procedure,

which does not effect the overall overhead, and at the

same time a more security strength degree. Therefore,

in order to provide an integrity check for the LLDP

protocol, it can be evaluated the use of HMAC or

ECC considering a trade-off between the needed se-

curity degree and the computational overhead. Figure

9 compares the data collected on the use of memory

(RAM) by the controller. In this case there is no dif-

ference between the digital signature and the elliptic

curves, which use a slightly higher memory load than

the base case and HMAC. This is because a 128-bit

key is used in HMAC, while in other cases the key is

256 or 384 for digital signature based on random el-

liptic curves, 283 or 409 for digital signature based on

Koblitz elliptic curves, and 2048 for RSA-based digi-

tal signature. Using Wireshark it was possible to ana-

lyze the network in the already considered scenarios.

We have observed that the pattern of the exchanged

packets in the network is almost identical in every sit-

uation since the attack is based on sending a single

packet, which does not affect the network in any way.

For this reason, identifying such type of attacks it is

pretty complex since it can be considered as a very

silent attack. Thus, the additional integrity check pre-

vents the malicious user to carry out this kind of at-

tacks.

Mitigation of LLDP Topological Poisoning Attack in SDN Environments Using Mininet Emulator

323

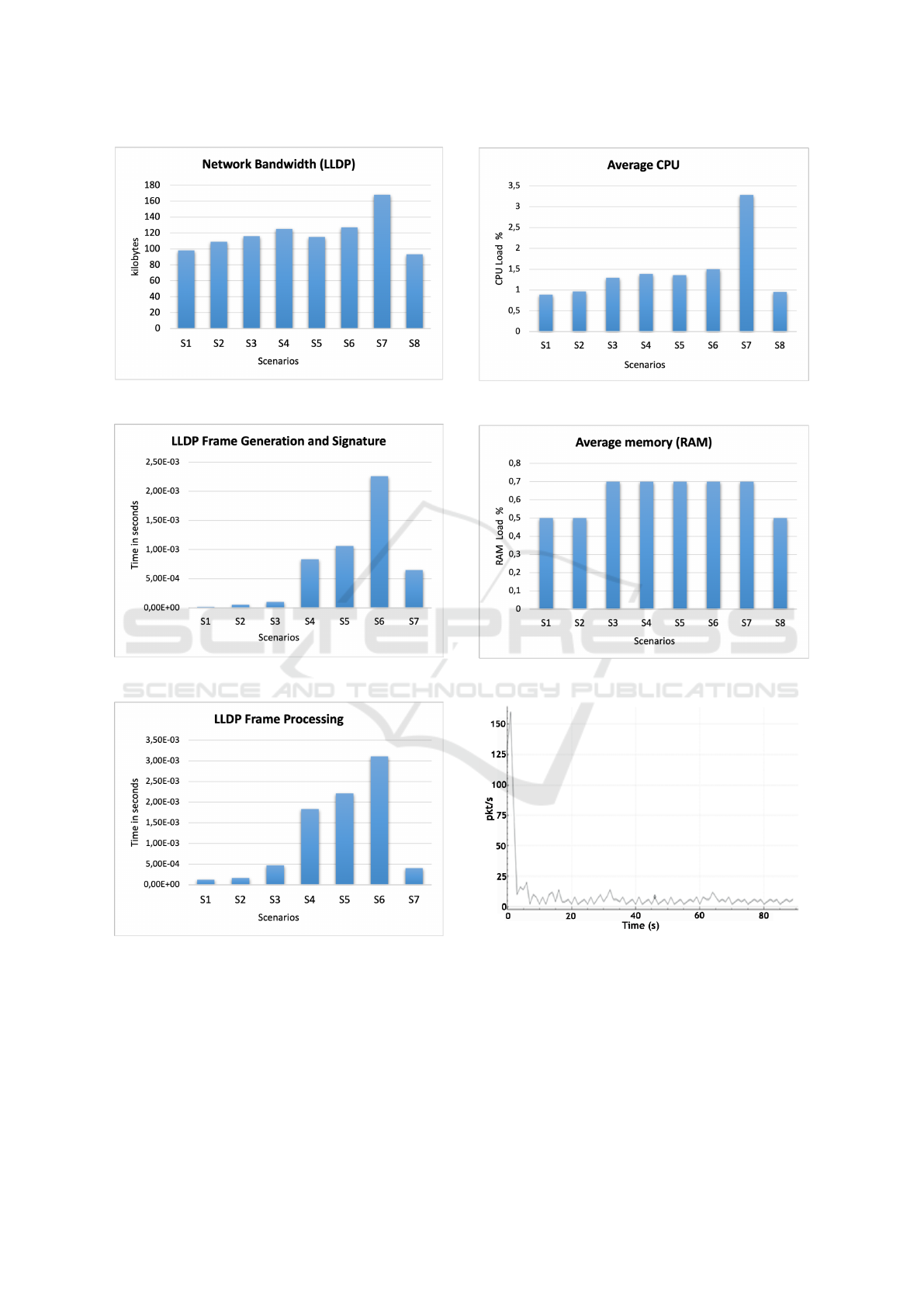

Figure 5: Network used bandwidth.

Figure 6: LLDP frame generation time.

Figure 7: LLDP frame processing time.

7 CONCLUSIONS

This paper focuses on SDN network security, which

introduces new risks due to control/data plane separa-

tion. The fake link fabrication attack is analyzed, and

an integrity check is proposed using three cryptog-

raphy primitives (HMAC, DSA-RSA, ECDSA) and

Figure 8: Average Used CPU.

Figure 9: Average Used RAM memory.

Figure 10.

evaluated using Mininet and a POX controller. Re-

sults show performance in terms of network and re-

source consumption. Choosing between cryptogra-

phy primitives depends on network security needs and

operational restrictions. ECDSA is best for security,

while HMAC is a good alternative for a simpler and

more efﬁcient approach.

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

324

REFERENCES

Al Salti, I. and Zhang, N. (2022). LINK-GUARD:

An Effective and Scalable Security Framework for

Link Discovery in SDN Networks. IEEE Access,

10:130233–130252.

Alimohammadifar, A., Majumdar, S., Madi, T., Jarraya, Y.,

Pourzandi, M., Wang, L., and Debbabi, M. (2018).

Stealthy Probing-Based Veriﬁcation (SPV): An Ac-

tive Approach to Defending Software Deﬁned Net-

works Against Topology Poisoning Attacks. [Online;

accessed 11. Mar. 2023].

Baidya, S. S. and Hewett, R. (2020). Link discovery at-

tacks in software-deﬁned networks: Topology poison-

ing and impact analysis. J. Commun., 15(8):596–606.

Brown, D. R. (2010). Sec 2: Recommended elliptic curve

domain parameters. Standars for Efﬁcient Cryptogra-

phy.

Chou, L.-D., Liu, C.-C., Lai, M.-S., Chiu, K.-C., Tu, H.-H.,

Su, S., Lai, C.-L., Yen, C.-K., and Tsai, W.-H. (2020).

Behavior anomaly detection in sdn control plane: a

case study of topology discovery attacks. Wireless

Communications and Mobile Computing, 2020:1–16.

Committee, L. S. et al. (2009). Ieee standard for local and

metropolitan area networks–station and media access

control connectivity discovery.

De Rango, F., Potrino, G., Tropea, M., and Fazio, P. (2020).

Energy-aware dynamic internet of things security sys-

tem based on elliptic curve cryptography and mes-

sage queue telemetry transport protocol for mitigat-

ing replay attacks. Pervasive and Mobile Computing,

61:101105.

Fazio, P., Tropea, M., Voznak, M., and De Rango, F. (2020).

On packet marking and markov modeling for ip trace-

back: A deep probabilistic and stochastic analysis.

Computer Networks, 182:107464.

Fioravanti, G., Spina, M. G., and De Rango, F. (2023). En-

tropy based ddos detection in software deﬁned net-

works. In 2023 IEEE 20th Consumer Communica-

tions & Networking Conference (CCNC), pages 636–

639. IEEE.

Gao, Y. and Xu, M. (2022). Defense against software-

deﬁned network topology poisoning attacks. Tsinghua

Science and Technology, 28(1):39–46.

Gentile, A. F., Fazio, P., and Miceli, G. (2021). A survey

on the implementation and management of secure vir-

tual private networks (vpns) and virtual lans (vlans)

in static and mobile scenarios. In Telecom, volume 2,

pages 430–445. MDPI.

Hong, S., Xu, L., Wang, H., and Gu, G. (2015). Poisoning

network visibility in software-deﬁned networks: New

attacks and countermeasures. In Ndss, volume 15,

pages 8–11.

Iqbal, M., Iqbal, F., Mohsin, F., Rizwan, M., and Ahmad, F.

(2019). Security issues in software deﬁned network-

ing (sdn): risks, challenges and potential solutions.

International Journal of Advanced Computer Science

and Applications, 10(10).

Jimenez, M. B., Fernandez, D., Rivadeneira, J. E., Bellido,

L., and Cardenas, A. (2021). A survey of the main

security issues and solutions for the sdn architecture.

IEEE Access, 9:122016–122038.

Li, W., Meng, W., and Kwok, L. F. (2016). A survey on

openﬂow-based software deﬁned networks: Security

challenges and countermeasures. Journal of Network

and Computer Applications, 68:126–139.

Liu, Y., Zhao, B., Zhao, P., Fan, P., and Liu, H. (2019).

A survey: Typical security issues of software-deﬁned

networking. China Communications, 16(7):13–31.

Marin, E., Bucciol, N., and Conti, M. (2019). An in-depth

look into sdn topology discovery mechanisms: Novel

attacks and practical countermeasures. In Proceedings

of the 2019 ACM SIGSAC Conference on Computer

and Communications Security, pages 1101–1114.

Melkov, D. and Paulikas, S. (2021). Security beneﬁts and

drawbacks of software-deﬁned networking. In 2021

IEEE Open Conference of Electrical, Electronic and

Information Sciences (eStream), pages 1–4. IEEE.

Nguyen, T.-H. and Yoo, M. (2017). Analysis of link dis-

covery service attacks in sdn controller. In 2017

International Conference on Information Networking

(ICOIN), pages 259–261. IEEE.

Popic, S., Vuleta, M., Cvjetkovic, P., and Todorovi

c, B. M.

(2020). Secure topology detection in software-deﬁned

networking with network conﬁguration protocol and

link layer discovery protocol. In 2020 International

Symposium on Industrial Electronics and Applica-

tions (INDEL), pages 1–5. IEEE.

Potrino, G., De Rango, F., and Santamaria, A. F. (2019).

Modeling and evaluation of a new iot security system

for mitigating dos attacks to the mqtt broker. In 2019

IEEE Wireless Communications and Networking Con-

ference (WCNC), pages 1–6. IEEE.

Rahouti, M., Xiong, K., Xin, Y., Jagatheesaperumal, S. K.,

Ayyash, M., and Shaheed, M. (2022). Sdn security re-

view: Threat taxonomy, implications, and open chal-

lenges. IEEE Access, 10:45820–45854.

Saho, N. J. G. and Ezin, E. C. (2020). Comparative study

on the performance of elliptic curve cryptography al-

gorithms with cryptography through rsa algorithm. In

CARI 2020-Colloque Africain sur la Recherche en In-

formatique et en Math

ematiques Apliqu

ees.

arez-Albela, M., Fraga-Lamas, P., and Fern

andez-

Caram

es, T. M. (2018). A practical evaluation on

rsa and ecc-based cipher suites for iot high-security

energy-efﬁcient fog and mist computing devices. Sen-

sors, 18(11):3868.

Tropea, M. and Palmieri, N. (2022). Software deﬁned net-

working emulator for network application testing. In

Open Architecture/Open Business Model Net-Centric

Systems and Defense Transformation 2022, volume

12119, pages 50–61. SPIE.

Tropea, M., Spina, M. G., De Rango, F., and Gentile, A. F.

(2022). Security in wireless sensor networks: A cryp-

tography performance analysis at mac layer. Future

Internet, 14(5):145.

Mitigation of LLDP Topological Poisoning Attack in SDN Environments Using Mininet Emulator

325
