Distributed Edge Computing System for Vehicle Communication

Rinith Pakala

1 a

, Niket Kathiriya

1 b

, Hossein Haeri

2 c

, Satya Prasad Maddipatla

3 d

Kshitij Jerath

2 e

, Craig Beal

4 f

, Sean Brennan

3 g

and Cindy Chen

1 h

Computer Science Department, University of Massachusetts Lowell, 220 Pawtucket St, Lowell, U.S.A.

Mechanical Engineering Department, University of Massachusetts Lowell, Lowell, U.S.A.

Mechanical Engineering Department, The Pennsylvania State University, University Park, U.S.A.

Mechanical Engineering Department, Bucknell University, Lewisburg, U.S.A.

Keywords:

Edge Computing, Middleware, Data Repository Server, Safety Critical Transmission.

Abstract:

The development of communication technologies in edge computing has fostered progress across various

applications, particularly those involving vehicle-to-vehicle (V2V) and vehicle-to-infrastructure (V2I) com-

munication. Enhanced infrastructure has improved data transmission network availability, promoting better

connectivity and data collection from IoT devices. A notable IoT application is with the Intelligent Transporta-

tion System (ITS). IoT technology integration enables ITS to access a variety of data sources, including those

pertaining to weather and road conditions. Real-time data on factors like temperature, humidity, precipitation,

and friction contribute to improved decision-making models. Traditionally, these models are trained at the

cloud level, which can lead to communication and computational delays. However, substantial advancements

in cloud-to-edge computing have decreased communication relays and increased computational distribution,

resulting in faster response times. Despite these beneﬁts, the developments still largely depend on central

cloud sources for computation due to restrictions in computational and storage capacity at the edge. This

reliance leads to duplicated data transfers between edge servers and cloud application servers. Additionally,

edge computing is further complicated by data models predominantly based on data heuristics. In this paper,

we propose a system that streamlines edge computing by allowing computation at the edge, thus reducing

latency in responding to requests across distributed networks. Our system is also designed to facilitate quick

updates of predictions, ensuring vehicles receive more pertinent safety-critical model predictions. We will

demonstrate the construction of our system for V2V and V2I applications, incorporating cloud-ware, middle-

ware, and vehicle-ware levels.

1 INTRODUCTION

Edge computing is an approach that involves sit-

uating computational resources near the device in

use, allowing for real-time updates and expedited

decision-making (ISO/IEC, 2020),(Satyanarayanan

et al., 2009). This method leverages edge network

resources alongside cloud networks to facilitate in-

https://orcid.org/0000-0001-7442-4170

https://orcid.org/0000-0002-4146-3402

https://orcid.org/0000-0002-6772-6266

https://orcid.org/0000-0002-5785-3579

https://orcid.org/0000-0001-6356-9438

https://orcid.org/0000-0001-7193-9347

https://orcid.org/0000-0001-9844-6948

https://orcid.org/0000-0002-8712-8108

formation exchange between local edge devices and

global data trends at the cloud. When managing vast

amounts of data, efﬁcient distribution between edge

and cloud networks is crucial for the transmission and

processing of that data.

In Vehicle-to-Infrastructure (V2I) networks, a ma-

jority of vehicles can exchange crucial safety infor-

mation with Road Side Units (RSU), which are infras-

tructure devices situated along the road (Barrachina

et al., 2013). These RSUs, as components of the

edge infrastructure, transmit data to cloud servers

for centralized computing and cache the results at

the edge network to provide response to edge de-

vices. This process results in redundant data transfers,

increased computational complexity, communication

relays, and the under-utilization of edge resources

398

Pakala, R., Kathiriya, N., Haeri, H., Maddipatla, S., Jerath, K., Beal, C., Brennan, S. and Chen, C.

Distributed Edge Computing System for Vehicle Communication.

DOI: 10.5220/0012088700003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 398-405

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

which are often only used for replicating results or

conducting partial computations. Additionally, these

devices may have limited deployment along roads,

leading to gaps in network coverage. These factors

highlight the necessity for an improved architectural

setup in edge computing that can seamlessly connect

with cloud networks.

Connected autonomous vehicles would obtain

more pertinent information regarding road conditions

(Tang et al., 2021), enhancing decision-making for

speed planning. IoT devices, such as security cam-

eras, would perform more effectively by conducting

real-time video analytics at the edge (Mendki, 2018)

rather than relying on communication with a central

repository.

Our approach to implementing this architecture

aims to address two speciﬁc challenges: i) reducing

response time when handling edge device requests,

and ii) providing higher throughput of request rates

compared to a central cloud repository. The perfor-

mance evaluation benchmarks taken into account in-

clude assessing the inﬂuence of longer road lengths

on the variability of response times and examining the

consequences of a higher number of vehicle requests

on the response rates delivered.

The paper is organized as follows: Section 2 dis-

cusses existing architectural designs and the concept

of data reduction, addressing related work in current

architecture implementation. Section 3 delves into

the architectural components and the associated setup.

Section 4 presents experimental performance results

and analysis of the work. Finally, Section 5 concludes

the paper and outlines directions for future work.

2 RELATED WORK

2.1 IoT Cloud Computing

Autonomous vehicles, which facilitate driving and

make decisions based on road conditions, heavily rely

on sensor data and are equipped with numerous sen-

sors that generate vast amounts of data (Van Rij-

menam, 2017). This locally generated data may be

corrupted due to faulty sensors or insufﬁcient road

area coverage, necessitating estimation in conjunc-

tion with data from other devices to accurately assess

road conditions. When processing this data at a cen-

tral server, both the data volume and communication

distance signiﬁcantly impact the response time. The

transfer of substantial amounts of data leads to con-

siderable delays, even with minor increases in dis-

tance.

In the current cloud server processing setup, the

IoT Relay

EdgeIoT

Cloud

Data Reduction

and Computation

Feedback

Data Aggregation

and Computation

Cloud Computing

Edge Computing

Figure 1: Cloud and Edge processing.

large volume of data stored in the server results in de-

lays in data insertion, processing, and response pro-

vision. Real-time updates of road conditions are nec-

essary to deliver accurate information to IoT devices,

but outdated information may be received due to these

delays. Overcoming such delays can be achieved by

employing edge server computing, which gathers in-

formation for its corresponding range of IoT devices

(Wang et al., 2016).

2.2 Edge Limitation

When handling large amounts of data, the edge

servers need to handle excessive throughput and rig-

orous computation. When processing information

like friction estimates, which depend hugely on his-

toric data (Panahandeh et al., 2017), the storage and

computational limitation of the edge server restrict the

prediction ability to provide estimates. Along with

data processing, a simple SELECT query to fetch the

relevant information is delayed. This delay becomes

more pronounced when combined with increased re-

quests from IoT devices.

With the existing edge servers, the mobile edge

servers provide caching and transfer required in-

formation between the servers (Li et al., 2018).

This load-balancing data transfer among edge servers

causes increased data duplicity of stored data and

increased amount of data transfers between edge

Distributed Edge Computing System for Vehicle Communication

399

servers. Works are also performed to reduce node

communication by using multi join query processing

(Kurunji et al., 2013) with all the available data.

We develop our architecture to incorporate data

reduction, aiming to decrease the data required for

generating timely friction estimates (ﬁgure 1). The

distributed processing network of edge servers re-

duces the amount of data processed at each edge

server while increasing the availability of servers to

handle requests from edge devices.

2.3 Allan Variance

Friction estimates rely on both current and histori-

cal friction data supplied by vehicles. The compu-

tation of friction estimation is directly proportional

to the amount of data used during processing, result-

ing in increased computational latency as data storage

grows. This computation can be simpliﬁed by deter-

mining the relevance of the data in providing friction

estimates at the present time.

We build on our previous work on the granu-

lation of large temporal databases (Sinanaj et al.,

2022), which employed the Allan variance tech-

nique (Allan, 1966) to assess the variation level in

friction data. This approach determined the opti-

mal window length of similarity for segmenting the

data into batches, generating friction estimates while

preserving the overall friction variation distribution

(Figure 2). This method proved to be less time-

consuming than heuristic-based clustering algorithms

(Kodinariya and Makwana, 2013). As the inﬂux of

new data from edge devices grows, the friction vari-

ation over time cannot be estimated using a constant

window length. Our previous work on optimal mov-

ing average estimation (Haeri et al., 2022) addresses

this issue by proposing a dynamic Allan variance ap-

proach to determine the optimal window length. We

employ the R* tree data representation (Beckmann

et al., 1990) to extend this work in a multidimensional

space involving spatial and temporal attributes. The

resulting aggregation window length is used to select

the level of the node in the R* tree. This technique

enables the granulation of all records referenced by a

tree node, thereby generating hyper-rectangles known

as granules.

Each granule encompasses a friction attribute,

which is calculated as the average of all data points

contained within it. Over time, these granules are re-

generated as a function of the recently received edge

device data and previously existing granules, forming

new granules. The most recent granules in time are

utilized to provide friction estimation responses to the

edge devices.

Characteristic Timescale

(block size)

AVAR

Time

Raw

Temporal

Database

Sort in time

Apply AVAR

Calculate

block averages

Insert

aggregated data

Reduced

Temporal

Database

Figure 2: Data granulation using Allan variance. Adapted

from (Sinanaj et al., 2022).

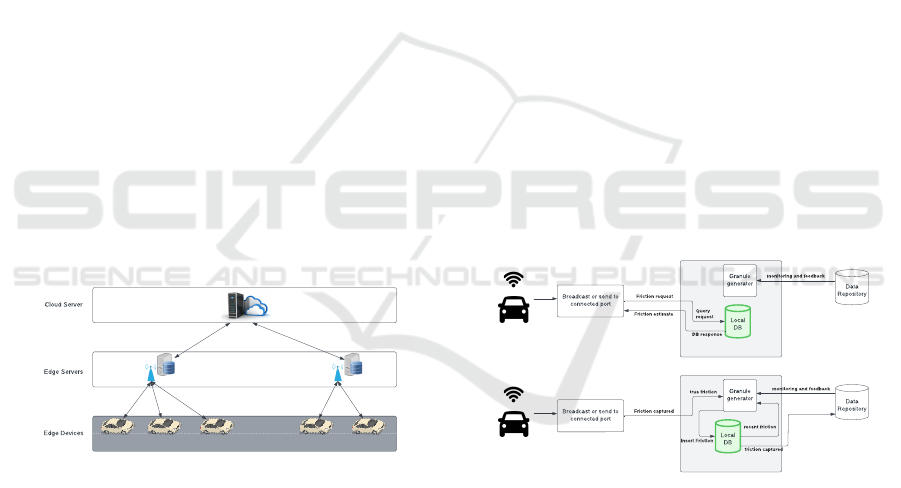

3 SYSTEM ARCHITECTURE

This section presents the components and architecture

setup for a cloud-edge coordinated system. The archi-

tectural design is illustrated using vehicle communi-

cation with edge and cloud servers to query neces-

sary road path information. The edge servers serve

as an immediate source for providing vehicles with

required road information and are connected to the

cloud for maintaining data relevancy, as well as han-

dling failures at the middleware level. All commu-

nication between edge devices, edge servers, and the

cloud is assumed to occur over internet protocol (IP).

3.1 Edge Device

Edge devices are remote systems with less computa-

tional power and depend on the data insights that are

provided to them to help with their course of action.

In turn, these edge devices provide the required data

that it collects to edge and cloud servers (Velmuru-

gadass et al., 2021). In applications such as vehicu-

lar systems, the edge device is a vehicle traveling on

a roadway. For safety-critical planning of speed and

trajectory, the vehicle needs information pertaining to

road friction on the upcoming roadway. This infor-

mation may be obtained from edge server infrastruc-

ture positioned on the roadside. Based on the work

proposed by (Gao et al., 2022) the minimum preview

distance for the vehicle is determined and the edge

device generates requests with location points, which

are responded to by the edge server with the friction

estimates, enabling safe vehicle operation. In turn,

vehicles transmit the friction experienced on the road

and are used to update the estimates.

3.2 Middleware

Middleware are the edge servers placed nearby the

edge devices. These are the roadside unit computer

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

400

that can send and transmit data over radio (Ou et al.,

2019) or wireless networks(Cai and Lin, 2008) The

transmitting unit of the middleware has high band-

width and uses Dedicated Short Range Communica-

tion (DSRC). Middleware contains a local database

and are equipped with processing power. These mid-

dleware servers when placed alongside the highway

or at trafﬁc signaling, are useful to exchange friction

information with the vehicles traveling on road. The

middleware performs computations that combine his-

torical data with the latest friction data collected from

vehicles. The revised roadway friction estimates can

then be queried by the same or other vehicles on the

roadway.

3.3 Cloud Server Repository

Cloud server acts as a data repository for the data col-

lected by edge servers from edge devices and medi-

ates when the edge server are not functional. Cloud

server collects data from all the edge server middle-

wares and performs the granulation (Sinanaj et al.,

2022), (Haeri et al., 2022). The generated granules

with each individual estimated friction cover the en-

tire path of the road, while in comparison each edge

server handles a part of the road path. The peri-

odic data collection by cloud server from edge servers

helps to identify the operational state of middleware

and would coordinate with other edge servers in case

of failure of any middleware.

Edge Devices

Edge Servers

Cloud Server

Figure 3: Architecture Components.

With the architectural components dis-

cussed(ﬁgure 3), the architecture is designed to

show the presence of a single edge server for collect-

ing the data from edge devices and also providing

responses to edge device requests. When such edge

servers are paired together their connectivity is shown

for multi-edge server setup.

3.4 Single Middleware Setup

An edge server comprises a local database that serves

as a repository for data gathered from edge devices.

The collected data is processed through granulation

algorithms to form granules, which are then stored in

a local database. Additionally, the edge server period-

ically transmits the data it has collected from the edge

devices to a cloud server through a high-bandwidth

network connection. Edge devices communicate with

the middleware through a wireless IP network. They

collect road friction information and generate net-

work packets of a constant length, which contain the

location coordinates and friction readings. The IP ad-

dresses of all edge servers are pre-conﬁgured in the

edge devices. For a single middleware system, the

edge devices transmit the network packets to the cor-

responding IP address.

Upon receipt of the information, the edge server

performs two actions: (i) it creates granules and pro-

vides friction estimates from its local database and

(ii) it sends the information collected by the edge de-

vice to the cloud, where the granulation process is run

on the data collected from the entire road path. At

the middleware, granules are generated with hyper-

rectangular boundaries and an estimated friction value

for all locations within those boundaries. Reduction

of the data is seen by using a granule record with

boundaries in alternative to a set of actual records cov-

ered in it. These granule boundaries, also provide an

estimation for location points that are in the vicinity of

actual data received from the edge device and happen

to be covered by the granule coordinates. Granules

are updated in time and maintain relevancy with data

received from edge devices.

Broadcast or send to

connected port

Granule

generator

Data

Repository

Local

Friction request

Query

request

Friction estimate

DB response

Broadcast or send to

connected port

Granule

generator

Data

Repository

Local

Friction captured

true friction

Insert Friction

recent friction

monitoring and feedback

friction captured

monitoring and feedback

Figure 4: Single middleware setup to generate friction esti-

mates and send friction response.

When the middleware receives a packet request

from an edge device, it extracts the location coordi-

nates from the request and queries its database for

granules. The estimated friction value of the gran-

ule that contains the location point is determined, and

all such estimated friction values are grouped together

by the middleware to form a response network packet

that is sent back to the edge device.(ﬁgure 4). Upon

receipt of the friction estimates, the edge device uses

the information to plan its speed and generates subse-

quent requests for the remainder of its road journey.

Distributed Edge Computing System for Vehicle Communication

401

3.5 Multi Middleware Setup

When multiple edge servers perform the task of pre-

diction, it is crucial for them to determine the scope of

their operations. This enables the edge device to efﬁ-

ciently interact with the relevant edge server to trans-

mit collected data and request information computed

by the edge server. For example, in the case of a vehi-

cle on the road that is receiving and transmitting infor-

mation on friction, the road path is divided into multi-

ple segments based on its length. These segments are

then assigned to the edge server middleware, and the

vehicle’s transmitted information is divided accord-

ingly and passed on to the corresponding edge server.

The road network is divided into segments, each

of which is assigned a unique identiﬁer that is given

to an edge server. When the middleware receives a

packet request that includes the location and segment

details, it ﬁlters the location point based on the as-

signed segment identiﬁer. The middleware then col-

lects friction data from vehicles in the designated lo-

cation points and generates granules to provide fric-

tion estimates. Each edge server generates granules

for its designated segment locations and also sends

the received friction data to the cloud server.

vehicle

Vehicle on

road

Network

distribution

Edge Server with local

database (in proximity to

respective road segments)

Query

friction

prediction

estimated

friction

request

response

estimated

friction data

Database

Data Repository

Server

Figure 5: Multiple middleware setup to handle edge device

requests.

With all the collected information, the cloud

server generates granules(ﬁgure 5) for the entire road

network and compares these results with those gener-

ated by the middleware. The cloud server computa-

tion mediates to provide feedback to the edge server

when necessary. Feedback achieves similarity of local

estimates with cloud friction estimates and relativity

of estimates at the shared segment boundary between

adjacent edge servers. The distributed computation of

edge device data and data reduction using granulation

provides less computational and response latency at

the edge server. Also, failure for data transmission

from the edge server to the cloud server is monitored,

to handle failed edge server.

3.6 Handover Between Middleware

The edge device is equipped with a list of IP addresses

for the middleware network, and as it travels along its

route, it broadcasts packets that contain information

about detected friction along with a unique segment

ID to all edge servers. The edge servers then use the

segment ID to ﬁlter the packets, with only one edge

server collecting the information for a given segment

ID and sending a response back to the edge device.

Upon receipt of the response, the edge device uses

the IP of the responding middleware to direct its sub-

sequent requests as it moves through the segment.

The handover between middlewares as the edge de-

vice transitions from one segment to another is facil-

itated by the implementation of a threshold for the

segment boundary. This threshold area signiﬁes the

start or end of the segment, and the edge device broad-

casts a request as it enters or leaves this area, allow-

ing it to identify nearby middleware servers and es-

tablish a connection. The below time ﬂow ﬁgure 6

describes the various states of the vehicle when trav-

eling through segments 1 and 2.

t1 t2 t3 t4 t5 t6

M1 M2

Threshold

Figure 6: Handover between middleware when the vehicle

travels to adjacent segment.

Considering middleware M1 and M2 operating for

segments 1 and 2, the vehicle broadcasts its request at

time t1, indicating its start of the journey. Identifying

the threshold, the middleware M1 assigns a threshold

ﬂag to vehicle response at time t1 and also at time t4

when the vehicle reaches the threshold while exiting

segment 1. This allows the vehicle to broadcast the

request at time t2, which is responded by M1 with

ﬂag OFF, indicating vehicle to connect with M1 at t3

for segment 1 and use M1 IP to request data, while

travelling in segment. The vehicle uses the response

received from broadcast request at t5 to connect the

middleware M2 at t6 and use its IP for subsequent

requests while traveling in segment 2.

3.7 Unresponsive Edge Server

In a multi-edge server system, the consistent updates

provided to the cloud by the edge server at equal

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

402

intervals facilitate the cloud’s ability to identify any

anomalies with the edge server. In the event of an

edge server failure, the cloud mediates communica-

tion with neighboring edge servers to manage the op-

erations previously handled by the failed node.

In such cases, estimated friction values for the

edge device are provided by the adjacent node as the

edge device approaches the failed node. Once the

edge device travels through the failed edge server seg-

ment and reaches the next segment, the detected fric-

tion of the failed node is passed on to the next node.

The cloud which mediates these middlewares updates

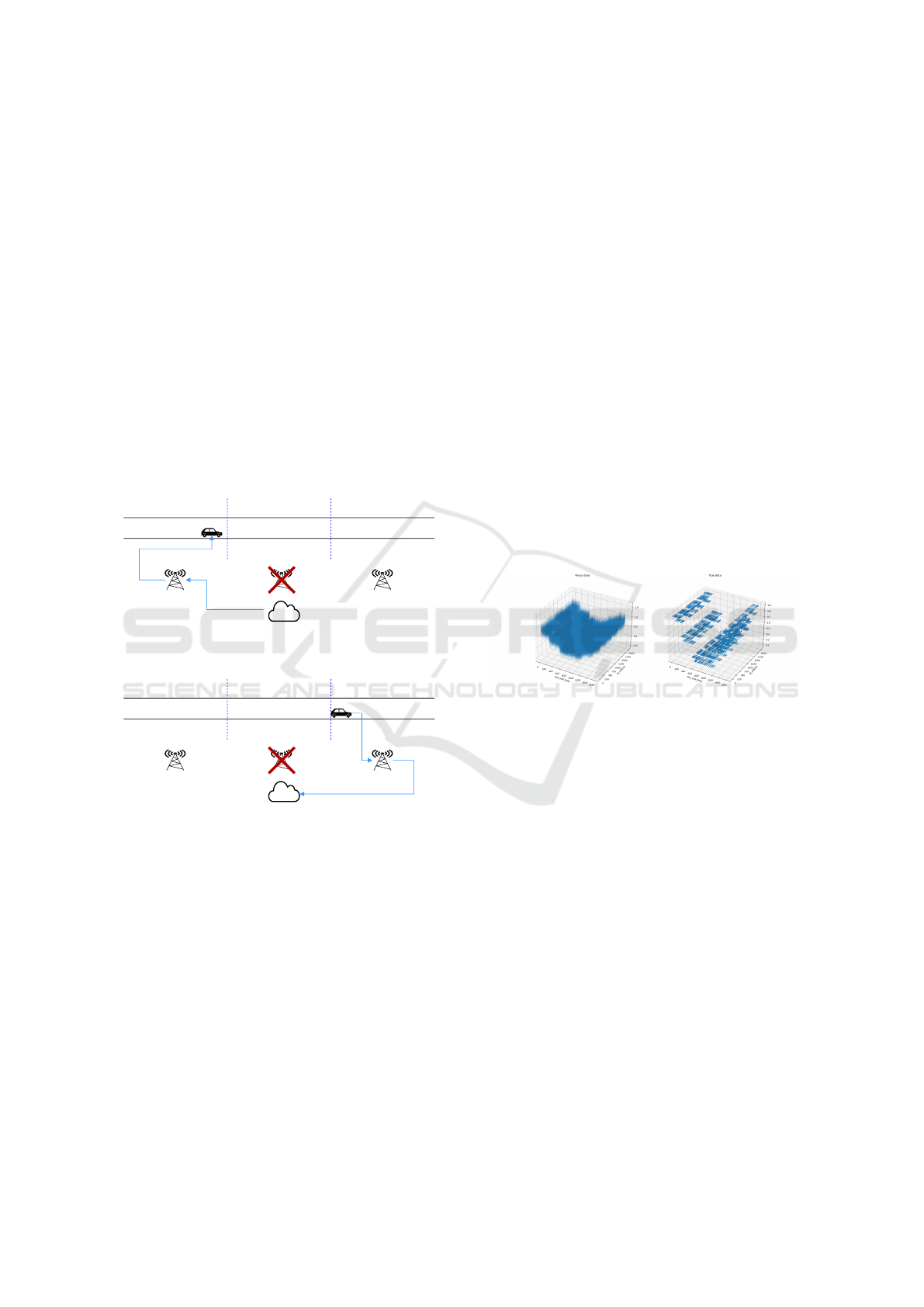

the initial edge server with the latest information. The

below ﬁgure 7, 8 shows a road segment divided into

three segments s1, s2, s3 which are handled by M1,

M2, M3. When M2 goes unresponsive, the cloud does

not receive the time interval updates and detects an

anomaly. The cloud server which generated its own

granules for segment s2 are passed to edge server M1.

M1 M3

S1 S2 S3

Figure 7: Initial Middleware providing estimated friction

for next segment.

M1 M3

S1 S2 S3

Figure 8: Later Middleware receiving friction experienced

from vehicle.

For the edge device entering s2 from s1, M1 de-

tects the threshold ﬂag and sends the estimated fric-

tion from s2 granules to the edge device. These fric-

tion values are used by edge devices for speed plan-

ning while traveling through s2. Once the edge device

enters the next adjacent road segment s3, the detected

friction for s2 is passed on to edge server M3. M3

sends this information to the cloud, which are con-

verted to as granules of segment s2 and are updated in

M1 by the cloud.

4 PERFORMANCE

This section shows the experimental results of using

edge server architecture over the cloud network ar-

chitecture. The performance metrics are evaluated for

i) computational latency with increasing road length

and ii) effect of increasing edge device requests.

4.1 Experimental Setup

The proposed experiments are developed with python

3.11 and performed on a windows 10 Enterprise ma-

chine with 32 GB RAM and clock speed of 3.20GHz.

Dataset: A simulated road friction data is generated

that shows variation in friction values in different road

locations and contains attributes of East, North, time,

friction estimate, and friction true (Gao et al., 2022).

The location of the vehicle is provided by East and

north attributes and the time attribute in seconds pro-

vides the simulation time from zero seconds. The fric-

tion true is actual friction on road, while estimate fric-

tion is vehicle-measured friction which is actual fric-

tion added with the white noise of magnitude of 0.3.

Figure 9: Friction Variation - a) with White Noise b) True

Friction.

4.2 Computational Latency for

Increasing Road Length

4.2.1 Dual Edge Server Setup

Considering a road path, whose friction information

is operated by two edge servers, we divide the road

path into two segments, allocating equal area paths for

both edge servers. With friction information received

from vehicles traveling along the road path, both edge

servers generate granules in their deﬁned road length.

We simulate the constant rate of vehicle requests

that are traveling on different locations of the road and

calculate the time taken by the edge server to respond

with friction estimate. Time taken is averaged among

multiple runs for better estimate. Further, we re-

place edge servers with a single data repository server,

which handle the granulation and friction response for

entire road path and compute response time of data

repository server to respond to same amount of re-

quests handled by each edge server.

Distributed Edge Computing System for Vehicle Communication

403

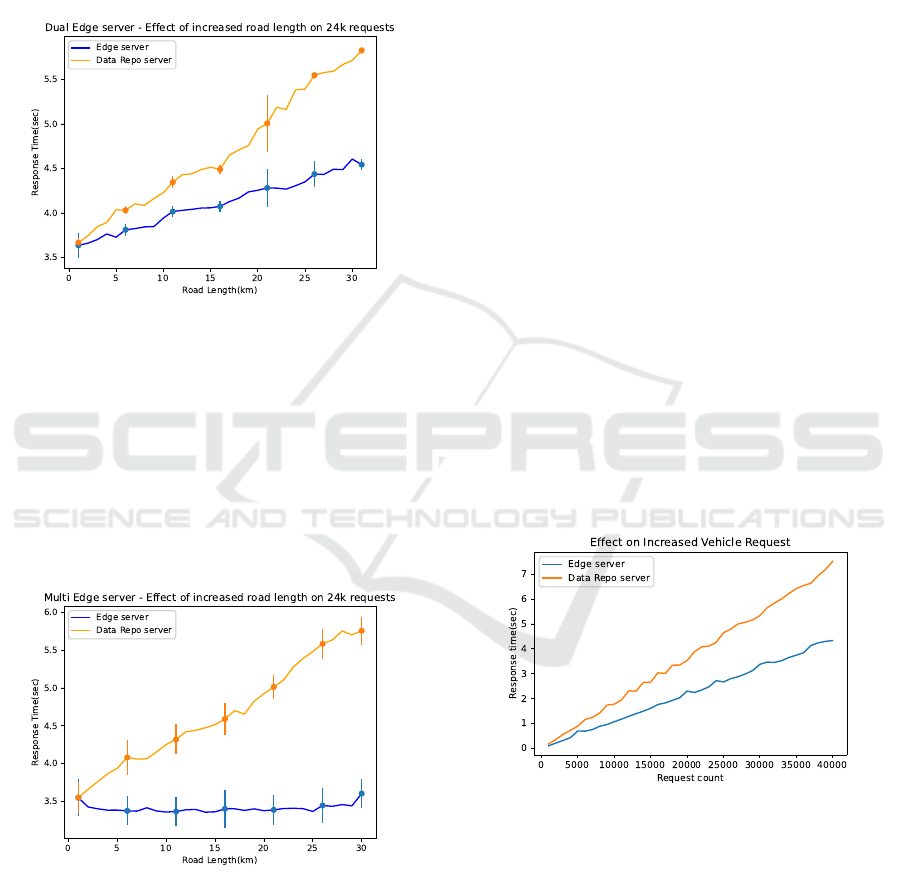

From the plot ﬁgure 10, when the data repository

server and dual edge servers handle 24000 queries,

we see with the increase in road length, the average

data repository response time is larger than the edge

server. With the increase of road length, the response

time by data repository extended by 1.864% per unit

road length, while the dual edge server response time

increased by 0.943%

Figure 10: Dual edge server Query response with variance

scale.

4.2.2 Dynamic Edge Server Allocation

For the dual edge server, with the increasing road

length the range of the edge server is extended. For

our next experiment, we set the edge servers to oper-

ate on a ﬁxed length of the road. For the equal incre-

mental road length range, we calculate the response

time of a data repository server handling entire road

path and edge server handling constant road path.

Figure 11: Dynamic Middleware Query response with vari-

ance scale.

From the plot ﬁgure 11, we see that average re-

sponse time increases with road length when com-

pared with the edge server. When such edge servers

are placed along the road network, the overall re-

sponse time is greatly reduced improving speed plan-

ning. With the implementation of a dynamic middle-

ware system, the increase in response time for the data

repository server is 1.84%, and per unit road length

increase in response time for the dynamic edge server

system is 0.25%

4.3 Effect of Increasing Edge Device

Requests

When more number of vehicles travel on the road net-

work, the increased vehicle requests adds more de-

lay in query response by the computing server. To

check the effect of increasing incoming requests on

the server, we consider a multi-edge setup, where the

entire road path is divided among 30 edge servers.

We simulate the increasing range of vehicle re-

quests by equal amounts in the edge server and cloud

server. The response time is considered from fetch-

ing relevant granules that cover the location point and

computing the average from friction attribute of the

fetched granules. These response times are added

up for all the queried location points provided as re-

sponse time for a query set. Such response times are

evaluated multiple times to provide a better average

friction estimate.

From the plot ﬁgure 12, the increase in response

time is drastic in the cloud server when compared

to the edge server. For increased vehicle requests

to 40000, the multi-edge server achieved a 42.358%

reduction in response time, in comparison with the

cloud server.

Figure 12: Effect of Increased Vehicle requests.

5 CONCLUSION

In this paper, we present a distributed edge-cloud

model that collaborates with mobile edge devices,

such as vehicles on the road.

Utilizing the Allan variance averaging technique,

which determines the optimal split for reducing data

to be processed, we maintain accurate friction estima-

tion results while processing on the edge server. Our

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

404

proposed architecture demonstrates that a coordinated

edge server system delivers continuous responses as

vehicles travel along the road. The edge server’s fail-

ure handling mechanism effectively addresses real-

time communication breakdowns. We illustrate that

the coordinated edge server system enables faster data

processing, lower latency, and higher throughput for

requests compared to the cloud-mediated transmis-

sion model.

In future work, we aim to expand our research on

the feedback system between cloud and edge servers.

We plan to adapt the cloud to identify variations in

friction estimates generated over time and use this in-

formation to determine the feedback interval with the

edge servers.

ACKNOWLEDGMENT

This material is based upon work supported by the

National Science Foundation under grant no. CNS-

1932509 “CPS: Medium: Collaborative Research:

Automated Discovery of Data Validity for Safety-

Critical Feedback Control in a Population of Con-

nected Vehicles”

REFERENCES

Allan, D. W. (1966). Statistics of atomic frequency stan-

dards. Proceedings of the IEEE, 54(2):221–230.

Barrachina, J., Garrido, P., Fogue, M., Martinez, F. J., Cano,

J.-C., Calafate, C. T., and Manzoni, P. (2013). Road

side unit deployment: A density-based approach.

IEEE Intelligent Transportation Systems Magazine,

5(3):30–39.

Beckmann, N., Kriegel, H.-P., Schneider, R., and Seeger,

B. (1990). The r*-tree: An efﬁcient and robust ac-

cess method for points and rectangles. SIGMOD Rec.,

19(2):322–331.

Cai, H. and Lin, Y. (2008). A roadside its data bus proto-

type for intelligent highways. IEEE Transactions on

Intelligent Transportation Systems, 9(2):344–348.

Gao, L., Beal, C., Mitrovich, J., and Brennan, S. (2022). Ve-

hicle model predictive trajectory tracking control with

curvature and friction preview. IFAC-PapersOnLine,

55(24):221–226. 10th IFAC Symposium on Advances

in Automotive Control AAC 2022.

Haeri, H., Soleimani, B., and Jerath, K. (2022). Optimal

moving average estimation of noisy random walks us-

ing allan variance-informed window length. In 2022

American Control Conference (ACC), pages 1646–

1651.

ISO/IEC (2020). Tr 30164:2020 - Internet of Things (IoT)

- Edge Computing. Technical report, ISO/IEC.

Kodinariya, T. M. and Makwana, P. R. (2013). Review on

determining number of cluster in k-means clustering.

International Journal, 1(6):90–95.

Kurunji, S., Ge, T., Fu, X., Liu, B., and Chen, C. X. (2013).

Optimizing communication for multi-join query pro-

cessing in cloud data warehouses. Int. J. Grid High

Perform. Comput., 5(4):113–130.

Li, J., Luo, G., Cheng, N., Yuan, Q., Wu, Z., Gao, S., and

Liu, Z. (2018). An end-to-end load balancer based

on deep learning for vehicular network trafﬁc control.

IEEE Internet of Things Journal, 6(1):953–966.

Mendki, P. (2018). Docker container based analytics at iot

edge video analytics usecase. In 2018 3rd Interna-

tional Conference On Internet of Things: Smart Inno-

vation and Usages (IoT-SIU), pages 1–4.

Ou, C.-H., Wu, B.-Y., and Cai, L. (2019). Gps-free ve-

hicular localization system using roadside units with

directional antennas. Journal of Communications and

Networks, 21(1):12–24.

Panahandeh, G., Ek, E., and Mohammadiha, N. (2017).

Road friction estimation for connected vehicles using

supervised machine learning. In 2017 IEEE Intelligent

Vehicles Symposium (IV), pages 1262–1267.

Satyanarayanan, M., Bahl, P., Caceres, R., and Davies, N.

(2009). The case for vm-based cloudlets in mobile

computing. IEEE Pervasive Computing, 8(4):14–23.

Sinanaj, L., Haeri, H., Maddipatla, S. P., Gao, L., Pakala,

R., Kathiriya, N., Beal, C., Brennan, S., Chen, C.,

and Jerath, K. (2022). Granulation of large temporal

databases: An allan variance approach. SN Computer

Science, 4(1):7.

Tang, S., Chen, B., Iwen, H., Hirsch, J., Fu, S., Yang,

Q., Palacharla, P., Wang, N., Wang, X., and Shi,

W. (2021). Vecframe: A vehicular edge computing

framework for connected autonomous vehicles. In

2021 IEEE International Conference on Edge Com-

puting (EDGE), pages 68–77.

Van Rijmenam, M. (2017). Self-driving cars will create 2

petabytes of data, what are the big data opportunities

for the car industry.

Velmurugadass, P., Dhanasekaran, S., and Sasikala, S.

(2021). The cloud based edge computing with iot

infrastructure and security. In 2021 International

Conference on Computational Performance Evalua-

tion (ComPE), pages 030–034.

Wang, Y., Sheng, M., Wang, X., Wang, L., and Li, J. (2016).

Mobile-edge computing: Partial computation ofﬂoad-

ing using dynamic voltage scaling. IEEE Transactions

on Communications, 64(10):4268–4282.

Distributed Edge Computing System for Vehicle Communication

405
