XACML Extension for Graphs: Flexible Authorization Policy

Speciﬁcation and Datastore-Independent Enforcement

Aya Mohamed

1,2 a

, Dagmar Auer

1,2 b

, Daniel Hofer

1,2 c

and Josef K

ung

1,2 d

Institute of Application-oriented Knowledge Processing, Johannes Kepler University Linz, Linz, Austria

LIT Secure and Correct Systems Lab, Johannes Kepler University Linz, Linz, Austria

Keywords:

Access Control, Authorization Policy, Graph-Structured Data, Graph Database, Cypher, Neo4j, XACML.

Abstract:

The increasing use of graph-structured data for business- and privacy-critical applications requires sophisti-

cated, ﬂexible and ﬁne-grained authorization and access control. Currently, role-based access control is sup-

ported in graph databases, where access to objects is restricted via roles. This does not take special properties

of graphs into account, such as vertices and edges along the path between a given subject and resource. In our

previous research iterations, we started to design an authorization policy language and access control model,

which considers the speciﬁcation of graph paths and enforces them in the multi-model database ArangoDB.

Since this approach is promising to consider graph characteristics in data protection, we improve the language

in this work to provide ﬂexible path deﬁnitions and specifying edges as protected resources. Furthermore, we

introduce a method for a datastore-independent policy enforcement. Besides discussing the latest work in our

XACML4G model, which is an extension to the Extensible Access Control Markup Language (XACML), we

demonstrate our prototypical implementation with a real case giving an outlook on performance.

1 INTRODUCTION

With the increasing use of graph databases for

business- and privacy-critical applications, not only

the continuous growth of data and its complexity must

be considered but also advanced, ﬂexible, and ﬁne-

grained authorization and access control. Access con-

trol protects assets and private information against

unauthorized access by potentially malicious parties.

Authorization is the process and result of specifying

access rights in terms of who (subject) can perform

what (action) on which resource (Jøsang, 2017). An

authorization policy deﬁnes access rights in one or

more sets of rules using some policy language. Ex-

isting policy languages do not yet consider graph-

speciﬁc characteristics.

A graph is a set of vertices, which can be related to

each other in pairs by edges. In graph databases, both

vertices and edges are stored and accessed as entities.

Thus, vertices can be also considered in the context of

their relationships to other vertices, even over longer

https://orcid.org/0000-0001-8972-6251

https://orcid.org/0000-0001-5094-2248

https://orcid.org/0000-0003-0310-1942

https://orcid.org/0000-0002-9858-837X

paths, i.e. sequences of alternating vertices and edges.

Consider a knowledge graph with data objects and

tasks as vertex entities. We need to describe a path

in the authorization policy with constraints on the at-

tributes of subject and resource data object vertices.

Moreover, a task vertex has to exist somewhere along

this path having a connecting edge with certain values

for its attributes.

We worked on attribute-level path constraints in

previous research iterations (see Section 3.3) result-

ing in initial versions of our model called XACML for

Graphs (XACML4G). The policy language and access

control model support constraints on paths, but each

element of the path must be described in detail. Fur-

thermore, only graphs in ArangoDB are supported.

Our current research deals with the open issues

from these earlier iterations as well as further input

from related work. We contribute the following re-

sults to the XACML4G model and prototype:

• Flexible path speciﬁcation in XACML4G autho-

rization policies without deﬁning every vertex and

edge in the path pattern.

• Edges are also considered as resources.

• A datastore-independent enforcement model us-

ing a source-subset graph.

442

Mohamed, A., Auer, D., Hofer, D. and KÃijng, J.

XACML Extension for Graphs: Flexible Authorization Policy Speciﬁcation and Datastore-Independent Enforcement.

DOI: 10.5220/0012090000003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 442-449

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

• Support path-related attributes in the XACML4G

policy and request by extending an established

XACML implementation.

• A proof of concept prototype of the extended

XACML4G language and architecture, imple-

menting ﬂexible authorization policy speciﬁcation

and datastore-independent enforcement.

• A demo case to show the extended XACML4G

policy deﬁnition and enforcement as well as han-

dling XACML4G requests.

The rest of the paper is structured as follows.

In Section 2, we give an overview of our research

method and research questions. Section 3 describes

relevant access control models, technologies, and re-

sults of our previous research iterations. The pol-

icy language and enforcement details of our current

XACML4G extension are explained in Section 4.

Section 5 gives details about our prototypical imple-

mentation and a demo case. In Section 6, we inves-

tigate the performance of the implemented prototype

compared with XACML and our previous work. The

paper concludes with a summary and an outlook on

future work in Section 7.

2 RESEARCH METHOD

We follow a design science research (DSR) method

(Hevner et al., 2004) and thus, focus on problem solv-

ing to enhance human knowledge by designing ar-

tifacts. The requirements for authorization and ac-

cess control in the context of graph-structured data

originate from a real-world problem in the domain

of IT-supported knowledge work in a patent law ﬁrm

ubscher et al., 2021).

Concepts, prototypes and knowledge are de-

signed, developed and evaluated in an iterative re-

search process in two complementary projects with

partners from business and research. While the ﬁrst

two iterations were strongly driven by the needs of

our business partner, we now generalize the concept

to be ﬂexible, adaptable and datastore-independent.

We discuss the results of our previous iterations,

approaches and technologies, i.e., our DSR knowl-

edge base, in Section 3. In the current research itera-

tion, we focus on the following research questions:

RQ1. What are the main challenges for a ﬂexible

deﬁnition and datastore-independent enforce-

ment of XACML4G path constraints?

RQ2. What are suitable concepts for designing the

identiﬁed challenges?

RQ3. Can a prototype implementation of the concept

be provided and applied to real-world cases?

To evaluate our design, we focus on analytical

proofs and feedback circles with our project partners

for RQ1 and RQ2. Concerning RQ3, we implement

a proof of concept prototype, showing its feasibility

on a generated dataset from the patent and trademark

prosecution domain (see Section 5). We overcome the

limitations regarding ﬂexible deﬁnition of path con-

straints and generally applicable enforcement.

3 RELATED WORK

Besides the related access control models to protect

graph-structured data, we introduce the models and

technological background as well as the main results

of our previous research iterations.

3.1 Access Control Models

Current graph and multi-model database systems pro-

vide role-based access control (RBAC), e.g., Neo4j

Microsoft Azure CosmosDB

, and ArangoDB

. How-

ever, RBAC is not sufﬁcient as it neither considers

protecting data via restrictions on paths in the graph

nor takes entity properties into account.

Protecting graph-structured data requires to con-

strain the path from the subject to the resource by

content, not only by properties such as depth, type or

trust level as in several relation-based access control

(ReBAC) models (Fong, 2011; Cheng et al., 2016).

ReBAC is based on evaluating relationships between

subjects and resources. The lack of a common deﬁ-

nition of ReBAC led to a number of domain-speciﬁc

models with rather ad-hoc enforcement models and

implementations. Clark et al. (2022) consider Re-

BAC policies as graph queries and formalize their

ReBAC query language ReLOG according to the lan-

guage features derived from comparing ReBAC mod-

els. Most ReLOG features are already supported in

our previous XACML4G versions, such as querying

basic graph patterns, mutual exclusion constraints, ar-

bitrary path semantics, path negation, parameterized

queries, and the any predicate. Path patterns do not

need to describe the overall path from subject to re-

source in ReLOG, which is an open issue in previ-

ous XACML4G versions, but will be considered in

the current research. ReLOG is based on regular

property-graph logic and introduces custom functions

to overcome the limited expressiveness of the policy

language. Whenever the policy is changed, functions

Role-based access control in Neo4j enterprise edition

Azure role-based access control in Azure Cosmos DB

Access control in the ArangoGraph Insights Platform

XACML Extension for Graphs: Flexible Authorization Policy Speciﬁcation and Datastore-Independent Enforcement

443

need to be added or changed. But with ReLog, ﬁne-

grained access control and an implementation are still

open issues. Furthermore, ReLog (like our previous

works) does not consider edges as resources worth

protecting like vertices, although both are equivalent

elements in the graph model.

Neither RBAC nor comprehensive ReBAC mod-

els support ﬁne-grained access control applying con-

straints on the entities to be protected. Attribute-based

access control (ABAC) (Hu et al., 2017) overcomes

this limitation. Constraints can be deﬁned at the at-

tribute level for subjects, resources, actions to be per-

formed, and environment conditions. Unlike ReBAC,

the ABAC model lacks the natural speciﬁcation of re-

lationships between subject and resource. The com-

parison of ABAC and ReBAC in Ahmed et al. (2017)

shows that ABAC models are more expressive.

3.2 Models and Technologies

Braun et al. (2008) regard XML-based models, like

XACML, as the closest to graph-related requirements.

Thus, we rely on XACML as it is considered the

defacto standard for managing and enforcing ﬁne-

grained privileges, e.g., Wu et al. (2006) and the

PRIMA system (Lorch et al., 2003). As our cur-

rent design relies on a graph database to enforce

XACML4G policies, we further discuss the graph

query language Cypher and the graph database Neo4j.

3.2.1 XACML

XACML is the abbreviation of eXtensible Access

Control Markup Language. It is an OASIS approved

standard for access control established in 2001. The

policy language model of XACML is XML-based

having the three main components: rule, policy, and

policy set. Firstly, rule is the basic element having an

effect (i.e., permit or deny) as well as an optional tar-

get and condition. A target is a combination of zero or

more subjects, resources, actions, and environment at-

tributes. A policy is comprised of zero or more rules,

a rule combining algorithm, and a target. A policy set

is a composite element consisting of a target, a policy

combining algorithm besides zero or more policy sets

and policies. A rule, policy, or policy set is applicable

when its target attributes match those in the request.

XACML is not only a policy language, but also

a processing model (i.e., architecture, workﬂow, and

methodology) for evaluating access requests. The

data ﬂow between the XACML conceptual units is

visualized in Figure 1. Additionally, XACML pro-

vides extension points for deﬁning custom combining

algorithms, attribute providers, policy providers, data

types, and functions.

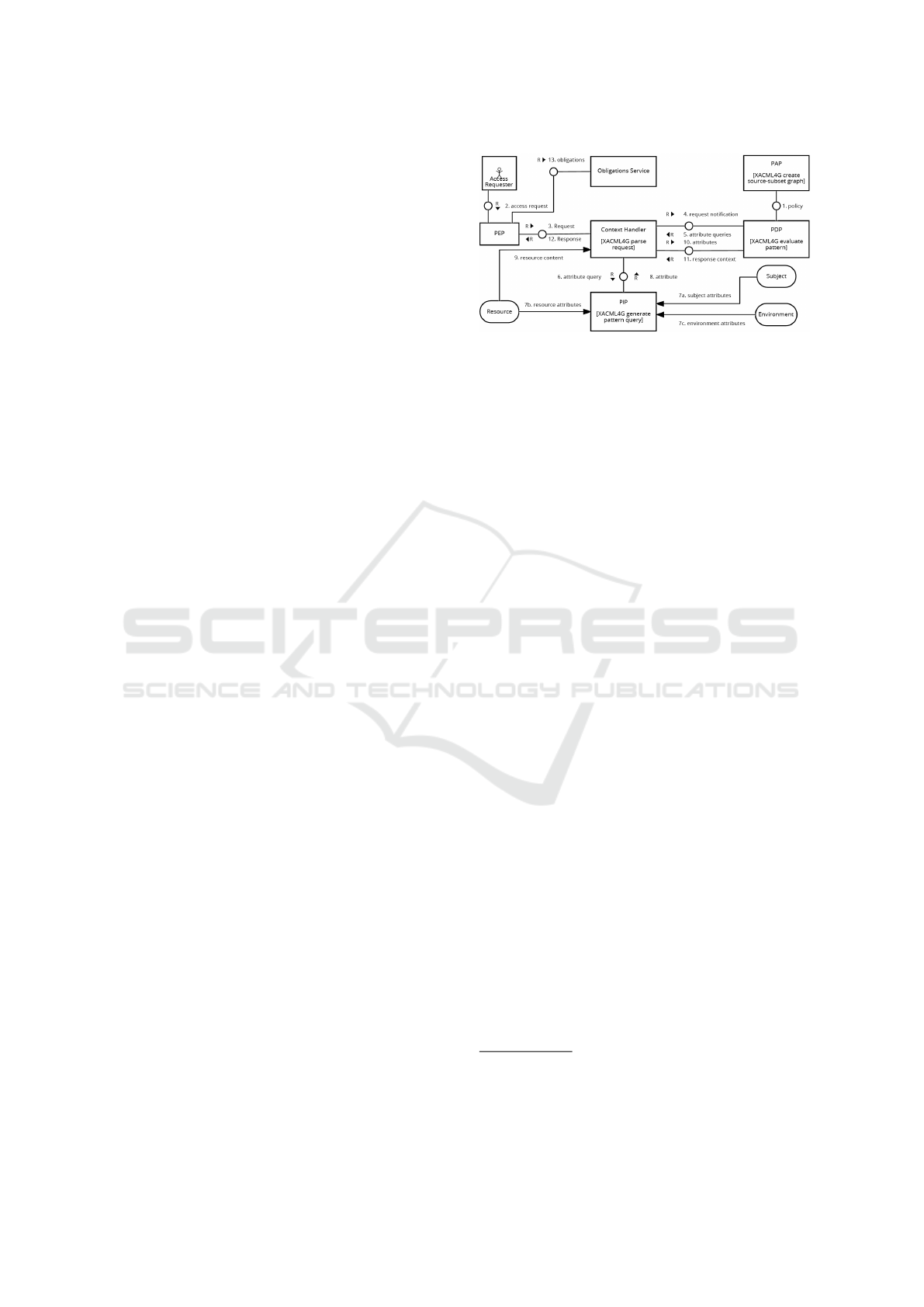

Figure 1: XACML reference architecture and extension.

The policy administration point (PAP) manages

policies, which will be used in evaluating access re-

quests, with respect to authoring and deployment (1).

The policy enforcement point (PEP) receives the ac-

cess request from the user (2), maps it to the XACML

request native format and sends it to the context han-

dler (3). Furthermore, the PEP fulﬁlls obligations,

i.e., operations carried out during the policy enforce-

ment phase (13). The context handler converts access

requests from the native format to the XACML canon-

ical form (4) and vice versa for the response (12). It

also acts as an intermediate entity between the pol-

icy decision point (PDP) and the policy information

point (PIP). The PDP requests subject, resource, ac-

tion, environment, and other custom attributes from

the context handler (5). The context handler requests

the attributes from the PIP (6), retrieves them from

the respective entities (7) and returns them to the con-

text handler (8). The context handler further option-

ally includes the resource in the context (9). Finally,

the results are sent to the PDP (10) for evaluating the

policies and making authorization decisions (11).

3.2.2 Cypher Query Language

Several query languages are proposed for property

graphs such as PGQL (van Rest et al., 2016), Grem-

lin

, Blueprints

, G-CORE (Angles et al., 2018), or

Cypher

. Furthermore, the Graph Query Language

(GQL)

ISO standard, comparable to SQL for rela-

tional data, is in development.

Cypher is a declarative query language for prop-

erty graphs and has a syntax inspired by SQL. It al-

lows to easily express graph patterns as well as path

queries. Cypher was originally created by Neo4j and

contributed to the open-source project openCypher in

2015. It is not only used with Neo4j, but also with

other graph databases (e.g., Amazon Neptune and

https://tinkerpop.apache.org/gremlin.html

https://github.com/tinkerpop/blueprints/wiki

https://opencypher.org/

https://www.gqlstandards.org/

SECRYPT 2023 - 20th International Conference on Security and Cryptography

444

SAP HANA Graph). Due to its expressiveness, ﬂex-

ibility, and signiﬁcant contribution to GQL, we de-

cided for Cypher to process and evaluate the patterns

in XACML4G authorization policies.

3.2.3 Neo4j

Neo4j

is a native graph database implementing the

property graph model in Java. The data is struc-

tured in terms of nodes and relationships. It sup-

ports schema-free and schema-optional use and is cur-

rently available in the open source Community Edi-

tion (GPL v3) and the commercial Enterprise Edition.

In over 20 years, they established their position as

world market leader in graph databases

with signiﬁ-

cant evolution and an active community.

The Neo4j database is directly accessed and

queried using the declarative query language Cypher.

Furthermore, it provides means to load data from dif-

ferent sources, which is needed for implementing our

demo cases. Thus, we decided to use Neo4j to process

and evaluate XACML4G policies.

3.3 Previous Results

In Mohamed et al. (2021a), we presented a prelim-

inary approach to deﬁne and enforce graph-speciﬁc

authorizations. We proposed a model for expressing

ﬁne-grained constraints on vertex and edge proper-

ties along the path between a subject and resource.

We introduced a JSON-formatted authorization pol-

icy based on the XACML policy structure and pro-

vided a proprietary pattern enforcement. The con-

cept and prototype are restricted to the multi-model

database ArangoDB.

Our subsequent work (Mohamed et al., 2021b)

proves the concept in the context of XACML. We

provide a formal grammar for the extended XACML

policy and request. Furthermore, the reference archi-

tecture of XACML is extended to enforce the newly

introduced element (i.e., pattern) using the extensibil-

ity points of the standard functional components. This

XACML extension has the expressiveness of standard

XACML in addition to considering path constraints

for graph-structured data. However, the complete

path between a given subject and resource needs to be

deﬁned. Moreover, the policy is processed in advance

to generate a query for each rule having a pattern as

well as a XACML condition associated to the pattern

identiﬁer to evaluate the pattern in the request evalu-

ation phase. This is because the pattern is an exten-

sion and cannot be evaluated directly by the XACML

https://neo4j.com/docs/

https://db-engines.com/en/ranking/graph+dbms

model. Requests are also processed to extract the sub-

ject and resource from the path attributes to be used in

the policy matching by XACML. The other attributes

are used for the pattern evaluation. This model is

based on ArangoDB along with its query language

AQL and thus, needs further implementation to be

used with other graph databases.

4 APPROACH

In this section, we illustrate the extended XACML4G

policy and request language. We explain the proposed

extensions of the XACML architecture, whether pro-

prietary or using extensibility points. Moreover, we

discuss the policy decision procedures on the concep-

tual level. We provide the source code of our proto-

type, an XML schema deﬁnition (XSD) of the new

elements, a demo case, and the full version of this pa-

per in our documentation

4.1 Challenges

According to the results of our previous research it-

erations and related work, we identify the following

challenges:

• Flexible number of hops between two path ver-

tices without specifying every path element.

• Pattern-related conditions (e.g., joining conditions

between path elements).

• A datastore-independent enforcement model of

XACML4G policies for property-graph compat-

ible datastores.

4.2 Policy Language Extension

In the following, we explain the policy, rule, and re-

quest structure of XACML4G.

4.2.1 XACML4G Policy

The XACML4G policy is extended with a new ele-

ment Meta to specify the entities of vertices and edges

used in evaluating the policy. We manage the de-

ﬁned subset of the overall source data in an indepen-

dent graph, which we call, according to its purpose,

source-subset graph.

The meta element is composed of Vertices and

Edges as XML tags. The vertices element lists at least

one node label in the source graph using a tag called

VertexEntity. The same applies to the relationships

types, but using an EdgeEntity tag.

XACML extension for graphs documentation

XACML Extension for Graphs: Flexible Authorization Policy Speciﬁcation and Datastore-Independent Enforcement

445

4.2.2 XACML4G Rule

The XML schema of the XACML rule is extended by

adding two elements, Pattern and PatternCondition.

The pattern element is already introduced in our pre-

vious research iterations. It is structured as a recursive

path consisting of a vertex, an edge, and either another

vertex (i.e., the base case) or an entire path. Although

the pattern deﬁnition does not change, the elements

within the path are enhanced to support ﬂexible pat-

terns. Thus, there is no need to specify every vertex

and edge along the path anymore.

The path vertex and edge elements express the pat-

tern constraints by specifying the attributes and their

values as a sequence of AnyOf, like in the XACML

target. An optional attribute Label is added to spec-

ify the entity/collection to which the vertex belongs.

We consider the label as part of the vertex deﬁnition,

not a property to be matched against a value. The ver-

tex has an attribute Category indicating whether it is a

subject, a resource, or belongs to the path. The subject

and resource categories are predeﬁned by XACML

while the path category is deﬁned in XACML4G to

handle the path vertices differently. An attribute rep-

resenting the identiﬁer of the vertex element is called

VertexId. The identiﬁers are mainly used to join ver-

tices or edges in the pattern condition element.

Constraints of the edge are structured like the ver-

tex. The edge element is identiﬁed by an EdgeId at-

tribute and can belong to the path or resource category

only. The direction of the edge (e.g., inbound, out-

bound, or any) can be indicated by an attribute called

Direction. Length, MinLength, and MaxLength are

newly added attributes for pattern ﬂexibility by spec-

ifying a range for some part of the path. An attribute

called Type is also introduced to specify the edge type.

Pattern condition is another new element. It de-

scribes constraints and joining conditions that are

related to the path elements of the pattern within

the same rule. Elements of the pattern condition

have the same structure as the XACML Apply ele-

ment, but its AttributeDesignator is extended to in-

clude a VertexId or an EdgeId attribute represent-

ing the variable deﬁned for a vertex or an edge in

the rule pattern. Accordingly, the category property

should be either xacml4g:1.0:path-category:vertex or

xacml4g:1.0:path-category:edge.

Furthermore, the FunctionId attribute of the Apply

should be one of our deﬁned XACML4G functions.

For now, we support conjunction, disjunction, com-

parison operators (i.e., =, !=, <, ≤, >, and ≥), and

some string functions (e.g., contains and starts with).

The function URI (e.g., xacml4g:1.0:function:and)

is then translated to the corresponding operation in

Cypher during the dynamic query generation in the

request evaluation phase.

4.2.3 XACML4G Request

The standard XACML access request consists of a se-

quence of attributes related to the subject, resource,

and action. Each request attribute has an attribute id,

a data type and a value. In Mohamed et al. (2021b),

we extended the XACML request to differentiate be-

tween the attributes’ types (i.e., action and path) with-

out changing their structure. The path attributes are

needed in matching requests against policies, espe-

cially subject and resource attributes, as well as dur-

ing the pattern evaluation in the PIP. Therefore, we

deﬁne a path category to which all vertices other than

subject and resource belong.

In this work, we are extending the request with re-

spect to language and its processing. The action and

path elements are deﬁned as a sequence of the stan-

dard XACML Attributes consisting of an attribute el-

ement having an identiﬁer (i.e., AttributeId) as a prop-

erty and an element for the value (i.e., AttributeValue).

The deﬁnition of the Attributes element is extended to

optionally include an attribute called Type to represent

whether it is a vertex or an edge.

For the path attributes, we need to describe not

only the category, entity, and value for a vertex (or a

resource edge), but also to which property this value

belongs. Therefore, we deﬁne the property name and

value in the AttributeValue tag separated by a colon.

We also use this format to specify the identiﬁer name

and value of a vertex or a resource edge in the request

since the naming convention of the identiﬁer property

could vary from a data source to another.

Several components of the XACML architecture,

i.e., context handler, PAP, PIP and PDP, are extended

as illustrated in Figure 1 to handle the language-

speciﬁc extensions according to the proposed en-

forcement concept.

4.3 Architecture Extension

To apply the XACML4G language extensions, the

policy enforcement model is extended to deal with

paths in the XACML4G requests and match them

against patterns within rules of the XACML4G pol-

icy evaluating the pattern conditions as well. We pro-

pose a datastore-independent enforcement concept to

evaluate the policy from various data sources without

changing the core model. We introduce an optional

property graph called source-subset graph containing

the source data needed to evaluate the policy.

Firstly, the policy administration point (PAP) is

extended to parse the policy ﬁles and extract the meta

SECRYPT 2023 - 20th International Conference on Security and Cryptography

446

element to create the source-subset graph indepen-

dently of the request evaluation (refer to XACML4G

create source-subset graph extension in Figure 1).

The values of the VertexEntity and EdgeEntity ele-

ments represent the node labels and relationship types

in a graph. The source-subset graph can be cre-

ated from multiple data sources including ﬂat ﬁles

or database systems. The only requirement is that

the data model can be mapped to the property graph

model. Our model can be also conﬁgured to directly

interact with the source datastore instead of the op-

tional source-subset graph.

The context handler receiving the access requests

is extended to parse the path and action attributes,

which are used in policy matching by XACML as well

as generating a Cypher pattern for the request path

attributes by XACML4G. This is done by extending

an established open source XACML implementation

(see Section 5.1), to extract the path attributes and use

them in the policy evaluation phase.

The policy information point (PIP) is extended to

automatically handle the policy attributes related to

the vertex label and edge type as well as the cus-

tom attributes representing the pattern identiﬁer of the

rule being evaluated. A Cypher pattern and a where

statement are dynamically generated from the pattern

and pattern condition elements to evaluate the pattern-

related attributes (refer to XACML4G generate pat-

tern query extension in Figure 1).

When the target of the policy is matched with

the subject, resource, action, and environment at-

tributes in the request, the XACML policy decision

point (PDP) proceeds with evaluating the policy rules

to determine the access decision. Before evaluating

the conditions of the matched policy rules, an addi-

tional XACML condition is appended for the rules

having a pattern. This condition is speciﬁc to eval-

uating the XACML4G pattern and its conditions (see

XACML4G evaluate pattern in Figure 1). The con-

dition evaluation is successful if the query returns a

result (i.e., true). The query is generated in the PIP

according to the pattern and its conditions within the

rule. It is executed in a Neo4j database, which is the

source datastore or the one having the source-subset

graph. If the condition fails to evaluate due to the pat-

tern query, an indeterminate decision is returned.

5 DEMONSTRATION CASE

We present the feasibility of our proposed approach

by applying our implemented prototype to an access

control case from the KnoP-2D project.

5.1 Prototype Implementation

Our prototype is implemented using Java and Neo4j.

XACML4G is not restricted to a particular database

as source datastore. For all datastores except Neo4j,

a source-subset graph must be created containing all

authorization-relevant data. These data are speciﬁed

in the meta element within the policy and can be

retrieved from different datasources via special im-

porter classes. This source-subset graph is optional

if Neo4j is the source datastore. We currently provide

importer classes for Neo4j and ArangoDB.

The prototype is based on the open-source

XACML implementation Balana

. Policies and re-

quests are expressed in the XACML4G syntax. The

request is evaluated by the Balana framework, which

we extended to (1) parse the structured attributes (i.e.,

action and path) in XACML4G requests and (2) eval-

uate the XACML4G pattern (if exists) by adding a

XACML condition dynamically when evaluating the

rule(s) of the matched policy (or policies) against the

access request. Our extensions address the open is-

sues stated in Section 4.1 without affecting the overall

XACML-speciﬁc procedures and results.

5.2 TEAM Model Case

In this demo case, we use just the instance model of

the TEAM model (H

ubscher et al., 2021). DataOb-

jects vertices are related to each other via dataOb-

jectRelations edges or to tasks via accessRelations

or taskDataRelations. AccessRelations express user-

to-task relationships, whereas taskDataRelations link

tasks to dataObjects or dataObjectRelations. The

generated dataset contains 11,982 dataObjects, 2,559

tasks, 3,165 accessRelations, 13,271 dataObjectRela-

tions, and 53,246 taskDataRelations.

Our authorization scenario requires a certain rela-

tionship between a user and a resource via a task: ”As

a user, I can access a data object, if I am allocated

to or work/have worked on a task with a path to the

resource.”. The rule contains: (1) Subject : user, (2)

Resource: data object, (3) Action: access, (4) Pattern:

user → task →

data object, and (5) Effect: permit.

The policy deﬁnes the vertex and edge collec-

tions of the graph model in the meta tag to create the

source-subset graph. The user is a data object hav-

ing an attribute typeCode with value pmUser. The

resource can be any data object. The subject and re-

source are the start and end vertices of the pattern.

The task is speciﬁed as an intermediate vertex con-

nected to the user via an access relation edge and a

https://github.com/wso2/balana

XACML Extension for Graphs: Flexible Authorization Policy Speciﬁcation and Datastore-Independent Enforcement

447

maximum of two hops from the resource. The pat-

tern has attribute-based constraints and can specify

the range of a sub-path. We deﬁne a variable for

the accessRelations edge and specify the constraint

worksOn or allocates for its typeKind property.

We specify attributes for subject, resource, and

path vertices by name and value separated by a colon

(e.g.: key:1196742142). If the request is matched

with a policy having a pattern, a XACML condition

is added to its rule. The extended PIP generates the

pattern query using the pattern and pattern condition

in the rule besides the path attributes in the request.

It looks for the intersection of the rule pattern of the

matched policy (p1) and request pattern generated

from the path attributes (p2) as shown in Listing 1.

Listing 1: Pattern query example.

MATCH p1 = ( s : da t a O b j e ct s { t y p e C ode : " p m U s e r " }) -

[ e 1 : ac c e s s Re l a t i o n s ] - >(: t a s k s ) - [ *..2] -(: d a ta O b j e c t s )

MATCH p2 = ( { _ k e y : " 1 1 967 4 1 1 3 3 " }) -[] -

({ _ k e y : " 1196 7 4 1 7 7 8 " } ) - [] -({ _key : " 1 1 9 6 7 421 4 2 " })

WHERE e1 . t y p e Kind = " w o r k s On " OR e1 . t y p e K ind = " a l loc a t e s "

AND ALL (x IN n o d e s ( p2 ) WHERE x IN n o des ( p 1 )) AND ALL

( x IN relatio n s h i p s ( p2 ) WHERE x IN r e l at i o n s h i p s ( p1 ))

RETURN p1 IS NOT NULL AS result

The request path is a sequence of vertices only

and is matched by its attributes. The direction of the

edges in the rule pattern is applied to the request when

evaluating the pattern query. The query is success-

fully evaluated, as we check for an existing path in

the dataset satisfying the pattern constraints. The re-

quest decision is permit according to the rule effect.

6 PRELIMINARY EVALUATION

We provide preliminary performance measurements

evaluating access requests with different path lengths.

Three prototypes are compared for the same scenario

based on the TEAM model. Prototype 1 is based on

the standard XACML and ArangoDB. It has limited

expressiveness and scalability because XACML does

not support paths. Only subject, object, and action can

be deﬁned within the policy and request. Moreover,

we manually add custom attributes in the policies and

statically write the respective queries to be evaluated

in the decision-making phase. Hence, each change in

the authorization requirements demands adaptations

in the policy as well as the implementation. Proto-

type 2 is the initial version of XACML4G (see Sec-

tion 3.3). These two prototypes are already investi-

gated in Mohamed et al. (2021b), but with a more

trivial evaluation design. Prototype 3 is the latest

XACML4G discussed in this paper (see Section 5.1).

The evaluation was performed ofﬂine on an In-

tel(R) Core(TM) i7-6500U CPU @ 2.50 GHz with

24 GB RAM. We investigated the execution time of

100 consecutive requests from processing till receiv-

ing the access decision. We performed the experiment

three times for each prototype and calculated the av-

erage. The results are plotted in Figure 2.

1 2 3 4 5

100

110

120

130

Path length

Average time / request (ms)

1. XACML

2. Previous Work

3. XACML4G

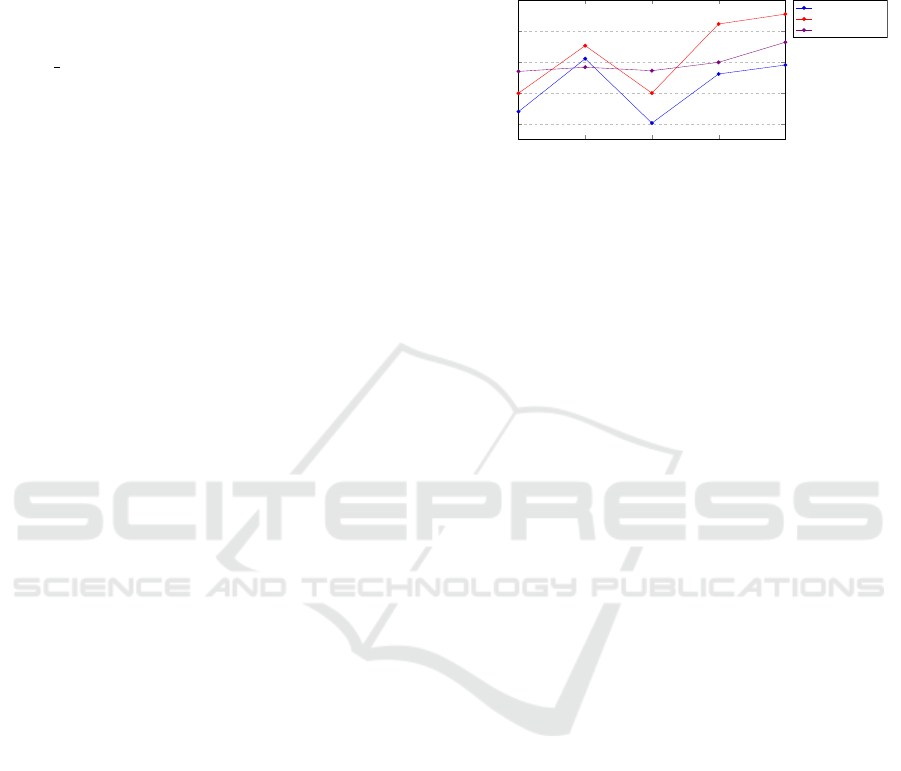

Figure 2: Average request evaluation time for the XACML,

previous work, and latest implementation prototypes.

The plot for the prototypes 1 and 2 look like those

in Mohamed et al. (2021b), where we proved that the

introduced overhead in the extension is constant re-

gardless of the path length. This overhead almost dou-

bled as indicated in the difference between the plots

for the path length 4 and 5 vs. shorter paths. This

is due to the additional pattern conditions to join spe-

ciﬁc elements along the path. From the implementa-

tion perspective, the two major differences between

the prototype presented in this paper and the other

ones are the underlying graph database and the pat-

tern evaluation within the reference architecture of

XACML. Previously, our approach relied on directly

connecting to the source graph database and our im-

plementation was based on ArangoDB and its declar-

ative query language AQL. In the latest implementa-

tion, our approach is independent of the source datas-

tore. It is currently based on Cypher and an embedded

Neo4j database within the XACML4G prototype for

evaluating patterns and their conditions.

As can be observed in Figure 2, our latest work is

only slightly impacted with the increased path length.

This is most likely due to the better stability of Neo4j

compared with ArangoDB.

7 CONCLUSIONS

We present our latest enhancements to XACML4G,

which are ﬂexible constraints on paths, edges as re-

sources, and datastore-independent enforcement.

The main challenges are ﬂexible path speciﬁca-

tion and an enforcement for property-graph compat-

ible datastores (RQ1). Path features include pattern-

related conditions and a ﬂexible number of hops be-

tween two vertices to no longer deﬁne the path com-

pletely. To address these challenges in (RQ2), we

rely on a declarative graph query language support-

ing the required characteristics (e.g., pattern match-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

448

ing on paths, ﬂexible path length, or incomplete

path speciﬁcations) and a property graph holding all

authorization-relevant data, which we call source-

subset graph. The proof-of-concept prototype im-

plements the latest language and architecture of

XACML4G and a case for a real knowledge graph

(RQ3). The XML schemas are further extended to

deﬁne the authorization-relevant data, support ﬂexi-

ble path speciﬁcation in the policy, and specify edges

as resources. To enforce the XACML4G language,

extensibility points in the PIP and proprietary exten-

sions of the XACML architecture (i.e., context han-

dler, PAP, and PDP) are implemented. The proto-

type extends the open source XACML implementa-

tion Balana and uses Neo4j along with Cypher for

a datastore-independent enforcement. No more pre-

processing of policies and requests is required. Com-

pared to our previous work and a statically imple-

mented XACML prototype, our current prototype has

better performance and stability in evaluating paths

with different lengths. Additionally, the current ap-

proach no longer introduces constant overhead.

This work highlighted further challenges. Patterns

are now evaluated within the XACML model as con-

ditions, but no pattern-related errors can be detected.

Moreover, multiple labels on vertices and edges have

to be considered to match with real-world graph mod-

els. The performance comparison can be improved by

excluding inﬂuencing factors, such as different graph

database systems for policy enforcement.

ACKNOWLEDGMENTS

The research reported in this paper has been partly

supported by the LIT Secure and Correct Systems Lab

funded by the State of Upper Austria. The work was

also funded within the FFG BRIDGE project KnoP-

2D (grant no. 871299).

REFERENCES

Ahmed, T., Sandhu, R., and Park, J. (2017). Classifying

and comparing attribute-based and relationship-based

access control. In Proceedings of the 7th Conference

on Data and Application Security and Privacy, CO-

DASPY ’17, page 59–70, New York, USA. ACM.

Angles, R., Arenas, M., Barcelo, P., Boncz, P., Fletcher,

G., Gutierrez, C., Lindaaker, T., Paradies, M., Plan-

tikow, S., Sequeda, J., van Rest, O., and Voigt, H.

(2018). G-core: A core for future graph query lan-

guages. In Proceedings of the 2018 International Con-

ference on Management of Data, SIGMOD ’18, page

1421–1432, New York, NY, USA. ACM.

Braun, U., Shinnar, A., and Seltzer, M. (2008). Securing

provenance. In Proceedings of the 3rd Conference on

Hot Topics in Security, HOTSEC’08, USA. USENIX

Association.

Cheng, Y., Park, J., and Sandhu, R. (2016). An access con-

trol model for online social networks using user-to-

user relationships. IEEE Transactions on Dependable

and Secure Computing, 13(4):424–436.

Clark, S., Yakovets, N., Fletcher, G., and Zannone, N.

(2022). Relog: A uniﬁed framework for relationship-

based access control over graph databases. In Data

and Applications Security and Privacy XXXVI: 36th

Annual IFIP WG 11.3 Conference, DBSec 2022,

Newark, NJ, USA, July 18–20, 2022, Proceedings,

page 303–315, Berlin, Heidelberg. Springer-Verlag.

Fong, P. W. (2011). Relationship-based access control: Pro-

tection model and policy language. In Proceedings of

the First ACM Conference on Data and Application

Security and Privacy, CODASPY ’11, page 191–202,

New York, NY, USA. ACM.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

Q, 28(1):75–105.

Hu, V. C., Ferraiolo, D. F., Chandramouli, R., and Kuhn,

D. R. (2017). Attribute-Based Access Control. Artech

House information security and privacy series. Artech

House, Boston.

ubscher, G., Geist, V., Auer, D., Ekelhart, A., Mayer, R.,

Nadschl

ager, S., and K

ung, J. (2021). Graph-based

managing and mining of processes and data in the do-

main of intellectual property. Information Systems,

106:101844.

Jøsang, A. (2017). A consistent deﬁnition of authorization.

In Livraga, G. and Mitchell, C., editors, Security and

Trust Management, pages 134–144, Cham. Springer

International Publishing.

Lorch, M., Adams, D. B., Kafura, D., Koneni, M., Rathi, A.,

and Shah, S. (2003). The prima system for privilege

management, authorization and enforcement in grid

environments. In First Latin American Web Congress,

pages 109–116, Phoenix, AZ, USA. IEEE.

Mohamed, A., Auer, D., Hofer, D., and K

ung, J. (2021a).

Extended authorization policy for graph-structured

data. SN Computer Science, 2(5):1–18.

Mohamed, A., Auer, D., Hofer, D., and K

ung, J. (2021b).

Extended xacml language and architecture for access

control in graph-structured data. In The 23rd Interna-

tional Conference on Information Integration and Web

Intelligence, iiWAS2021, page 367–374, New York,

NY, USA. Association for Computing Machinery.

van Rest, O., Hong, S., Kim, J., Meng, X., and Chaﬁ, H.

(2016). Pgql: A property graph query language. In

Proceedings of the Fourth International Workshop on

Graph Data Management Experiences and Systems,

GRADES ’16, New York, NY, USA. ACM.

Wu, J., Leangsuksun, C. B., Rampure, V., and Ong, H.

(2006). Policy-based access control framework for

grid computing. In 6th IEEE International Symposium

on Cluster Computing and the Grid (CCGRID’06),

volume 1, pages 391–394, Singapore. IEEE.

XACML Extension for Graphs: Flexible Authorization Policy Speciﬁcation and Datastore-Independent Enforcement

449
