Smoothing the Ride:

Providing a Seamless Upgrade Path from Established Cross-Border eID

Workﬂows Towards eID Wallet Systems

Roland Czerny

1,2 a

, Christian Kollmann

Bla

z Podgorelec

1,2 b

, Bernd Pr

unster

3 c

and Thomas Zefferer

Institute of Applied Information Processing and Communications (IAIK), Graz University of Technology, Austria

Secure Information Technology Center Austria (A-SIT), Austria

A-SIT Plus GmbH, Austria

Keywords:

eIDAS, Wallet, eID, eGovernment, European Digital Identity Wallet, Attestation.

Abstract:

The eIDAS regulation and its technical implementation successfully enabled cross-border eID use cases within

the European Union. Established in 2014 as part of an EU regulation, its technological foundation is starting

to show its age, particularly on smartphones. The European Commission (EC) is well aware of this fact, and

large-scale pilots for the wallet-based, next-generation pan-European eID framework are on their way. This

work ﬁlls the gap between both approaches and enables member states to provide wallet-based authentication

to established service providers right now. Our prototypical implementation effectively demonstrates that

cross-border, wallet-based eID workﬂows can be rolled out already, while catering towards the constraints of

already operational infrastructure. We achieve this by introducing an eIDAS app, which supports both existing

eIDAS-based cross-border authentication as well as interaction with wallet apps.

1 INTRODUCTION

Member states of the European Union (EU) oper-

ate national identity management systems and issue

their citizens national electronic identiﬁcation (eID)

means, which allow for secure and reliable authen-

tication at national public-sector online services. In a

converging European society, it is crucial that national

eID means cannot only be used in the issuing member

state but also allow for secure authentication at online

services provided in other EU member states. Using

national eID means issued by member state A to se-

curely log in to an online service provided in mem-

ber state B has become known under the term cross-

border authentication.

In the EU, Regulation (EU) No 910/2014 (the so-

called eIDAS Regulation) is the legal basis for secure

and legally binding electronic cross-border authen-

tication. On a technical level, cross-border authen-

tication is achieved by federating existing national

identity management systems. For this purpose, each

https://orcid.org/0009-0000-9230-0833

https://orcid.org/0000-0002-6322-746X

https://orcid.org/0000-0001-7902-0087

member state operates a so-called eIDAS Node that is

connected to the respective national identity manage-

ment system. eIDAS Nodes from different member

states form a circle of trust and can delegate user au-

thentication to each other.

Cross-border authentication, as deﬁned by the

eIDAS Regulation, has been in productive operation

in the EU for many years. The underlying technical

framework has hence proven to be well suited for the

intended use cases. However, these use cases still

mainly cover web-based scenarios where users access

online services from other member states using web

browsers on desktop-type devices. When the eIDAS

Regulation was enacted, such use cases had been pre-

dominating, and the choice of technologies for the

Regulation’s technical implementation seemed reas-

onable. In the meantime, mobile end-user devices

such as smartphones have emancipated from desktop

computers and laptops, and the use of dedicated mo-

bile apps to consume online services has become the

far more common usage scenario. Unfortunately, the

current technical implementation of European cross-

border authentication is not fully ready for these scen-

arios.

460

Czerny, R., Kollmann, C., Podgorelec, B., PrÃijnster, B. and Zefferer, T.

Smoothing the Ride: Providing a Seamless Upgrade Path from Established Cross-Border eID Workﬂows Towards eID Wallet Systems.

DOI: 10.5220/0012091900003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 460-468

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

To prepare cross-border authentication in Europe

for future challenges, the EC has recently published a

proposal

for a successor of the current eIDAS Reg-

ulation. The core concept of the EC’s proposal is the

so-called European Digital Identity Wallet (EUDIW).

The EUDIW is supposed to be a technical compon-

ent under full control of the user and enables secure

storage and presentation of asserted identity informa-

tion. The fundamental idea is that this information is

no longer provided by central national identity man-

agement systems but in a decentralized way by the

user and the user’s wallet. The EUDIW not only im-

proves privacy by putting the users in full control of

their data, but it will also enable mobile usage scen-

arios involving mobile end-user devices.

The concept of identity wallets has existed already

before it has been picked up by the EC. However, its

integration into the proposal for a new eIDAS Reg-

ulation has boosted the concept’s popularity. This is

also reﬂected by work published published by Gaeht-

gens (2022). Although currently hyped, it is expec-

ted, e.g. by Buchanan et al. (2022); Schwalm et al.

(2022); Sharif et al. (2022), that with the introduction

of the EUDIW the concept of identity wallets will re-

main relevant and play an important role in the future.

However, at this stage, various technical aspects are

still open, and no fully-ﬂedged implementation of the

EUDIW is available yet. This makes it difﬁcult for

online service to experiment with and use this new

authentication method.

To tackle this issue, we propose a solution for on-

line services to integrate, experiment with, and use

identity wallets for authentication. While the EUDIW

is still under development, we provide an implement-

ation, which can be used to gain ﬁrst hands-on exper-

iences with this technology. The proposed solution

is aimed at smoothing technical integration into ex-

isting online services. Thus, it does not require any

fundamental changes for existing online services but

introduces an app-based middleware component to

emulate a standard eIDAS-based authentication pro-

cess. Required trust in this additional component

is achieved by augmenting the current eIDAS-based

trust assumption using remote-attestation techniques.

This distinguishes our proposal from other wallet-

related trust models and solutions like European Self-

Sovereign Identity Framework (eSSIF)) that rely on

blockchains (Kubach and Roßnagel, 2021).

This paper introduces our identity-wallet solution

and demonstrates a proof-of-concept, which has been

designed, implemented, and operated in the scope of

the H2020 project mGov4EU. The remainder of this

https://eur-lex.europa.eu/legal-content/EN/TXT/

HTML/?uri=CELEX:52021PC0281&from=EN

paper elaborates on our proposed solution: Section 2

brieﬂy surveys related scientiﬁc work and puts our

proposal into the context of existing wallet solutions.

In Section 3, relevant background information on se-

lected aspects of the proposed solution is presented.

The proposed solution is then introduced in detail in

Section 4. Section 5 reports on the evaluation of the

proposed solution, before the paper is ﬁnally con-

cluded in Section 6.

2 RELATED WORK

Although identity wallets have gained attraction only

recently, they have already been touched by several

scientiﬁc publications. While, to the best of our

knowledge, no solution has been proposed yet that

supports cross-border wallet-based authentication in

the scope of eIDAS, at least the publications discussed

below can be considered relevant also for our own

work.

(Abraham et al., 2021) presented a concept to

achieve strong authentication (reaching Level of As-

surance (LoA) high as deﬁned by the eIDAS Regu-

lation) using a mobile-based identity wallet. The au-

thor’s proposed concept utilizes veriﬁable credential

(VC) and decentralized identiﬁer (DID); the concept

has been validated using a proof-of-concept imple-

mentation. In contrast to our own work, the solution

proposed by (Abraham et al., 2021) requires online

services to integrate support for dedicated protocols

(e.g., for resolving DID). (Jacobino and Pouwelse,

2022) presented a similar concept using eSSIF and

European Blockchain Services Infrastructure (EBSI).

In contrast to our solution, this wallet concept has the

same requirements as the solution cited before: to en-

able wallet-based authentication, major modiﬁcations

of the online service are required.

Relevant related work has also been published by

(Ali et al., 2010), who have combined trusted comput-

ing concepts using remote attestations with the Fed-

erated Identity Management System (FIDMS) model.

The authors have introduced an extended FIDMS,

where the identity provider (IdP) attests to identity at-

tributes and vouches for its platform integrity.

To summarize, the design and implementation of

identity wallets have already been discussed in the lit-

erature, and some implementations of identity wallets

have already been introduced. However, none of the

proposed solutions has so far focused on easing integ-

ration with existing online services.

Smoothing the Ride: Providing a Seamless Upgrade Path from Established Cross-Border eID Workﬂows Towards eID Wallet Systems

461

3 BACKGROUND

Our solution relies on a variety of concepts and tech-

nologies and is intended to be embedded into a well-

deﬁned environment. This section therefore provides

all required background information before discuss-

ing our contribution in Section 4. First, a generic

model for digital identity wallets is introduced. Next,

relevant technical details on implementing secure

and reliable communication between mobile apps on

smartphones are discussed. A brief survey on remote-

attestation features of current mobile platforms then

concludes this section, as these features underpin the

security backbone of our solution.

3.1 A Model for Digital Identity Wallets

The basic concept of a mobile wallet is well estab-

lished. It has, for instance, emerged in the payment

sector. In this context, app-based wallets on smart-

phones are used to store credit-card data and to au-

thorize payments at points of sale. Such solutions are

already widely used.

Wallet solutions such as the EUDIW rely on sim-

ilar concepts and technologies but pursue different ob-

jectives and store identity information of their user

(wallet holder). Instead of authorizing payments,

users use their wallet and the data stored therein to se-

curely authenticate at online services. From this basic

functionality, a generic model for digital identity wal-

lets inspired by World Wide Web Consortium (W3C)

VC data model, described in (Sporny et al., 2021) can

be deﬁned. This model is shown in Figure 1.

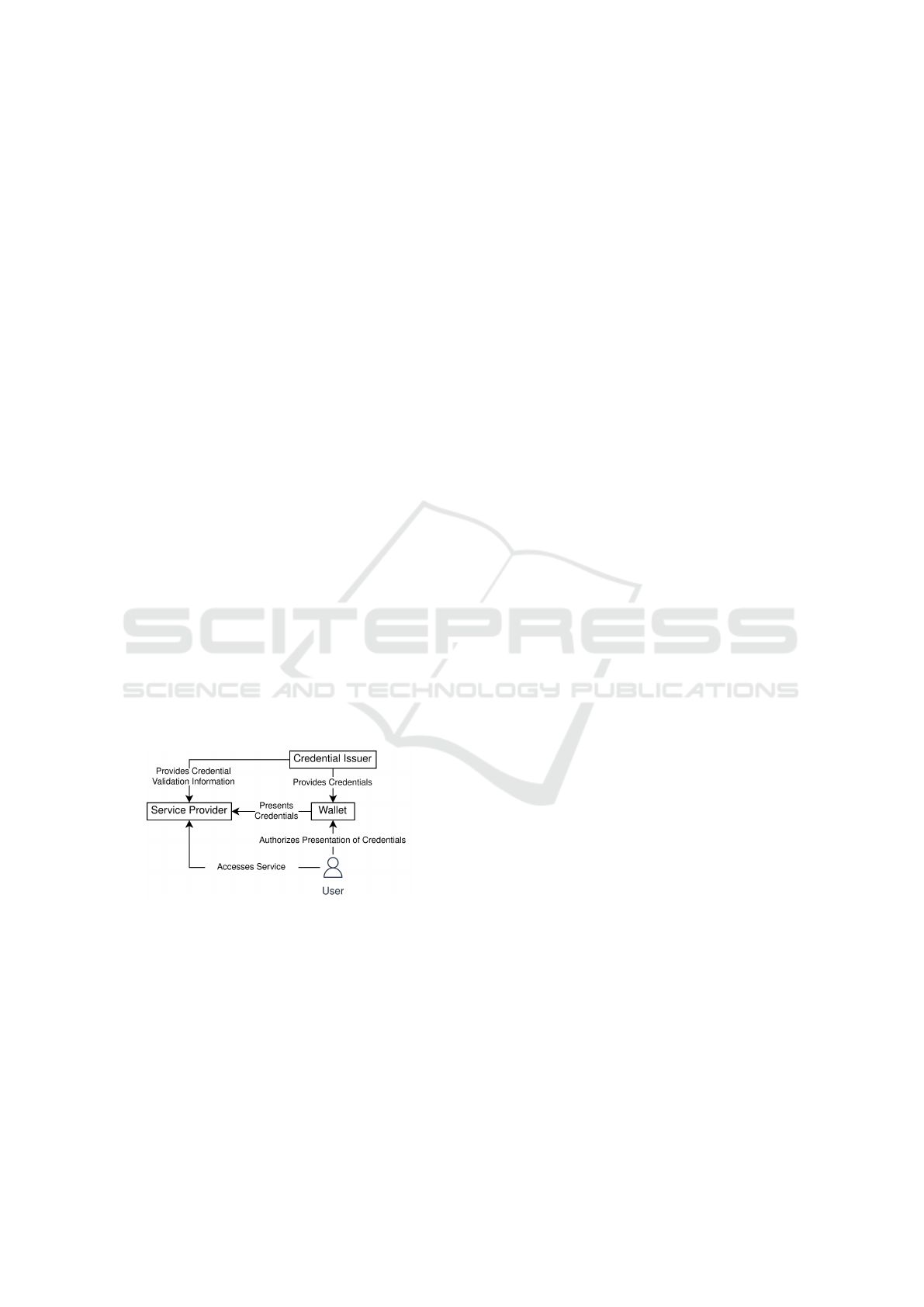

Figure 1: Generic Model for Digital Identity Wallets.

This model comprises the user (wallet holder) and

three entities: the wallet, the credential issuer, and the

service provider. The service provider is the entity

providing an online service to the user. To access and

use the provided service, the user needs to authentic-

ate ﬁrst. Authentication is carried out by means of

the wallet, which transfers attested identity informa-

tion (credentials) to the service provider. This needs

to be authorized by the user, who therefore interacts

with the wallet.

Before identity information can be transferred

from the wallet to the service provider, this informa-

tion must be stored in the wallet ﬁrst. This is done by

the credential issuer. The credential issuer retrieves

the user’s identity information from the respective

sources (e.g., national registers), attests the inform-

ation (typically by signing it), and stores the attested

information in the wallet.

Note that the credential-issuing process, through

which attested identity information is stored in the

wallet, is typically carried out only once. Once avail-

able in the wallet, attested identity information (cre-

dentials) can be used repeatedly to authenticate at the

service provider.

3.2 App-to-App Communication

A key feature of the wallet solution proposed in this

paper is its fully mobile nature. Transitioning from

browser-based workﬂows to mobile-app-centric ones

demands thorough consideration of each involved

app’s responsibilities, since individual apps being re-

sponsible for strictly-scoped tasks enforces a clear

separation of concerns. At the same time, it should

be possible to fall back to a mechanism that works

even in the absence of a speciﬁc app. Luckily, both

iOS and Android support claiming of URLs by apps

in a way that works similarly.

As the name suggests, app-to-app communication

through claimed URLs works by passing information

between apps encoded into URLs. For an app to claim

an URL of a web service, a so-called asset links ﬁle

needs to be hosted on the web server, which effect-

ively authenticates the app that wants to claim this

URL to the operating system on installation time. In

practice, this works as follows: Any mobile app (in-

cluding the browser) can issue an HTTP GET request

to a claimed URL and the target app (the one which

claimed the URL) opens up automatically. In case no

app has claimed the URL, the web browser handles

the request, thus providing a fallback mechanism.

In conclusion, a uniﬁed mechanism for app-to-app

communication is available, which automatically falls

back to a browser-based workﬂow if a particular app

is not installed. If a procedure cannot be carried out

in the browser, it is at least possible to guide the user

towards installing an appropriate app. This can be ne-

cessary for security-critical procedures requiring re-

motely establishing trust in client software, which is

not possible for mobile browsers.

The following section picks up on the topic of es-

tablishing trust in mobile applications through attest-

ation. It covers Android and iOS and discusses the

commonalities and differences of both platforms.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

462

3.3 Remote Attestation

Current versions of iOS and Android natively support

remote attestation, i.e., remotely establishing trust

in a device, its operating system and speciﬁc apps.

However, the capabilities and technical details of the

approaches followed by each mobile platform dif-

fer signiﬁcantly. Android natively supports attesting

hardware-backed cryptographic key material. iOS,

on the other hand, does not directly support attest-

ing cryptographic material, but rather aims to establis

trust in apps.

Platform speciﬁcs aside, a general requirement for

any kind of meaningful and reliable remote attestation

concept is the presence of cryptographic hardware

modules and their tight integration with the operating

system. Our use case heavily relies on assurance with

respect to key material, which is stored in hardware,

such that it can neither be extracted nor illegitimately

used. As such, establishing trust in keys is a baseline

requirement, even though remotely establishing trust

in unmodiﬁed apps is also critical. Hence, we require

a combination of the features natively supported by

iOS and Android.

We have released a library as free and open-

source software, which hides the technical intricacies,

providing a uniform interface for remotely establish-

ing this required trust to make all features available

on both major mobile platforms

. More details on

platform speciﬁcs are provided in the following two

subsections.

3.3.1 Android Key Attestation

Android supports key attestation

, i.e. trust can be

remotely established in cryptographic material man-

aged by secure hardware. More concretely, a pub-

lic/private key pair is generated in hardware and an

X.509 certiﬁcate containing the public key can be ex-

ported. This certiﬁcate contains a set of paramet-

ers, indicating whether the bootloader or the operat-

ing system have been tampered with. In addition, this

so-called attestation certiﬁcate also contains inform-

ation about the operating system version, the patch

level and information about the application, which

was used to generate the key pair. The app-related

information comprises the package name and inform-

ation on which signing certiﬁcate was used during

the application’s publishing process. Evaluating this

compound information allows for remotely establish-

ing whether an unmodiﬁed application was used to

https://github.com/a-sit-plus/attestation-service

https://developer.android.com/training/articles/security-

key-attestation

generate hardware-backed key material on an uncom-

promised device, running an untampered operating

system. A more in-depth explanation can be found

in the paper on this matter by Prunster et al. (2019)

Apple devices, in contrast, do not natively support

key attestation and rely on an Apple-operated service

to establish trust in apps. As a consequence, establish-

ing the trust in cryptographic material is not directly

possible.

3.3.2 Apple App Attestation

Apple directly approaches remotely establishing trust

in smartphone apps. The DeviceCheck

/AppAttest

framework has apps contact Apple servers using

WebAuthn

ﬂows to establish whether a device has

been jailbroken (i.e. compromised) and/or an app has

been tampered with. Such an attestation is supposed

to happen once.

The attestation procedure also involves the cre-

ation of a hardware-backed public/private key pair

and the creation of a signature using this key pair.

In contrast to Android, however, this key cannot be

used for anything else, hence preventing key attest-

ation. During app usage, however, the correct ex-

ecution of certain critical procedures can be asser-

ted. A so-called assertion is then created, which in-

cludes (amongst others) the return value of an oper-

ation. This assertion is signed by the very same key

created for the initial attestation. Section 4.2.3 elab-

orates on how we used these properties to enable key

attestation on iOS as part of our trust concept.

4 A SMOOTH UPGRADE PATH

TOWARDS WALLET-BASED

AUTHENTICATION

This section introduces the proposed identity wallet

solution in detail, especially focusing on two aspects.

The ﬁrst aspect concerns the fact that our concept en-

ables legacy OpenID Connect (OIDC) relying partys

(RPs) (also called service providers (SPs)) to util-

ize next-generation wallet-based authentication in ac-

cordance with Figure 2. As a prerequisite to mak-

ing our vision a reality, eIDAS-based cross-border au-

thentication ﬁrst needs to be made more user-friendly

on mobile devices. Hence, this section also puts a

special focus on this aspect.

https://developer.apple.com/documentation/

devicecheck

https://developer.apple.com/documentation/

devicecheck/validating apps that connect to your server

https://webauthn.io/

Smoothing the Ride: Providing a Seamless Upgrade Path from Established Cross-Border eID Workﬂows Towards eID Wallet Systems

463

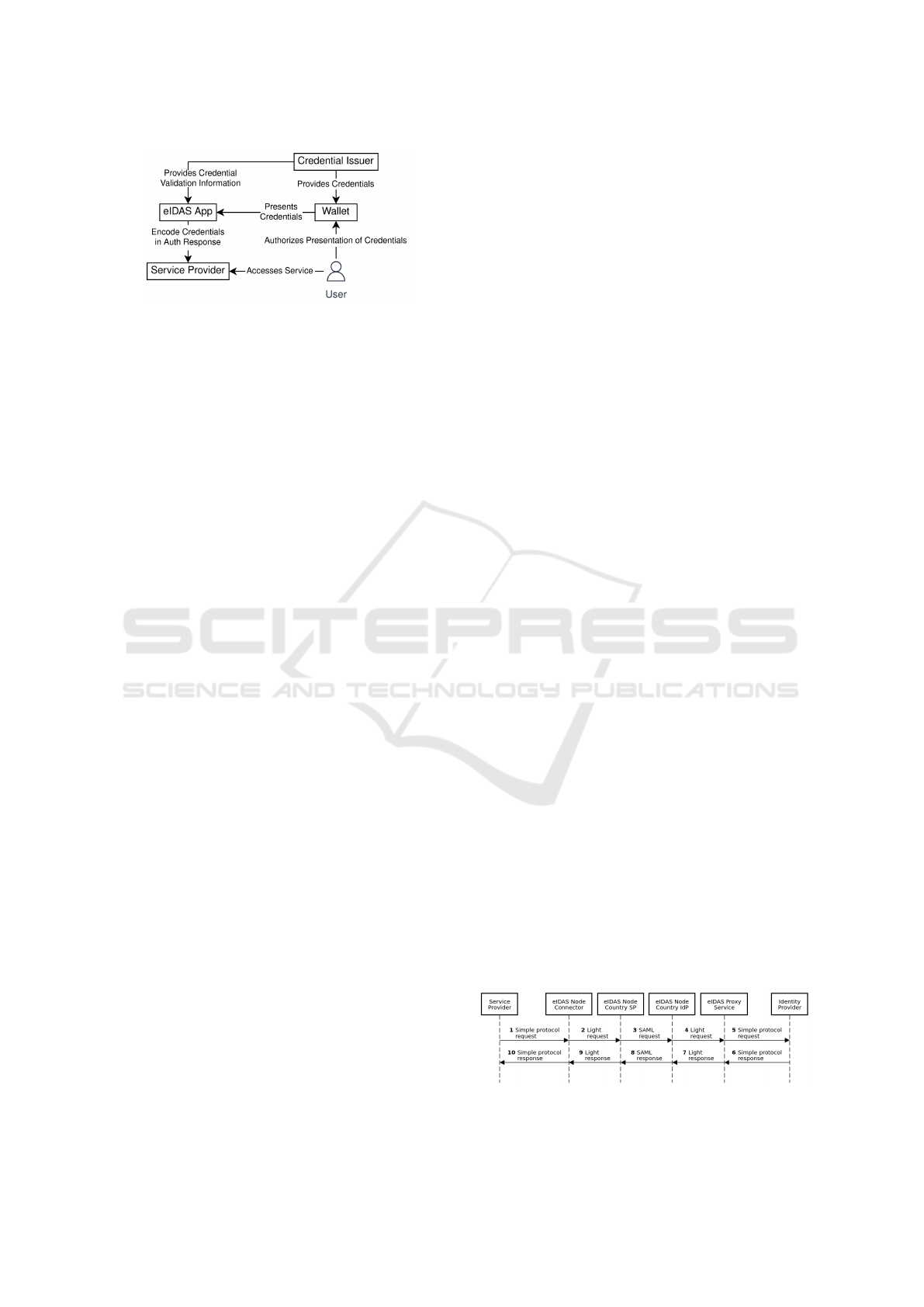

Figure 2: High-level view of components interacting to

provide legacy SPs with wallet authentication

4.1 High-Level Concept

First and foremost, we introduce a dedicated eIDAS

app to interface with service providers and eIDAS

nodes. By itself, this already provides added value,

since using dedicated apps for different tasks feels

more native on mobile platforms. Far more import-

antly, however, this respects the security model of

modern mobile operating systems, isolating apps op-

erating on different data.

The eIDAS app supports two authentication

modes: In eIDAS mode, the eIDAS app is responsible

for orchestrating the communication between eIDAS

nodes, connectors, and proxy services to enable tra-

ditional cross-border authentication workﬂows in ac-

cordance with Figure 3. However, if the user chooses

to authenticate not via their home country’s iden-

tity management system through eIDAS, but through

their local mobile wallet, the eIDAS app does not for-

ward an authentication request to an eIDAS node. In

this legacy wallet mode of operation, it acts as an

OIDC Self-Issued OpenID Provider v2 (SIOPv2) ser-

vice provider towards a mobile wallet app instead.

The attributes received from the wallet app are then

transformed into a regular OIDC authentication re-

sponse and passed back to the service provider.

A precondition for this to work is obviously hav-

ing such an app installed and ready to serve VCs

through veriﬁable presentation (VP). Hence, we have

implemented a wallet app, which aligns with the EU-

DIW initiative, a corresponding provisioning service,

and connected it to a production eID system for eval-

uation purposes (see Section 5). The issue of estab-

lishing enough trust in the eIDAS app to permit an

on-device transformation of veriﬁable credentials to

a traditional OIDC authentication response is abso-

lutely crucial in this context and an integral prerequis-

ite to making our concept work in practice.

4.2 Building a Foundation of Trust in

Mobile Apps

Our solution to augment cross-border authentication

with local wallet-based authentication in a mobile-

ﬁrst manner rests on a foundation of trust between a

variety of actors and components. This section delves

into each trust aspect individually, before providing

functional details of our solution in Section 5.

4.2.1 Trust Relationships Between SP and

Connector

From an SP’s point of view, the eIDAS node con-

nector (see also Figure 3) acts as an IdP. In accord-

ance to the eIDAS trust model, SP and connector trust

each other. When relying on OIDC as the authentica-

tion protocol, this is reﬂected by two facts: First and

foremost, the SP is registered at the connector as an

OIDC relying party. Secondly, the SP trusts the cer-

tiﬁcate the connector uses to sign authentication re-

sponses.

In the mobile setting we target, an SP app is as-

sumed, while the proposed eIDAS app needs to claim

the URL of the connector. From an SP app’s point

of view, it is not even possible to detect that an

eIDAS app was involved at all, since the connector

operates on authentication information received from

the eIDAS node and transforms it into an OIDC-

compliant authentication response. Hence, the service

provider does not need to establish trust in the eIDAS

app.

Our concept radically changes this trust relation-

ship, as soon as the eIDAS app acts as a com-

patibility layer to augment legacy service providers

with wallet-based authentication: The eIDAS app is

tasked with transformation operations – from regular

OIDC authentication requests to OIDC SIOPv2, and

from attributes received through VP to regular OIDC-

compliant authentication responses.

4.2.2 Establishing Trust in the eIDAS App

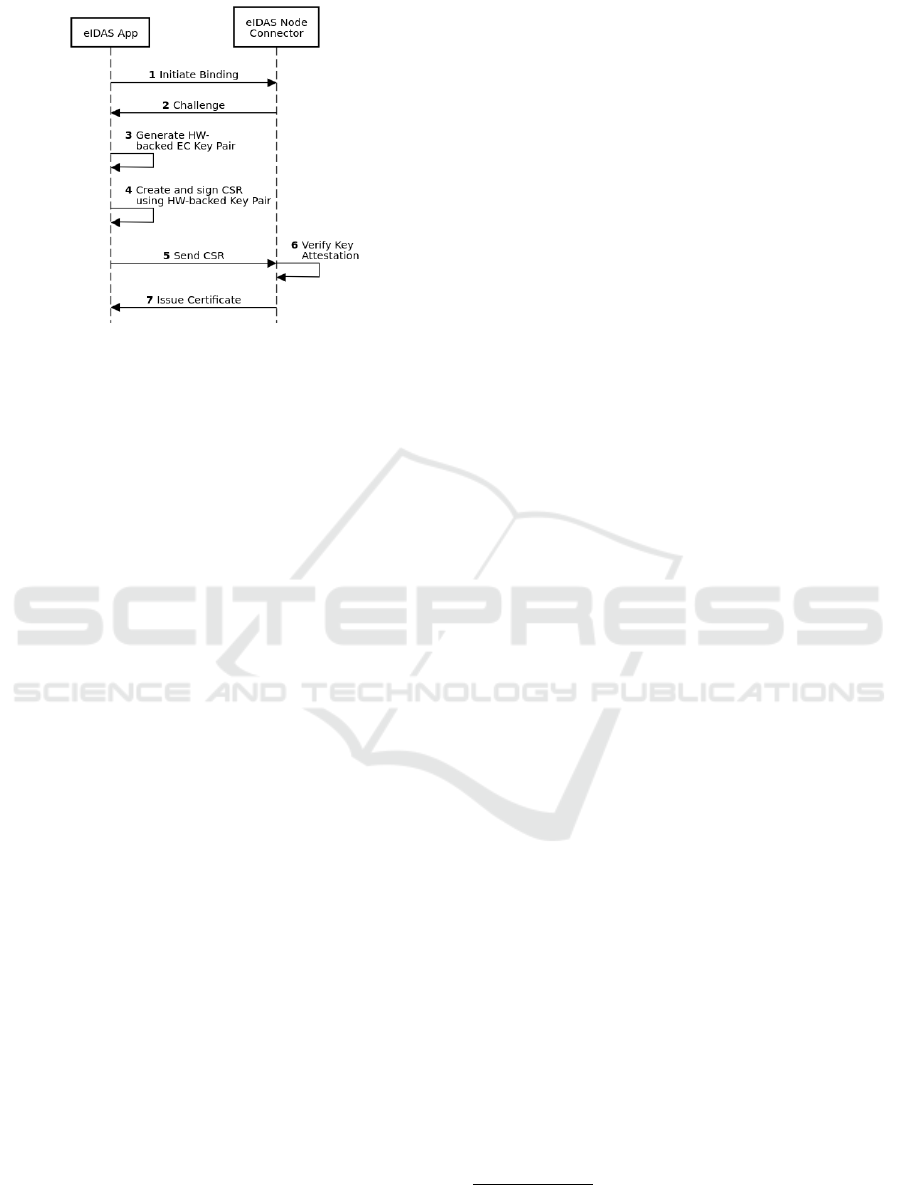

We have solved the issue of an SP trusting the eIDAS

app by extending the functionality of the SP country’s

eIDAS node connector. From a user’s point of view,

the eIDAS app needs to be enrolled at an eIDAS node

Figure 3: Cross-border authentication using the eIDAS

Node reference implementation.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

464

Figure 4: Creating a binding for the eIDAS app.

connector during a one-time setup process. Under the

hood, the eIDAS node connector relies on key attest-

ation to establish trust in an eIDAS app instance in-

stalled on an unmodiﬁed device. This trust relation-

ship is expressed by the connector issuing a certiﬁc-

ate for an attested instance of the eIDAS app, signed

by the same key used to sign authentication responses

during regular authentication procedures.

The issued certiﬁcate references a hardware-

backed key, which, in turn, is used by the eIDAS

app to sign those authentication responses. Since the

SP trusts the signing certiﬁcate of the connector, and

this signing certiﬁcate was used to create a certiﬁc-

ate chain down to the eIDAS app’s certiﬁcate, the SP

also considers authentication responses signed by the

eIDAS app authentic and trustworthy. The sequence

diagram depicted in Figure 4 illustrates the technical

details of the binding process between connector and

eIDAS app:

1. The app initiates the binding process

2. The connector generates and responds with a chal-

lenge (a cryptographic nonce)

3. The eIDAS app creates a hardware-backed key

pair

4. This key pair is encoded into a certiﬁcate signing

request (CSR)

5. The CSR is sent back to the eIDAS node con-

nector (along attestation information)

6. The eIDAS node connector then veriﬁes key ori-

gin, app and device integrity

7. If all checks succeed, the eIDAS node connector

issues a binding certiﬁcate for the eIDAS app

While key attestation, as provided on the Android

platform, supports this out of the box, iOS does not

directly support it. To address this issue, we have

managed to emulate this Android-speciﬁc concept on

iOS, as explained in the following section.

4.2.3 Enabling Key Attestation on iOS

In addition to the required cryptographic material

used to create an app attestation (see Section 3.3.2),

we mandate the creation of a second public/private

key pair, which can be freely used by the application.

The creation of this key pair is asserted. Hence, we

obtain an assertion, which contains the public part of

this second key pair. We also mandate the counter

contained in this assertion to be equal to 1, meaning

that the very ﬁrst asserted procedure carried out in the

application is precisely the creation of this second key

pair. This procedure, in effect, provides key attesta-

tion on iOS.

We have created prototypical implementations of

all components relevant to our concept, to evaluate its

feasibility, and integrated them with a production eID

system. More in-depth technical details of our overall

concept can be found in the following section.

5 EVALUATION THROUGH

IMPLEMENTATION

Implementing all building blocks relevant to our

concept, and subsequently connecting them to a pro-

duction eID system provided a setup mirroring a pro-

duction environment. This deployment was then used

to demonstrate the feasibility of our approach. The

implementation itself is designed to be modular and

hence consists of several parts based on the eIDAS

Node reference implementation from the EC.

5.1 eIDAS Node

As the setup for demonstrating our concepts is based

on the eIDAS node integration package provided by

the EC

, it consists of several components for the Java

platform.

Our modiﬁcations mainly target the connector,

since this component interacts with service providers

and therefore serves as the junction point between

eIDAS-based cross-border authentication and mobile-

wallet authentication. Hence, this section therefore

focuses on the modiﬁcations made to the connector.

Since the node connector acts as an IdP towards

the SP, it is the only component an SP is directly in-

https://ec.europa.eu/digital-building-blocks/wikis/

display/DIGITAL/How+to+implement+or+operate+an+

eIDAS-Node

Smoothing the Ride: Providing a Seamless Upgrade Path from Established Cross-Border eID Workﬂows Towards eID Wallet Systems

465

terfacing with. As mentioned before, our implement-

ation relies on OIDC, as it is well established on mo-

bile platforms.

5.1.1 OIDC

In Section 5.2.1, we describe how legacy SP apps

are enabled to use wallet-based authentication. Since

OIDC Auth Code ﬂow, which is an established de-

facto standard, requires identity information to be

communicated in a backchannel, the SPs backend

needs to be able to retrieve an identity token from

the eIDAS node connector’s endpoint. When us-

ing wallet-based authentication, however, the iden-

tity token is generated in the eIDAS app on the user’s

device. We, therefore, extended the eIDAS node con-

nector to accept identity tokens from the eIDAS app.

This identity token can then be retrieved by the SP

backend using the Auth Code from the OIDC re-

sponse like in a normal eIDAS authentication ﬂow.

5.2 eIDAS App

We have implemented the app in Kotlin for the An-

droid platform. However, we designed the app using

only features for which equivalent ones exist on the

iOS platform.

The eIDAS app is a bridge between service pro-

vider and identity provider. The eIDAS app handles

OIDC Auth Code ﬂow requests from the SP and

acts like an IdP. It provides the user with two op-

tions. First, the user can authenticate using the normal

eIDAS ﬂow. This is described in Section 5.2.2. The

second option is to authenticate using a wallet app,

which is described in more detail in Section 5.2.1.

From the perspective of the IdP, the eIDAS app

acts like an SP. The eIDAS app sends an authentica-

tion request to the IdP and receives the response.

Handling Requests with the eIDAS App. Upon

installation, the eIDAS app claims the URL of the

eIDAS connector. This step enables opening an au-

thentication request in the eIDAS app instead of the

browser.

Usually, the SP app would send an authentication

request to the eIDAS node connector of the SPs home

country. If the eIDAS app wants to intercept such re-

quests, it would need to register every eIDAS node

connectors URL. Since app links need to be claimed

at compile time and it is not feasible to release a new

version of the eIDAS app whenever an eIDAS node

connector URL is added or changes, we introduce a

relay service. It has the simple task of redirecting the

user to a supplied query parameter. With the relay

service in place, the SP app sends the request not dir-

ectly to the eIDAS node connector, but puts its URL

in a query parameter to the relay service. This has

the advantage that the eIDAS app only needs to re-

gister the URL of the relay service to be opened upon

an authentication request, while retaining full browser

compatibility.

5.2.1 Legacy SP Wallet-Based Authentication

As argued before, we provide the user with the op-

tion to use wallet-based authentication with legacy

SPs. The protocols used for wallet-based authentic-

ation, however, differ from established ones used in

production.

The eIDAS app supports the OIDC SIOPv2 pro-

tocol ((Yasuda et al., 2023)), where identity attributes

are asserted using veriﬁable credentials.

From a high level perspective, the eIDAS app

translates VCs from the SIOPv2 response to an ordin-

ary OIDC response for legacy SP apps. After the user

selects wallet-based authentication, the eIDAS app

sends an OIDC SIOPv2 request to the Wallet app. The

response contains veriﬁable credentials in the form of

veriﬁable presentation. Next, the eIDAS app validates

and veriﬁes the VCs. After a successful veriﬁcation,

the eIDAS app generates and signs an identity token

from the information provided by the VCs. Since

OIDC Auth Code ﬂow requires the identity inform-

ation to be communicated in a backchannel, the iden-

tity token is sent to the eIDAS node connector. The

response to the SP app is an OIDC Auth Code, which

is subsequently used by the SPs backend to retrieve

the identity token from the eIDAS node connector.

5.2.2 eIDAS Authentication

For regular cross-border authentication ﬂows, the

eIDAS app handles communication between the

eIDAS node connector, the respective nodes of the SP

and IdP home countries, and the eIDAS proxy. The

eIDAS app follows redirects and forwards Security

Assertion Markup Language (SAML) and Light mes-

sages between the involved components.

When an eID app is installed and has claimed the

IdP URL, it will be opened for authentication. If no

such app is installed, a so-called custom tab is opened

in the eIDAS app to render a web UI of the IdP for the

user to enter their credentials.

In any of the two cases, the response of success-

ful authentication is handled by the eIDAS app again.

Like before, the eIDAS app passes messages between

the involved components. As a last step, the eIDAS

app opens the redirect URI speciﬁed by the SP app

with the OIDC Auth Code. This causes the SP app to

SECRYPT 2023 - 20th International Conference on Security and Cryptography

466

be opened and the eIDAS App is done at this point.

The SP app’s backend can now retrieve the identity

information using the OIDC Auth Code from the re-

sponse.

In summary, the eIDAS app pushes a mobile-ﬁrst

incarnation of the established eIDAS cross-border au-

thentication ﬂow. When used in conjunction with a

wallet app, however, it provides wallet-based authen-

tication also to established service providers. More

details on how attributes are added to such a wallet

app are provided in the following section.

5.3 Wallet and Provisioning Service

The basis for implementing remaining central parts

of our solution, the wallet app and the provisioning

service, is an open source multi-platform library im-

plementing the VC data model, which we have de-

veloped speciﬁcally to ﬁll this gap

. This library is

used up by the native wallet apps (i.e. in Kotlin for

Android and Swift for iOS) as well as the provision-

ing service (in Kotlin for the JVM).

The wallet app and the provisioning service inter-

act using a well-deﬁned protocol to load the identity

attributes of the user onto the mobile device. This

shared communication protocol is implemented along

the lines of the ARIES RFC 0453 for issuing creden-

tials

. During the provisioning, the provisioning ser-

vice acts as an SP towards the national eID system

and transforms the received identity attributes into a

format suitable for the wallet app. The attributes are

encoded as veriﬁable credentials, which is in line with

the technical speciﬁcation of the EUDIW, and bound

to key material securely stored on the mobile device.

The authenticity of this key material is ensured using

key attestation, although this time, the procedure is

carried out between the wallet app and the provision-

ing service.

When receiving an authentication request from the

eIDAS app using OIDC SIOPv2, the user is presented

with a screen conﬁrming the release of their identity

attributes. The wallet app creates a veriﬁable present-

ation wrapping the requested VCs which have been

signed by the provisioning service. The VP as well as

the SIOPv2 response are signed with the hardware-

bound key that was attested before by the provision-

ing service and sent back to the eIDAS app. The

eIDAS app has the responsibility to validate and trans-

form this response into a traditional OIDC response,

as described above.

https://github.com/a-sit-plus/kmm-vc-library

https://github.com/hyperledger/aries-

rfcs/tree/main/features/0453-issue-credential-v2

In summary, this results in a chain of trust, which

ensures that all identity information is authentic: The

SP trusts the eIDAS node connector. The connector

vouches for the eIDAS app. The eIDAS app veriﬁes

the authenticity of VCs received from the wallet app.

The wallet app is trusted by the provisioning service.

The provisioning service providing attributes to the

wallet app is authorized by a national eID system to

do so, by acting as an SP towards it.

6 CONCLUSIONS

The sustained trend towards mobile usage scenarios

requires new concepts and solutions for secure and

reliable cross-border authentication based on national

electronic identities. The EC has recognized this need

and has proposed the concept of a EUDIW. Fully-

ﬂedged and widely adopted implementations of this

concept can be expected to be available in a few years.

As a ﬁrst step towards this ambitious goal, we

have proposed a ﬁrst rudimentary implementation of

a digital-identity wallet that complies with the provi-

sions of the EC and their proposal. The contribution

of our solution described in this paper is threefold:

Proof of Concept: Our proposed wallet solution

demonstrates that the basic concept proposed by the

EC is feasible and can be realized with current techno-

logies. Integration Support: Our proposal provides

service providers, i.e., operators of online services,

with a working wallet solution, which they can integ-

rate and use for testing against their services. Integra-

tion tests are facilitated by supporting a legacy mode

of operation, which hides most wallet-related specif-

ics from the service provider. Enhanced Security:

The proposed solutions integrate remote-attestation

features and hence successfully evaluate the useful-

ness of this cutting-edge technology for secure wallet

solutions on current smartphone platforms.

To summarize, the proposed wallet solution offers

beneﬁts for various stakeholders involved in the de-

velopments and use of the upcoming EUDIW. Our

wallet solution will be further developed and tested.

Results and ﬁndings will then support the implement-

ation of the EUDIW.

ACKNOWLEDGEMENTS

This paper is based on work conducted in the project

mGov4EU. This project has received funding from the

European Union’s Horizon 2020 research and innov-

ation programme under grant agreement No 959072.

Smoothing the Ride: Providing a Seamless Upgrade Path from Established Cross-Border eID Workﬂows Towards eID Wallet Systems

467

REFERENCES

Abraham, A., Schinnerl, C., and More, S. (2021). Ssi

strong authentication using a mobile-phone based

identity wallet reaching a high level of assurance. In

SECRYPT, pages 137–148.

Ali, T., Nauman, M., Amin, M., and Alam, M. (2010).

Scalable, privacy-preserving remote attestation in and

through federated identity management frameworks.

In 2010 International Conference on Information Sci-

ence and Applications, pages 1–8. IEEE.

Gaehtgens, F. (2022). Hype cycle for digital identity, 2022.

Technical Report ID G00770428, Gartner.

Jacobino, S. and Pouwelse, J. (2022). Trustvault: A privacy-

ﬁrst data wallet for the european blockchain services

infrastructure. arXiv preprint arXiv:2210.02987.

Kubach, M. and Roßnagel, H. (2021). A lightweight trust

management infrastructure for self-sovereign identity.

Open Identity Summit 2021.

unster, B., Palﬁnger, G., and Kollmann, C. P. Fides –

Unleashing the Full Potential of Remote Attestation.

pages 314–321.

Schwalm, S., Albrecht, D., and Alamillo, I. (2022). eidas

2.0: Challenges, perspectives and proposals to avoid

contradictions between eidas 2.0 and ssi. Open Iden-

tity Summit 2022.

Sporny, M., Longley, D., Burnett, D., Kellogg, G., and Al-

len, C. (2021). Veriﬁable credentials data model 1.0.

W3C Recommendation 2021-06-08, World Wide Web

Consortium (W3C).

Yasuda, K., M., J., and T., L. (2023). Self-issued openid

provider v2. https://openid.net/specs/openid-connect-

self-issued-v2-1 0.html. Accessed: 2023-03-14.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

468
