Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based
Encryption
Mohamed Salah Azzaz
1 a
, Redouane Kaibou
1 b
Hamdane Kamelia
1
, Abdenour Kifouche
1 c
and Djamel Teguig
2
1
Ecole Militaire Polytechnique, Laboratoire Syst
`
emes
´
Electroniques et Num
´
eriques, BP 17 Bordj El-Bahri, Algiers, Algeria
2
Ecole Militaire Polytechnique, Laboratoire T
´
el
´
ecommunications, BP 17 Bordj El-Bahri, Algiers, Algeria
Keywords:
FPGA, HLS, Chaos, Encryption, Image, Security, Attack, NIST, DIHARD.
Abstract:
This paper presents a new approach for designing a lightweight and efficient prototype of encryption devoted
to secure real-time embedded applications. The proposed approach is simple and it is based on two concepts,
the first one is related to the design methodology in which it allows a good compromise between performances
and time development, by using Vivado High Level synthesis (HLS). In counterpart, and as a second concept
chaos-based theory is adopted for the design of a robust stream cipher encryption algorithm with good trade-
off between low resources and speed. Simulation and experimental results of image encryption demonstrate
that the proposed design presents a good performances in terms of security, low resources and speed. Indeed,
the solution can be embedded in many real-time applications namely video encryption.
1 INTRODUCTION
Nowadays, the increase of information transmitted
through unsecured public networks pose a great chal-
lenge in terms of security in many new technolo-
gies such as 5G, 6G and IoT. To overcome this prob-
lem, several works are being carried out and oth-
ers are under-way by academic researchers (Mohanta
et al., 2020). Information security is thus becom-
ing one of the major concerns of society. The most
used alternative to this problem is cryptography dis-
cipline (Touqeer et al., 2021). However, classical
cryptography techniques namely the standards Rivest
Shamir Adleman (RSA), Advanced and Data En-
cryption Standards (AES/DES) are not appropriate
for real-time embedded applications because they are
computational demanding (Rawat et al., 2019). Thus,
current work focuses on other techniques for imple-
menting cryptosystems, that are based on chaotic sys-
tems allowing a good trade-off between security with
good proprieties in terms of embedded system con-
straints (Azzaz et al., 2020b). The great motivation
of using chaotic signals to secure information is con-
a
https://orcid.org/0000-0001-6207-7626
b
https://orcid.org/0000-0003-1749-4417
c
https://orcid.org/0000-0002-6727-4626
firmed by large scientific research community of this
domain, because of the intrinsic properties such as
aperiodic behaviour, determinism, long term unpre-
dictability and its sensitivity to parameters and ini-
tial conditions (Alvarez and Li, 2006), and also the
possibility of chaotic synchronization, usually used
in communications (Kocarev and Parlitz, 1995; Sun
et al., 2022). The use of chaos particularly in the
field of communication has been considered as a very
promising solution to increase the performance of
analog or digital transmission systems. The disad-
vantage of the analog chaos transmission lies in the
low degree of confidentiality and the degradation of
the chaotic systems properties (Azzaz et al., 2013c).
Hence the special importance assumed by cryptog-
raphy in the digital chaos transmission, because of
data integrity, non-repudiation and authenticity in ad-
dition to confidentiality (Azzaz et al., 2020b; Alaw-
ida et al., 2019; Bouteghrine et al., 2021; Tanougast
et al., 2023). Indeed, chaotic systems have become
a current trend for the design of dedicated cryptosys-
tems as they are leightweight and produce chaotic en-
cryption keys in contrast to the existing stream cipher
standards using random generated encryption keys
(CAESAR project, 2019; eSTREAM, 2014; NIST
Lightweight Crypto, 2017). However, according to
Kerckhoffs principle, the security of cryptographic
478
Azzaz, M., Kaibou, R., Kamelia, H., Kifouche, A. and Teguig, D.
Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based Encryption.
DOI: 10.5220/0012119400003555
In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 478-485
ISBN: 978-989-758-666-8; ISSN: 2184-7711
Copyright
c
 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

systems should rely only on the key secrecy. In other
words, all other parameters must be assumed to be
publicly known. It was reformulated, independently,
in Shannon’s maxim: ”the adversary knows the sys-
tem” (Kerckhoffs, 1883). It is considered today as a
fundamental principle by cryptologists. Therefore, it
is important to build encryption key generators that
meet the security and embedded systems constraints
(Fellah et al., 2021; Kifouche et al., 2022). One of
the most usual of expression between persons that
contains large volumes of information is image. In-
deed, its security may be addressed in priority. How-
ever, a good numeric circuits in terms of speed and
resources may be considered. Recently, the reliable
performances of FPGA make them a good solution
for real-time embedded applications (Kaibou et al.,
2021; Gafsi et al., 2021; Cai et al., 2022). Many novel
chaos-based methods for image exist, however, most
of them, are only simulated and not validated experi-
mentally (Hasan and Saffo, 2020; Bouteghrine et al.,
2021). Some methods are based on Xilinx System
Generator tools used for generating HDL code but
they are not very optimal in terms of speed and re-
sources (Hagras and Saber, 2020; Gafsi et al., 2023).
Some works are based on direct HDL description
methods but they require long development time (Az-
zaz et al., 2013b; Azzaz et al., 2013a; Azzaz et al.,
2020b). Currently, a new design approach has been
introduced integrating a C/C++ language, HLS (High
Level Synthesis) as one of the most used tools to
directly transform a C description into hardware IP-
Core, described on Verilog or VHDL (RTL: Register-
Transfer Level) with a performance comparable to
that of manually coded RTL in terms of processing
time and resources (Liu et al., 2019). In addition, the
development time is generally very short compared to
the hardware description based design (Azzaz et al.,
2020a; Kaibou et al., 2021; Aissaoui et al., 2022). We
will use the HLS tool to design our encryption key
generator in the form of an IP-Core ready to be ex-
ported to Vivado and be used later in an encryption
algorithm. In this context, the main contributions of
this work are summarized in the following points:
• New architecture of chaos-based generator using
a combined continuous/discrete chaotic systems.
• Using a new approach for designing chaos-based
encryption system by using Vivado-HLS.
• Good security, hardware resources and speed per-
formances by the proposed image cryptosystem.
• FPGA experimental validation of the proposed
design on image encryption-decryption.
The remainder of this paper is structured as fol-
lows: Section 2 describes the proposed architecture
of chaos-based key generator. The proposed image
encryption algorithm is presented in Section 3. Secu-
rity analysis and discussions are given in Section 4.
Finally, Section 5 concludes this work.
2 PROPOSED CRYPTOSYSTEM
The proposed cryptosystem in this work is a stream
cipher based on One Time Pad (OTP) encryption prin-
ciple, more suitable for real time applications. The
kernel of the later is a new chaos-based generator that
makes the robustness of the cryptosystem more effi-
cient against attacks while preserving low computa-
tion complexity.
2.1 Proposed Key Generator
The Architecture of the proposed key generator is de-
picted in Fig. 1. In order to make the generated en-
cryption key sequences of good statistical properties,
two rules are used: mixing and disruption.
In the mixing rule three (03) multipliers are used
MUX1, MUX2 and MUX3. This allows to select the
components x
i
, y
i
and z
i
(i = 1 to 4) of the chaotic sys-
tems Lorenz, R
¨
ossler, Chen and L
¨
u according to the
selection sw
i
(i = 1 to 4), respectively. The MUX4
is used to select the chaotic signals resulting from the
first three Multiplexers according to sw
4
. The distur-
bance rule is based on the perturbation of the logistic
map trajectories through the signal resulting from the
MUX4 to provide a sequences with good confusion
propriety.
2.1.1 Mathematical Modelling
Lorenz chaotic system is represented by the Eq. 1.
The chaotic behaviour is given by the following pa-
rameters and initial conditions, respectively: a = 10,
b = 28 et c = 8/3, x(0) = 0, y(0)= 5 et z(0)= 25.



˙x = a(y − x)
˙y = bx − y − xz
˙z = xy − cz
(1)
R
¨
ossler chaotic system is represented by the Eq. 2.
The chaotic behaviour is given by the following pa-
rameters and initial conditions, respectively: a = 0.2,
b = 0.2 et c = 5.7, x(0) = y(0) = z(0) = 0.1.



˙x = −(y + z)
˙y = −x + ay
˙z = b + z(x − c)
(2)
Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based Encryption
479

x1
y1
z1
x2
y2
z2
x3
y3
z3
x4
y4
z4
Mixing Rule
xn
xn+1
Perturbation Rule
Key
encryption
sequence
Pre-key genrator

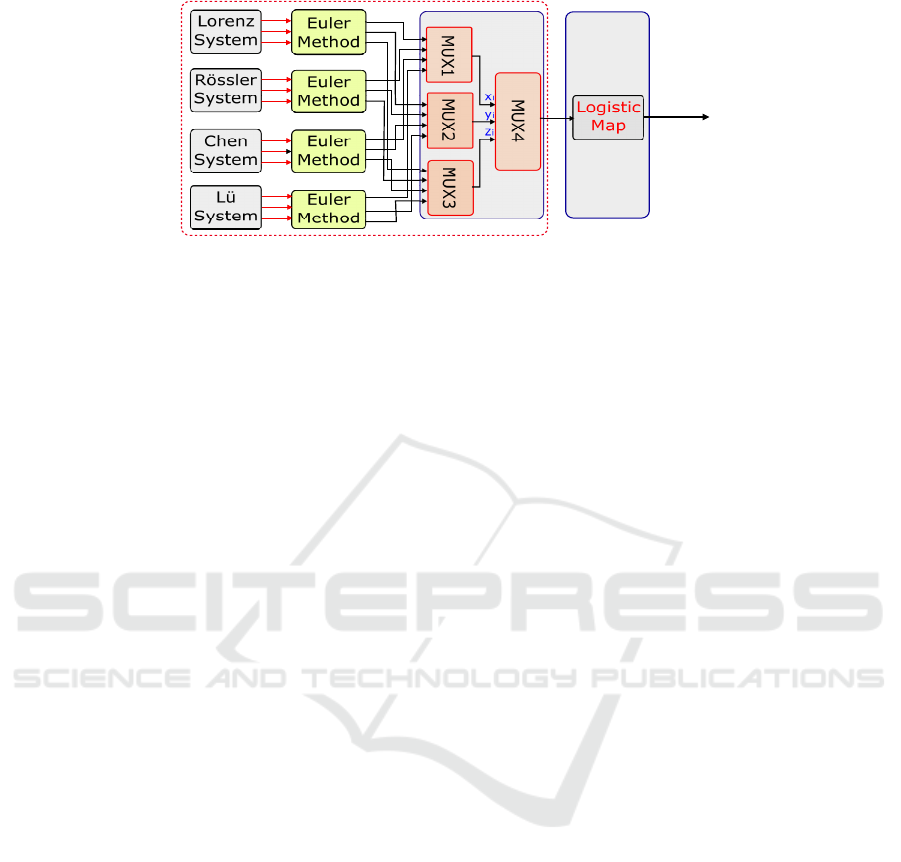

Figure 1: Proposed Encryption Key Generator.
Chen chaotic system is represented by the Eq. 3. The
chaotic behaviour is given by the following parame-
ters and initial conditions, respectively: a = 35, b = 3
et c = 28, x(0) = y(0) = z(0) = 1.



˙x = a(y − x)
˙y = (c − a)x − xz + cy
˙z = xy − bz
(3)
L
¨
u chaotic system is represented by the Eq. 4. The
chaotic behaviour is given by the following parame-
ters and initial conditions, respectively: a = 36, b = 3
et c = 20, x(0) = y(0) = z(0) = 1.



˙x = a(y − x)
˙y = −xz + cy
˙z = xy − bz
(4)
The multiplexers MUX1, MUX2, MUX3 and MUX4
are described by the Eq. 5, 6, 7 and 8, respectively.
MUX1 :





if sw
1
= 00 =⇒ x
1
of Lorenz
if sw
1
= 01 =⇒ x
2
of R
¨
ossler
if sw
1
= 10 =⇒ x
3
of Chen
if sw
1
= 11 =⇒ x
4
of L
¨
u
(5)
MUX2 :





if sw
2
= 00 =⇒ y
1
of Lorenz
if sw
2
= 01 =⇒ y
2
of R
¨
ossler
if sw
2
= 10 =⇒ y
3
of Chen
if sw
2
= 11 =⇒ y
4
of L
¨
u
(6)
MUX3 :





if sw
3
= 00 =⇒ z
1
of Lorenz
if sw
3
= 01 =⇒ z
2
of R
¨
ossler
if sw
3
= 10 =⇒ z
3
of Chen
if sw
3
= 11 =⇒ z
4
of L
¨
u
(7)
MUX4 : x
n
=



x
i
of MUX1 if sw
4
= 00
y
i
of MUX2 if sw
4
= 01
z
i
of MUX3 if sw
4
= 10
(8)
The produced signal x
n
of the Eq. 8 is used to
disturb the logistic map trajectories given by Eq. 9.
The output sequence represents the key encryption K.
x
n+1
= rx
n
(1 − x
n
) (9)
To resolve the three dimensional continuous chaotic
systems given by the Eq. 10, Euler numerical resolu-
tion method, expressed by the Eq. 11, is applied for
each system.



˙x = F(t, x, y, z)
˙y = G(t, x, y, z)
˙z = Q(t, x, y, z)
(10)
Where x(t
0
) = x
0
, y(t
0
) = y
0
, z(t
0
) = z
0
, F,G and
Q are non linear functions. The parameter h is the
descetisation step of Euler method.



x
n+1
= x
n
+ hF(t
n
, x
n
, y
n
, z
n
)
y
n+1
= y
n
+ hG(t
n
, x
n
, y
n
, z
n
)
z
n+1
= z
n
+ hH(t
n
, x
n
, y
n
, z
n
)
(11)
Encryption/Decryption Processes
The encryption process consists of using OTP encryp-
tion algorithm according to Eq. 12.
c(k) = m(k) ⊕ K(k) (12)
The decryption process consists of using the re-
verse process of encryption according to Eq. 13.
m(k) = c(k) ⊕ K(k) (13)
Where m(k), c(k) and K(k) represent the plain-text,
the cipher-text and the encryption key, respectively.
3 FPGA IMPLEMENTATION
The proposed FPGA design approach is based on
Vivado-HLS.
SECRYPT 2023 - 20th International Conference on Security and Cryptography
480

3.1 Designed IP-Cores Using HLS
The designed IP-Cores undergo C/RTL Cosimulation
to validate the designed hardware of the four chaotic
systems to be then exported to the Vivado library as
depicted in Fig. 2.
(a) Lorenz and R
¨
ossler
(b) L
¨
u and Chen

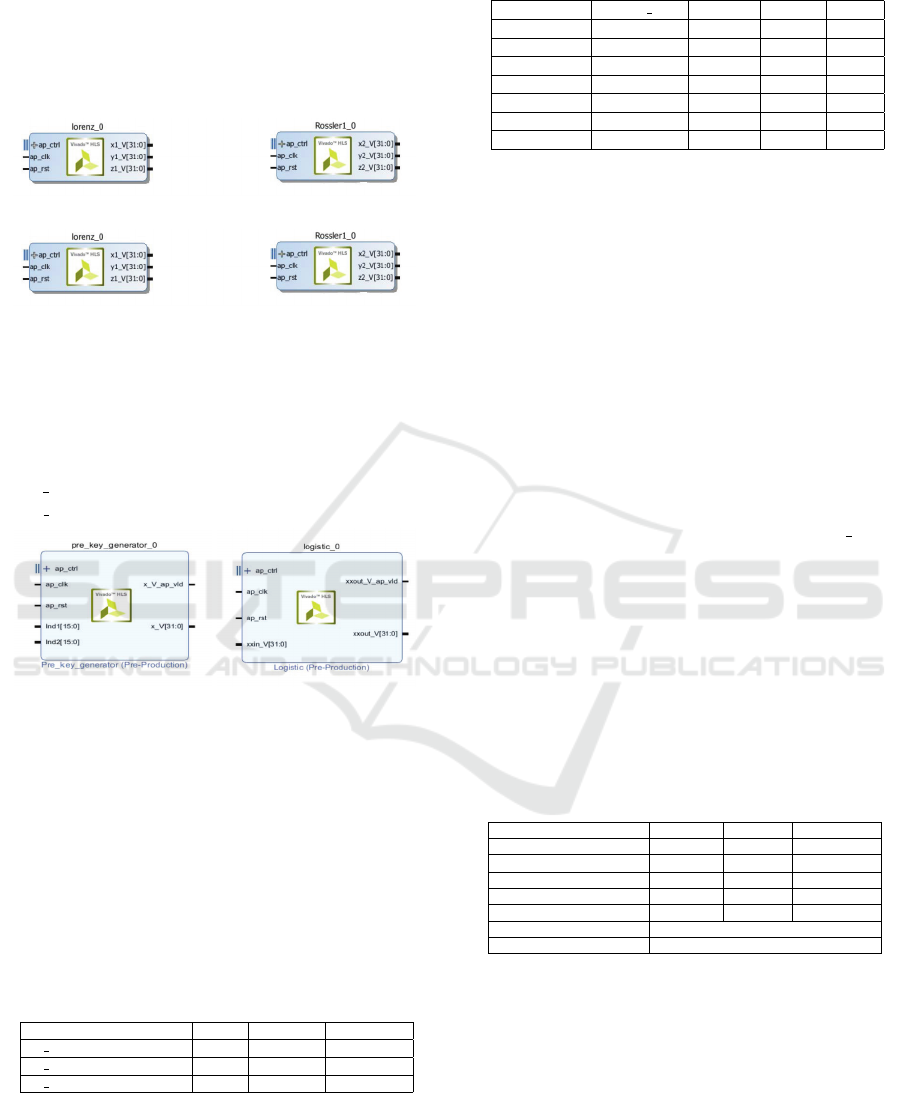

Figure 2: HLS-based designed IP-Cores.
Fig. 3 illustrates the bloc design of pre-key gener-
ator and Logistic Map IP-Cores exported to Vivado.
The 16-bits signals Ind
1
and Ind
2
represent the val-
ues of the selections sw
1
et sw
2
and the 32 bits out-
put x V represents the input x
n
of the logistic IP-Core
(xxin V ).
Figure 3: Pre-key generator and Logistic Map.
3.2 IP-Cores HLS Synthesis Results
Synthesis results after place and route on Genesys-2
FPGA performances of the four chaotic systems, the
Pre-key generator and Logistic are shown in Tables
1 and 2, respectively. These results demonstrate that
the HLS-based designed IP-Cores allow a good trade-
off between FPGA resources consumption and timing
and could be integrated as hardware accelerator for
the design of chaos based cryptosystem.
Table 1: HLS IP-Cores FPGA Timing Results.
Clock (ns) Target Estimated Uncertainty
ap clk of Chaotic systems 10.00 7.98 1.25
ap clk of Pre-key Gen. 10.00 80.66 1.25
ap clk of Logistic Map 10.00 8.43 1.25
Table 2: HLS Resources Consumption Results.
Name BRAM 18K DSP48E FF LUT
Lorenz 0 14 550 407
R
¨
ossler 0 12 555 375
Chen 0 16 610 311
L
¨
u 0 14 478 357
pre-key Gen. 0 65 902 2322
Logistic 0 6 52 96
Available 270 240 126800 63400
3.3 Vivado-XSim Simulation Results
Simulation results of the obtained chaotic signals gen-
erated from the designed IP-Cores of the four chaotic
systems and Logistic Map are illustrated in Fig. 4.
The pre-key generator IP-core chaotic sequences
are obtained according to two dynamically configured
switches sw
1
and sw
2
to visualize the output signals
(x, y and z) of the four generators for each value serv-
ing as input of the Logistic Map.
3.4 Proposed Key Generator
The proposed chaos-based generator RTL is designed
under Vivado using the exported hardware IP-cores as
depicted in Fig. 5. A register of 32 bits (RTL REG)
is used for the pre-key generator output to disturb Lo-
gistic Map trajectories as illustrated in the simulation
results of Fig. 6.
Table 3 illustrates the resources utilization, the
timing and the power consumption of the proposed
chaos-based generator, theses results demonstrate that
the proposed architecture allows a good compro-
mise between resources utilization, the timing and the
power, thus, fulfilling the requirements of an embed-
ded system.
Table 3: Proposed Generator FPGA Implem. Results.
Resources Utilisation Available Utilisation %
LUT 3029 203800 0.015
Registers 905 407600 2.223 × 10
−3
DSP 38 840 0.045
IO 18 500 0.036
BUFG 1 32 0.031
W. Negative Slack (WNS) 2.015 ns
Total On-Chip Power 0.366 W
3.5 Key Generator Randomness Tests
In order to measure the random aspect of the produced
sequences, ENT, NIST and DIEHARD test batteries
have been used giving the results of Tables 4, 5, and 6
and thus allowed to be considered as pseudo-random
suitable for data security applications.
Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based Encryption
481

(a) Lorenz
(b) R
¨
ossler
(c) L
¨
u
(d) Chen
(e) Logistic Map
(f) Pre-key gen

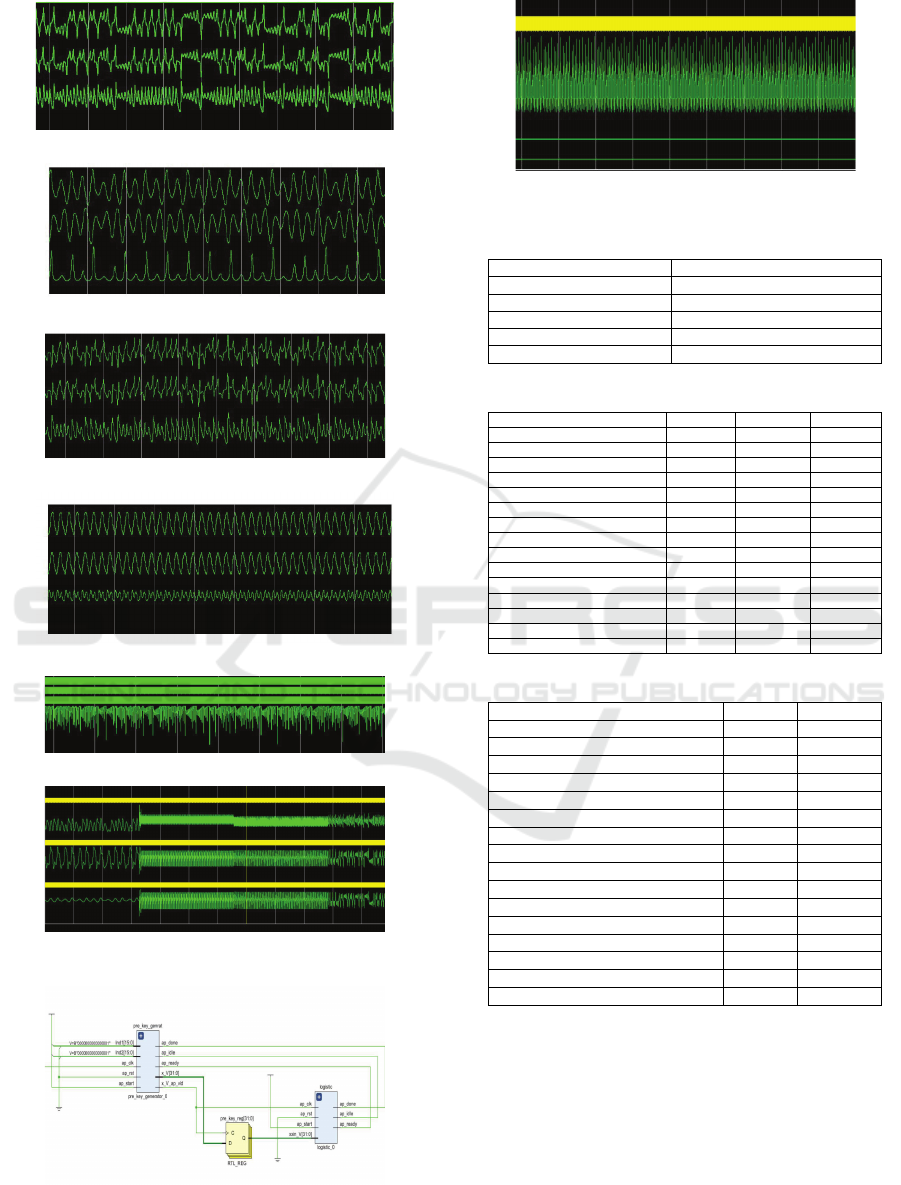

Figure 4: HLS designed IP-Cores Simulation Results.
Figure 5: RTL Architecture of the Proposed Generator.
Figure 6: Proposed Generator Simulation Results.
Table 4: ENT battery of tests.
ENT tests values
Entropy 7.999987 bits per byte =8
Chi square test 302.76 > 2.17
Arithmetic mean 127.5685 (127.5 = random)
Monte Carlo value for Pi 3.139690399 (error 0.06 percent)
Serial correlation coefficient -0.00001218
Table 5: NIST battery of tests.
Test P-Value Proportion Test result
Frequency 0.534146 10/10 success
Block Frequency 0.534146 9/10 success
Cumulative Sums (Cusum) 0.534146 10/10 success
Runs 0.350485 10/10 success
Longest Run of Ones in a Block 0.911413 10/10 success
Binary Matrix Rank 0.122325 10/10 success
Discrete Fourier Transform 0.534146 10/10 success
Non Overlapping Template 0.122325 10/10 success
Overlapping Template 0.350485 10/10 success
Universal 0.911413 10/10 success
Approximate Entropy 0.739918 10/10 success
Random Excursions 0.5350485 10/10 success
Random Excursions Variant 0.739918 10/10 success
Serial 0.534146 10/10 success
Linear Complexity Test 0.739918 10/10 success
Table 6: DIEHARD battery of tests.
Test P-value Test result
Birthday spacings test 0.932537 success
Overlapping 5-permutations test 0.551431 success
Binary rank test for 31×31 matrices 0.564486 success
Binary rank test for 32×32 matrices 0.867109 success
Binary rank test for 6×8 matrices 0.461467 success
The tests OPOSO.OQSO and DNA 0.558904 success
Counter the 1’s in successive bytes 0.426273 success
Counter the 1’s in specified bytes 0.717346 success
A parking lot test 0.142755 success
Minimum distance test 0.426242 success
3D spheres test 0.994113 success
Z-scores 0.249269 success
Overlapping sums test 0.501703 success
Bitstream test 0.890750 success
Runs test 0.826632 success
Craps test 0.77263 success
3.6 Key Space
The key-space is defined as the total number of differ-
ent keys used in the encryption algorithm. Knowing
that our chaos-based generator is composed of five
chaotic systems: four continuous-time chaotic sys-
tems each of which has 6 parameters (three state vari-
ables and three system parameters) coded on 32 bits
and a discrete-time chaotic system containing two pa-
SECRYPT 2023 - 20th International Conference on Security and Cryptography
482

(a) Encryption Process
(b) Decryption Process

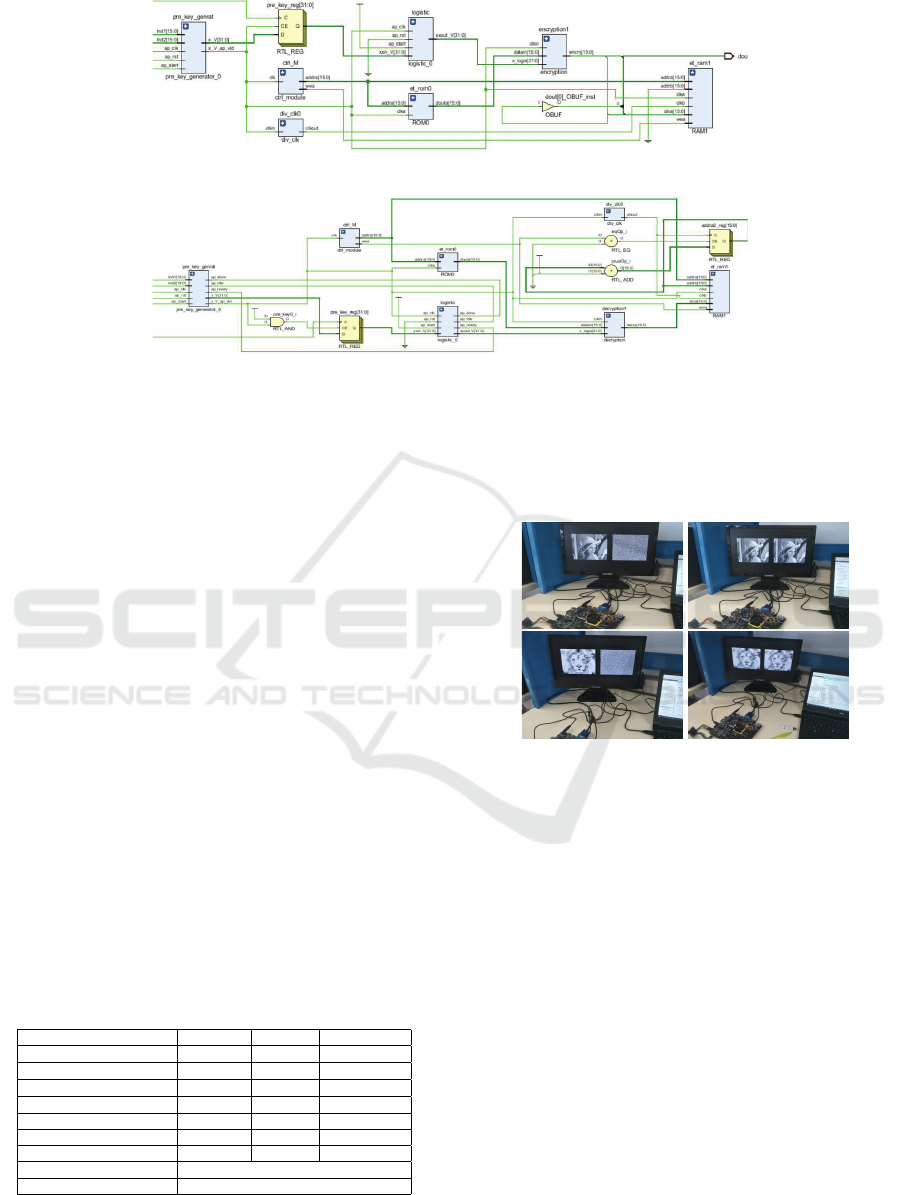

Figure 7: Proposed Cryptosystem RTL Architecture.
rameters such as: (n
1
, m
1
) = (4, 1), (n
2
, m
2
) = (6, 1)
and p = 32. with n and m are respectively the number
of generators used and parameters of each generator
and p represents the size of the key in binary.
The key space is calculated as:
k = 2
n×m×p
= k
1
+ k
2
= 2
n
1
×m
1
×p
+ 2
n
2
×m
2
×p
;
k = 2
768
+ 2
64
; k = 2
100
(2
7.68
+ 2
−36
) ≃ 2
8
× 2
100
≫
2
100
. The resulting key space is big enough than the
value presented by (Alvarez and Li, 2006), therefore
the later resists to the brute force attack.
3.7 Proposed Chaos-Based
Cryptosystem
Fig. 7 illustrates the proposed chaos-based cryptosys-
tem RTL architecture for encryption and decryption
processes.
Table 7 shows the resources consumption results
of the proposed cryptosystem implementation. It is
noticed that the consumed resources is low compared
to the available resources of the FPGA. Therefore,
the co-design approach adopted is adequate to the re-
quired specifications.
Table 7: Cryptosystem Implementation Results.
Ressource Utilisation Available Utilisation %
LUT 1466 203800 7.193 × 10
−3
Registers 507 407600 1.244 × 10
−3
FF 391 407600 9.593 × 10
−4
BRAM 30 445 0.067
DSP 17 840 0.020
IO 18 500 0.036
BUFG 3 32 0.063
W. Negative Slack (WNS) 2.018 ns
Total On-Chip Power 0.342 W
Fig.8 visualizes, on a VGA screen, the FPGA im-
plementation results of encryption/decryption using
the proposed chaos-based key generator.
Figure 8: Encrypted and Decrypted Images.
3.8 Cryptosystem Security Analysis
Security analysis is evaluated using statistical and dif-
ferential analyses.
3.8.1 Statistical Analysis
Statistical analysis is performed through correlation
and histogram metrics:
Adjacent Pixels Correlation. Fig. 9 shows the cor-
relation (Bouteghrine et al., 2021) of the original and
encrypted images neighbouring pixels. They show a
strong correlation for the three directions in the origi-
nal image whereas encrypted images are strongly de-
correlated. Therefore the proposed cryptosystem re-
sists correlation attacks.
Histogram. It can be seen from Fig. 10 showing
the original and encrypted images histograms, that the
Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based Encryption
483

Table 8: Proposed Cryptosystem Performance Comparison.
(Hagras and Saber, 2020) (Maazouz et al., 2022) (Hasan and Saffo, 2020) Proposed Work
Keys Generator Chaotic Chaotic-AES Chaotic Chaotic
Data Size (bits) 32 32 8 32
Keyspace 10
135
× 2
16
2
356
2
256
2
800
FPGA Platform Spartan-6 X6SLX45 Zybo Z20 SP605 XC6SLX45T Genesys 2
Data Representation Fixed Point Floating Point Fixed Point Fixed Point
Maximal Frequency (MHz) 393 666.67 23.356 125.28
Throughput (Mb/s) 1.75 2.7 186.84 4008.9
Test Battery NIST - DIEHARD ENT-NIST-DIEHARD
NPCR (%) 99.654 99.59 99.62316 99.61
UACI (%) 33.435 33.27 32.68375 33.0481
LUT 294 - 238 3029
Power (mW) 117 - - 366
Design Approach XSG/VHDL C/VHDL XSG/VHDL C/VHDL
Development Time Low High Low Medium
Optimisation Approach Low Low Low Good
(a) Vertical (b) Horizontal (c) Diagonal
(d) Vertical (e) Horizontal (f) Diagonal

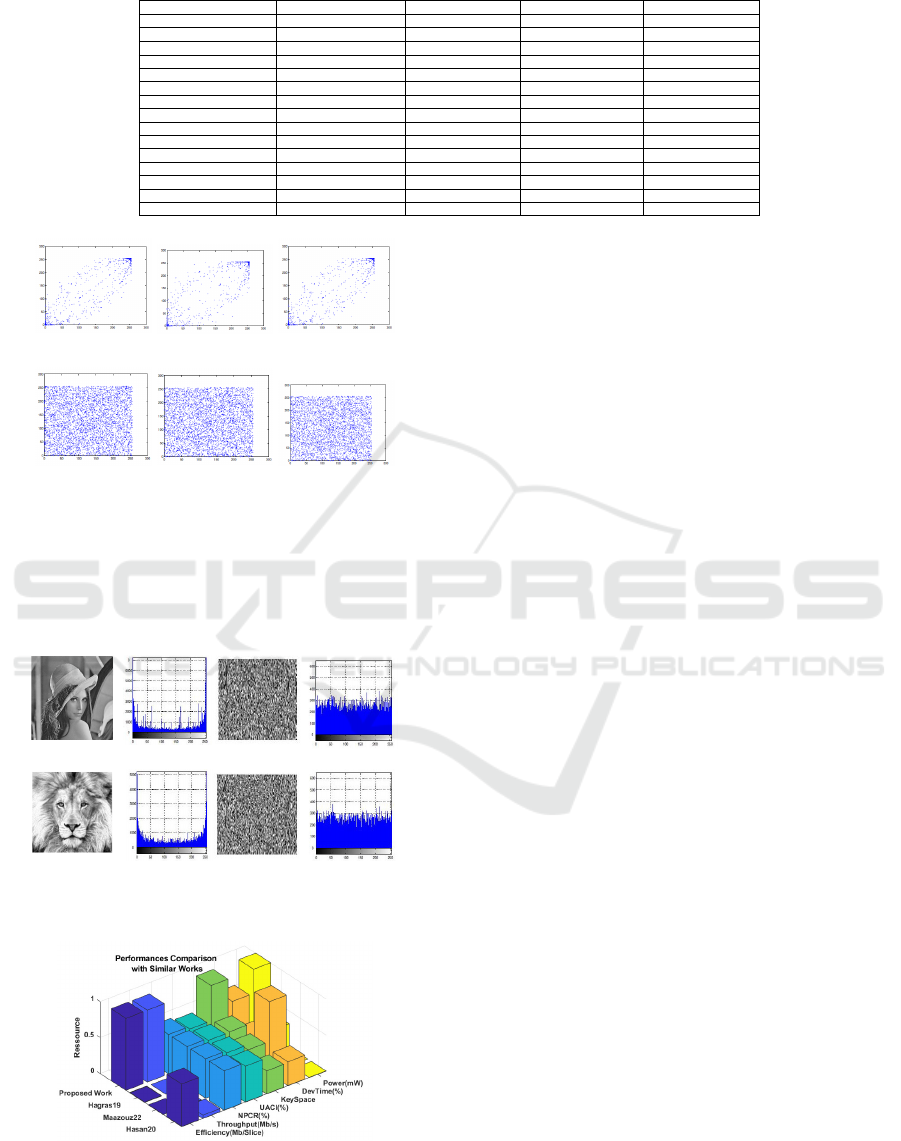

Figure 9: Correlation Analysis.
pixels intensity distribution is similar to that of a uni-
form law, hence the random character of this distribu-
tion for encrypted images. The used algorithm there-
fore resists against histogram attacks.
Original image
Encrypted Image
NPCR = 99.61%
UACI = 33.0481%
Histogram
Histogram
Histogram
Histogram
Original image
Encrypted Image
NPCR = 99.64%
UACI = 33.9652%
Figure 10: Histogram Analysis.
Figure 11: Comparison with Similar Works.
3.8.2 Differential Analysis
Differential analysis has been conducted using Num-
ber of Pixel Change Rate (NPCR) and Unified Aver-
age Changing Intensity (UACI) metrics (Bouteghrine
et al., 2021) in order to measure the resistance of
a cryptosystem against differential attacks. Fig. 10
shows the results for original and encrypted images.
4 COMPARISON WITH SIMILAR
WORKS
Fig. 11 and Table 8 present the comparison in terms
of resource consumption between the designed gen-
erator and those of previous works. It shows smaller
development time with more flexibility using the co-
design approach providing tested random sequences.
5 CONCLUSION
In this work, the concept of secure encryption by
chaos is presented by designing and implementing a
new key generator integrated in a chaos-based cryp-
tosystem. The design method has been using HLS
co-design offering excellent development time with
good hardware performances. The proposed key gen-
erator has undergone three different standard battery
tests namely ENT, NIST and DIEHARD for generated
sequences randomness before being adopted for the
developed cryotsystem architecture. Simulation and
FPGA implementation results have given good results
in terms of encryption/decryption applied on images.
The cryptosystem has been evaluated in terms of ro-
bustness and resources consumption and has proven
to be suitable for real-time data security applications
as it has been compared to similar works.
SECRYPT 2023 - 20th International Conference on Security and Cryptography
484

REFERENCES
Aissaoui, N., Kaibou, R., and Azzaz, M. S. (2022). Real-
time fpga implementation of digital video watermark-
ing techniques using co-design approach: Compara-
tive study. In 7th Int. Conf. on Image and Sig.Proc.
and their App., pages 1–6. IEEE.
Alawida, M., Teh, J. S., et al. (2019). An image encryption
scheme based on hybridizing digital chaos and finite
state machine. Sig. Proc., 164:249–266.
Alvarez, G. and Li, S. (2006). Some basic cryptographic
requirements for chaos-based cryptosystems. Int. j. of
bifu. and chaos, 16(08):2129–2151.
Azzaz, M. S., Maali, A., Kaibou, R., Kakouche, I., Mo-
hamed, S., and Hamil, H. (2020a). Fpga hw/sw code-
sign approach for real-time image proc. using hls. In
1st Int. Conf. on Comm., Control Sys. and Sig. Proc.,
pages 169–174. IEEE.
Azzaz, M. S., Tanougast, C., Maali, A., and Benssalah,
M. (2020b). An efficient and lightweight multi-scroll
chaos-based hardware solution for protecting finger-
print biometric templates. Int. J. of Comm. Sys.,
33(10):e4211.
Azzaz, M. S., Tanougast, C., Sadoudi, S., and Bouridane,
A. (2013a). Synchronized hybrid chaotic generators:
Application to real-time wireless speech encryption.
Comm. Nonl. Sci. and Num. Simu., 18(8):2035–2047.
Azzaz, M. S., Tanougast, C., Sadoudi, S., and Dandache,
A. (2013b). Robust chaotic key stream generator for
real-time images encryption. J. of RT Image Proc.,
8(3):297–306.
Azzaz, M. S., Tanougast, C., Sadoudi, S., Fellah, R., and
Dandache, A. (2013c). A new auto-switched chaotic
system and its fpga implementation. Comm. in Non-
linear Sci. and Num. Simu., 18(7):1792–1804.
Bouteghrine, B., Tanougast, C., and Sadoudi, S. (2021).
Novel image encryption algorithm based on new 3-d
chaos map. Mult. Tools and App., 80:25583–25605.
CAESAR project (2019). CAESAR: Competition for Au-
thenticated Encryption: Security, Applicability, and
Robustness. https://competitions.cr.yp.to/caesar.html.
Online; accessed 2023.
Cai, H., Sun, J.-y., Gao, Z.-b., and Zhang, H. (2022). A
novel multi-wing chaotic system with fpga implemen-
tation and application in image encryption. J. of RT
Image Proc., 19(4):775–790.
eSTREAM (2014). eSTREAM: the ECRYPT Stream Ci-
pher Project. https://www.ecrypt.eu.org/stream/. On-
line; accessed 2023.
Fellah, R., Azzaz, M. S., Tanougast, C., and Kaibou, R.
(2021). Design of a simple and low cost chaotic signal
generation circuit for uwb applications. The Europ.
Phys. Journal Spec. Topics, 230(18-20):3439–3447.
Gafsi, M., Amdouni, R., et al. (2023). Hardware imple-
mentation of a strong pseudorandom number genera-
tor based block-cipher system for color image encryp-
tion and decryption. Int. J. of Circuits. Theory and
App., 51(1):410–436.
Gafsi, M., Hajjaji, M. A., Malek, J., and Mtibaa, A. (2021).
Fpga hw acceleration of an improved chaos-based
cryptosystem for rt image encryption and decryption.
J. of Amb. Intell. and Human. Comput., pages 1–22.
Hagras, E. A. A. and Saber, M. (2020). Low power
and high-speed fpga implementation for 4d memris-
tor chaotic system for image encryption. Mult. Tools
and App., 79:23203 – 23222.
Hasan, F. S. and Saffo, M. A. (2020). Fpga hw co-
simulation of image encryption using stream cipher
based on chaotic maps. Sens. and Imag., 21(1):35.
Kaibou, R., Azzaz, M. S., Benssalah, M., Teguig, D.,
Hamil, H., Merah, A., and Akrour, M. T. (2021). Real-
time fpga implementation of a secure chaos-based dig-
ital crypto-watermarking system in the dwt domain
using co-design approach. J. of RT Image Proc.,
18(6):2009–2025.
Kerckhoffs, A. (1883). La cryptographie militaire, ou, Des
chiffres usit
´
es en temps de guerre: avec un nouveau
proc
´
ed
´
e de d
´
echiffrement applicable aux syst
`
emes
`
a
double clef. Librairie militaire de L. Baudoin.
Kifouche, A., Azzaz, M. S., et al. (2022). Design and im-
plementation of a new lightweight chaos-based cryp-
tosystem to secure iot communications. Int. J.of Info.
Sec., 21(6):1247–1262.
Kocarev, L. and Parlitz, U. (1995). General approach for
chaotic synchronization with applications to commu-
nication. Phy. review letters, 74(25):5028.
Liu, S., Lau, F. C., and Schafer, B. C. (2019). Accelerating
fpga prototyping through predictive model-based hls
design space exploration. In Proc. of the 56th Annual
Design Automation Conf., pages 1–6.
Maazouz, M., Toubal, A., Bengherbia, B., Houhou, O., and
Batel, N. (2022). Fpga implementation of a chaos-
based image encryption algorithm. J. of King Saud
Univ.-Comp. and Info. Sciences, 34(10):9926–9941.
Mohanta, B. K., Jena, D., Satapathy, U., and Patnaik, S.
(2020). Survey on iot security: Challenges and solu-
tion using machine learning, artificial intelligence and
blockchain technology. IoT, 11:100227.
NIST Lightweight Crypto (2017). Lightweight
Cryptography. https://csrc.nist.gov/projects/
lightweight-cryptography/round-1-candidates.
Online; accessed 2023.
Rawat, A., Sehgal, K., Tiwari, A., Sharma, A., and Joshi,
A. (2019). A novel accelerated implementation of rsa
using parallel processing. J. of Discrete Math. Sci. and
Crypto., 22(2):309–322.
Sun, J., Zang, M., Liu, P., and Wang, Y. (2022). A secure
communication scheme of three-variable chaotic cou-
pling synchronization based on dna chemical reaction
networks. IEEE Trans. on Sig. Proc., 70:2362–2373.
Tanougast, C., Bouteghrine, B., Sadoudi, S., and
Chen, H. (2023). Image encryption using a
chaotic/hyperchaotic multidimensional discrete sys-
tem. In Recent Adv.in Im. Sec. Tech.: Intelligent Im-
age, Sig., and Video Proc., pages 105–125. Springer.
Touqeer, H., Zaman, S., Amin, R., Hussain, M., Al-
Turjman, F., and Bilal, M. (2021). Smart home se-
curity: challenges, issues and solutions at different iot
layers. The J. of Sup.comp, 77(12):14053–14089.
Design of a New Hardware IP-HLS for Real-Time Image Chaos-Based Encryption
485
