Study on Adversarial Attacks Techniques, Learning Methods and

Countermeasures: Application to Anomaly Detection

Anis Bouaziz

1 a

, Manh-Dung Nguyen

1 b

, Valeria Vald

1 c

Ana Rosa Cavalli

1,2 d

and Wissam Mallouli

1 e

Montimage EURL, 39 rue Bobillot 75013, Paris, France

Institut Telecom SudParis, 5 rue Charles Fourrier 91011 Evry, France

Keywords:

Cybersecurity, Artiﬁcial Intelligence, Adversarial Attacks, Explainability, Countermeasures.

Abstract:

Adversarial attacks on AI systems are designed to exploit vulnerabilities in the AI algorithms that can be used

to manipulate the output of the system, resulting in incorrect or harmful behavior. They can take many forms,

including manipulating input data, exploiting weaknesses in the AI model, and poisoning the training samples

used to develop the AI model. In this paper, we study different types of adversarial attacks, including evasion,

poisoning, and inference attacks, and their impact on AI-based systems from different ﬁelds. A particular

emphasis is placed on cybersecurity applications, such as Intrusion Detection System (IDS) and anomaly

detection. We also depict different learning methods that allow us to understand how adversarial attacks work

using eXplainable AI (XAI). In addition, we discuss the current state-of-the-art techniques for detecting and

defending against adversarial attacks, including adversarial training, input sanitization, and anomaly detection.

Furthermore, we present a comprehensive analysis of the effectiveness of different defense mechanisms against

different types of adversarial attacks. Overall, this study provides a comprehensive overview of challenges and

opportunities in the ﬁeld of adversarial machine learning, and serves as a valuable resource for researchers,

practitioners, and policymakers working on AI security and robustness. An application for anomaly detection,

especially malware detection is presented to illustrate several concepts presented in the paper.

1 INTRODUCTION

Artiﬁcial Intelligence (AI) has a wide range of ap-

plications in computer science (Jan et al., 2023;

Apruzzese et al., 2022), from data mining, natural lan-

guage processing, optimization and decision making,

to robotics and cybersecurity. While they offer many

beneﬁts and opportunities, they also present a num-

ber of challenges and risks (Parnas, 2017) including

bias and discrimination, lack of transparency, security

risks, dependence on data and even ethical concerns.

The security risks are mainly due to the fact that

AI models are vulnerable to adversarial attacks (Long

et al., 2022), where attackers manipulate inputs in or-

der to induce the model to misbehave or provide in-

correct outputs. Adversarial machine learning (AML)

https://orcid.org/0009-0000-3429-3540

https://orcid.org/0000-0001-8760-3258

https://orcid.org/0009-0000-6632-396X

https://orcid.org/0000-0003-2586-9071

https://orcid.org/0000-0003-2548-6628

is a ﬁeld of research that focuses on studying how

machine learning models can be manipulated or at-

tacked by adversaries with the goal of causing mis-

classiﬁcation or other harmful outcomes. Adversarial

attacks involve the intentional creation of inputs that

are speciﬁcally designed to cause a machine learning

model to produce unexpected outputs. Adversarial

machine learning (Wang et al., 2019) is a signiﬁcant

challenge for the security and reliability of machine

learning models, particularly in high-stakes applica-

tions such as autonomous vehicles, medical diagno-

sis, and ﬁnancial fraud detection. Researchers are en-

gaged in developing techniques to reduce the impact

of adversarial attacks(Alotaibi and Rassam, 2023).

This involves developing more robust machine learn-

ing models, designing algorithms that are more re-

silient to adversarial attacks, and implementing more

effective detection and mitigation strategies.

The use of AI to conduct cyber attacks is a new

trending challenge for security experts. While AI has

been used extensively in cybersecurity to detect and

prevent attacks, attackers can also use AI to evade tra-

510

Bouaziz, A., Nguyen, M., ValdÃl’s, V., Cavalli, A. and Mallouli, W.

Study on Adversarial Attacks Techniques, Learning Methods and Countermeasures: Application to Anomaly Detection.

DOI: 10.5220/0012125100003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 510-517

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ditional security measures and conduct more sophis-

ticated attacks (Alotaibi and Rassam, 2023). For this

reason, more sophisticated solutions are studied to

build more robust AI-based systems resilient to these

kinds of attacks. The topic of adversarial machine

learning has been extensively studied in computer vi-

sion literature, exploring different attack techniques

(Akhtar et al., 2021). Surveys have revealed the ef-

fectiveness of gradient-based methods against deep

neural networks(Akhtar et al., 2021) and the relative

robustness of decision trees (Papernot et al., 2017).

These surveys emphasize the importance of under-

standing attack effectiveness and identifying defense

mechanisms (Qiu et al., 2022).

An example of a technique that can be employed

to alleviate the consequences of adversarial attacks

is eXplainable Artiﬁcial Intelligence (XAI) (Arrieta,

2020). XAI facilitates this mitigation process by of-

fering enhanced transparency and understanding of

the internal mechanisms of machine learning mod-

els. Through explainability techniques, users gain

improved comprehension of the model’s functioning,

encompassing decision-making processes and the fea-

tures on which those decisions are based. By in-

creasing transparency, XAI aids in the identiﬁcation

of potential vulnerabilities and weaknesses within the

model that adversaries could exploit.

This paper explores the various ways attackers can

exploit the weaknesses of AI/ML algorithms and tools

for performing adversarial targeted and non-targeted

attacks.A particular emphasis is placed on AI-based

Intrusion Detection Systems (IDSs) (Habeeb and

Babu, 2022). Indeed, adversarial attacks against IDSs

refer to the deliberate manipulation by an attacker of

network trafﬁc or system behavior to evade detec-

tion by IDS. These attacks are designed to exploit the

weaknesses of the IDS by introducing subtle changes

in the trafﬁc that make it difﬁcult for the system to

accurately classify it as normal or malicious. An ex-

perimentation is also presented to attack an industrial

open-source IDS called “ACAS”

In the context of network anomaly detection, ad-

versarial ML attacks can be carried out in several

ways like poisoning attacks, evasion attacks, gener-

ative adversarial attacks, etc. In this paper, we pro-

pose using different security mechanisms and differ-

ent learning methods to improve the reliability and re-

silience of AI-based systems. To mitigate adversarial

attacks, network anomaly detectors can employ vari-

ous techniques such as ensemble learning, input sani-

tization, and model retraining. Ensemble learning in-

volves combining multiple anomaly detection mod-

els to improve accuracy and robustness. Input san-

https://github.com/Montimage/acas

itization involves removing or normalizing features

that are vulnerable to manipulation. Model retraining

involves continuously updating the model with new

data to keep up with the evolving threat landscape.

In particular, XAI, or explainable AI, is used to

comprehend, identify and defend against adversarial

attacks. One approach of employing XAI for adver-

sarial attacks is to develop visualizations that assist in

highlighting the regions of the input data that are most

vulnerable to changes or are most likely to be altered

by attackers. This can help to identify potential vul-

nerabilities in the model and inform the development

of more effective defense mechanisms.

The paper is organized as follows. In section 2,

we present our study on adversarial attacks against

machine learning relevant to AI-based intrusion de-

tection systems. Section 3 depicts the possible coun-

termeasures that we can apply to mitigate these at-

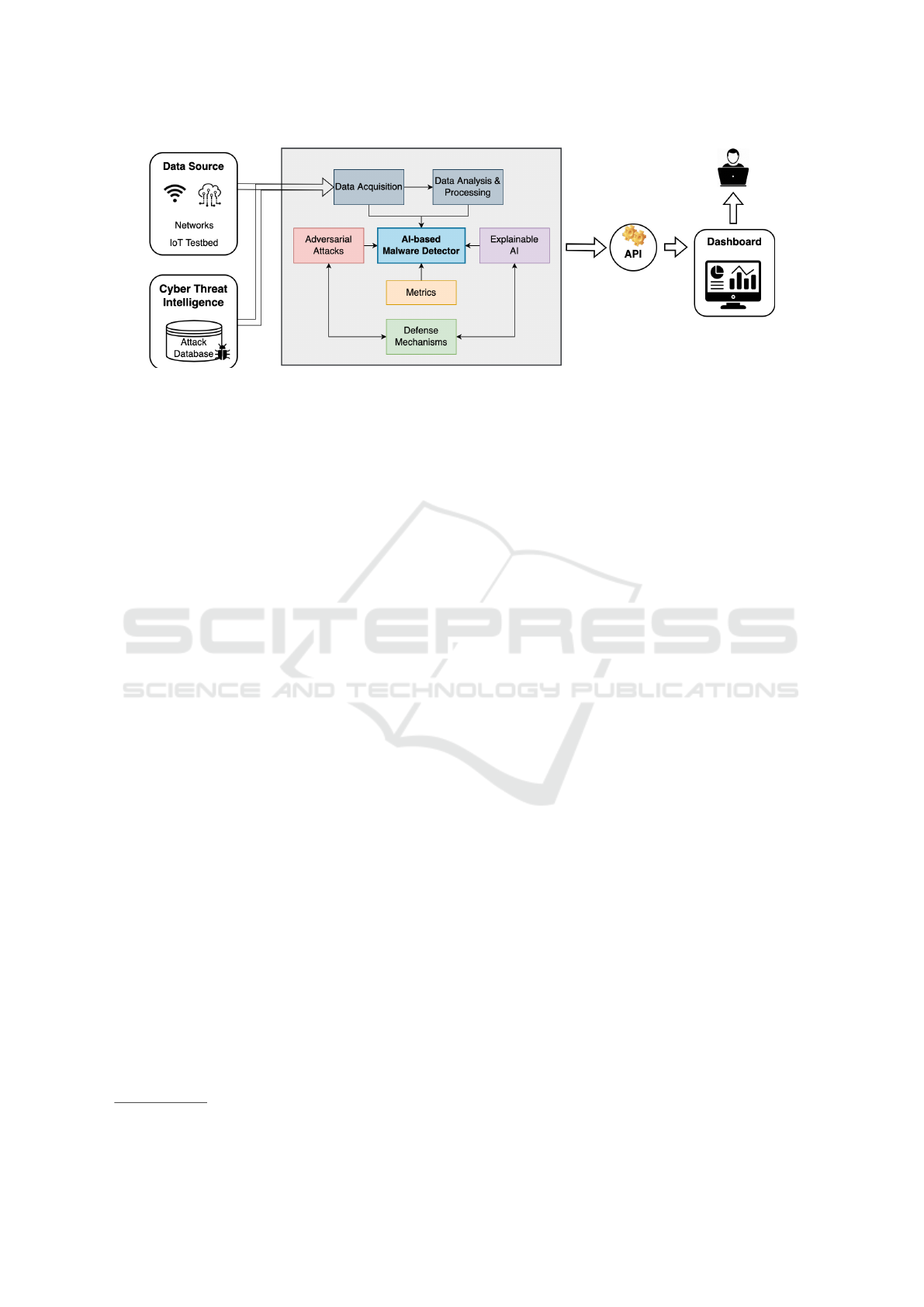

tacks. And ﬁnally, Section 4 presents an illustration

of all these technical concepts in the context of our

AI-based framework for anomaly detection with ex-

plainability and robustness. Section 5 concludes the

paper and discusses our future work.

2 ADVERSARIAL ATTACKS IN

MACHINE LEARNING

Adversarial machine learning (AML) is a crucial con-

cept to examine when building ML algorithms, aim-

ing to deceive or degrade the performance of ML

models on speciﬁc tasks. AML involves a game be-

tween ML algorithms and adversaries (Dasgupta and

Collins, 2019), where the machine learns to correctly

classify new data, while the adversary attempts to

alter the existing data, new data, or the machine’s

parameters to cause misclassiﬁcation. AML attacks

are constructed by introducing imperceptible pertur-

bations to the input samples of the model, resulting

in misclassiﬁcation with high conﬁdence while pre-

serving the primary functionality of the samples. In

cybersecurity, AML attacks pose a critical challenge,

and various approaches have been proposed to defend

against them (Rosenberg et al., 2021; Wang et al.,

2020). Adversarial attacks can be categorized as at-

tacks in the training stage and attacks in the testing

stage (Qiu et al., 2019). Concretely, poisoning at-

tacks (Barreno et al., 2006) occur during the train-

ing stage, while evasion attacks (Szegedy et al., 2014)

occur during the testing stage. Various frameworks

and algorithm-independent techniques have been pro-

posed for conducting theses attacks against a variety

of AI algorithms and datasets (Jagielski et al., 2021;

Mozaffari-Kermani et al., 2015). For deep learning

Study on Adversarial Attacks Techniques, Learning Methods and Countermeasures: Application to Anomaly Detection

511

(DL) algorithms, back-gradient optimization is used

to reduce attack complexity (Mu

noz-Gonz

alez et al.,

2017), and backdoor attacks (Dai and Chen, 2019)

have been implemented against long short-term mem-

ory networks based text classiﬁcation.

2.1 Threat Model and Adversarial

Capabilities

The threat model is a concept that deﬁnes the at-

tacker’s objectives, information gathering, and attack

steps. It enables systematic and theoretical analy-

sis of adversarial machine learning. The common

threat model taxonomy for machine learning systems

characterizes attacks using three dimensions (Barreno

et al., 2006): inﬂuence, speciﬁcity, and security viola-

tion. Inﬂuence deﬁnes the attacker’s control level over

the training process (causative or exploratory). Speci-

ﬁcity measures the degree of precision with which

the attacker’s target is speciﬁed (targeted, indiscrim-

inate). Security violation refers to the attacker’s aim

to induce misclassiﬁcations (integrity or availability

attack) (Shi and Sagduyu, 2017).

Adversarial capabilities represent the attacker’s

ability to access and use the greatest amount of in-

formation about the target model. These capabili-

ties depend entirely on whether the model is attacked

in the training or testing phase. During the train-

ing phase, the adversary can manipulate the model’s

logic (logic corruption), alter the dataset before the

training (data modiﬁcation), or insert new adversar-

ial samples into the training dataset (data injection)

(Nawaz et al., 2018). During the testing stage, adver-

sarial assaults attempt to persuade the targeted model

to produce false outputs. The effectiveness and speci-

ﬁcity of these attacks are primarily determined by the

knowledge of the model available to the adversary

(Qiu et al., 2019).

A white-box attack scenario refers to the attacker

having complete knowledge of the target model, data

distribution, and model parameters, which makes it

easier to identify the most vulnerable feature space of

the target model. Conversely, in black-box attacks,

the attacker has limited access to the target model

(Barreno et al., 2006). Adaptive black-box attacks en-

able the adversary to query the model to obtain corre-

sponding labels, use this information to label a care-

fully selected dataset, train a new model, and then

use white-box attacks to defeat the original model. In

contrast, in non-adaptive black-box attacks, the adver-

sary can only access the model’s training data distri-

bution (Chang Xiao, 2019). Strict black-box attacks

involve collecting pairs of input-output values from

the target classiﬁer without changing the inputs (Xu

et al., 2021), similar to a known-plaintext attack in

cryptography. Hence, this attack requires a large set

of input-output data.

2.2 Adversarial Learning Methods

Adversarial machine learning approaches rely on di-

rection sensitivity estimation (Qiu et al., 2019) to

identify the dimensions of X that provide expected ad-

versarial performance with minimal perturbation. A

variety of theoretical adversarial learning approaches

can be used to generate adversary samples. These

techniques differ in complexity, performance, type

of data and generation rate. AML approaches are

based on the notion that when adding relatively in-

signiﬁcant perturbation δ to an original sample X, the

crafted sample X

∗

can express adversarial properties

(Rosenberg et al., 2021). The generated adversarial

sample will be categorized differently by the target

model. Table 1 shows a summary of common non-

deep learning methods used for attacking machine

learning models, including gradient-based, and score-

based attack (Rosenberg et al., 2021). Gradient-based

attacks (e.g., FGSM) require knowledge of the target

classiﬁer’s architecture, gradients and thus are con-

sidered white-box attacks (Mu

noz-Gonz

alez et al.,

2017). Score-based attacks (ZOO) rely on the con-

ﬁdence score of the target classiﬁer. This section fo-

cuses on black-box decision-based attacks that exclu-

sively rely on the predicted label. Such attacks are

particularly signiﬁcant in real-world scenarios where

targeted models are usually shielded from any di-

rect access. Within this context, we explore GAN-

based attacks, which demonstrate remarkable efﬁcacy

due to their ability to generate adversarial examples

that are both realistic and diverse. These attacks

pose a considerable challenge for conventional de-

fense mechanisms, making them highly promising for

future advancements in adversarial attack strategies.

GAN-Based Attacks. The Generative Adversarial

Networks (GANs), ﬁrst developed in 2014 (Good-

fellow et al., 2014), involves a game between two

linked neural networks, a generator and a discrimi-

nator, that compete to learn from each other’s expe-

rience to reach Nash equilibrium. The generator cre-

ates adversarial examples that are extremely similar to

the original set, whereas the discriminator tries to dif-

ferentiate the original sample from the fake/generated

one. GANs have multiple applications including im-

age and video synthesis, natural language processing,

and drug discovery. However, GANs can also gen-

erate adversarial examples that pose security risks to

machine learning models.

ICSOFT 2023 - 18th International Conference on Software Technologies

512

Table 1: Overview of the most commonly studied gradient-based adversarial attacks.

Attack Description Advantages / Limits

Fast Gradient Sign Method

(FGSM) (Goodfellow

et al., 2015)

One-step adversarial attack method that perturbs input feature

by adding small noise in the sign of the gradient of the loss

function

Fast and simple, generates easily de-

tectable adversarial examples, unstable

for large perturbations

Jacobian-based Saliency

Maps Attacks (JSMA)

(Papernot et al., 2016)

Iterative adversarial attack method that perturbs the input by

changing the least salient features based on the Jacobian ma-

trix of the model’s output

Effective for targeted attacks that can

handle non-differentiable models.

Computationally expensive and may

not ﬁnd global optimum

Limited-memory Broyden-

Fletcher-Goldfarb-Shanno

(L-BFGS)

Optimization algorithm that maintains an approximate Hessian

matrix, used to minimize the amount of perturbations added to

images (Szegedy et al., 2014)

Effective at generating adversarial

examples, but are resource-demanding

Deepfool (Moosavi-

Dezfooli et al., 2016)

Iterative method that estimates the minimum L2 perturbation

required to cross a linear decision boundary by solving a linear

system at each iteration

Fast and effective for low-dimensional

data

C&W (Carlini and Wag-

ner)(Carlini and Wagner,

2017)

Optimization-based attack method that ﬁnds the minimum

perturbation using a custom loss function that balances mis-

classiﬁcation and perturbation size

One of the most effective and widely

used adversarial attacks but is resource

intensive

Zeroth Order Optimization

(ZOO) (Chen et al., 2017)

Model-agnostic and gradient-free attack method that iteratively

approximates gradients using ﬁnite differences and performs

local search to ﬁnd adversarial examples

Effective for black-box attacks but

requires many queries

The generator (G) in GANs can be utilized in var-

ious contexts after being trained to a certain number

of epochs. For instance, it can be used as an oversam-

pler for data augmentation (He Zhang, 2019). This

technique can be employed as a defensive mechanism

(adversarial training) to enhance the detection perfor-

mance of ML classiﬁers (Bai et al., 2021). How-

ever, GAN-generated adversarial examples can also

be exploited by black-box attackers to generate eva-

sion samples (Randhawa et al., 2022; Lin et al., 2022).

Thus, it is crucial to develop robust ML classiﬁers that

can defend against adversarial evasion to protect AI-

based systems (et al., 2021).

CTGAN (Conditional GAN for Tabular Data) is

a type of generative model based on GANs that

learns the joint distribution of tabular data and gen-

erates synthetic data that closely resembles the orig-

inal data (Xu et al., 2019). CTGAN employs con-

ditional GANs to model the conditional distribution

of each column and solves non-Gaussian and mul-

timodal distribution problems using a mode-speciﬁc

normalization approach (Wang et al., 2022). It

also addresses the issue of data imbalance in dis-

crete columns through the use of conditional gener-

ators and training-by-sampling. CTGAN has many

applications, including data augmentation, privacy-

preserving data sharing, and model training with lim-

ited data (Stavroula Bourou and Zahariadis, 2021). In

the ﬁeld of cybersecurity, CTGAN has been used to

generate synthetic network trafﬁc data for anomaly or

intrusion detection (Lin et al., 2022), or to create ad-

versarial malware samples that bypass malware clas-

siﬁers without compromising their damaging func-

tionality (Hu and Tan, 2017).

Another generative model based on GANs is

table-GAN (Park et al., 2018), which was designed to

synthesize tabular data with categorical, discrete, and

continuous values that closely resemble the original

data. Table-GAN incorporates a classiﬁer neural net-

work to improve the semantic integrity of synthetic

records and prevent information leaking, making it

difﬁcult to detect that the table is fabricated. Unlike

other GANs that generate images or text, TableGAN

generates data that can be organized into tables, mak-

ing it with CTGAN useful for cybersecurity applica-

tions such as trafﬁc generation and malware mutation

(Stavroula Bourou and Zahariadis, 2021; Hu and Tan,

2017).

There are many other applications of GANs an

in cybersecurity, including system robustness (et al.,

2021; Iftikhar Rasheed, 2020), malware adaptation

(Renjith G, 2022), phishing (Sern et al., 2020), or

password guessing (Hitaj et al., 2019). However, in

low-volume data regimes such as medical diagnos-

tic imaging and cybersecurity, more speciﬁc models

are required due to the restricted number of anoma-

lous samples. EVAGAN (Randhawa et al., 2022) is a

model proposed for low data regime challenges that

leverage oversampling for detection enhancement of

ML classiﬁers, can both generate evasion samples

and operate as an evasion-aware classiﬁer. GANs-

generated adversarial samples have been used in gen-

erating network attacks (Ahmed Aleroud, 2020), in-

cluding SynGAN (Charlier et al., 2019) to generat-

ing malicious packet ﬂow mutations using real attack

trafﬁc, and IDSGAN (Lin et al., 2022) for adversarial

malicious trafﬁc records generation with the aim of

deceiving and evading intrusion detection systems.

Adversarial attacks remain a signiﬁcant threat

to machine learning models, especially those used

in critical applications such as autonomous vehi-

cles (Iftikhar Rasheed, 2020) and medical diagnosis

(Mozaffari-Kermani et al., 2015). As discussed in this

chapter, various types of adversarial attacks can ex-

Study on Adversarial Attacks Techniques, Learning Methods and Countermeasures: Application to Anomaly Detection

513

ploit vulnerabilities in the model’s input data and lead

to incorrect predictions. Next, we will present several

defense mechanisms against such attacks.

3 COUNTERMEASURES

Adversarial attacks exploit vulnerabilities in machine

learning models to bypass security measures. To pro-

tect models against such attacks, numerous counter-

measures have been proposed in the literature (Qiu

et al., 2019). One of the most effective techniques

in the literature is the adversarial training (Madry

et al., 2019). It involves training the model with

adversarial examples to improve their robustness.

However, the model may still be vulnerable to new

attacks.Gradient-masking aimed at impeding attack-

ers from estimating model gradients by building a

model in which their gradients are useless. However,

models are still vulnerable to adversarial examples.

Defensive distillation technique uses a complex-

primary model trained and the output is given to a

smaller secondary model to learn the output function

and probabilities. This approach is adaptable to un-

known attacks and acts as an extra layer of protec-

tion. However, it stills vulnerable to poisoning at-

tacks during the training (Qiu et al., 2022). While

Feature squeezing compresses input features of the

models to improve security, particularly in image pro-

cessing by changing the color depth or adding blur

to the image(Xu et al., 2018). While its application

to other contexts decrease their effectiveness (Rosen-

berg et al., 2021) consider that feature squeezing can

be applied. To block transferability or black-box at-

tacks the authors in (Hosseini et al., 2017) present a

defense mechanism that adds a new Null label indicat-

ing that the example is from an adversary and discard

it instead of classifying it to the original label.

Defenses against universal perturbation attacks

include adversarial training and distillation. Other de-

fenses train a network to extract features of adver-

sarial examples and gives the output to another net-

work to identify adversarial examples. The authors in

(Akhtar et al., 2018) propose a defense against uni-

versal perturbations, where from clean data, image-

agnostic adversarial examples are generated and then

given to a perturbation rectifying network (PRN). The

perturbation detection network extracts features from

the differences between the inputs and the outputs of

the PRN and outputs a binary classiﬁer.

Next, we will discuss explainable AI for adversar-

ial attack detection. This approach offers the poten-

tial to mitigate the limitations of the aforementioned

countermeasures by enhancing the interpretability of

machine learning models.

4 FRAMEWORK FOR ANOMALY

DETECTION WITH XAI AND

ROBUSTNESS

4.1 XAI and Adversarial Attacks

Explainability (XAI) and adversarial attacks are both

critical aspects to consider in the development of ma-

chine learning models. XAI (Arrieta, 2020) is a

promising set of technologies that increases the AI

black-box models’ transparency to explain why cer-

tain decisions were made. XAI is crucial to enhance

trust for people to use future AI-based applications

by offering understandable explanations for its pre-

dictions and decisions. Some popular post-hoc ex-

plainability methods are visual explanations, LIME

local explanations (Ribeiro et al., 2016), explanations

by example, and SHAP feature relevance explanations

(Lundberg and Lee, 2017). Adversarial attacks, on

the other hand, involve intentionally manipulating in-

put data to misguide a machine learning model into

making erroneous predictions.

Using XAI to Detect Attacks. XAI can help in de-

tecting adversarial attacks in machine learning mod-

els. The authors of (Malik et al., 2022) propose a

three-stage approach to adversarial training improve

the detection of cyber threats in network trafﬁc data.

They ﬁrst use GAN to produce adversarial examples,

apply XAI techniques to generate explanations, and

then retrain the detection model using those explana-

tions. Furthermore, SHAP signatures are useful to de-

tect adversarial examples by comparing the signatures

of the original input and the perturbed input (Fidel

et al., 2020). If the signatures differ signiﬁcantly, the

input is classiﬁed as adversarial.

Adversarial Attacks Against XAI. Despite XAI

methods providing transparency and explainability to

AI systems to prevent cyber threats, the current XAI

models are at risk due to the possibility of being

fooled by cyber attackers. The explanations generated

by some of the most popular XAI explanation meth-

ods (Slack et al., 2020), such as LIME and SHAP,

have been shown to be counter-intuitive. Therefore,

defensive approaches should focus more on protect-

ing the explanation results of XAI-based systems, in

addition to their prediction results.

Tradeoff. The tradeoff between XAI and adversarial

attacks is complex and multifaceted. On one hand, in-

creasing transparency and interpretability of a model

can expose it to vulnerabilities from adversarial at-

ICSOFT 2023 - 18th International Conference on Software Technologies

514

Figure 1: Architecture of our AI-based malware detector.

tacks. An attacker can use the explanations provided

by a XAI system to identify weaknesses in the model

and craft more effective adversarial examples. For ex-

ample, for NN-based models, an attacker could use

the explanations provided by XAI to identify the neu-

rons that are most sensitive to changes in input data.

On the other hand, if a model is not transparent or in-

terpretable, it can be challenging to not only compre-

hend why the model made a particular prediction or

decision, but also to detect and diagnose adversarial

attacks. Therefore, it is important to strike a balance

between XAI and adversarial attacks when develop-

ing secure and robust machine learning models.

4.2 Architecture

In this section, we propose an AI-based framework

for anomaly detection in encrypted trafﬁc with high

performance, explanation and robustness against ad-

versarial attacks. Figure 1 shows the architecture of

our anomaly detection framework.

Data acquisition module collects raw trafﬁc data

from networks or IoT testbed in either online or of-

ﬂine mode. It can also use Cyber Threat Intelligence

(CTI) sources, e.g., deployed honeypots, to learn and

continuously train our model using attack patterns and

past anomaly information in the database.

Data analysis & processing module employs the

open source Montimage monitoring tool

(MMT) to

parse a wide range of network protocols (e.g., TCP,

UDP, HTTP, and more than 700) and extract ﬂow-

based features. In particular, we extract 59 features,

including basic features in packet headers and statisti-

cal features after performance trafﬁc aggregation into

ﬂows. Finally, the restructured and computed data is

transformed into a numeric vector so that can be eas-

ily processed by our AI model.

AI-based malware detector module is responsi-

https://github.com/Montimage/mmt-probe

ble for creating and utilizing a ML model able to

classify the vectorized form of network trafﬁc data.

Our proposed approach involves a hybrid model that

combines two DL techniques: Stacked Autoencoders

(SAE) and Convolutional Neural Networks (CNN).

We ﬁrst train two SAEs, one for each class of data

(normal or malware). Each SAE is designed with one

hidden dense layer and trained separately with their

respective data. The output of each SAE is then con-

catenated to form a single vector, which is then passed

as input to the CNN. The CNN structure is based on

the well-known VGG16 model (Simonyan and Zis-

serman, 2014), which consists of three repeated seg-

ments that are built from two convolutional layers

(Conv1D) followed by a MaxPool layer (MaxPool-

ing1D). After three blocks of such a structure, a ﬂatten

layer (Flatten) followed by two dense layers (Dense)

are used in order to provide the ﬁnal classiﬁcation.

Adversarial attacks module injects various eva-

sion and poisoning adversarial attacks for robustness

analysis of our system. As we use a complex hard-

to-interpret DL model with a large number of fea-

tures for malware detection purposes, interpretability

is crucial to earn trust of its end user. Explainable

AI module aim at producing post-hoc global and lo-

cal explanations of predictions of our model. As we

need to consider the tradeoff between explainability,

robustness and performance of our system, Metrics

module allows to measure quantiﬁable metrics for its

accountability and resilience. Finally, Defense mech-

anisms module provides countermeasures to prevent

attacks against both AI and XAI models.

We designed our anomaly detection framework to

be easily accessible for users or developers through a

Dashboard. It provides a range of ML services, in-

cluding extract features, build or retrain the model,

inject adversarial attacks, produce explanations and

evaluate our model using different metrics. Each of

these services is exposed through dedicated APIs that

can be accessed through the server, making it easy to

Study on Adversarial Attacks Techniques, Learning Methods and Countermeasures: Application to Anomaly Detection

515

integrate with other applications and systems.

5 CONCLUSION & FUTURE

WORK

This paper presented a comprehensive study of vari-

ous adversarial ML techniques and their signiﬁcance

in designing attacks and countermeasures. We ex-

plored the role of explainability as a countermea-

sure technique, highlighting its potential to enhance

transparency and user trust in AI-based applications.

Speciﬁcally, we discussed its application to an AI-

based framework for malware detection in encrypted

trafﬁc, showcasing its effectiveness in providing ex-

planations and robustness against adversarial attacks.

For future work, ﬁrstly, it is crucial to explore and

implement additional defense mechanisms to safe-

guard our model against potential attacks from ad-

versarial ML and XAI models. Secondly, extending

the framework to different use cases, such as user

network classiﬁcation in the context of 5G networks,

would greatly expand its practical utility. These direc-

tions hold immense potential for further customized

techniques and advancements in the ﬁeld of AI and

XAI, ultimately leading to more trustworthy and efﬁ-

cient AI-based solutions.

ACKNOWLEDGEMENTS

This work has been funded by the European

Union’s H2020 Programme under grant agreement

no. 101070450 for the AI4Cyber project and no.

883540 for the PUZZLE project.

REFERENCES

Ahmed Aleroud, G. K. (2020). Sdn-gan: Generative ad-

versarial deep nns for synthesizing cyber attacks on

software deﬁned networks.

Akhtar, N., Liu, J., and Mian, A. (2018). Defense

against universal adversarial perturbations. In 2018

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition.

Akhtar, N., Mian, A., Kardan, N., and Shah, M. (2021).

Threat of adversarial attacks on deep learning in com-

puter vision: Survey II.

Alotaibi, A. and Rassam, M. A. (2023). Adversarial ma-

chine learning attacks against intrusion detection sys-

tems: A survey on strategies and defense. Future In-

ternet.

Apruzzese, G., Laskov, P., de Oca, E. M., Mallouli, W.,

Rapa, L. B., Grammatopoulos, A. V., and Franco,

F. D. (2022). The role of machine learning in cyber-

security. CoRR.

Arrieta, A. B. e. a. (2020). Explainable artiﬁcial intelligence

(xai): Concepts, taxonomies, opportunities and chal-

lenges toward responsible ai. Information fusion.

Bai, T., Luo, J., Zhao, J., Wen, B., and Wang, Q. (2021).

Recent advances in adversarial training for adversarial

robustness.

Barreno, M., Nelson, B., Sears, R., Joseph, A. D., and Ty-

gar, J. D. (2006). Can machine learning be secure?

Association for Computing Machinery.

Carlini, N. and Wagner, D. (2017). Towards evaluating the

robustness of neural networks.

Chang Xiao, Peilin Zhong, C. Z. (2019). Enhancing adver-

sarial defense by k-winners-take-all. 29:7–29.

Charlier, J., Singh, A., Ormazabal, G., State, R., and

Schulzrinne, H. (2019). Syngan: Towards generating

synthetic network attacks using gans.

Chen, P.-Y., Zhang, H., Sharma, Y., Yi, J., and Hsieh, C.-J.

(2017). ZOO. In Proceedings of the 10th ACM Work-

shop on Artiﬁcial Intelligence and Security. ACM.

Dai, J. and Chen, C. (2019). A backdoor attack against

lstm-based text classiﬁcation systems.

Dasgupta, P. and Collins, J. (2019). A survey of game the-

oretic approaches for adversarial machine learning in

cybersecurity tasks. AI Magazine.

et al., X. Q. (2021). Strengthening ids against evasion

attacks with gan-based adversarial samples in sdn-

enabled network. In 2021 RIVF International Confer-

ence on Computing and Communication Technologies

(RIVF).

Fidel, G., Bitton, R., and Shabtai, A. (2020). When explain-

ability meets adversarial learning: Detecting adversar-

ial examples using shap signatures.

Goodfellow, I. J., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial networks.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2015). Ex-

plaining and harnessing adversarial examples.

Habeeb, M. S. and Babu, T. R. (2022). Network intrusion

detection system: A survey on artiﬁcial intelligence-

based techniques. Expert Syst. J. Knowl. Eng.

He Zhang, Xingrui Yu, P. R.-C. L. G. M. (2019). Deep ad-

versarial learning in intrusion detection: A data aug-

mentation enhanced framework.

Hitaj, B., Gasti, P., Ateniese, G., and Perez-Cruz, F. (2019).

Passgan: A deep learning approach for password

guessing.

Hosseini, H., Chen, Y., Kannan, S., Zhang, B., and Pooven-

dran, R. (2017). Blocking transferability of adversar-

ial examples in black-box learning systems.

Hu, W. and Tan, Y. (2017). Generating adversarial malware

examples for black-box attacks based on gan.

Iftikhar Rasheed, Fei Hu, L. Z. (2020). Deep reinforcement

learning approach for autonomous vehicle systems for

maintaining security and safety using lstm-gan.

Jagielski, M., Oprea, A., Biggio, B., Liu, C., Nita-Rotaru,

C., and Li, B. (2021). Manipulating machine learning:

Poisoning attacks and countermeasures for regression

learning.

ICSOFT 2023 - 18th International Conference on Software Technologies

516

Jan, Z., Ahamed, F., Mayer, W., Patel, N., Grossmann, G.,

Stumptner, M., and Kuusk, A. (2023). Artiﬁcial in-

telligence for industry 4.0: Systematic review of ap-

plications, challenges, and opportunities. Expert Syst.

Appl.

Lin, Z., Shi, Y., and Xue, Z. (2022). IDSGAN: Genera-

tive adversarial networks for attack generation against

intrusion detection. In Advances in Knowledge Dis-

covery and Data Mining. Springer International Pub-

lishing.

Long, T., Gao, Q., Xu, L., and Zhou, Z. (2022). A survey

on adversarial attacks in computer vision: Taxonomy,

visualization and future directions. Comput. Secur.

Lundberg, S. M. and Lee, S.-I. (2017). A uniﬁed approach

to interpreting model predictions. Advances in neural

information processing systems.

Madry, A., Makelov, A., Schmidt, L., Tsipras, D., and

Vladu, A. (2019). Towards deep learning models re-

sistant to adversarial attacks.

Malik, A.-E., Andresini, G., Appice, A., and Malerba, D.

(2022). An xai-based adversarial training approach

for cyber-threat detection. In 2022 IEEE Intl Conf on

Dependable, Autonomic and Secure Computing.

Moosavi-Dezfooli, S.-M., Fawzi, A., and Frossard, P.

(2016). Deepfool: a simple and accurate method to

fool deep neural networks.

Mozaffari-Kermani, M., Sur-Kolay, S., Raghunathan, A.,

and Jha, N. K. (2015). Systematic poisoning attacks

on and defenses for machine learning in healthcare.

IEEE Journal of Biomedical and Health Informatics.

noz-Gonz

alez, L., Biggio, B., Demontis, A., Paudice,

A., Wongrassamee, V., Lupu, E. C., and Roli, F.

(2017). Towards poisoning of deep learning algo-

rithms with back-gradient optimization.

Nawaz, R., Shahid, M. A., Qureshi, I. M., and Mehmood,

M. H. (2018). Machine learning based false data in-

jection in smart grid. In 2018 1st International Con-

ference on Power, Energy and Smart Grid (ICPESG).

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z. B., and Swami, A. (2016). The limitations of deep

learning in adversarial settings. In 2016 IEEE Euro-

pean Symposium on Security and Privacy (EuroS&P).

Papernot, N., McDaniel, P. D., Goodfellow, I. J., Jha, S.,

Celik, Z. B., and Swami, A. (2017). Practical black-

box attacks against machine learning. In Proceedings

of the 2017 ACM on Asia Conference on Computer

and Communications Security. ACM.

Park, N., Mohammadi, M., Gorde, K., Jajodia, S., Park, H.,

and Kim, Y. (2018). Data synthesis based on gener-

ative adversarial networks. Proceedings of the VLDB

Endowment.

Parnas, D. L. (2017). The real risks of artiﬁcial intelligence.

Commun. ACM.

Qiu, S., Liu, Q., Zhou, S., and Huang, W. (2022). Adversar-

ial attack and defense technologies in natural language

processing: A survey. Neurocomputing.

Qiu, S., Liu, Q., Zhou, S., and Wu, C. (2019). Review

of artiﬁcial intelligence adversarial attack and defense

technologies. Applied Sciences.

Randhawa, R. H., Aslam, N., Alauthman, M., and Raﬁq, H.

(2022). Evagan: Evasion generative adversarial net-

work for low data regimes.

Renjith G, Sonia Laudanna, A. S.-C. A. V. V. P. (2022).

Gang-mam: Gan based engine for modifying android

malware.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). ” why

should i trust you?” explaining the predictions of any

classiﬁer. In Proceedings of the 22nd ACM SIGKDD

international conference on knowledge discovery and

data mining.

Rosenberg, I., Shabtai, A., Elovici, Y., and Rokach, L.

(2021). Adversarial machine learning attacks and de-

fense methods in the cyber security domain. ACM

Computing Surveys (CSUR).

Sern, L. J., David, Y. G. P., and Hao, C. J. (2020). Phish-

GAN: Data augmentation and identiﬁcation of homo-

glyph attacks. In 2020 International Conference on

Communications, Computing, Cybersecurity, and In-

formatics (CCCI).

Shi, Y. and Sagduyu, Y. E. (2017). Evasion and causative

attacks with adversarial deep learning. In MILCOM

2017 - 2017 IEEE Military Communications Confer-

ence (MILCOM).

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Slack, D., Hilgard, S., Jia, E., Singh, S., and Lakkaraju, H.

(2020). Fooling lime and shap: Adversarial attacks on

post hoc explanation methods. In Proceedings of the

AAAI/ACM Conference on AI, Ethics, and Society.

Stavroula Bourou, Andreas El Saer, T.-H. V. A. V. and Za-

hariadis, T. (2021). A review of tabular data synthesis

using gans on an ids dataset.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., and Fergus, R. (2014). Intriguing

properties of neural networks.

Wang, D., Li, C., Wen, S., Nepal, S., and Xiang, Y. (2020).

Defending against adversarial attack towards deep

neural networks via collaborative multi-task training.

Wang, J., Yan, X., Liu, L., Li, L., and Yu, Y. (2022). Cttgan:

Trafﬁc data synthesizing scheme based on conditional

gan. Sensors.

Wang, X., Li, J., Kuang, X., Tan, Y., and Li, J. (2019). The

security of machine learning in an adversarial setting:

A survey. J. Parallel Distributed Comput.

Xu, J., Sun, Y., Jiang, X., Wang, Y., Yang, Y., Wang, C., and

Lu, J. (2021). Blindfolded attackers still threatening:

Strict black-box adversarial attacks on graphs.

Xu, L., Skoularidou, M., Cuesta-Infante, A., and Veera-

machaneni, K. (2019). Modeling tabular data using

conditional gan.

Xu, W., Evans, D., and Qi, Y. (2018). Feature squeez-

ing: Detecting adversarial examples in deep neural

networks.

Study on Adversarial Attacks Techniques, Learning Methods and Countermeasures: Application to Anomaly Detection

517
