Multi-Output Learning for Predicting Evaluation and Reopening of

GitHub Pull Requests on Open-Source Projects

Peerachai Banyongrakkul and Suronapee Phoomvuthisarn

Department of Statistics, Chulalongkorn University, Bangkok, Thailand

Keywords:

Pull-Based Development, Pull Request, GitHub, Deep Learning, Multi-Output Learning, Classiﬁcation.

Abstract:

GitHub’s pull-based development model is widely used by software development teams to manage software

complexity. Contributors create pull requests for merging changes into the main codebase, and integrators

review these requests to maintain quality and stability. However, a high volume of pull requests can over-

whelm integrators, causing feedback delays. Previous studies have built predictive models using traditional

machine learning techniques with tabular data, but these may lose meaningful information. Additionally, rely-

ing solely on acceptance and latency predictions may not be sufﬁcient for integrators. Reopened pull requests

can add maintenance costs and burden already-busy developers. This paper proposes a novel multi-output

deep learning-based approach that early predicts acceptance, latency, and reopening of pull requests, effec-

tively handling various data sources, including tabular and textual data. Our approach also applies SMOTE

and VAE techniques to address the highly imbalanced nature of the pull request reopening. We evaluate our

approach on 143,886 pull requests from 54 open-source projects across four well-known programming lan-

guages. The experimental results show that our approach signiﬁcantly outperforms the randomized baseline.

Moreover, our approach improves accuracy by 8.68%, precision by 1.01%, recall by 11.49%, and F1-score

by 6.77% in acceptance prediction, and MMAE by 6.07% in latency prediction, while improving balanced

accuracy by 9.43%, AUC by 9.37%, and TPR by 30.07% in reopening prediction over the existing approach.

1 INTRODUCTION

In recent decades, open-source software projects have

adopted the pull-based development model (Bird

et al., 2009), enabled by GitHub

to allow contrib-

utors to make software changes in a ﬂexible and efﬁ-

cient manner (Gousios et al., 2016) via a pull request.

The project’s integrators are responsible for evaluat-

ing the pull request and deciding whether to accept or

reject the changes. The role of integrators is crucial in

the pull-based model (Dabbish et al., 2013) because

they must not only make important decisions but also

ensure that pull requests are evaluated in a timely mat-

ter. In popular projects, the volume of incoming pull

requests is too large (Tsay et al., 2014). Therefore, it

may increase the burden on already-busy integrators

(Gousios et al., 2015) and cause contributors to expe-

rience delayed feedback (Gousios et al., 2016).

Thus, several studies using machine learning and

statistical techniques have been proposed to support

the pull-based model, especially integrators. There

have been two main ways to study the pull request

https://github.com/

evaluation, consisting of the decision to merge (i.e.,

acceptance) and the merging time (i.e., latency).

Most works have investigated factors inﬂuencing ac-

ceptance (Gousios et al., 2014; Tsay et al., 2014;

Soares et al., 2015; Ortu et al., 2020; Zhang et al.,

2022) and latency (Gousios et al., 2014; Yu et al.,

2015; Zhang et al., 2021), while a few works have fo-

cused on building a prediction model for acceptance

(Nikhil Khadke, 2012; Chen et al., 2019; Jiang et al.,

2020) and latency (de Lima J

unior et al., 2021).

Acceptance and latency seem to be insufﬁcient

for the pull request evaluation. After a pull request

is closed by an integrator, in some cases, it may be

opened again for further modiﬁcation and code re-

view (Mohamed et al., 2018). This pull request is

called a reopened pull request. Even though reopened

pull requests rarely happen (Jiang et al., 2019), they

may create conﬂicts with newly submitted pull re-

quests (McKee et al., 2017), add software mainte-

nance costs, and increase the burden for already-busy

developers (Mohamed et al., 2018). Two studies (Mo-

hamed et al., 2018; Mohamed et al., 2020) have de-

veloped models for predicting reopened pull requests,

Banyongrakkul, P. and Phoomvuthisarn, S.

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects.

DOI: 10.5220/0012125200003538

In Proceedings of the 18th International Conference on Software Technologies (ICSOFT 2023), pages 163-174

ISBN: 978-989-758-665-1; ISSN: 2184-2833

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

163

but they make predictions at the ﬁrst decision, which

may be too late. Integrators would beneﬁt from ear-

lier prediction results to identify pull requests more

likely to be reopened and come up with timely solu-

tions. However, early prediction is very challenging

due to limited available information. If only common

tabular features that are available, similar to existing

approaches, are used, it may not be sufﬁcient to create

accurate predictions.

In this paper, we introduce a novel multi-output

deep learning-based approach that predicts accep-

tance, latency, and reopening of pull requests at the

time of submission. Speciﬁcally, the predictions can

be generated and provided to integrators as feedback

immediately after the pull request is created. We

make use of deep learning to focus on automating and

enhancing performance while overcoming the lim-

ited information available at submission time and the

highly imbalanced nature of reopened pull requests.

In particular, to tackle the limited information, we in-

corporate both tabular data and textual data from the

pull request description and handle the nature of the

text by using various pre-trained models. To over-

come the highly imbalanced nature, we employ a

combination of SMOTE and VAE techniques.

In addition, we address the relationship between

pull request outputs, as previous research has shown

that reopened pull requests have lower acceptance

rates and longer evaluation times than non-reopened

ones (Soares et al., 2015; Jiang et al., 2019) by shar-

ing learning between outputs. Regarding the method-

ologies, we address a gap in pull request prediction

research by using a programming language-speciﬁc

experimental setting that balances speciﬁcity and gen-

eralization. It avoids the cold-start problem for new

projects and overly generalized models, which has

been a limitation in prior research that evaluated mod-

els at the project or all-in-one level. Also, previous

studies have highlighted the signiﬁcance of program-

ming language in pull request evaluation (Rahman

and Roy, 2014; Soares et al., 2015).

We perform extensive experiments on four

widely-known programming languages including,

Python, R, Java, and Ruby, along with popular open-

source software projects that follow the pull-based de-

velopment model on GitHub. Our approach outper-

forms the randomized baseline, achieving impressive

results on average. We obtain an accuracy of 0.762, a

precision of 0.878, a recall of 0.791, and an F1-score

of 0.832 in acceptance prediction, while we yield an

MMAE of 1.163 in latency prediction. For reopen-

ing prediction, we achieve a balanced accuracy of

0.618, an AUC of 0.689, and a TPR of 0.694. The

experimental results demonstrate the effectiveness of

our approach in validating the main contribution of

this paper. Notably, our approach exhibits signiﬁ-

cant improvements over an existing approach, with

enhancements of 8.68% in accuracy, 1.01% in pre-

cision, 11.49% in recall, 6.77% in F1-score, 6.07% in

MMAE, 9.43% in balanced accuracy, 9.37% in AUC,

and 30.07% in TPR. These ﬁndings provide strong

evidence that our approach effectively improves the

predictive performance in the context of pull request

evaluation and pull request reopening.

2 BACKGROUND & RELATED

WORK

In this section, we provide background information

on the pull-based development model, followed by a

comprehensive review of the existing literature.

2.1 Pull Request Workﬂow

Figure 1 shows GitHub’s pull-based development

workﬂow that allows contributors to make changes to

an open-source project without sharing access to the

main repository. Contributors create forks and make

changes locally. When a set of changes is ready to be

submitted to the main repository, they are required to

create an event, called a pull request, to request for

review and approval by an integrator. The integra-

tor inspects the changes and provides feedback. The

contributor can make additional commits to address

feedback before approval. The integrators have the

ﬁnal say in whether to accept or reject pull requests,

which can have consequences depending on their ex-

perience. While pull requests can enhance the efﬁ-

ciency and ﬂexibility of software development, this

workﬂow can increase the workload for integrators,

especially in popular projects. (Gousios et al., 2015).

2.2 Pull Request Lifecycle

There are three states of pull requests on GitHub as

shown in Figure 2, including:

• Open: the pull request has been proposed by the

contributor and is during discussions or waiting

for the integrator’s decision on whether it will be

accepted or rejected.

• Merged: the integrator approves the changes in

the pull request and merges them with the main

branch, thus closing the pull request.

• Closed: the integrator is not satisﬁed with the

changes and closes the pull request by rejecting

it.

ICSOFT 2023 - 18th International Conference on Software Technologies

164

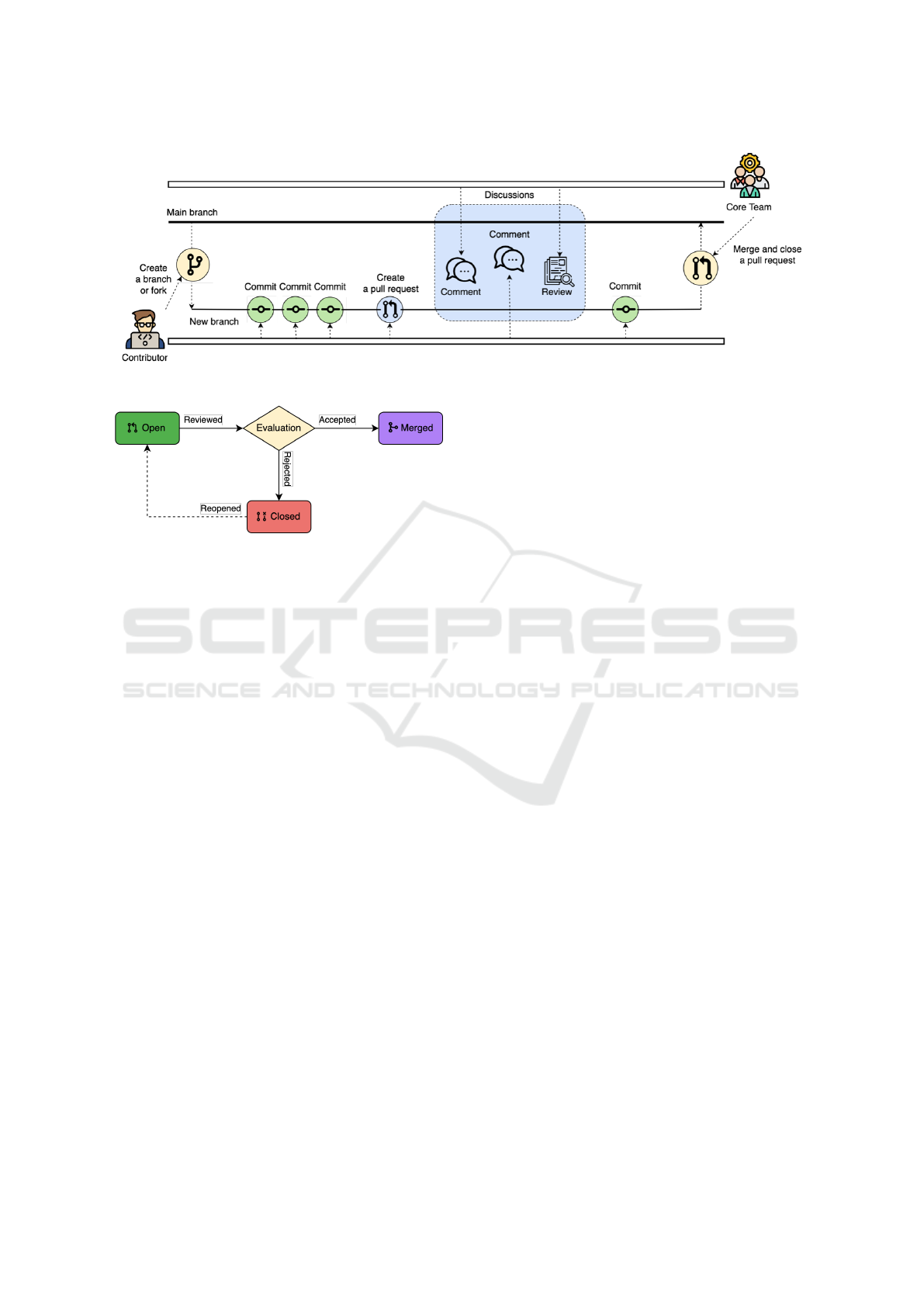

Figure 1: An overview of Github’s pull-based development workﬂow.

Figure 2: Pull request lifecycle on GitHub.

Pull requests, however, sometimes remain open

indeﬁnitely because the integrators are too busy or

do not want to discourage the contributor by explic-

itly rejecting the pull request. In addition to the

states above, pull requests can be reopened after be-

ing closed when the decision is changed, or further

code review is required. The contributor can attempt

further updates to reopen the review process, which

may lead to a new decision from the integrator. These

pull requests are called reopened pull requests. Re-

opening a pull request is considered a risk because

it can cause the integrator to take more effort (e.g.,

add software maintenance costs and increase the bur-

den for an already busy integrator) (Jiang et al., 2019).

Moreover, it may cause conﬂicts with newly submit-

ted pull requests if pull requests are reopened a long

time after being closed (McKee et al., 2017). There-

fore, the notiﬁcation of pull request evaluation and

pull request reopening can beneﬁt integrators by en-

couraging timely decisions, prioritizing pull requests,

and speeding up the review process, which can lead

to accelerated software product development.

2.3 Pull Request Evaluation

Therefore, identifying the quality of pull requests is

important, and this is called pull request evaluation.

Evaluating pull requests is a complex iterative process

involving multiple stakeholders. Currently, there are

two key aspects of evaluation that researchers study,

which are acceptance and latency (Yu et al., 2015).

2.3.1 Acceptance

Works focusing on the pull request acceptance study

the factors inﬂuencing the decision of integrators on

whether to accept or reject pull requests. For exam-

ple, the work in (Gousios et al., 2014) found that the

acceptance is primarily inﬂuenced by whether the pull

request modiﬁes recently modiﬁed code through Ran-

dom Forest. With the multidimensional association

rule, the work in (Soares et al., 2015) determined fac-

tors, including programming languages, that increase

the likelihood of a pull request merge. Other works

have studied social and technical factors, such as

comments affect metrics (Tsay et al., 2014) and con-

tributor experience and politeness (Ortu et al., 2020),

using logistic regression model. The work in (Zhang

et al., 2022) conducted a comprehensive analysis of

factors gathered from a systematic literature review

through statistical methods.

Aside from the works focusing on the inﬂu-

encing factors, a few studies concentrate on build-

ing a high-quality predictive model. The works in

(Nikhil Khadke, 2012) and (Jiang et al., 2020) used

machine learning to achieve high accuracy in pre-

dicting pull request acceptance, with Random Forest

and XGBoost being the most effective algorithms, re-

spectively. The approach by (Jiang et al., 2020) was

claimed that it outperformed the previous approach,

by (Gousios et al., 2014), which employed Random

Forest as their best classiﬁer. Another work is (Chen

et al., 2019) which derived new features to build the

predictive model from crowdsourcing.

2.3.2 Latency

Researchers focusing on pull request latency explore

the factors inﬂuencing the latency and estimate the

lifetime. The work in (Gousios et al., 2014) divided

the pull request lifetime into three classes and used the

Random Forest model to study pull request latency,

ﬁnding that the contributor’s merge percentage affects

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects

165

integration time. Logistic regression was employed in

(Yu et al., 2015) to model latency in GitHub projects

with continuous integration, and process-related fac-

tors were found to be more important when a pull re-

quest was closed.

The work in (Zhang et al., 2021) also used lin-

ear regression to study latency and found that the rel-

ative importance of factors varied depending on the

context, with process-related factors being more im-

portant when the pull request was closed. The work in

(de Lima J

unior et al., 2021) used regression and clas-

siﬁcation techniques to evaluate pull requests, ﬁnding

that linear regression worked best for regression while

Random Forest was best for classiﬁcation. Moreover,

the relationship between acceptance and latency is

studied in (Soares et al., 2015). They found that an

increase in the evaluation time for a pull request re-

duces the chances of its acceptance.

2.4 Pull Request Reopening

To the best of our knowledge, there are only a few

works related to reopening pull requests. Mohamed

et al. (Mohamed et al., 2018) designed an approach

named DTPre to predict reopened pull requests af-

ter their ﬁrst decision, which used oversampling to

handle imbalanced datasets. They evaluated DTPre

using four different classiﬁers on seven open-source

GitHub projects, ﬁnding that Decision Tree with over-

sampling was the best approach. The recent work

(Mohamed et al., 2020) by the same research team,

Mohamed et al., extended their work by performing

further cross-project experiments on reopened pull re-

quest prediction through the same dataset. Their ob-

jective was to handle the cold-start problem for new

software projects that have a limited number of pull

requests. Another study by (Jiang et al., 2019) investi-

gated the impact of reopened pull requests on code re-

view and found that reopened pull requests had lower

acceptance rates, longer evaluation time, and more

comments than non-reopened ones.

2.5 Gaps in Literature

The existing literature on pull request evaluation has

primarily focused on factors inﬂuencing acceptance

and latency. The studies have examined various

technical and social factors using traditional machine

learning methods to build predictive models. How-

ever, there is limited research on the topic of pull re-

quest reopening, which can have a negative impact

on software teams. Additionally, there is a lack of

models that provide timely predictions for integrators

immediately after a pull request is created. Another

gap is that text data from the pull request description

and the imbalanced nature of reopened pull requests

have not been effectively handled. The relationship

between pull request outputs, such as acceptance, la-

tency, and reopening, also needs to be addressed. Fur-

thermore, prior research on pull request prediction has

typically evaluated models at either the project or all-

in-one level, which can result in a cold-start problem

for new projects or overly generalized models. There-

fore, there is a gap in the literature in terms of using a

programming language-speciﬁc experimental setting

to balance speciﬁcity and generalization, which can

improve the applicability and relevance of the models

in real-world software development scenarios.

3 DATASET

This section describes the dataset used in this empiri-

cal study, including the process of data collection and

data labeling.

3.1 Overview of Dataset

We used GitHub data from well-known open-source

projects developed under popular programming lan-

guages. To collect the data and build our dataset,

we employed GitHub REST APIs and a web scraping

tool. Finally, we ﬁltered the data to derive the ﬁnal set

of data, consisting of 143,886 pull requests (samples)

from 54 open-source projects across four program-

ming languages (i.e., Python, R, Java, and Ruby). The

pull requests that we collected were created from Aug

2010 to Aug 2022. Table 1 illustrates our dataset, in-

cluding an overview of programming language char-

acteristics and summarizing the statistical character-

istics of the dataset for each language. As can be seen

from the table, it appears that we can categorize the

languages into two groups: a small community and

a big community. Python and R belong to the small

community group, while the rest fall into the big one.

3.2 Pull Request Collection

Our data were collected from two sources: the GitHub

server and the GitHub website, using GitHub REST

APIs and Selenium via Python scripts. We considered

only pull requests with a closed status to ensure that

they have been decided upon. Initially, we collected

the 100 most starred open-source projects written in

each programming language. Stargazer counts are

commonly used by researchers as a proxy for project

popularity (Papamichail et al., 2016). To ensure that

our dataset comprised relevant projects, we applied a

ICSOFT 2023 - 18th International Conference on Software Technologies

166

Table 1: Descriptive statistical information of our pull request dataset.

Language

Overview # Pull Requests / Project

# Projects # Pull Requests Min Med Max Mean SD

Python 11 9,773 173.00 764.00 2,574.00 888.45 693.12

R 12 8,310 150.00 456.00 1,706.00 755.45 557.19

Java 12 29,202 504.00 1,247.00 6,636.00 2,433.50 2,055.49

Ruby 19 96,601 662.00 3,760.00 13,431.00 5,084.26 3,864.15

TOTAL 54 143,886

Figure 3: An example of a pull request on GitHub.

second ﬁlter based on metrics such as the number of

open issues, fork status, number of forks, number of

total commits, number of contributors, and number of

pull requests. The projects included in our dataset had

to meet the following criteria:

• Not a fork version of another project.

• Not a documentation project.

• Have a number of open issues, number of total

commits, number of contributors, and number of

pull requests greater than or equal to the median

of these metrics.

3.3 Pull Request Labeling

Figure 3 displays an example of a pull request in the

Ruby project. Due to the purpose of the demonstra-

tion, the ﬁgure has been edited and we mainly show

some important parts of the pull request. The title

and body indicate that the contributor, Mr.A, pro-

posed changes to ﬁx an issue related to load error.

Initially, the integrator, Mr.B, rejected the pull request

as it seemed unrelated to Ruby. However, he later

reopened it as some parts seemed reasonable. The

pull request was then reviewed by another integrator,

Mr.C, who accepted it. This example highlights the

risks involved in reopening pull requests when an in-

tegrator’s initial decision is impaired due to various

factors. Thus, early recognition of such risks could

help integrators make more effective decisions.

To formulate our predictive problem, we denote

pred

as the reference point to the pull request sub-

mission time at which a prediction is made for a pull

request (i.e., prediction time). We would like to de-

velop a classiﬁcation approach that can predict three

outputs: 1) acceptance, 2) latency, and 3) reopening

for a pull request at time t

pred

. To be more speciﬁc,

the prediction outcomes would be made using only

information available at t

pred

1) Acceptance: This reﬂects the decision of an in-

tegrator on whether a pull request is accepted or

rejected in the ﬁnal close. There are two nominal

classes for acceptance which are Accepted: a pull

request is accepted to merge into the main branch

and Rejected: a pull request is rejected to merge

into the main branch.

2) Latency: This reﬂects the time difference be-

tween the pull request submission and the ﬁnal

close (i.e., lifetime). We employ the way to dis-

cretize the lifetime from (de Lima J

unior et al.,

2021) where the magnitude is maintained. We

classify latency into ﬁve ordinal classes which are

Hour: lifetime ≤ 60 mins, Day: 60 mins < life-

time ≤ 24 hours, Week: 24 hours < lifetime ≤ 7

days, Month: 7 days < lifetime ≤ 4 weeks, and

GTMonth: lifetime ≥ 4 weeks.

3) Reopening: this reﬂects the reopening status of

a pull request, showing whether it has been re-

opened. The reopening task can be considered a

problem of anomaly detection due to the highly

imbalanced nature of the data. In this context, the

number of instances in the positive class (i.e., pull

requests that are likely to be reopened) is much

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects

167

smaller than the number of instances in the nega-

tive class (i.e., pull requests that are likely to be

closed). There are two nominal classes for the

reopening output which are Reopened: a pull re-

quest has been reopened at least once and NonRe-

opened: a pull request has never been reopened.

In the case of the pull request ID 2702, t

pred

2:36 PM, 27 Nov 2019. The information available at

2:36 PM, 27 Nov 2019 is used to predict three out-

comes of this pull request which are Accepted for the

acceptance output, GTMonth for the latency output,

and Reopened for the reopening output.

4 OUR APPROACH

This section presents our proposed approach for pre-

dicting pull request evaluation and reopening. We will

discuss overview of our approach and two main pro-

cesses which are feature extraction and modeling.

4.1 Overview of Our Approach

Our proposed approach is a deep learning-based clas-

siﬁcation approach for predicting acceptance, latency,

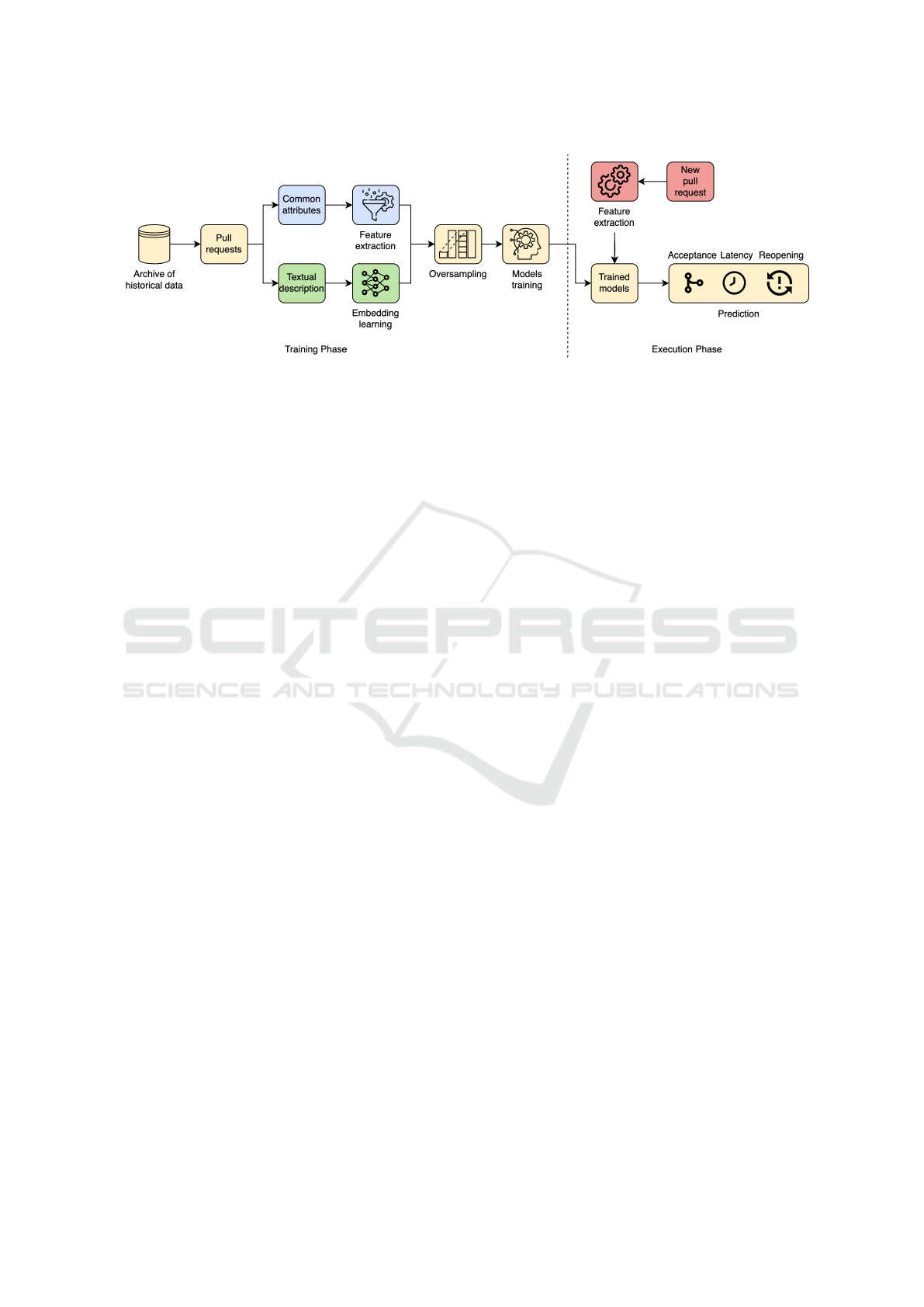

and reopening of pull requests. Figure 4 shows an

overview framework of our approach, which is di-

vided into two phases: the training phase and the ex-

ecution phase. The training phase involves using his-

torical pull requests to build predictive models. To ex-

tract features, we categorize the information of a pull

request into two groups: tabular data (represented

in blue color) and textual data (represented in green

color). Tabular data is structured data that can be ex-

tracted using common feature extraction techniques,

resulting in numerical or categorical features. Textual

data is unstructured data that require advanced learn-

ing techniques to extract meaningful features. Then,

oversampling is performed to handle the imbalanced

data in the reopening task. Our approach utilizes both

types of data (X ) along with their corresponding out-

comes (Y ) to train predictive models using deep learn-

ing techniques. The execution phase involves em-

ploying the trained models from the training phase to

predict three outcomes: acceptance, latency, and re-

opening, for a new pull request. From the fact that

reopening always occurs before pull request evalua-

tion and may have an impact on the other outcomes,

our approach predicts the reopening output ﬁrst. This

predicted reopening output is then used as a feature

along with the other input features to predict the ac-

ceptance and latency of the pull request.

4.2 Feature Extraction

Our approach incorporates two types of feature: tab-

ular features and textual features. These features play

a crucial role in capturing relevant information from

pull requests and facilitating accurate prediction.

4.2.1 Tabular Features

A project repository and a pull request contain many

valuable attributes that can be extracted and utilized

as features to characterize the pull request. Com-

mon feature extraction techniques, such as counting,

summation, subtraction, and ratio calculation, are de-

ployed based on the attributes of the pull request. The

set of tabular features used in our approach is de-

rived from the features employed by previous works

related to prediction (Gousios et al., 2014; Jiang et al.,

2020; Mohamed et al., 2018; Mohamed et al., 2020;

de Lima J

unior et al., 2021). It is worth noting that

the features are extracted at the time of pull request

submission (t

pred

), so certain features that appear af-

ter submission are not available, such as the number

of comments and the number of participants.

4.2.2 Textual Features

A pull request usually contains two pieces of tex-

tual information: the title and the body. Contribu-

tors use these to summarize and describe the proposed

changes. For example, in pull request ID 2702, the ti-

tle is “Fix load error” and the body is “This is a ﬁx

related to the following issue. rails/rails#33464 My

solution is to wait a monument if the required relative

ﬁle is busy.” The title and body can reﬂect the nature

of a pull request, such as the details of a review task

and the complexity of the task. Therefore, a well-

crafted title and body can reduce the integrator’s ef-

fort in executing the review task. However, they have

not been taken seriously for use as a pull request pre-

dictor in the past. Thus, we use the text as one of our

features to characterize our pull request.

In order to use text in machine learning, it must

be converted into numerical vectors. Traditional

methods like Bag of Words (BoW), N-Gram, and

Term Frequency-Inverse Document Frequency (TF-

IDF) suffer from sparsity and lose the sequential na-

ture of text (Jurafsky and Martin, 2009). Advanced

deep learning techniques, such as pre-trained word

embeddings, are capable of handling sequential data

with complex dependencies. To address this task, we

consider three state-of-the-art pre-trained word em-

beddings: Word2Vec (Mikolov and Others, 2013),

FastText (Bojanowski et al., 2016), and BERT (De-

vlin et al., 2019) in this study.

ICSOFT 2023 - 18th International Conference on Software Technologies

168

Figure 4: An overview framework of our proposed approach.

Word2Vec, developed by Google, is trained on

the Google News corpus and generates meaningful

ﬁx-length vector representations for unique words.

However, it is context-independent and cannot dif-

ferentiate the same word in different contexts. Fast-

Text, developed by Facebook AI Research, handles

subword information and is better for rare or un-

known words. It uses N-Grams, character sequences

in words, to represent subwords. BERT is a recent

transformer-based technique that achieves state-of-

the-art performance on several natural language un-

derstanding (NLU) tasks. Unlike previous static em-

beddings, BERT offers context-dependent or seman-

tic embeddings, producing multiple vector represen-

tations for a given word based on its surrounding con-

text.

To prepare the input of the pre-trained models, we

combine two titles and one body, giving additional

weight to the title (i.e., Text = Title + Title + Body).

The text inputs undergo preprocessing, such as lower-

case conversion, punctuation cleansing, and tokeniza-

tion. During embedding, a ﬁx-length vector represen-

tation is generated for each token. Ultimately, we em-

ploy the average pooling technique to derive the ﬁnal

vector representation of the entire text.

4.3 Modeling

To simulate the real situation and address the rela-

tionship between pull request reopening and evalua-

tion, we separate modeling into two main stages: the

reopening stage and the evaluation stage. More pre-

cisely, the reopening output is predicted ﬁrst, and it is

used as one of the features to predict the pull request

evaluation.

4.3.1 Reopening Stage

In the reopening stage, we follow a three-stage pro-

cess of feature extraction, oversampling, and classiﬁ-

cation (see Figure 5). We begin by combining tabular

and textual features extracted by pre-trained word em-

bedding, as detailed in the previous section. However,

since the data is highly imbalanced, with a majority of

non-reopening samples and a minority of reopening

samples, we use the Variational Autoencoder (VAE)

to generate additional reopening samples in order to

achieve balance with the non-reopening samples.

VAE is a generative model that can learn to ap-

proximate a probability distribution of input data by

encoding them into a lower-dimensional latent space

and then decoding them back to the original data

space. By sampling from the learned latent space,

VAE can generate new data points that are similar to

the original data, effectively increasing the size of the

dataset. To ensure that we have enough reopening

samples for training the VAE, we ﬁrst use the Syn-

thetic Minority Over-sampling Technique (SMOTE)

to upsample the positive class (i.e., Reopened class).

Next, we train our VAE exclusively on pull requests

with the Reopened class. We use the decoder part of

the trained VAE to generate reopening samples by in-

troducing random noise from a normal distribution.

These generated samples are mixed with the original

ones and used to train a deep neural network (DNN)

to predict the probability of reopening as output. The

number of samples is balanced through the oversam-

pling in the training set only.

4.3.2 Evaluation Stage

During the evaluation stage, we extract features from

the pull request description and other relevant data,

similar to the feature extraction process used in the

reopening stage (without oversampling). We combine

these features with the reopening probability obtained

from the reopening stage. A DNN is then trained to

predict two outputs: acceptance and latency of the

pull request. The approach used in the evaluation

stage is depicted in Figure 6.

The architecture utilized for the DNNs in both

stages is a very common feedforward neural network,

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects

169

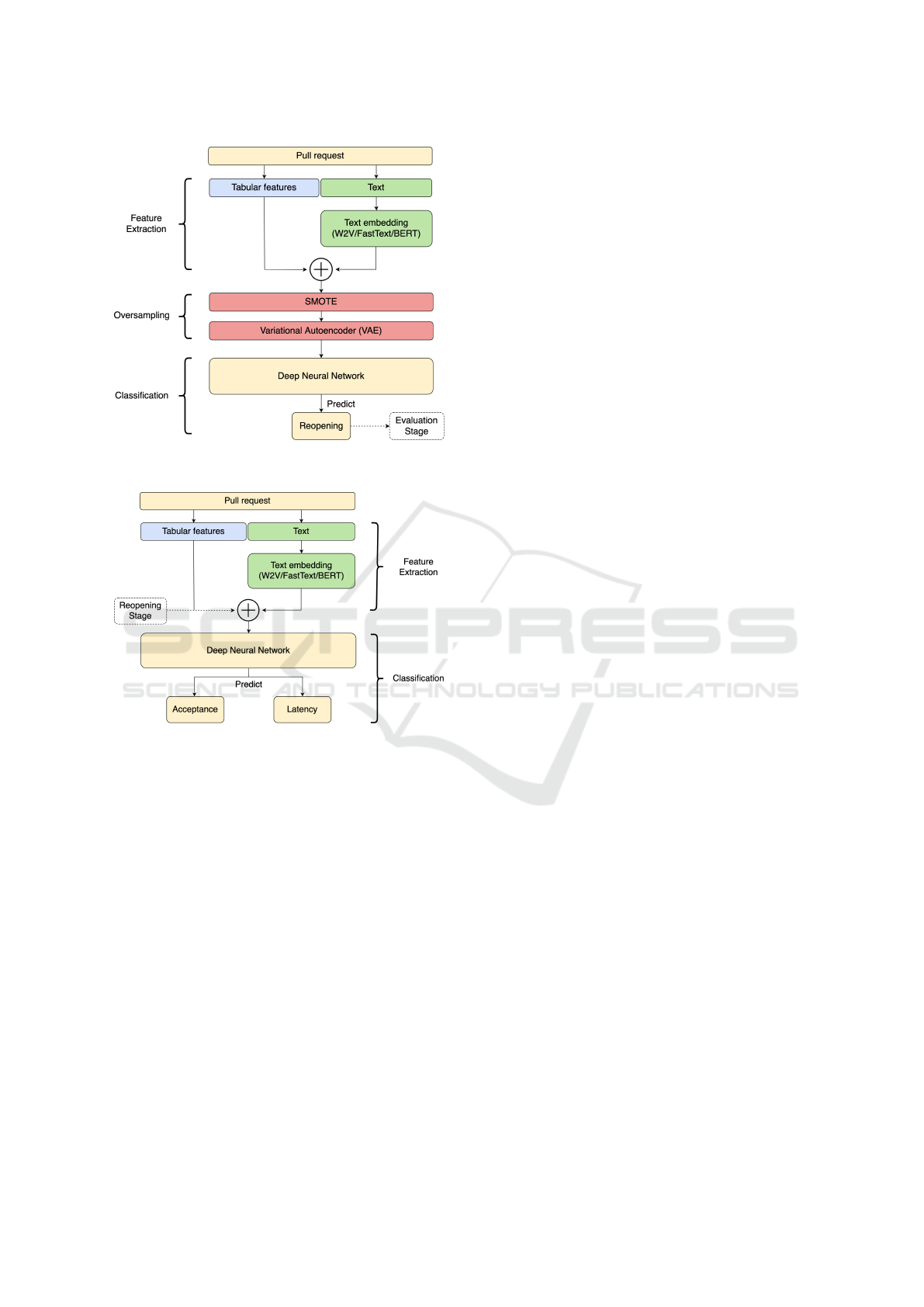

Figure 5: A model architecture of the reopening stage of

our approach.

Figure 6: A model architecture of the evaluation stage of

our approach.

consisting of an input layer, a normalization layer, fol-

lowed by multiple blocks of dense layers and dropout

layers, and an output layer. The key distinction is that

the DNN in the reopening stage solely predicts the

reopening output, while the DNN in the evaluation

stage is a multi-output DNN that predicts the accep-

tance and latency outputs using shared learning.

5 EVALUATION

In this section, we conduct a comprehensive evalu-

ation of our approach. We will outline the research

questions guiding our evaluation, deﬁne the perfor-

mance measures used, and describe the experimental

settings employed for the evaluation.

5.1 Research Questions

In this study, we aim to answer two research ques-

tions through our empirical evaluation, which seeks

to provide insights into the effectiveness of our pro-

posed approach in predicting pull request evaluation

and reopening.

RQ1: Sanity Check (Is the proposed approach suit-

able to early predict pull request evaluation and pull

request reopening?)

This aims to perform a sanity check on the suit-

ability of our approach in predicting pull request eval-

uation and reopening at the submission time. To ad-

dress this, we compare the performance of our ap-

proach against a randomized algorithm. Conducting

a sanity check using a rule-based model is a common

practice in software engineering research (Al-Zubaidi

et al., 2018; Shepperd and MacDonell, 2012; Sarro

et al., 2016). We repeat the random guessing process

5000 times and take the average performance to en-

sure statistical signiﬁcance. Our approach should sur-

pass the baseline, which relies on random guessing,

to demonstrate its suitability for the early prediction

of pull request evaluation and pull request reopening.

RQ2: Does the proposed approach outperform the

existing approach?

The objective of this research question is to com-

pare the predictive performance between the exist-

ing approach and our approach. Due to the fact that

no existing approach predicts in the same manner as

our proposed approach, we utilize an alternative ap-

proach. The alternative approach incorporates tab-

ular features, feature selection techniques, and tra-

ditional machine learning-based single-output clas-

siﬁers, such as Decision Tree, Random Forest, and

XGBoost, which have been recognized as the best

performers in previous studies (Gousios et al., 2014;

Jiang et al., 2020; Mohamed et al., 2018; Mohamed

et al., 2020; de Lima J

unior et al., 2021), to repre-

sent the existing approaches. The performance of our

approach should be better than the existing approach

to indicate that textual features extracted from the

pre-trained model, our oversampling technique (i.e.,

SMOTE combined with VAE), shared learning, and

deep learning classiﬁers can overcome the challenges,

posed by the limited information available at the time

of submission and highly imbalanced data, as well as

improve the performance for the prediction of pull re-

quest evaluation and pull request reopening.

5.2 Performance Measures

To measure the predictive performance of the ap-

proaches, we use common binary classiﬁcation met-

ICSOFT 2023 - 18th International Conference on Software Technologies

170

rics, such as, accuracy, precision, recall, F1-score, and

AUC for the acceptance task. However, we applied

Macro-Averaged Absolute Error (MMAE) for the la-

tency task because it can assess the distance between

an actual class and a predicted one. It can also be ap-

plied to the imbalanced multi-class classiﬁcation be-

cause of the macro-averaged technique. MMAE has

been used in many research works (Baccianella et al.,

2009; Choetkiertikul et al., 2018; Wattanakriengkrai

et al., 2019) to tackle the ordinal multi-class classi-

ﬁcation problem. Note that for the MMAE metric,

lower values indicate better performance. The for-

mula of MMAE is deﬁned in Equation 1 where K is a

set of classes, |K| is the number of classes, k is a class

within K, y

is the true class, and n

is the number of

true classes with class k. σ is the indicator function.

MMAE =

|K|

∑

k=1

∑

i=1

| ˆy

− k|σ[y

= k] (1)

In addition, we used metrics that can handle highly

imbalanced data and enable accurate anomaly detec-

tion, such as, balanced accuracy (BA), AUC, True

Positive Rate (TPR), and False Negative Rate (FPR)

(Kale et al., 2022; Trauer et al., 2021) for the reopen-

ing task.

5.3 Experimental Setting

We split the data into three sets: training, valida-

tion, and testing, using a hold-out technique. Pull

requests were sorted by close date to ensure that the

model learned only from past data available at the

training time. Speciﬁcally, the pull requests in the

training set and the validation set were closed be-

fore the pull requests in the testing set, and the pull

requests in the training set were also terminated be-

fore the pull requests in the validation set. Since our

experiment was speciﬁc to programming languages,

we developed a separate approach for each language.

The small community programming languages used

a 60/20/20 split while the big ones used an 80/10/10

split. In our study, the training dataset was used to

train our model and we applied the validation dataset

to choose the best models as well as to tune hyper-

parameters. Lastly, the testing dataset was applied to

evaluate the performance of our model.

To ensure a fair comparison of performance, all

approaches were trained and validated on the same

experimental environment using the identical dataset

with the shared data splitting. The set of tabular fea-

tures were also shared between both the existing ap-

proach and our approach. They also shared the same

tuning hyperparameter technique, which involves us-

ing a randomized algorithm with 30 iterations. Fur-

thermore, they used the same performance metrics for

model tuning. Speciﬁcally, AUC was used for the ac-

ceptance and reopening tasks, and MMAE was used

for the latency task.

6 RESULTS

This section reports the evaluation results to answer

the research questions

. Table 2 shows the evalua-

tion results for pull request evaluation and reopening

achieved by randomized baseline, existing approach,

and our approach in four programming languages.

Results for RQ1: For the pull request evaluation,

the analysis of all associated measures (i.e., accuracy,

precision, recall, F1-score, AUC, and MMAE) sug-

gests that the predictive results obtained with our ap-

proach (Our), are better than those achieved by using

the randomized baseline (Randomized) in all cases

(24/24) consistently. Our approach improves between

43.74% (in Python) to 65.21% (in Java) in terms of

accuracy, 4.71% (in Ruby) to 60.44% (in Java) in

terms of precision, 48.31% (in Python) to 65.17% (in

Java) in terms of recall, 31.57% (in R) to 62.83% (in

Java) in terms of F1-score, 29.75% (in R) to 81.85%

(in Java) in terms of AUC, and 24.79% (in R) to

28.84% (in Java) in terms of MMAE over the base-

line.

For the pull request reopening task, our approach

outperforms the randomized baseline in most cases

(14/16) in terms of balanced accuracy, AUC, TPR,

and FPR. Our approach improves over the baseline

between 17.92% (in Java) to 28.21% (in Ruby) in

terms of balanced accuracy, 24.71% (in Java) to

46.39% (in Python) in terms of AUC, and 27.15%

(in Ruby) to 52.75% (in R) in terms of TPR, while

the results for FPR were mixed, with some cases

showing improvement and others showing a decline

compared to the baseline. Speciﬁcally, our approach

improves FPR by 19.96% (in Python) and 29.27%

(in Ruby) over the baseline, while it was unable

to improve in R and Java. Our approach achieves

the best performance in Ruby, as it consistently

outperforms the baseline in all evaluation measures.

Our proposed approach outperforms the random-

ized baseline in all four programming languages,

thus our approach is suitable for predicting pull re-

quest evaluation and reopening at the submission

time.

All the experiments were run on Macbook Pro with

macOS Monterey Version 12.4, Apple M1 Pro chip, and

16GB RAM.

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects

171

Table 2: Evaluation results: Performance comparison between the randomized baseline (Randomized), the existing approach

(Existing), and our approach (Our) for predicting the pull request evaluation and reopening, reported as accuracy (Acc),

precision (P), recall (R), F1-score (F1), AUC, Macro-Averaged Absolute Error (MMAE), balanced accuracy (BA), True

Positive Rate (TPR), and False Positive Rate (FPR).

Language Approach

Acceptance Latency Reopening

Acc P R F1 AUC MMAE BA AUC TPR FPR

Python

Randomized 0.500 0.771 0.500 0.607 0.500 1.599 0.500 0.500 0.500 0.500

Existing 0.681 0.878 0.681 0.767 0.708 1.270 0.618 0.705 0.500 0.264

Our 0.719 0.874 0.742 0.803 0.716 1.171 0.639 0.732 0.679 0.400

Randomized 0.500 0.835 0.500 0.625 0.500 1.600 0.500 0.500 0.501 0.500

Existing 0.594 0.865 0.609 0.714 0.589 1.224 0.527 0.649 0.765 0.709

Our 0.721 0.874 0.777 0.823 0.649 1.204 0.600 0.715 0.765 0.564

Java

Randomized 0.500 0.523 0.500 0.511 0.500 1.600 0.500 0.500 0.501 0.500

Existing 0.792 0.815 0.779 0.797 0.872 1.198 0.554 0.584 0.362 0.254

Our 0.826 0.839 0.826 0.832 0.909 1.139 0.590 0.624 0.700 0.515

Ruby

Randomized 0.500 0.883 0.500 0.638 0.500 1.600 0.500 0.500 0.500 0.500

Existing 0.737 0.920 0.769 0.838 0.682 1.262 0.557 0.583 0.506 0.391

Our 0.781 0.925 0.819 0.868 0.720 1.141 0.641 0.684 0.635 0.354

Results for RQ2: We compare the performance

achieved from our approach (Our) against the existing

approach (Existing). For the pull request evaluation

task, the analysis of all corresponding measures sug-

gests that our approach achieves better performance

in most cases (23/24) compared to the existing ap-

proach. Our approach improves between 4.33% (in

Java) to 21.36% (in R) in terms of accuracy, 0.41%

(declining in Python) to 3.01% (in Java) in terms of

precision, 5.97% (in Java) to 27.73% (in R) in terms

of recall, 3.68% (in Java) to 15.20% (in R) in terms

of F1-score, 1.13% (in Python) to 10.20% (in R) in

terms of AUC, and 1.69% (in R) to 9.62% (in Ruby)

in terms of MMAE.

For the pull request reopening task, our approach

outperforms the existing approach in most cases

(13/16) in terms of balanced accuracy, AUC, TPR,

and FPR. Our approach improves over the baseline

between 3.40% (in Python) to 15.00% (in Ruby) in

terms of balanced accuracy, 3.89% (in Python) to

17.45% (in Ruby) in terms of AUC, and 0.00% (in

R) to 92.00% (in Java) in terms of TPR, while the

results for FPR were mixed, with some cases showing

improvement and others showing a decline compared

to the existing approach. Explicitly, our approach

improves FPR by 9.63% (in Ruby) and 20.41%

(in R) over the existing approach, while showing a

decline in Python and Java. Overall, our approach

shows better performance than the existing approach.

Ruby is also the programming language where our

approach achieves the highest performance, as it

consistently outperforms the existing approach in all

evaluation measures.

Our proposed approach outperforms the existing

approach in all four programming languages. We

can, thus, conclude that textual features extracted

from the pre-trained models, our oversampling

technique, shared learning, and deep learning clas-

siﬁers improve the performance for prediction of

pull request evaluation and pull request reopening.

It is noteworthy that in our reopening experiments,

we observed the FPR improvement in 14 cases over

the baseline, while we were unable to improve in two

cases. Moreover, we observed the FPR improvement

in 13 cases over the existing approach, while we were

unable to improve in three cases. However, it is cru-

cial to consider that the importance of TPR or FPR

may vary depending on the speciﬁc application and

cost associated with each project. In our study, we

have used AUC as the main evaluation metric, which

provides a balanced measure between TPR and FPR.

This allows us to account for the trade-off between

sensitivity and speciﬁcity, and strike a balance in our

analysis. Based on AUC, our results excel in all cases.

7 THREATS TO VALIDITY

In this section, we will discuss potential threats to the

validity of our research ﬁndings.

External Validity: Our study provided a broad range

of perspectives by analyzing 54 real-world well-

known open-source projects across four popular pro-

gramming languages on GitHub. However, our ﬁnd-

ings may not be representative of all programming

languages and all kinds of software projects, espe-

ICSOFT 2023 - 18th International Conference on Software Technologies

172

cially in commercial settings. To address this limi-

tation, we plan to expand our experiment to a more

diverse range of projects and languages in the future.

Internal Validity: We minimized bias and errors in

our dataset and experiments by considering actual

pull request outputs from real integrators. We also

processed only the information available at the time of

pull request submission (t

pred

) by scraping the GitHub

website, avoiding any potential information leakage.

Construct Validity: We adopted standard evaluation

metrics commonly used in classiﬁcation tasks. The

metrics have also been employed in prior software en-

gineering research to assess the effectiveness of dif-

ferent approaches, enabling us to compare and vali-

date our results. However, evaluating the reopening

prediction presents a challenge due to highly imbal-

anced data, and there is limited prior work that ad-

dresses this issue. Therefore, we employed common

metrics that have been used in other domains to assess

our approach’s performance on this task.

Conclusion Validity: We took a meticulous and cau-

tious approach when drawing conclusions based on

the extracted features from the studied project repos-

itories. However, it should be noted that the latency

may not always reﬂect the actual review and integra-

tion time of a pull request, as there may be other fac-

tors beyond the integration process such as the inte-

grator having a heavy workload or lack of interaction

with the contributor (de Lima J

unior et al., 2021). Ad-

ditionally, the pull request reopening may not always

indicate the actual reopening because it can occur due

to accidental closure (Jiang et al., 2019).

8 CONCLUSIONS

In this paper, we have proposed a novel deep learning-

based approach to predict pull request acceptance, la-

tency, and reopening in open-source software projects

hosted on GitHub. Our prediction is delivered at the

time of pull request submission to enable integrators

to plan their work more effectively, especially in large

projects. Our approach combines both tabular and

textual features to capture relevant information. We

leverage the state-of-the-art pre-trained models to ex-

tract the meaningful vector representation of textual

data while we utilize the SMOTE combined with VAE

as the oversampling technique. In addition, our ap-

proach incorporates shared learning and deep neural

networks to address the gaps and the challenges and to

improve the predictive performance for the prediction

of pull request evaluation and pull request reopening.

We have conducted an extensive evaluation on

four well-known programming languages, which

demonstrated that our approach signiﬁcantly outper-

forms random guessing, and shows the advantages of

our approach over the existing approach. In terms of

future work, we plan to validate our approach with

a wider range of programming languages along with

larger projects, especially those in industrial settings.

We aim to explore new sources of information that

can better characterize pull requests, such as code

changes, to enhance the predictive performance, par-

ticularly for the reopening task. We plan to take the

next step in the development of our approach by inte-

grating it as a tool within the GitHub platform. This

will allow us to gather feedback from real users and

enable future analysis and reﬁnement of the approach.

REFERENCES

Al-Zubaidi, W. H. A., Dam, H. K., Choetkiertikul, M., and

Ghose, A. (2018). Multi-Objective Iteration Plan-

ning in Agile Development. Proceedings of Asia-

Paciﬁc Software Engineering Conference (APSEC),

2018-Decem:484–493.

Baccianella, S., Esuli, A., and Sebastiani, F. (2009). Evalua-

tion Measures for Ordinal Regression. In Proceedings

of 9th International Conference on Intelligent Systems

Design and Applications, pages 283–287, Pisa, Italy.

Bird, C., Rigby, P. C., Barr, E. T., Hamilton, D. J., German,

D. M., and Devanbu, P. (2009). The promises and

perils of mining git. In Proceedings of 6th IEEE In-

ternational Working Conference on Mining Software

Repositories, pages 1–10, Vancouver, BC, Canada.

Bojanowski, P., Grave, E., Joulin, A., and Mikolov, T.

(2016). Enriching word vectors with subword infor-

mation. arXiv preprint arXiv:1607.04606.

Chen, D., Stolee, K., and Menzies, T. (2019). Replica-

tion can improve prior results: A github study of

pull request acceptance. In Proceedings of IEEE In-

ternational Conference on Program Comprehension,

volume 2019-May, pages 179–190, Montreal, QC,

Canada. IEEE Computer Society.

Choetkiertikul, M., Dam, H. K., Tran, T., Ghose, A., and

Grundy, J. (2018). Predicting Delivery Capability in

Iterative Software Development. IEEE Transactions

on Software Engineering, 44(6):551–573.

Dabbish, L., Stuart, C., Tsay, J., and Herbsleb, J. (2013).

Leveraging transparency. IEEE Software, 30(1):37–

43.

de Lima J

unior, M. L., Soares, D., Plastino, A., and Murta,

L. (2021). Predicting the lifetime of pull requests in

open-source projects. Journal of Software: Evolution

and Process, 33(6).

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: pre-training of deep bidirectional transformers

for language understanding. In Burstein, J., Doran,

C., and Solorio, T., editors, Proceedings of the 2019

Conference of the North American Chapter of the As-

sociation for Computational Linguistics: Human Lan-

guage Technologies, NAACL-HLT 2019, Minneapolis,

Multi-Output Learning for Predicting Evaluation and Reopening of GitHub Pull Requests on Open-Source Projects

173

MN, USA, June 2-7, 2019, Volume 1 (Long and Short

Papers), pages 4171–4186. Association for Computa-

tional Linguistics.

Gousios, G., Pinzger, M., and Deursen, A. V. (2014). An

exploratory study of the pull-based software develop-

ment model. In Proceedings of International Con-

ference on Software Engineering, number 1 in ICSE

2014, pages 345–355, Hyderabad, India. IEEE Com-

puter Society.

Gousios, G., Storey, M. A., and Bacchelli, A. (2016). Work

practices and challenges in pull-based development:

The contributor’s perspective. In Proceedings of In-

ternational Conference on Software Engineering, vol-

ume 14-22-May-2016, pages 285–296, Austin, TX,

USA. IEEE Computer Society.

Gousios, G., Zaidman, A., Storey, M.-A., and van Deursen,

A. (2015). Work Practices and Challenges in Pull-

Based Development: The Integrator’s Perspective. In

Proceedings of 2015 IEEE/ACM 37th IEEE Inter-

national Conference on Software Engineering, vol-

ume 1, pages 358–368, Florence, Italy.

Jiang, J., Mohamed, A., and Zhang, L. (2019). What are the

Characteristics of Reopened Pull Requests? A Case

Study on Open Source Projects in GitHub. IEEE Ac-

cess, 7:102751–102761.

Jiang, J., teng Zheng, J., Yang, Y., and Zhang, L. (2020).

CTCPPre: A prediction method for accepted pull re-

quests in GitHub. Journal of Central South University,

27(2):449–468.

Jurafsky, D. and Martin, J. H. (2009). Speech and Language

Processing (2nd Edition). Prentice-Hall, Inc., USA.

Kale, R., Lu, Z., Fok, K. W., and Thing, V. L. L. (2022).

A Hybrid Deep Learning Anomaly Detection Frame-

work for Intrusion Detection. In Proceedings of

IEEE 8th Intl Conference on Big Data Security on

Cloud (BigDataSecurity), IEEE Intl Conference on

High Performance and Smart Computing, (HPSC)

and IEEE Intl Conference on Intelligent Data and Se-

curity (IDS), pages 137–142, Jinan, China.

McKee, S., Nelson, N., Sarma, A., and Dig, D. (2017). Soft-

ware Practitioner Perspectives on Merge Conﬂicts and

Resolutions. 2017 IEEE International Conference on

Software Maintenance and Evolution (ICSME), pages

467–478.

Mikolov, T. and Others (2013). Distributed representa-

tions of words and phrases and their compositionality.

Advances in Neural Information Processing Systems,

pages 1–9.

Mohamed, A., Zhang, L., and Jiang, J. (2020). Cross-

project reopened pull request prediction in github. In

Garc

ıa-Castro, R., editor, Proceedings of The 32nd In-

ternational Conference on Software Engineering and

Knowledge Engineering, SEKE 2020, KSIR Virtual

Conference Center, USA, July 9-19, 2020, pages 435–

438, USA. KSI Research Inc.

Mohamed, A., Zhang, L., Jiang, J., and Ktob, A. (2018).

Predicting Which Pull Requests Will Get Reopened in

GitHub. In Proceedings of Asia-Paciﬁc Software En-

gineering Conference (APSEC), volume 2018-Decem,

pages 375–385. IEEE Computer Society.

Nikhil Khadke, Ming Han Teh, M. S. (2012). Predicting

Acceptance of GitHub Pull Requests.

Ortu, M., Destefanis, G., Graziotin, D., Marchesi, M., and

Tonelli, R. (2020). How do you Propose Your Code

Changes? Empirical Analysis of Affect Metrics of

Pull Requests on GitHub. IEEE Access, 8:110897–

110907.

Papamichail, M., Diamantopoulos, T., and Symeonidis, A.

(2016). User-Perceived Source Code Quality Estima-

tion Based on Static Analysis Metrics. In Proceedings

of 2016 IEEE International Conference on Software

Quality, Reliability and Security (QRS), pages 100–

107.

Rahman, M. M. and Roy, C. K. (2014). An insight into

the pull requests of GitHub. In Proceedings of 11th

Working Conference on Mining Software Repositories

(MSR 2014), pages 364–367. Association for Comput-

ing Machinery.

Sarro, F., Petrozziello, A., and Harman, M. (2016). Multi-

objective software effort estimation. In Proceedings

of International Conference on Software Engineering,

volume 14-22-May-, pages 619–630.

Shepperd, M. and MacDonell, S. (2012). Evaluating pre-

diction systems in software project estimation. Infor-

mation and Software Technology, 54(8):820–827.

Soares, D., Limeira, M., Murta, L., and Plastino, A. (2015).

Acceptance factors of pull requests in open-source

projects. In Proceedings of the 30th Annual ACM

Symposium on Applied Computing, pages 1541–1546,

New York, NY, USA. Association for Computing Ma-

chinery.

Trauer, J., Pﬁngstl, S., Finsterer, M., and Zimmermann, M.

(2021). Improving production efﬁciency with a dig-

ital twin based on anomaly detection. Sustainability

(Switzerland), 13(18).

Tsay, J., Dabbish, L., and Herbsleb, J. (2014). Inﬂuence

of social and technical factors for evaluating contribu-

tion in GitHub. In Proceedings of International Con-

ference on Software Engineering, number 1 in ICSE

2014, pages 356–366, Hyderabad, India. IEEE Com-

puter Society.

Wattanakriengkrai, S., Srisermphoak, N., Sintoplertchaikul,

S., Choetkiertikul, M., Ragkhitwetsagul, C., Sunet-

nanta, T., Hata, H., and Matsumoto, K. (2019). Auto-

matic Classifying Self-Admitted Technical Debt Us-

ing N-Gram IDF. In Proceedings of the Asia-Paciﬁc

Software Engineering Conference (APSEC), volume

2019-Decem, pages 316–322.

Yu, Y., Wang, H., Filkov, V., Devanbu, P., and Vasilescu,

B. (2015). Wait For It: Determinants of Pull Request

Evaluation Latency on GitHub. 2015 IEEE/ACM 12th

Working Conference on Mining Software Reposito-

ries, pages 367–371.

Zhang, X., Yu, Y., Gousios, G., and Rastogi, A. (2022). Pull

Request Decision Explained: An Empirical Overview.

IEEE Transactions on Software Engineering, 49.

Zhang, X., Yu, Y., Wang, T., Rastogi, A., and Wang, H.

(2021). Pull Request Latency Explained: An Empiri-

cal Overview. Empirical Software Engineering, 27.

ICSOFT 2023 - 18th International Conference on Software Technologies

174
