Combining Generators of Adversarial Malware Examples to Increase

Evasion Rate

Matou

s Koz

and Martin Jure

cek

Faculty of Information Technology, Czech Technical University in Prague, Th

akurova 9, Prague, Czech Republic

ﬁ

Keywords:

Adversarial Examples, Malware Detection, Static Analysis, PE Files, Machine Learning.

Abstract:

Antivirus developers are increasingly embracing machine learning as a key component of malware defense.

While machine learning achieves cutting-edge outcomes in many ﬁelds, it also has weaknesses that are ex-

ploited by several adversarial attack techniques. Many authors have presented both white-box and black-box

generators of adversarial malware examples capable of bypassing malware detectors with varying success.

We propose to combine contemporary generators in order to increase their potential. Combining different

generators can create more sophisticated adversarial examples that are more likely to evade anti-malware

tools. We demonstrated this technique on ﬁve well-known generators and recorded promising results. The

best-performing combination of AMG-random and MAB-Malware generators achieved an average evasion

rate of 15.9% against top-tier antivirus products. This represents an average improvement of more than 36%

and 627% over using only the AMG-random and MAB-Malware generators, respectively. The generator that

beneﬁted the most from having another generator follow its procedure was the FGSM injection attack, which

improved the evasion rate on average between 91.97% and 1,304.73%, depending on the second generator

used. These results demonstrate that combining different generators can signiﬁcantly improve their effective-

ness against leading antivirus programs.

1 INTRODUCTION

Malware is software performing malicious actions on

infected computers. As more and more of our lives

become digital, protecting our devices becomes in-

creasingly important. Cybersecurity professionals are

striving to improve the detection capabilities of their

antivirus (AV) products by inventing new defense

mechanisms (Gibert et al., 2020). Nonetheless, their

rivals are progressing at a comparable, if not faster,

pace, making malware detection a never-ending ﬁght.

Leading AV programs use both static and dynamic

analysis. Static analysis techniques usually rely on

byte sequences (signatures) kept in a database. Sig-

natures accurately and quickly detect known harmful

ﬁles, but their fundamental drawback is their inca-

pability to classify zero-day or obfuscated malware.

Even minor changes to malware ﬁles may cause the

signature to change, thus rendering them undetectable

by static analysis. In contrast, dynamic analysis meth-

ods include behavior-based algorithms that search for

https://orcid.org/0000-0001-8329-7572

https://orcid.org/0000-0002-6546-8953

patterns of behavior that can be used to discover un-

known and obfuscated malware samples, albeit at a

higher cost of executing malware in a safe environ-

ment (Aslan and Samet, 2020).

While traditional signature-based static analysis

cannot detect zero-day malware, incorporating ma-

chine learning (ML)-based malware detectors gives

encouraging results (Comar et al., 2013). However,

ML models are vulnerable to adversarial examples

(AEs), e.g., slightly changing a malicious ﬁle can

cause its feature vector to mimic some of the benign

ﬁles’ feature vectors (Papernot et al., 2016). As a re-

sult, malware detectors may make inaccurate predic-

tions.

We propose a novel adversarial attack strategy that

combines generators of adversarial malware exam-

ples. By combining different generators, we aim to

create more sophisticated AEs capable of bypassing

top-tier AV products. Our method works at the level

of samples, i.e., the output of a combination of gener-

ators is a functional malware binary.

For various reasons, we focus our work on attack-

ing static malware analysis. To begin, dynamic anal-

ysis requires running malware inside a secure envi-

778

KozÃ ˛ak, M. and JureÄ ek, M.

Combining Generators of Adversarial Malware Examples to Increase Evasion Rate.

DOI: 10.5220/0012127700003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 778-786

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ronment and documenting its behavior, which is both

time-consuming and technically challenging. Next, to

our best knowledge, there is no successful implemen-

tation of AE generators targeting dynamic malware

analysis, which we could use in our method. Further-

more, malware authors can use sandbox evasion tech-

niques such as detecting that their malware is running

in a controlled environment and ceasing its dangerous

behavior (Erko, 2022; Yuceel, 2022). Finally, static

detection is typically the initial line of defense against

malicious threats, making it an essential component

of any anti-malware tool.

The Outline of the Paper.

• In Section 2, we establish the necessary back-

ground by brieﬂy introducing adversarial machine

learning and Portable Executable ﬁle format.

• In Section 3, we summarize related work in the

ﬁeld of generating adversarial malware examples.

• In Section 4, we deﬁne our method in detail.

From a step-by-step description of combining ad-

versarial malware generators to a comprehensive

overview of each AE generator we used.

• In Section 5, we introduce our experiment’s setup,

dataset, and routine used. Finally, we demonstrate

the achieved results.

• In Section 6, we summarize our contributions and

make recommendations for future research.

2 BACKGROUND

In this section, we brieﬂy introduce the key concepts

for understanding this paper by describing adversarial

machine learning with respect to malware detection

and Portable Executable ﬁle format used on Windows

operating systems.

2.1 Adversarial Machine Learning

In recent years, we have seen an increase in the pop-

ularity of machine learning algorithms in a variety of

domains, such as advertisement recommendation, im-

age classiﬁcation, and Go playing, where ML mod-

els achieve cutting-edge results (Marius, 2020; Sil-

ver et al., 2017). However, in other areas, such as

self-driving cars or disease diagnosis, both the general

public and researchers remain skeptical of these mod-

els’ decisions (Juravle et al., 2020; Edmonds, 2020).

One reason for skepticism about ML models is the

unexplainable nature of their decisions and the fol-

lowing possible fragility and bias of the ML model

(Gilpin et al., 2018). As a result, ML systems can be

vulnerable to minor changes exploited by adversar-

ial attacks (Goodfellow et al., 2015; Papernot et al.,

2016).

Adversarial machine learning is a branch of ma-

chine learning that focuses on enhancing ML sys-

tems’ resistance against adversarial attacks both from

the outside (evasion attacks) and from the inside (data

poisoning). An adversarial attack is a well-planned

activity designed to deceive the ML model. The vic-

tim model is also known as a target model, and the

attacker is referred to as an adversary. Nonetheless, in

contemporary literature, the terms attacker and adver-

sary are used interchangeably. The input responsible

for fooling the target model is called an adversarial

example.

In the malware detection domain, adversarial ma-

chine learning is usually used to force anti-malware

tools to misclassify malware as benign. An arms

race between adversaries and antivirus defenders has

evolved as a result of the expansion of machine

learning employed in malware detection (Ucci et al.,

2019). Malware adversarial learning focuses on how

malware can trick malware detection models and how

to develop malware detectors resistant to AEs.

An adversarial attack’s success is limited by the

amount of information accessible about the target sys-

tem (Huang et al., 2011). A white-box scenario oc-

curs when the attacker gets access to the target sys-

tem and may study its internal conﬁguration or train-

ing datasets. A black-box scenario, on the other hand,

happens when the adversary has minimal knowledge

about the victim detector, usually only in the form of

the detector’s ﬁnal prediction, e.g., malware/benign

label for each submitted sample. In between these two

extremes is a grey-box scenario, in which the attacker

has greater access to the system than in the black-box

scenario, however, only to certain aspects of it. For

instance, the attacker can access the model’s feature

space but not its training dataset. In the ﬁeld of ad-

versarial malware generation, the black-box scenario

is the most practical, as the exact structure of the AV

is usually unknown to the adversary.

2.2 Portable Executable File Format

Portable Executable (PE) ﬁle format is widely used

on Windows operating systems. This format is

utilized by executable ﬁles (EXEs) or dynamically

linked libraries (DLLs) on 32-bit and 64-bit systems

and is structured as follows. The program begins

with the MS-DOS header and stub program, which

are now mostly obsolete and are only included for

backward compatibility. The e_magic (identifying

Combining Generators of Adversarial Malware Examples to Increase Evasion Rate

779

the ﬁle as a MS-DOS executable) and e_lfanew (the

ﬁle offset of the Common Object File Format (COFF)

ﬁle header) ﬁelds are exceptions. Following is the

signature and the COFF ﬁle header, which contains

information such as the target machine and section ta-

ble size. The COFF ﬁle header is closely followed

by the optional header, which includes, among other

things, the necessary data directories. A section table

with corresponding section data completes the pro-

gram (Karl Bridge, 2019).

3 RELATED WORK

This section summarizes related publications that ad-

dress the development of adversarial malware at-

tacks. We begin by describing the works that lever-

age gradient-based techniques to exploit the back-

propagation algorithm, a widely used algorithm in

training deep neural networks, by computing the nec-

essary perturbations to mislead the target classiﬁer

(Goodfellow et al., 2015; Papernot et al., 2016). Next,

we show studies employing reinforcement learning-

based attacks where reinforcement learning agent

equipped with a set of actions in the form of bi-

nary ﬁle manipulations attempts to ﬁnd a sequence of

modiﬁcations leading to misclassiﬁcation (Anderson

et al., 2018). Finally, we highlight a few publications

related to adversarial malware attacks that do not fall

into either of the two categories above.

3.1 Gradient-Based Attacks

In (Grosse et al., 2017), a gradient-based attack

against a self-made Android malware detector was

proposed. The necessary perturbation for the feature

vector containing features extracted from the Android

manifest ﬁle was calculated using the gradient descent

algorithm. The authors recorded an evasion rate of up

to 63% against their deep neural network classiﬁer.

Many authors proposed gradient-based attacks

against the MalConv malware classiﬁer (Raff et al.,

2017). For example, in (Kolosnjaji et al., 2018), the

authors perturbed the ﬁle’s overlay and achieved a

60% evasion rate while altering less than 1% of to-

tal bytes.

Further, the authors of (Kreuk et al., 2018) intro-

duced the injection of small chunks of bytes (payload)

into unused regions or at the end of the PE ﬁle, achiev-

ing a 99% evasion rate against MalConv while limit-

ing the payload size to less than 1,000 bytes.

Explanation techniques used on the MalConv de-

tector and subsequent attack perturbing obsolete parts

of the MS-DOS header were introduced in (Demetrio

et al., 2019), reaching an evasion rate of over 86%.

A complex approach that treats EXE binaries as

images was introduced in (Yang et al., 2021). The

authors computed the necessary perturbations in the

embedding space of a convolutional neural network-

based malware detector and later mapped them to cor-

responding sections of the original input binary. Their

attack decreased the accuracy of selected ML models

by up to 94%.

3.2 Reinforcement Learning-Based

Attacks

While gradient-based attacks were originally intended

for the computer vision domain, the use of reinforce-

ment learning agents is novel for the ﬁeld of malicious

AEs. This approach was pioneered by Anderson et

al. in (Anderson et al., 2018), introducing the actor-

critic model capable of modifying raw binary ﬁles.

The authors recorded an evasion rate of 24% against

the gradient-boosted decision tree (GBDT) detector

trained on the EMBER dataset (Anderson and Roth,

2018).

Fang et al. proposed two models in (Fang et al.,

2020), a malware detector called DeepDetectNet and

an AE generator called RLAttackNet. In a black-box

setting, their generator, based on the deep Q-network

(DQN) algorithm, successfully evaded their classiﬁer

in 19.13% of cases.

Song et al., the authors of the MAB-malware

framework (Song et al., 2022), employed a multi-

armed bandit (MAB) agent while targeting commer-

cial AVs, GBDT, and MalConv detectors. They

demonstrated bypassing detection from commercial

AVs with a high evasion rate of up to 48.3%. The

GBDT and MalConv detectors were successfully mis-

led 74.4% and 97.7% of times, respectively.

In (Koz

ak et al., 2022), the authors used the

DQN agent to generate adversarial malware exam-

ples. While targeting the GBDT and MalConv classi-

ﬁers, their adversarial malware generator recorded an

evasion rate of 68.64% and 13.32%, respectively. Fur-

ther, they were the ﬁrst to introduce a reverse scenario

of generating adversarial benign examples and mis-

led the GBDT and MalConv detectors in 3.45% and

14.29% of cases, respectively. While creating mali-

cious AEs is more prevalent in current research, the

increase in false positives of AV products would ren-

der them ineffective.

3.3 Other Methods

To generate AEs, the authors of (Hu and Tan, 2017)

presented MalGan, a generative adversarial network

SECRYPT 2023 - 20th International Conference on Security and Cryptography

780

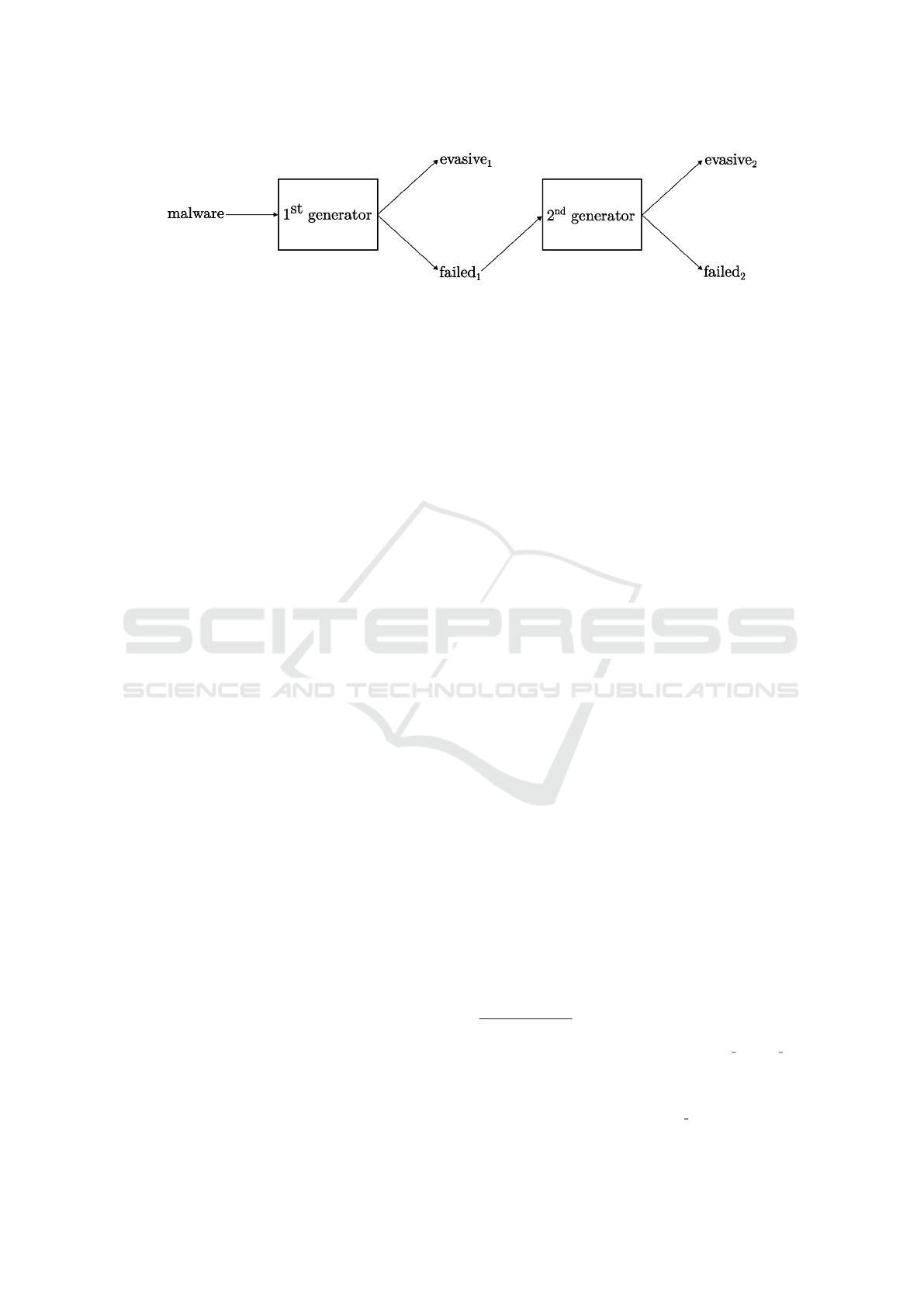

Figure 1: Overview of our proposed method for generating adversarial examples via combining two generators.

(GAN). They used a deep neural network substitute

detector during training, i.e., the ﬁnal target model

was not used during training. The authors’ results

show strong attack transferability across the substitute

and target models by recording a near-perfect evasion

rate. Their work, however, is situated only in a feature

space of extracted API calls, with no technique pro-

vided for transforming the adversarial feature vectors

back into real-world EXEs.

Ebrahimi et al. suggested a recurrent neural

network-based generative sequence-to-sequence lan-

guage model. The model generates benign bytes,

which are later appended to the end of malicious PE

binaries (Ebrahimi et al., 2020). Their proposed at-

tack successfully evaded detection by the MalConv

classiﬁer on average in 73.24% of cases across differ-

ent malware families.

A genetic algorithm for generating adversarial

malware examples was presented in (Demetrio et al.,

2021). The AEs are constrained to maximize evasion

against the GBDT classiﬁer while minimizing the re-

sulting ﬁle size. The authors achieved an evasion rate

of up to 57%.

4 PROPOSED METHOD

In this section, we introduce a novel approach to im-

prove current adversarial malware generators by com-

bining them. Our method combines two separate AE

generators and reuses non-evasive adversarial exam-

ples from the ﬁrst generator as input to the second

generator with the goal of crafting sophisticated ma-

licious AEs capable of evading malware detectors.

The overview of our proposed method is depicted

in Figure 1. Firstly, the ﬁrst generator processes gen-

uine malware samples, creating evasive

and f ailed

(i.e., non-evasive) sets. The evasive

examples are

left untouched as they have successfully bypassed the

given detector. The f ailed

samples, on the other

hand, are passed as input to the second generator, and

two new sets, evasive

and f ailed

, are produced.

The f ailed

samples are the resulting non-evasive

samples that were unable to escape detection and the

evasive

together with evasive

form the set of suc-

cessful AEs crafted by combining two generators of

adversarial malware examples. The division of AEs

into evasive and f ailed groups is done by an indepen-

dent classiﬁer that is not part of any of the generators.

In other words, when we attack a speciﬁc AV product

(playing the role of independent classiﬁer), we ﬁrst

send all generated AEs from the ﬁrst generator to the

AV detector, thus obtaining the evasive

and f ailed

sets. Next, we process the f ailed

ﬁles with the sec-

ond generator, and the resulting AEs are resubmitted

to the AV detector, resulting in evasive

and f ailed

sets. Note that the order of generators is essential, i.e.,

combining generators does not possess commutative

property.

We studied combinations of ﬁve distinct adversar-

ial generators which emit AEs targeted against Mal-

Conv (Raff et al., 2017) and EMBER GBDT (Ander-

son and Roth, 2018) classiﬁers. The EMBER GBDT

model is a gradient-boosted decision tree that clas-

siﬁes inputs based on 2,381 extracted features from

binary ﬁles. The binaries are parsed using the LIEF

library, and the resulting extracted features include in-

formation from PE headers, imported functions, sec-

tion characteristics, byte histograms, and more. In

contrast, MalConv is a convolution network that con-

sumes directly raw bytes from binary executables

truncated to 2,000,000 bytes (2 MB). Both models

with pre-trained conﬁgurations are freely available on

GitHub

4.1 Generators of Adversarial Malware

Examples

For our work, we selected these ﬁve generators:

MAB-Malware

, AMG

(trained and random ver-

sions), FGSM

and Partial DOS

. The ﬁrst three gen-

erators work in pure black-box settings, whereas the

latter two operate in a white-box manner. Despite the

https://lief-project.github.io/

https://github.com/endgameinc/malware evasion

competition

https://github.com/bitsecurerlab/MAB-malware

https://github.com/matouskozak/AMG

https://github.com/pralab/secml malware

Combining Generators of Adversarial Malware Examples to Increase Evasion Rate

781

fact that we used white-box generators of adversarial

malware, our proposed method is essentially a black-

box attack because we do not focus on any of the tar-

get classiﬁers used by individual AE generators but on

an independent classiﬁer that is not part of our com-

bined model.

4.1.1 MAB-Malware

MAB-Malware is a generator of adversarial malicious

examples utilizing a reinforcement learning algorithm

called multi-armed bandit (Song et al., 2022). In con-

trast with other reinforcement learning-based adver-

sarial attacks, this algorithm works statelessly, mean-

ing that the order of manipulations applied to original

ﬁles is not considered. As a result, the algorithm op-

erates in only two states, non-evasive and evasive, i.e.,

failure and success. The process of creating AEs con-

sists of two main phases. Firstly, ﬁle modiﬁcations

are applied until the target detector (MalConv) classi-

ﬁes the sample as benign or a count of 10 changes is

reached. Secondly, the action minimization procedure

removes unnecessary modiﬁcations, provided that the

example remains evasive. If, on the other hand, the

resulting example is not evasive, the application of

modiﬁcations can be repeated up to 60 times.

4.1.2 AMG

Adversarial malware generator (AMG) is a rein-

forcement learning-based generator for creating AEs

(Koz

ak, 2023). This generator can operate in two set-

tings. In the ﬁrst variant, the generator uses the prox-

imal policy optimization (PPO) algorithm to choose

optimal actions based on the policy learned during

training. In the second case, a random agent is de-

ployed, i.e., no previous training is needed, and avail-

able actions are chosen at random. The possible ac-

tions are in the form of a predeﬁned set of PE ﬁle

manipulations that the agents repeatedly use until the

evasion by the target classiﬁer (EMBER GBDT) is ac-

complished or a maximum number of modiﬁcations,

50, is performed.

4.1.3 FGSM

Fast gradient sign method (FGSM) is a gradient-

based method for generating AEs introduced by

Goodfellow et al. (Goodfellow et al., 2015). A mod-

iﬁed version for the domain of malware samples is

used where only a small chunk of bytes (payload) is

perturbed and later inserted or appended to the origi-

nal malware ﬁle (Kreuk et al., 2018). At ﬁrst, the pay-

load is perturbed in the embedding space of the Mal-

Conv classiﬁer and later mapped back to the original

binary. The perturbation of the payload is repeated

until it escapes detection of the target classiﬁer and is

limited to a maximum of 100 times.

4.1.4 Partial DOS

Partial DOS is another gradient-based algorithm ca-

pable of creating adversarial malware examples. This

attack works by perturbing only bytes found in the

MS-DOS header except for the e_magic and the

e_lfanew ﬁelds (Demetrio et al., 2019). Same as

with the FGSM algorithm, the perturbation is iterated

until the AE bypasses the MalConv classiﬁer and is

limited to a maximum number of 100 rounds.

5 EVALUATION

This section describes our setup used for experiments

and how we evaluated our proposed combination of

adversarial malware generators.

5.1 Setup

Dataset: In this paper, we used a dataset of PE mal-

ware binaries from the VirusShare

online repository,

which we thank for access. Speciﬁcally, we used

2,000 samples from the VirusShare 00454 dataset

published on 01/02/2023.

Computer Setup: Experiments were carried out on

the NVIDIA DGX Station A100 server equipped with

a single AMD 7742 processor with 64 cores, 512 GB

of DDR4 system memory, and four NVIDIA A100

graphic cards with 40 GB of GPU memory. How-

ever, all experiments conducted in this work are repro-

ducible using a standard single multi-threaded CPU

computer with sufﬁcient system memory (more than

22 GB recommended).

5.2 Experiments

To evaluate our hypothesis that combining adversar-

ial malware generators can signiﬁcantly increase the

probability of a successful adversarial attack, we ﬁrst

need to assess individual generators on some mal-

ware detectors. We picked the 10 best-rated antivirus

programs as ranked by AV-Comparatives in their an-

nual Summary Report from 2022 (AV-Comparatives,

2023). Note that we only list nine antivirus prod-

ucts in the following results because two selected AVs

from the same company returned identical results.

https://virusshare.com/

SECRYPT 2023 - 20th International Conference on Security and Cryptography

782

Further, we anonymize the names of chosen AVs to

minimize possible misuse of this work.

The main metric used to evaluate malicious AEs is

an evasion rate. This metric represents the ratio of ad-

versarial malware examples incorrectly classiﬁed as

benign to the total number of ﬁles tested and is com-

puted as follows:

evasion rate =

misclassi fied

total

· 100% (1)

where total is the total amount of ﬁles submitted to

the malware detector after discarding harmful ﬁles

that were already mispredicted in their genuine form,

i.e., before adversarial modiﬁcation.

5.2.1 Baseline

Firstly, we used the 2,000 malware samples men-

tioned earlier to generate AEs from all ﬁve tested

generators of adversarial malware: MAB-Malware,

AMG (PPO and random agents), FGSM, and Partial

DOS. For generating AEs, we used the default conﬁg-

urations of each generator as speciﬁed by the respec-

tive authors. Next, we tested these AEs against pub-

licly available versions of the above-mentioned top

antivirus programs hosted on the VirusTotal

website.

Note that the AEs were generated against the corre-

sponding target classiﬁers as described in Section 4

and not against these AV programs.

We present the baseline results in Table 1, which

contains evasion rates for all AVs. Surprisingly, the

random AMG agent outperformed other specialized

AE generators, even its trained compatriot AMG with

the PPO algorithm. The highest evasion rate of

34.48% was recorded by the random AMG algorithm

against the AV-6 detector, which performed the worst

among the tested AVs. On the other hand, AV-1 was

the hardest to mislead, with no more than 2.15% of

AEs by random AMG able to bypass its detection

mechanisms.

5.2.2 Combination of Generators

In the following experiment, we created all conceiv-

able pairs of all ﬁve generators, yielding 25 sets

each of 2,000 adversarial malware examples. As de-

scribed in Figure 1, each set contains subsets evasive

evasive

, and f ailed

. The distribution of samples

between the three subgroups depends on AV being

tested. We submitted the generated AEs to all selected

antivirus programs for further evaluation.

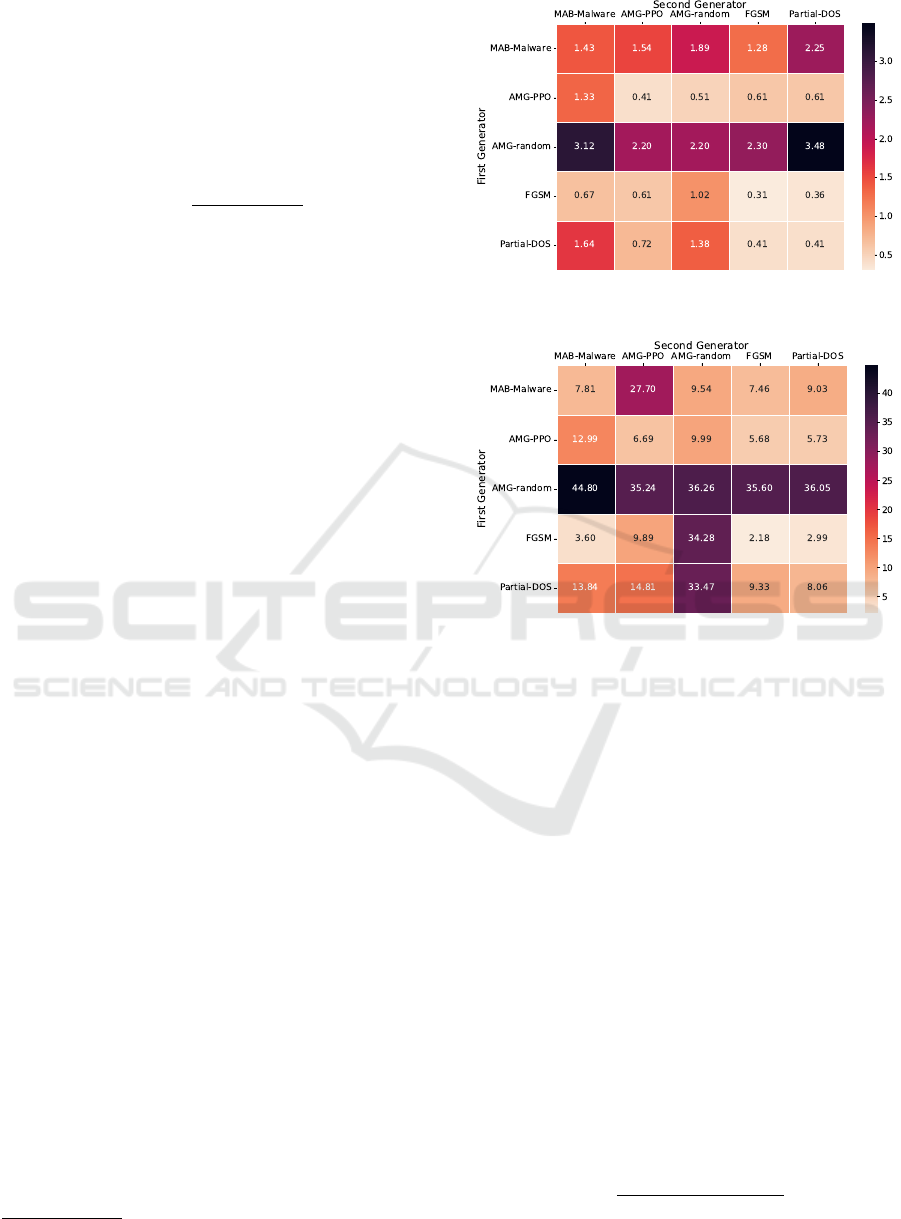

In Figures 2 and 3, we can see the results of this

testing for the AV-1 and AV-6 detectors, the detectors

https://www.virustotal.com/

Figure 2: Evasion rates of combined AE generators against

AV-1.

Figure 3: Evasion rates of combined AE generators against

AV-6.

that performed best and worst in the baseline experi-

ment, respectively. The ﬁrst generator (vertical axis)

was used for each of the 2,000 samples and produced

AEs, from which the non-evasive AEs were used as

input to the second generator (horizontal axis). The

principal diagonal elements display repeated use of

the same generator, i.e., the ﬁrst and second genera-

tors are the same. If we compared the diagonal re-

sults with the previous testing listed in Table 1, we

can conclude that repeated use of the same genera-

tor leads to only marginal improvements (e.g., AMG-

random’s improvements 2.15 → 2.20 on AV-1 and

34.48 → 36.26 on AV-6).

However, if the second generator differs from the

ﬁrst, we have seen signiﬁcant improvements, as doc-

umented in Table 2. The relative minimal, maximal,

and average values were calculated with respect to

baseline values for each generator and AV product

listed in Table 1. The term “relative” refers to the

percentage increase and was calculated as follows:

relative =

combined − baseline

baseline

· 100% (2)

where combined denotes the evasion rate of combined

Combining Generators of Adversarial Malware Examples to Increase Evasion Rate

783

Table 1: Evasion rates of individual AE generators against selected AVs.

AV-1 AV-2 AV-3 AV-4 AV-5 AV-6 AV-7 AV-8 AV-9

MAB-Malware 1.18 1.16 2.9 1.29 1.21 7.1 0.96 2.82 1.06

AMG-PPO 0.41 2.75 2.41 2.84 1.79 3.96 2.39 1.9 3.69

AMG-random 2.15 11.74 12.88 9.86 9.22 34.48 9.37 3.54 11.87

FGSM 0.26 0.16 1.23 0.32 0.21 1.93 0.21 1.69 0.11

Partial-DOS 0.36 1.43 0.64 6.6 0.95 7.91 0.59 2.67 1.64

average 0.87 3.45 4.01 4.18 2.68 11.08 2.7 2.52 3.67

generators and baseline represents the evasion rate of

a single generator. Note that the absolute and relative

extremes were not necessarily recorded by the same

combination of AE generators.

For the AV-1 detector, the highest absolute eva-

sion rate of 3.48% was recorded by the random AMG

agent followed by the Partial DOS manipulations.

The relative increase in evasion rates ranged from

2.38% (AMG-random → AMG-PPO) to 356.91%

(Partial-DOS → MAB-Malware). Overall, AV-1 re-

mained the most difﬁcult antivirus to circumvent,

with only 1.31% of AEs becoming evasive on aver-

age. Similarly, the AV-6 antivirus continued to be the

easiest to mislead, with up to 44.8% of AEs generated

by the combo of AMG-random followed by MAB-

Malware being evasive. Across all combinations, an

average evasion rate for the AV-6 detector was slightly

below 17%.

Even though our proposed attack struggled to gen-

erate successful AEs against the AV-1 detector, com-

bining generators of adversarial malware examples,

in this case, increased the success rate by more than

102% on average compared to separate generators.

The highest average evasion rate increase of almost

700% was reported against AV-9, with a massive in-

crease of 8,650% recorded after extending the FGSM

manipulations by the random AMG agent.

Figure 4: Evasion rates of combined AE generators aver-

aged over all tested AVs.

The average results against all tested AV programs

can be found in Figure 4. The results clearly show

that the random AMG agent combined with any other

generator outperformed all other combinations. Nev-

ertheless, it should be mentioned that solid results

were also achieved by some generator combinations

where MAB-Malware or a trained AMG PPO agent

was used. Overall, the most promising combination

was the random AMG agent extended by the MAB-

Malware generator, yielding an average evasion rate

of 15.9% against top AV products. When compared to

the sole use of the AMG-random and MAB-Malware

generators, this represents an average improvement of

more than 36% and 627%, respectively.

Figure 5: The relative increase in evasion rates from a single

AE generator to the combined pair averaged over all tested

AVs.

The average percentage improvements from using

only the ﬁrst generator to the combined pair against

all AVs are shown in Figure 5. These results show

that the FGSM injection attack beneﬁts the most from

extending its process of creating AEs by a different

generator, e.g., by the random AMG agent, which led

to an average improvement of over 1,304%.

6 CONCLUSIONS

We proposed a novel method combining generators of

adversarial malware examples to create more effec-

tive AEs. In total, we worked with ﬁve distinct AE

SECRYPT 2023 - 20th International Conference on Security and Cryptography

784

Table 2: Absolute and relative evasion rate statistics recorded by combined AE generators when the ﬁrst generator differs

from the second one.

absolute min absolute avg absolute max relative min relative avg relative max

AV-1 0.31 1.31 3.48 2.38 102.75 356.91

AV-2 0.21 5.56 17.83 0.9 487.72 5,600.0

AV-3 0.7 5.69 15.46 0.0 163.67 1,382.54

AV-4 1.82 8.45 15.86 2.72 477.17 3,516.67

AV-5 0.26 3.95 13.59 0.0 239.09 2,650.0

AV-6 2.18 16.92 44.8 2.21 180.15 1,678.95

AV-7 0.32 3.76 11.12 2.27 238.07 1,125.0

AV-8 1.9 3.88 11.24 2.9 71.78 492.5

AV-9 0.16 5.77 17.95 0.0 696.02 8,650.0

generators, representing both black-box and white-

box approaches. We evaluated this hypothesis on top-

ranked antivirus programs and a set of 2,000 malware

samples. Our proposed method is easy to implement

and can signiﬁcantly increase the evasion rate com-

pared to those achieved by single generators.

Firstly, we measured the baseline readings of AEs

generated by individual generators. The most suc-

cessful AE generator was the random AMG agent

with an evasion rate from 2.14% up to 34.48%, de-

pending on the attacked antivirus.

Next, we tested all possible pairs of individual

generators on the same set of malware ﬁles and AV

detectors. The results show that combining genera-

tors of adversarial malware increases the evasion rate

signiﬁcantly. For example, the random AMG agent

extended by the MAB-Malware generator improved

its evasion rate from 34.48% against AV-6 to 44.8%

against the same antivirus. This combination, AMG-

random followed by MAB-Malware, proved to be the

most successful among all tested combinations by

achieving an average evasion rate of 15.9% against

leading AV products. On the other hand, the FGSM

injection attack showed that substantial improvements

could be made even for less-performing AE gener-

ators. Combined with different generators, this ad-

versarial attack method saw massive improvements in

evasion rate ranging from 91.97% up to 1,304.73%.

Based on our ﬁndings, we can conclude that the

combination of AE generators improves the probabil-

ity of bypassing anti-malware tools compared to sin-

gle generators and shows that even top antivirus prod-

ucts are vulnerable to these attacks.

In the future, we would like to examine more in-

depth if combining AE generators inﬂuences the re-

sulting behavior of crafted AEs. In this work, we did

not verify the functionality of resulting AEs but in-

stead relied on the fact that the authors of AE gener-

ators create well-designed models. Thus connecting

two AE generators should lead to functioning AEs.

However, many authors of AE generators validate the

preservation of original functionality only theoreti-

cally, but empirical results show that it is not sufﬁcient

(Koz

ak, 2023).

Currently, our proposed method is only effective

against static analysis detectors because it incorpo-

rates generators that only modify static analysis fea-

tures. A challenging future research area would be

to develop a reliable generator of AEs capable of by-

passing dynamic analysis methods that could later be

incorporated into our method. In addition, integrat-

ing more than two generators of AEs could lead to

even higher evasion rate beneﬁts, but further research

is needed in this area.

ACKNOWLEDGEMENTS

This work was supported by the Grant Agency of

the Czech Technical University in Prague, grant No.

SGS23/211/OHK3/3T/18 funded by the MEYS of

the Czech Republic and by the OP VVV MEYS

funded project CZ.02.1.01/0.0/0.0/16 019/0000765

“Research Center for Informatics”.

REFERENCES

Anderson, H. S., Kharkar, A., Filar, B., Evans, D., and

Roth, P. (2018). Learning to evade static pe machine

learning malware models via reinforcement learning.

CoRR, abs/1801.08917.

Anderson, H. S. and Roth, P. (2018). Ember: An open

dataset for training static pe malware machine learn-

ing models. CoRR, abs/1804.04637.

Aslan,

O. and Samet, R. (2020). A comprehensive re-

view on malware detection approaches. IEEE Access,

8:6249–6271.

AV-Comparatives (2023). Summary report 2022.

Comar, P. M., Liu, L., Saha, S., Tan, P.-N., and Nucci,

A. (2013). Combining supervised and unsupervised

Combining Generators of Adversarial Malware Examples to Increase Evasion Rate

785

learning for zero-day malware detection. In 2013 Pro-

ceedings IEEE INFOCOM, pages 2022–2030.

Demetrio, L., Biggio, B., Lagorio, G., Roli, F., and Ar-

mando, A. (2019). Explaining vulnerabilities of

deep learning to adversarial malware binaries. ArXiv,

abs/1901. 03583.

Demetrio, L., Biggio, B., Lagorio, G., Roli, F., and Ar-

mando, A. (2021). Functionality-preserving black-

box optimization of adversarial windows malware.

IEEE Transactions on Information Forensics and Se-

curity, 16:3469–3478.

Ebrahimi, M., Zhang, N., Hu, J., Raza, M. T., and

Chen, H. (2020). Binary black-box evasion attacks

against deep learning-based static malware detectors

with adversarial byte-level language model. CoRR,

abs/2012.07994.

Edmonds, E. (2020). Three-quarters of americans ”afraid”

to ride in a self-driving vehicle.

Erko, A. (2022). Malware sandbox evasion: Techniques,

principles & solutions.

Fang, Y., Zeng, Y., Li, B., Liu, L., and Zhang, L. (2020).

Deepdetectnet vs rlattacknet: An adversarial method

to improve deep learning-based static malware detec-

tion model. Plos one, 15(4):e0231626.

Gibert, D., Mateu, C., and Planes, J. (2020). The rise of

machine learning for detection and classiﬁcation of

malware: Research developments, trends and chal-

lenges. Journal of Network and Computer Applica-

tions, 153:102–526.

Gilpin, L. H., Bau, D., Yuan, B. Z., Bajwa, A., Specter,

M. A., and Kagal, L. (2018). Explaining explanations:

An approach to evaluating interpretability of machine

learning. CoRR, abs/1806.00069.

Goodfellow, I. J., Shlens, J., and Szegedy, C. (2015). Ex-

plaining and harnessing adversarial examples. In

3rd International Conference on Learning Represen-

tations (ICLR).

Grosse, K., Papernot, N., Manoharan, P., Backes, M., and

McDaniel, P. (2017). Adversarial examples for mal-

ware detection. In Computer Security – ESORICS

2017, pages 62–79, Cham. Springer, Springer Inter-

national Publishing.

Hu, W. and Tan, Y. (2017). Generating adversarial malware

examples for black-box attacks based on gan. CoRR,

abs/1702. 05983.

Huang, L., Joseph, A. D., Nelson, B., Rubinstein, B. I., and

Tygar, J. D. (2011). Adversarial machine learning.

In Proceedings of the 4th ACM Workshop on Secu-

rity and Artiﬁcial Intelligence, AISec ’11, page 43–58,

New York, NY, USA. Association for Computing Ma-

chinery.

Juravle, G., Boudouraki, A., Terziyska, M., and Rezlescu,

C. (2020). Trust in artiﬁcial intelligence for medical

diagnoses. Progress in Brain Research, 253:263–282.

Karl Bridge, M. (2019). Pe format - win32 apps.

Kolosnjaji, B., Demontis, A., Biggio, B., Maiorca, D., Gi-

acinto, G., Eckert, C., and Roli, F. (2018). Adversar-

ial malware binaries: Evading deep learning for mal-

ware detection in executables. In 2018 26th European

signal processing conference (EUSIPCO), pages 533–

537. IEEE.

Koz

ak, M., Jure

cek, M., and L

orencz, R. (2022). Genera-

tion of adversarial malware and benign examples us-

ing reinforcement learning. In Cybersecurity for Arti-

ﬁcial Intelligence, pages 3–25. Springer.

Koz

ak, M. (2023). Application of reinforcement learning to

creating adversarial malware samples. Master’s the-

sis, Czech Technical University in Prague, Faculty of

Information Technology.

Kreuk, F., Barak, A., Aviv-Reuven, S., Baruch, M., Pinkas,

B., and Keshet, J. (2018). Deceiving end-to-end deep

learning malware detectors using adversarial exam-

ples. arXiv preprint arXiv:1802.04528.

Marius, H. (2020). Overview: State-of-the-art machine

learning algorithms per discipline and per task.

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z. B., and Swami, A. (2016). The limitations of deep

learning in adversarial settings. In 2016 IEEE Euro-

pean symposium on security and privacy (EuroS&P),

pages 372–387. IEEE.

Raff, E., Barker, J., Sylvester, J., Brandon, R., Catanzaro,

B., and Nicholas, C. (2017). Malware detection by

eating a whole exe. CoRR.

Silver, D., Schrittwieser, J., Simonyan, K., Huang, A.,

Guez, A., Hubert, T., Baker, L., Lai, M., Bolton,

A., Antonoglou, I., et al. (2017). Mastering the

game of go without human knowledge. Nature,

550(7676):354–359.

Song, W., Li, X., Afroz, S., Garg, D., Kuznetsov, D., and

Yin, H. (2022). Mab-malware: a reinforcement learn-

ing framework for blackbox generation of adversarial

malware. In Proceedings of the 2022 ACM on Asia

Conference on Computer and Communications Secu-

rity, pages 990–1003, New York, NY, USA. Associa-

tion for Computing Machinery.

Ucci, D., Aniello, L., and Baldoni, R. (2019). Survey of ma-

chine learning techniques for malware analysis. Com-

puters & Security, 81:123–147.

Yang, C., Xu, J., Liang, S., Wu, Y., Wen, Y., Zhang, B., and

Meng, D. (2021). Deepmal: maliciousness-preserving

adversarial instruction learning against static malware

detection. Cybersecurity, 4(1):1–14.

Yuceel, H. C. (2022). Virtualization/sandbox evasion - how

attackers avoid malware analysis.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

786
