Detecting BrakTooth Attacks

Achyuth Nandikotkur

1 a

, Issa Traore

1 b

and Mohammad Mamun

2 c

ECE Department, University of Victoria, British Columbia, Canada

National Research Council Canada, New Brunswick, Canada

Keywords:

Bluetooth Security, Intrusion Detection, Machine Learning, BrakTooth.

Abstract:

More than 5.1 billion Bluetooth-enabled devices were shipped in the year 2022 and this trend is expected to

exceed 7.1 billion by the year 2026. A large proportion of these devices are used in smart homes designed for

older adults, to help them age in place. Monitoring vitals, climate control, illumination control, fall detection,

incontinence detection, pill dispensing, and several other functions are successfully addressed by many of these

Bluetooth-enabled devices. Therefore it becomes crucial to protect them from malicious attacks and ensure

the safety and well-being of their users. Some of these devices have only Bluetooth connectivity which makes

patching them challenging for older adults, as a result, most remain unpatched. The family of vulnerabilities

recently found in the Bluetooth Classic (BT Classic) stack called BrakTooth, poses a genuine threat to such

devices. In this study, we develop an experimental procedure to capture trafﬁc at the Link Manager Protocol

(LMP) layer of the BT Classic stack and use machine learning algorithms to detect BrakTooth-based attacks.

1 INTRODUCTION

According to the Bluetooth Special Interest Group

(SIG, 2023), it is projected that over 7.1 billion

Bluetooth-enabled devices will be shipped in 2026.

This ﬁgure encompasses all Bluetooth technology de-

vices, including BT Classic and newer versions such

as Bluetooth Low Energy (BLE). Although the num-

ber of devices shipped with just BT Classic is ex-

pected to decline, 100% of the future Bluetooth-

enabled devices are expected to support dual-mode

(BT Classic + BLE). A substantial number of these

devices are used by aging adults, such as smart-

watches, hearing aids, fall detection devices, blood

pressure monitoring devices, weighing scales, pill-

boxes, diapers, and more, to assist them in everyday

activities (Wagner et al., 2012). Therefore, it becomes

crucial to protect these devices against attacks that in-

tend to compromise them.

In recent years, Garbelini et al. (2021) has dis-

closed a family of new security vulnerabilities in com-

mercial Bluetooth stacks that can compromise the

availability of BT Classic devices, called BrakTooth.

The BrakTooth vulnerabilities exist especially in the

link manager and baseband layers of the Bluetooth

https://orcid.org/0000-0001-7098-8374

https://orcid.org/0000-0003-2987-8047

https://orcid.org/0000-0002-4045-8687

stack. Several vendors producing BT Classic system-

on-chips (SoCs) were notiﬁed of the disclosures and

they have already started patching their implemen-

tations of the stack, or have already patched them.

Usually, vendors provide security patches to SoCs

through wireless over-the-air (OTA) ﬁrmware up-

dates, or wired updates (i.e, via USB) (El Jaouhari and

Bouvet, 2022), or replace the devices with patched

SoCs; the last one requires recall and is rarely done.

Typically, updating the ﬁrmware of Bluetooth-only

devices over the air requires two separate devices: a

Device Firmware Update (DFU) target and a DFU

controller. The DFU controller, which is usually a

mobile device running a vendor-speciﬁc application,

is responsible for transferring the ﬁrmware image to

the DFU target device where the update needs to be

made. Nordic Semiconductors employs this tech-

nique to update their Bluetooth-based devices over

BLE (NordicSemiconductor, 2018). Several devices

used in aging in place have only Bluetooth connec-

tivity, therefore, older adults without sufﬁcient tech-

nical expertise ﬁnd it challenging to update them. As

a result, several such devices remain vulnerable and

prone to compromise. In this study, we propose a

novel method to detect BrakTooth attacks using ma-

chine learning and inexpensive hardware.

Nandikotkur, A., Traore, I. and Mamun, M.

Detecting BrakTooth Attacks.

DOI: 10.5220/0012128000003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 787-792

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

787

1.1 Background

Bluetooth is a wireless communication standard that

can be used to exchange data between stationary and

ﬁxed devices within a range of up to 100 meters

(Ferro and Potorti, 2005). Although Bluetooth occu-

pies the ISM band of 2.4 GHz which is 83MHz wide,

it does not use the Direct Sequence Spread Spectrum

(DSSS) used by WiFi. Instead, it uses Frequency

Hopping Spread Spectrum (FHSS) to hop between 79

different 1 MHZ-wide channels in this band. Due to

its use of FHSS, interference with other devices is re-

duced. However, WiFi uses a single channel that is

22MHz wide, and when both WiFi and Bluetooth net-

works are in the same range, the 22MHz channel of

WiFi occupies 22 of the 79 Bluetooth channels lead-

ing to some interference. When a Bluetooth device

experiences interference, it addresses this problem by

hopping to the next channel and retrying. In contrast,

WiFi issues an Automatic Repeat Request and slows

down the data rate in an attempt to reduce the Bit Er-

ror rate. However, the number of channels and the

channel bandwidth differ based on the type of Blue-

tooth device used. There exist two types of Bluetooth

devices: Bluetooth Classic (BT Classic) and Blue-

tooth Low Energy (BLE). A few salient differences

between these two devices are listed in Table 1.

1.2 Snifﬁng Bluetooth Trafﬁc

Several devices and tools are readily available to

monitor wireless WiFi trafﬁc. However, monitoring

Bluetooth trafﬁc reliably is limited to the realm of

professional equipment like the Ellisys Vanguard or

the Frontline Sodera and they can be very expensive

(Cominelli et al., 2020). In general, there exist two

types of snifﬁng:

• Passive snifﬁng: It involves a device that sniffs

over-the-air Bluetooth packets between two com-

municating devices in radio range.

• Active snifﬁng: It involves a device that connects

to a remote BT device and captures the packets

exchanged down to the lowest layer in the Blue-

tooth protocol stack.

Due to the fact that Bluetooth uses frequency-

hopping spread spectrum technology with a vendor-

speciﬁc hopping pattern, it is difﬁcult to monitor its

connections. Despite these challenges, a few inex-

pensive passive sniffers such as Ubertooth One (Os-

smann, 2011) and nRF Sniffer (nRFSniffer, 2023)

were developed, however, they can only capture pack-

ets of BLE reliably, and not BT Classic (Nijholt et al.,

2020). To the best of our knowledge, there is still no

Bluetooth Physical Layer

Baseband and Link

Control

Link Manager Protocol

(LMP)

Host Controller

Interface (HCI)

RFCOMM

L2CAP

SDP

BrakTooth

attacks

target

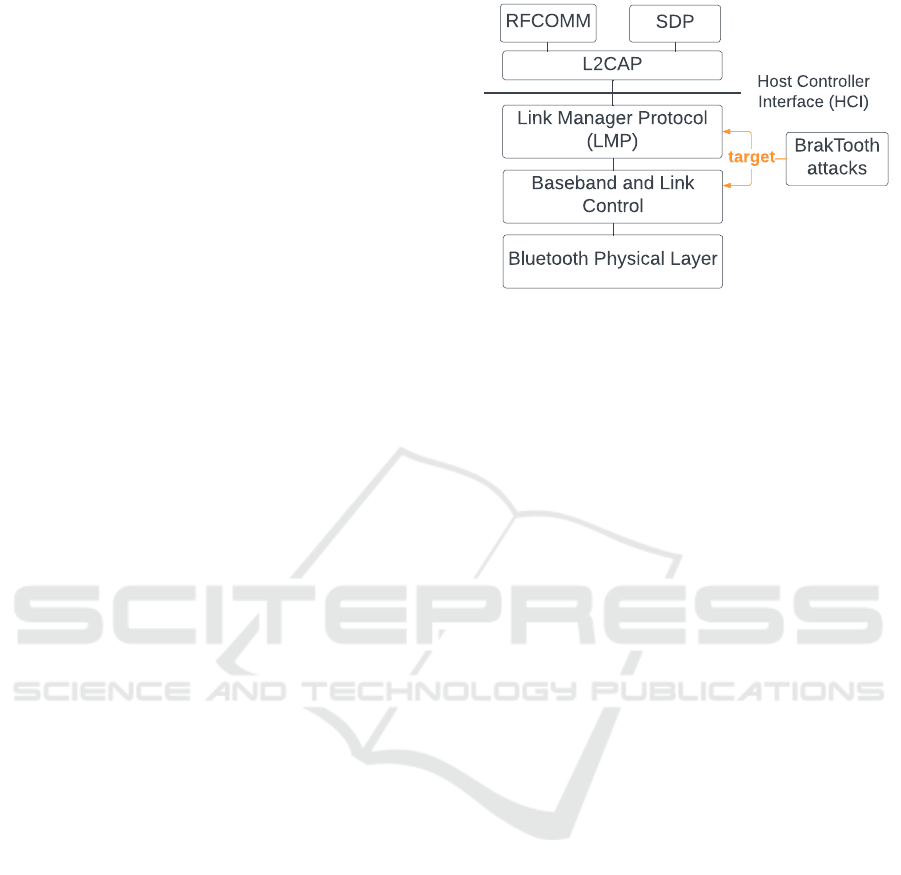

Figure 1: BrakTooth attacks targeting the LMP and base-

band layers of the BT Classic stack.

non-commercial solution for monitoring BT Classic

trafﬁc. One approach to capturing the packets per-

taining to BrakTooth attacks would be to set up an

Android device as the active snifﬁng target and enable

a debug functionality in its Bluetooth stack known as

the HCI Snoop Log feature (Ditton et al., 2020). This

feature captures all BT trafﬁc above the HCI layer of

the Bluetooth stack. However, as shown in Figure 1,

since the BrakTooth attacks are aimed to exploit the

vulnerabilities in the link manager protocol (LMP)

and baseband layers of the Bluetooth stack, we need

a method to monitor the lower-level trafﬁc. Thus,

we adopted a well-known framework called Internal-

Blue (Mantz et al., 2019), which is capable of mon-

itoring communications below the HCI layer. The

researchers who developed this framework reverse-

engineered widely used Broadcom BCM4339 Blue-

tooth Controller ﬁrmware and developed patches that

give access to the LMP layer. Note that the Nexus

5 is one of the popular mobile devices that contain

the BCM4339 controller (Schulz et al., 2015). In this

study, we utilized the InternalBlue framework to en-

able LMP monitoring on a Nexus 5 device and use it

as an active sniffer to capture LMP packets from both

benign and malicious devices.

It should be noted that this approach to capturing

LMP packets was not explored in prior works. As a

consequence, detecting BrakTooth-based attacks us-

ing machine learning and inexpensive hardware was

not feasible until now. Therefore, our study presents

only our ﬁndings without a comparative analysis.

The remainder of the paper is organized as fol-

lows. Section 2 describes the related works. Section

3 presents the experimental setup and dataset collec-

tion. Section 4 presents results from applying various

machine learning algorithms to the dataset. Finally,

Section 5 presents our conclusions and future work.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

788

Table 1: Salient differences between BT Classic and BLE.

Feature Bluetooth Classic Bluetooth LE

Application Audio streaming and data transfer.

Audio streaming, data transfer,

location services and device networks.

Frequency band 2.402 - 2.480 GHz (ISM) 2.402 - 2.480 GHz (ISM)

Channels 79 40 channels

Channel bandwidth 1 MHz 2 MHz

Spread spectrum FHSS FHSS

Power Consumption 1W ∼0.001 W-0.5 W

Data rate 1 Mb/s, 2 Mb/s, 3Mb/s 125 Kb/s, 500Kb/s, 2 Mb/s

Device discovery Inquiry or paging Advertising

Encryption algorithm E0/SAFER+ AES-CCM

Network topology Point-to-point Point-to-point, Broadcast and Mesh

2 RELATED WORKS

The following section discusses some works that use

both commercial and non-commercial devices to de-

tect attacks utilizing various methods such as thresh-

olds in Bluetooth speciﬁcations, signatures, statistical

distributions of data, and anomaly detection.

2.1 Detecting Bluetooth Attacks

Wu et al. (2020) used the Ubertooth One device to

capture over-the-air packets in the BLE advertising

channel and extracted features such as the advertis-

ing pattern, state transitions of the BLE device, ad-

vertising interval, the RF (Radio frequency) signal

frequency offset, and the RF signal strength. They

detect spooﬁng attacks by creating a statistical distri-

bution of CFO (Carrier frequency offset) and RSSI

(Received signal strength indication) values and use

them to identify any value that falls out of a prede-

termined threshold. They ﬁrst look for a connection

request packet to identify the detection of a new de-

vice and then use the above statistical distributions to

detect a spooﬁng condition. One drawback of using

the Ubertooth One device for BT classic monitoring

is that it is unable to capture all packets reliably (Ni-

jholt et al., 2020; Antonioli et al., 2019).

OConnor and Reeves (2008) presented a

Bluetooth-based network intrusion detection system

that uses the Merlin LeCroy protocol analyzer to

non-intrusively capture the Bluetooth trafﬁc and

detect malicious behavior using pattern matching.

It decodes Bluetooth packets by synchronizing with

the master device on a piconet and following the

hopping sequence of that piconet. However, since the

detection is signature-based, novel intrusions cannot

be detected. The authors have used a commercial

protocol analyzer and hence were able to observe and

analyze up to the LMP layer of the Bluetooth stack.

Huang et al. (2018) used loopholes in the Blue-

tooth speciﬁcation pertaining to low-power mode

transitions, to perform Bluetooth DOS attacks. Partic-

ularly, they exploited loopholes in the sniff and park

mode conversions to trigger DOS conditions, using

slave devices in a piconet. They also suggested that

DOS conditions can be triggered intentionally or un-

intentionally when multiple piconets pertaining to dif-

ferent devices come closer to each other. Because de-

vices operating in different piconets use their own fre-

quencies for communication and are unaware of each

other’s hopping sequences, they may end up causing

interference which can lead to a DOS condition. To

detect DOS conditions caused by interference, they

compare quality characteristic data (i.e, bit error rate

and invalid data rate) of all the channels with the

normal thresholds in the Bluetooth speciﬁcation. To

detect DOS attacks by slave devices, they compared

the proportion of data transmission time to the slave

timeslots, under normal conditions and during the ac-

tivity under observation.

Satam et al. (2018) proposed an intrusion detec-

tion system that runs on a Linux server machine and

captures the Bluetooth data frames like SCO (Syn-

chronous Connection Oriented) data frame, the HCI

protocol frame, and the HCI (Host controller inter-

face) data frame. Although the paper does not men-

tion the hardware used to sniff the Bluetooth trafﬁc,

it appears that the authors used the machine’s stock

Bluetooth adapter because captured frames represent

packets above the HCI layer. Once captured, the

frames are converted into ﬂows of size T seconds,

which are then converted to n-grams. These n-grams

are used to train various machine learning algorithms

to establish normal behavior and thus classify a new

observation ﬂow as normal or abnormal. They per-

formed Bluesnarﬁng and power-draining attacks and

achieved precision and recall of 99.6%.

Although the aforementioned works employ vari-

ous novel techniques to detect different types of Blue-

Detecting BrakTooth Attacks

789

tooth attacks, to the best of our knowledge, there

is currently no existing research that focuses on the

detection of BrakTooth-based Bluetooth attacks us-

ing affordable hardware and machine learning tech-

niques. Our work aims to ﬁll this gap.

3 EXPERIMENTAL SETUP

The LMP protocol is used by the link managers in

different Bluetooth devices to establish links and ex-

change information about supported features, power-

saving options, and encryption techniques. Most ex-

isting works that use inexpensive, off-the-shelf Blue-

tooth adapters could only observe packets above the

Host Controller Interface (HCI) layer, as software

running on the lower layers is not accessible to the

public (Nijholt et al., 2020). To address this, we de-

veloped the experimental procedure seen in Figures 2

and 3 to capture the LMP trafﬁc of normal data per-

taining to benign Bluetooth communication and at-

tack data pertaining to the exploitation of BrakTooth-

based vulnerabilities. For this purpose, we used two

devices:

1. Attack device: This device was used to craft and

send BrakTooth attack packets to the victim de-

vice.

2. Victim device: This device received packets from

the attacking device as well as normal Bluetooth

packets from communication with other benign

devices.

More details about these two types of devices are

provided in the following subsections.

3.1 Attack Device

To exploit BrakTooth-based vulnerabilities, a proof-

of-concept (PoC) tool (BrakToothPoC, 2021) was re-

leased. As shown in Figure 2, this tool is installed

on a Ubuntu 18.04 host machine and is used to ﬂash

custom ﬁrmware on an ESP32-WROVER-KIT to ex-

ecute various exploits.

3.2 Victim Device

A rooted Nexus 5 mobile device containing the

Broadcom BCM4339 Bluetooth controller is used as

a victim while a Ubuntu 22.04 host machine is used

to run the InternalBlue framework. The host machine

connects to the victim device via Android Debug

Bridge (ADB). When the victim’s Bluetooth stack is

compiled with debugging enabled, two new ports are

opened by the android device as follows:

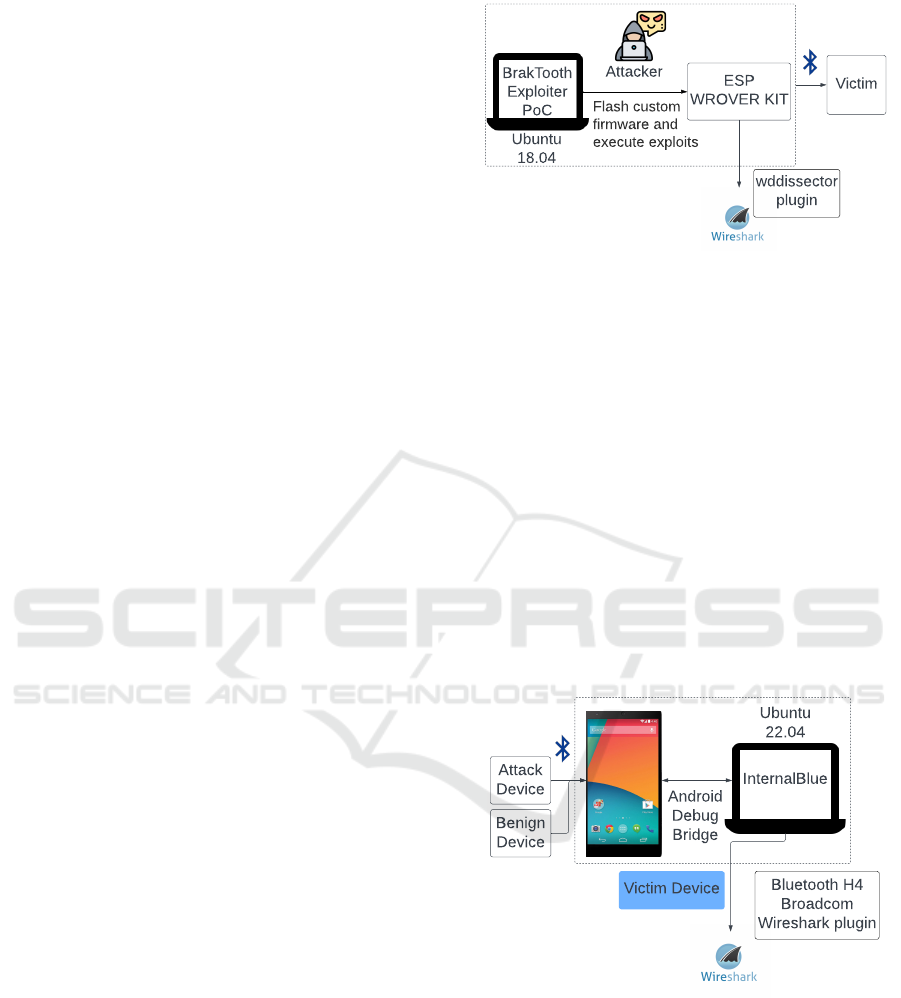

ESP

WROVER KIT

BrakTooth

Exploiter

PoC

wddissector

plugin

Victim

Ubuntu

18.04

Attacker

Flash custom

firmware and

execute exploits

Figure 2: Setup of the attack device.

1. TCP 8872: This allows for an external agent

to read the HCI packets exchanged between the

BCM4339 controller and the Bluetooth stack.

2. TCP 8873: This can be used to send HCI com-

mands to the BCM4339 controller through the

Bluetooth stack.

As mentioned in Section 1.2, the InternalBlue

framework helps in monitoring the LMP packets re-

ceived by the victim device and it does so by mod-

ifying the BCM4339 ﬁrmware such that it relays the

LMP packets it received to the host machine over TCP

8872. The framework also uses the Bluetooth H4

Broadcom Wireshark plugin to parse LMP and base-

band packets from the incoming trafﬁc and write to

Wireshark. A setup of the victim device can be seen

in Figure 3.

Victim Device

InternalBlue

Android

Debug

Bridge

Bluetooth H4

Broadcom

Wireshark plugin

Attack

Device

Benign

Device

Ubuntu

22.04

Figure 3: Setup of the victim device.

3.3 Dataset Collection

Both normal and attack data were extracted from the

Wireshark capture ﬁles, generated by the InternalBlue

framework running over the Nexus 5 device. To gen-

erate normal data, three mobile devices and a Win-

dows laptop were paired with the Nexus 5 device, and

they were allowed to exchange several sample docu-

ments, video, and audio ﬁles over the BT Classic pro-

SECRYPT 2023 - 20th International Conference on Security and Cryptography

790

tocol. To generate attack data, we used the PoC tool

running on an Ubuntu 18.04 host machine to execute

various exploits listed by Garbelini et al. (2021), using

the ESP-32-WROVER-KIT. The Nexus 5 device was

kept as the target. Following is a sample command to

execute exploits using the PoC tool.

sudo bin/bt_exploiter --host-port=/dev/

ttyUSB1 --target=<target bdaddress>

--exploit =<exploit name>

The captured Bluetooth trafﬁc has the following fea-

tures:

1. Protocol: This ﬁeld refers to the protocol used in

the Bluetooth packet such as L2CAP, OBEX, Ser-

vice Discovery Protocol (SDP), RFCOMM, and

others.

2. Info: This ﬁeld provides additional information

about each packet depending on the type of proto-

col used.

3. Length: This ﬁeld indicates the length of the

packet in bytes.

4. Delta: This ﬁeld indicates the time difference be-

tween the current packet and the previous packet

in the pcap ﬁle.

5. Type: This ﬁeld is a target variable representing

normal vs attack conditions and is labeled manu-

ally.

The LabelEncoder was imported from the scikit-

learn library to encode the Protocol and Length fea-

tures and a standard scaler was used to standardize all

the features. The distribution of the attack and nor-

mal data is shown in Table 2. As the number of fea-

tures is limited, in this paper, we focus on classifying

only two categories, i.e, normal and attack. All en-

tries pertaining to the vulnerabilities listed in Table 2

are mapped to just one class i.e, Attack. Both the at-

tack and normal data were manually labeled, and the

dataset has been made publicly available

4 RESULTS AND DISCUSSION

For the experimental evaluation, we split the dataset

into an 80-20 ratio to train three machine learning

models: Random Forest, K-Nearest Neighbour, and

an Artiﬁcial Neural Network. Gholamy et al. (2018)

suggested that the best results are obtained if 20-30%

of the data is used for testing and the remaining 80%

for training. As for evaluation criteria, we chose the

true positive rate (TPR), false positive rate (FPR), and

ISOT Laboratory, BrakTooth Attack Dataset, 2023,

https://onlineacademiccommunity.uvic.ca/isot/datasets/

Table 2: Distribution of normal and attack data.

Type of vulnerability Packets

normal 6269

attack au rand ﬂooding 655

truncated sco link request 340

duplicated iocap 299

truncated lmp accepted 274

invalid feature page execution 250

feature response ﬂooding 216

invalid timing accuracy 211

lmp overﬂow dm1 159

lmp auto rate overﬂow 151

duplicated encapsulated payload 111

invalid setup complete 67

Table 3: Results from applying various classiﬁers.

Classiﬁer TPR FPR Precision

Random

Forest

98.33% 1.47% 99.36%

ANN 97.05% 7.51% 96.74%

k-NN 97.77% 1.28% 99.43%

precision as they collectively provide a comprehen-

sive understanding of the model’s performance in at-

tack detection. TPR captures the model’s ability to

detect actual attacks, FPR assesses the rate of false

alarms, and precision ensures the reliability of pos-

itive predictions. We obtained encouraging results,

as shown in Table 3, with the Random Forest model

performing the best, achieving a precision of 99.36%

and a true positive rate (TPR) of 98.33%. As men-

tioned in Section 1.2, there are no prior works that

deal with the problem of detecting BrakTooth-based

attacks. Therefore, we will not provide a comparative

analysis.

Furthermore, due to the lack of non-commercial

Bluetooth sniffers, in this paper, we propose an ex-

perimental procedure that utilizes an active sniffer to

capture attack trafﬁc. However, it is worth noting that

in a real-world application, this approach may not be

entirely feasible as the attacker would need to speciﬁ-

cally target the active sniffer for it to effectively detect

any attacks. One strategy to enhance the likelihood of

an attack is to periodically change the name of the

active sniffer (i.e, victim) to match the names of com-

mon devices detected in the Bluetooth piconet being

targeted.

5 CONCLUSION AND FUTURE

WORK

In this research, we used a two-prong approach to

detect BrakTooth-based attacks. First, we set up an

attack device using ESP32-WROVER-KIT running

a proof of concept (PoC) tool. Second, we set up

Detecting BrakTooth Attacks

791

an active sniffer to capture normal and attack trafﬁc,

using the InternalBlue framework and a Broadcom

BCM4339 Bluetooth Controller. Finally, we used the

collected data to train various machine-learning mod-

els to classify attack data and achieved good perfor-

mance with the Random Forest model. Our inexpen-

sive and simple detection setup can also be extended

to notify various stakeholders, such as caretakers and

family members as soon as an attack is detected, thus

ensuring the safety and welfare of the senior resi-

dents in a smart home. In the future, we intend to

enhance our current low-cost setup to capture addi-

tional features such as RF signal strength, RF sig-

nal frequency offset, bit error rate, invalid data rate,

and more to model and identify a broader range of

Bluetooth attacks. Further, we also plan to integrate

Ubertooth One, to extend the existing setup to detect

SweynTooth-based (Garbelini et al., 2020) attacks on

BLE devices.

ACKNOWLEDGEMENTS

This project was supported in part by collaborative

research funding from the National Research Council

of Canada’s Aging in Place Program.

REFERENCES

Antonioli, D., Tippenhauer, N. O., and Rasmussen, K. B.

(2019). The knob is broken: Exploiting low entropy

in the encryption key negotiation of bluetooth br/edr.

In USENIX Security Symposium, pages 1047–1061.

BrakToothPoC (2021). Braktooth proof of con-

cept. https://github.com/Matheus-Garbelini/

braktooth esp32 bluetooth classic attacks.

Cominelli, M., Gringoli, F., Patras, P., Lind, M., and Noubir,

G. (2020). Even black cats cannot stay hidden in the

dark: Full-band de-anonymization of bluetooth classic

devices. In 2020 IEEE Symposium on Security and

Privacy (SP), pages 534–548.

Ditton, S., Tekeoglu, A., Bekiroglu, K., and Srinivasan, S.

(2020). A proof of concept denial of service attack

against bluetooth iot devices. In 2020 IEEE Interna-

tional Conference on Pervasive Computing and Com-

munications Workshops (PerCom Workshops), pages

1–6. IEEE.

El Jaouhari, S. and Bouvet, E. (2022). Secure ﬁrmware

over-the-air updates for iot: Survey, challenges, and

discussions. Internet of Things, 18:100508.

Ferro, E. and Potorti, F. (2005). Bluetooth and wi-ﬁ wireless

protocols: a survey and a comparison. IEEE Wireless

Communications, 12(1):12–26.

Garbelini, M. E., Chattopadhyay, S., Bedi, V., Sun, S., and

Kurniawan, E. (2021). Braktooth: Causing havoc on

bluetooth link manager.

Garbelini, M. E., Wang, C., Chattopadhyay, S., Sun, S., and

Kurniawan, E. (2020). Sweyntooth: Unleashing may-

hem over bluetooth low energy. In Proceedings of the

2020 USENIX Conference on Usenix Annual Techni-

cal Conference, pages 911–925.

Gholamy, A., Kreinovich, V., and Kosheleva, O. (2018).

Why 70/30 or 80/20 relation between training and

testing sets: A pedagogical explanation.

Huang, Y., Hong, P., and Yu, B. (2018). Design of bluetooth

dos attacks detection and defense mechanism. In 2018

IEEE 4th International Conference on Computer and

Communications (ICCC), pages 1382–1387. IEEE.

Mantz, D., Classen, J., Schulz, M., and Hollick, M. (2019).

Internalblue-bluetooth binary patching and experi-

mentation framework. In Proceedings of the 17th An-

nual International Conference on Mobile Systems, Ap-

plications, and Services, pages 79–90.

Nijholt, T., Poll, E., and Vaandrager, F. (2020). Bluespec:

Development of an lmp state machine and a stateful

black-box br/edr lmp fuzzer.

NordicSemiconductor (2018). Device ﬁrmware up-

date process. https://infocenter.nordicsemi.

com/topic/com.nordic-.infocenter.sdk5.v15.0.0/

lib bootloader dfu process.html.

nRFSniffer (2023). Nrf sniffer for bluetooth

le. https://www.nordicsemi.com/Products/

Development-tools/nrf-sniffer-for-bluetooth-le.

OConnor, T. and Reeves, D. (2008). Bluetooth network-

based misuse detection. In 2008 Annual Computer Se-

curity Applications Conference (ACSAC), pages 377–

391. IEEE.

Ossmann, M. (2011). Ubertooth one. https://github.com/

greatscottgadgets/ubertooth.

Satam, P., Satam, S., and Hariri, S. (2018). Bluetooth in-

trusion detection system (bids). In 2018 IEEE/ACS

15th International Conference on Computer Systems

and Applications (AICCSA), pages 1–7.

Schulz, M., Wegemer, D., and Hollick, M. (2015). Nex-

mon: A cookbook for ﬁrmware modiﬁcations on

smartphones to enable monitor mode. arXiv preprint

arXiv:1601.07077.

SIG, B. (2023). Bluetooth market update. https://www.

bluetooth.com/2023-market-update/.

Wagner, F., Basran, J., and Dal Bello-Haas, V. (2012).

A review of monitoring technology for use with

older adults. Journal of geriatric physical therapy,

35(1):28–34.

Wu, J., Nan, Y., Kumar, V., Payer, M., and Xu, D. (2020).

Blueshield: Detecting spooﬁng attacks in bluetooth

low energy networks. In RAID, pages 397–411.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

792
