Semantic, Technical and Legal Interoperability of European Company

Open Data in Practice: The STIRData Approach

Jakub Kl

ımek

1 a

, Alexandros Chortaras

2 b

, Jakub M

sek

3 c

, Jim J. Yang

, Steinar Skagemo

and Vassilis Tzouvaras

Charles University, Faculty of Mathematics and Physics, Department of Software Engineering, Czech Republic

School of Electrical and Computer Engineering, National Technical University of Athens, Greece

Institute of Law and Technology, Masaryk University, Czech Republic

Norwegian Digitalisation Agency, Norway

Brønnøysund Register Centre, Norway

Keywords:

Interoperability, Linked Data, Open Data, Data Spaces, High-Value Datasets (HVDs), Company Data.

Abstract:

As part of the Open Data Directive, the European Commission has published a list of high-value datasets

(HVDs) that public sector bodies must make available as open data. The list also contains speciﬁc data items

that must be included in these datasets. However, it does not prescribe any technical means of how the data

should be published, severely hindering the interoperability of the datasets once they are published. One of

the HVD topics is company data. In this practice report paper, we present results of STIRData, a project

co-ﬁnanced by the Connecting Europe Facility Programme of the European Union, focusing on technical,

semantic, and legal interoperability of open data from business registries, covering the company data HVDs

topic. The results include a data architecture and a data speciﬁcation to make the published data technically

and semantically interoperable, and legal interoperability guidelines to ensure legal interoperability of the

published data. Moreover, proof-of-concept transformations of data from selected European business registries

are shown using open source tools and according to the speciﬁcation. Finally, a user-orientated platform for

browsing and analysing the data is presented as an example of the possibilities of using the data published in

an interoperable way.

1 INTRODUCTION

As part of the Open Data Directive, the Euro-

pean Commission has published a list of high-value

datasets (HVDs) that public sector bodies must make

available as open data. For each of the HVDs, the list

also contains speciﬁc data items that must be included

in these datasets. At the same time, the European

Commission is in the process of creating Common

European Data Spaces, domain-speciﬁc ecosystems

where data producers and consumers can exchange

data, ideally in an interoperable way. In the case of

HVDs, no technical guidance is given on how to pub-

lish these datasets. As a result, each publisher will

publish their HVDs in their own way, making the re-

https://orcid.org/0000-0001-7234-3051

https://orcid.org/0000-0001-8591-2540

https://orcid.org/0000-0002-8465-6087

sult noninteroperable. The same problem will arise in

the Common European Data Spaces, unless technical

speciﬁcations are provided for each of the exchanged

datasets.

STIRData,

a project co-ﬁnanced by the Con-

necting Europe Facility Programme of the European

Union, investigates this issue and sees what exactly

needs to be done to ensure technical, semantic, and

legal interoperability of the datasets and what the pit-

falls are, by using open data from business registries,

which is one of the HVD topics.

Other approaches to integration of company data

typically keep the source data as it is, i.e., noninter-

operable for others, and try to build value for their

project by ingesting and cleaning the data for proﬁt.

STIRData, on the other hand, aims to improve the

datasets at their source, making the datasets interop-

https://stirdata.eu

KlÃ mek, J., Chortaras, A., MÃ Å ˛aek, J., Yang, J., Skagemo, S. and Tzouvaras, V.

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach.

DOI: 10.5220/0012132100003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 183-194

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

183

erable for everyone. The STIRData approach to tech-

nical interoperability is based on linked data, and the

approach to semantic interoperability is based on a

common data speciﬁcation that reuses the European

Core Vocabularies.

Finally, our approach to legal in-

teroperability of the datasets is based on guidelines to

establish the appropriate terms of use and an overview

of the current state of terms of use of business registry

datasets.

The main contributions of this practice report pa-

per are as follows:

1. We demonstrate how to tackle technical and se-

mantic interoperability in a given domain using

an example of company data.

2. We summarise our legal interoperability frame-

work for open data and apply it to the domain of

data from business registers.

3. We verify the approach on datasets from business

registers of 13 countries.

4. By creating a user-orientated platform, we show

an example of how anyone can build an applica-

tion on top of this interoperable data.

The remainder of the paper is structured as fol-

lows. In Section 2 we introduce the data architecture

that supports technically interoperable open data. In

Section 3 we introduce the STIRData speciﬁcation

that supports the semantic interoperability of com-

pany data. In Section 4 we introduce the legal frame-

work to address existing legal interoperability issues.

In Section 5 we introduce the datasets on which we

veriﬁed our approach. Section 6 shows the STIR-

Data platform and describes the necessary data pre-

processing steps. In Section 7 we evaluate our ap-

proach, and in Section 8 we discuss related work. In

Section 9 we conclude.

2 ARCHITECTURE

To achieve semantic data interoperability, there must

be a common data format with clearly deﬁned seman-

tics. This is deﬁned by the STIRData speciﬁcation in-

troduced later in Section 3. To achieve technical data

interoperability not only for the STIRData platform

(Section 6), but also for all potential data consumers,

there must be a uniform data interface at each of the

data providers.

This is in contrast to other approaches to com-

pany data integration, where technical interoperabil-

ity was achieved by integrating data from various data

https://joinup.ec.europa.eu/node/145983

sources into a centralised database using ad-hoc trans-

formation scripts, as is the case of the euBuisness-

Graph project (see Section 8). The obvious disad-

vantage of the latter approach is the lack of sustain-

ability and scalability. When another data source is

to be added to the system, there needs to be some-

one who creates the transformation script and adds

the data source to the centralised system manually.

When that person is no longer available, e.g. due to

the end of project funding, the original data sources

are left noninteroperable and the invested effort goes

to waste. A similar approach can be intentionally fol-

lowed to create business value from being in control

of the integrated data, which is the case of OpenCor-

porates (see Section 8), however, that is not the goal

of high-value datasets, which should be open to ev-

eryone, preferably in an interoperable way.

Given the motivation mentioned above, the choice

of RDF (Lanthaler et al., 2014) and the principles of

linked data

as the way to publish company data on

the Web was natural. Regarding the technical inter-

face, since users will typically need to query the data,

the SPARQL endpoint (Harris and Seaborne, 2013)

interface was chosen. Even though from a research

point of view, this architecture is not novel, it is still

rarely applied to publishing interoperable public sec-

tor information, if at all. Since it is a perfect ﬁt for

the HVDs, we demonstrate in this paper how it can be

applied on an example of company data, and what are

the hurdles on the way.

Ideally, each data provider would publish the com-

pany data according to the proposed STIRData speci-

ﬁcation in their own SPARQL endpoint. We denote

this way of publishing the data as LD-STIR. How-

ever, this will happen gradually, one provider at a

time. Until then, there are multiple options of where

the company data can be hosted, in which data for-

mat, and how it gets to the desired data format and

the SPARQL endpoint.

The options are shown in Figure 1, where the com-

pliant data is indicated by the green colour. In all

cases, our aim is to simulate the ideal state. We pre-

pare the necessary data transformation and load each

resulting dataset into a separate SPARQL endpoint so

that the solution can be taken over by the business reg-

istry data providers if and when they wish to do so.

This should be the case of at least the Czech Busi-

ness Registry, since the Ministry of Justice hosting

the business registry dataset is part of the STIRData

project’s Experts and Collaborators Group, and the

Norwegian registry, since the Brønnøysund Register

Centre is a partner in the STIRData project. For the

transformations themselves, we use open-source tools

https://www.w3.org/DesignIssues/LinkedData

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

184

BR Provider 2

BR2

(non-LD)

BR Provider 4

BR4

(non-LD)

BR Provider 3

BR3

(non-LD)

BR3

(LD-STIR)

D2RML

BR Provider 5

BR5

(non-LD)

STIRData

participant 1

BR5

(LD-STIR)

BR2

(LD-STIR)

LP-ETL

D2RML

BR Provider 1

BR1

(non-LD)

BR1

(LD)

BR1

(LD-STIR)

LP-ETL LP-ETL

STIRData

participant 2

BR4

(LD-STIR)

D2RML

STIRData platform

integrated

(LD-STIR)

centralized

features

decentralized

features

STIRData

spec

Data catalogue

(data.europa.eu)

DCAT-AP

BR Provider 6

BR6

(LD-STIR)

BR Provider 7

BR7

(LD-STIR)

BR Provider 8

BR8

(LD-STIR)

BR Provider 9

BR9

(non-LD)

Figure 1: STIRData data architecture.

D2RML (Chortaras and Stamou, 2018) and Linked-

Pipes ETL (Kl

ımek and

Skoda, 2017).

The ideal case is represented in Figure 1 by the

BR provider 6, who publishes its data primarily in

the LD-STIR form. However, we anticipate that most

data providers will have their data primarily in a non-

linked data form and transform it to the LD-STIR form

directly using one of our tools (BR providers 2, 3, 4,

and 5), other tools (BR providers 7 and 9) or through

another linked data form such as a national one using

national RDF vocabularies (BR provider 1).

The next question is where the compliant data is

hosted. This would ideally be at the data provider’s

premises (BR providers 1, 3, 6, 7 and 8), other

provider’s premises (BR provider 9) or, in the worst

case, at the premises of a third-party with a time-

limited responsibility (BR providers 2, 4 and 5), in

which case the data will eventually become unavail-

able. However, at least the transformations them-

selves will remain available to be adopted in the fu-

ture.

To access the published company data, the STIR-

Data platform, as well as any other application search-

ing for the data, only needs to know the URLs of

their respective SPARQL endpoints. These can be

found in a data catalogue listing the STIRData com-

pliant datasets, e.g., in the Ofﬁcial Portal for Euro-

pean Data,

via a SPARQL query searching for cata-

logue records linking to the STIRData speciﬁcation.

Part of the speciﬁcation is a DCAT-AP record tem-

plate that shows how to do that. Then, the platform,

and any other potential data consumer, can implement

both decentralized features, distributing queries to the

individual SPARQL endpoints, and centralized fea-

tures, such as precomputing statistics, which would

normally take a longer-than-acceptable time, for real-

time user interaction, to compute.

https://data.europa.eu

3 DATA SPECIFICATION

To ensure semantic interoperability of company data,

a data speciﬁcation

was created based on the EU

Core Vocabularies by extending them and covering

the requirements on the topic of company data from

High-Value Datasets. As an additional input to the

speciﬁcation, we also used the results of the analysis

of the contents of the datasets of European business

registries discussed in Section 5.

The conceptual view of the speciﬁcation is shown

in Figure 2. The central concept is a company. Apart

from typical ﬁelds such as legal name and founding

date, a company may have economic activities (pri-

mary, secondary, auxiliary), it may be split in units,

and it may be located in sites that may correspond

to different establishments, each having an address.

Apart from standard information, addresses should

include the administrative units to which they belong.

The speciﬁcation also supports several types of com-

pany identiﬁers (e.g. registry identiﬁer, tax identiﬁer).

The LEI code ﬁeld offers interoperability with com-

pany data published by GLEIF.

For encoding administrative units, the speciﬁca-

tion prescribes the use of the controlled vocabularies

of the Territorial Units for Statistics (NUTS)

and the

Local Administrative Units (LAU).

NUTS is a four-

level hierarchy (NUTS-0 to NUTS-3), where the top

level is the country level, and LAU further divides the

lowest NUTS level to the most ﬁne-grained local ad-

ministrative units particular to each country. For com-

pany activities, the usage of the Statistical Classiﬁca-

tion of Economic Activities in the European Commu-

nity Rev. 2 (NACE Rev2)

controlled vocabulary is

prescribed, and in particular the national extensions

thereof, as each country typically extends the base

NACE Rev2 classiﬁcation with more ﬁne-grained,

country-speciﬁc economic activity categories. NACE

Rev2 is a four-level hierarchy, and national extensions

typically add a ﬁfth layer, but may extend it up to

seven levels.

It should be noted that while for NUTS and NACE

Rev2 there are SKOS-based linked data versions pub-

lished at the EU Vocabularies site, this is not the case

for LAU and NACE national extensions. Therefore,

their SKOS versions were created within the STIR-

Data project. The LAU SKOS version was created

from the relevant data provided by Eurostat, while the

https://stirdata.github.io/data-speciﬁcation/

https://www.gleif.org/

https://op.europa.eu/s/yzPW

https://data.europa.eu/data/datasets/https-lkod-mff-

cuni-cz-zdroj-datove-sady-stirdata-lau-stirdata

https://op.europa.eu/s/yzPY

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach

185

Company

name

abbreviated name

trading name

lei code

official page

founding date

dissolution date

e-mail

telephone number

URL

Identifier

value

issued date

Agent

name

URL

registration authority code

creator

identifier

tax identifier

Activity (NACE)acitivity

primary activity

Site

Unit

Address

address area

post code

thoroughfare

locator designator

post name

administrative unit l1

administrative unit l2

Administrative Unit

code

site address

administrative unit

Administrative Unit Level

level

secondary activity

auxilliary activity

site

unit

registered address

postal address

street address

NUTS LAU

Figure 2: STIRData conceptual model. Gray classes represent controlled vocabularies.

NACE national extensions SKOS versions were cre-

ated from the data provided by each country’s relevant

national authority. The transformations from the raw

data were made using techniques similar to those dis-

cussed in Section 5.

The STIRData speciﬁcation prescribes that data

items should include only the lowest relevant level

values in the hierarchies of those vocabularies (e.g.

only the NUTS-3 and LAU level), since the upper

levels can be inferred from them. Through the use

of these common vocabularies, company location, en-

coded by administrative units, and economic activity,

can be seen as two core, hierarchically structured, cat-

egorisation dimensions for companies.

The speciﬁcation also contains a sample DCAT-

metadata record to be used to register the pub-

lished dataset in an open data portal, so that it can be

found later in https://data.europa.eu and from

there by the STIRData platform or other consumers.

The most crucial part of such a record is the inclusion

of a SPARQL endpoint distribution of the data and a

statement about the conformance of the data with the

STIRData speciﬁcation. Finally, the speciﬁcation al-

lows for licensing, data provenance and data freshness

information.

DCAT Application Proﬁle for data portals in Eu-

rope (DCAT-AP), https://joinup.ec.europa.eu/collection/

semantic-interoperability-community-semic/solution/dcat-

application-proﬁle-data-portals-europe

4 LEGAL INTEROPERABILITY

Technical interoperability is not the only condition for

successful integration and further use of open data,

in our case, data from European business registers.

Achieving legal interoperability is also essential; the

data provider must ensure that there are no legal ob-

stacles that would limit the further use of the provided

data and must properly formulate the terms of use of

the data. On the other hand, the data consumer must

ensure that they know and understand the terms of use

before using the data.

4.1 Data Provider

The ﬁrst question the data provider must answer when

publishing their dataset, e.g. a business registry, is to

what extent the data should be made public. There

is no legal instrument at the level of international or

EU law that is widely applicable and comprehensively

regulates the obligation of public administration to

provide data and information. The issue is largely

governed by national law.

Regarding our case of company data, the im-

plementing regulation of EU Open Data Directive

2019/1024, the Implementing act on a list of High-

Value Datasets, sets out the obligation to provide busi-

ness register data in the required scope. However, har-

monisation is not complete here either, as this obli-

gation only applies to data already held by Member

States. The regulation does not impose an obliga-

tion to create data to the required extent.This means

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

186

that the richness of the published business registry

datasets differs greatly among EU member states.

The second issue is rights to data. A potential

obstacle is the ownership of plain data, a legislation

based on national civil law and not regulated at the

European or international level. In practice, however,

we are not aware of any legislation in any European

jurisdiction that protects plain data by property rights.

The next level of data rights is intellectual prop-

erty rights, an area harmonised at the EU level.

Plain data is generally not protected by copyright be-

cause copyright law imposes relatively high standards

on the originality of the subject matter and on the

fact that it is “the author’s own intellectual creation”

(Hugenholtz and Quintais, 2021). In the context of

public sector information, the mere fact that “mere

intellectual effort and skill” were required for the cre-

ation of the intangible result are not relevant for its

copyrightability.

The situation is different in the case of legal pro-

tection of databases. The latter is based at the Euro-

pean level by Directive 96/9/EC and consists of copy-

right protection for the structure of the database and

sui generis protection for the maker of the database

(Hugenholtz, 2016). Where database protection is

present, as may arise in the publication of business

ister licences the further use of its contents. The obli-

gation to do so then also follows directly from Article

1(6) of Directive 2019/1024 (Open Data Directive).

The appropriate way to deal with any obstacles aris-

ing from copyright and database law is to use a CC

BY 4.0 licence.

A ﬁnal area to consider is personal data protec-

tion. Business registers contain records of natural per-

sons involved in registered companies and are there-

fore subject to EU Regulation 2016/679, the General

Data Protection Regulation (GDPR). Although this is

a harmonised European regulation, the ﬁnal decision

on whether selected personal data can be published in

open data quality is up to the national legislator.

In summary, to ensure legal interoperability, it is

essential that the data provider provides clear terms

of use for the published data in the dataset. Theoreti-

cally, the terms of use may contain the custom condi-

tions that the data provider imposes on the recipient,

but in practice, the possibilities of setting new restric-

tions are severely limited by the Open Data Directive.

From a technical point of view, given the relative

complexity of the national legislation governing pub-

lishing data, simply stating ”this dataset is licensed

See especially Directive 96/9/EC on the legal protec-

tion of databases and Directive 2001/29/EC on the harmon-

isation of certain aspects of copyright and related rights in

the information society.

as CC BY 4.0”, which is a common practise, is ac-

tually not always sufﬁcient, as this statement does

not cover all potentially applicable rights summarised

above with necessary legal certainty. This insufﬁ-

cient practice is often caused by a divide between peo-

ple knowledgeable in copyright law and people im-

plementing technical standards such as DCAT-AP in

their data catalogues. For instance, the Czech terms of

use are expressed in the necessary detail covering the

main 4 areas based on the relevant Czech legislation

as the following data structure in its metadata record

in RDF Turtle:

terms: a pu:Specifikace ;

pu:autorsk

e-d

ılo terms:neobsahuje-autorsk

a-d

ıla ;

pu:datab

aze-jako-autorsk

e-d

ılo

terms:nen

ı-autorskopr

avn

e-chr

enou-datab

ı ;

pu:datab

aze-chr

a-zvl

stn

ımi-pr

avy

terms:nen

ı-chr

ena-zvl

stn

ım-pr

avem-po

rizovatele-datab

aze ;

pu:osobn

ı-

udaje terms:neobsahuje-osobn

ı-

udaje .

The obvious downside of this legally proper ap-

proach is that it may be difﬁcult for a foreign user of

the data to properly understand the terms as they will

not be experts in Czech legislation, even though this

particular speciﬁcation says that the data is free of any

legal obstacles, but still not easily comparable to, e.g.,

a CC0 license, in the pure legal sense.

4.2 Data Consumer

The legal situation of a consumer of data from Euro-

pean business registries is not an easy one. The data

consumer must ensure that they know and understand

the terms of use before using data they ﬁnd in a data

catalog. However, dealing with data from multiple

countries, where each dataset is described by a dif-

ferent terms of use document, based on a different

national legislation, is hard even for people with le-

gal background, not to mention determining a correct

license to be assigned to the combined dataset. Tech-

nical people without such background therefore often

simply skip the legal analysis, risking legal issues in

the process. The types of current terms of use of busi-

ness registry datasets used in STIRData can be seen in

Table 2. The HVD regulation attempts to improve the

situation by mandating that each HVD dataset should

have terms of use comparable or less restrictive than

”CC BY 4.0”.

5 DATASETS

To verify our approach, we used open data datasets

from several European countries’ business registries,

with the purpose of transforming them to the LD-STIR

form, i.e. to linked data according to the STIRData

speciﬁcation, making them thus part of the data ar-

chitecture of Figure 1. These source datasets were

obtained from either the European or the respective

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach

187

country’s open data portal, or directly from the re-

spective business registry. Each dataset should be

available directly for bulk download or accessible

through an API that allows obtaining its full con-

tents, so that transformation of the entire dataset into

LD-STIR form and its subsequent publication in an

RDF store could be possible. The datasets that sat-

isﬁed these conditions and are currently incorporated

into the STIRData platform are for the business reg-

isters of Belgium, Cyprus, Czechia, Estonia, Fin-

land, France, Greece (Athens area), Latvia, Moldova,

Netherlands, Norway, Romania, and the UK.

These datasets, all of which are in non-LD form,

are considerably heterogeneous in format and content.

Most are available as single or multiple CSV ﬁles,

but there are also spreadsheets, XML and JSON ﬁles.

The size of the datasets also varies considerably, de-

pending on the country and the encoded information.

For example, the French dataset contains information

for about 23M main legal entities and 33M establish-

ments, the UK dataset more than 5M main legal enti-

ties, while the Moldovan dataset contains about 235K.

To prepare the datasets for transformation, the

data ﬁelds and contents of each dataset were anal-

ysed, and, eventually, each dataset was characterised

along a set of dimensions relevant to the STIRData

speciﬁcation. These dimensions and brief descrip-

tions are provided in Table 1. Following the analy-

sis, to convert the source datasets from their original

format to STIRData compliant linked data datasets,

appropriate transformation workﬂows were devel-

oped and applied using two transformation tools:

LinkedPipes ETL

and D2RML.

Both are power-

ful generic transformation tools capable of handling

multiple data formats and performing complex data

mappings to linked data representations.

The deﬁned transformations had a varying level of

complexity, depending on the structure of the original

data representation. In this respect, we should note

that, given the heterogeneity of the source data, not

only with respect to format but also to structure due

to the different underlying legislations, several mod-

elling and transformation issues had to be addressed.

Such an issue is, e.g., the structure of large compa-

nies. In some countries, a company is registered as a

whole in a business registry, where it has its identiﬁer

and a registered address, with no information about

actual points of service, while in other countries, each

https://etl.linkedpipes.com/

https://apps.islab.ntua.gr/d2rml/. As an exam-

ple, the D2RML document for transforming data

from the Norwegian main business unit is https://stirdata-

semantic.ails.ece.ntua.gr/api/content/no/mapping/2635b100-7f4b-44ca-

bcd6-93854ceb644c.

Table 1: Dataset dimensions.

Dimension Description/Values

Entity

types

The types of provided entities, e.g.

main entities, establishments.

Person

types

All datasets include registered legal

persons, but some include data also

about natural persons (sole traders).

Names The types of provided names for le-

gal entities. Apart from the legal name

some registers provide trading names,

or abbreviated names.

Identiﬁers The types of provided identiﬁers. Usu-

ally the registry identiﬁer is provided,

but some datasets also provide tax and

other identiﬁers.

Reg. date It indicates whether a registration date

is provided.

Dissolu-

tion date

It indicates whether a dissolution date

is provided. Most registries provide in-

formation only about currently regis-

tered entries. Dissolved and deregis-

tered companies are in most cases not

included.

Economic

activities

The types and number of provided eco-

nomic activity codes. Some registries

provide a single or ﬁxed number of un-

characterized business activity codes,

while others distinguish between main,

secondary and auxiliary activities.

Address The types of provided addresses (e.g.

business, postal address).

Legal

form

It indicates whether the legal form of

each legal entity is provided. The pos-

sible legal forms for each country are

usually a closed list.

Legal

status

It indicates whether information about

the current status of the company is

provided (e.g. active, in liquidation,

etc.)

Foreign

entities

It indicates whether the dataset in-

cludes entities whose base registration

is in a foreign country.

company’s point of service has an individual regis-

tration in the business registry, possibly with a dif-

ferent identiﬁer and set of economic activities. As

mentioned in Section 3, such issues were taken into

account when designing the STIRData data speciﬁca-

tion, so as to make it generic enough to cover different

registration practises regarding the structure of com-

panies.

An important part of the company data trans-

formation process was also the mapping of relevant

source data entry values to linked data resources of

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

188

the appropriate vocabularies, as in the case of eco-

nomic activity codes, that were mapped to the re-

spective NACE national extensions resources, and

the addresses from which the underlying adminis-

trative units, as NUTS and LAU resources, had to

be inferred. Since NACE codes are closed code

lists and were included in the data, their transforma-

tions were straightforward. For addresses, the map-

ping was achieved by exploiting company address

postcode information in combination with data pro-

vided by GISCO.

To enhance data interoperability,

the mappings also produced LEI code properties us-

ing GLEIF open data.

Finally, in order to reduce

the size of the resulting datasets, when the original

datasets contained long historical data of dissolved

companies, only the more recent data were kept.

The resulting LD-STIR datasets were published

and made available through different SPARQL

endpoints, one for each country (using Virtuoso

Open Source Edition as underlying triple stores).

Their size and information on which of ﬁve ba-

sic dimensions they include is provided in Ta-

ble 2. The SPARQL endpoints are https://stirdata-

semantic.ails.ece.ntua.gr/api/content/xy/sparql, where

xy is be, cy, ee, fi, fr, el, lv, md, nl, no, ro,

uk, for each country in the order it appears in Ta-

ble 2. For Czechia, the endpoint is https://obchodn

ı-

rejst

ık.stirdata.opendata.cz/vsparql. These endpoints

are currently managed by the project partners. How-

ever, they are ready to be taken over by the individual

business registries, including the data transformations

creating their content.

As prescribed by the STIRData data speciﬁca-

tion, all published datasets include information about

their provenance (the source dataset), licence, and

date of last update. Given that the source datasets

are updated periodically, the published STIRData-

compliant datasets are also updated periodically after

reapplying the transformations on the newer versions

of the source datasets.

6 THE STIRData PLATFORM

To demonstrate in a concrete way the value of the

proposed approach, we developed the STIRData plat-

form,

which, on top of the data architecture de-

scribed in Section 2, and the published datasets de-

scribed in Section 5, provides a user-friendly interface

https://ec.europa.eu/eurostat/web/gisco/

https://www.gleif.org/en/lei-data/gleif-concatenated-

ﬁle

https://portal.stirdata.eu

to explore in a uniform manner all business registry

data.

The platform in principle adopts a fully decen-

tralised architecture. It assumes that each dataset re-

sides in a separate remote SPARQL endpoint. Apart

from some basic information about each dataset, it

also centrally stores copies of the shared NUTS, LAU

and NACE vocabularies. In addition, to improve per-

formance of the user facing platform, centrally stored

precomputed statistics data and indexes have been

added as extensions to the basic platform architecture,

making it less dependent on the performance charac-

teristics of the source SPARQL endpoints. We discuss

this addition in greater detail later in the paper.

The STIRData compliant business registry

datasets offered by the platform are discovered auto-

matically by scheduled tasks that periodically check

for new datasets in the Ofﬁcial portal for European

data, as well as for updates of already included

datasets. Datasets not yet available in the ofﬁcial

portal for European data can be registered manually;

in either case, the only required information is a link

to the respective SPARQL endpoint.

For the end-user, the platform offers access to the

underlying data through three main types of queries:

retrieval queries, search queries, and statistics queries.

6.1 Retrieval Queries

Retrieval queries are the simplest queries that re-

trieve information about speciﬁc legal entities. A le-

gal entity is identiﬁed by its STIRData IRI; based on

this, the platform identiﬁes the corresponding busi-

ness registry and issues an appropriate query to the

respective SPARQL endpoint to get the legal entity

details.

Apart from the details provided by the STIRData

speciﬁcation, the implementation of retrieval queries

allows also for obtaining additional information about

legal entities from other sources that have relevant

data published as linked data. These sources can be

added to the platform through a generic add-on mech-

anism. An example is the data of the Czech Trade In-

spection Authority

which is used by the platform to

show the inspections that Czech legal entities have un-

dergone. An example of a retrieval result page, show-

casing also that feature, is shown in Figure 3.

https://data.europa.eu/data/datasets/https-lkod-mff-

cuni-cz-zdroj-datove-sady-stirdata-c-oi-kontroly-zame-r-

eni-sankce

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach

189

Table 2: Overview of published STIRData-compliant linked data datasets.

Country

# Main legal

entities

∗

Legal

name

Registration

date

Dissolution

date

Economic

activity

Location Terms of use

Belgium 1,885,610 Custom (French)

Cyprus 509,648 CC BY 4.0

Czechia 556,854 Custom (Czech)

Estonia 342,997 CC BY-SA 3.0

Finland 143,354 CC BY 4.0

France 19,949,924 Custom (French)

Greece

†

36,247 Not speciﬁed

Latvia 449,031 CC0 1.0

Moldova 235,563 Not speciﬁed

Netherlands

‡

3,521,128 Not speciﬁed

Norway 1,097,878 Custom (Norwegian)

Romania 1,683,823 CC BY 4.0

United Kingdom 5,253,635 Not speciﬁed

∗

At the time of writing.

†

Athens region only.

‡

Netherlands provides anonymised data.

Figure 3: Example company details page. The bottom lev-

els of the relevant NUTS/LAU and NACE hierarchy are dis-

played, as well as Czech Trade Inspection Authority data.

6.2 Search Queries

Search queries retrieve lists of companies that satisfy

conditions based on location, economic activity, and

registration date. For example, a user may request all

companies registered in the Oslo area in Norway and

in the Prague area in Czechia after a certain date that

perform one of a speciﬁc set of economic activities.

The conditions regarding location and economic ac-

tivities are expressed using NUTS, LAU and NACE

Rev2 vocabulary concepts, respectively.

Search queries are, in principle, federated queries,

since they involve data residing in different SPARQL

endpoints: those hosting the vocabularies and a dif-

ferent endpoint for the data of each involved country.

Moreover, answering such queries involves SKOS hi-

erarchy based reasoning since, e.g., asking for com-

panies in a certain region is actually asking for com-

panies in any subregion thereof, and similarly for eco-

nomic activities. These features pose signiﬁcant chal-

lenges to query efﬁciency. One option is to directly

use the SPARQL constructs by which such queries

can be realised, i.e., federated SPARQL queries and

path expressions. Figure 4(a) shows a direct formu-

lation of an example SPARQL query using these two

constructs. However, the evaluation of such complex

queries on public endpoints may turn out problematic.

Table 3 (ﬁrst query column) shows the results of an

experimental evaluation of the above query on three

different triple stores. As we can see, one did not

SELECT ?entity WHERE {

?entity a legal:LegalEntity .

?entity legal:companyActivity ?nace .

?entity legal:registeredAddress/m8g:adminUnit [

m8g:code ?nuts3 ;

m8g:level sd-adminUnitLevel:NUTS-3 ] .

SERVICE endpoint-nace: {

?nace skos:exactMatch/skos:broader* nace:46 }

SERVICE endpoint-nuts: {

?nuts3 skos:broader* nuts:NO0 }

}

(a) Federated query using property path expressions.

SELECT ?entity WHERE {

?entity a legal:LegalEntity .

?entity legal:companyActivity ?nace .

?entity legal:registeredAddress/m8g:adminUnit [

m8g:code ?nuts3 ;

m8g:level sd-adminUnitLevel:NUTS-3 ] .

VALUES ?nace { nace-no:46.110 ... nace-no:46.900 }

VALUES ?nuts3 { nuts:NO020 ... nuts:NO0B2 }

}

(b) Non-federated query using exhaustive values listing.

The VALUES ?nace statement includes 71 effective values

and the VALUES ?nuts 13 effective values.

Figure 4: Example queries asking for all companies in the

NO0 NUTS-1 region (Norge) performing a subactivity of

the nace:46 class (Wholesale trade, except of motor vehicles

and motorcycles).

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

190

Table 3: Evaluation of the queries of Figure 4 on three triple

stores.

Triple

Query

store

Fig.4(a) Fig.4(b)

Virtuoso

Open Source

Edition

Internal error: Unsupported

combination of subqueries

and service invocations

< 1 sec

Apache Jena

Fuseki

∼ 7 sec ∼ 5 sec

GraphDB Free No response after 2 hours

< 1 sec

support that query, one failed to efﬁciently evaluate

it, and only one was able to answer in an acceptable

time.

To avoid such problems, our platform leverages

domain knowledge and the closed form of such

queries, by expanding and splitting each query to a set

of simpler queries addressed to the appropriate end-

points so that they can be answered more efﬁciently.

In particular, a query of the form of Figure 4(a) is ex-

ecuted in three steps, corresponding to the three parts

of the federated query. The ﬁrst two steps, which

we will call effective values computation, is to ob-

tain the list of subactivities of the activity speciﬁed in

the query by issuing a simple query to the respective

endpoint, and do the same thing for the subregions of

the region of interest; as the last step, a non-federated

query is issued directly to the company data endpoint

explicitly listing the effective activity and region val-

ues using the VALUES SPARQL construct. That query

is shown in Figure 4(b) and the results of its evalu-

ation in the second query column of Table 3. The

effective values computation is more complex in case

of multiple conditions.

As a further example of data interoperability, in

addition to the above functionality, the implementa-

tion of search (and retrieval) queries by the STIRData

platform also allows one to use conditions based on

relevant Eurostat statistics.

So, in addition to the

conditions described above, a user may ask, e.g., for

companies located in the more urbanised areas of a

country, or in areas with high availability of touristic

accommodation. The implementation of this feature

relies on the availability of such statistics as linked

data using the RDF Data Cube Vocabulary (Cyganiak

and Reynolds, 2014). Because Eurostat data are not

currently available in this format (they are available

as CSV data only), transformation and publication of

selected Eurostat statistics has been done in a similar

way to the business registry datasets using D2RML

transformations. At query time, constraints expressed

using Eurostat statistics are translated by issuing an

appropriate SPARQL query to the platform’s endpoint

holding the statistics to an effective value list of the

https://ec.europa.eu/eurostat/data/database

regions satisfying the constraints, and that list is then

used as described above in the VALUES construct of

the ﬁnal SPARQL query to the registries’ endpoints

holding the actual business registry data.

A sample search query page, which also demon-

strates this feature, is shown in Figure 5.

6.3 Statistics Queries

Statistics queries are similar to search queries, but in-

stead of lists of companies, they return aggregated sta-

tistical information, namely the number of companies

satisfying the desired criteria, along with an analysis

of the distribution of companies in the subregions and

subactivities speciﬁed in the query. Statistics queries

have been implemented similarly to search queries.

Because statistics queries provide useful, compact

overviews of the underlying data, an important fea-

ture of the platform is that it allows users to browse

through the location and/or the economic activity hi-

erarchies, displaying the corresponding statistical in-

formation. However, because such browsing again

requires the execution of multiple complex SPARQL

queries against public triple stores containing poten-

tially millions of RDF triples, their real-time compu-

tation would result in poor aggregate response times.

For this reason, the STIRData platform adopts the

approach of pre-computing ofﬂine several of those

statistics (for the location, economic activity, and

registration date dimensions, and pairs thereof) and

caches them in a database, so that they can be served

instantly. The statistics precomputation process is ac-

tivated each time a new business registry dataset is

registered or already published data are updated. Pre-

computation of the statistics for a country can take

from a few minutes to several days, depending on

the size and dimensions of the dataset. The results

are stored in a PostgreSQL database. A sample page

Figure 5: Example search page, requesting Czech and Nor-

wegian wholesale companies founded after 2020, located in

intermediate urbanity level areas.

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach

191

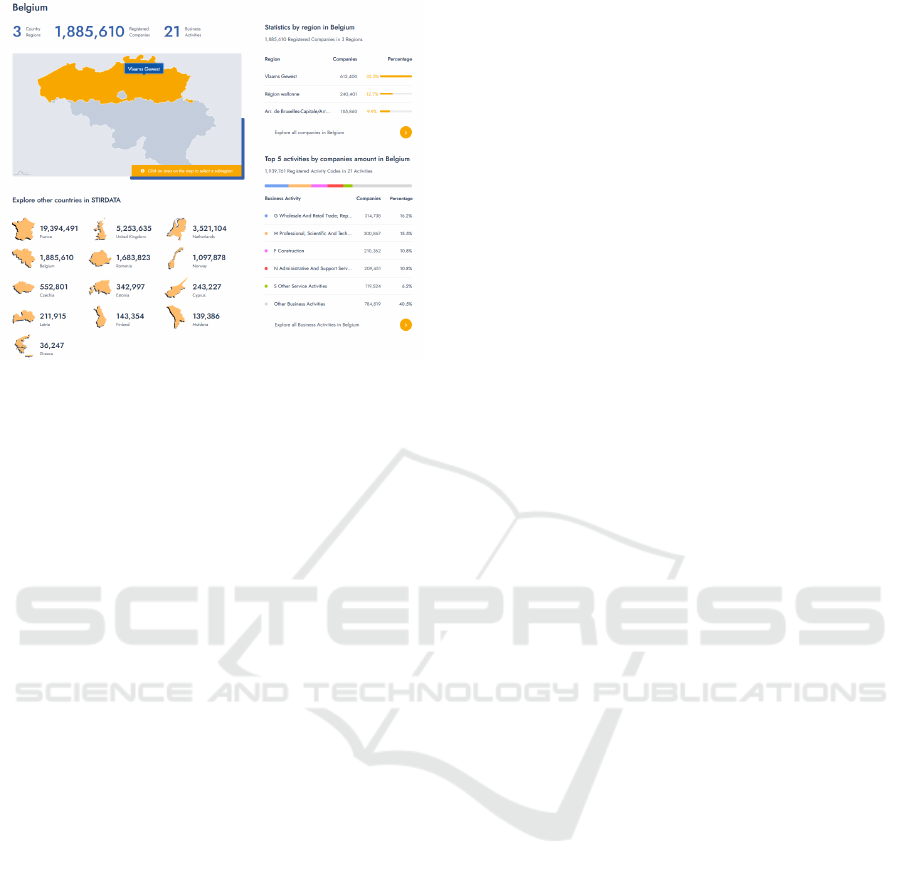

Figure 6: Interface for browsing country and economic ac-

tivity statistics.

showing administrative units and economic activity

statistics for Belgium is shown in Figure 6.

7 EVALUATION

The platform described in Section 6 is fully oper-

ational and allows users to explore multiple busi-

ness registries, provides interoperability with other

datasets (e.g. Eurostat data), and is periodically

updated with new versions of the business registry

datasets. In this section, we discuss the performance

optimizations needed to be implemented to over-

come the inherent performance issues of the public

SPARQL endpoint-based decentralized architecture.

As mentioned above, our architecture relies on

possibly third-party managed SPARQL endpoints to

get access to company data. This achieves the desired

decentralised data interoperability, and the SPARQL

language is expressive enough to meet complex data

querying needs. However, as the complexity of the

queries posed by a data consumer increases, and also

depending on the size of the underlying dataset and

the computational resources available to an endpoint,

performance problems may arise that can result in

poor response times.

Given the decentralised nature of our approach,

where ideally each business registry provides its data

through an own-managed infrastructure, much in this

respect depends on the software and computational

resources that each business registry disposes, and the

continuous availability of the endpoints, which is be-

yond the control of the platform. We experienced

such problems, which were overcome by increas-

ing the resources (allocated memory) available to the

SPARQL endpoints and by rewriting queries using

more efﬁcient execution plans, as discussed in Sec-

tion 6. As explained there, we also experimented with

several software platforms that implement SPARQL

endpoints, and their performance varied considerably,

with some types of queries answered more efﬁciently

by some of them than by others.

It is important to note that much of the complex-

ity of the queries that leads to the above problems

arises from the fact that, as discussed in Section 3,

the STIRData speciﬁcation requires keeping for each

company only the lowest-level information about the

administrative unit and economic activity hierarchies

it belongs to. Although this is a sound data modelling

assumption that reduces redundancy and is compliant

with the linked data principles, it leads to the need

of inferring at query time the higher levels of the hi-

erarchies a company belongs to, which may result in

computationally demanding queries. In Section 6 we

showed how we alleviated the problem by performing

the effective values computation, without compromis-

ing on the fully decentralised approach, and insisting

on an on-the-ﬂy execution of SPARQL queries. We

also discussed how we precomputated certain statis-

tics, whose on-the-ﬂy computation is problematic.

However, because not all statistics (e.g. for mul-

tiple conditions) can be precomputed, and complex

queries cannot be avoided without severely limit-

ing the data exploration capabilities of the platform,

another architectural compromise had to be imple-

mented. As an alternative, a periodically updated,

platform-managed materialised cache of the pub-

lished data was introduced into the platform. It con-

tains all the required inferred and pre-computed infor-

mation, so that effective values computation on SKOS

vocabulary hierarchies is not needed at query time,

and the actual SPARQL queries evaluated on the re-

mote SPARQL endpoints are simpliﬁed. The cache

can be stored in a local triple store or in an index of

the data, for even faster query times.

We are currently in the process of incorporating in

the platform such an index using ElasticSearch, which

stores for each company the ﬁelds on which search is

expected, namely administrative units, economic ac-

tivities, and registration dates, including materialised

(i.e. SKOS hierarchy-based inferred) values. Some

indicative results are shown in Table 4, which com-

pares the response time for several statistics queries,

using direct SPARQL evaluation, precomputed statis-

tics, and the index. The size of the datasets on which

the queries were executed is that shown in Table 2.

As expected, precomputed data, when available, are

served faster, with performance comparable to the in-

dex, which is signiﬁcantly faster than direct SPARQL

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

192

Table 4: Response time for several statistics queries, using

direct SPARQL evaluation, precomputed statistics, and ma-

terialized indexed data.

Query conditions Response time (in secs)

admin unit activity SPARQL Prec. Index

nuts:NO0A - 206.0 0.2 0.2

nuts:NO0A nace:B 9.1 0.1 0.1

nuts:NO0A, stat

∗

- 138.6 - 4.5

nuts:FI1 - 82.1 0.1 0.2

nuts:FI1 nace:B 2.5 0.1 0.1

nuts:FI1, stat

∗

- 14.1 - 6.5

nuts:UKL - 192.9 0.1 0.1

nuts:UKL nace:B 27.4 0.1 0.1

nuts:UKL, stat

∗

- 126.5 - 82.9

∗

Eurostat statistics-based condition involving NUTS-3

urbanity level classiﬁcation (level 3, predominantly rural)

and the number of establishments by NUTS-2 region

statistic (> 100 establishments).

query evaluation. Direct SPARQL query response

times depend clearly on the size of the underlying data

and the complexity of the queries (i.e. on the effective

values computation time). It is important to note that

the statistic queries return both the number of com-

panies satisfying the speciﬁed conditions, as well as

a distribution thereof in the relevant subregions and

subactivities; this means that not a single but multi-

ple queries have to be executed in each case, which

explains the relatively long response times. It is also

interesting to note that, for the query involving Euro-

stat conditions, the index also appears to be relatively

slow. This can be explained by the fact that in this

case the ﬁrst part of the query evaluation (the effective

values computation) cannot be delegated fully to the

index (which contains only SKOS hierarchy-based

inferred values), since it requires issuing SPARQL

queries to the endpoint holding the Eurostat statistics

in order to get the effective values for the desired con-

ditions to be used in the actual query to the index.

This shows that in more general queries involving the

combination of data from different sources, the index

cannot always guarantee immediate response times.

In conclusion, as expected, the performance improve-

ment using an index is signiﬁcant, although queries

relying (even partially) on SPARQL query evaluation

may still suffer slower response times.

8 RELATED WORK

STIRData is, of course, not the ﬁrst project dealing

with the integration of data on companies from vari-

ous data sources. OpenCorporates

makes business

out of the integration and cleaning of company data,

https://opencorporates.com/

and the euBusinessGraph

project built a market-

place for such datasets. However, both of these ap-

proaches have one thing in common, which is that

they keep the source data as it is, i.e., noninteroper-

able for others, and they build value for their project

by ingesting and cleaning the data for proﬁt. In con-

trast, STIRData aims at improving the datasets at their

source, making the datasets interoperable for every-

one, and showing how such interoperable datasets can

be reused.

There is also the Business Registers Interconnec-

tion System (BRIS),

which allows human users to

manually search for companies in the integrated busi-

ness registers using a web page. However, this is all

that BRIS offers. It is a specialised information sys-

tem connecting directly to the individual business reg-

istries, in a completely closed manner, and has noth-

ing to do with open data or the Common European

Data Spaces.

9 CONCLUSIONS

In this paper, we present the results of STIRData, a

project that implements a linked data-based approach

to the publication of open data from European busi-

ness registries in an interoperable fashion. Our in-

teroperability approach addresses the technical, se-

mantic, and legal dimensions of interoperability of

data. The semantic interoperability approach is based

on the European Core Vocabularies, the technical in-

teroperability approach is based on the linked data

technologies and we suggest a legal interoperability

framework for open data in general and emphasize the

non-ideal situation of today’s data consumers as to the

legal certainty when using open data. The main dif-

ference of STIRData compared to other company data

integration approaches is that we make the data inter-

operable on the publisher’s side, i.e. for everyone,

not centrally, and not for proﬁt. Finally, we demon-

strate a way to build applications on top of interopera-

ble data, including difﬁculties coming from the linked

data-based architecture, by presenting the STIRData

platform for data browsing and analysis. In addition,

we see the need for a similar approach also in the

Common European Data Spaces, which are currently

being established and which go beyond the scope of

open data.

During the course of the project, we faced some

performance issues inherent to the usage of SPARQL

endpoints for publishing larger datasets and using

https://www.eubusinessgraph.eu/

https://e-justice.europa.eu/content business registers

at european level-105-en.do

Semantic, Technical and Legal Interoperability of European Company Open Data in Practice: The STIRData Approach

193

aggregation queries on top of them. We worked

around the problem by pre-computing the necessary

statistics, only querying the endpoints using simpler

queries, and creating materialised data indexes. As

part of our future work, we will therefore investigate

the possibilities of application of alternative linked

data interfaces such as the Linked Data Fragments

(Verborgh et al., 2014) and the Linked Data Event

Streams (Lancker et al., 2021) to see whether they can

help with the issue.

ACKNOWLEDGEMENTS

This work was co-ﬁnanced by the Connecting Europe

Facility Programme of the European Union, under

GA n. INEA/CEF/ICT/A2019/2063078, action num-

ber 2019-EU-IA-0068: STIRData: Speciﬁcation and

Tools for Interoperable and Reusable data.

REFERENCES

Chortaras, A. and Stamou, G. (2018). D2RML: Inte-

grating Heterogeneous Data and Web Services into

Custom RDF Graphs. In Berners-Lee, T., Ca-

padisli, S., Dietze, S., Hogan, A., Janowicz, K.,

and Lehmann, J., editors, Workshop on Linked Data

on the Web co-located with The Web Conference

2018, LDOW@WWW 2018, Lyon, France April 23rd,

2018, volume 2073 of CEUR Workshop Proceedings.

CEUR-WS.org. http://ceur-ws.org/Vol-2073/article-

07.pdf.

Cyganiak, R. and Reynolds, D. (2014). The RDF

Data Cube Vocabulary. W3C Recommendation,

W3C. https://www.w3.org/TR/2014/REC-vocab-

data-cube-20140116/.

Harris, S. and Seaborne, A. (2013). SPARQL

1.1 Query Language. W3C Recommendation,

W3C. https://www.w3.org/TR/2013/REC-sparql11-

query-20130321/.

Hugenholtz, P. B. (2016). Directive 96/9/EC. In Dreier,

T. and Hugenholtz, P. B., editors, Concise European

tional, Alphen aan den Rijn, The Netherlands, second

edition edition.

Artiﬁcial Creation: Does EU Copyright Law Protect

AI-Assisted Output? International Review of Intel-

lectual Property and Competition Law, 52(9):1190–

1216. https://doi.org/10.1007/s40319-021-01115-0.

ımek, J. and

Skoda, P. (2017). LinkedPipes ETL in

use: practical publication and consumption of linked

data. In Indrawan-Santiago, M., Steinbauer, M., Sal-

vadori, I. L., Khalil, I., and Anderst-Kotsis, G., ed-

itors, Proceedings of the 19th International Confer-

ence on Information Integration and Web-based Ap-

plications & Services, iiWAS 2017, Salzburg, Aus-

tria, December 4-6, 2017, pages 441–445. ACM.

https://doi.org/10.1145/3151759.3151809.

Lancker, D. V., Colpaert, P., Delva, H., de Vyvere, B. V.,

Mel

endez, J. A. R., Dedecker, R., Michiels, P., Buyle,

R., Craene, A. D., and Verborgh, R. (2021). Publish-

ing Base Registries as Linked Data Event Streams.

In Brambilla, M., Chbeir, R., Frasincar, F., and

Manolescu, I., editors, Web Engineering - 21st Inter-

national Conference, ICWE 2021, Biarritz, France,

May 18-21, 2021, Proceedings, volume 12706 of

Lecture Notes in Computer Science, pages 28–36.

Springer. https://doi.org/10.1007/978-3-030-74296-

6 3.

Lanthaler, M., Wood, D., and Cyganiak, R. (2014). RDF 1.1

Concepts and Abstract Syntax. W3C Recommenda-

tion, W3C. https://www.w3.org/TR/2014/REC-rdf11-

concepts-20140225/.

Verborgh, R., Hartig, O., Meester, B. D., Haesendonck,

G., Vocht, L. D., Sande, M. V., Cyganiak, R., Col-

paert, P., Mannens, E., and de Walle, R. V. (2014).

Low-Cost Queryable Linked Data through Triple Pat-

tern Fragments. In Horridge, M., Rospocher, M.,

and van Ossenbruggen, J., editors, Proceedings of the

ISWC 2014 Posters & Demonstrations Track a track

within the 13th International Semantic Web Confer-

ence, ISWC 2014, Riva del Garda, Italy, October 21,

2014, volume 1272 of CEUR Workshop Proceedings,

pages 13–16. CEUR-WS.org. http://ceur-ws.org/Vol-

1272/paper 10.pdf.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

194
