Remote Security Assessment for Cyber-Physical Systems: Adapting

Design Patterns for Enhanced Diagnosis

Kazutaka Matsuzaki

, Kenji Sawada

and Shinich Honiden

Faculty of Global Informatics, Chuo University, Tokyo, Japan

The Info-Powered Energy System Center, The University of Electro-Communications, Tokyo, Japan

Faculty of Science and Engineering, Waseda University, Tokyo, Japan

Keywords: Cyber-Physical System, Cyber Security, Communication Robustness Test, Industrial Automation and Control

System.

Abstract: This paper presents a novel approach to remote security diagnosis for critical infrastructure systems, focusing

on integrating Cyber-Physical Systems (CPS) and cloud-based diagnosis. The proposed method adapts two

existing design patterns to address the challenges associated with remote security diagnosis: (1) adapting the

"Ambassador Pattern" of the cloud design pattern for virtual extension of the CPS input interface to the cloud

computing environment, and (2) adapting the "Data Aggregation Pattern" of the edge computing design

pattern for virtual extension of the CPS output to the cloud computing environment. We discuss implementing

and evaluating our proposed method in a simulated environment, demonstrating its potential for improving

the accuracy and efficiency of remote security assessment. This research contributes to developing secure and

reliable CPS by providing insights into effectively adapting existing design patterns for remote security

diagnosis.

1 INTRODUCTION

As the adoption of cyber-physical systems (CPS)

continues to grow, encompassing applications such as

distributed solar power plants, cloud-based building

management, and smart factory security, the risk of

cyberattacks on these systems also rises. Cyberattacks

on CPS can result in significant damage to both

digital and physical domains, with infrastructure

components like pipelines, water treatment facilities,

and power grids susceptible to shutdowns and

disruptions.

Given the ongoing discovery of new

vulnerabilities and the evolving sophistication of

cyber attackers, it is crucial to continuously assess the

efficacy of cybersecurity measures. Existing security

evaluation frameworks include certification tests for

control systems and embedded devices, assessing

known vulnerabilities and communication

robustness. However, conducting such tests on

https://orcid.org/0000-0003-2337-2686

https://orcid.org/0000-0001-8935-0434

https://orcid.org/0000-0003-1385-3996

operational systems poses challenges in terms of

time, manpower, and cost constraints.

To reduce the burden of on-site testing, this paper

explores the potential of remote testing over a

network as an alternative approach to enhancing

cybersecurity in CPS. We investigate a cloud-based

diagnostic method aimed at minimizing on-site

testing while efficiently evaluating the security

posture of these systems. Our analysis begins with

identifying the challenges that can be addressed

through remote diagnostic innovations, followed by

highlighting the remaining issues that warrant further

investigation.

The paper is structured as follows: Section 2

discusses the challenges of CPS security diagnostics;

Section 3 introduces a cloud-based security

diagnostic architecture; Section 4 evaluates the

addressed challenges; Section 5 examines the

remaining challenges; and Section 6 presents a

conclusion.

Matsuzaki, K., Sawada, K. and Honiden, S.

Remote Security Assessment for Cyber-Physical Systems: Adapting Design Patterns for Enhanced Diagnosis.

DOI: 10.5220/0012132600003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 805-812

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

805

2 CPS SECURITY ASSESSMENT

CHALLENGES

2.1 Assumed Situation

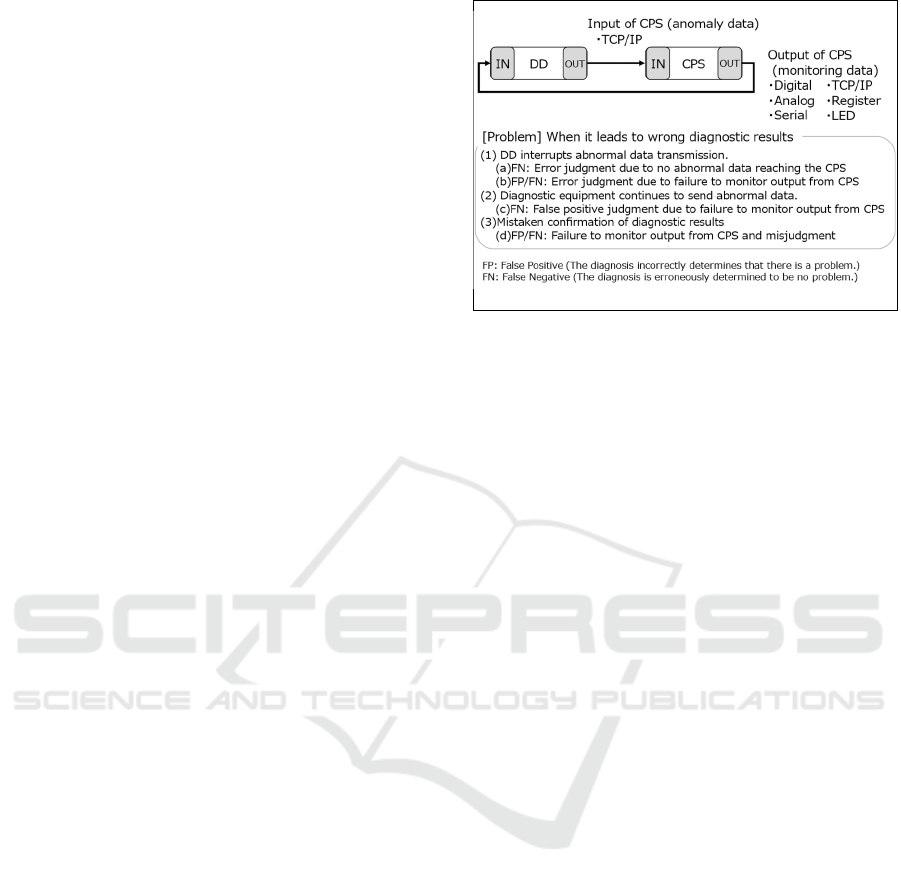

To clearly understand the assumed situation, Figure 1

illustrates a simplified model of CPS security

diagnostics and the associated challenges. In this

model, the diagnostic device (DD) transmits

anomalous data to the CPS's input interface (IN) for

diagnostic purposes. While the specific data

transmitted depends on the protocol supported by the

input interface, this paper assumes using TCP/IP.

The DD observes the output (OUT) of the CPS to

evaluate its security measures. Potential output

interfaces for monitoring include digital, analog,

serial (e.g., RS-485), TCP/IP, register (e.g., Modbus),

LED, and others.

Monitoring is necessary during two distinct

phases:

• Assessing whether essential functions are

maintained while transmitting anomalous

data for diagnosis.

• Verifying that the system returns to normal

operation after sending abnormal data.

The challenge lies in the possibility of obtaining

inaccurate diagnostic results due to various factors.

These inaccuracies can occur in four different ways:

(a) Anomalous data may not reach the CPS,

causing it to be disregarded as an invalid test case.

Consequently, potential issues with security measures

might be overlooked.

(b) Monitoring data may not be observable from

the CPS, leading to determining abnormalities or

dismissing an invalid test case.

observable from the CPS, anomalies might be missed,

causing the test case to proceed undetected.

(d) When verifying whether the system returns to

normal operation after transmitting abnormal data,

the inability to observe monitoring data from the CPS

may result in misjudgements of abnormalities or false

negatives.

By addressing these potential inaccuracies, we

aim to enhance the effectiveness and reliability of

CPS security diagnostics.

2.2 Related Research

In recent years, research on network-based security

testing (e.g., fuzzing) for control systems has gained

prominence at international conferences.

These studies not only focus on improving test

performance but also organizing the requirements for

test environments specific to control systems. For

instance, it is emphasized that equipment under test

should be monitored as comprehensively as possible

(Pfrang, 2018). Monitoring targets encompass

network interfaces and digital inputs and outputs.

Unlike fuzzing tests for software, essential functions

are maintained by analyzing communication and

hardware signals. Since it is not feasible to access the

device's internals using a debugger, inferences about

the device must be drawn from externally observable

phenomena during testing.

Efforts to enhance the performance of control

system fuzzing tools are also underway. For example,

Polar (Luo, 2019) employs machine learning to

identify the functional code of the control system and

conducts fuzzing by progressively modifying

anomalous data. This study aims to explore whether

such tools can be applied to test targets located at

considerable distances from one another. Another

study of interest uses fuzzing to evaluate security

measures for entire control systems (Chen, 2019).

2.3 Security Testing Efforts in Past

Demonstrations

Security testing for IEC 61850-based systems has

demonstrated that communication robustness tests

could be performed using remote access VPNs

(L2TPv2) and VPNs between locations (L2TPv3)

(Matsuzaki, 2020, Wilkerson, 2022). When

employing a VPN between locations, networks can

communicate as if they were part of the same LAN.

In one instance, a communication robustness test

of the IEC 61580-MMS protocol was conducted via a

VPN using DTLS. In another case, a compact

portable terminal (e.g., Raspberry Pi) was brought

Figure 1: CPS security diagnostic model and current issues.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

806

near the test target and operated as an LAC/LNS

for

L2TPv3, creating a virtual network to verify the

feasibility of communication robustness testing.

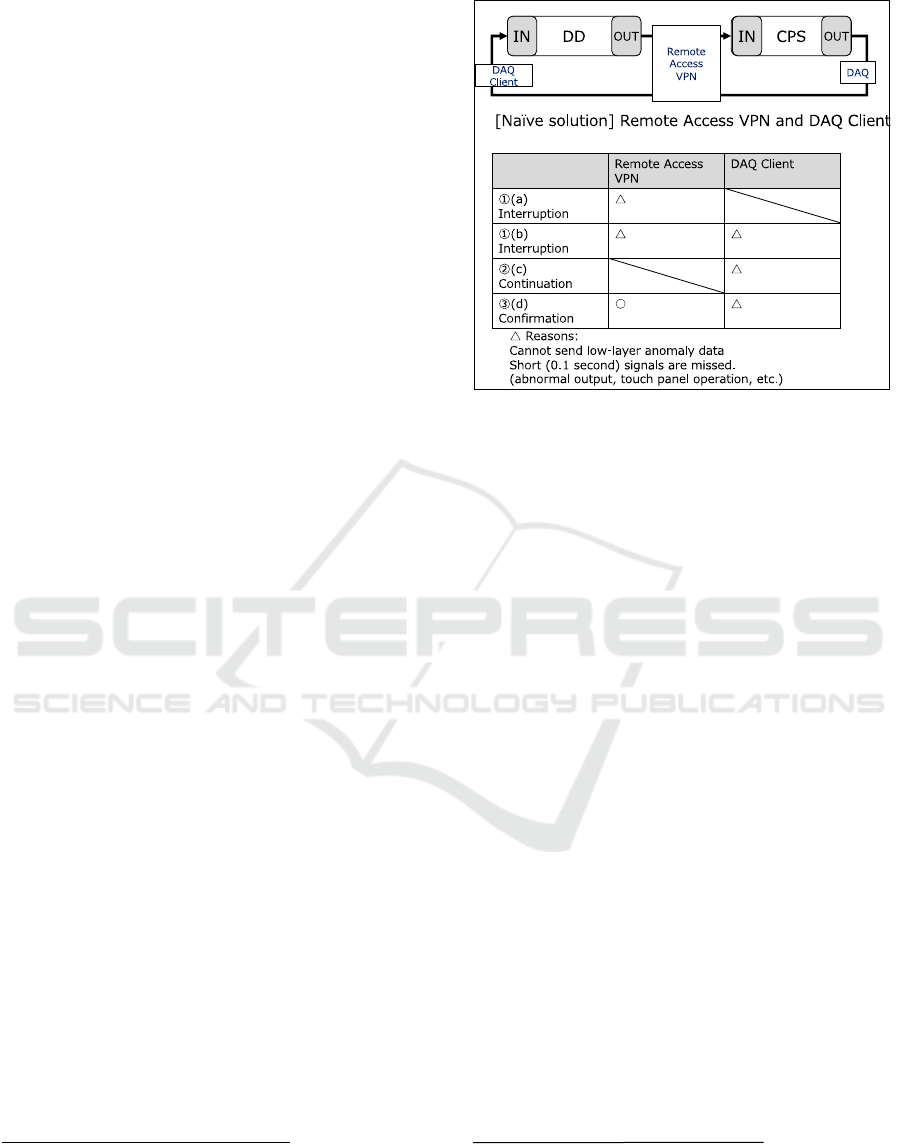

Figure 2 illustrates the response status to the issue

using naïve methods, including those demonstrated in

past years. The following three mechanisms were

added as naïve solutions:

Remote Access VPN: The diagnostic equipment and

CPS were connected through a remote access VPN.

Specifically, a VPN client device using DTLS was

placed on the CPS side, and a controller was installed

on the diagnostic equipment side.

DAQ (Data Acquisition): A digital signal was

branched from the terminal block contact in the CPS

and used as an input to DAQ.

DAQ Client: The DAQ client accesses DAQ via

TCP/IP, periodically obtains data values held by

DAQ, and presents them to the user via a GUI.

Although most items were partially addressed,

several challenges remained:

a) The team was able to run numerous test cases on

the TCP/IP protocol stack. Still, issues persisted with

Layer 2 (e.g., Ethernet) and the reachability of

anomalous data using broadcast.

b) The DAQ client was used via VPN to acquire

current values at high frequency continuously.

However, there remained the issue of being unable to

detect pulse data for short periods (about 0.1 second)

due to the access frequency of the DAQ client and

network latency.

c) Network latency occasionally made it challenging

to perform essential function monitoring. The

problem remained that essential function outages

could be overlooked, which were short but longer

than the test requirements.

d) The issue persisted that after sending abnormal

data, when monitoring whether the system had

returned to normal operation status, it might not be

able to detect the condition that allowed the user to

operate the touch panel.

3 ADAPTING DESIGN

PATTERNS FOR REMOTE

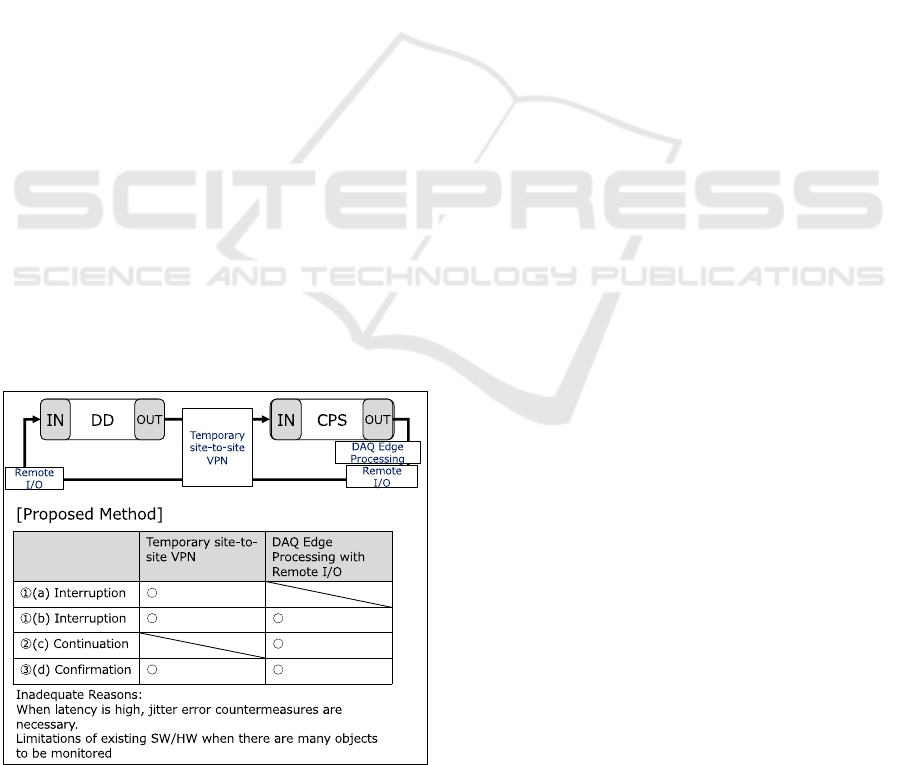

Figure 3 shows the proposed input/output extension

design pattern and the improvement status of the

L2TP Access Controller / L2TP Network Server

Microsoft, Ambassador pattern,

https://docs.microsoft.com/en-

us/azure/architecture/patterns/ambassador

issue. The proposed method addresses the security

diagnosis issue by simultaneously adapting two

existing design patterns.

Adapting the Ambassador Pattern for Virtual

Extension of CPS Input Interface to the Cloud

This approach adapts the "Ambassador Pattern" from

the cloud design pattern

to the security diagnosis. It

uses a site-to-site VPN instead of the previous

section's remote access VPN. The OUT of the

diagnostic equipment is virtually on the same local

network segment as the IN of the CPS. Specifically,

LAC/LNS equipment is brought in, and an L2TPv3

VPN is temporarily established between the

diagnostic device (DD) and the CPS. In the

ambassador pattern, a proxy for remote access is

deployed for communication with external services.

Therefore, the proposed method can be described as

a "dispatched" ambassador pattern, which is realized

by bringing in equipment on the CPS side.

Adapting the Data Aggregation Pattern for

Virtual Extension of CPS Output to the Cloud

In this approach, the "Data Aggregation Pattern" of

the edge computing design pattern

is adapted for the

security diagnosis. Instead of checking the output of

the CPS using the pull-type method by the DAQ

client as described in the previous section, the data

Amazon Web Services, Industrial edge design

considerations,

https://docs.aws.amazon.com/whitepapers/latest/industrial

-iot-architecture-patterns/industrial-edge-design-

considerations.html

Figure 2: Status of addressing challenges with naïve

Solutions.

Remote Security Assessment for Cyber-Physical Systems: Adapting Design Patterns for Enhanced Diagnosis

807

aggregated on the DAQ is delivered to the DD side

using the push-type method. Using digital output as

an example, data is aggregated and conditioned on the

DAQ, relays are turned on and off, and the data is

transmitted to the DD side as digital output using the

remote I/O mechanism. This method makes it

possible to convey short pulse data that would

otherwise be overwritten on the DAQ side to the DD

side. In the data aggregation pattern, data is

temporarily aggregated by an edge computer in an

environment with unstable network communication

and periodically summarized and sent to the center.

In the proposed method, data is aggregated and stored

so that it is not overwritten and reliably transmitted to

the DD side through push-type distribution.

The proposed method can be used in a stable

network environment.

a) The reachability of Layer 2 (e.g., Ethernet) and

broadcast anomalous data is also addressed.

b) Depending on the performance of the DAQ,

changes as short as 0.1 seconds can be monitored and

communicated to the DD so that short pulse data

(about 0.1 seconds) can be detected.

c) As with the above, depending on the

performance of the DAQ, monitoring of essential

functions can be performed in milliseconds. It is also

possible to supplement the suspension of essential

functions for short periods, which cannot be

overlooked as a test.

d) When monitoring whether the system returns

to normal operation status after sending abnormal

data, we confirmed that the system can detect a 0.1-

second operation, even when the user's touch panel

operation is enabled.

Figure 3: Proposed Input/Output Extension Patterns and

Status of Issue Improvement.

4 IMPLEMENTATION AND

EVALUATION

To evaluate the ability of the proposed method to

meet the challenges under certain conditions in a

simulated environment, we conducted three different

tests:

1. Comparison of the number of automated tests by

testing on the local network and testing with the

proposed method.

For comparison, we ran a test suite on TCP/IP on

the test equipment. The number of test cases

within the test suite automatically executed by

local testing environment was compared with the

number of test cases when performed in a cloud-

based environment.

2. Comparison of the number of automated tests in

industrial protocols.

From the tests in the first point, a similar

comparison was made only for the test suite for

IEC 61850 (MMS), which is increasingly being

introduced in the power sector. The IEC 61850

software was changed to another software, and the

digital output of the equipment under test was also

subject to monitoring.

3. Pulse Signal Monitoring Test.

We conducted a monitoring test of the proposed

method in a cloud-based environment. The test

was performed by changing the analog output for

the test in a steady time series and sending a pulse

output to the diagnostic device for 100

milliseconds when the condition was met. When

this pulse is detected, the diagnostic device

records it as "abnormal" in the test case.

The diagnostic device used was the Achilles Test

Platform (ATP), a commercial product with a test

suite for each protocol. The ATP does this by

terminating the test case in progress and moving on

to the next test case.

4.1 Evaluation Experiment 1: Number

of Test Cases (General)

A comparison of the number of cloud-based

automated tests was conducted by testing on the local

network and by using the proposed method.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

808

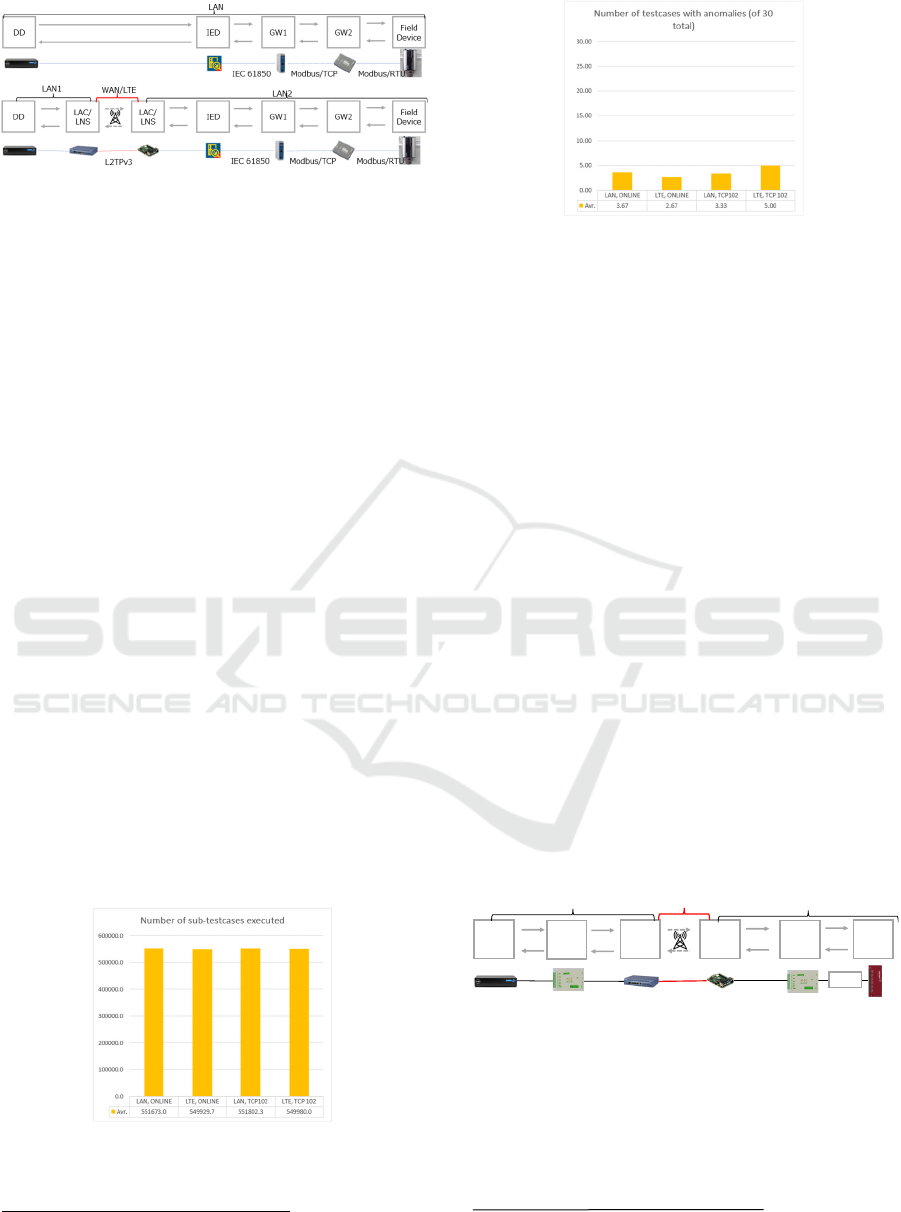

Figure 4: Test environment for the experiment 1.

The test suite used includes the following:

• Major grammar exams for Ethernet, IP, TCP

• Ethernet Load Testing

• IEC 61850 (MMS) testing

The test subject was Omicron IEDScout

as an

Intelligent Electronic Device (hereinafter IED)

simulator. The test input was limited to port TCP 102,

and the monitoring covered network communication

and the availability of port TCP 102.

As a condition for determining an abnormality,

we set a loose condition that the monitored object

should recover within 30 seconds after it is no longer

captured so that the test case can be implemented as

much as possible.

Under these conditions, the study was conducted

three times with direct connection in a local network

environment and via the cellular network (LTE) for

comparison.

The results were almost identical in all cases, with

the last test case conducted. There is no statistically

significant difference in the number of test cases

performed (Figure 5, Figure 6).

Figure 6 shows the number of test cases with

anomalies. On average, more anomalies are detected

when the TCP port is added to the monitoring

conditions. This can be seen because of the difficulty

in determining test results using the same port to

which data is sent.

Figure 5:Number of sub-testcases executed.

OMICRON, IEDScout,

https://www.omicronenergy.com/en/products/iedscou/

Figure 6: Number of test cases with anomalies.

4.2 Evaluation Experiment 2: Number

of Test Cases (IEC 61850)

A comparison of the number of automated tests in

industrial protocols was performed. As a change

from Experiment 1, the software implementing IEC

61850 was changed to a different type, and the output

interface of the device under test was included in the

monitoring conditions (Figure 8).

The test set of ATP used includes the following:

• IEC 61850 (MMS) testing

The libiec61850

sample program was used as

the test subject. The test input was limited to port

TCP 102, and the monitoring was network sparsity,

availability of port TCP 102, and digital output of

IEDs (should always hold High). Other conditions

were the same as in Evaluation Experiment 1.

Figure 8 shows the number of tests and the

percentage containing anomalies. All of the tests

eventually resulted in an abnormality. In fact, the

software also ended abnormally. Although the

number of tests conducted was the same each time,

the number of anomalies found differed slightly (35,

30, 33 times). Still, as in Experiment 1, it is thought

to contain some judgment errors.

Figure 7: Test environment for the experiment 3.

https://github.com/mz-automation/libiec61850

Rem ot e

I/O

LAC/

LNS

LAC/

LNS

WAN/ LTE

L2TPv3

LAN1

LAN2

Rem ot e

I/O

DAQ

DI/ DO

Relay

DI/ DO

TCP/ IP

TCP/ I PDI/ DO

Remote Security Assessment for Cyber-Physical Systems: Adapting Design Patterns for Enhanced Diagnosis

809

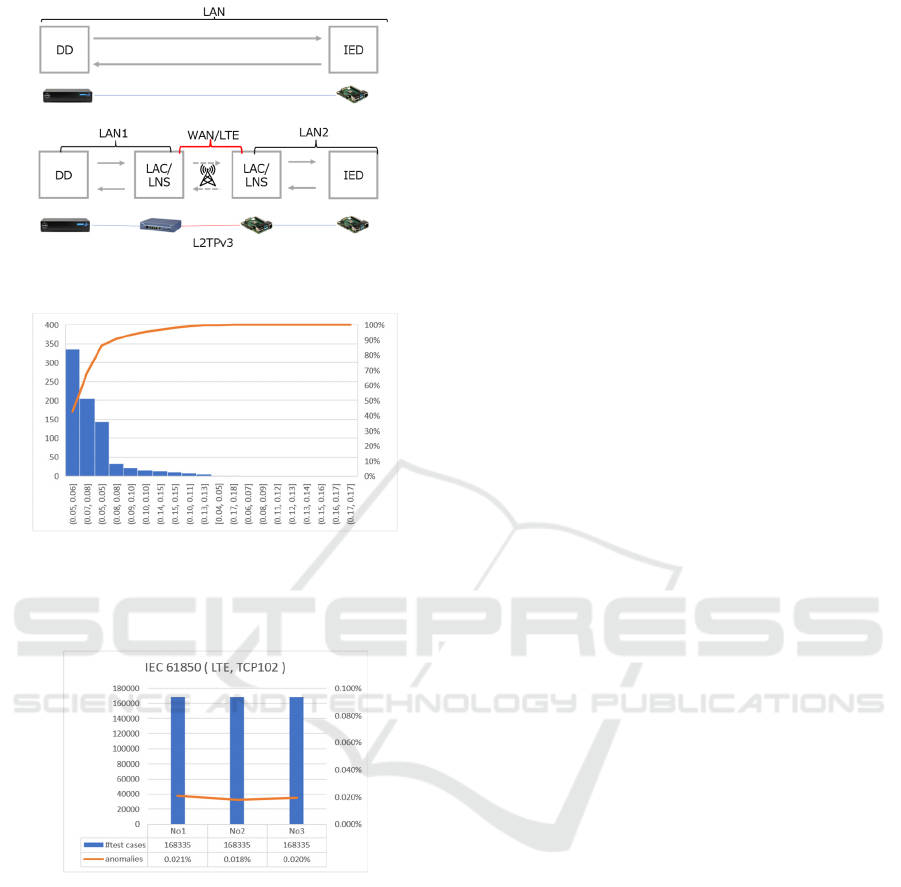

Figure 8: Test environment for the experiment 2.

Figure 9: Latency in the environment 3.

The leftmost bar graph shows that there were about 340

ICMP exchanges between 0.05-0.06 seconds (about 45% of

the total).

Figure 10: Number of tests resulted in anomalies.

4.3 Evaluation Experiment 3: Pulse

Signal Monitoring

In evaluation experiment 3, a pulse signal monitoring

test was carried out with the aim of verifying the

system's capability to accurately capture short-

duration communications and signals, such as touch

panel operations. Figure 7 shows the test environment

which is specialized for monitoring for evaluation of

a pattern of virtual extension of CPS output to the

cloud. A direct path from the DAQ to the diagnostic

device is also set up for the comparison experiment.

The diagnostic device was operated in manual test

mode to assess the functionality of the monitoring

system during the test. The output was transmitted to

the diagnostic device through the cellular operator’s

network, and it was confirmed that the diagnostic

device accurately detected the abnormality.

The average latency observed was 0.07 seconds,

with the maximum latency reaching 0.18 seconds

(occurring only once in a 10-hour period). The

distribution of latencies is depicted in Figure 10.

There were no instances where the pulse outputs were

incompatible, and 100% of the pulses were

successfully reported.

5 DISCUSSION

5.1 Relationship Between Evaluation

Experiments and Challenges

Table 1 presents the results of the evaluation

experiments conducted in Section 4 and summarizes

the relationship between the experiments carried out

in Section 4 and the challenges identified in Section

(a) Based on experiments 1 and 2, it can be

concluded that the aborted transmission of abnormal

data due to undelivered transmitted data has been

addressed. However, the network load test was not

included in this evaluation, so additional evaluation

on load reproducibility is necessary.

(b) Experiments 2 and 3 suggest that the system

can handle events interrupting the transmission of

abnormal data due to monitoring malfunctions of the

output being diagnosed. Nonetheless, further

evaluation is needed when dealing with more

complex conditions, such as increasing the number of

contacts to be monitored or monitoring the TCP port

on the transmitting side.

data is interrupted due to a malfunction in monitoring

the output to be diagnosed is also handled similarly to

(b).

(d) The misjudgment of diagnostic results due to

a monitoring malfunction of the output to be

diagnosed does not fall under the risk category of

misjudgement when the operator's operation is

normal. Other confirmation methods are also

considered applicable if they are fundamentally the

same as (b) and (c), i.e., normal operation

confirmation on transmitting and monitoring.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

810

5.2 Applicability of This Method

The requirement for monitoring in fuzzing studies

and certification schemes is "to cover all outputs."

The scope is limited even for monitoring tests in local

networks that are not cloud-based. When applying the

virtual extension pattern to the cloud in the proposed

method, it is possible to reproduce the same

monitoring as for testing in a local area network by

increasing the number of devices with remote I/O and

DAQ. However, even test devices that are certified

tools in the certification system have GUI and

physical limitations on the number of monitored

points. For example, a digital output is physically

limited to four contacts. If many contacts are to be

monitored to improve diagnostic accuracy, some kind

of encoding and expansion of the monitoring GUI

may be necessary.

In this test environment, latency was relatively

small, and jitter issues did not affect the results.

Further empirical research is needed to test the

response to jitter errors in areas with weak radio

waves and poor network conditions.

When considering actual use cases of diagnostics,

it is also necessary to consider the increased burden

on testers who temporarily set up DAQ and other

equipment in the local system. As for the testers, they

will have to carry in the monitoring equipment, install

it, set it up, and witness the implementation of the test,

which will be costly in proportion to the scale of the

target to be monitored. When determining the

parameters that define the monitoring conditions, if

the parameters are optimized for the local

environment, the burden on local workers will

increase, which will not lead to a reduction in the cost

of the test. Establishing a methodology to reduce the

total cost, including the burden on workers, is also

considered necessary.

Developing strategies to minimize the workload

on local testers and optimize the overall testing

process will be crucial in ensuring the success of the

proposed method. This could involve creating

comprehensive guidelines and automating certain

aspects of the installation and monitoring processes to

streamline the workflow. Additionally, exploring

innovative ways to expand the monitoring GUI and

improve diagnostic accuracy without overwhelming

the system or personnel will be essential.

6 CONCLUSION

In this paper, we presented a novel method for remote

security assessment of critical infrastructure systems

using virtual extension design patterns. The proposed

method addresses the challenges and limitations

faced by traditional remote security assessment

approaches, including network stability, reachability

of Layer 2 data, and the monitoring of essential

functions in real time.

Through the implementation and evaluation of the

proposed method, we demonstrated its ability to

effectively address these challenges in a simulated

environment. The evaluation experiments showed

promising results, with the proposed method

successfully handling aborted transmission of

abnormal data, ensuring proper output monitoring to

be diagnosed, and maintaining consistent

performance in various testing scenarios.

However, further research and development are

needed to optimize the proposed method for real-

world applications. This includes expanding the

scope of monitoring, addressing latency and jitter

issues, and minimizing the burden on local workers

during the testing process. Developing

comprehensive guidelines and automating certain

aspects of the installation and monitoring processes

will be essential in streamlining the workflow and

reducing overall costs.

In conclusion, the proposed method offers a

promising solution for the remote security assessment

of critical infrastructure systems. By addressing the

existing challenges and limitations, this method can

significantly enhance cybersecurity and protect

critical infrastructures in the face of ever-evolving

threats.

Table 1: Relationship between evaluation experiments and tasks.

Ex 3 Ex 2 Ex 1

(a-1) The same tests were conducted as those in the local area.

(a-2) The same number of tests were conducted in the local area.

**(a)Interruption

(b-2) Equipment output was properly monitored.

(b-3) Anomalies as small as 0.1 second were also supplemented.

(b)Interruption

(c-2) Equipment output was properly monitored.

(c-3) Anomalies as small as 0.1 second were also captured.

(c)Continuation

(d-3) Operations of about 0.1 second were also captured.

(d)Confirmation

Remote Security Assessment for Cyber-Physical Systems: Adapting Design Patterns for Enhanced Diagnosis

811

REFERENCES

Boehme, M., Cadar, C., & Roychoudhury, A. (2021).

Fuzzing: Challenges and Reflections. In IEEE

Software, 38(3), pp. 79-86. doi:

10.1109/MS.2020.3016773

Chen, Y., Poskitt, C. M., Sun, J., Adepu, S., & Zhang, F.

(2019). Learning-guided network fuzzing for testing

cyber-physical system defences. In Proceedings of the

34th IEEE/ACM International Conference on

Automated Software Engineering (ASE '19). IEEE

Press, 962–973. DOI:

https://doi.org/10.1109/ASE.2019.00093

Luo, Z., Zuo, F., Jiang, Y., Gao, J., Jiao, X., & Sun, J.

(2019). Polar: Function Code Aware Fuzz Testing of

ICS Protocol. ACM Trans. Embed. Comput. Syst.,

18(5s), Article 93, 22 pages.

https://doi.org/10.1145/3358227

Matsuzaki, K., Sawabe, N., Maeda, R., Suzuki, D.,

Matsuura, T., & Hamada, H. (2020). Cybersecurity

Evaluation Methodology for Distributed Energy

Resources: Industrial Demonstration. In IECON 2020

The 46th Annual Conference of the IEEE Industrial

Electronics Society. Singapore, 2020, pp. 2169-2174,

doi: 10.1109/IECON43393.2020.9254422.

Pfrang, S., Meier, D., Friedrich, M., & Beyerer, J. (2018).

Advancing Protocol Fuzzing for Industrial Automation

and Control Systems. In Proceedings of the 4th

International Conference on Information Systems

Security and Privacy (ICISSP 2018). DOI:

10.5220/0006755305700580

Serpanos, D., & Katsigiannis, K. (2021). Fuzzing:

Cyberphysical System Testing for Security and

Dependability. In Computer, 54(9), pp. 86-89. doi:

10.1109/MC.2021.3092479

Wilkerson, C., & Hariri, M. E. (2022). IEC 61850-Based

Renewable Energy Systems: A Survey on

Cybersecurity Aspects. In 2022 IEEE International

Conference on Environment and Electrical Engineering

and 2022 IEEE Industrial and Commercial Power

Systems Europe (EEEIC / I&CPS Europe). Prague,

Czech Republic, 2022, pp. 1-6, doi:

10.1109/EEEIC/ICPSEurope54979.2022.9854539.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

812
