A Secure Emergency Framework in an IoT Based Patient Monitoring

System

Neila Mekki

, Mohamed Hamdi

, Taouﬁk Aguili

and Tai-hoon Kim

Communications Systems Laboratory ,(SysCom), National Engineering School of Tunis, (ENIT),

University of Tunis El Manar, (UTM), Tunisia

Cytekia, Higher School of Communication of Tunis, Sup’Com, University of Carthage, Tunisia

School of Information Science, University of Tasmania, Australia

ﬁ

Keywords:

Internet of Things, Healthcare, Monitoring, Patient, Doctor, Diabetic, Security, Authentication.

Abstract:

Today, the Internet of Things (IoT) in healthcare has become more productive to reduce the gap between doc-

tors and patients. If any problem has occurred to the patient, then the doctor approaches the patient and gives

the appropriate treatment. In this context, the main research question is how to identify the methodological

choice (paradigm, approach, and method) in coherent with theoretical foundation of the Internet of things.

Our objective is to involve better management of public IoT healthcare application by following a prevention

methodology. To address this need, we adopt the design science research (DSR) methodology to implement

a smart healthcare application. The ultimate goal is to enable the dynamic prediction and/or detection of the

patient health deterioration, which taking into consideration the patient health evolution. So the prototyping

process suggests some important factors to monitor and assist living diabetic patient at any time. The doctor

have the ability to easily monitor and manage the patient health and can save precious minutes every day.

Without having to manually visit each patient, the doctor can give a remote diagnosis and track the medical

assets. To this purpose, we provides a theoretical contribution which the DSR assists in identifying an intelli-

gent healthcare application based on IoT technology.

1 INTRODUCTION

The Internet of Things (IoT) is an emerging paradigm

that enhance our everyday life through automation

and optimization tasks related to transport health-

care domain, smart-home and smart-enterprise, and

so forth. IoT is a huge network of things, which can

recognize, manage, and control all kinds of objects

around us through sensors and embedded devices.

According to Gartner (Sallabi and Shuaib, 2016), in

2020, there will be 26 billion things for a market ex-

ceeding $300 billion. This new market has been in-

vested by big companies, such as Samsung, Amazon

or Google, that are developed things for the IoT and

try to stay ahead concurrent by proposing emerging

and innovative products.

However, the trafﬁc monitoring system is prone

to some cyberattacks. A malicious user may control

a sensor to upload forged information to the system,

which may cause trafﬁc chaos.

In particular, we address those challenges in

healthcare application context. Healthcare is among

the fastest-growing domains since it affects the whole

world population. A continuous monitoring and real-

time communication of patients have always been the

mean idea of smart healthcare services of cardiac (ren,

2018), Diabetes mellitus (Al-Taee et al., 2017), or res-

piratory problems (Mukhopadhyay et al., 2018).

Despite that security and privacy of client’s data

remain a tremendous challenge to address (Ida et al.,

2016) (Sowmiya et al., 2016), the psychological and

environmental factors interact in decision making and

behavior (Alaiad and Zhou, 2017). Such as, psy-

chosocial problems (Ferrer and Mendes, 2018) are

most common in diabetes patients (Chew et al., 2014)

that often result in serious negative impacts.

Additionally, our previous recherche works were

done on describing the scenario a healthcare applica-

tion (Mekki et al., 2017), solving the noise problem

due to multiple sensor applied WBAN and provid-

ing an authentication protocol to correctly identify the

communication requests from legitimate user (Mekki

et al., 2018),(Mekki et al., 2023) .

For this purpose, our challenge is to allow a com-

844

Mekki, N., Hamdi, M., Aguili, T. and Kim, T.

A Secure Emergency Framework in an IoT Based Patient Monitoring System.

DOI: 10.5220/0012138400003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 844-849

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

plete regroup hardware system that gives users control

and check the existence of a threshold event invoked

by a particular sensor (e.g ECG or blood glucose).

However, a design model which gives users control

and lets them check their physical condition by them-

selves was not yet mentioned.

Our contribution consists on how do we construct

a secure protocol to achieve security between users

and sensor nodes? Moreover, how do we transform

data raw into cognitive knowledge information shared

between IoT system components?

To answer those questions, we illustrate our

methodology for a diabetic patient based on De-

sign Science Research Methodology (DSRM)(March

and Smith, 1995). The DSRM supports a research

paradigm that calls the creation of innovative artifacts

to solve real-life problems. We present the empiri-

cal study, which begins with researching the adequate

methodology in coherence with research objectives

and theoretical foundations.

Among others, the following components must be

set:

• The key security requirements and challenges in

IoT with a speciﬁc focus on healthcare applica-

tions.

• The balance between security and functionality by

explaining our system model and methodology.

The ultimate goal of this methodology is provid-

ing a ﬂexible smart IoT-based system able to perceive

the collected data and provide decisions.

This paper is organized as follows. First in Section

2, we begin by some overview of exiting work in IoT

for healthcare application. Second, in section 3, we

propose our adaptive methodology a ﬁnd to involve

better management of public IoT healthcare applica-

tion. Finally, concluding and future trends are drawn

in Section 4.

2 RELATED WORK

In the past few years, IoT has become most produc-

tive in the area of healthcare, to improve the quality

of care to the patient. Such as diabetes can be actively

treated and monitored if an early diagnosis is avail-

able.

In this context, some contributions have addressed

the focuses on developing an IoT healthcare system,

in which are summarized in table 1 .

Compared to those previous researches, some of a

prior studies did not adopt any sensors (Khan, 2020)

(Rghioui et al., 2021), while some others studies us-

ing these sensor (Islam et al., 2023) technologies for

collecting real-time data.

Different from all the previous researches, our

contribution combine security requirement and DSR

to monitor the diabetic patient.

Such as, our challenge is to provide a secure

emergency framework for healthcare application ,

which include a biomedical sensors, an android inter-

face for monitoring real-time sensor data, and a cloud

infrastructure for processing the real-time data.

3 PROPOSED ADAPTIVE

METHODOLOGY

In this section, we illustrate detailed information in-

cluding the methodology of our system architecture

for diabetic patient-based Design Science Research

Methodology (March and Smith, 1995). Following

the proposed methodology, we have combined emo-

tion and Cognitive IoT for developing a ﬂexible mon-

itoring system. The research aims to create an artifact

to support the decision making for smart healthcare

framework. To build an artifact-based design science

paradigm, we consider two basic activities: build and

evaluate as follows respectively:

• Build: is the process of constructing an artifact for

a speciﬁc purpose. We build an artifact to perform

a speciﬁc task.

• Evaluate: is the development of criteria perfor-

mance evaluation.

IoT methodologies can be divided into two categories:

bottom-up approaches and top-down approaches.

The Bottom-Up Approaches: consist of selecting a

priory the residual risk, i.e. the degree of protection

of the system and implementing the countermeasures

that allow reaching it.

The Top-Down Approaches: deﬁne scheduled tasks

that are intended to reduce the identiﬁed threats.

Both development approaches use the same tool-

chain, and can thus be applied to best suit the needs of

the particular feature development project. It is also

possible to start development with the bottom-up ap-

proach and complete it with the top-down approach.

However, the challenge encountered while imple-

menting our approach, is to achieve and maintain mo-

bility without attacks or vulnerability. Besides, how

the collected data are transformed into insights and

interact with domain experts for better decisions.

We describe as our methodological contribution

in coherence with some elements of qualitative ap-

proaches (case study and narrative analysis (Mekki

et al., 2017)), to design and implement a monitoring

system in IoT-Based on WBAN for a diabetic patient.

A Secure Emergency Framework in an IoT Based Patient Monitoring System

845

Table 1: Benchmarking overview of exiting work in IoT for healthcare.

Ref Embedded platform emergency alerts Sensor

(Khan, 2020) Client computer with IoT sensors No Not done

(Rghioui et al., 2021) IoMT Based cloud infrastructure No Not done

(Islam et al., 2023) Android Device with Iot wearable Device Yes Done

Our main focus is to equip the methodology with hu-

man cognition, which is capable of performing intel-

ligent decision making independently.

These artifacts then become the object of the

study. The methodology followed in our research is

classiﬁed into four methods and activities, linked with

the corresponding steps of the DSR approach. DSR

artifact can include: Construct, Models, Method, and

Instantiation.

3.1 Construct

Let’s consider our smart IoT-based healthcare sce-

nario, in which a medical IoT device publishes the

physical condition (such as ECG or blood glucose) of

a diabetic patient to a remote healthcare center peri-

odically.

Despite their large deployment, security issues,

mainly related to data privacy, are often considered

as potential obstacles that might limit the extent of

such solutions. Hence, the constructed artifact itself

presents a challenge to explain how and why it works.

Hence, the attacker blocks critical health information

from being transmitted to physicians, threatening the

life of the patient.

Context: In general, the IoT-base healthcare system

collects sensitive data. The platform must ensure an

adequate level of security to data access and manage-

ment. At this stage, management analysis must clarify

and deﬁne functional requirements and design con-

straints. Functional requirements deﬁne quality (how

good), environment (know-that), availability (how of-

ten) and the procedural knowledge (know-how) to

make decisions. To ensure such functionalities, the

system should be able to understand the meaning of

the received data and history as well as the disease

management strategies to provide the right decisions.

Problem: If we consider deploying and activating

all the monitoring processes for each patient, this re-

quires increasing the cost. Moreover, hard coding of

all rules causes maintainability problems. Besides,

privacy is also a primary concern in the remote health

monitoring system, as health data are highly relevant

to the patient being monitored.

Solution: To deal with those challenges, our method-

ology design, are used to combine knowledge and se-

curity analyses. We deﬁned within this methodology

a set of (1) delineating the security dynamic coordi-

nation of the management processes to deal with the

system’s context changeability and (2) cognitive abil-

ities to IoT-based systems to interact with the human

through generating new insights and to solve prob-

lems as human do.

3.2 System Model

In this sub-section, we illustrate the system model of

our case study of the diabetic patient. It is depicted

by ﬁgure 1, which consists of: (i) a trusted domain

with sensors and IoT devices under a single adminis-

trative domain (e.g. at home, or outside the home),

and (ii) an untrusted domain connected via the public

Internet, including the illegal user.

Note that we consider the application logic to be

separate from its implementation: while the design of

the application logic can be separately veriﬁed, vul-

nerabilities can still be introduced due to implemen-

tation bugs.

Proposing a system model for the patient monitor-

ing system should take into account the key character-

istics of IoT. The techniques should be asking enough

to various context. Thus, the IoT system must have

strong security guarantees.

We propose the bottom-up approach for verifying

the security of the software stack in an IoT system, to

provide a guarantee for how the software is secure.

We plan to verify the security of the actual (source

and machine) code that will run on IoT devices. By

bottom-up approach, we mean that the security of

software needs to be established at every level of ab-

straction: at the OS (Operating System), implementa-

tion, and functional design levels.

Speciﬁcally, the choice of our methodology refers

to a pluralistic methodological approach (case studies,

architecture, and narratives approach).

As shown the ﬁgure 1, the arrow model presents

the precedence relationship between the eight pro-

cesses; denoted by 1- Context; 2-Activity monitoring;

3-Information Capture; 4-Vulnerability; 5-Threats; 6-

Risk; 7-Reduces /Countermeasures; 8- Security re-

quirements.

• 1-Context: It refers to the vast amount of infor-

mation processing that normally takes place out-

side conscious awareness, even during sleep. Our

methodology should be asking enough two moti-

vating factors.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

846

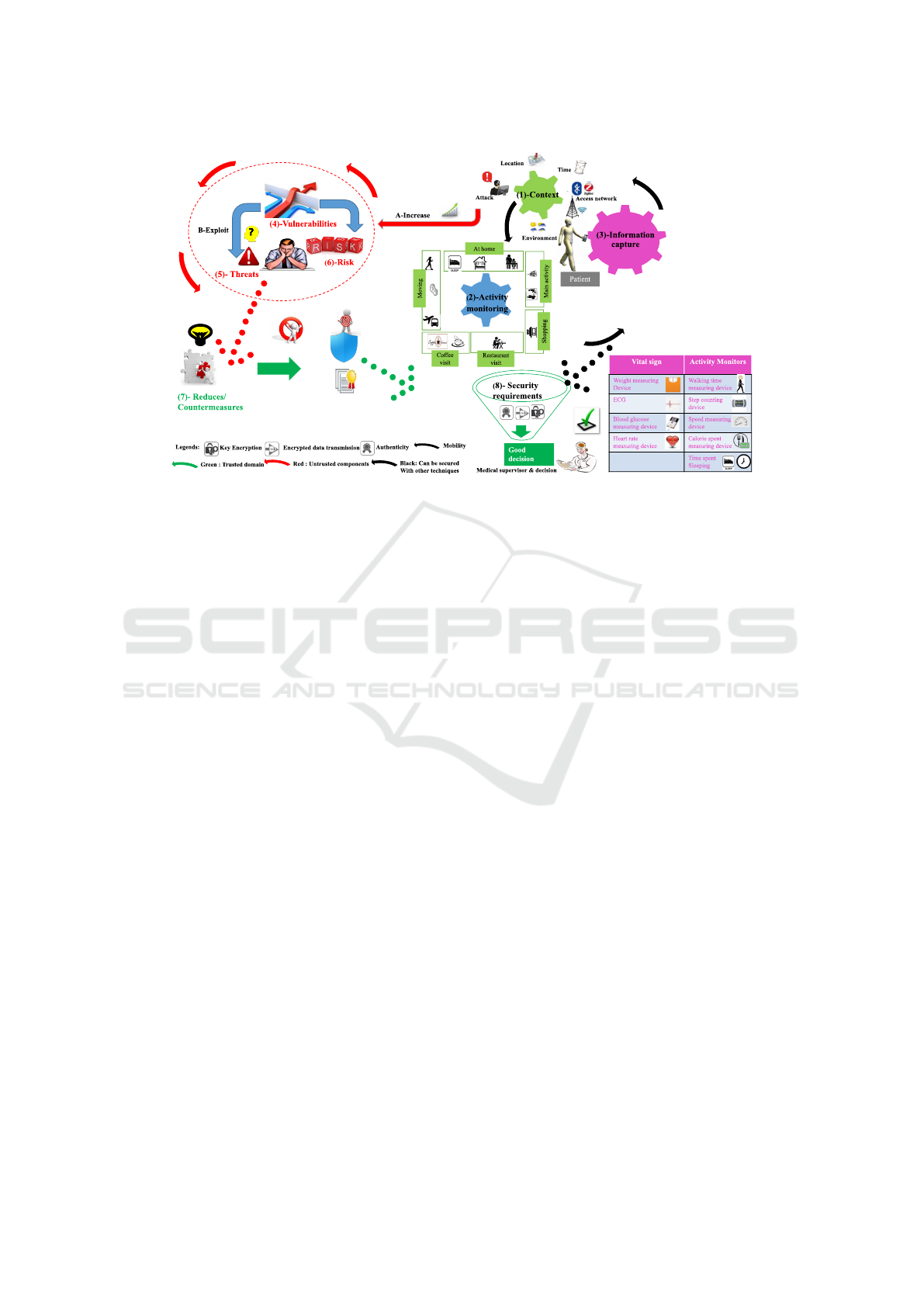

Figure 1: Proposed Adaptive methodologies Patient Monitoring System.

– Attack structure depends on context patient,

time, environment and access network.

– The importance of security requirement may

constitute countermeasure selection. For to this

purpose, the key security requirement can be di-

vided into two steps: Information nature secu-

rity requirement, and context security require-

ment (As it has been introduced, in our previ-

ous works (Mekki et al., 2017)).

• 2-Activity monitoring: This process aims to mon-

itor and to achieve a good decision patient over

time. In this sense, our goal is to counteract his

or her activity to collect human body function. It

is a very important step, to understand what hap-

pened and devise response strategy. Therefore, it

is the association between context and informa-

tion capture. The monitoring of physical activity

facilities the development of adaptive healthcare

research. The real-time decision, based on which

the future action is taken, is made by the cognitive

module. The cognitive healthcare framework is

sufﬁciently intelligent to make corresponding de-

cisions. Thereafter, the cognitive system makes a

real-time decision on the activities to be provided

to patients based on their state. Such as patients

living with diabetes are not constantly watched,

like in a clinic or a hospital, but are managing

their disease largely by themselves. Therefore,

patients need to make best-individualized care de-

cisions about the daily management of their di-

abetes. The objective is to adapt and personalize

the lifestyle behaviors based on the collected data.

More speciﬁcally, positive emotions, such as hap-

piness, excitement, and contentment result in bet-

ter health behaviors and improved adherence to

treatment regimens

• 3-Information Capture: It is stimulated to mea-

sure and collect a physiological and movement by

using wireless body area networks (WBAN).

• 4-Vulnerability: Weaknesses and security

breaches of the analyzed system are identiﬁed at

this level.

• 5-Threats: this process aims to identify the attacks

that threaten the analyzed system. Unlike vulner-

abilities, threats are measurable as each of them

can be represented by its frequency and its sever-

ity. Threat rates and impacts depend on the envi-

ronment.

• 6-Risk: This process aims to identify the risk

that may threaten the asset of the analyzed system

based on the identiﬁed vulnerabilities and threats.

This process can be divided into the following

steps:

– Identify the global (main) attacks correspond-

ing to the asset.

– Build the attack scenario for every main attack.

• 7-Reduces /Countermeasures: It has been also

demonstrated that security countermeasures can

be viewed as the pseudo inverse of attacks con-

cerning the composition law. These criteria may

include:

– The efﬁciency or the degree of protection

– The feasibility of the countermeasure.

A Secure Emergency Framework in an IoT Based Patient Monitoring System

847

• 8-Security requirements: This process aims to re-

act to security requirements to reduce attacks. The

security requirements become an exigency to re-

duces and adapt the implementation of the coun-

termeasure such as key encryption, encrypted data

transmission, and authenticity.

Our model should implement cognitive capabilities

that allow good decisions at the right time.

3.3 Method

In this section, we study methods to improve an emer-

gency framework in an IoT based patient monitoring

system. To make it possible, we propose to create a

secure authentication in a given temporal and spatial

environment of the subject’s life. By using sensors,

the data will be captured and compared with the pre-

deﬁned threshold. Our study focuses on blood glu-

cose and heartbeat rate, thus in case of emergency no-

tiﬁcation will be sent to the doctor mobile.

Our challenge is to design the embedded security

framework, by factors good performance, robustness

to attacks and low energy consumption.

3.4 Instantiation

Designing an IoT-health system is a burdensome as-

signment because we should respect some key con-

cerns such as:

• A providing authentication protocol to identify

and authorize the communication requests from a

legitimate user.

• Designing an authentication protocol to minimize

the power consumption of the smart device (e.g.

blood glucose).

To meet all the requirements and make software

available as soon as possible, the software develop-

ment for embedded the system often uses V-model. It

enables also to perform tests at any time during the de-

velopment of our healthcare application. Here, the de-

velopment method inﬂuences the entire development,

from requirements deﬁnition to software release. In

the ﬁrst step, is to meet all functional requirements but

not yet the restrictions of the target hardware. Such as

the functional requirement are checked using a model

methodology based on a bottom-up approach.

In the next step, the function and the model are

optimized for target two use cases of service analytic

capabilities of our application inside or outside home.

However, the capability to perform software tests

faster and more efﬁciently is of utmost importance to

healthcare application. We plan to introduce a safety

application and front-load more tasks to detect errors

early.

In fact, we develop a Management Application

(MA), is based PHP and Nginx web server eas-

ily conﬁgurable and accessible via a web browser.

Speciﬁcally, an MA can receive and reply to any re-

quest, coming from the user, in JSON format. A

MySql database, store the information retrieved from

WBAN.

Our solution consists of two parts: the ﬁrst part is

the web service restful that run in the cloud accessible

by the smart gateway. It was developed by using PHP

and deployed on the Nginx server. The second part

consists of an android application which acts as the

client of our web service restful.

For those reasons, users (patients or doctors) need

to be authenticated before the access to the platform,

accessible via smartphone. such as the proposed

model of a secure authentication protocol based on

Restful approach for monitoring the diabetic patient

has been already introduced in our previous work

(Mekki et al., 2023).

Note That, these interfaces implement restful ser-

vices, which allow the user to communicate with

WBAN through the Smart Health Gateway (SHG). It

offers two main functionalities depending on two pos-

sible users (patient or doctors) as shown in Figure 2.

Patient interface: it allows the patient to register to

SAA. Furthermore, the patient can be equipped with a

smartphone and running application, named MobiDi-

abetic, a customized Android Application with spe-

ciﬁc privilege access.

Doctor interface: it allows medical staff to reg-

ister to SAA. Furthermore, doctors can be equipped

with a smartphone and running the same healthcare

Application, to check and interact with patient vital

signs. Since the system collects sensitive and conﬁ-

dential data to ensure the adequate security level.

4 CONCLUSION

In this paper, we have exposed our methodology for

the diabetic patient in IoT healthcare. We discuss

the main process of our adaptive methodology. Our

methodology is mainly guided by knowledge infor-

mation carried by events and objects.

We emphasize describe the systems at multiple

levels and from a variety of perspectives. such as we

plan to validate our MobiDiabetic application through

controlled evaluations taking into account the clinical

environment, to assess its performance, reliability and

safety by the nursing staff.

SECRYPT 2023 - 20th International Conference on Security and Cryptography

848

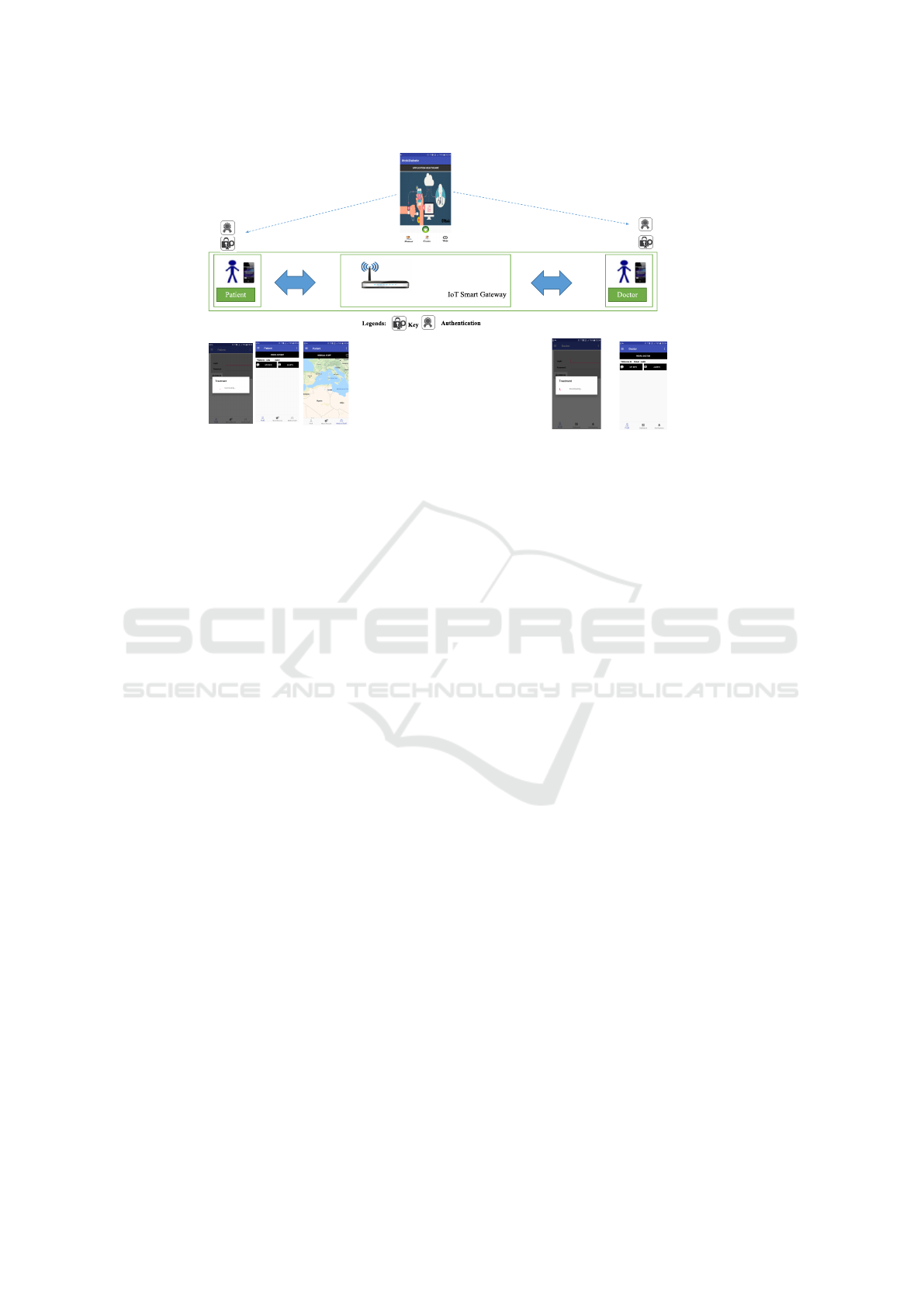

Figure 2: Users interface visualization.

REFERENCES

(2018). A Novel Cardiac Auscultation Monitoring System

Based on Wireless Sensing for Healthcare. 6:1–12.

Al-Taee, M. A., Al-Nuaimy, W., Muhsin, Z. J., and Al-

Ataby, A. (2017). Robot Assistant in Management of

Diabetes in Children Based on the Internet of Things.

IEEE Internet of Things Journal, 4(2):437–445.

Alaiad, A. and Zhou, L. (2017). Patients’ Adoption

of WSN-Based Smart Home Healthcare Systems:

An Integrated Model of Facilitators and Barriers.

IEEE Transactions on Professional Communication,

60(1):4–23.

Chew, B.-H., Shariff-Ghazali, S., and Fernandez, A. (2014).

Psychological aspects of diabetes care: Effecting be-

havioral change in patients. World Journal of Dia-

betes, 5(6):796–808.

Ferrer, R. A. and Mendes, W. B. (2018). Emotion, health

decision making, and health behaviour. Psychology &

Health, 33(1):1–16.

Ida, I. B., Jemai, A., and Loukil, A. (2016). A survey on

security of IoT in the context of eHealth and clouds.

In 2016 11th International Design Test Symposium

(IDT), pages 25–30.

Islam, M. N., Raiyan, K. R., Mitra, S., Mannan, M., Tasnim,

T., Putul, A. O., and Mandol, A. B. (2023). Predictis:

an IoT and machine learning-based system to predict

risk level of cardio-vascular diseases. 23(1):171.

Khan, M. A. (2020). An IoT framework for heart dis-

ease prediction based on MDCNN classiﬁer. 8:34717–

34727. Conference Name: IEEE Access.

March, S. T. and Smith, G. F. (1995). Design and natural

science research on information technology. Decision

Support Systems, 15(4):251–266.

Mekki, N., Hamdi, M., Aguili, T., and Kim, T.-H. (2017).

Scenario-based Vulnerability Analysis in IoT-based

Patient Monitoring System. pages 554–559.

Mekki, N., Hamdi, M., Aguili, T., and Kim, T.-H. (2018). A

Privacy-Preserving Scheme Using Chaos Theory for

Wireless Body Area Network. In 2018 14th Interna-

tional Wireless Communications Mobile Computing

Conference (IWCMC), pages 774–779.

Mekki, N., Hamdi, M., Aguili, T., and Kim, T.-H. (2023).

An authentication protocol for healthcare application:

A case study of a diabetic patient. pages 434–445.

Mukhopadhyay, B., Sharma, O., and Kar, S. (2018). IoT

Based Wearable Knitted Fabric Respiratory Monitor-

ing System. In 2018 IEEE SENSORS, pages 1–4.

Rghioui, A., Naja, A., Mauri, J. L., and Oumnad, A.

(2021). An IoT based diabetic patient monitor-

ing system using machine learning and node MCU.

1743(1):012035. Publisher: IOP Publishing.

Sallabi, F. and Shuaib, K. (2016). Internet of things network

management system architecture for smart healthcare.

pages 165–170.

Sowmiya, E., Malathi, L., and Selvi, A. T. (2016). A Study

on Security Issues in Healthcare Applications Using

Medical Wireless Sensor Network and Iot. Iioab Jour-

nal, 7(9):575–583. WOS:000397199100004.

A Secure Emergency Framework in an IoT Based Patient Monitoring System

849
