VerifMSI: Practical Veriﬁcation of Hardware and Software Masking

Schemes Implementations

Quentin L. Meunier

1 a

and Abdul Rahman Taleb

1,2

Sorbonne Université, CNRS, Laboratoire d’Informatique de Paris 6, LIP6, F-75005 Paris, France

CryptoExperts, Paris, France

Keywords:

Side-Channel Attacks, Masking Veriﬁcation, Threshold Probing Security, Non-Interference.

Abstract:

Side-Channel Attacks are powerful attacks which can recover secret information in a cryptographic device

by analysing physical quantities such as power consumption. Masking is a common countermeasure to these

attacks which can be applied in software and hardware, and consists in splitting the secrets in several parts.

Masking schemes and their implementations are often not trivial, and require the use of automated tools to

check for their correctness. In this work, we propose a new practical tool named VerifMSI which extends

an existing veriﬁcation tool called LeakageVerif targeting software schemes. Compared to LeakageVerif,

VerifMSI includes hardware constructs, namely gates and registers, what allows to take glitch propagation

into account. Moreover, it includes a new representation of the inputs, making it possible to verify three

existing security properties (Non-Interference, Strong Non-Interference, Probe Isolating Non-Interference) as

well as a newly deﬁned one called Relaxed Non-Interference, compared to the unique Threshold Probing

Security veriﬁed in LeakageVerif. Finally, optimisations have been integrated in VerifMSI in order to

speed up the veriﬁcation. We evaluate VerifMSI on a set of 9 benchmarks from the literature, focusing on the

hardware descriptions, and show that it performs well both in terms of accuracy and scalability.

1 INTRODUCTION

1.1 Context

Side-Channel Attacks (SCA) exploit the relation-

ship between physical quantities such as power con-

sumption, electromagnetic emissions, or timing in-

formation and secret data manipulated by crypto-

graphic implementations, in order to retrieve the se-

cret data. Since the ﬁrst published differential power

attack (Kocher et al., 1999), many other such attacks

have proven to be very effective when the device

contains no speciﬁc countermeasure (Mangard et al.,

2008). With the advent of the Internet-of-Things,

many embedded devices now use cryptographic im-

plementations and are potential targets for these at-

tacks (smart cards, mobile phones, or RFID tags).

Protecting these devices against SCA has thus be-

come a signiﬁcant concern.

https://orcid.org/0000-0001-8848-8079

1.2 Background on Masking

Masking is a protection technique against SCA, with a

goal to remove the statistical dependency between in-

termediate computations and secret data manipulated

by the program (Trichina, 2003; Ishai et al., 2003).

The rationale behind masking is that intermediate

computations’ values are correlated to the power con-

sumption, therefore a masked program should have

no statistical dependency between the secret data and

the observable physical quantities. Masking can be

applied at any order, and masking at order d con-

sists in splitting each secret variable into n = d + 1

parts, called shares. The higher the order, the better

the security, as any recombination of up to d shares

should not allow to deduce any information on the

secret, and the recovery becomes exponentially hard

with the number of shares as each observation comes

with noise. The most practical and common way of

achieving masking for a secret x is the linear masking:

it consists in drawing d uniformly and independently

distributed variables and computing the n

share by

recombining x with the ﬁrst d shares using the bit-

wise xor operation ⊕ in the boolean case. Splitting

520

Meunier, Q. and Taleb, A.

VerifMSI: Practical Veriﬁcation of Hardware and Software Masking Schemes Implementations.

DOI: 10.5220/0012138600003555

In Proceedings of the 20th International Conference on Security and Cryptography (SECRYPT 2023), pages 520-527

ISBN: 978-989-758-666-8; ISSN: 2184-7711

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

the secrets is not the main part however, as the origi-

nal program must then be transformed into a masked

equivalent, using shares only, and avoiding any re-

combination of the secret variables. While this is

quite straightforward for linear operations w.r.t. the

xor, the transformation is more complicated for the

non-linear parts of the program. When done manu-

ally, several security ﬂaws may appear. Consequently,

a critical need for automatic masking veriﬁcation has

emerged to check the correctness of masked imple-

mentations, both in hardware or software.

Masking is popular as masked implementations

can theoretically be proven secure, and several meth-

ods have been proposed for proving the security of

such implementations. They are all based on analyz-

ing the intermediate expressions manipulated by the

circuit or program and try to answer the question:

does the distribution of a speciﬁc subset of interme-

diate computation results depend on secret data? The

implementation is considered insecure if two differ-

ent secret values lead to two different distributions.

This requires enumerating all possible subsets of in-

ternal variables of the program and testing their in-

dependence from the secret. The sizes and the num-

ber of sets depend on the considered property. One

way of testing the independence of a given subset of

internal variables is to compute the actual distribu-

tion of the variables for each possible realization of

the secret inputs. In order to avoid this non-scalable

approach, recent works on masking veriﬁcation use

symbolic computation (Ben El Ouahma et al., 2019;

Gao et al., 2019; Barthe et al., 2015; Barthe et al.,

2019; Meunier et al., 2023). Symbolic veriﬁcation

methods can fail to conclude on some given expres-

sions. In this case, the set of expressions is consid-

ered to be “possibly leaking”. Using an enumerative

technique to determine the distribution type may help

to conclude in this case, but this workaround is lim-

ited to small expressions and variable sizes due to the

inherent non-scalability of distribution enumeration.

Consequently, veriﬁcation methods must be as accu-

rate as possible to conclude for as many leakage-free

expressions as possible and give as few false positives

as possible.

1.3 Contributions

LeakageVerif (Meunier et al., 2023) is a veriﬁcation

method implemented in an open-source tool, and pro-

vided as a python library. Compared to other tools,

it has a good scalability and accuracy, while being

easily adapted for different use cases (veriﬁcation of

algorithms, assembly code, hardware modules). In

this work, we propose to extend LeakageVerif to

overcome some of the limitations of this tool. We

thus introduce VerifMSI for Veriﬁcation of Masking

Schemes Implementations. We claim VerifMSI to

be a single tool including state-of-the-art techniques

gathering all common masking veriﬁcation types. If

VerifMSI does not make a major breakthrough in

masking veriﬁcation techniques, it encompasses a

wide range of use cases with optimized and scalable

algorithm implementations, making it a very practical

open tool for hardware and software masking veriﬁ-

cation. Compared to LeakageVerif, VerifMSI makes

the following contributions:

• Addition of hardware circuits constructs (gates,

registers) allowing for circuits description, taking

into account glitches.

• Possibility to use shares for the masking scheme

description, allowing to choose between the clas-

sical description using secrets and masks, and the

share description. In the former, the program ex-

plicitly uses secrets and masks, e.g. a secret a

is replaced with expressions ma and ma ⊕ a. In

the latter, the shares are atomic inputs of the pro-

gram (e.g., a0, a1), what allows to verify spe-

ciﬁc security properties based on shares: Non-

Interference (NI), Strong Non-interference (SNI),

Probe-Isolating Non-Interference (PINI) and a

newly proposed Relaxed Non-Interference (RNI)

property which we introduce in this work.

• Higher order veriﬁcations of security properties, in-

cluding optimizations to reduce the number of tu-

ples of expressions to check.

VerifMSI is available as an open-source tool at the

following address:

https://github.com/quentin-meunier/VerifMSI.

The rest of the article is organised as follows:

section 2 presents some background on masking

veriﬁcation and existing security properties; sec-

tion 3 presents our veriﬁcation tool VerifMSI and

the different optimizations we designed; section 4

presents an experimental evaluation of VerifMSI on

9 benchmarks from the literature; section 5 compares

VerifMSI to other existing approaches; ﬁnally, sec-

tion 6 concludes.

2 SECURITY PROPERTIES

2.1 Existing Properties

Since the seminal work of (Ishai et al., 2003) which

introduced the ﬁrst deﬁnition of a security property,

many other properties were proposed and used. We

VerifMSI: Practical Veriﬁcation of Hardware and Software Masking Schemes Implementations

521

recall in the following the most important security no-

tions for hardware circuits.

Threshold Probing Security (TPS). The most com-

mon security property targeted with masking is

known as Threshold Probing Security, for a given

order t (Barthe et al., 2015). An implementation

achieves t-order threshold probing security if any tu-

ple of intermediate values of size t has a distribution

of values which is independent from all secret vari-

ables. This security property can reason either on se-

crets and masks, or on share-based expressions. In

the latter case, an expression using shares can be veri-

ﬁed by replacing arbitrarily the shares with the corre-

sponding expressions using the secret and masks. The

general substitution algorithm is given in algorithm 1.

For example, considering two secrets a and b split in

two shares (a0, a1) and (b0, b1), the expression a0

⊕ a1 ⊕ b0 is 1-threshold probing secure since b0 can

be replaced with mb or b ⊕ mb. A replacement in this

context is the fact to replace a sub-expression bijec-

tive in a mask with the mask itself, which requires the

mask to not appear in the sub-expression (step 2 of

algorithm 1). In either case, the whole expression of

this example is masked with the mask mb, guarantee-

ing secret independence.

Non-Interference (NI). Another common security

property is known as t-order Non Interference, or t-

NI (Barthe et al., 2019). It is deﬁned informally as

the following: an implementation is t-NI if all tuples

of t observations (corresponding to internal or output

values) have a distribution of values which depends

at most on t input shares, for each input. Since we

consider the distribution, this allows to make an ob-

servation independent from an input share by mask-

ing it. Algorithm 1 can also be used for verifying

NI with a modiﬁed stopping condition, but requires

a share description in the implementation. The previ-

ous example expression, a0 ⊕ a1 ⊕ b0 is not 1-NI,

as it contains two shares of the secret a.

Strong Non-Interference (SNI). Non-Interference

can be strengthened to achieve composition, by lim-

iting the number of authorized input shares in each

tuple to the number of probes in the tuple which cor-

respond to internal values (as opposed to output val-

ues) (Barthe et al., 2019).

Probe Isolating Non-Interference (PINI): is a com-

posable security notion introduced in (Cassiers and

Standaert, 2020), which is less restrictive than SNI: a

tuple must depend on at most k arbitrary input shares,

k being equal to the number of internal probes in the

tuple (like SNI), but can also depend on the input

shares with the same index as the output shares con-

tained in the tuple.

2.2 Relaxed Non-Interference

The problem with the NI property is that it ignores the

masking order when looking at the veriﬁcation order.

Thus, an implementation comprising, among all its

expressions, a single one with 2 shares will not even

be considered secure at order 1, since for 1-NI, all

single expressions should contain at most 1 share oc-

currence (after masks replacement). This is true even

if all inputs are on 3, 4 or more shares, whereas in

this case, there cannot be a secret leakage by look-

ing at a single expression. We thus introduce Relaxed

Non-Interference (RNI) to solve this problem: infor-

mally, it states that for achieving t-order security, all

tuples of size t should not contain at least one of the

shares for every input (after masks replacement). This

deﬁnition also allows to remove an implicit condi-

tion of Non-Interference which is that all the inputs

are split using the same number of shares. As such,

we see RNI as an extension of the NI property when

the security order is different from the masking order.

This is for example the case in Threshold Implemen-

tations (Nikova et al., 2006) or the Generalized Mask-

ing Scheme (Reparaz et al., 2015).

More formally, we consider an implementation

comprising N inputs I

, each input I

being split into

+ 1 shares I

,..., I

. Such an implementation is

RNI at order t if and only if any tuple of t observations

can be perfectly simulated using at most d

shares for

each input I

(following the notion of perfect simula-

tion in (Belaïd et al., 2016)). For a hardware imple-

mentation, it is RNI with glitches if each observation

is replaced with the set of input variables it contains

in the same combinatorial logic set.

3 VerifMSI

3.1 Overview

VerifMSI is a veriﬁcation method implementing the

substitution algorithm in a python library, seeking to

overcome some of the limitations of LeakageVerif. It

can thus be seen as an evolution of this tool. Com-

pared to the latter, VerifMSI ﬁrst adds hardware cir-

cuit constructs, allowing to describe circuits with gate

and registers, and to take into account glitches in

the veriﬁcation. Second, VerifMSI allows to sim-

ply switch between a share-based and a secrets and

masks based description, allowing to verify the NI,

SNI, PINI and the proposed RNI properties as well

as TPS. Third, VerifMSI implements optimizations in

order to reduce the number of probes in the circuit,

SECRYPT 2023 - 20th International Conference on Security and Cryptography

522

Algorithm 1: Substitution algorithm for verifying threshold probing security, from (Barthe et al., 2018).

procedure THRESHOLDPROBINGSECURITY(e)

Inputs: tuple of expressions V = (v

, ..., v

), ﬂag simpliﬁed = 0, set of masks M =

Step 1: if a secret k is involved in the computation of at least one expression in V then go to Step 2.

Otherwise return True.

Step 2: while there exists a mask m /∈ M involved in the computation of an expression v

of V, then ﬁnd

a sub-expression e in v

such that m → e + m is bijective and substitute m by e + m in all expressions.

Extend M with {m}.

If at least such a transformation occurred, go to Step 1. Otherwise go to Step 3.

Step 3: if simpliﬁed ̸= 0, then return False. Otherwise, mathematically simplify the expressions in V.

Then, set simpliﬁed to one and go back to Step 1.

allowing it to efﬁciently perform higher order veriﬁ-

cations.

Figure 1 shows a code fragment of a VerifMSI

program for implementing a ﬁrst order Domain Ori-

ented Masking (DOM) AND circuit (Groß et al.,

2017), and the associated circuit in Figure 2. Secrets

are declared on lines 1 and 2, while their sharing is

done on lines 6 and 7. The getRealShares function

returns a speciﬁed number of shares of a secret, which

are not equivalent to a secret and mask representa-

tion. Alternatively, one can use the getPseudoShares

function, which does a sharing using secret and masks

(typically (m0, k ⊕ m0) at order 1). The latter repre-

sentation is useful for verifying TPS. Line 3 declares

a 1-bit mask, while lines 10 to 14 create input gates

associated to the inputs. Lines 17-20 make all the

cross products between shares; note the gates are n-

ary and can take an arbitrary number of parameters.

Lines 23 to 30 implement the remaining gates and

registers: registers stop the propagation of glitches.

Indeed, without registers, a gate can leak all of its in-

put wires (cf. Figure 2). Finally, line 33 checks the

NI property on the outputs c0 and c1, at order order

(here order should be 1), with or without glitches ac-

cording to the withGlitches parameters.

3.2 Optimisations

In order to reduce the number of tuples veriﬁed, espe-

cially for higher orders, VerifMSI implements some

optimisations for hardware descriptions consisting in

removing some of the observations, which for the

most part are based on the optimisations made in (Be-

laïd et al., 2022). These optimisations are based on

the fact that we do not just verify expressions, but a

circuit, or gadget, allowing us to make additional as-

sumptions. For instance, it is always possible to ob-

serve single input shares, what allows us to remove

them when enumerating the tuples, by considering

partial tuples (Belaïd et al., 2022). The optimisations

implemented are the following:

• Removal of observations constituted of at most one

share per input and no random (optimisation v0).

1 a = symb ol ( ’ a ’ , ’S ’ , 1 ) # 1− b i t

s e c r e t

2 b = symb ol ( ’ b ’ , ’ S ’ , 1 ) # 1− b i t

s e c r e t

3 z10 = symb ol ( ’ z10 ’ , ’M’ , 1 ) # 1− b i t

mask

5 # Do t h e s h a r i n g f o r ’ a ’ and ’ b ’

6 a0 , a1 = g e t R e a l S h a r e s ( a , 2 )

7 b0 , b1 = g e t R e a l S h a r e s ( b , 2 )

9 # C r e a t e i n p u t g a t e s

10 a0 = i n p u t G a t e ( a0 )

11 a1 = i n p u t G a t e ( a1 )

12 b0 = i n p u t G a t e ( b0 )

13 b1 = i n p u t G a t e ( b1 )

14 z10 = i n p u t G a t e ( z10 )

16 # C ro s s p r o d u c t s

17 a0b0 = a n dG a t e ( a0 , b0 )

18 a0b1 = a n dG a t e ( a0 , b1 )

19 a1b0 = a n dG a t e ( a1 , b0 )

20 a1b1 = a n dG a t e ( a1 , b1 )

22 # R e ma i n i ng g a t e s and r e g i s t e r s

23 a1b0 = x o r G a t e ( a1b0 , z10 )

24 a1b0 = R e g i s t e r ( a1b0 )

25 a0b1 = x o r G a t e ( a0b1 , z10 )

26 a0b1 = R e g i s t e r ( a0b1 )

27 c0 = a0b0

28 c0 = x o r G a t e ( c0 , a0b1 )

29 c1 = a1b1

30 c1 = x o r G a t e ( c1 , a1b0 )

32 # Check t h e NI s e c u r i t y p r o p e r t y

33 c h e c k S e c u r i t y ( o r d e r , w i t h G l i t c h e s ,

’ n i ’ , c0 , c1 )

Figure 1: Example of VerifMSI program implementing a

ﬁrst order DOM AND circuit.

• Removal of observations which are redundant with

some others (optimisation v1). An expression e0

is considered redundant and is omitted when there

exists an expression e1 such that:

• all the mask occurrences in e0 (resp. e1) are bi-

jective occurrences w.r.t. e0 (resp. e1);

• e0 and e1 have the same mask occurrences;

VerifMSI: Practical Veriﬁcation of Hardware and Software Masking Schemes Implementations

523

z10

{b1}

{a1}

{b0}

{a0}

{a1,b1}

{a0,b0}

{a0,b1}

{a1,b0}

{a1,b0,z10}

{a0,b1,z10}

{a1.b0⊕z10}

{a0.b1⊕z10}

{a0.b1⊕z10,a1,b1}

{a1.b0⊕z10,a0,b0}

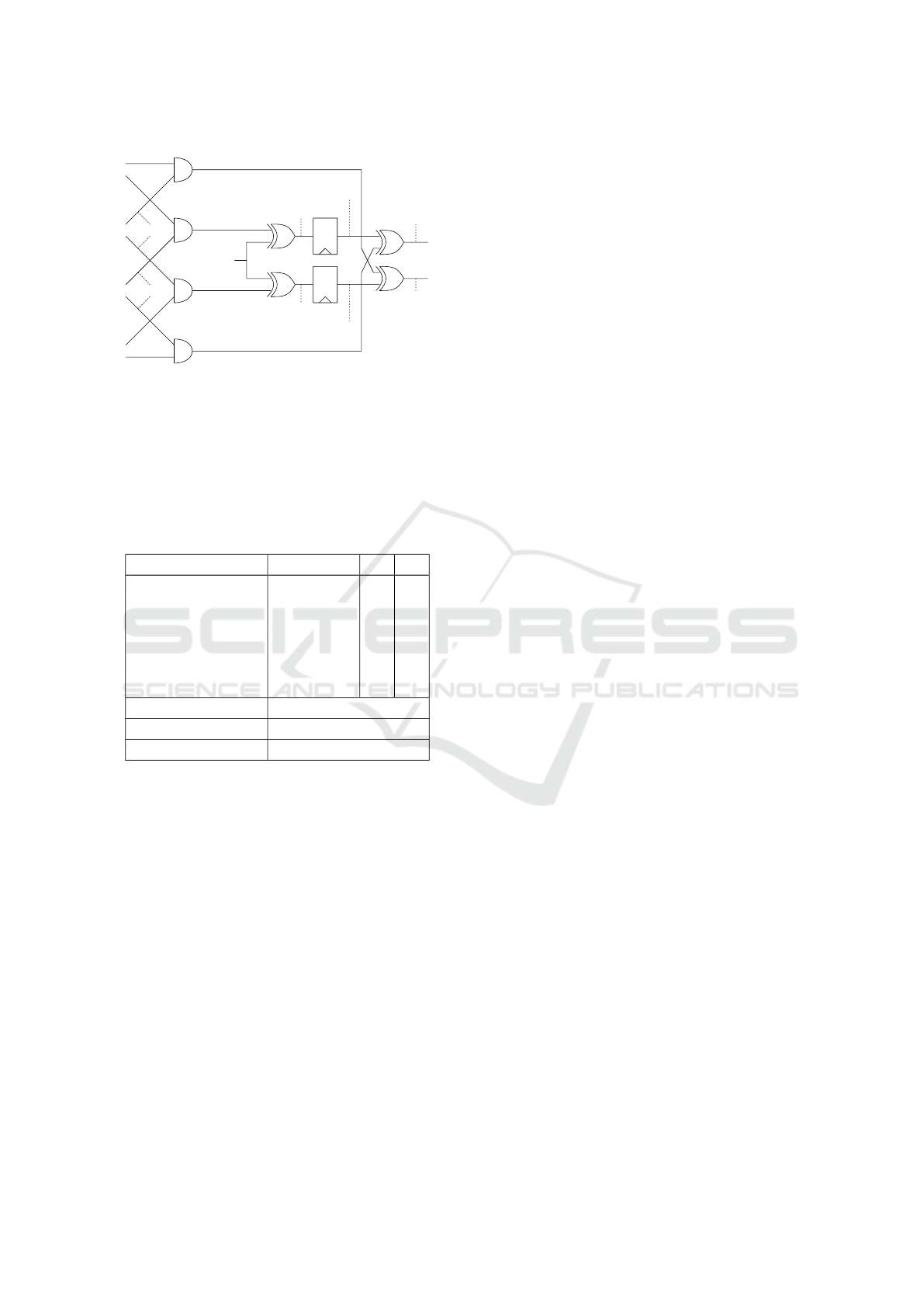

Figure 2: Order 1 DOM AND circuit from (Groß et al.,

2017), with the leakage associated to each wire when

glitches are considered.

Table 1: Breakdown of observations removal in VerifMSI

for the ISW AND implementation, for N-share inputs. The

ﬁrst column gives the expression forms which can be re-

moved for one of the presented simpliﬁcations, the second

column gives the number of occurences, and the following

columns which simpliﬁcation rule allows to remove the cor-

responding expressions.

Expression form # Occ. v0 v1

, b

2N ✓

✓

i, j

N(N - 1) / 2 ✓

⊕ z

i, j

N(N - 1) / 2 ✓

⊕ a

⊕ z

0, j

N - 1 ✓

⊕ z

0,1

1 ✓

# Removable Obs. 2N(N + 1)

# Total Obs. 2N + N

+ 5N(N - 1)/2

# Remaining Obs. N(3N - 5)/2

• All the input shares appearing in e0 also appear

in e1.

Table 1 details the effects of these optimisations

in terms of number of removed observations, taking

as example the ISW AND.

We can notice that the number of removable ob-

servations thanks to both optimisations is signiﬁcant,

and even crucial, as for example with a 7-share inputs

ISW AND circuit, it allows to go from 168 interme-

diate values to 56. Asymptotically, the reduction still

allows to remove 57% of the probes.

Finally, we can notice that when glitches are con-

sidered, the number of probes to keep for enumera-

tion is largely reduced, as the probes corresponding

to wires which are not preceding a register can be ig-

nored: the leakage associated with them will be part

of the leakage associated with the output of the next

gate.

3.3 Improving the Mask Choice for

Replacements

While running through the process of benchmarking,

we encountered a few false positives in the veriﬁca-

tion of one benchmark (ISW AND), i.e. a poten-

tial leakage was reported by VerifMSI while there

was actually none. After investigation, it appeared

that in these cases, the sequence of mask selections

for replacement led to the impossibility to conclude,

whereas another sequence of choices would allow it.

Going into the details, we noticed two distinct

problems. First, the algorithm in Figure 1 allows a

mask to be taken only once, in order to guarantee ter-

mination. Yet, we encountered some cases in which

taking an already taken mask is necessary in order to

conclude. This can happen when the mask originally

has several occurrences, and after some replacements

and simpliﬁcations, only has a single occurrence. In

order to take this into account while still guarantee-

ing termination, we authorize a mask to be taken sev-

eral times only if it has a single occurrence. Since the

expression necessarily decreases in size during a re-

placement using a mask having a single occurrence,

this can happen only a ﬁnite number of times.

The second false positive problem we noticed hap-

pened when selecting for a replacement a mask being

itself an element of the tuple. However, when remov-

ing entirely the possibility to select such masks for re-

placements, other failures were reported. Therefore,

we modiﬁed the mask selection algorithm to make

it possible to select such masks for replacement, but

with the lowest priority. Using this heuristic, no false

positives due to mask selection arose in any bench-

mark.

4 EXPERIMENTAL EVALUATION

We perform an evaluation of VerifMSI on several

benchmarks from the literature. We focus the eval-

uation on hardware circuits as the software im-

plementations descriptions are similar to those of

LeakageVerif. The experiments comprise the follow-

ing programs:

• ISW AND: The logical AND masking

scheme (Ishai et al., 2003)

• ISW AND refresh: A combination of the ISW

AND with a circular refresh on one of the in-

put (De Cnudde et al., 2016)

• DOM AND: The Domain Oriented Masking im-

plementation of the AND gate (Groß et al., 2017),

resistant to glitches;

SECRYPT 2023 - 20th International Conference on Security and Cryptography

524

• Refresh N log N: The N log N refresh scheme (Bat-

tistello et al., 2016);

• NI Mult and SNI Mult: The NI and SNI multipli-

cation schemes (Bordes and Karpman, 2021);

• PINI Mult: The PINI multiplication scheme (Wang

et al., 2023);

• GMS AND: Two implementations of the AND

gate using the Generalized Masking Scheme, de-

scribed in the article, using respectively 3 and 5

shares (Reparaz et al., 2015);

• TI AND: The balanced Threshold Implementation

of the AND gate (Nikova et al., 2006).

All benchmarks were run on a single core on a

server with an Intel CPU Xeon E5-2637v2@3.5GHz,

under the CentOS 9 operating system. For all bench-

marks, we set a timeout to 6 hours, and a memory

limit to 110 GB (which was never reached).

Table 2 presents the veriﬁcation results of the dif-

ferent circuits we implemented. All of these circuits

implementations are provided along with the code of

VerifMSI. Only the conﬁgurations for which the ver-

iﬁed property was known to be true were run, and

only the conﬁgurations which did not exceed the 6

hours timeout are presented in the table. The veriﬁ-

cation order is set to the designed security order: this

is always the number of shares minus one, except for

GMS AND with 3 shares (order 1), GMS AND with

5 shares (order 2) and TI AND (order 1).

From the results in table 2, we can make the fol-

lowing observations: VerifMSI can verify all the pre-

selected hardware masking schemes, up to a certain

order (between 5 and 7 shares). We notice that the

veriﬁcation of the TPS property scales signiﬁcantly

less than the other properties, due to the fact that the

optimisation targeting the reduction in the number of

probes do not apply with a representation using se-

crets and masks.

We also notice that the GMS AND and TI AND

circuits can only be veriﬁed with TPS and RNI, as the

order of security is not equal to the number of shares

minus one – they typically contain tuples of size 1

depending on several input shares. This underlines

the interest of the RNI property, which is the only

property based on shares adapted to the veriﬁcation

of such masking schemes.

Finally, we can see that there are a few false

positives on PINI mult with ﬁve shares or more.

Analysing them in more details reveals that the tuple

does not contain anymore mask, and that the problem

occurs because VerifMSI is not able to factorize an

expression and make some products disappear.

5 RELATED WORKS

A certain number of tools target the veriﬁcation of se-

curity properties in masked software or hardware im-

plementations.

LeakageVerif. LeakageVerif (Meunier et al., 2023)

is a ﬂexible and open-source veriﬁcation tool achiev-

ing good accuracy and scalability, provided as a

python library. LeakageVerif can verify implementa-

tions at different abstraction levels (algorithmic, code,

assembly, circuit), but can only verify threshold prob-

ing security on a description using secrets and masks.

Moreover, it cannot take glitches into account in hard-

ware descriptions. The fact that the tool is provided

as a python library allows to have simulable descrip-

tions, and to support all python’s control mechanisms.

MaskVerif. maskVerif (Barthe et al., 2019) is a tool

written in OCaml designed for the veriﬁcation of cir-

cuits. The strength of maskVerif is its ability to scale

well with higher orders. However, it is not very well

adapted for software masking schemes implementa-

tions, as it lacks support for arithmetic operations, ar-

bitrary size variables and bit concatenation and ex-

traction operations. Finally, maskVerif does not per-

mit to express a non-linear control ﬂow, allowing only

for function calls.

IronMask. IronMask (Belaïd et al., 2022) is an open-

source tool designed for the veriﬁcation of masked

hardware implementations. The tool has an excellent

scalability due to its optimized writing in C, and can

verify many security properties. On the downside,

it is not able to verify TPS, and is limited to certain

types of implementations in which the masks must be

linearly added to given shares.

SILVER. SILVER (Knichel et al., 2020) is a tool able

to verify common security properties on hardware de-

scriptions. It takes as input either a Verilog imple-

mentation or an instruction list and checks the TPS,

NI, SNI and PINI notions with or without glitches, as

well as the uniformity of some output sharing. The

tool suffers however from a limited scalability.

If VerifMSI is not the fastest of these tools for

most hardware implementations and conﬁgurations at

high orders, it is the only tool which can verify all

common security properties, using both share-based

and secrets and masks descriptions, for both hardware

and software masking schemes, and having the bene-

ﬁts of using all of the python constructs.

VerifMSI: Practical Veriﬁcation of Hardware and Software Masking Schemes Implementations

525

Table 2: Veriﬁcation times and number of tuples veriﬁed with VerifMSI, for higher order hardware masking schemes from

the literature. Column #Sh. indicates the number of shares, and Time the veriﬁcation time. w/ g. means “with glitches”,

and values between parenthesis indicate the number of tuples for which the veriﬁcation failed (false positives).

Gadget #Sh. Property Time # Tuples

Refresh

N log

TPS 9s 23751

NI 2s 7546

SNI 2s 7546

RNI 2s 7546

PINI 2s 7546

TPS 7m23s 850668

NI 1m58s 284273

SNI 1m58s 284273

RNI 1m58s 284273

PINI 118s 284273

TPS 3h50m31 20358520

NI 47m16s 5358577

SNI 48m30s 5358577

RNI 47m17s 5358577

PINI 47m53s 5358577

ISW

AND

refresh

TPS <1s 741

NI <1s 325

SNI <1s 325

RNI <1s 325

PINI <1s 325

TPS 27s 45760

NI 5s 17343

SNI 6s 17343

RNI 5s 17343

PINI 5s 17343

TPS 1h1m 3921225

NI 10m54s 1356201

SNI 12m3s 1356201

RNI 10m49s 1356201

PINI 10m46s 1356201

DOM

AND

TPS 45m36s 4780230

NI 25s 59535

SNI 26s 59535

RNI 25s 59535

PINI 26s 59535

TPS w/ g. 15s 12650

NI w/ g. 8s 12650

RNI w/ g. 9s 12650

PINI w/ g. 9s 12650

NI 35m19s 3505050

SNI 36m18s 3505050

RNI 35m42s 3505050

PINI 38m1s 3505050

TPS w/ g. 11m35s 376992

NI w/ g. 6m11s 376992

RNI w/ g. 6m11s 376992

PINI w/ g. 6m23s 376992

NI w/ g. 5h13m 13983816

RNI w/ g. 5h11m 13983816

PINI w/ g. 5h15m 13983816

Gadget #Sh. Property Time # Tuples

ISW

AND

TPS 12s 24804

NI <1s 469

SNI <1s 469

RNI <1s 469

PINI <1s 469

TPS 25m15s 2024785

NI 8s 15275

SNI 8s 15275

RNI 8s 15275

PINI 8s 15275

NI 8m31s 667927

SNI 9m4s 667927

RNI 8m41s 667927

PINI 8m36s 667927

PINI

Multi-

plica-

tion

TPS 13s 24804

NI <1s 469

RNI <1s 469

PINI <1s 469

TPS 26m36s 2024785 (98)

NI 7s 15275 (1)

RNI 7s 15275 (1)

PINI 7s 15275 (1)

NI 7m24s 667927 (77)

RNI 7m20s 667927 (79)

PINI 7m29s 667927 (79)

Multi-

plica-

tion

TPS 10m21s 916895

NI <1s 385

RNI <1s 385

PINI <1s 385

NI 36 55454

RNI 36s 55454

PINI 37s 55454

NI 28m19s 2007327

RNI 28m34s 2007327

PINI 28m52s 2007327

SNI

Multi-

plica-

tion

TPS 26m18s 2024785

NI 7s 15275

SNI 8s 15275

RNI 7s 15275

PINI 8s 15275

NI 1m59s 174436

SNI 2m7s 174436

RNI 2m1s 174436

PINI 2m2s 174436

GMS

AND

TPS <1s 30

RNI <1s 9

TPS 1s 3570

RNI <1s 630

AND

TPS <1s 34

RNI <1s 4

SECRYPT 2023 - 20th International Conference on Security and Cryptography

526

6 CONCLUSION AND FUTURE

WORK

We presented VerifMSI, a practical tool implemented

as a python library for verifying masking schemes im-

plementations. It extends the existing LeakageVerif

tool with constructs targeting hardware implementa-

tions, and enriches it with the veriﬁcation of four se-

curity properties (NI, SNI, RNI, PINI). The experi-

ments presented in the article, focusing on 9 hardware

schemes, show that VerifMSI is able to successfully

verify many implementations from the literature, for

masking orders of up to 7 shares.

Future work includes enriching the software side

of VerifMSI with support for Galois Field operations,

as well as implementing less common security prop-

erties, and in particular the ones deﬁned in the random

probing model. We also plan to write the core of Ver-

ifMSI in a compiled language to reduce the cost of

enumeration.

REFERENCES

Barthe, G., Belaïd, S., Cassiers, G., Fouque, P.-A., et al.

(2019). maskverif: Automated veriﬁcation of higher-

order masking in presence of physical defaults. In Eu-

ropean Symposium on Research in Computer Security,

pages 300–318. Springer.

Barthe, G., Belaïd, S., Dupressoir, F., Fouque, P.-A., et al.

(2015). Veriﬁed proofs of higher-order masking.

In Annual International Conference on the Theory

and Applications of Cryptographic Techniques, pages

457–485. Springer.

Barthe, G., Belaïd, S., Fouque, P.-A., and Grégoire, B.

(2018). maskverif: automated analysis of software

and hardware higher-order masked implementations.

Technical report, 562.

Battistello, A., Coron, J.-S., Prouff, E., and Zeitoun, R.

(2016). Horizontal side-channel attacks and coun-

termeasures on the isw masking scheme. In Crypto-

graphic Hardware and Embedded System, pages 23–

39. Springer.

Belaïd, S., Benhamouda, F., Passelègue, A., Prouff, E., et al.

(2016). Randomness complexity of private circuits

for multiplication. In International Conference on

the Theory and Applications of Cryptographic Tech-

niques, pages 616–648. Springer.

Belaïd, S., Mercadier, D., Rivain, M., and Taleb, A. R.

(2022). Ironmask: Versatile veriﬁcation of masking

security. In IEEE Symposium on Security and Privacy,

pages 142–160. IEEE.

Ben El Ouahma, I., Meunier, Q. L., Heydemann, K., and

Encrenaz, E. (2019). Side-channel robustness analy-

sis of masked assembly codes using a symbolic ap-

proach. Journal of Cryptographic Engineering, pages

231–242.

Bordes, N. and Karpman, P. (2021). Fast veriﬁcation of

masking schemes in characteristic two. In Interna-

tional Conference on the Theory and Applications of

Cryptographic Techniques, pages 283–312. Springer.

Cassiers, G. and Standaert, F.-X. (2020). Trivially and efﬁ-

ciently composing masked gadgets with probe isolat-

ing non-interference. IEEE Transactions on Informa-

tion Forensics and Security, pages 2542–2555.

De Cnudde, T., Reparaz, O., Bilgin, B., Nikova, S., et al.

(2016). Masking aes with shares in hardware. In Cryp-

tographic Hardware and Embedded Systems, pages

194–212. Springer.

Gao, P., Zhang, J., Song, F., and Wang, C. (2019). Verify-

ing and quantifying side-channel resistance of masked

software implementations. ACM Transactions on Soft-

ware Engineering and Methodology, pages 1–32.

Groß, H., Mangard, S., and Korak, T. (2017). An efﬁ-

cient side-channel protected aes implementation with

arbitrary protection order. In Topics in Cryptology–

CT-RSA 2017: The Cryptographers’ Track at the RSA

Conference, pages 95–112. Springer.

Ishai, Y., Sahai, A., and Wagner, D. (2003). Private circuits:

Securing hardware against probing attacks. In Annual

International Cryptology Conference, pages 463–481.

Springer.

Knichel, D., Sasdrich, P., and Moradi, A. (2020). Silver–

statistical independence and leakage veriﬁcation. In

International Conference on the Theory and Appli-

cation of Cryptology and Information Security, pages

787–816. Springer.

Kocher, P., Jaffe, J., and Jun, B. (1999). Differential power

analysis. In Annual international cryptology confer-

ence, pages 388–397. Springer.

Mangard, S., Oswald, E., and Popp, T. (2008). Power anal-

ysis attacks: Revealing the secrets of smart cards.

Springer Science & Business Media.

Meunier, Q. L., Pons, E., and Heydemann, K. (2023). Leak-

ageverif: Scalable and efﬁcient leakage veriﬁcation in

symbolic expressions. IEEE Transactions on Software

Engineering.

Nikova, S., Rechberger, C., and Rijmen, V. (2006). Thresh-

old implementations against side-channel attacks and

glitches. In International conference on informa-

tion and communications security, pages 529–545.

Springer.

Reparaz, O., Bilgin, B., Nikova, S., Gierlichs, B., and Ver-

bauwhede, I. (2015). Consolidating masking schemes.

In Annual Cryptology Conference, pages 764–783.

Springer.

Trichina, E. (2003). Combinational logic design for aes

subbyte transformation on masked data. Cryptology

EPrint Archive.

Wang, W., Ji, F., Zhang, J., and Yu, Y. (2023). Efﬁcient pri-

vate circuits with precomputation. IACR Transactions

on Cryptographic Hardware and Embedded Systems,

pages 286–309.

VerifMSI: Practical Veriﬁcation of Hardware and Software Masking Schemes Implementations

527
