A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud

Computing in ETSI MEC-Compliant 5G Environments

Angelo Feraudo

, Alessandro Calvio

and Paolo Bellavista

Department of Computer Science and Engineering, University of Bologna, Viale Risorgimento 2, Bologna, Italy

Keywords:

Simulation Tools, Vehicular Cloud Computing, 5G, ETSI MEC, Vehicular Cloud Applications.

Abstract:

Vehicular cloud computing is gaining popularity thanks to the rapid advancements in next generation wireless

communication networks. Similarly, Edge Computing, along with its standard proposals such as European

Telecommunications Standards Institute (ETSI) Multi-access Edge Computing (MEC), will play a vital role in

these scenarios, by enabling the execution of cloud-based services at the edge of the network. Together, these

solutions have the potential to create real micro-datacenters at the network edge, favoring several beneﬁts like

minimal latency, real-time data processing, and data locality. However, the research community has not yet

the opportunity to use integrated simulation frameworks for the easy testing of applications that exploit both

the vehicular cloud paradigm and MEC-compliant 5G deployment environments. In this paper, we present our

simulation tool as a platform for researchers and engineers to design, test, and enhance applications utilizing

the concepts of vehicular and edge cloud. The tool implements our ETSI MEC-compliant architecture that

leverages resources provided by vehicles. Moreover, the paper analyzes and reports performance results for

our simulation platform, as well as provides a use case where our simulator is used to support the design, test,

and validation of an algorithm to distribute MEC application components on vehicular cloud resources.

1 INTRODUCTION

Next-generation wireless communication networks

are advancing at a rapid pace, leading to the develop-

ment and prototyping of highly innovative application

scenarios. In this context, as the amount of connected

vehicles rapidly increases (Elektrobit, 2022), drivers

can take advantage of a wide range of distributed ap-

plications and services, very often cloud-based, as in

other vertical domains, including improved access to

information and entertainment features. However, it

starts to be widely recognized that traditional client-

to-cloud architectures cannot meet the stringent re-

quirements of many time-sensitive Internet of Things

(IoT) applications. Furthermore, with the constant

growth of intelligent cars, equipped with a large set

of onboard sensors (Sabella et al., 2017), the amount

of vehicle-generated data may pose a signiﬁcant chal-

lenge to the backbone network.

Edge Computing has emerged as a promising so-

lution for distributed environments, as it offers a

https://orcid.org/0000-0002-9727-0861

https://orcid.org/0000-0002-2403-2969

https://orcid.org/0000-0003-0992-7948

more efﬁcient and effective way to handle the ever-

increasing demand for computing and storage re-

sources. Moreover, edge computing has the capabil-

ity to replace traditional cloud solutions due to its po-

tential to reduce network stress, decrease latency, im-

prove efﬁciency, and enable real-time data process-

ing. To accelerate the adoption of this paradigm,

the European Telecommunications Standards Insti-

tute (ETSI) has proposed the Multi-access Edge Com-

puting (MEC) standard (ETSI, 2022a) to create a vir-

tualized infrastructure at the network edge as the next

key technology for radio networks. The MEC ar-

chitecture orchestrates, distributes, and manages the

life-cycle of MEC-compliant applications enabling

their execution closer to the involved data sources

and/or users. Nevertheless, dense application scenar-

ios present a signiﬁcant challenge due to the limited

resources within the Multi-access Edge Computing

(MEC) infrastructure. This requires the acquisition

of additional capacity to address the issue effectively.

Recently, Vehicular Cloud Computing (or more

simply Vehicular Computing) has been proposed as

a promising paradigm to support distributed applica-

tions designed according to the edge cloud approach

(Gerla, 2012; Olariu et al., 2011). Vehicular Comput-

448

Feraudo, A., Calvio, A. and Bellavista, P.

A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud Computing in ETSI MEC-Compliant 5G Environments.

DOI: 10.5220/0012140900003546

In Proceedings of the 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2023), pages 448-455

ISBN: 978-989-758-668-2; ISSN: 2184-2841

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

ing exploits the computing power locally available on

today’s vehicles to create cost-effective mobile clouds

at the far-edge layer. The formation of these dynamic

clouds should be achieved autonomously by vehi-

cles, which share their resources among them and/or

with nearby edge nodes to extend their virtualized re-

sources for service execution.

Numerous research efforts have been devoted to

developing architectures that leverage the resources

dynamically available on vehicles (Olariu, 2020). To

enhance resource availability at the network edge,

various works have proposed to exploit the under-

utilized computational power of both stationary (Liu

et al., 2011; Li et al., 2019) and moving vehicles (Hou

et al., 2016). These opportunistic resources can be

utilized for diverse purposes to handle the growing

number of applications used in vehicular networks.

For instance, vehicles can serve as relay nodes (Liu

et al., 2011) to improve network connectivity, or as

computing nodes (Huang et al., 2018; Rahman et al.,

2020; Ma et al., 2021) to reduce the impact of these

applications on the performance of edge nodes.

Moreover, some recent studies have focused on

providing simulation frameworks (Ahmed et al.,

2019) since practical experiments on vehicular net-

work environments are expensive and challenging. In

fact, to validate their proposals, some of the works

in the literature (Cha et al., 2021; Ma et al., 2021;

Rahman et al., 2020; Feng et al., 2017) have utilized

these simulation frameworks mainly for i) generating

vehicle traces and ii) simulating the behavior of ve-

hicular network protocols. To the best of our knowl-

edge, there is currently no simulation tool that offers a

single vehicular computing-based platform where re-

searchers can design/test their algorithms and appli-

cations while exploiting at the same time the vehicu-

lar cloud computing paradigm and the MEC standard

deployment environment.

In this paper, we propose a simulation tool that

leverages the ETSI MEC standard to incorporate

the resources available at the edge of the network,

such as those provided by collaborating vehicles, into

the cloud continuum spectrum. The simulation tool

implements an extended version of the ETSI stan-

dard (Feraudo et al., 2023), which enhances MEC-

compliant edge nodes with resources from vehicles

within a designated Area of Interest (AoI). The re-

sources provided by the nodes are registered in the

edge resource pool and can be accessed through stan-

dardized interfaces. As an extension of the ETSI

MEC standard, the modeled architecture allows deal-

ing with some of the primary challenges arising in ve-

hicular computing environments, such as integration

with cloud resources and enabling coexistence among

Table 1: Table of acronyms for MEC elements.

Abbreviation Deﬁnition

AMS Application Mobility Service

MEC Multi-access Edge Computing

MEC-App MEC Application

MEC-H MEC Host

MEC-O MEC Orchestrator

MEC-P MEC Platform

MEC-PM MEC Platform Manager

UALCMP User Application LifeCycle Management Proxy

VI Virtualisation Infrastructure

VIM Virtualisation Infrastructure Manager

heterogeneous technologies. Furthermore, it allows

dealing with resource volatility issues (i.e., nodes that

dynamically join/leave during service provisioning)

via a standardized migration mechanism. To build

our simulation platform, we utilized the OMNeT++

network simulator as the underlying framework and

incorporated the Simu5G library to model the 5G net-

work and communications aspects.The platform is ac-

cessible to researchers publicly through the GitHub

repository (Feraudo and Calvio, 2023).

The remainder of this paper is structured as fol-

lows. Section 2 provides an overview of the re-

lated background, which includes a description of the

ETSI MEC reference model and vehicular comput-

ing paradigm. Section 3 presents the interactions and

modules that we have originally implemented to cre-

ate a MEC-compliant vehicular computing environ-

ment in a 5G network. Then, we evaluate the per-

formance of our simulation platform, while perform-

ing resource management and by providing a practical

proof of its usage in section 4. Section 5 concludes the

ﬁndings of this work and presents future directions.

2 BACKGROUND

2.1 ETSI Multi-Access Edge Computing

Figure 1 includes the MEC reference architecture pro-

posed by ETSI in (ETSI, 2022a). It offers the op-

portunity to run contextualized MEC-compliant ap-

plications within a virtualized and multi-tenant envi-

ronment. The reference architecture consists of two

layers: the system level and the host level, which to-

gether comprise all standard functional elements. The

system level works as an entry point for authorized

users to request the execution of MEC applications.

It includes management-related functional elements,

such as MEC Orchestrator (MEC-O) and User Appli-

cation LifeCycle Management Proxy (UALCMP), as

well as other components that are necessary for stan-

A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud Computing in ETSI MEC-Compliant 5G Environments

449

Area of Interest

Far-Edge Level (Access Network)

Operation

Support

System

MEC System Level

MEC Host Level (Edge)

(FOG/CLOUD)

Device

App

CFS

Portal

UALCMP

MEC

Orchestrator

MEC

Platform

Manager

Service registry

MEC

Platform

MEC

App

MEC

App

MEC

Service

BROKER

Virtualization

Infrastructure

Manager

Virtualization Infrastructure

Figure 1: The extended MEC architecture, already presented in (Feraudo et al., 2023).

dard operation, e.g., Device Application. The MEC-

O is the core functionality for layer management, as it

has a global view of the MEC-compliant edge nodes

(MEC Hosts) present in a particular area and serves as

a controller for MEC application distributions. By se-

lecting the best MEC Host (MEC-H) based on the re-

quirements of the requested services, the MEC-O trig-

gers the instantiation and termination of applications.

The second management element, i.e., the UALCMP,

acts as an intermediary node between the user and the

application. It supports user requests for instantiation

and termination, which are forwarded to the MEC-O.

The host level is situated at the edge of the net-

work and is responsible for providing and managing

the virtualization platform where MEC applications

are deployed. It comprises the edge node that pro-

vides virtualized computational, network, and stor-

age resources, i.e., MEC-H. The MEC-H enables

MEC application deployment through the Virtualiza-

tion Infrastructure (VI), which is also responsible for

managing the data plane among the network inter-

faces through trafﬁc policies. The MEC-H also in-

cludes a MEC Platform (MEC-P) that exposes a ser-

vice registry, thus enabling the supported applications

to discover, offer, and consume standard services.

Moreover, at this level, the Virtualization Infrastruc-

ture Manager (VIM) and the MEC Platform Manager

(MEC-PM) act as the management-related functional

elements and serve as access points for the MEC-O to

the lower layer. The VIM is responsible for managing

and releasing the virtualized resources and conﬁgur-

ing the VI to run software images appropriately. For

the sake of clarity, we have reported all the standard-

related acronyms in Table 1.

2.2 Vehicular Computing Paradigm

Many current and future applications for connected

vehicles can take advantage of edge resources, in-

cluding infotainment and time-sensitive applications

related to trafﬁc safety. The integration of vehicu-

lar networks with the MEC infrastructure can be re-

ferred as Vehicular Edge Computing (VEC) (Liu

et al., 2021). VEC aims to bring computational ca-

pabilities to the proximity of vehicular users, allow-

ing for services to be readily available via Vehicle-to-

Infrastructure (V2I) communications. Nevertheless,

the ever-increasing number of applications and busi-

nesses is starting to make the infrastructure unable to

efﬁciently satisfy their demands and possibly strin-

gent requirements, e.g., on latency. For this reason,

the need has emerged to identify new resources that

can support the more traditional edge infrastructure.

In (Olariu et al., 2011) and (Gerla, 2012), the

authors introduced the Vehicular Cloud Computing

concept relying on the idea that modern-day vehicles

come equipped with powerful on-board computers,

ample storage, and an array of sensing devices. In

their work (Olariu et al., 2011), the authors deﬁne Ve-

hicular Computing as a collaborative way to share re-

sources among vehicles to solve problems that would

otherwise require a signiﬁcant amount of time with

a more traditional centralized architecture, in particu-

lar for context-speciﬁc applications. In line with this,

in (Gerla, 2012) the author states that the vehicular

cloud paradigm allows keeping the information gath-

ered by vehicle sensors locally and sharing it solely

with other vehicles, as the sheer volume of in-vehicle

generated data can pose serious technical challenges

for the network infrastructure. According to these

deﬁnitions, a cloud of vehicles can be formed any-

where on the road and their onboard resources can

be dynamically allocated to authorized users. Despite

its potential beneﬁts, such a vehicular computing en-

vironment also poses several challenges that must be

addressed. These challenges include distributed own-

ership, as each vehicle has a single owner responsi-

ble for deciding whether to share onboard resources;

high node mobility, which makes it difﬁcult to pre-

dict the vehicular residency times in the cloud even

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

450

Reward system

(1) HTTP GET

link/rewardList/

(2) HTTP RESP

{"rewardList": {"reward1"; ..}}

If reward >

min_reward

(3) HTTP POST

link/availableResources/

Broker

(4) HTTP POST

.../broker/publish

MECHost

(5) HTTP POST

webhook/newresources/

(6) HTTP RESP (201)

resource instance created

(7) CLOSING SOCKET

Far-edge device

(a) Resource Acquisition Sequence Diagram.

ClientResourceApp

(1) HTTP DELETE

link/availableResources/ID

(2) HTTP DELETE

.../broker/publish/ID

(3) HTTP DELETE

webhook/newresources/ID

(4) HTTP RESPONSE

204

Start App

Mobility

Reward system

Broker

MECHost

(5) CLOSING SOCKET

(b) Resource Releasing Sequence Diagram.

Figure 2: Sequence Diagram device-initiated scheme.

when clouds are formed using resources of stationary

cars within a parking lot; device heterogeneity, as ve-

hicles are manufactured by different companies; se-

curity and privacy. To deal with some of the afore-

mentioned challenges, we introduced a novel ETSI

MEC-compliant architecture in our recent work (Fer-

audo et al., 2023). This architecture expands the edge

resource pool by leveraging vehicular computational

resources and forms the foundation of the simulation

platform described in this paper.

3 OUR SIMULATION PLATFORM

FOR MEC-COMPLIANT

VEHICULAR COMPUTING

The primary objective of our simulation tool is to pro-

vide a platform that facilitates the design, testing, and

enhancement of applications by utilizing vehicular

computing in 5G environments. The proposed frame-

work works with the event-based simulator OMNet++

and exploits the well-known Simu5G communication

library (Nardini et al., 2020) components as a basis to

create our envisioned MEC architecture.

In the following sections, we will delve into

the key components of our simulation platform and

their interactions, enabling the utilization of exter-

nal resource infrastructure in MEC-compliant envi-

ronments.

3.1 Simulation Tool: Interactions

This subsection describes the procedures supported

for MEC-enabled resource management for vehicu-

lar cloud computing, identiﬁed on the basis of the

MEC extended architecture. Each procedure requires

a speciﬁc set of interactions to be completed effec-

tively. These interactions involve both MEC standard

and non-standard components, which must be care-

fully considered to ensure that the necessary resources

are acquired, released, and allocated.

Resource Acquisition. Figure 2a illustrates the

steps required by parking vehicles to partake in the

resource acquisition procedure. According to the se-

quence diagram, whenever a new vehicle accepts the

rewards indicated by the MEC-H, it publishes the

amount of resources that wants to make available.

In addition to resource availability information, the

POST request, step (3) in the ﬁgure, contains data re-

lated to its location, thus allowing the Broker to notify

the appropriate MEC-H.

Resource Allocation. An example of interaction

scheme for app instantiation on remote resources is

reported in Fig. 3. The MEC-O receives an in-

stantiation request from the UALCMP and starts re-

source/service discovery throughout all the MEC-Hs

under its management. Once the MEC-H has been

chosen, the VIM receives an instantiation request

(step (7)) and starts the scheduling procedure. It

should be noted that when the Broker notiﬁes the VIM

for new device resource acquisition, the VIM stores

the endpoint information, corresponding to an exter-

nal VI address (see Fig. 4), and the resource capacity

of that device. Hence, the VIM is aware of the sin-

gle contributions that each device brings to correctly

allocate its resources when needed. The scheduling

phase leads to the identiﬁcation of a single resource

infrastructure, either local or remote, where to deploy

the requested MEC applications.

Resource Releasing. Figure 2b shows the interac-

tions needed when devices leave the resource pool.

In such a scenario, once the corresponding MEC-H

receives the notiﬁcation, it removes the concerned re-

sources from those available in the pool and starts the

A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud Computing in ETSI MEC-Compliant 5G Environments

451

MECHost

VIM MEC-PM

Forwarding

(5) to VIM

LOCAL-VI

7. Instantiation

8. Instantiation

Result

Instatiation

Result

Check available

resources

(local and remote)

MEC Orchestrator

1. Received MEC

App instantiation

from UALCMP

2. Resource Request:

cpu, ram, disk

3. MEC Host

availability

4. If MEC

Host is

Available

5. Instantiation

Application

Request (IAR)

10. Instantiation

Response

Result

11.

Communicate

result to

UALCMP

AirFrame

Far-edge device

AirFrame

MECHost

VIM

Host List

MECHost

VIM

MECHost

VIM

2. Services Request:

[required service names]

Scheduling

Figure 3: Resource Allocation Sequence Diagram.

mobility procedure for the apps running on that de-

vice. The migration event exploits the standard Ap-

plication Mobility Service (AMS) API (ETSI, 2022b)

deﬁned by ETSI, which currently supports app mi-

grations in environments encompassing multiple edge

nodes. Nonetheless, the proposed design in (Fer-

audo et al., 2023) requires MEC components to sup-

port intra-host migration, e.g., MEC applications mo-

bility from remote to local resource infrastructure.

In our simulation platform, we decided to deploy a

MEC-assisted application mobility for intra-host mi-

grations, which implies MEC components to trigger

the user-context transfer. Thus, once the VIM re-

ceives a notiﬁcation involving nodes leaving the re-

source pool (step (3) Fig. 2b), it looks for MEC appli-

cations running on that host, and creates a migration

event for each of them. This series of events serve as

inputs for an extended version of the AMS, which cre-

ates an event chain capable of initiating the intra-host

migration of the MEC applications.

3.2 Simulation Tool: Modules

To enable vehicular resources to host MEC applica-

tions in a simulated environment, we built each of

the MEC entities as an application, abstracting their

workload from the underlying host.

Figure 4 illustrates the deployment of simulation

modules that replicate the scenario presented in our

proposal (Fig. 1). Our simulation tool considers cars

as devices capable of hosting MEC applications. To

support this functionality, we introduce the car mod-

ule, which extends the New Radio User Equipment

(NRUE) deﬁned in Simu5G. The car module acts as

a wrapper for any 5G-enabled device, providing com-

putational resources (e.g., CPU, RAM, and storage)

and running applications that enable the car local re-

source infrastructure to host MEC-compliant appli-

cations. In addition, the car module forwards man-

agement messages to prepare and conﬁgure the local

virtualization infrastructure received from the MEC-

MEO

APP

INET TCP/IP STACK

MEO Host

Broker

General Host

INET TCP/IP STACK

UPF

CORE

NETWORK

I-UPF

Resource

Infrastructure Host

INET TCP/IP

STACK

MEC

APP

VIM

APP

INET TCP/IP STACK

MEC-PM Host

MPM

APP

MEC-P Host

MEC

Service

Registry

INET TCP/IP STACK

UPF-MEC

MECHostDyn

MEC CAR

VIApp

ClientResApp

MEC

APP

INET TCP/IP

STACK

Figure 4: Simulation Tool Modules Structure.

H management entities. Speciﬁcally, the module

runs the ClientResApp, which requests and decides

whether to accept rewards and handles resource reg-

istration and release (section 3.1). Moreover, it exe-

cutes the VIApp that applies management instructions

received from the MEC-H, to perform local resource

allocation and release. It should be noted that the VI-

App module can properly carry out its functionalities

on any host having a resource infrastructure, thus it

might be utilized to allow any 5G-enabled device to

become part of the MEC-H resource pool.

With the MEC-H now responsible for managing

both local and remote resources, the enhanced VIM

takes on the critical role of scheduling, preparing, and

releasing both local and remote resources. To sup-

port this functionality, it sets up the remote virtual

infrastructure (VI) to handle remote commands for

allocating, relocating, and terminating MEC applica-

tions. Moreover, the VIM supports interchangeable

scheduling algorithms to optimize remote host selec-

tion for application deployment based on the environ-

ment.

According to our MEC extended architecture

(Feraudo et al., 2023), vehicles may leave the re-

source pool while running MEC applications. When a

vehicle hosting MEC applications exits a parking lot

in our simulation scenario, it triggers the migration

procedure to prevent service interruption and delay.

This highlights the importance of designing a reliable

migration mechanism for MEC applications in vehic-

ular computing environments. Our framework sup-

plies a module representing an extended version of the

AMS that transparently addresses resource volatility

issues. As mentioned in section 3.1, our tool supports

MEC-assisted intra-host migration. Thus, when an

application instance is relocated, e.g., from a remote

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

452

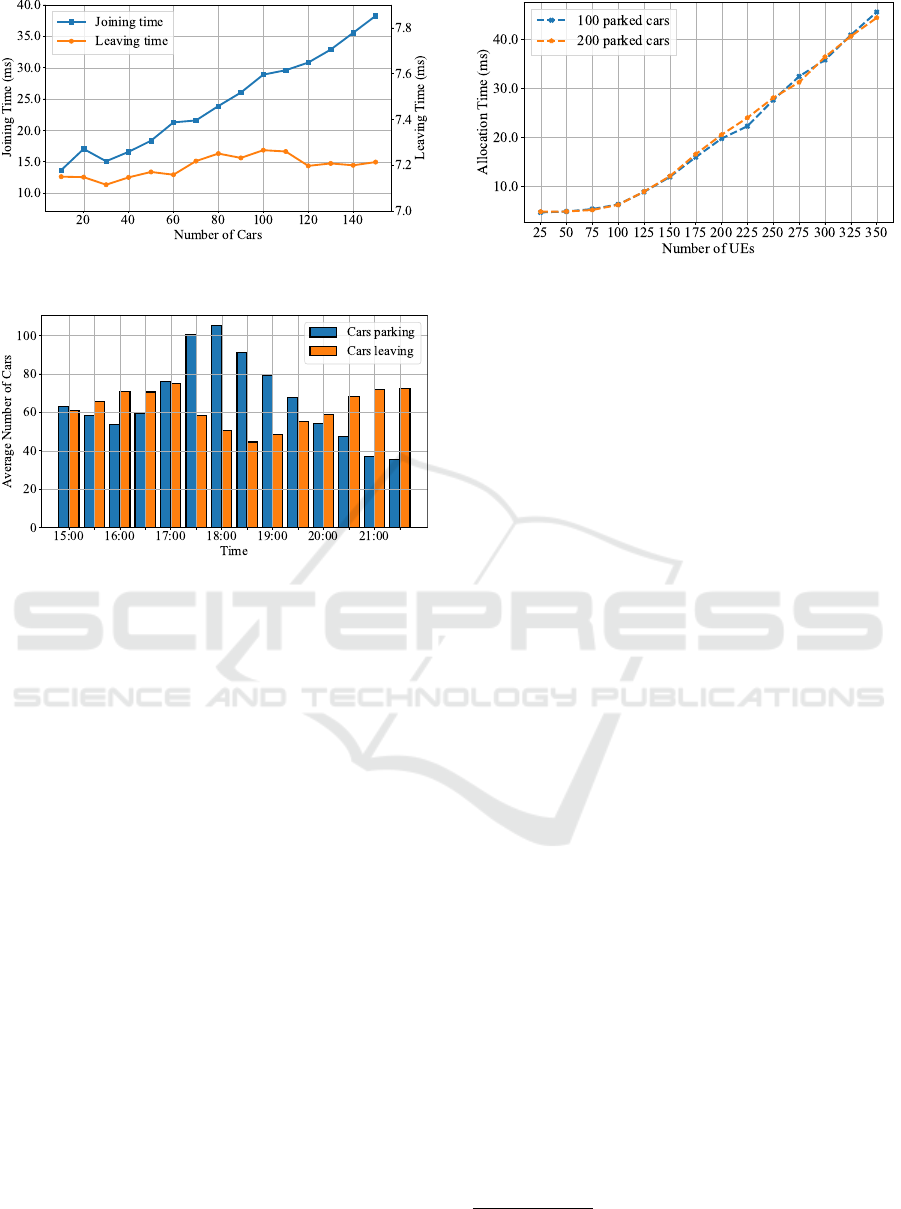

Figure 5: Resource acquisition and releasing protocol

times.

Figure 6: Ceentral Garage City of Arnhem entering and

leaving vehicles.

to a local resource infrastructure, the module requires

the MEC application to transfer the user context asso-

ciated with the NRUE device it is serving.

4 PERFORMANCE EVALUATION

In this section, we report about some relevant perfor-

mance indicators measured on top of our simulation

platform for some examples of vehicular cloud com-

puting applications. Additionally, we show how our

simulation platform can be utilized to deﬁne and eval-

uate an algorithm that efﬁciently distributes MEC ap-

plications on stationary vehicular resources.

Our experiments were conducted in a 5G stan-

dalone network environment with a numerology in-

dex µ = 2. The network consists of a single MEC-H

connected to a gNB, with the scenario taking place in

a parking area situated in close proximity to the gNB.

We also implemented a basic reward scheme for the

resource acquisition procedure, which utilizes integer

values accepted by all participating vehicles. The ex-

periments were carried out on a Linux Virtual Ma-

chine running OMNeT++ having 16 CPUs and 64Gb

of RAM.

Figure 7: Resource Allocation Time.

4.1 Resource Management

As described in section 3.1, resource management in-

volves the operations for acquiring, allocating, and re-

leasing remote resources.

Figure 5 illustrates the time required by the proto-

cols for collecting and releasing resources from vehi-

cles as they enter or leave the parking lot within the

MEC-H AoI. The join time shown in the ﬁgure in-

dicates the time interval for the MEC-H to recognize

the availability of a new vehicle for MEC application

allocation (step (1)-(6) in Figure 2a). On the other

hand, the release time is the interval required by the

MEC-H to remove the vehicle from the resource pool

(steps (1)-(4) in Figure 2b). The ﬁgure indicates that

the join time follows a growing trend ranging from

13 to 40 ms as the number of cars participating in

the resource acquisition procedure increases, whereas

the release time remains relatively constant (around

7 ms). The difference in performance between the

join and release times can be attributed to the varying

number of request/response messages generated by

the two protocols. On the one hand, the resource re-

lease process necessitates only a few messages to ex-

clude a vehicle effectively from the pool. On the other

hand, the resource acquisition process involves a se-

ries of request/response messages because the device-

initiated reward scheme mandates that the vehicle re-

quest available rewards. However, it is unlikely for

a large number of vehicles to enter a parking lot si-

multaneously. Such a scenario may only occur during

special events like festivals or football matches. To

support this claim, we analyzed the data of three park-

ing garages in the city of Arnhem, which is available

on the Open Parkeerdata portal

. Figure 6 depicts the

average number of cars entering and leaving the most

used garage during rush hours. The ﬁgure clearly

shows that the number of parked vehicles reaches al-

https://parkeerdata.nl/opendata/arnhem/parkeergarage

s/transactiedata-parkeergarages

A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud Computing in ETSI MEC-Compliant 5G Environments

453

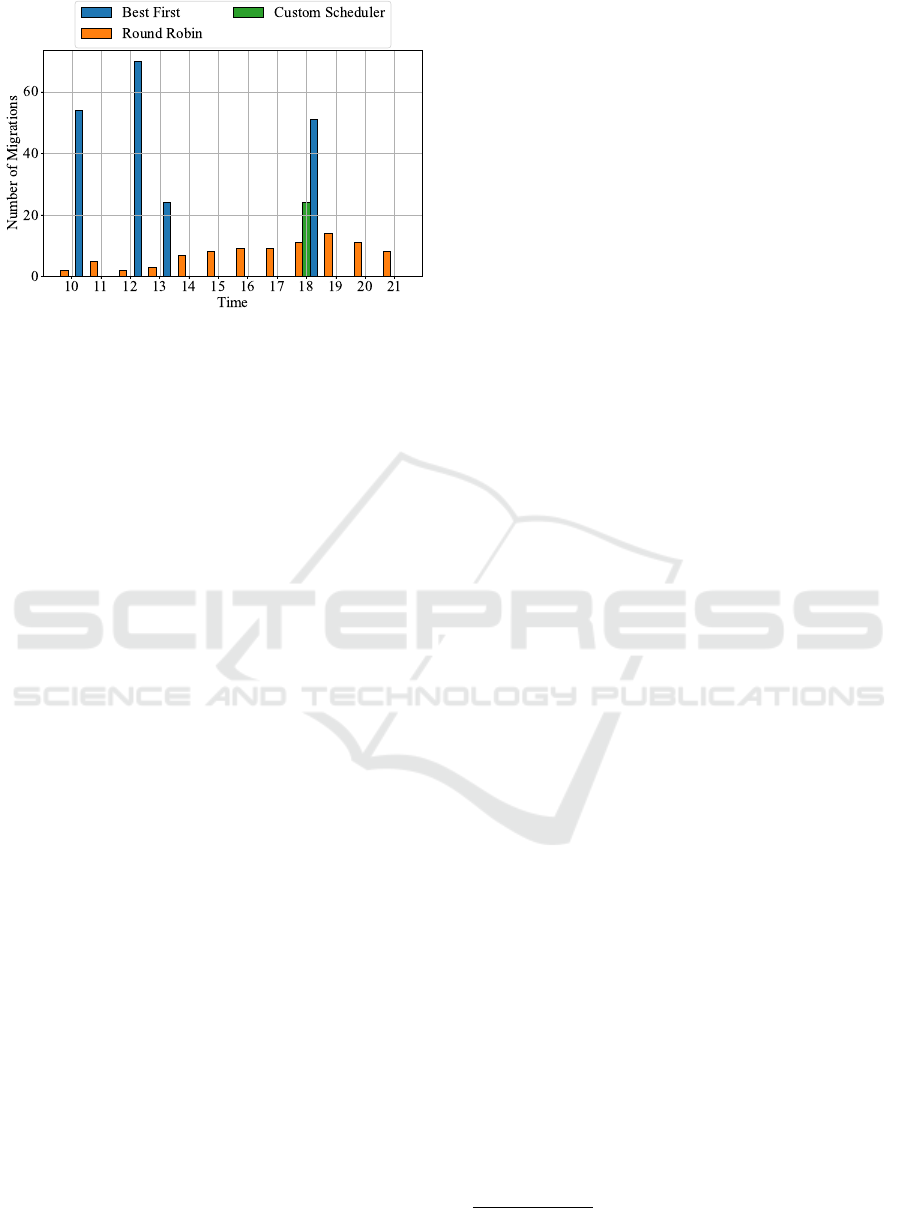

Figure 8: Comparison Scheduling Algorithms in terms of

Migrations.

most the maximum considered in our test setup be-

tween 17:30 and 18:30. Moreover, it is important to

note that the peak of participating vehicles does not

necessarily occur simultaneously because data were

sampled with 30-minute periodicity.

To analyze the time required to allocate MEC ap-

plications on remote resources, we measured the de-

lay introduced by the interactions between the VI and

VIM during steps (7)-(8) of the process in Fig. 3. The

simulation involves multiple UEs requesting MEC

app execution and several parked cars belonging to

the MEC-H resource pool. MEC applications are

evenly distributed on remote nodes using a Round

Robin scheduler. We repeated the simulation 10 times

with varying numbers of UEs and parked cars.

Figure 7 illustrates that the delays associated with

resource allocation follow an exponential growth that

depends on the number of MEC applications de-

ployed on parked cars. This is conﬁrmed by the over-

lapping curves, which indicate that the delay values

remain relatively constant even when the number of

parked cars varies. It is worth mentioning that we

simulated the worst-case scenario, in which all UEs

requested MEC app execution simultaneously, thus

leading to a substantial increase in network trafﬁc.

Despite this, the delay caused by these interactions re-

mained negligible, even when the number of requests

exceeded 300, with a delay of approximately 40ms.

4.2 A Custom Scheduler for Stationary

Vehicular Resources

We have developed and tested a custom scheduling al-

gorithm using our simulation platform to demonstrate

how it can aid researchers in designing, evaluating,

and assessing new algorithms and protocols. It aims

at minimizing the number of migrations generated by

vehicles leaving the parking lot while running appli-

cations.

To generate vehicle and user behaviors, we recre-

ated the scenario utilized in (Feraudo et al., 2023).

This approach involves constructing a series of Pois-

son and Gaussian distributions using two real-world

datasets. The Arnhem dataset, already presented in

the previous section, was used to model the distribu-

tions describing vehicle entry and residency times in

a parking lot. The Bologna WiFi dataset

provided

information on user activities on Open WiFi networks

within the city of Bologna, which enabled the creation

of distributions mimicking the user behavior during

each hour of the day. As in our previous work, we as-

sume that each vehicle that enters the parking lot ac-

cepts the rewards proposed by the MEC-H, and each

user requests triggers the execution of a one-to-one

MEC application.

We simulated a 24-hour period of vehicle and user

activities, taking into account a parking lot capacity

of 150 vehicles. We run three simulations, one for

each scheduling algorithm, namely best ﬁrst, round

robin, and our custom algorithm. The performance of

these algorithms was evaluated based on the number

of migrations they generated, as this directly impacts

the reliability of MEC applications. In other words, a

lower number of migrations is desirable for improved

performance. For the sake of clarity, we reported the

results associated with rush hours.

Figure 8 reports the associated performance re-

sults, by referring to the most challenging case of the

day hours with highest levels of user and vehicle ac-

tivity. The best ﬁrst algorithm chooses the ﬁrst avail-

able vehicle from the pool that has sufﬁcient resources

to execute the application. This approach can lead to

a large number of migrations, as the selected vehicles

may leave the parking lot while running all the ap-

plications they are capable of executing. In fact, the

number of migrations exceeds 60 at the 12th hour of

the simulation. Conversely, the round-robin algorithm

maintains a steady number of migrations (around 7.42

in average) as the applications are equally distributed

on the vehicles belonging to the MEC-H resource

pool. In addition, by using our simulation platform,

we have developed a custom scheduler that relies on

multiple Gaussian distributions by using means and

standard deviation produced after a pre-processing

phase of the Arnhem dataset, which generated the av-

erage occupancy time based on a 10-minute interval

sampling. Hence, for each vehicle that belongs to

the resource pool, the custom scheduler utilizes the

time at which it joined the pool and the aforemen-

https://opendata.comune.bologna.it/explore/dataset/i

perbole-wifi-afﬂuenza/information/

SIMULTECH 2023 - 13th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

454

tioned distributions to predict its residency time. It

then assigns the MEC application to the vehicle with

the highest remaining residency time. The results in

the ﬁgure demonstrate how this algorithm can largely

over-perform the others in the considered application

scenario: even if it could be enhanced via more so-

phisticated machine learning techniques, already in

its simple current version it generates only around 20

migrations at the 18th hour of the simulation.

5 CLOSING REMARKS AND

FUTURE DIRECTIONS

This paper originally presents a simulation platform

capable of assisting researchers in the development,

evaluation, and assessment of vehicular application

algorithms and protocols that exploit vehicular cloud

resources accessed according to the standard ETSI

MEC speciﬁcations. After presenting our extended

MEC architecture for these scenarios, the paper re-

ports about the design and implementation of our

original simulation platform, with its resource man-

agement modules and procedure interactions. In ad-

dition, this paper originally describes a concrete ex-

ample of how our simulation platform can be utilized

to design, test, and implement applications that ex-

ploit the vehicular computing paradigm. Despite the

simulation platform provided enables researchers to

design applications leveraging the vehicular comput-

ing paradigm, the current version is limited to sup-

porting stationary vehicles, speciﬁcally parking lots.

Our future plans include expanding this platform to

facilitate the distribution of MEC applications on mo-

bile nodes. Additionally, we intend to explore innova-

tive application scenarios that can harness the beneﬁts

of this unique infrastructure, utilizing the simulation

platform described in this paper.

REFERENCES

Ahmed, B., Malik, A. W., Hafeez, T., and Ahmed, N.

(2019). Services and simulation frameworks for ve-

hicular cloud computing: a contemporary survey.

EURASIP Journal on Wireless Communications and

Networking, 2019:1–21.

Cha, N., Wu, C., Yoshinaga, T., Ji, Y., and Yau, K.-L. A.

(2021). Virtual Edge: Exploring Computation Of-

ﬂoading in Collaborative Vehicular Edge Computing.

IEEE Access, 9:37739–37751.

Elektrobit (2022). Connected vehicle software solutions.

https://www.elektrobit.com/products/eb-connected-v

ehicle/. Last Accessed: 2022-10-03.

ETSI (2022a). GS MEC 003 - V3.1.1. https://www.etsi.org

/deliver/etsi gs/MEC/001 099/003/03.01.01 60/gs m

ec003v030101p.pdf.

ETSI (2022b). GS MEC 021 - V2.2.1. https://www.etsi.org

/deliver/etsi gs/MEC/001 099/021/02.02.01 60/gs m

ec021v020201p.pdf.

Feng, J., Liu, Z., Wu, C., and Ji, Y. (2017). Ave: Au-

tonomous vehicular edge computing framework with

aco-based scheduling. IEEE Transactions on Vehicu-

lar Technology, 66(12):10660–10675.

Feraudo, A. and Calvio, A. (2023). MEC extension. https:

//github.com/aferaudo/Simu5G/tree/feat/vim-extensi

on.

Feraudo, A., Calvio, A., Bujari, A., and Bellavista, P.

(2023). A novel design for advanced 5g deployment

environments with virtualized resources at vehicular

and mec nodes. arXiv preprint arXiv:2303.15836.

Gerla, M. (2012). Vehicular Cloud Computing. In Annual

Mediterranean Ad Hoc Networking Workshop (Med-

Hoc-Net), pages 152–155.

Hou, X., Li, Y., Chen, M., Wu, D., Jin, D., and Chen, S.

(2016). Vehicular fog computing: A viewpoint of ve-

hicles as the infrastructures. IEEE Transactions on

Vehicular Technology, 65(6):3860–3873.

Huang, X., Yu, R., Liu, J., and Shu, L. (2018). Parked Ve-

hicle Edge Computing: Exploiting Opportunistic Re-

sources for Distributed Mobile Applications. IEEE

Access, 6:66649–66663.

Li, C., Wang, S., Huang, X., Li, X., Yu, R., and Zhao,

F. (2019). Parked vehicular computing for energy-

efﬁcient internet of vehicles: A contract theoretic ap-

proach. IEEE Internet of Things Journal, 6(4):6079–

6088.

Liu, L., Chen, C., Pei, Q., Maharjan, S., and Zhang, Y.

(2021). Vehicular edge computing and networking: A

survey. Mobile networks and applications, 26:1145–

1168.

Liu, N., Liu, M., Lou, W., Chen, G., and Cao, J. (2011).

Pva in vanets: Stopped cars are not silent. In 2011

Proceedings IEEE INFOCOM, pages 431–435.

Ma, C. et al. (2021). Parking Edge Computing: Parked-

Vehicle-Assisted Task Ofﬂoading for Urban VANETs.

IEEE Internet of Things Journal, 8(11):9344–9358.

Nardini, G., Stea, G., Virdis, A., and Sabella, D. (2020).

Simu5g: A system-level simulator for 5g networks.

In Simultech, pages 68–80.

Olariu, S. (2020). A survey of vehicular cloud re-

search: Trends, applications and challenges. IEEE

Transactions on Intelligent Transportation Systems,

21(6):2648–2663.

Olariu, S., Khalil, I., and Abuelela, M. (2011). Taking

VANET to the Clouds. International Journal of Per-

vasive Computing and Communications, 7(1):7–21.

Rahman, F. H. et al. (2020). Off-Street Vehicular Fog

for Catering Applications in 5G/B5G: A Trust-Based

Task Mapping Solution and Open Research Issues.

IEEE Access, 8:117218–117235.

Sabella, D., Moustafa, H., Kuure, P., Kekki, S., Zhou, Z.,

Li, A., Thein, C., Fischer, E., Vukovic, I., Cardillo, J.,

et al. (2017). Toward fully connected vehicles: Edge

computing for advanced automotive communications;

5gaa: Munich.

A Novel OMNeT++-Based Simulation Tool for Vehicular Cloud Computing in ETSI MEC-Compliant 5G Environments

455
