A Design Framework for a Blockchain-Based Open Market Platform

of Enriched Card-Based Transactional Data for Big Data Analytics

and Open Banking

Trevor Toy

and Josef Langerman

Academy of Computer Science and Software Engineering, University of Johannesburg,

Auckland Park, Johannesburg, South Africa

Keywords: Blockchain, Big Data, Open Banking, Data Markets, Transactional Data, Cloud Data, Data Analytics,

Platform Design, Personal Data Management, Data Economy.

Abstract: Around a quarter of the world’s data is generated by financial institutions. The Capgemini 2022 World

Payments Report predicts a 28% increase in transaction volumes from 2021 to 2026, to an estimated total of

2.122 trillion global non-cash transactions. There is a growing demand for accessible transactional data for

analytical purposes and to support the rapid global adoption of Open Banking. Open banking is a collaborative

business model involving customer-authorised transactional data sharing with other unaffiliated parties to

allow for enhanced service and product offerings to the marketplace. This research explores utilising

distributed ledger technology to facilitate the market mechanism of securely sharing data through an

integrated and decentralised platform that conforms to the expected regulatory and compliance standards of

the financial industry from which the data is generated. Scalable and accessible access is a core requirement

of a marketplace platform for its data consumers and producers. To enable customer-authorised transactional

data sharing, an incentive mechanism is proposed, which includes the data subject in the process to empower

them to control access and earn money from the related transactional data that they generate. A proposed

framework is defined for the development of a marketplace platform that can ultimately support the growth,

prosperity and development of economies, businesses, communities and individuals, by providing accessible

and relevant transactional data for big data analytics and open banking.

1 INTRODUCTION

The global trend of leveraging data to evolve

businesses towards digitisation is moving from a

phase of simply generating, storing and processing

data to now being able to extract the real business

value from it that was initially promised to many

business stakeholders (Early Adopter Research,

2019). Data marketplaces are a pivotal solution by

providing external supplementary analytical

capabilities to enhance the extraction of value from

existing internal data. Businesses realise that external

data providers offer significant competitive

advantages that would not be possible by only

looking purely at their internal data. These additional

insights can include gauging industry benchmarks,

https://orcid.org/0009-0002-3300-393X

https://orcid.org/0000-0003-1984-0205

regional trends and unidentified market opportunities.

The accessibility and capabilities to procure and

apply external data are still challenges for most

organisations seeking supplementary external data.

Two-thirds of companies must use external service

providers or specialist consultants to support their

data-sourcing requirements (Belissent, 2020).

Several open data markets exist, with many

utilising distributed ledger technology such as the

Datapace and ArcBlock distributed ledger platforms

(Arcblock, n.d.; Datapace - Data Marketplace

domain-specific and can guarantee the industry

compliance requirements necessary for the finance

sector. Moreover, none have yet developed the

necessary scale and trust to consolidate the sector to

be considered as a standardised Big Data repository

Toy, T. and Langerman, J.

A Design Framework for a Blockchain-Based Open Market Platform of Enriched Card-Based Transactional Data for Big Data Analytics and Open Banking.

DOI: 10.5220/0012143400003541

In Proceedings of the 12th International Conference on Data Science, Technology and Applications (DATA 2023), pages 583-589

ISBN: 978-989-758-664-4; ISSN: 2184-285X

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

583

for card-based transactions (Hassani et al., 2018).

This research explores utilising distributed ledger

technology to transparently and immutably generate

exchange agreements to facilitate the transactional

interactions of participants in a marketplace platform.

The proposed solution leverages the growing

interoperability of cloud-based data products and

services, blockchain and other modern system

technologies to demonstrate an end-to-end market

trade process for transactional card data.

An opportunity exists for a solution that provides

an accessible and scalable market platform

specifically for trading card-based transaction data

and the related peripheral data to those transactions to

stimulate cross-business data sharing desired in the

Open Banking economy. In predominately non-cash-

based environments, card transactions are the best

representative of multiple levels of economic activity.

They provide economic and business insight into the

nature and volume of spend at the individual,

demographic and state levels. Companies

increasingly demand external data sources to

supplement and broaden the context of their existing

internal analytical scope (Belissent, 2020). This

application can also extend beyond commercial

business use. Banco Bilbao Vizcaya Argentaria

(BBVA) utilised its data analytics capabilities by

applying over four million anonymised credit card

transactions to help city planners create strategies to

stimulate economic growth. Governments could also

use this data to assist in deciding where to deploy aid

responses after natural disasters (Wixom & Farrell,

2019). Another example is when researchers applied

retail payment data to forecast economic activity in

Italy. As a result, they could show a close correlation

between retail payment series and macroeconomic

aggregates to demonstrate how data improved

forecast accuracy of not only gross domestic product

(GDP) but also overall consumption, investment, and

value-added services in specific sectors (Aprigliano

et al., 2019).

The primary aim of this research is to construct a

system framework for a marketplace platform called

the Big Transactional Data Marketplace (BTDM),

which will provide the conceptual design foundation

for a decentralised, blockchain-based open market

platform of enriched card-based transactional data for

big data analytics and open banking

The research questions for this study were

formulated to contribute to the knowledge base of

transactional data markets for big data analytics and

open banking from the experience and insights gained

in developing this solution. Below are the four

research questions identified for the BTDM derived

from the initial DSR problem explication process and

subsequent solution objectives defined to address

those problems.

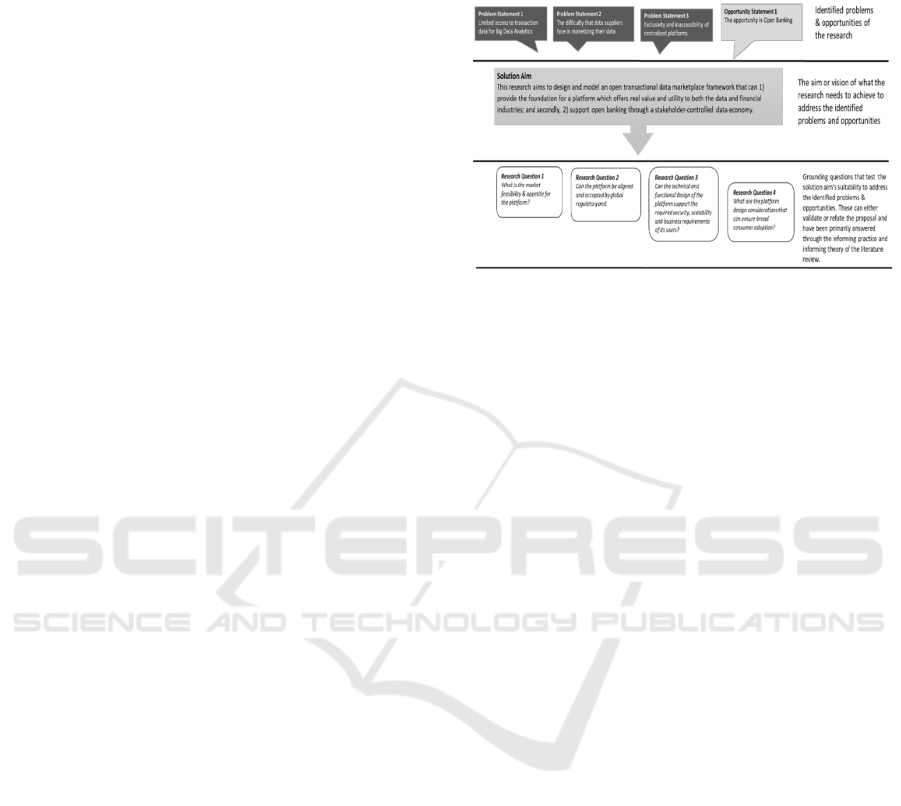

Figure 1: Research questions for the BTDM Framework.

The expected output from this research is to

demonstrate the potential for a scalable card-based

transactional data marketplace platform. The study

would achieve this by designing and modelling a

system framework that can 1.) provide the foundation

for a system design that offers real value and utility to

the data and financial industries and 2) support open

banking through a stakeholder-controlled data

economy.

2 METHOD

Design Science Research (DSR) was the selected

methodology to develop the BTDM Framework. The

BTDM framework guides a particular system design;

therefore, various design abstraction levels that

realise a deployable and functional product were

considered as ideal DSR artefacts for the framework

(Dresch et al., n.d.). The methodology also focuses on

the iterative refinement of rigour and relevance of the

solution against the existing knowledge base and the

real-world application domain (Hevner, 2007).

The output artefacts required by the DSR process

were presented as a set of traditional system design

models, categorised within the phases of Nunamaker

et al.’s System Development Research Process

(Nunamaker et al., 1990). These descend in their

levels of abstraction towards an implementable

prototype.

• Conceptual framework

• System architecture

• Functional design (Analyse and design the

system)

• System development (Build the [prototype]

system)

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

584

A computer simulation/lab experiment approach

was selected as the evaluation method for the DSR

process according to the DSR Evaluation Method

Selection Framework prescribed by Venable et al.

(Venable et al., 2012). Therefore a proof-of-concept

(PoC) blockchain contract was implemented to

demonstrate the core functionality of the BTDM

platform according to plans from subsequent system

design models of the System Development Research

Process. This PoC verified the process-level logic of

the framework and showed that blockchain

technology could successfully implement the user

requirements necessary to achieve the research

objectives.

The PoC demonstrated the ability to register a user

linked to an Ethereum account from which they could

send and receive cryptocurrency to transact on the

platform. It also showed that we could create records

on the blockchain that enable data producers to list

their available datasets and consumers to find and

subscribe to those datasets. In addition, it can act as a

progressive facilitator of open banking by enabling

data subjects to manage their data and any related

identifiable data through the platform through a

concept of “permissioning” of the current

designations.

2.1 Results & Discussion

The solution design and context diagram are primary

artefacts of the framework. The PoC conducted

bridges the conceptual plans into code functions that

can be field tested against the platform’s objective

and practical user requirements, reaffirming these

artefacts’ relevance and rigour per the DSR

methodology.

2.1.1 BTDM Solution Design

Figure 2: The BTDM Solution Design.

The BTDM Solution Design is an extension of the

Collective Multilateral Market Design set out by

Koutroumpis et al. in their paper, The (Unfulfilled)

Potential of Data Marketplaces (Koutroumpis et al.,

2017). The BTDM design makes a distinction

between the market layer and management layer in

recognition of the need for moderation of the platform

to maintain quality and control that could be lost from

complete autonomy. It also introduces the Data

Subject role and details the interaction between the

resources providing and consuming the data products.

The core market layer of the platform is provided

within a blockchain contract ecosystem which

connects the data providers and their data subjects to

the data consumers. This market layer manages the

transaction, user, pricing, payment, tagging, contract,

control, and lineage features that facilitate the

primary user interactions on the platform for trading

data. Secondly, a management layer that enforces the

validation, policy and compliance requirements

needed to maintain the quality and sustainability of

the platform.

A data catalogue allows for efficient search

functionality and metadata management for data

providers and their data. It will assist in presenting the

data product available to the consumer and be

integrated into the decentralised layer to complete the

transaction between the parties once the product is

selected.

The data subject utilises a Personal Data Store to

manage and share their data with the consumer. Data

providers list and sell their data through the platform

but will supply it directly to the consumer. Data

subjects will enter into a contract with data providers

to supply transactional data related to each data

subject to an interested consumer. That data supplied

by the data provider is anonymised in that no one with

that dataset should know to whom it pertains. Because

the data subject must remain anonymous on the

platform, they will reveal their identity to the

consumer as part of their own contractual

arrangement. This identity will then be related back

to the dataset from the data provider. So they will

“sell” their identity to that consumer and any other

personal information they are willing to disclose.

Interested consumers identify data subjects in two

ways, either through a basic demographics profile

that allows them to target a general profile—for

example, analytical marketing research (e.g. spending

habits for middle-income white males over 50). Or

directly as clients of the data providers, for instance,

for customised products or service offerings from the

data providers’ business partners, such as life

insurance or medical aid providers. They would then

enter into a subscription contract with the producer to

gain access to the data. A contract agreement would

Data Consu mer

Decentralised Market Layer

Decentralised Management Layer

Lineage

Combination

Aggregation

Control

Payment

Pricing

Validatio n

Compliance

Data Co nsume r

Analytics Tools

Contract

Data Provider

Curated

External

Cloud Data

Data Pro vider

Curated

External

Cloud Data

Data Provider

Curated

External

Cloud Data

Analytics Tools

Single source

processing

Multiple

source

processing

Data Su bjec t

Personal Data Store (PDS)

personal data

Policy

Data C atalogue

Metadata

Transaction

Users

A Design Framework for a Blockchain-Based Open Market Platform of Enriched Card-Based Transactional Data for Big Data Analytics and

Open Banking

585

be created on the blockchain along with the payment

processing.

If a data consumer wanted transactional and

peripheral data on a specific data subject, they would

subscribe to an identifiable dataset provided by the

data producer in addition to the related data subject’s

data provided separately by the data subject. The data

subject would be paid accordingly for the personal

data provided (a data subject could choose to disclose

other personal details such as IoT or other sensitive

demographic data). The data consumer would enter

into another subscription contract with the data

subject in parallel to the identifiable dataset.

Data producers would be required to house their

data within accessible but secure modern commercial

cloud-based repositories, where they can curate the

data and control access granted to the data consumers.

The data must be formatted in an efficient and

standardised format (such as Parquet). The data must

align with ISO 20022 definition standards for

transactional card payment data (ISO 20022 |

ISO20022, n.d.). This research investigates the ISO

standards requirements in its application in BTDM

andcompliance with the Payment Card Industry Data

Security Standards (PCI/DSS) concerning the market

trade of card-based transactional data (PCI Security

Standard Council, n.d., 2008).

2.1.2 The BTDM Context Diagram

The core functions evaluated for the BTDM were

based on the platform’s ability to allow users to buy

and sell transactional data securely and enable

cardholders (data subjects) to manage and benefit

from the sale of their data. The platform creates

secured transactional contracts between these entities

as platform users to establish these relationships

between the data provider, the data consumer and the

data subject. The following key business objects have

been defined for the BTDM Framework to support

the user interactions that facilitate the ability to make

secure contractual transactions between each user

role.

The interactions of these business objects are

described in the following BTDM context diagram.

Figure 3: The BTDM Context Diagram.

1. Account – Each platform user is registered with

their private blockchain account. The account comes

from the selected blockchain on which the platform is

based and is used to facilitate payments to and from

the holder.

2. Subscription – A contract between a data

provider and a data consumer to supply/access

transactional and transaction-related data.

3. Permission Agreement – A contract between a

data provider of transactional data and the data

subject to allow the data provider to supply the

transaction details generated by that data subject to a

requesting data consumer.

4. Permission – A contract between a data subject

and a data consumer that allows a data consumer to

access identifying data of the data subject with which

they can associate transactional data from a

subscription.

5. Contract Option – The contract option defines

the subscription’s unique payment plan and product

delivery details. The data provider will predefine the

contract options available to each dataset, which the

user will select when subscribing.

2.1.3 The BTDM Proof-of-Concept

A proof-of-concept was deployed as the evaluation

activity of the DRS process. It aimed to evaluate

whether the conceptual design artefacts could be

actualised on the proposed technologies. The core

functionalities of the BTDM platform were

implemented on an Etheruem blockchain contract to

determine whether the platform’s required

transactional, security and accessibility requirements

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

586

could be met. The following core functions were

tested:

• User Registration & Functional Roles

• Transaction handling

• Data Catalogue

• Data Subject Permission Management (Open

Banking)

• Data Subscription & Contract Management

Data Subject Permission Management

This article will focus on Data Subject Permission

Management, as it is one of the key functionalities of

the BTDM proof-of-concept. Data Subject

Permission Management differentiates the platform

from other data marketplaces by utilising a concept of

“permissioning”, a contractual agreement

implemented on the blockchain to allow a data

consumer to provide information on their identity to

a data consumer. This information of the data subject

can then be associated with a data set of card-

transaction data supplied by their card provider or

financial institution. Note that a separate permission

agreement must first be in place between the data

subject and their card provider (as a data provider) to

authorise the generation of identifiable datasets to the

market. Identifiable datasets on the platform are

curated by the data provider and related to a specific

data subject but don’t have any revealing information

about who that data subject is. Because these involve

the data subject, a commission fee is charged to

compensate the data subject.

Once the permission agreement is in place, a

consumer can generate a permission request for a data

subject to reveal their identity to associate against an

identifiable dataset. Consumers will identify a data

subject on the BTDM they are interested in from their

anonymous demographic profile via the data provider

or directly from the data subject catalogue.

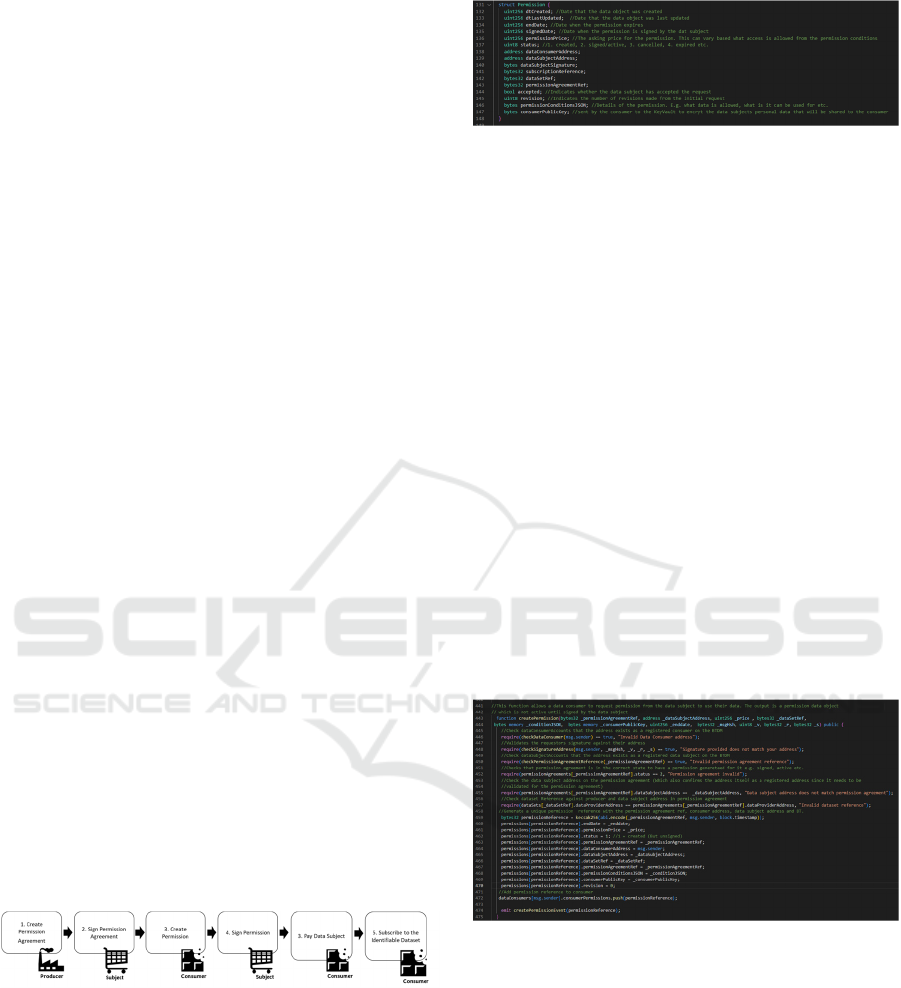

Figure 4: Permission management flow.

The permission must record the addresses of

requesting data consumer and the data subject. The

data provider is not directly involved, but their

address is part of the permission agreement associated

with this permission request. The permission also

uses a status indicator to manage the changing states

of the permission from being created, signed, and

expired or cancelled.

Figure 5: Permission data object structure.

A permission also represents a transaction between

the data consumer and the data subject. It not only

allows the consumer to associate the identity of that

data subject with the identifiable dataset generated by

the data provider but also allows the consumer to

access additional detail about the data subject. In the

data catalogue, a data subject can list various personal

attributes available “for sale” that they themselves

maintain in their Personal Data Store, such as race,

family, income, profession, IoT data (e.g. fitness

band, GPS tracking), browsing & search data etc.

These attributes could be listed, each with their own

individual prices, which a consumer could purchase

and the total captured in the permission price. The

details of each of the selected personal data request

items and their prices are captured in a permission

conditions json, like an invoice, which can be

validated on the data subject’s side to confirm the

total before accepting the request. The accepted

indicator shows whether the data subject has accepted

or rejected the request. Each time a request is revised,

it will also be logged on the blockchain.

Figure 6: BTDM createPermission function.

Once a permission request is generated, it is sent to a

data subject for review. The consumer indicates what

personal data attributes they wish to access from the

subject’s listing. The consumer should also provide

details on their purpose for the data and how they plan

to manage it (retention, distribution, outcome, etc.).

This detail is captured in the

permissionConditionsJSON and can be considered a

binding agreement between the parties. The data

subject can also reject or revise the agreement, in

which case it will be returned to the consumer for

acceptance.

A Design Framework for a Blockchain-Based Open Market Platform of Enriched Card-Based Transactional Data for Big Data Analytics and

Open Banking

587

To conclude the permission process, the data

consumer must pay the data subject for the requested

data. The PoC also provides an example of

Transaction Handling to demonstrate this

functionality. The money is then transferred to the

data subject ‘s account, and the permission status is

updated. This permission’s status is what is checked

when a data consumer subscribes to an identifiable

dataset where they will need to submit this permission

reference. The data consumer is now obliged to

provide access to the data consumer through their

PDS. The inputs to the PDS are obtained from the

permission on what specific data attributes have been

purchased by the consumer and the consumer’s public

encryption key to encrypt the data before exposing it

to the consumer.

Now that the permission is in place for the

targeted dataset the consumer wishes to subscribe to,

the data consumer will proceed with subscribing to

the identifiable data from the data provider. The

permission would be validated for the data provider

to ensure it has been authorised by the data subject for

that data consumer before allowing the data consumer

to subscribe. If all is successful, the subscription

reference is added to the permission since the

subscription can only be generated after the signed

permission is in place. These interactions are all

recorded on the immutable public ledger and form the

contractual basis on which all the parties can proceed

with the actions of the trade.

2.1.4 Blockchain as an Effective Technology

for a Data Marketplace

The PoC offered positive results, proving that

blockchain technology could be a successful

foundation for a decentralised market platform. The

following points are the key observations taken from

the PoC.

1. Blockchain offers a scalable and accessible

platform for developing a cross-border solution

because of its decentralised design, easy user profile

integration to blockchain wallets and accounts, and

use of non-fiat digital currencies for transactions.

2. It provides an accessible structure for user

management which is easily integrated into the built-

in account features of the technology.

3. Secure authentication and authorisation can be

applied through signature verification of accounts and

contract code that can enforce logical conditions

(smart contracts).

4. A degree of manual verification of data

consumers wishing to access “identifiable data”

related to a data subject is still required. Without

some assurance of the consumer’s intent, a data

subject will not be inclined to sell their data.

5. The data subject’s profile remains anonymous

and secured on the platform. Once they provide

permission to a consumer, that consumer can match

the blockchain address to the profile of the data

subject and their transactions from the data producer

subscription. Once that subscription expires, the

customer cannot match any subsequent transactions

from that data producer without requesting a new

permission from the data subject. Any static

identifying data that the data consumer receives will

always be known, but any dynamic data (E.g. IoT

data, like fitness trackers) will stop after the

contractual end date.

6. For complex and dynamic data sharing of a data

subject’s personal data, the Personal Data Stores

(PDS) that the solution proposes are still being

developed. It does not appear that any suitable

solutions currently exist yet. But for basic identifying

data sharing, public-private key encryption offers a

feasible mechanism.

7. The PoC facilitated an initial payment on

creating a new subscription; however, scheduled

payment collection needs further exploration.

Scheduled collections were partly handled by

incorporating a billing plan data element in the

subscriptions.

8. The concept of peripheral transaction data also

needs further exploration. Merchants of the sale could

contribute by providing detail of each transaction

(E.g. the receipt of what was purchased). The

proposal also establishes a permission agreement

model between the primary data provider (providing

transaction data) and the peripheral one. The

proposed solution was to allow the primary data

provider to be a consumer of the peripheral data to

offer enhanced transaction data to the end consumer.

This concept was not demonstrated in the PoC, and

the evaluation revealed more complexity than was

initially understood.

3 CONCLUSION

The results from research into the BTDM show

potential for a scalable platform to address the

solution aim that was defined – to design and model

an open transactional data marketplace framework

that can 1.) provide the foundation for a platform

which offers real value and utility to both the data and

financial industries; and secondly, 2) support open

banking through a stakeholder-controlled data

economy.

DATA 2023 - 12th International Conference on Data Science, Technology and Applications

588

The PoC applied for evaluating the artefacts was

ideal for this initial proposal for the BTDM. They

proved that a feasible technical implementation of the

design concepts could be realised. However, further

development and evaluation are required since the

BTDM is a heavily socio-technical system operated

by many stakeholders and involves numerous

interactive processes in bringing the complete

solution together. Methods such as action research,

field testing and focus groups on the completed

platform would provide more rigour in testing end-to-

end processes and relevance as the solution moves

into a naturalistic state with more objective influences

on the solution’s outcome and relevance.

The immaturity of personal data stores, volatility

of cryptocurrency, universal protocols for external

access to data storage, and balancing moderation vs

accessibility are some of the limitations identified for

the BTDM. None of these limitations is considered

severe enough to prohibit a version of this platfrom

from being developed in today’s business landscape.

The expectation from the analysis of this research

indicates that the technical challenges can be

mitigated, and the relative social and regulatory

challenges will subside over time to allow for broad

adoption by the data and financial industries.

Lastly, as a digital platform, much of its success

relies on broad adoption and sustainable usage to

achieve the desired network effects and prevent

disintermediation. These outcomes are greatly

influenced by business factors outside the system

design, such as strategic positioning and policies, the

competitive landscape, changing legislation and

regulation, and even the appropriate marketing

strategy. These must be considered as the BTDM

develops from a conceptual to a commercial product

offering.

REFERENCES

Aprigliano, V., Ardizzi, G., & Monteforte, L. (2019). Using

payment system data to forecast economic activity.

International Journal of Central Banking, 15(4), 55–

80.

Arcblock. (n.d.). Data Marketplace and Blockchain. Re-

trieved March 17, 2021, from https://www.arcblock.io/

en/blockchain-data-marketplace

Belissent, J. (2020). The Insights Professional ’ s Guide To

External Data Sourcing The Insights Professional ’ s

Guide To External Data Sourcing. In Forrester.

Brodsky, L., & Oakes, L. (2017). Data sharing and open

banking. July, 16–23. https://www.mckinsey.it/

sites/default/files/data-sharing-and-open-banking.pdf

Datapace - Data Marketplace Powered by Blockchain.

(n.d.). Datapace . Retrieved March 17, 2021, from

https://datapace.io/

Dresch, A., Daniel, ·, Lacerda, P., Antônio, J., & Antunes,

V. (n.d.). Design Science Research A Method for

Science and Technology Advancement.

Early Adopter Research. (2019). The Transformative

Impact of the Data Marketplace. In Early Adopter

Research.

Hassani, H., Huang, X., & Silva, E. (2018). Banking with

blockchain-ed big data. Journal of Management

Analytics, 5(4), 256–275. https://doi.org/10.1080/

23270012.2018.1528900

Hevner, A. R. (2007). A Three Cycle View of Design

Science Research. In Scandinavian Journal of

Information Systems (Vol. 19, Issue 2).

ISO 20022 | ISO20022. (n.d.). Retrieved March 26, 2021,

from https://www.iso20022.org/

Koutroumpis, P., Leiponen, A., & Thomas, L. D. W.

(2017). The (Unfulfilled) Potential of Data

Marketplaces. ETLA Working Papers, 2420(53).

http://pub.etla.fi/ETLA-Working-Papers-

53.pdf%0Ahttp://pub.etla.fi/ETLA-Working-Papers-

53.pd

Nunamaker, J. F., Chen, M., & Purdin, T. D. M. (1990).

Systems development in information systems research.

Journal of Management Information Systems, 7(3), 89–

106. https://doi.org/10.1080/07421222.1990.11517898

PCI Security Standard Council. (n.d.). Official PCI Security

Standards Council Site - Verify PCI Compliance,

Download Data Security and Credit Card Security

Standards. Retrieved December 28, 2021, from

https://www.pcisecuritystandards.org/pci_security/glo

ssary#P

PCI Security Standard Council. (2008). At a Glance PCI

Data Storage PCI Data Storage Do’s and Don’ts.

www.pcisecuritystandards.org/pdfs/

Venable, J. R., Pries-heje, J., & Baskerville, R. (2012). A

Comprehensive Framework for Evaluation in Design

Science Research. Design Science Research in

Information Systems. Advances in Theory and Practice,

7286(May), 423–438. https://doi.org/10.1007/978-3-

642-29863-9

Winship, T., Mistry, D., & Colceriu, D. (2016). Banking

Data Monetization. Temenos.

Wixom, B., & Farrell, K. (2019). Building Data

Monetization Capabilities that Pay Off. Mit Cisr,

19(11), 1–8.

World Payments Report 2022 | Research & insight |

Capgemini. (n.d.). Retrieved May 30, 2023, from

https://www.capgemini.com/insights/research-

library/world-payments-report/

A Design Framework for a Blockchain-Based Open Market Platform of Enriched Card-Based Transactional Data for Big Data Analytics and

Open Banking

589
