Design of Geographic Entity Database of 3D Real Scene About

Xi’an City

Man Huang

, Zhouping Zhang

, Renyi Zhu

, Lin Yuan

, Chunkui Zhang

and Chuangqi Wu

Xi'an Institute of Surveying & Mapping, Xi'an City, People’s Republic of China

Shaanxi Surveying & Mapping Geographic Information Bureau, Xi'an City, People’s Republic of China

Keywords: New Fundamental Surveying & Mapping, 3D Real Scene, Geographical Entity Database, Knowledge Graph,

One Code Polymorphism.

Abstract: New fundamental surveying & mapping and the construction of 3D real scene construction have set off a

new wave in our country. As one of the pilot cities of new fundamental surveying & mapping, the Xi'an

pilot closely focuses on the six pilot tasks approved by the Ministry of Natural Resources to carry out real

construction of 3D real scene about Xi'an city. As an important part of the whole life cycle of geographic

entity data, the geographic entity data database stores and manages multi-source heterogeneous data from

the upstream production update system, builds the association relationship between geographic entity data,

and assembles derivative 3D standard products and application products as required, providing continuous

data blood for the "The Service Platform of 3D real scene about Xi'an city ". This paper mainly studies the

design of the Xi'an geographical entity database, including the overall design, logical design, management

system design, etc. It takes the geographical entity as the core and the geographical entity ID code as the

link to realize the multi-source heterogeneous geographical entity data polymorphism organization and

management.

1 INTRODUCTION

Global digital development is accelerating,

'space-time information, positioning and navigation'

service has become an important new infrastructure.

As a standard product of new fundamental surveying

& mapping, 3D real scene provides a unified spatial

positioning framework and analysis basis for digital

China. It is an important strategic data resource and

production factor for digital government and digital

economy. Recently, in China, the new fundamental

surveying & mapping and 3D real scene rise

gradually. Shanghai, Wuhan and other cities as a

pilot city have been approved. In order to actively

respond to the call and accelerate the pace of

achieving this goal, Xi'an city submitted an

application, and were approved as a new

fundamental surveying & mapping pilot city by the

Ministry of Natural Resources on November 9, 2020.

Around the six tasks, Xi'an pilot will establish a new

fundamental surveying & mapping database, and

build a real three-dimensional Xi’an city service

platform, also form a set of policy standards,

carrying out three demonstration applications and six

types of knowledge service. Finally, '1+1+1+3+6'

pilot results will be completed.

According to a series of standard documents issued

by the Ministry of Natural Resources, such as 'new

fundamental Surveying & Mapping Database

Construction Technical Guide', 'The Construction

Technical Outline about 3D Real Scene of China',

'The Database Construction Specification about 3D

Real Scene', With geographical entities as the unit,

the establishment of a 'multi-functional, on-demand

assembly' time-space database has become an

important pilot content.

2 DESIGN GOAL

Based on the Xi'an pilot implementation plan,

according to the new needs of urban natural resource

management and urban informatization development,

The geographic entity database about the 3D real

scene of Xi’an and its management system with the

characteristics of 3D, entities and semantics are

established. Also, this database has the following

characteristics, such as ground underground

Huang, M., Zhang, Z., Zhu, R., Yuan, L., Zhang, C. and Wu, C.

Design of Geographic Entity Database of 3D Real Scene About Xi’an City.

DOI: 10.5220/0012146000003562

In Proceedings of the 1st International Conference on Data Processing, Control and Simulation (ICDPCS 2023), pages 58-63

ISBN: 978-989-758-675-0

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

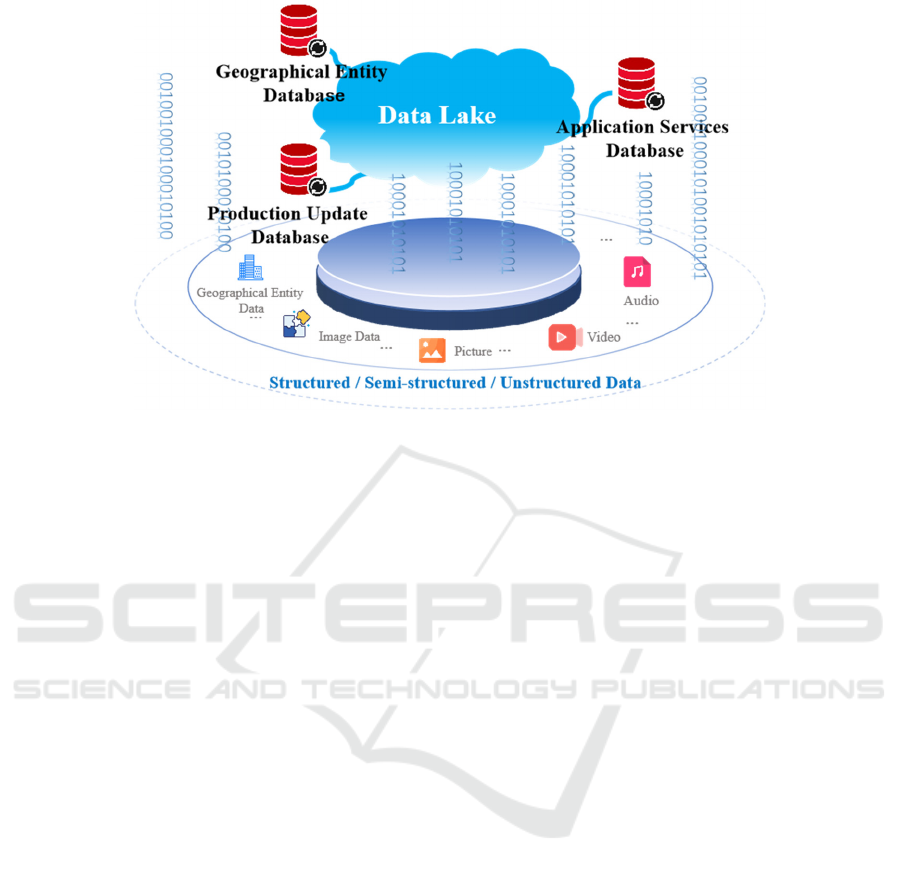

Figure 1: The ' Data Lake ' System of 3D real scene about Xi'an.

integration, indoor and outdoor integration,

two-dimensional and three-dimensional integration,

and spatial information and attribute information

integration.

3 OVERALL DATABASE DESIGN

The database of 3D real scene about Xi'an using the

technology of data lake and data warehouse

integration (Fig.1), converge the time-space

information including full space, full elements, the

whole process. Also, this information is real,

three-dimensional and sequential. The management

system can build a knowledge graph among

geographical entities to help intelligent applications,

and also can achieve a database of multiple functions,

as needed to assemble a variety of standardized

products and the thematic products. It is deployed in

the internal network environment of Xi'an Surveying

& Mapping Institute, through the private cloud for

centralized storage, physical isolation with the

external network. Data is transmitted through the

service platform application library deployed by the

ferry machine to the external network.

The database mainly includes geographic entity

achievement database, 4E standardized product

database, IoT perception database and governance

database. The specific data types stored in each

database are as follows:

(1) The geographic entity achievement database

is used to store the full amount of data after quality

inspection, including four categories of geographic

entity data.

(2) The 4E standardized product database is used

to store the products derived from the achievement

sub-database according to the needs, including the

combined aggregation entity set, the stepless map

expression, the terrain level 3D real scene products

and the city level products.

(3) The IoT sensing data database is used to store

real-time sensing data of natural resources, urban

IoT sensing data and Internet online capture data,

which are associated with sensor entities to provide

dynamic geographic scenarios.

(4) The governance data database is used to store

the supporting data needed in the data governance

process, including metadata, data dictionary, index

data, entity management data, as well as system

management, security authentication, rights

management, and log records for the entire database

operation and maintenance support.

4 LOGICAL ARCHITECTURES

According to the classification of geographic entities

in Xi'an pilot, the achievement database of

geographic entity database can be divided into four

sub-databases: object entity sub-database,

geographic unit sub-database, geographic scene

sub-database and spatial grid sub-database. The data

Design of Geographic Entity Database of 3D Real Scene About Xi’an City

contained in each sub-database is as follows (Fig.2):

(1) The ground feature entities database includes

seven sub-databases: water system, residential area

and facilities, transportation, integrated pipeline,

landform, vegetation and soil, and place name and

address entities.

(2) The geographical units database includes

eight sub-databases: administrative division unit,

landform unit, natural and cultural protection zone,

fundamental geology unit, social comprehensive

management unit, land and sea unit, planning unit

and real estate unit.

(3) The geographic scene database includes

seven sub-databases: DOM, TDOM, DEM, DSM,

oblique photography 3D model, 3D laser point cloud,

panoramic image (street view).

(4) The spatial grid database includes three

sub-databases: The latitude and longitude, the plane

grid, and the three-dimensional grid.

The database of 3D real

scene about Xi 'an

The geographic entity

achievement database

The geographical units

database

The spatial grid database

The geographic entity

achievement database

+ The water system sub-database

+ The residential area and

facilities sub-database

+ The transportation sub-

database

+ The integrated pipeline sub-

database

+ The realm entity sub-database

+ The landform sub-database

+ The vegetation and soil sub-

database

The geographical units

database

The administrative division

unit sub-database

The landform unit sub-

database

The

natural protection

zone sub-database

The geographic scene database

The DOM sub-database

The

DEM

sub-database

The TDOM sub-database

The

DSM

sub-database

The 3D laser point cloud sub-

database

The oblique photography 3D

model sub-database

+ The social comprehensive

management unit sub-database

The spatial grid database

The latitude and longitude

sub-database

The Plane grid sub-

database

The

three-dimensional grid

sub-database

The geographic scene

database

The land and sea unit sub-

database

The planning unit and real

estate unit sub-database

+ The place name and address

entities sub-database

The fundamental geology

unit sub-database

The panoramic image sub-

database

Figure 2: Logical architecture of geographic entity database about Xi'an city

ICDPCS 2023 - The International Conference on Data Processing, Control and Simulation

5 MANAGEMENT SYSTEM

FUNCTION DESIGN

The geographic entity database management system

(DBMS) of 3D real scene about Xi'an city is used to

establish, use, update, manage and maintain the

geographic entity database. Ensuring the security of

database and management system, the database is

controlled uniformly to effectively manage massive

heterogeneous data and keep the database data

current. At the same time, the history and version of

the data are reasonably organized to meet the

application requirements of high availability, high

throughput and random read and write of database

data. Through unique spatial identity coding, fast

coarse positioning, efficient retrieval and attribute

attachment of geographic entities are realized. Using

two-three-in-one visual graphical interface to

achieve geographic entity data browsing and query,

multi-user concurrent access control and recovery

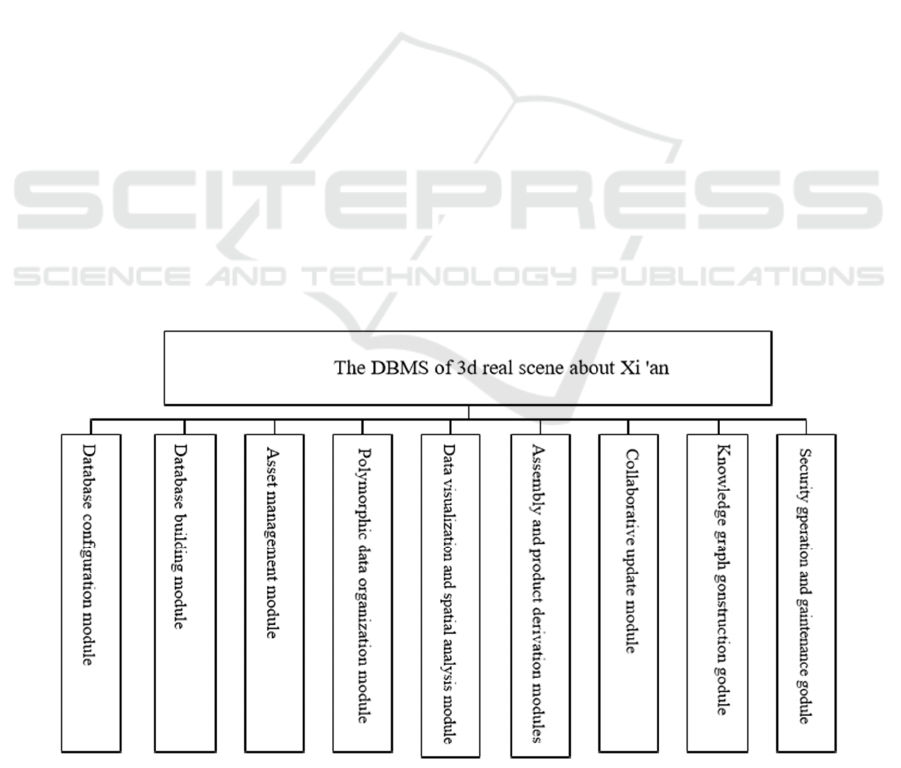

database. The main function modules of the database

management system are shown in the Fig.3.

(1) Database configuration module

The connection information of the database can

be created and configured, and the connection

information can be managed. Also, metadata

templates can be created, edited and managed. Users

can create metadata templates according to business

requirements and establish the relationship between

metadata and entity data. At the same time, data

dictionaries can be created, edited and managed,

including entity classification dictionaries, entity

relationship dictionaries, etc. The functions of the

common spatial geographic data format conversion

and the coordinate conversion are developed to

ensure that data can be in and out of the database.

(2) Database building module

Entity data is checked before storage, including

organizational structure standardization inspection,

naming specification inspection, attribute value

filling specification inspection, primitive topology

relationship inspection, etc., to ensure data integrity,

logical consistency, spatial accuracy and attribute

accuracy.

While the entity data is stored in the database, the

geographic entity object is given a unique identity

code calculated according to the geographical

location. The geographic entities are linked to related

two-dimensional data, three-dimensional data, IOT

sensing data, industry management and other

multi-source data through this code.

(3) Asset management module

All data assets through the asset directory are

visually displayed, and the target data of concern can

be quickly located. The status quo and use of all data

assets can be classified and counted, and then the

changes in asset information and asset statistics

details can be found out. After statistical summary,

the final report can be generated.

Figure 3: The functional module of DBMS about Xi'an city.

Design of Geographic Entity Database of 3D Real Scene About Xi’an City

(4) Polymorphic data organization module

Geographical entities can realize the expression

of different historical time and different spatial forms

with the unique identifier as the link. The stored

geographic entity vector, image, 3D model data and

other spatial form data are associated and organized

by unique identification code, forming the

comprehensive structural data that can find all data

forms. The data generated in the whole life cycle of

geographical entities from generation to loss is

temporally managed.

(5) Data visualization and spatial analysis

module

The target resource directory can be quickly

located based on the search, and the target

geographic entity is highlighted in the view area.

Then click on it, in two-dimensional visualization

interface display. At the same time, the scene data,

such as DOM, TDOM, DEM, DSM and so on, can

be queried and browsed, and can also be retrieved

according to the specified spatial range. Geographic

entity attribute information and knowledge graph

information can be queried in the visual view area.

Common spatial analysis functions such as spatial

measurement, overlay analysis, and spatial statistical

analysis can be performed.

(6) On-demand assembly and product derivation

modules

The package assembly can be realized according

to the themes of natural resources, transportation,

water conservancy, civil affairs and other industries,

as well as the themes of education, medical care and

health. Also, the custom assembly can be realized by

filtering according to the scope of interest, the

address of interest place name or even semantic

conditions. At the same time, terrain-level, city-level

and component-level 3D products can be derived.

Traditional topographic map products and national

and provincial fundamental geographic entity

products also can be derived through stepless

mapping technology to achieve the goal that a

geographic entity is only measured once.

(7) Collaborative update module

Through image change discovery and internet

change discovery technology, the geographic entity

targets to be updated is acquired, and the update

collection is completed by means of the

crowdsourcing software system. Before updating the

entity, it is necessary to determine whether it is

spatial information update or semantic information

update. For the newly added geographic entity, the

geographic entity needs to be initially encoded and

then stored; For the updated and modified

geographic entities, it is necessary to find the

original geographic entity in the database, record its

demise time, and then encode the updated

geographic entity to ensure that it is not repeated

with the data encoding in the entity library, and then

store the updated geographic entity.

(8) Knowledge graph construction module

Using the ID card code as the unique identifier of

the geographic entity, the data association is

established through batch construction or

human-computer interaction based on spatial

relationships, generic relationships, and temporal

relationships. Then, the geographic entity big data

relationship graph is constructed and stored in the

database. Search Interest Knowledge graph of

geographic entities, you can flexibly click on the

geographic entities on the map, linkage in the view

highlights and query the relevant attribute

information.

(9) Security operation and maintenance module

Users can be added, enabled, disabled, deleted by

the system administrator, and different user types

and functional permissions can be set. At the same

time, it can set and manage the scope, content and

usage time of users ' browsing and editing data. It

supports task flow operation log and operation and

maintenance monitoring log, and supports log query

and export, which can be used as the basis and

evidence for system security review. Full backup and

incremental backup of database system can be

carried out to deal with data loss caused by various

accidents. Also, the monitoring, management and

self-repairing of all software and hardware

information in the distributed cluster system can be

realized through the unified interface.

6 CONCLUSION

The geographic entity database of 3D real scene

about Xi'an city is an important part of the national

new fundamental surveying & mapping Xi'an pilot

construction. Closely around the building

requirements of the Ministry of Natural Resources,

the scientific management of geographic entity data,

efficient update, knowledge map construction, etc.

have been explored, and ultimately achieve ' one

library multi-functional, on-demand assembly ' goal.

This Study will help the transformation and

upgrading of fundamental surveying & mapping in

ICDPCS 2023 - The International Conference on Data Processing, Control and Simulation

Xi'an, and provide reference, replicable and

replicable experience for other new fundamental

surveying & mapping pilots.

REFERENCES

Letter No.924 from the Ministry of Natural Resources of

the People 's Republic of China on approving Xi’an

as a pilot city for new fundamental surveying &

mapping construction.

Natural Resources Office Letter No.1578, Technical Guide

for Pilot Construction of New Fundamental

Surveying & Mapping System Database [S].

Construction Technology Outline of 3D Real Scene about

China [S].

The Database building Specification of 3D Real Scene [S].

Xi'an pilot Implementation Plan of national new

fundamental surveying & mapping construction [R].

Xi’an: Xi’an Institute of Surveying & Mapping, 2020.

Preliminary design scheme of Xi’an pilot project of

national new fundamental surveying & mapping

construction (feasibility study report) [R]. Xi’an:

Xi’an Surveying & Mapping Institute, 2021.

National new fundamental surveying & mapping

construction Xi’an pilot fundamental geographic

entity classification code [S].

National new fundamental surveying & mapping

construction Xi’an pilot fundamental geographic

entity data specification [S].

GB-T18578-2016, urban geographic information system

design specification [S].

Design of Geographic Entity Database of 3D Real Scene About Xi’an City
