Development of an OWL Ontology Based on the Function-Oriented

System Architecture to Support Data Synchronization Between

SysML and Domain Models

Yizhe Zhang

, Georg Jacobs, Jia Zhao, Joerg Berroth and Gregor Hoepfner

Institute for Machine Elements and Systems Engineering, RWTH Aachen University,

Eilfschornsteinstr. 18, 52062 Aachen, Germany

Keywords: MBSE, OWL Ontology, SysML, Data Synchronization, Function-Oriented System Architecture.

Abstract: A promising approach to systems engineering is called Model-Based Systems Engineering (MBSE), which is

increasingly accepted to support the development process of complex systems. In MBSE,engineers use

Systems Modeling Language (SysML) for formalized modeling of function-oriented system architecture and

solution architecture that enable the integration of various domain models to support a seamless system

development process. Domain models simulate the physical behaviors of systems with design parameters so

as to realize the quantitative analysis and verification of systems. These design parameters often exist in

multiple heterogeneous data sources and often rely on manual importation into the SysML model. However,

when systems become complex with a large data volume, manual data exchanges between multiple data

sources and SysML models become time-consuming and error-prone. Therefore, this work proposes an

ontology based on Web Ontology Language (OWL) for managing data in a standardized way and solving

heterogeneous problems. Then, an automatic synchronization mechanism is established between the ontology

and the SysML model for easy exchange of data. This work demonstrates and validates the proposed approach

with a case study of a technical system (i.e., wind turbine system). The contribution of this work is the creation

of a standardized OWL ontology that supports an automatic synchronization between the data from multiple

domain models and the SysML models, thus reducing the manual effort of dealing with heterogeneous data

sources and the risk of data inconsistency occurring in manual data transmission.

1 INTRODUCTION

According to the International Council on Systems

Engineering (INCOSE) Vision 2035 for Systems

Engineering, Model-Based Systems Engineering

(MBSE) plays a key role in supporting product

development under ever the increased system

complexity of the products (INCOSE, 2022). Over

the past few years, many approaches have been

proposed to implement MBSE in the industry

(Estefan, 2007; Friedenthal, Moore, & Steiner, 2015;

Pietrusewicz, 2019; Weilkiens, 2014).

Among these approaches, a practical approach

focuses on the function-oriented architecture of

system modeling (Drave et al., 10162020; Jacobs et

al., 2022). The function-oriented architecture provides

a detailed top-down modeling concept that requires

traceable links between different SysML model layers

https://orcid.org/0000-0002-5116-350X

of abstraction (i.e., requirement layer, function layer,

and solution layer) during the system modeling

process. System Modeling Language (SysML) is a

general-purpose graphical modeling language used in

MBSE, which can not only support the establishment

of various abstract layers of the system architecture

but also link with external behavioral domain models

through integrated interfaces. Therefore, it can be used

to create executable central SysML models at the

parametric level (Zhang, Hoepfner, Berroth, Pasch, &

Jacobs, 2021). The Institute for Machine Elements and

Systems Engineering (MSE) at RWTH University

developed an extension of the SysML metamodel

named motego profile, which assists engineers in

developing a SysML model with the function-oriented

system architecture for a technical system (Spütz,

Jacobs, Konrad, & Wyrwich, 2021).In order to design,

analyze and verify the technical system at the

Zhang, Y., Jacobs, G., Zhao, J., Berroth, J. and Hoepfner, G.

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML and Domain Models.

DOI: 10.5220/0012155900003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 2: KEOD, pages 143-154

ISBN: 978-989-758-671-2; ISSN: 2184-3228

143

parameter level, it is necessary to set model

parameters for the SysML model. SysML provides

instance elements to store the physical and geometric

parameters of different domain models which come

from heterogeneous data sources (e.g., Excel files,

Matlab files) (Zerwas et al., 2021). In order to utilize

heterogeneous data in the system validation processes

within the SysML model, engineers must manually

input this data into the corresponding instances within

the model. However, when the system becomes

complex and contains a large amount of data, this

often leads to a lot of manual work, which reduces the

efficiency of the system validation process. Further, it

is difficult to avoid the risk of data inconsistency

caused by manual errors of engineers when

transferring data.To solve this problem, this work

develops an ontology and a synchronization

mechanism to solve the problem of heterogeneous

structural data between the domain models and the

SysML model. Ontologies based on Web Ontology

Language (OWL) can integrate heterogeneous data

(Agustina Buccell, Alejandra Cechich, & Nieves R.

Brisaboa, 2005) and support the design of semantic-

based standardized database schemas (I.T., 2017).

Therefore, the following two requirements are placed

on the ontology and synchronization mechanism:

 The OWL ontology developed in this work

needs to be standardized in order to have the

ability to integrate heterogeneous data.

 The ontology structure needs to correspond to

the system architecture with the motego profile.

The realization of the synchronization mechanism

requires the establishment of a standardized mapping

between the system architecture and the ontology

structure. According to the mapping relationship, the

ontology can be extended with the change in the

system architecture. By using the proposed ontology,

the data in the SysML model can be updated in time

according to the data from domain models.

In order to achieve these objectives, the paper is

structured as follows. Section 2 introduces the

foundation of the paper and related works. Section 3

describes how an OWL ontology can be created and

how it can be synchronized with the motego profile

of a function-oriented SysML model. Section 4

demonstrates the proposed approach through case

studies of a wind turbine system. Finally, section 5

discusses the superiority and challenges of this work,

as well as the outlook for future research. Section 6

concludes this work.

2 BACKGROUND

2.1 Function-Oriented System

Development

In order to improve the transparent traceability of the

SysML elements during modeling processes, the

Institute for Machine Elements and Systems

Engineering (MSE) at RWTH Aachen University

proposes a more comprehensive MBSE method for

function-oriented system development (Jacobs et al.,

2022).

2.1.1 System Architecture

The method applies a function-oriented system

architecture for the system modeling of technical

engineering systems (e.g., WT systems) (Zhang et al.,

2021; Zhang, Roeder, Jacobs, Berroth, & Hoepfner,

2022). The functional architecture is in the form of a

hierarchy. The top function can be decomposed into

sub-functions which serve as the parts of one higher-

level function. A system function, or a part of it, can

be delimited by a boundary through which physical

quantities can enter and leave the function through

functional flows. These flows can be energy flows,

material flows, or signal flows. The function of the

delimited system transforms the physical quantities of

the incoming flows into other physical quantities of

the outgoing flows. Functions are referred to as

elementary functions if the transformation of the

flows they represent does not physically decompose

further. The solution element describes a general

effect or set of general effects that fulfills functions

physically. The functions and the solutions are linked

by generalization relationships. Therefore, the

solutions will inherit the functional flows from the

functions they fulfill. This generalization relationship

bridges the gap between functional architecture and

physical architecture.

2.1.2 Motego Profile

MSE has extended and customized the SysML

metamodel based on the functional architecture and

named it motego profile, so that engineers can more

easily implement functional-oriented system

development.

In order to enable the automatic exchange of data

in the SysML model based on the profile, a code-

based analysis is required. Extensible Markup

Language Metadata Interchange (XMI) is an

interchange format for SysML models, which is used

to help programmers by using SysML to exchange

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

144

model data with different languages and development

tools (Grose, Brodsky, & Doney, 2002).

The SysML model described by XMI is as

follows:

 The XMI element describing the SysML model

is the <uml:Model> node.

 Each SysML model element is described in a

<packagedElement> node or

<nestedClassifier> node under the

<uml:Model> node.

 The XMI element describes SysML model

properties in the <ownedAttribute> node under

the <packagedElement> node.

Table 1 summarizes the critical metamodel

elements of the motego profile extended from SysML

in XMI format.

2.2 Ontology

To integrate heterogeneous data sources, the concept

“Ontology” is widely used in computer science and

information science. The construction of an ontology

requires the application of a systematic and structured

methodology to ensure that it serves as an effective

tool for standardizing and formalizing concepts. A

well-defined ontology construction methodology

contributes to the development of high-quality,

consistent, and reusable ontologies, which ultimately

facilitate communication, collaboration, and

integration of knowledge across various domains

(Fernández-López, Gómez-Pérez, & Juristo, 1997).

2.2.1 Web Ontology Language

OWL is a knowledge representation language

designed to formulate, exchange, and reason with

knowledge about a domain of interest. The OWL

provides a way to add a human-readable label on

classes, properties, and individuals using

annotations (P. Hitzler, M. Krötzsch, B. Parsia, P.

Patel-Schneider, & S. Rudolph, 2012). Class,

individual, and property are fundamental building

units of OWL ontologies.

The class describes concepts in a domain that are

used to group data with similar characteristics. The

individual is also called the instance, which

represents a concrete occurrence of any concept in a

domain of interest. The property is further divided

into two categories: data property and object

property. Data properties are relations between

instances and values or classes and datatypes. Object

properties are relations between two individuals or

two classes.

2.2.2 Ontology Definition Metamodel

In order to realize the interoperability between OWL

ontologies and SysML models, OMG developed a

specification and defined it as Ontology Definition

Metamodel (ODM). ODM makes the metamodel

architecture of the SysML model applicable to the

modeling of ontologies based on OWL (Colomb et al.,

2006). The ODM enables the use of a variety of

SysML models as starting points for ontology

development. Table 2 shows that ODM has a layered

correspondence with SysML metamodel architecture

(Agustina Buccell et al., 2005):

 Metamodel layer is the language specification

layer. Metamodels describe modular units or

models of models in the model layer.

Table 1: Metamodel elements of motego profile based on the SysML.

SysML Metamodel elements Motego profile elements Motego profile elements in XMI format

«requirement» «FunctionalRequirement» <motegoProfile:FunctionalRequirement/>

«block»

«FucntionalArchitecture»

«ElementaryFucntion»

«SystemSolution»

«SolutionElement»

«EnergyFlow»

<motegoProfile:FucntionalArchitecture/>

<motegoProfile:ElementaryFucntion/>

<motegoProfile:SystemSolution/>

<motegoProfile:SolutionElement/>

<motegoProfile:EnergyFlow/>

Port

ert

Ener

FlowPort

ert

<mote

oProfile:Ener

FlowPort/>

Part property

Architecture property

Element property

<motegoProfile:ArchitectureProperty/>

<motegoProfile:ElementProperty/>

Flow propert

<sysml:FlowProperty/>

Satisf

relationshi

sml:Satisf

Generalization relationshi

eneralization xmi:t

e='uml:Generalization'/>

Association relationship

<packagedElement xmi:type='uml:Association'

></

acka

edElement>

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML

and Domain Models

145

 contains an entity of the metamodel that

describes a particular object of a system, e.g.,

a SysML model and an OWL ontology.

 Instance layer contains the real-world

individuals or instances which are used to

describe the objects by user data.

Table 2: The three layers of Ontology Definition

Metamodel. Adapted from (Agustina Buccell et al., 2005).

Layer

SysML

Metamodel

Architecture

Ontology

Definition

Metamodel

SysML

metamodel

OWL metamodel

Model layer SysML model OWL ontology

Instance la

sML instance OWL individual

2.3 Related Works

Various studies have addressed the integration of

SysML models and OWL ontologies to enhance the

expressiveness, semantic understanding, and

efficiency of system design. This section reviews

three related works that deal with similar challenges.

State Analysis is a methodology for designing

complex control systems. (Wagner et al., 2012)

presents ontological definitions of State Analysis

concepts and relations, as well as a practical SysML

extension to provide greater flexibility. The ontology

offers a formal basis for verifying compliance with

State Analysis semantics, while the SysML extension

enables the application of State Analysis

methodology with SysML tools.

(Graves, 2009) focuses on constructing a

Knowledge Base (KB) using OWL to represent

detailed system design information, such as part

occurrences and interconnections between parts. This

work proposes translating suitably restricted SysML

block diagrams into OWL, preserving their model-

theoretic semantics. The resulting design KBs can be

developed using engineering design tools and

exported to OWL tools for analysis. This approach

provides a partial unification of SysML and OWL,

which is sufficient for modeling complex systems.

SysML Requirement Diagrams model non-

functional requirements that can’t be accommodated

in the Unified Modeling Language (UML). However,

SysML lacks the capability to represent semantic

contexts within the design. (Wardhana, Ashar, & Sari,

2020) proposes a model that automatically transforms

SysML Requirement Diagrams into OWL files,

capturing the semantic context of system design. The

transformation process uses a transformation rule and

an algorithm to change SysML Requirement

Diagrams into OWL ontology files. This approach

reduces errors and time-consuming efforts in a

manual transformation process.

3 APPROACH

While these studies have made significant strides,

there is still a need for an approach that focuses on

automating synchronization and management of

heterogeneous data in SysML models. Building an

ontology and synchronizing data manually is time-

consuming, and existing research has not yet

implemented the synchronization between the

SysML model and the OWL ontology (Jenkins &

Rouquette, 2012; Wardhana et al., 2020). In addition,

although the ODM realizes the creation of an OWL

ontology based on the SysML metamodel

architecture, the semantics of the created ontologies

are not based on the function-oriented system

architecture. Therefore, the heterogeneous data

sources from domain models are difficult to cooperate

with the function-oriented SysML models. To fill this

research gap, this section will further develop the

ODM to support the automated creation of OWL

ontologies corresponding to the function-oriented

system architecture.

3.1 Development of the ODM Based on

Function-Oriented System

Architecture

3.1.1 Definition of the ODM Profile Layer

The motego profile is no longer a standard SysML but

a specific language to support the modeling of

engineering systems (Drave et al., 10162020; Spütz

et al., 2021). Therefore, the motego profile does not

belong to the metamodel layer, nor does it belong to

the model layer. It is a conceptual framework for

specific standardized system modeling between the

SysML metamodel and the SysML model. Therefore,

this work proposes an additional layer named the

“profile layer” between the metamodel layer and the

model layer (see Table 3).

The necessity of the profile layer can be explained

by the following points:

 Representation of domain-specific concepts:

The profile layer allows the incorporation of

domain-specific concepts, which are not

covered by the standard SysML metamodel,

into the modeling process. This facilitates the

creation of more accurate and comprehensive

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

146

system models by capturing the unique aspects

of the engineering systems being modeled.

 Customization and extensibility: The profile

layer provides a means for users to customize

and extend the SysML metamodel to suit their

specific modeling needs. This allows for the

development of tailored modeling languages

that can better address the requirements of

individual engineering domains.

 Bridging the gap between metamodel and

model layers: The profile layer serves as an

intermediate layer between the metamodel and

model layers, enabling a smooth transition

between the generic SysML metamodel and the

concrete system models. This helps to ensure

that the models are consistent with the

underlying metamodel, while still allowing for

the incorporation of domain-specific concepts.

In the profile layer, an additional OWL profile

should also be provided between OWL metamodel

and OWL ontology, which corresponds to the SysML

profile. This work considers the OWL profile as the

basic ontology for generating the OWL ontology. By

introducing an additional OWL profile between the

OWL metamodel and OWL ontology, it is possible to

maintain alignment between the SysML and OWL

representations of the engineering systems. This

ensures that the ontological structures used to

represent the systems are consistent and compatible.

Table 3: The Ontology Definition Metamodel with the

profile layer.

Layer

SysML

Metamodel

Architecture

Ontology

Definition

Metamodel

SysML

metamodel

OWL

metamodel

Profile layer

SysML profile

(Motego profile)

OWL profile

Model layer SysML model OWL ontology

Instance laye

SysML instance OWL individual

3.1.2 Definition of the ODM Profile Based

on the Motego

The OWL profile, as a conceptual framework,

consists mainly of metamodel elements representing

classes and relationships of classes. Based on the

critical classes, properties, and relationships in the

motego profile, this work designs the corresponding

profile-classes and profile-properties of the OWL

profile as described in the following sub-sections.

3.1.3 Creating OWL Profile-Classes

The motego profile contains basic modeling class

elements that can be used as the stereotypes of system

requirements elements, function elements, solution

elements, and so on. Therefore, as shown in Table 4,

Table 4: The OWL profile elements corresponding to the motego profile.

Profile layer Motego profile OWL profile

Profile-

classes

<motegoProfile:FunctionalRequirement/> Declaration(Class(:FunctionalRequirement))

<motegoProfile:FucntionalArchitecture/>

<motegoProfile:ElementaryFucntion/>

<motegoProfile:SystemSolution/>

<motegoProfile:SolutionElement/>

<motegoProfile:EnergyFlow/>

Declaration(Class(:FucntionalArchitecture))

Declaration(Class(:ElementaryFunction))

Declaration(Class(:SystemSolution))

Declaration(Class(:SolutionElement))

Declaration(Class(:EnergyFlow))

Profile-

properties

<packagedElement

xmi:type='uml:Assoc

iation'></packagedEl

ement>

(Object profile-

properties)

<motegoProfile:ArchitecturePropert

y/>

(Object profile-

roperties)

Declaration(ObjectProperty (:hasArchtecture))

<motegoProfile:EnergyFlowPort/>

(Object profile-

roperties)

Declaration(ObjectProperty (:hasEnergyFlowPort))

<sysml:FlowProperty/>

(Data profile-properties)

Declaration(DataProperty (:hasFlowProperty))

<sysml:Satisfy>

(Object

rofile-

roperties)

Declaration(ObjectProperty (:Satisfy))

(Object Upper-properties)

SubClassOf(:childClass :parentClass)

SubObjectPropertyOf(:childObjectProperty

:parentObjectProperty)

SubDataPropertyOf(:childDataProperty

:parentDataProperty)

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML

and Domain Models

147

the motego profile class elements (e.g.,

«FunctionalRequirement»,

«FunctionalArchitecture», «SystemSolution», etc.)

are regarded as profile-classes in the OWL profile.

These profile-classes have the same names as these

motego profile class elements. For example,

the motego profile class element

«FunctionalRequirement» is defined as the OWL

profile-class “FunctionalRequirement”.

3.1.4 Creating OWL Profile-Properties

The motego profile contains basic modeling property

elements of each class and relationship elements

between these classes. Therefore, as shown in Table

4, the critical property (e.g., Architecture property,

EngergyFlowPort property) and relationship

elements (e.g., Association relationship, Satisfy

relationship, etc.) can be regarded as profile-

properties in the OWL profile.

In the motego profile, these properties and the

association relationship are defined separately, while

in the OWL, they are defined jointly as the OWL

profile-properties, and are standardized named “has”

combined with the name of the property. For

example, the architecture property with the

association relationship in the motego profile can be

used to represent the composition relationship

between two «FunctionalArchitecture» classes.

While in the OWL profile, “hasArchitecture”

property is defined to represent this composition

relationship. This choice facilitates the modeling of

nested structures, reflecting the inherent containment

relationships in the SysML model, and supports our

goals of data synchronization and consistency. Most

of the relationships of the motego profile can also be

regarded as the OWL profile-property, which is

named the same as the name of the relationships. For

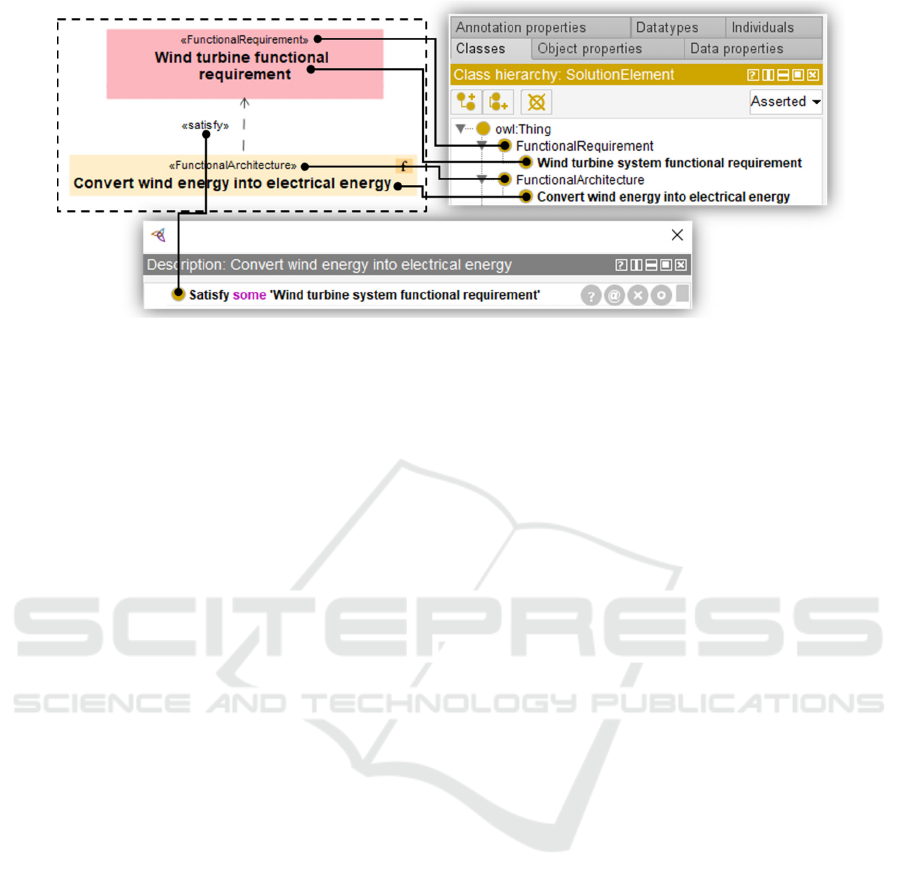

example, a satisfy relationship can be named

“Satisfy” property in the OWL upper-ontology. It is

worth noting that the generalization relationship does

not need to be customized in OWL, and it can be

represented directly using the built-in ontology

relations (e.g., “SubClassOf”). As mentioned in

section 2.2.1, the OWL profile-property can be

divided into two types, which are object profile-

property and data profile-property. Data profile-

properties associate classes with data (e.g., strings,

numbers, etc.), while object profile-properties

associate classes with other classes. For example,

“hasFlow” is the data property, and “hasArchitecture”

is an object property, since the parts of the super-class

are usually other sub-classes.

3.2 Development of Mapping

Relationship for Data

Synchronization

The development of the profile layer enables OWL

ontology to be created and structured in a

standardized way according to the function-oriented

system architecture. In order to automatically

synchronize the ontology with the SysML model, the

specific mapping rules need to be designed at the

model and instance layer.

3.2.1 Mapping Between OWL Ontologies

and SysML Models

At the model level, engineers create SysML model

elements based on the motego profile (e.g.,

requirement elements, function elements). In order to

establish the synchronization mechanism between the

SysML model and the OWL ontology, the following

steps need to be considered:

 Creating the corresponding ontology elements

based on the SysML model element ID &

Name.

 Defining the relationship between the OWL

ontology elements and the OWL profile

elements based on the classifier relationships

between the SysML model elements and the

SysML profile elements.

Table 5 shows the mapping relationship between

the SysML model and the OWL ontology with the

function-oriented system architecture. A class needs

to be declared in the OWL ontology at first. This class

is defined according to the element ID of the model

element, so as to ensure that the ontology can

correspond to the unique element in the SysML

model. In addition, the names of the model element

can be stored in ontology annotations. Secondly, the

stereotype of the model element is classified as the

SysML profile element. To present this classifier

relationship, the “SubClassOf” association can be

established in the OWL ontology between the

ontology elements and the profile.

3.2.2 Mapping Between OWL Individuals

and SysML Instances

At the instance layer, engineers create instances with

specific parameter values for SysML model elements.

In order to establish a synchronization mechanism

between a SysML instance and an OWL individual,

the following steps need to be considered:

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

148

Table 5: The OWL ontology elements corresponding to the SysML model elements.

Model laye

SysML model OWL ontolog

Model

elements

Creating OWL ontology

elements

<packagedElement xmi:type='uml:Class'

xmi:id=ElementID

name=ElementName></

acka

edElement>

Declaration(Class(:ElementID))

AnnotationAssertion(rdfs:label :

ElementID ElementName

)

Defining the relationship

between ontology

elements and profile

<motegoProfile:ProfileElement

base_Class=ElementID/>

SubClassOf(:ElementID

:ProfileElement)

Table 6: The OWL individuals corresponding to the SysML instances.

Instance layer SysML instance OWL individual

Instances

Creating OWL individuals

<packagedElement

xmi:type='uml:InstanceSpecification'

xmi:id=InstanceID

name=InstanceName></packagedElement>

Declaration(NamedIndi

vidual

(:IndividualName))

Defining the relationship between

individuals and ontolo

elements

ClassAssertion(:Elemen

tID :IndividualName

)

Setting the data mapping

DataPropertyAssertion(:

FeatureID

:IndividualName

DataValue)

 Creating OWL individuals for the OWL

ontology element.

 Defining the relationship between the OWL

ontology element and the OWL individual

based on the corresponding relationship

between the SysML model element and the

SysML instance.

 Setting the mapping between the property

values of the OWL individual and the

feature values of the SysML instance.

Table 6 shows the mapping relationship between

SysML instances and OWL individuals with the

function-oriented system architecture. An individual

needs to be created and named in OWL ontology first.

Next, an OWL ontology element as the classifier for

the individual need to be defined. Then, based on the

mapping relationships in the model layer, the

corresponding instance can be found in SysML.

Finally, a mapping relationship between individual

property values and instance feature values is created

based on the corresponding feature’s ID.

3.2.3 Synchronization Mechanism Based on

Mapping Relationships

As shown in Figure 1, in order to establish the

synchronization mechanism, the ontology

architecture needs to be defined first. In this work, the

definition of the architecture takes place at the profile

layer, and designers need to create the relevant OWL

profile according to the SysML profile. Specifically,

the motego profile elements with XMI format are

parsed through the object-oriented programming

language (i.e., Java). These parsed elements include

the customized classes, properties, and relationships,

which can be temporarily saved in a Java container.

These elements are then converted and saved as

structured OWL profile elements according to the

corresponding transformation rules given in Table 4.

Secondly, the original OWL ontology can be

easily generated based on the SysML model

according to the mapping relationships given in Table

5. The synchronization of the model occurs after the

SysML model has been changed. As shown in Figure

1, the SysML model elements and the OWL ontology

elements are parsed separately by the programming

language, including the ID and name information of

these elements. Then, the information is saved in the

Java container for the profile. By comparing the

difference between the information in the Java

container of SysML and the Java container of OWL,

the Java container for the model can be updated and

used to generate the updated OWL ontology.

Specifically, the mechanism requires comparing the

differences (e.g., name changes) between model

elements and ontologies with the same ID. In

addition, when SysML model elements are added or

deleted, the corresponding elements in the OWL

ontology can also be added or deleted along with

them.

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML

and Domain Models

149

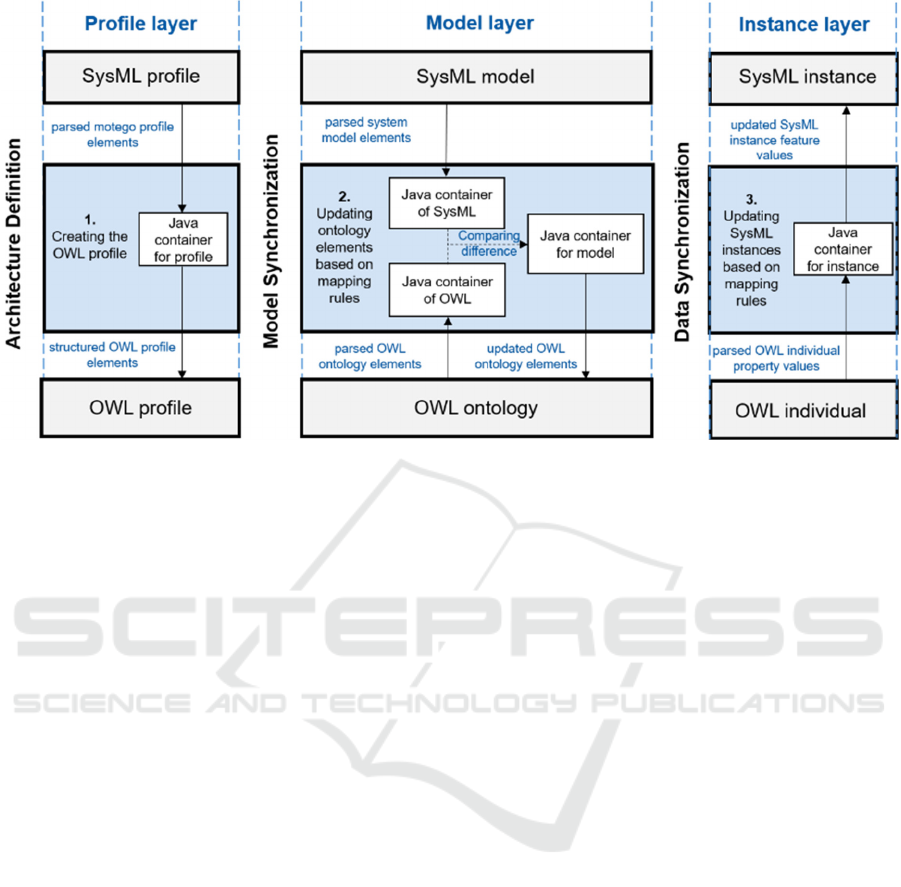

Figure 1: The synchronization mechanism between SysML & OWL based on mapping relationships.

Finally, in order to synchronize the data in the

instance layer, the corresponding SysML instance and

OWL individual need to be found according to the

mapping relationships given in Table 6. The

synchronization of data occurs after OWL individual

changes. As shown in Figure 1, the individual for

which data properties need to be synchronized is

parsed in the programming language, and the

property values are then stored in the Java container

for the SysML instance. These property values are

then synchronized to the corresponding feature values

of the corresponding SysML instance.

4 CASE STUDIES

This section demonstrates an OWL ontology based on

the function-oriented system architecture, and the

application of the designed OWL ontology to support

the data synchronization between a SysML instance

and the data source (i.e., Excel) from domain models.

In this work, the SysML model is built in a system

modeler tool (i.e., Cameo Systems Modeler), and

OWL ontology is created by using an open-source

ontology editor (i.e., Protégé).

4.1 Demonstration of an OWL

Ontology Based on Function-

Oriented System Architecture

In this case study, a simple wind turbine OWL

ontology is demonstrated, which is automatically

created based on the wind turbine SysML with the

function-oriented system architecture. In this case

study, we present a comprehensive wind turbine

OWL ontology, automatically created based on the

wind turbine SysML with a function-oriented system

architecture. While this example is intentionally

simplified for ease of understanding, it’s worth noting

that the mapping method provided in this paper

theoretically allows for the addition of more objects

and parameters to make the model more complex.

Additionally, we have considered the implementation

of a physics-based model of the wind turbine in

domain model to demonstrate synchronization with

that model, showcasing the robustness and

adaptability of our approach.

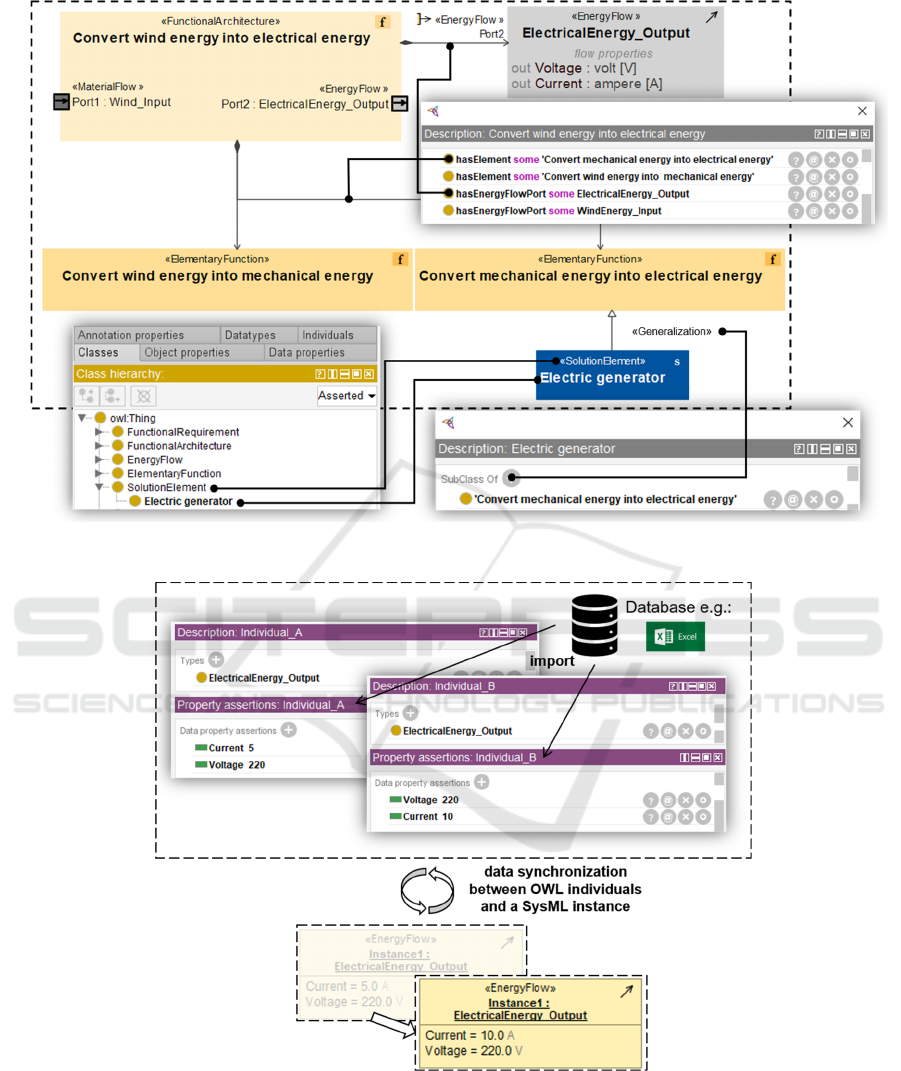

For the wind turbine SysML model, the

requirements need to be modeled first. As shown in

Figure 2, the SysML model stereotype

«FunctionalRequirement» is a motego profile

element, which is automatically created as a profile-

class “FunctionalRequirement” in the OWL profile

according to the mapping relationships. A SysML

requirement model element named “Wind turbine

system functional requirement” has the classifier

«FunctionalRequirement». According to Table 5, this

requirement model element is represented in OWL as

a sub-class of the profile ontology

“FunctionalRequirement”. Protégé describes the

ontology model as a tree model by structuring profile

elements and ontology elements in parent-nodes and

children nodes.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

150

Figure 2: Demonstration of the SysML model architecture between the requirement & function layer in the OWL ontology.

By analogy, a function model element named

“Convert wind energy into electrical energy” is

represented in OWL as a sub-class of the profile

ontology “FunctionalArchitecture”. The function

model element has a satisfy relationship with the

«FunctionalRequirement» “Wind turbine functional

requirement” in the SysML model. This relationship

is defined as the object profile-property “Satisfy”,

which is used to represent that the function ontology

element “Convert wind energy into electrical energy”

satisfies the requirement ontology element “Wind

turbine functional requirement”. In the wind turbine

SysML model, the function model element “Convert

wind energy into electrical energy” is classified as a

«FunctionalArchitecture» which can be broken down

into two «ElementaryFunction» (i.e., “Convert wind

energy into mechanical energy” and “Convert

mechanical energy into electrical energy”). These

function model elements can be transformed and

represented in the OWL ontology with a hierarchical

model tree (see Figure 2). The relationship between

the super-function and its sub-functions is

transformed into an object profile-property

“hasArchitecture” of the OWL super-function

ontology element. In addition, each function model

element has the Port property. Still taking the

«FunctionalArchitecture» “Convert wind energy into

electrical energy” as an example, the “Port 2” typed

by “ElectricalEngergy_Output” is an

EnergyFlowPort property of the function element in

the SysML model. In the OWL ontology, this

property is transformed into an object profile-

property “hasEnergyFlowPort” of the function

element (see Figure 3).

In the same way, solution model elements can also

be transformed and represented in the OWL ontology

with a hierarchical model tree (see Figure 3). In the

wind turbine SysML model, function and solution

elements are linked by generalization relationships.

This relationship is directly represented as

“SubClassOf” in the OWL ontology.

4.2 Demonstration of the Data

Synchronization Between SysML

and OWL

In this section, the case study demonstrates when

engineers change the property values of the individual

or choose other individuals, the feature values of the

instance in the SysML model also change

synchronically.

As shown in Figure, assuming the «EnergyFlow»

“ElectricalEnergy_Output” has two flow properties,

“Voltage” and “Current”. These two flow properties

can be specified in an instance. For example, the

instance named “Instance1” has the flow properties

“Voltage” and “Current” with the original feature

values 220.0V and 5.0A. The corresponding

individual can be created in OWL according to the

mapping relationships given in Table 6, which is

named “Individual_A”.

Protégé provides the functionality of

synchronizing ontology individuals with external

data sources, such as the “csv.” file from the Excel

model. When the data from the data source is

imported into the OWL ontology, a new individual

(i.e., “Individual_B”) can be generated. This

individual has the latest parameter value (i.e., Voltage

= 220.0V & Current = 10.0A). These parameter

values in the new ontology individual can be

synchronized with the “Instance1” in the SysML

model. During the synchronization procedure, the

corresponding parameter values (i.e., “Voltage” and

“Current”) of the SysML instance “Instance1” will be

updated accordingly.

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML

and Domain Models

151

Figure 3: Demonstration of the SysML model architecture between function & solution layer in the OWL ontology.

Figure 4: Demonstration of the data synchronization between SysML model and OWL ontology.

5 DISCUSSION

The case studies show that the developed OWL

ontology can be used to support the data

synchronization between heterogeneous data sources

from domain models with the SysML model. Our

method offers a mapping mechanism that, in theory,

can be expanded by adding more objects and

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

152

parameters to increase the complexity of the model.

Although the wind turbine system case study

presented here is simplified for clarity, the approach

can be extended to more complex systems.

The proposed approach has significant advantages

over manually setting up the data in the SysML

model. First, the structure of the ontology

corresponds to the function-oriented system

architecture, and the data semantic with explicit

relationships can be automatically generated, thereby

efficiently organizing heterogeneous data sources.

Second, engineers can automatically synchronize the

ontology with the SysML model based on the

mapping relationships implemented by executing

Java code, thereby reducing manual efforts and the

risk of data inconsistency caused by human mistakes.

This work takes the wind turbine system as an

example to demonstrate how OWL ontology is

created and how data from heterogeneous data

sources synchronized with instances in the SysML

model. Although the cases presented in the work are

limited and very specific, the work is considered

scalable due to the normalized semantic definition of

the ontology and the corresponding mapping

relationships that can be extended. Although in the

case studies, the heterogeneous data sources are

automatically imported through the specific OWL

ontology editing software (i.e., Protégé), the OWL

(Web Ontology Language) provides a standardized

approach for representing, sharing, and reusing

domain knowledge. This allows us to integrate

information from different data sources seamlessly.

Consequently, our method exhibits a high degree of

generalizability.

The utilization of OWL as a middle layer in our

approach offers distinct advantages that enhance the

robustness and efficiency of the mapping process.

OWL's rich expressive power allows for the

representation of complex relationships and

constraints within the data, facilitating consistency

checking and validation of the models. This ensures

that the synchronized data adheres to predefined rules

and semantics, reducing the likelihood of errors and

inconsistencies. Moreover, the standardized nature of

OWL enables seamless integration and sharing of

domain knowledge, promoting reusability and

scalability of the approach. While the current work

focuses on the synchronization aspect, the potential

for leveraging OWL inference capabilities remains an

avenue for future exploration, offering possibilities

for more advanced reasoning and analysis within the

SysML modeling environment.

However, the current automatic synchronization

mechanism still has limitations. First, this work

designs the architecture and mapping relationships of

ontology based on a state-of-the-art SysML profile

(i.e., motego profile). With the further development

of the motego profile, designers need to continuously

improve and supplement the ontology structure to

increase the robustness of the synchronization

mechanism. Secondly, this work only implements the

scenario where multiple ontology individuals are

synchronized with a single SysML instance, and the

data synchronization mechanism can be further

developed to handle the synchronization scenario

with multiple SysML instances. Finally, since the

OWL ontology is created based on the SysML model

architecture, the model element IDs automatically

created by the SysML model are used as identity

authentication during data synchronization. However,

for the possible existence of multiple SysML models,

the data coupling between the SysML model and

domain model based on IDs is not reliable enough.

(Zerwas et al., 2022) proposed the concept of model

signatures. With the development of this concept,

algorithms for automatic data compatibility checking

need to be introduced into the synchronization

mechanism. This will greatly improve the data

consistency in the synchronization process proposed

in this work.

6 CONCLUSION

SysML models often require parameters from various

domains to design, analyze and verify the system.

How to realize the automatic synchronization of these

heterogeneous data and SysML models is a challenge.

The purpose of this work is to provide an approach to

facilitate data import and management from external

sources to the SysML model. The focus of this work

is to develop an OWL ontology for integrating data

and synchronizing with the SysML model. The

ontology designed in this work is based on the

function-oriented system architecture. Therefore, the

association structure of data in the ontology is

consistent with the system architecture existing in the

SysML model, which is easily extensible and

beneficial to data synchronization and management.

In order to realize the automatic synchronization

mechanism, the mapping rules between the system

architecture and the ontology are established. In order

to obtain general mapping rules, an analysis of the

SysML profile is required. The SysML profile

extended by the motego profile is mapped to the

OWL profile. In addition, it is demonstrated through

the wind turbine SysML model cases that the

generated ontology can be used to interoperate with

Development of an OWL Ontology Based on the Function-Oriented System Architecture to Support Data Synchronization Between SysML

and Domain Models

153

data from external data sources of domain models,

and these data in the ontology can be synchronized to

the SysML model based on mapping rules and unique

model element IDs. This work reduces the manual

effort of data import and management in the SysML

model and avoids the risk of data inconsistency.

REFERENCES

Agustina Buccell, Alejandra Cechich, & Nieves R.

Brisaboa (2005). Ontology-based data integration

methods: a framework for comparison. Revista

Colombiana de Computación, 6(1), 1–24, from

http://revistas.unab.edu.co/index.php/rcc/article/view/1

068.

Colomb, R., Raymond, K., Hart, L., Emery, P., Welty, C.,

Xie, G. T., & Kendall, E. (2006). The Object

Management Group Ontology Definition Metamodel.

In C. Calero, F. Ruiz, & M. Piattini (Eds.), Ontologies

for Software Engineering and Software Technology

(pp. 217–247). Scholars Portal.

Drave, I., Rumpe, B., Wortmann, A., Berroth, J., Hoepfner,

G., Jacobs, G., et al. (10162020). Modeling mechanical

functional architectures in SysML. In E. Syriani & H.

Sahraoui (Eds.), Proceedings of the 23rd ACM/IEEE

International Conference on Model Driven

Engineering Languages and Systems (pp. 79–89). New

York, NY, USA: ACM.

Estefan, J. A. (2007). Survey of model-based systems

engineering (MBSE) methodologies.

Fernández-López, M., Gómez-Pérez, A., & Juristo, N.

(1997). METHONTOLOGY: From Ontological Art

Towards Ontological Engineering. Proceedings of the

Ontological Engineering AAAI-97 Spring Symposium

Series: American Asociation for Artificial Intelligence;

Facultad de Informática (UPM).

Friedenthal, S., Moore, A., & Steiner, R. (2015). A practical

guide to SysML: The systems modeling language (Third

edition). Amsterdam, Boston: Elsevier MK Morgan

Kaufmann is an imprint of Elsevier.

Graves, H. (2009). Integrating sysml and owl.

Grose, T. J., Brodsky, S., & Doney, G. C. (2002). Mastering

XMI: Java programming with the XMI toolkit, XML,

and UML. OMG: v.21. New York, N.Y.: Wiley.

I.T., D. (2017). Ontology-based knowledge base design.

INCOSE (2022). Building the Systems Engineering

Workforce of the Future: Education, Training and

Development of System Engineers.

Jacobs, G., Konrad, C., Berroth, J., Zerwas, T., Höpfner, G.,

& Spütz, K. (2022). Function-Oriented Model-Based

Product Development. In D. Krause & E. Heyden (Eds.),

Design Methodology for Future Products (pp. 243–

263). Cham: Springer International Publishing.

Jenkins, J. S., & Rouquette, N. F. (2012). Semantically-

Rigorous systems engineering modeling using SysML

and OWL: Pasadena, CA : Jet Propulsion Laboratory,

National Aeronautics and Space Administration, 2012.

P. Hitzler, M. Krötzsch, B. Parsia, P. Patel-Schneider, & S.

Rudolph (2012). OWL 2 Web Ontology Language

Primer (Second Edition). undefined, from

https://www.semanticscholar.org/paper/OWL-2-Web-

Ontology-Language-Primer-(Second-Edition)-Hitzler-

Kr%C3%B6tzsch/bce0b752e7f5288d8032ca971f72a3

c58e810a7c.

Pietrusewicz, K. (2019). Metamodelling for Design of

Mechatronic and Cyber-Physical Systems. Applied

Sciences, 9(3), 376.

Spütz, K., Jacobs, G., Konrad, C., & Wyrwich, C. (2021).

Integration of Production and Cost Models in Model-

Based Product Development. Open Journal of Social

Sciences, 09(12), 53–64.

Wagner, D. A., Bennett, M. B., Karban, R., Rouquette, N.,

Jenkins, S., & Ingham, M. (2012). An ontology for

State Analysis: Formalizing the mapping to SysML. In

2012 IEEE Aerospace Conference. Big Sky, Montana,

USA, 3 - 10 March 2012 (pp. 1–16). Piscataway, NJ:

IEEE.

Wardhana, H., Ashar, A., & Sari, A. K. (2020).

Transformation of sysml requirement diagram into owl

ontologies. International Journal of Advanced

Computer Science and Applications, 106–114, from

https://www.researchgate.net/profile/helna-wardhana-

3/publication/341153151_transformation_of_sysml_re

quirement_diagram_into_owl_ontologies/links/5ec5c0

0b92851c11a87ae2fa/transformation-of-sysml-

requirement-diagram-into-owl-ontologies.pdf.

Weilkiens, T. (2014). Systems Engineering mit

SysML/UML: Anforderungen, Analyse, Architektur.

Mit einem Geleitwort von Richard Mark Soley:

dpunkt.verlag.

Zerwas, T., Jacobs, G., Kowalski, J., Husung, S., Gerhard,

D., Rumpe, B., et al. (2022). Model Signatures for the

Integration of Simulation Models into System Models.

Systems, 10(6), 199.

Zerwas, T., Jacobs, G., Spütz, K., Höpfner, G., Drave, I.,

Berroth, J., et al. (2021). Mechanical concept

development using principle solution models. IOP

Conference Series: Materials Science and Engineering,

1097(1), 12001, from https://iopscience.iop.

org/article/10.1088/1757-899X/1097/1/012001.

Zhang, Y., Hoepfner, G., Berroth, J., Pasch, G., & Jacobs,

G. (2021). Towards Holistic System Models Including

Domain-Specific Simulation Models Based on SysML.

Systems, 9(4), 76.

Zhang, Y., Roeder, J., Jacobs, G., Berroth, J., & Hoepfner,

G. (2022). Virtual Testing Workflows Based on the

Function-Oriented System Architecture in SysML: A

Case Study in Wind Turbine Systems. Wind, 2(3), 599–

616.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

154
