Enhancing SSR in Low-Thread Web Servers: A Comprehensive

Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

Fernando Miguel Carvalho

and Pedro Fialho

ISEL, Polytechnic Institute of Lisbon, Portugal

ﬁ

https://cc.isel.pt/

Keywords:

Web Templates, Server-Side Rendering, Non-Blocking, Asynchronous, Concurrent.

Abstract:

Naive server-side rendering (SSR) techniques require a dedicated server thread per HTTP request, thereby

limiting the number of concurrent requests to the available server threads. Furthermore, this approach proves

impractical for modern low-thread servers like WebFlux, VertX, and Express Node.js. To achieve progressive

rendering, asynchronous data models provided by non-blocking APIs must be utilized. Nevertheless, this

method can introduce undesirable interleaving between template view processing and data access, potentially

resulting in malformed HTML documents. Some template engines offer partial remedies through speciﬁc

templating dialects, but they encounter two limitations. Firstly, their compatibility is conﬁned to speciﬁc

types of asynchronous APIs, such as the reactive stream Publisher API. Secondly, they typically support

only a single asynchronous data model at a time. In this research, we propose an alternative web templating

approach that embraces any asynchronous API (e.g., Publisher, promises, suspend functions, ﬂow, etc.) and

allows for multiple asynchronous data sources. Our approach is implemented on top of HtmlFlow, a Java-

based DSL for writing type-safe HTML. We evaluated against state-of-the-art reactive servers, speciﬁcally

WebFlux, and compared it with popular templating idioms like Thymeleaf and KotlinX.html. Our proposal

effectively overcomes the limitations of existing approaches.

1 INTRODUCTION

In traditional thread-per-request architectures, each

incoming request is handled by a dedicated thread.

The web server creates a new thread to handle each

incoming request, which means that the number of

threads in the system can grow quickly as the load in-

creases. This can lead to performance issues and scal-

ability problems, as the system can become bogged

down by context switching and thread overhead (Kant

and Mohapatra, 2000).

An alternative approach involves employing a

user-level M:N threading runtime, which entails the

execution of numerous user-level threads (M) by mul-

tiple system threads (N) in a seamless manner. User-

level threads provide a lightweight solution for man-

aging a higher volume of concurrent sessions due to

their reduced per-thread overhead (Welsh et al., 2001;

von Behren et al., 2003; Qin et al., 2018). Neverthe-

less, this approach still necessitates a user-level I/O

https://orcid.org/0000-0002-4281-3195

subsystem capable of alleviating system-level block-

ing and vital for the performance of I/O-heavy appli-

cations (Karsten and Barghi, 2020).

Conversely, within contemporary low-thread ar-

chitectures, also known as event-driven (Elmeleegy

et al., 2004), the server can handle a large number of

concurrent requests without blocking, which makes

it more scalable and efﬁcient (Schmidt, 1995). To

that end, it uses non-blocking I/O to ensure that each

thread can handle multiple requests at the same time.

The non-blocking I/O model used in low-thread

servers is well suited for handling large volumes of

data asynchronously (Meijer, 2012). The combi-

nation of low-thread servers and asynchronous data

models has enabled the development of highly scal-

able, responsive, and resilient Web applications that

can handle a high volume of data (Jin et al., 2015).

This idea gained signiﬁcant attention with the

rise of Node.js in 2009 (Chaniotis et al., 2014), and

later several technologies embrace this approach in

Java ecosystem namely, Netty (Maurer and Wolfthal,

2015), Akka HTTP (Davis, 2019), Vert.X (Fox, 2001)

Carvalho, F. and Fialho, P.

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous API and Multiple Data Models.

DOI: 10.5220/0012165300003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 37-48

ISBN: 978-989-758-672-9; ISSN: 2184-3252

and Spring WebFlux (Johnson et al., 2004), being the

latter the most widely used Web framework in Java

according to several surveys, such as JetBrains’ State

of Java report (2021) and community activity, such as

Github and Stackoverﬂow.

Migrating legacy Web applications to state-of-the-

art low-thread Web servers, not only involves port-

ing the Web handlers (e.g. controllers (Alur et al.,

2001)), and data repositories (Fowler, 2002), but may

also concern the Frontend, when it uses a Server-

Side Rendering (SSR) approach (Alur et al., 2001),

where the Web server is also responsible for gener-

ating the HTML for a Web page. Although, Single-

Page Applications (SPAs) with Client-Side Rendering

(CSR) (Klauzinski and Moore, 2016) have become a

popular choice for building Frontend in modern Web

applications, Server-Side Rendering (SSR) still has a

signiﬁcant installation base and continues to be used

in many Multi-Page applications.

However, only a few Java template engines prop-

erly deal with asynchronous data models. In our

work, we analyze a use-case of a Spring WebFlux ap-

plication and some limitations, and harmful effects,

that may emerge from the use of SSR Frontend with

asynchronous data models, such as: 1) unresponsive

blank page, 2) limited concurrency, 3) server runtime

exceptions, 4) ill-formed HTML, 5) single model use,

and 6) restricted asynchronous API.

Our work is built on top of HtmlFlow, a Java

DSL library for HTML. We present a new proposal

that addresses all the aforementioned issues through

the combination of three ideas: 1) functional tem-

plates, which regards the capacity of implementing

Web templates as higher-order functions (Carvalho.

and Duarte., 2019); 2) resume callback in continua-

tions (Haynes et al., 1984) to control transitions from

asynchronous handlers, and 3) chain-of-responsibility

design pattern (Gamma et al., 1995) to control the

ﬂow between a chain of template fragments.

In the next section, we highlight some issues that

arise from the naive use of asynchronous techniques

in web templates. Then, in Section 3, we describe

state-of-the-art template engines for SSR. Following

that, in Section 4, we compare these template engines

in a case study of a Spring WebFlux application. Sec-

tion 5 explains how our proposal mitigates the lim-

itations of the competition. Next, in Section 6, we

evaluate different web templates and their issues re-

garding asynchronous data models. We conclude and

discuss future work in Section 7.

2 ASYNCHRONOUS APIs

MATTER

The non-blocking IO model used in low-thread

servers only functions properly if HTTP handlers do

not block. This implies that an HTTP handler can-

not wait for IO completion, such as reading a ﬁle,

querying a database, or any other kind of IO opera-

tion. Therefore, handlers must be designed to initiate

IO operations and return immediately, allowing other

handlers to execute while the IO operation completes

in the background. To ensure non-blocking I/O, han-

dlers should use asynchronous APIs to access data.

Asynchronous APIs allow handlers to submit requests

and receive notiﬁcations when operations complete,

all without blocking the thread.

However, while using a synchronous API can be

straightforward with its direct style of producing re-

sults through the returned value of function calls,

dealing with an asynchronous API can be more chal-

lenging. Asynchronous APIs do not have a stan-

dard approach, leading to several proposals such

as continuation-passing style (CPS) (Sussman and

Steele, 1975), async/await idiom (Syme et al., 2011),

reactive streams (Reactive Streams, 2015), Kotlin

Flow (Breslav, 2016), and others. The correct use

of an asynchronous API can help ensure that code

is efﬁcient, reliable, and maintainable. On the other

hand, dealing with asynchronous data models in a

naive way, may produce several harmful effects. In

the context of a web server we may observe the fol-

lowing problems, not limited to:

1. unresponsive blank page;

2. limited concurrency,

3. server runtime exceptions.

A naive way of dealing with an asynchronous API

is blocking on completion. For example, in the Java

CompletableFuture, which is an implementation of

a Promise (Friedman and Wise, 1978), this may be

achieved getting its result from its method join():

T. This blocking approach can be used in any tem-

plate engine, including those analyzed in this work

(i.e. Thymeleaf, KotlinX.html and HtmlFlow) with

the same ill effect. These kind of handlers will pro-

duce an unresponsive blank page in the browser. Only

when all data models are completed we may see a re-

sulting HTML document. Rather than a progressive

behavior where the page would be rendered smoothly

as data becomes available, we will have an all or noth-

ing effect starting with a blank page and ﬁnishing with

the complete page.

Furthermore, while an handler is waiting for data

completion it is blocking a thread and preventing it

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

from doing another task, such as processing another

HTTP request, leading to limited concurrency. For

single threaded environments it means that it will han-

dle just one HTTP request at a time.

In some environments, blocking for completion

may cause even worse issues, lead to malfunction

and throw a server runtime exception. For instance,

in Spring WebFlux blocking an HTTP handler may

throw: IllegalStateException with the message:

block()/blockFirst()/blockLast() are blocking, which

is not supported in thread reactor-http-nio-1.

Another example is the Eclipse Vert.x for

JVM (Fox, 2001), which includes a low-thread server

based on Netty and in similar blocking situations

may throw an exception, such as: io.vertx.core.-

VertxException: Thread [vert.x-eventloop-thread-

1,5,main] has been blocked for 2997 ms, time limit

is 2000 ms

When a blocking operation occurs within such a

server, it can lead to resource contention and poten-

tially degrade the scalability of the server. The ex-

ceptions serve as warnings to developers that block-

ing operations are being performed in a context where

they are not supported or recommended. They high-

light the potential risk of blocking and encourage de-

velopers to refactor their code to use non-blocking al-

ternatives or ofﬂoad blocking operations to separate

threads or asynchronous tasks.

While the web application might still appear to

work ﬁne despite these exceptions, it is important to

address them to ensure the proper functioning and

scalability of the application within the intended low-

thread and non-blocking architecture. Ignoring or

suppressing these exceptions can lead to potential per-

formance issues, thread starvation, and decreased re-

sponsiveness of the web server under high load.

3 STATE OF THE ART

In this chapter, we will begin by introducing the latest

advancements in Web Templates with SSR. Following

that, we will address several issues that arise from the

utilization of asynchronous data models.

3.1 Related Work

Thymeleaf (Fern

andez, 2011) is the default template

view engine in Spring framework. Thymeleaf has a

powerful expression language that allows developers

to dynamically manipulate data in their HTML tem-

plates. Also, Thymeleaf is the only Spring built-in

view engine that supports asynchronous data mod-

els with progressive rendering (Deinum and Cosmina,

2021), emitting the resulting HTML in a series of in-

cremental updates as the template is being resolved,

rather than waiting for the entire template to be re-

solved before emitting any HTML. All the others

built-in view engines, such as Freemarker, Handle-

bars, Jade or JTwig produce an unresponsive blank

page while awaiting for data completion. On the other

hand, JSP (Bergsten, 2003) is not compliant and not

even supported in WebFlux.

Web templates may also be classiﬁed according to

the domain-speciﬁc language (DSL) they use, which

is a programming language specialized to a particu-

lar application domain (e.g. HTML) (Landin, 1966).

j2Html (Ase, 2015), KotlinX.html (Mashkov, 2015)

and HtmlFlow (Carvalho, 2017), are examples of Java

libraries DSLs for HTML. In common these DSLs

use functions to deﬁne their languages. According

to (Fowler, 2010) we can distinguish their APIs be-

tween: 1) nested function and 2) method chaining.

Nested function combines functions by making

function calls arguments in higher-level function

calls. This approach can be used to organize code and

create reusable code blocks, allowing an efﬁcient and

modular programming style. In Listing 1 we present

an example of a DSL for HTML using a nested func-

tion approach. Yet, a simple sequence of nested func-

tions ends up being evaluated backwards to the order

they are written. This means that arguments are ﬁrst

evaluated before the function being invoked. In List-

ing 1, p() is ﬁrst evaluated and its resulting paragraph

will be the argument of the call to div(), which in

turn will be the argument of body() and hencefor-

ward.

htm l (

hea d (

t i t l e ( " My tit l e " ) ) ,

body (

d i v (

p ( " Some text " ) ) ) )

Listing 1: Nested function.

The backward evaluation behavior may incur in sev-

eral issues. Since arguments are evaluated before the

high-level function is called, this technique may not

support progressive rendering to emit HTML on de-

mand according to functions calls order. Otherwise

the HTML would be generated backwards. Thus,

it may require some sort of auxiliary data structure

to manage elements processing and control HTML

emission, which in turn may lead to additional perfor-

mance overhead compared to other alternatives that

do not require such a data structure.

Method chaining pattern avoids the backward

evaluation behavior, since it is based on methods calls

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

Html ( )

. h e ad ( )

. t i t l e ( " My title " )

. body ( )

. d i v ( )

. p ( " Som e text " )

Listing 2: Method chaining.

with receiver, which is the object the method is being

called on (Evans et al., 2022). The receiver object is

passed as an implicit argument to each method call,

allowing for each subsequent method to be called on

the result of the previous method. In the example of

Listing 2, the result of Html() call is an HTML ele-

ment that will be the receiver for the next head() call,

which in turn produces an Head element that will be

the receiver for the next title() call, and hencefor-

ward.

J2html uses a nested function approach where

templates has a similar layout to that one presented

in Listing 1. The result of the execution of a j2Html

template is a tree structure composed of Tag ob-

jects(Gamma et al., 1995). The render() method is

then used to traverse the tree and produce an HTML

document. Also, j2Html does not have built-in sup-

port for asynchronous data models.

KotlinX.html also uses a nested function approach

to generate HTML, but instead of using objects as ar-

guments, it uses function literals (i.e. lambdas) to rep-

resent HTML tags and attributes. By using function

literals as arguments, KotlinX.html is able to delay the

evaluation of the HTML tags until the render stage,

which solves the problem of backward evaluation that

could occur with j2html’s object-based approach.

HtmlFlow was designed to be a lightweight and

efﬁcient Java DSL library for generating HTML, and

one of its key features is its ﬂuent API with a method

chaining approach, similar to the sample presented

in Listing 2. When using HtmlFlow, developers can

chain together a series of method calls to deﬁne the

structure and content of their HTML templates. As

each method is called, it emits HTML code directly,

rather than instantiating and storing intermediate ob-

jects. This approach allows HtmlFlow to generate

HTML more efﬁciently and with lower memory over-

head than some other HTML generation libraries that

may instantiate and store a large number of objects

representing HTML nodes or elements.

In Table 1 we present a brief comparison between

the web templates and the properties we have dis-

cussed in this section, regarding non-asynchronous

data models. We also included a performance met-

ric regarding the throughput of each web template in

Spring templates benchmark (Reijn, 2015). These re-

Table 1: Comparing template views in terms of DSL ap-

proach, host language, and ability of providing functional

templates, progressive rendering and their relative perfor-

mance to HtmlFlow in Spring templates benchmark.

Library DSL Language Functional Prog. Bench

Thymeleaf External Thymeleaf × ✓ 32%

j2html Nested Java ✓ × 26%

KotlinX Nested Kotlin ✓ ✓ 58%

HtmlFlow Chain Java ✓ ✓ 100%

sults are relatively to HtmlFlow throughput, which is

the most performant engine among the evaluated web

templates.

3.2 Asynchronous Data Models Issues

However, the use of asynchronous data models in web

templates can introduce new issues, namely:

1. limited asynchronous API

2. single data model

3. ill-formed HTML

4. nested callbacks

One of the main challenges is the lack of a stan-

dard API for asynchronous calls, as there are multi-

ple different APIs and idioms available, as described

in Section 2. Additionally, web templates may only

support a limited asynchronous API, which can pose

a limitation on application development. This is es-

pecially true when the API provided by the non-

blocking drivers is incompatible with the web tem-

plate’s asynchronous support.

Additionally, while most web templates can bind

with multiple synchronous data models, they may not

be able to do the same for asynchronous data mod-

els, limiting the progressive rendering to a single data

model.

Despite this, even for web templates that do not

face the single data model issue, another problem may

arise regarding the correct emission of HTML. The

asynchronicity between the dispatch and completion

of the IO operation may lead to undesired interleav-

ing between data access and HTML deﬁnition, po-

tentially resulting in an ill-formed HTML document.

An example of such an ill-formed HTML document

is presented in Listing 6 of Section 4.3.

Even though a web page may still be readable and

function correctly despite containing invalid HTML,

it is still important to strive for valid and well-formed

code. Valid HTML code ensures that the web page is

accessible to a wider range of users and devices, and

it also helps search engines to understand the content

of the page better, which can improve search engine

rankings.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

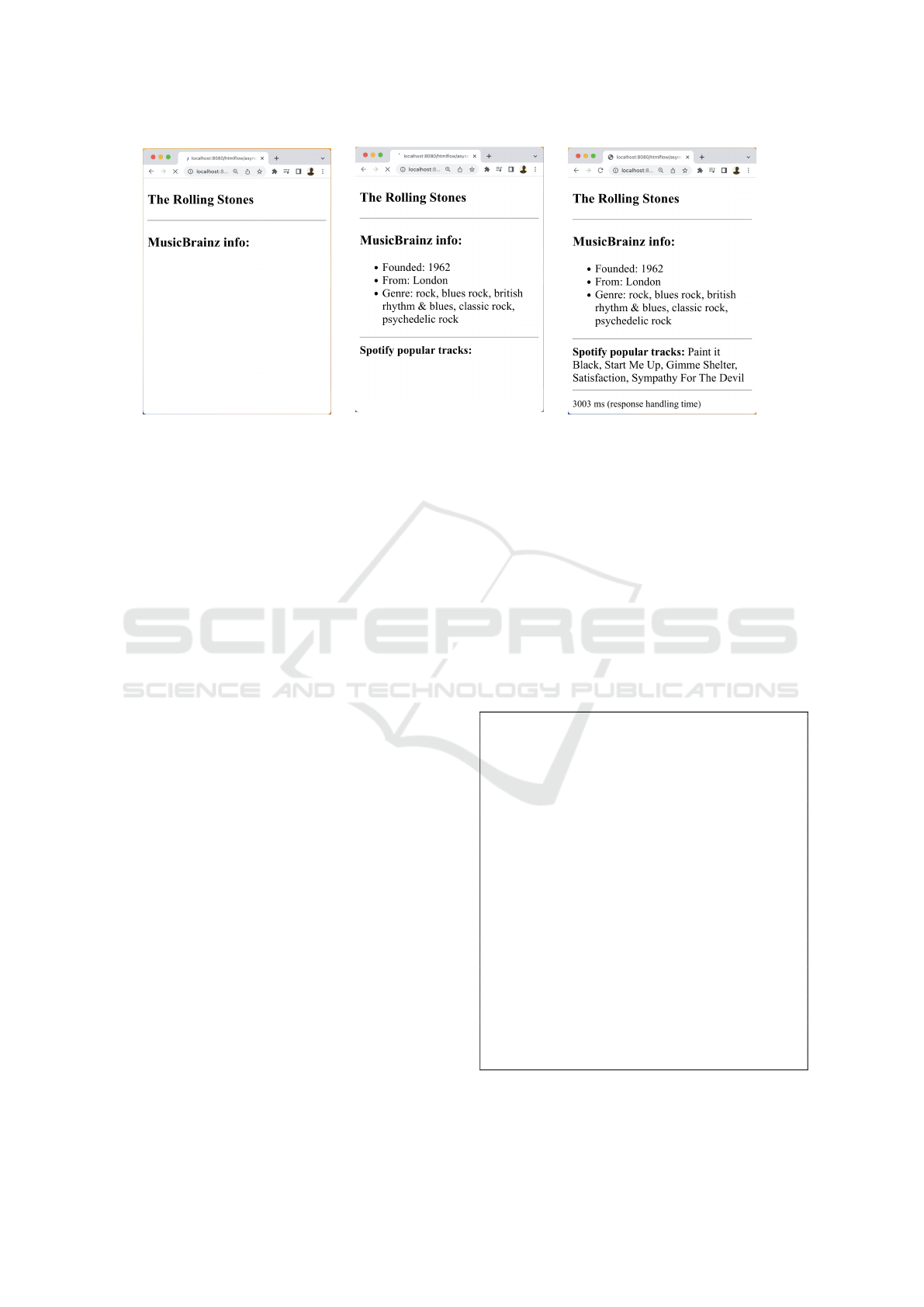

(a) First fragment (b) 1

and 2

fragments (c) Final web page

Figure 1: Expected output from Disco web app for The Rolling Stones band.

Finally for web templates dealing with data

models through the continuation-passing style

(CPS) (Sussman and Steele, 1975) we can observe an

idiomatic pattern emerging on source code from the

use of nested callbacks. The level of nesting will be

proportional to the number of asynchronous models

used in the web template which can lead to code that

is difﬁcult to read and maintain. This scenario is

commonly referred to as ”callback hell” (Kambona

et al., 2013).

4 CASE STUDY

In this chapter, we will present how Thymeleaf and

KotlinX.html deal with asynchronous data models in

a web application running in a state of the art non-

blocking server, namely Spring WebFlux (Deinum

and Cosmina, 2021).

In the next subsection we start describing our case

study of a WebFlux application named Disco. Af-

ter that, we analyze how Thymeleaf and KotlinX.html

behave in this application.

4.1 Disco Non-Blocking Web

Application

The Disco WebFlux application consumes data from

two Web APIs, namely MusicBrainz (an open music

encyclopedia that collects music metadata) and Spo-

tify (an audio streaming). The Disco application will

fetch information from MusicBrainz about the foun-

dation, origin and genres of a band, and from Spotify

it will get its popular tracks.

In Figure 1 we present the expected output of

an HTML document from the Disco web application

for The Rolling Stones band, in three accumulated

fragments. The ﬁrst fragment of Figure 1a is im-

mediately rendered since it does not depend of any

asynchronous data. Then, the rest two fragments of

Figures 1b and 1c are emitted incrementally as their

data models become available. We deliberately made,

Spotify data model with a higher latency than Mu-

sicBrainz to observe a progressive render between

these two steps. In Listing 3 we present the corre-

sponding HTML source to the ﬁnal web page of Fig-

ure 1c.

<html>

<body>

<div>

<h3> The R o l l i n g S tones </h3>

<hr>

<ul>

<li> Founded : 196 2 < /li>

<li> Gen r e : rock , b l u e s rock , ... </

li>

</ul>

<hr>

<b> Spotify p o p u l a r tracks : </b>

<span> Pai n t it Black , Start ... </

span>

<hr>

</div>

<small>

3003 ms ( respon s e hand l i n g time )

</small>

</footer>

</body>

</html>

Listing 3: Expected HTML source code for web page of

Figure 1c.

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

Notice, we are including a footer with the to-

tal processing time, since the handler receives the

request, until the template ﬁnishes processing the

footer element. To turn visible the effects of pro-

gressive rendering we inserted an explicit delay of 2

seconds on the ﬁrst data source (i.e. MusicBrainz) and

3 seconds on the second one (i.e. Spotify). Since we

are fetching data sources concurrently, then the han-

dler processing duration is at least equal to the largest

delay of the data sources, in this case 3 seconds.

Since the analyzed web templates are compatible

with both Java and Kotlin, and Spring WebFlux is as

well, we choose Kotlin as the programming language

for the Disco web application due to its conciseness

and expressiveness.

The Disco domain model has two main entities de-

ﬁned by MusicBrainz and SpotifyArtist classes.

In this case we have a repository for each domain

entity to access its data source (Fowler, 2002). Be-

cause we are dealing with asynchronous data sources

our repositories produce asynchronous effects. In this

case, we choose a CompletableFuture return type

to represent an asynchronous computation that may

complete at some point and produce a result.

4.2 Thymeleaf

Web templates (such as JSP, Handlebars or

Thymeleaf) are based in HTML documents, which

are augmented with template speciﬁc markers (e.g.

<%, {{}} or ${}) representing dynamic information

that can be replaced at runtime by the results of

corresponding computations to produce a view. In

addition to speciﬁc Thymeleaf templating marks (i.e.

${}) we may ﬁnd thymeleaf attributes that deﬁne the

execution of predeﬁned logic, such as, for each loop

(i.e. th:each).

In Listing 4 we present the Thymeleaf template

that produces the view of Figure 1c. For simplicity we

are just including the dynamic parts, since the static

blocks are equal to those presented in Listing 3. This

template deals with 4 model attributes: artistName

(line 1), musicBrainz (lines 3), spotify (line 13)

and start (line 18).

Except for attributes artistName and start that

are a String and a long, both musicBrainz and

spotify are instances of CompletableFuture. In

this case, passing a CompletableFuture or any other

kind of promise to a Thymeleaf template will post-

pone processing releasing the thread to other tasks.

When data becomes available and the promise is ful-

ﬁlled, the template processing resumes making the

CompletableFuture’s content available as model at-

tributes.

1 <h3 th: text ="${ a r t i st Name }" > </h3>

2 ...

3 <ul th: each =" i t em : ${ m u si cBrain z }" >

4 <li th: te x t ="*{ ’ Fou n d e d : ’ + ite m . year

}" >

5 </li>

6 <li th: te x t ="*{ ’ From : ’ + item . from }" >

7 </li>

8 <li th: te x t ="*{ ’ Genre : ’ + item . genr e s

}" >

9 </li>

10 </ul>

11 ...

12 <th: block

13 th : e ach =" track : ${ s p o t i f y . p o pular S o n g s

14 th: text ="${ track + ’ , ’}" >

15 </th: block >

16 ...

17 <small

18 th : t ext ="${# dates . c reateNow () . ge t T im e

() - start } + ’ ms ( res p o n s e

handl i n g t i m e ) ’" >

19 </small>

Listing 4: Example of Thymeleaf template of Disco web

application.

Yet, until model attributes musicBrainz and

spotify become available the browser is display-

ing an unresponsive blank page waiting for server re-

sponse. To address this issue on Spring WebFlux,

the asynchronous objects must be wrapped into a

ReactiveDataDriverContextVariable. When a

model attribute of this type is present, the template en-

gine enters data-driven mode, where data is streamed

to the client as it becomes available, rather than wait-

ing for the entire response to be generated before

sending it. This allows the static parts of the web tem-

plate to be immediately emitted, displaying an initial

web page as presented in Figure 1a before the asyn-

chronous data is completed and the web page is ﬁn-

ished.

But, there are two notable limitations of Reacti-

veDataDriverContextVariable, regarding the is-

sues 1) limited asynchronous idiom and 2) single data

model, described in of Section 3. First, the model at-

tribute must be a reactive stream Publisher (Reac-

tive Streams, 2015), meaning that dealing with any

other kind of asynchronous model always requires a

conversion to Publisher. Second, the web template

can only have a single model attribute of this type.

Regarding 1) limited asynchronous idiom,

actually, converting from CompletableFuture

to Publisher can be achieved through the

Mono.fromFuture() method of the Reactor li-

brary, which returns a new instance of Mono that

implements Publisher. A Publisher represents

multi-valued data and it is expected that Thymeleaf

web template contains some kind iteration on

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

the data-driver variable, normally by means of a

th:each attribute. This means that it requires a

th:each block to access musicBrainz even it just

contains a single value (i.e. line 3 of Listing 4).

However, this requirement may introduce a semantic

mismatch when dealing with a single value, such as

the CompletableFuture<MusicBrainz>. The use

of the th:each block implies an iteration, whereas in

this case, a continuation-based idiom would be more

appropriate to convey the intended meaning.

On the other hand, regarding 2) single data model

use, when we have multiple asynchronous objects,

we can compose them into a single object using

operators such as zip, combineLatest, or merge.

However, when we do this, we won’t have the

beneﬁt of progressive rendering that we get with

ReactiveDataDriverContextVariable. Instead,

we will have to wait for all the asynchronous oper-

ations to complete before the ﬁnal result can be ren-

dered.

4.3 KotlinX.html

Since KotlinX.html is a Kotlin DSL library for HTML

we can take advantage of its host programming lan-

guage features to deal with data models, without

any special constructs like ReactiveDataDriver-

ContextVariable to handle data-driven rendering.

The Java CompletableFuture API provides comple-

tion handlers that can be used to chain dynamic blocks

of a template to be processed only when data become

available.

Here, we are using the thenAccept handler

to register a callback that is called when the

CompletableFuture completes. In the next ex-

ample, the callback function mb -> ... is passed

as an argument to the thenAccept method of the

musicBrainz CompletableFuture:

mu s ic B ra i nz . th e nA c cep t { mb -> . . . }

This callback function will be executed when the

musicBrainz future completes, and it will receive the

result of the future, which is represented by the mb

parameter.

KotlinX.html can emit HTML to any output com-

patible with the Appendable interface. The exten-

sion function appendHTML() takes a receiver of a

type that implements the Appendable interface, and

returns a TagConsumer object that we can use to

write HTML tags and attributes. On the other hand,

WebFlux allows building reactive responses from a

Publisher<String>. Thus, to use KotlinX.html in

WebFlux, we use an auxiliary type AppendableSink

that is able to produce a Publisher<String> from

an Appendable.

1 fun a rti stV iew (

2 star t : Long ,

3 ar tis N ame : String ,

4 mu sic Bra inz : CF < Mus i cBrai n z > ,

5 sp o tify : CF < S p otif y Arti st >

6 ) : P u blisher < St r i ng > =

Ap pen dab leS in k {

7 this

8 . a p pen dHT ML ()

9 . html {

10 body {

11 div {

12 h3 { t ex t (" $a r tisName " ) }

13 hr ()

14 h3 { t ex t (" M usi cBr ain z in f o :" )

}

15 ul { mu sic B ra i nz . th enA c cep t {

mb ->

16 li { text ( " Fo u nded :${ mb . year } "

) }

17 li { text ( " From :${ mb . f r o m }" ) }

18 li { text ( " Gen res :${ mb . g enres }

") }

19 hr ()

20 b { text ( " S p otif y ...: " ) }

21 spa n { s p oti f y . t h enA cce pt {

spt ->

22 text ( spt . p op u la r So n gs .

jo inT o St r in g ( ", " ))

23 hr ()

24 foo ter {

25 smal l {

26 text ( "${ cu rr e nt Tim eM i ll is ()

- start } ms ( r esp o nse

ha n dli n g t i m e )" )

27 }

28 }

29 this. c lose ()

30 } // t h enA cce pt

31 } // span

32 } // t hen Acc ept

33 } // ul

34 } // div

35 } // b o d y

36 } // ht m l

37 . as F lux ()

Listing 5: Example of KotlinX.html template of Disco

web application. For readability we replaced type name

CompletableFuture by CF.

In Listing 5 we present the deﬁnition in

KotlinX.html for the web page of Figure1c. In Kotlin,

a block of code enclosed in curly braces {...} is

known as a lambda, and can be used as an argument to

a function that expects a function literal. For example,

when we write body{...}, we are invoking the body

function with a lambda as its argument. This lambda

can be used to deﬁne the contents of the HTML tag

represented by the body function.

The constructor of AppendableSink used in List-

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

ing 5 receives a lambda that is called with that

AppendableSink object as the receiver (i.e. this).

The last statment of the web template deﬁnition (line

29) should close the AppendableSink to make the

resulting Publisher be completed. This is manda-

tory to let WebFlux know that the HTML emit is

completed and the HTTP connection can be ter-

minated. Finally, notice how AppendableSink is

converted into a Publisher in line 37 through its

method asFlux, where Flux is an implementation of

Publisher.

Notice we make plain use of thenAccept com-

pletion handler to deal with the resulting data model

(i.e. mb in line 15 and spt in line 21) without the need

of a special construct like th:each in Thymeleaf. Us-

ing the non-blocking API of CompletableFuture we

achieve a progressive rendering, which ﬁrst emits the

resulting web page of Figure 1a and then proceeds to

the next partial page of Figure 1b resulting from com-

pletion of MusicBrainz data model and before com-

pletion of Spotify data. The web page will ﬁnish with

the expected output of Figure 1c when the last data

model completes.

Yet, there are still some issues to deal. First, the

call to thenAccept returns immediately and the en-

closing HTML builder (i.e. ul on line 15 and span

on line 22) will emit the end tag before the continu-

ation has been performed, leading to the issue 3) ill-

formed HTML of Section 3.2. The resulting HTML

will be out of order as presented in Listing 6. Notice,

elements ul, div, body and html are closed (lines 7,

8, 9, and 10) before their inner elements have been

emitted with data from MusicBrainz and Spotify web

APIs.

Modern browsers have become quite forgiving

when it comes to rendering HTML that does not com-

ply with the speciﬁcations. They try to interpret and

render the content as best as they can, even if the

HTML source is invalid or contains errors.

Secondly, we can observe an emerging idiomatic

anti-pattern in the source code, speciﬁcally in the

chaining of callbacks (e.g., between lines 16 and 23).

This anti-pattern often leads to a pyramid-like struc-

ture, particularly when dealing with nested callbacks,

regarding the issue 4) nested callbacks of Section 3.2.

As the template becomes dependent on more asyn-

chronous data models, the callbacks become nested

deeper within each other, exacerbating the issue of

callback nesting.

1 <html>

2 <body>

3 <div>

4 <h3> The R o l l i n g S tones </h3>

5 <hr>

6 <h3> Mus i c B r ainz info : </h3>

7 <ul> </ul>

8 </div>

9 </body>

10 </html>

11 <li> Fo un d e d : 196 2 </li>

12 <li> F r om : Lond on </li>

13 <li> Ge n r e s : rock , b l u e s rock , ... < /li>

14 <hr>

15 <b> Sp ot i f y p o p u l a r tracks : </b>

16 <span> </span> Pa i n t it Black , S t a r t Me

...

17 <hr>

18 <footer>

19 <small>

20 3011 ms ( respo n s e han d l i n g time )

21 </small>

22 </footer>

Listing 6: Example of ill-formed HTML source resulting

from undesirable interleavings between template processing

and asynchronous data access.

5 HtmlFlow ASYNCHRONOUS

SUPPORT

HtmlFlow uses a method chaining approach as de-

scribed in Section 3.1, and one of its key features

that solves the problem of the ill-formed HTML with

asynchronous models is its method builder () to

close HTML tags. Element tags should be explicitly

closed through the invocation of this method.

Views in HtmlFlow are built from a function of

type HtmlTemplate, speciﬁed by the following Java

functional interface:

interface H tm l Te m pl a te {

void r esol v e ( H t mlP a ge page ) ;

}

The HtmlPage instance provides the HTML

builder methods, including next special methods,

where P is the type of the parent HTML element and

M is the type of the data model:

__ ()

dyn amic ( BiCo n sumer <P ,M > con t )

awai t ( Aw aitCo nsum e r <P ,M > cont )

For example in Listing 7 the HTML fragments de-

limited by a continuous blue line are static and re-

solved once, on ﬁrst rendering. On the other hand, the

HTML fragments delimited by a dashed red line are

dynamic and resolved on every template processing.

Former implementation of HtmlFlow used an im-

perative ﬂag-based approach to control the global

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

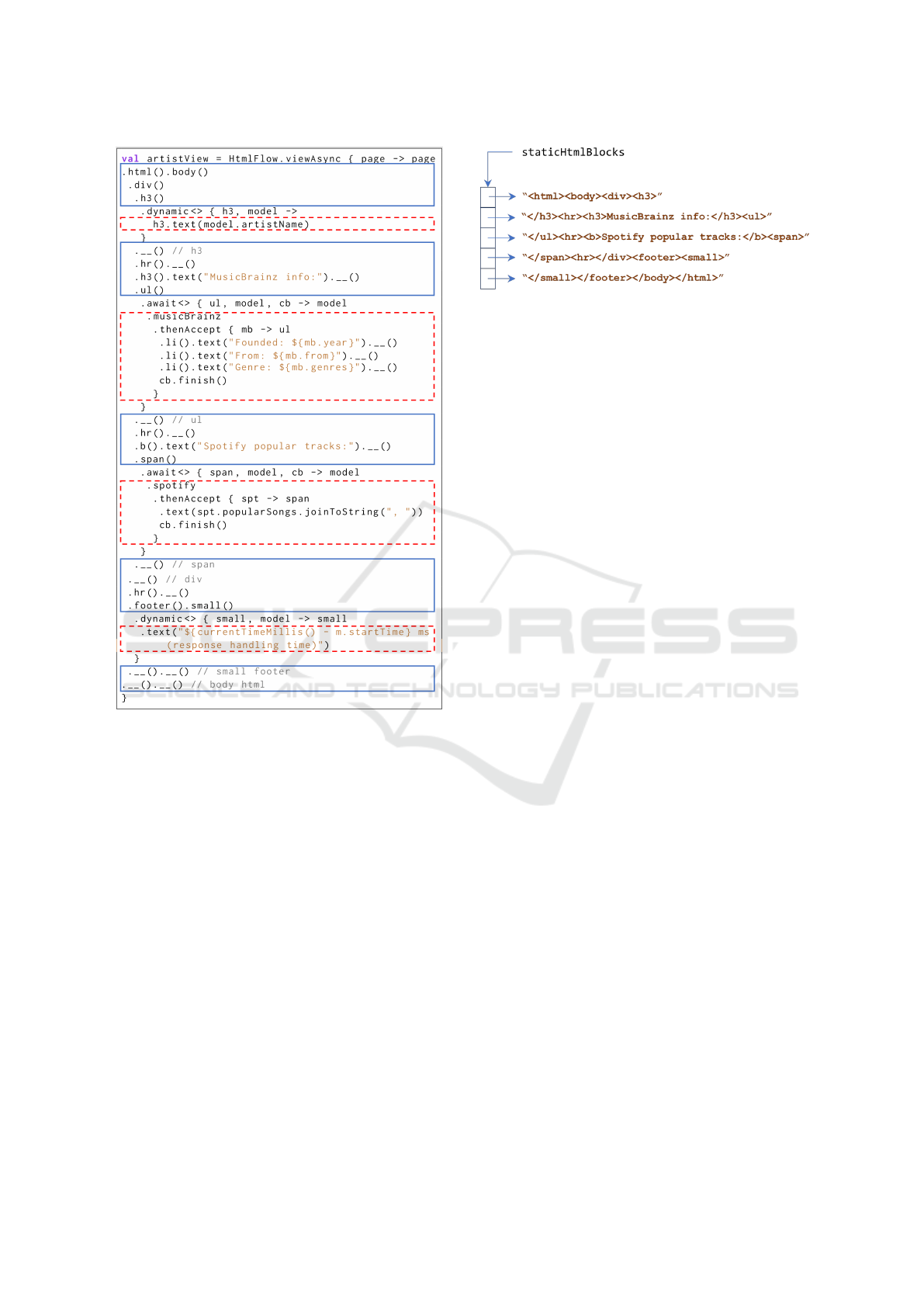

Listing 7: HtmlFlow template of Disco web application.

For readability we cleared the generic argument in calls to

await<ArtistAsyncModel> method.

state of HTML emission, and determine whether it is

inside a static, or a dynamic HTML fragment.

During the initial rendering, HtmlFlow retains

an internal data structure containing the HTML out-

comes from each static block. In the case of the tem-

plate shown in Listing 7, HtmlFlow would store the

designated static blocks depicted in Figure 8. In sub-

sequent renders, HtmlFlow’s resolution process will

intertwine HTML emission, alternating between the

content retrieved from the staticHtmlBlocks data

structure and the execution of consumers provided to

dynamic and await builders.

Calling the BiConsumer of a dynamic fragment

uses a direct style and when it returns it proceeds

emitting HTML of the following static HTML block

and henceforward.

Yet, HtmlFlow cannot follow a direct style when

invoking the AwaitConsumer of an await builder.

The AwaitConsumer denotes an asynchronous func-

Listing 8: Resulting static HTML blocks data structure re-

suting from HtmlFlow processing.

tion that may return before completion. Emitting the

subsequent static HTML fragment upon the return

of the AwaitConsumer call could result in the asyn-

chronous fragment appearing in an incorrect order.

For that reason, the AwaitConsumer<T,M> re-

ceives a third parameter, which is a completion call-

back, used to notify HtmlFlow that it can proceed ren-

dering the next HTML fragment. This is based on the

same idea of the resume function in continuations and

coroutines (Haynes et al., 1984), to transfer control

from one coroutine to another.

Given that, the new HtmlFlow rendering process

is based on a chain of continuations speciﬁed by the

interface HtmlContinuation, where each implemen-

tation is responsible for emitting a static, a dynamic

or an asynchronous fragment, and call the next node.

This technique has similarities with the way how the

chain-of-responsibility design pattern (Gamma et al.,

1995) assembles the logic of a series of processing

objects having the responsibility, to either handle a

request or forward it to the next object on the chain.

In our case, each continuation has both roles handling

an HTML fragment and forwarding it to the next one.

To use the template of Listing 7 we must ﬁrst

create an HtmlViewAsync, which is a container of

an HtmlTemplate that wil make a preprocessing

of the static HTML fragments and dynamic ones.

Later, we may write the resulting HTML of the

HtmlViewAsync to any Appendable object through

its method writeAsync(Appendable out, Object

model). This writeAsync method returns a Comple-

tableFuture that completes when all HTML has

been emitted.

To use HtmlFlow in WebFlux we take advan-

tage of the same AppendableSink described in

Section 4.3. to emit the resulting HTML to a

Publisher<String>. This sink should be closed

when the CompletableFuture from the write-

Async completes. Given an HtmlViewAsync for the

template of the Listing 7 named artistView, then

the resulting Publisher<String> with the HTML is

produced with:

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

val htm l = A ppe nda ble Sin k { ar t ist Vie w

. w r ite Asy nc (this, mode l )

. t h enA cce pt { this. clo s e () }

}. a s Flux ()

6 EVALUATION

In the initial subsection, we provide a summary of

the feature comparison among the assessed template

engines for Server-Side Rendering (SSR). After that

we describe the testing environment, followed by our

analysis of the performance results in the next section.

6.1 Feature Comparison

In Table 2 we highlight the characteristics of each

template engine dealing with asynchronous models

through a non-blocking API, according to the issues

pointed in Section 3.2: 1) limited asynchronous API,

2) single data model, 3) ill-formed HTML and 4)

nested callbacks.

Table 2: Comparing template engines dealing with asyn-

chronous models.

Library

Asynchronous Model

3. Valid

HTML

4. Avoid

nested

callbacks

1. API 2. Multiplicity

Thymeleaf Publisher 1 - ✓

KotlinX Any * × ×

HtmlFlow Any * ✓ ✓

Unlike Thymeleaf, building a web template with

KotlinX.html is not limited either to: 1) a speciﬁc

kind of asynchronous API (i.e. Publisher), nor to

2) a single asynchronous data model.

However, employing KotlinX.html to construct

templates with asynchronous data models can poten-

tially result in improperly structured HTML. Further-

more, when utilized with multiple asynchronous data

models, it might give rise to nested callbacks and lead

to a pyramid-like source code structure.

As a DSL for HTML, HtmlFlow has the same ad-

vantages of KotlinX.html, but it also solves the issues

3) and 4). It does not suffer either from the idiomatic

callback hell, nor producing ill-formed HTML.

6.2 Environment

To perform an unbiased comparison we used one

of the most popular benchmarks for template en-

gines, the Comparing Template engines for Spring

MVC, simply denoted as Spring templates bench-

mark(Reijn, 2015). This benchmark uses the Spring

MVC middleware to host a web application that pro-

vides a route for each template engine. Each route

deals with the same information to ﬁll the template

(i.e. List<Presentation>), which makes it possi-

ble to ﬂood all the routes with a high number of re-

quests and asserts which route responds faster. The

Presentation domain entity is according to the Java

deﬁnition of Listing 9

record P r e s e n t a t i o n (

l o n g id ,

S t r i n g t i t l e ,

S t r i n g sp eakerName ,

S t r i n g summary

) { }

Listing 9: Presentation domain entity.

The repository has 10 instances of Presentation

and each template produces an HTML document with

a table of 10 rows. The generated HTML code is ap-

proximately 80 lines long and has a size of around 9

KB.

We have implemented three modiﬁcations to eval-

uate template engines in a non-blocking context:

1. changed repository to return a reactive

Publisher<T> rather than a List<T>.

2. replaced Spring MVC by Spring WebFlux and

their controllers with functional routes (Deinum

and Cosmina, 2021).

3. integrated Java Microbenchmark Harness

(JMH) (Shipilev, 2013) to conduct performance

tests and gather precise results.

To execute requests to the functional routes dur-

ing the JMH benchmark, we utilized the Spring

WebTestClient. This approach differed from the

original Spring templates benchmark, which em-

ployed an external Apache HTTP server benchmark-

ing tool to stress test and perform HTTP requests. By

directly testing the functional routes within the same

process, we eliminated the need for the external tool

and excluded the HTTP communication from the per-

formance results.

Our tests were done on a local machine running

Ventura 13.3.1 on a MacBook Pro with Apple M1

Pro, 8 cores (6 performance and 2 efﬁciency), and

OpenJDK 64-Bit Server VM Corretto-17.0.5.8.1.

6.3 Results

We conducted our tests in JMH by varying the num-

ber of worker threads, speciﬁcally 1, 2, 4, and 8. As

the number of worker threads increased, the level of

concurrent requests also escalated, allowing us to ob-

serve the scalability of each template view.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

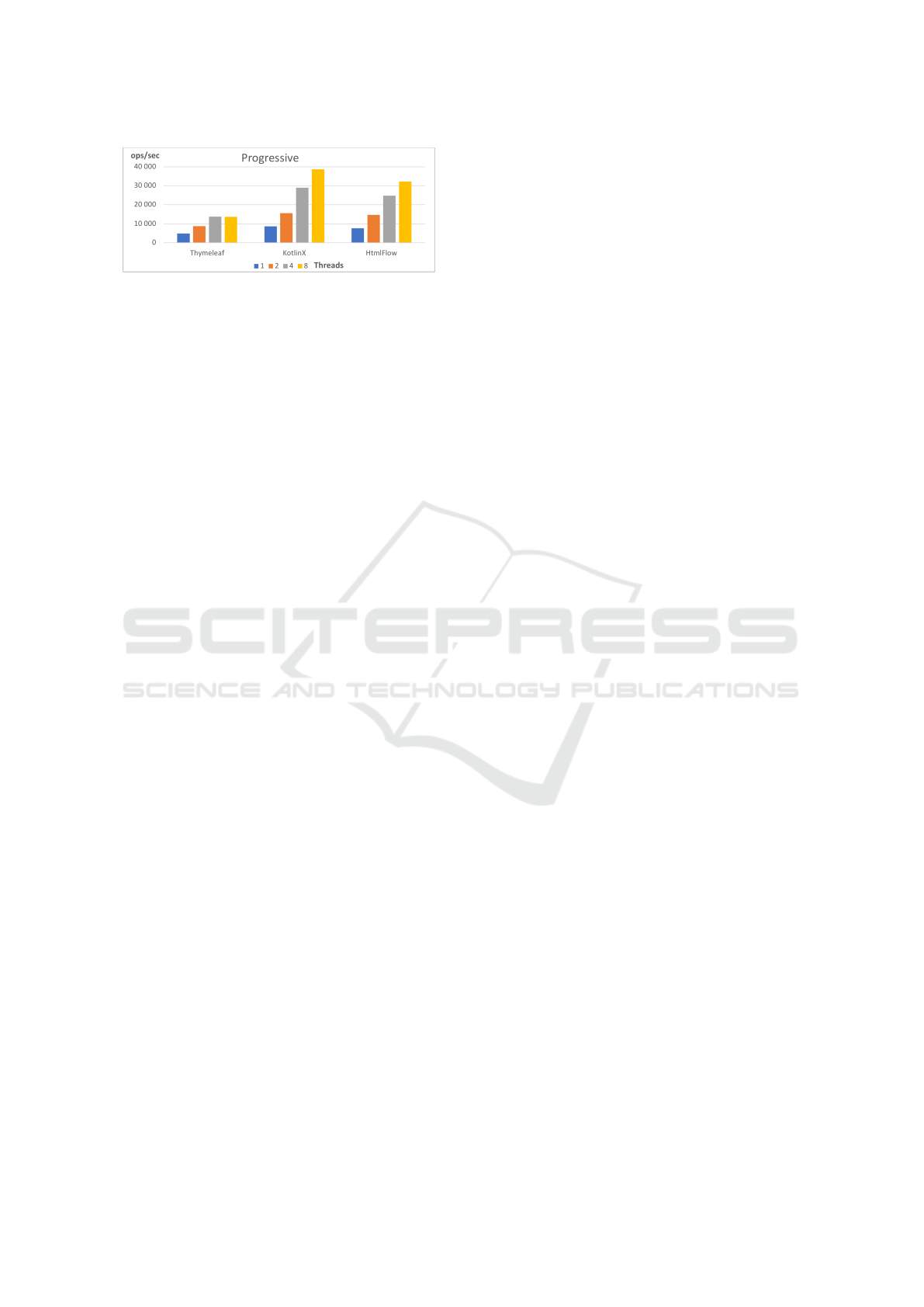

Figure 2: Throughput of Thymeleaf, KotlinX.html and

HtmlFlow in Spring templates benchmark with WebFlux

and JMH.

According to the results presented in Figure 2,

when running these tests with progressive rendering,

Thymeleaf demonstrates limitations in scalability un-

der these conditions.

On the ﬂip side, both KotlinX.html and HtmlFlow

exhibit scalability as the number of handler threads

increases.

KotlinX.html exhibits slightly better throughput

than HtmlFlow. This is because KotlinX.html does

not ensure well-formed HTML with an asynchronous

data model, and it does not require any special care

to guarantee the correct chaining of HTML elements,

as HtmlFlow does. This alleviates the rendering pro-

cess in KotlinX.html, resulting in slightly better per-

formance compared to HtmlFlow.

7 CONCLUSIONS

Our proposal for server-side rendering Web templates

on top of HtmlFlow is the only non-blocking solution

that is able to deal with any number, and any kind

of asynchronous data models and still produce well-

formed HTML. Also, our use of CPS in asynchronous

views avoids nesting callbacks, among different asyn-

chronous models.

Now we plan to take a step further and take

advantage of the async/await idiom (Syme et al.,

2011) in asynchronous fragments. The async/await

idiom enables writing asynchronous code that looks

like synchronous code, without the need for call-

backs. In Kotlin, the async/await idiom is imple-

mented using coroutines and suspending functions.

Yet, KotlinX.html builders use non-suspending func-

tions as parameters, which means that they cannot be

used directly with the async/await idiom.

Since HtmlFlow uses a method chaining ap-

proach, it is possible to extend its API through Kotlin

extension functions that provide the ability to extend

a class or an interface with new functionality without

having to inherit from the class. Thus, can we sim-

plify the asynchronous idiom of HtmlFlow through

Kotlin extensions and async/await? Is there any in-

trinsic overhead on that approach? How do we com-

pare it with present proposal? Those are some of the

research questions for future work.

REFERENCES

Alur, D., Malks, D., and Crupi, J. (2001). Core J2EE Pat-

terns: Best Practices and Design Strategies. Prentice

Hall PTR, Upper Saddle River, NJ, USA.

Ase, D. (2015). Kotlin dsl for html. Technical report.

Bergsten, H. (2003). JavaServer Pages. O’Reilly Media,

Inc.

Breslav, A. (2016). Kotlin Language Documentation.

Carvalho, F. M. (2017). Htmlﬂow java dsl to write typesafe

html. Technical report, https://htmlﬂow.org/.

Carvalho., F. M. and Duarte., L. (2019). Hot: Unleash web

views with higher-order templates. In Proceedings of

the 15th International Conference on Web Information

Systems and Technologies, WEBIST ’19, pages 118–

129.

Chaniotis, I., Kyriakou, K.-I., and Tselikas, N. (2014). Is

node.js a viable option for building modern web appli-

cations? a performance evaluation study. Computing,

97.

Davis, A. L. (2019). Akka HTTP and Streams, pages 105–

128. Apress, Berkeley, CA.

Deinum, M. and Cosmina, I. (2021). Building Reactive

Applications with Spring WebFlux, pages 369–420.

Apress, Berkeley, CA.

Elmeleegy, K., Chanda, A., Cox, A. L., and Zwaenepoel,

W. (2004). Lazy asynchronous i/o for event-driven

servers. In Proceedings of the Annual Conference

on USENIX Annual Technical Conference, ATEC ’04,

page 21, USA. USENIX Association.

Evans, B., Verburg, M., and Clark, J. (2022). The Well-

Grounded Java Developer, Second Edition. Manning.

Fern

andez, D. (2011). Thymeleaf. Technical report,

https://www.thymeleaf.org/.

Fowler, M. (2002). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional, 1st edition.

Fox, T. (2001). Eclipse vert.x tool-kit for building re-

active applications on the jvm. Technical report,

https://vertx.io/.

Friedman and Wise (1978). Aspects of applicative program-

ming for parallel processing. IEEE Transactions on

Computers, C-27(4):289–296.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-oriented Software. Addison-Wesley Co., Inc.,

Boston, MA, USA.

Haynes, C. T., Friedman, D. P., and Wand, M. (1984). Con-

tinuations and coroutines. In Proceedings of the 1984

ACM Symposium on LISP and Functional Program-

ming, LFP ’84, page 293–298.

Enhancing SSR in Low-Thread Web Servers: A Comprehensive Approach for Progressive Server-Side Rendering with any Asynchronous

API and Multiple Data Models

Jin, X., Wah, B. W., Cheng, X., and Wang, Y. (2015). Sig-

niﬁcance and challenges of big data research. Big

Data Res., 2(2):59–64.

Johnson, R., Hoeller, J., Donald, K., Sampaleanu, C.,

Harrop, R., Risberg, T., Arendsen, A., Davison, D.,

Kopylenko, D., Pollack, M., et al. (2004). The

spring framework–reference documentation. inter-

face, 21:27.

Kambona, K., Boix, E. G., and De Meuter, W. (2013). An

evaluation of reactive programming and promises for

structuring collaborative web applications. In Pro-

ceedings of the 7th Workshop on Dynamic Languages

and Applications, DYLA ’13, New York, NY, USA.

Kant, K. and Mohapatra, P. (2000). Scalable internet

servers: Issues and challenges. ACM SIGMETRICS

Performance Evaluation Review, 28(2):5–8.

Karsten, M. and Barghi, S. (2020). User-level threading:

Have your cake and eat it too. Proc. ACM Meas. Anal.

Comput. Syst., 4(1).

Klauzinski, P. and Moore, J. (2016). Mastering JavaScript

Single Page Application Development. Packt Publish-

ing.

Landin, P. J. (1966). The next 700 programming languages.

Communications of the ACM, 9(3):157–166.

Mashkov, S. (2015). Kotlin dsl for html. Technical report.

Maurer, N. and Wolfthal, M. (2015). Netty in Action. Man-

ning.

Meijer, E. (2012). Your mouse is a database. Queue,

10(3):20:20–20:33.

Qin, H., Li, Q., Speiser, J., Kraft, P., and Ousterhout, J.

(2018). Arachne: Core-aware thread management. In

Proceedings of the 13th USENIX Conference on Oper-

ating Systems Design and Implementation, OSDI’18,

page 145–160, USA. USENIX Association.

Reactive Streams (2015). Reactive streams speciﬁcation.

Reijn, J. (2015). Comparing template engines for spring

mvc. Technical report, https://github.com/jreijn/spri

ng-comparing-template-engines.

Schmidt, D. (1995). Reactor. an object behavioral pattern

for concurrent event demultiplexing and event handler

dispatching.

Shipilev, A. (2013). Java microbenchmark harness (the

lesser of two evils).

Sussman, G. and Steele, G. (1975). Scheme: an interpreter

for extended lambda calculus. AI Memo No. MIT,

Artiﬁcial Intelligence Laboratory.

Syme, D., Petricek, T., and Lomov, D. (2011). The f#

asynchronous programming model. In Rocha, R. and

Launchbury, J., editors, Practical Aspects of Declar-

ative Languages, pages 175–189, Berlin, Heidelberg.

Springer Berlin Heidelberg.

von Behren, R., Condit, J., Zhou, F., Necula, G. C., and

Brewer, E. (2003). Capriccio: Scalable threads for in-

ternet services. In Proceedings of the Nineteenth ACM

Symposium on Operating Systems Principles, SOSP

’03, page 268–281, New York, NY, USA. Association

for Computing Machinery.

Welsh, M., Culler, D., and Brewer, E. (2001). Seda: An ar-

chitecture for well-conditioned, scalable internet ser-

vices. In Proceedings of the Eighteenth ACM Sym-

posium on Operating Systems Principles, SOSP ’01,

page 230–243, New York, NY, USA. Association for

Computing Machinery.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies
