A Data Service Layer for Web Browser Extensions

Alex Tacuri

1 a

, Sergio Firmenich

1,2 b

, Gustavo Rossi

1,2 c

and Alejandro Fernandez

1 d

LIFIA, CIC, Facultad de Inform

atica, UNLP, Argentina

CONICET, Argentina

ﬁ

Keywords:

Web Scraping, Web Browser Extensions.

Abstract:

Web browser extensions are the preferred method for end-users to modify existing web applications (and

the browser itself) to fulﬁll unanticipated requirements. Some extensions improve existing websites based

on online data, combining techniques such as mashups and augmentation. To obtain data when no APIs

are available, extension developers resort to scraping. Scraping is frequently implemented with hard-coded

DOM references, making code fragile. Scraping becomes more difﬁcult when a scraping pipeline involves

several websites (i.e., the result of scraping composes elements from various websites). It is challenging (if

not impossible) to reuse the scraping code in different browser extensions. We propose a data service layer for

browser extensions. It encapsulates site-speciﬁc search and scraping logic and exposes object-oriented search

APIs. The data service layer includes a visual programming environment for the speciﬁcation of data search

and object model creation, which are exposed then as a programmatic API. While using this data service layer,

developers are unconcerned with the complexity of data search, retrieval, scraping, and composition.

1 INTRODUCTION

The web browser has evolved beyond being a mere

client for displaying web pages. It has transformed

into a robust platform capable of running feature-rich

applications known as web browser extensions (re-

ferred to interchangeably as browser extensions or

simply extensions). These extensions serve to en-

hance websites and augment the web browser with

additional functionalities. For instance, extensions

can introduce new capabilities to the browser, such

as web scraping. They can also enhance accessibil-

ity, integrate crypto-wallets, modify the appearance

or behavior of loaded web pages, customize the de-

fault behavior of the new tab page, or even serve as

a platform for hosting speciﬁc applications within the

web browser.

Numerous browser extensions rely on online con-

tent, often utilizing web scraping techniques to re-

trieve the necessary information. Alternatively, some

extensions leverage APIs to access speciﬁc data ele-

ments. For example, there are multiple browser exten-

sions designed to provide alerts regarding cryptocur-

https://orcid.org/0000-0003-3159-5556

https://orcid.org/0000-0001-9502-2189

https://orcid.org/0000-0002-3348-2144

https://orcid.org/0000-0002-7968-6871

rency ﬂuctuations. These extensions typically scrape

information from online crypto portals or utilize APIs

to access real-time data.

In various other instances, information is scraped

from web pages and integrated into web augmentation

artifacts or mashup applications (D

ıaz and Arellano,

2015).

While the availability of APIs has increased over

the years, web scraping remains a widely employed

technique for extracting web content, primarily due to

the lack of APIs provided by many existing websites.

However, web scraping poses several challenges.

Firstly, scraping code often relies on hardcoded

DOM references, making it susceptible to breakages

when websites undergo modiﬁcations. Any changes

to the website’s structure can render the scraping code

ineffective.

Secondly, scraping becomes more complex when

the process involves multiple websites. For instance,

scraping pipelines that aggregate data from various

sources requires additional effort to handle and inte-

grate the scraped elements effectively.

Thirdly, reusability of scraping code across dif-

ferent browser extensions is often challenging, if not

impossible. The speciﬁc requirements and contexts

of each extension may differ, necessitating modiﬁ-

cations or customizations to the scraping code for

Tacuri, A., Firmenich, S., Rossi, G. and Fernandez, A.

A Data Service Layer for Web Browser Extensions.

DOI: 10.5220/0012165500003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 49-58

ISBN: 978-989-758-672-9; ISSN: 2184-3252

each use case. Overall, while web scraping remains

a prevalent technique for content retrieval, its imple-

mentation and maintenance can present difﬁculties

related to website changes, multi-site scraping, and

code reusability in different browser extensions.

This paper introduces a data service layer de-

signed speciﬁcally for browser extensions. This layer

serves as an encapsulation of site-speciﬁc search and

scraping logic, offering object-oriented search APIs.

A key component of the data service layer is a vi-

sual programming environment, which enables users

to specify data search and object model creation.

These speciﬁcations are then exposed as program-

matic APIs.

Users have the ability to deﬁne a search API that

leverages the search functionality of an existing web-

site and speciﬁes how search results should be ab-

stracted into objects. Furthermore, users can com-

bine multiple search APIs to construct more complex

object models. When a search request is made to a

composed API, it automatically triggers requests to its

constituent APIs and establishes connections between

the resulting objects, ultimately returning a graph of

interconnected objects.

By utilizing these APIs, extension developers can

create browser extensions without being burdened by

the complexities of data search, retrieval, scraping,

and composition. The data service layer streamlines

the process and enables developers to focus on build-

ing extensions based on the APIs created through this

layer.

The data service layer serves as a crucial interme-

diary between a website’s DOM and the implemen-

tation of extensions. By separating the search APIs

and object models from the website’s structure, the

layer signiﬁcantly simpliﬁes the maintenance process

when websites undergo changes. With this approach,

browser extensions can continue functioning without

requiring immediate modiﬁcations.

The potential impact of this proposed data ser-

vice layer is substantial, particularly considering the

vast number of existing browser extensions and user

scripts available in public repositories. Just focusing

on Google Chrome Browser, there are currently over

137,345 extensions available. Furthermore, web aug-

mentation artifacts such as user scripts have their own

extensive repositories, with platforms like greasy-

fork.org hosting thousands of artifacts. Integrating

these existing artifacts with the data service layer

could greatly enhance their functionality and ease the

development of new extensions.

This paper is structured as follows. Section 2

presents a motivating example. Section 3 presents

the approach, its architecture, the tool involved in

creating search APIs, and the tool used for deﬁning

information models. Section 3.4 brieﬂy presents a

usability study. Section 5 introduces related works,

and ﬁnally, Section 6 presents conclusions and future

works.

2 MOTIVATING EXAMPLE

Figure 1 depicts a UI mockup of a browser extension

that provides a mashup application for the domain

of scientiﬁc research. The development of the men-

tioned mashup application involves integrating multi-

ple components and implementing web scraping tech-

niques. Here is a breakdown of the steps involved:

• Utilize the search engine from Springer: The

browser extension needs to incorporate the search

functionality provided by Springer. This involves

making requests to the Springer search engine and

retrieving the results.

• Parse the DOM of the results page: Once the

search results are obtained from Springer, the

browser extension needs to parse the HTML

DOM (Document Object Model) of the results

page to extract relevant information about the ar-

ticles, such as their titles and other details.

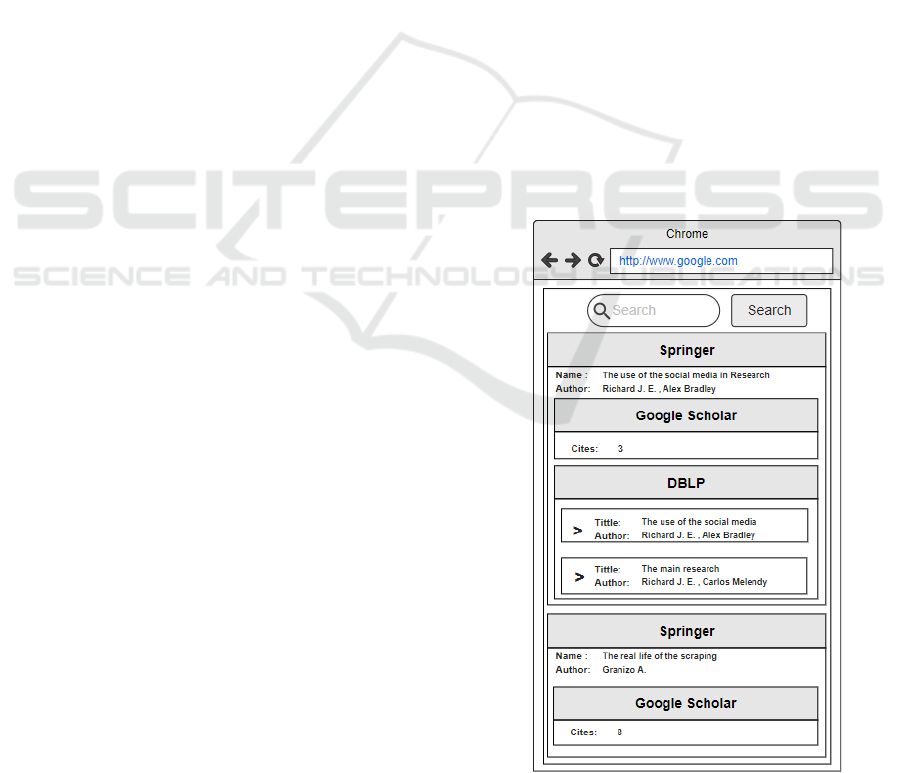

Figure 1: Mockup of a browser extension to mashup results

from Springer, Google Scholar, and DBLP.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

Figure 2: Procedure to create the Springer search API.

A Data Service Layer for Web Browser Extensions

• Retrieve the number of citations from Google

Scholar: After selecting an article from Springer,

the extension needs to extract the article’s title and

use it to search for the same article on Google

Scholar. By parsing the DOM of the Google

Scholar results page, the number of citations for

the article can be retrieved.

• Obtain related articles from DBLP: Similarly,

when an article’s author is selected, the extension

needs to extract the author’s information and use

it to search for related articles on DBLP. By scrap-

ing the relevant data from the DBLP website, the

extension can retrieve and display the related arti-

cles.

To accomplish these tasks, the browser extension

developer must create custom scrapers for all three

websites: Springer, Google Scholar, and DBLP. Ad-

ditionally, the developer must program the logic to es-

tablish the pipeline of data retrieval and processing.

This includes passing the article title from Springer

to Google Scholar and the author’s information from

Springer to DBLP.

3 THE APPROACH AND TOOLS

In this section, we present the approach and tools.

First, we provided an overview of the ANDES ap-

proach to create search APIs based on web page an-

notations. Then, we describe the architecture of our

proposal. Then, the model editor is presented, which

makes it possible to compose different search APIs to

create more complex information models.

3.1 ANDES Search APIs

This work is based on ANDES’ concept of search

APIs as reported in (removed for double blind revi-

sion, 2022). By means of web annotation and scrap-

ing techniques, ANDES abstracts the search function-

ality of any website into a reusable search API. Call-

ing the search operation on the API triggers the corre-

sponding search and scrapping behavior and returns

a collection of (JavaScript) objects. ANDES offers

tools to annotate the UI search components (search

input, trigger button, pagination buttons, etc.) and to

abstract the search results as domain objects. The user

deﬁnes the type of the resulting object, its properties,

and the mapping from the content of the results web

page to property values.

Further details about ANDES can be found in (re-

moved for double blind revision, 2022). For the sake

of comprehension, Figure 2 depicts the main parts

of the procedure to create a search API for Springer

(as required for the motivating example). The user

conducts a search on the website of interest (in this

case, Springer’s website) and, once results are dis-

played, clicks on the browser extension icon (Step

1). The main UI of the ANDES’ browser extension

opens. She selects the ”Services” button (Step 2) and

clicks on the ”New service” button (Step 3). She as-

signs a name to the new search service, in this case,

“Springer” (Step 4). Then, the user selects the text in-

put area in the search form using point-and-click in-

teraction (Step 5). Once the text input has been se-

lected, she chooses a UI element (a DOM node) con-

taining one result. Finally, she deﬁnes a semantic type

for the result and the repetition strategy that correctly

collects all results available on the sample page (Step

6). Behind the scenes, each option in this menu rep-

resents an xPath used to retrieve all the results. Once

result elements are identiﬁed, the user connects parts

(sub-nodes in the DOM) of the result element to prop-

erties (Step 7).

3.2 Architecture

The data service layer and related editors are pack-

aged as a standalone browser extension. Once in-

stalled in a web browser, the editors can be used to

deﬁne both the search APIs for speciﬁc websites and

the composition models to create more complex in-

formation objects. Both kinds of artifacts will become

available for other browser extensions.

Figure 3 shows an overview of the architecture.

It shows that the data service layer includes two tools

(Search API tool and API composition tool), each one

generating a kind of artifact that is stored in this layer.

It also provides an API Interaction service layer that

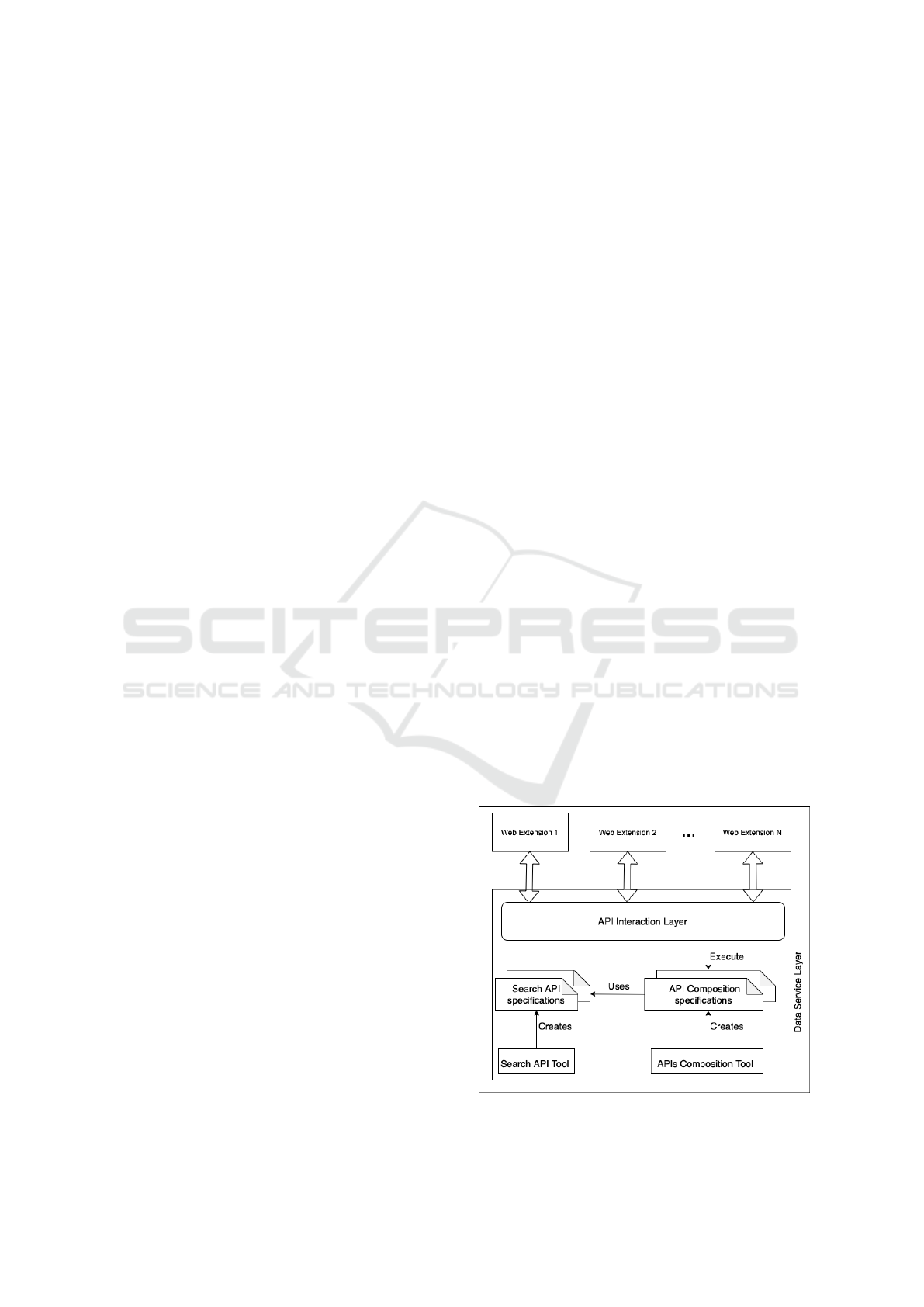

Figure 3: Data service layer architecture.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

allows other browser extensions to consume the in-

formation models created with the API composition

tool.

Figure 4 presents a high-level design of the data

service layer. Search APIs are exposed through in-

stances of SearchModel, managed by the Model-

Registry. Instances of SearchModel implement the

search() operation called by the clients of the data

service layer. In the most interesting case

, a Search-

Model has ComposedSearchAPI that drives the main

search and composition task. In turn, the Composed-

SearchAPI has one BasicSearchAPI (its main search)

and one or more Augmenters. Given an object (a

result from the main search), an Augmenter builds

a search query, conducts a search on another search

API, and injects the results as a new object property.

The collaboration will become clearer in the follow-

ing sections.

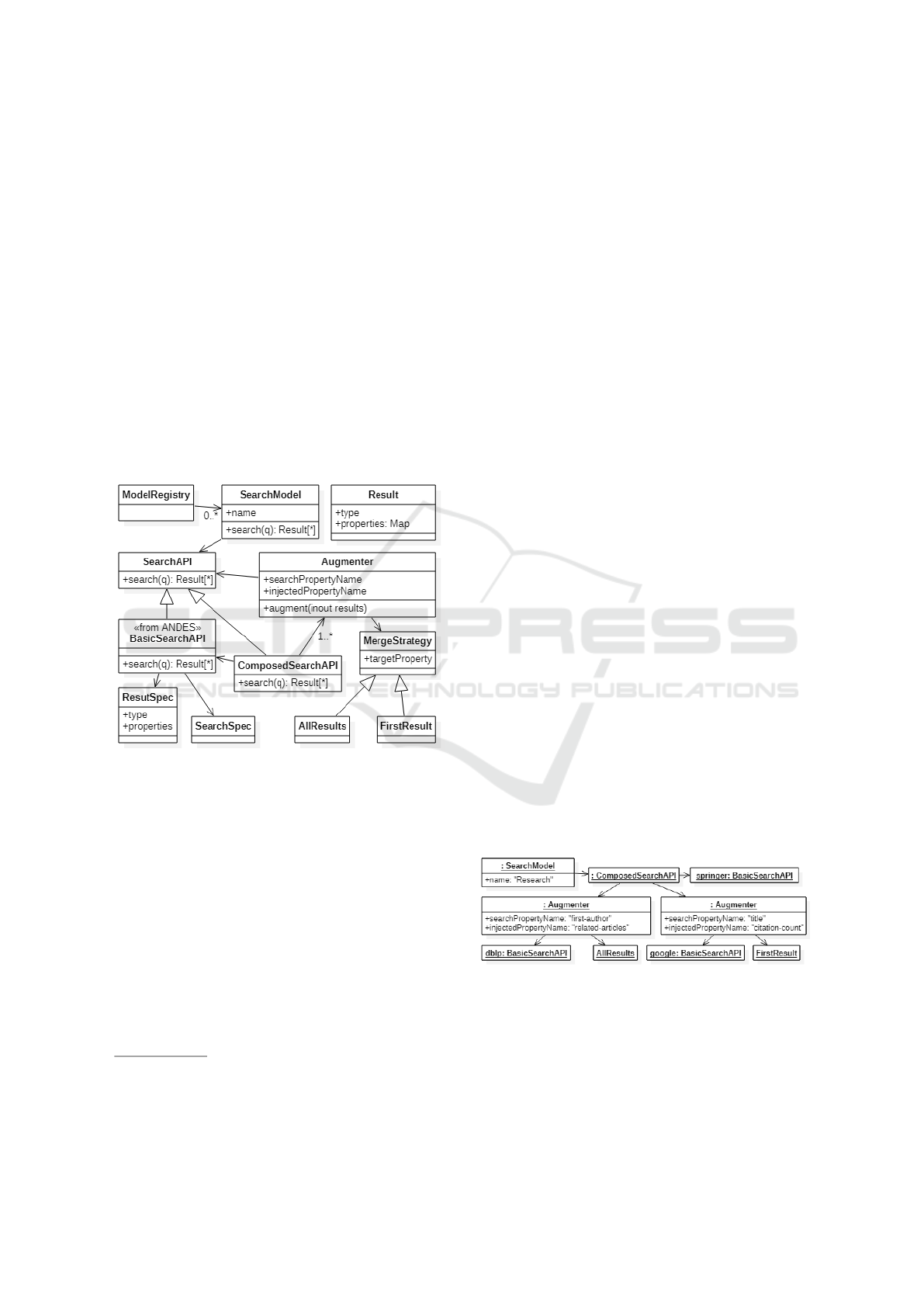

Figure 4: High-level design of the data service layer.

3.3 Search API Composition

To better understand how the data service layer is

used to create browser extensions, let us return to

the motivating example presented in Section 2. The

main idea is to obtain a search model based on the

composition of search APIs for Springer, DBLP, and

Google Scholar. The model should integrate infor-

mation from the three websites in a single response.

Speciﬁcally, when the model is asked to search for

something, it uses the Springer search service. In ad-

dition, the response also includes the number of cita-

tions obtained from Google Scholar and a collection

In the simplest case, the SearchModels has only a Ba-

sicSearchAPI, which results in a functionality comparable

to what was already provided by ANDES as described in

Section 3.1

of related articles (articles from the ﬁrst author) ob-

tained from DBLP.

To create an information model based on search

service composition, the user creates the search ser-

vices of the websites that he wishes to integrate, fol-

lowing the process presented in Section 3.1. Then,

the user starts the API Composition Tool from the ex-

tension’s main UI. Next, the extension shows an ed-

itor (Figure 7) where the deﬁned search services are

presented in a panel on the left, and the composition

canvas is the main component of the UI. The user

drags&drops the services he wants to compose (i.e.,

Springer, Google Scholar, and DBLP services) into

the canvas. Each search service is shown as a node

of a graph. To integrate the results of the search ser-

vices, the user creates links between the nodes. A link

indicates that each result in the origin search service

(e.g., Springer) will have a property holding related

results in the target search service (e.g., DBLP). The

link is conﬁgured with a) the name of the property

holding the results (e.g., “related-articles”), b) a prop-

erty in the model of the origin service whose value

will be used as a query string to search in the desti-

nation service (e.g., “ﬁrst-author”), and c) the strat-

egy used to select which results to keep (e.g., “all re-

sults”). In this way, the integration between services

can be one-to-one (connect to the object correspond-

ing to the ﬁrst or to any search result) or one-to-N

(connect to a collection with all the results). Figure 5

depicts the resulting object model, following the de-

sign presented in Figure 4. The SearchModel relies

on a ComposedSearchAPI that starts with a Basic-

SearchAPI (on Springer) and uses two Augmenters.

One of them injects results obtained from a Basic-

SearchAPI conﬁgured on DBLP, and the other one

injects results from a BasicSearchAPI conﬁgured on

Google Scholar. Figure 6 provides additional details

regarding the interactions occurring when the search()

operation is called on a SearchModel object.

Figure 5: Object diagram corresponding to the motivating

example.

3.4 Using the Data Service Layer

In this section, two use cases are presented. The ﬁrst

one corresponds to the mashup application presented

as the motivating example in Section 2. The sec-

A Data Service Layer for Web Browser Extensions

Figure 6: Interaction diagram corresponding to the motivat-

ing example.

ond one is a web augmenter that augments Springer’s

website with more information about a speciﬁc paper.

Both examples use the same search model, which was

presented in the previous section.

3.4.1 A Mashup Application

Consider the motivating example discussed in Section

2. The browser extension presents a main screen (see

the browser window in the middle of Figure 8) with

an input text, where the user enters a topic to search

for (in this example, it was “scraping”). The search

button triggers a search using the search model. Re-

sults are displayed along with the number of citations

(which is extracted from Google Scholar) and related

articles of the selected author (extracted from DBLP).

Next, we discuss key parts of the source code (see

Listing 1) to show that the developer remains uncon-

cerned about the underlying web requests and scrap-

ing tasks.

To trigger the search, the mashup developer uses

the data service layer whose API has the “search”

method, shown in line 2. This method receives sev-

eral parameters: the text to search, the name of the tar-

get search model. When the service layer is invoked

through the search function, it executes the model and

returns a JSON object, whose structure is composed

of the information extracted from the three websites.

1 $ sco pe . s e a r c h D a t a = f u n c t i o n ( a r g s )

{

2 var a p i =new d a t a S e r v i c e L a y e r ( ) ;

3 a p i . s e a r c h ( a r g s . s ea rc hQ ue ry ,

a r g s . searchModelName ) . t h e n (

p a p e r s =>{

4 $s co pe . r e s u l t s = p a p e r s

5 })

6 }

Listing 1: Source code for the service layer invocation.

3.4.2 Springer Website Augmenter

Consider the augmentation of Springer’s website de-

picted in Figure 9. The website is augmented to show

further information about the paper that the user is

navigating. In this case, the augmenter adds the num-

ber of citations (extracted from Google Scholar) and

also further articles in which the ﬁrst author has par-

ticipated (extracted from DBLP).

Note that the code the developer must write to

conduct searches and obtain the results is the same

as in the mashup application previously discussed.

The data service layer not only hides the complexity

of scraping data from several websites and integrat-

ing this data but also supports reuse among different

browser extensions.

4 PRELIMINARY EVALUATION

We conducted a usability study involving 16 partic-

ipants to assess the tool’s usability and identify any

usability issues. The intention is to subsequently con-

duct a more comprehensive experiment to examine

the impacts and applicability of the approach thor-

oughly. The method for creating basic search APIs

described in Section 3.1 was evaluated in (removed

for double blind revision, 2022).

In this new study, participants were asked to do 7

tasks related to the creation and edition of API com-

position models. The model that participants were

asked to create corresponds to the motivating exam-

ple, using Springer, Google Scholar, and DBLP. 13

participants managed to complete the tasks, 2 partici-

pants completed 4 tasks, and 1 participant completed

5 tasks. It is important to mention that participants

had no programming skills.

Upon completing the tasks, we utilized the Sys-

tem Usability Scale (SUS) method to assess usability,

which yielded an average score of 68.11. Based on

various standards, this score is considered acceptable.

5 RELATED WORKS

Web scraping means extracting non-structured (or

partially structured) data from websites, often simu-

lating the browsing behavior. Normally, it is used to

automate data extraction to obtain more complex in-

formation, which means that end users are not usually

involved in determining what information to look for

and still less about what to do with the abstracted ob-

jects.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

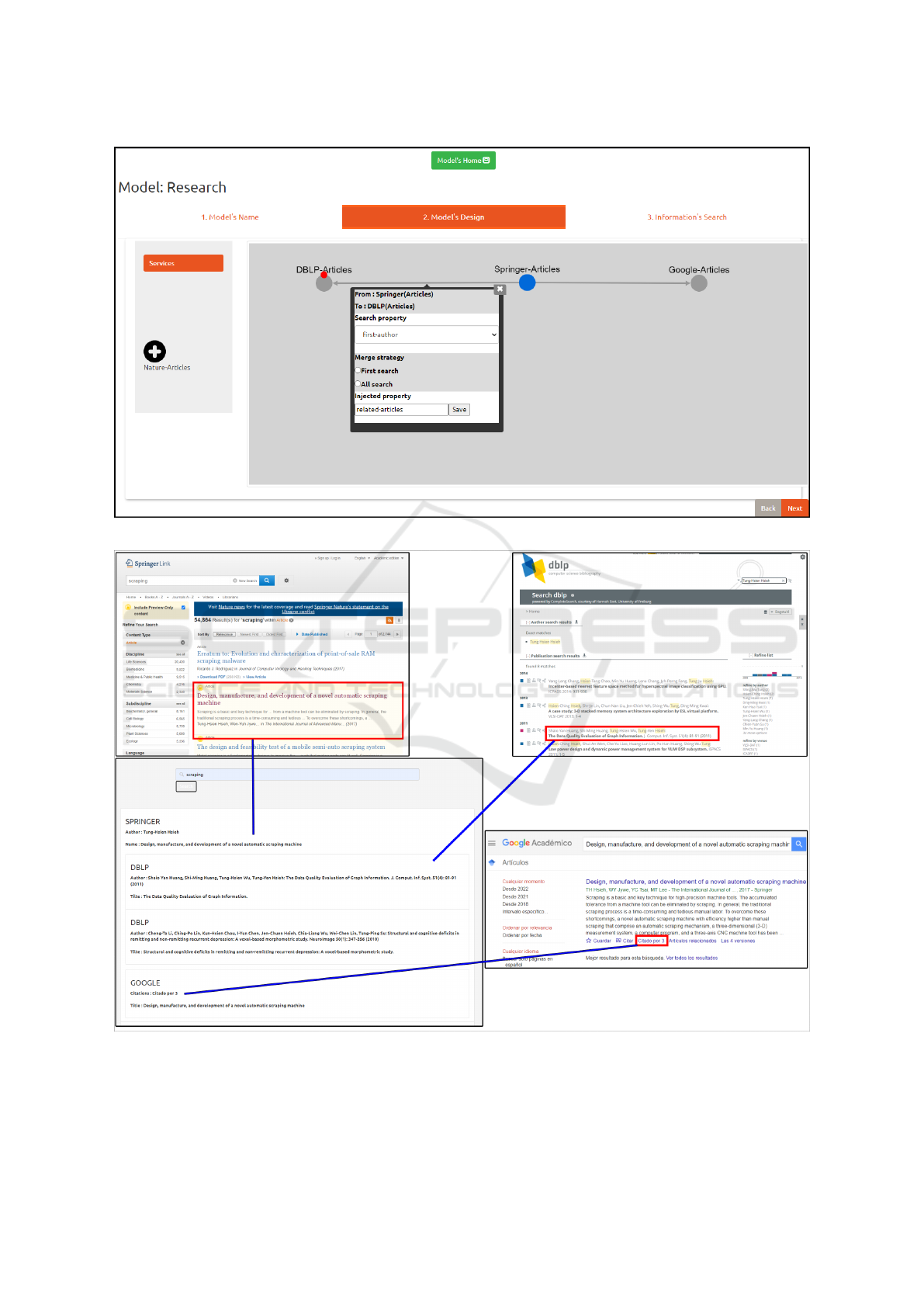

Figure 7: The API composition tool: Integration between Springer and DBLP search APIs.

Figure 8: Search results in the model containing Springer, Google Scholar and DBLP.

Some websites already tag their contents allowing

other software artifacts (for instance, a web browser

plugin) to process those annotations and improve in-

teraction with that structured content. A well-known

A Data Service Layer for Web Browser Extensions

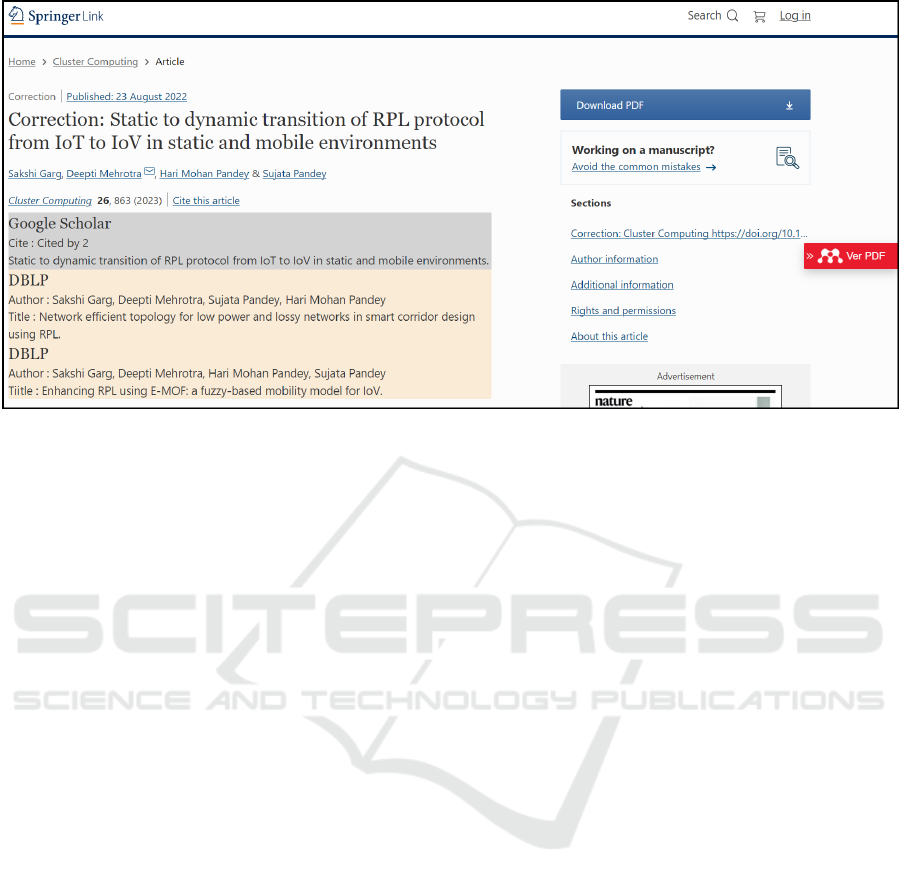

Figure 9: Reusing the search API to augment Springer’s website.

approach for giving some meaning to web data is

Microformats (Khare and C¸ elik, 2006). Some ap-

proaches leverage the underlying meaning given by

Microformats, detecting those objects present on the

web page and allowing users to interact with them

in new ways. A very similar approach is Micro-

data. Considering Semantic web approaches and an

aim similar to our proposal, (Kalou et al., 2013)

presents an approach for mashups based on seman-

tic information; however, it depends too heavily on

the original application owners, something that is not

always viable. Moreover, when analyzing the Web,

we see that a the majority of websites do not pro-

vide this annotation layer. According to (Bizer et al.,

2013), only 5,64% among 40.6 million websites pro-

vide some kind of structured data (Microformats, Mi-

crodata, RDFa, etc.). This reality emphasizes the sig-

niﬁcance of empowering users to incorporate seman-

tic structure in situations where it is lacking.

Several approaches let users specify the structure

of existing contents to ease the management of rel-

evant information objects. For instance, HayStack

(Karger et al., 2005) offers an extraction tool that al-

lows users to populate a semantic-structured informa-

tion space. Atomate it! (Kleek et al., 2010) offers

a reactive platform that could be set to the collected

objects by means of rule deﬁnitions. Then the user

can be informed when something interesting happens

(e.g., a new movie is available). (Van Kleek et al.,

2012) allows the creation of domain-speciﬁc appli-

cations that work over the objects deﬁned in a PIM.

Rousillon is an interesting approach based on end-

user programming for deﬁning scrapers based on hi-

erarchical data (Chasins et al., 2018). In (Katongo

et al., 2021), another approach is presented to enable

web customization through web scraping deﬁned by

users without programming skills. However, it differs

from our approach because many browser extensions

can use our data service layer.

Web augmentation is a popular approach that lets

end users improve web applications by altering orig-

inal web pages with new content or functionality not

originally contemplated by their developers. Nowa-

days, users may specify their own augmentations by

using end-user programming tools.

In previous work, the ANDES approach (removed

for double blind revision, 2022) was introduced as a

means of enabling end-user programming of search

APIs based on the search functionality of websites.

While the current paper builds upon ANDES, two

noteworthy contributions distinguish it from the pre-

vious work. Firstly, ANDES primarily focuses on

ancillary searches, which involve using the created

search APIs to augment websites with the results of

speciﬁc ancillary searches. In contrast, the present

work extends the concept of search APIs by integrat-

ing them into a data service layer. This means that

the search APIs are now offered as part of a broader

framework that provides various data services. In

comparison with ANDES, the second signiﬁcant con-

tribution of this paper is the proposed method and

tool for composing search APIs. They allow for the

creation complex information objects whose inter-

nal structures are populated with data retrieved and

scraped from multiple sources. By enabling the com-

position of search APIs, developers can leverage in-

formation from diverse sources to construct compre-

hensive information models.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

Other interesting tools have emerged in the con-

text of end-user programming and web augmentation

ıaz et al., 2014). Reuse in web augmentation has

also been tackled before. For example, Scripting In-

terface (D

ıaz et al., 2010) is oriented to better sup-

port reuse by generating a conceptual layer over the

DOM, speciﬁcally for user scripts. Since the speciﬁ-

cation of a scripting interface could be deﬁned in two

distinct websites, the augmentation artifacts written

in terms of that interfaces could be reused. However,

these scripting interfaces do not consider the search

engines provided by web applications.

6 CONCLUSIONS AND FUTURE

WORKS

In this article, we highlight the unique nature of

browser extensions as software tools that enable users

to customize their web browsing experience. While

some browser extensions can be developed with-

out programming skills using end-user development

tools, the complexity increases when scraping is in-

volved.

The article introduces a data service layer ap-

proach to simplify the development process for

browser extensions that require web scraping. The

approach enables developers to deﬁne web scraping

operations in a no-code manner by automating the

interaction with search engines, effectively creating

search services or APIs for websites that do not of-

fer them. These search APIs can then be combined

to create more complex information models, allowing

developers to retrieve data from multiple websites in

a single invocation.

An exciting outcome of the presented approach

and tool is its potential integration into other browser

extensions that aim to provide end-user programming

capabilities. Incorporating this data service, including

the end-user programming tools for deﬁning search

services and APIs composition, can serve as a foun-

dational layer within a broader end-user program-

ming tool for more general-purpose artifacts such as

mashups or web augmenters. In addition, this inte-

gration would empower users to leverage web scrap-

ing capabilities seamlessly, enhancing their ability to

customize and extend the functionality of browser ex-

tensions.

By embedding the data service layer into other ex-

tensions, developers can provide a comprehensive en-

vironment that combines the beneﬁts of end-user pro-

gramming with the ﬂexibility of web scraping. This

would enable a wider range of users to create sophis-

ticated browser extensions that rely on scraping and

aggregating information from various websites.

A usability study was conducted to assess the ef-

fectiveness of the approach. While some usability is-

sues were identiﬁed, the majority of participants, even

those without programming skills, were able to deﬁne

the necessary API compositions for the given tasks,

demonstrating promising results.

As part of future work, the authors plan to conduct

a more comprehensive experiment to validate other

aspects of the data service layer approach. This will

contribute to further reﬁning and enhancing the us-

ability and effectiveness of the proposed method.

REFERENCES

Bizer, C., Eckert, K., Meusel, R., M

uhleisen, H., Schuh-

macher, M., and V

olker, J. (2013). Deployment of

rdfa, microdata, and microformats on the web - A

quantitative analysis. In Alani, H., Kagal, L., Fokoue,

A., Groth, P., Biemann, C., Parreira, J. X., Aroyo, L.,

Noy, N. F., Welty, C., and Janowicz, K., editors, The

Semantic Web - ISWC 2013 - 12th International Se-

mantic Web Conference, Sydney, NSW, Australia, Oc-

tober 21-25, 2013, Proceedings, Part II, volume 8219

of Lecture Notes in Computer Science, pages 17–32.

Springer.

Chasins, S. E., Mueller, M., and Bod

ık, R. (2018). Rousil-

lon: Scraping distributed hierarchical web data. In

Baudisch, P., Schmidt, A., and Wilson, A., editors,

The 31st Annual ACM Symposium on User Interface

Software and Technology, UIST 2018, Berlin, Ger-

many, October 14-17, 2018, pages 963–975. ACM.

ıaz, O. and Arellano, C. (2015). The augmented web:

Rationales, opportunities, and challenges on browser-

side transcoding. ACM Trans. Web, 9(2):8:1–8:30.

ıaz, O., Arellano, C., Aldalur, I., Medina, H., and Fir-

menich, S. (2014). End-user browser-side modiﬁca-

tion of web pages. In Benatallah, B., Bestavros, A.,

Manolopoulos, Y., Vakali, A., and Zhang, Y., editors,

Web Information Systems Engineering - WISE 2014 -

15th International Conference, Thessaloniki, Greece,

October 12-14, 2014, Proceedings, Part I, volume

8786 of Lecture Notes in Computer Science, pages

293–307. Springer.

ıaz, O., Arellano, C., and Iturrioz, J. (2010). Interfaces

for scripting: Making greasemonkey scripts resilient

to website upgrades. In Benatallah, B., Casati, F.,

Kappel, G., and Rossi, G., editors, Web Engineering,

10th International Conference, ICWE 2010, Vienna,

Austria, July 5-9, 2010. Proceedings, volume 6189 of

Lecture Notes in Computer Science, pages 233–247.

Springer.

Kalou, A. K., Koutsomitropoulos, D. A., and Pap-

atheodorou, T. S. (2013). Semantic web rules and on-

tologies for developing personalised mashups. Int. J.

Knowl. Web Intell., 4(2/3):142–165.

Karger, D. R., Bakshi, K., Huynh, D., Quan, D., and Sinha,

V. (2005). Haystack: A general-purpose information

A Data Service Layer for Web Browser Extensions

management tool for end users based on semistruc-

tured data. In Second Biennial Conference on In-

novative Data Systems Research, CIDR 2005, Asilo-

mar, CA, USA, January 4-7, 2005, Online Proceed-

ings, pages 13–26. www.cidrdb.org.

Katongo, K., Litt, G., and Jackson, D. (2021). Towards

end-user web scraping for customization. In Church,

L., Chiba, S., and Boix, E. G., editors, Programming

’21: 5th International Conference on the Art, Science,

and Engineering of Programming, Cambridge, United

Kingdom, March 22-26, 2021, pages 49–59. ACM.

Khare, R. and C¸ elik, T. (2006). Microformats: a pragmatic

path to the semantic web. In Carr, L., Roure, D. D.,

Iyengar, A., Goble, C. A., and Dahlin, M., editors,

Proceedings of the 15th international conference on

World Wide Web, WWW 2006, Edinburgh, Scotland,

UK, May 23-26, 2006, pages 865–866. ACM.

Kleek, M. V., Moore, B., Karger, D. R., Andr

e, P., and

m. c. schraefel (2010). Atomate it! end-user context-

sensitive automation using heterogeneous information

sources on the web. In Rappa, M., Jones, P., Freire,

J., and Chakrabarti, S., editors, Proceedings of the

19th International Conference on World Wide Web,

WWW 2010, Raleigh, North Carolina, USA, April 26-

30, 2010, pages 951–960. ACM.

removed for double blind revision, R. (2022). Title removed

for double blind revision. Comput. Stand. Interfaces.

Van Kleek, M., Smith, D. A., Shadbolt, N., et al. (2012). A

decentralized architecture for consolidating personal

information ecosystems: The webbox. In PIM 2012.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies
