VICE: View-Invariant Chess Estimation

Kevin Zhu

, Alexander Wong and John McPhee

University of Waterloo, Canada

Keywords:

Chess, Automated Digitization, Computer Vision, Deep Learning.

Abstract:

A digitized chess match offers chess players a convenient way to study previous matches. However, manually

recording a large number of matches can be laborious, while automated methods are usually hardware-based,

requiring expensive chessboards. Computer vision provides a more accessible way to track matches from

videos. However, current vision-based digitizers are often evaluated on images captured by cameras placed

directly above a chessboard, and performance suffers when the camera angle is lower, limiting their applica-

bility. Motivated to develop a more practical solution, we introduce VICE, a view-invariant chess estimator to

digitize matches from camera angles not seen during training. Due to its small model size and computational

efﬁciency, VICE is suitable for mobile deployment. By rearranging the framework for chess detection and

incorporating prior information from chess and basic geometry, we simplify the chess estimation problem and

mitigate the challenges that current chess digitizers struggle with, such as occlusion. We combine the board

localization and chess piece detection phases of classical two-step chess estimation to develop a prototype for

the ﬁrst single-step chess digitizer. We show that, with minimal training data, our prototype can infer moves

from camera angles that current chess digitizers cannot, while being much smaller in size.

1 INTRODUCTION

The current popularity growth in chess may rival the

boom in 1972 (Keener, 2022), when the World Chess

Championship match took place between American

Bobby Fischer and Soviet Boris Spassky, at the height

of the Cold War. Although the COVID-19 pandemic

contributed to the current surge, with active users

on Chess.com more than doubling from 8 million

to 17 million from 2020 to 2022, it does not mean

that people have permanently switched to compet-

ing online. In 2020, after the reopening of the Mar-

shall Chess Club, one of the oldest chess clubs in the

United States, the number of active members reached

a record-high in the club’s 107-year history.

Just like in any other sport, post-game analysis

is important for a player’s growth and development.

A digitized chess match (Fig. 1) offers a convenient

way to study both ongoing and previous matches. It

is visual, compact, and can be uploaded to chess en-

gines for analysis. However, manually recording in-

person matches can be a tedious process. Current au-

tomated tracking methods are usually hardware-based

(SquareOff, 2018; DGT, 1998) and require expensive

https://orcid.org/0000-0003-1585-6170

https://orcid.org/0000-0003-3908-9519

boards, which could be inaccessible for many.

Figure 1: Digitized game state (right image) after move Nf6

of Ding vs. Aronian in the 2019 Tata Steel Blitz (ChessBa-

seIndia, 2020a). Ding (left player) starts his move immedi-

ately after Nf6, while Aronian’s arm is still in frame, fully

occluding some chess pieces around the A8 corner. At the

current game state, there are no frames where human hands

don’t occlude part of the board.

Recent computer vision methods, such as

LiveChess2FEN (Mallas

en Quintana et al., 2021) and

Chesscog (W

olﬂein and Arandjelovi

c, 2021), have

shown promising results on predicting a chess game

state from an image. However, these methods are of-

ten evaluated on images taken from a bird’s eye view

(BEV), and performance suffers when the camera an-

gle is lower. This limits the practicability of these

methods in real-world scenarios. A scan on YouTube

will show that most broadcast videos of chess are

taken at a lower camera angle. At an amateur tour-

nament or when partaking in a street chess match, it

Zhu, K., Wong, A. and McPhee, J.

VICE: View-Invariant Chess Estimation.

DOI: 10.5220/0012167200003587

In Proceedings of the 11th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2023), pages 50-60

ISBN: 978-989-758-673-6; ISSN: 2184-3201

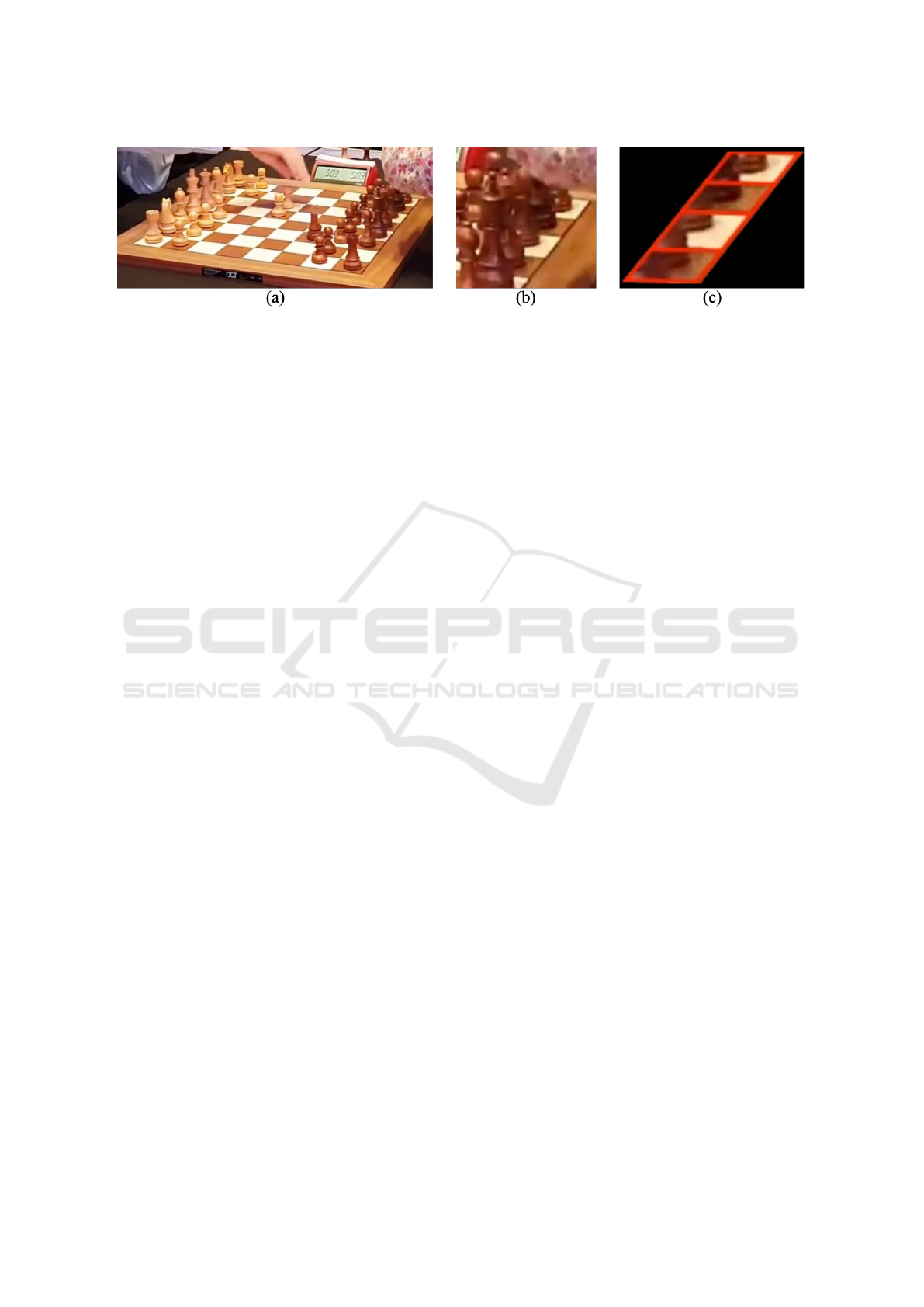

Figure 2: (a): An image corresponding to move c4. (b): Zooming in to the top right corner of (a), occlusion among chess

pieces, occlusion from Aronian’s arm and shadows make chess piece classiﬁcation challenging. (c): The pixels within each

square may not provide sufﬁcient information to classify chess pieces since some chess sets have the same base for different

chess pieces.

is also unlikely to have a personal phone or camera

placed directly above the chessboard.

These vision-based methods ﬁrst localize the

chessboard using a combination of deep learning and

traditional computer vision methods such as edge and

corner detectors (Lu et al., 2015; Harris and Stephens,

1988), then classify the chess piece in each square of

the chessboard using convolutional neural networks

(CNNs). The board localization step implements

many rule-based modules with hand-picked parame-

ters to compute the geometry of the board from the

detected edges and corners in the image. If prob-

lems occur during edge and corner estimation, errors

could arise during the geometry calculations, termi-

nating the entire process. This could happen when a

human hand partially obstructs the board (Fig. 2a), a

case that previous methods did not consider. The ac-

curacy in the classiﬁcation step suffers mainly due to

occlusion among pieces (Fig. 2b). Even when occlu-

sion is not the case, the pixels in each square some-

times don’t provide enough information — at a low

camera angle, only the base of the chess piece is visi-

ble in each square, and some chess sets have the same

base for all pieces (Fig. 2c).

Motivated to develop a more robust method, we

propose a view-invariant chess estimator (VICE) that

is able to predict chess moves from unseen camera an-

gles in a single step. We refer to camera angles and

matches that do not appear in the training dataset as

“unseen” camera angles and matches. The approach

of current chess digitization methods is very similar to

two-stage object detectors — a network generates re-

gion proposals in an image, then another network pre-

dicts the class of the objects in the proposed regions.

By using an object detector, VICE directly infers the

position of each chess piece in an image. To map the

detected pieces onto a chessboard, we model the cor-

ners of the chessboard as objects, for the object de-

tector to detect simultaneously with the chess pieces,

similar to the approach for dart scoring in (McNally

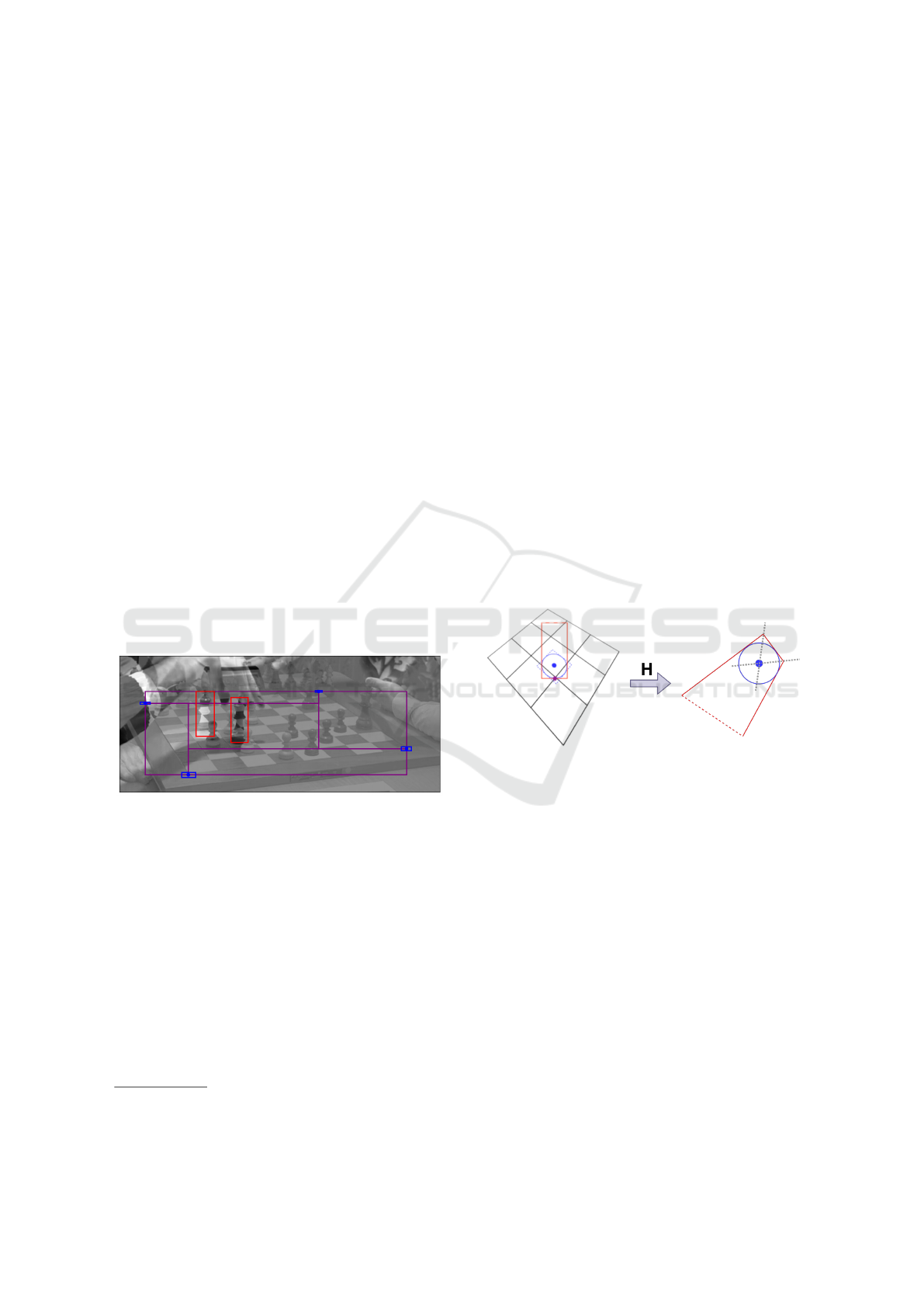

et al., 2021). We use the detected corners of the board

to estimate a homography matrix to project the image

locations of each chess piece onto chessboard coor-

dinates. This combines board localization and piece

detection into one step, and avoids the need for ge-

ometry computations of the chessboard and granular

location estimation of each square.

Due to chess’s strict transition rules, we are able

to infer the next state of the game given the previous

state and current chess move. Since the initial state

of a chess match is always ﬁxed, we are able to track

an entire match by tracking each move. Leveraging

this information, VICE only detects the previous and

new locations of chess pieces that moved. This omits

the need for chess piece classiﬁcation. Although this

means later predictions depend on the current predic-

tion, it is often easy to detect when an error is made —

the current predicted move or a later predicted move

will become illegal. Once the error is found and cor-

rected manually, the subsequent moves will be up-

dated automatically. Furthermore, as in Fig. 1, it is

common in speed chess for a player to start a move

before their opponent releases a chess piece. This

can lead to game states where a hand fully occludes

certain chess pieces in every frame. In these cases,

without prior information, it is impossible to accu-

rately infer the game state from a single image. In

the case that the user does not want to track a match

from the beginning, they can manually enter an ini-

tial state. Almost all chess digitizing methods include

human interaction components (W

olﬂein and Arand-

jelovi

c, 2021; Mallas

en Quintana et al., 2021; Danner

and Kafafy, 2015; Khan and Kesavan, 2014; Sokic

and Ahic-Djokic, 2008; Gonc¸alves et al., 2005).

In summary, we introduce VICE as a prototype

for a view-invariant chess estimator. By modeling the

chess pieces that move as objects, VICE mitigates the

effects of occlusion among chess pieces and from the

human hand, situations that current methods struggle

with. By modeling the corners of the chessboard as

objects and detecting them simultaneously with the

chess pieces, VICE is able to combine the chessboard

VICE: View-Invariant Chess Estimation

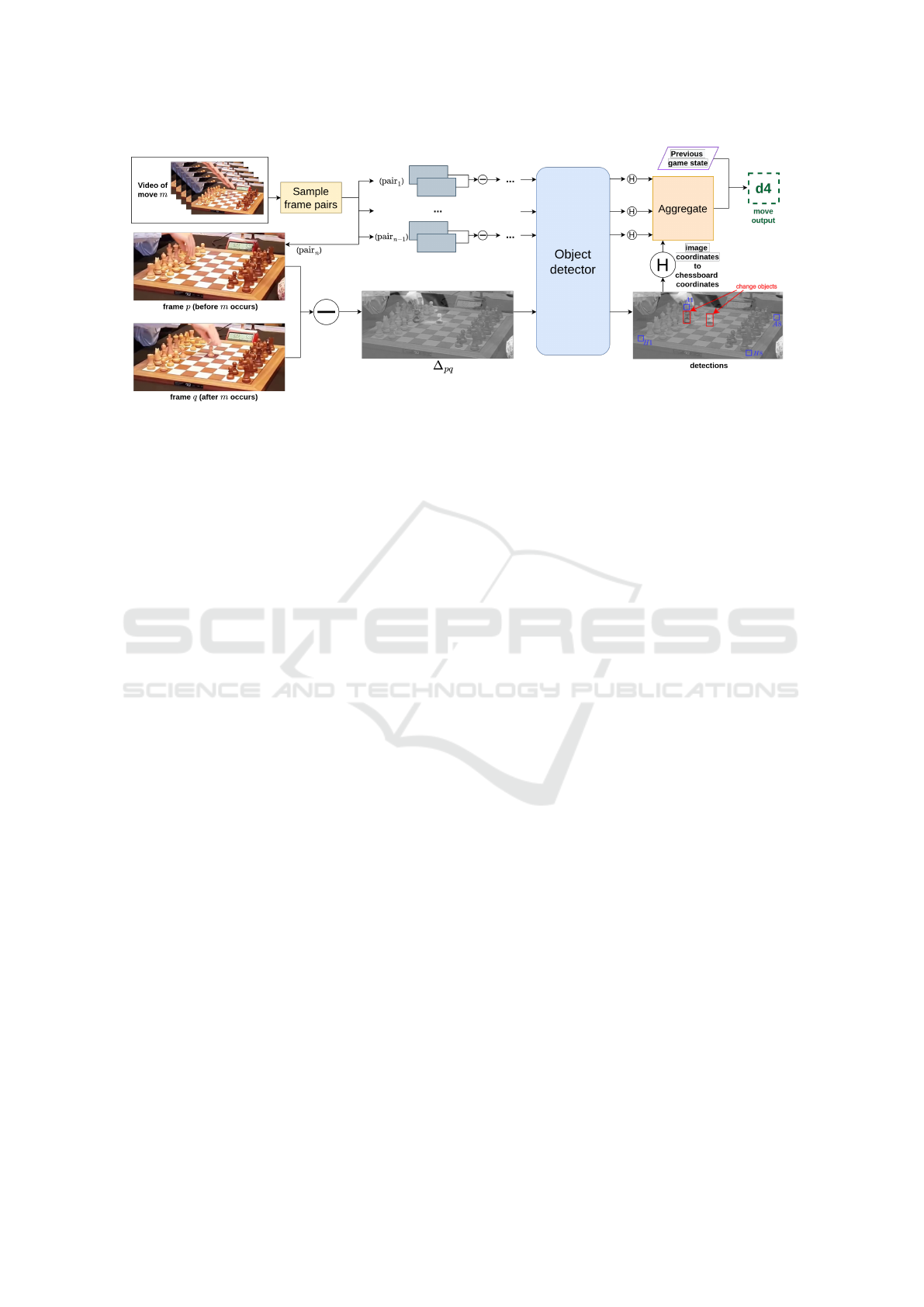

Figure 3: VICE samples frame pairs before and after a chess move and detects change objects (red) and corner objects

(blue) from the image difference. Change detections are then projected onto chessboard coordinates by a homography matrix

estimated by the corner detections. Detections from each sample pair are aggregated and combined with the previous game

state to predict the current chess move.

localization and chess piece detection phases, mak-

ing it the ﬁrst single-step chess digitizing method.

We focus on a simple and efﬁcient design suitable

for mobile deployment. We propose methods using

simple geometry to (1) infer the bird’s eye view cen-

ter of a chess piece from its 2D bounding box and

(2) overcome some performance limitations of small

deep learning networks. We show that, compared to

current chess digitizers, our prototype trained on min-

imal data generalizes better to unseen camera angles

and is much smaller in model size.

2 RELATED WORK

2.1 Chess Digitization

Vision-based chess digitization is often split into

two phases – board localization and piece detection.

Board localization is the process of estimating the im-

age coordinates of each square on a chessboard. Piece

detection aims to estimate the class of each chess

piece and its location on the chessboard. Board lo-

calization is often done using traditional computer vi-

sion methods such as corner and edge detectors (Lu

et al., 2015; Harris and Stephens, 1988). Early works

on piece classiﬁcation use hand-crafted features such

as HOG (Dalal and Triggs, 2005) and SIFT (Lowe,

2004), then shifted to using CNNs with the develop-

ment of deep learning. Currently, board localization

methods (Mallas

en Quintana et al., 2021; Czyzewski

et al., 2021) are quite accurate when the conditions

are good while chess piece classiﬁcation remains the

bottleneck for full chess digitization, mainly due to

occlusion. A summary of recent methods are shown

in Tab. 1.

Our work is similar to the methodology in (Hack

and Ramakrishnan, 2014; Wang and Green, 2013;

Matuszek et al., 2011; Sokic and Ahic-Djokic, 2008),

where chess moves are identiﬁed by detecting the dif-

ferentials between one movement and the next. This

way, we omit the need for piece classiﬁcation. How-

ever, in (Wang and Green, 2013; Matuszek et al.,

2011; Sokic and Ahic-Djokic, 2008), a camera is

placed directly over the board, which is not always

feasible. CVChess (Hack and Ramakrishnan, 2014)

addressed this perspective problem and aimed to dig-

itize at a lower camera angle. The authors localized

the board using Harris corner detectors (Harris and

Stephens, 1988) and SIFT and predicted chess moves

by computing the change in color of each square.

However, CVChess requires an initial empty chess-

board setup for board localization and does not take

into consideration the case when a human hand oc-

cludes the board. Hence, CVChess is not applica-

ble for the videos used in this study. Furthermore,

CVChess’s performance suffered from various factors

such as shadows, changes in lighting, and occlusion

among chess pieces.

2.2 Object Detection

Object detection is a fundamental task in computer

vision that involves localizing and classifying objects

in an image. Classical CNN-based object detectors

are often divided into two-stage and one-stage detec-

tors. Two-stage detectors, such as the R-CNN family

(He et al., 2020; Dai et al., 2016; Ren et al., 2015;

Girshick, 2015; Girshick et al., 2014), ﬁrst generate

icSPORTS 2023 - 11th International Conference on Sport Sciences Research and Technology Support

Table 1: Computer vision-based chess digitization methods.

Method Description

ChessVision

(Ding, 2016)

Board localization: None. The user must manually select the four corners of the

board, which are used to estimate a projection matrix.

Piece detection: Support vector machines (SVMs) to classify chess pieces from

SIFT (Lowe, 2004) features.

Neural Chess

(Czyzewski et al.,

2021)

Board localization: 1) Canny detector (Lu et al., 2015) and CLAHE algorithm

(Reza, 2004) to detect line segments, a handcrafted linking function to combine line

segments, and an M-estimator-based algorithm (Wiens, 1996) to merge collinear

lines. 2) Preprocess (apply grayscale, Otsu method (Jassim and Altaani, 2013),

Canny detector, binarization) points where detected lines intersect and feed to a rule-

based detector for simple cases or a CNN-based detector for other cases to determine

lattice points. 3) An iterative algorithm to generate a heatmap from the detected

lattice points that represents the likelihood of each pixel being the chessboard.

Piece detection: Modiﬁed ChessVision by including physical properties of chess

pieces in input, clustering similar pieces, selecting most probable piece conﬁgu-

rations computed from a Stockﬁsh chess engine (Stockﬁsh, 2008). (A CNN im-

plementation was also tested but showed minimal improvements over the previous

SVM model.)

LiveChess2FEN

(Mallas

en Quintana

et al., 2021)

Board localization: Optimized Neural Chess to reduce cost and latency.

Piece detection: CNN to classify the chess piece in each square, followed by an

algorithm that uses chess rules as a constraint to reﬁne the CNN output probability

vector (e.g. cannot have 3 Kings on the board).

Chesscog

olﬂein and

Arandjelovi

c, 2021)

Board localization: 1) Canny detector to detect lines. 2) DBSCAN clustering (Es-

ter et al., 1996) to merge similar lines. 3) A RANSAC-based algorithm to determine

lattice points from detected lines.

Piece detection: Occupancy classiﬁcation using a CNN to determine if each square

contains a chess piece. Another CNN to classify the squares that contain a chess

piece.

region proposals in the image, then classify the pro-

posals in the second step. Single-stage detectors lo-

calize and classify objects in a single step, by making

predictions with respect to pre-deﬁned anchors (Red-

mon and Farhadi, 2017; Liu et al., 2016; Lin et al.,

2020) or a grid of possible object centers (Tian et al.,

2019; Zhou et al., 2019; Law and Deng, 2020; Red-

mon et al., 2016).

Transformer-based object detectors such as DETR

(Carion et al., 2020) and its variants (Zhu et al.,

2021; Liu et al., 2022; Li et al., 2022; Zhang et al.,

2022) were recently proposed as end-to-end architec-

tures that omit the use of hand-designed components

such as spatial anchors and non-maximum suppres-

sion. Although improved classical detectors, such

as Dyhead (Dai et al., 2021) and HTC (Chen et al.,

2019) are still often regarded as the current best per-

forming object detectors, it could be interesting to test

transformer-based detectors in future work to see how

well the attention mechanism and set predictions can

capture the global structure of chess detections. In

this paper, we chose to use tiny single-stage detectors

for their computational efﬁciency and mobile friend-

liness.

3 SINGLE-STEP CHESS

DIGITIZATION

To combine the board localization and piece detec-

tion phases, we model both the corners of the chess-

board and chess pieces that moved as objects. We call

the chess pieces that moved change objects and for

notation, italicize “corner” to refer to the chessboard

corner objects. We take the image difference of two

video frames that occur before and after a move, and

VICE: View-Invariant Chess Estimation

from which, detect the change and corner simulta-

neously using a lightweight object detector. The de-

tected corners can then be used to compute a homog-

raphy matrix that projects the detected change objects

onto chessboard coordinates, which represent the pre-

vious and new locations of the chess pieces moved.

This information, combined with the previous match

state, allow us to infer the chess move and next match

state (Fig. 3).

For each corner K ∈ K = {A1, A8, H1, H8}, let

∈ K

be its image coordinates and K

∈ K

be its

chessboard coordinates. We set A1

= (0, 0), A8

(0, 8), H1

= (8, 0), H8

= (8, 8). Let H be the ho-

mography matrix computed by mapping K

to K

Change Objects: are shown in the red bounding

boxes in Fig. 4. They represent the previous and new

locations of chess pieces that moved. In a chess match

with M total moves, for any move m ∈ {1, ..., M},

let Π

be the chess piece(s)

that moved. Let s

the frame a player’s hand makes contact with the ﬁrst

chess piece that is being moved and e

be the frame

the player releases the last piece moved. Let p be a

frame before move m, (e

m−1

< p < s

) and q be a

frame after move m, (e

< q < s

m+1

) where p and q

have the same camera position. The red boxes repre-

sent the locations of Π

in frames p and q.

Figure 4: Bounding boxes of change objects (red), corners

(blue), sides (purple).

For any change object c

, let c

= (x

, y

) be its

image coordinates and c

= (x

, y

) be its chessboard

coordinates. We denote c

= H(c

), or more rigor-

ously:









= H









(1)

To ensure our method is invariant to different

camera views and off-centered placements of chess

pieces, we set the BEV center of c

as its image co-

ordinates. Since no 3D bounding boxes were labeled,

Multiple chess pieces could be moved, such as during

castling.

we must infer the BEV centers from the 2D boxes.

The prevalent method in 3D object detection is to

tightly ﬁt a 3D box inside the 2D box (Qin et al., 2022;

Liu et al., 2019; Naiden et al., 2019; Mousavian et al.,

2017). However, since the base of the chess piece is

usually a circle, the bottom side of the tightly ﬁtted

3D box will almost always intersect with the 2D box

of the chess piece (see dashed blue square and red box

in Fig. 5). Furthermore, due to the many plausible 3D

boxes, the optimization steps are not only computa-

tionally expensive but also require the estimation of

local yaw. Lastly, we only need the bottom center of

the 3D box and not all 8 vertices.

Instead, we project the 2D box using the same ho-

mography matrix H and ﬁt a circle tangent to the 3

sides (that does not include the top side) of the pro-

jected 2D box (Fig. 5). We take the center of this cir-

cle as the BEV center in chessboard coordinates c

Then the BEV center in image coordinates is simply

= H

−1

). The center of this circle can be found

by intersecting the two angle bisectors of the 3 sides

of the projected 2D box. We make the assumption

that the bottom side of the 3D box that bounds each

chess piece is approximately square, which is usually

the case for most chess sets.

Figure 5: (Left): 2D bounding box of a chess piece in red.

Top side of the 2D box in dashed red. Base of the chess

piece in blue circle. The rest of the chess piece is not drawn.

Although the center of the bottom side of the 2D box (pur-

ple dot) is usually tangent to the chess piece, using it to infer

the chess piece’s board location could result in the wrong

grid, based on the placement of the chess piece and cam-

era angle. Instead it is better to use the BEV center (blue

dot). (Right): 2D box and chess piece base projected by ho-

mography matrix H. Since the 3 sides (not including the top

side) of the 2D box tightly bound the circle, the BEV center

can be found by connecting the 2 angle bisectors (grey dot-

ted lines) of the 3 sides.

Corner Objects: are shown in the blue bounding

boxes in Fig. 4, where the center of each box corre-

sponds to the image coordinates of a corner K

. To

account for depth, during labeling, we set the width

and height of each box based on how far each corner

can shift in a direction before producing a homogra-

phy matrix that leads to incorrect chess moves.

For corner K, let H

be the the homography ma-

icSPORTS 2023 - 11th International Conference on Sport Sciences Research and Technology Support

Table 2: Accuracy (Acc.) refers to the percentage of moves correctly inferred by VICE on unseen matches, under 4-fold

cross-validation, where each match is left out as the test set. 2-stage Acc. refer to the case where the corners are assumed to

be known. Mean corner error (MCE) is calculated in terms of Euclidean distance in pixels, grouped by correct and incorrect

move predictions (T; F). †- results shown for Match 2 are inferred after the detected corner labels were corrected by rotating

180

◦

in the BEV plane (A1 should be H8). ‡- Match 4 starts at move 2 since the camera position is inconsistent during the

ﬁrst move.

Match 1: Match 2: Match 3: Match 4:

World Rapid 21 World Blitz 19 Tata Steel India 18 Tata Steel India 19

(Detector)

Carlsen, M.

vs. Firouzja, A.

Jobava, B.

vs. Carlsen, M.

Praggnanandhaa, R.

vs. Mamedyarov, S.

Ding, L.

vs. Aronian, L.

(YOLOX-nano) Acc. 81.0% 74.8%

†

72.3% 71.8%

MCE (T; F) 8.6; 9.9 9.7

†

; 11.0

†

10.3; 18.1 6.1; 18.9

2-step Acc. 88.6% 83.8% 85.1% 84.5%

(NanoDet-Plus-m) Acc. 66.7% 33.3%

†

74.3% 73.2%

MCE (T; F) 17.6; 31.3 15.3

†

; 218.8

†

10.7; 27.8 4.2; 15.9

2-step Acc. 94.3% 84.7% 91.9% 87.3%

(YOLOv5-nano) Acc. 71.4% - 45.3% 47.9%

MCE (T; F) 8.2; 17.3 - 6.8; 76.4 9.0; 37.9

2-step Acc. 84.8% 67.6% 83.1% 77.5%

Total moves (435): 105 111 148 71

‡

trix estimated after shifting K

to the right by r pixels

with the other three corners ﬁxed. Since we only re-

quire the integer value of the chessboard coordinates

to infer the chess move, we set r

= max(r) such that

ceiling(H

)) = ceiling(H(c

)) is true for all c

Similarly, denote l, u, d as the left, up, down directions

respectively. We set w

= min(l

, r

) as the width

and h

= min(u

, d

) as the height of the bounding

box for K.

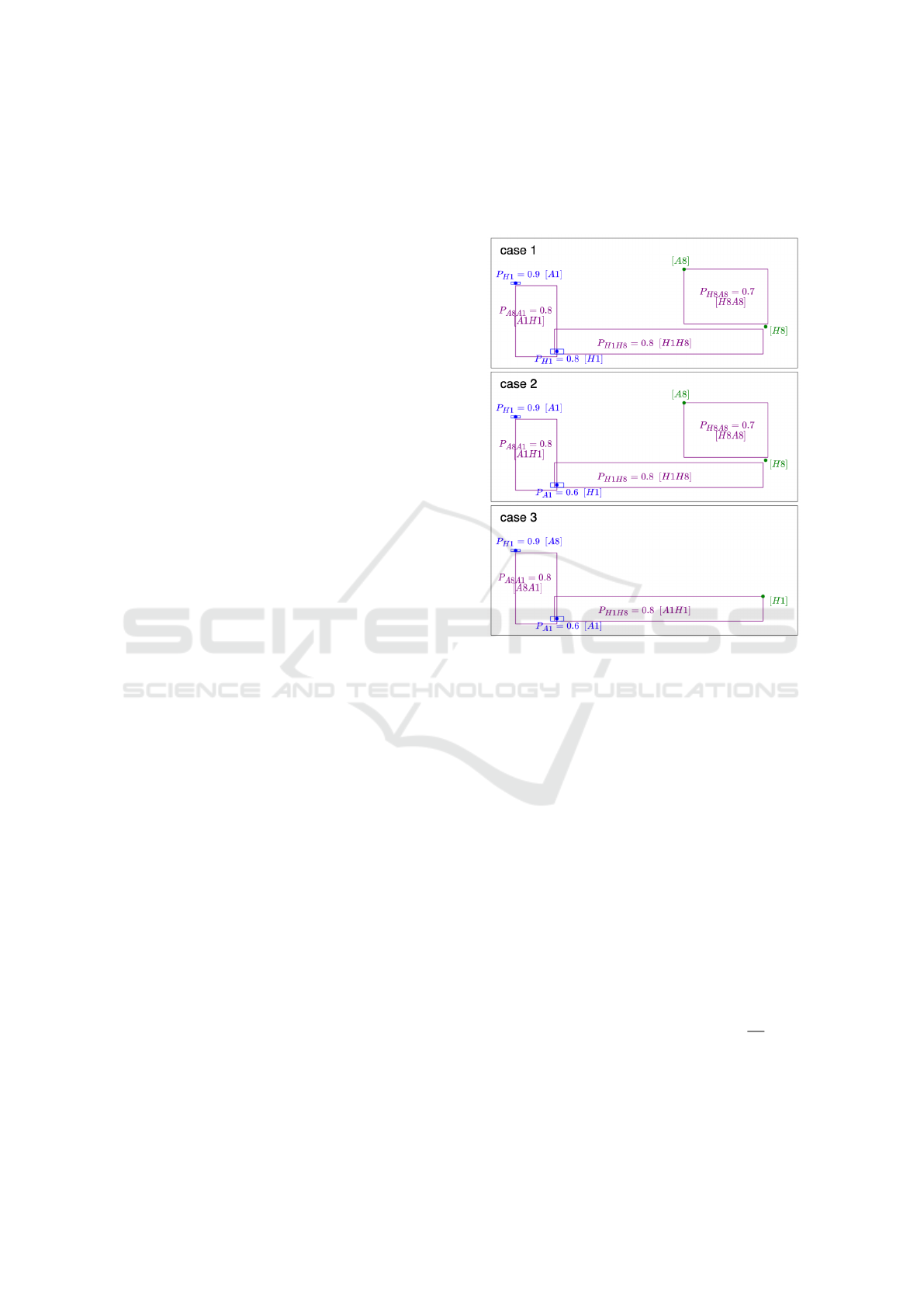

If a corner class is not found during inference,

the homography matrix can not be estimated, and the

chess move will not be inferred. To remedy this,

we also detect the four sides of the chessboard. The

bounding boxes for each side (purple in Fig. 4) are

created by simply using the two neighboring chess-

board corners as opposite diagonal corners of the

bounding box so no additional labeling is required.

The combination of corner and side detections allows

us to infer and localize the chessboard with missing

detections. We found side objects to be more robust as

there were far fewer missing sides than missing cor-

ners during inference (see Tab. 4).

4 EXPERIMENTS

We annotated 4 YouTube videos (ChessBaseIn-

dia, 2022; ChessBaseIndia, 2020b; ChessBaseIn-

dia, 2019; ChessBaseIndia, 2020a) of different chess

matches with different camera angles and lighting and

evaluate VICE’s ability to digitize unseen camera an-

gles using 4-fold cross-validation. In each fold, we

leave out a different chess match as the test set and

train a lightweight single-stage object detectors on

the remaining 3 matches to detect the corner, side

and change objects. We compare the performance of

two keypoint-based detectors, NanoDet-Plus-m (Lyu,

2021) and YOLOX-nano (Ge et al., 2021), and one

anchor-based method, YOLOv5-nano (Jocher, 2020).

All runs are trained for 50 epochs, using the de-

fault training settings and data augmentation conﬁgu-

rations for each object detector. Results are shown in

Tab. 2. Implementation is detailed below in Sec. 4.1,

4.2.

4.1 Frame Pair Sampling

For chess move m, we sample frames p and q that

occur before and after m and have the same camera

angle, where e

m−1

< p < s

and e

< q < s

m+1

create frame pair (p, q). For the ﬁrst and last moves,

VICE: View-Invariant Chess Estimation

we let e

= s

− 5 and s

M+1

= e

+ 5.

To ensure our method is able to deal with human

hands occluding the chessboard, we sample 4 types of

frame pairs, F

• F

, q

) with all possible combinations of

∈ {s

− 1, s

}, q

∈ {e

, e

+ 1}.

• F

j,k

, q

j,k

) contains at most 6 pairs. For

each p

∈ {s

− 1, s

}, randomly sample 3 times:

j,k

∈ {e

+ 2, ..., s

m+1

}, k = 1, 2, 3.

• F

j,k

, q

) contains at most 6 pairs. For

each q

∈ {e

, e

m+1

}, randomly sample 3 times:

j,k

∈ {e

m−1

, ..., s

− 2}, k = 1, 2, 3.

• F

, q

) contains at most 6 pairs. For

each j = 1, ..., 6, randomly sample: p

∈

m−1

, ..., s

− 2}, q

∈ {e

+ 2, ..., s

m+1

Since a human hand is always partially occluding the

board around frames s

and e

, sets F

, F

will

always contain a hand. Set F

will contain other ran-

dom frames.

Next, we take the weighted image difference of a

frame pair (p, q) as ∆

. Let I

be the image at frame

j. For frame pair (p, q), we have:

∆

= w

− w

(2)

Since most chess sets contain chess pieces of just two

colors, we convert ∆

to grayscale. In Tab. 4, we

show that grayscaling improves the results. Lastly,

we apply min-max normalization; hence the values

of weights w

, w

are not important as long as w

̸=

. In our experiments we set w

= 1.5 and w

= 1.

From each ∆

, we detect the change, corner and side

objects.

4.2 Inference

We use the center of the bounding box of each de-

tected corner as its image coordinates. If a corner

class is not found, we take the average of the 2 clos-

est corners of the bounding boxes of the neighboring

sides. Let S

be a side that connects corners K and

L and let Γ

be the set of its 4 bounding box cor-

ners. For example, if corner K is not detected, we ﬁnd

∈ Γ

and γ

∈ Γ

by minimizing ||γ

, γ

and take mean(γ

, γ

) as the detected image coor-

dinate for K (see Fig. 6: inferred H8 in case 1 and

inferred H8 in case 2).

If a corner K is not found and only one neighbor-

ing side S

is detected with bounding box corner γ

∗

closest to corner L (or is used to compute L), we set

as the detected image coordinate for K, where γ

and γ

∗

are opposite diagonal corners of the bounding

box of S

(see Fig. 6: inferred A8 in case 1, inferred

A8 in case 2 and inferred H1 in case 3). We denote all

other situations as failure cases.

Figure 6: Detected side bounding boxes in purple, where

= ρ indicates that the detection is of class κ with proba-

bility score ρ. Inferred class in square brackets. Similarly,

detected corners in blue. Inferred corner locations in green.

Case 3 is a failure case since the location of H8 cannot be

inferred.

We found that, although the locations of the detec-

tions were adequate, the predicted class labels were

inconsistent. This is likely due to the limited per-

formance of tiny object detectors trained on minimal

data. However, since the order of the corner labels of

a chessboard is ﬁxed in the counterclockwise direc-

tion (as long as the camera is above the chessboard),

there are only 4 possible permutations of corner la-

bels and we can “guess” which labels are misclassi-

ﬁed based on the predicted locations.

We set the center of the chessboard as the mean of

the bounding box centers of all predicted corners and

sides. We take the detections with the highest prob-

ability scores and keep at most 4 sides and at most 4

corners, ensuring that the angle between neighboring

sides with respect to the center is at least (

180

)

◦

, and

at most 1 corner can be between two sides. Then we

check all 4 possible permutations of true labels and

select the one that has the most matches with the pre-

dicted labels (Fig. 6 case 1 and 3). If there is a tie,

icSPORTS 2023 - 11th International Conference on Sport Sciences Research and Technology Support

Table 3: The top performing versions of LiveChess2FEN and Chesscog shown. Total moves inferred are computed from rows

1, 4, 7 from Tab. 2.

Method

Version

(backbone/head)

Size

(MB)

Moves

inferred

LiveChess2FEN (Mallas

en Quintana et al., 2021) (Xception) 176.4 -

Chesscog (W

olﬂein and Arandjelovi

c, 2021) (InceptionV3) 142.7 -

VICE (ours) (YOLOX-n) 1.8 75%

(NanoDet-P-m) 2.3 62%

(YOLOv5-n) 3.8 40%

we select the combination with the highest probabil-

ity score sum among the matched labels (Fig. 6 case

2).

For frame pair (p, q), let C

be the set of its de-

tected change objects with probability scores over 0.5

and H

be the homography matrix computed by the

detected corners. We project all change objects onto

chessboard coordinates using H

and take the ceiling

as the set of detections D

for frame pair (p, q):

= {ceiling(H

)); c

∈ C

} (3)

Let P

be the set of all frame pairs associated with

move m and D

be the set of all detections for move

[

pq∈P

(4)

If D

contains 2 unique detections, they are set as

the previous and new locations of the chess piece that

moved during m. If D

contains more than 2 unique

detections, we take the top 3 most frequent detections

and check if the coordinates ﬁt any castling cases. If

so, we output the corresponding castling case as move

m. If not, we take the top 2 most frequent detections

to infer move m. We denote all other situations as

failure cases.

4.3 Results

Rows 1, 4, 7 of Tab. 2 show the percentage of moves

VICE correctly infers in each unseen match using

3 different object detectors, with YOLOX-nano out-

performing the others. The YOLOv5-nano version

was unable to produce reasonable corner detections

for Match 2. Although the results show that VICE

was able to generalize to matches of new camera an-

gles with limited training data, the corner labels pre-

dicted in Match 2 were all off by 180

◦

in the BEV

plane (A1 should be H8). Hence, the results

†

shown

in Tab. 2 for Match 2 are from the corrected corner

detections. In practice, checking all 4 sets of results

generated by the 4 possible permutations is still rea-

sonable since the other 3 sets will very likely produce

illegal chess moves. Current state-of-the-art vision-

based chess digitizers such as Chesscog (W

olﬂein

and Arandjelovi

c, 2021) and LiveChess2FEN (Mal-

las

en Quintana et al., 2021) also require the user to

input the orientation of the board. Future versions of

VICE can mitigate this problem by increasing train-

ing data diversity and expanding the data augmenta-

tion conﬁguration to improve generalizability. As a

prototype, VICE only includes the minimal inference

scheme described in Sec. 4.2. Future versions can im-

plement a grouping network to produce a more robust

set of corners.

We calculate mean corner error (MCE) in terms of

Euclidean distance in pixels between the detected and

true corners. Rows 2, 5, 8 of Tab. 2 show the MCE

of frame pairs that correctly and incorrectly inferred

chess moves. Small errors in corner detections could

lead to a chess piece projected to a square that neigh-

bors its true square. Other than checking for castling,

VICE does not include further postprocessing of pre-

dictions. Future versions can add a simple module

to check and remove predictions that produced illegal

chess moves. A chess engine could also be connected

to produce chess move probabilities to regulate the

predictions. This is done in existing methods such

as (Mallas

en Quintana et al., 2021; Czyzewski et al.,

2021).

Rows 3, 6, 9 of Tab. 2 investigate how well our

method works under the classical two-step chess esti-

mation approach. We assume the corner locations are

known and evaluate the change detections only. We

ﬁnd that NanoDet outperforms the other object de-

tectors in this case. The overall improvement in per-

formance of the two-step approach reinforces the fact

that much of the error arises from the corners. Future

versions of VICE should optimize training parameters

to focus more on corner detection.

In Tab. 3, we compare VICE to LiveChess2FEN

and Chesscog, which are both much larger in size.

Since the two other methods infer game states from

images, we run their algorithms on all of the frames

sampled to form the frame pairs in our study. If the

VICE: View-Invariant Chess Estimation

Table 4: Total missing corners”/sides are computed as the sum of corner/side classes not detected from each frame pair. If

all frame pairs associated with a move have at least one missing corner detection, we say the move has missing corners and

no move prediction can be generated (row 3). [corners] refer to the inferred corners described in Sec. 4.2 using the side

detections. Results in this table are generated from using the YOLOX-nano detector.

M1 M2 M3 M4

Total frame pairs 2262 2246 3148 1463

Total missing corners 1244 481 1519 871

Moves with missing corners 19 1 1 2

Total missing sides 0 128 24 480

Moves with missing [corners] 0 0 0 0

Grayscale Acc. 81% 75%

†

72% 72%

RGB Acc. 63% 59%

†

35% 48%

algorithm correctly identiﬁes the game state in both

frames of a frame pair, a move is correctly inferred.

We use the version of LiveChess2FEN that uses a

Xception backbone and Chesscog with an Incep-

tionV3 backbone, since they were the top performing

models in their respective papers. LiveChess2FEN

was able to localize the board for 12.7% of the frames

in Match 1 and 97.1% of the frames in Match 3 but

was not able to correctly infer any game states. Chess-

cog was able to localize the board in 24.7% of the

frames for match 3 but was not able infer the game

states. Since (W

olﬂein and Arandjelovi

c, 2021) re-

quires certain perspectives of the board as input (ei-

ther A1 or H8 are at the bottom left corner), we tested

using both the original image as input and the image

rotated 90

◦

Lastly, rows 2-5 of Tab. 4 show how the side ob-

jects helped with missing corner detections, as de-

scribe in Sec. 4.2. Future versions of VICE can in-

corporate global constraints such as (Gu et al., 2022)

or set prediction approaches (Kuhn, 1955) to replace

or complement the side objects. Rows 6-7 of Tab. 4

show the improved performance after grayscaling the

image difference.

5 CONCLUSION

We introduced VICE, the ﬁrst single-step chess dig-

itizer that is capable of inferring chess moves from

camera angles that current vision-based chess digi-

tizers cannot. This allows chess players to automate

the tracking of their in-person chess matches without

the intrusiveness of a phone or camera placed directly

above the chessboard, and is a cost-effective alterna-

tive to using electronic chessboards.

Our prototype is conceptually simple in design

and focuses on computational efﬁciency and mobile

friendliness. In Sec. 3 and Sec. 4.2, we presented

methods using simple geometry to overcome some

limitations in performance of tiny object detectors

trained on minimal data. In Sec. 4.3, we showed

that, compared to current vision-based chess digitiz-

ers, VICE generalizes better to unseen camera angles

and is much smaller in model size. In Sec. 4.3, we

discussed the shortcomings of our prototype and pro-

posed how it can be improved with existing method-

ology.

ACKNOWLEDGEMENTS

We acknowledge ﬁnancial support from the Canada

Research Chairs Program.

REFERENCES

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In Lecture Notes in Com-

puter Science, volume 12346 LNCS.

Chen, K., Pang, J., Wang, J., Xiong, Y., Li, X., Sun, S.,

Feng, W., Liu, Z., Shi, J., Ouyang, W., Loy, C. C.,

and Lin, D. (2019). Hybrid task cascade for instance

segmentation. In Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition.

ChessBaseIndia (2019). Praggnanandhaa vs mamedyarov,

tata steel chess india blitz 2018. https:// www.youtube.

com/watch?v=ihzGKl2V4iE.

ChessBaseIndia (2020a). Ding liren vs levon aronian, ﬁnd

the surprise move! tata steel chess india blitz 2019.

https://www.youtube.com/watch?v=sQcN9Zq3m-w.

ChessBaseIndia (2020b). Magnus carlsen’s killer move

stuns jobavan, world blitz 2019. https://www.youtube.

com/watch?v=CUb76s1ZDb0.

ChessBaseIndia (2022). Magnus carlsen vs alireza ﬁrouzja,

full game, watch until the end, world rapid 2021.

https://www.youtube.com/watch?v=1WEyUZ1SpHY.

icSPORTS 2023 - 11th International Conference on Sport Sciences Research and Technology Support

Czyzewski, M. A., Laskowski, A., and Wasik, S. (2021).

Chessboard and chess piece recognition with the sup-

port of neural networks. Foundations of Computing

and Decision Sciences, 45.

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-fcn: Object de-

tection via region-based fully convolutional networks.

In Advances in Neural Information Processing Sys-

tems.

Dai, X., Chen, Y., Xiao, B., Chen, D., Liu, M., Yuan, L.,

and Zhang, L. (2021). Dynamic head: Unifying ob-

ject detection heads with attentions. In Proceedings of

the IEEE Computer Society Conference on Computer

Vision and Pattern Recognition.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In Proceedings - IEEE

Computer Society Conference on Computer Vision

and Pattern Recognition.

Danner, C. and Kafafy, M. (2015). Visual chess recogni-

tion. https:// web.stanford.edu/ class/ ee368/Project\

Spring\ 1415/Reports/ Danner\ Kafafy.pdf .

DGT (1998). Electronic chessboards. http:

//digitalgametechnology.com.

Ding, J. (2016). Chessvision : Chess board and piece recog-

nition. https:// web.stanford.edu/ class/cs231a/ prev\

projects\ 2016/ CS\ 231A\ Final\ Report.pdf .

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Proceedings of

the 2nd International Conference on Knowledge Dis-

covery and Data Mining.

Ge, Z., Liu, S., Wang, F., Li, Z., and Sun, J. (2021).

Yolox: Exceeding yolo series in 2021. ArXiv,

abs/2107.08430.

Girshick, R. (2015). Fast r-cnn. In International Conference

on Computer Vision.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the

IEEE Computer Society Conference on Computer Vi-

sion and Pattern Recognition.

Gonc¸alves, J., Lima, J., and Leit

ao, P. (2005). Chess robot

system : a multi-disciplinary experience in automa-

tion. In Spanish Portuguese Congress on Electrical

Engineering; AEDIE: Marbella, Spain.

Gu, J., Wu, B., Fan, L., Huang, J., Cao, S., Xiang, Z., and

Hua, X.-S. (2022). Homography loss for monocular

3d object detection. In Proceedings of the IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition.

Hack, J. and Ramakrishnan, P. (2014). Cvchess:

Computer vision chess analytics. https:

//cvgl.stanford.edu/teaching/ cs231a\ winter1415/

prev/ projects/chess.pdf .

Harris, C. G. and Stephens, M. J. (1988). A combined cor-

ner and edge detector. In Alvey Vision Conference.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2020).

Mask r-cnn. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 42.

Jassim, F. A. and Altaani, F. H. (2013). Hybridization of

otsu method and median ﬁlter for color image seg-

mentation. ArXiv, abs/1305.1052.

Jocher, G. (2020). ultralytics/yolov5: v6.2 - YOLOv5.

https://github.com/ultralytics/ yolov5.

Keener, G. (2022). Chess is booming. The New York Times.

Khan, A. M. and Kesavan, R. (2014). Design and devel-

opment of autonomous chess playing robot. In Int. J.

Innov. Sci. Eng. Technol., pages 1–4.

Kuhn, H. W. (1955). The hungarian method for the assign-

ment problem. Naval Research Logistics (NRL), 52.

Law, H. and Deng, J. (2020). Cornernet: Detecting objects

as paired keypoints. International Journal of Com-

puter Vision, 128.

Li, F., Zhang, H., Liu, S., Guo, J., Ni, L. M., and Zhang, L.

(2022). Dn-detr: Accelerate detr training by introduc-

ing query denoising. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 13619–13627.

Lin, T. Y., Goyal, P., Girshick, R., He, K., and Dollar, P.

(2020). Focal loss for dense object detection. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 42.

Liu, L., Lu, J., Xu, C., Tian, Q., and Zhou, J. (2019). Deep

ﬁtting degree scoring network for monocular 3d ob-

ject detection. In Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition.

Liu, S., Li, F., Zhang, H., Yang, X., Qi, X., Su, H., Zhu, J.,

and Zhang, L. (2022). DAB-DETR: Dynamic anchor

boxes are better queries for DETR. In International

Conference on Learning Representations.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S., Fu,

C. Y., and Berg, A. C. (2016). Ssd: Single shot multi-

box detector. In Lecture Notes in Computer Science,

volume 9905 LNCS.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision.

Lu, X., Yao, J., Li, K., and Li, L. (2015). Cannylines: A

parameter-free line segment detector. In Proceedings -

International Conference on Image Processing, ICIP.

Lyu, R. (2021). Nanodet-plus: Super fast and high accuracy

lightweight anchor-free object detection model. https:

//github.com/RangiLyu/nanodet.

Mallas

en Quintana, D., Del Barrio Garc

ıa, A. A., and Pri-

eto Mat

ıas, M. (2021). Livechess2fen: A framework

for classifying chess pieces based on cnns. ArXiv,

abs/2012.06858.

Matuszek, C., Mayton, B., Aimi, R., Deisenroth, M. P., Bo,

L., Chu, R., Kung, M., Grand, L. L., Smith, J. R.,

and Fox, D. (2011). Gambit: An autonomous chess-

playing robotic system. In Proceedings - IEEE Inter-

national Conference on Robotics and Automation.

McNally, W., Walters, P., Vats, K., Wong, A., and McPhee,

J. (2021). Deepdarts: Modeling keypoints as ob-

jects for automatic scorekeeping in darts using a single

camera. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition (CVPR)

Workshops, pages 4547–4556.

VICE: View-Invariant Chess Estimation

Mousavian, A., Anguelov, D., Ko

seck

a, J., and Flynn, J.

(2017). 3d bounding box estimation using deep learn-

ing and geometry. In Proceedings - IEEE Conference

on Computer Vision and Pattern Recognition.

Naiden, A., Paunescu, V., Kim, G., Jeon, B., and

Leordeanu, M. (2019). Shift r-cnn: Deep monocular

3d object detection with closed-form geometric con-

straints. In Proceedings - International Conference

on Image Processing, ICIP.

Qin, Z., Wang, J., and Lu, Y. (2022). Monogrnet: A general

framework for monocular 3d object detection. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 44.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time ob-

ject detection. In Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition.

Redmon, J. and Farhadi, A. (2017). Yolo9000: Better,

faster, stronger. In Proceedings - 30th IEEE Confer-

ence on Computer Vision and Pattern Recognition.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster

r-cnn: Towards real-time object detection with region

proposal networks. In Advances in Neural Informa-

tion Processing Systems.

Reza, A. M. (2004). Realization of the contrast limited

adaptive histogram equalization (clahe) for real-time

image enhancement. Journal of VLSI Signal Process-

ing Systems for Signal, Image, and Video Technology,

38.

Sokic, E. and Ahic-Djokic, M. (2008). Simple computer

vision system for chess playing robot manipulator as

a project-based learning example. In Proceedings of

the 8th IEEE International Symposium on Signal Pro-

cessing and Information Technology.

SquareOff (2018). Intelligent chessboard. https://

squareoffnow.com.

Stockﬁsh (2008). Open source chess engine. https://

stockﬁshchess.org.

Tian, Z., Shen, C., Chen, H., and He, T. (2019). Fcos: Fully

convolutional one-stage object detection. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision.

Wang, V. and Green, R. (2013). Chess move tracking using

overhead rgb webcam. In International Conference

Image and Vision Computing New Zealand.

Wiens, D. P. (1996). Asymptotics of generalized m -

estimation of regression and scale with ﬁxed carriers,

in an approximately linear model. Statistics and Prob-

ability Letters, 30.

olﬂein, G. and Arandjelovi

c, O. (2021). Determining

chess game state from an image. Journal of Imaging,

7(6).

Zhang, H., Li, F., Liu, S., Zhang, L., Su, H., Zhu, J., Ni,

L. M., and Shum, H.-Y. (2022). Dino: Detr with im-

proved denoising anchor boxes for end-to-end object

detection. ArXiv, abs/2203.03605.

Zhou, X., Wang, D., and Kr

ahenb

uhl, P. (2019). Objects as

points. ArXiv, abs/1904.07850.

Zhu, X., Su, W., Lu, L., Li, B., Wang, X., and Dai, J.

(2021). Deformable detr. In International Conference

on Learning Representations.

icSPORTS 2023 - 11th International Conference on Sport Sciences Research and Technology Support
