Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

Paolo Fosci

and Giuseppe Psaila

University of Bergamo - DIGIP, Viale Marconi 5, 24044 Dalmine (BG), Italy

Keywords:

Soft Web Intelligence, User-Deﬁned Fuzzy Aggregators, Novel Constructs in J-CO-QL+, Soft Querying on

JSON Data Sets.

Abstract:

In our previous work, we proposed Soft Web Intelligence as the interpretation of the general notion of Web

Intelligence in the current technological panorama, in such a way JSON data sets are acquired from the Inter-

net, stored within JSON document stores and then processed and queried by means of soft computing and soft

querying methods. Speciﬁc extensions to the J-CO Framework and to its query language (named J-CO-QL

)

made possible to practically implement the concept.

However, any “data intelligence” activity does not exclude aggregating data, but J-CO-QL

did not pro-

vide statements for deﬁning “user-deﬁned fuzzy aggregators”. In this paper, we present the novel constructs

introduced into J-CO-QL

to allow users to deﬁne and use their own fuzzy aggregators, so as to evaluate

membership degrees to fuzzy sets moving from array ﬁelds within processed JSON documents. This way,

complex soft queries are enabled, so as to enhance Soft Web Intelligence.

1 INTRODUCTION

Two decades ago, Web Intelligence was proposed in

(Yao et al., 2001) as an approach to exploit the large

amount of data and information that is possible to

obtain from the World-Wide Web; the foreseen key

technology was Artiﬁcial Intelligence (AI), because

it was recognized that the semi-structured or totally

unstructured form of information that is published on

the Web made classical approaches to Business Intel-

ligence substantially unsuitable.

Two decades later, the format that has become

very popular is JSON (JavaScript Object Notation),

due to its syntactic simplicity and its ease to be pro-

cessed in programming languages. This success has

been accompanied by the advent of JSON document

stores, i.e., DBMSs (Database Management Systems)

that natively store and query JSON data sets. Conse-

quently, data scientists and data engineers very often

deal with Web Intelligence scopes in which they have

to gather, integrate, query and publish JSON data sets.

In (Fosci and Psaila, 2022b), we envisioned the

notion of “Soft Web Intelligence”: soft computing

and soft querying (based on Fuzzy-Set Theory) can

actually provide the tools to perform Web Intelligence

tasks that must process JSON data sets coming from

https://orcid.org/0000-0001-9050-7873

https://orcid.org/0000-0002-9228-560X

web sources. Fuzzy-Set Theory and Fuzzy Logic are

indeed tools that belong to the AI world, consequently

we conceived the idea of “Soft Web Intelligence” as a

natural evolution of Web Intelligence.

The J-CO Framework is a pool of software tools

that is under development at the University of Berg-

amo (Italy); its goal is to provide analysts and data

engineers with sophisticated capabilities to gather, in-

tegrate and query JSON data sets; its query language,

named J-CO-QL

, is undergoing a continued evo-

lution with the addition of novel constructs: specif-

ically, we are currently introducing constructs for

further extending its capabilities for performing soft

querying on JSON data sets. In order to achieve a

practical support to our vision, in (Fosci and Psaila,

2022b) we introduced extensions to the J-CO Frame-

work speciﬁcally designed to practically realize Soft

Web Intelligence; furthermore, through a practical

case study, we showed that they are effective.

A typical computational activity that is performed

in Business Intelligence is “aggregating measures of

facts”, so as to provide an aggregated view of events

described by the analyzed data. It is reasonable to

guess that aggregating data should be a typical task

to do in Soft Web Intelligence, but in our previous

works on J-CO-QL

aggregation was not considered,

because times were not mature. Now, it is the time to

introduce aggregators in J-CO-QL

, to further extend

258

Fosci, P. and Psaila, G.

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators.

DOI: 10.5220/0012179100003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 258-267

ISBN: 978-989-758-672-9; ISSN: 2184-3252

the support to Soft Web Intelligence; speciﬁcally, we

consider “fuzzy aggregators”, which can be used to

rank documents by aggregating either values in array

ﬁelds or membership degrees to multiple fuzzy sets.

In this paper, we propose a novel construct, named

CREATE FUZZY AGGREGATOR, that we added to J-CO-

so as to deﬁne “user-deﬁned fuzzy aggregators”;

its clauses drive users through the deﬁnition of a fuzzy

aggregator, giving them the intuition of the semantic

model. Through a practical case study, we will show

how to exploit fuzzy aggregators in a scope of Soft

Web Intelligence.

The paper is organized as follows. Section 2

presents the background of our work. Section 3 intro-

duces the vision of Soft Web Intelligence and presents

the main features of the J-CO Framework. Section 4

introduces the novel construct that we added to J-CO-

to declare user-deﬁned fuzzy aggregators, to-

gether with the semantic model. Section 5 addresses a

practical case study by exploiting user-deﬁned fuzzy

aggregators. Finally, Section 6 draws conclusions and

future work.

2 RELATED WORK

This paper connects two areas that usually are not

considered together, i.e., Web Intelligence and fuzzy

logic. This is not the ﬁrst attempt we make, but now

we consider fuzzy aggregators (that were not consid-

ered in our previous work (Fosci and Psaila, 2022b)).

Speciﬁcally, Web Intelligence was introduced in

(Yao et al., 2001) to obtain useful information from

Web content. The complexity of Web content sug-

gested to rely on Artiﬁcial Intelligence (AI) to get rid

of this complexity. But what is AI? Techniques for

“Data Mining” are certainly considered as AI tech-

niques and are exploited in Web Intelligence (Han and

Chang, 2002), as well as neural networks are nowa-

days perceived as “the AI”.

Nonetheless, in the literature, many papers tries

to give a more speciﬁc yet wider interpretation of

Web Intelligence, such as “Computational Web In-

telligence” (Zhang and Lin, 2002), i.e., the adoption

of “Computational Intelligence” in Web Intelligence,

as well as “Brain Informatics” (Zhong et al., 2006),

i.e., fostering Web Intelligence through techniques

that come out from the study of the human brain.

Fuzzy Logic and Soft Computing belong to AI

too: indeed, its capability of approximate reasoning

based on “linguistic predicates” provides a signiﬁcant

contribution towards AI. Consequently, it is straight-

forward that fuzzy logic can be exploited for Web In-

telligence. Zadeh, the creator of Fuzzy-Set Theory

(Zadeh, 1965), had this vision clearly in his mind: in-

deed, in (Zadeh, 2004a; Zadeh, 2004b), he showed

that soft computing could play an important role.

Remember that a Fuzzy Set A in a universe U is a

mapping for each x ∈ U, A : x → [0, 1], also denoted as

: x → [0,1]. The co-domain is the set of “member-

ship degrees” (or simply “memberships”, for brevity

in the following): each item x belongs to A with a

degree; when the degree is 0 < µ

(x) < 1, x belongs

to A only partially; obviously, µ

(x) = 1 denotes full

membership of x to A, while µ

(x) = 0 means hat x

does not belong at all to A.

However, looking for papers about fuzzy logic and

soft computing in Web Intelligence, very few works

can be found. The paper (Kacprzyk and Zadro

zny,

2010) exploits soft computing in a group decision-

making system to express preferences, but Web Intel-

ligence activities were not supported by soft comput-

ing. The paper (Poli, 2015) uses FUZZYALGOL, a fuzzy

procedural programming language (Reddy, 2010), for

soft querying Web sources.

Consequently, this is why in (Fosci and Psaila,

2022b) we proposed the concept of Soft Web Intel-

ligence, trying to give a modern interpretation of the

concept of Web Intelligence on the basis of the current

technological panorama; in Section 3.1, we deﬁne the

concept in a precise way.

Nevertheless, Data Intelligence activities (Ala-

hakoon and Yu, 2015) ask for aggregation; conse-

quently, Soft Web Intelligence asks for “fuzzy aggre-

gations” (since it relies on fuzzy sets). A plethora

of proposals for fuzzy aggregators can be found in

the literature. Many of them, such as “t-norm” and

“t-conorm” operators, see (Farahbod and Eftekhari,

2012), consider the aggregation of “pairs of items”,

for example the classical AND and OR operators in the

fuzzy version. In this paper, we are focused on groups

(or categories) G

= {x

j,1

j,2

,. ..}) of items x

j,i

that

belong to the same group G

because they share some

common properties or are samples of the same cat-

egory of items. Each x

j,i

singularly may belong to

a fuzzy set A, thus it is provided with a membership

j,i

). Consequently, the set A of groups G

can be

seen as a partition of A: with this vision, the member-

ship of a group G

to A should be derived by somehow

aggregating memberships µ

j,i

), group by group.

Alternatively, if x

j,i

has not a membership, its values

might have to be aggregated to obtain the ﬁnal mem-

bership of the G

group.

Popular fuzzy aggregators of this type are “Weighted

aggregation” (see (Dombi and J

as, 2022)) and “Or-

dered Weighted Aggregation” (OWA) (Yager, 1988;

Li and Yen, 1995).

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

259

3 SOFT WEB INTELLIGENCE

AND THE J-CO FRAMEWORK

In this section, we introduce our vision about Soft Web

Intelligence, moving from the original paper (Fosci

and Psaila, 2022b). Then, we brieﬂy introduce the J-

CO Framework, which is the technical tool that has

inspired the idea of Soft Web Intelligence.

3.1 Soft Web Intelligence

We conceived the notion of Soft Web Intelligence as

an evolution of the generic idea of Web Intelligence,

on the basis of the current technological panorama.

The following deﬁnition provides a synthetic char-

acterization of the concept, that has come out while

working on it after (Fosci and Psaila, 2022b).

Deﬁnition 1. “Soft Web Intelligence” is the contin-

ued acquisition, integration and querying of JSON

data sets coming from or representing Web sources,

by exploiting Soft Computing and Soft Querying, so

as to use them for decision making and knowledge

discovery.

In some sense, we could say that Deﬁnition 1 in-

stantiates the very generic deﬁnition of Web Intelli-

gence provided more than 20 years ago (Yao et al.,

2001). It is the result of the considerations made by

Zadeh in (Zadeh, 2004a; Zadeh, 2004b), concerning

the fact that JSON has imposed, in place of XML, as

the most popular format to represent and share data

over the Internet, as well as it is the result of the avail-

ability of NoSQL DBMSs known as “JSON document

stores”, which natively store JSON data sets.

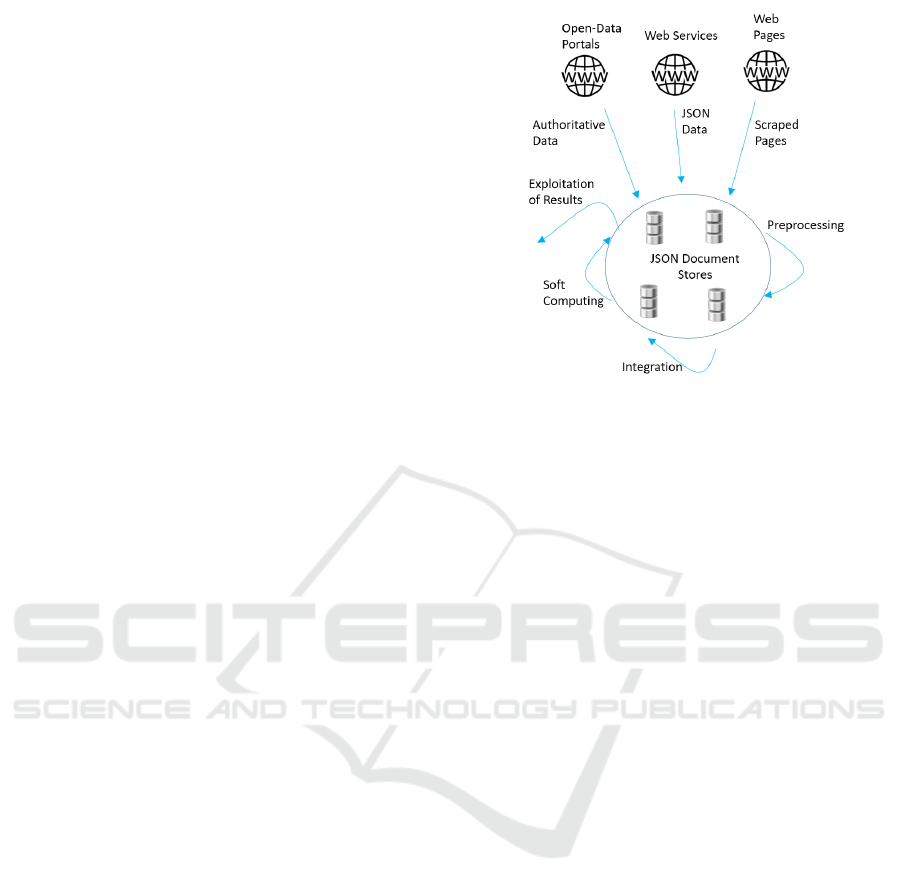

Through Figure 1, we illustrate how we ﬁgure out

Soft Web Intelligence.

• Web Sources. Different kinds of Web sources

can be considered. Users usually think about Web

pages, but many services provide JSON data sets.

For example, Web Services can be contacted to

provide either complete data sets or single pieces

of data; this latter ones could be singularly col-

lected into a global data set; typically, social me-

dia expose Web services that can be exploited to

interact with the system; nowadays, JSON is the

data format on which most of Web services rely.

Open-Data portals are a common channel that is

exploited by Public Administrations to publish

data sets (possibly “Authoritative Data Sets”) con-

cerned with the administered territory or country.

Among all formats, JSON and GeoJSON are be-

coming more and more popular in this context too.

As a ﬁnal example, the content of Web pages (i.e.,

HTML pages) could provide useful data sets and

Figure 1: Vision of Web Intelligence.

information. In this case, techniques of “Web

Scraping” could be exploited for acquiring the

content of HTML pages and represent their infor-

mation content as JSON data sets.

• JSON Document Stores. A pool of databases

managed by (potentially different) JSON docu-

ment stores is the right solution to store JSON

data sets acquired from Web sources. A very fa-

mous JSON store is MongoDB, but other products

are available (such as CouchDB, chosen as the

DBMS for the HyperLedger Fabric permissioned

BlockChain platform (Bringas et al., 2019)).

• Processing Activities. Processing is the key fac-

tor for the success of Soft Web Intelligence. Cer-

tainly, “Preprocessing” is the ﬁrst activity to per-

form on data, so as to remove noise and make for-

mats homogeneous. The second activity is “In-

tegration”, i.e., integrating the different data sets

possibly stored in different databases, by uniting

those pieces of information that came from differ-

ent sources. The ﬁnal activity is “Soft Comput-

ing”, in which techniques based on soft comput-

ing and soft querying are used to extract knowl-

edge from integrated data. Clearly, the more

powerful the support for soft computing and soft

querying, t he greater the possibility to extract

useful data and knowledge from the acquired data

sets.

3.2 The J-CO Framework

The J-CO Framework is a pool of software tools

whose goal is to provide analysts with a powerful sup-

port for gathering, integrating and querying possibly-

large collections of JSON data sets. The core of the

framework is its query language, named J-CO-QL

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

260

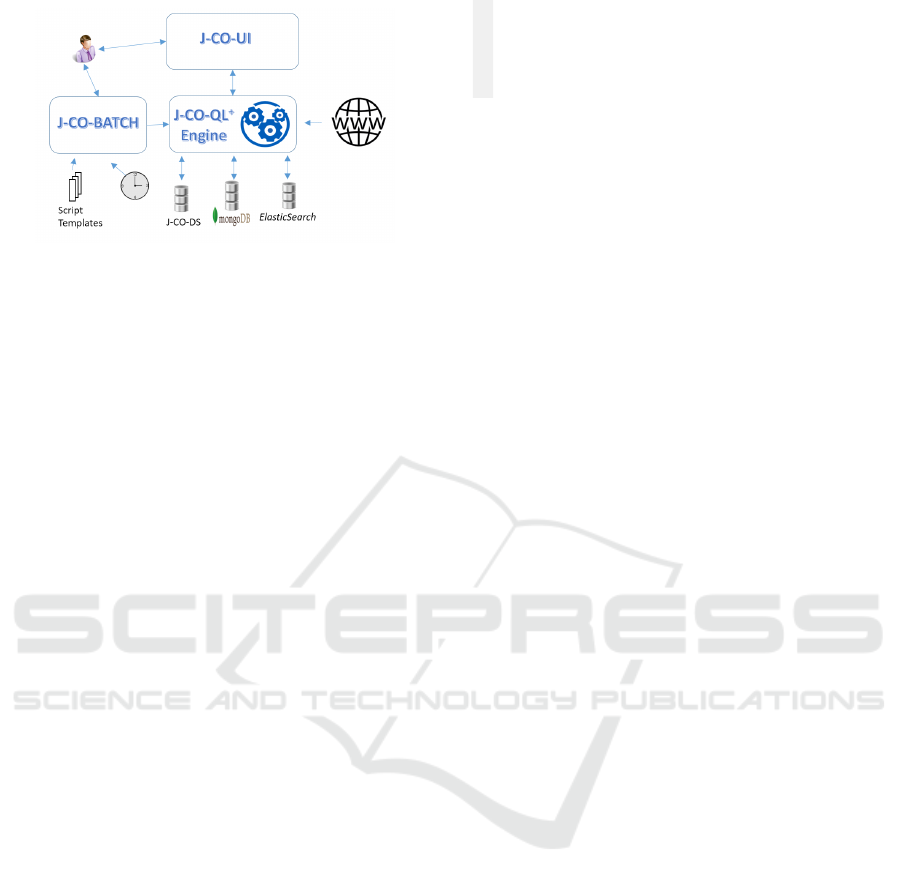

Figure 2: The J-CO Framework.

The current organization of the framework, which

is the result of (Fosci and Psaila, 2022b), is depicted

in Figure 2. We explain it hereafter.

• J-CO-QL

Engine. This component actually ex-

ecutes J-CO-QL

scripts (i.e., queries). It is able

to retrieve data from document databases (for ex-

ample, managed by MongoDB) and save results

into them; it also can send HTTP requests to Web

sources to get JSON data sets directly from them.

• J-CO-DS. This component is a simple document

store speciﬁcally introduced in (Psaila and Fosci,

2018) to store large or very large single JSON

documents (such as many GeoJSON documents

that cannot be stored within other JSON stores,

such as MongoDB). In (Fosci and Psaila, 2022b),

we extended its data model, in such a way it now

supports three different types of collections:

– Static Collections are the classical collections

that contains JSON documents, similarly to

other JSON stores (the content of a collection

can be updated by the user or by the J-CO-QL

Engine);

– Dynamic Collections automatically acquire the

content of web sources at scheduled times, so as

to provide images of web sources without need

to access the Internet when they are processed;

– Virtual Collections are associated to Web

sources, but they do not manage any local copy

of them, in that Web sources are accessed when

the virtual collection is accessed by users or

the J-CO-QL

Engine (thus, virtual collections

provide a database view of Web sources).

• J-CO-BATCH (Introduced in (Fosci and Psaila,

2022b)) is an off-line executor of J-CO-QL

scripts; in particular, it is possible to schedule the

repeated execution of scripts. Another feature is

the concept of “template”: J-CO-QL

scripts can

be parameterized, so as to reuse them with differ-

ent settings/conﬁgurations.

• J-CO-UI is the user interface, by means of which

1. CREATE FUZZY AGGREGATOR integrateRain

PARAMETERS rainData TYPE ARRAY

FOR ALL rd IN rainData

AGGREGATE rd AS av

EVALUATE av

POLYLINE [ ( 0, 0.0), ( 50, 0.0), (100, 0.1),

(200, 0.7), (300, 0.9), (400, 1.0) ];

Listing 1: J-CO-QL

: fuzzy aggregator integrateRain.

analysts can write J-CO-QL

scripts, submit them

to the J-CO-QL

Engine and inspect results.

Data and Execution Models. For the sake of clar-

ity, we brieﬂy introduce the data and execution mod-

els of J-CO-QL

• A JSON document is the basic computational

unit. JSON documents are grouped within “col-

lections”: an instruction takes one or two collec-

tions as input and generates a new collection.

• A query or script in J-CO-QL

is a sequence of

instructions. They constitute a “piped ﬂow”, in

such a way an instruction receives a “temporary

collection” (generated by the previous instruction)

as input and possibly generates a novel tempo-

rary collection as output. The “temporary” ad-

jective denotes that the collection is not saved

in any database, but is a temporary result of the

process. Instructions can also acquire data either

from JSON databases or from Web sources.

• For each single document, it is possible to in-

dependently evaluate its memberships to many

fuzzy sets. These degrees are represented within

the same document, by adding a special root-level

ﬁeld named ˜fuzzysets. It is a nested document

that behaves as a key/value map: a ﬁeld within it

denotes the membership to a fuzzy set, in such a

way the ﬁeld name is the name of the fuzzy set,

while the value (in the range [0,1]) is the degree.

Speciﬁc clauses of J-CO-QL

instructions evalu-

ate soft conditions, by evaluating memberships.

4 USER-DEFINED FUZZY

AGGREGATORS

User-deﬁned fuzzy aggregators were missing in J-

CO-QL

: indeed, when documents in collections

contain arrays, it is highly probable that their content

should be somehow summarized, so as to determine

the membership to some fuzzy set and contribute to

soft querying. Hereafter, we present the novel state-

ment named CREATE FUZZY AGGREGATOR.

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

261

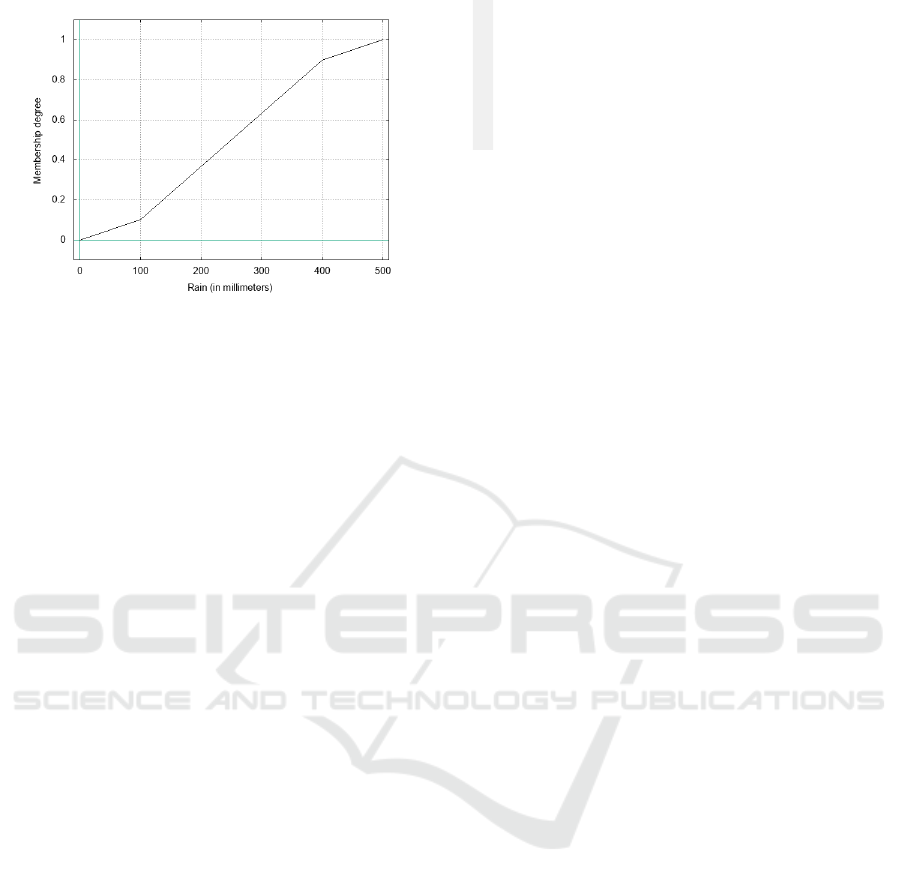

Figure 3: Membership function for the fuzzy aggregator

integrateRain.

4.1 Basic Structure

Listing 1 reports the deﬁnition of a very simple fuzzy

aggregator: its goal is to perform a cumulative ag-

gregation (sum) of numerical values within an array.

Hereafter, we explain it in details.

• The fuzzy aggregator is named integrateRain,

as speciﬁed after the keywords CREATE FUZZY

AGGREGATOR. The name is motivated by the fact

that the aggregator has to aggregate the amount of

rain (in millimeters).

• The clause PARAMETERS deﬁnes the formal pa-

rameters for the aggregator: in this case, only one

parameter, named rainData is speciﬁed, which

must be an array. Speciﬁcally, the aggregator is

expected to receive the amount of rain, so each

item in the array rainData denotes millimeters

of rain.

• The clause FOR ALL scans all values in an array

parameter, so as to perform aggregations. Specif-

ically, all items rd in the array rainData are ex-

plored.

• The sub-clause AGGREGATE evaluates, for each

item rd in the array rainData, an expression,

whose value is aggregated into the “variable”

speciﬁed after the keyword AS.

Speciﬁcally, the expression to evaluate refers only

to the item rd; this means that their values are ag-

gregated into the value av.

• The clause EVALUATE is evaluated after the clause

FOR ALL has scanned all items in the array and

generated an aggregated value.

Speciﬁcally, it refers to the av aggregated value

only, meaning that the aggregated value is taken

as it is. Clearly, since we aggregated generic nu-

merical values, the result is not in the range [0,1],

2. CREATE FUZZY AGGREGATOR owaRain

PARAMETERS rainData TYPE ARRAY

SORT rd IN rainData

BY rd TYPE NUMERIC ASC AS sRainData

FOR ALL srd IN sRainData

LOCALLY ( POS^2 - (POS-1)^2 )

/ (COUNT(sRainData)^2) AS w

AGGREGATE srd * w AS av

EVALUATE av

POLYLINE [(0.00, 0.0), (0.10, 0.0), (0.15, 0.7),

(0.20, 0.8), (0.50, 0.9), (0.80, 1.0)];

Listing 2: J-CO-QL

: fuzzy aggregator owaRain.

so it cannot be considered as a membership. The

next clause converts it into a membership.

• The clause POLYLINE deﬁnes a membership func-

tion as a polyline of points: while the x coordinate

can be any real number, the y coordinate must be

necessarily in the range [0,1], because the mem-

bership function converts the value returned by

the clause EVALUATE into a membership value.

The polyline is depicted in Figure 3: notice that

we considered as range of interest from 0 mm to

500 mm of rain (which is really a lot of rain).

With 500 mm, the value 1 for the membership is

reached: greater values of rain still obtain 1 as

membership.

Resuming, the integrateRain fuzzy aggregator

moves from an array of values, aggregates them and

generates a membership to a fuzzy set.

4.2 Adding Local Derived Values

Listing 2 shows a more complex fuzzy aggregator,

named owaRain. It performs the “Ordered Weighted

Aggregation” (OWA, see (Yager, 1988)): a monotone

function is used to determine the weights of each item

in the array to aggregate, in such a way the array is

previously sorted. Hereafter, we explain the aggrega-

tor reported in Listing 2 in details.

• As for the aggregator reported in Listing 1, the

aggregator owaRain receives one single array pa-

rameter, named rainData.

• The clause SORT generates a novel array, named

sRainData, sorting each numeric item rd in the

array rainData in ascending order.

• The clause LOCALLY evaluates, for each item srd

in the array sRainData, a derived value that is

used in the sub-clause AGGREGATE.

Speciﬁcally, the f (x) = x

is used to compute the

weight w of the item srd, whose position in the

array sRainData is denoted by POS (the ﬁrst item

has POS = 1). Formally, the weight of the i-th item

in sRainData is

w= f (i/|sRainData|) − f ((i − 1)/|sRainData|).

Since f is a parable, items with highest position

get the highest weights; furthermore, the array is

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

262

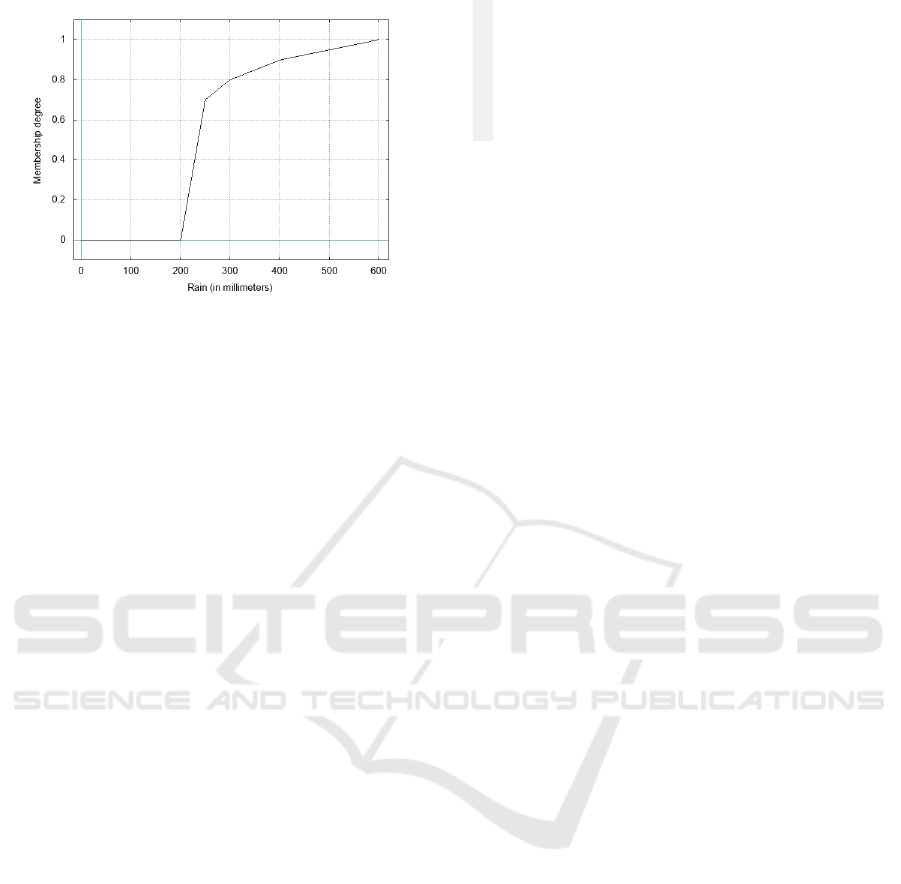

Figure 4: Membership function for the fuzzy aggregator

owaRain.

sorted in ascending order, thus the highest values

get the highest weights.

• The sub-clause AGGREGATE performs the aggrega-

tion, by summing all products of an item srd by

its weight w.

The resulting aggregated value, aliased as av, is

then checked against the membership function de-

ﬁned by the clause POLYLINE, to obtain a mem-

bership. The polyline is depicted in Figure 4. No-

tice the shape, which is aimed at checking peaks

of rain: below 200 mm, the membership is 0; be-

tween 200 and 250 mm, the membership raises

quickly to 0.7, meaning that, after 250 mm, it is

likely a peak; then, the membership progressively

increases, thus denoting hard peaks of rain at 600

mm.

4.3 Multiple Aggregated Values

Listing 3 reports a further complex fuzzy aggregator,

whose name is weightedMemberships. The goal is

to aggregate memberships to fuzzy sets, provided that

an array of weights is given. We now describe it.

• The aggregator receives two parameters:

memberships is the array of memberships

to aggregate; w is the array of weights.

• The size of the two vectors must be the same,

because w contains the weight for each item in

memberships. This constraint is expressed by the

novel clause PRECONDITION: if this clause is not

satisﬁed, the aggregation is not performed and an

error is raised.

• In the clause FOR ALL, the sub-clause LOCALLY

multiplies the m item by its weight (in the position

POS). This value is aliased as wm.

• Two aggregated values must be computed: the

ﬁrst one is named am and is obtained by summing

3. CREATE FUZZY AGGREGATOR weightedMemberships

PARAMETERS

memberships TYPE ARRAY,

w TYPE ARRAY

PRECONDITION COUNT (memberships) = COUNT (w)

FOR ALL m IN memberships

LOCALLY m * w[POS] AS wm

AGGREGATE wm AS am

AGGREGATE w [POS] AS aw

EVALUATE am / aw;

Listing 3: J-CO-QL

: fuzzy aggregator

weightedMemberships.

all the values wn computed by the clause LOCALLY;

the second one is named aw and is obtained by

summing all the weights in the array w.

• The clause EVALUATE assembles the two aggre-

gated values, by dividing am by aw.

By construction (the array memberships contains

memberships) the result is in the range [0, 1], so it

is already a membership. Since we do not want to

modify it, no polyline is deﬁned.

4.4 Semantic Model

We conclude this section by formalizing the rich se-

mantic model of fuzzy aggregators in J-CO-QL

• A fuzzy aggregator is deﬁned by means of a tuple

hLV, AV,evalExpr,Points, Params,Precondi

where LV is the (possibly empty) set of “local val-

ues”, AV is the (non empty) set of “aggregated val-

ues”, evalExpr is the expression to evaluate with

aggregated values, Points is the array of points

that constitute the polyline, params is the list of

parameters of the aggregator. Precond is the pre-

condition: if it does not hold on Params, the ag-

gregator is not evaluated.

• Each local value lv

∈ LV is obtained as

= le

(e,POS,Params)

where le

is the expression used to evaluate the

local value; le

can be seen as a function of an

item e and of its position POS in the array, as well

as of the list of parameters.

• An aggregated value av

∈ AV is evaluated as

= Σ

e∈V

(e, pos(e), LV,Params)

where ae

is the expression used to evaluate the

local value to aggregate; notice that ae

depends

on the item e, its position in the array, the set of

local values and the list of parameters. The sum is

performed for each item e in the V vector, where

V ∈ Params.

• The ﬁnal membership µ is obtained as

µ = Polyline(Points, evalExpr(AV,Params))

where the expression evalExpr depends on the

set AV of aggregated values and on the list of

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

263

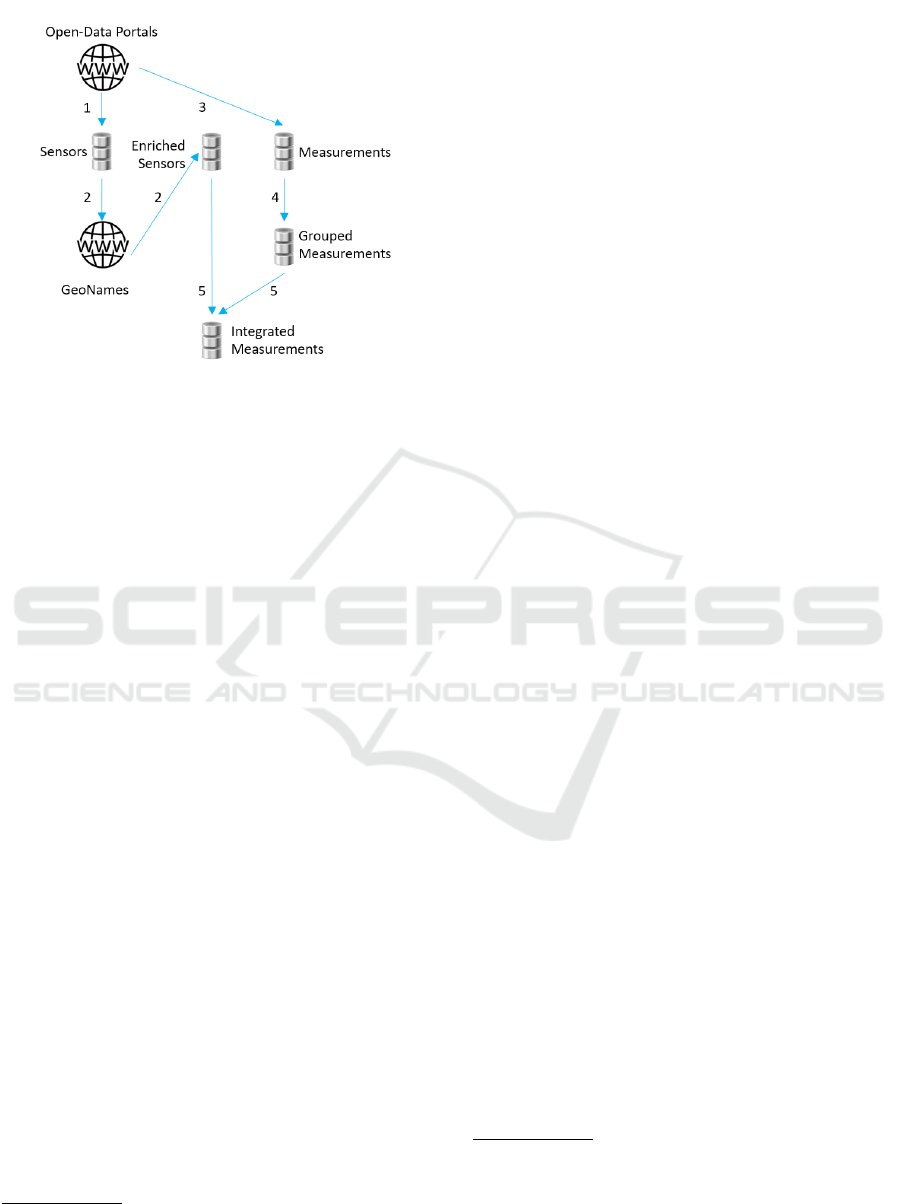

Figure 5: Preliminary Web-Intelligence process.

parameters.

The resulting value passes through the

functionPolyline, which receives the list Points

of points speciﬁed in the clause POLYLINE (if

missing, we assume that Points = [(0, 0),(1, 1)]).

The reader can see that, based on this semantic

model, in J-CO-QL

it is possible to deﬁne a broad

range of fuzzy aggregators. As far as we know, this is

a novelty in the panorama of (soft) query languages.

In Section 5, we will show how to exploit fuzzy

aggregators for soft querying data in J-CO-QL

5 CASE STUDY AND QUERY

This section shows how to use the previously deﬁned

fuzzy aggregators to actually query a JSON data set.

We introduce the case study (Section 5.1); then, we

present the J-CO-QL

query in details (Section 5.2).

5.1 Case Study

The case study derives from the one we considered

in (Fosci and Psaila, 2022b). In that work, the case

study had to collect data from meteorological sen-

sors and integrate them with registry data. The raw

data were downloaded on-the-ﬂy from an institutional

Open-Data portal

and then pre-processed by a ded-

icated J-CO-QL

script to be integrated with geo-

graphical information.

In this work, we exploit the same Open-Data portal,

but we downloaded and pre-processed rain measure-

ments; in other words, we performed an activity of

Open-Data portal of Regione Lombardia

https://www.dati.lombardia.it/

Web Intelligence that is depicted in Figure 5, by ex-

ecuting a pool of J-CO-QL

scripts that generate the

source data set for the remainder of this paper. For the

sake of space and since this pre-processing task is out

of the scope of this paper, we quickly summarize it.

1. A collection of 1261 documents describing mete-

orological sensors is downloaded from the Open-

Data portal

. Each document reports the identi-

ﬁer, the typology of measurement (rain, temper-

ature, and so on), the coordinates and other less

interesting data related to one sensor. The name

of the city where the sensor is located is not re-

ported.

2. Each sensor document is enriched with the city in

which the sensor is located, by calling the online

and freely-accessible GeoName service

3. A second collection of 5,179,417 documents is

downloaded from the Open Data portal

, describ-

ing the measurements made by sensors in the

period from 01/05/2023 to 31/05/2023. Each

document reports the identiﬁer of the sensor that

performed the measurement, the pure numerical

value and the timestamp. No ﬁeld regarding the

typology (rain, temperature, etc) of the measure-

ment is present.

4. Measurements made by the same sensor are

grouped together: a novel collection of documents

is obtained, such that a document corresponds to

a sensor; it contains the sensor identiﬁer and an

array of measurements (made by that sensor) with

their timestamp.

5. Finally, the collection of sensors is joined with the

collection of grouped measurements: basically,

a document fully describes a sensor and reports

the array of measurements; only rain sensors are

selected. A collection of 207 documents is ob-

tained, related to 903,027 measurements, which

constitutes the initial collection for our case-study.

The collection is saved within a JSON store, with

name MeasuredRain.

Figure 6 reports a document in this collection: no-

tice the array ﬁeld named rainData (highlighted by a

blue box), which contains simple documents describ-

ing measurements of rain (the ﬁeld value reports mil-

limeters of rain). Clearly, each single sensor is de-

scribed by one single document.

https://www.dati.lombardia.it/Ambiente/Stazioni-

Meteorologiche/nf78-nj6b

https://www.geonames.org/export/ws-overview.html

https://www.dati.lombardia.it/Ambiente/Dati-sensori-

meteo/647i-nhxk

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

264

4. USE DB Webist2023

ON SERVER jcods 'http://127.0.0.1:17017';

5. GET COLLECTION MesauredRain@Webist2023;

6. FILTER

CASE WHERE WITH .rainData

GENERATE

CHECK FOR

FUZZY SET SignificantRain

USING integrateRain(EXTRACT_ARRAY(

.value FROM ARRAY .raidData)),

FUZZY SET PeaksOfRain

USING owaRain (EXTRACT_ARRAY(

.value FROM ARRAY .raidData)),

FUZZY SET Wanted

USING weightedMemberships (MEMBERSHIP_ARRAY(

[PeaksOfRain, SignificantRain]), [2, 1])

ALPHACUT 0.8 ON Wanted

BUILD {

.city : .city,

.province : .province,

.sensorId : .sensorId,

.dateStart : .dateStart,

.dateEnd : .dateEnd,

.ranking : MEMBERSHIP_TO (Wanted)

}

DEFUZZIFY;

7. SAVE AS PeaksAndLongRain@Webist2023;

Listing 4: J-CO-QL

: retrieval and soft querying.

Once the input collection is ready, the problem to

address in the case study might be the following.

Problem 1. Given the measurements of rain collected

in the MeasuredRain collection, ﬁnd out those sen-

sors that measured high peaks of rain, possibly with

signiﬁcant cumulative rain.

Problem 1 can be thought as a soft query.

Query 1. Consider the universe of sensors and two

fuzzy sets in it: the ﬁrst one is named PeaksOfRain

and denotes those sensors that measured peaks of

rain; the second one is named SignificantRain

and denotes sensors that measured a signiﬁcant

amount of rain in the monitored period. A third fuzzy

set that is named Wanted denotes those sensors that

are in the fuzzy set PeaksOfRain (with weight 2)

and possibly in the fuzzy set SignificantRain

(with weight 1). Speciﬁcally, we are interested in sen-

sors whose membership to the fuzzy set Wanted is no

less than 0.8.

Clearly, in order to evaluate the memberships of

sensors to the desired fuzzy sets, it is necessary to ag-

gregate measurements of rain.

5.2 Query

Listing 4 actually performs Query 1; notice that the

ﬁrst line number is 4, because the three deﬁnitions

of fuzzy aggregators reported in previous listings are

part of the query itself. Hereafter, we present it.

Acquiring Data. Line 4 speciﬁes the database to

connect with. Speciﬁcally, notice that the database

{

"city" : "Osio Sopra",

"province" : "BG",

"sensorId" : 5856,

"latitude" : 45.6338645090807,

"longitude" : 9.55608425579086,

"rainData" : [

{

"date" : "12/05/2023 21:00:00",

"value" : 2.2

…,

{

"date" : "24/05/2023 17:00:00",

"value" : 47.8

}

]

}

Figure 6: Example of document in the starting

MeasuredRain collection.

webist2023 is managed by J-CO-DS, the JSON doc-

ument store provided by the J-CO Framework (see

Section 3).

On Line 5, the instruction GET COLLECTION

actually retrieves he content of the collection

MeasuredRain from the database Webist2023; the

collection becomes the new temporary collection of

the process.

Soft Querying with Fuzzy Aggregators. The in-

struction FILTER on Line 6 of Listing 4 actually per-

forms the soft query. Hereafter, we explain it.

• The clause CASE WHERE selects (in a Boolean

way) those documents that have the ﬁeld

rainData. The remainder of the instruction will

work on these documents.

• The block GENERATE actually generates the output

documents, by possibly performing several ac-

tions, including evaluating memberships to fuzzy

sets, through the clause CHECK FOR.

• The clause CHECK FOR contains many different

branches FUZZY SET, one for each fuzzy set un-

der consideration. We have three branches FUZZY

SET on line 6.

• The ﬁrst branch FUZZY SET evaluates the mem-

bership to the fuzzy set SignificantRain. To

do this, the soft condition USING (which actu-

ally provides the membership to the fuzzy set un-

der consideration) exploits the fuzzy aggregator

integrateRain deﬁned in Listing 1.

To call the fuzzy aggregator, an array of num-

bers must be provided as actual parameter: since

the array ﬁeld rainData contains nested docu-

ments; the special function EXTRACT ARRAY cre-

ates a novel array of numbers by projecting the ar-

ray ﬁeld rainData on the inner (numerical) ﬁeld

value.

The membership provided by the fuzzy aggre-

gator integrateRain becomes the membership

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

265

{

"city" : "Osio Sopra",

"province" : "BG",

"sensorId" : 5856,

"latitude" : 45.6338645090807,

"longitude" : 9.55608425579086,

"rainData" : [

{

"date" : "12/05/2023 21:00:00",

"value" : 2.2

…,

{

"date" : "24/05/2023 17:00:00",

"value" : 47.8

}

"~fuzzysets" : {

"PeaksOfRain" : 0.930466311,

"SignificantRain" : 0.754000000,

"Wanted" : 0.871644207

}

Figure 7: Example of temporary document generated by the

instruction FILTER on Line 6 before the block BUILD.

of the current JSON document to the fuzzy set

SignificantRain.

The ﬁeld ˜fuzzysets is added to the JSON doc-

ument, so as to report the computed membership.

• The second branch FUZZY SET evaluates the

membership of the current document to the fuzzy

set PeaksOfRain, through the fuzzy aggregator

OwaRain (reported in Listing 2).

Apart from the fact that the aggregator OwaRain

performs an OWA aggregation (instead of a cumu-

lative aggregation) the branch behaves similarly to

the previous one: the aggregator is called by pass-

ing the array of values obtained by projecting the

array rainData on the inner ﬁeld value by means

of the special function EXTRACT ARRAY; then, the

computed membership becomes the degree to the

fuzzy set PeaksOfRain.

Deﬁnitely, the goal of he fuzzy set PeaksOfRain

is to denote (through the membership) those sen-

sors that measured a peak of rain; the OWA ap-

proach allows for doing that, because the items

with the highest values (typically, two or three)

gain the greatest weights; consequently, many

days of rain with few millimeters of rain do not

contribute signiﬁcantly to the aggregated mem-

bership: in contrast, two days with heavy rain on

a mass of dry days strongly contribute to obtain

high membership.

A second ﬁeld is added into the ﬁeld ˜fuzzysets,

denoting the membership to the novel fuzzy set.

• The third branch FUZZY SET evaluates the de-

gree of the current JSON document to the fuzzy

set Wanted. The goal is to combine the mem-

berships to the fuzzy sets PeaksOfRain and

SignificantRain in such a way the former con-

tributes with weight 2, while the latter contributes

with weight 1.

{

"city" : "Osio Sopra",

"province" : "BG",

"sensorId" : 5856,

"latitude" : 45.6338645090807,

"longitude" : 9.55608425579086,

"Wanted" : 0.871644207

}

Figure 8: Example of document saved in the

PeaksAndLongRain collection.

Clearly, the fuzzy aggregator (reported in List-

ing 3) weightedMemberships is exploited, but

this time it is necessary to create an “array of

memberships”: this is done by the special func-

tion MEMBERSHIP ARRAY. Speciﬁcally, this func-

tion creates a novel array by taking the previ-

ously calculated memberships to the listed fuzzy

sets (i.e., PeaksOfRain and SignificantRain),

whose values are taken from the special ﬁeld

˜fuzzysets. The second actual parameter is a

constant array that reports the weights to apply

(i.e., 2 and 1, respectively); this way, requirements

in Query 1 are met.

The resulting membership becomes the member-

ship degree to the fuzzy set Wanted.

The third and ﬁnal ﬁeld is added to the ﬁeld

˜fuzzysets, with the membership to the fuzzy

set Wanted.

• The clause ALPHACUT discards JSON documents

whose membership to the fuzzy set Wanted is less

than 0.8. This way, only documents that describe

sensors that actually measured peaks of rain and

possibly signiﬁcant rain during the monitored pe-

riod (or very close to this situation) are selected.

• The ﬁnal block BUILD restructures the output doc-

uments and the option DEFUZZIFY removes the

special ﬁled ˜fuzzysets, so as documents be-

come again classical crisp JSON documents.

Saving the Results. The resulting collection, which

contains documents describing sensors of interest on

the basis of Problem 1, is ﬁnally saved by Line 7. The

collection is named PeaksAndLongRain.

6 CONCLUSIONS

In this paper, we enhanced the potential application

of Soft Web Intelligence by introducing the concept of

“user-deﬁned fuzzy aggregator”. The concept allows

users of the J-CO-QL

language that are involved

in tasks of Soft Web Intelligence (enabled by the J-

CO Framework) to directly perform complex aggre-

gations of array ﬁelds in JSON documents, so as to

directly obtain memberships to fuzzy sets by aggre-

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

266

gating raw data; deﬁnitely, sophisticated soft queries

are made possible.

The paper resumes the vision of Soft Web Intel-

ligence, then introduces the novel statement CREATE

FUZZY AGGREGATOR, by presenting three different ex-

amples of aggregators, together with its semantic

model. Then, through a case study, a short yet sophis-

ticated query is presented, which exploits all the three

previously deﬁned fuzzy aggregators for performing

a complex soft query on rain data.

As a future work, we will ﬁnish to investigate the

deﬁnition of user-deﬁne fuzzy aggregators, so as to

cope with very complex situations; in this sense, we

also plan to build a library of fuzzy aggregators to

distribute with the J-CO Framework. Furthermore,

we plan to investigate how web scraping tools could

be effectively integrated within Soft Web Intelligence:

indeed, we expect that these tools represent some-

how uncertainty about the data they extract from Web

pages, because this uncertainty could be easily man-

aged with soft computing and soft querying. Deﬁ-

nitely, although we already demonstrated the effec-

tiveness of the J-CO Framework for integrating ge-

ographical data sets (see (Fosci and Psaila, 2022a)),

we want to further push its capabilities towards soft

querying, speciﬁcally by allowing users to deﬁne their

complex constructs (see (Fosci and Psaila, 2023)).

The framework is available on a Github page

REFERENCES

Alahakoon, D. and Yu, X. (2015). Smart electricity me-

ter data intelligence for future energy systems: A sur-

vey. IEEE Transactions on Industrial Informatics,

12(1):425–436.

Bringas, P. G., Pastor, I., and Psaila, G. (2019). Can

blockchain technology provide information systems

with trusted database? the case of hyperledger fabric.

In I. C. on Flexible Query Answering Systems, pages

265–277. Springer, Cham.

Dombi, J. and J

as, T. (2022). Weighted aggregation sys-

tems and an expectation level-based weighting and

scoring procedure. European Journal of Operational

Research, 299(2):580–588.

Farahbod, F. and Eftekhari, M. (2012). Comparison of

different t-norm operators in classiﬁcation problems.

arXiv preprint arXiv:1208.1955.

Fosci, P. and Psaila, G. (2022a). Soft integration of geo-

tagged data sets in j-co-ql+. ISPRS International Jour-

nal of Geo-Information, 11(9):484.

Fosci, P. and Psaila, G. (2022b). Towards soft web intelli-

gence by collecting and processing json data sets from

Github repository of the J-CO Framework:

https://github.com/JcoProjectTeam/JcoProjectPage

web sources. In Proceedings of the 18th I. C. on Web

Inf. Systems and Technologies.

Fosci, P. and Psaila, G. (2023). Soft querying powered by

user-deﬁned functions in j-co-ql+. Neurocomputing,

546:126311.

Han, J. and Chang, K.-C. (2002). Data mining for web in-

telligence. Computer, 35(11):64–70.

Kacprzyk, J. and Zadro

zny, S. (2010). Soft computing and

web intelligence for supporting consensus reaching.

Soft Computing, 14(8):833–846.

Li, H. and Yen, V. C. (1995). Fuzzy sets and fuzzy decision-

making. CRC press.

Poli, V. S. R. (2015). Fuzzy data mining and web intelli-

gence. In I. Conf. on Fuzzy Theory and Its Applica-

tions (iFUZZY), pages 74–79. IEEE.

Psaila, G. and Fosci, P. (2018). Toward an anayist-

oriented polystore framework for processing json geo-

data. In Int. Conf. on Applied Computing 2018, Bu-

dapest; Hungary, 21-23 October 2018, pages 213–

222. IADIS.

Reddy, P. V. S. (2010). Fuzzyalgol: Fuzzy algorithmic lan-

guage for designing fuzzy algorithms. J. of Computer

Science and Engineering, 2(2):21–24.

Yager, R. R. (1988). On ordered weighted averaging ag-

gregation operators in multicriteria decisionmaking.

IEEE Transactions on systems, Man, and Cybernet-

ics, 18(1):183–190.

Yao, Y., Zhong, N., Liu, J., and Ohsuga, S. (2001). Web

intelligence (wi) research challenges and trends in the

new information age. In Asia-Pac. C. on Web Intelli-

gence, pages 1–17. Springer.

Zadeh, L. A. (1965). Fuzzy sets. Information and control,

8(3):338–353.

Zadeh, L. A. (2004a). A note on web intelligence, world

knowledge and fuzzy logic. Data & Knowledge Engi-

neering, 50(3):291–304.

Zadeh, L. A. (2004b). Web intelligence, world knowledge

and fuzzy logic–the concept of web iq (wiq). In I.

C. on Knowledge-Based and Intelligent Inf. and Eng.

Systems, pages 1–5. Springer.

Zhang, Y.-Q. and Lin, T. Y. (2002). Computational web

intelligence (cwi): synergy of computational int. and

web technology. In W. C. on Comp. Int.., volume 2,

pages 1104–1107. IEEE.

Zhong, N., Liu, J., Yao, Y., Wu, J., Lu, S., Qin, Y., Li, K.,

and Wah, B. (2006). Web intelligence meets brain in-

formatics. In I. Ws. on Web Intelligence Meets Brain

Informatics, pages 1–31. Springer.

Enhancing Soft Web Intelligence with User-Deﬁned Fuzzy Aggregators

267
