Malicious Web Links Detection Using Ensemble Models

Claudia-Ioana Coste

, Anca-Mirela Andreica

and Camelia Chira

Department of Computer Science, Faculty of Mathematics and Computer Science, Babes

-Bolyai University, Mihail

Kogalniceanu Street, no. 1, Cluj-Napoca, Romania

Keywords:

Malicious Web Links Detection, Machine Learning Algorithms, Ensemble Models, Web-Malware.

Abstract:

Malicious links are becoming the main propagating vector for web-malware. They may lead to serious se-

curity issues, such as phishing, distribution of fake news and low-quality content, drive-by-downloads, and

malicious code running. Malware link detection is a challenging domain because of the dynamics of the on-

line environment, where web links and web content are always changing. Moreover, the detection should be

fast and accurate enough that it will contribute to a better online experience. The present paper proposes to

drive an experimental analysis on machine learning algorithms used in malicious web links detection. The al-

gorithms chosen for analysis are Logistic Regression, Na

ıve Bayes, Ada Boost, Gradient Boosted Tree, Linear

Discriminant Analysis, Multi-layer Perceptron and Support Vector Machine with different kernel types. Our

purpose is twofold. First, we compare these single algorithms run individually and calibrate their parameters.

Secondly, we chose 10 models and used them in ensemble models. The results of these experiments show

that the ensemble models reach higher metric scores than the individual models, improving the maliciousness

prediction up to 96% precision.

1 INTRODUCTION

Web applications are more and more used for data-

sensitive services such as banking, e-commerce, e-

learning, public administration, and many others. Be-

cause of this, web technology has been signiﬁcantly

improved over the years in terms of security, privacy,

and development frameworks but the web security

domain remains a challenging one. Hackers are al-

ways adapting, creating new attacks, especially phish-

ing attacks with malicious links, that trick users into

clicking them and launching their malicious behav-

ior. Malware links can point to cloned websites and

can download executables without any users’ consent.

Moreover, malicious URLs can run expensive tasks

on the browser’s web workers and present spam or

fake information that can be deceiving and confusing

for users. Bad-intended JavaScript code can be in-

jected into a web page, tracking consumer’s private

information or performing malicious tasks.

Research provided by (Fortra, 2022) concludes

that employees at IT companies who click on a link

distributed in phishing emails, are more likely to

https://orcid.org/0000-0001-8076-9423

https://orcid.org/0000-0003-2363-5757

https://orcid.org/0000-0002-1949-1298

download the malicious attachment with an over-

whelming rate of 84%. Moreover, companies with

a medium number of employees are likely to click

a phishing link (18%) and download the ﬁle (12%)

(Fortra, 2022). Shortened URLs are considered

a challenging problem. Frequently, they are not

blocked by anti-viruses, because the last website des-

tination is not known. Moreover, the top-level do-

mains (TLDs) used in malware URLs do not denote

the type of link, because many attackers employ rep-

utable TLDs. Thus, the malicious web links detec-

tion problem is a topical domain, extremely relevant

for consumers and research contributions are highly

needed.

The malicious web links problem can be mathe-

matically formulated as a binary classiﬁcation with

two labels: malicious and benign. The problem

can be solved from a preventive perspective, where

the detection of malicious links is more important

than the prediction of benign web sites. Thus, the

False Negative (FN) rate is more important and rel-

evant than the False Positive (FP) one. Still, hav-

ing too many FPs could involve the overuse of com-

putation resources. For our solution, the input of

the problem is deﬁned as a set of lexical and host-

based features extracted from the URL. The output

is a number: 0 or 1, interpreted as benign and ma-

268

Coste, C., Andreica, A. and Chira, C.

Malicious Web Links Detection Using Ensemble Models.

DOI: 10.5220/0012180400003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 268-275

ISBN: 978-989-758-672-9; ISSN: 2184-3252

licious, respectively. So, f : D

→ 0, 1; where D

, x

, ..., x

), (x

, x

, ..., x

), ..., (x

, x

, ..., x

), n ∈ ν,

being the number of features and m ∈ ν, being the

number of records from the used dataset.

The current paper performs a comparative anal-

ysis of multiple ML algorithms, such as Adaptive

Boosting (ADA), Gradient Boosted Tree (XGB), Lo-

gistic Regression (LR), Bernoulli and Gaussian Naive

Bayes (BNB and GNB), Linear Discriminant Anal-

ysis (LDA), Multi-Layer Perceptron (MLP), Sup-

port Vector Machine (SVM) with Radial Basis Func-

tion (RBF), linear, polynomial, and sigmoid kernel.

The algorithms are calibrated based on the empirical

methodology provided by (Coste, 2023). The best 10

conﬁgurations are chosen, and ensemble classiﬁers

are built as done by (Pakhare et al., 2021). Com-

putational experiments are performed for the dataset

provided by (Urcuqui et al., 2017) and results show

that the ensemble models outperform the individual

models, which is expected. The best individual algo-

rithm is XGB with 95% precision, and the best en-

semble is ADA-XGB-SVM rbf with over 96% pre-

cision. Even though our models do not outperform

literature models, we propose to investigate the ca-

pabilities of voting-majority ensembles into solving

malicious web links detection problem. Furthermore,

the experiments will be compared with two other ap-

proaches, and they will emphasize some improve-

ments we manage to achieve for MLP, LR and BNB

models.

The present article is structured in ﬁve sections.

In 2 we present the related work in the classiﬁcation

of malicious links with multiple ML algorithms. The

next section 3 will describe the experimental method-

ology used. Then, section 4 will detail the results,

draw comparisons within our models and with other

literature models. Finally, section 5 will accentuate

our contributions and propose new ideas for improv-

ing our work.

2 RELATED WORK

Many research contributions to the malicious web

links detection problem are ML-based, comparing the

performance of multiple ML models. The features

used in benign / malicious links classiﬁcation can be

extracted from the URL, from the web content of link,

including HTML, CSS ﬁles and JavaScript (JS) code

analysis, from public blacklists and from the graph

representation of the malware distribution network.

In some approaches, the experiments are per-

formed in a cross-dataset environment. (Naveen

et al., 2019) performs ML techniques (LR, SVM with

linear kernel, DT, RF, Categorical Boosting, KNN,

NB, K-Means, Feed Forward Neural Network) on 16

datasets. Their experiments relate that in a cross-

dataset environment, KNN outperforms all the oth-

ers. Another cross-dataset approach is developed by

(Song et al., 2020), which classiﬁes links based on the

JS code, taking into consideration the raw code, the

obfuscated and the deobfuscated code. The proposed

model is a bidirectional Long Short-Term Memory

(BLSTM) and it was compared with NB, SVM, RF,

JaST and ClamAV, an anti-virus engine.

Many solutions propose a classiﬁcation done for

multiple labels. (Tung et al., 2022) is proposing a

classiﬁcation model for four classes: benign, spam,

malware, and phishing. By comparing DT with RF,

RF outperforms the other and the experiments were

run on an aggregation of multiple datasets. Like-

wise, regarding multi-class (spam, defacement, mal-

ware, phishing and benign) and binary classiﬁcation,

(Johnson et al., 2020) will propose a ML model com-

paring: RF, DT, KNN, SVM, LR, ADA, NB, LDA,

and two deep learning models developed with Fast.ai

and TensorFlow-Keras. One of the purposes of the pa-

per was to analyze how the model is resilient to binary

classiﬁcation and to multi-class classiﬁcation. It was

observed that all models obtained 8-10% higher ac-

curacy for the binary classiﬁcation than for the multi-

class detection. The best performance was achieved

by RF and the two deep learning models, but RF was

considered the most suitable option.

For a scalable binary classiﬁcation, (Islam et al.,

2019) uses a dataset available in (Urcuqui et al., 2017)

and MapReduce. The approach delivers experiments

on NN, RF, DT and KNN models. Their results con-

ﬁrmed that RF and DT were the best performing algo-

rithms and the NN model was the most time consum-

ing one. Running experiments on the same dataset,

(Vundavalli et al., 2020) compares CNN, LR and NB

(Gaussian, Multinomial and Bernoulli), the best re-

sults being obtained by Bernoulli NB method. (Janet

et al., 2021) compares ML algorithms (SVM, DT, RF,

KNN, NB, LR and Stochastic Gradient Descent), the

best metrics being reached by the RF model.

(Pakhare et al., 2021) compares multiple ML ap-

proaches (LR, SVM with linear, RBF and sigmoid

kernels, KNN, DT and RF) and combines three of

them into ensembles. From running the algorithms

individually, LR performed the best. Regarding the

ensembles, KNN-DT-SVM stands out from the rest.

Similarly, (Alsaedi et al., 2022) uses three RF mod-

els, trained for a different feature category and a MLP

meta-classiﬁer that will output the ﬁnal class. RF

was chosen after experiments with other models: NB,

CNN, LR, DT and SDL (Sequential deep learning). A

Malicious Web Links Detection Using Ensemble Models

269

more in-depth analysis on ensemble models was done

by (Subasi et al., 2021), which is using multiple clas-

siﬁers (SVM, KNN, C4.5 DT, CART Tree, NB Tree)

with multiple homogeneous ensembles (Multi Boost,

Ada Boost, Bagging, Random Subspace). Likewise,

(Sajedi, 2019) comes with an ensemble approach with

features extracted from HTML and JS ﬁles. The sys-

tem developed with REP Tree and genetic algorithm

as meta-classiﬁer is proposed as a solution. Multiple

weak classiﬁers are compared (NB, SVM, KNN, REP

Tree) and multiple ensemble methods (Bagging, Ada

Boost, Decorate, Rotation Forest).

3 METHODOLOGY

The proposed approach to malicious web links detec-

tion is based on the following main steps:

1. Dataset selection;

2. Preprocessing and data normalization;

3. Divide dataset & handle data imbalancement;

4. Running individual ML models;

5. Running ensemble models & Comparisons.

3.1 Dataset Selection

The dataset used is provided by (Urcuqui et al., 2017).

It is a free dataset, with 17 host based and two lex-

ical features already extracted. From the attributes

provided by the dataset we can recall: URL char-

acters count, special characters count, server, ports

opened for connection, number of IPs connected to

the server, WHOIS registration data, WHOIS updated

date, WHOIS approximate geo-location, DNS query

time, TCP packets count, bytes count etc. The dataset

contains a total of 216 malicious samples and 1565

benign. When collecting data for the malicious links

problem, there is a recurrent problem for the im-

balancement of the dataset, because malicious links

are hardly identiﬁed in real world scenarios. An-

other problem could be the datasets containing mostly

URLs and not any other properties, extracted when

the link still performed its malicious behavior. These

related properties, mostly host based attributes, need

to be retrieved at a speciﬁc time when the link is still

active. The dataset provided by (Urcuqui et al., 2017)

was chosen because of the presence of host-based fea-

tures already extracted. Moreover, the empirical ap-

proach used in (Coste, 2023) and in the present pa-

per involve running many experiments. Therefore,

because of limited computation resources, we chose

to ﬁrst experiment on small data until we properly

calibrate the algorithms. The dataset was previously

integrated in experiments developed by (Islam et al.,

2019) and (Vundavalli et al., 2020).

3.2 Preprocessing and Data

Normalization

In the preprocessing step of the dataset, data was

cleared, categorical features were transformed to

numbers based on two different algorithms (super-

vised ratio algorithm and weight of evidence algo-

rithm). In total, our model had 23 attributes. The

normalization process was computed based on two

scalers, MinMax Scaler and Standard Scaler, whose

implementation is from Sklearn library (Pedregosa

et al., 2011).

3.3 Divide Dataset & Handle Data

Imbalancement Problem

When running each algorithm, the dataset was split

into 20% of data used for testing (357 samples)

and 80% of data for training (1424 records), tak-

ing into consideration the ratio between the classes

for the samples. In addition, our experiments and

the methodology speciﬁed in (Coste, 2023), includes

some other methods for data imbalancement, such as

the usage of speciﬁc metrics (precision for the un-

represented class, recall, F1 score, and ROC AUC

score), and besides the stratify argument, setting the

class weight argument to balanced for the compatible

models.

3.4 Running the Individual ML Models

& Comparisons

Our experimental approach is based on the steps pre-

sented in (Coste, 2023), which involves mainly two

stages of experiments. In the ﬁrst stage, we start the

model conﬁguration from the conﬁguration provided

by (Islam et al., 2019), for models RF, DT, KNN,

MLP and for the rest of the models, we take as starting

point the default conﬁguration available in the Sklearn

(Pedregosa et al., 2011). The second stage of the ex-

periments includes the selection of relevant parame-

ters according to the results and running all the pos-

sible combinations. Lastly, a ranking is made based

on the average of the metrics used (precision, recall,

F1, ROC-AUC * 100). For the ranking we decided

to take into consideration all metrics, all of them are

important, and we computed a mean of them. The

best 20 conﬁgurations are run 100 times, each time

with a different dataset split and then these models

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

270

Table 1: The number of conﬁgurations for each algorithm for each stage of experiments and the parameters varied.

Model First stage Second stage Parameters calibrated in the second stage

XGB 28,012 235,200 scaler, loss, learning rate, n estimators, min samples split,

min samples leaf, max leaf nodes, max depth

ADA 248 14,320 scaler, algorithm, learning rate, n estimators

GNB 210 400 scaler, var smoothing

BNB 640 80,000 scaler, alpha, binarize, ﬁr prior

MLP 1248 21,952 scaler, solver, activation, max iter, hidden layer sizes = [i,

j, k] where i, j, k ∈ { 20, 40, ..., 140}

LDA 596 1,164,000 scaler, tol, solver, shrinkage, store covariance, n compo-

nents, store precision, assume centered

LR 194 313,600 scaler, solver, penalty, max iter, intercept scaling

SVM linear 324 365,568 scaler, max iter, shrinking, C, tol, cache size

SVM poly 269,858 1,520,000 scaler, shrinking, degree, cache size, coef0, gamma

SVM sigmoid 14,409 71,400 scaler, shrinking, gamma, cache size, coef0

SVM rbf 664 237,600 scaler, max iter, shrinking, gamma, C, cache size

are ranked again. Finally, the best parameter cali-

bration is chosen. The algorithms we chose to run

individually were: XGB, ADA, LR, NB (Bernoulli

and Gaussian), LDA and SVM (with RBF, sigmoid,

linear, and polynomial kernel). The number of run

conﬁgurations for the experimental approach and all

parameters calibrated are detailed in Table 1.

3.5 Running Ensemble Models &

Comparisons

Figure 1: Ensemble model.

The ensemble models are formed out of three mod-

els constructed for the best conﬁgurations found on

the previous models. We included the best conﬁgu-

ration for RF, DT and KNN algorithms as computed

in (Coste, 2023). For the rest of the algorithms, we

chose seven more conﬁgurations. Between Bernoulli

NB and Gaussian NB, we will choose just the one

achieving the highest scores. Moreover, among the

four SVM variants, there will be depicted the variant

outperforming the rest. The architecture of the ensem-

ble model is presented in Figure 1, where each classi-

ﬁer will output a class and the ﬁnal annotation is cho-

sen based on the majority of the classiﬁers. The devel-

oped ensemble models for malicious web links detec-

tion are based on the approach proposed in (Pakhare

et al., 2021). In total, the ensembles will be con-

structed with 10 ML models, leading to 120 combi-

nations possible.

Finally, we will draw relevant comparisons be-

tween our results and the ones obtained by (Islam

et al., 2019), (Vundavalli et al., 2020), since all three

research studies use the same dataset (Urcuqui et al.,

2017). The comparisons are made given the F1 met-

ric.

4 RESULTS AND DISCUSSION

The current section will present the results for each al-

gorithm, the best conﬁguration obtained based on the

empirical approach with two stages of experiments.

The scores for the best ensembles are presented as

well in the present section. Finally, comparisons are

drawn, and we discuss our results, placing our solu-

tion in the domain literature.

4.1 Computational Experiments

The current subsection will detail the results of each

algorithm.

LR manages to reach 74.98% precision score

with its best conﬁguration which is parameterized as:

scaler = Min Max, max iter = 154, intercept scal-

ing=100, penalty = l1 and solver = liblinear.

Results for NB algorithms including the Bernoulli

and Gaussian variants can be seen in Table 2. Be-

tween these two variants, one can observe that BNB

performs better as it is in the case of (Vundavalli et al.,

2020). The best conﬁguration from BNB includes

Malicious Web Links Detection Using Ensemble Models

271

Table 2: Results for the algorithms run individually.

Model Precision Recall F1 score ROC AUC * 100 Avg. metric

LR - best model 74.99 91.94 82.41 98.57 86.98

BNB - best model 82.75 79.21 80.76 95.3 84.51

GNB - best model 29.49 94.06 43.24 94.72 65.38

ADA - best model 94.19 89.81 91.85 99.45 93.83

XGB - best model 95.07 89.19 91.95 99.41 93.91

LDA - best model 93.93 82.86 87.92 98.47 90.8

SVM rbf - best model 86.67 90.7 88.64 98.56 91.14

SVM linear - best model 75.15 92.55 82.82 98.31 87.21

SVM sigmoid - best model 76.27 88.89 81.97 97.02 86.04

SVM poly - best model 78.06 91.38 84.09 98.04 87.89

MLP - best model 88.73 88.6 88.46 98.62 91.1

scaler= Min Max, ﬁr prior = True, alpha = 1.6 and

binarize = 0.42. The best conﬁguration for GNB is

obtained with var smoothing parameter, 3.93e-09 and

Standard scaler. The GNB algorithm is the worst per-

forming algorithm considering our experiments. The

explanation for why BNB reaches a better perfor-

mance than GNB may be because BNB is suitable for

large categorical features, while GNB is not recom-

mended in this case according to (Vundavalli et al.,

2020).

Ada Boost managed to achieve over 94% preci-

sion for its best conﬁguration, being one of the best

models (see Figure 3). The SAMME algorithm, a 1.01

learning rate and 189 estimators were included in the

best parameter conﬁguration.

XGB model obtained the best score metrics, con-

sidering precision as it can be observed in Figure 3.

The average model is one of the best as seen in Fig-

ure 2. The best conﬁguration is obtained with Min-

Max Scaler and the rest of the rest of the parameters

are loss=exponential, learning rate=0.82, n estima-

tors=130, subsample=1.0, criterion=friedman mse,

min samples split=17, min samples leaf=15, max

depth=5, max leaf nodes=15.

LDA algorithm manages to outperform the oth-

ers in terms of metric scores (Figure 3). The best

model was obtained for covariance estimator = Em-

piricalCovariance(store precision=False), for a tol =

0.006, the lsqr solver, None shrinkage, 0 n compo-

nents, False for store covariance and scaler = Min

Max.

For SVM, in table 2 there are all results for SVM

variants with linear, sigmoid, RBF and polynomial

kernels. Considering the best SVM models, SVM

with RBF kernel is outperforming the rest, with a 86%

precision. Its best conﬁguration resumes to shrinking

= False, cache size = 230, max iter = 1500 reached

when normalizing the data with Standard Scaler. Be-

cause of its good score metrics, we chose to include

the SVM with RBF kernel model in the ensemble

models.

The MLP model was the slowest model of all, but

its accuracy does not fail, achieving one of the best re-

sults. By varying its parameters we have obtained the

best conﬁguration with max iter = 100, 3 hidden lay-

ers with 140, 120, 60 neurons, activation = identity,

solver = tanh and the rest have default values.

4.2 Comparisons and Discussion

For comparisons we chose to ﬁrst compare the algo-

rithm individually and then, as ensembles. For com-

parisons, we depicted the best conﬁgurations and how

algorithms performed on average. Moreover, our re-

sults are compared with other studies that used the

same dataset such as (Islam et al., 2019) and (Vun-

davalli et al., 2020).

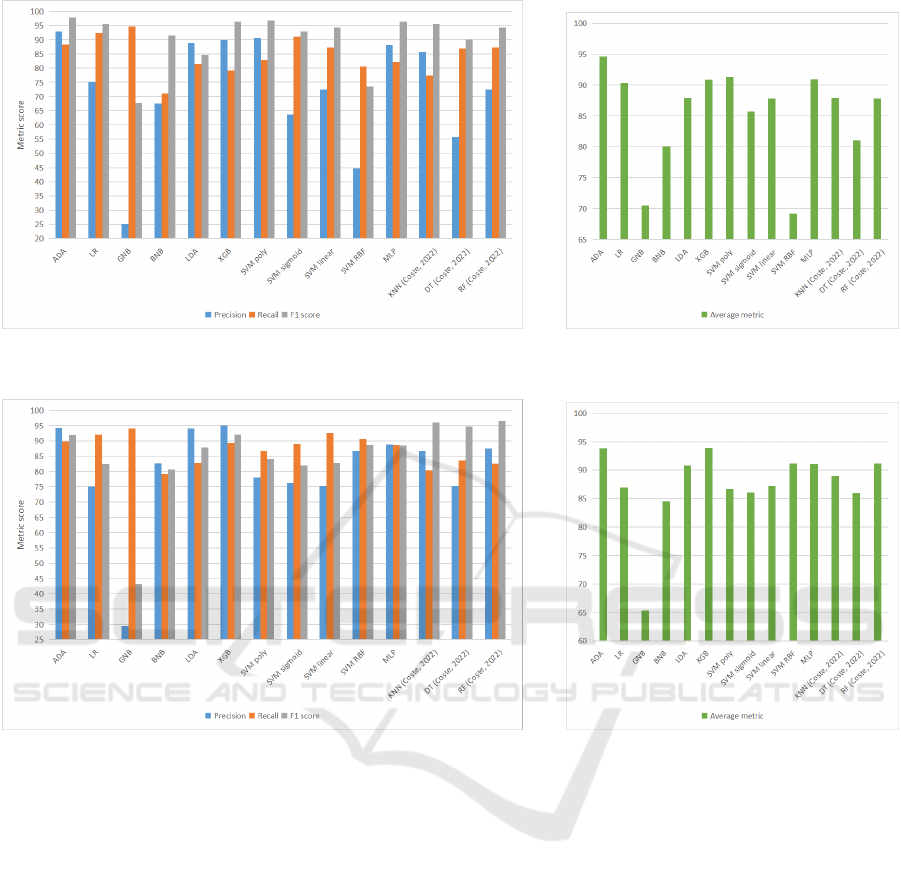

In Figure 2, we present the results as the mean of

all conﬁgurations run of the proposed algorithms for

the second stage of experiments, each conﬁguration

being run only once. As can be observed in Figure 2b,

the best performing algorithm while parameters were

calibrated is ADA, with an average metric of 94.56.

ADA’s performance on average is followed by SVM

with polynomial kernel, MLP, XGB and LR.

Figure 3 presents the best conﬁgurations obtained.

The metrics presented are metrics computed as an av-

erage of 100 different dataset splits. Considering the

average metric, the best conﬁguration is reached by

ADA, XGB and RF developed in (Coste, 2023), all

three being promising algorithms. Considering preci-

sion, the most precise model is XGB, closely followed

by ADA, LDA, MLP, and the RF model from (Coste,

2023). Having a high precision means that the model

properly identiﬁes malicious links and has a low rate

of FPs. The best recall is observed to be achieved

by GNB, considering its average performance and its

best one. Unfortunately, GNB has the lowest preci-

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

272

(a) Average models with precision, recall, F1 score. (b) Average models with average metric.

Figure 2: All average conﬁguration results.

(a) Best models with precision, recall, F1 score. (b) Best models with average metric.

Figure 3: All best conﬁguration results.

sion score. Having a good recall may denote that

there is a low rate of FNs. A high recall can imply

a low precision, and this is the case for GNB. Thus,

GNB is a good algorithm for predicting benign sam-

ples. Since predicting maliciousness of links is a more

important problem, GNB is not considered a good

model. The best F1 scores were reached by RF, KNN

and DT, all models developed in (Coste, 2023). These

models are closely followed by XGB, and ADA. A

good F1 score indicates good precision and a good re-

call, by trying to maximize both. The best ROC-AUC

scores were obtained by ADA, and XGB, followed by

MLP, LR, LDA, RF and SVMs.

By comparing the average performance and the

results of the best conﬁguration, one could observe

some discrepancies, where for some classiﬁers the

average performance is better than the best perfor-

mance. This may be due to our running conditions

and the way we computed the results. For the av-

erage metrics, each parameter conﬁguration was run

once, while for the best performance, each conﬁgura-

tion was run 100 times.

From NB variants and SVMs models we chose

the ones having a better performance (i.e., BNB and

SVM with RBF) to further include them in ensem-

bles. The results for the 10 ensemble models are

presented in Figure 4. We employ a set of 10 al-

gorithms to construct the heterogeneous model, hav-

ing three models that participate in the voting system,

leading to 120 combinations. Each hybrid conﬁgura-

tion was run 100 for each of the scalers used (Min-

Max or Standard). So, the table presents an average

of 200 different data splits. The best performing en-

semble was ADA-BNB-XGB and ADA-MLP-XGB,

ADA and XGB being the best algorithms when run in-

dividually as observed before in Figure 3. In addition,

the best conﬁguration when ensembles were run with

Standard scaler is ADA-XGB-SVM-rbf model hav-

Malicious Web Links Detection Using Ensemble Models

273

(a) Top 10 ensemble models with precision, recall, F1 score. (b) Top 10 ensemble models with average metric.

Figure 4: Top 10 ensemble models (average performance with Min Max and Standard Scaler).

Figure 5: All best models compared with (Islam et al., 2019) and with (Vundavalli et al., 2020).

ing a 95.21 average metric score (96.31% precision,

91.39 % recall, 93.72% F1 score and 0.9941 ROC-

AUC score). Considering Min-Max Scaler, the best

average metric of 94.91 was obtained by LDA-XGB-

SVM-rbf (94.83% precision, 92.09% recall, 93.38%

F1 score, 0.9938 ROC-AUC score). For the compar-

isons, we chose to include three of the best hybrid

models: ADA-BNB-XGB, ADA-XGB-SVM-rbf and

LDA-XGB-SVM-rbf.

Figure 5 presents a comparison between our mod-

els and the models proposed by (Islam et al., 2019)

and (Vundavalli et al., 2020). There is a slight im-

provement between our best model (XGB) and the

ensemble models considering the F1 score, which is

the common metric between the articles. Compar-

ing the MLP model with the MLP proposed by (Is-

lam et al., 2019), we manage to improve their MLP

algorithm with almost 3%. But, even with the best

ensemble model (ADA-XGB-SVM rbf) we could not

reach their performance for the DT and RF models.

These reach 99% F1 score in their experiments, while

our best hybrid conﬁguration obtained just 93.73% F1

score. We think that there is more to investigate here

and further improve the performance. By comparing

our solutions with the ones presented in (Vundavalli

et al., 2020), we could observe that LR in our case

achieves a considerably higher F1 score. GNB has

27% F1 score in (Vundavalli et al., 2020), while in our

case its best conﬁguration has 43.24% F1 score. BNB

has an outstanding F1 score of 99% in (Vundavalli

et al., 2020) and unfortunately, for our experiments

BNB has a modest score of 80.75%, but it is included

in one of the best ensembles. The reason for why we

have obtained some lower results as opposed to (Is-

lam et al., 2019) and (Vundavalli et al., 2020), may be

because we have not used undersampling or oversam-

pling techniques to further counteract the data imbal-

ancement problem. (Islam et al., 2019) implemented

k-fold cross validation.

Comparing our hybrid models with the ensembles

provided by (Pakhare et al., 2021) is not very rele-

vant since the dataset is different. For the experi-

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

274

ments they used: LR, KNN, DT, RF and SVM (linear,

sigmoid and RBF kernels). For our experiments we

used a larger number of algorithms: LR, LDA, NB

(Bernoulli and Gaussian), LDA, XGB, MLP, SVM

(with linear, sigmoid, polynomial and RBF kernels)

and DT, KNN, RF were taken from (Coste, 2023).

Thus, we had 120 different hybrid models, while they

used 10 conﬁgurations. In their case, the best indi-

vidual algorithm is not included in the best ensemble

model. This is in contrast with our results, which con-

ﬁrm the best model is retrieved in the best ensemble

as well.

5 CONCLUSIONS AND FUTURE

WORK

Experiments in the malicious web links detection do-

main are very challenging and complex to develop.

We employ the usage of 7 ML algorithms LR, LDA

NB (Bernoulli and Gaussian), LDA, XGB, MLP,

SVM (with linear, sigmoid, polynomial and RBF ker-

nels), which we calibrate and compare. Moreover,

we chose 10 different conﬁgurations with which we

continue to experiment with hybrid models formed

out of three of them. The best ensembles managed

to improve the metric scores compared to the single

models. Moreover, we observed that the best single

model, XGB, was included in the best performing en-

sembles ADA-BNB-XGB, ADA-XGB-SVM-rbf and

LDA-XGB-SVM-rbf. Our best solution has 96.31%

precision with ADA-XGB-SVM-rbf hybrid model. In

addition, some proposed models such as MLP, LR and

GNB manage to improve previous literature results.

Concerning future work, we plan to elaborate fur-

ther with the detection models and create stacked

models constructed from ﬁve classiﬁers and a meta-

classiﬁer. Moreover, our methodology can work with

multiple datasets, and it would be an idea to experi-

ment in a cross-dataset environment. Moreover, we

could elaborate on the data collection process by es-

tablishing a centralized dataset with real samples re-

trieved during a speciﬁc period. Additional infor-

mation regarding links, such as DNS information,

WHOIS information, properties about the web server,

should be collected in real time.

REFERENCES

Alsaedi, M., Ghaleb, F. A., Saeed, F., Ahmad, J., and Alasli,

M. (2022). Cyber threat intelligence-based malicious

url detection model using ensemble learning. Sensors,

22(9):3373.

Coste, C.-I. (2023). Malicious web links detection -

a comparative analysis of machine learning algo-

rithms. Studia Universitatis Babes

-Bolyai Informat-

ica, 68(1):21–36.

Fortra (2022). The 2021 gone phishing tournament results:

Everything you need to know.

Islam, M., Poudyal, S., Gupta, K. D., et al. (2019). Mapre-

duce implementation for malicious websites classiﬁ-

cation. International Journal of Network Security &

Its Applications (IJNSA) Vol, 11.

Janet, B., Kumar, R. J. A., et al. (2021). Malicious url de-

tection: A comparative study. In 2021 International

Conference on Artiﬁcial Intelligence and Smart Sys-

tems (ICAIS), pages 1147–1151, Tamil Nadu, India.

IEEE, IEEE.

Johnson, C., Khadka, B., Basnet, R. B., and Doleck, T.

(2020). Towards detecting and classifying malicious

urls using deep learning. J. Wirel. Mob. Networks

Ubiquitous Comput. Dependable Appl., 11(4):31–48.

Naveen, I. N. V. D., Manamohana, K., and Verma, R.

(2019). Detection of malicious urls using ma-

chine learning techniques. International Journal of

Innovative Technology and Exploring Engineering,

8(4S2):389–393.

Pakhare, P. S., Krishnan, S., and Charniya, N. N. (2021).

Malicious url detection using machine learning and

ensemble modeling. In Computer Networks, Big Data

and IoT, pages 839–850. Springer, Singapore.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Sajedi, H. (2019). An ensemble algorithm for discovery of

malicious web pages. International Journal of Infor-

mation and Computer Security, 11(3):203–213.

Song, X., Chen, C., Cui, B., and Fu, J. (2020). Malicious

javascript detection based on bidirectional lstm model.

Applied Sciences, 10(10):3440.

Subasi, A., Balfaqih, M., Balfagih, Z., and Alfawwaz, K.

(2021). A comparative evaluation of ensemble classi-

ﬁers for malicious webpage detection. Procedia Com-

puter Science, 194:272–279.

Tung, S. P., Wong, K. Y., Kuzminykh, I., Bakhshi, T., and

Ghita, B. (2022). Using a machine learning model

for malicious url type detection. In Koucheryavy,

Y., Balandin, S., and Andreev, S., editors, Internet of

Things, Smart Spaces, and Next Generation Networks

and Systems, pages 493–505, Cham. Springer Interna-

tional Publishing.

Urcuqui, C., Navarro, A., Osorio, J., and Garc

ıa, M. (2017).

Machine learning classiﬁers to detect malicious web-

sites. SSN, 1950:14–17.

Vundavalli, V., Barsha, F., Masum, M., Shahriar, H., and

Haddad, H. (2020). Malicious url detection using su-

pervised machine learning techniques. In 13th Inter-

national Conference on Security of Information and

Networks, pages 1–6.

Malicious Web Links Detection Using Ensemble Models

275
