Development of Cart with Providing Constant Steerability Regardless
of Loading Weight or Position: 3
rd
Report on Evaluation of a Steering
Assist System on Translational Movement
Shunya Aoki
1
, Sho Yokota
1a
, Akihiro Matsumoto
1b
, Daisuke Chugo
2c
, Satoshi Muramatsu
3
,
Katsuhiko Inagaki
3
and Hiroshi Hashimoto
4d
1
Dept. of Mechanical Engineering, Toyo University, Saitama, Japan
2
School of Engineering, Kwansei Gakuin University, Sanda, Japan
3
Dept. of Applied Computer Eng., Tokai University, Hiratsuka, Japan
4
Adv. Institute of Industrial Tech, Shinagawa, Japan
Keywords: Mechatronics, Sensing, Active Steering Caster, Shopping Cart, Passive Robotics.
Abstract: The steering of the shopping cart is affected by its load, leading to the need for the user to make corrective
adjustments and apply excessive force. In this study, the system assists the steering of a shopping cart by
actively steering casters based on the user’s operational intention estimated from the user’s force. This paper
provides a brief introduction to the operational interface and the active steering caster. Subsequently, it
elaborates on the steering assist system designed for translational movement. Furthermore, we conduct
experiments to evaluate the steerability through subjective and objective assessments. These results confirmed
that the system can support the operating force and corrective steering. In addition, subjects feel less weight
than the conventional carts and have more intuitive sense than the conventional cart.
1 INTRODUCTION
The shopping cart is designed to carry heavy or many
items while providing intuitive omnidirectional
movement. These advantages enhance the overall
comfort of shopping experiences for customers
(hereafter referred as “users”). However, the
steerability of a shopping cart is influenced by several
factors such as the weight and position of loads or
items. Consequently, users are often compelled to
make corrective steering or exert excessive force
when operating the cart. As a result, this situation can
lead to discomfort and decreased safety. Addressing
these issues can be achieved by ensuring constant
steerability of the shopping cart, irrespective of the
weight or position of the load. Therefore, the primary
objective of this study is to develop a shopping cart
that provides constant steerability regardless of the
loading weight and position.
a
https://orcid.org/0000-0002-8507-5620
b
https://orcid.org/0000-0002-3004-7235
c
https://orcid.org/0000-0002-3884-3746
d
https://orcid.org/0000-0003-2416-8038
Several studies have been conducted on assisting
cart operation, but there are some particular
challenges and limitations. For instance, in the case
of the ‘A Person-Following Shopping Supported
Robot (Islam, 2019)’, the robot tracks the user’s
position using omnidirectional camera and ultrasonic
sensor. However, it has been observed that the
absence of physical contact between the user and the
cart results in decreased sense of agency (Yun, 2017),
potentially increasing the risk of accidents such as
collisions in a store. In case of the ‘Omnidirectional
Power-assisted Cart (Maeda, 2003)’, the cart achieves
omnidirectional movement using omni-wheels to
align with the user’s intention. However, due to the
motor-generated driving force, the system poses an
increased risk of the shopping cart losing control.
Another problem arises when the cart remains
immobile when assistance is not needed. Such
problems also occur in another study, Add-on Type
Aoki, S., Yokota, S., Matsumoto, A., Chugo, D., Muramatsu, S., Inagaki, K. and Hashimoto, H.
Development of Cart with Providing Constant Steerability Regardless of Loading Weight or Position: 3 rd Report on Evaluation of a Steering Assist System on Translational Movement.
DOI: 10.5220/0012200300003543
In Proceedings of the 20th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2023) - Volume 1, pages 689-696
ISBN: 978-989-758-670-5; ISSN: 2184-2809
Copyright © 2023 by SCITEPRESS Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
689

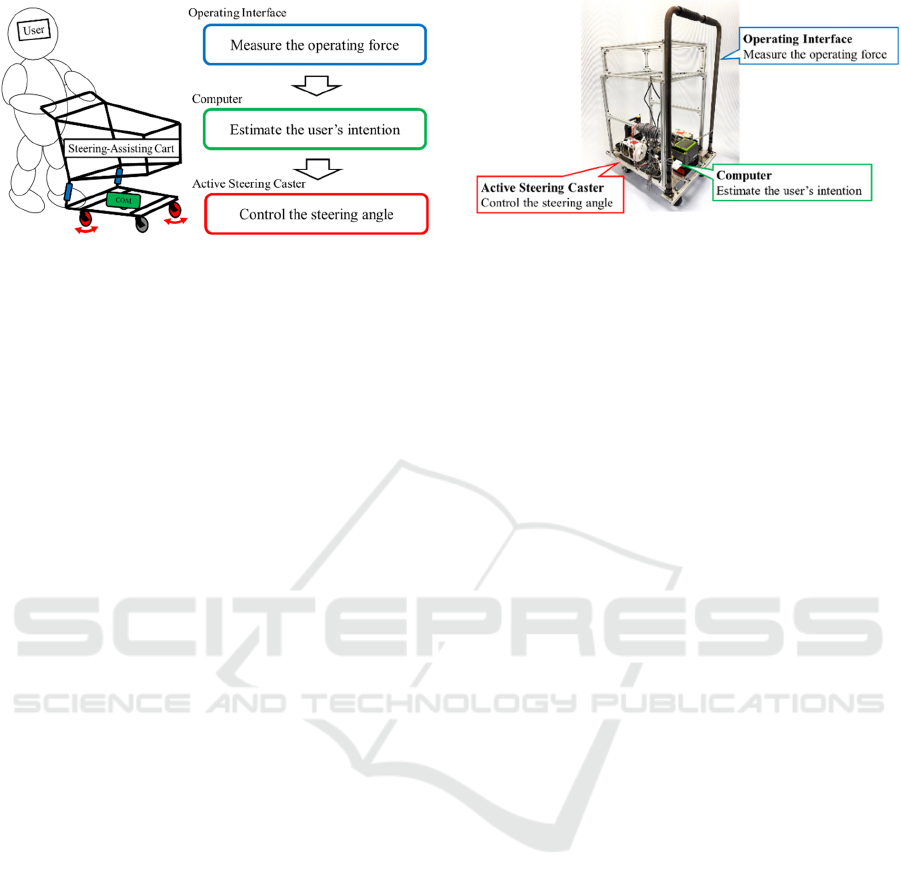

Figure 1: Conceptual illustration of the steering-assisting
cart.
Electric Wheelchair Using Active Caster (Nakayama,
2023)’. Another limitation observed in studies such
as Passive Intelligent Walker (Hirata, 2007) is an
inability to achieve omnidirectional movement due to
the fixed casters.
To address these challenges, we propose steering-
assisting carts that incorporate passive robotics, as
illustrated in Figure 1. This system utilizes the
operational interface (Aoki, 2023), where strain
gauges are directly bonded to the handle posts, to
estimate the user's operational intention. The active
steering casters (Aoki, 2022) generate the necessary
steering force to assist in the cart's operation.
Essentially the moving direction of a cart with all
casters hypothetically fixed is restricted to one
direction. Thus the steering angle of the casters
determines the moving direction of the cart. In the
proposed system, the actuator actively steers the
caster in intended direction by user, allowing the user
to advance the cart in the intended direction simply
by applying a pushing force. This constant
steerability makes shopping more comfortable and
safer. In addition to improving the shopping
experience, this system can ease the work in a
warehouse or any loading station. Figure 2 illustrates
the prototype assembled to validate the function of
the individual components. Chapter 2 provides a
concise overview of these components.
In this paper, we develop a steering-assisting
system designed explicitly for translatory movement.
Specifically, we discuss how the system estimates a
user’s intended translatory moving direction and
accordingly controls the active steering casters to
follow this user intention. Furthermore, we
comprehensively evaluate the steerability using both
subjective and objective assessments. To be more
specific, we compare the active steering cart with
passive steering cart in terms of the steering and
corrective force required by the user and their
subjective experience of operability.
Figure 2: Prototype of the steering-assisting cart.
2 SYSTEM CONFIGURATIONS
This chapter briefly overviews the operational
interface (Aoki, 2023), the active steering caster
(Aoki, 2022), and its wheel arrangement in order to
enhance the paper's readability.
2.1 Operational Interface
The operational interface serves as a sensing system
to estimate the user's operational intention. In this
study, we propose an operational interface that
measures the user's operating force 𝐹
,𝐹
[N] and
moment of force 𝑀
[Nm]. The intention is estimated
using a method based on the omnidirectional power-
assisted cart (Maeda, 2003) as a reference. While
various methods have been proposed for such
operational interfaces, it is essential to note that they
also come with their challenges. For example, some
operational interfaces face challenges such as
complex mechanisms by using a 6 DOF force-torque
sensor (Ueno, 2014), the need for mounting movable
parts by using a potentiometer (Seino, 2017), and the
requirement to measure objects other than the cart's
frame by using an indirect displacement sensor
(Maeda, 2003). To address these challenges, we
propose an operational interface in which strain
gauges are directly bonded to the handle posts. This
interface utilizes the structure's strain as the
operational interface's input. Consequently, the
system eliminates the need for additional parts,
allowing for the direct measurement of the operating
force. Figure 3 showcases the prototype of the
operational interface described above. The strains on
the handle posts 𝜀

,𝜀

,𝜀

are converted into the
applied forces on the handle posts using equation (1).
Furthermore, these forces are then transformed into
the operating force 𝐹
,𝐹
[N] and moment of force
𝑀
[Nm] on the cart using equation (2).
ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics
690

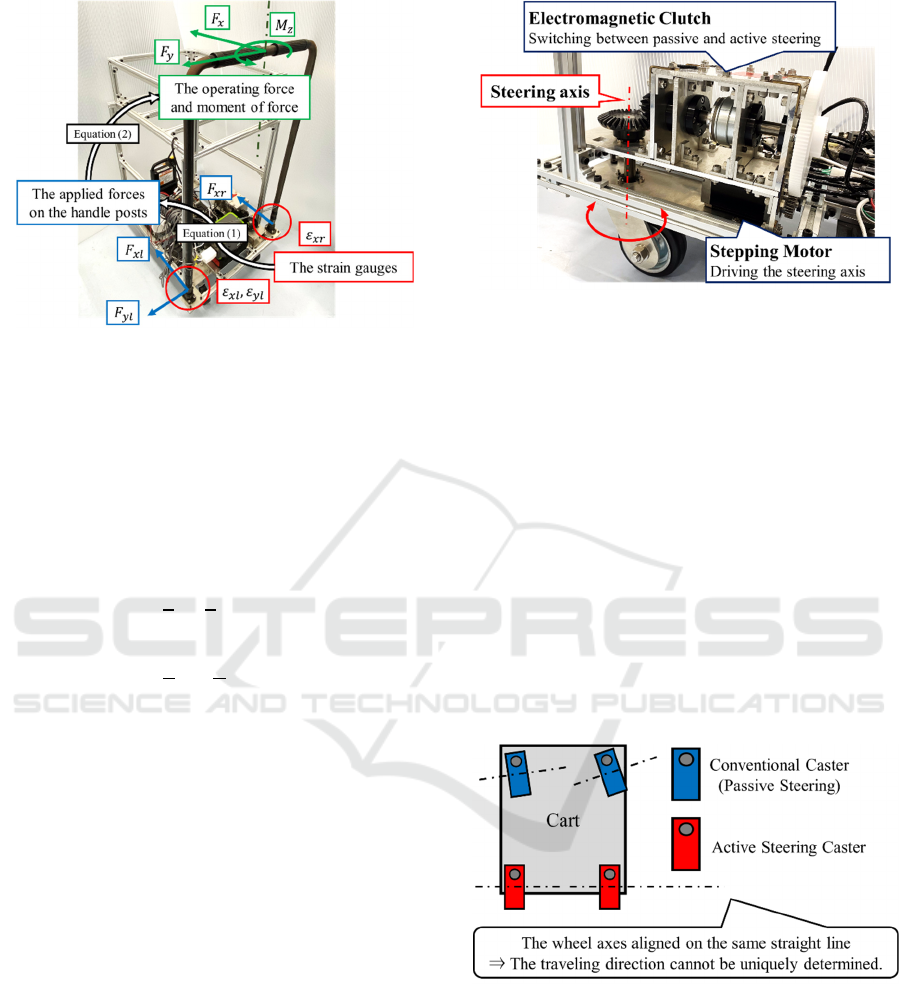

Figure 3: Prototype of the operational interface and
operating force conversion flow.
𝐹

𝐹

𝐹

𝑨
𝜀

𝜀

𝜀

𝑩 (1)
here
𝑨
𝛼

00
0𝛼

0
00𝛼

,𝑩
𝑒

𝑒

𝑒

.
𝐹
𝐹
𝑀

1
2
1
2
0
001
𝑑
2
𝑑
2
0
𝐹

𝐹

𝐹

(2)
In this context, the matrices A and B represent the
coefficient matrix and the offset matrix, respectively,
which facilitate the conversion of the strains
𝜀

,𝜀

,𝜀

into the corresponding force on the
handle posts 𝐹

,𝐹

,𝐹

[N]. The parameter 𝑑 [m]
denotes the distance between the handle posts.
2.2 Active Steering Caster
The active steering caster plays a crucial role as a
fundamental component of the steering-assisting cart.
It generates the steering force and determines the
arbitrary moving direction of the cart. Figure 4 shows
the prototype of the active steering caster. It
incorporates a stepping motor to drive the steering
axis and an electromagnetic clutch for switching
between active and passive steering modes. This
design serves as a backup system, allowing the caster
to function as a conventional cart that passively steers
when assistance is unnecessary or when the battery is
depleted. The problems with related research are
resolved by the driven steering axis (not driven wheel
axis) and the switching mechanism.
Figure 4: Prototype of the active steering caster.
The steering angle of the active steering caster
determines the traveling direction of the cart. To
achieve determine the arbitrary moving directions for
the cart, it is necessary to arrange two active steering
casters among the four casters and control their
respective steering angles. This configuration allows
for control over the cart's movement in various
directions. However, when the wheel axes of the
active steering casters are aligned in a straight line, as
depicted in Figure 5, the center of rotation can be any
point along this line. In other words, when the wheel
axes of the active steering casters are aligned on the
same straight line, the traveling direction is not
uniquely determined. We proposed that two active
steering casters and two conventional casters are
arranged diagonally to reduce this problem (Aoki,
2022).
Figure 5: Indeterminate traveling direction with two active
steering caster axes on the same straight line.
3 STEERING-ASSISTING
SYSTEM
The proposed system is implemented by estimating
the operational intention and commanding the
steering angle for the active steering casters, as well
as other functions. The communication between
Development of Cart with Providing Constant Steerability Regardless of Loading Weight or Position: 3 rd Report on Evaluation of a
Steering Assist System on Translational Movement
691
processes in the system is facilitated by the Robot
Operating System (ROS). The ROS network, which
visualizes the interconnectedness of these processes,

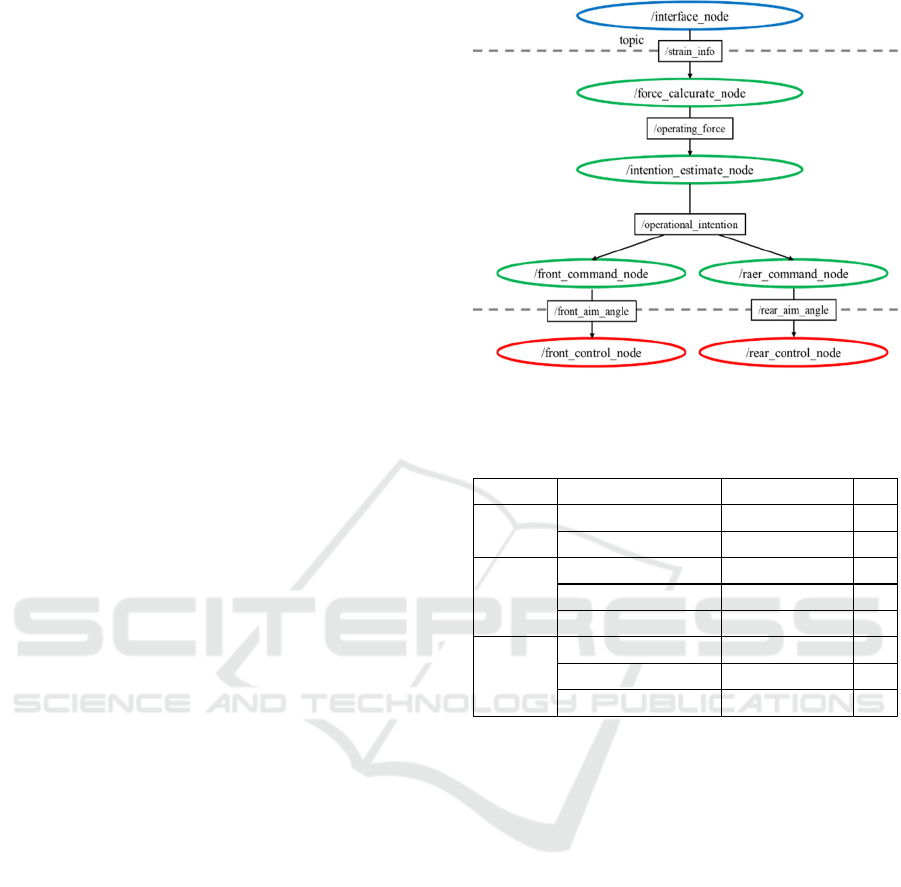

is depicted in Figure 6. The steering-assisting system
is implemented by establishing a unidirectional data
flow of operating force information among the ROS
nodes. In this chapter, we provide detailed
explanations regarding the role, algorithm, and
specifications of the involved hardware in the system.
Additionally, Table 1 presents a comprehensive
overview of the hardware components and their
corresponding elements utilized in this system.
The "/interface_node" measures the strains on the
handle posts. The strains on the handle posts, induced
by the operating force, change the resistance of the
strain gauges. The strain amplifiers are utilized to
convert the resistance variation into a corresponding
voltage variation. However, it is essential to note that
the strain amplifiers' output may contain some noise.
To mitigate the effects of noise, a low-pass filter with
a cut-off frequency of 𝑓
1.59[Hz] is employed to
smooth the output of the strain amplifiers.
Subsequently, an Arduino is utilized to measure the
voltage after the smoothing process.
The "/force_calculate_node" converts the
measured strains into the corresponding operating
force. Upon invocation, this node conducts
calibration to determine the parameters in the offsets
matrix B. Following calibration, it performs the
conversion based on Equation (1) and Equation (2) as
explained in Section 2.1. This conversion process
enables the calculation of the operating force from the
measured strains. The calculated operating force is
subjected to software smoothing using the moving-
average method with a window size of n = 13. This
smoothing technique helps to reduce noise and
fluctuations in the operating force data. The delay of
these procedures is designed to be less than 100 [ms],
considering the subjective evaluation of the
perception of delay time, as discussed in the study by
(Miyasato, 1995).
The "/intention_estimate_node" estimates the
user's operational intention based on the measured
operating force. In estimating the traveling direction
of translatory movement, the system calculates the
resultant force vector between the x-component and
y-component of the operating force. The system
assumes that the direction of the resultant force vector
represents the traveling direction of the cart. This
assumption allows for determining the intended
direction of movement based on the calculated force
vector. However, it is worth noting that the resistance
of the strain gauge may also change undesirably in the
direction where no force is applied due to the
Figure 6: ROS network in the steering-assist cart on
translational movement.
Table 1: Hardware components.
structural stretching. For instance, during straight
translatory movement in the positive x-direction, it is
observed that the resistance of the strain gauge on the
y-axis also changes, leading to variations in the y-
component of the operating force. Consequently,
these changes in the y-component of the operating
force can create a discrepancy between the resultant
force vector and the user's intended traveling
direction. The system incorporates a process to
determine whether the deformation is significant or
insignificant to address this issue. This judgment is
carried out by comparing the difference from a
predetermined threshold, as specified in Equation (3).
The method of determining the threshold is described
in the previous paper (Aoki, 2023).
𝐹
𝐹
𝐹
𝐹

𝐹
0
𝐹
𝐹

(3)
The "/front_command_node" and
"/rear_command_node" calculate the target steering
angle to control the active steering caster. In the case
of translatory movement, the target angle for the
Function Hardware Parts / Model No. Total
Strain Gauge FLA-5-11-3LJC 6
Strain Amp STA-12L 3
Input Controller Arduino Uno 1
Computer Raspberry Pi 4 1
Output Controller Arduino Leonardo 2
Motor Driver CMD2120P 2
Stepping Motor PKP258U20AA2 2
Electromagnetic Clutch 102-05-11 2
Operational
Interface
Compute
Active
Steering
Caster
ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics
692
active steering caster is set to be the same as the
estimated traveling direction. Therefore, the system
determines the estimated traveling direction and
translates it into the target steering angle, which is
then used to command the respective front or rear
active steering caster. If the target angle is too fine, it
can lead to unstable vibrations in the steering axis
caused by noise. To ensure system stability, our
approach involves determining the target steering
angle at regular intervals of 𝜋/12. We derived this
interval through a trial and error, considering the
system's response and stability. By discretizing the
target steering angle in this manner, we mitigate the
noise impact and minimize the occurrence of unstable
vibrations in the steering axis.
The "/front_control_node" and
"/rear_control_node" control the active steering
caster to align with the commanded target steering
angles. These nodes are implemented on an Arduino
microcontroller, utilizing a timer interrupt with a
cycle duration of 800 microseconds. During each
interruption, the system compares the current steering
angle with the target steering angle and determines
the appropriate rotation direction to minimize the
difference between the two angles. Subsequently,
suppose a rotation is necessary to align the current
steering angle with the target steering angle. In that
case, the system issues a command to the motor driver
to initiate a one-step rotation. The stepping motor
used in the system has a stepping angle of

[rad], and the gearing ratio between the motor and the
steering axis is 8. As a result, the rotation speed of the
steering axis is calculated to be 23.4 rpm. This
rotation speed was determined based on experimental
measurements of the steering speed during passive
steering.
4 PERFORMANCE EVALUATION
This chapter assesses the effectiveness of the steering
assist system for translational movement discussed in
the previous chapter. The steering assist system on
translational movement requires two functions. One
function generates the steering force to change the
direction of movement, while the other supports
corrective steering. We evaluate these functions using
subjective and objective evaluation indicators.
For the performance evaluation, we utilize a
prototype cart loaded with a 30 kg experimental
eccentric weight. The weight is intentionally designed
to create eccentricity in the load. This cart can switch
between passive and active steering modes. In this
experiment, the passive steering is also evaluated as a
control for the proposed system. We compare the
active and passive steering methods' operating force
and subjective evaluation scores to assess their
performance. The subjects first operated the cart with
one of the two steering methods. Then, after a one-
week interval, they operated the cart with the
remaining other steering method. We divided the 16
subjects (14 men and 2 women, aged 23±1) into two
groups, ensuring no significant differences in body
height, dominant hand, or sex. One group of subjects
started the experiments with passive steering, while
the other started with active steering. The
questionnaire items for subjective evaluation are as
follows: (A) How would you rate the operation in
terms of heaviness? (B) How would you rate the
operation in terms of intuitiveness? (C) How would
you rate the operation in terms of the cart's non-
swaying motion? (D) How would you rate the
steerability? Subjects answer each questionnaire item
using a five-score scale ranging from -2 to 2
2,1,0,1,2
.
4.1 Evaluation of Steering Force
In this section, we assess the operability of changing

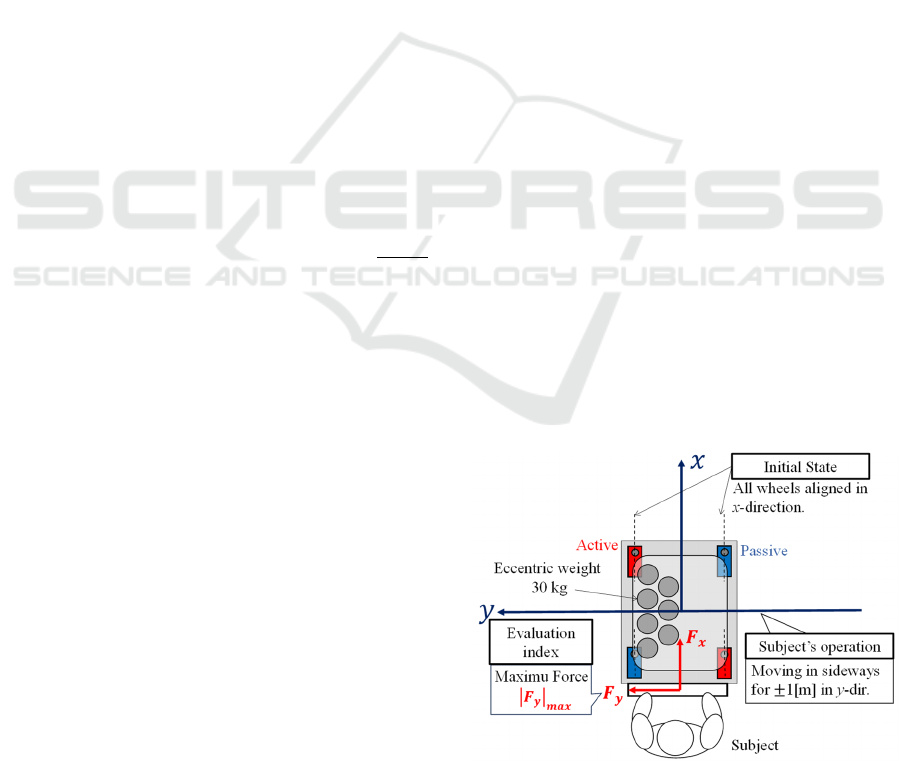

the moving direction of the cart. Figure 7 illustrates
the experimental setup and method used in this
evaluation. At the start of the experiment, all caster
wheels are initially aligned in a same straight
direction (x-direction). After that, subjects move the
cart in a cross direction for one meter. The evaluation
indicators include the maximum operating force in
the y-direction 𝐹

and the questionnaire items
(A) ~ (D). We evaluated the differences in each
evaluation indicator using a two-way analysis of
variance (ANOVA), considering the factors of
Figure 7: Experimental setup and method employed for
evaluating steering force.
Development of Cart with Providing Constant Steerability Regardless of Loading Weight or Position: 3 rd Report on Evaluation of a
Steering Assist System on Translational Movement
693
steering method (active or passive steering) and
moving direction (left and right) in a total of four
groups. Each subject performs this experiment twice,
using each steering method and moving direction (±y)
combination.
4.1.1 Objective Evaluation

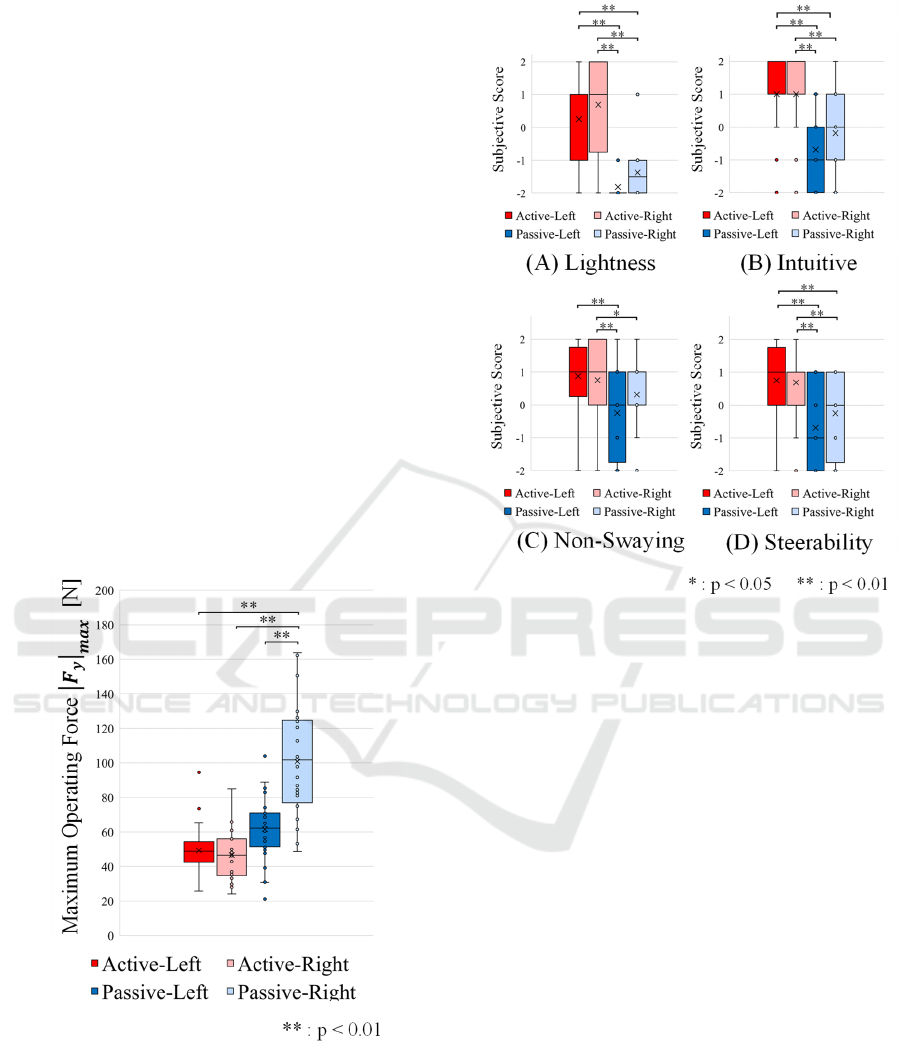

Figure 8 displays a box plot illustrating the maximum
operating force required when changing the direction
of movement. That data is measured 32 times (each
subject experimented twice) for each steering method.
The two-way ANOVA indicates that active steering
requires less operating force than passive steering
when changing the direction of movement. The result
of multiple comparisons using the Tukey method
reveal significant difference in the maximum
operating force for passive steering across different
directions. However, for active steering, there was no
significant difference between them. It is suggested
that active steering can achieve consistent steerability
regardless of the moving direction, even when being
affected by the loading weight and position. This
suggests that our system is superior to a conventional
cart system.
Figure 8: The Maximum operating force 𝐹

during
directional movement of the cart (shown in Fig. 7).
4.1.2 Subjective Evaluation
Figure 9 presents a box plot illustrating the subjective
evaluation scores for each questionnaire item. The
two-way ANOVA reveals that active steering
Figure 9: The subjective evaluation scores during
directional movement of the cart.
outperforms passive steering, as there are significant
differences in all questionnaire items. The multiple
comparisons using the Tukey method indicate that
there is no significant difference between left and
right-moving when using the same steering method.
However, in the case of different steering methods,
most questionnaire items show significant differences
at a 1% significance level. Therefore, it is suggested
that the proposed system is superior in terms of
subjective evaluation during directional movement of
the cart.
4.2 Evaluation of Corrective Steering
In this section, we assess the operability of
translational movement when the cart is affected by
eccentricity resulting from the loading position.
Figure 10 illustrates the experimental setup used to
evaluate the operability of translational movement. In
this experiment, the weight is positioned eccentrically
in the y-direction. At the experiment's beginning, all
casters' wheel orientations are aligned in a same
straight direction (x). After that, subjects move the
cart in a straight direction (+x) for a distance of four
meters. The evaluation indicators include the
maximum operating (pushing) force in the x-direction,
ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics
694
the standard deviation of the operating force in the y-
direction, and the questionnaire items (A) ~ (D). The
reason for incorporating the standard deviation of the
operating force in the y-direction is that the corrective
steering effect causes the operating force to fluctuate
in the y-direction in case there is an effect of the
eccentricity weight. Therefore, the standard deviation
is used as an indicator to assess this variability. Each
subject performs this experiment twice, using each
steering method.
Figure 10: Experimental setup and method employed for
evaluating corrective steering
4.2.1 Objective Evaluation

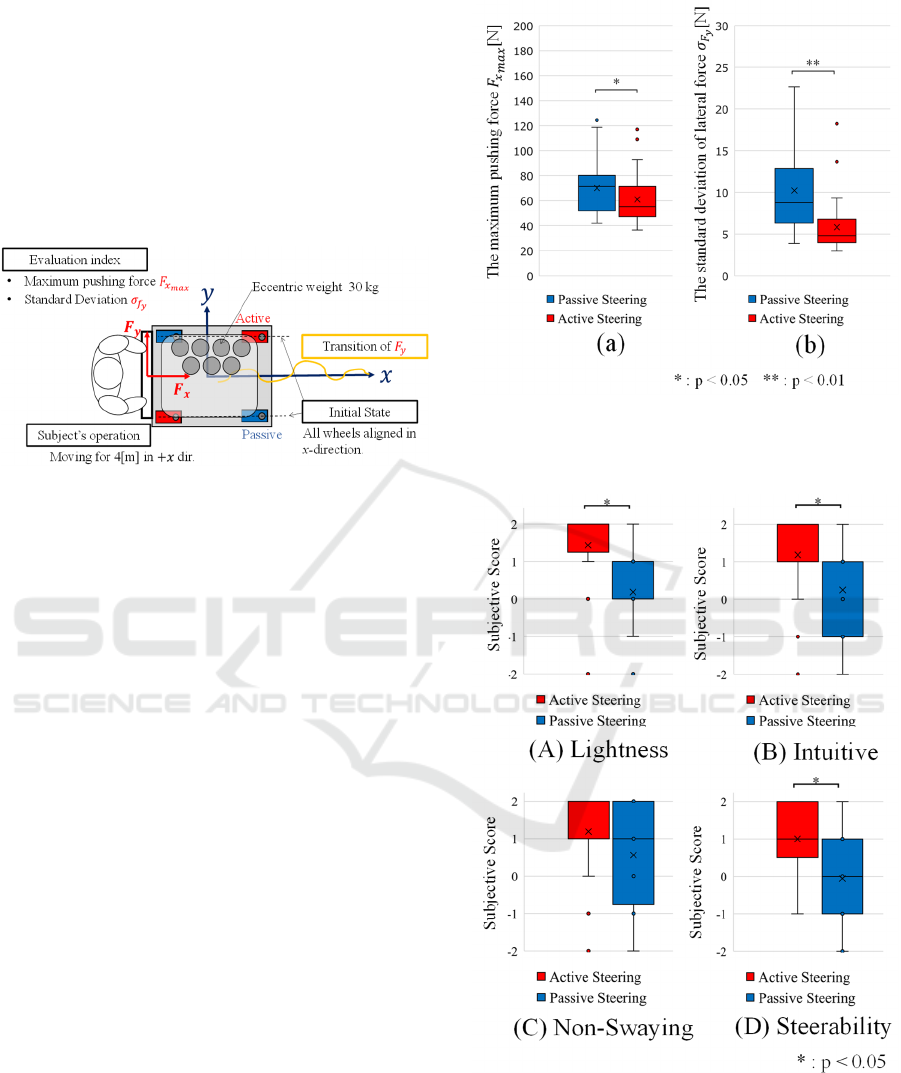

Figure 11 is a box plot showing the maximum
operating force in the x-direction and the standard
deviation in the y-direction during the straight
movement. That data is measured 32 times (each
subject experimented twice) for each steering method.
The data indicate that active steering requires less
operating force than passive steering. Furthermore,
the standard deviation of the operating force in the y-
direction is lower for active steering compared to
passive steering. It suggests the steering assist cart
requires less corrective steering than a conventional
cart.
4.2.2 Subjective Evaluation
Figure 12 shows the results of the subjective
evaluation scores for each questionnaire item. Our
analysis reveals that, except for stability, there are
significant differences between active and passive
steering in terms of subjective evaluation scores, with
a significance level of 5%. Based on these findings,
we can confirm that active steering is superior to
passive steering.
Figure 11: In case of pushing the cart in x direction with
eccentric weight (a) The maximum pushing force 𝐹

(b) The standard deviation of lateral force 𝜎

.
Figure 12: The subjective evaluation scores of translational
movements during pushing the cart in x-direction with
eccentric weight.
Development of Cart with Providing Constant Steerability Regardless of Loading Weight or Position: 3 rd Report on Evaluation of a
Steering Assist System on Translational Movement
695
5 CONCLUSION
In this paper, we have implemented a steering assist
system for translational movement to achieve
consistent steerability regardless of the loading
weight and position. Objective and subjective
evaluations of this system were then conducted.
Initially, we briefly introduced the proposed
active steering caster and operating interface. We
then explained the ROS nodes and network used to
realize the steering assist system, including detailed
information about each function's algorithm and
hardware specifications.
Subsequently, we evaluated the implemented
steering assist system objectively and subjectively. In
the objective evaluation, we confirmed that the
system effectively supports the operating force and
corrective steering. In the subjective evaluation, we
verified that the proposed system reduces the
perception of weightiness and enhances the
intuitiveness of the operation for users. In other words,
the provided constant steerability makes shopping
more comfortable and safer.
A limitation of this paper is that the effectiveness
was confirmed only for assisting the parallel motion
of the carts. Therefore, our future work is to
implement the steering assist system for rotational
movement. To achieve this, we will model the
relationship between the angles for diagonally
arranged active steering casters and the center of
rotation in the cart. Additionally, we will devise a
method to estimate the center of rotation based on the
measured operating force from the operational
interface. Furthermore, we will develop a control
system to ensure that the steering angles of the active
steering casters align with the desired center of
rotation and moving direction. These will enable a
steering assist system capable of omnidirectional
translations and rotation.
REFERENCES
Islam, M. M., Lam, A., Fukuda, H., Kobayashi, Y., &
Kuno, Y. (2019). A Person-Following Shopping
Supported Robot Based on Human Pose Skelton Date
and LiDAR Sensor. ICIC2019, 11645, 9–19.
Maeda, H., Fujiwara, S., Kitano, H., Yamashita, H., &
Fukunaga, H. (2003). Control of an Omni-Directional
Power-Assisted Cart. JSME International Journal
Series C Mechanical System, Machine Elements and
Manufacturing, 46(3), 931–937.
Hirata, Y., Hara, A., & Kosuge, K. (2007). Motion Control
of Passive Intelligent Walker Using Servo Brakes.
IEEE Transaction on Robotics, 23(5), 981–990.
Yun, S., Wen, W., An, Q., Hamasaki, S., Yamakawa, H.,
Tamura, Y., Yamashita, A., & Asama, H. (2017).
Investigating the Relationship between Driver’s Sense
of Agency and EEG: Mu-Rhythm Is More Suppressed
in Higher SoA Case. 2017 International Symposium on
Micro-NanoMechatronics and Human Science (MHS),
1–6.
Nakayama T., Wada M. (2023). Study on an Add-on Type
Electric Wheelchair Using Active Caster with the
Differential Mechanism. Jounal of Robotics and
Mechatronics. 2023, 35(1), 99-112
Aoki, S., Yokota, S., Matsumoto, A., Chugo, D.,
Muramatsu, S., & Hashimoto, H. (2023). Development
of Cart with Constant Steerability Regardless of
Loading Weight or Position: 2nd Report: Proposal of
the Operational Interface. 2023 IEEE International
Conference on Mechatronics (ICM), 1–6.
Aoki, S., Yokota, S., Matsumoto, A., Chugo, D.,
Muramatsu, S., & Hashimoto, H. (2022). Development
of Cart with Constant Steerability Regardless of
Loading Weight or Position: 1st Report: Proposal of an
Active Steering Caster and Its Arrangement. IECON
2022 – 48th Annual Conference of the IEEE Industrial
Electronics Society, 1–6.
Ueno, Y., Kitagawa, H., Kakihira, K., Sakakibara, T., &
Terashima, K. (2014). Development of an Innovative
Power-Assist Omni-Directional Mobile Bed
Considering Operator’s Characteristics. International
Journal of Automation Technology, 8(3), 490–499.
Seino, A., Wakabayashi, Y., Kinugawa, J., & Kosuge, K.
(2017). Control Method of Power-Assisted Cart with
One Motor, a Differential Gear, and Brakes Based on
Motion State of the Cart. 2017 IEEE/RSJ International
Conference on Intelligent Robots and System (IROS),
2829–2834.
Miyasato, T., & Kishino, F. (1995). Subjective Evaluation
of Perception of Deley Time between Visual
Information and Tacticle Information. The Institute of
Image Information and Television Engineers, 49(10),
1353–1356.
ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics
696
