Apache Spark Based Deep Learning for Social Transaction Analysis

Raouf Jmal

1 a

, Mariam Masmoudi

2,4 b

, Ikram Amous

1 c

, Corinne Amel Zayani

3 d

and Florence S

edes

4 e

MIRACL, Enet’Com, Sfax University, Sfax, Tunisia

MIRACL, FSEGS, Sfax University, Sfax, Tunisia

MIRACL, FSS, Sfax University, Sfax, Tunisia

IRIT, Paul Sabatier University, Toulouse, France

Keywords:

Social Network, Social transaction, Trust-attacks, Apache Spark, Spark Streaming, Deep Learning, Elephas.

Abstract:

In an attempt to cope with the increasing number of trust-related attacks, a system that analyzes the whole

social transaction in real-time becomes a necessity. Traditional systems cannot analyze transactions in real-

time and most of them use machine learning approaches, which are not suitable for the real-time processing

of social transactions in the big data environment. Therefore, in this paper, we propose a novel deep learning

detection system based on Apache Spark that is capable of handling huge transactions and streaming batches.

Our model is made up of two main phases: the ﬁrst phase builds a supervised deep learning model to classify

transactions (either benign transactions or malicious transactions). The second phase aims to analyze transac-

tion streams using spark streaming, which transforms the model to batches of data in order to make predictions

in real-time. To verify the effectiveness of the proposed system, we implement this system and we perform

several comparison experiments. The obtained results show that our approach has achieved more satisfactory

efﬁciency and accuracy, compared to other works in the literature. Thus, it is very suitable for real-time detec-

tion of malicious transactions with large capacity and high speed.

1 INTRODUCTION

Nowadays, due to the rapid development of network

technologies, social networks have been growing at

an incredible rate based on online networking sites

(Chun et al., 2008). These networks have become

part of people’s social lives instead of their real so-

cial ways, in which humans make friends, commu-

nicate with each other or share data such as video

games, movies, pictures and songs (Boyd and Ellison,

2007). On these social sites, users also can comment

on other proﬁles and send private messages. Thus,

communication can be deﬁned as a social transaction

(Masmoudi et al., 2021), which means the interaction

between two users resulting in a change of states or

relationships between these users.

https://orcid.org/0000-0002-5761-2353

https://orcid.org/0000-0001-5043-864X

https://orcid.org/0000-0002-5893-9833

https://orcid.org/0000-0002-3296-1020

https://orcid.org/0000-0002-9273-302X

Furthermore, many users always search for ways

to establish virtual relationships without meeting peo-

ple. Thus, they accept the associated risks against the

possible beneﬁts that they are convinced to obtain.

In this respect, making new relationships and trans-

actions can generate beneﬁts despite their risks. This

equality is a fundamental consideration for users’ per-

sonal safety. However, to trustworthy transactions and

interactions between users become a necessity to en-

sure users’ safety and security and identify malicious

users. Hence, transactions must be evaluated in or-

der to distinguish malicious transactions from benev-

olent ones. These malicious transactions are known as

trust attacks based on the literature (Masmoudi et al.,

2021).

In fact, myriad works in the literature have been

proposed to deal with these attacks. Yet, most of these

works (Rajesh et al., 2016), (Jayasinghe et al., 2018),

(Marche and Nitti, 2020), (Zheng et al., 2021) and

(Lee and Jun, 2018) have focused on non-real-time

trust attack detection in order to remove the nodes that

provide malicious behaviors from the network. With-

Jmal, R., Masmoudi, M., Amous, I., Zayani, C. and Sèdes, F.

Apache Spark Based Deep Learning for Social Transaction Analysis.

DOI: 10.5220/0012202600003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 365-372

ISBN: 978-989-758-672-9; ISSN: 2184-3252

365

out real-time detection, malicious transactions will be

passed to the next peer before being detected by the

model. These works have applied statistical models

and machine learning techniques to detect malicious

nodes. Thus, these techniques have several disadvan-

tages, such as mass data processing and feature engi-

neering that requires human intervention as well as a

dynamic update system.

Hence, in this paper, we use social network trans-

action analysis in order to distinguish real-time ma-

licious transactions from benevolent ones. For this

reason, we propose a deep learning model based on

Apache Spark and spark streaming to process and an-

alyze stream transactions. This model: (i) can pro-

cess huge transactions efﬁciently so that we can an-

alyze and bock each transaction in real-time, (ii) is

robust enough so that failure will not abort the whole

streaming process and (iii) is able to classify trans-

actions into two different classes (either benevolent

transactions or malicious transactions).

The remainder of this paper is structured as fol-

lows: In section 2, we analyze and compare related-

works on attacks and intrusion detection systems us-

ing Apache Spark. In section 3, we not only describe

our architecture and its phases, but also deﬁne the

features that will be used to train and create the DL

model. In section 4, we show the performance of the

proposed approach and experimental results. In Sec-

tion 5, we discuss the outcomes and implications of

our research while emphasizing the importance of fu-

ture studies. We identify and highlight key directions

for further exploration and advancement within the

ﬁeld, opening up opportunities for future researchers

to build upon our ﬁndings. In Section 6, we summa-

rize the key outcomes and implications of our work.

2 RELATED WORK

Several works, (Abderrahim et al., 2017), (Ekbatan-

ifard and Youseﬁ, 2019), (Talbi and Bouabdallah,

2020), (Chen et al., 2015), (Meena Kowshalya and

Valarmathi, 2017) and (Jafarian et al., 2020), have

been suggested to detect trust attacks by evaluating

trust associated with transactions. Besides, these

models could not detect attacks in real-time, which

reﬂect their inefﬁciency. However, most works have

identiﬁed attacks from past transactions (after valida-

tion).

In (Abdelghani et al., 2018), authors put forward

a machine learning-based trust evaluation model in

order to detect malicious nodes by classifying past

transactions into two major classes (attacks and none-

attacks) using some features related to the four types

of trust-related attacks (SPA, BMA, BSA, DA).

(Masmoudi et al., 2019) set forth a trust-related

attack detection model based on deep learning to

identify the four types of trust-related attacks (BMA,

SPA, BSA and DA). This model has performed bet-

ter results with high Recall (94.4%) and accuracy

(95.68%), compared to the work proposed by (Ab-

delghani et al., 2018), but there was no real-time de-

tection.

In order to prevent all types of trust-related attacks

(BMA, BSA, SPA, DA, OSA and OOA) authors, in

(Masmoudi et al., 2021), offered a consensus protocol

named “PoTA” for the blockchain technology. This

protocol is based on a classiﬁcation technique; named

Support Vector Machine. The latter is able not only

to determine whether the completed transaction is an

attack or not, but also to decide whether to accept or

reject a transaction. The model recorded better results

with F-measures of 5.22%, compared to the study car-

ried out by (Masmoudi et al., 2019).

In contrast, for real-time attack detection, (Azer-

oual and Nikiforova, 2022), presented a prototype in-

trusion detection system that aims to detect anomalies

in data through machine learning techniques by using

the k-means algorithm for Spark MLlib based cluster

analysis. Also, they provided an example of how big

data technologies and the above-mentioned services

can be used not only for everyday tasks, but also for

the protection of all the data produced, collected, pro-

cessed and transferred.

In (Awan et al., 2021), authors applied two ma-

chine learning approaches, namely Random Forest

(RF) and Multi-Layer Perceptron (MLP) through the

Scikit-ML and the Spark-ML libraries for the de-

tection of DOS attacks. In terms of accuracy, they

achieved similar mean accuracy in both approaches.

However, in terms of training time and testing time,

the big data approach outperforms the non-big data

approach since Spark computations in memory hap-

pen in a distributed manner.

(Khan and Kim, 2020) developed an Intrusion de-

tection system using Spark and Convolutional-auto

encoder (Conv-AE) based deep learning approach.

Thus, the conventional ML classiﬁer used Spark ML-

lib to detect data anomalies, while the Conv-AE deep

learning approach is used for misuse detection. The

evaluation showed that their system is better than ad-

vanced approaches in terms of attack detection accu-

racy. Whereas the proposed approach did not perform

detection in real time. It detected intrusions over a

long period of time, as it passed by both anomaly de-

tection and misuse detection.

Several other inherent streaming engines, such

as Apache Storm and S4, support native streaming

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

366

that immediately process data as it arrives. On the

other hand, native streaming systems generally have

lower throughput. Furthermore, fault tolerance and

load balancing for native streaming are more expen-

sive than micro-batching systems, (Singh et al., 2016)

and (Hirzel et al., 2014). However, various studies

used spark streaming to detect malicious attacks in

real time. (Zhang et al., 2018) recommended a real-

time detection system using a Random Forest algo-

rithm based on the Apache Spark framework to de-

tect intrusions in high-speed networks. The model

used Apache Kafka to continuously send data to spark

streaming for processing.

In this study (Zhou et al., 2018), the authors

compared three machines-learning algorithms (Naıve

Bayes, Decision Tree and Logistic Regression) based

on the online DDoS attack detection system using

spark streaming. However, the authors did not use

Spark MLlib with Spark streaming to build ML al-

gorithms which decrease the speed of the detection

system.

(Abid and Jemili, 2020) suggested a graph-based

real-time Intrusion-Detection System (IDS) to de-

tect and classify intrusions using the Spark Machine

Learning library and Spark Structured Streaming.

Their system achieved great results with good pro-

cessing speed using only a small cluster. Nonetheless,

this approach was not compared to other works.

According to these works and comparisons re-

ported in table 1, we notice that most works used ma-

chine learning techniques based on Apache Spark to

detect either attacks or intrusions. Nonetheless, deep

learning can be used to reconcile complex nonlinear

relationships between variables and build up complex

behavioral patterns more successfully than machine

learning and statistical techniques (Yue et al., 2021).

Then, we will use deep learning based on Apache

Spark to detect malicious transactions (trust-related

attacks) in real-time.

3 SPARK-BASED DEEP

LEARNING FOR SOCIAL

TRANSACTION ANALYSIS

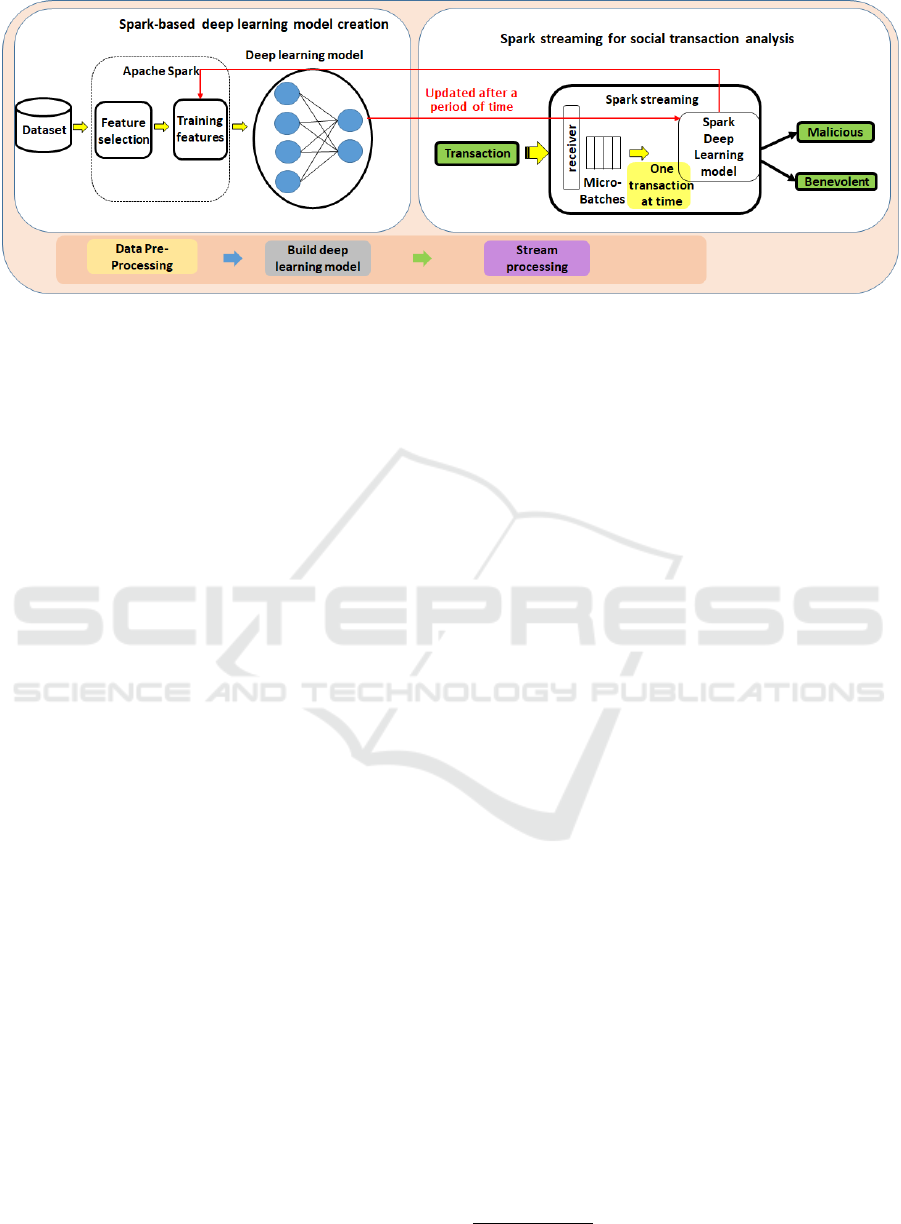

In our system, we have incorporated a deep learning

model on top of Apache Spark. However, it should

be noted that Apache Spark does not inherently in-

clude a deep learning library, which can complicate

the deployment of such models. To overcome this

challenge, we utilized the Elephas extension

, which

enables the deployment of deep learning models with

https://github.com/maxpumperla/elephas

Spark. This approach has allowed us to create a

system with reduced latency for classifying transac-

tions, ensuring efﬁcient and timely processing. Fig-

ure 1 depicts our architecture, which comprises two

phases. In the ﬁrst phase, the Spark-based deep learn-

ing model creation, we begin by preprocessing the

dataset. Subsequently, a deep learning model is gen-

erated and trained. This phase yields a classiﬁcation

model based on Deep Learning capable of produc-

ing two transaction labels: malicious and benevolent.

Moving to the second phase, spark streaming for so-

cial transaction analysis, we read data from a transac-

tion stream and apply speciﬁc transformations. Ulti-

mately, the trained model is employed to classify and

assign labels to the transaction stream.

In the following sub-section, we will present the

features used to train the model and provide a detailed

overview of the two proposed phases.

3.1 Spark-Based Deep Learning Model

Creation Phase

In this phase, we leverage the deep learning model

based on Spark to aggregate transaction elements and

detect malicious transactions. Transaction elements

play a crucial role in distinguishing between mali-

cious and benign transactions. These elements serve

as features in training our model. Previous studies in

the literature have explored various transaction fea-

tures to detect trust-related attacks. However, for

our approach, we will utilize the features proposed

in (Masmoudi et al., 2021) as a basis for our analysis.

These features are deﬁned as follows:

• Quality of provider: refers to the Quality of Ser-

vice (QoS) provided by a user whatever good or

bad services.

• User Similarity: refers to the similarity between

two users.

• Rating-Frequency: represents the frequency of

rating attributed by one user to another.

• Rating-trend: This feature aims to reveal if a user

is rather optimistic or pessimistic.

• Vote: Means that a user gives a voting value to the

service of another user.

• Trust value: The overall trust value of user U in a

social network.

• Vote similarity: refers to the similarity between a

user vote in such service and other users’ votes.

The features utilized in our approach are detailed

in (Masmoudi et al., 2021), (Masmoudi et al., 2019)

and (Abdelghani et al., 2018). Once we have deﬁned

Apache Spark Based Deep Learning for Social Transaction Analysis

367

Table 1: A Comparison of attacks detection approaches.

Authors Objectives Algorithms Techniques/libraries Real-time

(Awan et al., 2021)

DDoS attack

detection system

Multi-Layer

Perceptron (MLP)

and

Random Forest (RF)

Spark MLlib

Scikit ML

(Azeroual and Nikiforova, 2022)

Intrusion detection

system (IDS)

K-means Spark MLlib X

(Khan and Kim, 2020) IDS

LR, DT, SVM

and conv AE

(without Spark)

Spark MLlib X

(Patil et al., 2022)

Distributed classiﬁcation

system for DDoS attacks

DecisionTree (DT),

NaiveBayes (NB),

Multinomial Logistic

Regression(MLR),

and Random Forest(RF)

Spark MLlib

spark streaming

Apache kafka

Hadoop

✓

(Zhou et al., 2018)

DDoS attack detection

system

NB, DT and Logistic

Regression

Spark streaming

Apache kafka Jpcap

(an open-source

Java library)

✓

(Abid and Jemili, 2020) Real-time IDS

K2 algorithm

Spark MLlib

spark streaming

✓

(Zhang et al., 2018) Real-time IDS

Random Forest

Spark MLlib

spark streaming

Apache kafka

✓

(Masmoudi et al., 2019)

Trust-attack detection

system (BMA, SPA,

BSA, DA)

MLP - X

(Abdelghani et al., 2018)

Trust evaluation model

(No speciﬁed attacks)

MLP, Naive Bayes,

and Random Tree

- X

(Masmoudi et al., 2021)

Consensus protocol to

prevent trust-related attacks

(BMA, BSA, SPA, DA,

OSA, OOA)

SVM Blockchain X

these features and constructed our dataset, we initiate

a Spark application, which grants us access to pow-

erful libraries. For example, Spark ML offers various

functions to train our dataset, while Spark SQL aids

in creating a Spark context, reading the dataset as a

dataframe, and facilitating visualizations of transfor-

mations. Using the Keras library, we generate a deep

learning model by constructing a series of consecu-

tive Dense layers with Dropout and activation func-

tions. To integrate this Keras model with Spark, we

deﬁne an estimator on top of it. We use the Elephas

estimator, an extension of Keras, which enables dis-

tributed deep learning models to be executed at scale

using Spark. Elephas aims to maintain the simplicity

and availability of Keras, facilitating the rapid pro-

totyping of distributed models that can handle large

datasets.

3.2 Spark Streaming for Social

Transaction Analysis Phase

During this phase, we utilized the Spark Streaming li-

brary to predict transaction labels in real-time. The

initial step involved preparing multiple new transac-

tions, with each transaction stored in a separate ﬁle

for testing the model. We started by launching a

Spark session and creating a schema to ensure that

the streaming data adheres to the correct data types in

the transaction ﬁles. Next, we conﬁgured the stream

reading parameters, including the maximum number

of new ﬁles to consider in each trigger and the ﬁle

path and formats. Once the stream started, each new

ﬁle in the speciﬁed directory was automatically pro-

cessed. We then applied the same pipeline used in

the data preprocessing phase to the data stream using

the transform function. With the prepared data frame

stream, we were able to make predictions using the

trained model.

To regulate the stream processing, we set trigger

parameters to determine the maximum time interval

for triggering processing. We also incorporated a

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

368

Figure 1: Spark-based deep learning architecture for transaction analysis.

threading function, where the written stream activated

the thread and then entered a sleep mode for a short

time. This threading mechanism allowed for concur-

rent execution of multiple tasks, suspending the call-

ing thread for a few seconds. To ensure the streaming

query runs and waits for the prediction of each trig-

ger, we utilized a function. After making real-time

predictions, each classiﬁed transaction was added to

the training data, and the model was re-ﬁtted to incor-

porate the updated information.

4 EXPERIMENTAL EVALUATION

This section aims to validate the performance of the

spark streaming based deep learning model and to

compare it with other models available in literature.

4.1 Simulation Setup

This part provides an overview of the dataset that will

be used in experimentation and the evaluation metrics

that will be applied to evaluate the performance of our

approach.

In fact, the realization of the proposed system and

all different simulations was carried out using an

”ASUS” laptop with speciﬁc properties. The laptop is

equipped with an Intel Core i5 processor and has 8GB

of RAM memory. It operates with a clock frequency

of up to 3.1 GHz and runs on the Windows 10 oper-

ating system. These hardware speciﬁcations were in-

strumental in conducting the various simulations and

implementing the proposed system effectively. Addi-

tionally, the simulation was built upon Apache Spark,

an open-source uniﬁed analytics engine designed for

large-scale data processing. For the development pro-

cess, Visual Studio Code (Vscode) served as the code

editor of choice. Python was the primary program-

ming language used for the development of our deep

learning model within this environment.

4.1.1 Data-Set

In order to test our approach, we need a large dataset

social transaction elements. To this end, we made

use of simulations applied to a real dataset named

“Sigcomm

”. The latter comprises 76 users, 364

services, 300 devices, 711 users’ interests, 531 so-

cial relationships between users, 32000 transactions

between users and 285788 proximities. Using this

dataset, we performed some simulations in order to

generate different instances. These instances are com-

posed of various features related to malicious trans-

actions and benevolent transactions. Based on these

simulations, we created a CSV ﬁle based on 3200

transactions.

4.1.2 Evaluation Metrics

In this section, we deﬁne the evaluation metrics used

to test the proposed approach. However, we aim to

classify each transaction stream in real-time based on

spark streaming. In fact, to evaluate the performance

of the proposed system, we considered two cases:

case (I) designed to assess the performance of the

model in predicting transaction classes and case (II)

used to determine the performance of the streaming

workﬂow.

In case (I), we have used a performance metric

as deﬁned in table 2 in order to validate the perfor-

mance of our classiﬁcation model. To evaluate case

(II), Spark provides a web UI to monitor and inspect

the status and resource consumption of a Spark appli-

cation in a web browser. It presents different parame-

ters, such as Spark jobs that show the status, duration,

and progress of all jobs and the overall event timeline.

It checks for more information about the environment,

https://crawdad.org/thlab/sigcomm2009/20120715/

Apache Spark Based Deep Learning for Social Transaction Analysis

369

Table 2: Evaluation metrics evaluation for the classiﬁcation

model.

Metrics Deﬁnition

Precision PPV = TP / (TP + FP)

Recall TPR = TP / (TP + FN)

F-measure

F = (2 * PPV * TPR) / (PPV

+ TPR)

Area Under

Precision-

Recall Curve

AUPRC =

TP/(TP+FP) d(TP/P)

Area Under

ROC-curve

AUROC =

TP/P d(FP/N)

stage state, etc. The UI improves the production of

visualizations and real time metrics, which make it

easier to troubleshoot and debug during development.

Thus, to evaluate the performance of the streaming

query, we used some metrics provided by the web UI,

as follows :

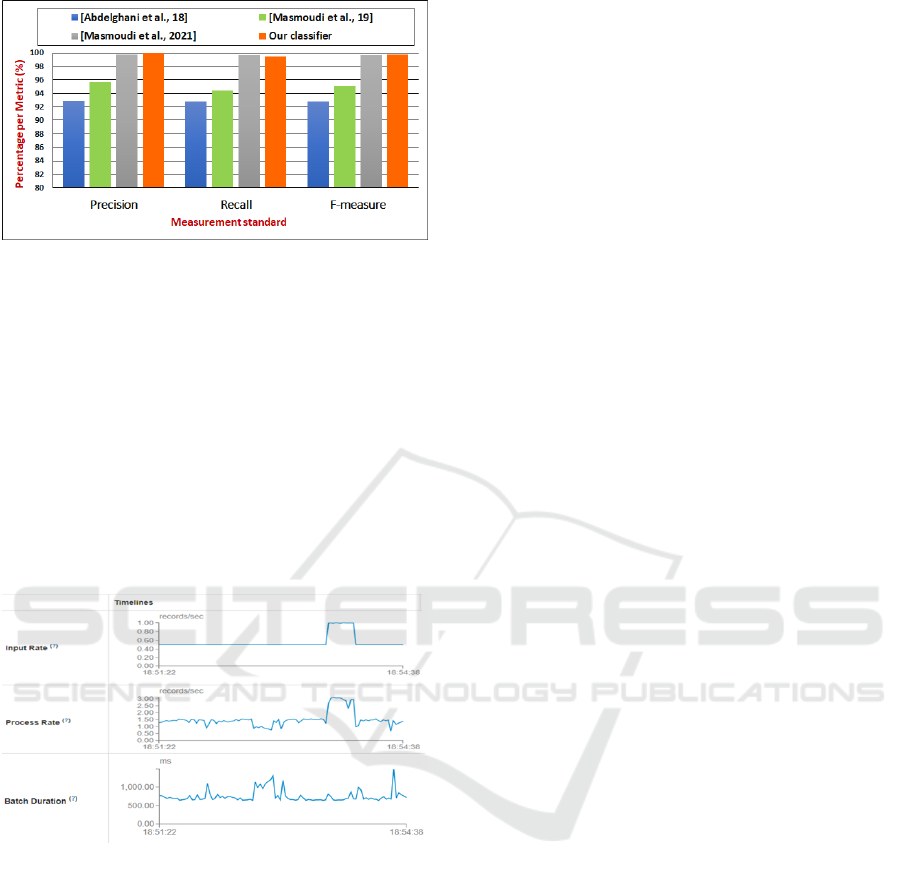

• Input Rate : The aggregate data rate that describes

the number of loaded records per second between

the last trigger and the current trigger.

• Process Rate : The aggregate rate at which Spark

processes data that describes the number of loaded

records per second in each trigger.

• Batch Duration : The duration of each batch.

4.2 Experimental Results

This sub-section shows the key ﬁndings of the sim-

ulation experiments in order to check whether our

approach can process transaction streams and detect

trust-related attacks in real-time using our deep learn-

ing based classiﬁcation model.

4.2.1 Experimental Results of our Deep

Learning Based Classiﬁcation Model

We tested our model on a local machine with limited

resources and we expected good results. In fact, we

achieved a good accuracy rate of 99.6%. We also

measured the model performance using Area Under

the ROC Curve (AUROC) to determine the extent to

which the model is capable of distinguishing between

classes and we obtained a value of 0,99. The Area

Under the Precision-Recall Curve (AUPRC) also pro-

vides a rate of 0,99. We note that our model cor-

rectly predicted trust-related attacks. Moreover, F-

measures were 99,73% and 99,26% in detecting ma-

licious transactions and benevolent transactions, re-

spectively. Hence, we achieved high scores, as illus-

trated in ﬁgure 2, which validate the performance of

our classiﬁcation model.

Figure 2: Experimental results of our deep learning based

classiﬁcation model.

4.2.2 Comparison

The majority of the above mentioned works, as re-

ported in Table (1), have been conducted to de-

tect DDoS attacks or intrusions based on Spark,

which showed efﬁcient performance in processing

data streams and developing different ML techniques.

Nevertheless, all trust management works did not

take advantage of Spark to improve the development

of trust related-attack detection model in real-time.

Thus, we aim to detect malicious transactions in real-

time using Apache Spark. To make adequate compar-

isons, we referred only to trust management works,

although they do not support Apache Spark. We com-

pared our model with three previous works, (Abdel-

ghani et al., 2018), (Masmoudi et al., 2019) and (Mas-

moudi et al., 2021), that were conducted to detect

trust-related attacks that represent malicious transac-

tions. These models also used the same dataset (Sig-

comm) but for different purposes. In fact, ﬁgure 3

plots the f-measure value for the three models. We

clearly notice the difference between our work and

the works carried out by both (Abdelghani et al.,

2018) and (Masmoudi et al., 2019). Our model has

increased by approximately 5% compared to other

models. In the work conducted by (Masmoudi et al.,

2021), the deep learning model needs a larger dataset

to improve the model performance than the machine

learning model used in (Masmoudi et al., 2021).

4.2.3 Experimental Results of the Stream

Processing Query

To evaluate the stream query, we generated 160 trans-

actions and each one is stored in CSV format. These

transactions were not used before in the training

model in order to validate the efﬁciency of prediction.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

370

Figure 3: Comparison between different classiﬁcation mod-

els.

As shown in ﬁgure 4, we notice that the Process Rate

remains stable at 1.4 records/sec average rate at the

same Input Rate of 0.5 records/sec average rate. This

means that a job with enough processing capacity can

process input data. For Batch Duration, increasing the

batch size, will lead to high latency. Some streaming

systems have an option of high latency in exchange

for lower throughput. As demonstrated ﬁgure 4, our

Batch Duration is oscillating consistently around 700

ms. In fact, the structured streaming achieves both

latency and throughput. As it operates on the data,

it oscillates as structured streaming processes varying

numbers of events over time.

Figure 4: Experimental results of the stream processing

query.

In addition, we compared the performance of our

Structured Streaming with two models that used real-

time metrics in the research community. The ﬁrst

model proposed by (Abid and Jemili, 2020) was able

not only to process 60635 records in one second, but

also to collect 613027 records per second. These re-

sults are illogical since the obtained rows are over

the capacity of jobs to process input data in order to

achieve high latency. To evaluate our stream process-

ing query, the processing rate is twice greater than the

Input Rate. Thus, our stream is better than that in

(Abid and Jemili, 2020) with low latency. The second

model developed by (Zhou et al., 2018) can collect

an average of 200,000 records per second, while the

ﬁrst model has an average processing time of 546 ms.

Compared with the two proposed models, our system

achieved better results as the average time to process

input data is only 333 ms.

5 DISCUSSION

Different patterns have been utilized to efﬁciently

and effectively evaluate trustworthiness. Our ﬁndings

have surpassed two signiﬁcant benchmarks. Firstly,

we achieved a high f-measure was 99,73% in de-

tecting malicious nodes, surpassing the performance

of previous studies (Abdelghani et al., 2018), (Mas-

moudi et al., 2019) and (Masmoudi et al., 2021). Sec-

ondly, we focused on developing a practical system

that caters to our speciﬁc requirements.

In this regard, we leveraged Apache Spark to en-

able real-time detection. By striking a balance be-

tween processing time and accuracy, we were able to

generate comprehensive reports without compromis-

ing transaction processing. Given the challenge of ob-

taining a real-world environment to create a dataset,

we relied on existing research that focused on extract-

ing effective features for classifying malicious nodes

across various types of trust-related attacks (Mas-

moudi et al., 2021).

In our future work, we aim to prioritize two key

areas. Firstly, we plan to focus on developing solu-

tions for effectively collecting and retrieving sensitive

trust management information. This involves imple-

menting mechanisms that ensure the secure and efﬁ-

cient handling of such data to enhance the overall trust

management process. Secondly, we intend to opti-

mize transaction storage to improve the system’s per-

formance and resource utilization. By devising inno-

vative approaches for storing and accessing transac-

tions, we aim to enhance scalability and reduce stor-

age overhead.

6 CONCLUSION

In general, the trustworthiness of social transactions

has been considered as an interesting axis in the re-

search community. For that, to evaluate the trustwor-

thiness of transactions, we proposed in this paper a

new system composed of two phases. First, we built

a new deep learning model based on Apache Spark

to classify transactions into two classes; either ma-

licious or benevolent. Second, we applied a real-

time module using spark streaming library to analyze

transactions. We also made use of the DL model

to make predictions in real-time. Based on our ex-

Apache Spark Based Deep Learning for Social Transaction Analysis

371

perimental results, we achieved better classiﬁcation

scores compared with those obtained in (Masmoudi

et al., 2019), (Masmoudi et al., 2021) and (Abdel-

ghani et al., 2018). We also compared our Structured

Streaming process to other similar works, and we got

better results.

REFERENCES

Abdelghani, W., Zayani, C. A., Amous, I., and S

edes, F.

(2018). Trust evaluation model for attack detection in

social internet of things. In International Conference

on Risks and Security of Internet and Systems, pages

48–64. Springer.

Abderrahim, O. B., Elhdhili, M. H., and Saidane, L. (2017).

Tmcoi-siot: A trust management system based on

communities of interest for the social internet of

things. In 2017 13th International Wireless Communi-

cations and Mobile Computing Conference (IWCMC),

pages 747–752. IEEE.

Abid, A. and Jemili, F. (2020). Intrusion detection based on

graph oriented big data analytics. Procedia Computer

Science, 176:572–581.

Awan, M. J., Farooq, U., Babar, H. M. A., Yasin, A., Noba-

nee, H., Hussain, M., Hakeem, O., and Zain, A. M.

(2021). Real-time ddos attack detection system using

big data approach. Sustainability, 13(19):10743.

Azeroual, O. and Nikiforova, A. (2022). Apache spark and

mllib-based intrusion detection system or how the big

data technologies can secure the data. Information,

13(2):58.

Boyd, D. M. and Ellison, N. B. (2007). Social network

sites: Deﬁnition, history, and scholarship. Journal of

computer-mediated Communication, 13(1):210–230.

Chen, R., Bao, F., and Guo, J. (2015). Trust-based ser-

vice management for social internet of things systems.

IEEE transactions on dependable and secure comput-

ing, 13(6):684–696.

Chun, H., Kwak, H., Eom, Y.-H., Ahn, Y.-Y., Moon, S.,

and Jeong, H. (2008). Comparison of online social

relations in volume vs interaction: a case study of cy-

world. In Proceedings of the 8th ACM SIGCOMM

conference on Internet measurement, pages 57–70.

Ekbatanifard, G. and Youseﬁ, O. (2019). A novel trust man-

agement model in the social internet of things. Journal

of Advances in Computer Engineering and Technol-

ogy, 5(2):57–70.

Hirzel, M., Soul

e, R., Schneider, S., Gedik, B., and Grimm,

R. (2014). A catalog of stream processing optimiza-

tions. ACM Computing Surveys (CSUR), 46(4):1–34.

Jafarian, B., Yazdani, N., and Haghighi, M. S. (2020).

Discrimination-aware trust management for social in-

ternet of things. Computer Networks, 178:107254.

Jayasinghe, U., Lee, G. M., Um, T.-W., and Shi, Q. (2018).

Machine learning based trust computational model for

iot services. IEEE Transactions on Sustainable Com-

puting, 4(1):39–52.

Khan, M. A. and Kim, J. (2020). Toward developing efﬁ-

cient conv-ae-based intrusion detection system using

heterogeneous dataset. Electronics, 9(11):1771.

Lee, S. and Jun, C.-H. (2018). Fast incremental learning of

logistic model tree using least angle regression. Ex-

pert Systems with Applications, 97:137–145.

Marche, C. and Nitti, M. (2020). Trust-related attacks and

their detection: A trust management model for the so-

cial iot. IEEE Transactions on Network and Service

Management, 18(3):3297–3308.

Masmoudi, M., Abdelghani, W., Amous, I., and S

edes, F.

(2019). Deep learning for trust-related attacks detec-

tion in social internet of things. In International Con-

ference on e-Business Engineering, pages 389–404.

Springer.

Masmoudi, M., Zayani, C. A., Amous, I., and S

edes, F.

(2021). A new blockchain-based trust management

model. Procedia Computer Science, 192:1081–1091.

Meena Kowshalya, A. and Valarmathi, M. (2017). Trust

management for reliable decision making among so-

cial objects in the social internet of things. IET Net-

works, 6(4):75–80.

Patil, N. V., Krishna, C. R., and Kumar, K. (2022). Ssk-

ddos: distributed stream processing framework based

classiﬁcation system for ddos attacks. Cluster Com-

puting, 25(2):1355–1372.

Rajesh, G., Raajini, X. M., and Vinayagasundaram, B.

(2016). Fuzzy trust-based aggregator sensor node

election in internet of things. Int. J. Internet Protoc.

Technol., 9(2/3):151–160.

Singh, M. P., Hoque, M. A., and Tarkoma, S. (2016). A

survey of systems for massive stream analytics. arXiv

preprint arXiv:1605.09021.

Talbi, S. and Bouabdallah, A. (2020). Interest-based trust

management scheme for social internet of things.

Journal of Ambient Intelligence and Humanized Com-

puting, 11(3):1129–1140.

Yue, Y., Li, S., Legg, P., and Li, F. (2021). Deep learning-

based security behaviour analysis in iot environments:

a survey. Security and Communication Networks,

2021.

Zhang, H., Dai, S., Li, Y., and Zhang, W. (2018). Real-

time distributed-random-forest-based network intru-

sion detection system using apache spark. In 2018

IEEE 37th international performance computing and

communications conference (IPCCC), pages 1–7.

IEEE.

Zheng, G., Gong, B., and Zhang, Y. (2021). Dynamic net-

work security mechanism based on trust management

in wireless sensor networks. Wireless Communica-

tions and Mobile Computing, 2021.

Zhou, B., Li, J., Wu, J., Guo, S., Gu, Y., and Li, Z. (2018).

Machine-learning-based online distributed denial-of-

service attack detection using spark streaming. In

2018 IEEE International Conference on Communica-

tions (ICC), pages 1–6. IEEE.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

372
