A Stateless Bare PC Web Server

Fahad Alotaibi, Ramesh Karne and Alex Wijesinha

Department of Computer and Information Sciences, Towson University, Towson, MD 21252, U.S.A.

Keywords: Bare PC, Bare Machine Computing, Stateless Server, Multi-Core Processor, Web Server, UDP Protocol.

Abstract: Bare PC Web servers that run on 32-bit or 64-bit machines and use TCP or UDP for transport have been built

previously. This paper describes the design and implementation of a new stateless UDP-based bare PC multi-

core Web server. It also presents performance measurements. The server extends previous server designs with

several novel architectural and protocol enhancements. A load balancing technique suitable for multi-core

servers is included to illustrate a simple way to efficiently process HTTP requests. The architecture presented

here could be adapted in future to build simple conventional Web servers.

1 INTRODUCTION

Conventional Web server designs are complex. Such

servers are architected to make the client design

simple and the server design complex. Previous

approaches to simplify Web server design include use

of UDP-based protocols with a last ACK for a 32-bit

multi-core Web server (Ordouie et al., 2021), a 32-bit

single-core Web server (Soundararajan et al., 2020),

and a 64-bit multi-core Web server with a last ACK

and no last ACK (Ordouie et al., 2023). When there

is no last ACK, all the data packets for an HTTP

request are not sent at one time. Instead, the data file

is split, and a limited amount of data in a small

number of packets is sent at a time to the client. After

receiving these packets, the client makes a new

request to receive the next set of packets. This

approach needs locking and peeking the Ethernet

buffers (that is, looking ahead at packets), which

results in complex synchronization and load

balancing problems. In this paper, the previous

designs are extended by designing and implementing

a simple stateless UDP-based Web server that handles

these problems. Our contributions are as follows.

1. We design and implement a simple and

reliable UDP-protocol for HTTP traffic using bare

machines.

2. We extend previous work on a multi-core

server in (Ordouie et al., 2023) and propose novel

architectural and design specifications that enable

simple load balancing techniques and avoidance of all

locking issues.

3. We conduct experiments to evaluate the

performance of the proposed solution in terms of the

number of requests, CPU utilization, file size

variations, maximum parallel requests, and average

processing time.

4. We describe the design of a bare client that

works with the proposed stateless server.

The rest of the paper is organized as follows.

Section 2 describes the client-server protocol. Section

3 gives an overview of related work. Section 4

discusses architectural and design features of the

server. Section 5 provides implementation details.

Section 6 presents performance results. Section 7

contains the conclusion.

2 CLIENT/SERVER PROTOCOL

The primary goal of this work is to develop a simple

and reliable stateless Web server that uses a UDP-

based protocol for transferring HTTP traffic to bare

clients over a network. This protocol has no relation

to CoAP (Shelby et al., 2014) or QUIC (Iyangar and

Thomson, 2021). Figure 1 shows the message

exchange for the protocol. The client sends an HTTP

GET request to the server for the desired resource file.

Upon receiving the HTTP GET request, the server

responds with a GET-ACK, which includes important

parameters related to the resource file, including file

size and the total number of packets to be sent. The

client now has all the information needed to complete

the transaction.

406

Alotaibi, F., Karne, R. and Wijesinha, A.

A Stateless Bare PC Web Server.

DOI: 10.5220/0012207400003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 406-413

ISBN: 978-989-758-672-9; ISSN: 2184-3252

Note that the client only sends the HTTP GET

request and the server only responds with GET-ACK,

the HTTP header, and a small number n of data

packets (for example, n may be between 4 and 8). We

chose a small value for n because there is no

automatic retransmission mechanism at the server,

the server is stateless, and it is easier for the client to

make subsequent GET requests instead of the usual

acks for reliability. We use a special 16-byte control

header that is sent with each packet (described later)

that further simplifies the client and server design.

Figure 2 illustrates how to deal with subsequent

packets and lost packets. Here, the client sends a

subsequent GET with a starting packet number and

the server simply sends the data starting with that

packet number. There is no GET-ACK sent for

subsequent requests. While this protocol makes the

server stateless and simple, it requires a moderate

increase in client complexity. This increase is

acceptable because most clients have large memory

and faster processors, and they are already able to

deal with small and large files. One may view the

subsequent GETs as replacing the previous reliability

mechanisms and out-of-order logic for the client. In

this protocol, the client has complete control over its

requests in any order using subsequent GET requests.

Also, the stateless server has significantly less

complexity than a conventional server since it does

not need to keep any state about the request.

Reliability is now primarily handled at the client side.

3 RELATED WORK

The Bare Machine Computing (BMC) paradigm

evolved from the Application-Oriented Architecture

(AOA) (Karne, 1995) and Dispersed Operating

System Computing (DOSC) (Karne et al., 2005).

Previous publications on BMC are at (Karne, n.d.).

Bare applications can run on older or newer x86

and x64 compatible Intel processors. In the BMC

approach, a computing device is made bare, meaning

that it has no OS and no hard disk, and only uses the

BIOS during the boot process. The bare computing

device contains no valuable resources such as code,

data or applications that need to be protected. The

application software is written in C/C++ with a small

amount of assembly code to communicate to

hardware. Application programs directly

communicate with and control the hardware using a

hardware API (HAPI). BMC systems are based on a

single programming environment and are owner

centric. The boot, loader, and interrupt code are

written in assembly. One or more applications can be

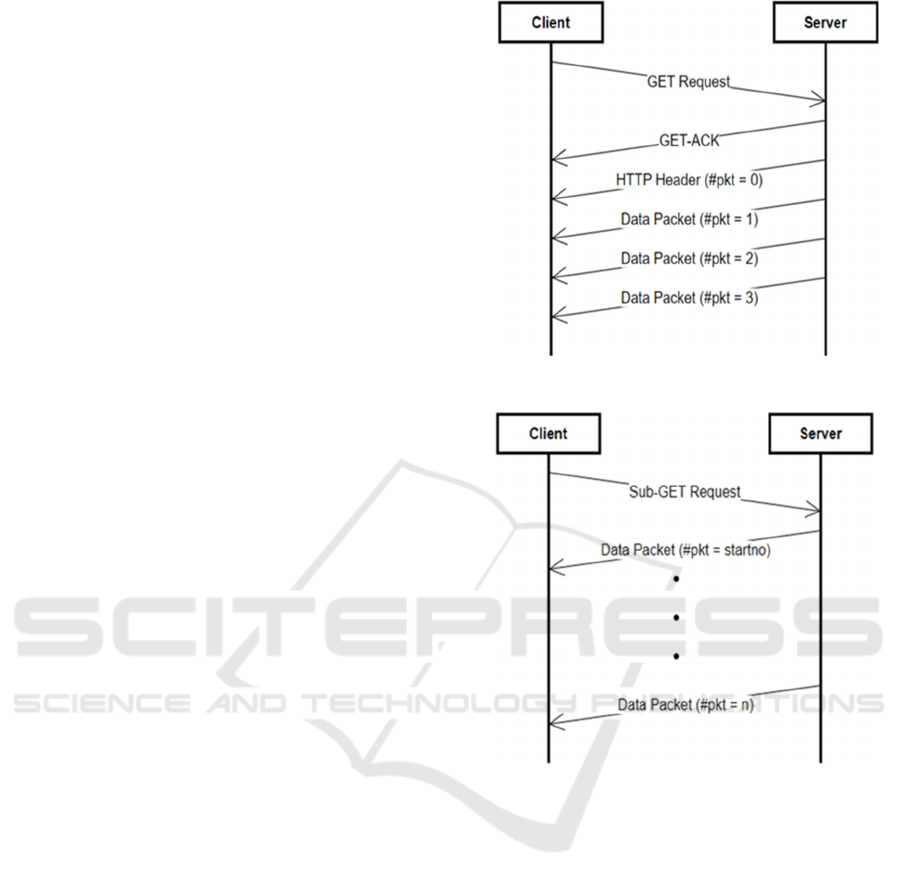

Figure 1: Original GET request.

Figure 2: Subsequent GET requests.

compiled as an application suite to generate a single

monolithic executable. This is statically compiled and

linked with no external software or libraries. The

BMC paradigm eliminates all intermediate layers and

middleware enabling applications to be independent

of environments. It has been also used to build

middleboxes and split servers.

Earlier work on a bare PC Web server for a 32-bit

multi-core machine based on TCP (Soundararajan et

al., 2020), and UDP (Soundararajan et al., 2020)

provide details of similar approaches to build Web

servers. Technical details underlying the design of a

64-bit multi-core Web server are given in (Ordouie et

al., 2021). Design issues with a 64-bit CPU

architecture and multiple cores sharing a single

network interface card are discussed in (Ordouie et

al., 2023). A preliminary attempt to migrate a 32-bit

single core Web server to a 64-bit was made in

(Chang et al., 2016). That work used a TCP-based

A Stateless Bare PC Web Server

407

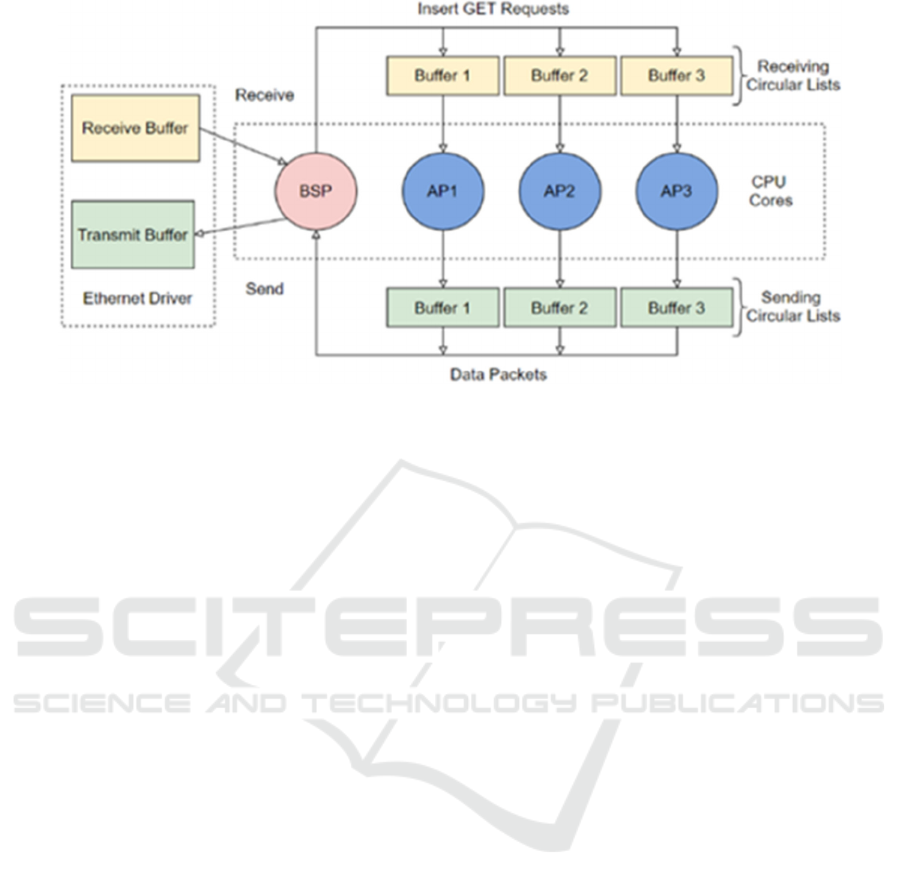

Figure 3: Multi-core server architecture.

server and focused primarily on migration.

Exokernel (Engler, 1998), Microkernel (Odun-

Ayo et al., 2021), Tiny-OS (Levis, 2012), and RIOT

(Baccelli et al., 2013) are a few examples of

approaches to reduce the size and complexity of the

OS or kernel, give more direct hardware access to

applications, move some OS functions into user

space, and bypass the kernel. RDMA is now widely

used in the cloud (Kong et al., 2023), and in view of

the increased support for kernel bypass in data center

servers, (Zhang et al., 2019) propose a library OS

architecture for kernel-bypass devices. These

approaches differ from BMC in that some form of an

OS or kernel is present. Embedded systems that

integrate applications with an operating system or

kernel, and virtualization approaches are also

different from BMC systems.

In a BMC system, conventional OS functions are

not duplicated in an application suite as there is no

centralized OS or kernel running in the system. A

typical OS provides services for all applications,

while a bare machine application suite is designed to

run only a desired set of applications. The bare-to-

bare communication is implemented as application-

to-application avoiding all middle layers. There are

no heterogeneous components, and the application

suite includes the necessary network protocols and

device drivers. An application suite image is typically

very small since BMC systems are designed to be

domain-specific and have only the necessary

functionality. For example, the UDP based stateless

server executable image size is 331,776 bytes.

4 ARCHITECTURE AND DESIGN

4.1 Architecture

Figure 3 shows the overall system architecture of the

bare Web server. The server has four Intel core

processors with 4 GB of memory working

asynchronously and concurrently to process HTTP

requests. We refer to these processors as BSP, AP1,

AP2 and AP3, where the BSP is responsible for

booting and waking up the other cores. The BSP is

also used as a dedicated network processor to send

and receive packets over Ethernet. In this approach,

the other cores do not send and receive packets

directly. Instead, the BSP receives packets and

dispatches them to cores AP1, AP2, and AP3 using

the round robin algorithm. Alternate approaches such

as having all cores peek packets in the Ethernet

buffers are inefficient and complex due to

concurrency control mechanisms (Ordouie et al.,

2023). We note that multi-core architectures typically

focus on thread-level parallelism rather than

networking. Ethernet bonding may be used with

multiple cores to separate receive and send paths

using two network interface cards (NICs) (Almansour

et al., 2018).

In the BMC paradigm, the programmer has total

control over hardware and software, and applications

directly communicate to the hardware through a

direct hardware API (HAPI). There is no middleware

in the bare server. The Ethernet driver is also bare

without any OS or kernel support. This architecture is

based on a shared memory model wherein all cores

have access to main memory. Concurrency control

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

408

problems are avoided by providing circular lists for

input and output packets.

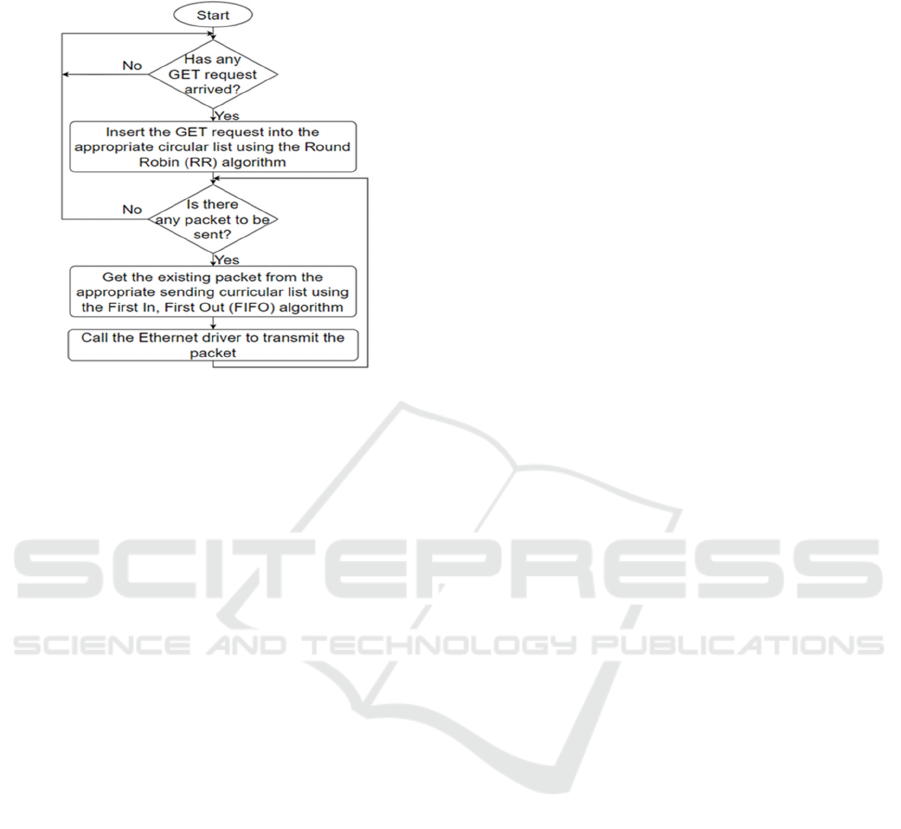

Figure 4: BSP control flow.

When a packet is received by the BSP, it is placed

on a given core’s input circular list. When there are

one or more packets in the input circular list, the

corresponding AP processes the GET request by

removing them from the circular list. Each AP

processes HTTP requests independently without

interfering with the other APs. There is thus HTTP

request-level parallelism implemented in this design.

An AP processes a request without interruption and

then places the data packets in the send circular list.

All data packets for a given resource file are

preformed and kept in memory. Furthermore, each

resource file is divided into packets during

initialization of the server and pre-processed to be

ready to send.

In addition to receiving packets from the Ethernet

buffer, the BSP checks the send circular lists for each

AP to determine if they have one or more packets to

be sent. These packets are inserted into the Ethernet

send buffer one at a time in the order they arrived

from the APs. As all the cores are running

concurrently processing HTTP requests, the single

Ethernet card becomes a bottleneck limiting the

parallelism that can be achieved. In effect, this

bottleneck is the main design issue when

implementing Web servers using a multi-core

architecture. Concurrency is avoided using the send

and receive circular lists for data, and at the Ethernet

level by dedicating the BSP to manage receiving and

sending packets. Otherwise, the Ethernet receive and

transmit buffers must have concurrency control as in

(Ordouie et al., 2023). The stateless server

architecture presented here is novel, simple, and

scalable.

4.2 Processor and Client Control Flow

4.2.1 BSP Control Flow

The control flow shown in Figure 4 illustrates the

processing logic for the BSP, which has a loop that

consists of receive and send controls. The receive

control checks whether a packet is ready to be

received from the Ethernet buffers. There are a total

of 4096 circular list entries in the bare driver model.

The BSP program directly accesses the Ethernet

receive buffer entry by checking the DD (device

done) bit set and reads the packet into a receive

buffer. This packet is allocated to AP1, AP2, or AP3

using round robin by inserting it in the appropriate

receive circular lists for the APs. Similarly, send

control checks if there are one or more packets in the

send circular list. If so, it gets the packet for the list

and inserts it into the Ethernet send buffer. As noted

earlier, the BMC programmer’s code has complete

control over the Ethernet driver and related hardware.

4.2.2 AP Control Flow

AP control flow is shown in Figure 5. After an AP has

been woken up by the BSP, it remains in a loop to

process HTTP requests. It does this by checking if

there are one or more packets in the receive circular

list and then processing them in order. If there is a

GET request to be processed, it calls the RCVCall

function. These requests could be either original

GETs or subsequent GETs received from the client.

The RCVCall function calls the IP Handler, which

then calls the UDP handler. At each stage, the

appropriate headers are checked and validated.

The UDP handler plays an important role in AP

processing. Its logic is different for regular and

subsequent GETs. For regular GETs, it needs to send

a specific number (n) of packets for a given resource

file. For subsequent GETs, it must send appropriate

packets beginning with a starting number requested

by the client. In either case, the UDP handler calls the

IP handler with the appropriate number of packets of

data to be sent. The IP handler inserts the packets into

the corresponding send circular lists for the APs. The

above control flows for the APs are executed as a

single thread of execution without interruption. As

each HTTP request is independent of other requests,

this control flow is simple and applicable to all of

them.

A Stateless Bare PC Web Server

409

Figure 5: AP control flow.

Figure 6: Client’s send control flow.

Figure 7: (a) Data header (b) Tail of GET packet.

4.2.3 Client Control Flow

The bare UDP client is used to perform testing and

measure performance of the stateless server. Stateless

server design impacts the client. The client sends

GETs on a periodic basis to the server. This period is

characterized by the two parameters frequency and

maxreq as shown in Fig. 6. These parameters

determine the request rate. For example, if frequency

and maxreq values are 9 and 8 respectively, then every

9 units of time, 8 requests will be sent to the server.

Each unit of time in our design is 1/4 milliseconds, as

defined by the timer period. The 9 units of time

amounts to 9/4 = 2.25 milliseconds. Thus, (8/2.25) x

1000 = 3555 requests per second will be sent to the

server.

The client logic for received packets is as follows.

The client uses port numbers to index requests and

maintains the state of requests in a data structure. The

state of a request is updated when a new packet arrives

and when all data arrivals are complete. Each data

packet coming from the server has a data header of 16

bytes. Using this header as control information in the

client design makes the logic simpler for

implementation. In this header, the packet state

inserted by the server indicates the type of packet sent

to the client. The client uses the packet state to trigger

processing of a given response packet from the server.

There are five states named Get Ack, Header, Data

Part, Last Data, and Last Data Now (corresponding

respectively to type values 0x31, 0x32, 0x33, 0x34,

0x88). When a packet of type Get Ack, Header, or

Data Part arrives, it updates the linear list structures

and returns to the caller. When Last Data arrives, it

updates the data count and if all data has arrived, it

deletes the entry in the linear list. The Last Data Now

state indicates that only partial data was sent, which is

limited by the number of packets n that can be sent at

a time for a given request. In this case, the client must

send the next GET with a starting packet number to

receive subsequent sets of data or for requesting lost

packets.

5 IMPLEMENTATION

The server and client are implemented using C/C++

code. All circular lists referred to in the previous

section are designed and implemented using C++

classes. A stack structure is used to store request ids

for HTTP requests. The stack is initialized with

numbers 1–5000 at the start of the program. When a

packet arrives in the BSP, a request id is popped from

the stack. When a request is complete, the request id

is pushed back onto the stack. The maximum number

of request ids used indicates the maximum

parallelism achievable in the system. Each core also

has a core id of 0, 1, 2, 3 (corresponding respectively

BSP, AP1, AP2, AP3). The cores AP1, AP2, AP3 are

symmetrical. That is, any AP can process any request

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

410

or any subsequent request. There are many new

design features in the stateless server that makes the

implementation simple and results in a small code

size image as noted before. The 16-byte data header

plays an important role in the design. Its details are

shown in Fig. 7 (a). In addition, the tail data of a GET

request also has some control information which is

used at the server and simplifies the server design for

subsequent requests. This data has no relation to the

HTML data. The state tag value 0x88 (Last Data

Now) is used for larger files.

As indicated in the client design, the state field

also makes the client implementation simpler. The

request number and core id fields helped to test and

debug problems at the server related to identifying

requests processed by the corresponding cores. The

total bytes field is used in Get Ack to indicate the total

bytes for a given resource file. The same field is used

for packet size in data packets to indicate the current

size of the packet. The packet number field is used in

Get Ack as the total number of packets for the request.

The same field is used as the number of packets when

transmitting data packets. In addition, we also added

4 optional characters to GET and subsequent GET

requests at the client as shown in Figure 7(b). For

initial GET requests the code is 0x9999, and for

subsequent GETs the code is a starting packet

number. These values are parsed by the server and

used in the control logic to simplify the server code.

6 PERFORMANCE RESULTS

The tests were done in a LAN using a gigabit Ethernet

switch, a 4-core Dell Optiplex 9010 desktop as the

bare server, and four Dell Optiplex 260 desktops as

bare clients. We connected 1-4 bare PC clients, where

each client can serve up to a maximum of 3555

requests per second. The clients send requests for file

sizes of 4K through 128K. The parameter N = 1, 2, 4,

8, 16, 32 is used to vary file sizes from 4K to 128K.

The results that follow are based on measurements

collected over a 15-minute period. These results are

preliminary, and more tests need to be conducted in

an Internet environment to validate the design and

identify any issues. We have also not considered

security issues such as server authentication, and

encryption and integrity protection for data packets.

Figure 8: Performance (number of requests).

6.1 Varying the Number of Cores

The graph in Figure 8 shows the number of requests

when varying the number of cores (1, 2 or 3) with a

fixed file size of 4K. Here, the one core model used

three clients (3555, 3555, 2500 requests) with a total

of 9610 requests/sec to generate the maximum load,

the two-core model used four clients (3555, 3555,

3555, 1000 requests) with a total of 11,665

requests/sec to generate the maximum load, and the

three-core model used four clients (3555, 3555, 3555,

3200 requests/sec) with a total of 13,865 requests/sec

to generate the maximum load. These numbers show

the maximum capacity of the server with stable

operation.

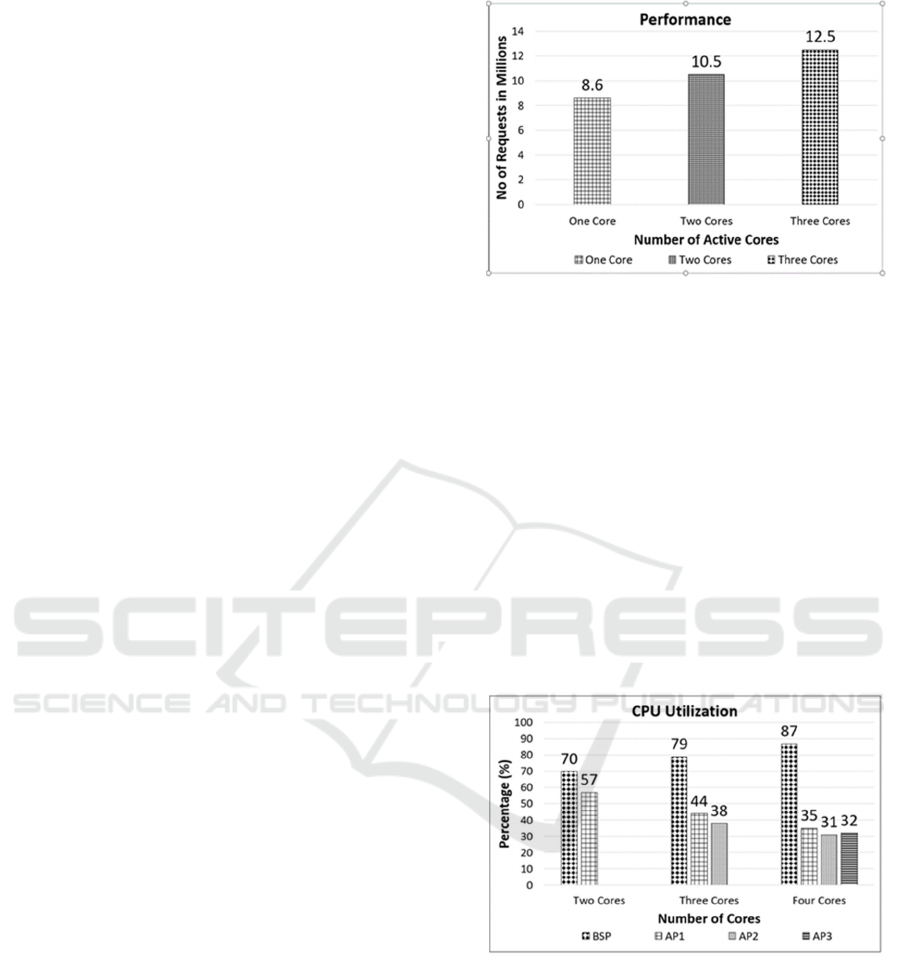

Figure 9: Performance (CPU utilization).

The BSP core is only used for network operations

and is not involved in processing HTTP requests. The

results indicate that for 1 to 2 cores, the performance

increased by 21.5%, and for 1 to 3 cores by 44.7%.

This clearly indicates that the speedup is not linear

with respect to adding more cores to process HTTP

requests. The reason for this low speedup is due to a

single network card for multiple cores becoming a

bottleneck when processing multiple HTTP requests

concurrently. Since HTTP processing is a network-

A Stateless Bare PC Web Server

411

based application, thread-level and application-level

parallelism could not be exploited.

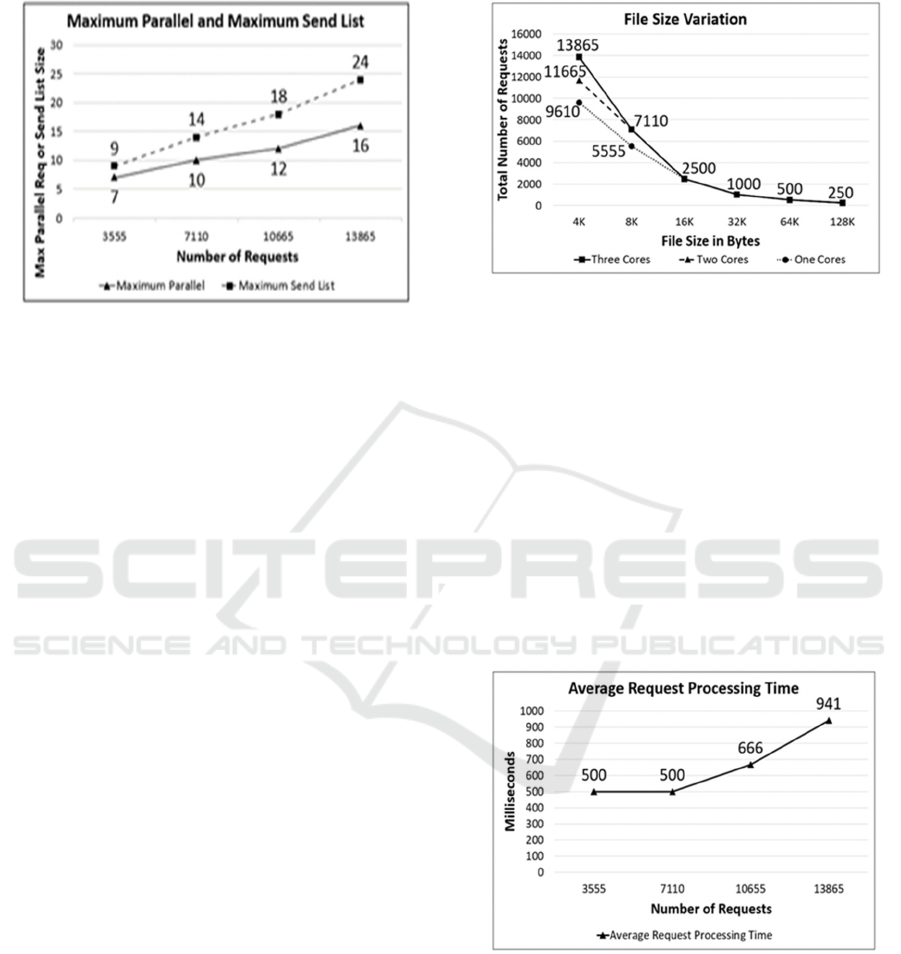

Figure 10: Max parallel and send list size.

Figure 9 shows CPU utilization for a 4K resource

file using the preceding measurement parameters.

CPU utilization is measured by using the rdtsc

assembly instruction that gives clock ticks. The clock

frequency for the OptiPlex 9010 is 3.4 GHz. The

clock tick for this model is (1/ (3.4*10^9)), which is

roughly 296 picoseconds. It is seen that BSP

utilization reaches 87% with all cores running in the

system. Because the APs are not fully utilized in all

three models (2, 3 or 4 cores), it limits the speedup in

this system. To achieve scalable performance, all

cores must be fully utilized. This not possible with

one network card as noted above.

6.2 Max Parallel and Send List Size

The BSP receives packets from the Ethernet buffer

and distributes them to the other cores. There is one

input circular list and one output circular list for each

AP. We measured the queue sizes for these lists using

the same parameters as above. The maximum number

of request ids indicates the maximum number of

parallel requests (max parallel) processed at a given

time. The input circular list measurements show that

there were 1 or 2 requests waiting at a given point.

The cores were free to handle the input circular

list without waiting. Max parallel and max send list

size were measured when the number of requests is

varied in the system by using multiple clients. As seen

in Figure 10, max parallel shows a range of 7 to 16,

which indicates that at one point there were 16

requests outstanding in the system. Similarly, max

send list sizes range from 9 to 24 showing there was

a maximum of 24 packets in the send circular list

waiting to be sent to the Ethernet. As these numbers

are small, they show that the APs and their circular

lists were not fully utilized.

Figure 11: Varying file size.

6.3 Varying the File Size

Figure 11 shows the total number of requests when

varying the file size. It is seen that when the resource

file size increases, there are more packets and it takes

a longer amount of time, thus limiting the number of

requests. For the 16K file size, all models (1, 2 or 3

cores) behave the same as they are limited by the

network rather than the capacity of the cores. The

number of requests has dropped dramatically

indicating the limit of this server with a single

network card.

6.4 Client Processing Time

Figure 12: Processing time at client.

Figure 12 shows the average processing time on the

client side when the load is varied at the server using

multiple clients. The average processing time at

clients varies between 500 to 941 milliseconds.

However, the average processing time for requests

measured at the server is only 27 milliseconds. This

is because at the server, we only measured the

processing time until the packets were inserted into

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

412

the send buffer, which does not include actual

transmission at the Ethernet level. The average

processing time for requests at the client reflects the

actual processing time and it shows how the server

performs with an increased load.

7 CONCLUSION

We described the design and implementation of a

novel stateless 64-bit multi-core Web server that runs

on a bare machine. One core handles networking

while other cores process the HTTP requests. The

server communicates with bare machine clients using

a simple UDP-based protocol that is easy to

implement. We also gave a brief overview of the

client design.

A key aspect of the protocol is the use of a 16-byte

data control header with fields specifically designed

to simplify client-server communication. The server

architecture avoids concurrency controls by using

buffers at the receiving and sending ends. The receive

circular list did not affect the results. The send

circular list showed a varying number of packets

(maximum of 24) waiting to be sent depending on the

server load. The measured concurrency in the system

shows reasonable parallelism (maximum of 16). The

use of a dedicated core for networking enables

multiple cores to be used efficiently to implement the

Web server application.

We identified the single network interface card as

the main bottleneck in processing requests in multi-

core processors. The performance measurements

indicate that there is no linear speedup gained by

using multiple cores for processing because the

network interface is the bottleneck. Future studies

could investigate the use of multiple on-board NIC

interfaces or chips for multi-core processors.

REFERENCES

Ordouie, N., Soundararajan, N., Karne, R., and Wijesinha,

A. L. (2021). Developing Computer Applications

without any OS or Kernel in a Multi-core Architecture.

International Symposium on Networks, Computers and

Communications (ISNCC).

Soundararajan, N., Karne, R. K., Wijesinha, A. L., Ordouie,

N., and Rawal, B. S. (2020). A Novel Client/Server

Protocol for Web-based Communication over UDP on

a Bare Machine. 18th Student Conference on Research

and Development (SCOReD).

Ordouie, N., Karne, R., Wijesinha, A. and Soundararajan,

N. (2023). A Simple UDP-Based Web Server on a Bare

PC with 64-bit Multi-core Processors: Design and

Implementation. 2023 International Conference on

Computing, Networking and Communications (ICNC).

Karne, R. K. (1995). Object-oriented Computer

Architectures for New Generation of Applications.

Computer Architecture News, Vol. 23, No. 5.

Karne, R. K., Jaganathan, K. V., Ahmed, T., and Rosa, N.

(2005). DOSC: Dispersed Operating System

Computing. 20th Annual ACM Conference on Object-

Oriented Programming, Systems, Languages, and

Applications (OOPSLA), Onward Track.

Karne, R. (n.d.). Bare Machine Computing,

http://orion.towson.edu/~karne/dosc/pubs.htm.

Accessed July 3, 2023.

Soundararajan, N., Karne, R., Wijesinha, A., Ordouie, N.,

and Chang, H. (2020). Design Issues in Running a Web

Server on Bare PC Multi-core Architecture. 44th

Annual Computers, Software, and Applications

Conference (COMPSAC).

Chang, H., Karne, R. K., and Wijesinha, A. (2016).

Migrating a Bare PC Web Server to a Multi-core

Architecture. 40th Annual International Computer

Software and Applications Conference (COMPSAC).

Engler, D. R. (1998). The Exokernel Operating System

Architecture. Ph.D. thesis, MIT.

Odun-Ayo, I., Okokpujie, K., Akinwumi, H., Juwe, J.,

Otunuya, H., and Oladapo, A. (2021). An Overview of

Microkernel Based Operating Systems. IOP

Conference Series: Materials Science and Engineering,

1107 012052, 2021.

Levis, P., (2012). Experiences from a Decade of TinyOS

Development. 10th

USENIX Symposium on Operating

Systems Design and Implementation (OSDI ’12).

Baccelli, E., Hahm, O. Gunes, M., Wahlisch, M., and

Schmidt, T. C. (2013). RIOT OS: Towards an OS for

the Internet of Things. 2013 IEEE Conference on

Computer Communications Workshops (INFOCOM

WKSHPS).

Almansour, F., Karne, R. K., Wijesinha, A. L., and Rawal,

B. (2018). Ethernet Bonding on a Bare PC Webserver

with Dual NICs. 33rd ACM/SIGAPP Symposium on

Applied Computing (SAC).

Shelby, Z., Hartke, K., and Bormann, C. (2014). The

Constrained Application Protocol (CoAP). RFC 7252.

Iyengar, J., and Thomson, M. (2021). QUIC: A UDP-Based

Multiplexed and Secure Transport, RFC 9000.

Kong, X., Chen, J., Bai, W., Xu, Y., Elhaddad, M., Raindel,

S., Padhye, J., Lebeck, A. R., and Zhuo, D. (2023).

Understanding RDMA Microarchitecture Resources

for Performance Isolation. 20th USENIX Symposium

on Networked Systems Design and Implementation.

Zhang, I. Liu, J., Austin, A., Roberts, M. L., and Badam, A.

(2019). I’m Not Dead Yet! The Role of the Operating

System in a Kernel-Bypass Era. 17th Workshop on Hot

Topics in Operating Systems (HotOS ’19).

A Stateless Bare PC Web Server

413
