A User Interface for Tuning QoS Parameters in

Recommendation-Based Business Process Scenario Adaptation

Kiriakos Sgardelis

, Dionisis Margaris

, Dimitris Spiliotopoulos

and Costas Vassilakis

Department of Digital Systems, University of the Peloponnese, Sparta, Greece

Department of Management Science and Technology, University of the Peloponnese, Tripoli, Greece

Department of Informatics and Telecommunications, University of the Peloponnese, Tripoli, Greece

Keywords: UI, Adaptation, Personalisation, Recommender Systems, Business Processes, WS-BPEL, Web Services.

Abstract: The Web Services Business Process Execution Language (BPEL) is a special-purpose language that

orchestrates web services into a high-level business process. A typical BPEL scenario contains invocations to

preselected web services, along with their parameters. However, many recent research works support dynamic

service selection, based on user-set policies and criteria. Furthermore, users may request a service

recommendation, in which case functionally equivalent service offerings by different providers will be

considered by the personalization module. Along with the recommendation request, users provide the policy

parameters, which include minimum and maximum bounds for the non-functional attributes concerning the

service, and the system exploits these bounds to select and use the optimal candidate services. However, in

many real-life cases, a person will accept/purchase a product or a service that exceeds the threshold(s) that

initially he/she has set, e.g., if the overhead is marginal or the offer is deemed appealing, or no satisfactory

service candidates are identified using the initial settings. In this paper, we present and evaluate a specialized

User Interface that allows the user to review service candidates marginally exceeding the specified bounds

and consider them while making the final service selection.

1 INTRODUCTION

The Web Services Business Process Execution

Language, mostly known as WS-BPEL or simply

BPEL, is a special-purpose programming language

suitable for designing and executing business

processes that comprise web services invocations (Fu

et al., 2004; Pasley, 2005; Ouyang et al., 2006). A

typical BPEL scenario supports direct invocations to

individual web services, along with their parameters;

invocations are organized into sequential and/or

parallel execution flows, while additionally control

flow structures (e.g., if, switch and while) can be

specified (Mukherjee et al., 2008; Deng et al., 2011).

While in the typical BPEL scenario all the

invoked web services must be known in advance,

many extensions proposed insofar allow the BPEL

execution engine to select at runtime the web services,

https://orcid.org/0009-0008-7113-8855

https://orcid.org/0000-0002-7487-374X

https://orcid.org/0000-0003-3646-1362

https://orcid.org/0000-0001-9940-1821

considering the Quality of Service (QoS) parameters

of the service, i.e., non-functional parameters that

relate to the service, such as cost, response time,

reliability, etc. (Mukherjee et al., 2008; Deng et al.,

2011). In particular, when executing a BPEL scenario,

the user provides specifications for the Quality of

Service (QoS) he wants to receive, and the

adaptation/personalization engine uses these

specifications to select and invoke services that best

match the user’s specifications (Karastoyanova and

Leymann, 2009; Christos et al., 2009; Margaris et al.,

2015a). This is highly desirable, since many services

can be supported by multiple providers (e.g., a hotel

accommodation in Rome, a flight from Athens to

Rome, etc.), where each one may have different QoS

attribute values (cost, availability, etc.). Furthermore,

to fully support the aforementioned functionality,

modern BPEL research works include a web service

414

Sgardelis, K., Margaris, D., Spiliotopoulos, D. and Vassilakis, C.

A User Interface for Tuning QoS Parameters in Recommendation-Based Business Process Scenario Adaptation.

DOI: 10.5220/0012207500003584

In Proceedings of the 19th International Conference on Web Information Systems and Technologies (WEBIST 2023), pages 414-421

ISBN: 978-989-758-672-9; ISSN: 2184-3252

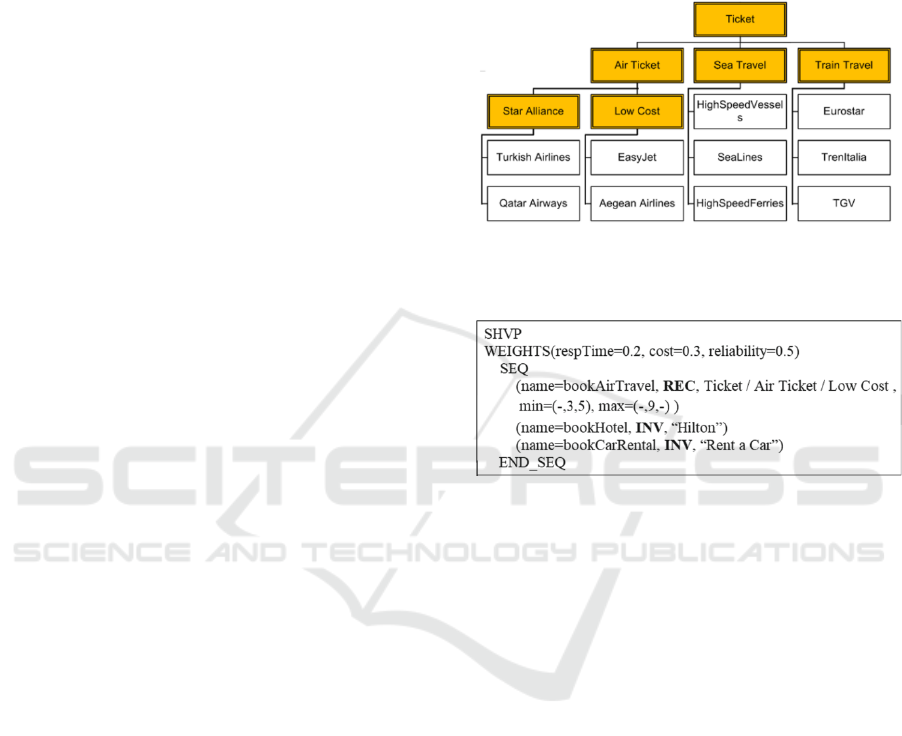

taxonomy which contains all the (sub-)categories and

web service implementations (Chan et al., 2009;

Wang et al., 2012; Margaris et al., 2021).

Regarding the web service selection policy, the

user is typically able to set (a) the minimum and

maximum values for each QoS aspect, as well as (b)

the weight/importance of each QoS attribute. This

enables the personalization/adaptation engine to (i)

exclude the services whose QoS attributes are out of

the user-specified bounds and (ii) prioritize

qualifying services to either automatically fill or

simply recommend the optimal web services for each

user. For example, in a simple BPEL scenario, where

the attributes considered are (a) cost, (b) reliability

and (c) availability, the user sets MIN=(3, 6, 8),

MΑΧ=(9.5, 9, -) and W=(0.3, 0.4, 0.3), indicating

that the minimum values for the cost, reliability, and

availability QoS attributes of the service to be

selected are 3/10, 6/10 and 8/10, respectively, while

at the same time the maximum values allowed for cost

and reliability QoS attributes are 9.5 and 9,

respectively (no maximum bound is placed for

availability). Deferring, for now, the discussion on

process of the attribute weight application to

prioritize qualifying services, let us assume that the

available services in this scenario are the following

three:

 s1 = (cost: 3.5, reliability: 6.2, availability: 8);

 s2 = (cost: 7, reliability: 5.8, availability: 9.5);

 s3= (cost: 9.5, reliability: 8.5, availability: 7.7).

All attribute values are encoded in a ‘higher value is

better’ scheme, e.g., the reliability of s1 (value: 6.2)

is lower than the reliability of s3 (value: 8.5), while

the cost of s2 (7) is higher than the cost s3 (9).

The typical recommender engine will never

recommend s2 and s3 to the user, since the reliability

of s2 and availability of s3 are lower that the user set

MIN boundaries. As a result, the service that will be

recommended to the user is s1.

However, in real life many users would observe

that s2 is marginally rejected, since its reliability is

only 0.2/10 (2%) below the boundary. Additionally,

considering the other two QoS attributes, s2 is

superior (cost +3.5, availability +1.5), when

compared to s1. As a result, many users might select

s2 over s1, despite the boundary. Furthermore, we can

observe that s3 is marginally rejected too, since its

availability is only 0.3/10 (3%) below the respective

boundary, however, based on the other two QoS

attributes, s3 is also superior when compared to s1.

It is noteworthy that service filtering according to

the QoS bounds is of high importance to protect users

from information overload (Aljukhadar et al., 2012)

and allow users to effectively select the desired

services. Nevertheless, as demonstrated above, the

strict application of filtering may eliminate choices

that are potentially desirable to the user. To

successfully address this issue, the users must be

supported by a suitable user interface, which would

inform the users about the existence of additional

candidates and would allow them to review these

candidates, while additionally it would maintain a

high level of protection from information overload.

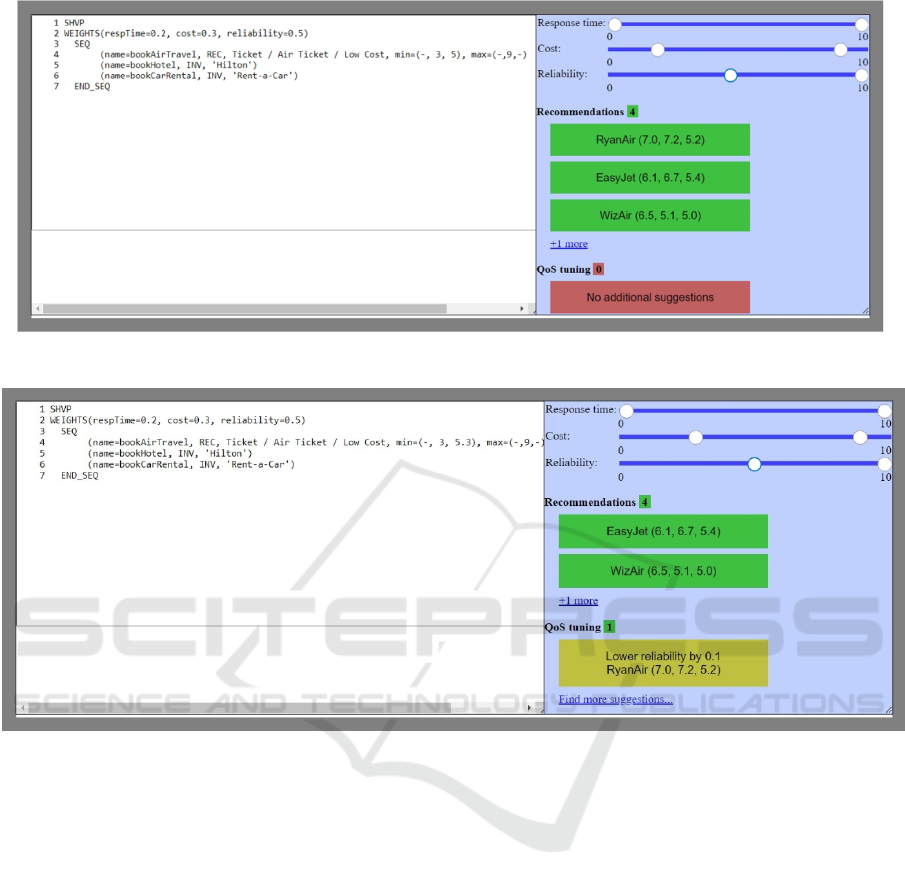

This work (a) presents a UI which supports users to

efficiently identify and review potentially attractive

service candidates whose QoS parameters fall outside

the specified bounds, achieving more successful

personalizations and (b) evaluates the presented UI in

terms of user acceptance.

The rest of the paper is structured as follows: in

section 2 the related work is overviewed, while in

section 3 the necessary foundations for our work are

presented. Section 4 and section 5 present and analyse

the proposed functionality and the overall UI design,

as well as the results of the user evaluation, and

finally the paper conclusion and future work are

outlined in section 6.

2 RELATED WORK

The adaptation of WS-BPEL scenarios’ execution is

a field of major research interest, and numerous

publications over the recent 15 years have addressed

multiple aspects of this process.

VieDAME is a BPEL extension that enables

BPEL process monitoring, based on specific QoS

criteria, and an adaptation strategy which, based on

various selectors, is able to replace existing partner

web services, which can be either semantically or

syntactically equivalent in the BPEL process (Moser

et al., 2008). The work in (Christos et al., 2009)

introduces a framework which provides the BPEL

execution engine with functionalities which comprise

of QoS attributes restrictions and ranking criteria

definitions, dynamic service selection, based on given

user policy and exception management techniques for

automating handling of exceptions due to system

faults. The work in (Tragatschnig and Zdun, 2011)

introduces a framework that supports runtime

structural modification, both for processes and

instances, and provides adaptation support to BPEL

execution engines. The work in (Sun et al., 2012)

introduces a BPEL fault localization guideline, which

is based on the attributes of the BPEL integration-

level faults. The work in (Dionisis et al., 2013)

introduces a framework which gives the BPEL

A User Interface for Tuning QoS Parameters in Recommendation-Based Business Process Scenario Adaptation

415

designers the ability to define the qualitative

requirements for the services invocated in the BPEL

scenarios. This framework also supports the system-

level exception resolution and service selection

affinity. The work in (Margaris et al., 2013) presents

an algorithm and the relative framework, which

incorporates both QoS specifications and

personalization, and more specifically collaborative

filtering, techniques into the BPEL execution

adaptation process. The work in (Alférez et al., 2014)

presents a framework which includes runtime

variability models, artifacts and tools, in order to

support the service compositions dynamic adaptation.

The work in (Margaris et al., 2020a) introduces an

integer programming-based recommendation

optimization algorithm for the WS-BPEL scenario,

which supports user set QoS criteria. This algorithm

maintains the optimality of the computed adaptations,

while, at the same time, it can efficiently compute the

adaptations that satisfy the QoS criteria set by users.

The work in (Driss et al., 2022) introduces a Service-

Oriented Computing-based approach which supports

the discovery, selection and composition of the most

suitable services. With this approach, both non-

functional and functional requirements are specified

by the BPEL designer to satisfy the QoE, QoS and

QoBiz parameters and services are chosen.

Over the recent years research works concerning

UIs for BPEL scenario adaptation have been

introduced, as well, allowing the BPEL designer to

control adaptation tasks, in addition to specifying the

services to be invoked and their orchestration. The

work in (Liu et al., 2016) presents an approach,

namely Mobile User Interactions and Tasks, which is

implemented as a standard service that can be

included into the BPEL engines. This web service

gives the BPEL designers the ability to realize a Web-

based UI, using a domain-specific language along with

a web programming abstraction. The work in

(Yongchareon et al., 2018) presents a framework that

produces UI flow models, to support semi-automatic

creation of UIs and visualize artifact-centric processes.

The presented UI is developed by taking into

consideration the relationships among user roles, UIs,

and business processes, in an artifact-centric process.

The work in (Margaris et al., 2020b) introduces a

UI for personalized service selection in BPEL

scenarios that considers the user set QoS parameters.

Its main target is to efficiently display the appropriate

service to the BPEL user, according to his profile,

each time the user asks for a service recommendation.

Afterwards, the UI provides the user the ability to

select the exact service to be invoked, according to his

needs. The work in (Diaz et al., 2021) takes BPMN

models as input, and with the use of stereotypes and

Class Diagrams, it develops mapping rules to produce

GUIs. Furthermore, in the cases where more than one

possible option is available, it recommends the

alternative, which optimizes the user experience of

the end user. The work in (Margaris et al., 2021)

presents a UI for BPEL designers that allows web

service personalized recommendation and selection

in BPEL scenarios, according to user set criteria.

More specifically the presented work gives the BPEL

user the ability (a) to preselect the service achieving

the highest score, based on the user set criteria, for

each recommendation asked, (b) to specify non-

qualitative criteria restrictions and (c) to select the

number of the candidate (equivalent) services, which

they will be depicted for each recommendation asked.

However, none of the abovementioned works

addresses the issue of allowing the users to efficiently

consider potentially attractive service choices whose

QoS attribute values do not fall within the specified

bounds and supporting users in this task through a

suitable user interface.

The presented UI offers the aforementioned

functionality, notifying the user about the presence of

potentially attractive service candidates, allowing the

user to review these candidates and finally select the

most prominent option.

3 PREREQUISITES

The following subsections summarize concepts from

the areas of (a) service QoS attributes and (b)

representation service functionality hierarchies,

which are used in this paper, for self-containment

purposes. We will also briefly introduce the BPEL

scenario adaptation framework, which will be used to

exemplify the concepts introduced in this paper.

3.1 Web Services QoS Attributes

In business processes, the non-functional aspects of a

service are typically quantified and represented using

QoS attributes, such as cost, response time, reliability,

availability, etc. (Maximilien and Singh, 2004;

Canfora et al., 2005; Raj and Sasipraba, 2010).

Without loss of generality, in this paper we consider

the attributes of cost (c), reliability (r), and

availability (av). The extension of the models and

algorithms presented in this paper to accommodate

additional QoS attributes is straightforward.

Typically, in a BPEL scenario adaptation scheme, the

boundaries concerning the maximum and minimum

allowed values for the QoS attributes used are

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

416

provided as two vectors, denoted as MAX and MIN,

respectively. A third vector W has to be provided

also, in order to specify the importance/weight of

each QoS attribute in the adaptation, effectively

driving the prioritization of services according to the

values of their QoS attributes. Hence the vector triplet

provided along with a BPEL scenario execution

request will be the following:

 MAX: (min

, min

);

 MIN: (min

, min

);

 W: (w

, w

The MAX and MIN boundaries are normalized in

the range [0, 10], using a normalization equation, and

follow the rule that higher attribute values correspond

to higher QoS levels, to avoid confusion (Christos et

al., 2009; Dionisis et al., 2013; Margaris et al.,

2015b). Furthermore, these boundaries are applied to

each service within the BPEL scenario individually,

while the W is applied to the whole composition.

Finally, in order to select the optimal service, for

each invocation, the BPEL execution engine applies a

simple weighted sum approach, considering the QoS

attributes values of the overall composition (which are

computed based on QoS attributes values of the

constituent individual services and the parallel/

sequential execution flow structures (Margaris et al.,

2015a)), and the weight (vector W) set by the user.

3.2 Service Functionality Hierarchies

When the BPEL scenario contains an invocation to

some service X providing functionality F, we can

invoke a service Y, either if Y has the exact same

functionality as X, or if Y provides a more specific

functionality than X, analogously to a superclass-

subclass relation (Margaris et al., 2020a). This

information can be represented using a taxonomy: In

this taxonomy, non-leaf nodes represent

functionalities, with the most generic ones being

placed towards the root and more specific ones

towards the leaves. Specific service implementations

are placed as leaf nodes, which may accommodate the

QoS values of the services, unifying thus the service

QoS database and the functionality relationship

taxonomy under a single repository. An example

taxonomy accommodating functionalities and service

implementations is illustrated in Figure 1.

3.3 WS-BPEL Scenario Adaptation

Framework

The WS-BPEL scenario adaptation framework

considered in this paper (Margaris et al., 2015a;

Margaris et al., 2020) allows for the designation of (a)

specific services that the user wants to explicitly

invoke and (b) services for which a recommendation

is requested. This is accomplished using the

keywords INV and REC, respectively, in the BPEL

scenario, as depicted in Figure 2.

Figure 1: Hierarchy of services implementations (white

background) and (sub-)categories (orange background)

concerning a travel service.

Figure 2: Pseudocode concerning a business trip (air travel,

accommodation, and car rental) BPEL execution request.

4 UI DESIGN

The UI presented in this paper gives the user the

ability to enter the BPEL process specification using

a simplified syntax, like the one depicted in Figure 2.

This syntax allows for (a) the specification of the

services to be invoked, (b) designation of whether

services are executed sequentially or in parallel, (c)

the use INV and REC notations to distinguish

between functionalities where specific service

implementations have been pre-chosen by the user

and functionalities for which a recommendation is

requested, respectively, and (d) the provision

adaptation-related information, in the form of the

MIN/MAX vectors (per service to be recommended)

and QoS parameter weights (globally, at scenario

level). For each functionality designated with the INV

keyword, the service explicitly listed by the user is

invoked, while for each functionality designated with

the REC keywork, the services which satisfy the

bounds set by the user are retrieved presented, in

descending order their score.

A User Interface for Tuning QoS Parameters in Recommendation-Based Business Process Scenario Adaptation

417

Figure 3: The UI applied on the business trip adaptation scenario.

Figure 4: Displaying QoS tuning options.

In Figure 3, we can see an instance of the

proposed UI, which depicts the functionality for the

adaptation of the business trip scenario introduced in

the previous section. At the upper part of the right

pane, the services retrieved for the recommendation

request (keyword “REC”) in line 4 are listed. These

services meet the criteria (bounds) set by the user, and

are listed in a highest-to-lowest score order. This

score is computed based on their QoS values and the

weights set by the user at the beginning of the BPEL

scenario (line 2).

Beneath the list of the qualifying services, the UI

informs the user regarding additional adaptation

possibilities, through the tuning of the QoS

parameters. In this illustration, we consider that no

services have been rejected due to the application of

the user-specified QoS bounds, hence the UI informs

the user that no QoS tuning options are applicable.

When the BPEL user makes his selection for the

service to be invoked, this is highlighted.

In the case that there exist QoS tuning

opportunities, i.e. some services have been found not

to fulfill the bounds criteria set by the user, but are

deemed to be potentially attractive for the user, the

‘QoS tuning’ area lists these options, effectively

informing the user that small modifications to the

QoS bounds may result to suggestions that he might

be interested in selecting.

In the example shown in Figure 4, we increased

the minimum reliability boundary from 5 to 5.3 and,

thus, the RyanAir service is rejected. However,

Ryanair is only rejected by 0.1/10 (equals to 1%) and

its weighted average is calculated at 7.0*0.2 + 7.2*0.3

+ 5.2*0.5 = 6.16/10, while the weighted average of

the EasyJet service, which is ranked first, is

calculated at 6.1*0.2 + 6.7*0.3 + 5.5*0.5 = 5.98/10.

As a result, the rejected service has been found to be

superior to the optimal one and, hence, the RyanAir

service will be included in the ‘QoS tuning’ area, as

illustrated in Figure 4.

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

418

In this work, we have set the criteria for including

a service that has been rejected due to violation of the

QoS bounds as follows:

a) Each QoS attribute value of the service that

has been rejected deviates by at most 0.5 from

the user-set bounds. For example, if the user

sets min

cost

=4 and max

cost

=8, the “QoS tuning”

area will include services having a cost in the

range [3.5-8.5] (and, obviously, not appearing

in the “Recommendations” area).

b) The overall score of the service is either

superior to the score of the services in the

recommendation area, or inferior by a margin

of 0.5. The inclusion of services with inferior

scores allows the user to slightly modify “on-

the-fly” the initially set weights, without

needing to change the weight specifications in

the left pane. For instance, if the Volotea

service with QoS parameters (3, 9.3, 5.2)

exists within the service implementation

database, with an overall score of 5.98, this

might be appealing for the user due to its

significantly lower cost, and therefore he

might choose to choose it, disregarding the

fact that it scores lower than both RyanAir and

EasyJet, considering the initially set bounds.

The user is also offered the option to further relax

the criteria regarding the area around the bounds

within which services are searched, to be included

appearing in the “QoS tuning” section.

Each time the “Find more suggestions…” link is

clicked, the margin is increased by 0.5. For example,

while for the setting mincost=4 and maxcost=8, the

“QoS tuning” area would initially include services

that have a cost in the [3.5-8.5] range, after the “Find

more suggestions…” link is clicked once, the “QoS

tuning” area would include services that have a cost

in the [3.0-9.0] range. Finally, a recommendation

process may produce no results (no service can be

found either within the user boundaries to be listed in

the “Recommendations” area or fulfilling the criteria

to be listed in the “QoS tuning” area), the user is

informed and may employ the “Find more

suggestions…” link to extend the search range, as

described above.

5 EXPERIMENTAL

EVALUATION

The usability of the UI was assessed via a user study.

For the user evaluation, 14 WS-BPEL designers (5

female and 9 male, with a mean age of 41 years old;

all 14 are BSc holders in Computer Science or

Engineering) were selected to participate. Each

participant had more than 6 months of experience

(either academic or commercial) in BPEL design. 12

out of the 14 participants have already used UIs for

BPEL scenario adaptation in the past. However, those

did not include the extended functionality of tuning

QoS parameters.

Initially, the BPEL designers were briefed about

the interface, the notation used for the specification of

BPEL scenarios and were familiarized with the

functionality and the visual elements of the user

interface. The duration of the briefing was between

16 and 24 minutes. We asked the participants to use

the pseudocode that the presented UI supports (see

Figure 2) and develop simple BPEL code that

included at least one recommendation. We also gave

the participants access to the taxonomy that was

already stored. After UI experimentation, the

participants were asked to report on their experience.

The participants reported their feedback using an

online questionnaire that was administered at the end

of the experiment The usability metrics included the

user acceptance, confidence, and user satisfaction.

Each participant evaluated each criterion in a

Likert scale from 1 to 7 (Albaum, 1997; Allen and

Seaman, 2007). Figure 5 depicts the average values

of the responses given by the users for these criteria.

Figure 5: User evaluation results.

According to the evaluation results, shown in

Figure 5, we can conclude that the BPEL users were

overall satisfied with the UI. Interestingly, the lowest

evaluation score (4.0) was found to be given by the

two BPEL users that had not used another UI for

BPEL scenario adaptation in the past. This is

attributed to the fact that these users had limited

experience on how the BPEL scenario adaptation is

applied and required more time to fully comprehend

the adaptation concepts and process, resulting in

above average number of trial-and-error attempts.

acceptance confidence satisfaction

user evaluation score

usability metrics

A User Interface for Tuning QoS Parameters in Recommendation-Based Business Process Scenario Adaptation

419

After the end of the evaluation, an open

discussion followed, where most of the participants

stated that they would be happy to use this UI both in

its current state and by incorporating it into another

compatible UI, like the ones in (Margaris et al.,

2020b; Margaris et al., 2021).

Regarding further improvement, two suggestions

were made by the users. The first suggestion was

about the threshold value used to determine whether

a service is considered to be of potential interest to the

user, which, for the experiments, and was set to ±0.5

for every QoS attribute participating in the process.

The participants suggested that the user should be

allowed to tune this threshold. This will be part of our

future work. The second issue concerns the threshold

tuning level, where the participants suggest the UI to

give the BPEL designer the ability to configure the

threshold both globally (to be applied in all REC

requests) and per REC request. This suggestion will

be also considered for our future work. An initial

assessment was that these suggestions could result in

a more flexible interface and allow for finer-

granularity tuning. A concern will be that of the

complexity of the interface that could also suffer, as a

result. Therefore, the interplay between these

dimensions will have to be assessed, together with the

ability of these extensions to contribute to the

formulation of solutions of considerably higher

overall quality.

6 CONCLUSION AND FUTURE

WORK

In this paper, we presented a specialised UI that

facilitated the WS-BPEL scenario adaptation process,

by allowing the users to request recommendations for

web service implementations, designating QoS

criteria that the recommended implementations must

satisfy. The UI provides a dedicated supporting

mechanism that enables the users to explore

additional service implementations that may not

satisfy the initially set criteria but are deemed to be of

potential interest to the user. The rationale behind the

proposed functionality was that in many real-life

cases, a person will accept/purchase a product or a

service that exceeds the threshold(s) that were

initially set by them, e.g., if the overhead is marginal

or the offer is deemed appealing.

We validated the proposed UI by conducting a

user study, in which WS-BPEL designers, both with

academic and commercial BPEL background, used

the UI to create and adapt WS-BPEL scenarios and

subsequently rated different aspects of the UI and

recorded their suggestions. This evaluation results

showed adequately high level of acceptance,

confidence, and satisfaction. Furthermore, the

majority of the BPEL designers mentioned that they

would happily use this UI, both in its current state and

by incorporating it into another compatible IDE.

Our future work will primarily focus on

extensions and improvements suggested by the BPEL

designers who participated in our experiments. These

involve the inclusion of a functionality that allows the

BPEL designer to (a) tune the threshold value used to

determine whether a service is considered to be of

potential interest to the user and (b) configure the

threshold both globally (to be applied in all REC

requests) and per service recommendation request.

Furthermore, we plan to provide the BPEL users the

ability to write their BPEL code using graphical tools

(e.g. implement suitable UI controls through which

users specify sequential and parallel execution

branches of the BPEL scenario, loop and conditional

execution constructs, and so forth). Finally, we plan

to extend the BPEL recommender process, including

collaborative filtering techniques between users who

share identical or similar functionalities (Zhao et al.,

2020, Wu et al., 2022).

REFERENCES

Albaum, G. (1997). The Likert scale revisited. Market

Research Society. Journal., 39(2), 1-21. SAGE Journals.

Alférez, G. H., Pelechano, V., Mazo, R., Salinesi, C., Diaz,

D. (2014). Dynamic adaptation of service compositions

with variability models. Journal of Systems and

Software, 91, 24-47. ELSEVIER.

Aljukhadar, M., Senecal, S., Daoust, C.-E. (2012). Using

Recommendation Agents to Cope with Information

Overload. International Journal of Electronic Commerce,

17(2), 41–70. Informa UK Limited.

Allen, I. E., Seaman, C. A. (2007). Likert scales and data

analyses. Quality progress, 40(7), 64-65.

Canfora, G., Di Penta, M., Esposito, R., Villani, M. L. (2005).

An approach for QoS-aware service composition based

on genetic algorithms. In Proceedings of the 7th annual

conference on Genetic and evolutionary computation

(pp. 1069-1075). ACM.

Chan, K. M., Bishop, J., Steyn, J., Baresi, L., Guinea, S.

(2009). A fault taxonomy for web service composition.

In Service-Oriented Computing-ICSOC 2007

Workshops: ICSOC 2007, International Workshops,

Vienna, Austria, September 17, 2007, Revised Selected

Papers 5 (pp. 363-375). Springer Berlin Heidelberg.

Christos, K., Vassilakis, C., Rouvas, E., Georgiadis, P.

(2009). QoS-driven adaptation of BPEL scenario

WEBIST 2023 - 19th International Conference on Web Information Systems and Technologies

420

execution. In 2009 IEEE International Conference on

Web Services (pp. 271-278). IEEE.

Deng, C., Yang, H., Liao, H., Sun, M., Qiu, Z. (2011,

August). Analysis of ws-bpel processes in prism. In 2011

Fifth International Conference on Theoretical Aspects of

Software Engineering (pp. 199-202). IEEE.

Dıaz, E., Panach, J. I., Rueda, S., Vanderdonckt, J. (2021) An

Empirical Study of Rules for Mapping BPMN Models to

Graphical User Interfaces. Multimedia Tools and

Applications, 80, 9813–9848. Springer

Science+Business Media, LLC.

Dionisis, M., Costas, V., Panagiotis, G. (2013). An integrated

framework for QoS-based adaptation and exception

resolution in WS-BPEL scenarios. In Proceedings of the

28th Annual ACM Symposium on Applied Computing

(pp. 1900-1906). ACM.

Driss, M., Ben Atitallah, S., Albalawi, A., Boulila, W. (2022).

Req-WSComposer: a novel platform for requirements-

driven composition of semantic web services. Journal of

Ambient Intelligence and Humanized Computing, 13,

849–865. Springer-Verlag.

Fu, X., Bultan, T., Su, J. (2004). Analysis of interacting

BPEL web services. In Proceedings of the 13th

international conference on World Wide Web (pp. 621-

630). ACM.

Karastoyanova, D., & Leymann, F. (2009). BPEL'n'Aspects:

Adapting service orchestration logic. In 2009 IEEE

International Conference on Web Services (pp. 222-229).

IEEE.

Liu, X., Xu, M., Teng, T., Huang, G., Mei, H. (2016). MUIT:

a domain-specific language and its middleware for

adaptive mobile web-based user interfaces in WS-BPEL.

IEEE Transactions on Services Computing, 12(6), 955-

969. IEEE.

Margaris, D., Georgiadis, P., Vassilakis, C. (2013). Adapting

WS-BPEL scenario execution using collaborative

filtering techniques. In IEEE 7th International

Conference on Research Challenges in Information

Science (RCIS) (pp. 1-11). IEEE.

Margaris, D., Vassilakis, C., Georgiadis, P. (2015a). An

integrated framework for adapting WS-BPEL scenario

execution using QoS and collaborative filtering

techniques. Science of Computer Programming, 98, 707-

734. ELSEVIER.

Margaris, D., Georgiadis, P., Vassilakis, C. (2015b). A

collaborative filtering algorithm with clustering for

personalized web service selection in business processes.

In 2015 IEEE 9th International Conference on Research

Challenges in Information Science (RCIS) (pp. 169-180).

IEEE.

Margaris, D., Spiliotopoulos, D., Kardiasmenos, A.,

Pantazopoulos, D. (2020a). An integer programming-

based algorithm for optimising the WS-BPEL scenario

execution adaptation process. International Journal of

Web Engineering and Technology, 15(3), 307-332.

Inderscience Enterprises Ltd.

Margaris, D., Spiliotopoulos, D., Vassilakis, C., Karagiorgos,

G. (2020b). A user interface for personalized web service

selection in business processes. In HCI International

2020–Late Breaking Papers: Interaction, Knowledge and

Social Media: 22nd HCI International Conference, HCII

2020, Copenhagen, Denmark, July 19–24, 2020,

Proceedings 22 (pp. 560-573). Springer International

Publishing.

Margaris, D., Spiliotopoulos, D., Vasilopoulos, D.,

Vassilakis, C. (2021). A user interface for personalising

WS-BPEL scenarios. In International Conference on

Human-Computer Interaction (pp. 399-416). Cham:

Springer International Publishing.

Maximilien, E.M., Singh, M.P. (2004). A framework and

ontology for dynamic web services selection. IEEE

Internet Computing, 8(5), 84-93.

Moser, O., Rosenberg, F., Dustdar, S. (2008). Non-intrusive

monitoring and service adaptation for WS-BPEL. In the

17th international conference on World Wide Web (pp.

815-824). ACM.

Mukherjee, D., Jalote, P., Gowri Nanda, M. (2008).

Determining QoS of WS-BPEL compositions. In

Service-Oriented Computing–ICSOC 2008: 6th

International Conference, Sydney, Australia, December

1-5, 2008. Proceedings 6 (pp. 378-393). Springer Berlin

Heidelberg.

Ouyang, C., Dumas, M., Ter Hofstede, A. H., Van der Aalst,

W. M. (2006). From BPMN process models to BPEL

web services. In 2006 IEEE International Conference on

Web Services (ICWS'06) (pp. 285-292). IEEE.

Pasley, J. (2005). How BPEL and SOA are changing web

services development. IEEE Internet computing, 9(3),

60-67. IEEE.

Raj, R.J.R., Sasipraba, T. (2010). Web service selection

based on QoS Constraints. In Trendz in information

sciences & computing (tisc2010) (pp. 156-162). IEEE.

Sun, C. A., Zhai, Y., Shang, Y., Zhang, Z. (2012). Toward

effectively locating integration-level faults in BPEL

programs. In 2012 12th International Conference on

Quality Software (pp. 17-20). IEEE.

Tragatschnig, S., Zdun, U. (2011). Runtime process

adaptation for bpel process execution engines. In 2011

IEEE 15th International Enterprise Distributed Object

Computing Conference Workshops (pp. 155-163). IEEE.

Yongchareon, S., Liu, C., Zhao, X., Yu, J., Ngamakeur, K.,

Xu, J. (2018). Deriving user interface flow models for

artifact-centric business processes. Computers in

Industry, 96, 66-85. ELSEVIER.

Wang, Q., Ying, S., Wen, J., Lv, G. (2012). Policy-based

exception handling for BPEL processes. In 2012 IEEE

International Conference on Information Science and

Technology (pp. 326-331). IEEE.

Wu, L., He, X., Wang, X., Zhang, K., Wang, M. (2022). A

survey on accuracy-oriented neural recommendation:

From collaborative filtering to information-rich

recommendation. IEEE Transactions on Knowledge and

Data Engineering, 35(5), 4425-4445. IEEE.

Zhao, S., Zhang, Q., Peng, Z., & Lu, X. (2020). Personalized

manufacturing service composition recommendation:

combining combinatorial optimization and collaborative

filtering. Journal of Combinatorial Optimization, 40,

733-756. Springer Science+Business Media, LLC.

A User Interface for Tuning QoS Parameters in Recommendation-Based Business Process Scenario Adaptation

421
