Using the Built-in iPhone Body Tracking System for Neurological

Tests: The Example of Assessing Arm Weakness in Stroke Patients:

A Preliminary Evaluation of Accuracy and Performance

Vittorio Lippi

1,2 a

, Isabelle Daniela Walz

2,3 b

, Tobias Heimbach

, Simone Meier

, Jochen Brich

Christian Haverkamp

and Christoph Maurer

Institute of Digitalization in Medicine, Faculty of Medicine and Medical Center, University of Freiburg,

Freiburg im Breisgau, Germany

Clinic of Neurology and Neurophysiology, Medical Centre, University of Freiburg, Faculty of Medicine,

University of Freiburg, Breisacher Straße 64, 79106, Freiburg im Breisgau, Germany

Department of Sport and Sport Science, University of Freiburg, Freiburg, Germany

{simone.meier.neurol, jochen.brich, christian.haverkamp, christoph.maurer}@uniklinik-freiburg.de

Keywords: iPhone Arkit, Neurology, Diagnostic Tests, Body Tracking.

Abstract: Timely treatment of stroke is critical to minimize brain damage. Therefore, efforts are being made to educate

the public on detecting stroke symptoms, e.g., face, arms, and speech test (FAST). In this position paper, we

propose to perform the arm weakness test using the integrated video tracking from an iPhone—some general

tests to assess the tracking quality and discuss potential critical points. The test has been performed on 4 stroke

patients. The result is compared with the report of the clinician. Although presenting some limitations, the

system proved to be able to detect arm weakness as a symptom of stroke. We envisage that introducing a

portable body tracking system in such clinical tests will provide advantages in terms of objectivity,

repeatability, and the possibility to record and compare groups of patients.

1 INTRODUCTION

"Time is brain" – the later the treatment for a large

vessel ischemic stroke, the more brain neurons are

lost, and each hour costs around 3.6 years of normal

aging (Saver, 2006). The magnitude of the insult

plays a pivotal role in determining the course of

action for rescue operations. It determines whether

the patient is taken to a nearby hospital, typically for

smaller infarctions, or a comprehensive stroke center

(CSC), usually for larger infarctions (Václavík et al.,

2018). Early thrombolytic therapy leads to a

significantly better functional outcome in patients

(Ospel et al., 2020). It is, therefore, crucial to assess

the extent of the infarction as early as possible,

but preferably when the emergency call is made.

https://orcid.org/0000-0001-5520-8974

https://orcid.org/0000-0002-8033-1429

https://orcid.org/0000-0001-6325-1892

https://orcid.org/0000-0001-8165-4783

https://orcid.org/0000-0001-9050-279X

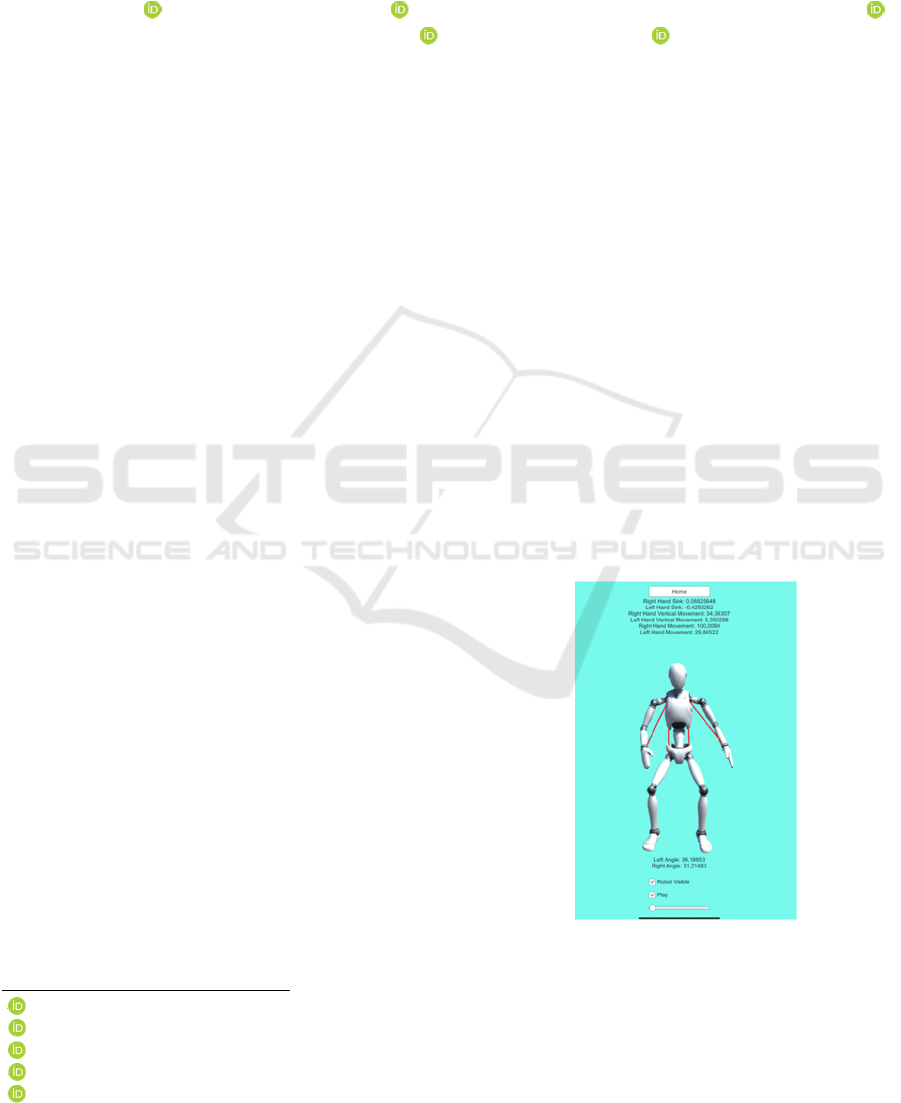

Figure 1: The "Robot" from the custom tracking application

shows the kinematic as the system tracks it.

Lippi, V., Walz, I., Heimbach, T., Meier, S., Brich, J., Haverkamp, C. and Maurer, C.

Using the Built-in iPhone Body Tracking System for Neurological Tests: The Example of Assessing Arm Weakness in Stroke Patients: A Preliminary Evaluation of Accuracy and Performance.

DOI: 10.5220/0012208600003543

In Proceedings of the 20th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2023) - Volume 2, pages 181-188

ISBN: 978-989-758-670-5; ISSN: 2184-2809

181

Figure 2: Healthy subject simulating a positive result for the

test.

Efforts are therefore being made to educate patients,

family members, and the general public (Saver et al.,

2010). In rural areas, particularly when faced with a

significant infarction, it becomes difficult to hit the

within-3-hour window for an early thrombolytic

therapy (Morris et al., 2000). Thus, efforts are

underway to develop reliable methods for detecting

substantial blockages, if possible, even from

laypersons. In prehospital settings, the Face, Arms,

Speech, Time (FAST) test is the most frequently

employed scale to identify signs of stroke (Aroor et

al., 2017; Budinčević et al., 2022). Especially the

Arm Test in the FAST seems to be good for detecting

a large vessel occlusion (LVO). Severe hemiparesis

but also mono paresis are considered the most

recognizable symptoms of an LVO stroke (Nakajima

et al., 2004). The test is easy and straightforward to

perform, does not require specific equipment, and can

be performed everywhere, even on patients who

cannot leave the bed. The test is qualitative by nature

(as a result is "positive" or "negative") but is based on

the judgment of the examiner. The introduction of an

easy and quantitative measure (i.e., hand tracking) by

only recording the arm test may provide advantages

in terms of A faster detection from laypersons and

easy documentation for emergency service.

Nowadays, sensors in technologies have improved

and are built into wearable devices like smartphones.

Since 2020, the iPhone has been equipped with a

LiDAR scanner capable of assessing three-

dimensional scanning (Bhandarkar et al., 2021). So

far, evaluation of the LiDAR sensor in mobile devices

is still ongoing. The first results in scanning

landscapes and little objects lead to the results that

only larger objects can be measured (Teppati Losè et

al., 2022). For objects >10 cm, an absolute accuracy

of 1 cm is estimated. Therefore, we want to introduce

a first easy and quantitative measure (i.e., hand

tracking) by recording the arm test. This may provide

advantages in terms of faster detection from

laypersons and easy documentation for emergency

services for people with stroke.

2 MATERIALS AND METHODS

2.1 The Smartphone Application

In order to perform the presented tests, an application

has been developed with a unity engine, exploiting C

code to interface with the ARKit library. The

application can work on smartphones (iPhone) and

tablets (iPad, Apple Inc., Cupertino, California).

Specifically, the smartphone used in patient tests was

the iPhone 12 Pro (2020, 128 GB, A14 Bionic chip,

Model A2341), and the iPad (2021, 512 GB, 5

Generation, Apple M1 chip, Model A2378) was used

for the preliminary tests. Both devices were equipped

with LiDAR and True Depth capability. The

preliminary test used the Captury system (§2.4) as a

reference.

2.2 Tracking Library Overview

The Arkit Library for iPhone and iPad is designed for

augmented reality. With this purpose, it provides the

capturing of body motion in 3D: tracking a subject in

the physical environment and visualizing their motion

by applying the same body movements to a virtual

character. The library relies on the camera and a

LIDAR system, using lasers as a light source and the

Time-of-Flight technique to measure distances

(Gillihan, 2023). A skeleton (see the "robot" in Fig.

1) is fit on the tracked body, providing joint angles

and link positions as output.

2.3 A Preliminary Tapping Test with

the Captury System

In order to visualize the precision of the iPhone/Arkit

system, a task with a defined hand movement has

been used. Specifically, participants were told to

touch two platforms with one hand as quickly as

possible for 20 seconds. They were sitting on a chair

while doing this arm-movement test. The platforms

were positioned on the floor, aligned with the

participant's feet. The platforms were 75 cm tall, and

there was a 26 cm distance between them. This test

was proposed by (Walz et al., accepted) and is based

on the water-pouring task in the Fahn-Tolosa-Marin

Clinical Rating Scale for Tremor (Fahn et al., 1988).

ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics

182

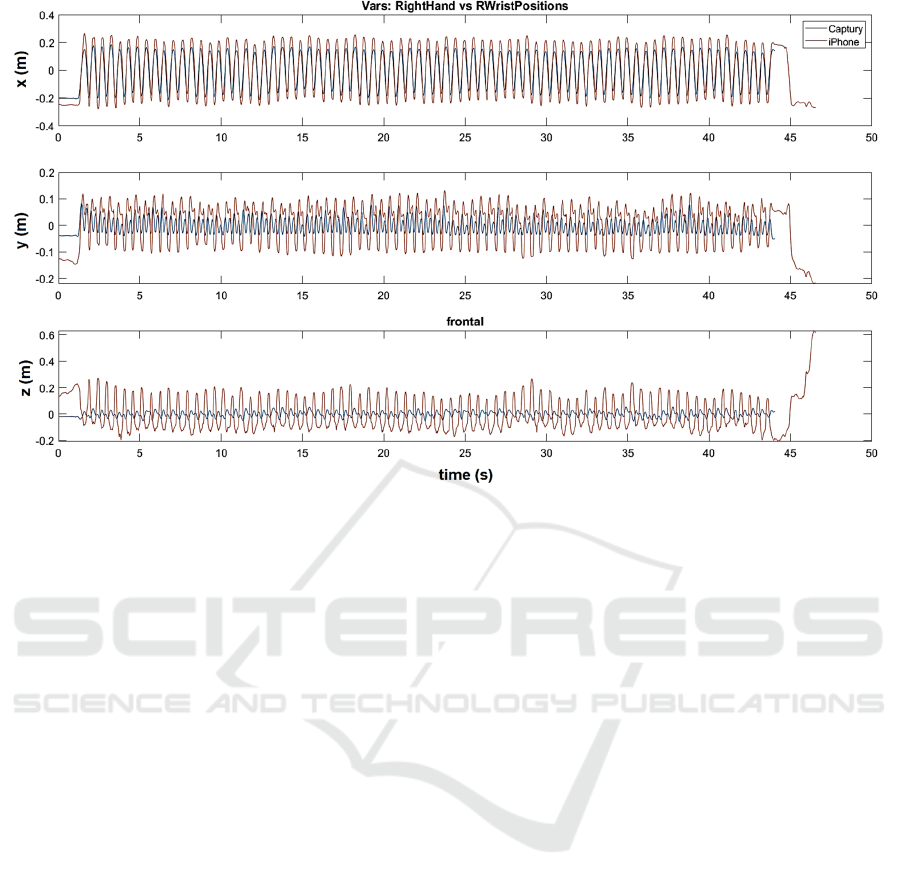

Figure 3: Tracking of the right hand during the tapping test. The plot shows one trial with the subject facing the camera. As

the “skeletons” used in the iPhone and the Captury systems differ, the right hand tracked by the former is compared with the

right wrist tracked by the latter. The components x,y, and z are expressed with respect to the camera and represent the left/right

position (x), the vertical position (y), and the distance from the camera. The tracking is worse in the z-axis, as it is evident

that there is a ripple effect. In this case (frontal view), the error is not much relevant in identifying the task.

We used the markerless system Captury (The

Captury GmbH, Saarbrücken, Germany). to provide

ground truth test movements (repetitive repeated arm-

movements, as shown in Fig. 3). The Captury uses a

method called visual hull and background subtraction

to identify the shape of the subject. Then, it fits a

skeleton on such a shape using an automatic scaling

process. The camera system captures the movements

at a rate of 50 Hz, giving us precise data on the

positions of different body parts like the wrist, elbow,

shoulder, hip, knee, and ankle and joint angles. In

order to align the data between the two systems, the

cross-correlation between the respective tracking of

the moving hand is used:



∗































(1)

Specifically, the delay between the two systems is

the  that maximizes eq (1), where and  are the

profiles tracked with the two systems. The three-

position components are used; hence, the product

between the two functions is a scalar product 



.

All the computations were performed in Matlab

(R2019b; MathWorks, Natick, Ma).

2.4 Participants

We recruited a total of 4 stroke patients for our study.

All participants demonstrated their comprehension of

the study procedures and provided written consent in

accordance with the Declaration of Helsinki (World

Medical Association, Declaration of Helsinki: Ethical

principles for medical research involving human

subjects, 2013).

2.5 The Arm Weakness Test

Before the main study, we conducted a pilot test,

leading to minor changes in our test instructions.

Specifically, patients were instructed to extend both

arms in front of them, forming a V-shape to allow for

better visibility of both arms. They were asked to fully

extend their elbows and wrists while keeping their

palms open and facing upward. Once patients closed

their eyes, a 10-second recording was initiated to

capture their movements. A clinical expert evaluated

the patients' performance while simultaneously

recording the motion data. The arm weakness was

assessed via item 5 of the NIHSS rating scale (0 - no

drift. 1 - drift, 2 - some effort against gravity, 4 - no

movement). All recordings were made from a frontal

perspective, with the patients seated upright.

Using the Built-in iPhone Body Tracking System for Neurological Tests: The Example of Assessing Arm Weakness in Stroke Patients: A

Preliminary Evaluation of Accuracy and Performance

183

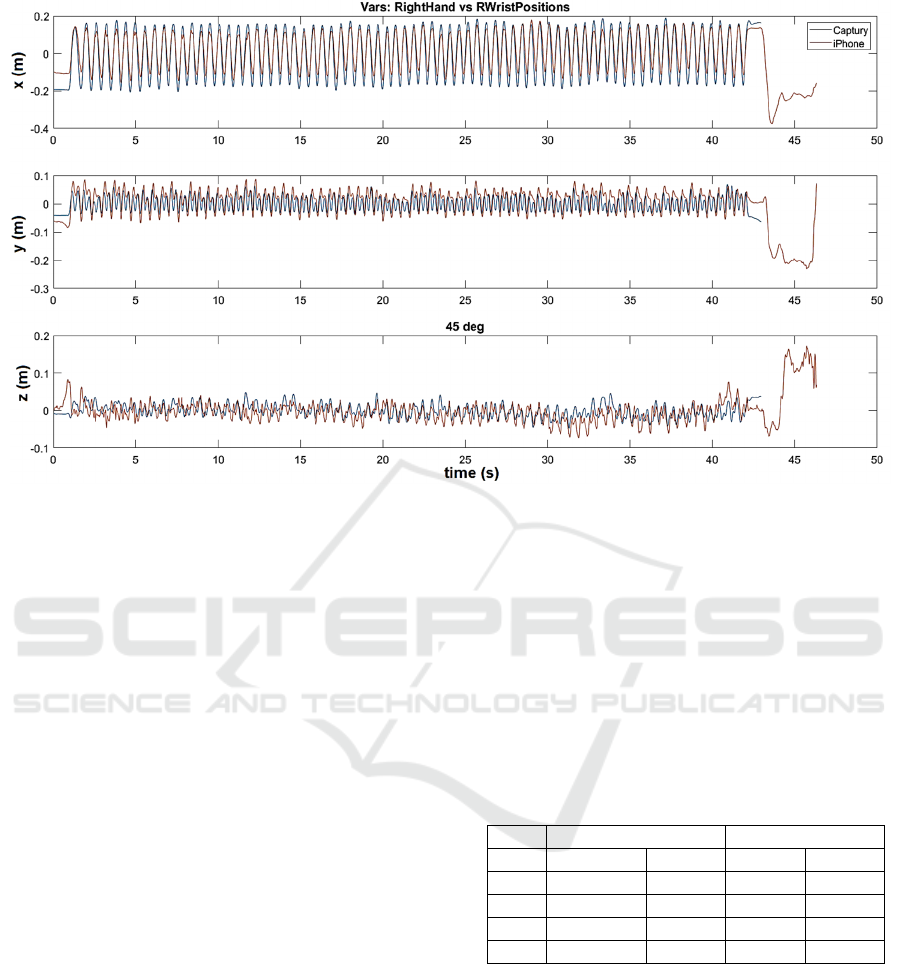

Figure 4: Tracking of the right hand during the tapping test. The plot shows one trial with the iPhone at 45° with respect to

the subject. As the “skeletons” used in the iPhone and the Captury systems differ, the right hand tracked by the former is

compared with the right wrist tracked by the latter. The components x,y, and z are expressed with respect to the iPhone camera

and represent the left/right position (x), the vertical position (y), and the distance from the camera (z). The output of the

Captury system has been rotated by 45° around the y-axis accordingly. The overall distortion is smaller than the one in Fig.

3, especially on the x-axis, as reported in Table 1.

3 RESULTS

3.1 Preliminary Test

The trials were performed with the iPhone in front of

the subject and with an approximately 45° angle with

respect to the subject. As the "skeletons" used in the

iPhone and the Captury systems differ, the right hand

tracked by the former is compared with the right wrist

tracked by the latter. Fig. 3 shows the movement of

the hand with the phone in front of the subject. In this

configuration, the tracking of the right hand during

the tapping task is better in the frontal plane than in

the tracking of the depth (z-axis). The plot in Fig. 4

depicts a single trial where the iPhone is positioned at

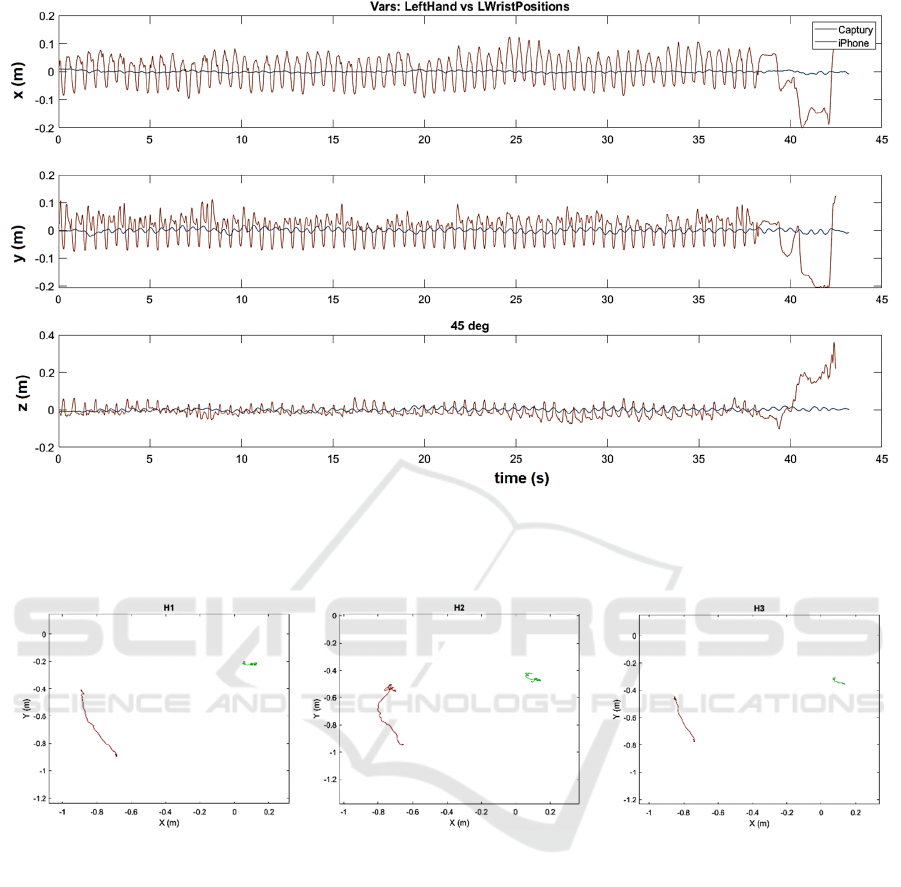

a 45° angle from the subject. In Fig 5, the same

tracking with a 45° angle is shown for the left hand

(not moving). The capture system demonstrates the

absence of hand movement. However, the left hand,

partially occluded, exhibits a rippling movement

attributed to an artifact caused by the skeleton

"shaking." Notably, the frequency of this artifact

movement matches that of the intended movement

performed by the subject. Overall, the iPhone

tracking system identifies the movement of a body

Table 1: Tracking error expressed as the standard deviation

of the difference between the tracking performed by the

iPhone and the Captury. The difference is computed over

30 seconds of tracking of the tapping test. The right and the

left wrist are tracked. The right hand is performing the task;

the right hand is kept in a relaxed position resting on the

thigh.

Frontal 45° de

rees

Right* Lef

X 0.0610 0.0499 0.0438 0.0571

Y 0.0640 0.0871 0.0292 0.0532

Z 0.1282 0.0711 0.0226 0.0510

total 0.1558 0.1230 0.0573 0.0932

segment and its timing (i.e., the frequency is

consistent with the one observed with the Captury)

but has some error in movement amplitude in

agreement with what was observed in early

experiments (Reimer et al., 2021). Table 1 reports the

difference between the Captury and the iPhone

tracking in the first 30 seconds (after that, the subject

stopped performing the movement, as is visible in

Fig. 2,3, and 4) in terms of mean squared error. It is

interesting to notice how, for the right hand, the 45°

view produced a smaller tracking error, especially on

the z-axis.

ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics

184

Figure 5: Tracking of the left hand during the tapping test. The plot shows one trial with the iPhone at 45° from the subject.

The capture system shows that the hand is not moving. The partially occluded left hand is affected by a rippling movement

that is an artifact due to the skeleton's "shacking." The frequency of the artifact movement is one of the voluntary movements

performed with the right hand.

Figure 6: Three healthy subjects simulating a positive test. Hand trajectory tracking in the frontal plane from the iPhone.

3.2 The Arm Weakness Test

A preliminary check with healthy subjects simulating

a test with positive results (Fig. 2) produced the

trajectories shown in Fig. 6. It is evident how the

range of motion of the hand that is dropping allows

for positive identification of the movement and

lateralization of the problem. The test with the four

patients produced the outcome shown in Fig. 7 and

described in Table 2. For the two subjects, S2 and S3,

the iPhone tracking shows an evident drop (they were

rated 1 by the doctor). The most severe case is

represented by S4, rated 3. It was recorded in a lying

position because of the impossibility of the patient to

sit-stand upright. This produced less stable tracking

and more "shaky" than the other cases. The excursion

on the y-axis shows a large drift, although the patient

returned to the original position. The tracking of hand

pronation is not always reliable, as shown in Fig. 8.

In some cases, e.g., subject 3 (S3), the pronation is

clearly visible; in some recordings, it is ambiguous,

like for subject 4 (S4). This is because, in general, the

tracking of hand orientation is not always stable.

Table 3 shows the amplitude of the vertical drop for

the hands recorded in the tests (also the ones

simulated by the healthy subject). It is evident that the

hand affected by weakness is moving at a larger

distance compared to the stable one. This allows for

identifying the positive cases with a simple threshold,

e.g., in the presented cases, a threshold of 30 cm

would identify all the positive cases addressed by the

doctor.

Using the Built-in iPhone Body Tracking System for Neurological Tests: The Example of Assessing Arm Weakness in Stroke Patients: A

Preliminary Evaluation of Accuracy and Performance

185

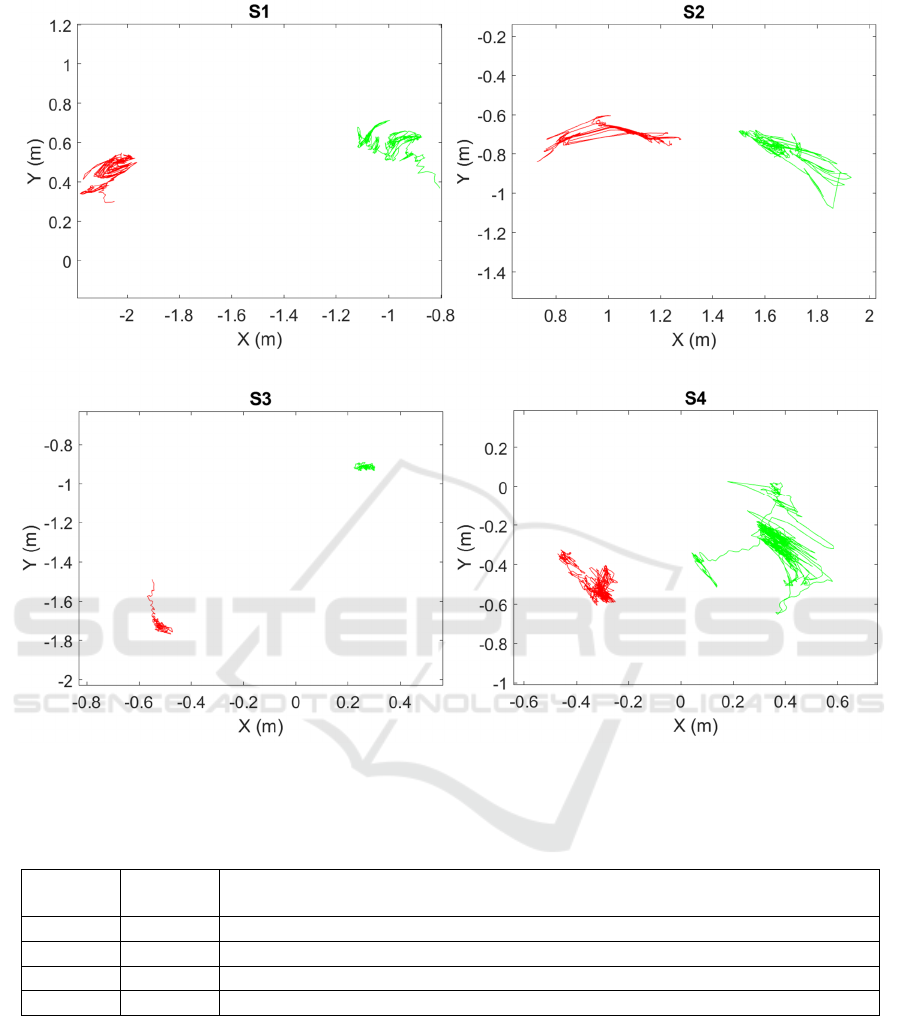

Figure 7: Test on stroke patients. In red, the right hand. In green, the left. The large vertical excursion (hand drop) is evident

in the cases classified as positive by the doctor (i.e., S2, S3, S4).

Table 2: Report from the physician with the rating and some comments. Rating based on the NIHSS item 5 – Motor arm, 0 -

no drift. 1 - drift, 2 - some effort against gravity, 4 - no movement).

Patient

Rating Comments

S1 0 Pronation on the left, slightly bent elbow on the right, but then corrected it.

S2 1 Pronation and minimal lateral descent of the right arm <10cm

S3 1 Not sinking all the way to the bottom

S4 3

4 DISCUSSION CONCLUSIONS

AND FUTURE WORK

The results show that the iPhone body tracking system

is suitable for identifying hand drops in patients and

capturing movement features such as movement

frequency for tasks like tapping in Fig 3,4, and 5.

Although equipped with a LIDAR that allows for

direct measurement of depth, the iPhone can be prone

to significant errors on the z-axis when the pose is

ambiguous (Fig.3). This agrees with previous analysis

reporting that, while the precision of the tracking is

limited the system can provide useful features to be

applied to patient examination (Reimer et al., 2021).

ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics

186

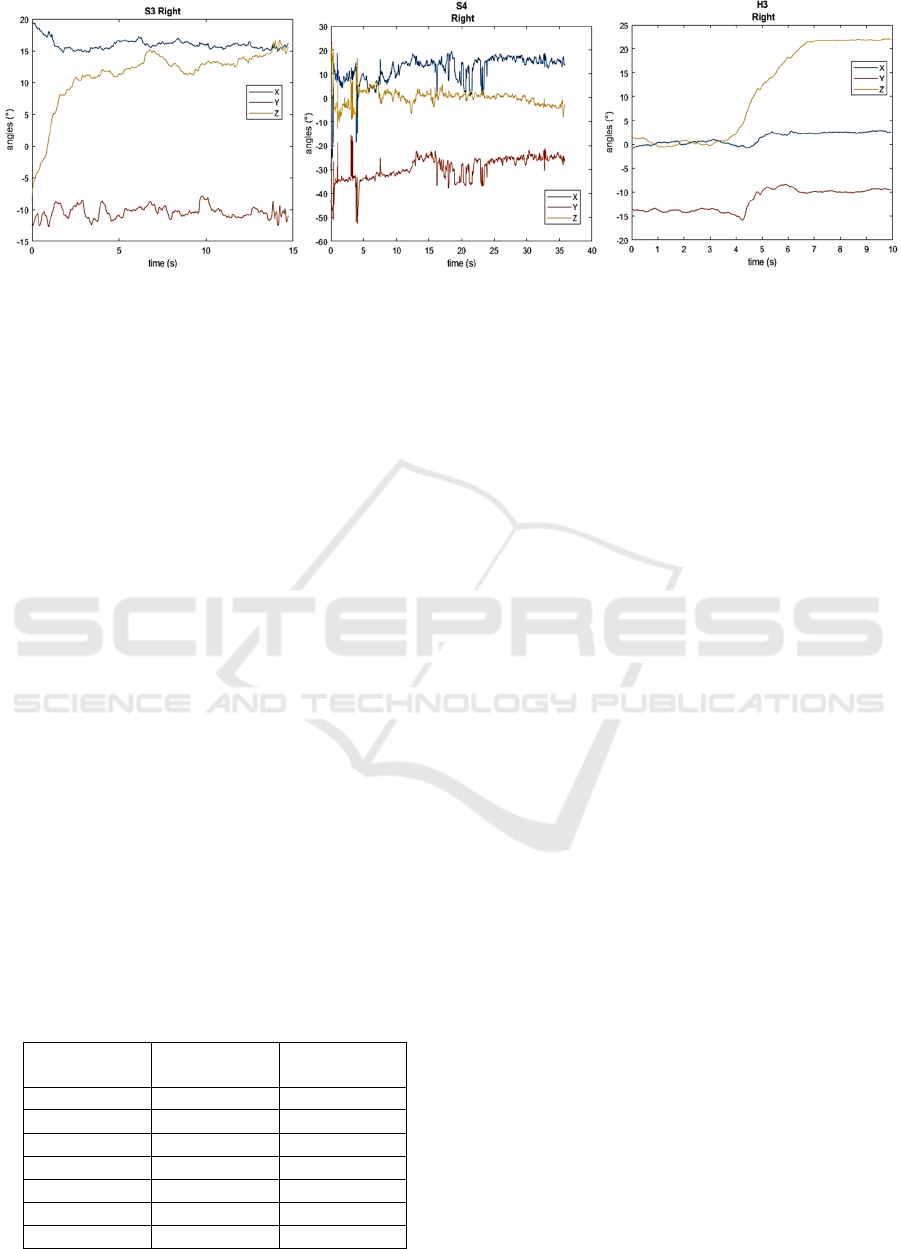

Figure 8: Tracking hand pronation. The figure shows the hand's orientation that is dropping during the test. On the left, the

pronation is visible, accounting for a total rotation of about 20° around the z-axis. A similar outcome is visible on the right

with the healthy subject H3. Subject S4 exhibits a very noisy trajectory from which it is impossible to assess the pronation

properly.

Since the tasks examined in this paper require no

feedback from the user, no considerations have been

made about the delay that is not visible in the figures

as the Captury and the iPhone recordings were

aligned using eq. (1). For this purpose, it should be

considered that the patient could perceive the delay

from about 70 – 80 ms (Morice et al., 2008), and such

an amount of delay can degrade the performance in

the performed task (Lippi et al., 2010). This may be

relevant in some applications as the iPhone tracking

system is estimated to introduce around 120 ms of

latency (Unlu & Xiao, 2021).

One intrinsic limitation of the iPhone is that being

a single camera system, it is prone to the problem of

occlusion (see the artifact movements of the hidden

hand in Fig. 5). On the other hand, the experiments

with different recording angles showed good

flexibility in the possibilities to record the patient as

required for the performed test. While the position

tracking is good enough to identify the drop and be

recorded as a quantitative measure, but the rotation

was not always reliable in the examples. The

integration of inertial units could improve overall

precision, as shown in some applications, mainly

using additional IMUs that the iPhone can read (e.g.:

Table 3: Vertical hand excursion was recorded with the

healthy subjects and the simulated test.

Subjec

Lef

-hand

drop (m)

Righ

-hand

drop (m)

H1 0.0320 0.4934

H2 0.0704 0.4478

H3 0.0496 0.3314

S1 0.2528 0.3479

S2 0.2367 0.3982

S3 0.0417 0.2777

S4 0.7277 0.4672

in Kask & Kuusik, 2019; Monge & Postolache,

2018). To the best of our knowledge, there are no

examples of test where the iPhone is handed to the

patient for the test. The use of IMUs, on the other

hand, would come at the costs of complicating the

experimental test setup.

Overall, applying the iPhone as a diagnostic tool

for neurological patients seems promising. One open

point is storing the data from such tests in a way that

is useful to make statistics on the patients and refine

the model while preserving the subject's privacy. The

design of an aggregated storage system will be the

object of future work.

REFERENCES

Aroor, S., Singh, R., & Goldstein, L. B. (2017). BE-FAST

(Balance, Eyes, Face, Arm, Speech, Time): Reducing the

Proportion of Strokes Missed Using the FAST

Mnemonic. Stroke, 48(2). https://doi.org/10.1161/

STROKEAHA.116.015169

Bhandarkar, A. R., Bhandarkar, S., Jarrah, R. M., Rosenman,

D., & Bydon, M. (2021). Smartphone-Based Light

Detection and Ranging for Remote Patient Evaluation

and Monitoring. Cureus. https://doi.org/10.7759/

cureus.16886

Budinčević, H., Meštrović, A., & Demarin, V. (2022). Stroke

Scales as Assessment Tools in Emergency Settings: A

Narrative Review. In Medicina (Lithuania) (Vol. 58,

Issue 11). https://doi.org/10.3390/medicina58111541

Fahn, S., Tolosa, E., & Marin, C. (1988). Clinical Rating

Scale for Tremor. In Parkinson’s disease and movement

disorders.

Gillihan, R. (2023). Accuracy Comparisons of iPhone 12 Pro

LiDAR Outputs. University of Colorado Denver.

Kask, T., & Kuusik, A. (2019). Performance comparison of

smartphones and a wearable motion sensor for patient m-

assessment. Proceedings of the Biennial Baltic

Using the Built-in iPhone Body Tracking System for Neurological Tests: The Example of Assessing Arm Weakness in Stroke Patients: A

Preliminary Evaluation of Accuracy and Performance

187

Electronics Conference, BEC, 2018-October.

https://doi.org/10.1109/BEC.2018.8600973

Lippi, V., Avizzano, C. A., Mottet, D., & Ruffaldi, E. (2010).

Effect of delay on dynamic targets tracking performance

and behavior in virtual environment. Proceedings - IEEE

International Workshop on Robot and Human Interactive

Communication, 446–451. https://doi.org/10.1109/

ROMAN.2010.5598607

Monge, J., & Postolache, O. (2018). Augmented Reality and

Smart Sensors for Physical Rehabilitation. EPE 2018 -

Proceedings of the 2018 10th International Conference

and Expositions on Electrical And Power Engineering.

https://doi.org/10.1109/ICEPE.2018.8559935

Morice, A. H. P., Siegler, I. A., & Bardy, B. G. (2008).

Actionperception patterns in virtual ball bouncing:

combating system latency and tracking functional

validity. J Neurosci Methods, 1(255), 255–266.

Morris, D. L., Rosamond, W., Madden, K., Schultz, C., &

Hamilton, S. (2000). Prehospital and Emergency

Department Delays After Acute Stroke. Stroke, 31(11),

2585–2590. https://doi.org/10.1161/01.STR.31.11.2585

Nakajima, M., Kimura, K., Ogata, T., Takada, T., Uchino,

M., & Minematsu, K. (2004). Relationships between

Angiographic Findings and National Institutes of Health

Stroke Scale Score in Cases of Hyperacute Carotid

Ischemic Stroke. American Journal of Neuroradiology,

25(2).

Ospel, J. M., Menon, B. K., Demchuk, A. M., Almekhlafi,

M. A., Kashani, N., Mayank, A., Fainardi, E., Rubiera,

M., Khaw, A., Shankar, J. J., Dowlatshahi, D., Puig, J.,

Sohn, S. Il, Ahn, S. H., Poppe, A., Calleja, A., Hill, M.

D., & Goyal, M. (2020). Clinical course of acute

ischemic stroke due to medium vessel occlusion with and

without intravenous alteplase treatment. Stroke.

https://doi.org/10.1161/STROKEAHA.120.030227

Reimer, L. M., Weigel, S., Ehrenstorfer, F., Adikari, M.,

Birkle, W., & Jonas, S. (2021). Mobile Motion Tracking

for Disease Prevention and Rehabilitation using Apple

ARKit. Studies in Health Technology and Informatics,

279. https://doi.org/10.3233/SHTI210092

Saver, J. L. (2006). Time is brain - Quantified. In Stroke (Vol.

37, Issue 1). https://doi.org/10.1161/01.STR.000019695

7.55928.ab

Saver, J. L., Smith, E. E., Fonarow, G. C., Reeves, M. J.,

Zhao, X., Olson, D. M., & Schwamm, L. H. (2010). The

“Golden Hour” and Acute Brain Ischemia. Stroke, 41(7).

https://doi.org/10.1161/strokeaha.110.583815

Teppati Losè, L., Spreafico, A., Chiabrando, F., & Giulio

Tonolo, F. (2022). Apple LiDAR Sensor for 3D

Surveying: Tests and Results in the Cultural Heritage

Domain. Remote Sensing, 14(17). https://doi.org/

10.3390/rs14174157

Unlu, A. E., & Xiao, R. (2021). Pair: Phone as an augmented

immersive reality controller. Proceedings of the ACM

Symposium on Virtual Reality Software and Technology,

VRST. https://doi.org/10.1145/3489849.3489878

Václavík, D., Bar, M., Kleč

ka, L., Holeš, D., Čábal, M., &

Mikulík, R. (2018). Prehospital stroke scale (FAST

PLUS Test) predicts patients with intracranial large

vessel occlusion. Brain and Behavior, 8(9).

https://doi.org/10.1002/brb3.1087

Walz, I. D., Waibel, S., Kuhner, A., Gollhofer, A., &

Christoph, M. (n.d.). Age-related changes in mobility

assessments correlate with repetitive goal-directed arm-

movement performance. BMC Geriatrics.

World Medical Association Declaration of Helsinki: Ethical

principles for medical research involving human

subjects. (2013). In JAMA (Vol. 310, Issue 20, pp. 2191–

2194). https://doi.org/10.1001/jama.2013.281053

ICINCO 2023 - 20th International Conference on Informatics in Control, Automation and Robotics

188
