Knowledge Graphs Alignment Based on Learning to Rank Methods

Victor Yamamoto

and Julio Cesar dos Reis

University of Campinas, Campinas, SP, Brazil

Keywords:

Knowledge Graphs, Entity Alignment, Supervised Ranking Aggregation.

Abstract:

Knowledge graphs (KGs) deﬁne facts expressed as triples in representing knowledge. Usually, several knowl-

edge graphs are published in a given domain. It is relevant to create alignments both for classes that model

concepts and between instances of those classes deﬁned in different knowledge graphs. In this article, we study

techniques for aligning entities expressed in KGs. Our solution explores the supervised ranking aggregation

method in the alignment based on similarity values. Our experiments rely on the dataset from the Ontology

Alignment Evaluation Initiative to evaluate the proposed method in experimental analyzes. Obtained results

indicate the effectiveness in our alignment technique in the investigated datasets.

1 INTRODUCTION

The term knowledge graphs was coined by Google

when it introduced this technology as the basis for a

new web search strategy in 2012 (Ringler and Paul-

heim, 2017a). A traditional search method uses key-

words to search for the expected results, but the terms

can be ambiguous and limit the retrieved information.

The use of knowledge graphs allows the search to be

carried out for objects that represent real entities such

as places, people and movies. These entities and their

relationships allow performing information retrieval

by using a context in which the term is searched for.

This helps in reducing the ambiguity of terms, and

improving the quality of information returned when

using the entities’ relationships (Singhal, 2014).

Large-scale knowledge graphs (KGs) like DBpe-

dia

, YAGO

and Wikidata

play a central role as a

source of general knowledge. These KGs present a

good coverage regarding the entities represented and

expressed in several domains. However, they lack

covering speciﬁc topics or they usually are addressed

with little detail (Hertling and Paulheim, 2018). The

aforementioned KGs present similar information, as

they all use Wikipedia as the basis for creating enti-

ties and their relationships. Their use in a combined

way requires creating links between entities of differ-

https://orcid.org/0000-0002-3825-6461

https://orcid.org/0000-0002-9545-2098

http://dbpedia.org

https://yago-knowledge.org

https://www.wikidata.org/wiki/Wikidata:Main Page

ent KGs (Ringler and Paulheim, 2017b). For exam-

ple, “Black Panther”

is an entity from Marvel Cine-

matic Universe Wiki, which is mapped to the Marvel

Database entity “Black Panther”

Hofman et al. (Hertling and Paulheim, 2018) used

a two-step method to create mappings between KGs

generated from Wikis. First, mappings were gener-

ated between each Wiki and DBpedia. Using these

mappings, the KGs were grouped in blocks and the

mappings between Wikis were created only between

graphs of the same group. To obtain the related enti-

ties, a string distance algorithm was used based on the

labels of the entities.

Learning to Rank is a machine learning technique

for training ordering models. This technique can be

used in several areas such as information retrieval,

natural language processing and data mining. An ex-

ample of application of such technique is the retrieval

of documents. A system manages a set of documents

and when a query is executed, the system searches

for documents containing the queried terms, order the

documents based on different processed ranking lists

and returns the best results (LI, 2011).

In the creation of an alignment (process of gener-

ating mappings between KG entities), the simplest ap-

proach might look for all possible pairs in a set. How-

ever, this approach becomes prohibitive for larger

sets. Locality-sensitive Hashing (LSH) (Leskovec

et al., 2014) allows the comparison between similar

https : / / marvelcinematicuniverse.fandom.com / wiki /

Black Panther

https://marvel.fandom.com/wiki/Black Panther

Yamamoto, V. and Reis, J.

Knowledge Graphs Alignment Based on Learning to Rank Methods.

DOI: 10.5220/0012258100003598

In Proceedings of the 15th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2023) - Volume 2: KEOD, pages 315-322

ISBN: 978-989-758-671-2; ISSN: 2184-3228

315

pairs. The items are provided in a hash, in which

the probability of two items having the same hash is

based on the similarity value between them. In this

sense, the candidate pairs are those that are in the

same hash bucket .

In this article, we propose and evaluate a method

for the alignment of KGs based on Learning to Rank

techniques. In our approach, we investigate the can-

didate reduction methods based on Locality-sensitive

Hashing. We experimentally evaluate our proposal

based on the test dataset offered by the OAEI (On-

tology Alignment Evaluation Initiative) competition

. The quality of the mappings created by our solution

are evaluated by comparing them with the alignment

provided by the competition (as a gold standard). In

our results, the proposed technique obtained high re-

call in the created mappings, but affected precision in

several cases. Compared to existing baseline systems,

our approach presents lower f-measure for class and

instance, but higher f-measure for property.

The remaining of this article is organized as fol-

lows: Section 2 presents a literature review. Sec-

tion 3 introduces the necessary formalization; Section

4 describes our proposal; Section 5 presents the ex-

perimental results conducted; Section 6 discusses the

achieved results; Section 7 summarizes the conclu-

sions.

2 BACKGROUND

Several systems have proposed creating mappings be-

tween entities of KGs. AgreementMakerLight Ontol-

ogy Matching System (AML) (Faria et al., 2013) is

a framework that maps ontologies using four types

of matchers and implements a ranked selector. The

matchers are lexicon, lexicon mediated by a third

ontology; words using the Jaccard index (Jaccard,

1912); and a set of parameters exploring string simi-

larity methods. To obtain the best mappings, the re-

sults of the matchers are ordered in a uniﬁed list from

the best to the worst. The mappings are created based

on such an ordered list.

FCAMap-KG system (Chang et al., 2019) uses the

analysis of formal concepts to create mappings. This

system organizes the process into three stages: lex-

ical match, structural match, and match ﬁlter. The

ﬁrst step creates three formal contexts for classes,

properties, and instances based on keys. In OAEI

KG context, those types were created to fuse differ-

ent KGs into one coherent KG. Schema type (classes

and properties) derives from wikis’ constructs, and in-

http://oaei.ontologymatching.org

stance type derives from pages about real-world en-

tities (Hertling and Paulheim, 2020). A mapping is

created when a formal concept contains objects from

the two KGs under alignment. In the second stage,

the previously obtained mappings are used to create a

structured formal context. This step focuses on creat-

ing mappings between the instances using RDF triples

whose properties and subsequent instances were al-

ready mapped. In the last step, the mappings are se-

lected so that each entity has only one mapping. This

operation can be carried out because the OAEI 2019

KG competition uses only 1:1 matches. If an entity

has more than one mapping, the mapping with more

structural attributes and lexical keys in common is se-

lected in this technique. DOME system (Deep On-

tology MatchEr) (Hertling and Paulheim, 2019) uses

doc2vec method to obtain the mappings. Doc2vec

is an algorithm that learns ﬁxed-length feature rep-

resentations from variable-length pieces of text. Each

document is represented as a vector trained to predict

words in the documents

Learning to Rank (LTR) is a machine learning

technique for training the model to rank (LI, 2011).

The system manages a system of documents. When

queried, the system retrieves documents related to

the query, ranks the documents, and returns the top-

ranked documents. The differences between learning

to rank and other models are that LTR does not need to

predict the absolute value of the items (regression); it

does not need to predict the class of items (classiﬁca-

tion); the important thing is to obtain the relative rank-

ing of items. Our method explored LambdaMart, a

pairwise learning-to-rank technique. Destro et al. (Ju-

liana M. Destro and da S. Torres, 2019) explored sev-

eral rank aggregation techniques for aligning cross-

lingual ontologies and found that LambdaMart have

the best results.

3 FORMAL PRELIMINARIES

Knowledge Graph. A knowledge graph K accumu-

lates and conveys knowledge in term of entity and re-

lations (Hogan et al., 2020). Formally, a knowledge

graph K = (E

, R

) consists of a set of entities E

represented as nodes; and entities are interrelated by

directed relationships R

. Each entity e ∈ E

has a

unique identiﬁer and type. The entity identiﬁer uses

Universal Resource Identiﬁer (URI) that is a string

used to identify resources and provide a mean of lo-

cating the resource Entity type can be of schema level,

formed by properties and classes, and instance level.

Each relationship r(e

, e

) ∈ R

is a triple consist-

ing of a subject, a predicate and an object.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

316

Mapping. Given two entities e

and e

from two dif-

ferent KGs, a mapping m

is deﬁned as:

= (e

, e

, con f ) (1)

The con f is the similarity value between e

and e

indicating the conﬁdence of their relation. We deﬁne

as a set of mappings m

between two KGs K

and K

Similarity. Given two entities e

and e

, the similar-

ity between them is deﬁned as a function that cal-

culates the similarity score between them returning

a real value in the interval [0,1]. The function can

explore different techniques for similarity computa-

tion, like string-based processing and semantic-based

techniques which explore background knowledge for

similarity computation. Formally:

sim(e

, e

) = f (e

, e

) (2)

Rank Aggregation. Consider a set of rankings R

, R

, ..., R

formed by set of similarity proposals S

, S

, ... S

. Each similarity list S

requires a differ-

ent function sim(e

, e

) with a source e

and target e

Each s ∈ S is deﬁned as a triple s = (e

, e

, sim(e

, e

)

and the entity e

can be used to retrieve a set of sim-

ilarity. Rank Aggregation produces one single rank

that aggregates all given ranking. Equation 3 is used

to include new set of ranking to aggregate. Each col-

umn represents a ranking and in each rank, the yellow

box represents an element that is ranked in different

positions for each rank. An aggregated rank is cre-

ated and used to map entities in our solution.

rankAggregation.aggregate(R) = R

agg

[

R (3)

Given an aggregated rank rankAggregation and an

entity e, it is possible to query the aggregated rank

presenting e. Equation 4 represents a function that

returns a ranking formed by a set of similarities that

have input e as a query ﬁlter.

rankAggregation.query(e) = R, s ∈ R

agg

, s.id = e

(4)

Locality-Sensitive Hashing. An entity e is converted

to a set of n-grams and added to a bucket of the hash.

The equation 5 describes a function that insert an en-

tity e to the hash H. Locality-sensitive Hash is an

algorithm that uses random projections to construct

hash codes in which pairwise distance is preserved

when the length of codes is sufﬁciently large (Tsai

and Yang, 2014). Given an entity, e and a locality-

sensitive hash LSH, entity e can be used to query a

similar entity inside such hash based on a similar-

ity method. The equation 6 describes a function that

queries for similar entities compared to entity e

and

returns a set of entity E where e

∈ E have similarity

sim(e

, e

) greater than a given threshold τ (Leskovec

et al., 2014).

LSH.insert(e

) = H

[

Hash(e

) (5)

LSH.query(e

) = E, e

∈ E, sim(e

, e

) > τ (6)

Problem Statement. Given two KGs K

and K

the problem addressed in this work is to obtain all

mappings between entities from these KGs by using

rank aggregation techniques and reduce explored can-

didates with the use of Locality-sensitive Hashing.

4 OUR PROPOSAL TO LINK

KNOWLEDGE GRAPHS

Our goal is to create an appropriate mapping for each

entity of a source KG K

to a target KG K

. Figure

1 shows our deﬁned workﬂow for this purpose. It is

organized in four main steps: input process, candidate

pairing, similarity calculation, and map creation.

In the ﬁrst step, both KGs are processed and their

entities are divided by their type (class; property; in-

stance). Every triple formed by subject, predicate and

object is extracted if the predicate is an RDFS la-

bel. The Resource Description Framework (RDF) is

a framework for representing information in the Web,

and RDFS is the schema used to model RDF data.

RDFS:label is an instance that provides a human-

readable resource’s name. If the subject of the triple is

an URI, a new entity is created and the extracted URI

identiﬁes it. The entity type is deﬁned by analysing

if the type name is contained in the URI. Class, prop-

erty, and instance is identiﬁed by class, property, and

resource, respectively.

In the second step (candidate pairing), the method

creates the list of candidate entities for each entity

from the source KG K

. For schema types (class and

property), all target candidates are considered as can-

didates. For instance type, locality-sensitive hashing

is used to create the list of candidate entities All en-

tities from target KG K

are inserted to the hash H .

After this process, each entity e from source KG K

query hash H to retrieve the set of candidate entities

In the third step (similarity calculation), each pair

of source entity and candidate entity similarity is

Knowledge Graphs Alignment Based on Learning to Rank Methods

317

calculated. The similarity is calculated using entity

name from URI. URI is formed by three main com-

ponents: scheme, authority and path. Only the path

after the type identiﬁer is used to calculate the simi-

larity. Our solution explored four different methods:

Levenshtein, Jaro, Babelnet and Wordnet (cf. Subsec-

tion 4.2 for the explored similarity methods).

In the fourth step (mapping creation), similar-

ity values are aggregated by using the LambdaMart

method. Our solution generates the ﬁnal classiﬁca-

tion (pair of entities expressing the mapping). Each

source KG entity receives an alignment with the can-

didate entity with the best classiﬁcation. Alignments

are ﬁltered to remove multiple alignments to the same

entity from the target KG and below than a threshold.

4.1 Learning to Rank for the Alignment

of KGs

Figure 2 presents how learning to rank is applied to

our study context. First, the rank aggregation model

is created using a training set (cf. A in Figure 2). Sec-

ond, the pair of source KG entity e

and the target KG

entity e

have their similarity calculated for each sim-

ilarity method sim (cf. Subsection 4.2) and the triple

, e

, sim) is recorded as an entry for the system (cf.

B in Figure 2). Third, each entity of the source KG

is used as a query to retrieve all similarity entries that

form different ranks for each similarity method (cf. C

in Figure 2). In the last step, retrieved ranks are ag-

gregated using the trained model and return one rank

as result (cf. D in Figure 2).

Learning to Rank techniques like lambdaMart

(Burges, 2010) are supervised learning tasks. It needs

training and testing phases. In the training phase, a

model is created to be used later to aggregate ranks

(cf. A in ﬁgure 2). The training data consists of

queries set Q as a set of documents to be retrieved

D and a set of possible labels Y. The training set S is

formed by triples (q

, d

, y

i j

), where q ∈ Q, d ∈ D and

y ∈ Y . The set Y = 1, 2, ..., n;n ∈ N is the relevance of

the document d

for the query q

. The process to put

relevance to the pair query and document is analogous

to the labeling in other techniques.

In our approach, a set of queries Q is formed by

URI from source KG’s entities; the set of retrieved

documents D is formed by candidate entities from tar-

get KG’s entities; and the set of labels Y receives a

value according to the presence of the pair in the gold

standard. If the pair (e

, e

) is in the gold standard,

the triple (q

, d

, y

i j

) receives values (e

, e

, 1); and the

triple receives value (e

, e

, 0) if not present.

The training model creates a ranking model

f (q, d) = f (x) that assigns a score to a given pair

query and document. For a set, the training model

creates a ranking model F(q, D) = F(X) that returns

a list of scores that can be converted to a ranking of

documents using the score from f (q, d) to sort the

documents D (LI, 2011). In our approach, the model

creates a ranking model F(e

,C) = F(X ), where e

an entity from source KG and C is the set of candidate

entities from target KG. This model is used to sort all

candidate entities for a certain entity from source KG.

4.2 Similarity Techniques

Our proposed technique explores four method for

similarity computation to generate rankings to be ag-

gregated.

• Levenshtein similarity, also known as edit dis-

tance, between two strings is the minimal number

of insertions, deletions, and replacements to make

two strings equal (Navarro, 2001).

• Jaro similarity between two string is shown in

equation 7, where m is the number of matching

characters, t is the number of transposition, |s

and |s

| are string length.

Jaro(s

, s

) =

(

m −t

) (7)

• Path-similarity is based on WordNet synset, as

groups of synonymous words. The similarity be-

tween the two terms is the shortest path that con-

nects the senses in the “is-a” taxonomy.

• Weighted Overlap is based on NASARI vector

constructed using WordNet synsets and Wikipedia

pages (Camacho-Collados et al., 2015). Given a

pair of words w

and w

the algorithm checks if

they are synonyms, returning a maximum simi-

larity score if true. If they are not synonyms,

it gets their respective NASARI vector and cal-

culates weighted overlap synonyms. Weighted

Overlap sorts the elements of each vector and har-

monically weights the overlap between two vec-

tors. Equation 8 deﬁnes weighted overlap for two

vectors v

and v

, where O is the set of overlap-

ping dimensions between the vectors and r

is the

rank of dimension q in the vector v

WO(v

, v

) =

∑

q∈O

+ r

)

−1

∑

|O|

k=1

(2k)

−1

(8)

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

318

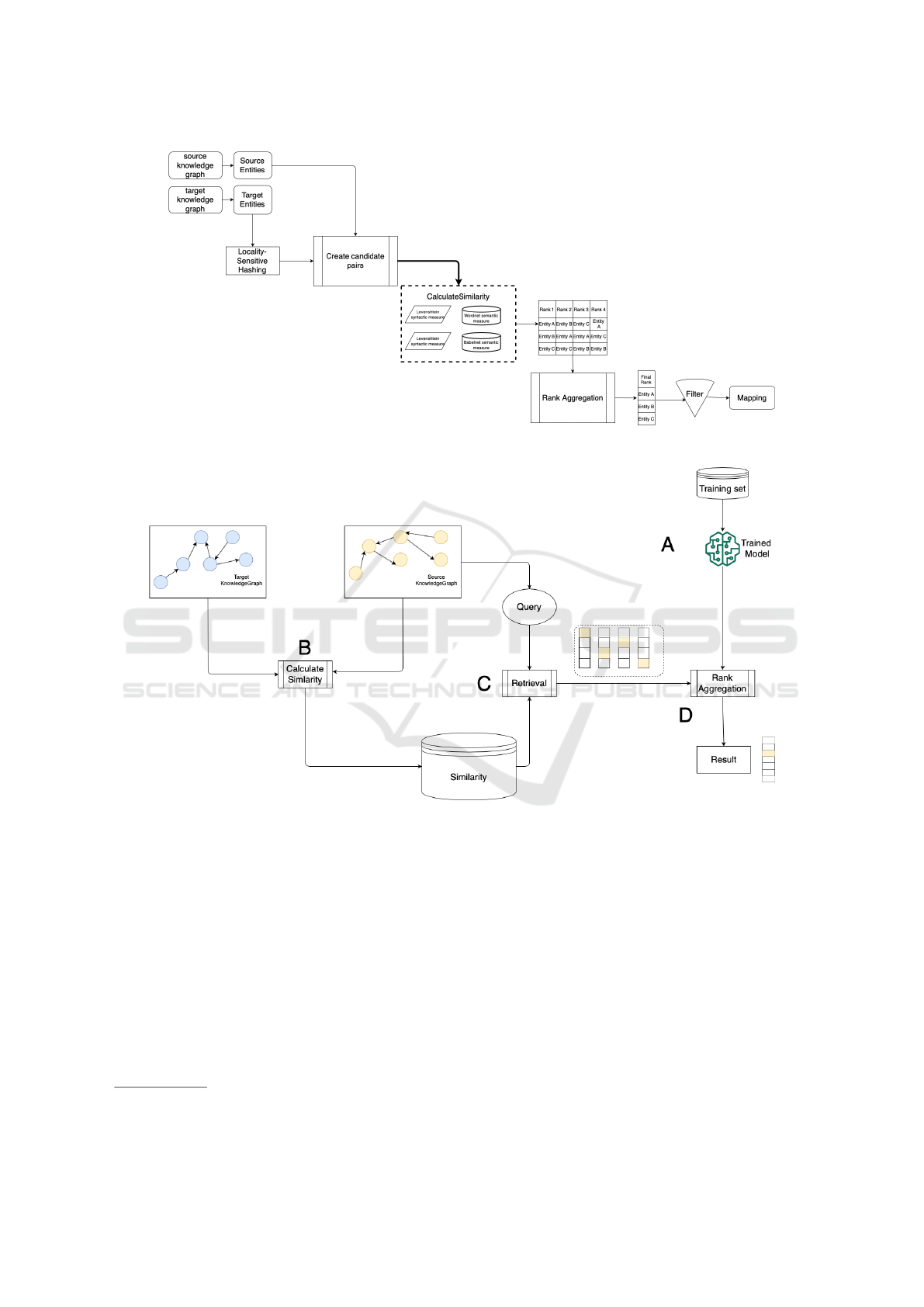

Figure 1: Our mapping technique workﬂow.

Figure 2: Learning to Rank technique applied to our approach (based on (Cummins and Briscoe, 2015)).

5 EXPERIMENTAL EVALUATION

Our goal is to analyze the quality of mappings gen-

erated in our approach for KG alignment. In the

developed experiments, we used datasets from the

OAEI (Ontology Alignment Evaluation Initiative) –

Knowledge Graph Track released on 2019

. Datasets

were created running DBpedia extraction framework

on Wikis from the Fandom Wiki hosting platform

(Hertling and Paulheim, ). Each instance entity is

created from a wiki page, and one triple is created

for each entry in an infobox (Hertling and Paulheim,

http : / / oaei.ontologymatching.org / 2020 /

knowledgegraph/index.html

2018). Table 1 describes statistics from the datasets

used in our experimental evaluation. The source col-

umn has the name of the KG and the acronym used in

this work.

The mappings created by our proposed approach

were compared with the gold standard offered by

OAEI – Knowledge Graph Track (2019 edition). Ex-

perts created the schema-level maps. Instance level

maps were extracted using links present in sections

with headers containing “link” to the corresponding

page of another wiki (e.g. “External links”), remov-

ing all links where the source page linked to more

than one page in another wiki and multiple links to the

same concepts to ensure injectivity. The gold standard

Knowledge Graphs Alignment Based on Learning to Rank Methods

319

Table 1: Statistics of Knowledge Graphs (Hertling and Paulheim, ).

Source Hub Topic # Instances # Properties # Classes

Star Wars Wiki (SWW) Movies Entertainment 145,033 700 269

The Old Republic Wiki (TOR) Games Gaming 4,180 368 101

Star Wars Galaxies Wiki (SWG) Games Gaming 9,634 148 67

Marvel Database (MDB) Comics Comics 210,996 139 186

Marvel Cinematic Universe Wiki (MCU) Movies Entertainment 45,828 325 181

Memory Alpha (MAL) TV Entertainment 45,828 325 181

Star Trek Expanded Universe (STX) TV Entertainment 13,426 202 283

Memory Beta (MBT) Books Entertainment 51,323 423 240

is a partial gold standard, because it does not contain

all correct matches. A trivial match is an exact string

match of the label, and a non-trivial match is when

a string match is not exact (Hertling and Paulheim,

2020). Table 2 describes statistics of the gold stan-

dard used in our experiments.

The learning process used 100% of the mappings

to train and validate between the datasets Star Wars

Wiki and Star Wars Galaxies Wiki; Star Wars Wiki

and The Old Republic Wiki; Memory Alpha and

Memory Beta; and Memory Alpha and Star Trek Ex-

panded Universe. Mappings between Marvel Cine-

matic Universe and Marvel Database were isolated to

be used as an evaluation set. To this end, we applied

our solution to them and analyzed the results based on

objective metrics. MinHash Locality-sensitive hash-

ing used 256 permutation, threshold of 0.75 and each

entity were converted to a set of trigrams of entity

name to hash. Trigram is a sequence of three consec-

utive character. We used three metrics to evaluate the

results: Precision, Recall and F-Measure (F1-score).

Table 3 presents the precision, recall, and f1-

score results for schema type. In the class type, we

achieved precision higher than 0.5 in the datasets

“Star Wars Wiki” and “Star Wars The Old Republic

Wiki” (SWW-TOR). In the datasets, “Memory Alpha

- Memory Beta” (MAL-MBT) and “Memory Alpha

and Star Trek Expanded Universe” (MAL-STX), our

solution presented recall lower than 0.9. The class

matching for “Memory Alpha” had more Non-trivial

mapping than other data sets, leading to lower recall.

In analyzing the mappings regarding the properties,

all datasets presented precision near 0.5 and recall

higher than 0.9.

Table 4 presents the results for the mappings con-

necting the instances of the KGs. All datasets pre-

sented low precision, but achieved a recall higher

than 0.7 except “Marvel Cinematic Universe - Mar-

vel Database” (MCU-MDB) and “Star Wars Wiki and

Star Wars Galaxies” (SWW-SWG).

Figures 3 and 4 compare our approach to the base-

line matchers offered by OAEI Knowledge Graph

Track organization. The baseline matcher used the la-

bel for each entity to create a mapping. The baseline

matcher matches all resources which share the same

rdfs:label. The baseline Alt Label additionally uses

skos:altLabel as a predicate. Both baseline matchers

used cross-product for all resources that have a com-

mon label.

Our approach and both baselines found all class

mappings. Our approach found some false positive

classes, so it lowered precision and f-measure. Our

approach found all properties mapped and baseline

found 36%, but all mapping found by baseline is

correct. Overall, our approach exceeded the base-

line for properties. Figure 3 shows the results ob-

tained by our approach and the baseline matchers for

schema-type entities mapping in “Marvel Cinematic

Universe” (MCU) and “Marvel Database” (MDB).

Figure 3: Comparison between our results and competi-

tion base line for schema-type entities in “Marvel Cine-

matic Universe” (MCU) and “Marvel Database” (MDB)

mappings.

For instances, type of entities baseline presents

better results than our approach for precision and re-

call. Figure 4 shows results for instance-type entities

in “Marvel Cinematic Universe” (MCU) and “Mar-

vel Database” (MDB). Baseline matcher presents bet-

ter precision for all cases, but for recall the result is

mixed. Our approach had better recall for property,

same recall for class and worst for instance.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

320

Table 2: Gold Standard statistics (Hertling and Paulheim, 2020).

Mapping

Class Matches Property Matches Instance Matches

Total Non-trivial Total Non-trivial Total Non-trivial

SWW-SWG 5 2 20 0 1,096 528

SWW-TOR 15 3 56 6 1,358 220

MCU-MDB 2 0 11 0 1,654 726

MAL-MBT 14 10 53 4 9,296 2,140

MAL-STX 13 6 41 3 1,725 274

Table 3: Mapping results for schema-type entities applying

our solution.

Mapping Type Precision Recall F1

SWW-

SWG

class 0.385 1.000 0.556

property 0.435 1.000 0.606

SWW-

TOR

class 0.515 0.944 0.667

property 0.514 0.966 0.671

MCU-

MDB

class 0.222 1.000 0.364

propety 0.611 1.000 0.759

MAL-

MBT

class 0.217 0.333 0.263

property 0.559 0.963 0.707

MAL-

STX

class 0.307 0.571 0.400

property 0.549 0.975 0.703

Table 4: Mapping results for instance-type entities applying

our solution.

Mapping Precision Recall F1

SWW-SWG 0.337 0.494 0.400

SWW-TOR 0.273 0.746 0.400

MCU-MDB 0.357 0.460 0.403

MAL-MBT 0.298 0.739 0.425

MAL-STX 0.228 0.794 0.354

Figure 4: Comparison between our results and competi-

tion base line for instance-type entities in “Marvel Cin-

ematic Universe” (MCU) and “Marvel Database” (MDB)

mappings.

6 DISCUSSION

This investigation aimed to create mappings between

KGs based on rank aggregation methods. Our results

by experimenting our approach showed high recall

for schema-type, but penalized the precision. For in-

stance level type of entities, our approach presented

low precision and acceptable recall.

The main difference between schema-type and

instance-type mapping generations is in how candi-

date entities were created. Our approach used all en-

tities as candidate entities for schema-type, but candi-

date entities are ﬁltered using locality-sensitive hash-

ing for instance type. For instance-type, it is not pos-

sible to use a cross-product approach to compare en-

tities, because the number of instance-type entities is

very large, so it needs to reduce the number of com-

parisons. For this reason, we were unable to calcu-

late the similarity for all possible pairs. This differ-

ence is more clear for SWW-SWG and MCU-MDB,

because both datasets have proportionally more non-

trivial mappings than others.

Our approach found false positive mappings

which affected the precision for almost all datasets

studied. The explored gold standard is based on links

created by the Wiki community on the page where

entities were extracted. It means that the presence of

mapping between entities depends on the interest of

the community to enrich those pages.

Another case of false positive was caused by dif-

ferent speciﬁcities of the entities. In this case, the

matcher creates new mappings between an entity and

the more general entity, but the correct mapping was

for the more speciﬁc entity. For example, our tech-

nique created a mapping between “Michael Duffy”

from “Marvel Cinematic Universe” and “Michael

Duffy” from “Marvel Database”. However, the

correct answer was between “Michael Duffy” from

“Marvel Cinematic Universe” and “Michael Duffy

(Earth-616)” from “Marvel Database”.

Our approach found mapping with good recall

for most cases in schema-type entities. With prop-

erty, it exceeded baseline recall. Our approach uses a

learning-to-rank technique that can be improved with

more similarity techniques to aggregate ranking and

more datasets without changing code structure.

Knowledge Graphs Alignment Based on Learning to Rank Methods

321

7 CONCLUSION

The alignment of KGs remains an open research chal-

lenge. In this work, we proposed an approach based

on rank aggregation and locality-sensitive hashing to

create mappings between distinct KGs. Our approach

used the entity URI to extract the set used to explore

locality-sensitive hashing and similarities. We ex-

plored the hashing and four similarity techniques to

create independent rankings that were aggregated us-

ing learning-to-rank techniques (in particular, we ex-

plored lambdaMart). We implemented the proposal

and carried out experiments using OAEI competition

datasets. Our solution was able to ﬁnd most of the

mappings between schema-level entities (good recall)

although improvements are needed in terms of preci-

sion. Future work involves exploring more informa-

tion from entities to get better results for hashing. We

plan to explore other similarity techniques that do not

use string as the main component. We also plan to

experiment with our solution with additional datasets.

ACKNOWLEDGEMENTS

This work was supported by the S

ao Paulo Research

Foundation (FAPESP) (Grant #2022/15816-5)

REFERENCES

Burges, C. J. (2010). From ranknet to lambdarank to lamb-

damart: An overview. Technical Report MSR-TR-

2010-82, Microsoft Research.

Camacho-Collados, J., Pilehvar, M. T., and Navigli, R.

(2015). NASARI: a novel approach to a semantically-

aware representation of items. In Proceedings of the

2015 Conference of the North American Chapter of

the Association for Computational Linguistics: Hu-

man Language Technologies, pages 567–577, Denver,

Colorado. Association for Computational Linguistics.

Chang, F., Chen, G., and Zhang, S. (2019). Fcamap-kg

results for oaei 2019. In Ontology Matching at Inter-

national Semantic Web Conference, OM@ISWC.

Cummins, R. and Briscoe, T. (2015). Learning to rank. Ad-

vanced Topics in Natural Language Processing.

Faria, D., Pesquita, C., Santos, E., Palmonari, M., Cruz, I.,

and Couto, F. (2013). The agreementmakerlight ontol-

ogy matching system. In On the Move to Meaningful

Internet Systems, pp 527-541, volume 8185.

Hertling, S. and Paulheim, H. Knowledge graph track. http:

//oaei.ontologymatching.org/2020 /knowledgegraph/

index.html.

The opinions expressed in this work do not necessarily

reﬂect those of the funding agencies.

Hertling, S. and Paulheim, H. (2018). Dbkwik: A consol-

idated knowledge graph from thousands of wikis. In

2018 IEEE International Conference on Big Knowl-

edge (ICBK), pages 17–24.

Hertling, S. and Paulheim, H. (2019). Dome results for oaei

2019. In OM 2019 : Proceedings of the 14th Inter-

national Workshop on Ontology Matching co-located

with the 18th International Semantic Web Conference

(ISWC 2019) Auckland, New Zealand, October 26,

2019, volume 2536, pages 123–130, Aachen. RWTH.

Hertling, S. and Paulheim, H. (2020). The Knowledge

Graph Track at OAEI: Gold Standards, Baselines, and

the Golden Hammer Bias, pages 343–359. Springer;

1st ed. 2020 edition.

Hogan, A., Blomqvist, E., Cochez, M., d’Amato, C.,

de Melo, G., Gutierrez, C., Gayo, J. E. L., Kirrane,

S., Neumaier, S., Polleres, A., Navigli, R., Ngomo,

A.-C. N., Rashid, S. M., Rula, A., Schmelzeisen, L.,

Sequeda, J., Staab, S., and Zimmermann, A. (2020).

Knowledge graphs.

Jaccard (1912). The distribution of the ﬂora of the alpine

zone. In New Phytologist, volume 11, pages 37–50.

Juliana M. Destro, Javier A. Vargas, J. C. d. R. and

da S. Torres, R. (2019). Exploring rank aggregation

for cross-lingual ontology alignments. 14th Inter-

national Workshop on Ontology Matching co-located

with the 18th ISWC.

Leskovec, J., Rajaraman, A., and Ullman, J. D. (2014). Min-

ing of Massive Datasets. Cambridge University Press,

USA, 2nd edition.

LI, H. (2011). A short introduction to learning to rank.

IEICE Transactions on Information and Systems,

E94.D(10):1854–1862.

Navarro, G. (2001). A guided tour to approximate string

matching. ACM Comput. Surv., 33(1):31–88.

Ringler, D. and Paulheim, H. (2017a). One knowledge

graph to rule them all? analyzing the differences be-

tween dbpedia, yago, wikidata & co. In Kern-Isberner,

G., F

urnkranz, J., and Thimm, M., editors, KI 2017:

Advances in AI, pages 366–372, Cham. Springer.

Ringler, D. and Paulheim, H. (2017b). One knowledge

graph to rule them all? analyzing the differences be-

tween dbpedia, yago, wikidata & co. In 978-3-319-

67189-5, pages 366–372.

Singhal, A. (2014). Introducing the knowledge graph:

things, not strings. https://googleblog.blogspot.com/

2012 / 05 / introducing - knowledge - graph - things -

not.html.

Tsai, Y. and Yang, M. (2014). Locality preserving hashing.

In 2014 IEEE International Conference on Image Pro-

cessing, ICIP 2014, IEEE International Conference

on Image Processing (ICIP 2014), pages 2988–2992,

United States. IEEE.

KEOD 2023 - 15th International Conference on Knowledge Engineering and Ontology Development

322
