Towards True Explainable Artificial Intelligence for Real World

Applications

Hani Hagras

The Computational Intelligence Centre, School of Computer Science and Electronics Engineering, University of Essex,

Wivenhoe Park, Colchester, CO43SQ, U.K.

Keywords: Explainable Artificial Intelligence, Fuzzy Logic Systems.

Abstract: We are entering a new era which is characterized by huge amounts of data which are generated from almost

every application in our everyday lives. It is getting easier to organise such huge amounts of data via efficient

data bases and ever growing and cheaper data storage systems (which can nicely scaleup in cloud based

solutions). Due to the huge sizes, high dimensionality and complex relationships of such data, Artificial

Intelligence (AI) technologies are well placed to handle such data and generate new services, business

opportunities and even provide breakthroughs to completely change our lives and realise new industrial

revolution as anticipated. The vast majority of AI technologies employ what is called opaque box models

(such as Deep learning, Random forests, support vector machines, etc) which produce very good accuracies

but it is quite difficult to analyse, understand and augment such models with human experience/knowledge.

Furthermore, it is equally difficult to understand, analyse and justify the outputs of such opaque AI models.

Hence, there is a need for Explainable AI (XAI) models which could be easily understood, analysed and

augmented by the users/stake holders. There is a need also for such XAI models outputs to be easily

understood and analysed by the lay user. In this paper, we will review the current trends in XAI and argue the

real-world need for true XAI which provides full transparency and clarity at the model and output level.

1 INTRODUCTION

Over the past few decades, Artificial Intelligence (AI)

has moved from the realms of science fiction to

become a key part of our day-to-day lives and

business operations. A report from Microsoft and

Ernst and Young (EY) that analysed the outlook for

AI in 2019 and beyond, stated that “65% of

organisations in Europe expect AI to have a high or a

very high impact on the core business.” (Chavatte,

2018).

In the banking and financial industries alone, the

potential that AI has to improve the sector is vast.

Important decisions are already made by AI on credit

risk, wealth management, financial crime, intelligent

pricing, product recommendation, investment

services, debt-collection, etc.

The adoption of AI across business sectors has not

come without its challenges. In a recent forecast

(Press, 2019), Forrester predicted a rising demand for

transparent and easily understandable AI models,

stating that “45% of AI decision makers say trusting

https://orcid.org/0000-0002-2818-5292

the AI system is either challenging or very

challenging.”. This isn’t very surprising when we

consider that most organisations today still work with

what are known as “opaque box” or “black box” AI

systems. These opaque models rely on data and learn

from each interaction, thus can easily and rapidly

accelerate poor decision making if fed corrupt or

biased data. Such “black box” AI systems also leave

the end customer in the dark, doing nothing to instil

trust in the technology. This lack of trust is also being

compounded by widespread scepticism from

consumers who are reticent to share their personal

data, especially if they cannot be sure how it is going

to be used.

Fortunately, Explainable AI (XAI) models have

the capabilities to overcome the abovementioned

concerns, while providing reassurance that decisions

will be made in an appropriate and non-biased way.

In this paper, we will present various XAI

approaches while arguing the case for the need for

True XAI systems for real world applications which

are characterized by models which could be easily

Hagras, H.

Towards True Explainable Artiﬁcial Intelligence for Real World Applications.

DOI: 10.5220/0012272500003595

In Proceedings of the 15th International Joint Conference on Computational Intelligence (IJCCI 2023), pages 5-13

ISBN: 978-989-758-674-3; ISSN: 2184-3236

analysed, understood and augmented by the relevant

stake holders. Also the outputs of these models should

be easily understood and analysed by the lay user.

Section 2 provides an overview on XAI

approaches. Section 3 provides a discussion by what

we mean by “True” XAI. Section 4 provides a review

of some real world deployments of such True XAI.

Section 5 provides the conclusions and future work.

2 OVERVIEW OF XAI

APPROCAHES

XAI systems are expected to be highly transparent

models which explain, in human language, how an AI

decision has been made. Ideally, they do not solely

rely on data, but can be elevated and augmented by

human intelligence. These systems are supposed to be

built around causality, creating space for human

sensibility to detect and ensure that the machine

learning is ethical and course-correct if it is not. This

is extremely valuable when we consider that most

industries don’t usually have the privilege of finding

out that their AI model is biased until it’s too late.

In many sectors of the economy, XAI is creating

positive outcomes for both the industry and the

customer. For example, in banking and finance, XAI

systems have allowed institutions to carve out new

revenue streams. By providing insights into a

particular AI outcome, banks can reroute customers

that have been denied a service and recommend a

more suitable option for them for which they would

qualify. This allows banks to provide highly

personalised services to customers and explore new

product lines based on evidenced demand. The

customer, on the other hand, receives an explanation

of why a particular service has been denied and an

alternative is offered in its place. With this insight, the

customer may also be able to make lifestyle changes

in order to attain their financial goals and improve in

their financial wellbeing.

Figure 1 depicts a summary as provided by

(Gunning, 2017) showing some AI techniques

performance vs explainability where it is shown that

black box models like Deep Learning give best

prediction accuracy vs Decision Trees which provide

higher explainability contrasted by prediction

accuracy.

XAI can also be categorized according to different

criteria:

• Intrinsic or Post Hoc: whether the model

itself is architecturally explainable

(transparent model), or the technique tries to

explain an opaque model.

• Result of the Interpretation: how is the

“interpretation” returned to the user?

o Feature summary statistic.

o Model internals (weights).

o Data point analysis related to the

model.

o Surrogate model.

o A set of linguistic and numerical

explanations.

• Local or Global Explanations.

• “Reference Based” and “Non-Reference

Based”: whether you need an

example/reference to provide an

explanation.

• Level of Interpretability: do I need

technical knowledge or not? If so, how

much?

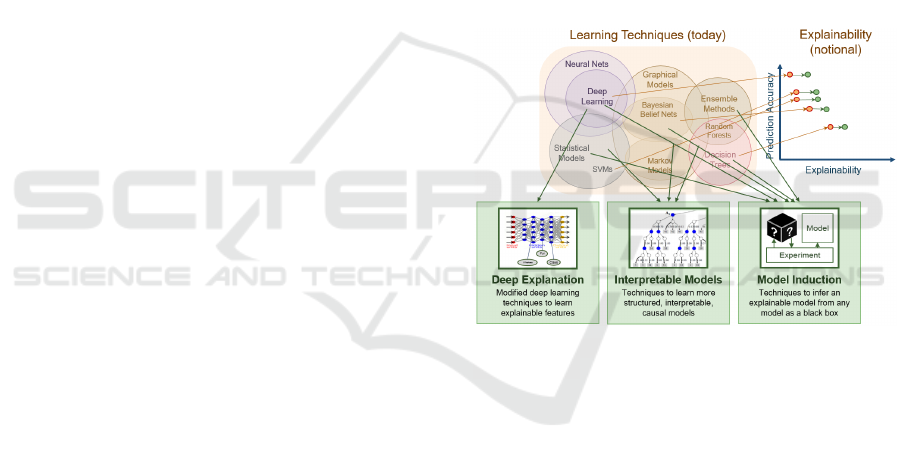

Figure 1: Existing AI techniques- Performance vs

Explainability (Gunning, 2017).

As shown in Figure 1, in (Gunning, 2017), they

suggest various approaches to realise XAI, the first

approach applies to Deep Learning and Neural

Networks (which according to Figure 1 and

(Gunning, 2017) have the highest predictive power)

which is termed as deep explanation. This approach

tries to process the deep learning (or neural network)

techniques to learn explainable structures. Some

examples of such techniques can be found in

(Montavon et al., 2018) including, the Layer-wise

Relevance Propagation (LRP) technique (Bach,

2015).

The second approach to XAI in Figure 1 is called

interpretable models which are techniques to learn

more structured and interpretable casual models

which could apply to statistical models (e.g. logistic

regression models, naïve bayes models, etc),

graphical models (such as Hidden Markov Models,

IJCCI 2023 - 15th International Joint Conference on Computational Intelligence

etc) . However, like the deep explanation techniques,

the output of these models could be analysed only by

an expert in these techniques and not by a lay user.

The third XAI approach is what is termed model

induction which could be applied to infer an

interpretable model from any black box model

(Gunning, 2017). According to (Ribeiro, 2016a),

although it is often impossible for an explanation to

be completely faithful unless it is the complete

description of the model itself, for an explanation to

be meaningful it must at least be locally faithful, i.e.

it must correspond to how the model behaves in the

vicinity of the instance being predicted. As mentioned

in (Ribeiro, 2016a), local fidelity does not imply

global fidelity: features that are globally important

may not be important in the local context, and vice

versa. While there are models that are inherently

interpretable, an explainer (or model induction)

should be able to explain any model, and thus be

model-agnostic. An interpretable explanation need to

use a representation that is understandable to humans,

regardless of the actual features used by the model. In

(Ribeiro, 2016a) a method was presented to explain a

prediction where they used sparse linear explanations,

which lack the explanation of the interconnection

between the various variables driving the given

decision.

In (Ribeiro, 2016b), they introduced Anchor

Local Interpretable Model-Agnostic Explanations

(aLIME) which is a system that explains individual

predictions with crisp logic IF-Then rules in a model-

agnostic manner. Such IF-Then rules are intuitive to

humans, and usually require low effort to

comprehend and apply (Ribeiro, 2016b). However

the IF-Then anchor model presented in (Ribeiro,

2016b), use crisp logic and thus will struggle with

variables which do not have clear crisp boundaries,

like income, age, etc. Also the approach in (Ribeiro,

2016b), will not be able to handle models generated

from big number of inputs. Also, another major

problem in an anchor approach, is the inability to

understand the model behaviour in the

neighbourhood of this instance and how the

prediction can be changed if certain features could be

changed, etc.

Another very important XAI model induction is

based on Shapley values (Sundararajan and Najmi,

2019) which are used within various AI platform.

However, Attributions depend on baselines:

“baseline” is the word they use for a “reference

instance”. The values of each attribution and

interpretation thereof depend entirely on the choice of

baseline, it's as important as knowing what questions

to ask when seeking an explanation. One must never

omit the baseline from any discussion of the

attributions and take care in choosing one useful for

the problem (Sundararajan and Najmi, 2019). In

addition, attributions are communicated at the level

of input features, this entails some loss of

information. Furthermore, attributions do not

summarize the entire model behavior: this is closely

tied with the principle of locality and limits

tremendously the ability to explain models globally,

rather than locally.

3 TOWARDS A TRUE XAI

APPROACH

True Explainable AI system would allow to

understand and validate how the AI system arrived at

its conclusions.

As discussed above, Model induction XAI starts

always with a “black box” AI model (which causes

problems associated with the inability to fully

understand the model or augment it with user

expertise) and tries to give a best guess on how a

given decision is made. The analogy is that if your

complex car malfunctions and it is plugged to a

diagnostic computer, it comes with a code which is

not conclusive on what is the exact problem and it

might mean investigating manually many parts of the

car before fixing the problem.

Hence, there is a need for what we can call “True”

XAI solutions generating fully transparent models

which could be easily read, analyzed and augmented

by the sector stake holders. The model generation

steps could be easily tracked back to the data and the

models could be audited before deployment to

eliminate any bias and to ensure safe model

operations which includes humans in the loop. Such

XAI decisions give exact reasons to why a given

output was generated and the output can be easily

tracked. Back to the car malfunctioning analogy, the

“True” XAI generates a very efficient car (with

performance and options similar to the other complex

car) which the driver and the mechanic understands

exactly how it works and if it malfunctions, it will

tells exactly what is the component which failed and

how to rectify it and why this problem happened.

From the above discussion, it seems that offering

the user with IF-Then rules which include linguistic

labels appears to be an approach which can facilitate

the explainability of a model output with the ability

to explain and analyse the generated model. One AI

technique which employs IF-Then rules and linguistic

labels is the Fuzzy Logic System (FLS). However,

Towards True Explainable Artiﬁcial Intelligence for Real World Applications

FLSs are not widely explored as an XAI technique

(and not even taught in many AI courses) and they

donot appear in the analysis shown in Figure 1. One

reason might be is that FLSs are associated with

control problems and they are not widely perceived

as a machine learning tool as they need the help of

other techniques to learn their own parameters from

data.

(a) (b)

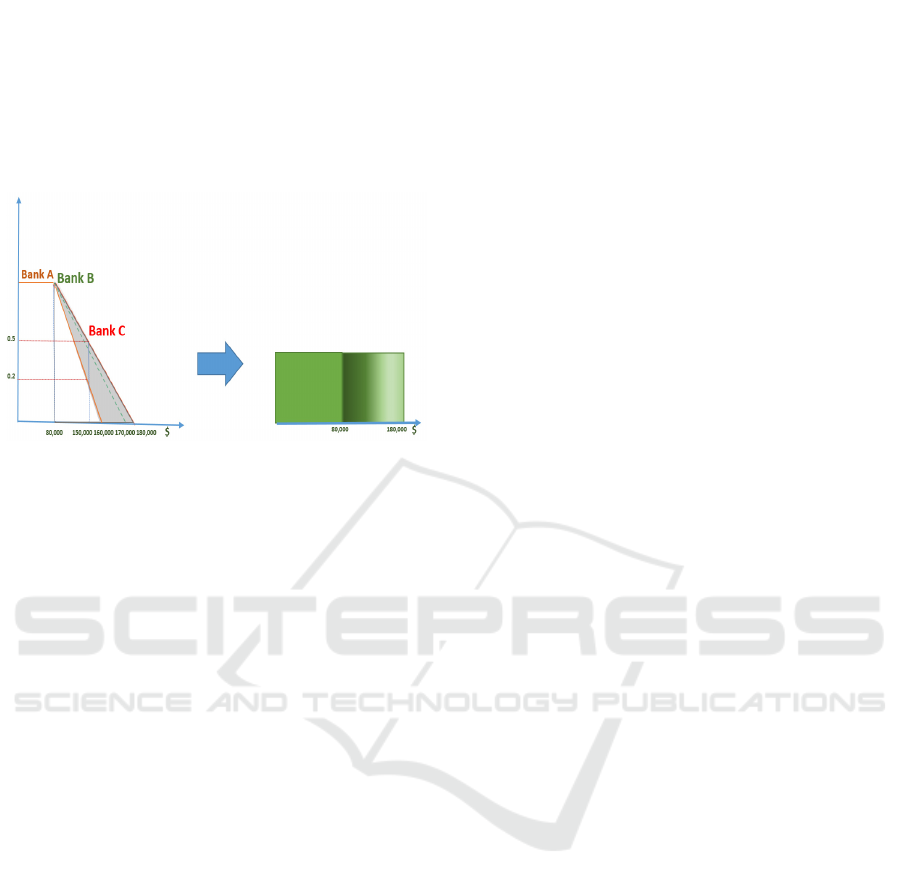

Figure 2: a) A Type-2 fuzzy set embedding the type-1 fuzzy

sets for the linguistic label “Low Income” from experts in

three banks. b) A graphical simplification of the type-2

fuzzy set in Figure 2a (Hagras, 2018).

Fuzzy Logic can model and represent imprecise

and uncertain linguistic human concepts such as Low,

Medium, High, etc. For example if a group of people

were asked about the values they would associate

with the linguistic concepts “Low” and “High” annual

income and if Boolean logic was employed then we

would have to choose a threshold above which

income values would be considered “High” and

below which they would be considered “Low”. The

first problem encountered is to identify a threshold

that most people would agree on and this will be a

problem as everyone has different idea what this

linguistic label constitute.

On the other hand the linguistic labels “Low” and

“High” could be represented by employing the type-

1 fuzzy sets. In this representation, no sharp boundary

would exist between sets and each value in the x axis

can belong to more than one fuzzy set with different

membership values. For example using type-1 fuzzy

logic, $150,000 can belong to the “Low” and “High”

sets but to different degrees where its membership

value to “Low” could be 0.3 and to “High” is 0.7. This

can mean that if 10 people were asked if $150,000 is

Low or High income, 7 out of 10 would say “High”,

(i.e. membership value of 7/10=0.7) and 3 out of 10

would say “Low”, (i.e. membership value of

3/10=0.3). Hence, fuzzy sets provide a means of

calculating intermediate values between absolute true

and absolute false with resulting values ranging

between 0.0 and 1.0. Thus, fuzzy logic allows the

calculation of the shades of grey between true/false.

In addition, the smooth transition between the fuzzy

sets will give a good decision response when facing

the noise and uncertainties. Furthermore, FLSs

employ linguistic IF-THEN rules which enable to

represent the information in a human readable form

which could be easily read, interpreted and analysed

by the lay user.

As discussed in (Hagras, 2018), (Mendel, 2016),

(Ruiz et al., 2019), (Sarabakha et al., 2017) the type-

1 fuzzy sets are crisp and precise; hence they can

handle only the slight uncertainties. However,

different concepts mean different things to different

people and in different circumstances. So assume as

shown in Figure 2a, we asked three financial experts

in three different banks (Bank A, Bank B and Bank

C) to cast their opinions about what are the suggested

ranges for “Low” income. As can be seen in Figure 2,

each expert might come with different type-1 fuzzy

set to represent the “Low” linguistic label. Another

way to represent linguistic labels is by employing

type-2 fuzzy sets as shown in Figure 2a which embeds

all the type-1 fuzzy sets for Bank A, Bank B and Bank

C within the Footprint of Uncertainty (FoU) of the

type-2 fuzzy set (shaded in grey in Figure 2a). Hence,

a type-2 fuzzy set is characterized by a fuzzy

membership function, i.e. the membership value for

each element of this set is a fuzzy set in [0,1], unlike

a type-1 fuzzy set where the membership value is a

crisp number in [0,1]. The membership functions of

type-2 fuzzy sets are three dimensional and include a

Footprint Of Uncertainty (FOU), this provide

additional degrees of freedom that can make it

possible to directly model and handle the

uncertainties. More information about type-2 fuzzy

sets and systems can be found in (Ruiz et al., 2019),

(Sarabakha et al., 2017).

One misconception about type-2 fuzzy sets is that

they are difficult to understand by the lay person.

However, this is not the case as if experts are

questioned about how to quantify a linguistic label,

they will be sure about a core value (which has a

common consensus across all experts), however they

will struggle to give exact points of the boundaries of

this linguistic label and there will uncertainty about

the end points of a given linguistic label. Hence, a

simplified version of a type-2 fuzzy set can be shown

in Figure 2b where for the linguistic label “Low”

income, there is a core value (shaded in solid green)

of less than $80,000 which all experts agrees on and

there is grey area (of shades of green) which goes

between $80,000 to $180,000 of decreasing

membership where there is uncertainty about the end

IJCCI 2023 - 15th International Joint Conference on Computational Intelligence

points of the linguistic label where points beyond

$180,000 are not recognised as “Low” income

anymore (Hagras, 2018).

Another misconception of FLSs in general is that

they are control mechanisms. This is not true as the

area of Fuzzy Rule-Based Systems (FRBSs)

generated from data has been active for more than 25

years. However, this was hindered by the FLSs

incapability to handle systems with big number of

inputs due to the phenomena known as curse of

dimensionality where the FLS can generate long rules

and huge rule bases which turn them to black boxes

which are not easy to understand or analyse.

Furthermore, FRBSs werenot able to handle easily

imbalanced and skewed data (such as those present in

fraud, bank default data, etc). However, recent work

such as (Antonelli et al., 2017), (Sanz et al., 2015)

was able to use evolutionary systems to generate

FRBSs with short IF-Then rules and small number of

rules in the rule base while maximizing the prediction

accuracy. As this created sparse rule base not

covering the whole search space, they presented a

similarity technique to classify the incoming

examples even if they do not match any fuzzy rule in

the generated rule base. To do so, the similarity

among the uncovered example and the rules was

considered. They also presented multi-objective

evolutionary optimization which was able to increase

the interpretability (by reducing the length of each

rule to include between 3 and 6 antecedents even if

the system had thousands of inputs as well as having

a small rule base) and maximize the accuracy of the

FLS prediction. It was shown in (Antonelli et al.,

2017), (Sanz et al., 2015) that such highly

interpretable systems outperform decision trees like

C4.5 by a big margin in accuracy while being easy to

understand and analyze than the decision trees

counterparts.

What is most important is that unlike other white

box techniques, the FRBS generates IF-Then rules

using linguistic labels (which can better handle the

uncertainty in information) where for example in a

bank lending application a rule might be: IF Income

is High and Home Owner and Time in Address is

High Then Good Customer. Such rule can be read by

any user or analyst. What is more important is that

such rules get the data to speak the same language as

humans. This allows humans to easily analyze and

interpret the generated models and most importantly

augment such rule bases with rules which capture

their expertise and might cover gaps in the data (for

example, human experience can augment such

historically generated rules with the human expertise

to cover situations which did not happen before). This

allows the user to have full trust in the generated

model and also cover all the XAI components

mentioned in (Gunning, 2017) related to

Transparency, Causality, Bias, Fairness and Safety.

Unlike the anchor rules mentioned in (Ribeiro,

2016b), humans do not make their decisions based on

one single rule, they usually have Pros and Cons

linguistic rules which humans balance and weigh in

their mind and take a decision accordingly.

The second criteria which a type-2 XAI true

explainable AI model provides is the ability to

generate transparent outputs which could be easily

understood and analysed by the lay user (as shown in

Figure 3a for predicting credit cards defaults). Also it

will be easy to follow the data route for the final

decisions and its reasons.

Hence, viewing Figure 1, it can be seen that type-

2 FLS and FRBSs can be best in explainability while

striking a good balance to prediction accuracy when

compared to other black box techniques.

Furthermore, the type-2 FLSs could be used to

explain the decisions achieved from more complex

black box modelling techniques. Hence, the type-2

FLS and FRBSs can offer a very good way forward

to achieve XAI which can be understood, analysed

and augmented by the lay user.

(a) (b)

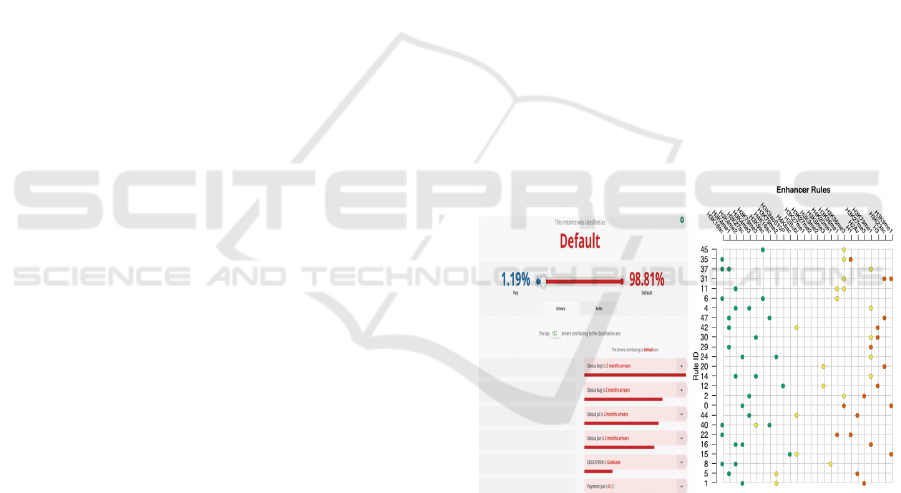

Figure 3: a)Fuzzy Logic instance drivers for example of

‘Default’ classification in Credit Card model (Adams and

Hagras, 2020). b) Rules explaining enhancer and non-

enhancer classification extracted from the XAI model in

(Wolfe et al., 2021). Individual rules are horizontal lines on

the plot and include up to three epigenetic marks per rule.

The colour code represents classification of an epigenetic

mark as high (green), medium (orange), or low (red).

Towards True Explainable Artiﬁcial Intelligence for Real World Applications

4 REAL WORLD TRUE XAI

DEPLOYMENTS

There has been several True XAI deployments in

several real-world applications. For example, in

(Wolfe et al., 2021), Type-2 Fuzzy based XAI was

employed to predict the location of known enhancers

with a high degree of accuracy. Enhancer malfunction

is a key process that drives the aberrant regulation of

oncogenes in cancer. Enhancer variants contribute

more than any other known mechanism to heritable

cancer predisposition. Enhancers are non-coding

regions of the genome that control the activity of

target genes. Recent efforts to identify active

enhancers experimentally and in silico have proven

effective. While these tools can predict the locations

of enhancers with a high degree of accuracy, the

mechanisms underpinning the activity of enhancers

are often unclear. True XAI techniques was applied

in (Wolfe et al., 2021) and gave very good accuracy

of prediction close to opaque box models but

additionally the XAI model provided insight into the

underlying combinatorial histone modifications code

of enhancers. In addition, the XAI model identified a

large set of putative enhancers that display the same

epigenetic signature as enhancers identified

experimentally. Figure 3b (Wolfe et al., 2021) shows

the extracted rules from the XAI model which

revealed for the first time the mechanisms

underpinning the activity of enhancers. This can

open the way to new way for early detection and

cancer treatment

In (Andreu-Perez, 2021), the type-2 fuzzy based

XAI model was employed for the analysis and

interpretation of Infant functional near infrared

spectroscopy (fNIRS), data in Developmental

Cognitive Neuroscience (DCN). In the last decades,

non-invasive and portable neuroimaging techniques,

such as (fNIRS), have allowed researchers to study

the mechanisms underlying the functional cognitive

development of the human brain, thus furthering the

potential of DCN. However, the traditional paradigms

used for the analysis of infant fNIRS data are still

quite limited. In (Andreu-Perez, 2021), they

introduced a Multivariate Pattern Analysis for fNIRS

data, xMVPA, that was powered by true (XAI). The

proposed approach was exemplified in a study that

investigates visual and auditory processing in six-

month-old infants. xMVPA not only identified

patterns of cortical interactions, which confirmed the

existent literature; in the form of conceptual linguistic

representations, it also provided evidence for brain

networks engaged in the processing of visual and

auditory stimuli that were previously overlooked by

other methods, while demonstrating similar statistical

performance. The XAI model did show very

important results in that the model for the developing

brain has similar modules and interconnections as the

adult neural system for face perception presented by

(Haxby et al., 2014) suggesting that by 6 months of

age the cortical activity associated with face

processing is already similar to that of mature brains.

However, the model revealed that the inter-regional

interactions between the temporal and prefrontal

cortex might be specific to speech-like sounds. This

XAI model also showed a selective pattern of

activation over the temporal cortex that is specific to

visual vs. auditory stimuli (Andreu-Perez, 2021).

Specifically, the channels of the temporal cortex

which are active in response to the visual stimulus are

instead inactive in response to the auditory stimulus.

This confirmed the multifaceted role of temporal

cortex in the processing of sensory stimuli thereby

some areas are dedicated to visual processing whilst

others are associated with auditory processing (as

reported by (Nolan and Altman, 2001)). The temporal

cortex will form the core system for processing non-

speech auditory stimuli, while the prefrontal cortex

will form the extended system for processing the

emotion associated with the auditory stimulus. When

inactive, the occipital cortex enables the occurrence

of these patterns. Hence, the work in (Andreu-Perez,

2021) revealed new brain regions activation and

interactions not yet established for the developing

brain (as shown in Figure 4). Learning new cortical

pathways directly from the neuroimaging data is of

fundamental significance in DCN research to shed

light on functional brain development in absence of

established assumptions. Hence, this True XAI

model can open the way to understand the

development of the human brain and this can allow

the early detection and management of atypical

functional brain development like Autism. Autism

early detection and intervention can divert individuals

from sustained care pathways that, beyond being

expensive they damage the quality of life of

individuals. Furthermore, this can help in the early

intervention and communications with practitioners

and parents, to avoid social stigmas and enable

professional support as early as possible where early

intervention can remarkably improve these children's

functional and social skills, improving their capacities

to avoid later dependency on the state social system,

and fending for themselves during adulthood.

IJCCI 2023 - 15th International Joint Conference on Computational Intelligence

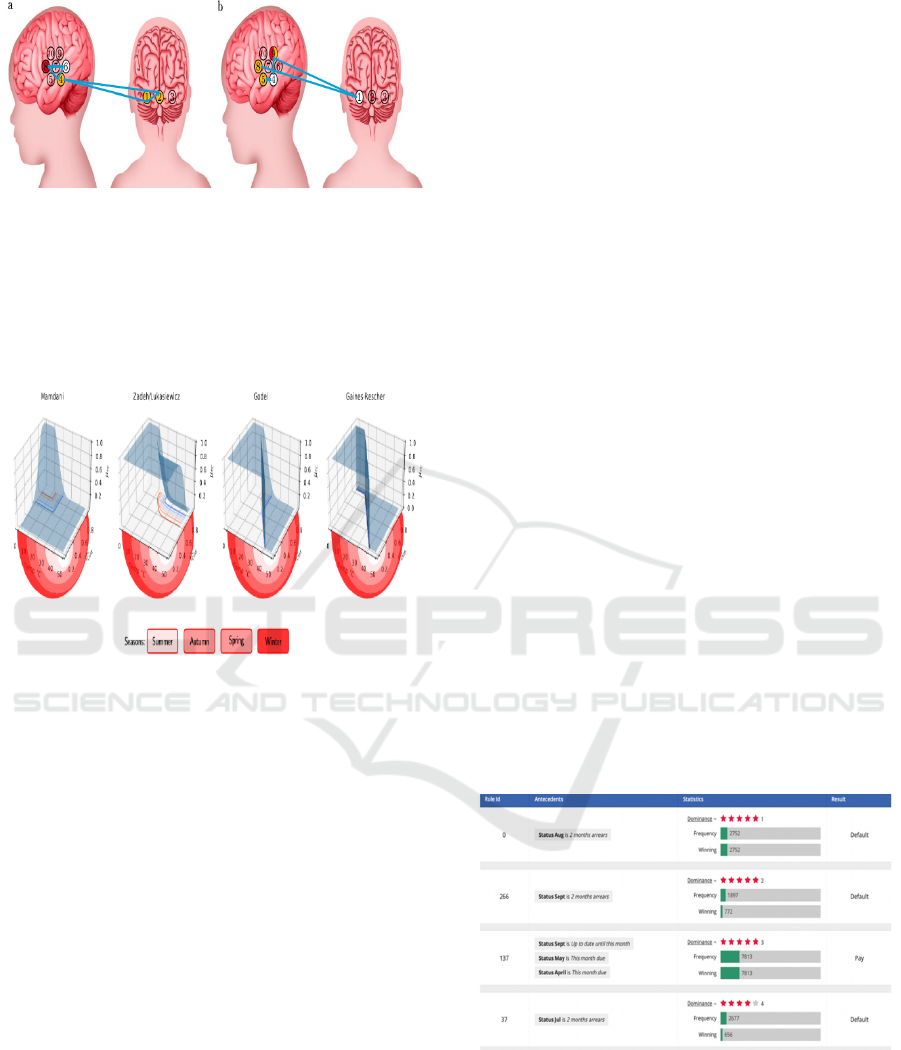

Figure 4: Patterns of cortical networks delineated by

xMVPA. The patterns (cyan) identified by the xMVPA

delineate the contributions between brain regions evoked

by a visual and b auditory stimuli. The colour of the

channels denotes their level of activity: inactive (white),

active (amber), and very active (red), and uncoloured for

channels that do not belong to any pattern (Andreu-Perez,

2021).

Figure 5: A comparison of Temporal Type-2 Fuzzy Set for

the conceptual label (CoL) ‘Cold’ for feature thermal

concept constructed with the most commonly used fuzzy

relations namely Mamdani, Zadeh/Lukasiewicz, Godel,

and Gaines-Rescher (Kiani et al, 2022).

The work in (Kiani et al., 2022), enabled XAI

models to be handle time dependent applications To

account for the temporal component, where they

presented Temporal Type-2 Fuzzy System Based

Approach for time dependent XAI systems (TXAI),

which can account for the likelihood of a

measurement’s occurrence in the time domain using

(the measurement’s) frequency of occurrence. In

Temporal Type-2 Fuzzy Sets (TT2FSs), a four

dimensional(4D) time-dependent membership

function (as shown in Figure 5) is developed where

relations are used to construct the inter-relations

between the elements of universe of discourse and its

frequency of occurrence. TXAI can also outline the

most likely time dependent trajectories using the

frequency of occurrence values embedded in the

TXAI model; viz. given a rule on a determined time,

what will be the next most likely rule at a subsequent

time point. In this regard, this TXAI system can have

profound implications for delineating real-life time-

dependent processes, such as behavioural or

biological modelling across time.

In (Adam and Hagras, 2020), a true XAI approach

was presented to develop risk management

framework for the implementation of AI in banking

with consideration of explainability to enable AI to

achieve positive outcomes for financial institutions

and the customers, markets and societies they serve.

This work showed that the type-2 based true XAI

model delivered very good performance which is

comparable to or lagging marginally behind the

Neural Network models in terms of accuracy, but

outperform all models for explainability, thus they are

recommended as a suitable machine learning

approach for use cases in financial services from an

explainability perspective. This research is important

for several reasons: (i) there is limited knowledge and

understanding of the potential for Type-2 Fuzzy

Logic as a highly adaptable, high performing,

explainable AI technique; (ii) there is limited cross

discipline understanding between financial services

and AI expertise and this work aims to bridge that

gap; (iii) regulatory thinking is evolving with limited

guidance worldwide and this work aims to support

that thinking; (iv) it is important that banks retain

customer trust and maintain market stability as

adoption of AI increases. Figure 6 shows the global

rules extracted from data via the XAI model for

Credit Card Defaulting prediction case. This shows

the ability to generate from data rules which could be

easily understood, analysed and augmented by the

business user which are very important factors for the

wide deployment and acceptance of AI models in the

finance sector.

Figure 6: Top global rules for Credit Card Default use case

(Adams and Hagras, 2020).

In (Alonso and Casalino, 2019), they presented an

XAI tool, called ExpliClas, with the aim of

facilitating data analysis in the context of the decision

making processes to be carried out by all the

stakeholders involved in the educational process.

Towards True Explainable Artiﬁcial Intelligence for Real World Applications

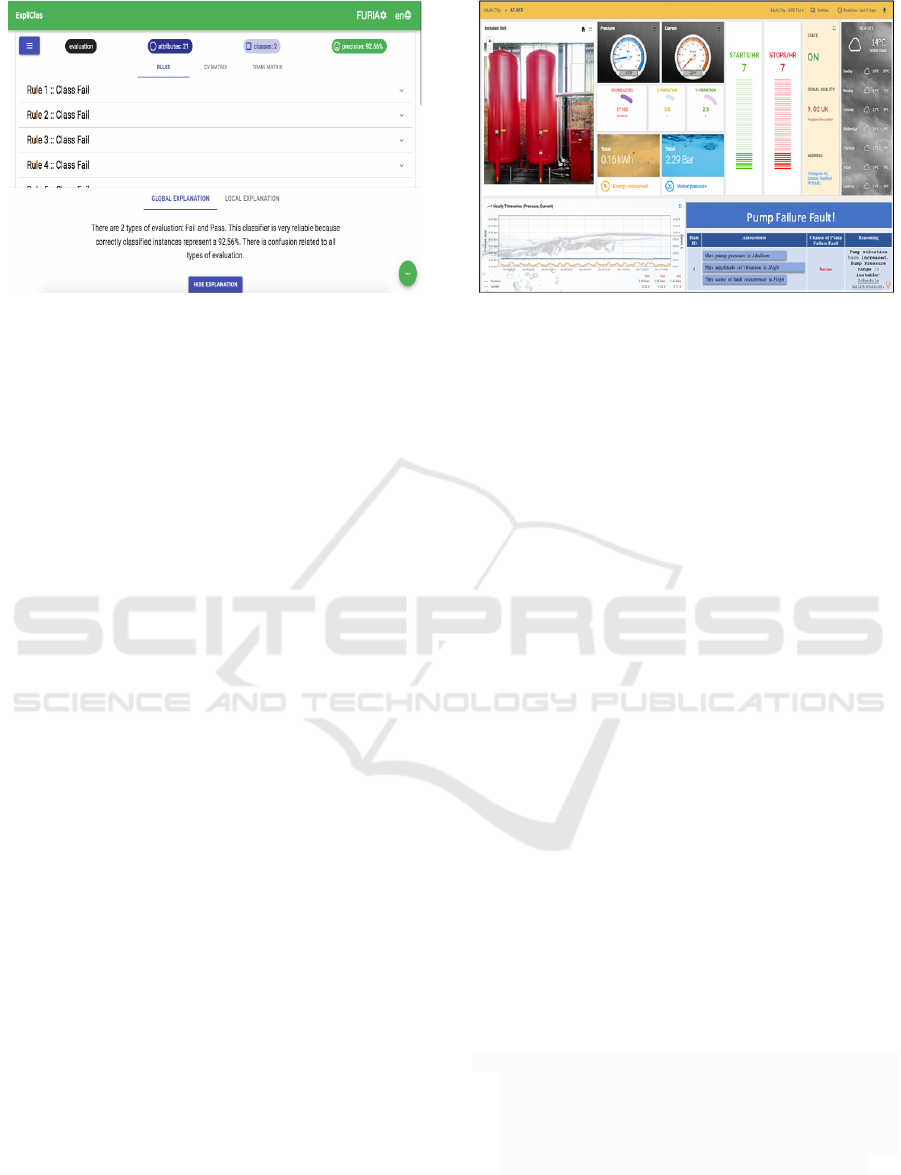

Figure 7: Example of global explanation obtained with

ExpliClas (Alonso and Casalino, 2019).

ExpliClas provided illustrative examples of both

global (shown in Figure 7) and local explanations

related to the given dataset. In addition, ExpliClas

automatically generated multimodal explanations

which consisted of a mixture of graphs and text.

These explanations look like natural, expressive and

effective, similar to those expected to be made by

humans. It is worth noting that the rationale behind

ExpliClas is completely transparent to the user, which

can understand the reasoning that leads to a given

output

In (Upasane et al., 2023), they presented a type-2

fuzzy-based Explainable AI (XAI) system for

predictive maintenance within the water pumping

industry (as shown in Figure 8). The proposed system

is optimised via Big-Bang Big-Crunch (BB-BC),

which maximises the model accuracy for predicting

faults while maximising model interpretability. They

evaluated the proposed system on water pumps using

real-time data obtained by their hardware placed at

real-world locations around the United Kingdom and

compared their model with Type-1 Fuzzy Logic

System (T1FLS), a Multi-Layer Perceptron (MLP)

Neural Network, deep neural networks learning

method known and decision trees (DT). The proposed

system predicted water pumping equipment failures

with good accuracy (outperforming the T1FLS

accuracy by 8.9% and DT by 529.2% while providing

comparable results to SAEs and MLPs) and

interpretability. The system predictions comprehend

why a specific problem may occur, which leads to

better and more informed customer visits to reduce

equipment failure disturbances. It was shown that

80.3% of water industry specialists strongly agree

with the model's explanation, determining its

acceptance. This will allow to the wide deployment

of XAI within the predictive maintenance industries.

Figure 8: Individual telemetry unit's data with fault’s

explanation (Upasane et al., 2023).

5 CONCLUSIONS AND FUTURE

WORK

This paper presented the notion of “True” XAI

models which can be easily analysed, understood and

augmented by the sector stake holders. Such XAI

models outputs can be easily analysed and understood

by the lay users. We have shown that such “True”

XAI models can lead to major breakthrough in

various sectors and lead to major discoveries and

innovations. Most importantly such XAI systems can

lead to the wide deployment and trust of AI in various

domains where human trust is needed and heavy

regulations are in place. From my point of view, such

“True” XAI systems will be very important for the

safe, secure and fair applications of AI. Hence, I

expect the growth of such “True” XAI systems in

various applications all over the World.

REFERENCES

Adams, J., Hagras, H. (2020). A Type-2 Fuzzy Logic

Approach to Explainable AI for regulatory compliance,

fair customer outcomes and market stability in the

Global Financial Sector, Proceedings of the 2020 IEEE

International Conference on Fuzzy Systems, Glasgow,

UK, July 2020.

Alonso, J.M., Casalino, G. (2019). Explainable Artificial

Intelligence for Human-Centric Data Analysis in Virtual

Learning Environments. In: Burgos, D., et al. Higher

Education Learning Methodologies and Technologies

Online. HELMeTO 2019. Communications in Computer

and Information Science, Vol.1091. Springer, Cham

Andreu-Perez, J., Emberson, L., Kiani, M., Filippetti, M.,

Hagras, H., Rigato, S. (2021). Explainable artificial

intelligence based analysis for interpreting infant

fNIRS data in developmental cognitive neuroscience,

IJCCI 2023 - 15th International Joint Conference on Computational Intelligence

Communications Biology, Vol. 4, No. 1, pp. 1-13,

September 2021.

Antonelli, M., Bernardo, D., Hagras, H., Marcelloni, F.

(2017). Multi-Objective Evolutionary Optimization of

Type-2 Fuzzy Rule-based Systems for Financial Data

Classification. IEEE Transactions on Fuzzy Systems,

Vol. 25, No. 2, pp. 249-264, April 2017.

Bach, S., Binder, A., Montavon, G., Klauschen, F., Müller,

K., Samek, W (2015). On pixelwise explanations for

non-linear classifier decisions by layer-wise relevance

propagation, PLoS ONE, Vol. 10, No. 7, 2015.

Chavatte, L (2018). Artificial Intelligence in Europe

Report: At a glance. Microsoft Pulse. https://pulse.

microsoft.com/en/transform-en/na/fa1-articial-intellige

nce-report-at-a-glance/#:~:text=65%25%20is%20expe

cting%20AI%20to,key%20topic%20for%20executive

%20management.

Gunning, D, (2017). Explainable Artificial Intelligence.

http://www. darpa.mil/program/explainable-articial-

intelligence, 2017.

Hagras, H. (2018). Towards Human Understandable

Explainable AI”, IEEE Computers, Vol.51, No.9, pp.

28-26, September 2018.

Haxby, J. V., Connolly, A. C. & Guntupalli, J. S (2014).

Decoding neural representational spaces using

multivariate pattern analysis. Annual review of

neuroscience, Vol. 37, pp. 435-456, 2014.

Kiani, M., Andreu-Perez, J., Hagras, H (2022). A Temporal

Type-2 Fuzzy System for Time-dependent Explainable

Artificial Intelligence, IEEE Transactions on Artificial

Intelligence, pp.1-15, September 2022.

Montavon, G., Samek, W., Müller,K. (2018) Methods for

interpreting and understanding deep neural networks.

Digital Signal Processing, Vol.73, pp.1-15, 2018.

Mendel, J., Hagras, H., Sola, H., Herrera, F. (2016)

Comments on: Interval Type-2 Fuzzy Sets are

generalization of Interval-Valued Fuzzy Sets: Towards

a Wider view on their relationship. IEEE Transactions

on Fuzzy Systems, Vol.24, No.1, pp.249-250, February

2016.

Nolan R. Altman, B. (2001). Brain Activation in Sedated

Children: Auditory and Visual Functional MR Imaging.

Pediatric Imaging, Vol.1 221, pp.56-63, 2001.

Press, G. (2019), AI And Automation 2019 Predictions

From Forrester, https://www.forbes.com/sites/gilpress/

2018/11/06/ai-and-automation-2019-predictions-from-

forrester/#d46ec454cb57.

Ribeiro, M., Singh, S., Guestrin, C. (2016a) why should i

trust you?: Explaining the predictions of any classifier.

Proceedings of the 2016 ACM SIGKDD International

Conference on Knowledge Discovery and Data Mining

(KDD), 2016

Ribeiro, M., Singh, S., Guestrin, C. (2016b) Nothing Else

Matters: Model-Agnostic Explanations By Identifying

Prediction Invariance. ArXiv e-prints, November 2016.

Ruiz, G., Hagras, H., Pomares, H., Rojas, I. (2019) Towards

a Fuzzy Logic System Based on General Forms of

Interval Type-2 Fuzzy Sets, IEEE Transactions on

Fuzzy Systems, Vol. 27, No.12, pp. 2381-2396,

February 2019.

Sanz, J., Bernardo, D., Herrera, F., Bustince, H., Hagras,

H., (2015). A Compact Evolutionary Interval-Valued

Fuzzy Rule-Based Classification System for the

Modeling and Prediction of Real-World Financial

Applications with Imbalanced Data. IEEE

Transactions on Fuzzy Systems, Vol.23m No.4, pp.973-

990, August 2015.

Sarabakha, A., Imanberdiyev, N., Kayacan, E., Khanesar,

M., Hagras, H. (2017). Novel Levenberg–Marquardt

based learning algorithm for unmanned aerial vehicles”

Journal of Information Sciences, Vo.417. pp. 361-380,

November 2017.

Sundararajan, M., Nahmi, A., 2019. The many Shapley

values for model explanation. Proceedings of Machine

Learning Research, Vol.119, pp. 9269-9278, 2019.

Upasane, S., Hagras, H., Anisi, M., Savill, S., Taylor,I.,

Manousakis, K. (2023). A Type-2 Fuzzy Based

Explainable AI System for Predictive Maintenance

within the Water Pumping Industry. IEEE Transactions

on Artificial Intelligence, May 2023.

Wolfe, J., Mikheeva, L., Hagras, H., Zabet, N.(2021). An

explainable artificial intelligence approach for

decoding the enhancer histone modifications code and

identification of novel enhancers in Drosophila,

Genome Biology, Vol. 22, No.1, pp.1-23, December

2021.

Towards True Explainable Artiﬁcial Intelligence for Real World Applications
