Design of Network Security Active Defense Mechanism for Power

Monitoring System

Xiaolei Ma, Pengfei Duan and Yandong Yang

State Grid Xinjiang Electric Power Co., Ltd

，

Urumqi, China

Keywords: Power Monitoring, Network Security, Active Defense.

Abstract: Power Network Monitoring System is a key link in the economic and social development of our country, its

network security problem is attracting more and more attention. Based on the practical background of

northeast power grid, this paper proposes a new type of security system for general network security system,

the network security system with “Trusted Computing as the core, safety controllable protection as the goal

and safety immunity as the feature” has been applied in practice.

1 INTRODUCTION

With the gradual deepening of the security protection

of the power monitoring system, each power

generation company and power grid company have

taken a lot of security protection measures, and

installed the isolation device in the lateral

transmission, separating the production control and

management information, a set of longitudinal

password authentication device is arranged in the

longitudinal transmission part, which can verify the

information between the master and the auxiliary

stations. In order to realize the real-time monitoring

of the security equipment and the real-time early

warning, centralized visualization and

comprehensive analysis of the network security

events, all the security protection equipment in the

power monitoring system are connected to the

internal network security monitoring platform, it

provides reliable data source and analysis method for

power grid security evaluation, and improves the

level of power grid security management and control.

Figure 1 shows the general architecture of the existing

internal network security monitoring platform.

The current power grid monitoring system, mainly

depends on the internal network security monitoring

platform, based on the grid network to build a

complete network security defense system, but the

internal network security monitoring platform, only

the edge equipment in the secure area of the power

grid and the local equipment with vertical encryption

authentication are monitored, which cannot

effectively monitor the equipment and system in the

power grid (Shi Zhiguo, 2018). Therefore, we cannot

control the source of virus and danger in the power

grid, and cannot guarantee that the hidden trouble in

the power grid will not be found, thus causing a series

of security accidents. In a word, an effective network

security active defense system is set up to detect the

status of the access network equipment, so as to

realize the monitoring and positioning of the access

network equipment.

2 PLATFORM DESIGN

The characteristics of the power monitoring system

are: the network is private and relatively closed,

equipment and users are relatively stable, in the

internal network or port use of proprietary internal

services, the use of autonomous procedures to deal

with network messages, therefore, when a user or

device exceeds its authority, it may be considered a

security risk. The electric power monitoring system

runs on the special service network, its service type is

special, the data flow direction is relatively fixed, the

service system structure is homogeneous, all

monitoring equipment is transmitted according to the

protocol required in the power system and is managed

by the grid company or power generation company.

With the related technology and Management

Foundation, the implementation of network security

monitoring can be transferred from the edge node of

the network to the network switches, routers, servers,

hosts, work nodes and other specific equipment, the

detection program is used to detect and deal with

Ma, X., Duan, P. and Yang, Y.

Design of Network Security Active Defense Mechanism for Power Monitoring System.

DOI: 10.5220/0012281200003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 275-279

ISBN: 978-989-758-677-4

275

various security risks such as malicious attacks and

program tampering as early as possible from the

events and behaviors of the devices and personnel

connected in each network (Ma Jianwei, 2018).

Therefore, it is necessary to establish a network

security management system that organically

combines “Perception recognition”, “Collection-

induction” and “Management-control”.

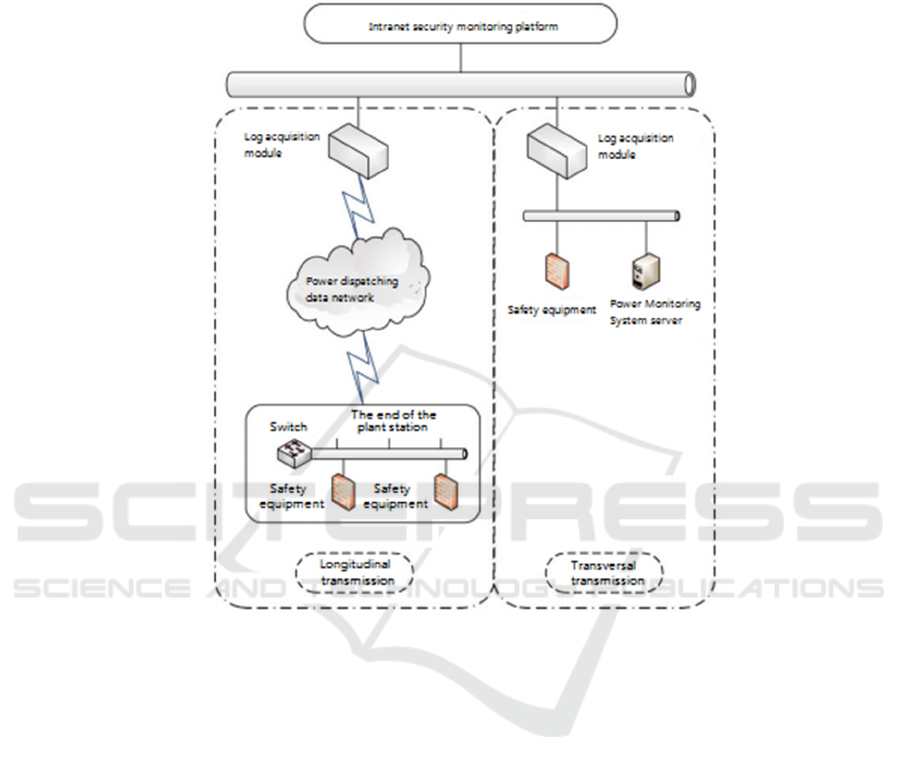

Fig. 1. Architecture of intranet security monitoring platform.

The main technologies used are:

(1) The principle, Method and technology of a

network device-oriented self-perception-based

security event. Through the security awareness of

each device in the network, the potential dangerous

events can be detected quickly and accurately.

(2) Data acquisition, transmission and aggregation

technology based on the security of monitoring

equipment. By setting up a security monitoring

device in a network, we can complete the collection,

analysis and processing of the network threat data in

the device collection area, and the analysis results will

be transmitted to the higher level of network security

information synthesis and management platform.

(3) Collaborative design of management platform

and control system under hierarchical deployment. It

realizes the distributed management of online

monitoring, real-time early warning, accurate

analysis, check, audit and control of network security.

According to the above description, the power

system network security management platform

designed in this paper is shown in Figure 2 below.

The substations and power plants in Figure 2 are

intended to set up a network security monitor, which

collects and collects local security information and

reports to the above dispatch platform. The

communication transmission between the

management platforms at all levels and between the

management platforms of substations and power

plant equipment is based on the power dispatching

data network of the National Grid, and in order to

ensure the reliability and security of the data, a special

VPN is also used for data interaction.

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

276

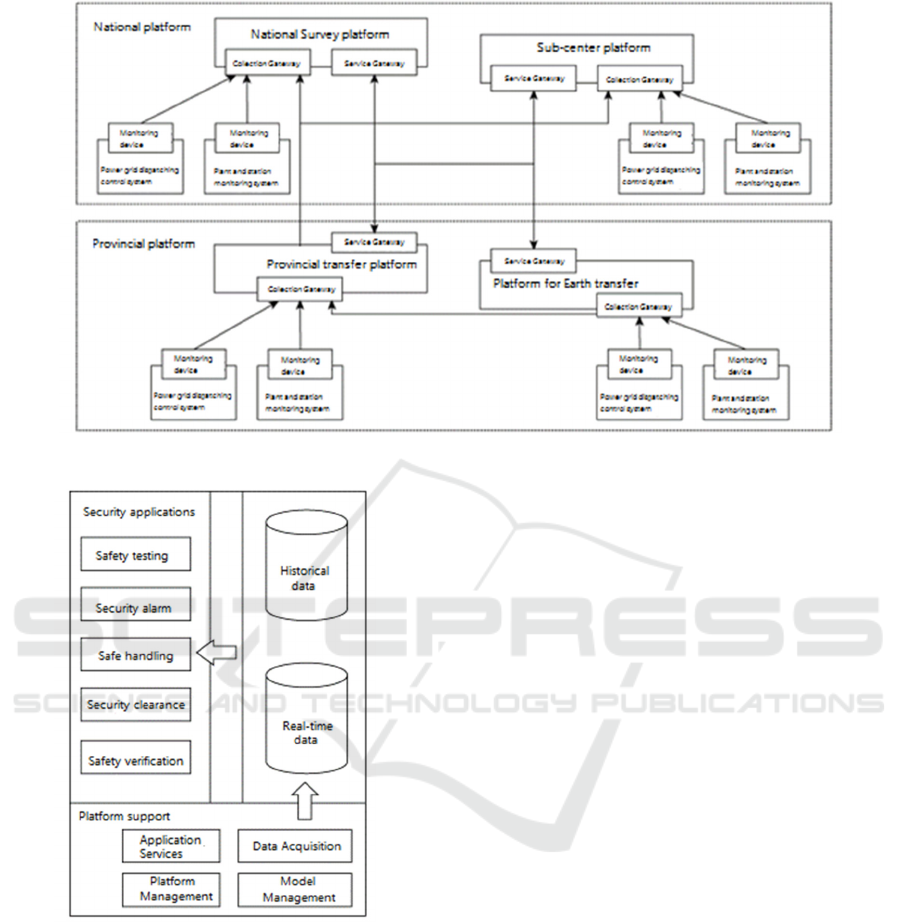

Fig. 2. Overall design of network security management system.

Figure 3. The overall architecture of network security

management.

In the data collection of security events, our

platform uses a set-oriented collection method, which

changes the original way of analyzing and mining the

packets spread in the network, it provides a new

monitoring method for network security events

(Sudan, 2018). In particular, the method is based on

the operating system of the local host and the devices

and components connected with the network to

collect the security data of the events related to the

network device On the basis of control and

transformation data network connectivity, between

systems such as plant, power plant, master control

system, load control system and distribution network

service system, to achieve the unified control of

network security events. Based on the above research,

the integrated management and control functions of

centralized verification, monitoring, processing and

auditing of information security events will be

realized, and a complete set of system framework and

security application services oriented to power

consumption business will be formed, to ensure that

the system's security monitoring function in the

correct use of multiple dimensions. To sum up, the

overall function of the NCS system established in this

paper needs to combine 4 types of security support

modules with 5 types of integrated application

modules. 4 major security support modules, namely:

Security Data Collection, model design, platform

function management, application integration

services, it provides the basic functions of platform

for communication analysis, service access and

registration request of platform basic security data. 5

comprehensive applications, including: Network

Security Event Monitoring, security alarm and

processing, security audit and verification. In order to

meet the demand of network security and control

function of the new generation power monitoring

system, the platform function designed in this paper

can be as shown in Figure 3.

With the above architecture, the following

functional requirements are implemented:

Security monitoring, extending from dedicated

protection devices at the edge of the network to all

servers, workstations, network devices, and other

Design of Network Security Active Defense Mechanism for Power Monitoring System

277

infrastructure in the network area of the overall

network security management architecture shown in

Figure 3. (2) the monitoring of network security

events has changed from the original monitoring of

Edge events to an all-round and overall monitoring,

covering both internal and external aspects of unsafe

behavior (Gu Zhuoyuan, 2019). (3) from simple

monitoring and early warning, to network security

analysis and location, traceability processing, Audit

and verification, interactive management. (4) a

network integrated security management mode from

“Edge monitoring, static control” to “Comprehensive

monitoring, dynamic real-time management”.

3 PLATFORM APPLICATION

The implementation of the platform follows the

overall design principle of hierarchical deployment

and cooperative management, and the network

security distributed management platform is

configured to all levels of regulatory agencies, and the

network security monitoring equipment is configured

to all plant stations, thus, a new and comprehensive

network security management system is formed,

which can cover the whole power network.

(1) to increase the monitoring and collection of

mainframe services, data exchange equipment,

network security equipment, database operation and

alarm information in the power monitoring system,

the security events of the monitoring target are

recorded and analyzed to provide the data basis for

the cooperative protection of the whole network. (2)

plant and station monitors shall be installed in fossil-

fuel power station stations and substations to collect

and manage them, so as to supplement the

deficiencies of safety management methods for their

equipment and systems. (3) providing an interface for

daily operation, centralized monitoring and

management of the software and hardware operation

status of the power monitoring system, and providing

recording functions such as Operation Information

and alarm information, provide effective data

tracking support for problem resolution and

traceability (Chen Wuhui, 2019). (4) by verifying the

security configuration of the host computer and

evaluating the security risk, it is easier to find the

security defect of the host computer, so that the

security work is changed from passive defense to

active monitoring. (5) it provides an effective

management method for the occurrence and disposal

of security incidents, which can manage the whole

life cycle of security incidents from occurrence to

disposal, and monitor the operation of resources in

real time. With the ability to view data and topology,

from passive reception to active monitoring; a unified

management of threats and vulnerabilities.

4 CONCLUSION

The construction and effective operation of network

security management platform is the basic technical

means to improve the ability of network security

situation awareness, early warning and emergency

response, it is also the primary work of network

security system of electric power monitoring system.

Compared with the previous generation internal

network security monitoring and management

platform, a power monitoring and management

platform based on Trusted Computing, security

controllable, security immune, the utility model can

play a more efficient safety protection effect in the

practical application.

ACKNOWLEDGEMENTS

This work was supported by New generation of

dispatching technology support system.

REFERENCES

Shi Zhiguo, Computer Network Security Tutorial (M).

Second edition. Beijing: Tsinghua University Press,

2018.

Ma Jianwei, Wan Huijiang, Wang Xiangdong. The present

situation and improvement method of network security

of electric power monitoring system (J). Information

and computing (theoretical edition), 2018(22): 193-194.

Sudan, Yang Rui, Wu Jia, etc. Design and application of

monitoring model for electric power information

communication system (J). Science and Technology

Bulletin, 2018(8): 164-167.

Gu Zhuoyuan, Tang Yong, Sun Huadong, etc. Response-

based power system security and stability, integrated

defense technology (J). Chinese Journal of Electrical

Engineering, 2019, 39(4): 196-204.

Chen Wuhui, Chen Wengan, Xue Ancheng. Physical power

system for cooperative information attack, system

security risk assessment and defense resource

allocation (J). Grid technology, 2019(7): 2353-2360.

Xue Mei Hou. Noise-Robust Speech Recognition Based on

RBF Neural Network (J). Advanced Materials

Research. 2011， VOL. 217-218: 413-418

Maha El Meseery,Mahmoud Fakhr El Din, Heba El Nemer.

A Hybrid Particle Swarm/Nelder-Mead Clustering

Algorithm for Face Recognition (J). International

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

278

Journal of Artificial Intelligent Systems and Machine

Learning, 2011, 3(10)

Tomo MIYAZAKI, Shinichiro OMACHI. Representative

Graph Generation for Graph-Based Character

Recognition (J). Journal of the Institute of Image

Electronics Engineers of Japan. 2011, 40(3):439-447

Pei Ye,Tao Jiang. Research on Unconstrained Handwritten

Numeral Recognition by BP Feature Screening Based

on Fuzzy Clustering (J). Applied Mechanics and

Materials, 2015 VOL. 734: 504-507

Design of Network Security Active Defense Mechanism for Power Monitoring System

279
