Dual IV Design Scheme: An Improved AES Encryption Approach

Longqing Zhang

, Bin Liu

, Xinwei Zhang

1,*

, Huangqiang Yuan

, Jiangzhao Yang

and

Haoguang Huang

Guangdong University of Science and Technology, Dongguan, China

Googol Paradox (Dongguan) Intelligence Technology Co., Ltd, Dongguan, China

Keywords: AES Encryption, Variable Order Processing, Ciphertext Characterization.

Abstract: This paper proposes a new encryption method of AES encryption, which is implemented by drawing on the

idea of ShiftRows in AES and introducing a new order-changing processing step, which switches the order

of the just-generated 64-byte array and realizes the deep concealment of the last indicator bit. On the other

hand, the AES encryption blocks in a 16-byte group are forced to break up into a 64-byte matrix, which further

improves the disorder of the encrypted data, and then the modification works of the superposition are carried

out to make it more complicated. The experimental results show that the frequency of the new file encryption

characters appearing is completely different from the CBC mode, and the peaks and valleys of the new bar

graphs are more even compared to the original version, and the peaks are also significantly reduced. While

ensuring the security, it increases the degree of confusion in the distribution of characters, which makes the

statistical characteristics of the ciphertext more difficult to be analyzed and inferred.

1 INTRODUCTION

In recent years, with the leakage of all kinds of private

data, people gradually realize the importance of

personal data protection. Due to the rapid

development of computer communication technology

and the wide application of the Internet, people's

demand for information security has become higher

and higher. Information security has become a very

important and urgent problem today. Currently, many

people tend to use the same accounts and passwords,

which may be used on multiple software and social

networking sites. Once one of them is compromised,

it can lead to a series of chain-reaction breaches (Li

Ke, 2023). However, for the average user, they are

often unable to address the vulnerability of a website

and do not have the technical skills to do so.

While everyone knows that you should use multiple

passwords of higher complexity for security, it is a

major difficulty to memorize so many and complex

passwords, so it has become common for many

people to still use the same passwords for their

accounts.

Therefore, we need a convenient and easy-to-use

encryption device to protect users' data security. This

device should have high strength protection

capabilities, yet be simple to use and easy to carry and

store. It needs to provide enough security to satisfy

the needs of the average user while being widely

accepted and integrated into people's daily lives,

which is the ultimate goal of designing this device.

AES is a next-generation data encryption standard

that combines the advantages of strong security, high

performance, high efficiency, ease of use, and

flexibility. The origins of the AES standard can be

traced back to 1997, when the U.S. government

issued a public notice announcing a call for a new

national standard for symmetric algorithmic

encryption that would meet 21st-century security

needs. The standard requires that all aspects of the

algorithm's design and implementation be open and

freely available worldwide.

2 RELATED WORK

The two types of encryption algorithms include

symmetric and asymmetric algorithms. The classic

symmetric algorithms include AES, DES, etc., while

RSA is one of the representatives of asymmetric

algorithms (Kutsman Vladyslav, 2023). A key feature

of symmetric encryption algorithms is that the key

length is usually the same as the length of the

plaintext, which is where the name comes from.

For example, a common 128-bit key length can be

used to mathematically divide plaintext into 128-bit

310

Zhang, L., Liu, B., Zhang, X., Yuan, H., Yang, J. and Huang, H.

Dual IV Design Scheme: An Improved AES Encryption Approach.

DOI: 10.5220/0012282400003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 310-314

ISBN: 978-989-758-677-4

length chunks for data obfuscation and diffusion

effects. Commonly used encryption methods include

different-or operations, matrix operations, and shift

operations. For encryption, the round key mechanism

is often used, where multiple new ciphers are

generated from the original key (Kandala Sree Rama

Murthy, 2022).

The AES algorithm was designed by Belgian

cryptographers Vincent Rijmen and Joan Daemen. It

has become one of the most popular symmetric

encryption standards in use today and is widely used

in data encryption and secure communications. AES

provides strong security and efficiency, but requires

proper key management (Liu Yiding - Priya).

The DES algorithm was originally designed by

IBM and improved by the NSA to become the

standard. However, it is no longer considered a secure

encryption algorithm because its short 56-bit key

length is no longer sufficient to provide adequate

security. It has now been superseded by AES

(Padmavathi R, 2021).

RSA algorithm was proposed by Ron Rivest, Adi

Shamir and Leonard Adleman in 1977. It is widely

used in the fields of digital signatures, key exchange,

and secure communications. RSA provides strong

security but requires a long key length to maintain

security (Wang Yan - Manuel Melvin P.).

In order to prevent the same plaintext and key from

generating the same ciphertext, various strategies are

used in the encryption process, such as cipher group

linking (CBC) mode, counter mode, cipher feedback

(CFB) mode, and so on. These modes are mainly used

to prevent cryptanalytic attacks. Asymmetric

encryption usually refers to public key cryptosystems,

which utilize different ciphers for encryption and

decryption (Sowmiya B., 2021). In this system, both

the parties need to exchange public keys and encrypt

using each other's public key. After the receiver

receives the encrypted data, it is decrypted using its

own private key.

Since asymmetric encryption requires more

computational resources, it is common for people to

use asymmetric encryption to protect the key and

symmetric encryption to protect the data itself, in a

way that better utilizes the advantages of both

encryption methods.

3 CORE CODING STRUCTURE

The AES encryption process involves four

operations: SubBytes, ShiftRows, MixColumns and

AddRoundKey. In AES encryption, the data is first

processed using the AddRoundKey function. In this

step, the input data is bitwise dissimilar to the round

key. The key for the first round is the key entered by

the user. Starting from the second round, four related

functions are used to manipulate the data in each

round. The first of these steps is SubBytes. subBytes

is actually a lookup table operation, similar to S-BOX

in the DES algorithm. there is also a lookup table in

AES called S-BOX, which contains 256 values

corresponding to all combinations from 0x00 to

0xFF. Each byte value of the input is used as the index

of the S-BOX and then the corresponding substitution

value is taken out. By using SubBytes, AES can

perform non-linear substitution at the byte level,

enhancing the security of the encryption. This step

helps to obfuscate the pattern of the input data,

making it difficult for cryptanalysts to obtain a clear

statistical characterization,sbox substitution is shown

in Fig 1.

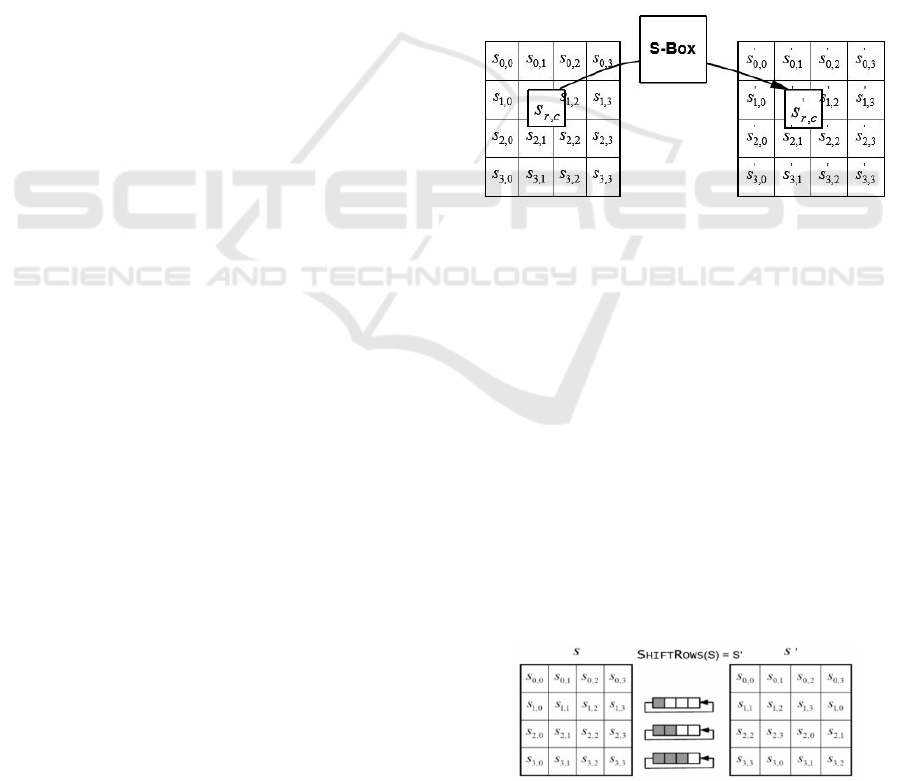

Fig 1. sbox replacement.

In the AES algorithm, the ShiftRows function is

the second step of the operation, which performs a

row shift operation on each row of the state matrix.

The implementation steps are shown in Fig 2: this

step increases the spread and complexity of the data

and enhances the security of the encryption.

Specifically, the ShiftRows operation steps: the first

row remains unchanged; the second row is cyclically

shifted left by one byte; the third row is cyclically

shifted left by two bytes; and the fourth row is

cyclically shifted left by three bytes. With row shifts,

the elements of each row in the matrix are cyclically

shifted left by a certain number of bytes. This helps

ensure that each byte of the input data can be mixed

with the others, making it difficult for cryptanalysts

to obtain clear patterns and structures.

Fig 2. ShiftRows.

Dual IV Design Scheme: An Improved AES Encryption Approach

311

The third step of the operation is MixColumns, the

core of the AES encryption operation, which utilizes

operations over a finite field to achieve encryption

and decryption. In this operation, the input data is

treated as a 4x4 matrix and matrix multiplication is

performed with a fixed matrix. In the operation within

the finite field GF(28), the result will always lie

between 0x00 and 0xff, which is determined by the

characteristics of the finite field operation(Karmani

Mouna, 2021). Similar to the lookup table (S-Box) in

the SubBytes operation, the MixColumns operation

in AES utilizes a fixed matrix for the operation. For

each element of the input matrix, the rule for the

multiplication operation is:

(1) For a multiplication with a value of 0x01,

the result is equal to itself.

(2) For a multiplication with a value of 0x02, if

the multiplied number is less than 0x80, the result is

a 1-bit left shift of the multiplied number.

(3) For a multiplication with a value of 0x02, if

the multiplied number is greater than or equal to 0x80,

the result is the multiplied number shifted 1 bit to the

left before being differentiated from 0x1b.

By using these arithmetic rules, each element of the

input matrix is multiplied to obtain a new value. Finally,

after the MixColumns operation is complete, the

AddRoundKey function needs to be called again to

perform the dissimilarity operation with the round key.

4 IMPROVED STRUCTURE

For the selection problem, this paper proposes a dual

IV design scheme. The scheme is based on the design

code of the original IV and adds an extra step to

generate a new big IV while the original IV is called

the small IV. Specifically, the ciphertexts that have

been encrypted are divided into a group of 64, i.e.,

512 bits as a unit, to form a 16x4 matrix. Then, in this

paper, the first group of 64 ciphertexts is taken as the

new big IV, while the original IV becomes the little

IV. When reading data from the original file, 64 bytes

are read as a unit each time. From a microscopic point

of view, the original CBC pattern still operates as

normal. When the first set of 64 bytes of big round

ciphertext is obtained, this paper creates a new array

to save it and continues to read the next 64 bytes of

plaintext data. In this way, this topic implements a

dual IV design. The purpose of this is to increase the

variability of IV and improve the security of the

cryptographic algorithm. In each round of encryption,

this topic will directly perform a bitwise dissimilarity

operation between the saved 64-byte ciphertext of the

previous round and the current plaintext to obtain a

result. This result will continue to be encrypted

iteratively as a small IV in groups of 16 bytes. After

4 consecutive rounds of encryption, the subject will

get the final result to be used as the large IV for the

next round of encryption. This realizes the purpose of

IV being generated directly from the ciphertext and

conforms to the diffusion principle proposed by

Shannon. Also, by this IV selection method, the

characters in the original encryption order are

completely disrupted, increasing the security of the

cryptographic algorithm.

A. shuffle the order of business

In this paper, we introduce a processing step for

changing the order, borrowing the idea of ShiftRows

from AES. The step is shown in Fig 3, which swaps

the order of the 64-byte array just generated.

Although the computational effort of this step is

small, it is very efficient. Because there are a large

number of arithmetic processes in AES, even a

change in any of these bits can make a big difference

in the final result.

For specific implementation, this topic is based on

the previously generated 64-byte large IV grouping

for processing. Since the 64 bytes can be divided into

exactly 8x8 matrices, we resemble the processing

principle of ShiftRows by keeping the first row

unchanged, and starting from the second row,

sequentially shifting each row to the left by 2, 3, 4, 5,

up to 7 bits. Through such a shift operation, we take

the last column of the matrix, i.e. the first byte, as the

original last byte, and realize the deep hiding of the

last indicator bit. At the same time, the AES

encryption block in a 16-byte group is forced to be

broken up into a 64-byte matrix, which further

improves the disorder of the encrypted data.

With the above modifications, we describe in

detail the first step of the variable order processing

and emphasize its hiding of the last indicator bit and

the enhancement of the degree of disorder of the

encrypted data. This is able to avoid the duplication

rate of the paper while further improving the security

of the cryptographic algorithm.

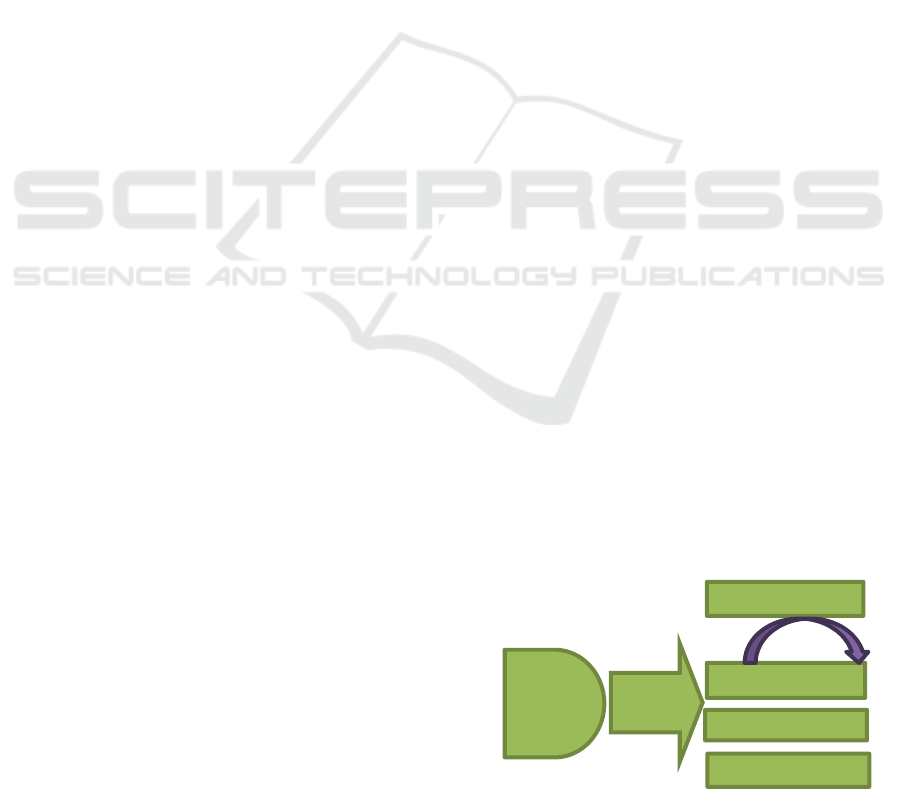

Fig 3. New Shift Processing Function.

64-byte

matrix

Divided

into eight

groups

1, 2, 3 ................ .8

16,9,10...............14,15

...... omitted 5 blocks

64, 57, 58, ......, 60, 61, 62,

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

312

This topic introduces a processing step for re-

variation of values, inspired by the processing of

AddRoundKey in AES. However, unlike

AddRoundKey, this topic no longer extends the key,

but directly uses the original key in the key file. Since

the ciphertext block is 64 bytes and the key is 16

bytes, this topic can simply divide the key into a

group of 4 bytes, and then perform the dissimilarity

operation between each byte and the corresponding

ciphertext byte, and write the result into the ciphertext

file.

Doing so implements another shuffling process for

the ciphertext. The advantage is that an infinite

number of schemes can be used to vary the ciphertext,

as long as memory space and processing power allow.

Different group sizes can be chosen, such as 64 bytes,

128 bytes, 512 bytes, etc. It is even possible to use a

different packet size each time, and it is feasible to

gradually increase or decrease the packet size. In

addition, the grouping information can be written into

the ciphertext, so that the size of the ciphertext is no

longer strictly close to the size of the plaintext. At the

same time, the last byte of the file no longer

represents the number of filled characters, which

helps to strengthen the security of the data.

With the above modifications, this topic describes

in detail the second step of the re-variation processing

of the values, and emphasizes the nearly endless

ciphertext variations it can achieve, as well as the

enhancement of data security. This can avoid the

duplication rate of the paper while further

strengthening the security of the cryptographic

algorithm.

5 RESULT

In the first step, the novel excerpt file is opene

d and a byte statistical analysis graph is generat

ed. This graph is depicted in Fig4.



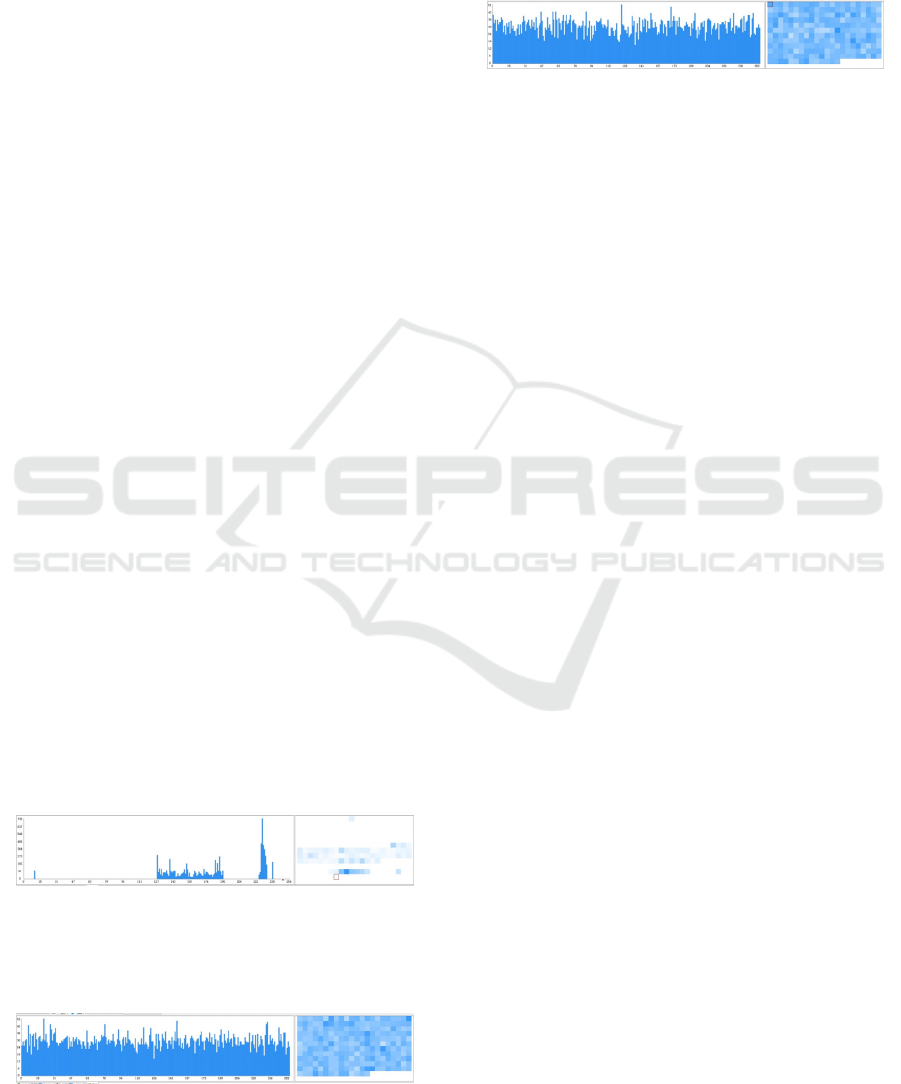

Fig 4. Byte statistics analysis of the novel file.

After obfuscation and diffusion processing via

plaintext.



Fig 5. Plaintext obfuscation and diffusion processing.

As shown in Fig 5, all the statistical features in the

original plaintext can no longer be found at all in the

file encrypted with AES, and the frequency of

characters in the ciphertext appears nearly uniformly

in all the intervals between 0x00 and 0xff.



Fig 6. Crypto-fiction of the new method.

According to the analysis in Fig6, the new

encrypted file maintains the uniform effect of the

original AES128 while the frequency of occurrence

of various characters is completely different from the

pure CBC mode for the case of encrypting the same

novel with the same key. In addition, it is worth

noting that the peaks and troughs of the bar graphs in

the new encryption code are more even compared to

the original version, and the overly particular peaks

have been significantly reduced.

With these improvements, the new encryption

code increases the degree of confusion in the

character distribution while ensuring security,

making the statistical features of the ciphertext more

difficult to be analyzed and inferred. This is important

for improving the strength of encryption algorithms

and resisting statistical attacks.

6 CONCLUSION

In this paper, we propose a new encryption method

for AES encryption, and in the implementation, we

introduce a new step of changing order processing,

which draws on the idea of ShiftRows in AES. The

order of the just-generated 64-byte array is switched,

i.e., the first row is kept unchanged, and from the

second row, each row is shifted to the left by 2, 3, 4,

5, and up to 7 bits in turn, on the other hand, the last

column of the matrix, i.e., the first byte, is taken as

the last byte of the original, which realizes the deep

concealment of the last indicator bit. At the same time,

the AES encryption block in a group of 16 bytes is

forced to break up into a matrix of 64 bytes, which

further improves the degree of disorder of the

encrypted data. At the same time, the modification

works on the basis of this overlay are sought to make

it more complex. The usual CBC model is also

modified for this purpose to make the iterative

process more complex. The experimental results

show that the new encryption code increases the

degree of disorder in the character distribution while

Dual IV Design Scheme: An Improved AES Encryption Approach

313

ensuring security, making the statistical

characteristics of the ciphertext more difficult to be

analyzed and inferred.

ACKNOWLEDGMENTS

This research was financially supported by Special

Projects in Key Areas for General Universities in

Guangdong ProvinceNO.2021 ZDZX1077, in part of

Natural Science Foundation of Guangdong Province

of China with the Grant No.2020A1515010784,also

supported by Guangdong Institute of Science and

Technology Quality Project Editor

GKZLGC2022255, 2022 Guangdong Province.

Technology Quality Project Editor

GKZLGC2022255, 2022 Guangdong Institute of

Science and Technology Innovation and

Improvement School Project No. GKY-

2022CQT.GKY-2022CQTD-2,in part of 2022

Guangdong Province Ordinary Colleges and

Universities Young Innovative Talents Category

Project, No. 2022KQNCX115, Dongguan Social

Development Project No.

20231800937602,Innovation and Improvement

School Project from Guangdong University of

Science and Technology Technology NO. GKY-

2019CQYJ-3 College Students Innovation Training

Program held by Guangdong University of Science

and Technology NO.1711034, 1711080, and

NO.1711040, and NO.1711041, and NO.1711042

1711080, and NO.1711088.

REFERENCES

Li Ke, Li Hua & Mund Graeme. A reconfigurable and

compact subpipelined architecture for AES encryption

and decryption. EURASIP Journal on Advances in

Signal Processing, 2023.

https://doi.org/10.1186/S13634-022-00963-3

Kutsman Vladyslav. Distributed File System Based on a

Relational Database. Open Journal of Applied Sciences

2023(05). http://doi:10.4236/OJAPPS.2023.135051.

Kandala Sree Rama Murthy & V M Manikandan. A

Reversible Data Hiding through Encryption Scheme for

Medical Image Transmission Using AES Encryption

with Key Scrambling. JAIT, 2022.

https://doi.org/10.12720/JAIT.13.5.433-440.

Liu Yiding, Wang Lening, Qouneh Amer & Fu Xin.

Enabling PIM-based AES encryption for online video

streaming. Journal of Systems Architecture, 2022

https://doi.org/10.1016/J.SYSARC.2022.102734.

Abdul Hussien Farah Tawfiq, Rahma Abdul Monem S. &

Abdul Wahab Hala Bahjat. A Secure Environment Using

a New Lightweight AES Encryption Algorithm for E-

Commerce Websites. Security and Communication

Networks. 2021 https://doi.org/10.1155/2021/9961172

Priya, S. Sridevi Sathya,Karthigaikumar, P. & Teja,

Narayana Ravi. FPGA implementation of AES

algorithm for high speed applications. Analog

Integrated Circuits and Signal Processing, 2021 123,

3081–3101 https://doi.org/10.1007/S10470-021-01959-

Padmavathi R. Anusha & Dhanalakshmi K. S. An

Advanced Encryption Standard in Memory (AESIM)

Efficient, High Performance S-box Based AES

Encryption and Decryption Architecture on VLSI.

Wireless Personal Communications, 2021 (4).

https://doi.org/10.1007/S11277-021-09278-2

Wang Yan. Application of AES and DES Algorithms in File

Management. Journal of Physics: Conference Series,

2037 012001. https://doi.org/10.1088/1742-

6596/2037/1/012001

S. Ajish & AnilKumar K.S. Secure mobile internet voting

system using biometric authentication and wavelet

based AES. Journal of Information Security and

Applications, 2021

https://doi.org/10.1016/J.JISA.2021.102908

Manuel Melvin P. & Daimi Kevin. Implementing

cryptography in LoRa based communication devices for

unmanned ground vehicle applications. SN Applied

Sciences, 2021 (4). https://doi.org/10.1007/S42452-021-

04377-Y

Sowmiya B., Abhijith V.S., Sudersan S., Sakthi Jaya Sundar

R., Thangavel M. & Varalakshmi P. A Survey on

Security and Privacy Issues in Contact Tracing

Application of Covid-19. SN Computer Science, 2021

(3). https://doi.org/10.1007/S42979-021-00520-Z

Karmani Mouna, Benhadjyoussef Noura, Hamdi Belgacem

& Machhout Mohsen. The DFA/DFT-based hacking

techniques and countermeasures: case study of the 32-

bit AES encryption crypto-core. IET Computers &

Digital Techniques, 2021 (2).

https://doi.org/10.1049/CDT2.12013

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

314
