Information System Design for Logistics Warehouse Management

Based on Struts

Hongmin Pan

Shandong Institute of Commerce and Technology, Jinan, China

Keywords: Logistics, Warehouse Management, Information System.

Abstract: The user interface of this system is implemented by struts, and SQL Server 2016 is used as the backstage data

server to increase the security and integrity of the system and improve the speed of system response. The

whole software system is based on Browser/Server mode. The system interface design is generous, concise,

practical, simple and convenient to operate. It is a software completely suitable for the storage information

management of the general logistics centre. It can realize the intelligent management of warehouse such as

warehousing, outbound, inventory checking and inventory control, and can improve the efficiency of

inventory management. At the same time, the owner can browse his own goods through various documents

such as the receipt, issue and count sheet, which is convenient for feeding back information to the logistics

enterprise.

1 INTRODUCTION

Warehousing is the temporary storage of products and

articles due to the pre order or pre market forecast in

the process of product production and circulation

(Zhang, R. F., 2022). It is a comprehensive place that

reflects the material activities of the factory. It is a

transit station connecting production, supply and

sales, and plays an important auxiliary role in

promoting production and improving efficiency. At

the same time, clear and accurate statements,

document accounts and accurate accounting

information of the accounting department are also

carried out around the activities of the warehousing

entity. Therefore, warehousing is the integration of

logistics, information flow and document flow.

WMS (warehouse management system) is the

abbreviation of warehouse management system. It is

a business operating system for inventory goods

management and processing (Mao, J., 2018). WMS

can help enterprises realize the refined management

of local single warehouse. It can also help

manufacturing enterprises, logistics enterprises and

chain industries to realize warehouse management in

different places across the country. From the specific

scope of application, it can dynamically arrange the

storage and shipment of goods, and can electronically

operate the whole process of warehousing operation

process (Luo, J., 2022). It can establish a data

interface with the customer service center to enable

customers to realize remote cargo management

through the Internet, and can also seamlessly connect

with the ERP system of the enterprise.

With the development of information technology,

the original warehouse management will be replaced

by the information-based WMS. Therefore, the

logistics warehouse management system is taken as a

research topic to promote the development of the

logistics industry and warehouse industry from a

small perspective (Kmiecik, M., 2022).

In recent years, the logistics industry has achieved

rapid development, which is not only promoted by

economic development, but also closely related to

technological progress, especially the progress of

information network technology (Klumpp, M.-

Kembro, J.). An effective and advanced information

network system is very important to ensure the

realization of the company's service commitments to

customers. The flow of information in the process of

logistics is carried out across enterprises. Logistics

information must realize the functions of cross

regional real-time transmission, remote data access,

the combination of data distribution processing and

centralized processing, and multiple remote LAN

connections. From the perspective of development,

some new concepts and new business models have

been bred with the support of information technology

(Jiang, J. J., 2020). For example, the introduction of

the concept of "virtual" has produced "virtual

Pan, H.

Information System Design for Logistics Warehouse Management Based on Struts.

DOI: 10.5220/0012282700003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 323-327

ISBN: 978-989-758-677-4

323

warehouse" and "virtual warehouse". In my

understanding of their meaning, this refers to the so-

called "warehouse system" based on the computer

database system. In other words: from the perspective

of computer technology, both warehouses and

inventories exist, which can be mobilized and solve

problems, but from the perspective of traditional

warehouses and storage, they are in a decentralized

state, or even dynamic (He, S. H.- Ferrara, F.). From

this point of view, a modern large-scale logistics

enterprise does not necessarily have how many means

of transport, warehouse area and facilities, but must

have a group of high-quality employees, a set of

software for logistics management according to

modern concepts and relatively complete network

information hardware facilities. It can use economic

leverage and effective agreements to schedule various

required logistics facilities and fulfill various

commitments to customers. The "logistics

warehousing system" based on "virtual warehouse"

technology and "zero inventory" technology can

ensure that large-scale production enterprises achieve

zero inventory production, so that the cost of raw

materials in its working capital can be greatly

reduced, and the warehousing facilities of new

production enterprises can also be greatly simplified,

thus reducing production costs (El Kihel, Y., 2022).

However, its service capacity, efficiency and quality

have been greatly improved, and its benefits will also

increase year on year.

In today's extremely fierce market competition,

how to occupy a larger market, improve the

competitiveness and popularity of products, and

reasonably reduce the marketing cost, is a common

topic faced by every enterprise. Therefore, it is urgent

to use computers and communication networks for

scientific management of materials management, so

as to automate the login, query, modification, storage,

processing and distribution of information, so as to

liberate managers from daily complicated things,

improve the quality and efficiency of management

work, reduce errors and reduce labor intensity(Chen,

J., 2019). The networking of logistics warehousing

has many advantages that traditional methods cannot

match, and can provide fast, good and low-cost

solutions for enterprise marketing. We have reason to

believe that more enterprises can take advantage of

the new weapon of information management to win

the market and strive for greater business

opportunities.

WMS came out in the mid-1970s and has

developed rapidly since then. It originates from the

traditional inventory management system, and

expands and adds various new functions on this basis.

According to j.m.hill, an American WMS expert,

there are nearly 375 WMS suppliers worldwide

(Binos, T., 2020). The current application of WMS

abroad can be summarized as follows:

Users are increasing, and large, medium and small

enterprises account for a certain proportion. By

comparing the prices of a set of software and

hardware and the installation of WMS in 1993 and

1998, we can know that the price of WMS has

decreased significantly. In 1993, the average price

was US $510000. In October 1998, 51 WMS

suppliers were surveyed. The price was US $275000,

down nearly 46%, mainly due to market competition

and the price reduction of electronic technology

(Klumpp, M., 2021).

According to the report of IHS magazine, the

distribution center of a sanitary ware factory in the

UK saved 393000 pounds annually in storage costs

after using WMS, and its total investment was

recovered within 14 months. American magazine

believes that it can generally get a return within two

years. It is also estimated that warehouse users with

an area of more than 3500 square meters are expected

to recover it within one year. The article entitled

"investigation of raw material treatment practice", the

author pointed out that users who properly implement

WMS can improve productivity by 20%-30%,

inventory accuracy by more than 99%, and labor cost

savings by more than 25% (Binos, T., 2020).

Based on the above-mentioned WMS price

decline and its economic benefits, WMS users are

increasing day by day. At the same time, the decline

of WMS price also makes its users develop from large

enterprises to small and medium-sized enterprises.

According to the data of arc group in the United

States, WMS' global sales in 2008 were 910million

US dollars. Among the buyers, 41% were large and

medium-sized enterprises, 42.2% were medium-sized

enterprises, and 16.8% were small enterprises. People

concerned predict that the number of small business

customers will increase significantly in the future.

According to the survey of its members by the

Automotive Warehouse Distributors Association

Logistics & Technology Committee, nearly 50% of

manufacturing enterprises have implemented WMS,

while more than 60% of warehouse distributors have

implemented WMS; In the next year, there are

relatively few manufacturing enterprises preparing to

implement WMS, and there are relatively many

warehousing and distribution enterprises, nearly

10%. For the time being, more than 19% of the

manufacturing enterprises have no plans to

implement WMS, and about 17% of the warehousing

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

324

and distribution enterprises have no plans to

implement WMS.

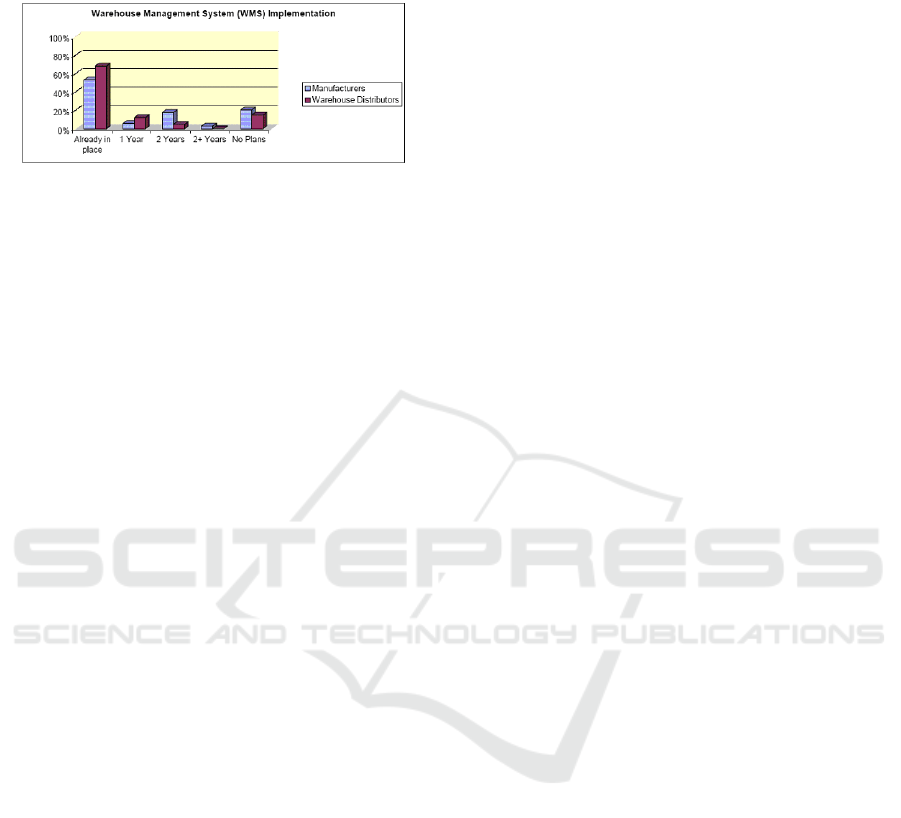

Figure 1. WMS implementation.

2 SYSTEM ANALYSIS

At the beginning of the system development, the

specific business needs of the inventory in the

logistics warehouse management system are

analyzed. By fully interacting with users, correctly

understanding the inventory business process, and

making reasonable and user acceptable process

improvements, the logistics and transportation

business requirements of the application system are

obtained. The system mainly includes administrator

management module, warehouse out management

module, customer information module, supplier

information module, customer information module,

etc. After in-depth research, in order to improve the

quality and efficiency of logistics warehouse

management and reduce the cost of warehouse

management, the author has formulated the following

design goals in the development expenditure:

(1) Around business and function, it is suitable for

warehouse management department;

(2) Friendly interface and simple operation;

(3) Different operators can have different operation

permissions;

(4) It has strong versatility, safety, reliability,

stability and maintainability.

At the beginning of the system development, the

specific business requirements in the logistics

warehouse management system are analyzed.

Through full interaction with users, correctly

understand the logistics business process, and make

reasonable and user acceptable process improvement,

get the new application system logistics

transportation business requirements. First, the

warehouse keeper shall make preparations before

warehousing according to the actual order

information, then receive the goods and inspect them,

and then carry out warehousing handover. Outbound

is just the opposite. The administrator prepares the

goods according to the delivery requirements, and

then conducts inspection, and then hand over with the

goods receiving personnel. There is also in warehouse

management between receipt and issue.

According to the business demand analysis of

logistics companies, the main functions of logistics

warehouse management information system are

summarized as follows:

(1) System user basic information management

User name and password information used in the

system. Super administrator can add, modify and

delete user information.

(2) Cargo basic information management

The basic information of goods includes basic

information such as goods number, goods name,

specification, origin, etc. In the basic information of

goods, the detailed information of goods is entered

according to the goods provided by the supplier.

(3) Goods warehousing information management

In the goods warehousing information, the

corresponding supplier name and the goods provided

by the supplier are obtained through the supplier

number in the basic information. Carry out

warehousing operation for goods. Goods

warehousing information also includes warehousing

number, warehousing date, handler and other

information. In the goods warehousing information,

you need to add and delete the goods warehousing

information.

(4) Goods outbound information management

In the goods outbound information, relevant

information such as goods name, goods unit and

goods unit price can be obtained through the

warehousing number. Use these basic information to

issue goods. The goods issue information also

includes the issue number, issue date, handler and

other information. In the goods issue information, you

need to add and delete the goods issue information.

(5) Goods inventory query

In goods inventory query, you can query goods

specification, goods unit, goods unit price, and goods

quantity by goods name.

(6) Password modification settings

In the password modification setting, the operator

and password can be modified through the original

password.

(7) Statistical function

Users can make statistics on the receipt and

delivery information of logistics according to

different conditions, view and analyze the statistical

results, so that users can make corresponding

adjustments according to the statistical data.

Information System Design for Logistics Warehouse Management Based on Struts

325

3 SYSTEM IMPLEMENTATION

Struts is an open source project sponsored by the

Apache Software Foundation (ASF). It started as a

sub-project within the Jakarta project and became

ASF's top project in March 2004. It implements the

application framework based on the Model-View-

Controller (MVC) design pattern of Java EE web

applications by using Java Servlet/JSP technology,

which is a classic product in the MVC classic design

pattern.

The advantages of Struts are mainly concentrated

in two aspects: Taglib and page navigation. Taglib is

Struts' tag library, which is flexible and versatile,

which can greatly improve development efficiency.

The name Struts comes from the support metal

frames used in construction and older aircraft. It is

intended to reduce the time spent developing web

applications using the MVC design model. You'll still

need to learn and apply the architecture, but it will do

some of the heavy lifting. Struts is an open source

software, which is one of its great advantages,

allowing developers to have a deeper understanding

of its internal implementation mechanisms. A servlet

named ActionServlet already acts as a controller,

forwarding the request for a view and assembling the

response data model according to the configuration

file .xml struts-config that describes the

correspondence between the model, view, and

controller. In the Model part of MVC, it is often

divided into two main subsystems (the internal data

state of the system and the logical action of changing

the data state), which correspond to the ActionForm

and Action in Struts, respectively, that need to inherit

the implementation superclass. Here, Struts can be

combined with a variety of standard data access

technologies, including Enterprise Java Beans (EJB),

JDBC, and JNDI. On the View side of Struts, in

addition to using standard JavaServer Pages (JSP), it

also provides a large number of tag libraries to use,

and can also be integrated with other presentation

layer component technologies (products), such as

Velocity Templates, XSLT, etc. By applying the

Struts framework, end users can focus most of their

attention on their business logic (action) and mapping

configuration files (struts-config.xml). Apache Struts

2.3 is an open source web application architecture for

developing Java EE web applications. It leverages

and extends the Java Servlet API to encourage

developers to adopt the MVC architecture.

Permission management is the user's setting of

system management permission (user account and

password are set in the form of database

establishment). The client user inputs his own

account and password. The server side accepts the

user's login request, authenticates the user's request,

and records the authenticated account information in

the form of session. If the user is not logged in or the

logged in account and password are wrong, the user

cannot operate the system.

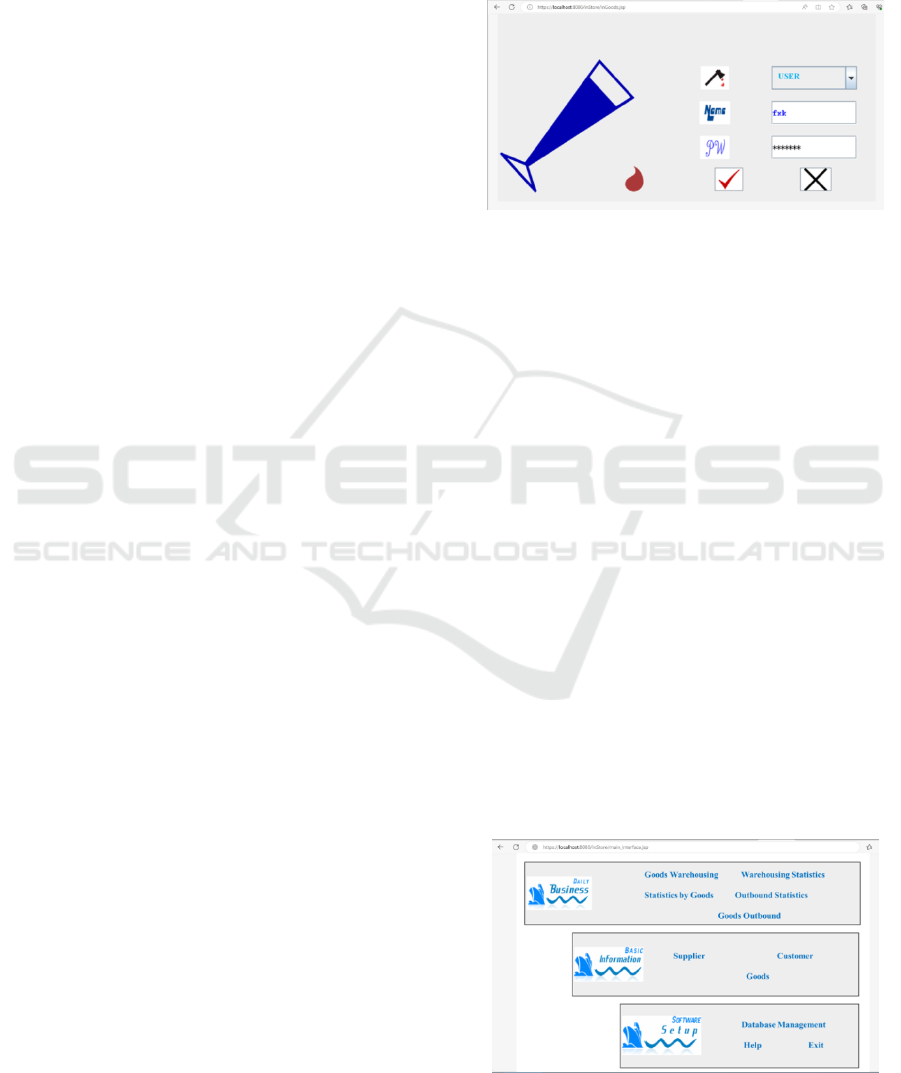

Figure 2. User login interface.

When the administrator clicks the "login"

hyperlink, it will lead to a login page. Enter the

account and password in the login page box, and press

the OK button. The two parameters will be passed to

the database for judgment. If the data is consistent

with the data in the database, it will show that the

background management. Otherwise, the login

failure prompt box will pop up. This function is

applied to the JavaScript package. The following is

part of the code to check whether it is a legal user:

public void actionPerformed(java.awt.event.ActionEvent e)

{

String mode=(String)jComboBox.getSelectedItem();

String id=jTextField.getText().trim();

String pw=jPasswordField.getText();

if(mode.equals("USER"))

{

if(id.equals("")||pw.equals(""))

{

JOptionPane.showMessageDialog(null," User name and password cannot

be empty！");

}

The main interface of the system is shown in

Figure 3.

Figure 3. The main interface of the system.

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

326

4 CONCLUSION

The research content of this paper is the design and

implementation of the company's warehouse

management information system. In the design

process, firstly, the operation characteristics of the

logistics company are studied, and combined with

these characteristics, the design scheme of the

logistics warehouse management system is proposed.

Finally, the design of the system is completed

according to the actual situation. During the design

process, a reasonable database is constructed to store

the information of goods, suppliers and customers.

The design can make the warehouse management of

logistics companies more effective, around the

business, applicable functions, friendly interface and

simple operation. The system is very strong

versatility, safety, reliability, stability and

maintainability. The expected goal has been basically

achieved.

This system has quite practical functions. In the

aspect of query, the system realizes the fuzzy query

of multiple conditions and arbitrary fields, and

realizes the dynamic generation in the classification

query. The system can automatically identify the

different inputs of users. A good link relationship has

been established among goods receipt, delivery and

inventory. A certain part of the modification will

automatically trigger the system to modify its related

parts.

The system inevitably encounters various

problems in the design process. Because the whole

system has many functions, some functions need to

be improved to improve the convenience of the whole

system operation, and there are still many

deficiencies.

REFERENCES

Zhang, R. F., Zhou, X. Y., Jin, Y. F., & Li, J. Research on

Intelligent Warehousing and Logistics Management

System of Electronic Market Based on Machine

Learning(J). Computational Intelligence and

Neuroscience, 2022, 2022, 14.

http://doi.org/10.1155/2022/2076591

Mao, J., Xing, H. H., & Zhang, X. Z. Design of Intelligent

Warehouse Management System (J). Wireless Personal

Communications, 2018, 102(2), 1355-1367.

http://doi.org/10.1007/s11277-017-5199-7

Luo, J., Xu, J. P., Aldosari, O., Althubiti, S. A., & Deebani,

W. Design and Implementation of an Efficient

Electronic Bank Management Information System

Based Data Warehouse and Data Mining Processing(J).

Information Processing & Management, 2022, 59(6),

17. http://doi.org/10.1016/j.ipm.2022.103086

Kmiecik, M. Logistics Coordination Based on Inventory

Management and Transportation Planning by Third-

Party Logistics (3PL) (J). Sustainability, 2022, 14(13),

19. http://doi.org/10.3390/su14138134

Klumpp, M., & Loske, D. Sustainability and Resilience

Revisited: Impact of Information Technology

Disruptions on Empirical Retail Logistics Efficiency (J).

Sustainability, 2021, 13(10), 20.

http://doi.org/10.3390/su13105650

Kembro, J., & Norrman, A. The transformation from

manual to smart warehousing: an exploratory study with

Swedish retailers (J). International Journal of Logistics

Management, 2022, 33(5), 107-135.

http://doi.org/10.1108/ijlm-11-2021-0525

Jiang, J. J., Wang, H. W., Mu, X. W., & Guan, S. Logistics

industry monitoring system based on wireless sensor

network platform (J). Computer Communications, 2020,

155, 58-65.

http://doi.org/10.1016/j.comcom.2020.03.016

He, S. H., Wang, Y., & Liu, H. D. Image Information

Recognition and Classification of Warehoused Goods in

Intelligent Logistics Based on Machine Vision

Technology(J). Traitement Du Signal, 2022, 39(4),

1275-1282. http://doi.org/10.18280/ts.390420

Ferrara, F., Santilli, P., Vitiello, A., Forte, G., & D'Aiuto,

V. Logistics management provides greater efficiency,

governance and compliance (J). International Journal of

Clinical Pharmacy, 2021, 43(5), 1431-1435.

http://doi.org/10.1007/s11096-021-01283-6

El Kihel, Y. Digital Transition Methodology of a

Warehouse in the Concept of Sustainable Development

with an Industrial Case Study (J). Sustainability, 2022,

14(22), 22. http://doi.org/10.3390/su142215282

Chen, J., & Zhao, W. Logistics automation management

based on the Internet of things (J). Cluster Computing-

the Journal of Networks Software Tools and

Applications, 2019, 22, 13627-13634.

http://doi.org/10.1007/s10586-018-2041-2

Binos, T., Adamopoulos, A., & Bruno, V. Decision Support

Research in Warehousing and Distribution: A

Systematic Literature Review (J). International Journal

of Information Technology & Decision Making, 2020,

19(3), 653-693.

http://doi.org/10.1142/s0219622020300013

Information System Design for Logistics Warehouse Management Based on Struts

327
