Strip Steel Defect Detection Based on Improved YOLOv5s

Jie Wang and Qiu Fang

Xiamen University of Technology, Xiamen, China

Keywords: YOLOv5s, Defect Detection, Attention Mechanism, Multi-Scale Pyramidal Detection Head, Small Target.

Abstract: In response to the issues of low detection accuracy for surface defects in strip steel and difficulty in detecting

small target defects in modern steel production processes, this study presents an improved algorithm based

on YOLOv5s is proposed for detecting strip-steel surface defects. Firstly, an improved C3 module combining

large-kernel depth separable convolution and Squeeze-and-Excitation (SE) attention mechanism is proposed,

which increases the global receptive field of the network while adaptively adjusting the weight relationships

among different channels in order to enhance the fusion of tiny features in the model. Secondly, A multi-scale

pyramidal detection head is introduced as a means to enhance the model's proficiency in detecting small

targets. Finally, the SIoU loss function is employed to more accurately calculate the regression loss and

improve the model's detection accuracy. The results indicate that the mean average precision (mAP) of the

proposed algorithm on the NEU-DET dataset reaches 80.6%, an increase of 3.4% compared to the baseline

algorithm; moreover, the detection speed reaches 79.3f/s, which meets the real-time requirement of

industrialised defect detection.

1 INTRODUCTION

As industrialization continues to advance, the demand

for strip steel, a pivotal industrial raw material, is on

the rise. However, several factors, including the

inherent instability of raw materials, the intricacies of

the rolling process, and the challenges associated with

system control, have given rise to surface defects on

strip steel. These defects encompass issues such as

burrs, scratches, and patches. Notably, these surface

imperfections exert a substantial impact on the critical

properties of strip steel, including corrosion

resistance and strength. Consequently, they

significantly diminish the overall performance and

service life of strip steel when deployed in practical

applications. Therefore, the detection of surface

defects on strip steel assumes paramount importance

in ensuring the quality and reliability of this essential

material.

In recent years, the prevailing approach in strip

steel defect detection has shifted towards deep

learning, driven by the remarkable advancements in

convolutional neural networks. Yang et al.0

introduced a pixel-level deep segmentation network

for automated defect detection and successfully built

an end-to-end defect segmentation model. This model

exhibited outstanding performance in terms of defect

recognition and localization. Akhya et al.0 introduced

a powerful defect detector (FDD) based on the

Cascade R-CNN algorithm for surface defect

detection in steel materials. Yu et al.0 proposed a

bidirectional feature fusion network combining

channel attention and FCOS detector to achieve fast

detection of steel strips. Tang et al.0 introduced an

innovative steel plate surface defect detection

approach based on deep learning, incorporating the

Transformer architecture. Specifically, they utilized

the Swin Transformer module to extract features from

strip steel images, thereby enhancing the network's

feature extraction capabilities but less real-time. Jian

et al.0 proposed a multi-scale cascaded attention

network based on ResNet34 to enhance the extraction

of high-level semantic features. However, the size of

the model is large and not easy to deploy for edge

devices. Zhao et al.0 introduced an enhanced steel

detection method based on YOLOv5, leveraging the

Res2Net module to expand the receptive field.

Additionally, incorporated the Dual Feature

Pyramidal Network to bolster the extraction of critical

neck features in the process.

In view of above problems, this paper chooses

YOLOv5s as the baseline model and proposes

improvements on it. To tackle the challenge of

distinguishing between the background and targets in

strip steel surface defects, we introduce the large

kernel depth separable convolution (Dsconv)0 to

Wang, J. and Fang, Q.

Strip Steel Defect Detection Based on Improved YOLOv5s.

DOI: 10.5220/0012284300003807

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Seminar on Artiﬁcial Intelligence, Networking and Information Technology (ANIT 2023), pages 375-380

ISBN: 978-989-758-677-4

375

enhance the network's receptive field. Additionally,

we incorporate the SE attention mechanism to

enhance the network's feature extraction capability.

We also have introduced a multi-scale pyramidal

detection head structure. This addition is intended to

improve the model's ability to effectively detect

smaller targets. Additionally, to address the issue of

diverse defect shapes and significant variations in size

within the dataset, we have replaced the original

CIoU loss function in the network with an SIoU loss

function. This modification serves to expedite the

model's convergence speed, particularly in scenarios

where defect shapes and sizes vary considerably.

2 METHODS

2.1 Improved YOLOv5s Network

Structure

In this paper, we introduce three significant

improvements to enhance the YOLOv5s network.

First, we enhance the C3 module of the network by

replacing it with the improved DsSE_C3 module. To

strike a balance between model size and inference

speed, the Ds_C3 component within the Neck

structure does not employ the SE attention

mechanism. Secondly, we make improvements to the

Head of the network. The first detection head of the

is substituted with a multi-scale pyramidal detection

head. The overall architecture of the improved

YOLOv5s network is visualized in Fig. 1. These

enhancements collectively contribute to improving

the network's performance in detecting surface

defects on strip steel.

1) Introduction of SE attention mechanism

The SE attention mechanism module that can

adaptively learn the weight relationship between

different channels0, as shown in Fig. 2. It can be

divided into the following steps: the first step is the

transformation operation, for which the input 𝑋 is

mapped by any given 𝐹

𝑡𝑟

transformation to a feature

map 𝑈. The second step is the squeezing operation,

which generates channel descriptors and thus global

distributions embedded in the channel feature

responses through the feature map 𝑈, so that the

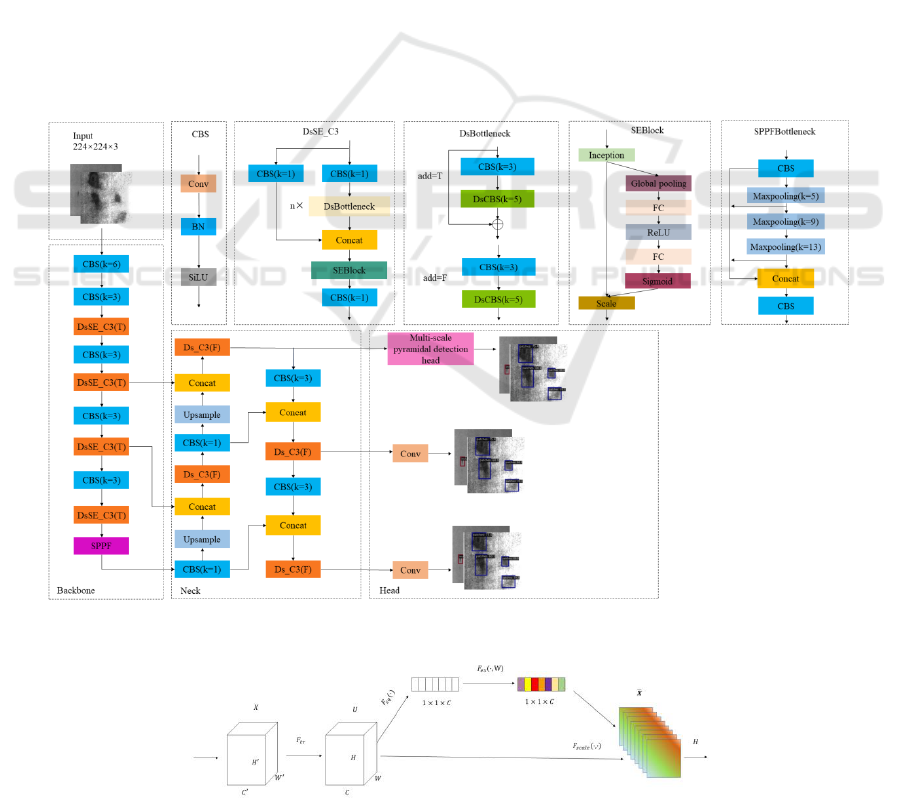

Figure 1. Improved network structure of YOLOv5s

Figure 2. Structure diagram of SE attention mechanism.

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

376

network learns the information in the global sensory

domain. The third step is the excitation operation,

which employs a self-gating mechanism to generate

the set of modulation weights for each channel. The

fourth step is the fusion operation, which multiplies

the modulated weight set and the feature map 𝑈 on a

channel-by-channel basis to adjust the weights

between the channels, to mine the links between the

features and to improve the performance of the

model.

2) Improved C3 module

In order to strengthen the feature extraction

capability of the model, we improve the C3 module in

this paper, as shown in Fig. 3. Inspired by RTMDet0,

we introduce a large kernel 5×5 depth-separable

convolution into the basic C3 construction block of

YOLOv5s to increase the effective receptive field and

capture and model image semantic information more

comprehensively. The DsBottleneck structure of the

depth separable convolution module with the

introduction of larger convolution kernels is shown in

Fig. 3 (a). In addition, we introduce the SE channel

attention mechanism module in Backbone's C3

module, which enables the model to focus on the

feature relationships in the channel dimension to

improve defect detection, and the improved DsSE_C3

is visually depicted in Fig. 3 (b).

3) Introduction of multi-scale pyramidal

detection head

The Pyramidal Convolution (PyConv)0 structure,

which performs multi-scale decomposition of the

feature maps by multiple convolution operations with

different convolution kernel sizes and depths, and

cascades the decomposed feature maps to enhance the

perceptual range of the network, which in turn

improves the model performance and performance. In

this paper, we combine PyConv with the first output

detection header of YOLOv5s model, and add

residual connectivity by borrowing the idea of

Resnet0. A multi-scale pyramidal detection head is

proposed, as shown in Fig. 4. The Pyramidal

Convolutional Kernels (PyConv Kernels) in the

figure is a double oriented pyramidal convolutional

kernel. On one side the kernel size is increasing and

on the other side the kernel depth (connectivity) is

decreasing. It allows the network to explore from

large receptive fields with low connectivity to small

receptive fields with high connectivity, which brings

about complementary image semantic information

and enhances the network's multi-scale perception. In

addition residual connectivity is added to enhance the

expressive capability of the network without

degrading the performance. The multi-scale

pyramidal detection head effectively enhances the

model for small target defect detection.

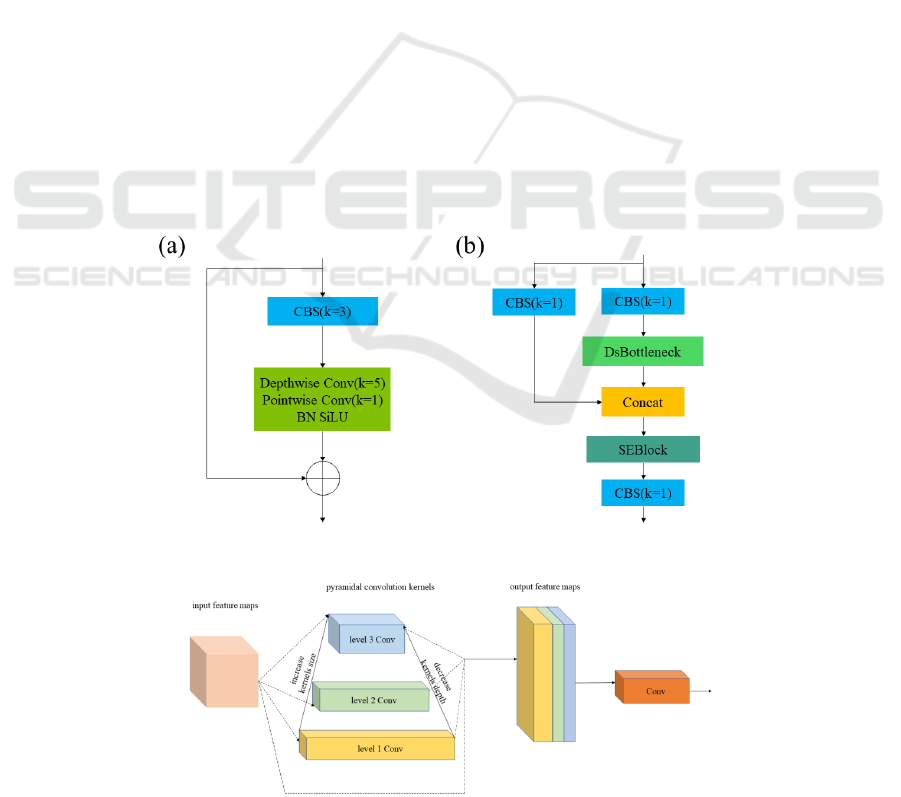

Figure 3. Improved C3 module. (a) DsBottleneck. (b) DsSE_C3.

Figure 4. Structure diagram of multi-scale pyramidal detection head.

Strip Steel Defect Detection Based on Improved YOLOv5s

377

4) Modifying the regression loss function

The CIoU loss function0 was used in YOLOv5

(V6.1) version to calculate the regression loss of the

prediction bounding box. In order to improve the

detection performance, the SIoU loss function is used

in this paper. It consists of four components: angular

loss, distance loss, shape loss and IoU loss0. The

angular loss is achieved by reducing the values of the

distance-related variables and can be defined as

follows:

1 2 sin (arcsin( ) )





    

(1)

Where

Indicates the height difference

between the central point of the real bounding box

and the predicted bounding box, as shown in equation

(2).



denotes the distance between the central

points, as shown in equation (3).

( , )

gt gt

is the

coordinate of the central point of the real bounding

box, and

( , )

is the coordinate of the central

point of the predicted bounding box.

   

max , min ,

y y y y

gt gt

h c c c c

c b b b b

(2)

 

x x y y

gt gt

c c c c

b b b b



   

(3)

The angular loss is mainly used to assist in

calculating the distance between two bounding boxes

to further approximation of the centers of the two

bounding boxes. The distance loss is defined as

follows:

(1 )

t x y







  



(4)

Where

()







()









  

( , )

is the width and height of the smallest outer

rectangle of the true and predicted bounding boxes.

The shape loss between the two bounding boxes

is defined as follows:

(1 ) (1 ) (1 )

t w h

w w w

t w h

e e e

  

  



      



(5)

Where

max( , )





max( , )





( , )wh

，

( , )

gt gt

denote the width and height of the

predicted and real boxes, respectively.

In summary, the SIoU loss function is defined as

follows:

SIoU

Loss IoU

  

  

(6)

Where

IoU







denotes the intersection and

concurrency ratio between the true and predicted

bounding boxes.

3 EXPERIMENTS AND RESULT

ANALYSIS

3.1 Datasets

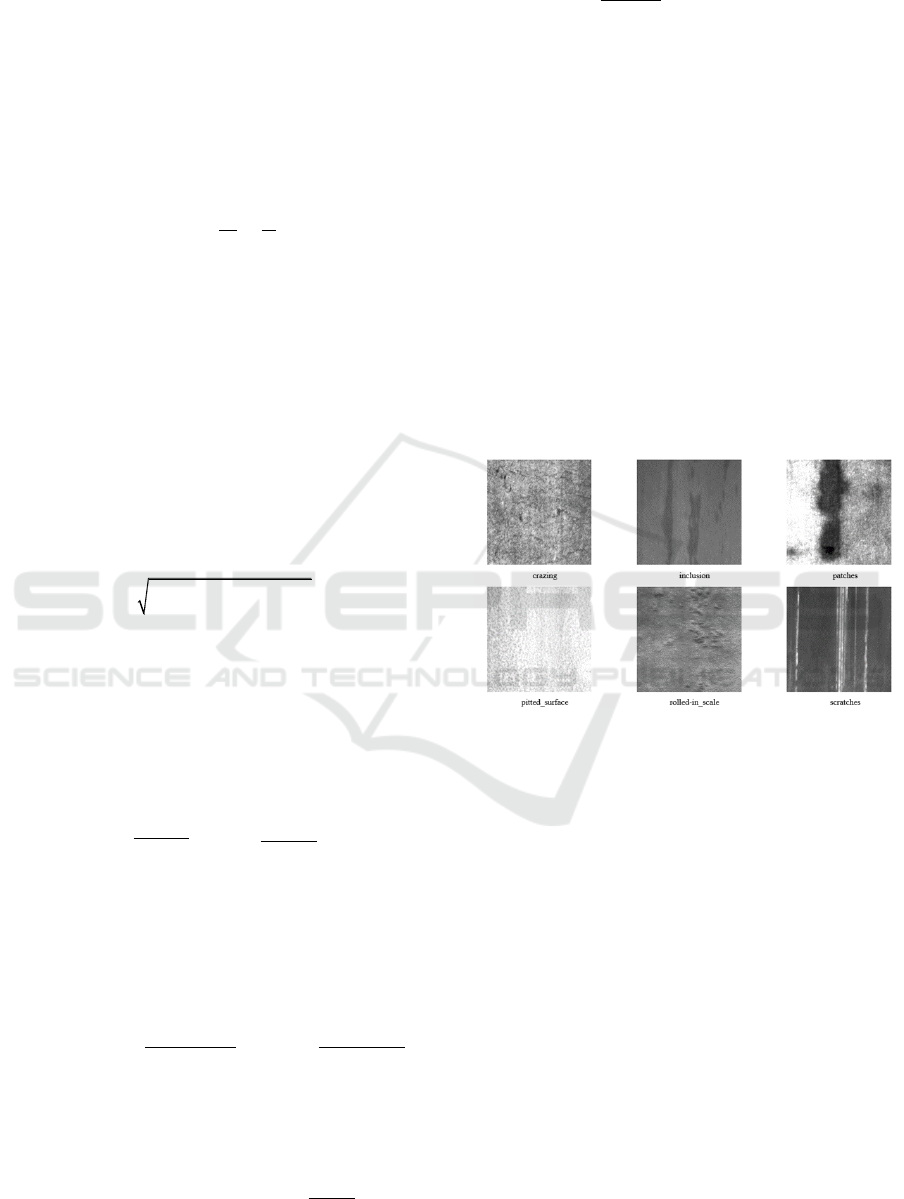

The NEU-DET dataset comprises six distinct defect

classes: crazing, inclusion, patches, pitted_surface,

rolled-in_scale and scratches. Each defect class is

comprised of 300 grayscale images, each having a

resolution of 200 pixels, as visually presented in Fig. 5.

To assess the model's training performance, we

conducted a random split of the dataset, allocating 80%

of the data to the training set and the remaining 20% to

the test set, maintaining an 8:2 ratio.

Figure 5. Examples of defect on the steel surface.

3.2 Implementation Details

The GPU utilized was an NVIDIA GeForce RTX

2080 Ti graphics card with 11GB of memory. The

optimization algorithm employed was Stochastic

Gradient Descent (SGD), with a batch size of 16. The

initial learning rate was set to 0.01, momentum at

0.937, weight decay factor of 0.005, and the training

process was conducted over 300 epochs. Our method

was implemented with Pytorch. The input image size

was consistently scaled to 224×224 pixels.

3.3 Evaluation Metric

We use average precision (AP), mean average

precision (mAP), and frames per second (FPS) as the

model evaluation metrics with the following formulas:

( ) ( )AP p R d R



(7)

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

378

TP FP





(8)

TP FN





(9)

()

mAP AP i





(10)

where AP denotes precision of a single category.

mAP denotes the mean of the average precision of all

target detection categories. TP, FP, and FN denote the

number of true positives, false positives, and false

negatives, respectively.

3.4 Ablation Study

In order to assess the effectiveness of various

improvement strategies, we conducted ablation

experiments, and the outcomes are presented in Table

Table 1. Results of ablation experiment.

Method

DsSE

_C3

Ms_PD

Head

SIoU

mAP

@0.5/%

FPS/

Frame·s

-1

AP/%

—

77.2

93.4

47.6

81.6

96.1

80.3

63.3

94.2

√

—

78.9

82.9

52.3

82.6

96.6

81.6

65.5

94.6

√

—

80.0

79.6

51.4

85.2

96.3

81.8

69.6

95.5

√

80.6

79.3

53.2

87.2

95.7

83.2

67.9

96.3

The data presented in Table 1 clearly illustrates

the effectiveness of the proposed DsSE_C3 module in

enhancing the accuracy of strip steel defect detection.

When compared to the original Method 1, the

improved Model 2 exhibits a notable increase of 1.7%

in mAP. Furthermore, the incorporation of the multi-

scale pyramidal detection head results in a substantial

2.6% improvement in the AP for the "In" defect class

in Method 3, specifically benefiting the detection of

smaller targets. Finally, with the introduction of the

SIoU loss function, Method 4 attains the highest

detection accuracy at 80.6%. Apart from the "Pa" and

"RS" classes, all other defect classes exhibit

improved AP values when compared to Method 3.

This underscores the efficacy of the SIoU loss

function in enhancing the overall detection accuracy

across different defect categories. Among them, for

the Cr class, which has the lowest detection accuracy

and is more difficult to detect, the detection accuracy

is improved from 47.6% to 53.2%, which has a 5.6

percentage points improvement, enhancement effect

is outstanding.

3.5 Comparison with State-of-the-Art

Methods

To validate the efficacy of the algorithms introduced

in this paper, a series of comparative experiments

have been conducted. To ensure the fairness of the

comparison experiments, the following classical

algorithms: Cascade R-CNN, Faster R-CNN, and

Retinanet are all trained in the same experimental

environment and MMDetection0 open target

detection toolbox. The experimental results are

shown in Table 2.

Table 2. Performance comparison of mainstream

algorithms.

Method

mAP/%

FPS/

Frame·s

-1

AP/%

YOLOv3

69.1

44.7

60.8

84.4

74.5

61.1

87.2

YOLOv4

69.1

—

35.1

77.6

90.2

78.4

51.2

82.2

SSD

72.82

—

36.3

81.9

91.3

83.9

62.1

78.2

Faster R-CNN

78.7

21.7

49.5

84.8

93.7

78.1

71.1

94.9

Retinanet

75.1

32.3

49.6

78.4

94.7

78.7

70.3

78.7

Cascade R-

CNN

79.4

18.6

47.3

86.2

92.7

83.0

73.4

94.0

YOLOv5s

77.8

92.4

46.6

84.8

96.1

80.3

63.8

95.1

Ours

80.6

79.3

53.2

87.2

95.7

83.2

67.9

96.3

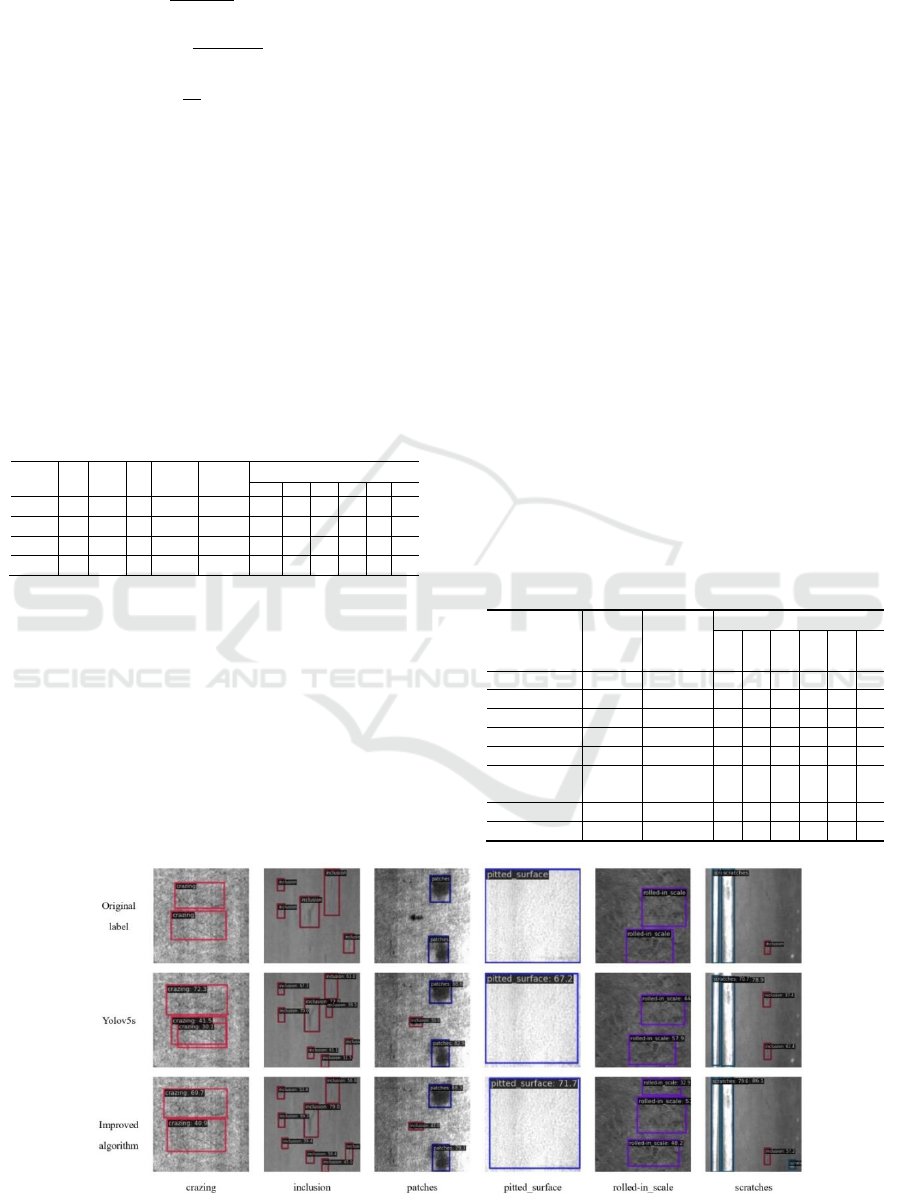

Figure 6. Comparison of detection effects.

Strip Steel Defect Detection Based on Improved YOLOv5s

379

Fig.6. illustrates a side-by-side comparison of the

detection results for samples in each defect category.

The results of crazing defect detection clearly

demonstrate that the algorithm presented in this paper

excels in accurately locating the detection bounding

box when compared to YOLOv5s. In the case of

inclusion defect detection, it is evident that our

improved algorithm surpasses the baseline model,

offering more robust detection capabilities and

outstanding performance for small targets.

4 CONCLUSION

To tackle the challenges associated with detecting

surface defects on strip steel within the context of

automated production, this paper introduces an

enhancement strategy based on the YOLOv5s

algorithm. Firstly, we propose an enhanced C3

module aimed at augmenting the model's feature

extraction capabilities. Secondly, we incorporate a

multi-scale pyramidal detection head to bolster the

model's proficiency in detecting small targets. Lastly,

we adopt the SIoU loss function to expedite the

model's convergence speed during training, thereby

improving its overall performance in defect detection.

The experimental results show that compared with the

benchmark model, the method proposed in this paper

effectively improves the detection accuracy and the

detection effect for small targets is improved

significantly. Furthermore, we plan to utilize

techniques like pruning and distillation to reduce the

model's size, facilitating its deployment on embedded

edge devices, thereby expanding its practical

applicability.

ACKNOWLEDGMENTS

This work was financially supported by Fujian

Provincial Natural Science Foundation Project

(2022J011247).

REFERENCES

Lei Yang, Shuai Xu, Junfeng Fan, En Li, Yanhong Liu. A

pixel-level deep segmentation network for automatic

defect detection [J].Expert Systems with Applications,

2023, 215: 119388.

https://doi.org/10.1016/j.eswa.2022.119388

Fityanul Akhyar, Ying Liu, Chao-Yung Hsu, Timothy K.

Shih, Chih-Yang Lin. FDD: a deep learning–based steel

defect detectors [J].The International Journal of

Advanced Manufacturing Technology, 2023: 1-15.

https://doi.org/10.1007/s00170-023-11087-9

Jianbo Yu, Xun Cheng, Qingfeng Li. Surface defect

detection of steel strips based on anchor-free network

with channel attention and bidirectional feature

fusion[J]. IEEE Transactions on Instrumentation and

Measurement, 2021, 71: 1-10.

https://doi.org/10.1109/TIM.2021.3136183

Bo Tang, Zi-Kai Song, Wei Sun, Xing-Dong Wang. An

end-to-end steel surface defect detection approach via

Swin transformer [J].IET Image Processing, 2023,

17(5): 1334-1345. https://doi.org/10.1049/ipr2.12715

Muwei Jian, Haodong Jin, Xiangyu Liu, Linsong Zhang.

Multiscale Cascaded Attention Network for Saliency

Detection Based on ResNet [J].Sensors, 2022, 22(24):

9950. https://doi.org/10.3390/s22249950

Chao Zhao, Xin Shu, Xi Yan, Xin Zuo, Feng Zhu. RDD-

YOLO: A modified YOLO for detection of steel surface

defects [J]. Measurement, 2023: 112776.

https://doi.org/10.1016/j.measurement.2023.112776

Marcelo Gennari, Roger Fawcett, Victor Adrian Prisacariu.

DSConv: Efficient Convolution Operator [J]. arXiv

preprint arXiv:1901.01928,

2019.https://doi.org/10.48550/arXiv.1901.01928

Jie Hu, Li Shen, Samuel Albanie, Gang Sun, Enhua Wu.

Squeeze-and-excitation networks[C]//Proceedings of

the IEEE conference on computer vision and pattern

recognition. 2018: 7132-7141.

https://doi.org/10.48550/arXiv.1709.01507

Chengqi Lyu, Wenwei Zhang, Haian Huang, et al.

RTMDet: An Empirical Study of Designing Real-Time

Object Detectors [J]. arXiv preprint arXiv:2212.07784,

2022.https://doi.org/10.48550/arXiv.2212.07784

Ionut Cosmin Duta, Li Liu, Fan Zhu, Ling Shao. Pyramidl

convolution: Rethinking convolutional neural networks

for visual recognition [J]. arXiv preprint

arXiv:2006.11538, 2020.

https://doi.org/10.48550/arXiv.2006.11538

Sasha Targ, Diogo Almeida, Kevin Lyman. Resnet in

resnet: Generalizing residual architectures [J]. arXiv

preprint arXiv:1603.08029, 2016.

https://doi.org/10.48550/arXiv.1603.08029

Zhaohui Zheng, Ping Wang, Wei Liu, Jinze Li, Rongguang

Ye, Dongwei Ren. Distance-IoU loss: Faster and better

learning for bounding box regression[C]//Proceedings

of the AAAI conference on artificial intelligence. 2020,

34(07): 12993-13000.

https://doi.org/10.48550/arXiv.1911.08287

Zhora Gevorgyan. SIoU loss: More powerful learning for

bounding box regression [J]. arXiv preprint

arXiv:2205.12740, 2022.

https://doi.org/10.48550/arXiv.2205.12740

Kai Chen, Jiaqi Wang, Jiangmiao Pang, et al.

MMDetection: Open MMLab Detection Toolbox and

Benchmark [J]. arXiv, 2019.

https://doi.org/10.48550/arXiv.1906.07155

ANIT 2023 - The International Seminar on Artiﬁcial Intelligence, Networking and Information Technology

380
