Improved Epilepsy Identification with XGBoost vs. Logistic

Regression

Gadamsetty Hemanth

and N. Navaprakash

†

Department of Electronics and Communication Engineering, Saveetha School of Engineering, Saveetha Institute of Medical

and Technical Sciences, Saveetha University, Chennai, Tamil Nadu, 602105, India

Keywords: Novel XGBoost Algorithm, Logistic Regression Algorithm, Epilepsy, Detection, Analysis, Identification,

Disease.

Abstract: This study aims to analyse and detect epilepsy with enhanced accuracy by implementing the XGBoost

algorithm, comparing its performance against the Logistic Regression algorithm. Methodology: The research

involves preprocessing and analysing a dataset containing instances of epileptic seizures. The dataset, sourced

from CHB-MIT, is divided into two subsets, each consisting of 15 samples. The first subset applies the

XGBoost algorithm, while the second employs the Logistic Regression algorithm for epilepsy disease

detection. G power (80%) and alpha (0.005) values are determined for the study. Findings: The XGBoost

algorithm achieves an impressive accuracy rate of 89%, surpassing the accuracy of the Logistic Regression

algorithm at 74%. The observed difference is statistically significant, as confirmed by an independent sample

t-test resulting in a p-value of 0.000 (p < 0.05). Conclusion: The study concludes that the innovative XGBoost

algorithm excels with an accuracy of 89% compared to the Logistic Regression algorithm, establishing its

effectiveness in epilepsy disease analysis and detection.

1 INTRODUCTION

Epilepsy, a neurological disorder characterized by

recurrent seizures, affects individuals of all ages. It

arises from neurobiological processes leading to

epileptogenesis within the brain, where abnormal

neuronal firing occurs in the cerebral cortex. The

World Health Organization (WHO) reports a

prevalence of approximately 70 million individuals

affected by epilepsy. These seizures result from

electrical discharges in the brain and can have a

significant impact on people's lives (Muhammad

Usman, Khalid, and Aslam 2020).

The research focuses on assessing the accuracy of

epilepsy identification and analysing the

effectiveness of the identification process. Machine

learning algorithms offer the potential to predict the

disease at its early stages, leading to timely

intervention and improved patient outcomes. This

early detection is particularly advantageous for

neurologists, as treatment is more effective in the

initial stages of the disease (Siddiqui et al. 2020).

Research Scholar

†

Research Guide, Corresponding Author

Electroencephalography (EEG) plays a pivotal

role in diagnosing epilepsy, as it monitors and records

brain activities. However, analysing EEG data

requires expertise, is time-intensive, and susceptible

to errors (Nanmaran, R et al. 2022). This underscores

the importance of machine learning algorithms in

detecting epilepsy, as they offer an efficient and

accurate means of diagnosis (Zhou et al. 2018)

(Vickram, A. S et al. 2020).

The real-time applications of epilepsy disease

detection are significant. Neurologists often face

challenges in analysing EEG data, a process that

consumes substantial time. By leveraging machine

learning algorithms for epilepsy detection, diseases

can be identified in their early stages, enabling more

accurate diagnosis and treatment by medical

professionals (Worley 2016).

Over the past five years, there has been a

significant body of research focused on epilepsy

detection, with a notable number of papers published.

Notably, around 30 research articles can be accessed

on IEEE Xplore, while Google Scholar hosts

approximately 100 related articles. One notable

Hemanth, G. and Navaprakash, N.

Improved Epilepsy Identiﬁcation with XGBoost vs. Logistic Regression.

DOI: 10.5220/0012561800003739

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Artiﬁcial Intelligence for Internet of Things: Accelerating Innovation in Industry and Consumer Electronics (AI4IoT 2023), pages 83-90

ISBN: 978-989-758-661-3

contribution involved the development of a novel

technique aimed at distinguishing healthy individuals

through the utilization of language networks

identified via functional magnetic resonance imaging

(fMRI). This accomplishment was realized by

implementing a machine learning (ML) strategy

(Torlay et al. 2017) (G. Sajiv et 2022).

Another study introduced a supervised machine

learning classifier designed to accurately predict the

outcomes of antiepileptic drug (AED) treatment for

individuals recently diagnosed with epilepsy (Yao et

al. 2019). Noteworthy outcomes have been proposed,

including metrics such as accuracy, precision, recall,

F1-score, and proper implementation of the XGBoost

algorithm for identifying epileptic seizures at an early

stage (Rahman et al. 2021).

In addition, an EPI-AI approach was presented,

employing XGBoost for automated and impartial

seizure detection using single-channel EEG data

across various rodent epilepsy models (Murugesan

2022). A precise method for identifying epileptic

seizures was introduced using an integrated approach,

CEEMD-XGBoost, which combines complementary

ensemble empirical mode decomposition (CEEMD)

with extreme gradient boosting (XGBoost) (Wu,

Zhou, and Li 2020).

Among these, the work by Torlay et al. (2017)

stands out as a particularly influential article in the

field, providing valuable techniques for the detection

of epilepsy.

Previous studies in the field of epilepsy detection

have encountered limitations in achieving accurate

results. The primary objective of this research is to

address this issue by enhancing the early-stage

identification of epilepsy and improving the overall

accuracy of the process. This is achieved through the

innovative implementation of the Novel XGBoost

algorithm, which is compared with the traditional

Logistic Regression algorithm.

2 MATERIALS AND METHODS

The research study was conducted at the Department

of Electronics and Communication Engineering in

Saveetha School of Engineering. The analysis

involved the formation of two distinct groups, each

containing 15 samples. Group 1 was subjected to the

utilization of the XGBoost algorithm with 15

samples, while Group 2 employed the Logistic

Regression algorithm with the same sample size. The

determination of the sample size for each group was

guided by G power calculations, which took into

account an 80% pretest power, an alpha error of 0.05,

a threshold of 0.95, and a confidence level of 95%.

Table 1: XGBoost algorithm and Logistic regression

algorithm are compared with a set of 15 samples from each

algorithm and a comparison of the two algorithms

respective efficiency percentages.

SL.no

Test

ACCURACY RATE

XG Boost

Algorithm

Logistic

Regression

Algorithm

Test1

Test2

Test3

Test4

Test5

Test6

Test7

Test8

Test9

Test10

Test11

Test12

Test13

Test14

Test15

Mean Average (In

Percentage)

89.00

74.00

For the assessment of epilepsy presence in

individuals, an epilepsy dataset was employed. This

dataset was sourced from CHB-MIT and comprises

178 attributes and 11,500 instances, classified into 5

groups. Both groups in the study consisted of 15

samples each. The dataset was divided into training

and testing data, with 30 samples allocated for

training purposes. Following the partitioning of the

data, an algorithm was applied to both the training

and testing sets to predict and evaluate accuracy

levels (Jones 2018).

AI4IoT 2023 - First International Conference on Artiﬁcial Intelligence for Internet of things (AI4IOT): Accelerating Innovation in Industry

and Consumer Electronics

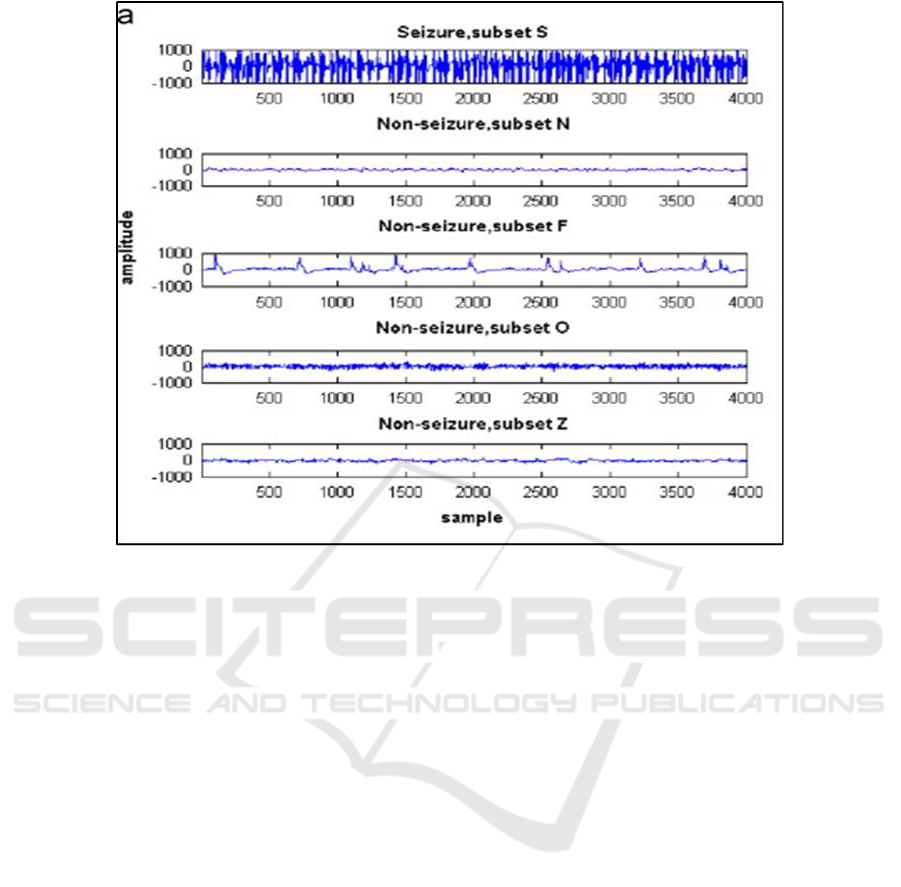

Figure 1: The different subsets, subset S is seizure; the amplitude of the brain waves is high at all the time intervals having

more than the 6HZ of amplitude said to be a seizure and the remaining subsets the amplitude is less so it is said to be non-

seizure.

2.1 XGBoost Algorithm

XGBoost, a widely embraced and potent open-source

gradient-boosted tree technique implementation,

stands out as an ensemble machine learning approach

rooted in decision trees and operating within a

gradient boosting framework. It demonstrates notable

effectiveness in prediction tasks that involve

unstructured data types like images and text. One of

its key strengths lies in its utilization of parallel

processing, tree-pruning techniques, handling of

missing values, and incorporation of regularization

methods to counteract tendencies of overfitting.

Algorithm for Sample 1 Preparation:

1. Collect and preprocess the data for the

epilepsy disease dataset. This may involve

feature engineering, normalizing the data, and

handling missing values.

2. Divide the dataset into a training set and a

validation set to prevent overfitting.

3. Select the optimal XGBoost model for the

epilepsy disease dataset. Experiment with

hyperparameters such as learning rate,

maximum tree depth, and number of

estimators to find the best configuration.

4. Train the XGBoost model on the training set.

The algorithm will iteratively adjust the

decision tree weights to improve performance.

5. Evaluate the performance of the XGBoost

model using the validation set. Use various

metrics like accuracy, precision, recall, and F1

score to assess the model's effectiveness.

6. Test the selected XGBoost model on a

separate test set to measure its performance on

new and unseen data.

7. Interpret the model's predictions to understand

how it is making decisions. Utilize methods

like feature importance analysis, partial

dependence plots, and SHAP values to gain

insights into the model's behaviour.

Once satisfied with the model's performance,

deploy it in a real-world setting. This may involve

integrating it with other systems or databases, such as

electronic health records or medical equipment, for

practical use.

Improved Epilepsy Identiﬁcation with XGBoost vs. Logistic Regression

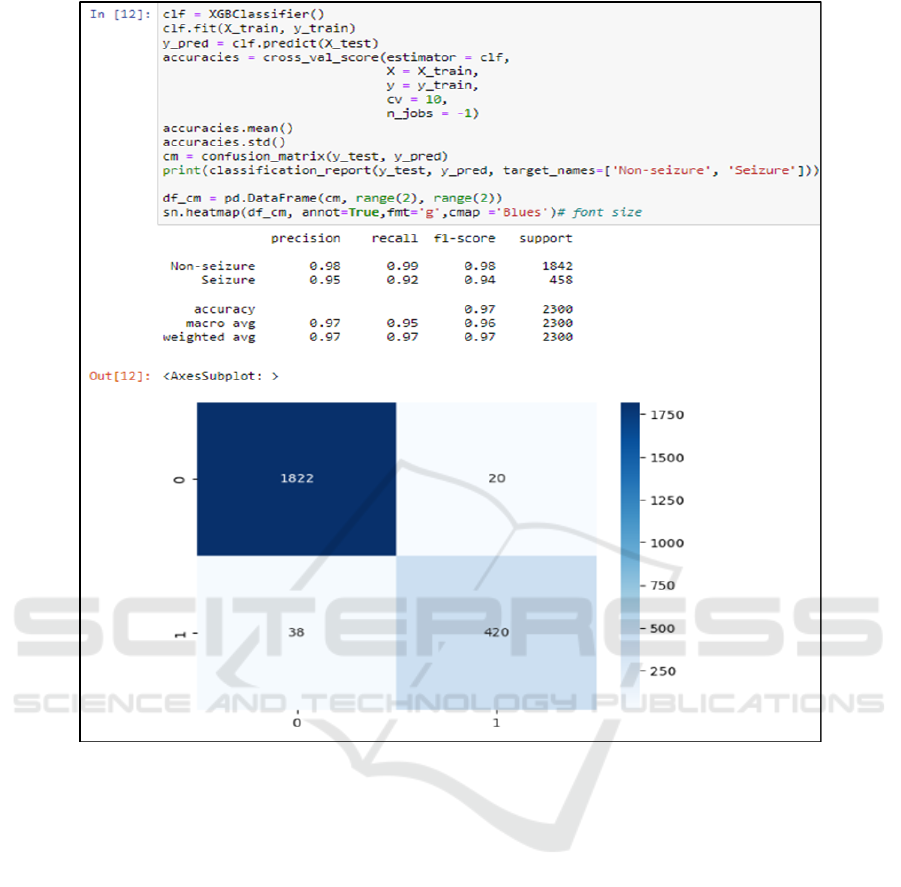

Figure 2: Above confusion matrix shows the performance and classification of the XGBoost algorithm. It predicts all the

actual values of the algorithm.

2.2 Logistic Regression Algorithm

Logistic regression, a highly efficient classification

technique in supervised learning, is employed to

predict categorical outcomes based on independent

variables. This method establishes a relationship

between these independent variables and the

dependent variable, allowing accurate predictions for

categorization.

1. Algorithm for sample 2 preparation

2. Import the required libraries.

3. Load the dataset

4. Perform preprocessing of the dataset, which

includes data cleaning and data

transformation.

5. Perform the feature Engineering and then

Exploratory data analysis.

6. Partitioned the dataset into training and testing

sets.

7. Validation of the data.

8. Use the Logistic regression algorithm to train

and test the data.

9. Show accuracy and confusion matrix.

The computer system configuration comprises an

Intel i5 processor, 8GB of RAM, and Windows 11th

generation with a 64-bit operating system. The

implementation makes use of the Python

programming language, along with Jupyter from the

Anaconda software suite. In the epilepsy detection

model, the independent variables consist of the EEG

dataset and frequency signals, while the dependent

variables are characterized by improved accuracy

metrics. The manipulation of the independent

variables directly impacts the associated dependent

outcomes.

AI4IoT 2023 - First International Conference on Artiﬁcial Intelligence for Internet of things (AI4IOT): Accelerating Innovation in Industry

and Consumer Electronics

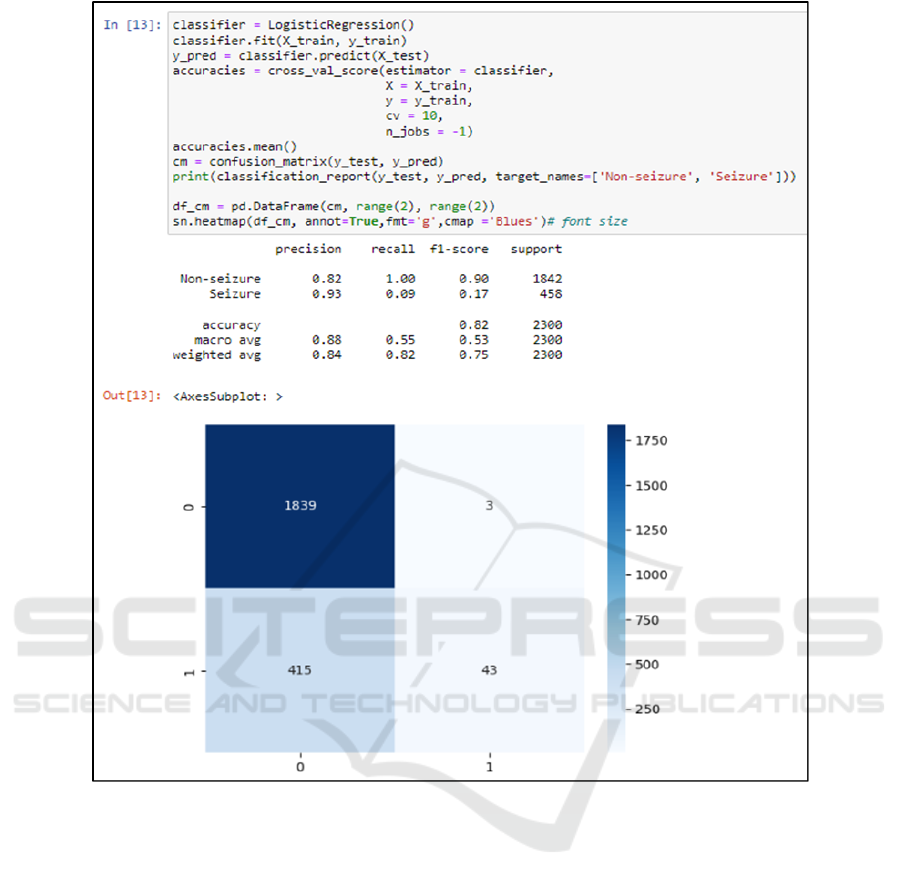

Figure 3: The performance and classification of the Logistic regression algorithm. It predicts all the actual values of the

algorithm.

2.3 Statistical Analysis

Using the IBM SPSS statistical tool, the XGBoost

algorithm and Logistic regression algorithm were

examined through an independent sample T test. This

analysis encompassed both dependent and

independent variables. The results showed that the

XGBoost algorithm achieved a higher mean accuracy

of 89% in contrast to the Logistic regression

algorithm's accuracy of 74%. The significance level,

indicated as p = 0.000 (p<0.05), highlighted the

statistical significance of this comparison. Notably,

the accuracy serves as the dependent variable, while

the independent variables encompass features

extracted from the dataset, such as mean and variance

(Gaur and Gaur 2009).

3 RESULTS

The analysis and identification of epilepsy using the

Novel XGBoost algorithm demonstrates superior

performance compared to the Logistic regression

approach in terms of accuracy. The CHB-MIT dataset

includes non-invasive extracranial scalp EEG data

collected from 24 patients, featuring 9 to 42

recordings per patient. Each recording was taken at a

sampling rate of 256 Hz, covering a duration of

around 1 hour. In addition to EEG data, demographic

information such as age and gender was also gathered

from the patients.

Improved Epilepsy Identiﬁcation with XGBoost vs. Logistic Regression

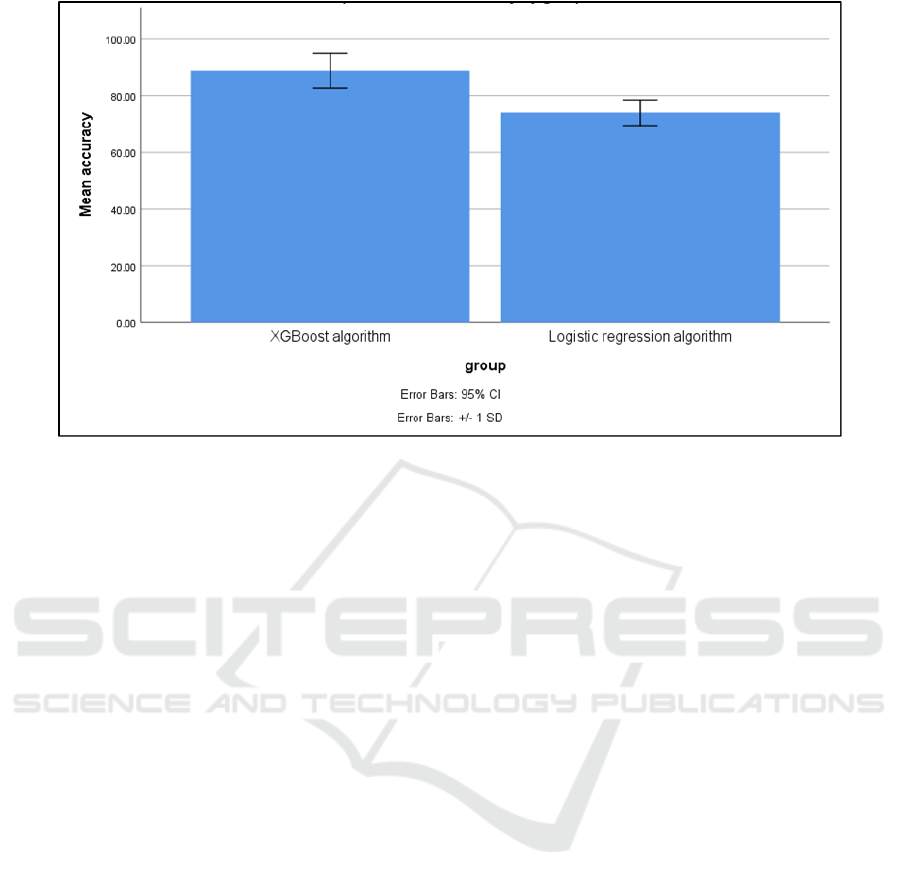

Figure 4: This research evaluates the mean accuracy of the XGBoost and Logistic regression algorithms. The XGBoost

algorithm demonstrates a superior mean accuracy of 89%, outperforming the Logistic regression algorithm which achieves a

mean accuracy of 74%. The outcomes emphasize the XGBoost algorithm's superiority. The X-axis delineates the algorithm

comparison, and the Y-axis signifies the mean accuracy within a range of +1 SD or -1 SD.

Figure 1 illustrates the distinct subsets within the

dataset, where subset S represents seizures. In subset

S, brain wave amplitudes exhibit high values across

all time intervals, surpassing 6 HZ in amplitude,

indicative of a seizure occurrence. Conversely, in the

remaining subsets, the amplitudes are lower, leading

to their classification as non-seizure instances.

Figure 2 provides insights into the performance of

the XGBoost algorithm through a confusion matrix.

This matrix effectively predicts all the algorithm's

actual values, showcasing its classification

capabilities.

Figure 3 presents a similar depiction for the

Logistic regression algorithm. It showcases the

performance of the confusion matrix and the accuracy

of predicting all the algorithm's actual values.

In Figure 4, a comparative analysis is presented,

highlighting the mean accuracy contrast between the

XGBoost algorithm and the Logistic regression

algorithm. Notably, the XGBoost algorithm attains a

superior mean accuracy of 89%, surpassing the 74%

accuracy achieved by the Logistic regression

algorithm.

Table 1 showcases the accuracy rates attained by

the XGBoost and Logistic regression algorithms.

Specifically, the XGBoost algorithm demonstrates a

commendable mean accuracy of 89%, while the

Logistic regression algorithm achieves a lower

accuracy of 74%.

In Table 2, a more detailed insight into the

algorithms' performance is provided through mean

and standard error values. The XGBoost algorithm

exhibits a mean accuracy of 89, accompanied by a

standard error of 1.58. In contrast, the Logistic

regression algorithm records a mean accuracy of 74,

accompanied by a standard error of 1.15. Notably, the

independent sample tests highlight a statistically

significant distinction in accuracy between the two

algorithms. This observation underscores the higher

accuracy of the XGBoost algorithm, which is further

emphasized by its standard error value of 1.458,

distinct from that of the Logistic regression

algorithm.

In Table 3, a comprehensive comparison of group

distribution and accuracy scores for the XGBoost and

Logistic regression algorithms is presented. A

statistically significant discrepancy in accuracy,

specifically in terms of Point Increment Accuracy, is

evident between the two algorithms. This substantial

difference is validated through a two-tailed

significance test, yielding a probability of p = 0.000

(p<0.05). Notably, the XGBoost algorithm emerges

as the superior performer with the highest accuracy

score of 89%, whereas the Logistic regression

algorithm lags behind with an accuracy score of 74%.

AI4IoT 2023 - First International Conference on Artiﬁcial Intelligence for Internet of things (AI4IOT): Accelerating Innovation in Industry

and Consumer Electronics

Table 2: The mean and standard error are calculated for both the XGBoost algorithm and the Logistic regression algorithm.

A statistically significant variance in accuracy between these two algorithms is demonstrated through independent sample

tests. Notably, the XGBoost algorithm exhibits a standard error of 1.58565 when compared to the Logistic regression

algorithm.

Group Statistics

Group

Mean

Std.Deviation

Std.Error Mean

Accuracy

XGBoost

algorithm

89.0000

6.14120

1.58565

Accuracy

Logistic

regression

algorithm

74.0000

4.47214

1.15470

Table 3: Contrasting the groups and accuracy of the XGBoost algorithm and Logistic regression algorithm, a notable statistical

distinction in point increment accuracy between the two methods is evident. This significance is established through a two-

tailed independent sample test with a significance probability of p=0.000 (p<0.05).

Levene’s Test for

Equality of

variances

T-test for Equality of Means

Sig

sig(2-tailed)

Mean

Difference

Std.

Error

Difference

95% confidence

interval of the

Difference

Lower

Upper

Accuracy

Equal

variances

assumed

1.746

.197

7.647

.000

15.000

1.96153

10.9819

19.018

Equal

variances,

not

assumed

7.647

25.589

.000

15.000

1.96153

10.9818

19.018

4 DISCUSSION

The results obtained from the research indicate that

the XGBoost algorithm has demonstrated superior

accuracy in epilepsy detection, achieving a rate of

89% compared to the Logistic regression algorithm.

This conclusion is substantiated through an

independent sample t-test. The specific application of

the XGBoost algorithm was focused on precise point

rate identification, and its performance outperformed

that of the Logistic regression algorithm.

The analysis underscores that the innovative

XGBoost algorithm excels over the Logistic

regression approach, effectively addressing the

challenges inherent in epilepsy detection. Supporting

this study, various articles have highlighted the

strengths of the XGBoost algorithm. For instance,

Balachandra et al. (2020) provide supportive

insights. Yao et al. (2019) present a machine learning

classifier based on XGBoost that accurately forecasts

potential antiepileptic drug (AED) treatment

outcomes with a remarkable 91% accuracy. In

another study, Long et al. (2018) successfully utilized

MFCC-based features and XGBoost to achieve an

impressive accuracy rate of 97.5% for epilepsy

identification. Similarly, Amin et al. (2022) achieved

a 96% accuracy with the XGBoost algorithm in the

context of epilepsy identification, with no

contradictory findings reported.

However, a limitation of this research arises from

the unavailability of accessible datasets, constraining

the ability to present a deep learning-based

Computer-Aided Diagnostic System (CADS) for

epilepsy disease. As neuroimaging modality is

utilized for diagnosing epileptic seizures due to the

lack of datasets, achieving optimal performance in

detection becomes challenging. Looking ahead, the

future scope of this project involves leveraging

relevant datasets to enhance the accuracy of

identifying disease symptoms at an early stage. This

would enable doctors to promptly detect and

effectively treat epilepsy in patients.

Improved Epilepsy Identiﬁcation with XGBoost vs. Logistic Regression

5 CONCLUSION

This study undertakes a comprehensive analysis and

comparison of two distinct methodologies: the

innovative Novel XGBoost algorithm and the

conventional Logistic Regression algorithm, both

aimed at detecting epilepsy disease. The study's

outcomes exhibit a notable disparity in accuracy rates

between the two approaches. Specifically, the

XGBoost algorithm showcases an impressive

accuracy rate of 89%, in contrast to the Logistic

Regression algorithm's accuracy of 74%. This

discernible variance substantiates the conclusion that

the Novel XGBoost algorithm distinctly outperforms

the Logistic Regression algorithm in the realm of

epilepsy disease detection.

REFERENCES

Amin, Moein, Christopher Newey, Vineet Punia, Stephen

Hantus, and Aziz Nazha. (2022). “Personalized Model

to Predict Seizures Based on Dynamic and Static

Continuous EEG Monitoring Data.” Epilepsy &

Behavior: E&B 135 (October).

https://doi.org/10.1016/j.yebeh.2022.108906.

Balachandra, Akshara R., Erik Kaestner, Naeim Bahrami,

Anny Reyes, Sanam Lalani, Anna Christina Macari,

Brianna M. Paul, Leonardo Bonilha, and Carrie R.

McDonald. (2020). “Clinical Utility of Structural

Connectomics in Predicting Memory in Temporal

Lobe Epilepsy.” Neurology 94 (23): e2424–35.

“Developing Window Behavior Models for Residential

Buildings Using XGBoost Algorithm.” (2019). Energy

and Buildings 205 (December): 109564.

G. Sajiv and G. Ramkumar, (2022) "Multiple Class Breast

Cancer Detection Method Based on Deep Learning and

MIRRCNN Model," International Conference on

Inventive Computation Technologies (ICICT), Nepal,

2022, pp. 981-987, doi:

10.1109/ICICT54344.2022.9850707.

Gaur, Ajai S., and Sanjaya S. Gaur. (2009). Statistical

Methods for Practice and Research: A Guide to Data

Analysis Using SPSS. SAGE Publications India.

Jones, Nigel C. (2018). “Disease-Modification in Epilepsy

by Nonpharmacological Methods.” Epilepsy Currents.

https://doi.org/10.5698/1535-7597.18.1.45.

Long, Jie-Min, Zhang-Fa Yan, Yu-Lin Shen, Wei-Jun Liu,

and Qing-Yang Wei. (2018). “Detection of Epilepsy

Using MFCC-Based Feature and XGBoost.” In 2018

11th International Congress on Image and Signal

Processing, BioMedical Engineering and Informatics

(CISP-BMEI). IEEE. https://doi.org/10.1109/cisp-

bmei.2018.8633051.

Muhammad Usman, Syed, Shehzad Khalid, and

Muhammad Haseeb Aslam. (2020). “Epileptic

Seizures Prediction Using Deep Learning Techniques.”

IEEE Access: Practical Innovations, Open Solutions 8:

39998–7.

Murugesan, Balamurugan. (2022). “DETECTION OF

EPILEPSY USING MACHINE LEARNING.”

California State University, San Bernardino.

https://scholarworks.lib.csusb.edu/etd/1384.

Nanmaran, R., Srimathi, S., Yamuna, G., Thanigaivel, S.,

Vickram, A. S., Priya, A. K., ... & Muhibbullah, M.

(2022). Investigating the role of image fusion in brain

tumor classification models based on machine learning

algorithm for personalized medicine. Computational

and Mathematical Methods in Medicine, 2022.

Ramalakshmi, M., & Vidhyalakshmi, S. (2021). GRS

bridge abutments under cyclic lateral push. Materials

Today: Proceedings, 43, 1089-1092.

Rahman, Ahnaf Akif, Fahim Faisal, Mirza Muntasir

Nishat, Muntequa Imtiaz Siraji, Lamim Ibtisam

Khalid, Md Rezaul Hoque Khan, and Md Taslim Reza.

(2021). “Detection of Epileptic Seizure from EEG

Signal Data by Employing Machine Learning

Algorithms with Hyperparameter Optimization.” In

2021 4th International Conference on Bio-Engineering

for Smart Technologies (BioSMART). IEEE.

https://doi.org/10.1109/biosmart54244.2021.9677770.

Siddiqui, Mohammad Khubeb, Ruben Morales-Menendez,

Xiaodi Huang, and Nasir Hussain. (2020). “A Review

of Epileptic Seizure Detection Using Machine

Learning Classifiers.” Brain Informatics 7 (1): 5.

Torlay, L., M. Perrone-Bertolotti, E. Thomas, and M.

Baciu. (2017). “Machine learning–XGBoost Analysis

of Language Networks to Classify Patients with

Epilepsy.” Brain Informatics 4 (3): 159–69.

Vickram, A. S., Samad, H. A., Latheef, S. K., Chakraborty,

S., Dhama, K., Sridharan, T. B., ... & Gulothungan, G.

(2020). Human prostasomes an extracellular vesicle–

Biomarkers for male infertility and prostrate cancer:

The journey from identification to current knowledge.

International journal of biological macromolecules,

146, 946-958.

“Website.” n.d. https://doi.org/10.31083/j.jin.2020.01.24.

Worley, Matthew. (2016). “Oi! Oi! Oi!” Fight Back.

https://doi.org/10.7765/9781847799616.00011.

Wu, Jiang, Tengfei Zhou, and Taiyong Li. (2020).

“Detecting Epileptic Seizures in EEG Signals with

Complementary Ensemble Empirical Mode

Decomposition and Extreme Gradient Boosting.”

Entropy 22 (2). https://doi.org/10.3390/e22020140.

Yao, Lijun, Mengting Cai, Yang Chen, Chunhong Shen,

Lei Shi, and Yi Guo. (2019). “Prediction of

Antiepileptic Drug Treatment Outcomes of Patients

with Newly Diagnosed Epilepsy by Machine

Learning.” Epilepsy & Behavior: E&B 96 (July): 92–

97.

Zhou, Mengni, Cheng Tian, Rui Cao, Bin Wang, Yan Niu,

Ting Hu, Hao Guo, and Jie Xiang. (2018). “Epileptic

Seizure Detection Based on EEG Signals and CNN.”

Frontiers in Neuroinformatics 12 (December).

https://doi.org/10.3389/fninf.2018.00095

AI4IoT 2023 - First International Conference on Artiﬁcial Intelligence for Internet of things (AI4IOT): Accelerating Innovation in Industry

and Consumer Electronics
