Facial Emotion Recognition and Impact Analysis of Iteration Based

on Convolutional Neural Networks

Anna Li

The Faculty of Science, The University of Hong Kong, Hong Kong, China

Keywords: Facial Emotion Detection, CNN, Algorithms, Human Emotions.

Abstract: Many disciplines, including AI, psychology, and computer science, see considerable value in the ability to

recognize human facial expressions. The primary goal of this research is to analyze the performance of the

original Convolutional neural networks (CNN) model by examining how alternative CNN models perform in

facial expression recognition under varying iteration cycles. This approach recognizes the intricate

relationships between macro and micro expressions to present a more complete picture of the wide range of

human emotions conveyed through facial expressions. A key takeaway from the experiments is that with

repeated iterations, the model becomes increasingly accurate. This approach to facial emotion detection

exemplifies the feasibility of combining various neural network architectures, allowing people to delve even

deeper into the nuances of human emotion. Therefore, this research has made major contributions to the field

of facial expression recognition by displaying the effectiveness of incorporating multi-scale feature extraction

technologies to enhance the performance of the model. This study establishes the groundwork for future

research avenues in the area and enables the development of more sophisticated emotion recognition

algorithms for practical implementations.

1 INTRODUCTION

Since Darwin's early work, which spurred a frenzy of

academic interest in the field, there has been a great

deal of progress made in the study of human emotions

(Ali t al 2020). Specifically reflected it can be

achieved to identify seven separate emotions plainly

by observing a person's face: neutral, anger, disgust,

fear, happy, sad, and surprise. Then, people can

comprehend others' intentions by observing their

facial expressions, which are vital parts of human

communication (Ko 2018). However, it is undeniable

that identifying emotions has been a challenging issue

for a long time since it is a subjective phenomenon that

calls for the utilization of knowledge and scientific

data behind labels to extract components (Dachapally

2017).

Multiple approaches have been put forth over the

past several decades for recognizing emotions. In

addition, conventional techniques often take into

account a facial photograph that has been segmented

from a source image, followed by detect facial

components in the fragmented face regions (Ali t al

2020). As an illustration, the gradient histogram of the

image will be computed to extract facial features by

applying the combination of gradient graph (HoG)

features and support vector machine (SVM)

classifiers, afterwards the face areas and feature point

locations can be effortlessly and precisely identified

(Liu et al 2013). Since the advent of deep learning, the

research topic of emotion recognition in computer

vision has become mostly resolved. Meanwhile, in

terms of accuracy and efficiency, it continues to be

outpacing other machine-learning approaches

(Giannopoulos et al 2018). With Frank Rosenblatt's

1957 idea of perceptron, a simple type of neural

network, and the subsequent development of multi-

layer perceptron (MLP), a more complex type of

neural network that added techniques to differentiate

non-linearly separable data based on single-layer

primitives, facial characteristics can be extracted from

images (Boughrara et al 2016). In the case of image

processing, however, the MLP model may have

limitations. To process complicated visual data, a

significant number of parameters is typically required.

More hidden layers and neurons are needed for high-

resolution picture data, which extends MLP's training

and inference times (Panchal et al 2016). Because

every neuron in the MLP is attached to each neuron in

the layer below, this fully interconnected technique

may not be effective at processing picture data. On the

Li, A.

Facial Emotion Recognition and Impact Analysis of Iteration Based on Convolutional Neural Networks.

DOI: 10.5220/0012799000003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 5-9

ISBN: 978-989-758-705-4

other hand, lacks a weight-sharing mechanism, which

results in an excessive number of parameters for the

model (Tang et al 2022). The Deep belief networks

(DBN) aimed to optimize the matching of facial

expression recognition datasets by resolving the

training problem of deep neural networks (Terusaki,

and Stigliani & Goodfellow et al 2013). It even needs

dedicated hardware to accelerate the training process.

As with other types of neural networks, such as the

convolutional neural network (CNN) is currently

frequently employed within particular settings, such

as those concerning recognition of photographs and

classifying. Owing to its capacity to automatically

learn features in images, thus enables them to

effectively capture and describe the image's details.

To further enhance both the effectiveness and

accuracy of face emotion detection characteristics.

Consequently, the core objective of the current

investigation is to figure out the ways that how the

various numbers of iterations impact CNN's ability to

detect a person's expressions. In this research, the

Facial Expression Recognition 2013 Dataset (FER-

2013) utilized to achieve both training and assessment

purposes, which is available at Kaggle (Giannopoulos

et al 2018). CNNs are primarily utilized, which are

divided into three stages: image processing, feature

extraction, and performance analysis. Specifically,

first, before computing features, images must undergo

pre-processing, which mostly entails data

augmentation and normalization to remove noise and

other distracting elements from the image that are not

connected to the face. Second, is feature extraction,

which is the process of extracting face image-related

feature data by generating CNN models

(convolutional kernels), thereby offering useful data

features for subsequent facial expression

identification. The third is performance analysis,

observing the impact generated by varying iteration

cycles on the recognition of facial expressions in

Convolutional Neural Networks. The experiments

conducted reveal that the accuracy of CNN's face

expression recognition technology improves with

increased training iterations, and the loss subsequently

diminishes. Additionally, it is essential to understand

that some factors, like the network structure, the

dataset, and others may all impact the effects

associated with various iteration cycles on CNN facial

expression identification. Therefore, if the goal is to

figure out the optimal amount of iteration cycles for

any given project must be determined through

experimentation and evaluation.

2 METHODOLOGY

2.1 Dataset Description and

Preprocessing

FER-2013, the dataset utilized for this analysis, has

been obtained from Kaggle (Giannopoulos et al 2018).

Google Image Search API is used to crawl images that

matched emotive keywords, providing the dataset's

foundation. The dataset contains 35887 photos of face

expressions, split into three groups of 28709 for

training, while the public test and private test each

contain 3589 images. The photos have been digitally

manipulated to guarantee that is approximately

aligned and the visage of the subject covers about the

identical proportion of the area for every pictures.

Images' pixel values and an emotion label are the

two fundamental components of the collection. People

face in the grayscale images, all of which are 48 pixels

on a side, and are composed of seven varieties of

emoticons, which correspond to digital labels 0

through 6. Each of these emoticons has a

corresponding name in both Chinese and English:

Angry (0), Disgust (1), Fear (2), Happy (3), Sad (4),

Surprise (5), and Neutral (6). An example of a data

point in this dataset would be a 48x48 pixel grayscale

image of a face, associated with an emotion label. Fig.

1 showcases some instances from the dataset.

Figure 1: Images from the FER-2013 dataset (Original).

2.2 Proposed Approach

The focus of this proposed method for facial emotion

detection is the CNN model. However, there is an

extended procedure required before the model can be

used. It is essential to first preprocess and reshape the

data while importing the required dataset. After that,

the generator is fitted to the data, and the images used

for facial emotion detection are enhanced before being

transferred to the model. In the following phase, CNN

is applied to generate a model for detecting facial

emotions, which is then trained. This is exactly the key

objective of this research: explore the consequences of

CNN on facial emotion detection by modifying the

iteration period constantly. The pipeline is shown in

Fig. 2.

DAML 2023 - International Conference on Data Analysis and Machine Learning

Figure 2: The pipeline (Original).

2.2.1 CNN

CNN is a widely employed feature extractor utilized

in neural networks for applications such as image

recognition and classification. The input size is set to

48 by 48 grayscale images. These pictures need to be

processed in a certain way to improve the data before

they are supplied into the network. Improving the

model's performance and generalization ability via

picture data improvement is possible. In this

investigation, the CNN model consists of two

convolutional layers, followed by two pooling layers,

also one flattening layer, and at last two fully

connected layers. Fig. 3 shows the process.

Figure 3: The structure of CNN (Original).

Given an explanation first, the Convolutional

layers function as the data source used by the pooling

layer, utilizing the backpropagation approach to fine-

tune the parameters of each of the multiple

convolutional units that collectively make up the

neural network. The pooling layer, which comes after

the convolutional one, likewise uses several feature

planes. There is a one-to-one correspondence between

feature planes throughout layers; the number of

feature planes does not increase or decrease. The

dense layer of neurons is an initial layer of neurons in

which all the neurons in the preceding layer send input

to each of the neurons in the current layer. Plus, the

whole convolutional neural network relies on the

"classifier" function provided by the fully connected

layer. Therefore, the Conv2D layer generates a

convolutional kernel that convolves with the layer

input, making it simple to produce tensors. The

pooling layer plays a role in secondary feature

extraction, with each neuron executing pooling

operations on the local receptive domain.

In the pooling layer, each neuron in the network

applies its local receptive region to perform a pooling

operation, making it is beneficial to secondary feature

extraction. Here, the most frequently used pooling

method, max pooling, can be used to take the point

with the highest median in the local acceptance

domain. So, the MaxPooling2D layer down samples

the input along the spatial dimension. The Rectified

Linear Unit (ReLu) function was also used as a neural

network activation in the aforementioned procedures,

as it would speed up calculations and prevent the

dreaded gradient vanishing problem. Convolutional

layers, pooling layers, and activation function layers

assist with mapping the raw data to the hidden layer

feature space; the fully connected layer then

contributes to translating the learned "distributed

characteristic expression" to the specimen labelling

area.

2.2.2 Output Layer

The dense layer of neurons is an initial layer of

neurons in which all the neurons in the preceding

layer send input to each of the neurons within the

existing layer. Here, the dense layer flattens the input,

and it is then input to a completely connected layer.

In basic terms, it is a linear transfer from one feature

space to another. After non-linear changes in the

dense, the dense layer's objective is to back-map the

given input domain to its characteristics that have

been extracted from it in the preceding layers.

The SoftMax function is applied to multi-

categorization issues with a single right solution as

output, which is the same as mutually exclusive

output. It is developed as a probabilistic representation

of multiclassification outcomes, and it is an extension

of the Sigmoid function for binary classification. In

typical neural network structures, it operates as the

entire ultimate layer, the SoftMax layer transforms

numerical values into probability distributions. This

implies that the SoftMax function can be applied to

generate and ascertain the probability distribution of

seven distinct emotional categories.

2.2.3 Loss Function

The final model outputs probability distributions on 7

distinct emotion categories through SoftMax, along

with the optimizer, loss function, and evaluation

metrics specified during training. The loss function is

the classification cross-entropy, and precision serves

as the benchmark. In order to motivate the model to

allocate a higher probability to the appropriate

category while dealing with multi-class classification

problems, the method of classification cross-entropy

frequently acts as the loss function for estimating the

discrepancy between the predicted label and the actual

label. For each image, the model computes its loss and

then compares the predicted likelihood of each

emotion category to a hot-coded real label, as,

Input

(48,48,1)

Images

pre-

process

(Data

Reshaping,

Data

Augmentati

on)

Fit the

generator

to data

Varing the

iteration

cycles

Results

Conv1d

layer

Max

pooling

layer 1d

（2*2）

Conv2d

layer

Maxpoo

ling

layer 2d

(2*2)

Flatten

layer

Fully

connect

ed layer

Dense

layer

Facial Emotion Recognition and Impact Analysis of Iteration Based on Convolutional Neural Networks

𝐿𝑜𝑠𝑠  





∑

𝑥



𝑙𝑛𝑦



(1)

𝐴 





∑

𝑎𝑙𝑛𝑏 



1 𝑎



𝑙𝑛



1 𝑏







(2)

In the formula, j stands for the number of samples,

a for the actual label, b for the expected result, and n

for the total number of samples.

2.3 Implementation Details

When putting into practice the suggested model, it is

crucial to remain in consideration that all the

photographs in the information set are grayscale facial

images with the subject's face roughly centered in the

middle. Therefore, this necessitates no special

processing, as stated. With respect to

hyperparameters, limiting suggested initial learning

rate to 0.001 whilst applying Adam as an optimizer.

As the model is being trained, the optimizer can adjust

its settings. The gradient of the loss function can be

utilized by the Adam optimizer to adjust the learning

rate.

3 RESULTS AND DISCUSSION

The fundamental intention of this investigation is to

investigate the influences generated by varying

iteration cycles on the recognition of facial

expressions in CNN. Therefore, selecting the

epoch=20,40,60,80,100 to run the model and analyze

the impact generated by increasing iteration cycles and

the relationship between loss and accuracy.

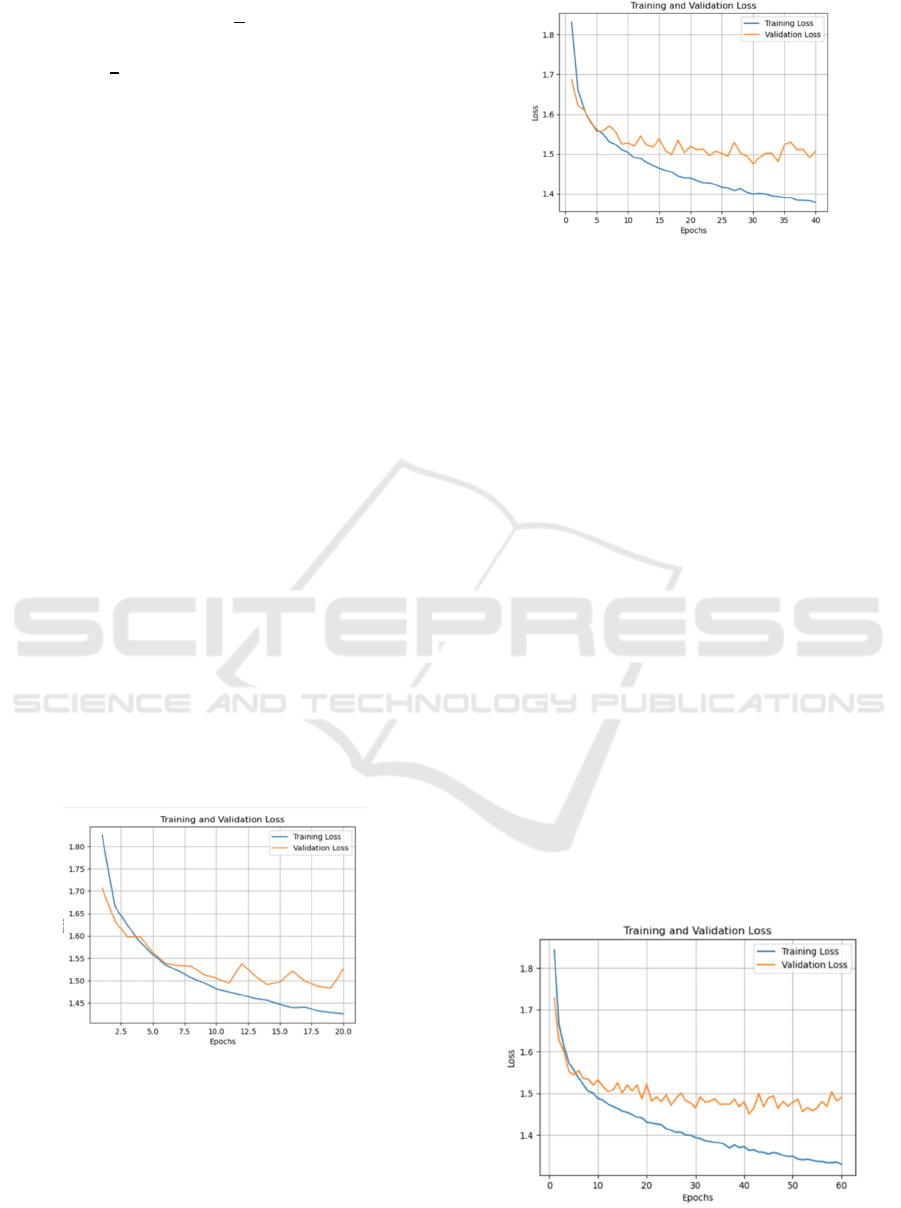

Figure 4: The loss curve in 20 epochs (Original).

Figure 5: The loss curve in 40 epochs (Original).

After many hours of training, the CNN model was

able to pass validation, as shown in the Fig. 4-8. The

FER-2013 dataset is used for the experiment, and its

results are analyzed to figure out the effectiveness of

the network model. With regular iteration, the CNN

model improved its accuracy and its loss rapidly

diminished. In this case, the CNN model's accuracy

exemplifies rising fluctuations that eventually

normalize to a reduced loss. In furtherance of

indicating that the network model is being trained

normally and optimally, this also shows that its

performance is steadily rising. Growing the overall

amount of iteration cycles has the potential to optimize

the CNN's parameters and build up convergence, a

term describing the point at which the CNN's

performance becomes stable and further training does

not improve recognition accuracy a great deal. To

accomplish optimal efficiency while eliminating

computation consumption of resources, discovering a

proper balance between iteration cycles is

indispensable. Overall, the results of facial emotion

detection are greatly enhanced when the CNN model

is subjected to several iteration cycles. This

performance advancement, as well as an improvement

in accuracy and a reduction in losses, are all expressed

in the chart. Such training tactics can be incorporated

into subsequent research to further improve the

accuracy of emotion recognition.

Figure 6: The loss curve in 60 epochs (Original).

DAML 2023 - International Conference on Data Analysis and Machine Learning

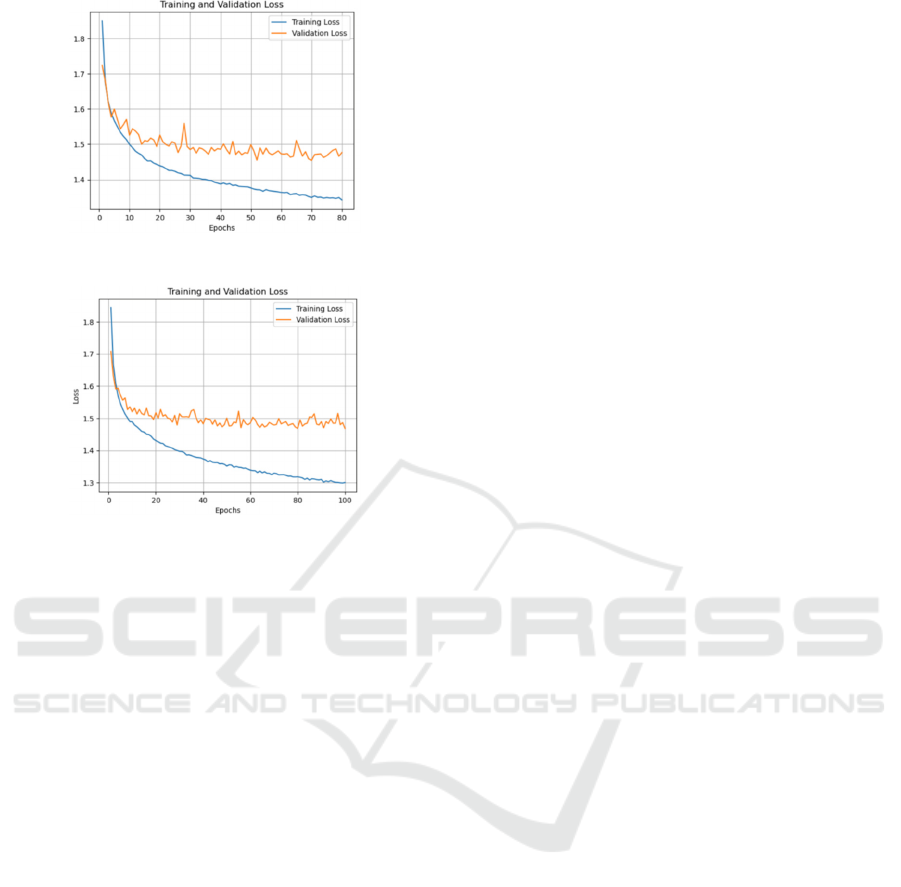

Figure 7: The loss curve in 80 epochs (Original).

Figure 8: The loss curve in 100 epochs (Original).

4 CONCLUSION

The CNN model is an important boost within the

wider context of this research. The performance of

CNN facial emotion detection has been investigated

through experiments carried out on the FER-2013

dataset, with a focus on studying its performance

under varying iteration cycles. The efficiency in

detecting emotional expressions in images can be

greatly enhanced by using several iterations on object

directions of various sizes and complexities, thereby

increasing accuracy and impact. The training set is

expected to achieve an accuracy of 0.5117. In

comparison to the previous iteration with a lower

number of iterations, the current result indicates a

notable enhancement of 8.11%. Further, the degree of

loss in the training set is consistently diminishing,

suggesting that greater iterations contribute to better

model performance. Variable iteration cycles may

have an impact on CNN's generalization capacity,

which might improve the accuracy of facial

expression recognition on unobserved data.

Consequently, if the CNN is trained with insufficient

iteration cycles, it may not generalize effectively,

which will result in inadequate recognition

performance for novel face expressions. To a certain

degree, fostering the iteration cycles could enhance

generalization. In the meantime, it also implies that

normal procedures are implemented in constructing

the network model and reflect the optimal outcome.

It's critically important to know that the dataset,

network configuration, and other potential factors are

capable of influencing exactly what consequences of

various iteration cycles on CNN facial expression

recognition. The subsequent research is expected to

further increase even more thanks to tackling any

potential constraints. Since the development potential

of emotion recognition technology in the future is

enormous. Furthermore, it will investigate the model's

performance across various facial features and

emotional states, with the objective of gaining a more

thorough understanding of facial expression detection.

REFERENCES

M. Ali, M. Khatun, N. Turzo, “Facial emotion detection

using neural network,” the international journal of

scientific and engineering research, 2020

B. Ko, “A Brief Review of Facial Emotion Recognition

Based on Visual Information,” Sensors, vol. 18, 2018,

p. 401

P. Dachapally, “Facial emotion detection using

convolutional neural networks and representational

autoencoder units,” arXiv, 2017, unpublished

H. Liu, T. Xu, X. Wang, Y. Qian, “Related HOG features

for human detection using cascaded adaboost and

SVM classifiers,” In Advances in Multimedia

Modeling: 19th International Conference, MMM

2013, 2013, pp. 345-355

P. Giannopoulos, I. Perikos, I. Hatzilygeroudis, “Deep

learning approaches for facial emotion recognition: A

case study on FER-2013,” Advances in Hybridization

of Intelligent Methods: Models, Systems and

Applications, 2018, pp. 1-16

H. Boughrara, M. Chtourou, C. Ben, L. Chen, “Facial

expression recognition based on a mlp neural network

using constructive training algorithm,” Multimedia

Tools and Applications, vol. 75, 2016, pp. 709-731

G. Panchal, A. Ganatra, Y. Kosta, “Behaviour analysis of

multilayer perceptrons with multiple hidden neurons

and hidden layers,” International Journal of Computer

Theory and Engineering, vol. 3, 2016, pp. 332-337

C. Tang, Y. Zhao, G. Wang, “Sparse MLP for image

recognition: Is self-attention really necessary?,” In

Proceedings of the AAAI Conference on Artificial

Intelligence, vol. 36, 2022, pp. 2344-2351

K. Terusaki, V. Stigliani, “Emotion detection using deep

belief networks,” unpublished

I. Goodfellow, D. Erhan, P. Carrier, “Challenges in

representation learning: A report on three machine

learning contests Neural Information,” Processing:

20th International Conference (ICONIP) Springer

berlin Heidelberg, 2013, pp. 117-124

Facial Emotion Recognition and Impact Analysis of Iteration Based on Convolutional Neural Networks
