Analysis of Residual Block in the Resnet for Image Classification

Xiayuan Jin

School of Engineering, The University of Manchester, Manchester, U.K.

Keywords: ResNet, Image Classification, Convolutional Neural Network, CIFAR-10 Dataset.

Abstract: Image recognition is of paramount importance in our contemporary world, with diverse applications across

domains such as traffic control, medical diagnosis, educational tools, and workplace automation. Its impact

is profound and multifaceted. This study highlights Resnet's effectiveness in building robust deep-learning

models for image classification. Through the integration of residual blocks, residual network (ResNet)

overcomes challenges like vanishing gradients, enabling the training of very deep networks. Experiments on

the CIFAR-10 dataset showcase ResNet's impressive accuracy in image recognition, with loss fluctuations

mitigated via hyperparameter tuning. ResNet excels in feature extraction and precise image classification.

The important topic of this research is trying to figure out the efficiency comparing convolutional neural

network (CNN) and Resnet using Resnet's residual block to find out the difference of parameter changes the

accuracy of the model, by inducting Resnet, the performance of the model behaves much better, and solve the

problem of gradient vanishment, Resnet plays a pivotal role in image classification by enabling the training

of very deep neural networks, enhancing feature extraction, and achieving state-of-the-art accuracy in various

visual recognition tasks.

1 INTRODUCTION

In today's digitally driven world, the surge in modern

technology has led to an era of unprecedented data

generation and spread over the internet. This rapid

growth in information necessitates robust tools for

managing diverse data forms, particularly images.

Various industries now require proficient image

classification techniques to make sense of this

information influx.

The previous machine learning material provided

insights into fundamental algorithms and concepts,

spanning across supervised learning, unsupervised

learning, and deep learning domains. You acquired

skills in data preprocessing, feature engineering, and

model evaluation, establishing a robust foundation for

tackling real-world problem-solving (Schaetti 2018).

Data scientists used a basic Convolutional Neural

Network (CNN) network to do machine learning

work. For example, In the realm of Deep Learning

(DL), CNNs have gained immense prominence

(Krizhevsky et al 2017). One of their distinguishing

strengths compared to their predecessors is their

ability to autonomously extract important features

without human supervision (Gu et al 2018). CNNs

provide extensive applications across diverse fields,

including computer vision (Fang et al 2020), gesture

processing (Palaz et al 2019), and even Face

Recognition (Lu et al 2018). The basic concept of

CNNs takes inspiration from the neural organization

in both human and animal health bodies, notably in the

visual cortex. For instance, the complex network of

cells constituting a feline's visual cortex finds an

analogous representation in CNNs (Li et al 2020).

Goodfellow underscores three pivotal features of

CNNs: CNNs stand out due to their capacity for

creating equivalent representations, promoting sparse

interactions, and enabling parameter sharing. In

contrast to conventional fully connected (FC)

networks, CNNs leverage shared weights and

localized connections to exploit the inherent 2D

structure within input data, particularly in the case of

image signals. This architectural choice not only

reduces unnecessary parameters but also mirrors the

selective information processing observed in our

brain's visual system, similar to how our visual cells

focus on specific areas (Hubel and Wiesel 1962). This

method not only reduces unnecessary parameters but

also makes training more efficient, much like how our

brain's visual cells selectively process information.

Just as these cells concentrate on specific areas, CNNs

use local filters to extract important details from the

input (Goodfellow et al 2016). CNNs can face

challenges like overfitting, high computational load,

246

Jin, X.

Analysis of Residual Block in the ResNet for Image Classiﬁcation.

DOI: 10.5220/0012800400003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 246-250

ISBN: 978-989-758-705-4

limited contextual understanding, and issues with

translation invariance. Residual Networks, addresses

these by introducing residual blocks, which enable

direct gradient flow during training. ResNet, a form of

deep neural network, incorporates skip connections or

shortcuts in its architecture (Schaetti 2018). Applying

in the domain of autonomous driving, ResNet emerges

as a key for accurately identifying and categorizing

road objects. This capability significantly fortifies the

safety and reliability of self-driving vehicles.

Similarly, the medical sector benefits from ResNet's

prowess, which accelerates the detection of anomalies

in medical images, thereby expediting disease

diagnosis and prognostication. ResNet's adaptability

and effectiveness across these complicated sectors

underscore its compelling ability to address real-world

complexities in image analysis. Consequently, ResNet

stands out as a multifunctional solution to address the

contemporary challenges of image processing.

The main objective of this study is to utilize

ResNet for constructing an efficient image

classification model and using different numbers of

residual models to find out the change in efficiency.

By introducing residual blocks, the aim is to counter

overfitting and enhance the model's ability to retain

crucial original feature information, leading to

improved feature representation. Specifically, firstly,

the incorporation of ResNet's residual blocks

addresses issues such as vanishing gradients and

degradation, which often hinder the training of deep

networks. This helps ensure smoother gradient

propagation during training, facilitating the learning

process. Secondly, the utilization of skip connections

within ResNet aids in maintaining and transmitting

essential features across layers, thereby mitigating the

loss of valuable information. Thirdly, an in-depth

analysis and comparison of predictive performances

across various models are conducted. Furthermore, the

integration of ResNet addresses the challenge of

training deep neural networks effectively. ResNet's

architecture with residual blocks helps alleviate the

degradation problem, enabling successful training of

networks with extensive depth. Simultaneously, the

incorporation of skip connections supports gradient

flow during backpropagation, effectively tackling the

issue of vanishing gradients that frequently arise

during the training of deep networks. These strategic

enhancements collectively contribute to ResNet's

efficacy in overcoming challenges associated with

training deep networks and accomplishing image

classification tasks.

2 METHODOLOGY

2.1 Dataset Description and

Preprocessing

The research used the Canadian Institute for

Advanced Research (CIFAR) dataset to explore the

problem around ResNet (Abouelnaga et al 2016). The

CIFAR-10 dataset, a cornerstone in the realm of

computer vision, originates from the CIFAR and

serves as a vital benchmark for image classification

tasks. Comprising 60,000 color images with

dimensions of 32x32 pixels, the dataset encompasses

ten diverse classes, each containing 6,000 images.

This study delves into the enhancement of the CIFAR-

10 dataset for robust model training through a

sequence of preprocessing techniques. Segmented

into 50,000 training images and 10,000 test images,

the dataset facilitates rigorous model evaluation.

The core focus of this study lies in the application

of preprocessing methods to amplify the dataset's

efficacy. The "Rescaling" technique, normalizing

pixel values to the [0, 1] range, is coupled in horizontal

and vertical modes, introducing data augmentation by

enabling random image flips. Horizontal flips emulate

diverse object orientations, while vertical flips inject

variability in object positioning. These techniques

collectively bolster model robustness, alleviate

overfitting concerns, and elevate generalization

capabilities. The integration of these preprocessing

measures results in an elevated quality of the CIFAR-

10 dataset, rendering it particularly suitable for

training CNNs and other image recognition models.

The optimized dataset plays a pivotal role in

advancing classification accuracy and fostering

adaptability for object recognition in real-world

settings. This paper underscores the significance of

preprocessing methodologies in refining image

datasets, underscoring their role in advancing the

performance of machine learning models in the realm

of computer vision.

2.2 Proposed Approach

Introduction to the research technology. ResNet is an

exciting and groundbreaking deep learning

architecture known for its ability to train extremely

deep networks effectively. By leveraging the concept

of residual blocks, ResNet has shown remarkable

performance in various computer vision tasks. This

architecture combines several components, such as

convolutional layers, residual pathways, global

average pooling, and fully connected layers, all

working together harmoniously. The pipeline of the

ResNet architecture can be visualized in Fig. 1,

Analysis of Residual Block in the ResNet for Image Classiﬁcation

247

providing a comprehensive overview of its structure

and flow. At the heart of this architecture lies the

Convolution operation, specifically the 2-dimensional

convolution (Conv2D). Conv2D is a fundamental

operation in deep learning and serves as a powerful

tool for extracting meaningful features from images. It

employs a sliding window mechanism that scans the

input image, highlighting patterns and capturing

relevant information necessary for subsequent

processing. To optimize computational efficiency and

enhance the network's ability to focus on critical

features, ResNet incorporates another essential

operation known as 2-dimensional Max Pooling

(MaxPooling2D). MaxPooling2D downsamples the

data by selecting the maximum values within specific

regions, effectively reducing the dimensionality of

feature maps while emphasizing the most important

features. By discarding non-maximal values,

MaxPooling2D helps to reduce noise, improve

robustness, and enhance the overall performance of

the deep learning model.

By combining Conv2D and MaxPooling2D within

the ResNet architecture, researchers and practitioners

have unlocked new possibilities and achieved state-of-

the-art results in image classification, object detection,

semantic segmentation, and various other computer

vision tasks. This powerful combination of operations

has proven crucial in extracting rich and

discriminative features, enabling deep networks to

learn intricate patterns and make accurate predictions

in complex visual tasks.

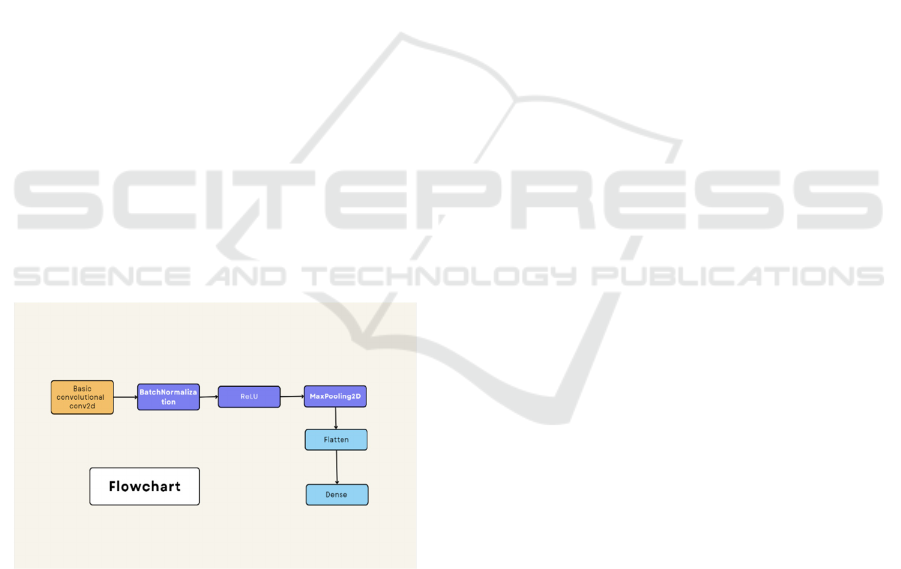

Figure 1: The pipeline of the model (Picture credit:

Original).

2.2.1 Conv2D

Introduction to the Conv2D technique. The Conv2D

layer plays a pivotal role in CNN, serving as a

fundamental element for feature extraction from

images. Operating on the principle of two-

dimensional convolution, this layer convolves filters

across input images or feature maps to uncover

intricate spatial patterns, edges, and textures. This

iterative process progressively constructs a

hierarchical representation of features essential for

image analysis. Practically, Conv2D requires a 4D

tensor input encompassing parameters like batch size,

image dimensions, and channel count. Through

convolution operations, it computes dot products

between filters and localized input regions,

generating feature maps. Its primary strength lies in

automated feature extraction, enhancing the

network's capability to capture significant visual cues

and enabling robust image comprehension. Integrated

into the ResNet architecture, the Conv2D layer

initiates the process of feature extraction, producing

intermediary feature maps that undergo activation

functions for further processing. Its significance

resonates across deep learning models, solidifying its

status as a cornerstone in image recognition and

computer vision.

2.2.2 ResNet

Another interesting module is the Residual block.

Residual Blocks, a groundbreaking innovation

introduced by ResNet, offer a transformative solution

to challenges posed by training deep neural networks.

These blocks effectively address the vanishing

gradient issue through residual connections, enabling

direct information flow across layers. The core

functionality of Residual Blocks revolves around

their capacity to learn incremental changes in feature

representations. Instead of focusing on complex

transformations, these blocks allow networks to

concentrate on residual or incremental updates,

streamlining learning within deeper architectures.

Residual Blocks find optimal utility within deep

networks, particularly those susceptible to gradient

degradation. By retaining earlier features via shortcut

connections, these blocks ensure seamless gradient

propagation—a pivotal factor in optimizing networks

with extensive layers. In our implementation, Residual

Blocks materialize using Conv2D layers and shortcut

connections, forming essential components of the

ResNet architecture. Their unique capability to

mitigate gradient vanishing while facilitating the

training of exceptionally deep networks has

revolutionized the realm of deep learning. This

innovation not only rekindles the pursuit of deeper

architectures but also establishes new benchmarks for

image recognition, object detection, and other

computer vision tasks.

2.2.3 Loss Function

Loss function is one of the important elements in the

DAML 2023 - International Conference on Data Analysis and Machine Learning

248

research. In the realm of multi-class classification

tasks, an important concept of the loss function is the

variance, which is the difference between the

expectation value and the true value, and it quantifies

the gap between real value and predicted value. The

Sparse Categorical Cross-Entropy (SparseCE) loss

function emerges as a pivotal construct within this

context, meticulously tailored to measure the

alignment between model predictions and ground

truth labels. The core equation encapsulating its

essence involves the summation of the negative

logarithm of predicted probabilities across all

samples: Loss (L) equals the negative sum of the

logarithm of the predicted probabilities (pi) for each

sample:

𝐿

∑

log



𝑝𝑖







(1)

where 𝐿 signifies the computed loss value,

representing the degree of divergence between

predicted probabilities and true labels. Loss function

indicates summation across all 𝑁 samples in the

dataset, underscoring its comprehensive nature.

log



𝑝𝑖



denotes the natural logarithm of the predicted

probability pi assigned to the true class of the ith

sample, quantifying the model's confidence in its

prediction. 𝑝𝑖 represents the predicted probability

assigned to the true class of the ith sample,

encapsulating the model's estimation of the likelihood

that the sample belongs to its correct class.

2.3 Implementation Details

The research provides the construction and training of

CNN models for image classification tasks using

TensorFlow and Keras. The foundation of the system

is established by importing the necessary libraries and

modules. It introduces classes and functions that

enable the creation of diverse CNN architectures, data

preprocessing, training, and performance evaluation.

Notably, data augmentation techniques are harnessed

through a sequential layer, enhancing the dataset's

variety by applying rescaling and random flips. This

augmentation strategy bolsters the model's robustness

and capacity to generalize to different image

variations. The code also acknowledges the

significance of hyperparameters by allowing

customization of crucial factors such as learning rate,

batch size, and data storage path. These parameters

wield considerable influence over the model's training

trajectory and final performance. In essence, the code

amalgamates these elements into a cohesive

framework that amalgamates system background

awareness, data augmentation practices, and flexible

hyperparameter configurations to cultivate effective

image classification models.

3 RESULTS AND DISCUSSION

The ResNet loss function curve exhibits some

rebounds between 20 epochs, possibly due to

overfitting, suboptimal hyperparameters, and complex

optimization. Strategies to mitigate rebounds include

adjusting learning rates and regularization. The

accuracy curve indicates ResNet's convergence

around 20 epochs, with steeper changes attributed to

its depth. ResNet's training "rebound" relates to its

depth, gradient challenges, epoch times, learning rate,

and number of layers.

The Fig. 2 below illustrates the loss function of the

Resnet method after 20 times epochs, the loss function

rebounds and turns better after this. The rebound

observed in the loss curve during ResNet training can

be attributed to factors such as model overfitting,

suboptimal hyperparameters, and the intricate

optimization landscape of deep networks. The

occasional rise in loss indicates potential challenges in

achieving convergence due to overfitting, while

oscillations can stem from a high learning rate causing

overshooting. Moreover, complex optimization layers

may result in temporary fluctuations as the algorithm

seeks the global minimum. Strategies to mitigate

rebounds include adjusting learning rates, regularizing

the model, and applying learning rate schedules.

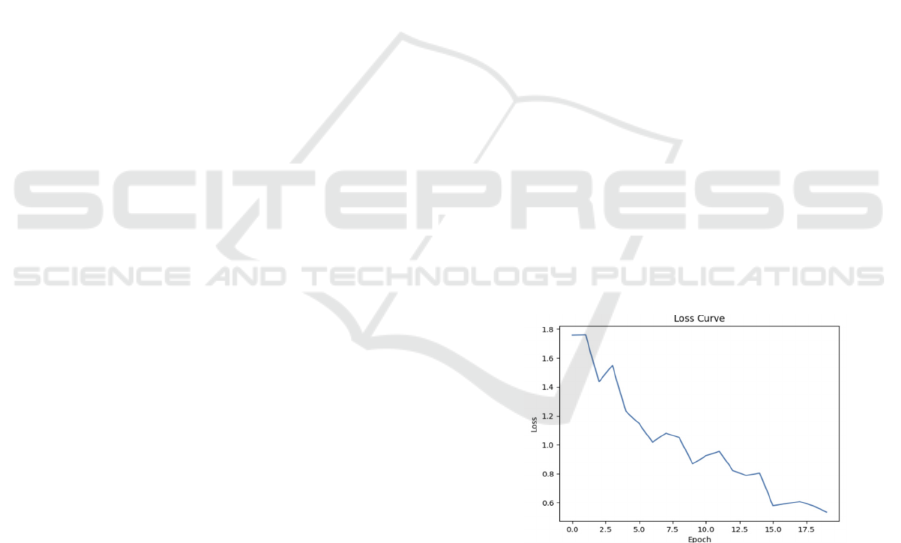

Figure 2: Loss curve (Picture credit: Original).

Based on Fig. 3 (the accuracy function), the

diagram can observed that the Resnet model's

convergence point converges around 20 times epochs.

However, the diagram is still steep since Resnet has

more layers than normal CNN, and some of the

gradients change faster than normal networks. During

ResNet training, the phenomenon of "rebound" may

occur due to the network's depth and complexity.

Challenges in gradient propagation and learning rate

adjustment can lead to oscillations in loss and

Analysis of Residual Block in the ResNet for Image Classiﬁcation

249

accuracy curves. However, with proper optimization

strategies, ResNet can recover from these fluctuations

and achieve favorable outcomes.

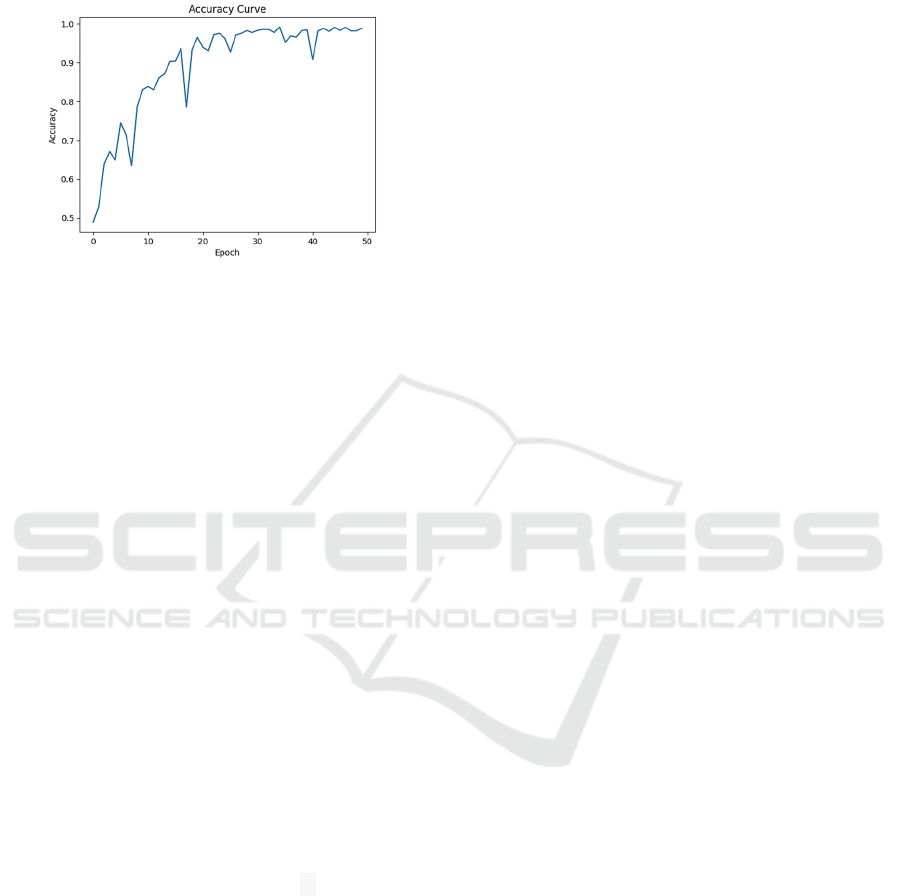

Figure 3: Accuracy of model (Picture credit: Original).

4 CONCLUSION

This study underscores the effectiveness of ResNet in

building robust deep-learning models for image

classification tasks. By integrating residual blocks into

the CNN architecture, ResNet successfully tackles

challenges like vanishing gradients and degradation.

These residual connections ensure smooth gradient

propagation during backpropagation, enabling the

training of exceptionally deep networks. Through

extensive experiments conducted on the CIFAR-10

dataset, ResNet demonstrates its ability to achieve

remarkable accuracy in image recognition. While the

loss function exhibits occasional fluctuations during

training, meticulous hyperparameter tuning, including

learning rate adjustments, effectively mitigates these

fluctuations. The results validate ResNet's ability to

extract distinctive visual features and accurately

classify images. Future research avenues may explore

enhancements to the residual blocks, including the

implementation of bottleneck architectures to improve

computational efficiency. Additionally, evaluating

ResNet on datasets with more complex images can

assess its generalization potential. In a rapidly

evolving landscape of deep learning and image

classification, ResNet stands as an exemplar of

innovation and advancement. As we continue our

journey in this field, we eagerly anticipate the

innovations and breakthroughs that will inevitably

shape the future of image recognition and deep

learning. The potential is vast, and the promise is

bright.

REFERENCES

N. Schaetti, “Character-based Convolutional Neural

Network and ResNet 18 for Twitter Author Profiling.

Notebook for PAN at CLEF 2018,” 2018.

A. Krizhevsky, I. Sutskever, and G.E Hinton, “Imagenet

classification with deep convolutional neural

networks,” Communications of the ACM, vol. 60,

2017, pp. 84–90.

J. Gu, Z. Wang, J. Kuen, et al, “Recent advances in

convolutional neural networks,” Pattern Recognition,

vol. 77, 2018, pp. 354–77.

W. Fang, P. E. Love, H. Luo, and L. Ding, “Computer

vision for behavior-based safety in construction: a

review and future directions,” Advanced Engineering

Informatics, vol. 43, 2020, p. 100980.

D. Palaz, M. Magimai-Doss, and R. Collobert, “End-to-end

acoustic modeling using convolutional neural

networks for hmm-based automatic speech

recognition,” Speech Communication, vol. 108,

2019, p. 15–32.

Z. Lu, X. Jiang, and A. Kot, “Deep Coupled ResNet for

Low-Resolution Face Recognition,” IEEE Signal

Processing Letters, vol. 25, 2018, p. 526-530.

H. C. Li, Z. Y. Deng, and H. H. Chiang, “Lightweight and

resource-constrained learning network for face

recognition with performance optimization,” Sensors,

vol. 20, 2020, p. 6114.

D. H. Hubel, and T. N. Wiesel, “Receptive fields, binocular

interaction, and functional architecture in the cat’s

visual cortex,” Journal of Physiology, vol. 160, 1962,

p. 106.

I. Goodfellow, Y. Bengio, A. Courville, and Y. Bengio,

“Deep learning,” vol. 1, 2016.

Y. Abouelnaga, O. S. Ali, H. Rady, and M. Moustafa,

“CIFAR-10: KNN-Based Ensemble of Classifiers,”

2016 International Conference on Computational

Science and Computational Intelligence (CSCI),

2016, pp.

DAML 2023 - International Conference on Data Analysis and Machine Learning

250
