Comparative Study on Coronary Heart Disease Prediction Using Five

Machine Learning Models

Haikun Guo

College of Science and Engineering, James Cook University, Cairns, Australia

Keywords: Coronary Heart Disease, Machine Learning, Random Forest Classification, Gradient Boosting.

Abstract: In recent times, Coronary Heart Disease (CHD) has emerged as a significant global public health concern, not

only due to its mortality rate but also because of the substantial financial burden it places on healthcare

systems. Traditional statistical methods for predicting the onset of CHD have limitations in handling multi-

dimensional data and often fail to capture complex interactions among different risk factors. This has created

a pressing need for a cost-effective cardiac health monitoring system capable of leveraging large-scale, multi-

dimensional data for accurate CHD predictions. In this research, the author employs machine learning (ML)

techniques to address this discrepancy. The author designs and perform a comparative analysis of five ML

classifiers: Logistic Regression (LR), K-Nearest Neighbor (KNN), Random Forest (RF), Decision Tree (DT),

and Gradient Boosting (GB) for robust CHD forecast. These classifiers were rigorously tested on a dataset

that includes various risk factors contributing to CHD. Performance metrics were employed to evaluate the

effectiveness of each model, including accuracy, specificity, and sensitivity. The results demonstrate that ML

classifiers, particularly Random Forest and Gradient Boosting, show high efficacy in predicting CHD, thereby

confirming the potential of ML in augmenting cardiac health monitoring systems. This study has far-reaching

implications in preventive healthcare, as it offers a pathway to early diagnosis and effective management of

CHD.

1 INTRODUCTION

Globally, coronary heart disease (CHD) remains a

primary contributor to both mortality and morbidity.

The disease manifests through a variety of

mechanisms such as arterial plaque buildup,

inflammation, and blood clot formation, which can

obstruct blood flow to the heart, leading to life-

threatening conditions like heart attack or heart failure.

Despite medical advancements, accurate early

prediction of CHD remains a challenge, hindering

preventative and therapeutic measures. While

traditional statistical data analysis may struggle to

draw inferences from multidimensional parameters,

Machine Learning (ML) models are equipped to

handle a wide array of variables and effectively

discern underlying patterns (Kumar Thakkar et al

2020). Moreover, the advent of modern lifestyle

factors, including high cholesterol levels, smoking,

and obesity, has only intensified the urgency for

effective predictive models for CHD. Therefore, this

research aims to address this critical healthcare gap by

employing machine learning techniques to estimate

the likelihood of CHD based on diverse medical

factors.

To achieve a precise and reliable predictive model,

the author has implemented five machine learning

algorithms: Logistic Regression, K-Nearest

Neighbour (K-NN), Random Forest Classifier,

Decision Tree Classifier, and Gradient Boosting

Classifier. Each of these models was trained and tested

on a dataset comprising various features that have

been identified as significant contributors to CHD,

such as systolic blood pressure (`sysBP`), glucose

levels, age, cigarettes smoked per day (`cigsPerDay`),

total cholesterol (`totChol`), diastolic blood pressure

(`diaBP`), and others. A feature selection method

based on chi-square statistics was used to identify the

top ten features that have the strongest influence over

CHD occurrence. The author then employed

hyperparameter tuning methods to fine-tune the most

promising classifiers to optimize their performance.

The objective of this research is to evaluate the

effectiveness of these predictive models in forecasting

CHD outcomes and pinpoint the most precise model.

The findings from this research could be pivotal in

256

Guo, H.

Comparative Study on Coronary Heart Disease Prediction Using Five Machine Learning Models.

DOI: 10.5220/0012800700003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 256-261

ISBN: 978-989-758-705-4

advancing the clinical identification of individuals at

high risk of developing CHD, thus facilitating early

intervention strategies. This paper offers a

comprehensive analysis, aiming to enrich the current

understanding in medical data science and set the

groundwork for subsequent research and practical

strategies to address CHD. In summary, this research

is not merely an academic study but a timely

intervention in understanding and predicting a disease

that has widespread implications for public health.

2 RELATED WORK

Ramya G. Franklin and B. Muthukumar introduced a

detailed framework for analyzing cardiovascular

conditions through advanced analytic approaches

(Franklin and Muthukumar 2020). Their multi-staged

approach not only aimed at effective early diagnosis

by examining various risk parameters but also ensured

data security through Advanced Encryption Standard

(AES). A. Lakshmanarao, A. Srisaila, and T. Srinivasa

Ravi Kiran addressed the pressing global issue of

cardiovascular diseases. The authors introduced an

ensemble classifier model specifically designed for

heart disease prediction, utilizing two different

datasets from Kaggle and UCI for validation

(Lakshmanarao et al 2021). The study suggested that

the ensemble model notably outperformed existing

solutions. Priyanka Gupta and D.D. Seth focused on

the crucial task of early detection of Cardiovascular

Diseases (CVDs) (Gupta and Seth 2022). To this end,

the authors explored the efficacy of various Machine

Learning classifiers. Finally, the research developed a

system aimed to streamline medical care by saving

physicians' time and reducing treatment costs.

Meghavi Rana, Mohammad Zia Ur Rehman, and

Srishti Jain leveraged the burgeoning amount of

medical data to utilize artificial intelligence techniques

for analyzing respiratory conditions (Rana et al 2022).

The authors noted the importance of their work for

medical practitioners and researchers seeking to

predict heart disease based on a patient's age.

Ignatious K Pious, K Antony Kumar, Y.Cephas

Soulwin, and E.Nipun Reddy addressed the pressing

issue of heart disease (Pious et al 2022). The authors

concluded that early diagnosis was crucial in

managing heart disease, which had been exacerbated

by today's sedentary lifestyles and stress. Reldean

Williams, Thokozani Shongwe, Ali N. Hasan, and

Vikash Rameshar focused on the critical global health

issue of heart diseases (Williams et al 2021). The paper

underscored the vital role of early prediction in

enabling preventative measures and suggested that

incorporating additional variables like family history

could further improve model performance. A.

Ordonez focused on leveraging association rules for

forecasting cardiovascular disorders (Ordonez 2006).

The paper addressed two primary challenges: the

generation of an excessive number of medically

irrelevant rules and the lack of validation on an

independent test set. The study confirmed that the use

of search constraints and validation techniques

significantly reduced the number of irrelevant or

poorly generalizing rules, providing a set of high-

accuracy predictive rules.

Xiaoming Yuan, Jiahui Chen, Kuan Zhang, Yuan

Wu, and Tingting Yang addressed the limitations of

existing heart disease prediction models, which often

only determined the presence of disease but not its

severity (Yuan et al 2022). The authors confirmed that

their Bagging-Fuzzy-GBDT model demonstrated

outstanding accuracy and consistency in not only

detecting the presence but also determining the

severity of heart disease. Senthilkumar Mohan,

Chandrasegar Thirumalai, and Gautam Srivastava

tackled the critical challenge of predicting

cardiovascular diseases, a leading cause of death

globally (Mohan et al 2019). They proposed a novel

machine learning-based model that emphasized

feature selection to improve prediction accuracy.

Azam Mehmood Qadri, Ali Raza, Kashif Munir, and

Mubarak S. Almutairi introduced a novel feature

engineering approach to select the most significant

patient health parameters (Qadri et al 2023). The study

validated the performance of all applied methods

through cross-validation.

3 METHODS

The methodology for predicting the onset of coronary

heart disease (CHD) in this research paper employs a

comprehensive analysis of the Framingham Heart

Study dataset using five machine learning models. The

experimental steps begin with data collection, then

working on data preprocessing, exploratory data

analysis (EDA), feature selection, model training and

evaluation, and finally, comparative analysis. In the

data collection phase, the Framingham dataset is

imported, which consists of a variety of variables such

as age, sex, cholesterol levels, and smoking status,

among others, each contributing differently to CHD

risks. The data preprocessing step involves handling

missing values, either by imputation or deletion, and

normalization or scaling of variables if needed. This

ensures that the dataset is fit for further analysis.

Comparative Study on Coronary Heart Disease Prediction Using Five Machine Learning Models

257

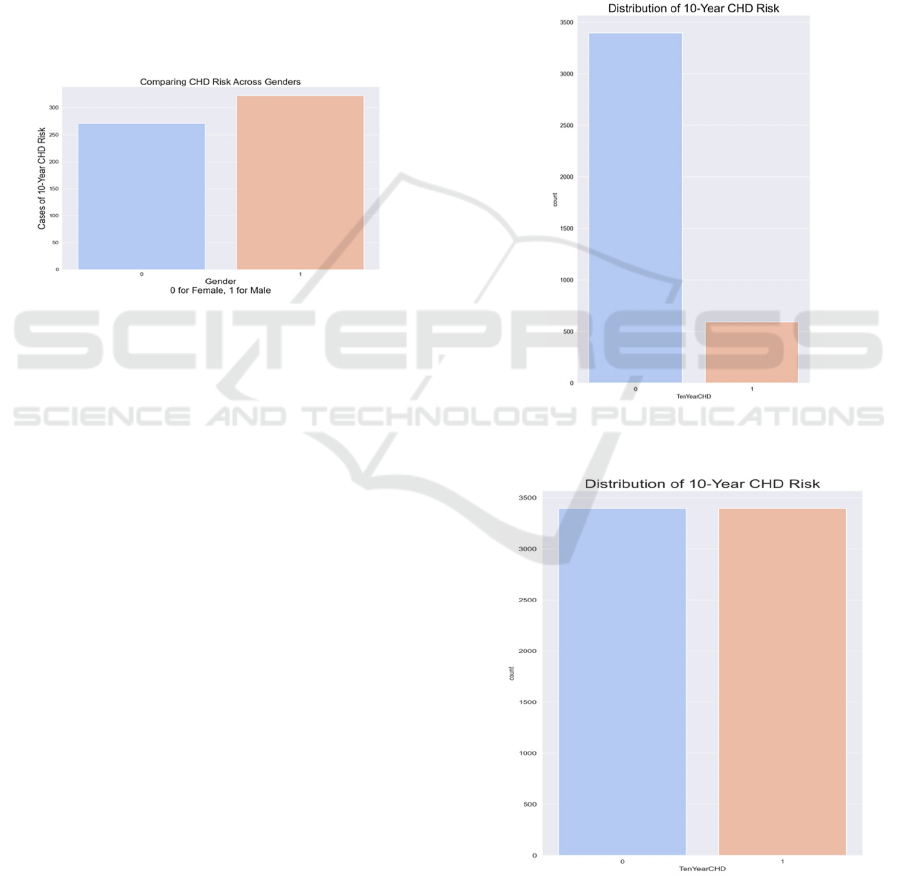

The next stage is EDA, where the author gains

initial insights into the dataset through statistical

summaries and visualizations. Single-variable

analysis includes evaluating the distribution of each

variable, while dual-variable analysis aims to reveal

any correlation or causal relationship between two

variables. Multivariable analysis focuses on

visualizing high-dimensional relationships. One

specific objective during EDA is to identify the

variables that appear to have a significant impact on

CHD risks, such as the correlation between smoking

and CHD, the influence of age, or the relevance of

blood pressure and cholesterol levels.

Feature selection follows EDA. Based on insights

from the Exploratory Data Analysis (EDA), The

author will leverage both automated techniques, such

as Recursive Feature Elimination (RFE), and expert

opinions to select the key variables for our prediction

models. The author have opted for five machine

learning models for this study. The Author performed

hyperparameter tuning on both the Random Forest and

Gradient Boosting models using Randomized Search

Cross-Validation. This process optimized several

parameters, including tree count, max depth, and

minimum samples required for splits and leaves. The

author assessed the models using various performance

metrics. Additionally, a confusion matrix for each

model highlighted the false positives and negatives,

offering a deeper understanding of the model's clinical

relevance.

Feature selection is pivotal in the methodology.

Aside from automated algorithms like Recursive

Feature Elimination (RFE), expert judgment is

solicited to ensure that the selected features are not just

statistically significant but also clinically relevant.

This involves consulting healthcare professionals

experienced in cardiology and referencing peer-

reviewed literature that identifies important risk

factors for CHD. By combining algorithmic feature

selection and expert opinion, the author aims for a

more holistic, clinically-applicable model.

For evaluation, several metrics such as accuracy,

recall, F1-score, and the ROC Curve are computed for

each model. For model evaluation, it's worth noting

that the F1-score was especially considered because it

balances the trade-off between precision and recall—

an essential attribute in healthcare where both false

positives and false negatives can have significant

clinical implications. Special attention is given to the

interpretability of each model, considering that the

models not only need to make accurate predictions but

should also be interpretable for healthcare

professionals who might use this tool in decision-

making. Once individual evaluations are completed, a

comparative analysis is performed to rank the models

based on their performance metrics. The models are

also evaluated for their computational efficiency,

which is crucial in real-time applications.

4 EXPERIMENTS

4.1 Data Collection

The initial phase of this research focused on the

collection of data from the Framingham Heart Study

dataset. The dataset was imported into a Python

environment using the Pandas library, serving as the

cornerstone for all subsequent analyses. The dataset is

comprehensive, encompassing multiple variables that

contribute to coronary heart disease (CHD) risk such

as age, sex, cholesterol levels, blood pressure, and

smoking status. Given its wide usage and credibility in

prior research, the Framingham dataset was deemed to

be an optimal choice for the analysis.

4.2 Data Preprocessing

Upon importing the data, it underwent a rigorous

preprocessing routine to prepare it for machine

learning analysis. Missing values were handled

through mode imputation, while variables with

different scales were normalized using Min-Max

scaling techniques, implemented using Python's

Scikit-learn library. The aim was to produce a dataset

devoid of anomalies that could interfere with how

accurate machine learning models are. Through the

utilization of technologies such as data visualization,

this study conducted outlier detection on the data.

While outliers in other numerical columns were found

to be essential for the model, the author removed the

outliers from totChol and sysBP to enhance the

accuracy of the model.

4.3 Exploratory Data Analysis

Exploratory Data Analysis (EDA) was conducted to

provide an initial understanding of the dataset's

characteristics and distributions. The analysis starts

with a univariate examination of each variable in the

dataset, both categorical and numerical. For

categorical variables, the focus is on the distribution of

different categories within each variable. For

numerical variables, distribution plots are generated to

look at the spread of the data. This sets the stage for

bivariate and multivariate analyses. In the study the

authors found that :

DAML 2023 - International Conference on Data Analysis and Machine Learning

258

4.3.1 Univariate Analysis

Some features like BPmeds, prevalentStroke, and

diabetes are highly imbalanced in terms of their

distribution. Categorical features are mostly binary,

but education has four levels. In terms of numerical

features, cigsPerDay has a very uneven distribution.

4.3.2 Bivariate Analysis

There was no evident correlation between educational

level and the daily cigarette consumption

(cigsPerDay). According to the dataset, males showed

a slightly higher risk for coronary heart disease, as Fig.

1. The age group of 38-46 has more current smokers.

Figure 1: Comparision about CHD Risk Across Genders

Plot (Picture credit: Original).

4.3.3 Multivariate Analysis

A minor relationship was found between totChol and

glucose. cigsPerDay appears to have almost no

relationship with age. The systolic and diastolic blood

pressure (sysBP and diaBP) are plotted with respect

to whether a person is a current smoker and their

gender, and show some relationships there.

4.4 Class Imbalance and Feature

selection

This part addresses the issue of class imbalance in a

dataset, specifically focusing on the variable

TenYearCHD, which presumably represents the

likelihood of developing a cardiac condition over the

next 10 years. The dataset initially has an unequal

number of positive and negative cases, making it

difficult for machine learning algorithms to generalize

well.

The first step involves separating the positive and

negative samples into two different DataFrames. Next,

oversampling is performed on the positive samples

using the resample function to match the number of

negative samples.

After oversampling, the new positive samples are

concatenated back with the original negative samples

to create a balanced dataset. This new DataFrame is

then checked to verify that the number of positive and

negative cases is now equal, making the classes

balanced.

Finally, the research includes data visualization to

confirm this balance. It uses a bar chart to display the

number of occurrences for each class and a pie chart

to show the percentage distribution of the classes. Fig.

2 and Fig. 3 are bar charts before and after balancing

the positive and negative samples respectively.

Figure 2: Allocation of Positive and Negative Samples Prior

to Equilibrium (Picture credit: Original).

Figure 3: Balanced Distribution of Positive and Negative

Samples(Picture credit: Original).

Comparative Study on Coronary Heart Disease Prediction Using Five Machine Learning Models

259

Figure 4: Feature Score Ranking Chart(Picture credit: Original).

4.5 Feature Selection

The feature selection process identifies which

variables are most relevant to the target variable,

TenYearCHD. Using a chi-squared test through the

SelectKBest function, the top 10 features with the

highest chi-squared scores were selected. This step is

crucial for model performance, as irrelevant or less

important features can negatively impact the model's

efficiency and predictive power. Fig. 4 shows the

feature ordering map.

4.6 Data Splitting and Scaling

The dataset was subsequently divided into training and

testing subsets for the purposes of model training and

assessment. The train_test_split function was used,

allocating 60% of the data to the training set and 40%

to the testing set. Lastly, the features were scaled using

Min-Max scaling, transforming them to fall within the

[0, 1] range.

4.7 Model Training

Five machine learning models were trained on the

selected features. Hyperparameter tuning was carried

out for Random Forest and Gradient Boosting using

Randomized Search Cross-Validation. Various

hyperparameters like the number of trees, maximum

depth, and minimum samples for splitting and leaves

were optimized to improve the models' performances.

Table. 1 presents the accuracy of the five machine

learning models on the validation set, and table. 2

records the prediction accuracy of the five training

models.

Table 1: Comparative Accuracy of Five Machine Learning

Models on the Validation Set.

Model Accuracy

Logistic Regression Model 66.58%

Decision Tree Model 87.29%

-Nearest Neighbour Model 89.81%

Random Forest Model 95.83%

Gradient Boosting Model 95.47%

Table 2: Five Model Training Accuracy Tables.

Model Accuracy

Logistic Regression Model 68.35%

Decision Tree Model 87.32%

-Nearest Neighbour Model 89.84%

Random Forest Model 95.87%

Gradient Boosting Model 95.57%

To thoroughly examine the efficacy of the five

machine learning models, the author employed both a

validation set and a training set. The accuracy metrics

obtained from these datasets provide a comprehensive

understanding of each model's predictive capabilities

and potential for overfitting.

Table 1 illustrates the comparative accuracy rates

of the models when tested on the validation set. The

Random Forest model exhibited the top accuracy,

registering a score of 95.83%, with the Gradient

Boosting model trailing slightly behind at 95.47%.

The K-Nearest Neighbour model displayed a notable

performance, reaching an accuracy of 89.81%. On the

other hand, the Logistic Regression model lagged,

recording the least accuracy of 66.58%, suggesting its

suboptimal fit for this particular challenge. Table 2

displays the accuracy percentages of the models

derived from their respective training sets. The

training accuracy follows a similar trend to the

validation set. The Random Forest model once more

topped the ensemble, achieving a training accuracy of

95.87%, whereas the Logistic Regression model

trailed with an accuracy of 68.35%.

DAML 2023 - International Conference on Data Analysis and Machine Learning

260

By comparing the performance metrics from both

tables, it becomes evident that the Random Forest and

Gradient Boosting models show a promising

capability for robust heart disease prediction, with

only marginal discrepancies between training and

validation accuracies, thus indicating minimal

overfitting.

5 CONCLUSION

In this research, the author examined the efficacy of

five machine learning classifiers—Logistic

Regression, K-Nearest Neighbour, Random Forest,

Decision Tree, and Gradient Boosting—in predicting

Coronary Heart Disease (CHD) risk. Utilizing a

feature-selected dataset, the models were assessed for

both accuracy and interpretability. Random Forest and

Gradient Boosting emerged as the most accurate

classifiers, recording accuracies of 95.87% and

95.57%, respectively. Despite promising outcomes,

the study's limitation lies in its reliance on a single

dataset. Future research will aim to validate these

models on more diverse datasets to improve predictive

accuracy and generalizability, ultimately aiding in the

reduction of CHD's societal and economic impact。

REFERENCES

H. Kumar Thakkar, H. Shukla, and S. Patil, “A Comparative

Analysis of Machine Learning Classifiers for Robust

Heart Disease Prediction,” in 2020 IEEE 17th India

Council International Conf. (INDICON), 2020, pp.1-6

R. G. Franklin and B. Muthukumar, “Survey of Heart

Disease Prediction and Identification using Machine

Learning Approaches,” in 2020 3rd International

Conference on Intelligent Sustainable Systems

(ICISS), 2020, pp. 553-557.

A. Lakshmanarao, A. Srisaila, and T. Srinivasa. R. Kiran,

“Heart Disease Prediction using Feature Selection and

Ensemble Learning Techniques,” in 2021 Third

International Conference on Intelligent

Communication Technologies and Virtual Mobile

Networks (ICICV), 2021, pp. 994-998.

P. Gupta and D. D. Seth, “Comparative Analysis of

Machine Learning Classifiers for Accurate and Early

Detection of Heart Disease,” in 2022 10th

International Conference on Reliability, Infocom

Technologies and Optimization (Trends and Future

Directions) (ICRITO), 2022, pp. 1-5.

M. Rana, M. Z. Ur Rehman, and S. Jain, “Comparative

Study of Supervised Machine Learning Methods for

Prediction of Heart Disease,” in 2022 IEEE VLSI

Device Circuit and System (VLSI DCS), 2022, pp.

295-299.

I. K. Pious, K. Antony Kumar, Y. Cephas. Soulwin, and E.

Nipun. Reddy, “Heart Disease Prediction Using

Machine Learning Algorithms,” in 2022 International

Conference on Innovative Computing, Intelligent

Communication and Smart Electrical Systems

(ICSES), 2022, pp. 1-6.

R. Williams, T. Shongwe, A. N. Hasan, and V. Rameshar,

“Heart Disease Prediction using Machine Learning

Techniques,” in 2021 International Conference on

Data Analytics for Business and Industry (ICDABI),

2021, pp. 118-123.

C. Ordonez, “Association Rule Discovery With the Train

and Test Approach for Heart Disease Prediction,”

IEEE Transactions on Information Technology in

Biomedicine, vol. 10, no. 2, pp. 334–343, 2006.

X. Yuan, J. Chen, K. Zhang, Y. Wu, and T. Yang, “A Stable

AI-Based Binary and Multiple Class Heart Disease

Prediction Model for IoMT,” IEEE Transactions on

Industrial Informatics, vol. 18, no. 3, pp. 2032–2040,

2022.

S. Mohan, C. Thirumalai, and G. Srivastava, “Effective

Heart Disease Prediction Using Hybrid Machine

Learning Techniques,” IEEE Access, vol. 7, pp.

81542–81554, 2019.

A. Qadri, A. Raza, K. Munir, and M. Almutairi, “Effective

Feature Engineering Technique for Heart Disease

Prediction With Machine Learning,” IEEE Access,

vol. 11, pp. 56214–56224, 2023.

Comparative Study on Coronary Heart Disease Prediction Using Five Machine Learning Models

261
