A Study on a Hybrid CNN-RNN Model for Handwritten Recognition

Based on Deep Learning

Jun Ma

College of Economic and Management, Beijing Jiaotong University, Beijing, China

Keywords: Offline Handwritten Recognition, Hybrid CNN-RNN Network, Convolution Neural Network, Deep Learning.

Abstract: In today's era of digitalization, the efficient conversion of handwritten content into digital formats remains

essential despite the widespread adoption of digital document storage. This study addresses the pressing need

for efficient conversion of handwritten content into digital formats. Furthermore, the preprocessing

procedures employed on handwritten images, including deskewing and normalization, were delineated. This

study embraces a hybrid model-oriented recognition approach by utilizing the proposed hybrid Convolutional

Neural Network (CNN)-Recurrent Neural Network (RNN) model for handwritten text recognition. It

juxtaposes it with a solitary CNN model. The hybrid model's central components include a CNN for feature

extraction and a Bidirectional Long Short-Term Memory network for sequence modeling. These components

work together to enhance the precision of recognizing handwriting text. The research employs visualization

techniques to understand the model's operations and improve performance. The CNN-RNN hybrid model

significantly outperforms the CNN model, achieving a 12.04% reduction in Word Error Rate (WER) and a

5.13% Character Error Rate (CER). Conclusions drawn from the study illustrate that the suggested hybrid

deep neural network model outperforms the conventional CNN method in terms of handwriting recognition

accuracy. This is conducive to advancing the practical application of handwritten text scanning and

recognition.

1 INTRODUCTION

In the contemporary age of digitalization, the adoption

of digital document storage has become prevalent,

encompassing various domains ranging from

educational institutions to corporate settings.

Nevertheless, despite the rapid progress in digital

technology, which has made handwritten input on

electronic platforms seamless and user-friendly, a

substantial volume of paper-based documents,

including manuscripts, contracts, invoices, and more,

retains its significance. Consequently, there is an

urgent necessity for efficient and precise conversion

of handwritten content into digital formats to facilitate

organized storage, effective management, and

effortless retrieval. Handwriting recognition

technology is increasingly acknowledged as a highly

effective solution for enhancing work efficiency and

systematically digitizing paper documents, thanks to

its accuracy and versatile applicability. The

handwriting Recognition research has two basic ways

to explore: Online Recognition and Offline

Recognition. The online recognition system actively

monitors the generation of handwritten strokes in real-

time when users utilize digital pens and electronic

screen devices for writing, accurately identifying

characters or words. This recognition process is

typically performed pen-by-word or word-by-word,

dynamically occurring as the user writes. In contrast

to the real-time nature of Online Recognition, Offline

Handwriting Recognition refers to a post-completion

recognition system specifically designed to analyze

handwritten content after it has been entirely

generated. It is employed for recognizing scanned

computer images containing handwritten documents,

utilizing image processing techniques and pattern

recognition algorithms to effectively analyze and

identify handwritten characters, words, or sentences.

Handwritten character recognition has many

applications, from document recognition in digital

offices to handwritten prescription storage in the

medical field. It plays a crucial role in preserving

cultural heritage by enabling handwritten font

recognition in the digital archiving of historical

documents, handwritten letters, ancient manuscripts,

and other valuable cultural artifacts.

268

Ma, J.

A Study on a Hybrid CNN-RNN Model for Handwritten Recognition Based on Deep Learning.

DOI: 10.5220/0012801000003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 268-273

ISBN: 978-989-758-705-4

As research in artificial neural networks has

deepened, many deep learning methods, including

Long Short Term Memory (LSTM) and

Convolutional Neural Networks (CNN) have become

enriched and matured and have gained significant

attention as promising research directions in the field

of handwritten font recognition. Specifically,

Artificial Neural Network (ANN) has an advantage in

pattern recognition for handwritten characters

(Abiodun et al 2019), and it is competent for ANN to

handle non-linear tasks. Regarding CNN (Vaidya et al

2018), it can successfully capture the tiniest

information in images, facilitating feature extraction

for handwritten characters. CNN models leverage

parameter sharing, reducing the number of learnable

parameters and streamlining deep network training.

Moreover, their ability to capture spatial hierarchies of

features enables CNN models to excel in identifying

stroke patterns, connectivity, and overall font

structural characteristics. In contrast, using RNNs,

especially LSTM units as fundamental structures

further enhances recognition capabilities by

considering sequential information and dependencies

within the handwritten text. Adapting an LSTM

structure allows RNNs to effectively maintain and

update internal states when dealing with long

sequences in time-series machine-learning tasks

(Abiodun et al 2019). This ability to capture temporal

dependencies is particularly beneficial in deciphering

the nuances of handwritten fonts. The advantages of

deep learning, such as scalability, adaptability to

diverse data, and improved recognition accuracy,

make them pivotal in the ongoing progress of

handwritten font recognition research. This paper

endeavors to enhance the model's performance

through an initial deskewing of handwritten images,

followed by the application of various techniques such

as cropping and scaling. These techniques effectively

adapt the images to a size and style conducive to

utilization as input to the model. Additionally, to

enhance the model’s precision in identifying

handwritten fonts, I adopted a CNN-RNN hybrid

model to extract image features and complete the

classification problem of word recognition. In

addition, a single CNN method is used for comparison

to highlight the improvement in recognition of the

CNN-RNN hybrid model.

The paper is structured in the following manner:

Section II highlights the contribution of related works

in the handwriting recognition field. Section III

demonstrates the fundamental architecture and

principles of the CNN-RNN hybrid model. Section IV

describes the entire experimental designation and the

outcomes of model performance. Section V pertains to

the overall conclusion and suggests feasible actions

for future research.

2 RELATED WORKS

Significant advancements in handwriting recognition

have been made through the emergence of innovative

approaches in recent research. Geetha et al. introduced

a hybrid model that employs a CNN that can grasp tiny

featural image details and an RNN-LSTM to improve

recognition precision (Geetha et al 2021). More

recently, an effective method has been proposed to

generate similar image samples with arbitrary lengths

from original handwriting recognition samples (Kang

et al 2022). This alleviates the problem of manually

annotating handwritten data and enables training the

handwriting recognition model with smaller image

samples. Additionally, Gupta and Bag introduced a

polygonal approximation-based approach for

Devanagari character recognition, validated using

multiple neural networks (Gupta and Bag 2022).

Furthermore, Zouari et al. presented a fusion

model that utilized beta-ellipse parameters of

segmented handwritten characters, combining TDNN-

SVM for clustering and training, yielding impressive

outcomes on extensive multilingual datasets (Zouari et

al 2018). Carbune et al. described a multilingual

system that services online handwriting based on

LSTM architecture in conjunction with Bézier curves

(Carbune et al 2020). In another study, Alam et al.

developed a hybrid recognizer that combines LSTM

and CNN models for recognizing writing trajectories

in motion gesture digit and letter datasets (Alam et al

2020). Lastly, Zhang et al. explored a tree-BLSTM

architecture, a variant of the LSTM model, to

recognize two-dimensional mathematical expressions

(Zhang et al 2020).

3 METHODS

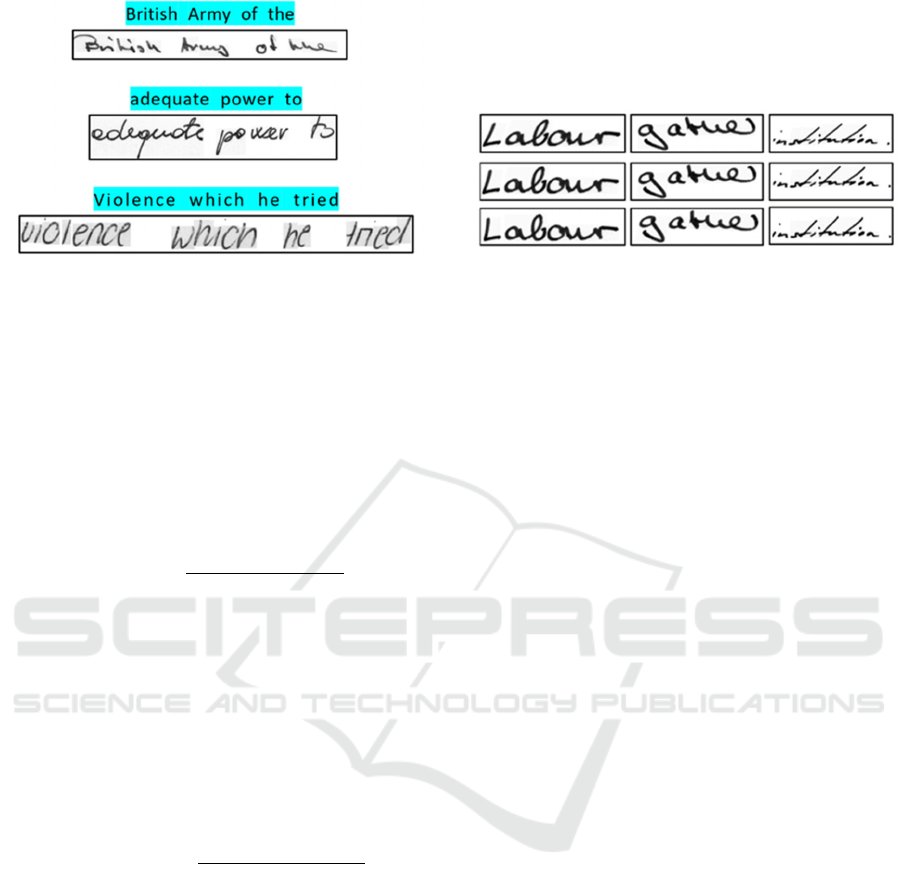

3.1 Handwriting Image Preprocessing

Inspired by Hu's seven-moment invariants, a method

that uses all pixel information to calculate the center

distance is adopted (Devi and Amitha 2014). The

image skew is determined for each handwritten text

image by dividing the second-order central moment

by the first-order central moment with regard to pixels

and intensities. The image's skew is then rectified

through the inverse mapping technique alongside

linear interpolation via an affine transformation, and

the correction matrix is computed and included within

the skew parameter. After the corrected image is

A Study on a Hybrid CNN-RNN Model for Handwritten Recognition Based on Deep Learning

269

normalized using the Z-score for each channel, it is

transformed into a suitable input format for the hybrid

model.

3.2 CNN-RNN Hybrid Deep Learning

Model

The core of the convolutional layer for feature

extraction in CNN is to use a convolutional kernel to

slide over an image, capturing subtle patterns in

different regions. The specific configuration of

convolutional kernels in each convolutional layer

introduces translation invariance, allowing consistent

features to be extracted from various positions within

handwritten characters.

Deep CNNs are typically used to extract and

capture abstract representations and high-level

features such as handwritten strokes (Vaidya et al

2018). However, as the depth increases, the gradient

vanishing problem becomes the biggest obstacle. The

residual network effectively solves this problem by

introducing residual blocks and using skip

connections across specified layers. This innovative

architecture allows gradients to flow more freely

during training, facilitating the training of very deep

networks without suffering from vanishing gradients.

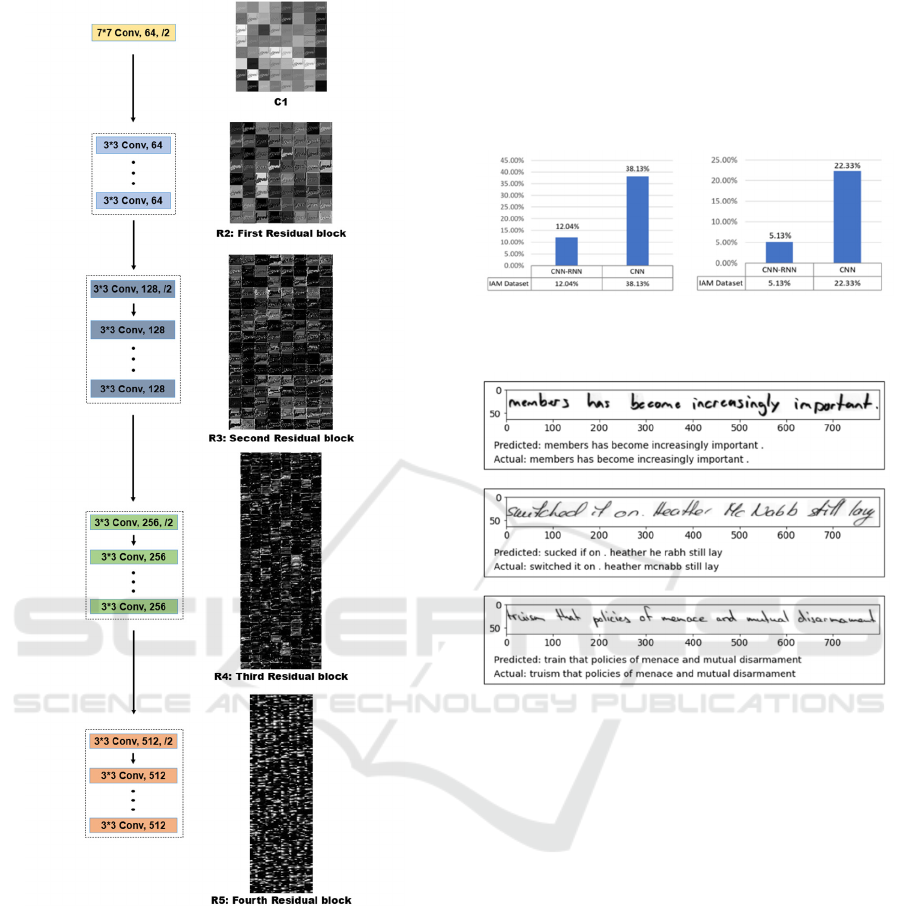

This study employs a deep neural network

architecture rooted in ResNet-34 (He et al 2016). The

ResNet-34 is a CNN model that is well-known for its

residual architecture. It was trained through the

ImageNet dataset and has gained widespread

recognition in the field of computer vision. This

weight-retention model serves as the foundational

architecture for extracting features within the CNN

framework in this study. Employing transfer learning

to retain existing weights also facilitates rapid and

efficient training on limited-scale datasets. I modified

the ResNet-34 architecture by removing its

classification output layer and incorporating an

adaptive average pooling layer. I subsequently shaped

the pooled output into a tensor form 96*1 by applying

pooling to the feature tensor that ResNet-34

processed. This manipulation aims to create a more

suitable feature representation for the subsequent

RNN model, which is utilized for time series

recognition.

3.3 Sequence Modeling with

Bidirectional LSTM

RNNs leverage their short-term memory processing

capabilities within their internal state to effectively

handle the sequential nature of data. This property

makes RNNs particularly valuable for addressing

segmentation tasks involving time series data, such as

handwriting recognition (Geetha et al 2021).

This study adopts the LSTM cyclic neural network

structure, and the internal state is reasonably updated

by introducing a gating mechanism to capture long

sequence information effectively. An LSTM can be

seamlessly integrated with CNN in an end-to-end

fashion through the reshaped operation toward

tensors. By configuring a stack of four hidden LSTM

layers, the LSTM efficiently captures long-term

relationships between successive strokes by working

on the CNN's output tensor along the time dimension.

Additionally, LSTM in bidirectional mode captures

both forward and backward information flow in time,

enhancing contextual understanding within the

sequence. Next, the bidirectional LSTM output is

implemented by a 1*1 convolution kernel to perform

operations similar to linear transformations. It maps

the hidden state at each time step to a vector of output

size features depending on statement length without

changing the relationship between time steps.

4 RESULTS

This study conducted a selected handwriting data set

to test the proposed CNN-RNN fusion model. The

computers used in this case study have the following

configurations: i5-12500H 2.50 GHz CPU; 16 GB

RAM; RTX-2050 4 GB GPU.

This study employed the IAM Handwriting

Database 3.0, which contains handwritten English text

contributed by 657 authors. The dataset comprises

5685 complete sentences, a total of 115,320 words,

and 13353 lines. The XML file provided by this

dataset uniquely corresponds to the text content in the

captured image fragments, serving as labels. In the

IAM dataset, which includes 26 English letters, 27

punctuation marks, and spaces, all characters fall

within the recognition range of this handwritten font.

It is worth noting that all letters in the recognition

results of the IAM dataset are presented in lowercase.

Figure 1 shows scanned images of some handwritten

sentences in the IAM dataset using different writing

styles and shows the textual content of the handwritten

words in each image.

Two common indicators were employed to assess

the model's performance, which includes Word Error

Rate (WER) and Character Error Rate (CER):

DAML 2023 - International Conference on Data Analysis and Machine Learning

270

Figure 1: Scanned handwriting images and their

corresponding text content in the IAM dataset (Picture

credit: Original).

In (1), the equation is a metric used to assess a

model's accuracy in recognizing complete words

(Dutta et al 2018). It calculates the error rate by

comparing the words generated by the model with

those in the actual text, which is regarded as a crucial

evaluation metric in multiple tasks. It is typically

expressed as a percentage, with lower rates indicating

better model performance.

WER 

∑

EditDisanceGT

, PT



i1

∑

#WordsGT



i1

(1)

Equation (2) measures a model's accuracy in

recognizing individual characters (Dutta et al 2018). It

quantifies the extent of mismatching the predicted and

actual words and characters. The editing distance for

all samples is considered and divided by the number

of existing characters, forming a ratio representing the

extent of prediction error. The lower the edit distance,

the lower the CER, and the higher the recognition

accuracy of the representation model at the character

level.

CER 

∑

EditDisanceGT

, PT



i1

∑

#CharsGT



i1

(2)

All data underwent two rounds of skewness data

processing, and some of the processing results are

visualized as shown in Fig. It shows the changes for

selected words after deskewing. The top row is the

handwritten word image scanned in the original data

set. The middle row is the image obtained after one

deskewing process, and the bottom row is the

handwritten font image after two deskewing

procedures. Deskewing can reduce recognition errors

caused by skewing individual letters within the

sentence to a certain extent. Before model training, the

processed and normalized images were resized to

224*224 px, which facilitates data input for

subsequent model training. Next, all data and the

related word list were split; 80% of the handwritten

images and their labels in the data set were divided

into training sets for model training, while the

remaining 20% were used as test sets to measure the

prediction results of the model.

Figure 2: Original handwritten images and corresponding

images after one and two deskewing processes (Picture

credit: Original).

The hybrid CNN-RNN and comparative CNN

models use the processed data for training and

prediction comparison. The applied CNN model

maintains the core architecture of the original

ResNet34, aligning with the CNN component of the

CNN-RNN fusion model, except for the model output

layer. ResNet34's backbone, initially pre-trained on

ImageNet, was leveraged in our research to enhance

model performance and expedite training. This

transfer learning approach, retaining the original

weights, enabled the creation of a task-specific model,

effectively utilizing ResNet34's learned features from

ImageNet, thereby boosting training efficiency and

enhancing model performance.

The CNN part of the model has a 3-channel input

layer that accepts RGB images of 224*224 px size as

model input. The initial component of the architecture

employs a 7*7 convolutional layer tasked with

extracting foundational image textures and edge

features. Subsequently, a profound network of

residual convolutions emerges, comprising four

consecutive residual blocks. Within this architectural

framework, each convolutional kernel maintains

dimensions of 3x3.

Figure 3 illustrates the feature map output obtained

as the image passes through each convolutional layer

(or residual block) during the CNN feature extraction

process. After passing through the first convolutional

layer, the RGB image yields 64 output channels,

which are input into the subsequent residual block

within the ResNet-34 convolutional neural network.

The following four residual blocks, namely R1, R2,

R3, and R4, produce 64, 128, 256, and 512 output

channels, respectively.

In a single-method CNN model, the image is

passed through the residual neural network,

subsequently flattened, and then sent to the fully

connected layer, where the output size is adjusted to

generate the classification model's output. In contrast,

A Study on a Hybrid CNN-RNN Model for Handwritten Recognition Based on Deep Learning

271

Figure 3: Feature map of residual block and convolutional

layer output in residual convolutional neural network

(Picture credit: Original).

for the CNN-RNN fusion model, the image is

flattened and forwarded to the LSTM unit for further

training.

Figure 4 demonstrates that the CNN-RNN fusion

model reaches an overall WER of 12.04%,

approximately 26% lower than the CNN single

method. The hybrid CNN-RNN model exhibits

significant improvements in character recognition,

with a CER improvement of over 17%, ultimately

achieving a CER of 5.13% when compared to the

CNN model.

Figure 5 displays the prediction results for the

scanned image and original text content. Most words

and punctuation marks are accurately recognized, with

no omitted letters. However, some individual letters in

certain words may be incorrectly recognized.

Figure 4: Comparison of recognition results between CNN

and hybrid CNN-RNN models (Picture credit: Original).

Figure 5: Comparison of handwriting recognition results and

original content based on hybrid CNN-RNN model (Picture

credit: Original).

5 CONCLUSION

This study proposes a solution for handwritten text

recognition on the IAM dataset using a hybrid CNN-

RNN model. A single-method CNN model will be

employed as a comparative model to assess the impact

of different models. The study utilized visualization

techniques to demonstrate the various operations of

the input image during each stage of the model. This

aimed to enhance the understanding of the overall

structure of the model as well as the processing details

of its components. The results demonstrate a

significant improvement in the CNN-RNN fusion

model compared to the CNN model. The fusion

model's optimal performance reduces WER to 12.04%

and CER to 5.13%.

While this article proposes a superior fusion model

for addressing handwriting recognition challenges, it

still faces issues like insufficient recognition accuracy

and a lack of case sensitivity in English characters. For

DAML 2023 - International Conference on Data Analysis and Machine Learning

272

future research, consider exploring the CNN-RNN-

CTC (Connectionist Temporal Classification)

combined model, leveraging CNN to extract image

feature details, RNN for sequence modeling, and CTC

for sequence labeling to enhance recognition

accuracy. Incorporating case sensitivity into the model

can expand its applicability and improve recognition

accuracy.

REFERENCES

O. I. Abiodun, M. U. Kiru, A. Jantan, et al. “Comprehensive

review of artificial neural network applications to

pattern recognition,” IEEE Access, vol. 7, pp. 158820-

158846, 2019.

R. Vaidya, D. Trivedi, S. Satra, and P. M. Pimpale,

“Handwritten Character Recognition Using Deep-

Learning,” in 2018 Second International Conference on

Inventive Communication and Computational

Technologies (ICICCT), 2018, pp. 772-775.

R. Geetha, T. Thilagam, and T. Padmavathy, “Effective

offline handwritten text recognition model based on a

sequence-to-sequence approach with CNN–RNN

networks,” in Neural Computing and Applications, vol.

33, no. 17, pp. 10923–10934, 2021.

L. Kang, P. Riba, M. Rusiñol, A. Fornés, and M. Villegas,

“Content and Style Aware Generation of Text-Line

Images for Handwriting Recognition,” IEEE

Transactions on Pattern Analysis and Machine

Intelligence, vol. 44, no. 12, pp. 8846-8860, 2022.

D. Gupta, and S. Bag, “Holistic versus segmentation-based

recognition of handwritten Devanagari conjunct

characters: a CNN-based experimental study,” Neural

Comput and Applic, vol. 34, no. 7, pp.5665-5681, 2022.

R. Zouari, H. Boubaker, and M. Kherallah, “Multi-

language online handwriting recognition based on beta-

elliptic model and hybrid TDNN-SVM classifier,”

Multimed Tools Appl, vol. 78, no. 9, pp. 12013-12123,

2018.

V. Carbune, P. Gonnet, T. Deselaers, et al. “Fast multi-

language LSTM-based online handwriting

recognition,” International Journal on Document

Analysis and Recognition (IJDAR), vol. 23, no. 2, pp.

89-102, 2020.

M. S. Alam, K. Kwon, M. A. Alam, M. Y. Abbass, S. M.

Imtiaz, and N. Kim, “Trajectory-Based Air-Writing

Recognition Using Deep Neural Network and Depth

Sensor,” Sensors, vol. 20, no. 2, pp. 376, 2020.

T. Zhang, H. Mouchère, and C. Viard-Gaudin, “A tree-

BLSTM-based recognition system for online

handwritten mathematical expressions,” Neural

Comput and Applic, vol. 32, no. 9, pp. 4689–4708,

2020.

S. S. Devi and T. Amitha, “Offline handwritten writer

independent Tamil character recognition,” International

Conference on Information Communication and

Embedded Systems (ICICES2014), 2014, pp. 1-6.

K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual

learning for image recognition,” In Proceedings of the

IEEE conference on computer vision and pattern

recognition, 2016, pp. 770-778.

K. Dutta, P. Krishnan, M. Mathew, and C. V. Jawahar,

“Improving CNN-RNN Hybrid Networks for

Handwriting Recognition,” 2018 16th International

Conference on Frontiers in Handwriting Recognition

(ICFHR), 2018, pp. 80-85.

A Study on a Hybrid CNN-RNN Model for Handwritten Recognition Based on Deep Learning

273
