The Investigation of Malware Detection Model Construction Based

on Deep Learning Algorithms

Jiansen Lu

Department of Cyberspace Security, Huazhong University of Science and Technology, Wuhan, 430074, China

Keywords: Component; Malware Detection, Machine Learning, Deep Learning.

Abstract: Over the past decade, the evolution of computer malware has been swift. Current malware detection

technologies primarily rely on static and dynamic detection methods, yet both struggle to achieve high levels

of detection efficiency and accuracy. Furthermore, the majority of existing malware detection methods build

classification models using machine learning algorithms, often resulting in less-than-ideal detection outcomes.

In light of these limitations within current malware detection techniques, this paper proposes a deep learning-

based approach to malware detection. The article begins by categorizing malware types and then presents an

overview of traditional malware detection methods. It subsequently delves into the fundamental concepts of

deep learning algorithms. Following that, a novel malware detection model is constructed leveraging deep

learning techniques. To conclude, a dynamic malware detection model is established using deep learning, and

a virtual platform for malware detection is implemented. Ultimately, this platform automatically extracts

worm feature codes, enabling real-time dynamic software detection.

1 INTRODUCTION

Malware, also known as rogue software, is a virus

(Shara 2021) that is generated in the process of

Internet development and forcibly runs without user

permission and affects user use. The progress of

computer technology has also led to the increasing

number of rogue software and its composition

becoming more and more complex (Suciu et al 2018),

which has seriously affected network security. In

addition, affected by information technology, the

attack methods of malware are constantly updated, so

it is urgent to detect malware. The traditional detection

methods of malware are limited by the number and

attack methods of malware. Unable to meet the

existing detection requirements, it still relies on

manual methods to extract the relevant information in

the detection, so it cannot meet the existing detection

requirements, and it is urgent to design a new malware

dynamic detection method to solve the existing

malware dynamic detection problem.

The popularity of smart devices has broadened the

transmission channels of malware, and more and more

malware has taken advantage of the speed of

information transmission to illegally steal user

information, posing a great threat to users' network

information security. Therefore, malware has become

an important issue affecting users' network security.

Relevant researchers investigated the changes of

malware in 2018 (Li et al 2020). The results show that

the number of malicious software is increasing

rapidly, and the total number of samples in one quarter

even exceeds 63 million (Dong et al 2023), and the

trend continues to increase. In this case, various

network security companies have studied the relevant

dynamic detection methods of malicious software, but

due to the limitation of feature codes, these detection

methods have obvious shortcomings. Deep learning

can carry out intelligent analysis and identification

according to the expression rules of samples (Javaid et

al 2015), and has a prominent effect in the feature

recognition of malware.

In recent years, there has been a lot of research on

how to detect malware effectively. Wang Yinglong et

al. built a malware classification model by converting

binary malware into grayscale maps and extracting

texture features in the images (Wang et al 2018). Luo

Wenyan et al. extracted non-user operations and

sensitive Application Programming Interface (API)

sequences, and finally determined the similarity of

sequences by measuring distance (Luo et al 2018).

Xiang Zihao et al. used sandbox to extract executable

files to operate the file system and registry to invoke

332

Lu, J.

The Investigation of Malware Detection Model Construction Based on Deep Learning Algorithms.

DOI: 10.5220/0012808200003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 332-337

ISBN: 978-989-758-705-4

API and other features (Xiang et al 2018). Mohaisen

et al. extracted the dynamic detection features of

malware during its execution, and used K-Nearest

Neighbor (KNN), Support Vector Machine (SVM),

decision tree and other classification algorithms to

build the final detection model (Mohaisen et al 2015).

Xin Wang et al. proposed a detection model that

combines Recurrent Neural Network (RNN) networks

and autoencoders (Wang et al 2016). Mehadi Hassen

et al. used the supervised learning algorithm to learn

low-dimensional features, and finally used the

anomaly detection method to detect malware (Hassen

et al 2018). S. Pai et al. used the expectation

maximization algorithm in the cluster detection

analysis of malware (Pai et al 2017).

Current malicious software detection primarily

relies on two main methods: static analysis and

dynamic analysis. Most of these methods use either a

single machine learning algorithm or a combination of

multiple learning algorithms to construct

classification detection models. Static analysis is

efficient but may have lower accuracy, while dynamic

analysis provides high accuracy but may be less

efficient. Therefore, relying solely on static or

dynamic analysis alone may not simultaneously meet

the dual requirements of high efficiency and high

accuracy. Hence, this paper introduces a malicious

software detection technique based on deep learning

algorithms. The fusion of dynamic and static detection

techniques ensures that the final detection process is

both efficient and accurate.

2 TRADITIONAL MALWARE

DETECTION METHODS

2.1 Static Analysis

Static analysis is the initial phase of the malicious

software analysis process, primarily focused on

examining executable files without delving into

specific instructions. Basic static analysis can

determine the presence of malicious characteristics in

a file, offer insights into its expected functionality, or

generate fundamental network feature identifiers.

However, static analysis has its limitations when

dealing with complex malicious software and may

occasionally overlook critical malicious behaviours.

2.1.1 Message Digest Algorithm 5

Message Digest Algorithm 5 (MD5) is a commonly

used technique for identifying malicious software.

The MD5 method involves subjecting malicious

software to a hash function, resulting in a unique hash

value generated for each malicious software instance.

In the field of deep learning, feature extraction hashing

is a commonly employed algorithm that can map data

of varying sizes into standardized fixed-size

representations.

2.1.2 PEiD Detection

PEiD is a common way to detect wrapped files, and is

often used to detect files generated by a packer or

compiler. Because malware is often packaged or

obfuscated, the malicious files it generates are more

difficult to detect, which can seriously hinder the

analysis of malware. PEiD also has a security risk in

its work, because its plug-ins tend to automatically run

malicious executables, so it needs to create a safe

environment for malicious operation and analysis.

2.1.3 Executable File Format Analysis

PE file format is a type of data structure, and almost

all executable code files loaded in Windows systems

are PE file formats. The PE file starts with the header

and includes information such as code, application

type, library functions, etc. The information in the

header of the file is valuable to malware analysts.

2.1.4 Interactive Disassembly Expert (IDA

Pro)

As an advanced static analysis method, IDA Pro is

also the preferred disassembly tool for most malware

analysts and vulnerability analysts (Raff et al 2017).

Strings are the starting point for malware static

analysis, using their cross-reference feature to see

exactly where and how strings are used in code, and

disassembler provides a snapshot of the program

before the first instruction is executed.

2.2 Dynamic Analysis

Dynamic analysis is the second phase in the process of

analysing malicious software. It is typically employed

when basic static analysis fails to yield definitive

results. Dynamic analysis involves monitoring the

behaviour of malicious software while it actively runs

or examining system changes after the execution of

malicious software. Unlike static analysis, dynamic

analysis provides a deeper understanding of the actual

functionality and internal workings of malicious

software. It has been proven to be an effective method

for identifying malicious software.

The Investigation of Malware Detection Model Construction Based on Deep Learning Algorithms

333

2.2.1 Sandbox

Sandbox technology serves as a fundamental dynamic

analysis tool while also functioning as a security

mechanism. Its primary role is to establish a secure

environment that allows untrusted programs to

execute within it without posing a real threat to the

underlying system, effectively addressing the

limitations of PEiD detection. Sandboxes rely on

predefined conditions in a virtual environment to

simulate network services, ensuring that the software

or malicious software being examined behaves

normally. However, it is worth noting that sandboxes

also have their limitations; they lack command-line

options for executing specific commands, and due to

inadequate waiting times, they may fail to capture all

events.

2.2.2 Procmon

Process Monitor (Procmon for short) is an advanced

tool in Windows that monitors the activities of certain

registries, network processes, and threads to determine

whether there is malicious behaviour. With Procmon,

you can monitor all system calls at run time, but it is

not possible to check them all. In addition, its long

work takes up available memory so that it runs out of

memory, eventually rendering the virtual machine

inoperable.

2.2.3 Process Explorer

Process Explorer, as the task manager, is often used

when performing dynamic analysis. It can provide a

favourable analysis of the processes running within

the system (including processes, DLLS, system

information). It can also be used to start, validate, and

terminate processes. The Process Explorer visualizes

the process being monitored in a tree structure.

2.2.4 OllyDbg

OllyDbg is an advanced dynamic debugger for

malware analysis testing. A debugger is a piece of

software or hardware that tests the performance of

another program and sees its dynamic view while the

program is running, information that is difficult to

obtain from a disassembler. As an upgraded version of

OllyDbg, WinDbg can assist it in kernel debugging

and Rootkit analysis.

Dynamic techniques have their limitations as they

may not cover the complete code path during the

execution of malicious software. Currently, a more

effective approach is to leverage advanced dynamic or

static techniques to address the challenges of

compelling malicious software to execute.

2.2.5 Common Detection Tools

VirusTotal is an online service that uses many

different antivirus programs to scan for malware, as

well as a comprehensive malware dataset. Wireshark

is a tool that dynamically analyses network packets

and network protocols. It can capture malicious

network traffic and analyse many different network

protocols. PE Explorer is an analysis tool for viewing

executable file formats and is used as a static

decompressor to automatically unpack files. Capture

BAT is a dynamic analysis tool for monitoring

running malware that monitors file system, registry,

and process activity.

3 DEEP LEARNING

ALGORITHMS

Deep learning is gradually replacing some traditional

machine learning algorithms, becoming a prominent

focus of research in the field of artificial intelligence.

Unlike traditional machine learning algorithms, deep

learning has the capability to stack multiple layers of

different neural networks, forming deep neural

networks (Tao et al 2016). The deep learning

algorithm employed in this article is a type of artificial

neural network that structurally resembles the

connectivity patterns in biological neural networks,

with multiple neurons within each layer. Artificial

neural networks process input starting from the input

layer, then perform successive mappings through

hidden layers, ultimately generating outputs at the

output layer. Figure 1 illustrates the architecture of an

artificial neural network (Tao et al 2016).

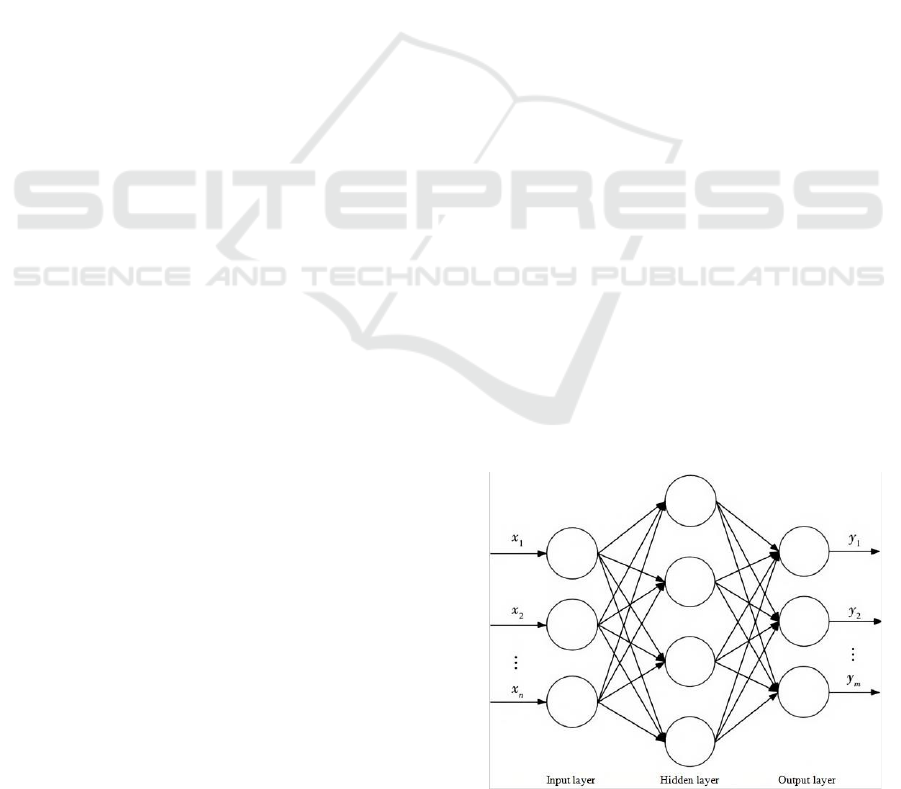

Figure 1: Artificial neural network structure diagram.

DAML 2023 - International Conference on Data Analysis and Machine Learning

334

When a neuron receives input from the neuron

above it, it computes an output result using a

mathematical transfer function and transmits this

result as the input to the neuron below it. In practical

research, commonly employed transfer functions

include the Rectified Linear Unit (ReLU) function, the

hyperbolic tangent (tanh) function, the sigmoid

function, and various other mathematical formulas:

( )















0,0

xif

xifx

xLU

＞

()

( )

−

=tanh

()

( )

xsigmoid

−

()

The loss function is also used in the optimization

of the trained model, and the loss function can also be

called the cost function, which can make the predicted

output value better fit the actual target value. In the

construction of classification models, the loss function

often uses the cross-entropy function, the formula is:

( )

xqxpD log



−=

()

4 MALWARE DETECTION

MODEL

Through the analysis of the malware detection

methods based on static features and dynamic

features, it can be found that the static malware

detection method has higher detection efficiency, but

it is easy to miss the alarm, while the dynamic

malware detection method has higher detection

accuracy, but the detection time is relatively large.

Considering the advantages and disadvantages of the

two methods, this paper presents a new malware

detection method which is static first and then

dynamic. When training the malware classification

model, the static feature and dynamic feature are

extracted respectively from the malware training

sample set, and then the malware classification model

based on static feature and the malware classification

model based on dynamic feature are trained

respectively by artificial neural network algorithm.

The specific workflow of the new malware

detection method proposed in this paper is shown in

Figure 2. After static and dynamic malware

classification models are obtained, the unknown

software is detected. First, the static features of the

unknown software are extracted. If it is judged to be

normal software, it is necessary to carry out further

dynamic detection analysis of the unknown software.

The dynamic features of unknown software are

extracted and analyzed by the malware dynamic

detection model. If the unknown software is classified

as normal software by the dynamic detection model,

the software can be classified as normal software;

otherwise, it can be classified as malware. The new

malware detection technology combines the

advantages of static detection and dynamic detection

methods, which can not only reduce the time cost of

detection process, but also ensure the accuracy of final

detection.

Figure 2: Architecture diagram of new malware detection

methods (Photo/Picture credit : Original).

5 CONSTRUCTION OF

MALWARE DETECTION

MODEL BASED ON DEEP

LEARNING

Deep learning is an important branch of machine

learning (Qiu et al 2020 & Shen et al 2017). In the face

of massive network application traffic data, it is

difficult for traditional detection methods to

effectively judge the characteristics of new malicious

programs, even if the malicious characteristics

database is designed, it needs a lot of manpower cost.

The intelligent malicious detection method designed

based on deep learning technology can effectively

detect newly emerged samples, greatly reduce the

workload of manual participation, and has strong

generalization ability. Here are some typical deep

learning detection models.









































The Investigation of Malware Detection Model Construction Based on Deep Learning Algorithms

335

5.1 MalConv Model

The MalConv model is constructed based on the

Gated Convolutional Neural Network (Gated-CNN)

architecture, designed for end-to-end malicious code

detection. The input layer receives binary files as the

dataset (Wu 2020), with a focus on analyzing the PE

header information. During the embedding layer, data

preprocessing occurs, generating a fixed-size feature

map matrix that maps each input byte to a D-

dimensional vector. Convolutional layers perform the

dot product operation between feature maps and

convolutional kernels. Gate layers are employed to

address the gradient vanishing problem, and max-

pooling is utilized for down sampling. Finally, the

probability of being a malicious program is obtained

through fully connected layers and a SoftMax layer.

5.2 ScaleMalNet Model

ScaleMalNet is an adaptable deep learning

architecture designed for malicious software

detection. This framework efficiently collects

malicious software samples from various sources in a

distributed manner and preprocesses them at scale. It

possesses real-time capabilities to handle a large

volume of malicious software samples, meeting on-

demand processing requirements. ScaleMalNet

adopts a comprehensive learning approach, analysing

malicious software collected from end-user hosts

using a two-stage malware analysis method. In the

initial stage, a combination of static and dynamic

analysis techniques is applied to classify malicious

software. In the subsequent stage, image processing

methods are utilized to categorize the malicious

software into their respective malware types. Figure

3 illustrates the real-time analysis framework of

ScaleMalNet for malicious programs (Vinayakumar

et al 2019).

5.3 DroidDetector Model

DroidDetector is an Android malicious software

detection engine developed using deep learning

technology (Yuan et al 2016). It primarily utilizes

association rule mining techniques to characterize

malicious software attributes. This engine provides

online malicious software detection, automatically

inspecting applications for malicious features. Upon

receiving an .APK file of an application,

DroidDetector verifies its integrity to determine

whether it is a complete, accurate, and legitimate

Android application.

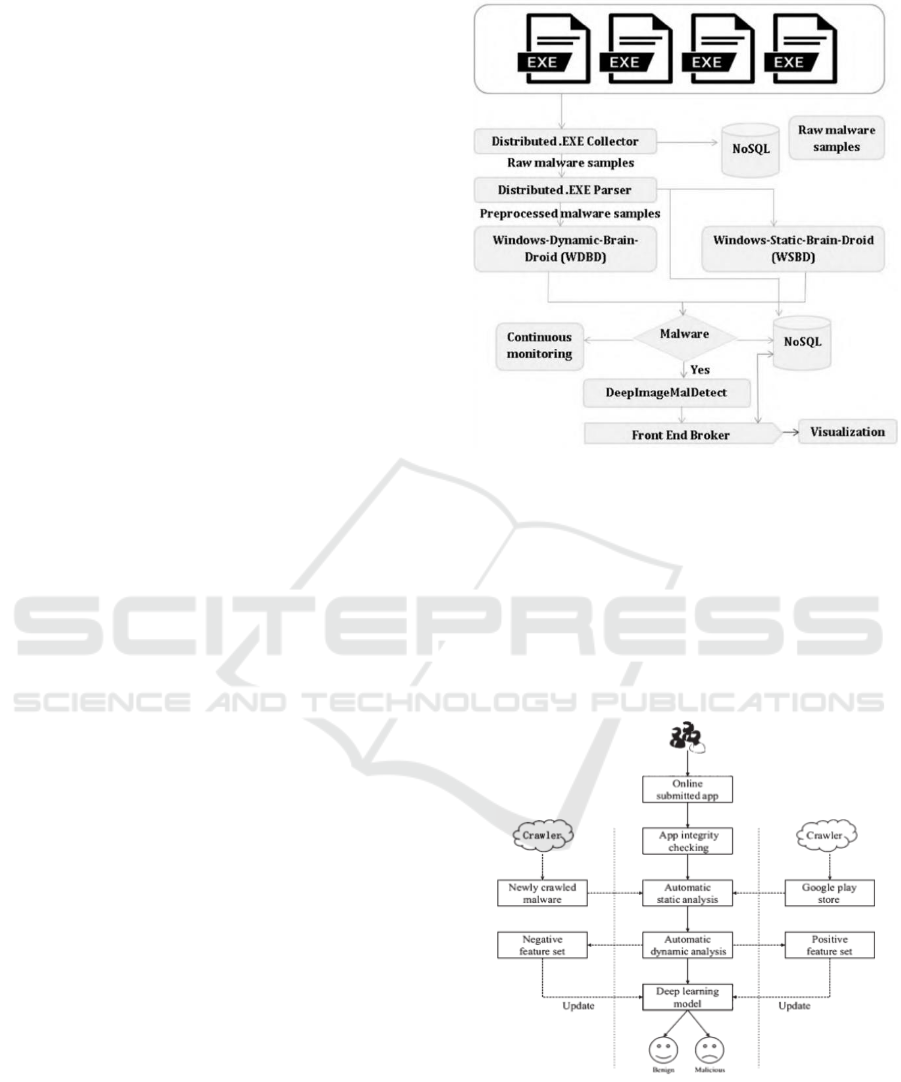

Figure 3: ScaleMalNet model real-time analysis frame

diagram.

Subsequently, DroidDetector conducts static and

dynamic analysis. The static analysis phase involves

extracting information related to the permissions and

sensitive APIs used by the application. In the dynamic

analysis phase, the application is installed and run

within DroidBox for a period to identify its dynamic

behavior. Fig. 4 illustrates the framework model of

DroidDetector (Yuan et al 2016).

Figure 4: DroidDetector frame structure diagram.

DAML 2023 - International Conference on Data Analysis and Machine Learning

336

6 CONCLUSION

As information technology continues to advance, the

malicious software created by attackers is becoming

increasingly sophisticated, making it challenging for

computer users to defend against these threats.

Malicious software can compromise user privacy,

disrupt computer systems, and often result in severe

consequences and significant economic losses for

individuals and organizations. Therefore, the

development of effective malicious software detection

techniques is of paramount importance. Currently,

existing malicious software detection techniques

primarily rely on single static or dynamic detection

methods, which may not effectively overcome the

inherent limitations of each approach. Therefore, this

paper introduces a two-stage detection method: firstly,

static analysis is used to identify easily detectable

malicious software, while the remaining samples

considered as normal software undergo dynamic

detection and analysis to mitigate potential oversights

in static analysis. The dynamic detection method is

employed to determine the characteristics of unknown

software. Compared to other single detection methods,

the approach proposed in this paper not only ensures

the efficiency of malicious software detection but also

guarantees a high level of accuracy in the final verdict.

Current malicious software detection techniques

typically leverage machine learning algorithms to

construct classification models. Traditional machine

learning algorithms heavily rely on the quantity of

samples and feature selection, which can impact

detection performance. Therefore, this paper

introduces the application of deep learning algorithms

to build malicious software classification models,

effectively enhancing the effectiveness of malicious

software detection.

REFERENCES

J. Shara. Deep Learning Methods for Cybersecurity. ICSNS

XV-2021 (2021).

O. Suciu et al. Exploring Adversarial Examples in Malware

Detection (2018).

H. Li et al. Adversarial-Example Attacks Toward Android

Malware Detection System. IEEE systems journal,

(1):14(1) :653-656 (2020).

S. Dong et al. Action recognition based on dynamic mode

decomposition. Journal of ambient intelligence and

humanized computing (2023).

A. Y. Javaid et al. A Deep Learning Approach for Network

Intrusion Detection System. ICST (Institute for

Computer Sciences, Social-Informatics and

Telecommunications Engineering) (2015).

Y. L. Wang et al. Test of malicious code detection method

based on texture features. Yunnan Electric Power

Technology, 46(1):131 - 133 ,138 (2018).

W. Luo et al. Malware detection method based on non-user

operation sequence. Computer Application, 38(1):56 -

60,66 (2018).

Z. Xiang et al. Ransomware detection method based on

machine learning. Information Technology, 42(5):79 -

82,89 (2018).

A. Mohaisen et al. Amal: high-fidelity. behaviour-based

automated malware analysis and classifi-cation.

Computers & Security,52 ;251  266 (2015).

X. Wang et al. A multi-task learning model for mal-ware

classification with useful file access pattern from API

call sequence. CoRR, (2016).

M. Hassen et al. Learning a neural-network-based

representation for open set recognition. arXiv

preprintarXiv:1802.04365, (2018).

S. Pai et al. Clustering for mal-ware classification. Journal

of Computer Virology and Hacking

Techniques,13(2):95 -107 (2017.)

E. Raff et al. Malware Detection by Eating a Whole EXE.

DOI:10.48550/arXiv.1710.09435 (2017).

M. Tao et al. A Hybrid Spectral Clustering and Deep Neural

Network Ensemble Algorithm for Intrusion Detection

in Sensor Networks.Sensors, 16(10):1701 (2016).

Y. Qiu et al. Improved denoising autoencoder for maritime

image denoising and semantic segmentation of USV.

China Communications, 17(3): 46-57 (2020).

D. Shen et al. Deep learning in medical image analysis.

Annual review of biomedical engineering, 19: 221-248

(2017).

R. Wu. Research on attack and defense methods of

malicious code classifier based on adversarial principle.

Harbin: Harbin Institute of Technology, (2020).

R. Vinayakumar et al. Robust intelligent malware detection

using deep learning. IEEE Access, 7;46717-46738

(2019).

Z. Yuan et al. Droid detector: Android malware

characterization and detection using deep learning.

Tsinghua Science and Technology, 21(1):114-123

(2016).

The Investigation of Malware Detection Model Construction Based on Deep Learning Algorithms

337
