Evaluation on Malicious URL Detection with Different Features

Based on Various Machine Learning Algorithms

Xiang Guo

Faculty of Engineering & IT, The University of Melbourne, Parkville VIC 3052, Australia

Keywords: Machine Learning; KNN; Neural Network; Logistic Regression; URL Detection.

Abstract: With the escalating demand for cybersecurity, the identification of malevolent Uniform Resource Locators

(URLs) has assumed paramount significance in defending against cyber threats. Various techniques, ranging

from blacklists and heuristics to machine learning methods, have been employed for the purpose of detecting

malicious URLs. Among these methodologies, machine learning stands out prominently due to its scalability,

adaptability to emerging threats, and capacity to uncover threats that were hitherto unknown. This paper

focuses on analyzing deep learning learning methods to detect malicious URLs compared with two traditional

machine learning algorithm: Logistic Regression (LR) and K Nearest Neighbour (KNN). Scratching and

collecting over 200,000 data to train the model and make prediction and evaluation. The result shows that the

deep learning algorithm could achieve much higher scores than the other two machine learning models, but

has much lower efficiency. The KNN model has better performance on selected feature group than hybrid

feature group. The LR model could achieve higher performance on huge dataset and extremely complex

feature group.

1 INTRODUCTION

Over time, as the demand for cybersecurity continues

to grow, ensuring the safety and security of individuals

and organizations has become paramount. Malicious

Uniform Resource Locators (URLs) can lead to

various cybersecurity threats such as phishing attacks,

malware distribution, or unauthorized access to

sensitive data. Detection of malicious URLs often

involves analyzing the URL structure, evaluating the

domain reputation, and assessing the content hosted

on the linked page. Thus, the numbers of malicious url

detection approach have significantly increased.

Overall, these approaches could be classified into

three types: Blacklist Approach, Heuristic or Rule-

based Approach, Machine Learning Approach (Sahoo

D et al 2017). The machine learning approach offered

benefits in terms of scalability, adaptability to

changing threat landscapes, and the ability to detect

previously unseen or zero-day threats, which make

machine learning approach quite outstanding

compared with the other two approaches. Therefore,

the research and exploration of novel machine

learning methods to detect malicious url has become

increasingly important.

Three main feature groups have been identified of

an URL: Lexical group, host-based feature group,

correlated feature group (Do et al 2020), numbers of

novel machine learning algorithm and ideas has been

posted for different features and types of URL to train

and predict. In the study of B. B. et al in 2021, Gupta

et al. have proposed an approach to extract and pre-

process the feature vectors based on lexical feature

group. This approach only uses nine features based on

the lexical properties of URLs to reach 99.57%

accuracy. For the group of host-based features, it is

usually referred to malicious domains which hidden in

URLs (Palaniappan et al 2020), the paper identified

several common the Domain Name System (DNS-

based) features of a domain name, such as

Autonomous System Number and IP addresses to

explore an active DNS analysis approach and trained

a logistic regression classifier to get around 60%

accuracy. Except for single group of features,

researching hybrid correlated features group is also

worthwhile. One hybrid feature selection algorithm

posted by Kumar’s study in 2023, it converts the text

features into numerical vectors using Word2Vec and

apply Principal Component Analysis (PCA) feature

selection algorithm to reduce the dimensionality

combined with Natural Language Processing (NLP)

338

Guo, X.

Evaluation on Malicious URL Detection with Different Features Based on Various Machine Learning Algorithms.

DOI: 10.5220/0012808400003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 338-342

ISBN: 978-989-758-705-4

features to train and test. The result demonstrated that

hybrid Features generally outperformed Word Vectors

across all algorithms, thus, it could improve the

overall accuracy.

However, most of these kinds of research are lack

of assessment and analysis of efficiency, robustness,

usability and performance. Furthermore, a significant

portion of these studies relies on outdated datasets,

primarily from around 2016. Moreover, a subset of

these studies continues to employ basic linear

regression for model training, suggesting ample room

for more advanced exploration and research. The

main contribution of this paper is to reproduce some

of detection process but replace them with neural-

network machine learning architecture or K nearest

neighbours to explore the potential extension and

limitation as well as make assessment on performance

by comparing with previous work.

2 METHODS

2.1 Dataset

2.1.1 Dataset Preparation

In this research, open-source URL dataset (ISCX-

URL2016) was collected as main resources. The

ISCX-URL involves types of malioucs URLS

including Benign, Spam, Phishing, Malware and

Defacement URLs. The amount of URLs is over

200,000 in this dataset, which provide significantly

common and convenient resources to train the model

and evaluate the result in all kinds of situation.

2.1.2 Pre-Processing Values

Several steps need to be done to pre-process the

dataset: 1) Gathering and sorting the dataset by length

to make the dataset straightforward to check and

analyze. 2) Getting rid of the duplicated data since

they will make the model overfitting. 3) Seperating the

URLs into words and vectorized the words. In this

research, using Word2Vec and Tfidf to vectorize the

URLs, which make it easy to fetch and select features

of URLs. 4) Deleting the suffix of URLs, such as com,

cn, au. Because all kinds of these suffixes are not key

words of training the model. 5) Around 200, 000 data

has been collected after the pre-processing and is used

in this research. The whole process is shown in Figure

1 below.

2.1.3 Feature Selection

Since the features of URLs could be divided into three

parts: Lexical-based, host-based and correlated-based,

three groups of features are trained and tested to make

comparison and assessment in this study. The first

group will take only lexical-based features, such as

Alphabets and lower or upper case letters in URL

(Raja et al 2021). The second group will take all the

words which are separated within the URL into

account.

2.2 Machine Learning

2.2.1 Logistic Regression

Therefore, it is assumed that the data obey this LR

distribution, and then use maximum likelihood

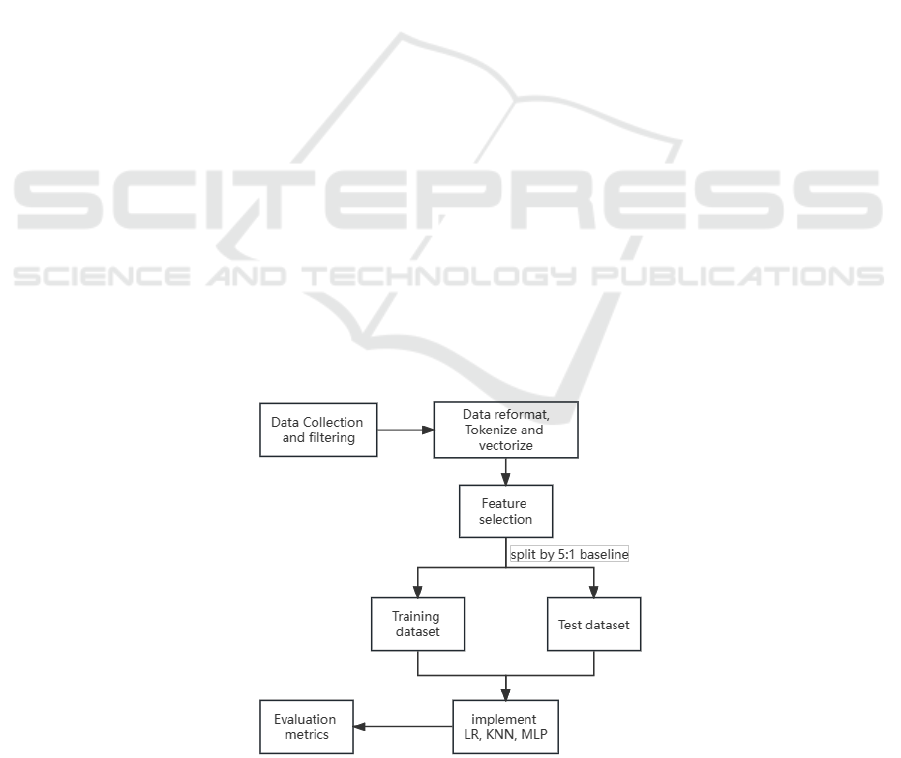

Figure 1: Process flow chart (Picture credit: Original).

Evaluation on Malicious URL Detection with Different Features Based on Various Machine Learning Algorithms

339

estimation to estimate the parameters. Using this

model to classify the malicious URLs into two classes,

‘malicious’ or ‘benign’. It comes with a modest

computational burden, simplicity in comprehension

and implementation. To implement this model, it is

necessary to assume the training data at least could be

fitted in logistic distribution which could be allowed

to use maximum likelihood estimation to estimate the

parameters. According to paper (Chiramdasu et al

2021 & Vanitha et al 2019), it has been proven that

using logistic regression to classify URL into

malicious and benign is available and sometimes

better than other traditional machine learning

algorithm such as K neighbors. One advantage of

logistic regression model is its modest occupation and

cost of computational resources which make this

model relatively efficient in terms of processing and

training time. Additionally, it is simple to implement

logistic regression and it is easy to make

comprehension, enabling users to easily understand

and utilize the technique for predictive modeling

tasks. In this research, it is highly expected that LR

model will have overall good performances on

extremely large dataset and hybrid feature

combination as this model has such properties.

Nevertheless, LR model probably not fit well based on

selected feature groups.

2.2.2 Neural Network

An Artificial Neural Network (ANN), also referred to

as Multi-layer Perceptron (MLP), usually consist with

one input layer, one output layer and at least one

hidden layer between the input and output layer. The

more hidden layer it has, the more complex model it

will be, taking more to train but it could also achieve

higher accuracy of prediction. In A Aljofe et al’s study

in 2020, the paper explored the availability and

performance of using neural network on phishing

URL detection and posted some features might be

suitable for neural network. However, it does not take

other types of malicious url into consideration and it

has some noise of some sensitive words. In this paper,

mainly use neural network model with 'Relu' and

'Logistic' activation to train and make prediction.

Making neural network model as main comparison

with LR and KNN to analyze and assess the

performances and differences. Because the neural

network should have better score on large dataset as

this model possesses a strong capacity to extract

information from big data and construct highly

complex models. But this model will take longer time

to train and require appropiate data pre-processing at

the same time.

As the dataset contains over 20,000 data, choosing

‘adam’ (Jais et al 2019) will be the best optimizer as

‘adam’ has been proved as best optimizer for large

training. However, with the limitation of

computational resource, the more hidden layer with

more neurons will make the cost of training much

higher. Therefore, as testing several possible number

of layers, it is better to apply two hidden layers with 5

neurons each to make MLP classifier have the best

performance on the dataset. And for this research, the

activation will test ‘Relu’ as default and ‘Logistic’ as

comparison to choose the one with better performance.

2.2.3 K Neighbors Classifier

K-Nearest Neighbors (KNN) is a widely-used

supervised classification algorithm known for its

simplicity and easy to make adjustment on parameter.

The principle behind KNN involves assigning a class

label to an instance based on the categories of its

nearest neighbors, determined by measuring their

distances. Implementing KNN is straightforward, as it

does not require parameter estimation or complex

training procedures. It usually has good performance

on classification. However, KNN is considered a lazy

algorithm, as it involves extensive computations for

classification. It requires scanning all training samples

to calculate distances, leading to high memory usage

and slow inference speed. The larger the dataset, the

more time and resources will cost. In this research,

applying KNN as a comparative model against other

training models. The KNN model is expected to have

better performance on classify malicious and benign

URLs as this is only two classifications. However, this

model might occupy large amount computation

resources to train and predict due to the large volume

of data. As mentioned in Shah’s study in 2020, LR

usually outperforms KNN on large dataset and

complex situation, but KNN could have better

performance on selected feature group. Hence, it is

meaningful to implement KNN model in this research

as we choose lexical feature group to compare with

hybrid feature group.

2.3 Evaluation Metrics

Four types of scores will be implemented as

evaluation metrics: accuracy, F1, precision, recall.

These four metrics will show the all-rounded scores of

the model.

𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 = 𝑇𝑃/(𝑇𝑃 + 𝐹𝑃) (1)

Recall = TP/(TP+FN)

(2)

Accuracy=(TP+TN)/(TP+FP+TN+FN)

(3)

DAML 2023 - International Conference on Data Analysis and Machine Learning

340

F1=2*Precision*Recall/(Precision+Recall)

(4)

There are four variables in the equation. The first

one is True Positive (TP). In this research, the TP

represents the total amount of malicious URLs

classified match with the label of test data. The second

one is True Negative (TN). The TP represents the total

amount of good URLs which have been classified and

matched with the label of test data. The third one is

False Positive (FP). The FP represents the total

amount of malicious URLs classified but the label of

test data is good URLs. The last one is False Negative

(FN). The FN represents the total amount of good

URLs classified but the label of test data is malicious.

3 EXPERIMENTAL RESULTS

AND DISCUSSION

The results involved two groups of features, the first

feature group training is based on all correlated

features, which vectorised all possible words and

features separated by all kinds of punctuation marks.

The final score is shown in Table 1.

Table 1: Scores of hybrid feature group.

Evaluation

KNN

MLP

Accuracy

98.39

96.83

99.71

98.18

96.49

99.67

Precision

98.61

95.98

99.69

Recall

97.80

99.54

The second feature group training is based on only

lexical-based features, which mainly extracted length

of URL and different part of URL separated by slash,

the number of different letters and punctuation marks.

The final result is shown in Table 2.

Table 2: Scores of lexical-based feature group.

Evaluation

KNN

MLP

Accuracy

93.19

97.89

99.49

94.57

98.11

99.56

Precision

93.79

97.80

99.38

Recall

93.21

98.76

99.44

The two groups of models achieved high scores

after optimizing the parameter. However, it is easy for

LR models to overfit and KNN underfit in the first

group of correlated features. According to the learning

curve of Figure 2, when the training data is under

50,000, the LR model shows high variance, and the

model becomes fitting after 100,000 data to finally

reach just right. For the KNN model, as testing all

possible parameters of KNN from 5 neighbors to 50

neighbors, the model shows underfitting when the

number of neighbors larger than 30.

Figure 2: Learning curve of LR model

(Photo/Picture credit: Original).

It is obvious to observe that MLP have the best

performance in both two groups after optimizing the

parameter and active function and the learning curve

shows in Fig.3, which displays a good fitting and

training of neural network model. Nevertheless, the

score will have tiny change around 0.2% if reduce or

increase the hidden layer and iteration epoch. This

could probably be because the simple structure of

URLs and limit combination of features which make

no difference to allow deep learning algorithm to train

the model.

Figure 3: Learning Curve of MLP model

(Photo/Picture credit: Original).

Calculating the average score of all four evaluation

metrics in the two groups to make comparison, and the

comparison result shows in Fig.4. The result shows

MLP has the highest scores on both two groups of

features. LR has better performance on correlated

feature group, and KNN has better scores on only

lexical feature group.

Evaluation on Malicious URL Detection with Different Features Based on Various Machine Learning Algorithms

341

Figure 4: Comparison of two feature groups

(Photo/Picture credit: Original).

However, the neural network has taken much more

time to train and predict compared with the other two

models, especially for the hybrid feature group. It is

mainly because of the high degree of the feature after

vectorizing, the degree of first feature group could

reach over 30,000 after vectorising all the possible

words and features of URLs, which make the

efficiency of neural network extremely low.

4 CONCLUSION

In this study, three models underwent training using

two distinct sets of features and a dataset comprising

over 20,000 instances. The objective was to scrutinize

their behaviors and ultimate performance, with the

aim of determining which model is best suited for

URL analysis and detection. The neural network

model exhibited superior performance in evaluation

scores compared to LR and KNN, but it was

associated with the lowest efficiency. Conversely,

KNN demonstrated strong overall performance in

terms of both efficiency and accuracy when applied to

the lexical-based feature group. The LR model is more

suitable for complex feature groups and extremely

large dataset as the algorithm takes less resources but

high speed to train. However, this research only

compares two types of features groups and needs more

combination of features to compare deep learning

algorithm with traditional machine learning model.

And the dataset only comes from one resource which

might lead to some bias of data. In the future, further

studies are looking forward to seeking more groups of

features, exploring more newly deep learning model

and scratching more data from different resources to

full-fill the analysis and evaluation.

REFERENCES

D. Sahoo D et al. Malicious URL detection using machine

learning: A survey. arXiv preprint arXiv:1701.07179,

(2017).

X. C. Do et al. Malicious URL detection based on machine

learning. International Journal of Advanced Computer

Science and Applications, 11(1) (2020).

B. B. et al. A novel approach for phishing URLs detection

using lexical based machine learning in a real-time

environment. Computer Communications, 175: 47-57

(2021).

G. Palaniappan et al. Malicious domain detection using

machine learning on domain name features, host-based

features and web-based features. Procedia Computer

Science, 171: 654-661 (2020).

J. Kumar. Hybrid Feature-Based Machine Learning Method

for Phishing URL Detection. 2023 Third International

Conference on Secure Cyber Computing and

Communication (ICSCCC). IEEE, 222-227 (2023).

URL 2016 | Datasets | Research | Canadian Institute for

Cybersecurity | UNB

https://www.unb.ca/cic/datasets/index.html (2016)

A. S. Raja et al. Lexical features based malicious URL

detection using machine learning techniques. Materials

Today: Proceedings, 47: 163-166 (2021).

R. Chiramdasu et al. Malicious url detection using logistic

regression. 2021 IEEE International Conference on

Omni-Layer Intelligent Systems (COINS). IEEE, 1-6

(2021).

N. Vanitha et al. Malicious-URL detection using logistic

regression technique. International Journal of

Engineering and Management Research, 9(6): 108-113

(2019).

A. Aljofe et al. An effective phishing detection model based

on character level convolutional neural network from

URL. Electronics, 9(9): 1514 (2020).

I. K. M Jais et al. Adam optimization algorithm for wide

and deep neural network. Knowledge Engineering and

Data Science 2.1 41-46 (2019).

Shah, Kanish, et al. "A comparative analysis of logistic

regression, random forest and KNN models for the text

classification." Augmented Human Research 5 (2020):

1-16.

98,25

96,78

99,65

93,69

98,14

99,47

100

102

LR KNN MLP

Comparison of two feature groups

hybrid feature group lexical feature group

DAML 2023 - International Conference on Data Analysis and Machine Learning

342
