Joint SMOTE and Random Forest for Heart Disease Prediction and

Characterization

Yi Lu

College of Electronic and Information Engineering, Tongji University, Shanghai, China

Keywords: Heart disease, Synthetic Minority Over-Sampling Technique, Random Forest, Feature analysis.

Abstract: For decades, heart diseases have remained the primary global cause of mortality. Consequently,

comprehending the influential elements and forecasting the onset of cardiovascular conditions is imperative,

enabling individuals to proactively preserve their well-being. The primary goal of this study is to forecast the

occurrence of heart disease while exploring the influencing factors associated with it. The study is conducted

on the Personal Key Indicators of Heart Disease dataset from Kaggle. Following the completion of exploratory

data analysis (EDA), the research tackles the problem of an uneven distribution of data by integrating the

Synthetic Minority Over-sampling Technique (SMOTE) approach into the initial Random Forest (RF) model.

Notably, the resultant model achieves commendable performance metrics, boasting an accuracy of 93.39%,

precision of 94.25%, recall of 92.42%, and an F1 score of 93.33%. Through the RF feature analysis, it is

revealed that Body Mass Index (BMI), overall health status, and age are the top three influential features

significantly impacting the model's predictive performance. This finding provides valuable guidance for heart

disease prevention efforts, aiding in the development of more precise intervention measures targeting

individual risk factors.

1 INTRODUCTION

According to the World Heart Report 2023 from the

World Heart Federation, more than half a billion

people around the world suffer from cardiovascular

diseases. Nevertheless, it is worth noting that up to

80% of premature heart attacks and strokes can be

prevented. Therefore, it is crucial to understand the

contributing factors and analyze the likelihood of the

occurrence of heart diseases, which paves the way for

people to take proactive measures to maintain their

health.

Given that even minor errors in the diagnosis of

heart disease can potentially lead to severe

consequences, it is imperative to improve the accuracy

of predicting heart-related conditions (Singh and

Kumar 2020). In recent years, Machine Learning (ML)

has been widely used in predicting and analyzing the

heart disease. Due to the substantial volume of data

received by medical institutions, often containing a

significant amount of noise, can pose challenges for

effective analysis. Utilizing ML techniques for data

processing and analysis can greatly enhance the

efficiency of healthcare professionals while enabling

effective prediction and data management (Katarya

and Meena 2021 & Ramalingam et al 2018). For

instance, Jesmin Nahar et al. primarily focused on three

rule mining algorithms involving Apriorist, Predictive

Apriorist, and Tertius. Drawing from both gender and

significant risk factors for heart disease, they identified

key signals of good health using healthy regulations

that boasted confidence levels exceeding 90% and

accuracy levels surpassing 99% (Nahar et al 2013).

Typically, there is a multitude of related features,

making it crucial to extract meaningful features.

Escamila et al. selected the features by using the chi-

square (CHI) method and performed feature extraction

through principal component analysis (PCA). They

then employed several classification models to predict

heart diseases and compare the final outcomes.

According to the result, the best-performing method

was CHI-PCA with Random Forest (RF) (Gárate-

Escamila et al 2020). Amin et al. first proposed a data

mining technique to select significant features. Then

seven classification models were used: k-Nearest

Neighbors (k-NN), Decision Tree (DT), Naive Bayes

(NB), LR, Support Vector Machine (SVM), Neural

Network (NN), and Vote. Results showed that Vote

yield the best performance, having an 87.4% accuracy

rate (Amin et al 2019). Akgül et al. introduced a hybrid

approach aimed at improving the classification

accuracy of the conventional Artificial Neural Network

(ANN) model. Through the fusion of ANN with a

Genetic Algorithm (GA), their findings indicated that

Lu, Y.

Joint SMOTE and Random Forest for Heart Disease Prediction and Characterization.

DOI: 10.5220/0012816100003885

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Data Analysis and Machine Learning (DAML 2023), pages 127-132

ISBN: 978-989-758-705-4

127

the ANN-GA model delivered the highest performance,

achieving an accuracy rate of 95.82% (Akgül et al

2019).

Class imbalance is a common issue in raw data,

particularly prevalent in the field of medical

diagnostics, where the majority of classification data

often lean towards negative class values (Thabtah et

al 2020). Often, the number of healthy patients might

greatly exceed the number of patients with heart

disease, potentially exerting a considerable influence

on model accuracy. The primary aim of the research

is to anticipate the existence of cardiovascular

ailments by considering a wide range of influencing

factors such as Body Mass Index (BMI), Smoking,

and Alcohol Drinking. In addition, this data

imbalance problem is addressed to gain higher

accuracy of the heart disease classification model. In

the study, Exploratory Data Analysis (EDA) is first

used to gain an understanding of the distribution and

features of a dataset, laying the groundwork for

subsequent modeling. Second, the Synthetic Minority

Over-sampling Technique (SMOTE) is employed to

balance the dataset. Rather than simply replicating

examples from the minority class, the fundamental

concept of the technique is to generate synthetic

samples. SMOTE is considered the standard

benchmark for learning from imbalanced data

(Fernández et al 2018). Subsequently, the RF is

applied to make predictions. RF has significant

advantages in handling high-dimensional features

and large-scale data, while also maintaining high

interpretability. The model attains commendable

performance metrics, highlighting its resilience in

identifying individuals who are susceptible to heart

disease. The resultant model has an accuracy of

93.39%, a precision of 94.25%, a recall of 92.42%,

and an F1 score of 93.33%. Furthermore, by

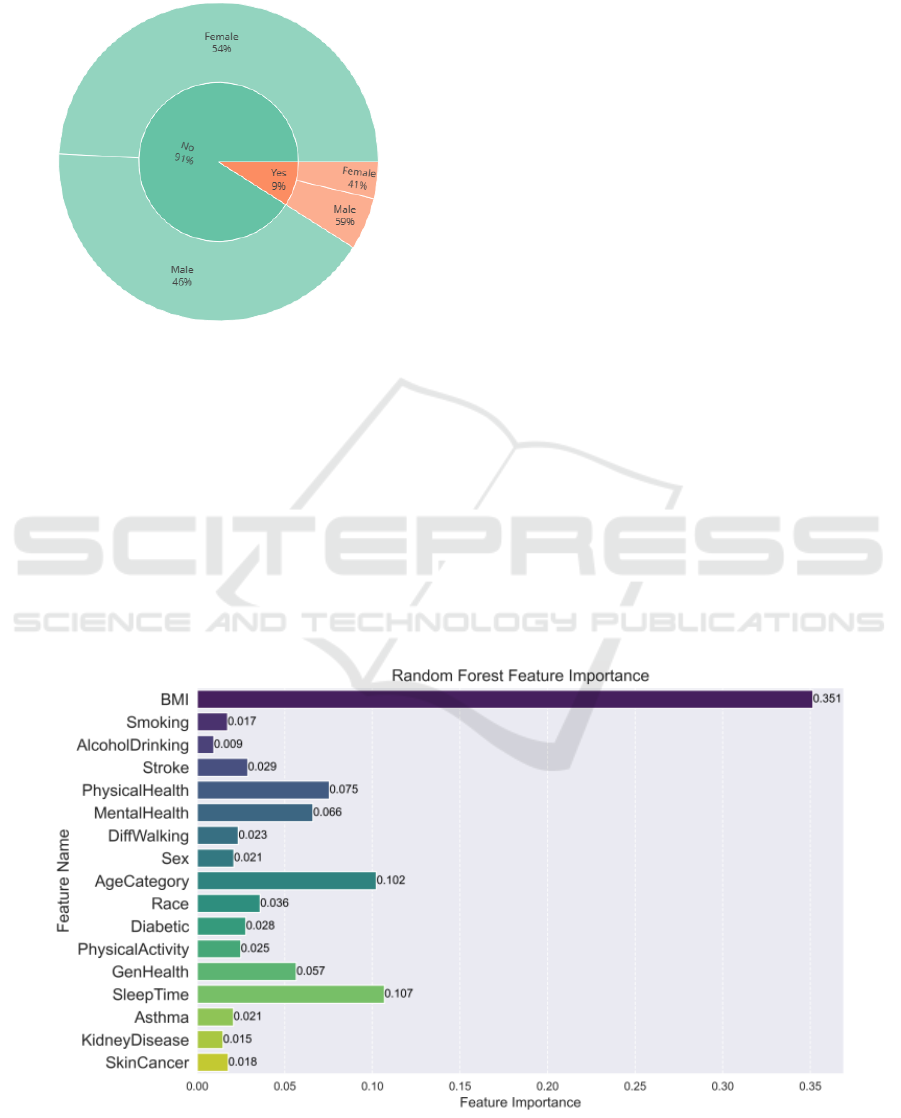

analyzing feature importance, the experimental

results demonstrate that BMI emerges as the most

influential factor in predicting the presence of heart

disease, facilitating a better understanding of the

influential variables in this critical healthcare context.

Importantly, the knowledge derived from the study

also furnishes a valuable framework for predicting

other rare medical conditions with similar class

imbalance challenges.

2 METHODOLOGY

2.1 Dataset Description and

Preprocessing

Personal Key Indicators of Heart Disease dataset

from Kaggle is designed to investigate key indicators

associated with heart disease, a leading cause of

mortality in the United States (Dataset 2023). The

dataset has been refined to retain 319,795 data points

with 18 relevant variables. The target variable is

"heart disease," which serves as a binary indicator of

the existence or non-existence of cardiovascular

ailments. Besides, there are 13 categorical features:

smoking status, alcohol drinking habits, stroke

history, difficulty walking, gender, age category, race,

diabetic status, physical activity levels, general health

assessments, asthma, kidney disease, and skin cancer.

The dataset also includes 4 numerical features: BMI,

physical health assessments, mental health

assessments, and sleep time, all of which contribute

to the dataset's richness.

In the data preprocessing phase, it is observed that

the dataset exhibits an imbalanced distribution of

heart disease cases, with only 9% labeled as "Yes".

This class imbalance has been taken into

consideration during model development to prevent

bias. Moreover, to ensure data accuracy and enhance

model effectiveness, a total of 18,078 duplicated data

points are identified and removed from the dataset.

Besides, through label encoding, each distinct

category is assigned a unique integer value, ensuring

that ML models can effectively interpret and utilize

these features. These steps play a pivotal role in

ensuring the dataset's integrity for subsequent

analysis and modeling tasks, enhancing the

effectiveness of the model.

2.2 Proposed Approach

The primary objective of this study is to explore key

indicators related to heart disease. As depicted in Fig.

1, the study initially conducts preliminary EDA to

gain an in-depth understanding of the dataset's

characteristics. Given the dataset's inherent class

imbalance, the SMOTE method is used to balance the

dataset, addressing the issue of data imbalance.

Following data preprocessing, RF is utilized for heart

disease prediction. The performance of the model is

assessed through a range of performance metrics,

including recall, precision, accuracy, F1 score, which

ensures that the model exhibits robustness and

generalization capability. Additionally, feature

importance scores provided by the RF are leveraged

to analyze the significance of various influencing

factors, enhancing the understanding of which factors

play a pivotal role in predicting heart disease.

DAML 2023 - International Conference on Data Analysis and Machine Learning

128

Figure 1: The pipeline of the model (Original).

2.2.1 EDA

EDA is a data analysis method that involves analyzing

data and deriving patterns. The main steps are shown

in Fig. 2. Data cleaning includes handling errors,

duplicates, anomalies, and missing values to ensure

the accuracy of data. The data exploration and analysis

stage primarily involves computing statistical values,

exploring data distributions, and analyzing the

correlations between different variables. Based on the

data analysis, feature engineering can be conducted,

involving the selection or creation of new features.

Finally, through data visualization, it can intuitively

present data, aiding users in understanding and

extracting the information embedded in the data.

These steps collectively contribute to a deeper

understanding of the dataset, laying a solid foundation

for subsequent modeling and analysis.

Figure 2: The steps for EDA (Picture credit: Original).

2.2.2 SMOTE

SMOTE is a synthetic data technique used to address

the problem of imbalanced datasets. Its core principle

involves generating synthetic samples by assessing the

similarity between minority class samples, thereby

increasing the number of minority class instances.

SMOTE selects a minority class sample as the starting

point and then calculates the distances between this

sample and its k-NN within the minority class, typically

using Euclidean distance or other similarity metrics.

Next, SMOTE randomly chooses one of these nearest

neighbor samples and computes the feature vector

difference between the selected sample and the starting

point. It generates a random value between 0 and 1,

multiplies it by the feature vector difference, and adds

the result to the feature vector of the starting point,

creating a new synthetic sample. The termination

condition for this process loop is the dataset reaching

the predetermined balance level, effectively increasing

the number of minority class samples.

2.2.3 RF

RF is a powerful ensemble learning method that plays

a critical role in improving model performance by

combining multiple decision trees. It is suitable for both

classification and regression tasks. In the context of this

experiment, RF is applied to solve classification

problems. In this algorithm, for each decision tree, the

dataset is randomly sampled to create distinct subsets,

and each tree is trained on these unique subsets. To

diversify the model and mitigate overfitting, at each tree

node, the splitting process is guided by Gini impurity,

facilitating the selection of optimal splitting features

and points to reduce node impurity.

Furthermore, to promote model diversity, RF

considers only a subset of random features when

selecting the splitting attribute, and then choosing the

most effective one from this subset. Ultimately, RF

aggregates the predictions from each tree and selects the

class with the highest frequency as the final prediction,

ensuring reliable and robust classification capabilities.

This amalgamation of randomness and ensemble

techniques positions RF as a vital tool in the domain of

ML, excelling in diverse and complex tasks.

In the RF model, feature importance is typically

measured based on Gini impurity. During each node

splitting process, the reduction in Gini impurity is

Joint SMOTE and Random Forest for Heart Disease Prediction and Characterization

129

calculated, and then the weighted average of the

reduction in Gini impurity across all decision trees is

computed to obtain the importance score of each

feature. The higher the importance score of a feature,

the greater its influence on the model performance. This

measurement method helps identify the features that

have the most significant influence on model

predictions and can be used for feature selection while

providing deeper insights into the behavior of the

model.

2.2.4 Evaluation Metrics

Accuracy: Accuracy evaluates the percentage of

accurately predicted instances among the total

instances. The formula for accuracy is as follows:

 





 (1)

Recall: Out of all actual positive class samples,

recall quantifies the percentage of accurately

anticipated positive class samples. For medical

diagnostic problems, recall is a significant metric as

missing patients can have serious consequences. The

formula for recall is as follows:

 





 (2)

Precision: Precision assesses the proportion of

accurately predicted positive instances among all

predicted positive class samples. It helps assess the

correctness of the positive predictions. The formula for

precision is as follows:

 





(3)

F1-Score: The F1-Score, applicable to binary

classifications, represents the harmonic average of

precision and recall, ranging from 0 to 1.

   





 (4)

2.3 Implementation Details

The study is conducted using Python 3.11.3 on a

Windows 11 operating system. The handling of

imbalanced datasets involved applying the SMOTE

technique from the imbalanced-learn library. The

following parameters are utilized: The random state

parameter is set to 42 to ensure the result's

reproducibility and the default value of 5 is utilized for

the k neighbors parameter. The RF model is configured

with the following settings: the Gini impurity measure

is adopted as the criterion for node splitting; At least 1

sample per leaf node is obligatory; a minimum of 2

samples is needed to conduct a split on internal nodes;

the minimum impurity decrease parameter is set to 0.0,

indicating the minimum impurity decrease for node

splitting.

3 RESULTS AND DISCUSSION

In this experiment, a comparative analysis of the

performance of the RF before and after applying

SMOTE is conducted. Moreover, an analysis of the

feature importance in the random forest is performed.

As indicated in Table I, the initial random forest

exhibits impressive outcomes concerning accuracy,

precision, recall, and F1 score on the training dataset.

However, on the testing dataset, all performance

metrics imply that the predictive performance of the

model is relatively unsatisfactory. While the accuracy

of the testing dataset remains relatively high, other

metrics are notably lower. Of particular concern is the

recall score on the testing dataset, which is as low as

0.1108, significantly lower than the 0.9715 recall score

on the training dataset. This implies that the model

struggles to effectively identify individuals with a

genuine heart condition in the testing dataset,

potentially leading to serious misclassifications.

Table 1: Performance of Model.

Model

Accura

Precisi

Reca

Initial

Random

Forest

Traini

0.9970

0.9957

0.97

0.98

Testin

0.8984

0.3204

0.11

0.16

SMOTE+Ran

dom Forest

Traini

0.9983

0.9981

0.99

Testin

0.9302

0.92

The fundamental reason behind this outcome is the

data imbalance present in the original dataset. As

illustrated in Fig. 3, despite the roughly balanced

number of male and female samples with and without

heart conditions, the proportion of samples with heart

conditions is only 9%, resulting in a significant

imbalance. When dealing with imbalanced data, ML

models tend to predict the majority class, a

phenomenon that becomes particularly pronounced in

the testing dataset. In the training dataset, the number

of samples with heart conditions is much smaller than

the number of healthy samples. This leads to a notable

DAML 2023 - International Conference on Data Analysis and Machine Learning

130

decrease in the model's recall rate on the testing dataset,

as it tends to incorrectly classify individuals with

genuine heart conditions as not having heart conditions.

Figure 3: Heart Disease Proportion by Gender (Original).

To tackle the issue of data imbalance, SMOTE is

applied to the original dataset. In the processed dataset,

the ratio of positive class (individuals with heart

disease) to negative class (individuals without heart

disease) samples became 1:1, thereby improving the

dataset's balance. Subsequently, the RF model is

trained on the balanced dataset. As shown in Table 1,

the optimized model exhibits outstanding results in

various performance metrics on the testing dataset. All

metrics on the testing dataset, encompassing accuracy,

precision, recall, and F1 score, show a significant

increase. Recall, in particular, improves substantially

from its initial value of 0.1108 to 0.9209. This signifies

that the model can more effectively identify

individuals with genuine heart disease in the testing

dataset, reducing the likelihood of misclassification.

The SMOTE-processed model not only enhances

predictive performance but also increases the accuracy

of identifying individuals with heart disease. This

improvement can be attributed to data balancing,

enabling the model to better adapt to the challenges

posed by imbalanced data. Through this optimization,

the study provides a more reliable tool for the medical

field to accurately predict patients with heart disease,

thus offering robust support for medical decision-

making and interventions.

According to Fig. 4, through the feature importance

analysis of the RF model, it is revealed that 'BMI' holds

the highest importance in the model with a score of

0.3516, indicating its significant impact on the

classification task of heart disease. 'GenHealth' and

'AgeCategory' also exhibit relatively high importance,

with scores of 0.1076 and 0.1039 respectively. This

suggests that these features play a significant role in

predicting heart disease. While the importance scores

of other features are relatively lower, they still

contribute to the model's performance. Understanding

the varying importance of these features can assist the

healthcare field in gaining a better understanding of

and addressing the risks associated with heart disease.

Figure 4: Random Forest Feature Importance (Original).

Joint SMOTE and Random Forest for Heart Disease Prediction and Characterization

131

4 CONCLUSION

This study explores the influencing factors of heart

disease and predicts its occurrence by constructing a

random forest model. Initially, the data imbalance

present in the dataset is identified through EDA. This

skewed distribution has the potential to misclassify

individuals with heart conditions, consequently

impeding the predictive capabilities of the initial RF

model. In this study, the combination of SMOTE and

RF effectively addresses the issue of data imbalance,

achieving excellent predictive performance.

Eventually, the accuracy of the model is 93.39%,

precision is 94.25%, recall is 92.42%, and F1 score is

93.33%. These results underscore the model's

reliability in predicting heart disease occurrence.

Additionally, the feature importance analysis

conducted within the random forest framework

highlights the substantial influence of BMI, general

health status, and age on heart disease, with their

combined importance exceeding 0.55. Furthermore,

the study's findings offer valuable insights applicable

to the prediction of other rare medical conditions

confronted with similar class imbalance challenges.

Moving forward, given that heart disease is a complex

condition influenced by various factors, it is imperative

for future research to delve deeper into the intricate

relationships between heart disease and various

correlated conditions. This comprehensive

understanding will facilitate the development of more

effective and targeted preventative strategies in

combating the complexities of heart disease.

REFERENCES

A. Singh, R. Kumar. “Heart disease prediction using

machine learning algorithms”, 2020 international

conference on electrical and electronics engineering

(ICE3), vol. 2020, pp. 452-457.

R. Katarya, S.K. Meena. “Machine learning techniques for

heart disease prediction: a comparative study and

analysis”, Health and Technology, vol. 11, 2021, pp.

87-97.

V. V. Ramalingam, A. Dandapath, M. K. Raja. “Heart

disease prediction using machine learning techniques: a

survey”, International Journal of Engineering &

Technology, vol. 7(2.8), 2018, pp. 684-687.

J. Nahar, T. Imam, K. S. Tickle, et al. “Association rule

mining to detect factors which contribute to heart

disease in males and females”, Expert systems with

applications, vol. 40(4), 2013, pp. 1086-1093.

A. K. Gárate-Escamila, A. H. El Hassani, E. Andrès.

“Classification models for heart disease prediction using

feature selection and PCA”, Informatics in Medicine

Unlocked, vol. 19, 2020, p. 100330.

M. S. Amin, Y. K. Chiam, K. D. Varathan. “Identification

of significant features and data mining techniques in

predicting heart disease”, Telematics and Informatics,

vol. 36, 2019, pp. 82-93.

M. Akgül, E. Sönmez Ö, T. Özcan. “Diagnosis of heart

disease using an intelligent method: a hybrid ANN–GA

approach”, International conference on intelligent and

fuzzy systems. Cham: Springer International

Publishing, vol. 2019, pp. 1250-1257.

F. Thabtah, S. Hammoud, F. Kamalov, et al. “Data

imbalance in classification: Experimental evaluation”,

Information Sciences, vol. 513, 2020, pp. 429-441.

A. Fernández, S. Garcia, F. Herrera, et al. “SMOTE for

learning from imbalanced data: progress and challenges,

marking the 15-year anniversary”, Journal of artificial

intelligence research, vol. 61, 2018, pp. 863-905.

Dataset, “personal-key-indicators-of-heart-disease”,

Kaggle, 2023

https://www.kaggle.com/datasets/kamilpytlak/personal

-key-indicators-of-heart-disease/data

DAML 2023 - International Conference on Data Analysis and Machine Learning

132
