Modelling Cognitive Workload to Build Multimodal Voice

Interaction in the Car

Sylvia Bhattacharya

and J. Stephen Higgins

Department of Engineering Technology, Kennesaw State University, Marietta, Georgia, U.S.A.

UX Research, Google. Inc, Mountain view, California, U.S.A

Keywords: In-Vehicle Information Systems, Cognitive Demands, Optimization, Visual/Auditory Modalities, Tactile

Screen Tapping, Voice Commands, Visual Cues, Cognitive Load.

Abstract: The paper discusses the integration of in-vehicle information systems and their impact on driver performance,

considering the demands of various types such as visual, auditory, manual, and cognitive. It notes that while

there's a lot of research on optimizing visual and manual systems, less attention has been paid to systems that

use both visual and auditory cues or a combination of different types. The study has found that simple tasks

cause the least cognitive strain when drivers use touchscreens, while complex tasks are easier to manage

cognitively when voice commands are used alone or with visual aids. These results are important for designing

car interfaces that effectively manage the driver's cognitive load.

1 INTRODUCTION

The latest World Health Organization (WHO) report

underscores the grave toll of road traffic injuries,

indicating that in 2013 alone, 1.25 million lives were

lost globally, positioning such injuries as a primary

global cause of mortality (WHO, 2016). Currently

ranking as the ninth major cause of death across age

groups worldwide, road traffic injuries are projected

to ascend to the seventh rank by 2030. Focusing on

driver distraction, numerous research endeavors have

highlighted its significance, attributing between 25%

and 75% of all accidents to distraction and inattention

(Dingus et al., 2006; Ranney et al., 2000; Klauer et

al., 2005; Klauer et al., 2006a; Talbot and Fagerlind,

2006). The escalating adoption of in-vehicle

information systems is of paramount importance due

to their potential to elicit visual, auditory, manual, and

cognitive demands, potentially impacting driving

performance in diverse ways. A critical knowledge

gap pertains to the intricate interplay between various

distraction types and interaction methods during

driving. This pivotal context underscores the

necessity of a comprehensive understanding to

inform safer and more effective driving

environments.

https://orcid.org/0000-0002-5525-7677

Advancements in technology are expanding the

capabilities of infotainment systems introduced into

vehicles. Communication (e.g., Messaging) and other

important user journeys that have traditionally not

been available to the driver can now be embedded

within in-vehicle information systems (IVIS). Many

of these systems have the potential to increase safety,

advancements and open possibilities in the car that

haven’t been available in the past (Klauer et al.,

2006b). However, this must be done carefully

especially since many new interaction methods (e.g.,

Voice) do not have a long history of safety evaluation.

All non-driving interactions in a car involve

distraction (Victor, 2010). So, the goal of an

infotainment system should be supporting basic tasks

and short interactions. Complicated tasks should be

performed when the car is stopped. Multimodal

interaction has the potential to provide flexibility to

the user preferred and user safe modality. Google

automotive teams use industry standards and internal

research to determine how to create products most

safely and effectively to be used while driving. There

is substantial safety data indicating how to build

visual/ manual-based products, but there is not

enough data indicating how we should build

multimodal visual/voice/ manual systems. We hope

Bhattacharya, S. and Higgins, J.

Modelling Cognitive Workload to Build Multimodal Voice Interaction in the Car.

DOI: 10.5220/0012249300003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 1: GRAPP, HUCAPP

and IVAPP, pages 393-399

ISBN: 978-989-758-679-8; ISSN: 2184-4321

393

these findings contribute to building voice based IVIS

systems.

Figure 1: In-built screen car infotainment system.

This study aims to comprehensively analyse and

assess user workload and preferences within the

context of multimodal interaction involving a

prototype infotainment system. The overarching

objective is to optimize interaction modalities for

diverse tasks such as navigation, messaging, and

their sequential execution. By investigating the

desirability and safety of multimodal interactions

for drivers, the study seeks to identify optimal

modal pairings for fundamental navigation tasks.

Furthermore, the research will delve into the

advantages and disadvantages associated with fully

voice-based interactions and hands-free approaches in

automotive settings. Another critical aspect is the

examination of mental workload and distraction

patterns during secondary interactions. Through

these inquiries, the study contributes to enhancing the

design of infotainment systems, fostering safer and

more efficient driver experiences.

2 METHOD

We collected driving data along with brain signal data

using Electroencephalography (EEG) sensors from

15 participants, (5 females and 10 males). All the

participants were between the age of 25 years to 54

years. The experiment was conducted in June 2021 in

the Google Mountain View campus following all

required human subject protocols. As

shown in

Figure 2, we used a driver simulator to collect the

driving data. An Open BCI EEG headset was used to

collect the brain signals from the drivers

(participants). We used an Android Auto tablet in the

simulator with internally designed prototypes to test

the driver - infotainment system interaction. These 15

subjects interacted with the Android Auto assistant

while driving on a simulated freeway with moderate

traffic across four modalities (only voice without any

info on the screen, Voice with information on the

screen, only touch/tap, Voice along with touch for

two types of tasks). The modalities were repeated for

two types of tasks: a “single shot” in which they are

required to complete one simple task with one

interaction; and a “multi shot”, which involved more

than six interactions in which the driver had to

complete three major tasks back-to-back. Two

sessions of data from each participant were collected,

which means they had to do a total of 16 tasks. We

also conducted a survey asking questions after every

task, which were designed based on NASA TLX

workload assessment.

Figure 2: Experimental scenario from Mountain View UX

Research Laboratory, Google.

A detailed description of each stage of the above-

mentioned methods is stated below.

2.1 Participant Selection

Data was collected from 15 non-Googler participants

between June 19th to June 30th, 2021, in a simulated

research laboratory environment. The participants

were recruited through Answer Lab/UXI. Several

criteria were considered for recruiting the

participants: i) Participants must have a valid U.S

driver’s license ii) Participants should drive at least

3+days a week iii) Should have experience with

Android Auto iv) Should have experience using

Google map and assistant. v) Participants should be

local to the Mountain View/ San Francisco area.

There were no specific requirements for gender, age

group, or ethnicity.

HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications

394

Figure 3: Open BCI 8 channel EEG Headset.

2.2 EEG Setup

EEG recordings tend to utilize between 32-64

electrodes placed according to the IEEE 10-20

positioning. However, setting up the electrodes on the

scalp is time consuming and can result in unreliable

data. Optimizing the number of electrodes pertaining

to the user’s brain activity could potentially reduce

the number of electrodes and improve the overall

classiﬁcation accuracy. This would reduce both the

computation and acquisition times. Furthermore,

using too many electrodes sometimes deteriorates the

quality of EEG signals as it picks up many unwanted

signals from the user’s scalp.

Therefore, we have used an EEG headset from

OpenBCI with 8 channels/ electrodes for our

experiment. The electrodes are distributed to cover

the whole scalp (frontal, occipital, temporal and

parietal lobes) as shown in Figure 3. The headset is

supported by OPENBCI software that helps read the

brain signals directly from a computer and export the

raw signals for further signal processing. Figure 4

shows the real time raw brain signals-alpha (8 -12 Hz),

beta (12-30 Hz), gamma (above 30Hz), theta(4-8Hz)

and delta (0.4-4Hz). The activity of the brain signals

change based on the neural activity of the participant.

Figure 4: Real time OPENBCI raw FFT plot.

For example, when a human subject is resting with

eyes closed, brain signals between 8-12 Hz i.e alpha

waves are found to be dominant in the frontal areas of

the brain. When the subject performs a lot of mental

computation, the beta wave starts dominating all

other signals. This is how the brain signals continuous

changes during neural processes in a human brain. We

will be looking at beta and gamma waves as a method

to quantify whether the driver is distracted.

2.3 NASA TLX

NASA Task Load Index (NASA TLX) is widely used

in UX research as a subjective multidimensional tool

for assessing mental workload related to a task. As

specified earlier in this paper, a user survey was also

conducted after every driving task to understand the

participant state and preference. The questions were

designed based on NASA TLX scoring style. After

every task, we asked the question how mentally

demanding the task was and to rate it out of five

where ‘1’ is ‘not very demanding’ and ‘5’ is ‘very

demanding’. At the end of every session, they were

asked which modality felt the easiest for them overall

as shown in Figure 5.

Figure 5: Final Survey Question.

2.4 Prototypes

Two main types of prototypes were created in this

experiment. The first one was a single interaction/

single shot task prototype, and the second was a

multiple interaction/ multi-shot task prototype. Single

interactions are those tasks in which the participant

must interact only once with the assistant to complete

the task, and they are usually simple and quick. But

multi-interaction tasks are those in which the driver

must interact multiple times (6+) back-to-back to

complete one task.

Again, for each of these interactions, four

modalities were designed as follows:

i) Voice-only single/multi shot tasks (task to be

completed by voice-audio interaction only; no visual

information related to the conversation provided on

the screen)

ii) Voice + screen single/multi shot tasks (task to be

completed by voice interaction only but visual

Modelling Cognitive Workload to Build Multimodal Voice Interaction in the Car

395

information about the interaction is available on the

assistant screen)

iii)

iv) Voice + ap single/multi shot tasks (task to be

completed using both voice and tapping options on

the screen)

v) Only tap single/multi shot tasks (task to be

completed using only tapping the option on the

screen).

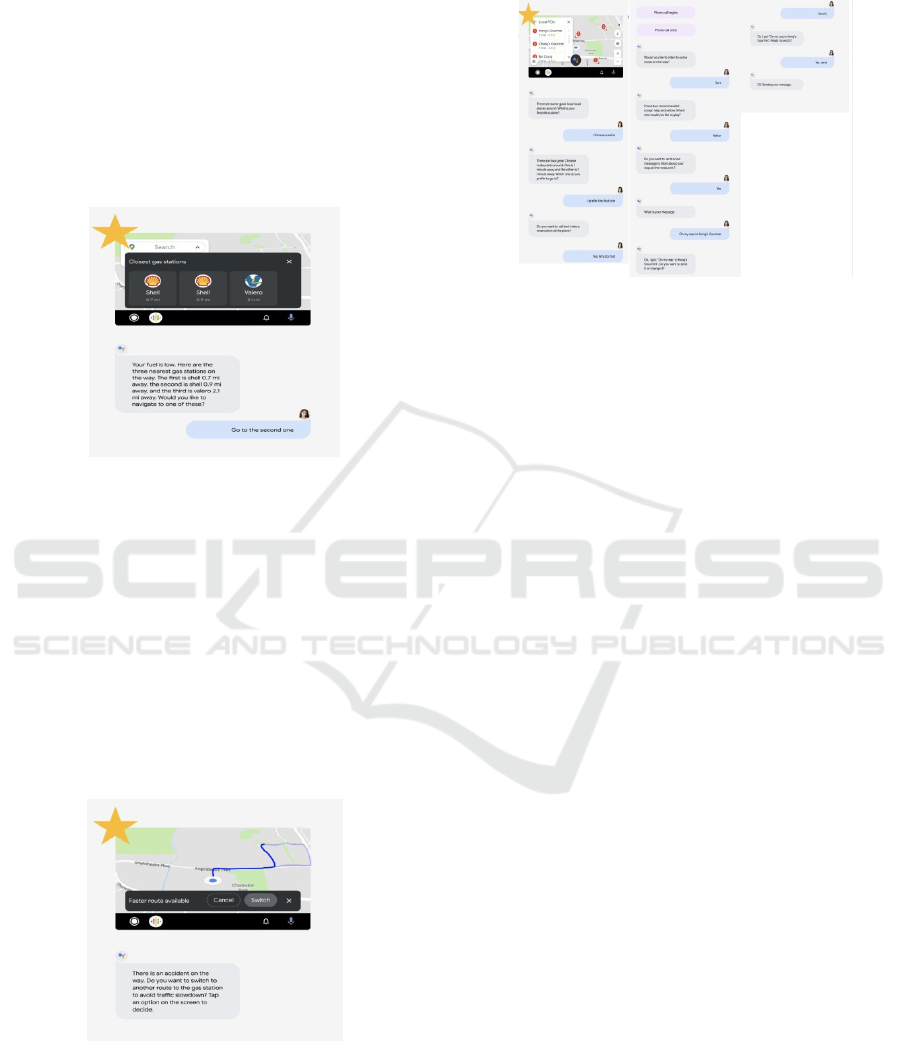

Figure 6 shows a screenshot of the prototype for

single shot voice+ screen modality task.

Figure 6: Single Interaction Voice + Screen Modality

Prototype.

This is a single shot/ single interaction task with voice

and visual/information on the screen. During the

experiment, the Assistant asks the driver to choose

one of the nearest gas stations as the fuel is low.

Assistant makes the interaction by voice and the

information about the gas stations are provided on the

screen for the driver to see the options. The driver was

required to make the choice using voice interaction

only. Whereas Figure 7 shows another single

interaction task where the driver/ participant must

make a choice by tapping on the screen.

Figure 7: Single Interaction Tap Modality Prototype.

Here the user needs to make a choice by either tapping

the option ‘switch’ or ‘cancel’ on the screen.

Similarly, the same modalities were used for multi-

interaction tasks, but the driver had to complete one

task. Figure 8 shows the chain of multi-interaction

during the driving experiment.

Figure 8: Multi Interaction Voice Modality Prototype.

As you can see in the interactions above, the Assistant

starts the conversation asking some questions about

favourite cuisine and then providing choices of those

cuisines around and then making a call for

reservation. The Assistant then asks if the driver

would like to listen to some music and provides some

choices of music.

Next, the Assistant asks if the driver wants to send

a text message and works with the user to send the text.

So, here, the user completes three major tasks

(calling, tuning music in the car, and sending text

messages) with almost nine interactions back-to-

back.

3 DATA ANALYSIS

The mental workload from the EEG signal was

calculated using a few steps as follows:

3.1 Signal Processing

The band power of the EEG signal was computed

from the raw data using Python scripting. The Gamma

and Beta band power for each participant was

specifically extracted for further analysis.

3.2 Quantitative Analysis

Brain signals are divided into five main types based

on their frequency ranges (Alpha, Beta, Gamma,

Delta, and Theta). Each of these brain signals are

usually dominant during specific tasks. Beta and

Gamma are the signals that are used for mental

workload estimation.

The cognitive load index (CLI)/ mental workload

is calculated using the ratio of mean gamma and beta

HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications

396

band power from frontal and parietal electrodes

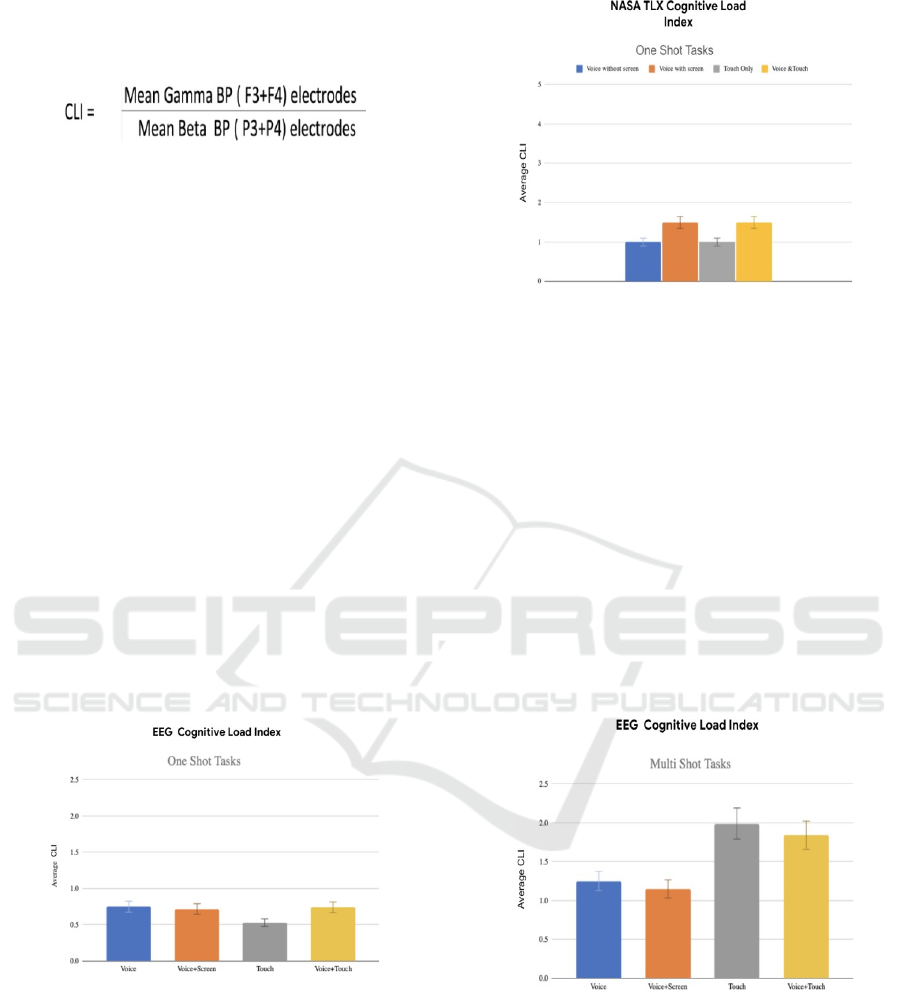

respectively. The mathematical formula is shown

below in Figure 9:

Figure 9: Cognitive Load Index.

3.3 Task Based Analysis

The average CLI is calculated for each task and

modality (e.g., single shot only voice task) and it is

compared with a baseline value computed based

on resting EEG of each participant. A baseline value

from resting EEG of every participant during the

experiment was also collected. The CLI value was

compared against the baseline value. Similarly, the

mental workload from NASA TLX two sessions, both

EEG and survey data was averaged over the sessions.

The mental workload from EEG and NASA TLX was

also compared to validate the results. The above

calculations were made for every subject

individually. Results in the section below shows the

aggregate result of all the 15 participants in this study.

4 RESULTS

Figure 10 and Figure 11 shows the result on mental

workload from one shot/ single interaction tasks.

Figure 10: Mental workload with EEG over different

modalities for one-shot tasks.

Figure 11: Mental workload with NASA TLX over different

modalities for one-shot tasks.

The above graph shows that Only Touch modality

involved the least CLI/ mental workload during one-

shot tasks. The EEG result also overlaps with NASA

TLX observation. According to EEG data, touch

modality has the least cognitive load which means it's

least challenging for drivers to handle conversation

with touch while driving. So, overall, touch modality

seems to be the common best modality from both the

techniques for one shot interactions.

For multi-shot interactions, again NASA TLX and

EEG data indicate that touch is the modality with the

highest cognitive load and voice with or without

screen are the best and preferred modalities with least

cognitive load among all the four modalities, as

shown in Figure 12 and 13 below.

Figure 12: Mental workload with EEG over different

modalities for multi-shot tasks.

Modelling Cognitive Workload to Build Multimodal Voice Interaction in the Car

397

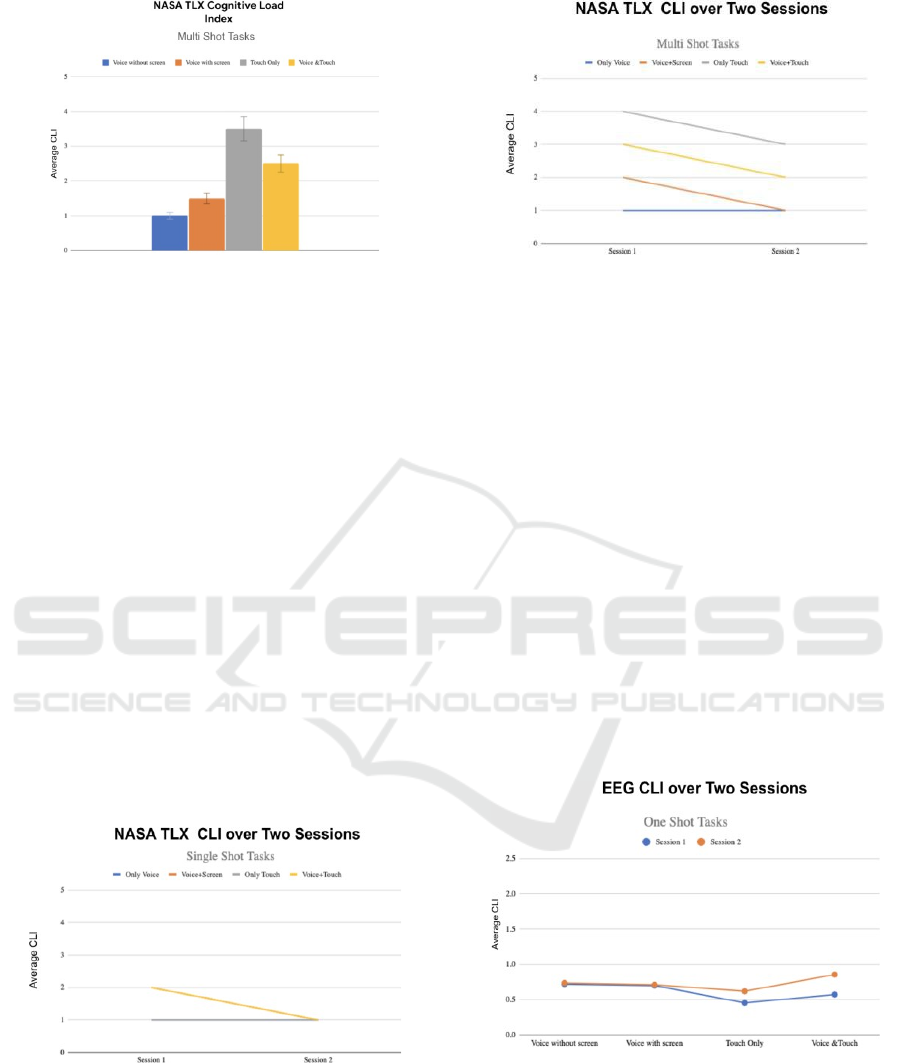

Figure 13: Mental workload with NASA TLX over different

modalities for multi-shot tasks.

The participants were also asked a final question at

the end to choose the most preferred modality

according to their experience with the drive. And the

answer chosen by most of the participants is ‘voice

with information on the screen’ across all types of

tasks (both single shot and multi shot interactions).

Also, in NASA TLX final survey participants rated

‘touch’ as an easy modality for one shot tasks during

the survey, they specified that overall touch is most

disliked as it causes distraction for them to take eyes

off the road to make the choices on the screen.

We also compared the NASA TLX choices

between two sessions, and we noticed that for both

single shot and multi shot, the participants rated most

of the modalities easier in the second session which

they rated harder in the first one. The modalities

which were rated as easy in the first session were rated

easy in the second session as well. Figure 14 and

Figure 15 shows the compared NASA TLX responses

of the participants between the first and second

session for both one shot and multi-shot tasks.

Figure 14: NASA TLX ratings over two sessions (one shot).

Figure 15: NASA TLX ratings over two sessions (multi-

shot).

In Figure 13, participants rated all modalities as

‘1’(easy) in the first session except Voice+ Touch

modality. In the second session, they rated all

modalities as easy again and the Voice+ Touch

modality as easy as well. In Figure 14, for multi-shot

tasks, participants rated all modalities as harder in the

first session except ‘only voice’ modality but in the

second session they rated all these modalities as

easier than what they rated in the first session. This

observation brings up an important research question,

“How much experience will drive perceived

workload down across time?” which will be explored

in our future research.

If we look at the EEG signals of the participants

over two sessions for one shot and multi shot tasks, we

get a similar story. Figure 15 and 17 shows the mental

workload observed with EEG signals over two

sessions. This also shows that the workload tends to

be lower in the second session.

Figure 16: Mental workload with EEG over two sessions

(one shot).

HUCAPP 2024 - 8th International Conference on Human Computer Interaction Theory and Applications

398

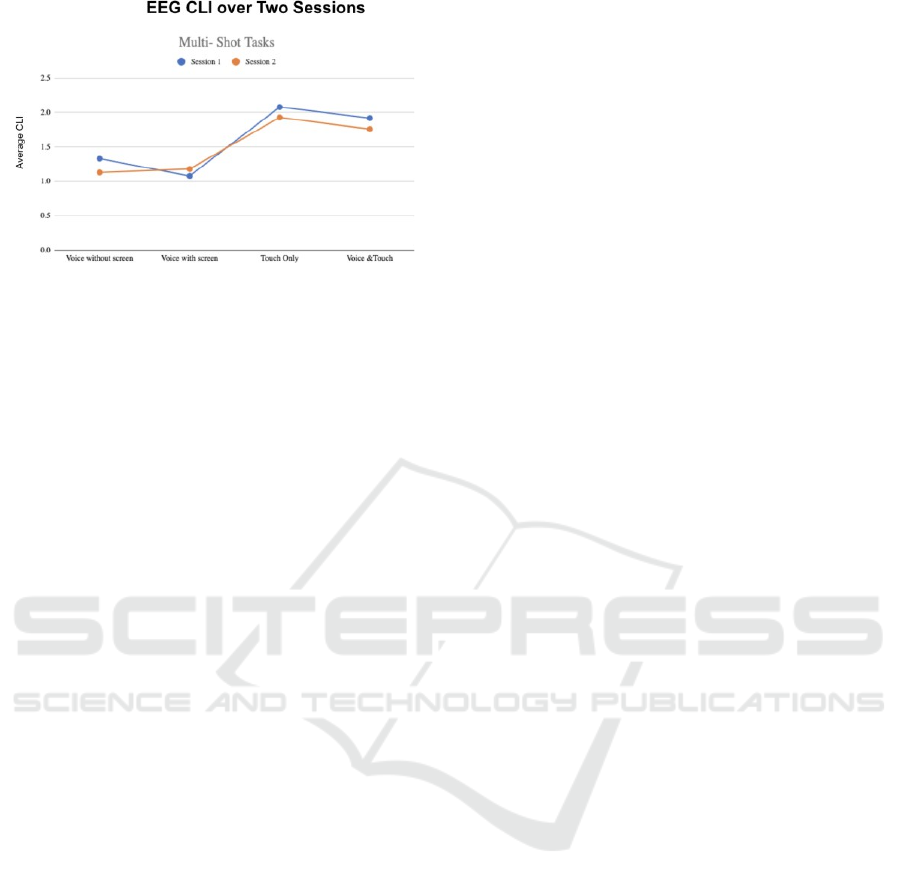

Figure 17: Mental workload with EEG over two sessions

(multi-shot).

Although we cannot conclude from this data, we can

see the possibility of reduced workload over time, if

the participants have multiple experiences with the

tasks.

5 CONCLUSIONS

In conclusion, our investigation into the realm of

multimodal voice interactions within automotive

settings has unearthed intriguing patterns. For swift

and succinct single shot interactions, voice-based

commands emerge as an optimal choice, yielding

comparable cognitive load to touch interactions.

Conversely, for intricate multi-turn or extended

engagements, voice interactions take precedence,

especially when accompanied by relevant visual cues,

facilitating a seamless conversational experience. The

dynamic interplay between experience and subjective

or EEG-based workload assessments remains an

enigma, warranting further exploration. Similarly, the

precise scenarios in which visual information

enhances various types of voice interactions warrant

deeper scrutiny. As we navigate towards a future of

enhanced in-vehicle interfaces, it becomes evident

that additional empirical endeavours are

indispensable. By embarking on forthcoming

experiments, we can illuminate the intricacies

surrounding these facets, fostering a more refined and

holistic understanding of effective multimodal voice

interaction design.

REFERENCES

World Health Organization. Global Status Report on Road

Safety 2015. Available online:

http://apps.who.int/iris/bitstream/10665/189242/1/9789

241565066_e ng.pdf?ua=1 (accessed on 2 July 2016).

Dingus, T.A.; Klauer, S.; Neale, V.; Petersen, A.; Lee, S.;

Sudweeks, J.; Perez, M.; Hankey, J.; Ramsey, D.; Gupta,

S.; et al. National Highway Traffic Safety

Administration: Washington, DC, USA, 2006.

Ranney, T.A.; Mazzae, E.; Garrott, R.; Goodman,

National Highway Traffic Safety Administration:

Washington,DC, USA, 2000; Volume 2000.

Klauer, S.G.; Neale, V.L.; Dingus, T.A.; Ramsey, D.;

Sudweeks, Proceedings of the Human Factors and

Ergonomics Society Annual Meeting, Orlando, FL,

USA, 26–30 September 2005; SAGE Publications:

Thousand Oaks, CA, USA; Volume 49, pp. 1922–1926.

Klauer, S.G.; Dingus, T.A.; Neale, V.L.; Sudweeks, J.D.;

Ramsey, D.J. National Highway Traffic Safety

Administration: Washington, DC, USA, 2006.

Talbot, R.; Fagerlind, H. Exploring inattention and

distraction in the SafetyNet accident causation

database. Accid. Anal. Prev. 2009, 60, 445–455.

Klauer, S.G.; Dingus, T.A.; Neale, V.L.; Sudweeks, J.D.;

Ramsey, D.J. National Highway Traffic Safety

Administration: Washington, DC, USA, 2006.

Victor, T. The Victor and Larsson (2010) distraction

detection algorithm and warning strategy. Volvo

Technol.2010, 1, 0–6.

Modelling Cognitive Workload to Build Multimodal Voice Interaction in the Car

399
