Policy-Driven XACML-Based Architecture for Dynamic Enforcement of

Multiparty Computation

Arghavan Hosseinzadeh

, Jessica Chwalek

and Robin Brandst

adter

Department of Security Engineering ,Fraunhofer IESE, Kaiserslautern, Germany

{ﬁrstname.lastname}@iese.fraunhofer.de

Keywords:

Data Sovereignty, Data Usage Control, Policy Language, Privacy Enhancing Technologies, Multiparty

Computation, MYDATA Control Technologies.

Abstract:

The need to protect sensitive business and personal information while adhering to data protection regulations,

along with the exponential growth of digital data, presents a signiﬁcant challenge. Data sovereignty addresses

this challenge by focusing on safeguarding data across different domains, such as business and healthcare.

This objective is accomplished through the speciﬁcation of Usage Control policies, implementation of data

anonymization techniques, and enhancement of policy enforcement in distributed systems. In this work we

present a data sovereignty solution that enhances the capabilities of the XACML framework within a data

sharing ecosystem. When this solution is realized, the data providers can beneﬁt from dynamic enforcement

of Multiparty Computation (MPC) by specifying MPC-enabling policies. Following this approach, the data

providers who seek to collaboratively compute a function over their inputs while keeping those inputs private

can enforce MPC by specifying a corresponding policy at runtime. Resulting in heightened security and

privacy preservation, our solution motivates data providers to engage in data sharing.

1 INTRODUCTION

As companies develop innovative business strategies

for data monetization, it becomes crucial for them to

not only safeguard their conﬁdential business infor-

mation but also address privacy concerns when deal-

ing with personal data (Parvinen, 2020). Further,

there is a growing trend in leveraging AI to study ag-

gregated health data, leading to advancements in pa-

tient treatment and care.

While this practice of data sharing has become

an integral aspect of business and research endeav-

ors, public opinion tends to be sympathetic toward

data sharing as long as privacy protection measures

are in place (Kalkman et al., 2022). This presents

a unique challenge of balancing data-driven insights

against privacy preservation.

According to GDPR, data is of personal nature

if it contains information that can directly or indi-

rectly identify a data subject (European Parliament

and Council of European Union, 2016). Privacy En-

hancing Technologies (PETs) have been developed

https://orcid.org/0009-0001-8699-9972

https://orcid.org/0009-0005-3406-8366

https://orcid.org/0000-0001-8439-3697

to help individual users control the amount of per-

sonal information they disclose in an online transac-

tion (Seni

car et al., 2003) and therefore, they are suit-

able tools to enforce GDPR requirements. Notably, it

is because these technologies have undergone signiﬁ-

cant improvements in recent years.

In this context, PETs denote a set of technical so-

lutions that assure the privacy of the individuals as

well as supporting companies in complying to the

data protection regulations. By the nature of PETs,

data may, for example, be encrypted and anonymized

and thus no longer falls under the GDPR (Veeningen

et al., 2018; Thapa and Camtepe, 2021). There are

still requirements to be met in order to fully comply

with GDPR. These encompass pseudonymizing data,

minimizing data collection, and providing data trans-

fer in a secure and compliance-friendly way (Thapa

and Camtepe, 2021). Multiparty Computation offers

a means of achieving these goals. It guarantees pri-

vacy by distributing computation among parties and

employing cryptographic protocols to ensure both the

accuracy and conﬁdentiality of the computation.

Yet, data providers shall be empowered to adjust

the conditions under which their data is used. A

comprehensive design for a data provision platform

should offer the means to deﬁne and ascertain these

Hosseinzadeh, A., Chwalek, J. and Brandstädter, R.

Policy-Driven XACML-Based Architecture for Dynamic Enforcement of Multiparty Computation.

DOI: 10.5220/0012254000003648

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 10th International Conference on Information Systems Security and Privacy (ICISSP 2024), pages 81-89

ISBN: 978-989-758-683-5; ISSN: 2184-4356

conditions. For instance, data providers might ex-

press the need to deny access to their data at any given

moment, or to only allow data usage within Europe

and only for an speciﬁc time interval. Moreover, data

providers shall be able to demand for a set of obliga-

tions. They may require their data to be anonymized

before sharing and be deleted after utilization.

In this work, we present an extended Usage Con-

trol architecture that can evaluate such policies that

explicitly demand to enforce Multiparty Computation

(MPC) as a prominent example of PET (Garrido et al.,

2022). The data providers who are willing to con-

tribute their data to computations while preserving

their privacy can effortlessly specify MPC-enabling

policies. Our proposed architecture ensures the effec-

tive enforcement of these policies, thereby addressing

their demands.

2 BACKGROUND

2.1 Data Sovereignty

Data Sovereignty is generally deﬁned as “a natural

person’s or corporate entity’s capability of being en-

tirely self-determined with regard to its data” (Otto

et al., 2017; Zrenner et al., 2019). That is, both

individuals with privacy concerns and business data

providers that want to keep control of their valuable

data beneﬁt from a realization of Data Sovereignty.

In order to implement Data Sovereignty, a Us-

age Control architecture is necessary. According to

Pretschner et al. a Usage Control architecture can ei-

ther entirely inhibit the utilization of the data or ap-

ply modiﬁcations, and execute the required actions

(Pretschner et al., 2008). Building upon this founda-

tion, Jung et al. describe a Usage Control architecture

based on the XACML model (Jung et al., 2022; OA-

SIS Standard, 2013). This architecture, as illustrated

in Figure 1, includes several components that work

together to enforce Usage Control policies and is the

basis of our work.

A Policy Enforcement Point (PEP) monitors and

intercepts data ﬂows and asks a Policy Decision Point

(PDP) how to handle the data. Are there any policies

restricting the use of the data, subject to speciﬁc con-

ditions being met? Are there any policies demanding

further modiﬁcations (e.g., ﬁltering) of the data?

A PDP evaluates the policies that are stored in a

repository (known as Policy Retrieval Point (PRP))

based on the information taken from Policy Informa-

tion Points (PIPs). Consequently, the PDP provides

the PEP with the data treatment decision; in addi-

tion, it may invoke Policy Execution Points (PXPs)

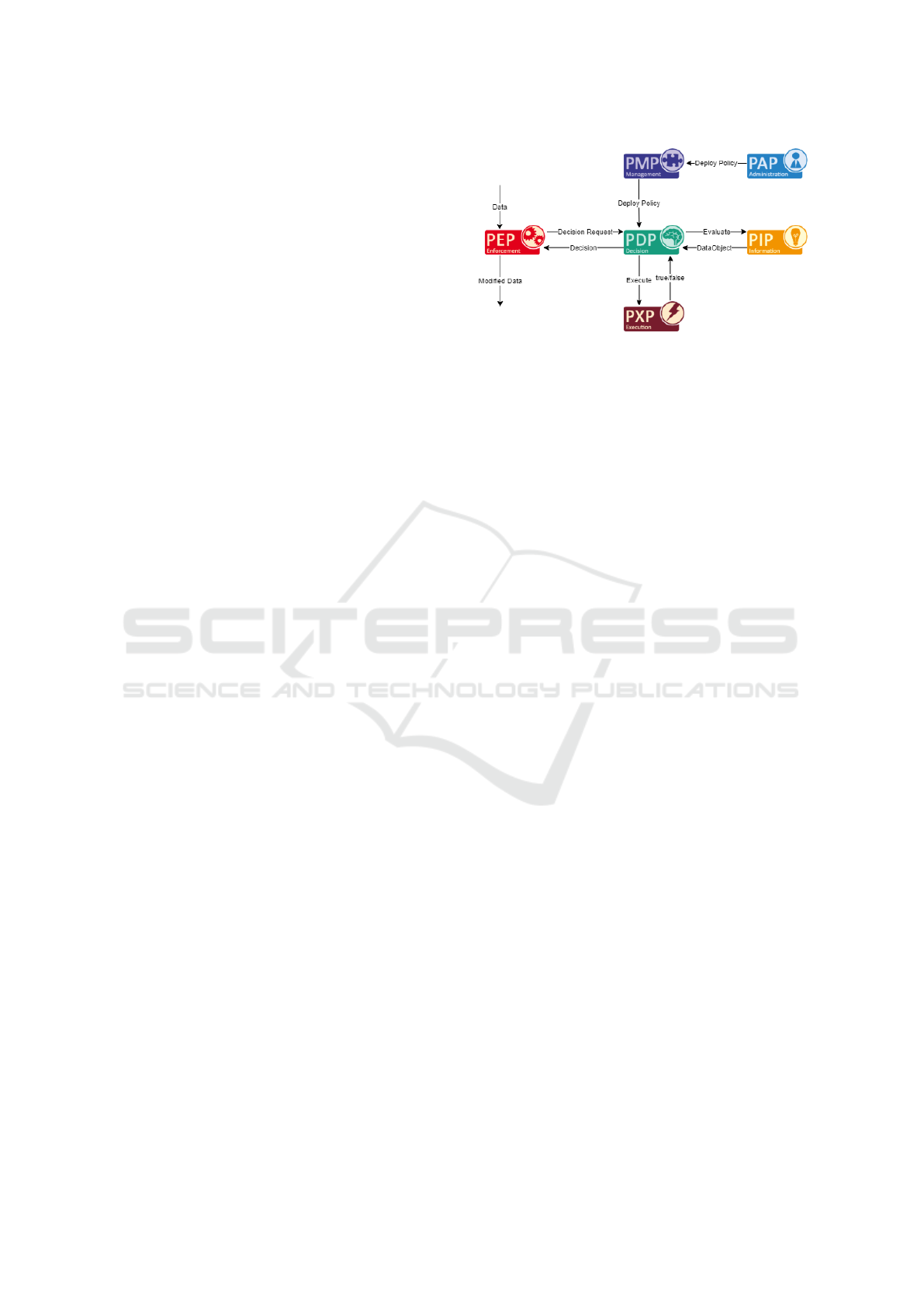

Figure 1: Usage Control Communication Flow.

for executing further obligations (e.g., sending a no-

tiﬁcation to the data provider when the data usage is

allowed). Obligations refer to the extra value that Us-

age Control adds to the Access Control. After all, a

Policy Management Point (PMP) manages these com-

ponents. Lauf et al. implement this architecture and

offer a solution in a scenario that involves medical

data (Lauf et al., 2022). They provide patients with

three different levels of agreement (i.e., broad con-

sent, vicarious contract, and constrain provision for

a project). By reconﬁguring their individual policies,

patients can control their personal medical data.

Ultimately, Usage Control policies play a pivotal

role in the realization of Data Sovereignty. Policies

are often represented in the form of event-condition-

action rules, in which a speciﬁc event, in a particu-

lar situation, triggers a speciﬁc action. According to

Singh et al., actions tend toward three categories: re-

conﬁguration, message production, and policy man-

agement. Therefore, state changes can alter the set of

active policies (Singh et al., 2014). For instance, one

can deﬁne a context-aware policy as follows: ”During

a medical emergency situation, the sensitive health

data shall be provided without restrictions, but once

the emergency situation is over, the data can only be

used for research purposes.”

Depending on the scenarios and the preferences of

data providers, policies may become more complex.

These policies may not only permit or deny data usage

in different situations, but they may also require data

ﬁltering and anonymization.

2.2 Multiparty Computation

Secure Multiparty Computation (MPC) is a crypto-

graphic protocol that enables m parties, each party

owning a secret x

, to compute a function f (x

, ..., x

)

collaboratively while preserving the privacy of their

individual inputs. This has been initially introduced

by Yao and has been extended by Goldreich et al.,

who proposed the multiparty component (Yao, 1982;

Goldreich et al., 1987).

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

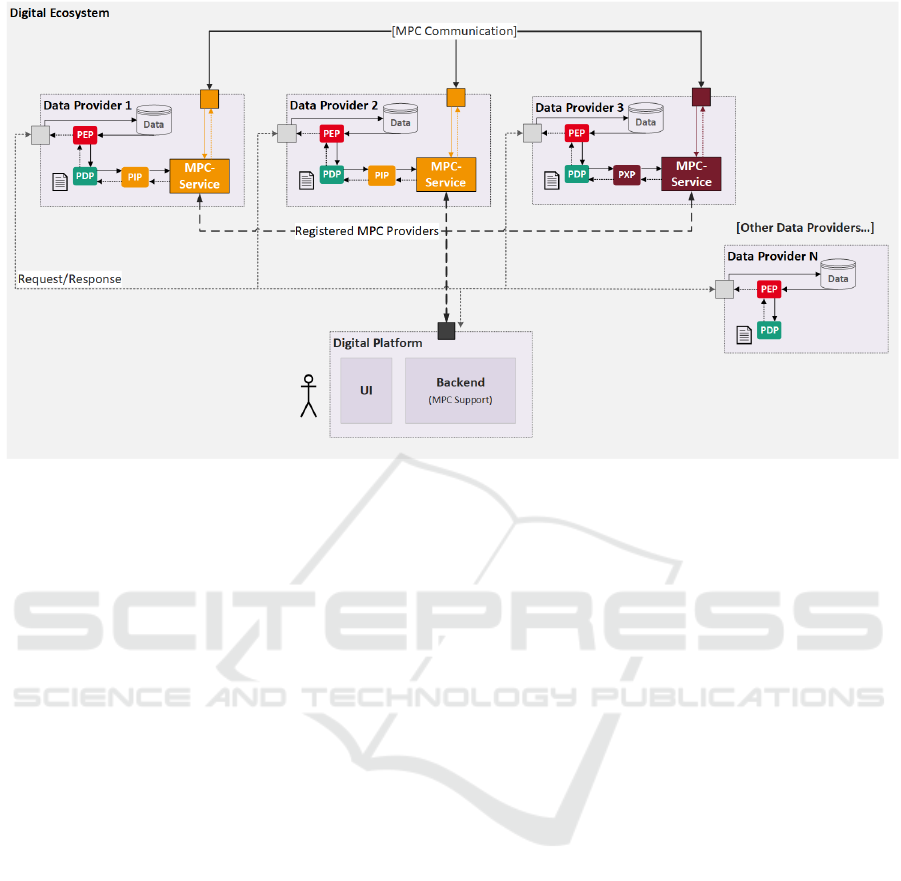

Figure 2: Extended XACML-based architecture to enforce MPC policy.

It utilizes advanced cryptographic techniques to

ensure that no party gains knowledge about the pri-

vate inputs of others. By distributing the computation

across multiple parties, MPC allows for joint analy-

sis of sensitive data without compromising privacy.

Thus, it comes as no surprise that Deng et al. promote

MPC as a countermeasure against linkability and los-

ing conﬁdentiality (Deng et al., 2011).

Today, a multitude of MPC implementations are

available, including the EMP-toolkit (Wang et al.,

2016) and MP-SPDZ (Keller, 2020) which are pub-

licly available.

MPC has gained signiﬁcant attention in the ﬁeld of

privacy-preserving computation and secure data anal-

ysis. It has applications in various domains, including

ﬁnancial transactions, healthcare data analysis, col-

laborative machine learning, and more.

For example, Kumar et al. introduce a solution

in which the patients’ data can be shared with hospi-

tals in encrypted format, so that a proper diagnosis is

found (Kumar et al., 2020). The goal is to preserve

privacy of the patients while providing them the best

possible treatments.

Agahari et al. present an application of MPC in

business-to-business data sharing (e.g., in the auto-

motive sector) (Agahari et al., 2022). They imple-

ment MPC as part of a data marketplace and show

that using MPC can provide better control over data,

lower the need for trust in other actors involved, and

reduce competitiveness risks. They emphasize how

MPC affects the companies’ decision to share or not

sharing data. However, in their work, the speciﬁcation

of MPC enforcement is static.

Similarly, Koch et al. propose a privacy-

preserving data marketplace (Koch et al., 2022a).

There, MPC is leveraged to enable data consumers

evaluate expressive functions on a set of data. In ad-

dition, data providers can selectively authorize spe-

ciﬁc computations by setting corresponding policies.

Analogous to the aforementioned solution, the poli-

cies shall be pre-deﬁned and linked to the data upon

its registration with the broker.

3 POLICY-DRIVEN

ARCHITECTURE FOR

ENFORCING MPC

In this section, we present an architecture that allows

reconﬁguration of policies at runtime in order to en-

force MPC in a digital ecosystem. Koch et al. deﬁne

a digital ecosystem as a socio-technical system con-

necting multiple, typically independent providers and

consumers of assets for their mutual beneﬁt (Koch

et al., 2022b).

In an ecosystem, digital platforms provide digi-

tal services. An example of a digital ecosystem ser-

vice is the provision of statistical data. This service

involves collecting data from various providers, per-

forming functions such as summation or averaging,

and delivering the results to data consumers. In this

work, we enhance the architecture of a platform that

provides such a service to allow the data providers

Policy-Driven XACML-Based Architecture for Dynamic Enforcement of Multiparty Computation

to keep control over their data. They can store their

data and the corresponding policies on their own sites

while utilizing MPC for securely performing the re-

quested calculation.

In this work, we present two possibilities to en-

force MPC:

• Finite delay and Modiﬁcation. A PIP wraps the

MPC Service and performs the MPC computation

synchronously. The PDP waits until the computa-

tion is over. The Modiﬁcation mechanism is used

to replace the original conﬁdential value with the

PIP result.

• Execution of Action. A PXP wraps the MPC Ser-

vice and performs the MPC computation asyn-

chronously. The result will be provided to the

platform as soon as it is ready.

Figure 2 shows an overview of our proposed

XACML-based architecture, to enforce MPC. In the

scenario shown, we have a user who has the role of a

data consumer in a digital ecosystem. Moreover, we

have N data providers , each of whom can provide a

speciﬁc piece of information. When a request is made

by the user, the platform knows which providers to

contact. These providers, however, do not know each

other. Their MPC services will only obtain the infor-

mation about the other involved parties of the plat-

form if they conﬁgure a policy to allow data sharing

under the condition of performing MPC.

Every data provider who wants to enforce Usage

Control policies must have a policy repository and

also requires a PDP component for the policy eval-

uation. In addition, each data provider must imple-

ment at least one PEP that can intercept the data ﬂow

and enforce the Usage Control decisions. After these

components are implemented, a data provider can re-

conﬁgure corresponding policies to either allow or in-

hibit the provision of the data.

In order to enforce MPC-enabling policies, data

providers must wrap their MPC services by either a

PIP or a PXP. The computation of MPC is indepen-

dent of which component triggers the MPC service.

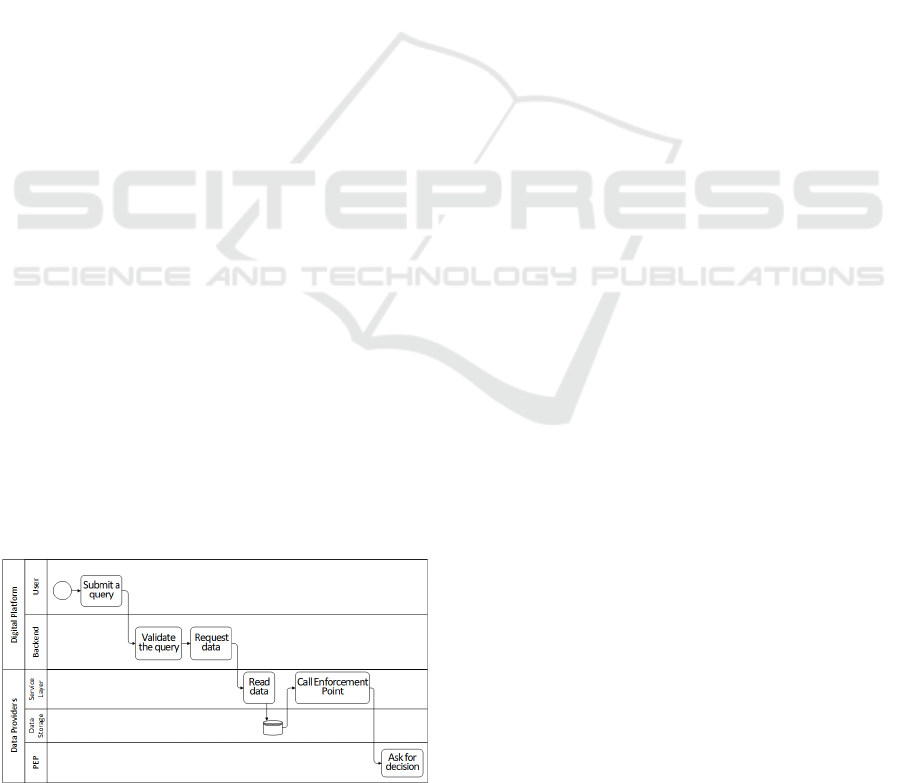

Figure 3: BPMN Diagram - Submit a Query.

To better clarify the process, we explain the step-

wise communication process between a user, the

backend implementation of a platform, and the Usage

Control components of data providers. As illustrated

in Figure 3, a user of a digital platform must ﬁrst

submit a query on the platform. For example, there

can be a request for “total number of Methicillin-

resistant Staphylococcus aureus (MRSA) cases dur-

ing last year” on a digital ecosystem that connects

health care organizations and researchers to exchange

health data. Most MRSA infections occur in people

who have been in hospitals, doctor’s ofﬁces, dialysis

centers, etc. Hospitals and other data providers may

decide to provide this information only via MPC to

avoid exposing themselves as origins of MRSA in-

fections.

When a query is submitted, the platform validates

it and requests to obtain data from the known data

providers. On data provider side, the service layer

reads the raw data from their repository and triggers

the enforcement point. The PEP then intercepts the

data ﬂow and calls the PDP to determine whether the

use of the raw data is permitted, prohibited, or subject

to further modiﬁcations.

The PDP receives the request from the PEP and

evaluates the existing policies. More information

about the policy speciﬁcation will be provided in the

next section. At this point, the policies are already

conﬁgured and stored by the data providers. As il-

lustrated in Figure 4, four different decisions can be

made depending on the last deployed policies:

1. Permit. The dynamic reconﬁgurable implemen-

tation of Usage Control gives us the ability to re-

voke a policy and simply permit the use of the data

without further restrictions. However, we can ex-

plicitly allow the provision of original data. So,

the PEP provides the raw data without any modi-

ﬁcation.

2. Inhibit. When the policy inhibits the use of the

data, the PDP instructs the PEP to block the data

ﬂow. Accordingly, the PEP prepares a message to

inform the platform.

3. Enforce MPC using a PIP. The PDP triggers

a corresponding PIP that performs MPC syn-

chronously. The PDP provides the raw data which

is needed for the computation to the PIP and waits

until the computation is completed.

4. Enforce MPC using a PXP. The PDP triggers a

corresponding PXP to perform the MPC and pro-

vides the raw data to it for the computation. Fur-

thermore, the PDP requests the PEP to inhibit the

provision of raw data, and informs the PEP with a

message that PXP will perform the MPC compu-

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

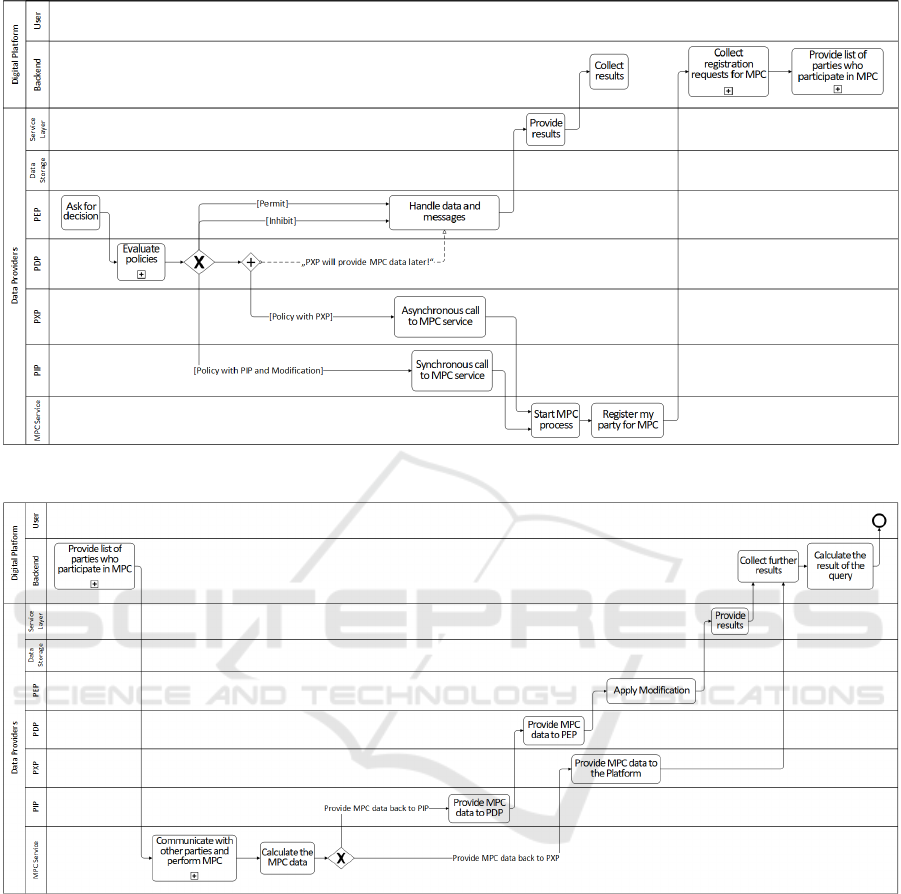

Figure 4: BPMN Diagram - Policy Evaluation.

Figure 5: BPMN Diagram - MPC Calculation.

tation asynchronously. According to this decision,

the PEP further informs the platform that MPC

data will be provided later or can be retrieved from

a deﬁned endpoint. Which option is chosen is, of

course, an implementation decision.

The platform knows the total number of data

providers that are requested to provide their data.

Therefore, the platform waits to receive responses

from each of them. Some may provide their raw

data to the platform and some may inhibit the use

of their data. The remaining ones, who decide to

perform MPC, must register themselves to the plat-

form. According to the number of registered parties,

the platform dynamically initiates the MPC environ-

ment. This step is important because only the plat-

form knows which other parties are participating in

the MPC and therefore, can provide all of them with

the information about other participants.

Now, an MPC communication can start. The MPC

services of the involved parties jointly compute the

requested function over their inputs, regardless of

whether an MPC service is encapsulated by a PIP or

a PXP.

As shown in Figure 5, the MPC service sends the

calculated MPC data back to the component that initi-

ated the calculation. In case of a PIP, since it is a syn-

Policy-Driven XACML-Based Architecture for Dynamic Enforcement of Multiparty Computation

< p o l i c y i d = ’ ur n : p o l i c y : p l a t f o r m : p o l i c y 1 ’ d e s c r i p t i o n = ’ r e t r i c t t h e d a t a u s a g e t o

t i m e and l o c a t i o n ’>

<and>

< d a t e i s = ’ b e f o r e ’ v a l u e = ’ 0 1 . 0 4. 2 0 2 4 ’ / >

</and>

</ t h e n >

</ e l s e >

</mechanism>

Listing 1: MYDATA Policy.

chronous call and the PDP is waiting, the result will

be forwarded to the PDP and the PEP, respectively.

The PEP applies the modiﬁcation by substituting the

raw data with MPC data and subsequently delivers the

MPC data to the platform. In case of a PXP, data will

be provided to the platform, as promised.

Depending on the scenario, one can choose to im-

plement the MPC using a PIP or a PXP, since each

option has its own advantages and disadvantages.

The synchronous implementation may lead to time-

out. However, the asynchronous implementation re-

quires more complex message processing on the part

of the MPC initiator.

4 IMPLEMENTATION

MYDATA Control Technologies is a technical im-

plementation of data sovereignty (Fraunhofer IESE,

2018). It is based on IND

UCE framework (Jung

et al., 2014) and when realized, it lets users enforce

their Usage Control policies while they can reconﬁg-

ure their intended operations at runtime. In this work,

we integrated MYDATA Control Technologies to en-

force MPC policies and the additional MPC service is

implemented using Cicada 0.8.1 (Berry et al., 2021).

There are two considerations regarding the perfor-

mance of our solution. Firstly, the dynamic charac-

teristic of this solution imposes a waiting period be-

fore an MPC communication begins. It is because the

MPC participants are not known in advance and the

platform must wait until all providers evaluate their

policies and signal their intent to contribute in the

MPC computation. Secondly, data providers rely on

network communication to engage in MPC. Conse-

quently, the performance is directly inﬂuenced by the

efﬁciency of this network communication.

5 POLICY SPECIFICATION

A Policy Administration Point (PAP) is responsi-

ble for policy speciﬁcation. The PAP of MYDATA

Control Technologies offers a user-friendly editor for

specifying policies in MYDATA language, which is

XML-based and follows the event-condition-action

schema. Listing 1 shows an example policy speciﬁed

in MYDATA language. This policy restricts the time

and the location of data usage to before 01.04.2024

and Germany, respectively. As mentioned before,

a comprehensive Usage Control policy not only ex-

presses the conditions of data provision, but also de-

ﬁnes the required obligations and modiﬁcations.

For instance, a data provider can specify a policy

that not only checks the time and location restrictions,

but also enforces MPC. The policy shown in Listing 2

declares a variable called MpcPipValue that stores the

returned value from a PIP. The PIP is identiﬁed with

summationPip. It provides data from an MPC service

and receives three parameters. These parameters that

are listed below, are mandatory for performing MPC

(e.g., performing a summation function over inputs

about MRSA cases).

• Id. This parameter refers to the unique identiﬁer

of the request. In case of several requests, a fault-

less parallel computation is only possible when

the id is given.

• Requester. This parameter refers to the platform

where the request originated. The MPC service

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

< p o l i c y i d = ’ ur n : p o l i c y : p l a t f o r m : p o l i c y 2 ’ d e s c r i p t i o n = ’ Use PIP t o e n f o r c e mpc f o r

d a t a s h a r i n g . ’ >

< v a r i a b l e D e c l a r a t i o n : number name = ’ MpcPipValue ’>

</ v a r i a b l e D e c l a r a t i o n : number>

<and>

<no t>

< v a r i a b l e : number r e f e r e n c e = ’ MpcPipValue ’/ >

< c o n s t a n t : number v a l u e = ’NULL’/ >

</ e q u a l s >

</ n o t >

<!−− o t h e r c o n d i t i o n s −−>

</and>

< v a r i a b l e : number r e f e r e n c e = ’ MpcPipValue ’/ >

</ mo d ify>

</ t h e n >

</ e l s e >

</mechanism>

Listing 2: MPC Policy via Policy Information Point.

must register there to obtain information about the

other participants and to start the MPC computa-

tion.

• RealValue. This parameter refers to the raw data

(e.g., the number of MRSA patients occurred in a

data provider’s work place).

Moreover, the policy shown in Listing 2 speciﬁes

that once the MPC is computed successfully and the

PIP returns a valid number, then the modiﬁcation shall

apply. As shown in the then-block of the policy, a

modiﬁcation method replaces the raw data with the

MPC data, in transit.

Similarly, we can deﬁne a MYDATA policy that

demands to enforce MPC using a PXP. As shown in

Listing 3, the policy declares a variable called MpcPx-

pValue. This variable refers to a PXP that is identiﬁed

with summationPxp and wraps the MPC service. The

PXP receives the same parameters (id, requester and

realValue). This is due to the fact that the MPC ser-

vice that performs in the background is agnostic to the

chosen form of synchronous or asynchronous com-

munication. As mentioned before, the only difference

is that the PDP does not wait for the result of the MPC

calculation.

The PXP returns true when it is successfully trig-

gered. If the conditions speciﬁed in the if-block are

fulﬁlled, the PDP provides the PEP with an inhibit

decision with a message attached to it; ”PXP will

provide MPC data later!”. This decision and the at-

tached message indicate that the provision of the raw

data is prohibited, though PXP has received the order

and MPC will be performed asynchronously. If the

speciﬁed conditions are not fulﬁlled (e.g., if the PXP

throws an error), the decision is simply to inhibit the

data provision.

Depending on the implementation, the message

Policy-Driven XACML-Based Architecture for Dynamic Enforcement of Multiparty Computation

< p o l i c y i d = ’ ur n : p o l i c y : p l a t f o r m : p o l i c y 3 ’ d e s c r i p t i o n = ’ Use PXP t o e n f o r c e mpc f o r

d a t a s h a r i n g . ’ >

< v a r i a b l e D e c l a r a t i o n : b o o l e a n name = ’ MpcPxpValue ’>

< e x e c u t e a c t i o n = ’ ur n : a c t i o n : p l a t f o r m : summationPxp ’>

</ e x e c u t e >

</ v a r i a b l e D e c l a r a t i o n : b oo l e a n >

<and>

< v a r i a b l e : b o o l e a n r e f e r e n c e = ’ MpcPxpValue ’/ >

<!−− o t h e r c o n d i t i o n s −−>

</and>

</ t h e n >

</ e l s e >

</mechanism>

Listing 3: MPC Policy via Policy Execution Point.

includes information about how MPC data will be de-

livered; whether the data will be pushed to the plat-

form, or whether the platform can pull it from a de-

ﬁned endpoint.

6 CONCLUSION AND FUTURE

WORK

In summary, we introduced an extended XACML-

based architecture that serves both data providers

and data consumers that are involved in a data shar-

ing ecosystem. The raw data remains on the data

provider’s side and will not be disclosed, even to the

platform, without data provider’s permission. In case

of performing MPC, only the MPC values will be dis-

closed to the platform.

The Usage Control policies are speciﬁed and

stored on the data provider’s side, as well. Data

providers can enforce their restrictions and obliga-

tions by reconﬁguring their policies at runtime and

without the necessity of changing the implementation

of their Usage Control components (i.e., PEP, PIP and

PXP). Considering the ability to enforce MPC and

also to inhibit the provision of data at any time, data

providers are encouraged to provide their data, which

beneﬁts data consumers as well.

Yet, in this work, we focused on implementing

MPC. To expand it, future work can focus on en-

forcing other PETs such as Differential Privacy or

Federated Learning while beneﬁting from dynamic

reconﬁguration of Usage Control policies by data

providers.

ACKNOWLEDGEMENTS

This research has been funded by the Federal Ministry

for Economic Affairs and Climate Action (BMWK)

in the project ”Semantische Plattform zur intelligen-

ten Entscheidungs- und Einsatzunterst

utzung in Leit-

stellen und Lagezentren” (grant agreement number

FKZ 01MK21005B).

REFERENCES

Agahari, W., Ofe, H., and de Reuver, M. (2022). It is not

(only) about privacy: How multi-party computation

redeﬁnes control, trust, and risk in data sharing. Elec-

tronic markets, 32(3):1577–1602.

ICISSP 2024 - 10th International Conference on Information Systems Security and Privacy

Berry, J. W., Ganti, A., Goss, K., Mayer, C. D., Onunkwo,

U., Phillips, C. A., Saia, J., and Shead, T. M. (2021).

Adapting secure multiparty computation to support

machine learning in radio frequency sensor networks.

Technical report, Sandia National Lab.(SNL-NM), Al-

buquerque, NM (United States).

Deng, M., Wuyts, K., Scandariato, R., Preneel, B., and

Joosen, W. (2011). A privacy threat analysis frame-

work: supporting the elicitation and fulﬁllment of

privacy requirements. Requirements Engineering,

16(1):3–32.

European Parliament and Council of European Union

(2016). Regulation (eu) 2016/679 of the european

parliament and of the council of 27 april 2016 on the

protection of natural persons with regard to the pro-

cessing of personal data and on the free movement of

such data, and repealing directive 95/46/ec (general

data protection regulation). Ofﬁcial Journal of the Eu-

ropean Union, L 119, 4.5.2016, p. 1–88.

Fraunhofer IESE (2018). Mydata control technologies.

https://www.mydata-control.de/.

Garrido, G. M., Sedlmeir, J., Uluda

O., Alaoui, I. S.,

Luckow, A., and Matthes, F. (2022). Revealing the

landscape of privacy-enhancing technologies in the

context of data markets for the iot: A systematic lit-

erature review. Journal of Network and Computer Ap-

plications, page 103465.

Goldreich, O., Micali, S., and Wigderson, A. (1987). How

to play any mental game. In Proceedings of the nine-

teenth annual ACM conference on Theory of comput-

ing - STOC ’87, New York, New York, USA. ACM

Press.

Jung, C., D

orr, J., Otto, B., Ten Hompel, M., and Wrobel, S.

(2022). Data usage control. Designing Data Spaces:

The Ecosystem Approach to Competitive Advantage,

pages 129–146.

Jung, C., Eitel, A., and Schwarz, R. (2014). Enhancing

cloud security with context-aware usage control poli-

cies. GI-Jahrestagung, 211:50.

Kalkman, S., van Delden, J., Banerjee, A., Tyl, B., Mostert,

M., and van Thiel, G. (2022). Patients’ and public

views and attitudes towards the sharing of health data

for research: a narrative review of the empirical evi-

dence. Journal of Medical Ethics, 48(1):3–13.

Keller, M. (2020). Mp-spdz: A versatile framework for

multi-party computation. In Proceedings of the 2020

ACM SIGSAC conference on computer and communi-

cations security, pages 1575–1590.

Koch, K., Krenn, S., Marc, T., More, S., and Ramacher, S.

(2022a). Kraken: a privacy-preserving data market for

authentic data. In Proceedings of the 1st International

Workshop on Data Economy, pages 15–20.

Koch, M., Krohmer, D., Naab, M., Rost, D., and Trapp, M.

(2022b). A matter of deﬁnition: Criteria for digital

ecosystems. Digital Business, 2(2):100027.

Kumar, A. V., Sujith, M. S., Sai, K. T., Rajesh, G., and

Yashwanth, D. J. S. (2020). Secure multiparty com-

putation enabled e-healthcare system with homomor-

phic encryption. In IOP Conference Series: Materials

Science and Engineering, volume 981, page 022079.

Lauf, F., zum Felde, H. M., Kl

otgen, M., Brandst

adter,

R., and Sch

onborn, R. (2022). Sovereignly donating

medical data as a patient: A technical approach. In

HEALTHINF, pages 623–630.

OASIS Standard (2013). extensible access control markup

language (xacml) version 3.0. A:(22 January 2013).

URl: http://docs.oasis-open.org/xacml/3.0/xacml-3.0-

core-spec-os-en.html.

Otto, B., Lohmann, S., Auer, S., et al. (2017). Reference

architecture model for the industrial data space.

Parvinen, P. (2020). Advancing data monetization and the

creation of data-based business models. Communi-

cations of the association for information systems,

47(1):2.

Pretschner, A., Hilty, M., Sch

utz, F., Schaefer, C., and Wal-

ter, T. (2008). Usage control enforcement: Present and

future. IEEE Security & Privacy, 6(4):44–53.

Seni

car, V., Jerman-Bla

c, B., and Klobu

car, T. (2003).

Privacy-enhancing technologies—approaches and de-

velopment. Computer Standards & Interfaces,

25(2):147–158.

Singh, J., Bacon, J., and Eyers, D. (2014). Policy en-

forcement within emerging distributed, event-based

systems. In Proceedings of the 8th ACM Interna-

tional Conference on Distributed Event-Based Sys-

tems, pages 246–255.

Thapa, C. and Camtepe, S. (2021). Precision health data:

Requirements, challenges and existing techniques for

data security and privacy. Computers in biology and

medicine, 129:104130.

Veeningen, M., Chatterjea, S., Horv

ath, A. Z., Spindler, G.,

Boersma, E., van der SPEK, P., van der Gali

en, O.,

Gutteling, J., Kraaij, W., and Veugen, T. (2018). En-

abling analytics on sensitive medical data with secure

multi-party computation. In MIE, pages 76–80.

Wang, X., Malozemoff, A. J., and Katz, J. (2016). Emp-

toolkit: Efﬁcient multiparty computation toolkit.

Yao, A. C. (1982). Protocols for secure computations. In

23rd Annual Symposium on Foundations of Computer

Science (sfcs 1982). IEEE.

Zrenner, J., M

oller, F. O., Jung, C., Eitel, A., and Otto, B.

(2019). Usage control architecture options for data

sovereignty in business ecosystems. Journal of Enter-

prise Information Management, 32(3):477–495.

Policy-Driven XACML-Based Architecture for Dynamic Enforcement of Multiparty Computation
