Enabling On-Device Continual Learning

with Binary Neural Networks and Latent Replay

Lorenzo Vorabbi

1,2 a

, Davide Maltoni

2 b

, Guido Borghi

2 c

and Stefano Santi

Datalogic Labs, Bologna, 40012, Italy

Department of Computer Science and Engineering (DISI), University of Bologna, Cesena, Italy

Keywords:

Binary Neural Networks, On-Device Learning, TinyML, Continual Learning.

Abstract:

On-device learning remains a formidable challenge, especially when dealing with resource-constrained de-

vices that have limited computational capabilities. This challenge is primarily rooted in two key issues: ﬁrst,

the memory available on embedded devices is typically insufﬁcient to accommodate the memory-intensive

back-propagation algorithm, which often relies on ﬂoating-point precision. Second, the development of learn-

ing algorithms on models with extreme quantization levels, such as Binary Neural Networks (BNNs), is critical

due to the drastic reduction in bit representation. In this study, we propose a solution that combines recent ad-

vancements in the ﬁeld of Continual Learning (CL) and Binary Neural Networks to enable on-device training

while maintaining competitive performance. Speciﬁcally, our approach leverages binary latent replay (LR)

activations and a novel quantization scheme that signiﬁcantly reduces the number of bits required for gradient

computation. The experimental validation demonstrates a signiﬁcant accuracy improvement in combination

with a noticeable reduction in memory requirement, conﬁrming the suitability of our approach in expanding

the practical applications of deep learning in real-world scenarios.

1 INTRODUCTION

In recent times, the integration of Artiﬁcial Intelli-

gence into the Internet of Things (IoT) paradigm (Mo-

hamed, 2020; Alshehri and Muhammad, 2020), en-

abling the provision of intelligent systems capable of

learning even within embedded or tiny devices, has

garnered signiﬁcant attention in the literature. This

trend has been facilitated by various factors, includ-

ing the evolution of microchips, which have led to the

availability of cost-effective chips in many everyday

objects. Additionally, the exploration of new learning

paradigms, such as Continual Learning (CL) (Parisi

et al., 2019; Masana et al., 2022), has contributed to

the development of techniques for training neural net-

works continuously, on small data portions (denoted

as experiences) at a time, mitigating the issue of catas-

trophic forgetting (Kirkpatrick et al., 2017). In this

manner, a neural network, in contrast to the traditional

machine learning paradigm, does not learn from a sin-

gle large dataset accessible entirely during the train-

https://orcid.org/0000-0002-4634-2044

https://orcid.org/0000-0002-6329-6756

https://orcid.org/0000-0003-2441-7524

ing phase but rather from small data portions accessi-

ble gradually over time. This limited amount of data

needed by the training procedure effectively simpli-

ﬁes the adoption of a CL training implementation on

embedded devices.

Despite the keen interest of the scientiﬁc commu-

nity, numerous challenges still persist, rendering the

utilization of deep learning models on devices par-

ticularly demanding. These challenges are primarily

associated with the computational requirements typi-

cally demanded by deep neural networks, even though

based on CL strategies. Indeed, embedded devices

often have limited available memory, preventing the

storage of a vast amount of data. Furthermore, a

powerful GPU is usually absent due to cost, space

constraints, and energy consumption. These compet-

ing needs have given rise in the last few years to a

speciﬁc branch of machine learning and deep learn-

ing called TinyML (Banbury et al., 2020), focused

on shrinking and compressing neural network models

with respect to the target device characteristics. One

of the most interesting TinyML approaches, is Binary

Neural Networks (BNNs) (Courbariaux et al., 2016;

Rastegari et al., 2016; Qin et al., 2020), where a sin-

gle bit is used to encode weights and activations; un-

Vorabbi, L., Maltoni, D., Borghi, G. and Santi, S.

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay.

DOI: 10.5220/0012269000003660

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 19th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2024) - Volume 2: VISAPP, pages

25-36

ISBN: 978-989-758-679-8; ISSN: 2184-4321

Latent Replay

Layer

Replay Memory (1-bit)

Concatenate al mini-

batch level

Output

layer

Frozen layers

Learnable layers

Quantized Backpropagation

CWR*

1-bit

𝑞

𝑏

-bit

1-bit

𝑞

𝑏

-bit

𝑞

𝑏

-bit

1-bit

Figure 1: Continual Learning with latent replay memory. When using a BNN the activations stored in the replay memory can

be quantized to 1-bit.

fortunately, solutions based on BNNs in combination

with Continual Learning algorithms are still lacking.

A previous work (Vorabbi et al., 2023a) explored

the possibility of training a BNN model on-device by

freezing the binary backbone and allowing the adapta-

tion of only the last classiﬁcation layer where forget-

ting is mitigated by CWR* (Lomonaco et al., 2020;

Grafﬁeti et al., 2022). Unfortunately, the reported re-

sults are interesting but the ﬁnal accuracy is signiﬁ-

cantly lower w.r.t. a system where all the layers can be

tuned. Pellegrini et al. (Pellegrini et al., 2020) showed

that a good accuracy/efﬁciency tradeoff in CL can be

achieved by only some convolutional layers (typically

from 3 to 5), placed before the classiﬁcation head. Re-

playing part of old data (stored in a replay memory

or buffer), interleaved with new samples, was proved

to be an effective approach to mitigate catastrophic

forgetting (Kirkpatrick et al., 2017). If past samples

are stored as intermediate activations (instead of raw

data), the replay technique takes the name latent re-

play (Pellegrini et al., 2020) (see Fig. 1). Latent re-

play is particularly interesting when combined with

BNN (as proposed in this paper) since the latent acti-

vations can be quantized to 1-bit, leading to a remark-

able storage saving. Unfreezing some intermediate

layers requires to back-propagate gradients along the

model to update weights; on the edge, the implemen-

tation of this process, usually referred to as on-device

learning, requires an efﬁcient and lightweight back-

propagation implementation, which is not yet avail-

able in the most popular training frameworks. The

reduction of bitwidths during backward pass, made

possible by a ﬁxed point (many low-power CPUs are

not equipped with ﬂoating-point unit) implementa-

tion, can speedup the learning phase but the tradeoffs

between accuracy loss and efﬁciency need to be eval-

uated with attention.

In this paper, we propose a solution to combine

the Continual Learning paradigm with training on the

edge using BNNs. Speciﬁcally, through the introduc-

tion of a back-propagation and input binarization al-

gorithm, we demonstrate how it is possible to con-

tinuously tune a CNN model (including classiﬁca-

tion head and convolutional layers) with low mem-

ory requirements and high efﬁciency. Our work rep-

resents a step beyond the classical quantization ap-

proach of BNNs published in the literature, where

binarization is typically considered only during for-

ward pass and a binary model is trained using latent

ﬂoating-point weights (Helwegen et al., 2019). Some

works showed (Cai et al., 2020; Lin et al., 2022)

good improvements in reducing both the memory de-

mand and the computational effort to enable training

on the edge, but they did not focus on the Continual

Learning (CL) scenario, which we primarily address.

We conducted experiments with multiple BNN mod-

els, evaluating the advantages offered by the proposed

methodology in comparison to the method outlined

in (Vorabbi et al., 2023a) where only the classiﬁca-

tion head is tuned.

The main contributions of this work can be sum-

marized as follows:

1. Reduced Replay Memory Requirement: our

replay memory stores intermediate activations

quantized to 1-bit allowing a relevant storage sav-

ing. We investigate the trade-offs required to

maintain model accuracy while simultaneously

reducing memory consumption.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

2. Improved Model Accuracy: by enabling the

continual adaptation of intermediate convolu-

tional layers (besides the ﬁnal classiﬁcation head)

our BNN-based model signiﬁcantly outperforms

the closest previous solution (Vorabbi et al.,

2023a).

3. Quantization of Backpropagation for Non-

Binary Layers: we introduce a quantization

approach for the back-propagation step in non-

binary layers, enabling the preservation of accu-

racy while eliminating ﬂoating-point operations.

4. Optimized Binary Weight Quantization: we

present an optimized quantization strategy tai-

lored for binary weights, leading to a remark-

able 8× reduction in memory requirements. Bi-

nary layers are typically trained by storing latent

ﬂoating-point representations of weights that are

subsequently binarized during inference. Repli-

cating this schema on-device would result in an

unacceptable increase of memory usage and com-

putational overhead.

5. Optimized Back-Propagation Framework: we

implemented a comprehensive back-propagation

framework capable of supporting various quanti-

zation levels both inference and back-propagation

stages.

The paper is organized as follows. In Section 3.1

we describe the latent replay mechanism providing

an estimation of the memory saved when applied to

a binary layer. In Section 3.2 we detail the quanti-

zation approach used for both forward and backward

passes. Then, in Section 3.3 we describe the method

used to quantize gradient computation. A comprehen-

sive experimental evaluation is proposed in Section 4,

focusing on the accuracy comparison with respect to

the CWR* algorithm (Sect. 4.1), the reduction of the

storage needed by the replay memory (Sect. 4.2) and

the efﬁciency in the backpropagation algorithm (Sect.

4.4).

2 RELATED WORK

Continual Learning: Some works in the literature

addressed the on-device learning task proposing

solutions to primarily reduce the memory require-

ment of the learning algorithm: Ren et al. (Ren

et al., 2021) brought the transfer learning task on

tiny devices by adding a trainable layer on top of

a frozen inference model. Cai et al. (Cai et al.,

2020) proposed to freeze the model weights and

retrain only the biases reducing the memory stor-

age during forward pass. Lin et al. (Lin et al.,

2022) introduced a sparse update technique to

skip the gradient computation of less important

layers and sub-tensors. QLR-CL (Ravaglia et al.,

2021) relies on low-bitwidth quantization (8-bit)

to speed up the execution of the network up to

the latent layer and at the same time reduce the

memory requirement of the latent replay vectors

from the 32-bit ﬂoating point to 8-bit; compared

to our solution, QLR-CL optimizes the computa-

tion pipeline for a speciﬁc ultra low-power CPU

based on RISC-V ISA. In addition, backpropa-

gation is performed with ﬂoating-point precision.

In (Nadalini et al., 2022; Nadalini et al., 2023),

Nadalini et al. introduced a framework to execute

on-device learning on tiny devices using ﬂoating-

point (32 and 16 bits) computation. Our solu-

tion differs considerably even in this case because

we introduce a quantized ﬁxed-point implemen-

tation for binary and non-binary layers instead

of performing a post-training quantization of the

frozen layers and then executing backpropagation

with ﬂoating-point precision. Additionally, to the

best of the author’s knowledge, this is the ﬁrst

work that implements on-device learning by quan-

tizing the back-prop of binary layers using low

bitwidths.

As in (Vorabbi et al., 2023a) the proposed ap-

proach uses CWR* for class-bias correction in

the classiﬁcation head (see (Masana et al., 2022)).

CWR* maintains two sets of weights for the out-

put classiﬁcation layer: cw are the consolidated

weights used during inference while tw are the

temporary weights that are iteratively updated

during back-propagation. cw are initialized to 0

before the ﬁrst batch and then updated accord-

ing to Algorithm 1 of (Lomonaco et al., 2020),

while tw are reset to 0 before each training mini-

batch. CWR*, for each already encountered class

(of the current training batch), reloads the consoli-

dated weights cw at the beginning of each training

batch and, during the consolidation step, adopts a

weighted sum based on the number of the training

samples encountered in the past batches and those

of current batch.

Binary Neural Networks: Quantization is a use-

ful technique to compress Neural Network models

compared to their ﬂoating-point counterparts, by

representing the network weights and activations

with very low precision. The most extreme quan-

tization is binarization, where data can only have

two possible values, namely −1(0) or +1 (1). By

representing weights and activations using only 1-

bit, the resulting memory footprint of the model is

dramatically reduced and the heavy matrix mul-

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay

tiplication operations can be replaced with light-

weighted bitwise XNOR operations and Bitcount

operations. According to (Bannink et al., 2021),

which compared the speedups of binary layers

w.r.t. the 8-bit quantized and ﬂoating point layers,

a binary implementation can achieve a lower in-

ference time from 9 to 12× on a low power ARM

CPU. Therefore, Binary Neural Networks com-

bine many hardware-friendly properties including

memory saving, power efﬁciency and signiﬁcant

acceleration; for some network topologies, BNN

can be executed on-device without the usage of

ﬂoating-point operations (Vorabbi et al., 2023b)

simplifying the deployment on ASIC or FPGA

hardware.

3 METHOD

In this section, we introduce our solution to efﬁciently

deploy CL methods using Latent Replay and BNNs.

In particular, the CWR* approach (brieﬂy summa-

rized in Sect. 2) is used to correct class-bias in the

classiﬁcation head.

3.1 Continual Learning with Latent

Replays

In Fig. 1 we illustrate the CL process with Latent

Replay. When new data becomes available, they are

fed to the neural network that during the forward pass

produces their latent activations, which represent the

feature maps corresponding to a speciﬁc intermediate

layer. We denote this layer as l (where l ∈ [0, L)), with

L representing the total number of layers within the

model. Activations of new data are joined (at mini-

batch level) with the replay activations (previously

stored) and forward/backward passes on the remain-

ing layers, speciﬁcally those with index from l + 1 to

L − 1. To elucidate further, if B

denotes the mini-

batch size of the newly acquired latent activations, a

subset of replay vectors (B

) is extracted from the re-

play memory and merged, thus forming a minibatch

of total size B

= B

. In contrast, the layers with

an index less than l are maintained in a frozen state

and are not included in the learning process. After

the conclusion of each training experience, the replay

memory is updated by including samples from the last

experience and using class-balanced reservoir sam-

pling (Vitter, 1985), which ensures a double balanc-

ing: (i) in terms of samples per classes, (ii) in terms

of samples from experience (see Algorithm 1).

Algorithm 1: Procedure used to populate the replay memory

(RM). RM is initially pre-populated using training samples

of the ﬁrst experience. The reservoir sampling is used on a

class basis to maintain the balance among different classes.

This approach prevents a skewed representation of classes

within RM.

Input: N = max number of samples per class

Input: C = max number of classes

1 RM

size

= C · N;

// C · N is the max size of RM

populated during the first

experience.

2 for each on-device experience do

// T is the number of classes

// M

= samples of class t

// RM

= samples of class t

already in RM

3 for t = 0 to T − 1 do

4 B

= RM

∪ M

;

// # is the cardinality

operator

5 RM

new

= apply Reservoir sampling to

extract #RM

samples from B

;

6 remove not selected RM

samples ;

7 update RM with RM

new

;

8 end

9 end

3.2 Quantization of Activations and

Weights

Quantization techniques have gained widespread

adoption to diminish the data size associated with

model parameters and the activations of layers. Em-

ploying quantization strategies enables the reduction

of data bitwidth from the conventional 32-bit ﬂoating-

point representation to a lower bit-precision format,

typically 8 bits or even less, while typically incur-

ring a negligible loss in accuracy during the forward

pass of the model. For the quantization of non-binary

layers that need to be trained on-device, we adopted

the approach proposed in the work of Jacob et al. (Ja-

cob et al., 2018) which is further implemented in the

GEMMLOWP library (Jacob et al., 2017).

By representing the dynamic range of the activa-

tions at the i-th layer of the network as



min

max



we can deﬁne the quantized activations a

as:

= cast to q⌊

⌉, S

max

−a

min

−1

(1)

where q denotes the number of quantization bits used

(8,16,32), a

represents the full-precision activations

and a

max

, a

min

are determinated through calibration on

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

Frozen layers

𝒂

𝒒

𝒇

𝒍−𝟏

𝒂

𝒒

𝒇

𝒍

𝒂

𝟎

𝒂

𝒒

𝒇

𝒍−𝟐

𝒂

𝒒

𝒇

𝒍−𝟑

𝒂

𝒒

𝒇

𝒍−𝟒

𝓛 𝒂

𝟎

; 𝑮𝑻

𝒘

𝒒

𝒇

𝒍

𝒘

𝟏−𝒃𝒊𝒕

𝒍−𝟏

𝒘

𝟏−𝒃𝒊𝒕

𝒍−𝟐

𝒘

𝒒

𝒇

𝒍−𝟑

𝒘

𝒒

𝒃

𝒍

𝒘

𝒒

𝒃

𝒍−𝟏

𝒘

𝒒

𝒃

𝒍−𝟐

𝒘

𝒒

𝒃

𝒍−𝟑

𝒈

𝒒

𝒃

𝒍

𝒈

𝒒

𝒃

𝒍−𝟏

𝒈

𝒒

𝒃

𝒍−𝟐

𝒈

𝒒

𝒃

𝒍−𝟑

Backward pass

Forward pass

Non-binary layer

Binary layer

Non-binary layer

𝒒

𝒇

≤ 𝒒

𝒃

Trainable

Non Trainable

Binary layer

Figure 2: Quantization scheme that uses a different number of bitwidth for forward (q

) and backward (q

) pass. Usually,

trainable non-binary layers are Batch Normalization (Ioffe and Szegedy, 2015), Addition and Concatenation layers.

the training dataset. Weight quantization can be ac-

complished using an equation analogous to equation

1. However, as recommended in Vorabbi et al. (Vor-

abbi et al., 2023a), we utilize two separate sets of

quantization bits for both the forward and backward

passes. For binary layers, during the forward pass,

binarization is executed according to the following

equation:

ST E (x) =



+1 x ≥ 0

−1 otherwise

(2)

as proposed in (Courbariaux et al., 2016). In back-

ward pass, STE computes the derivative of sign as

if the binary operation was a linear function. This

approximation has been further improved by other

works (Liu et al., 2018; Liu et al., 2020) and in gen-

eral it is model dependent.

3.3 Quantized Backpropagation

Drawing upon the ﬁndings presented in the works of

Gupta et al. (Gupta et al., 2015), Das et al. (Das et al.,

2018), and Banner et al. (Banner et al., 2018), it is ev-

ident that the quantization of gradients stands out as

the primary contributor to accuracy degradation dur-

ing the training process. Therefore, we advocate for

a quantization scheme akin to that introduced in (Vor-

abbi et al., 2023a). In this scheme, we employ two

distinct sets of quantization bits for the forward and

backward passes.

The back-propagation algorithm operates in an it-

erative manner to calculate the gradients of the loss

function (denoted asL ) with respect to the input a

l−1

for the layer l:

∂L

∂a

(3)

starting from the last layer. Every layer in the net-

work is tasked with computing two sets of gradients

to execute the iterative update process. The ﬁrst set

corresponds to the layer activation gradient w.r.t. the

inputs, which serves the purpose of propagating gra-

dients backward to the previous layer. Considering a

linear layer, where a

= W

· a

l−1

and

∂a

l−1

= W

, the

gradients can be computed as follows:

l−1

∂L

∂a

l−1

= W

(4)

The other set is used to update the weights of layer

index l:

∂L

∂a

∂W

= a

l−1

(5)

Based on Eq. 4 and 5, the backward

pass requires approximately twice Multiply-And-

Accumulate (MAC) operations compared to the for-

ward pass and therefore the gradient quantization be-

comes essential to efﬁciently train neural network

models on-device. The quantization of weights and

gradients (Eq. 4 and 5) is implemented through Eq. 1

and can be visually summarized in Fig. 2; as shown

in (Banner et al., 2018; Vorabbi et al., 2023a), back-

ward pass usually needs higher bitwidth to preserve

the directionality of the weight tensor and, based on

that, we propose to use lower bitwidth during forward

pass (Fig. 2, q

bits, green path) to minimize latency

and more bits for the backward pass to be more accu-

rate in gradient representation (Fig. 2, q

bits, purple

path). Considering the constrained memory resources

available on embedded devices, accurately estimating

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay

Table 1: The table represents a comparison of memory usage (# parameters) for different BNN models. With B we report

the number of binary weights that can be updated during back-propagation; with NB the number of non-binary weights. The

choice of latent replay (LR) level is discussed in Section 4. It is worth noting that the largest part of memory weights is used

by binary weights.

# total weights LR shape

# B = binary

weights after LR

# NB = non-binary

weights after LR

B+NB

BiReal-18 11.2M (4,4,512) 7.0M 19K 99.7%

BiReal-18 11.2M (8,8,256) 10.1M 28K 99.7%

React-18 11.1M (4,4,512) 7.0M 18K 99.7%

React-18 11.1M (8,8,256) 8.3M 24K 99.7%

VGG-Small 4.6M (8,8,512) 2.3M 86K 96.4%

QuickNet 12.7M (7,7,256) 9.5M 36K 99.6%

QuickNet 12.7M (14,14,128) 11.9M 43K 99.6%

QuickNetLarge 22.8M (7,7,256) 14.2M 40K 99.7%

QuickNetLarge 22.8M (14, 14,128) 21.3M 56K 99.7%

the memory requirements of the learning algorithm

becomes imperative. We can categorize memory into

two distinct types: the memory utilized by the CL

method (e.g. the replay memory) and the memory

necessary to store intermediate tensors during the for-

ward pass, which are subsequently used in the back-

propagation, along with the model weights. In this

context, we will focus mainly on the latter aspect,

particularly for binary layers where q

is ﬁxed at 1-

bit while q

can vary depending on the desired level

of accuracy. In Table 1, we present an assessment

of the memory usage for representing binary weights

of trainable layers on-device. It is worth noting that

binary weights, as indicated in the ﬁfth column of the

same table, constitute a substantial portion of the total

model parameters. Consequently, reducing q

to 1-bit

offers signiﬁcant memory savings in comparison to a

more conventional approach where q

is set to 16 bits.

The reduction in memory usage exhibits an almost

linear relationship with the number of bits utilized.

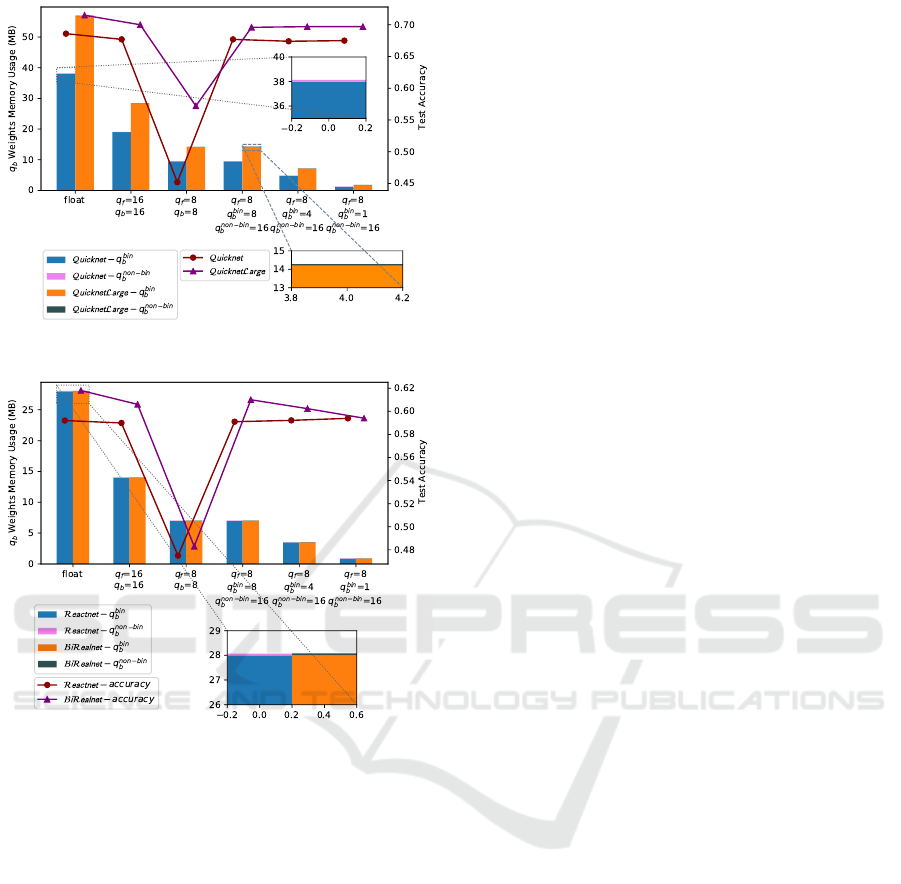

We distinguish q

between binary and non-binary lay-

ers to apply different quantization bitwidts, as elabo-

rated in Section 4, which demonstrates that it is feasi-

ble to maintain accuracy while signiﬁcantly reducing

for binary layers. Denoting q

bin

and q

non−bin

as the

quantization settings for binary and non-binary layers,

respectively, in Section 4 we illustrate that setting q

bin

to 1-bit results in minimal accuracy loss compared to

higher quantization bitwidths.

4 EXPERIMENTS

We evaluate our methods on three classiﬁca-

tion datasets: CORe50(Lomonaco and Maltoni,

2017), CIFAR10 (Krizhevsky et al., 2009) and

CIFAR100(Krizhevsky et al., 2009) with different

BNN architectures. The BNN models employed for

CORe50 have been pre-trained on ImageNet through

the Larq repository

; differently, the models used for

CIFAR10 and CIFAR100 have been pre-trained on

TinyImageNet(Le and Yang, 2015). For each dataset,

we conducted several tests using a different number

of quantization bits (both for forward and backward

passes) with the same training procedure. In addition

to the work of Vorabbi et al.(Vorabbi et al., 2023a), in

our experiments we kept different bitwidths for binary

and non-binary layers because, as reported in Table 1,

memory of trainable binary weights is predominant.

Hereafter we report some details about the dataset

benchmarked and related CL protocols:

CORe50 (Lomonaco and Maltoni, 2017). It is a

dataset speciﬁcally designed for Continuous Ob-

ject Recognition containing a collection of 50 do-

mestic objects belonging to 10 categories. The

dataset has been collected in 11 distinct sessions

(8 indoor and 3 outdoor) characterized by differ-

ent backgrounds and lighting. For the continuous

learning scenarios (NI, NC) we use the same test

set composed of sessions #3, #7 and #10; the ac-

curacy on test set is measured after each learning

experience. The remaining 8 sessions are split in

batches and provided sequentially during training

obtaining 9 experiences for NC scenario and 8 for

NI. No augmentation procedure has been imple-

mented since the dataset already contains enough

variability in terms of rotations, ﬂips and bright-

ness variation. The input RGB image is standard-

ized and rescaled to the size of 128 × 128 × 3.

CIFAR10 and CIFAR100 (Krizhevsky et al., 2009).

Due to the lower number of classes, the NC sce-

nario for CIFAR10 contains 5 experiences (adding

https://docs.larq.dev/zoo/api/sota/

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

2 classes for each experience) while 10 are used

for CIFAR100. For both datasets the NI sce-

nario is composed by 10 experiences. Similar to

CORe50, the test set does not change over the

experiences. The RGB images are scaled to the

interval [−1.0 ; +1.0] and the following data aug-

mentation was used: zero padding of 4 pixels for

each size, a random 32 × 32 crop and a random

horizontal ﬂip. No augmentation is used at test

time.

On CORe50 dataset, we evaluated the three binary

models reported below:

Quicknet and QuicknetLarge (Bannink et al.,

2021). This network follows the previous works

(Liu et al., 2018; Bethge et al., 2019; Martinez

et al., 2020) proposing a sequence of blocks,

each one with a different number of binary 3 × 3

convolutions and residual connections over each

layer. Transition blocks between each residual

section halve the spatial resolution and increase

the ﬁlter count. QuicknetLarge employs more

blocks and feature maps to increase accuracy.

For Quicknet, latent replay memory has been

set to quant conv2d 16 layer by storing 1-bit

activations; for QuicknetLarge the latent replay

level is quant conv2d 30. At this level (both

for Quicknet and QuicknetLarge) activation has

a dimensionality of (7,7, 256) and storing in

the replay memory 1-bit activations leads to a

considerable memory saving.

In contrast to the ﬁndings presented in (Vorabbi

et al., 2023a), our study did not include the Realto-

binary (Martinez et al., 2020) model, as it achieved

notably lower accuracy levels that were not aligned

with our research objectives and goals.

For CIFAR10 and CIFAR100 datasets, whose in-

put resolution is 32 × 32, we evaluated the following

networks (pre-trained on Tiny Imagenet):

BiRealNet (Liu et al., 2018). It is a modiﬁed ver-

sion of classical ResNet that proposes to preserve

the real activations before the sign function to

increase the representational capability of the 1-

bit CNN, through a simple shortcut. Bi-RealNet

adopts a tight approximation to the derivative of

the non-differentiable sign function with respect

to activation and a magnitude-aware gradient to

update weight parameters. We used the instance

of the network that uses 18-layers

. The latent re-

play layer has been set to add 12. At this level

activation has a dimensionality of (4,4, 512).

Refer to the following https://github.com/liuzechun/

Bi-Real-net repository for all the details.

ReactNet (Liu et al., 2020). To further compress

compact networks, this model constructs a base-

line based on MobileNetV1 (Howard et al., 2017)

and adds a shortcut to bypass every 1-bit convo-

lutional layer that has the same number of input

and output channels. The 3 × 3 depth-wise and

the 1 × 1 point-wise convolutional blocks of Mo-

bileNet are replaced by the 3 ×3 and 1×1 vanilla

convolutions in parallel with shortcuts in React

Net

. As for Bi-Real Net, we tested the version of

React Net that uses 18-layers. The latent replay

layer has been set to add 12 layer. At this level

activation has a dimensionality of (4,4, 512).

In our experimental setup, we discovered that re-

ducing the number of epochs in each learning expe-

rience had minimal impact on model accuracy. Con-

sequently, we empirically set the number of epochs

to 5, thus constraining the training time on-device

platform. Across all classiﬁcation tasks, we uti-

lized the Cross Entropy loss function in conjunction

with Stochastic Gradient Descent (SGD) as the op-

timizer. The former was chosen due to its simplic-

ity in derivative computation when combined with

the Softmax activation function. The latter was pre-

ferred for its computational efﬁciency, offering lower

overhead compared to more complex algorithms like

Adam (Kingma and Ba, 2014). In our experiments,

the ratio of B

to the batch size of the latent ac-

tivations sampled from the replay memory is set at

1/4. Both weight and activation binarization were

performed during training, including both the ﬁrst

training experience and on-device stages. This choice

requires the implementation of a quantized backward

pass technique for all the non-differentiable functions,

speciﬁcally the binarization functions (using Eq. 4

and 1). To assess model accuracy during on-device

training, we developed the quantized backward steps

for all layers employed by the previously described

models.

Our experiments primarily concentrated on the

NC scenario. As highlighted in (Pellegrini et al.,

2020), the adoption of a latent replay memory did not

signiﬁcantly enhance model accuracy in the NI con-

text. Moreover, the NC scenario more closely resem-

bles real-world applications where the model’s recog-

nition capability must be expanded to accommodate

new, previously unknown classes.

4.1 Accuracy Comparison

To assess the accuracy of our proposed solution,

we initiated our evaluation by comparing it with

Refer to the following https://github.com/liuzechun/

ReActNet repository for all the details.

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay

Figure 3: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CORe50 using quick model.

Figure 4: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CORe50 using QuickNetLarge model.

Figure 5: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CIFAR10 using Reactnet model.

prior work, speciﬁcally BNN+CWR* (Vorabbi et al.,

2023a), where only the ﬁnal classiﬁcation layer is

trained on-device, without employing a replay mem-

ory. We conducted a series of tests with varying

Figure 6: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CIFAR10 using Birealnet model.

Figure 7: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CIFAR100 using Reactnet model.

Figure 8: Accuracy comparison of our solution

(BNN+LR+CWR*) with previous work BNN+CWR* (Vor-

abbi et al., 2023a) on CIFAR100 using Birealnet model.

quantization bitwidths for both forward and back-

ward passes. In Fig. 3, 4, 5, 6, 7 and 8 we present

accuracy comparisons between BNN+CWR* with

the current method, denoted as BNN+LR+CWR*,

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

across different datasets: CORe50, CIFAR10 and CI-

FAR100. Each ﬁgure illustrates the performance im-

provement of the new method for all quantization set-

tings tested, encompassing ﬂoating-point arithmetic,

32-bit, 16-bit and 8-bit quantized representations. It

is noteworthy that, in this assessment, we applied

the same quantization bitwidths (q

) for both bi-

nary (q

bin

) and non-binary (q

non−bin

) layers during the

backward pass, as BNN+CWR* does not distinguish

these cases. The results consistently demonstrate that

our BNN+LR+CWR* approach outperforms previ-

ous results, not only when using ﬂoating-point arith-

metic but also for quantized implementations. This

underscores the superior performance achieved by

BNN+LR+CWR*. In our solution, we observed that

employing q

= 8 in BNN+LR+CWR* leads to a no-

table drop in accuracy compared to higher quantiza-

tion bitwidth settings, aligning with the outcomes ob-

tained by BNN+CWR*. This reafﬁrms the impor-

tance of using higher bitwidth representations dur-

ing the backward pass to preserve model accuracy.

For the experiments, we utilized LR

size

= 1500 for

CORe50, LR

size

= 300 for CIFAR10 and LR

size

3000 for CIFAR100 as our replay memory sizes.

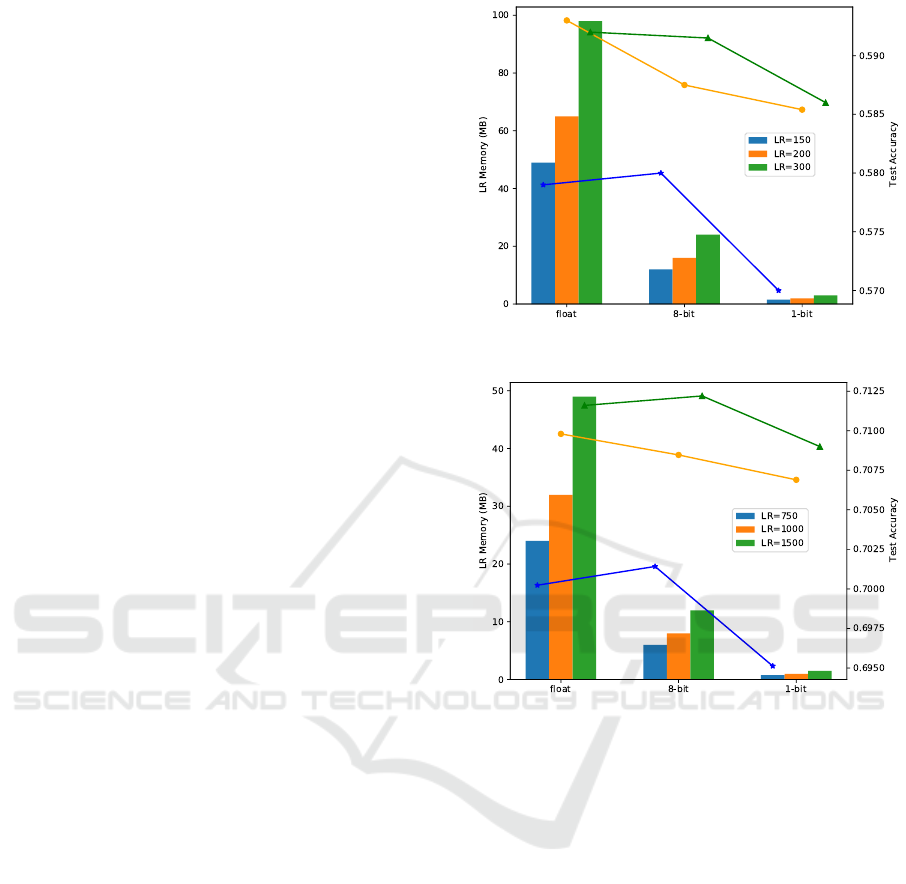

4.2 Reducing Storage in Latent Replay

The storage requirements of the latent replay mem-

ory are closely interlinked with the bitwidths utilized

to represent latent activations. As the bitwidths in-

crease, so does the memory footprint of LR. In our ap-

proach we capitalize on the 1-bit activations inherent

to BNNs to signiﬁcantly mitigate the need for high-

memory storage while maintaining a minimal accu-

racy gap, as depicted in Fig. 9. Our experiments

demonstrate that BNN models can attain a minimal

accuracy gap on both CIFAR10 and CORe50 datasets,

even when adopting 1-bit latent activations for LR.

This translates to a huge memory reduction of 32×

when compared to using ﬂoating-point latent activa-

tions. In our analysis, we considered various sizes

for the LR memory, with 15,20 and 30 elements al-

located for each class. Importantly, we observed that

the number of past samples in LR had a relatively mi-

nor impact on model accuracy, with the accuracy loss

being within 1%. Utilizing 1-bit latent activations for

LR opens the possibility to scale up applications to

accommodate thousands of classes, as illustrated in

Fig. 9, thanks to the substantial reduction in memory

constraints achieved.

(a) Reactnet-18 on CIFAR10.

(b) Quicknet on CORe50.

Figure 9: LR memory requirement using different quantiza-

tion levels and corresponding test set accuracy on CIFAR10

(a) and CORe50 (b). We considered 15,20 and 30 elements

for each class inside LR; for case (a) we adopted Reactnet-

18 model while in (b) we used Quicknet.

4.3 Splitting q

in q

bin

and q

non−bin

As highlighted in Table 1, the memory footprint of

BNN weights is predominantly occupied by train-

able binary weights, encompassing nearly 100% of

the memory. Conventionally, a binary layer is trained

using latent ﬂoating-point weights (Helwegen et al.,

2019). However, if we were to replicate this approach

on the device, it would result in a substantial increase

in memory storage requirements during backpropaga-

tion stage, as it would require setting q

bin

= 32 − bit.

The quantization methodology proposed in Section

3.3 offers a potential solution to mitigate this con-

straint by reducing q

to 8 bits. However, as de-

picted in Figure 10a and 10b, such a reduction in

bitwidths would lead to a noticeable accuracy drop

in the model. To address this challenge, we evalu-

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay

(a) Quicknet and QuicknetLarge on CORe50.

(b) Reactnet-18 on CIFAR10.

Figure 10: q

memory requirement using different quan-

tization bitwidths for backward layer on CORe50 (a) and

CIFAR10 (b).

ated the impact of distinct quantization levels for bi-

nary weights (q

bin

) and non-binary weights (q

non−bin

Speciﬁcally, we experimented with representing q

bin

using both 4 bits and 1 bit. Our ﬁndings, as shown

in Figure 10, indicate that 4-bit representation for bi-

nary layers does not introduce a substantial accuracy

loss. Moreover, employing a 1-bit representation of

weights during the back-propagation stage is feasi-

ble, as binary weights remain frozen during on-device

learning. In this scenario, the model still effectively

preserves accuracy. This latest result carries signiﬁ-

cant implications for on-device learning, as it simpli-

ﬁes the computational burden by requiring backward

steps only for non-binary layers, primarily those em-

ploying q

non−bin

= 16 − bits, as observed in our ex-

periments.

4.4 Efﬁciency Evaluation

To demonstrate the applicability of our approach on

real-world embedded boards, we provide an estima-

tion analysis of the on-device performance. For this

evaluation, we select two popular boards commonly

used in the IoT paradigm, both based on the single-

thread ARMv8 platform: Raspberry Pi 3B and Rasp-

berry Pi 4B. Based on the efﬁciency analysis reported

in (Bannink et al., 2021; Pellegrini et al., 2020), we

report in Table 2 the inference and backward tim-

ings of our BNN+LR+CWR* method compared to

a non-binary solution (using a Mobilenetv2) (Pelle-

grini et al., 2020): the results obtained adopting Mo-

bilenetv2 rely on ﬂoating-point precision for layers

from LR up to the classiﬁcation head. The frozen

backbone is quantized using 8-bit (latent activations

are stored with 8-bit precision) and executed with

Tensorﬂow-Lite. Instead, BNN+LR+CWR* employs

Quicknet model with the following quantization set-

ting: q

= 8,q

bin

= 8,q

non−bin

= 16; the framework

used to execute binary inference is LCE (Bannink

et al., 2021). The image input size considered is 224×

224 and the batch size is 1. Our empirical evaluation

for backward pass shows that our BNN+LR+CWR*

can achieve a minimum speedup of 2× compared to

a non-binary solution. In our evaluation we consider

the worst-case scenario for backward step by setting

bin

= 8; instead, by setting q

bin

= 1, the speedup re-

ported in the ﬁfth column of Table 2 should improve

signiﬁcantly.

5 CONCLUSION

On-device training holds great potential in the realm

of the IoT, as it can facilitate the widespread adop-

tion of deep learning solutions. In this study, our pri-

mary focus was the implementation of Binary Neu-

ral Networks (BNNs) in combination with Contin-

ual Learning algorithms, an approach not yet fully

investigated in the literature. In particular, we pro-

pose the use of the CWR* method with the support of

a replay memory, implementing several customized

quantization schemes tailored to alleviate memory

constraints and computational bottlenecks during the

back-propagation stage. Summarizing, experimental

achievements in this work include the following:

• Reduced Memory Usage: we signiﬁcantly re-

duced the memory storage required for replay

memory by employing 1-bit latent activations, as

opposed to the state-of-the-art approach that em-

ploys 8-bit precision. A limited storage require-

ment is a key element in addressing on-device

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications

Table 2: Efﬁciency comparison of our method implemented on two different embedded boards, i.e. Raspberry Pi 3B and 4B,

using Mobilenetv2 and Quicknet model. As shown, our solution achieves up to 2.2× speedup on the same platform.

Model Raspberry Binary Quantization Forward Backward Speedup

3B 4B q

(ms)

Mobilenetv2 (Howard et al., 2017) ✓ 8-bit ﬂoat 340 134 1.0×

Quicknet (Bannink et al., 2021) ✓ ✓ 1-bit 16-bit 160 55 2.0×

Mobilenetv2 (Howard et al., 2017) ✓ 8-bit ﬂoat 225 90 1.0×

Quicknet (Bannink et al., 2021) ✓ ✓ 1-bit 16-bit 105 38 2.2×

training, especially with embedded systems with

a limited storage capability.

• Improved Model Accuracy: we improve the ac-

curacy obtained across different binarized back-

bones and the BNN+CWR* approach. Speciﬁ-

cally, we reduce the gap in performance that com-

monly affects BNNs by introducing a latent replay

approach as a safeguard against catastrophic for-

getting.

• Efﬁciency in Backpropagation: we minimize

the computational effort related to the backpropa-

gation of the latent replay through a proper quan-

tization scheme. In this manner, we combine the

good performance of the model with limited com-

putation requirements for the learning phase. This

achievement, in combination with reduced mem-

ory usage, paves the way for future on-device and

real-world training of learning systems.

A variety of future work can be planned based on

the technological advancements introduced in this pa-

per. For instance, we plan to effectively implement

and optimize the approach proposed in this paper for

the speciﬁc ARM CPUs, a popular family of proces-

sors often used in IoT devices. In addition, we envis-

age the possibility of exploiting their instruction set,

including NEON extensions, to further optimize the

proposed method in terms of computational load and

efﬁciency.

REFERENCES

Alshehri, F. and Muhammad, G. (2020). A comprehensive

survey of the internet of things (iot) and ai-based smart

healthcare. IEEE Access, 9:3660–3678.

Banbury, C. R., Reddi, V. J., Lam, M., Fu, W., Fazel, A.,

Holleman, J., Huang, X., Hurtado, R., Kanter, D.,

Lokhmotov, A., et al. (2020). Benchmarking tinyml

systems: Challenges and direction. arXiv preprint

arXiv:2003.04821.

Banner, R., Hubara, I., Hoffer, E., and Soudry, D. (2018).

Scalable methods for 8-bit training of neural net-

works. Advances in neural information processing

systems, 31.

Bannink, T., Hillier, A., Geiger, L., de Bruin, T., Overweel,

L., Neeven, J., and Helwegen, K. (2021). Larq com-

pute engine: Design, benchmark and deploy state-of-

the-art binarized neural networks. Proceedings of Ma-

chine Learning and Systems, 3:680–695.

Bethge, J., Yang, H., Bornstein, M., and Meinel, C. (2019).

Back to simplicity: How to train accurate bnns from

scratch? arXiv preprint arXiv:1906.08637.

Cai, H., Gan, C., Zhu, L., and Han, S. (2020). Tinytl: Re-

duce memory, not parameters for efﬁcient on-device

learning. Advances in Neural Information Processing

Systems, 33:11285–11297.

Courbariaux, M., Hubara, I., Soudry, D., El-Yaniv, R.,

and Bengio, Y. (2016). Binarized neural networks:

Training deep neural networks with weights and ac-

tivations constrained to+ 1 or-1. arXiv preprint

arXiv:1602.02830.

Das, D., Mellempudi, N., Mudigere, D., Kalamkar,

D., Avancha, S., Banerjee, K., Sridharan, S.,

Vaidyanathan, K., Kaul, B., Georganas, E., et al.

(2018). Mixed precision training of convolutional

neural networks using integer operations. arXiv

preprint arXiv:1802.00930.

Grafﬁeti, G., Borghi, G., and Maltoni, D. (2022). Continual

learning in real-life applications. IEEE Robotics and

Automation Letters, 7(3):6195–6202.

Gupta, S., Agrawal, A., Gopalakrishnan, K., and

Narayanan, P. (2015). Deep learning with limited nu-

merical precision. In International conference on ma-

chine learning, pages 1737–1746. PMLR.

Helwegen, K., Widdicombe, J., Geiger, L., Liu, Z., Cheng,

K.-T., and Nusselder, R. (2019). Latent weights do

not exist: Rethinking binarized neural network opti-

mization. Advances in neural information processing

systems, 32.

Howard, A. G., Zhu, M., Chen, B., Kalenichenko, D.,

Wang, W., Weyand, T., Andreetto, M., and Adam,

H. (2017). Mobilenets: Efﬁcient convolutional neu-

ral networks for mobile vision applications. arXiv

preprint arXiv:1704.04861.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. In International conference on ma-

chine learning, pages 448–456. pmlr.

Jacob, B., Kligys, S., Chen, B., Zhu, M., Tang, M., Howard,

A., Adam, H., and Kalenichenko, D. (2018). Quan-

tization and training of neural networks for efﬁcient

integer-arithmetic-only inference. In Proceedings of

Enabling On-Device Continual Learning with Binary Neural Networks and Latent Replay

the IEEE conference on computer vision and pattern

recognition, pages 2704–2713.

Jacob, B., Warden, P., and Guney, M. (2017). gemm-

lowp: a small self-contained low-precision

gemm library.(2017). URL https://github.

com/google/gemmlowp.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kirkpatrick, J., Pascanu, R., Rabinowitz, N., Veness, J.,

Desjardins, G., Rusu, A. A., Milan, K., Quan, J.,

Ramalho, T., Grabska-Barwinska, A., et al. (2017).

Overcoming catastrophic forgetting in neural net-

works. Proceedings of the national academy of sci-

ences, 114(13):3521–3526.

Krizhevsky, A., Hinton, G., et al. (2009). Learning multiple

layers of features from tiny images.

Le, Y. and Yang, X. (2015). Tiny imagenet visual recogni-

tion challenge. CS 231N, 7(7):3.

Lin, J., Zhu, L., Chen, W.-M., Wang, W.-C., Gan, C., and

Han, S. (2022). On-device training under 256kb mem-

ory. Advances in Neural Information Processing Sys-

tems, 35:22941–22954.

Liu, Z., Shen, Z., Savvides, M., and Cheng, K.-T. (2020).

Reactnet: Towards precise binary neural network with

generalized activation functions. In Computer Vision–

ECCV 2020: 16th European Conference, Glasgow,

UK, August 23–28, 2020, Proceedings, Part XIV 16,

pages 143–159. Springer.

Liu, Z., Wu, B., Luo, W., Yang, X., Liu, W., and Cheng, K.-

T. (2018). Bi-real net: Enhancing the performance of

1-bit cnns with improved representational capability

and advanced training algorithm. In Proceedings of

the European conference on computer vision (ECCV),

pages 722–737.

Lomonaco, V. and Maltoni, D. (2017). Core50: a new

dataset and benchmark for continuous object recog-

nition. In Conference on robot learning, pages 17–26.

PMLR.

Lomonaco, V., Maltoni, D., and Pellegrini, L. (2020).

Rehearsal-free continual learning over small non-iid

batches. In CVPR Workshops, volume 1, page 3.

Martinez, B., Yang, J., Bulat, A., and Tzimiropou-

los, G. (2020). Training binary neural networks

with real-to-binary convolutions. arXiv preprint

arXiv:2003.11535.

Masana, M., Liu, X., Twardowski, B., Menta, M., Bag-

danov, A. D., and Van De Weijer, J. (2022). Class-

incremental learning: survey and performance eval-

uation on image classiﬁcation. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

45(5):5513–5533.

Mohamed, E. (2020). The relation of artiﬁcial intelligence

with internet of things: A survey. Journal of Cyberse-

curity and Information Management, 1(1):30–24.

Nadalini, D., Rusci, M., Benini, L., and Conti, F. (2023).

Reduced precision ﬂoating-point optimization for

deep neural network on-device learning on microcon-

trollers. arXiv preprint arXiv:2305.19167.

Nadalini, D., Rusci, M., Tagliavini, G., Ravaglia, L.,

Benini, L., and Conti, F. (2022). Pulp-trainlib: En-

abling on-device training for risc-v multi-core mcus

through performance-driven autotuning. In Interna-

tional Conference on Embedded Computer Systems,

pages 200–216. Springer.

Parisi, G. I., Kemker, R., Part, J. L., Kanan, C., and

Wermter, S. (2019). Continual lifelong learning with

neural networks: A review. Neural networks, 113.

Pellegrini, L., Grafﬁeti, G., Lomonaco, V., and Maltoni, D.

(2020). Latent replay for real-time continual learn-

ing. In 2020 IEEE/RSJ International Conference on

Intelligent Robots and Systems (IROS), pages 10203–

10209. IEEE.

Qin, H., Gong, R., Liu, X., Bai, X., Song, J., and Sebe, N.

(2020). Binary neural networks: A survey. Pattern

Recognition, 105:107281.

Rastegari, M., Ordonez, V., Redmon, J., and Farhadi, A.

(2016). Xnor-net: Imagenet classiﬁcation using bi-

nary convolutional neural networks. In European con-

ference on computer vision, pages 525–542. Springer.

Ravaglia, L., Rusci, M., Nadalini, D., Capotondi, A., Conti,

F., and Benini, L. (2021). A tinyml platform for

on-device continual learning with quantized latent re-

plays. IEEE Journal on Emerging and Selected Topics

in Circuits and Systems, 11(4):789–802.

Ren, H., Anicic, D., and Runkler, T. A. (2021). Tinyol:

Tinyml with online-learning on microcontrollers. In

2021 International Joint Conference on Neural Net-

works (IJCNN), pages 1–8. IEEE.

Vitter, J. S. (1985). Random sampling with a reser-

voir. ACM Transactions on Mathematical Software

(TOMS), 11(1):37–57.

Vorabbi, L., Maltoni, D., and Santi, S. (2023a). On-device

learning with binary neural networks. arXiv preprint

arXiv:2308.15308.

Vorabbi, L., Maltoni, D., and Santi, S. (2023b). Optimizing

data-ﬂow in binary neural networks.

VISAPP 2024 - 19th International Conference on Computer Vision Theory and Applications
