Model-Based Assessment of Conformance to Acknowledged

Security-Related Software Architecture Good Practices

Monica Buitrago

, Isabelle Borne

and J

emy Buisson

IRISA, Universit

e de Bretagne Sud, France

eA,

Ecole de l’Air et de l’Espace, France

Keywords:

Software Architecture, Security-by-Design, Metric, Security, Model-Based Engineering.

Abstract:

Security-by-design considers security throughout the whole development lifecycle, to detect and ﬁx potential

issues as early as possible. With this approach, the software architect should assess some security level of the

software architecture, to predict whether the software under development will have security issues. Previous

works proposed several metrics to measure the attack surface, the attackability, and the satisfaction of security

requirements on the software architecture. However, proving the correlation between these metrics and secu-

rity is far from trivial. To circumvent this difﬁculty, we propose new metrics rooted in CWE, NIST guidelines

and security patterns. So, our four novel metrics measure the conformance of the software architecture to these

acknowledged security-related recommendations. The usage of our metrics is evaluated with case studies.

1 INTRODUCTION

Security by design has emerged as addressing the se-

curity concerns at every stage of software develop-

ment (Waidner et al., 2014). In this regard, Common

Weakness Enumeration (CWE), controls enumera-

tion (NIST, 2020), and security patterns (Fernandez-

Buglioni, 2013) provide acknowledged effect of de-

sign choices on the security of the software under

development. Though, their practical usability were

questioned (Yskout et al., 2015). Besides, various

metrics have been proposed to quantify, when de-

signing the software architecture, and the attack sur-

face (Alshammari et al., 2009; Gennari and Garlan,

2012; Manadhata and Wing, 2011), the attackabil-

ity (Skandylas et al., 2022). But, correlating be-

tween these metrics and the overall security of the

software is challenging as software security is unob-

servable (Herley and van Oorschot, 2018).

To avoid the difﬁculty of relating metrics to se-

curity, we propose to measure the extent to which a

design, as reﬂected in the software architecture, con-

forms to the recommendations cited above. Because

these recommendations are acknowledged to reduce

the number of vulnerabilities, our metrics are linked

to the guarantee of security.

Section 2 summarizes the state of the art, focused

on measuring security during software design and de-

velopment. Section 3 outlines how we position our

work in the software engineering process. Section 4

describes our metrics. Section 5 discusses the valid-

ity of the metrics on case studies based on real-world

applications. Section 6 gives the ﬁnal remarks and

future directions for our work.

2 RELATED WORK

Software quality attributes are stated or implied, non-

functional requirements, such as maintainability, per-

formance, security, and so on. Metrics are provided

to quantify how well such requirements are satis-

ﬁed. That way, the intrinsic subjectivity in non-

functional assessment is conﬁned to the choice of the

metrics (Sommerville, 2016). Measuring on the ar-

chitecture description enables the prediction of the

non-functional assessment for the future software as

soon as the design phase.

2.1 Measure the Attack Surface

The attack surface is the set of software elements that

an attacker may exploit. A designer can use anno-

tations to specify the sensitive elements, e.g., in the

class diagram (J

urjens, 2002). Assuming that public

means exposed, the designer can compute, e.g., the ra-

tio of public attributes among the sensitive ones, and

Buitrago, M., Borne, I. and Buisson, J.

Model-Based Assessment of Conformance to Acknowledged Security-Related Software Architecture Good Practices.

DOI: 10.5220/0012312400003645

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2024), pages 117-124

ISBN: 978-989-758-682-8; ISSN: 2184-4348

117

the ratio of methods using sensitive attributes to quan-

tify the attack surface (Alshammari et al., 2009).

(Manadhata and Wing, 2011) proposed the ratio

between the effort needed to attack and the potential

damage. Looking at a component, the potential dam-

age follows from the privilege level at which the com-

ponent functions are executed, from the ports proto-

cols, and from the kind of storage used by the com-

ponents. The attack effort is the requirements to ac-

cess the ports. (Gennari and Garlan, 2012) adapted

the metrics by looking at the connectors and the ports,

instead of the ports and data ﬂows respectively.

All these metrics relate to some concept of entry

point, i.e., public attributes and methods (Alshammari

et al., 2009), and ports (Manadhata and Wing, 2011;

Gennari and Garlan, 2012). All of them compute the

proportion of entry points. Because we do not focus

on the attack surface but on the conformance to pat-

terns and guidelines, we are led to consider the raw

number of entry points.

2.2 Measure Security Properties

According to the ISO/IEC 25010 deﬁnition, security

is reﬁned into: availability, conﬁdentiality and in-

tegrity. Metrics can be targeted at these properties.

(Siavvas et al., 2021) proposed to use 11 base met-

rics to score conﬁdentiality, integrity and availability:

complexity, cohesion, coupling, encapsulation, and

seven rules from the PMD

static code analyzer. Like

in (Wagner et al., 2015), the metrics are normalized

according to an empirical study, and the weights fol-

low from experts’ knowledge. A security index is the

average of the three scores. The empirical study used

to compute the normalization parameters also ensures

the correlation with the security properties.

We ensure the link with security by measuring the

conformance to security patterns and guidelines.

2.3 Other Security-Related Metrics

In (Du et al., 2019), the functions are ranked accord-

ing to metrics assumed to be correlated with vulner-

abilities: number of parameters, number of pointer

arithmetic operations, number of nested control struc-

tures, etc. Because these metrics are also correlated to

the code complexity and size, a preliminary binning-

by-cyclomatic-complexity phase is performed as a

kind of normalization of the metrics. Such details

about the software are not yet available during the ar-

chitecture stage of design, at which our work applies.

(Casola et al., 2020) model applications as soft-

ware services (SaaS) hosted by virtual machines

https://pmd.github.io/ (visited on 12/06/2023)

(VM). Cloud service providers (CSP) provide VM

and SaaS. The components (SaaS, VM, CSP) and

their relations (provide, host, use) describe the archi-

tecture. Security service level agreement (sSLA) tem-

plates model the requirements and controls (choices,

levels, parameters) at components. An overall sSLA

is combines the component-level templates according

to the architecture, using (Rak, 2017)’s algorithm. On

the requirement side, the sSLA templates result from

risk analysis. On the security assessment side, they

result from a review by the developers to measure the

implemented controls and the related metrics. The

metrics we propose, by measuring how much the ar-

chitecture conforms to the guidelines, may replace the

manual review with an automated tool.

(Skandylas et al., 2022) consider a ﬂat assembly

of components and connectors, in which some ports

are annotated with vulnerabilities. To reﬂect the ad-

versary’s proﬁle, each vulnerability has a probability

of success and a cost. A control has an effectiveness

(probability of countering) and a cost. Attackability

and defendability are computed using these param-

eters: the probability that the adversary takes over

the system, the minimum/maximum attack cost, and

the minimum defender’s cost. In our work, we pro-

pose how to compute the security level of the soft-

ware, which is assumed by (Skandylas et al., 2022)

and matched with the adversary’s proﬁle.

3 APPROACH OVERVIEW

Figure 1 depicts how our work integrates with soft-

ware and security engineering processes. After a re-

quirement engineer produced the software require-

ments, including the security requirements derived

from a preliminary risk assessment, the (software) ar-

chitect designs the (software) architecture. The ar-

chitect begins with a coarse-grained one, made of few

big components connected by connectors. Then, (s)he

reﬁnes the architecture by recursively decomposing

the components into composite structures until (s)he

identiﬁes the primitive components (those which are

not further decomposed). The design risk assessment

activity identiﬁes the risks that result from the design

decisions made in the architecture. Taking into ac-

count this feedback, the requirement engineer updates

the (security) requirements. The architect revises the

architecture accordingly. This loop is repeated un-

til the remaining risks are acceptable enough (Som-

merville, 2016). The resulting detailed architecture is

then passed on to the developers, who use it as the

speciﬁcation of each primitive component. In this pa-

per, we do not describe the other steps.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

118

coarse-

grained

software

architecture

...

detailed

software

architecture

metrics values: how much does

the software architecture conform

to or diverge from security

patterns and good practices?

security patterns (Fernandez-Buglioni,

2013)

good practices (e.g. OWASP cheat sheets)

smells (e.g. CWE)

requirements

(including

security req.)

.. .

preliminary threat

analysis and risk

assessment

OO design of

the software

component

.. .

OO design of

the software

component

.. .

designs & reﬁnes the

software architecture

design threat analysis

and risk assessment

software architect

req. eng.

developer

we propose metrics inspired

by security patterns, to be

implemented in the architect’s

workbench

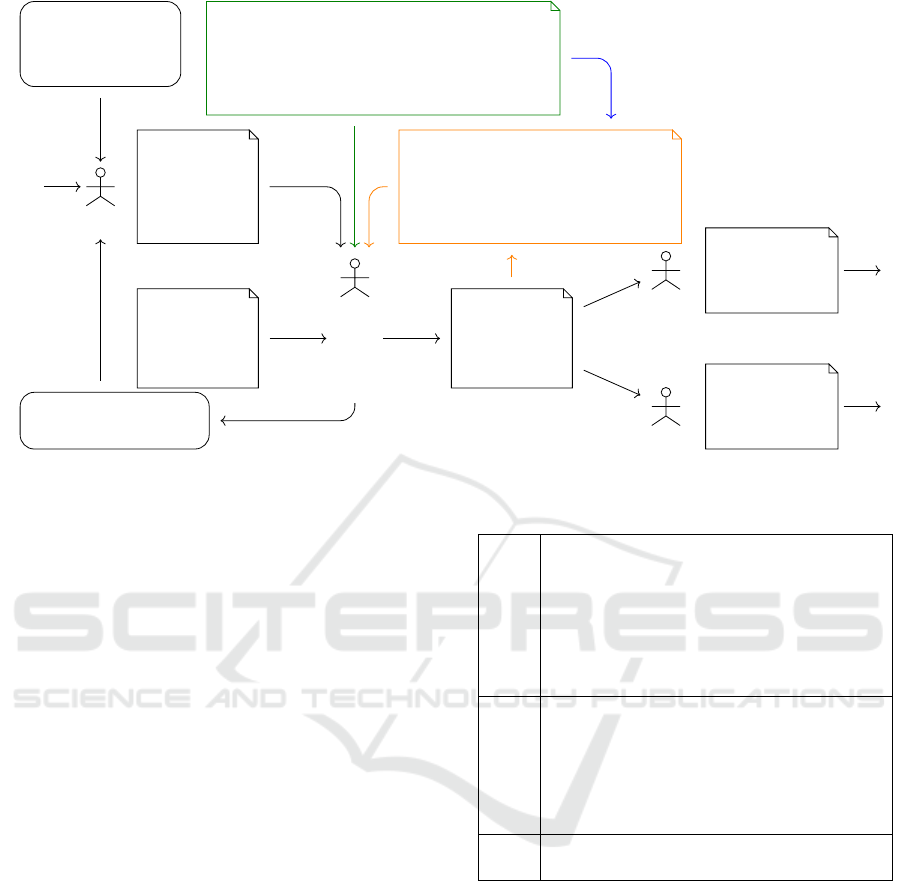

Figure 1: Our work in the software engineering process.

To design the architecture, the architect relies on

well-established knowledge such as patterns. There is

speciﬁc guidance to deal with software security such

as (Fernandez-Buglioni, 2013; NIST, 2020).

We propose metrics, inspired by these security-

related guidance, to provide the architect with a new

security-targeted analysis of the detailed architecture.

By integrating this new analysis in her/his workbench,

the architect gets feedback about how much the archi-

tecture conforms to the guidance (the orange loop in

Figure 1). According to the result of this analysis, the

architect may decide either to revise the architecture,

or to move forward in the engineering process.

4 PROPOSED METRICS

Section 4.1 deﬁnes the model of software architec-

ture, and the notations we use. Three of our four

metrics are locally deﬁned for one component, which

can be chosen from a speciﬁc subset. Section 4.2 de-

scribes these local metrics. Section 4.3 explains how

to consolidate the local measures into architecture-

wise values. Section 4.4 describes a fourth metric,

which applies intrinsically to the architecture. Table 1

gives the guidelines supporting each metric.

4.1 Architecture Model and Notations

Following the usual approach, e.g. UML, the archi-

tecture is made of instances (the parts) of compo-

nents. Each component declares ports at which con-

Table 1: Supporting guidelines for our metrics.

#ep/c SA-8(13): minimized security elements

SA-8(14): least privilege

SA-17(7): structure for least privilege

SC-2: separation of system and user func-

tionalities

CWE-653: improper isolation or compart-

mentalization

#epp, SA-8(3): modularity and layering

epd SA-8(4): partially ordered dependencies

CWE-1054: invocation of a control element

at an unnecessarily deep horizontal layer

CWE-1092: use of same invokable control

element in multiple architectural layers

#lc SC-7(13): isolation of security tools, me-

chanisms, and support components

guidelines: (NIST, 2020) and https://cwe.mitre.org

nectors can be attached to transport the interactions

between parts such as method calls, data ﬂow, etc. We

distinguish composite components (or simply com-

posites), which are assemblies of parts and connec-

tors. The other components, of which the content is

omitted from the architecture, are the primitive com-

ponents (or simply primitives). In our work, we use

the terms component, connector, part, and port with

their deﬁnition in UML. Our architecture description

language is the combination of the UML component

and composite structure diagrams.

From the UML architecture description, we ex-

tract a view that enforces a strict two-level hierarchy

of composites, i.e., the simpliﬁed view is composed of

Model-Based Assessment of Conformance to Acknowledged Security-Related Software Architecture Good Practices

119

composites, which are themselves composed of prim-

itives (section 4.3 explains why it is not a restriction).

We restrict to binary directed connectors, and we al-

low them to cross the composite boundaries. We ig-

nore ports and types.

In the rest of the paper, we use the notations:

• A = P ,E – an architecture, where P is the set

of composites and E is the set of connectors.

• c,d – some composites (c ∈ P , d ∈ P ).

• V – the set of primitives V =

c∈P

• a, b – some primitives (a ∈ V , b ∈ V ).

• C – a function that maps a primitive component

to its enclosing composite (V 7→ P ).

• e = a → b – a connector (e ∈ E ); e is in c if and

only if a ∈ c ∧ b ∈ c.

• shortest path

(a,b) – a function that returns

the shortest path from a to b, by following only

the connectors in c.

4.2 Local Metrics

Our three local metrics are the number of entry points

per composite (#ep/c), which applies to a composite;

the number of entry point predecessors (#epp) and

the entry point depth (epd), which are computed for

primitives at the entry point positions of a composite.

A primitive b is an entry point of a composite c if

it belongs to c (i.e. b ∈ c), and there is at least one de-

pendent a that does not belong to the same composite

(i.e. a → b ∈ E and a /∈ c).

(NIST, 2020; Fernandez-Buglioni, 2013) empha-

size the principle of process isolation: a software sys-

tem must be decomposed into processes, each of them

having its own address space and communicating only

through well identiﬁed ports. Even if, in software en-

gineering, composites are not intended to be deploy-

ment domains, execution domains nor security do-

mains, we assume the encapsulation in a composite

ensures isolation. Thus, the consequences of process

isolation apply to composites. For instance, accord-

ing to the principle SA-8(3) modularity and layering,

the modularity of the architecture should extend be-

yond functional modularity to the security concerns.

Besides, the entry point components are exposed to

messages that are not under the control of the com-

posite they belong to. As such, they are responsible

to enforce all the security-related functions, includ-

ing the protection of the communication channel, au-

thentication of the client components, authorization

and access control, accountability, audit, input valida-

tion and sanitization. When the ports of the compos-

ite act as no more than forwarders, the entry points

v ws

#ep/c (c1) = 0

#ep/c (c2) = 1

#ep/c (c3) = 2

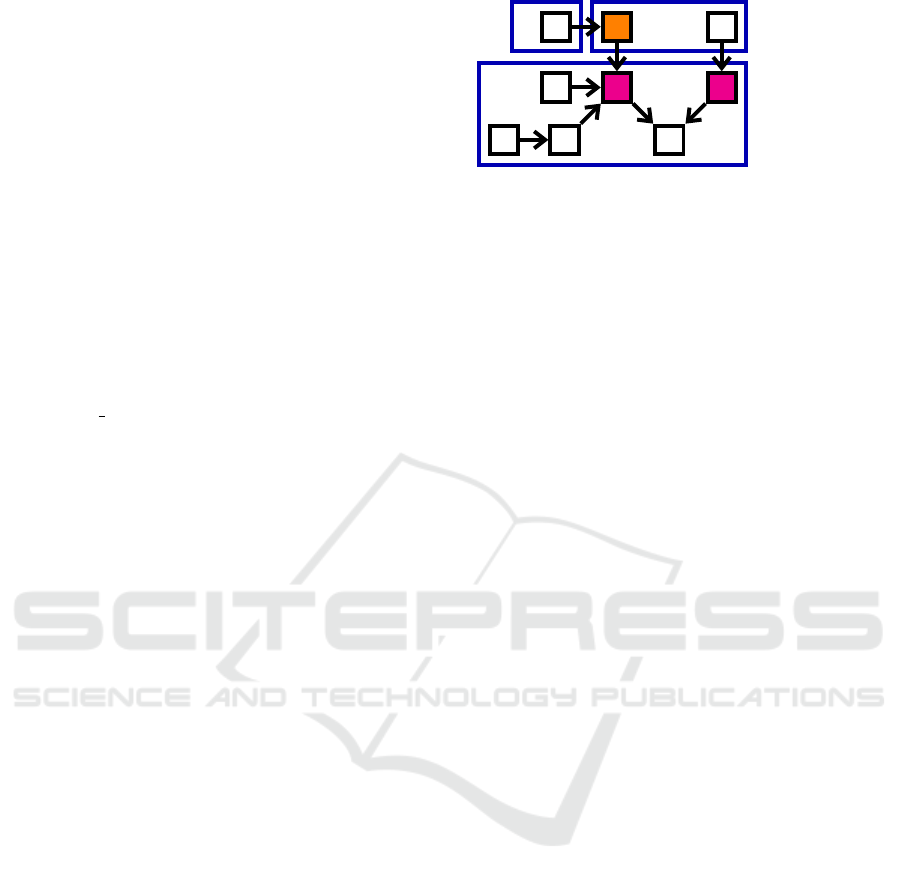

Figure 2: Illustration of the #ep/c (c) metric.

of the composite play the role of the protected entry

points (Fernandez-Buglioni, 2013).

4.2.1 Number of Entry Points per Composite

On the one hand, the principle SA-8(13) minimized

security elements pinpoints that security-critical com-

ponents (such as entry points) require speciﬁc atten-

tion that increases their cost and complexity. So, these

components should be as few as possible. This con-

cern matches the reduction of the attack surface by re-

ducing the ratio of publicly exposed ports, functions,

methods, attributes (Alshammari et al., 2009; Gennari

and Garlan, 2012; Manadhata and Wing, 2011).

On the other hand, the principles SC-2 separation

of system and user functionalities and SA-8(14) least

privilege, their consequence SA-17(7) on the archi-

tecture, and CWE-653 improper isolation or compart-

mentalization advise to have as many ports as privi-

leges to access the component.

Altogether, these design principles highlight that

there is a trade-off between two contradictory goals:

on the one hand, having fewer entry points to man-

age the cost and overhead of secure development by

reducing the amount of concerned components; on

the other hand, ensuring distinct entry points for each

kind of clients and privileges. To help the architect

to decide whether this trade-off is satisﬁed, we deﬁne

a ﬁrst metric #ep/c (c) that simply counts how many

entry points a composite component c ∈ P contains:

ep (c) =

{

b | b ∈ c ∧ ∃a,a → b ∈ E ∧ a /∈ c

}

#ep/c (c) = |ep (c)|

ep (c) is the set of the entry points of c. The metric

value is the cardinal of this set.

Figure 2 illustrates this metric on a synthetic case:

• The composite component c1 contains only one

primitive component p, which has no inbound

connector. For this reason, p is not considered an

entry point of c1, and therefore #ep/c (c1) = 0.

• c3 contains six primitive components (s, t, u, v, w

and x). Among them, v has three inbound connec-

tors, but only q is outside c3; w has one inbound

connector and r is outside c3; and the inbound

connector of u and the two inbound connectors of

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

120

x come from the inside of c3. So, #ep/c (c3) = 2,

the entry points are v and w.

To model the fact that #ep/c(c) should be neither too

small nor too high, we consider that #ep/c (c) should

be in an ideal range



#ep/c



given by an expert

(l the lower bound, u the upper bound of the range).

So, we can piecewisely deﬁne a distance between the

value of the metric and this range, e.g.:

d#ep/c (c) =











#ep/c

− #ep/c(c)| when

#ep/c (c) < l

#ep/c

0 when

#ep/c (c) ∈



#ep/c



|#ep/c (c) − u

#ep/c

| when

#ep/c (c) > u

#ep/c

We derive a score from this distance, e.g.:

s#ep/c (c) = (1 + d#ep/c(c))

−α

where α > 0

4.2.2 Number of Entry Point Predecessors

Like explained in the description of #ep/c (sec-

tion 4.2.1), the entry points of the composites are

some of the trusted components that must implement

security concerns, as they are exposed to clients out

of the control of the encompassing composite. The

second metric #epp (b) counts how many predeces-

sors a given entry point has in its encompassing com-

posite. If the software architecture is suitably lay-

ered, i.e., following the principle SA-8(3) modular-

ity and layering, the entry points should not have any

such predecessor. When there are some, the devel-

oper may misidentify the entry points and (s)he may

fail to implement the suitable security concerns. Be-

sides, the principle SA-8(4) partially ordered depen-

dencies, the smell CWE-1054 invocation of a control

element at an unnecessarily deep horizontal layer,

and the smell CWE-1092 use of same invokable con-

trol element in multiple architectural layers defend a

strict layering of the architecture.

Let c ∈ P be a composite, and let b ∈ ep(c) be an

entry point component of c. The #epp (b) metric is:

epp(b) =



p |

C (p) = C (b)∧

shortest path

C(b)

(p, b) ̸= ⊥



#epp(b) = |epp (b)|

Figure 3 illustrates the #epp metric:

• The predecessor p of q does not belong to the

same composite as q. So, it is not counted and

#epp(q) = 0. The same applies for w.

• The component v has ﬁve direct or indirect pre-

decessors. Among them, only s, t and u are

counted because v is reachable only from these

v ws

epp(v)

#epp(q) = 0

#epp(v) = 3

#epp(w) = 0

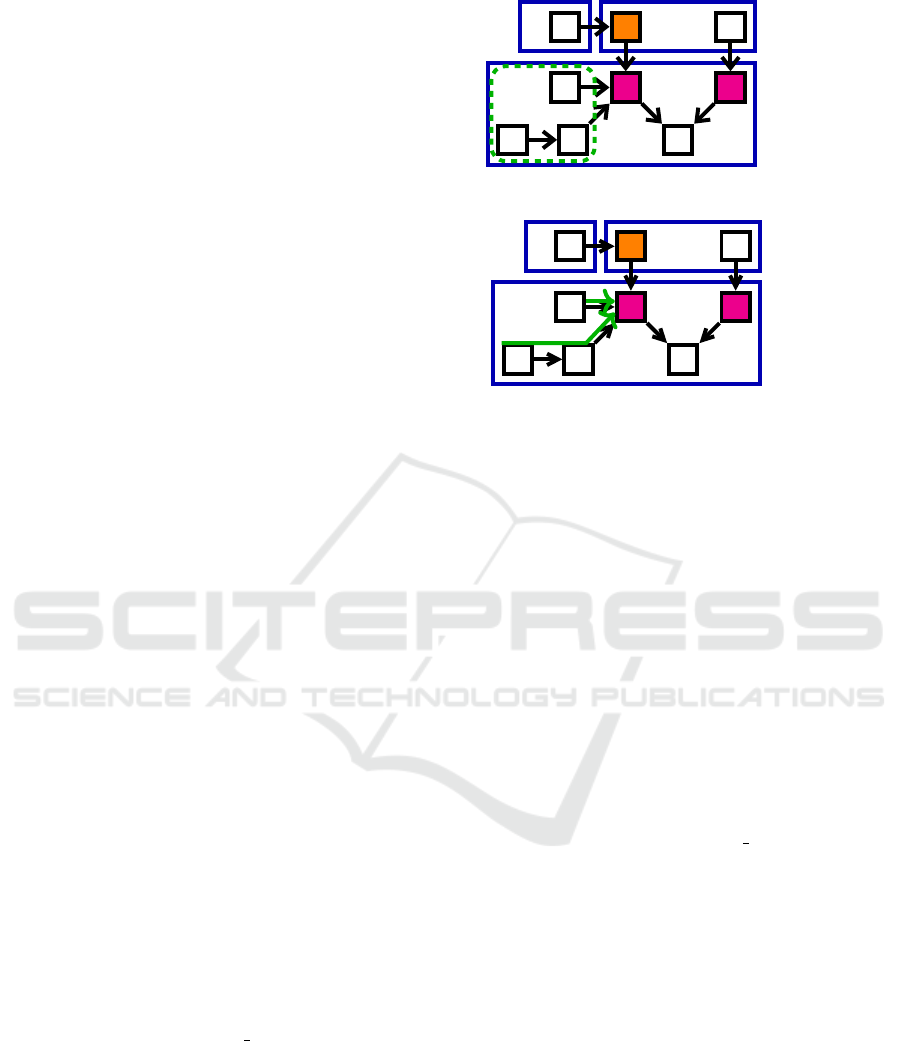

Figure 3: Illustration of the #epp (b) metric.

paths to v

epd (q) = 0

epd (v) = 2

epd (w) = 0

Figure 4: Illustration of the epd (b) metric.

three components, when only considering the as-

sembly connectors within c3, the composite of v.

We derive a score from #epp (b), e.g.:

s#epp(b) = (1 + #epp (c))

−α

where α > 0

4.2.3 Entry Point Depth in Composite

Like stated in section 4.2.2, the CWE and NIST con-

trols recommend the layered architecture. To reﬂect

this, we reﬁne #epp by considering the depth of the

entry point, i.e., the maximum length of the shortest

paths from the predecessors to the entry point.

Let c ∈ P and b ∈ ep(c) be an entry point of c. The

metric evaluates the shortest path from any predeces-

sor p of b within c to b, and returns the maximum

length among these shortest paths:

epd (b) = max

(

len



shortest path

C(b)

(p, b)



| C (p) = C (b)

)

In Figure 4, v has three predecessors in its en-

closing composite c3. The shortest path from s to

v contains one edge; the one from t to v contains two

edges; and the shortest path from u to v contains one

edge. So, the computed depth of v in c3 is 2.

Similarly to #epp, we derive a score, e.g.:

sepd (b) = (1 + epd (c))

−α

where α > 0

4.3 From Raw Local Metrics to

Architecture-Wise Metrics

As presented in section 4.2, the #ep/c metric and its

derived score are local to a composite component; the

#epp and epd metrics and their derived scores are lo-

cal to a primitive component (which is expected to

Model-Based Assessment of Conformance to Acknowledged Security-Related Software Architecture Good Practices

121

v ws

#lc = 1

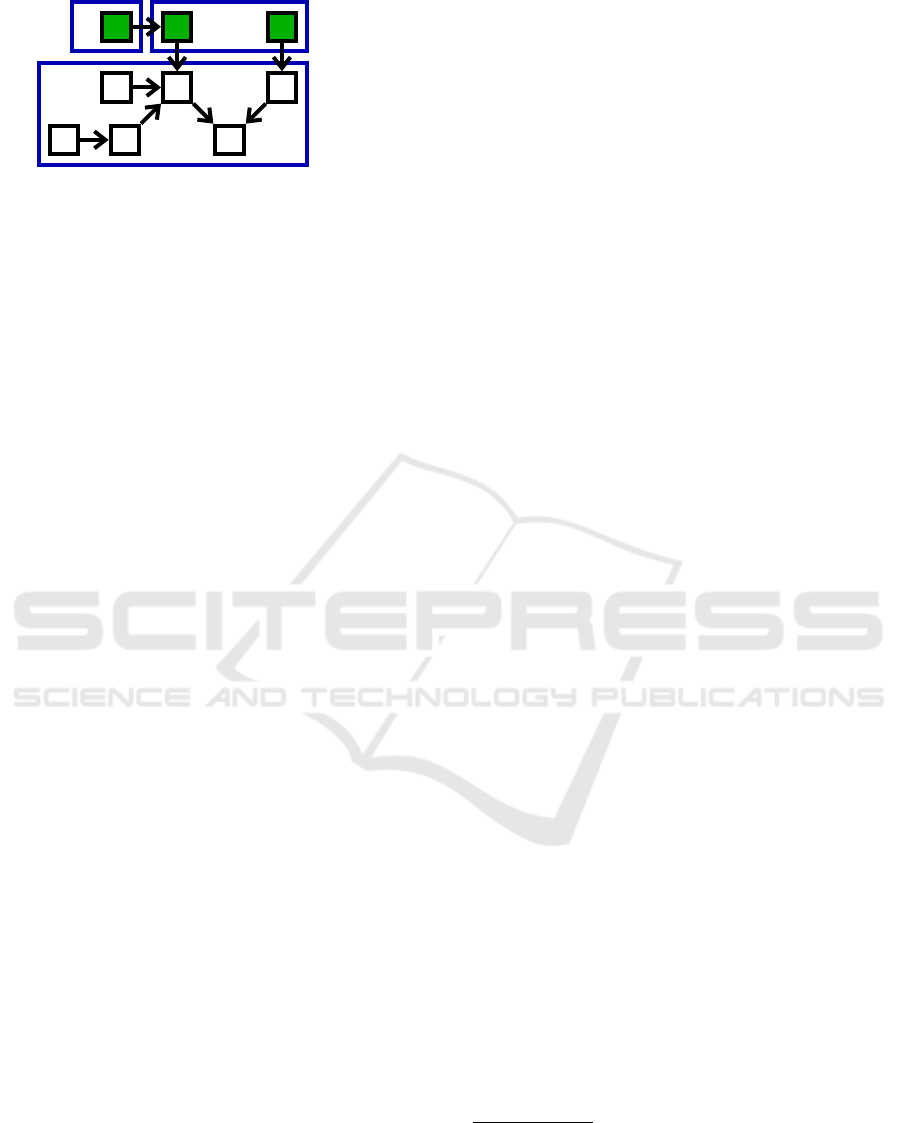

Figure 5: Illustration of the #lc metric.

be the entry point of a composite component). The

question arises how to lift the metrics and scores up

to the enclosing composite, then up to the composite

that models the whole software architecture.

The principle SA-8(9) trusted components (NIST,

2020) advocates that the least trustworthy compo-

nent in a composite gives the trustworthiness score

to the composite. (Casola et al., 2020; Rak, 2017)

proposed composition rules based on conjunctions,

which boils down to the same principle of the least

trustworthy component. (Gennari and Garlan, 2012;

Manadhata and Wing, 2011) proposed to sum or av-

erage. We choose to use summarizing statistics (min-

imum, mean and maximum), and we leave the inter-

pretation to the architect.

4.4 Number of Leaf Composites

The principle SC-7(13) of isolation of security tools,

mechanisms, and support components aims at pre-

venting an adversary to gain information on the se-

curity tools. Concretely, log collection for audit

purpose, security operation centers for supervision,

and other security-related functions should use a dis-

tinct infrastructure (communication channels, stor-

age) than the one of the application. These infras-

tructure elements appear in the architecture as addi-

tional composites, which do not depend on the ones

involved in the functional services. For instance, the

architecture may contain one database for the func-

tional services, another database for the log storage,

and yet another one for the access control data. The

mutual isolation of these storage components appear

as each of them being leaves in the architecture. So,

the number of leaf composites should not be low.

l p(c) =

{

a | a ∈ c ∧ ∃b,a → b ∈ E ∧ b /∈ c

}

lc =

{

c | l p (c) =

}

#lc = |lc|

Given c ∈ P , a composite, its leave points l p(c)

are its inner components a that depend on some com-

ponent b outside of c. A composite c is a leaf com-

posite if it has no leave point. The metric value is the

cardinal of the set lc of leaf composites.

In Figure 5, p is a leave point of c1, and q and r

are leave points of c2. On the other hand, c3 has no

leave point component. So, the set of leaf composites

{

}

. In this architecture #lc = 1.

The score encodes the higher the better, e.g.:

s#lc = 1 − (1 + #lc)

−α

where α > 0

5 EVALUATION

We extended the Eclipse Papyrus

modeling work-

bench. Applied to a component in a UML compos-

ite structure diagram, our new compute metrics com-

mand loads the underlying model elements from the

XMI ﬁles, builds the simpliﬁed view like presented

in section 4.1, computes the metrics and scores de-

scribed in section 4.2, 4.3 and 4.4, and reports the re-

sults to the software architect.

5.1 A Real-World Application: Xwiki

The Xwiki project

is an open-source wiki written in

Java and deployed in any compliant Servlet container.

To obtain its architecture, we ﬁrst checked out the

623 kLOC in 8375 Java source ﬁles at the 15.4 tag

from its GitHub repositories

and we compiled it in

its bare proﬁle. After reconstructing the UML class

diagram (8853 classes and interfaces, and 10634 as-

sociations of interest) by using the ASM library

, we

recovered the primitive components in UML compo-

nent diagrams. In addition to the servlets, we relied

on the JSR-330 (javax.inject) annotations, along

with few Xwiki-speciﬁc annotations. Our tool found

2405 primitives. To simplify, we interchanged a com-

ponent and its instances; or, equivalently, we abu-

sively assumed that there is a single instance of each

component. Following the semantic of the component

framework, connectors were generated by resolving

to any component with a matching name and that pro-

vides an interface with a compatible type. In case

of ambiguity, our tool selected the component with

the most speciﬁc interface and implementation class.

But, our tool ignored the descriptors provided out of

the Java code. It resulted in 8783 connectors. Last, to

simplify, we used the 304 generated jar artifacts as

the composites.

Table 2 gives the score at the level of the architec-

ture. In Table 3, the architect focuses her/his atten-

tion on the worst composites according to a selected

ht t ps : / /w w w. e cl i p se . o rg / p apy r us/ (visited on

04/07/2023).

http://www.xwiki.org (visited on 04/07/2023).

Repositories xwiki-commons, xwiki-rendering,

and xwiki-platform in https://github.com/xwiki.

https://asm.ow2.io/ (visited on 04/07/2023).

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

122

Table 2: Scores for the architecture of Xwiki 15.4.

metric min avg max

s#ep/c 0.015 0.64 1.0

s#epp 0.007 0.73 1.0

sepd 0.083 0.76 1.0

s#lc 0.83

Table 3: Worst composites of Xwiki according to s#ep/c.

Composite/Artifact c s#ep/c (c) #ep/c (c)

platform-oldcore 0.015 70

platform-model-api 0.036 31

commons-extension-api 0.071 17

score (here s#ep/c). Regarding platform-oldcore,

the Xwiki developers acknowledge that it should be

exploded into smaller ones

. Such a change would

improve the compartmentalization (SC-2, CWE-653).

Regarding platform-model-api, the high num-

ber of entry points results from the fact that it con-

tains several variants of the same services. For

instance, it contains 7 implementations of “entity

reference serializer” that are entry points. Like

platform-oldcore, it can be split into smaller com-

posites, to avoid that all the variants have equal ac-

cess to resources, possibly violating the least privilege

principles SA-8(14) and SA-17(7).

Regarding commons-extension-api, the archi-

tect’s investigation shows that each entry point of this

composite regards speciﬁc concerns (factory, cache,

validation, repository, etc.). So, the architect decides

that commons-extension-api is ﬁne with respect to

SA-17(7) and other related guidelines, and that the

threshold u

#ep/c

(see section 4.2.1) was too low for

this case. The architect can decide not to investi-

gate additional composites, like for any other anal-

ysis (Sommerville, 2016).

Due to space limitation, we do not discuss the

other metrics. In summary, we successfully exploited

the metrics with a large real-world application.

5.2 Effects of Architecture Variations

Our third experiment aims at observing how our met-

rics behave in the face of architecture variations,

which are not expected to affect the security of the

software. To this end, we reverse-engineered the

Bitwarden application

, an open-source distributed

password manager. This application is structured into

a back-end, a database and several front-end applica-

https://github.com/xwiki/xwiki-platform/blob/xwiki

-platform-15.4/xwiki-platform-core/xwiki-platform-oldco

re/README (visited on 14/09/2023).

https://www.bitwarden.com/ (visited on 07/07/2023).

#ep/c

#epp

100

110

120

130

140

0.0

2.5

5.0

7.5

epd

requested number of composite components.

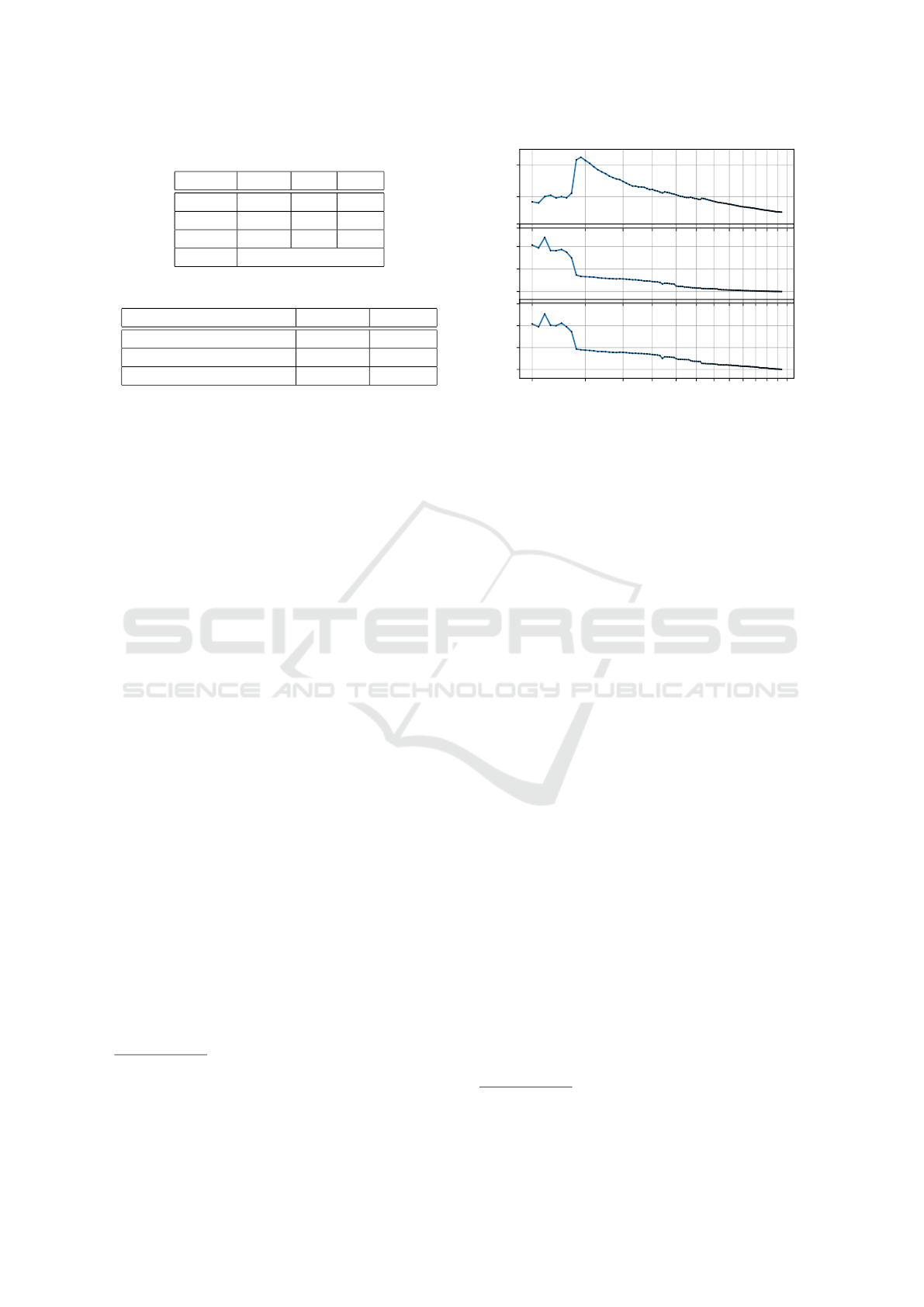

Figure 6: Evolution of the metrics when the number of com-

posites changes.

tions (web site, mobile applications and browser plug-

ins). We extracted the class diagrams of the back-

end and of the web site (1833 classes and interfaces).

Then, by looking at the patterns used in the .Net Core

dependency injection framework and its counterpart

in Angular TypeScript, we recovered the 144 prim-

itives and most of the connectors. Only the HTTP-

based connectors were recovered by hand. Last, we

recovered the composites thanks to graph clustering.

The graph clustering algorithm we used is param-

eterized by the number of expected composites: it

is the variable in this experiment. Figure 6 shows

how the value of the metrics evolves when we change

this parameter, averaged over the whole architecture.

In the 20-27 range, the clustering algorithm recog-

nizes the web site and the back-end server, even if the

boundary is approximate: the unique component im-

plementing the calls to all the back-end APIs (named

ApiService) is put in the back-end, instead of the

web site. The low variations of the metrics in this

range are explained by the fact that, in the 20-27

range, the additional composites created by the clus-

tering algorithm contain only few primitives

. Such

composites have little effect on the averaged metrics

nor on the supporting guidelines.

At 28 composites, the clustering algorithm moves

ApiService from the back-end to the web site (like

in the actual source code). This change greatly in-

creases the number of entry points (one entry point

per API component, instead of a single one), which

appears in the #ep/c curve in Figure 6. This change

effectively improves conformance with, e.g., the prin-

ciples SC-2 separation of system and user functional-

ities and SA-17(7) structure for least privilege.

The explanation of this behavior of the clustering al-

gorithm is irrelevant according to the topic of this paper.

Model-Based Assessment of Conformance to Acknowledged Security-Related Software Architecture Good Practices

123

Beyond 28 composites, the regular decrease is ex-

plained by the fact that, as the requested number of

composites increases, their size decreases until even-

tually each composite contains exactly one primitive.

Our metrics are irrelevant in such a case, which boils

down until you have no composite.

6 CONCLUSION

In this paper, we contribute to address the challenge of

providing the software architect with means to evalu-

ate whether an architecture will yield a secure sys-

tem, without exploitable vulnerabilities. We do so by

proposing metrics rooted in acknowledged guidelines.

This last point is one novelty of our work in compar-

ison to related works. In the end, it appears that the

metrics we propose are different from the ones previ-

ously proposed in the related works. Our focus on the

patterns, guidelines and smells ensures a direct link to

security concerns and intrinsically pinpoints sugges-

tions for improving the architecture, complementing

other previously existing metrics.

We used Xwiki, a large open-source application,

to ensure that an architect can use our metrics to

identify potential security-related weaknesses and im-

provements in her/his architecture, by referring to

the supporting guidelines. Using Bitwarden, another

open-source application, we showed that our metrics

behave well when the architect modiﬁes the architec-

ture composites.

The main threat to validity is the fact that, in our

experiments, we played the role of the architect. We

need to setup a controlled experiment with engineers

to conﬁrm our results. Besides, our reverse engineer-

ing process for Xwiki and Bitwarden is approximate.

Still, our observations and conclusions are drawn on

the recovered architectures, not on the real applica-

tions. Although we believe that, therefore, this limita-

tion of our experiments does not threaten the validity

of our conclusions, it does emphasize that our work

assumes that the architecture model is available.

In this paper, metrics focus on components, and

more speciﬁcally composites, which are well suited

to study isolation, compartmentalization, and separa-

tion of functions. In our future work, we plan to fo-

cus on connectors to provide additional metrics. Our

intuition is that metrics on connectors would empha-

size aspects related to redundancy of communication

paths, and therefore availability, resilience and denial

of service prevention.

REFERENCES

Alshammari, B., Fidge, C., and Corney, D. (2009). Security

Metrics for Object-Oriented Class Designs. In Ninth

International Conference on Quality Software.

Casola, V., De Benedictis, A., Rak, M., and Villano, U.

(2020). A novel Security-by-Design methodology:

Modeling and assessing security by SLAs with a

quantitative approach. Journal of Systems and Soft-

ware, 163.

Du, X., Chen, B., Li, Y., Guo, J., Zhou, Y., Liu, Y., and

Jiang, Y. (2019). Leopard: identifying vulnerable

code for vulnerability assessment through program

metrics. In Proceedings of the 41st International Con-

ference on Software Engineering. IEEE Press.

Fernandez-Buglioni, E. (2013). Security Patterns in Prac-

tice: Designing Secure Architectures Using Software

Patterns. Wiley.

Gennari, J. and Garlan, D. (2012). Measuring Attack

Surface in Software Architecture. Technical Report

CMU-ISR-11-121, Carnegie Mellon University.

Herley, C. and van Oorschot, P. C. (2018). Science of Se-

curity: Combining theory and measurement to reﬂect

the observable. IEEE Security & Privacy, 16(1).

urjens, J. (2002). UMLsec: Extending UML for Secure

Systems Development. In UML — The Uniﬁed Mod-

eling Language, LNCS. Springer.

Manadhata, P. K. and Wing, J. M. (2011). An Attack Sur-

face Metric. IEEE Transactions on Software Engi-

neering, 37(3).

NIST (2020). Security and Privacy Controls for Information

Systems and Organizations.

Rak, M. (2017). Security Assurance of (Multi-)Cloud Ap-

plication with Security SLA Composition. In Green,

Pervasive, and Cloud Computing, LNCS. Springer.

Siavvas, M., Kehagias, D., Tzovaras, D., and Gelenbe, E.

(2021). A hierarchical model for quantifying software

security based on static analysis alerts and software

metrics. Software Quality Journal, 29(2).

Skandylas, C., Khakpour, N., and C

amara, J. (2022). Secu-

rity Countermeasure Selection for Component-Based

Software-Intensive Systems. In IEEE 22nd Interna-

tional Conference on Software Quality, Reliability and

Security (QRS).

Sommerville, I. (2016). Software Engineering. Pearson,

10th edition edition.

Wagner, S., Goeb, A., Heinemann, L., Kl

as, M., Lampa-

sona, C., Lochmann, K., Mayr, A., Pl

osch, R., Seidl,

A., Streit, J., and Trendowicz, A. (2015). Oper-

ationalised product quality models and assessment:

The Quamoco approach. Information and Software

Technology, 62.

Waidner, M., Backes, M., and M

uller-Quade, J. (2014). De-

velopment of Secure Software with Security By De-

sign. Technical Report SIT-TR-2014-03, Fraunhofer

Institute for Secure Information Technology.

Yskout, K., Scandariato, R., and Joosen, W. (2015). Do

security patterns really help designers? In Proceed-

ings of the 37th International Conference on Software

Engineering - Volume 1. IEEE Press.

MODELSWARD 2024 - 12th International Conference on Model-Based Software and Systems Engineering

124
